description

technical data

Type

ratings

R25A

R26A

R35A

R36A

reset

automatic

manual

contact version

normally closed

VDE

rated current at 250V AC

10 A

16 A

switching cycles

100,000

30,000

10,000

max. temperature range T

(steps in 5 K)

0°C ... 150°C

0°C ... 210°C

45°C ... 150°C

45°C ... 180°C

rated current at 250V AC

16 A

10 A

switching cycles

6,000

100,000

6,000

max. temperature range T

(steps in 5 K)

0°C ... 160°C

0°C ... 230°C

45°C ... 150°C

45°C ... 180°C

tolerance

+ 3 K (< 130°C)
+ 5 K (< 210°C)

+ 3 K (45°C ... 95°C)
+ 4 K (96°C ... 150°C)

feature of automatic action

1.C

2.B

1.B

contact resistance

< 30 m

hysteresis

0°C ... 130°C 10K

131°C ... 159°C 15K
160°C ... 190°C 15K
191°C ... 230°C 15K

10K +5 K
15K +5 K
15K +7 K

15K +10 K

- - -

suitable for use in protection class

I, II

approvals VDE

CQC

EN60730-1 / -2-9

UL60730-1, UL60730-2-9, UL873, CAN/CSA-E60730-1, CAN/CSA-E730-2-2 / -2-9

GB14536.1 /
GB14536.10

- - -

The

R2/R3

temperature switches are very reliable bimetal

technology components, offering a long life time.The
normally closed contacts open when reaching the pre-
defined temperature by snapping of a bimetal disc.
Temperature setting is defined through conditioning
(aging, stamping, ...) of the disc. After a corresponding
cooling down, the bimetal disc snaps back to the original
position and closes the current circuit again (R2-series)
or remains in open position until manually resetted (R3-
series). These R-types are perfect

surface mount compo-

nents,

offering high temperature sensibility and can be

used in a wide range of white goods, automotive techno-
logy, mechanical engineering, kitchen appliances.

Characteristics:

•

ceramic housing for high temperatures available

•

small tolerances of 3 K possible

•

various caps available

•

terminals in various dimensions and

bending angles

•

short switching and contact bounce

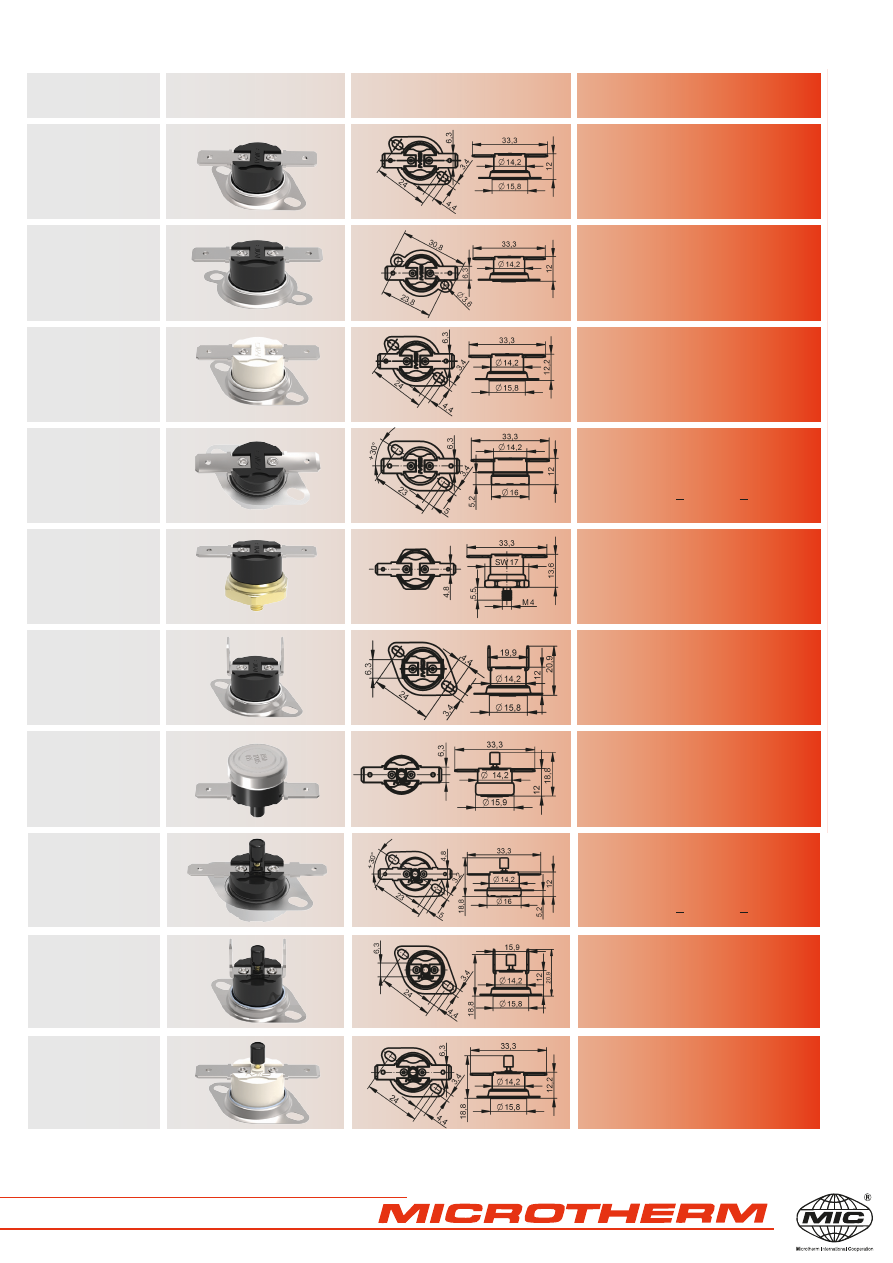

various types

code

illustration

drawing

dimension ( mm )

technical

description

R25A

121 B14 H131

terminals 6.3 x 0.8 mm,

aluminium cap,

standard bracket (loose)

R25A

121 B14 H211

terminals 6.3 x 0.8 mm,

aluminium cap,

small bracket (loose)

R26A

121 B14 H131

ceramic switch,

terminals 6.3 x 0.8 mm,

aluminium cap,

standard bracket (loose)

R25A

121 A211

terminals 6.3 x 0.8 mm,

fixed, raised bracket in aluminium,

fixed at +30° resp. +45°

R25A

321 D43

terminals 4.8 x 0.8 mm,

screwed connections M4 x 5.5 mm,

brass

R25A

111 B14 H131

bent terminals 6.3 x 0.8 mm,

aluminium cap,

standard bracket (loose)

R35A

121 B34

manual reset,

terminals 6.3 x 0.8 mm,

steel cup for low temperatures

R35A

321 A211

manual reset,

terminals 4.8 x 0.8 mm,

fixed, raised bracket in aluminium,

fixed at +30° resp. +45°

R35A

111 B14 H131

manual reset,

bent terminals 6.3 x 0.8 mm,

aluminium cap,

standard bracket (loose)

R36A

121 B14 H131

manual reset,

ceramic housing,

terminals 6.3 x 0.8 mm,

aluminium cap,

standard bracket (loose)

Please contact us for the combination of various executions with regard to terminals and fixations.

06.2016/HB Technical subject to change without notice

Microtherm GmbH

Taeschenwaldstrasse 3

75181 Pforzheim, Germany

or P.O.Box:

PO Box 1208

75112 Pforzheim, Germany

ordering and marking example

Ordering example

R25 A 120 03 121 B14 H131

terminal / cap / fixing
tolerance
temperature
type of contact
Microtherm type

Marking example

R25A

tye R25 normally closed (UL, CQC, VDE)

12005

response temperature (120°C), tolerance (± 5K)

056

date of manufacture (May 2016)

or:

R25A

type R25 normally closed (VDE, UL, CQC)

--123

drawing number (range 001 to 999)

066

date of manufacture (June 2016)

RoHS

compliant

product
