S
SSW1
Thermal
cut-off
Applications
- Household appliances
- Electronic appliances
- Engineering
- Fan heaters
- Transformers
- Automotive industry
Benefits
- Small compact design
- Broad product line
- Cut-off temperatures up to 240°C
S
SSW1
Thermal
cut-off
Applications
- Household appliances
- Electronic appliances
- Engineering
- Fan heaters
- Transformers
- Automotive industry
Benefits
- Small compact design
- Broad product line
- Cut-off temperatures up to 240°C

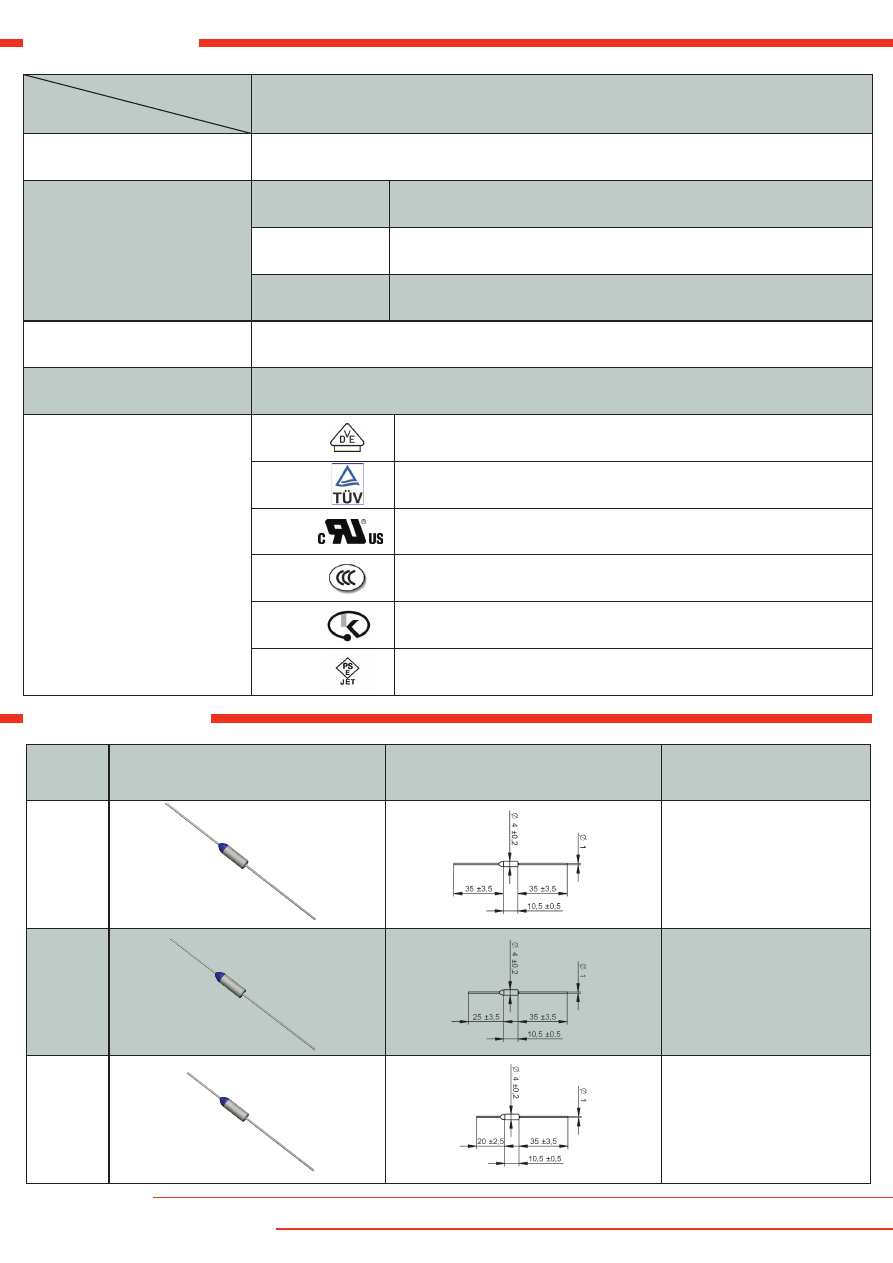

technical data
cut-off type
ratings
SSW1-series
function
non resetting, thermally sensitive, single pole, normally closed
rated voltage, rated current
at 50 / 60 Hz
UL, cUL, VDE,
TUV, PSE, CCC, EK
250V 10A
VDE, EK
250V 15A
UL, cUL
125V 15A*
for SW-109T,152T, 106T, 153T, 108T,110T, 111T, 114T, 139T, 128T only
transient overload test current
DC current pulses, in amplitude 150A and a duration of 3ms with 10s intervals,
are applied for 100 successive cycles through the current path
guidelines and norms
RoHS-conformity, REACH-conformity
production according to the European Directives 2011/65/EU
approvals
VDE
No. 40026132 (Germany)
TÜV
No. R 9937251 and R 9937533 (Germany)
UL/cUL
No. E126429 (USA)
CCC
No. 2003010205038994 (China)
EK
No. HC05001-7053A (Korea)
PSE
No. JD 60010713 and JD 60010743 (Japan)
standard types
type
illustration
drawing
dimensions ( mm )
technical
specification
35-35
long
80.5
±
7.5 x Ø 4.0
±
0.2 mm
Leads Ø 1.0 mm, AWG 18
25-35
medium
70.5
±
7.5 x Ø 4.0
±
0.2 mm
Leads Ø 1.0 mm, AWG 18
20-35
short
65.5
±
6.5 x Ø 4.0
±
0.2 mm
Leads Ø 1.0 mm, AWG 18
temperature ratings
SSW1-
series
T
f
tolerance
T
h
T
m
EK
UL
cUL
VDE
TÜV
CCC
PSE
SW-102T
72°C
- 4 K
47°C
200°C
•
•
•
•
•
•
•
SW-105T
77°C
- 4 K
52°C
200°C
•
•
•
•
•
•
•
SW-109T*
84°C
- 5 K
57°C
180°C
•
•
•
•
•
•
•
SW-152T*
90°C
- 4 K
65°C
180°C
•
•
•
•
applied
•
•
SW-106T*
91°C
- 4 K
66°C
180°C
•
•
•
•
applied
•
•
SW-153T*
93°C
- 5 K
68°C
180°C
•
•
•
•
applied
•
•
SW-104T
98°C
- 4 K
73°C
190°C
•
•
•
•
•
•
•
SW-108T*
100°C
- 5 K
75°C
190°C
•
•
•
•
•
•
•
SW-110T*
109°C
- 5 K
84°C
190°C
•
•
•
•
•
•
•
SW-111T*
121°C
- 4 K
94°C
200°C
•
•
•
•
•
•
•
SW-115T
126°C
- 4 K
100°C
200°C
•
•
•
•
•
•
SW-129T
128°C
- 5 K
103°C
200°C
•
•
•
•
•
•
•
SW-114T*
139°C
- 4 K
114°C
200°C
•
•
•
•
•
•
•
SW-138T
144°C
- 5 K
119°C
260°C
•
•
•
•
•
•
•
SW-116T
152°C
- 4 K
127°C
270°C
•
•
•
•
•
•
•
SW-120T
167°C
- 4 K
144°C
280°C
•
•
•
•
•
•
•
SW-118T
169°C
- 4 K
144°C
280°C
•
•
SW-127T
184°C
- 6 K
159°C
220°C
•
•
•
•
•
•
•
SW-122T
192°C
- 7 K
162°C
300°C
•
•
SW-125T
195°C
- 6 K
165°C
300°C
•
•
•
•
•
•
•
SW-139T*
216°C
- 6 K
178°C
370°C**
•
•
•
•
•
•
•
SW-124T
228°C
- 6 K
187°C
370°C
•
•
•
•
•
•
•
SW-128T*
240°C
- 6 K
193°C
370°C**
•
•
•
•
•
•
•
*125V 15A (UL, C-UL) for SW-109T,152T, 106T, 153T, 108T,110T, 111T, 114T, 139T, 128T only
•
= approved
** Tm of SW-128T & 139T, approved by UL, 370°C
Rated functioning temperature
(T
f
)
The temperature at which a thermal cut off (TCO) changes its state of conductivity to open circuit with
detection current as the only load. The tolerance according to UL 1020 is +0 / -10°C
Holding temperature (T
h
)
The maximum temperature at which a thermal cut off can be maintained while conducting rated current for
168 hours which will not cause a change in state of conductivity to open circuit.
Max. overshoot temperature (T
m
)
Above this temperature the thermal cut off might conduct again
Rated current
The maximum current which the thermal cut off is able to carry for a specified time at T
c
without alteration
of its functioning temperature
10.2013/hb Technicals subject to change without notice.
Fon: +49 (0)7231 787-0
Fax : +49 (0)7231 787-155
E-Mail: info@microtherm.de
Internet: www.microtherm.de
Microtherm GmbH
Täschenwaldstraße 3
Postfach 1208
D-75112 Pforzheim
Deviations from standard controls on request
Representation office:
Ordering example
SW1 104T 35-35
length of leads:
long = 35-35
medium = 25-35
short = 20-35
version
type
Marking example
SW -
type
104T
version
250V,10A
rated voltage (V), rated current (A)
98°C
rated functioning temperature (°C)
XXX
lot code
ordering and marking examples
RoHS
compliant
product
