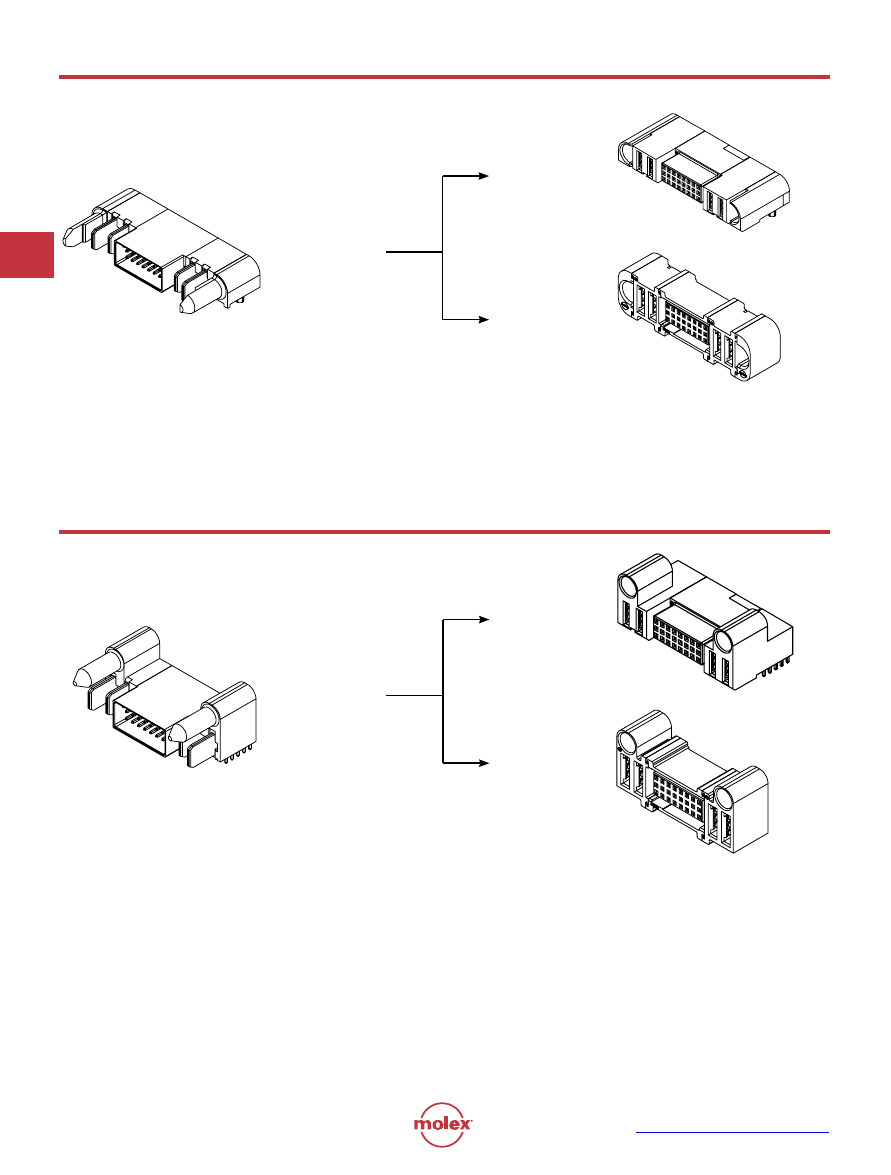

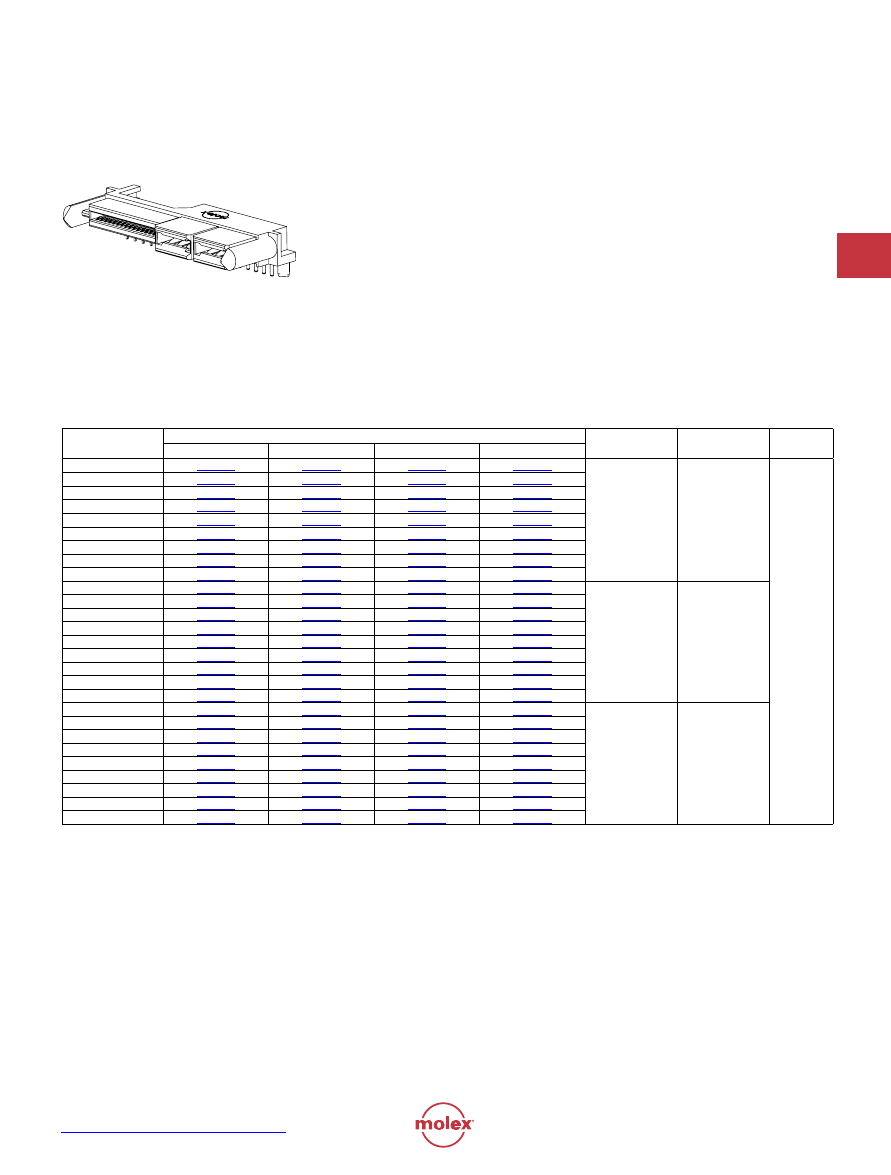

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, 4 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With: 45985 headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

E-4 MX10

Power Connectors

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

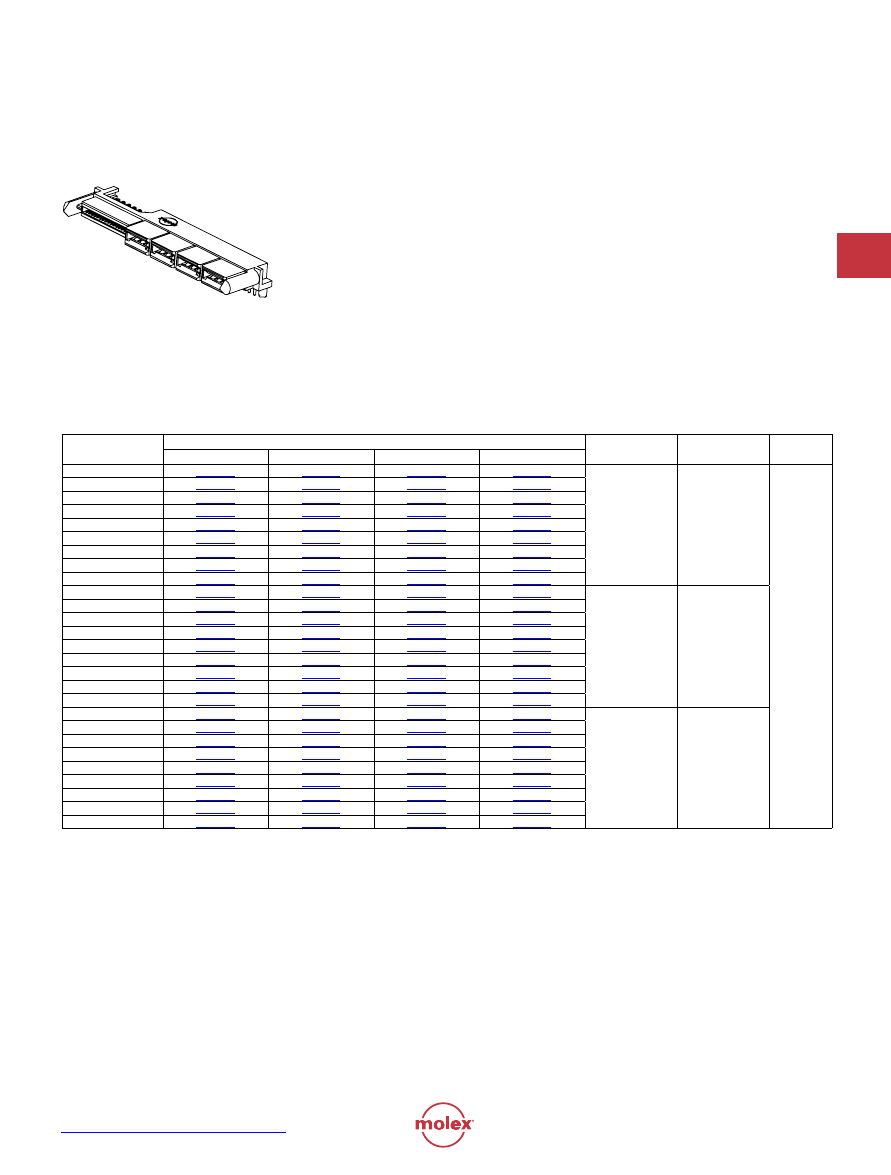

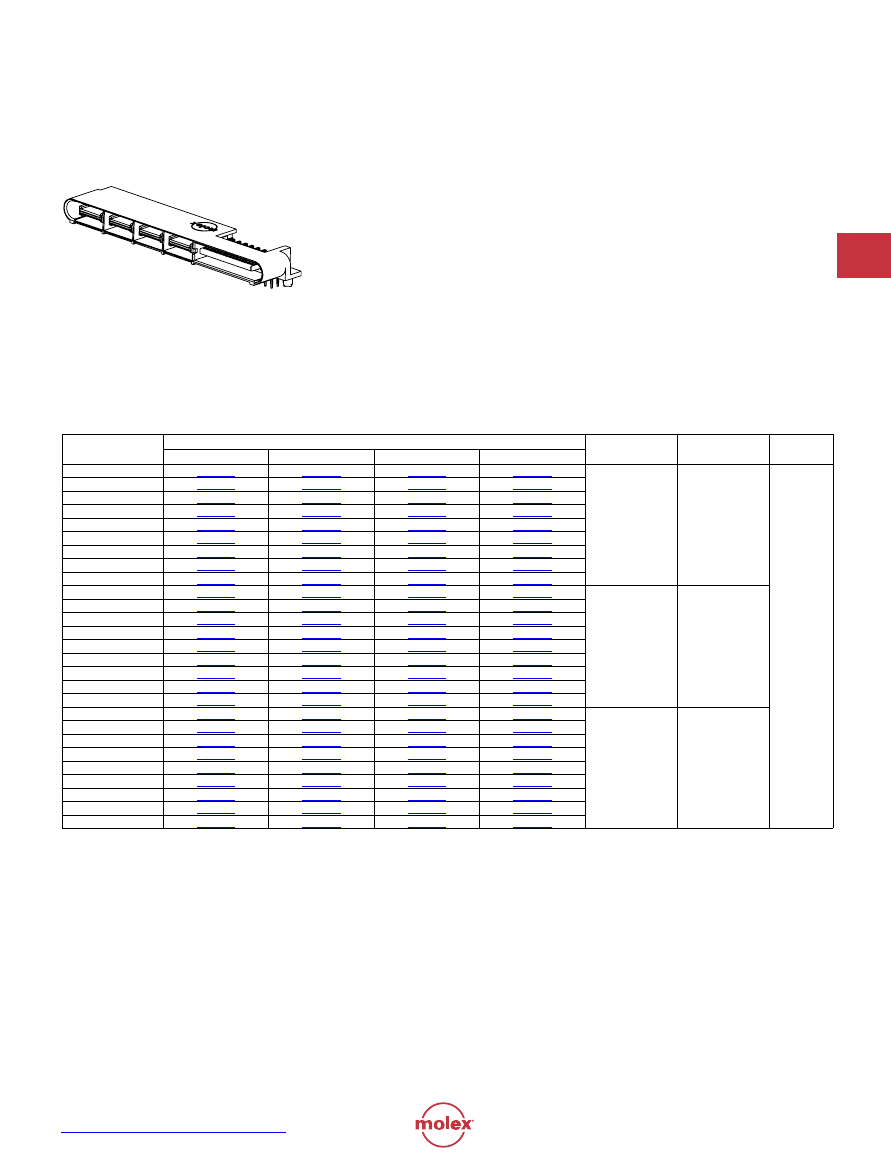

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, 6 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45985 Headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

MX10 E-5

Power Connectors

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

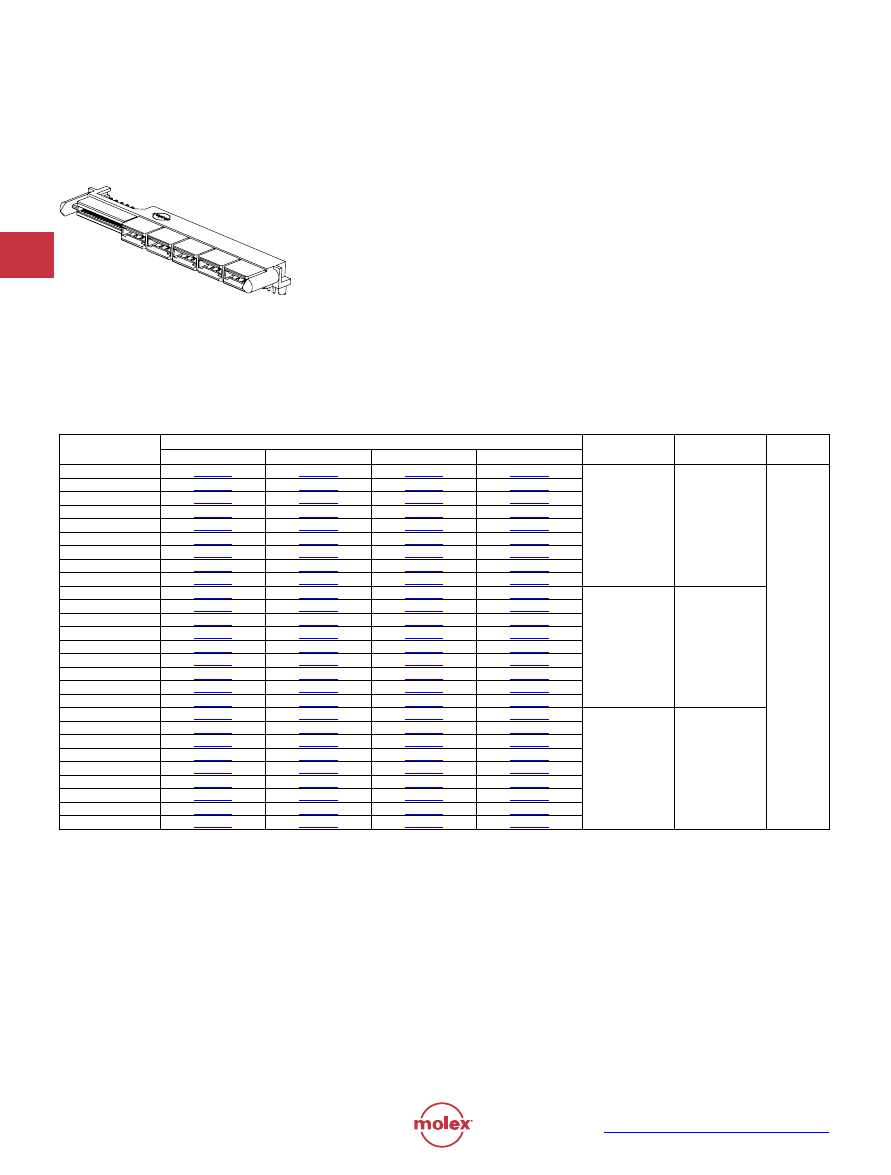

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, 8 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45985 Headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

E-6 MX10

Power Connectors

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, 10 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45985 headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

MX10 E-7

Power Connectors

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

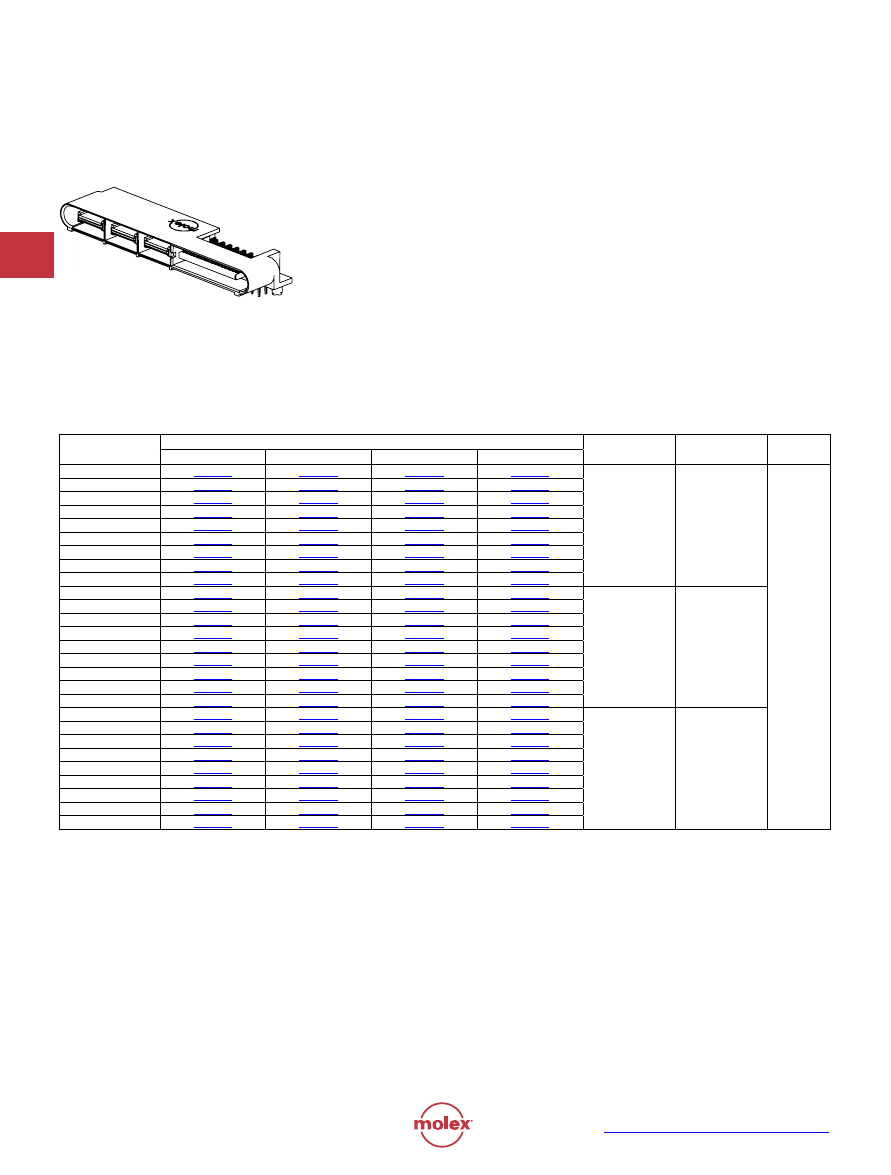

EXTreme LPHPower

™

Low Profile Hybrid

Header

45985

Right Angle, 4 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45984 receptacles

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

E-8 MX10

Power Connectors

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

EXTreme LPHPower

™

Low Profile Hybrid

Header

45985

Right Angle, 6 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45984 receptacles

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

MX10 E-9

Power Connectors

EXTreme LPHPower

™

Low Profile Hybrid

Header

45985

Right Angle, 8 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45984 receptacles

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

E-10 MX10

Power Connectors

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

EXTreme LPHPower

™

Low Profile Hybrid

Header

45985

Right Angle, 10 Power Contacts

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45984 receptacles

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

MX10 E-11

Power Connectors

/product/ext-lph.html

Power Blades

Signal Pins

Without BMI Guides With BMI Guides

Lead-free

Yes

Power Blades

Signal Pins

Without BMI Guides With BMI Guides

Lead-free

Yes

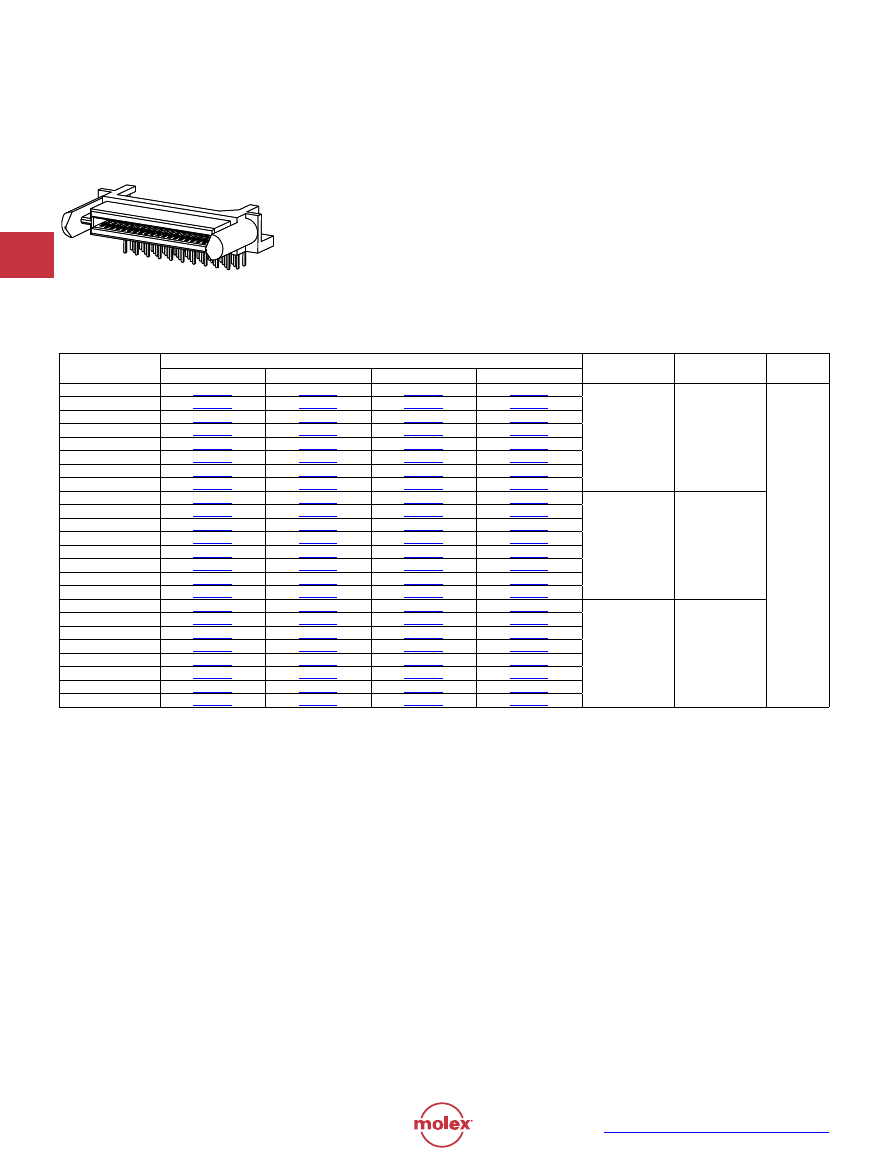

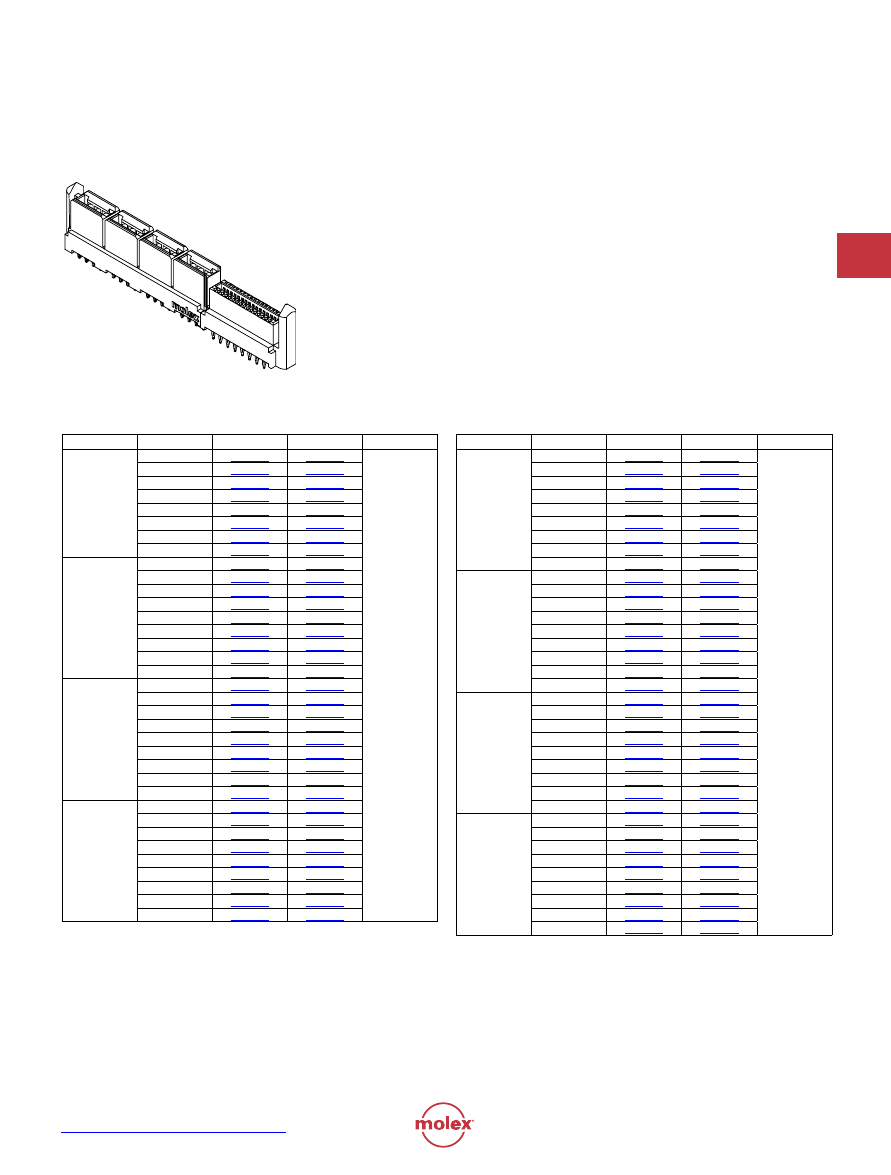

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

46112/46113/46114

Vertical, with Press Fit PCB Tails

Features and Benefits

•

Low Profile Hybrid (LPH) receptacle header combines

mixed power and signal contacts for high current,

right angle board-to-board applications

•

Horizontal contact design provides low profile height

for improved air flow

Reference Information

Product Specification: PS-46114-001

Packaging: Tube

UL File No.: E29179

Mates With: 45985 Headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—30.0A max.

Signal Contacts—1.0A max.

Current Interruption: Power—30.0A at 42VDC

Signal—1.0A at 30V

Contact Resistance: Power Contacts—0.75 milliohms max.

Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Power Contact—6.87N (1.54 lb.) Nom.

Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Power Contact—5.88N (1.32 lb.) Nom.

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin/Lead available upon request

Underplating—Nickel

E-12 MX10

Power Connectors

www.molex.com

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, Signal Only

Features and Benefits

•

Low Profile Hybrid (LPH) signal only receptacle header

is designed for coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45985 Headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Signal Contacts—1.0A max.

Current Interruption: Signal—1.0A at 30V

Contact Resistance: Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

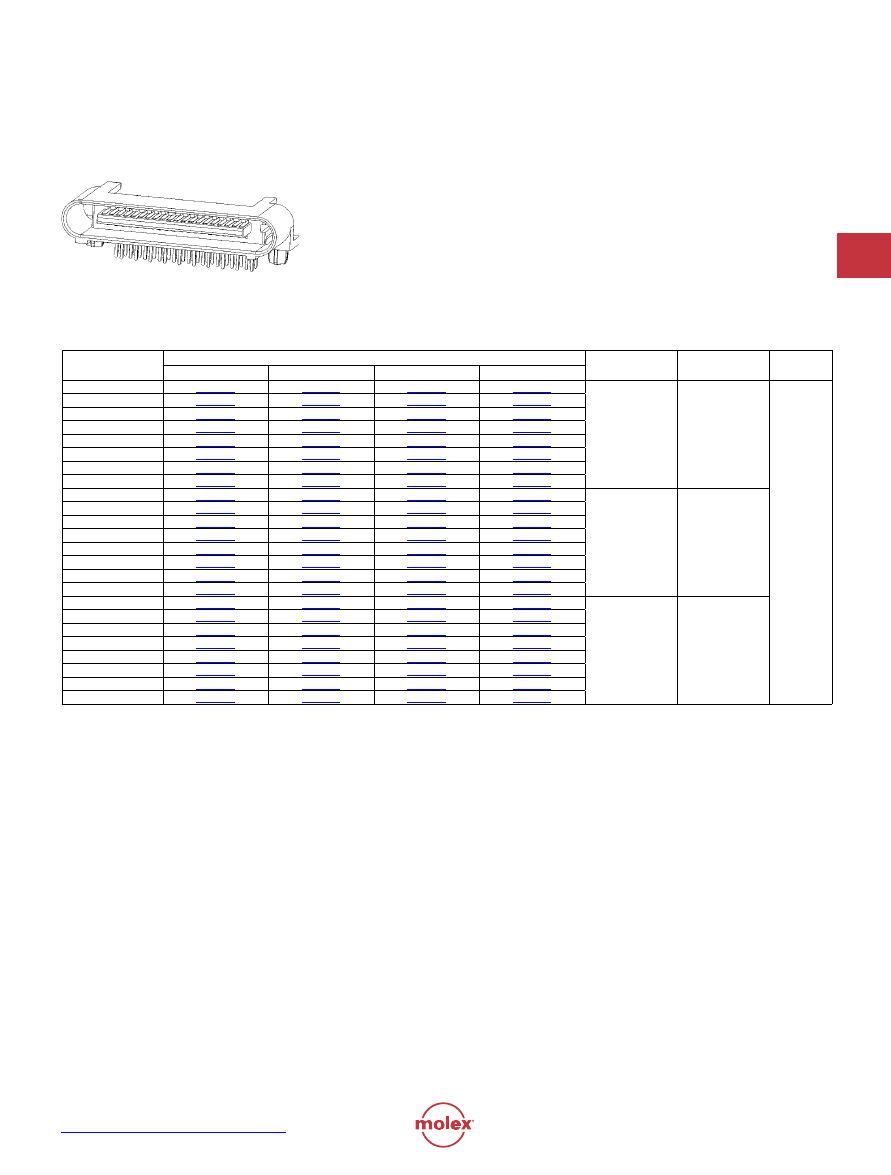

EXTreme LPHPower

™

Low Profile Hybrid

PCB Receptacle

45984

Right Angle, Signal Only

Features and Benefits

•

Low Profile Hybrid (LPH) signal only receptacle header

is designed for coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45985 Headers or 1.57mm (.062") thick

card edge

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Signal Contacts—1.0A max.

Current Interruption: Signal—1.0A at 30V

Contact Resistance: Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

MX10 E-13

Power Connectors

www.molex.com/link/ten60.html

No. of Signal Pins

Order No.

PC Tail Length

PCB Thickness

Lead-free

No PCB Pegs or BMI Guides BMI Guides, No PCB Pegs

PCB Pegs, No BMI Guides

PCB Pegs and BMI Guides

4.50mm (.177")

3.18mm (.125")

Yes

3.60mm (.143")

2.36mm (.093")

2.90mm (.114")

1.57mm (.062")

EXTreme LPHPower

™

Low Profile Hybrid

PCB Header

45984

Right Angle, Signal Only

Features and Benefits

•

Low Profile Hybrid (LPH) signal only header is designed

for coplanar, board-to-board applications

•

Horizontal contact design provides low profile height at

only 7.49mm (.295") max. for improved air flow

Reference Information

Product Specification: PS-45984-001

Packaging: Tray

UL File No.: E29179

Mates With: 45984 signal only receptacles

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Signal Contacts—1.0A max.

Current Interruption: Signal—1.0A at 30V

Contact Resistance: Signal Contacts—15 milliohms max.

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Single Signal Contact—1.08N (0.24 lb.) Nom.

Unmating Force:

Single Signal Contact—0.02N (0.03 lb.) Nom.

Durability: 250 Cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

E-14 MX10

Power Connectors

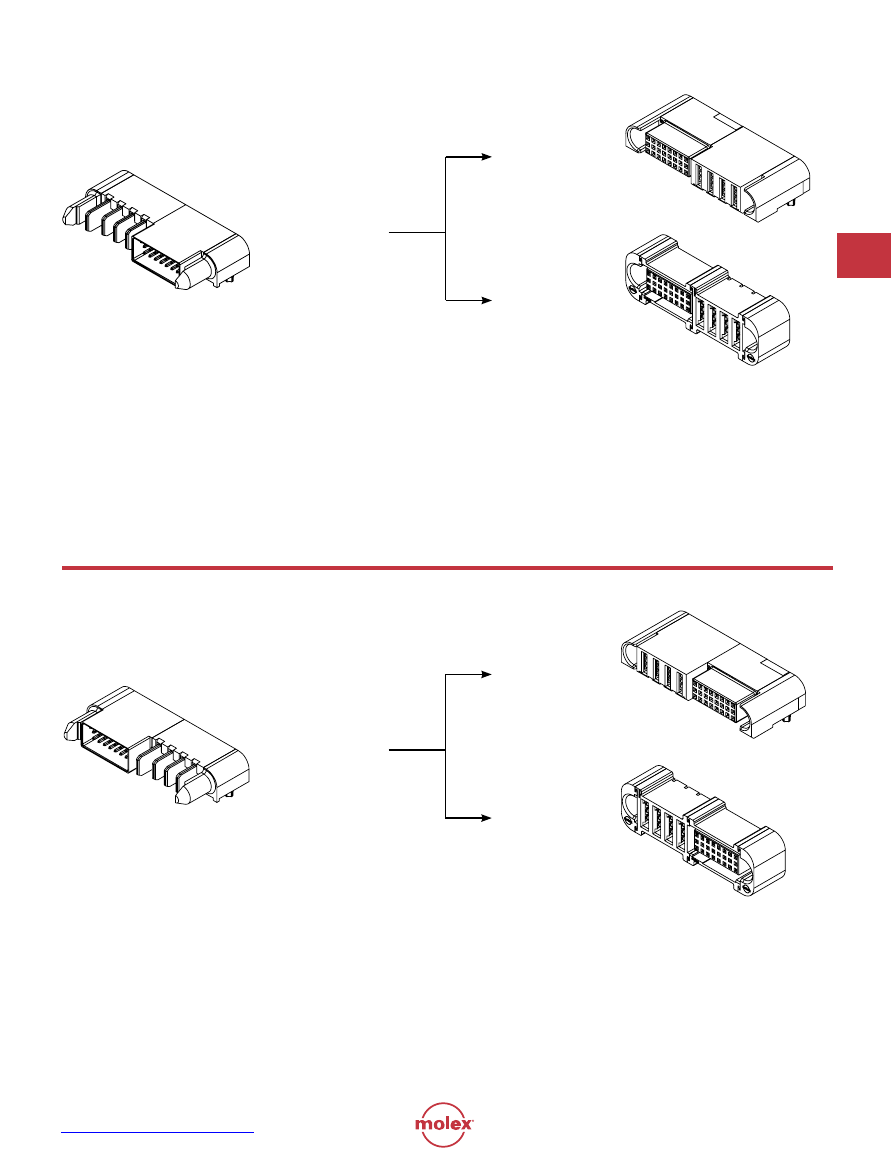

Selection Guide

Connector Orientation

- Vertical
- Right Angle

Termination Method

- Through Hole
- Press-Fit
- Power-Signal-Power (P-S-P)
- Power-Signal (P-S)

Type*

- Power-Signal (P-S)
- Power-Signal-Power (Top Guides) (P-S-P (TG))
- Power-Signal-AC Power (P-S-AC)
- AC Power-Signal-Power (AC-S-P)

Power and Signal

- Number of DC Power Blades (Example: 2 DC power blades = 2 P)
- Number of AC Power Blades (Example: 2 AC power blades = 2 AC)
- Number of Signal Pins (Example: 24 signal pins = 24 S)

Guide Post and Board

Pegs

- With Guide Post and Pegs
- Without Guide Post and Pegs

Pitch

- DC Power: 5.50mm (0.217") Pitch
- AC Power: 7.50mm (0.295") Pitch

* For additional Configurations not shown contact Molex

5.50 (DC) or 7.50mm (AC)

Pitch Power

2.54 by 2.54mm Pitch Signal

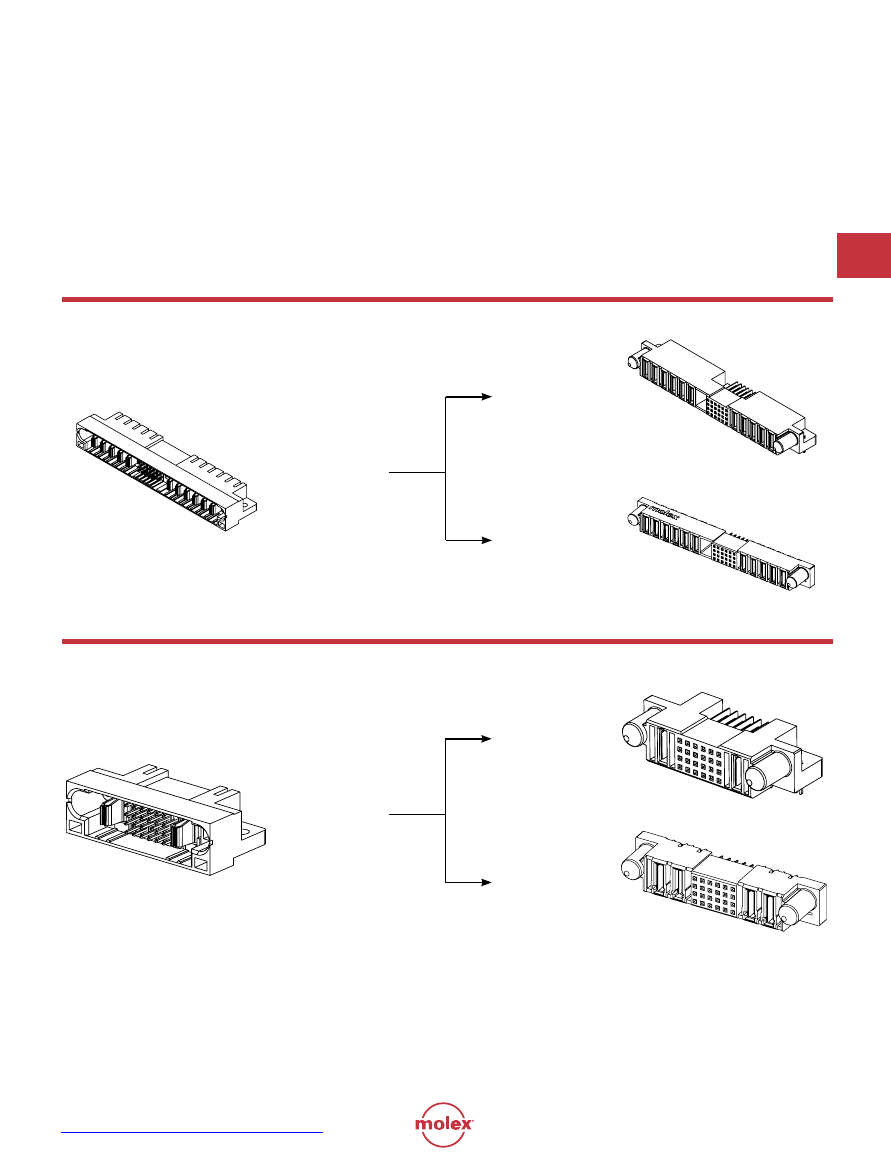

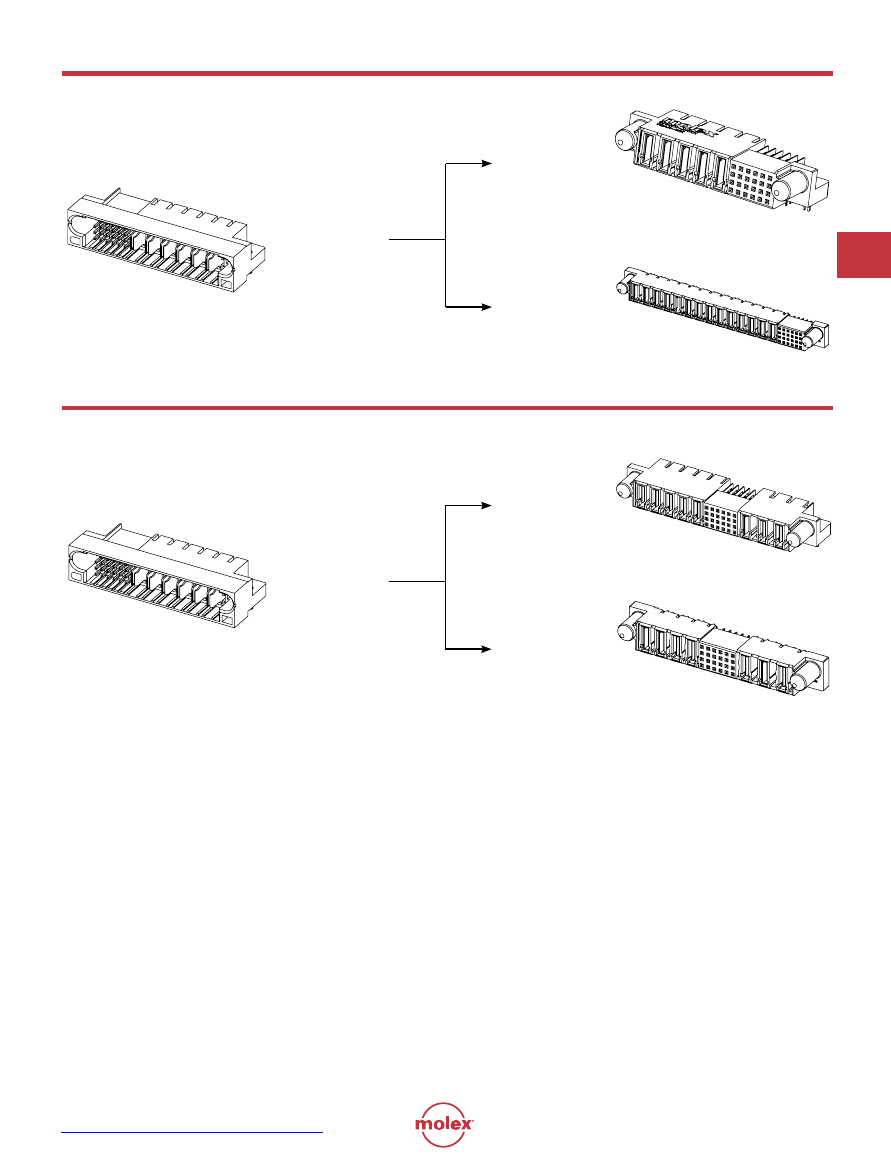

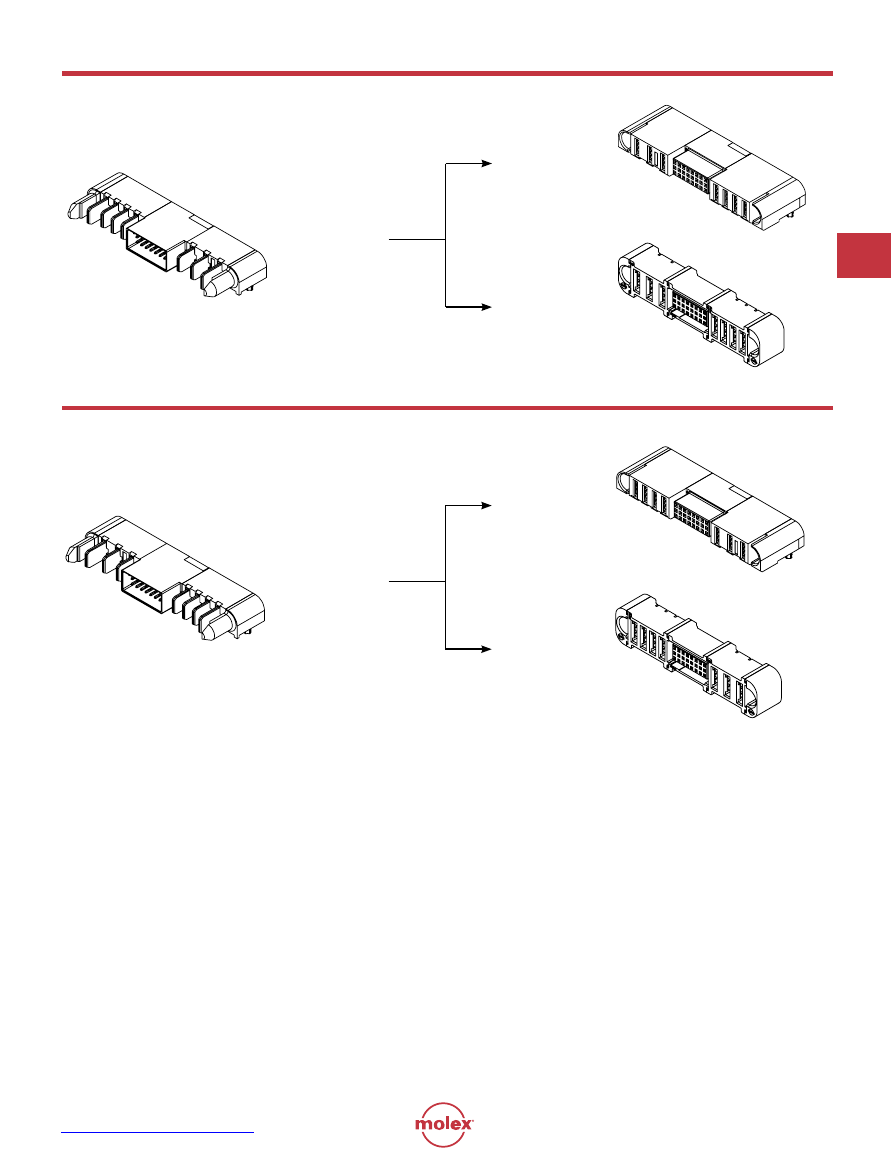

EXTreme Ten60Power

™

Board-to-Board

High Current Connector

46437

Plug

46436

Right Angle Receptacle

46562

Vertical Receptacle

Ten60 is a custom configurable connector system featuring
a module design giving it the flexibility to provide virtually
any arrangement of AC Power, DC Power, and signal lines all
with three levels of mating. Modules are available in 1-10
DC power blades, 1-6 AC Power Blades, and 6-36 Signal
Pins. Modules can be arranged in any combination.

Features and Benefits

•

Low-profile design: 10.00mm (.394") height enhances

system airflow and provides 260.0A per linear inch

•

Robust, high-current contact blades in DC and AC spacing

options provides design flexibility

•

Multiple mating levels available on power and signal

contacts for hot-plug applications

•

Module assembly allows for any configuration and

can be added to make larger circuit sizes

•

Right-angle and vertical mounting available for either

coplanar or perpendicular applications

•

RoHS compliant

Reference information

Product Specification: PS-46436-100

Packaging: Tray

UL File No.: E29179

CSA File No.: LR-19980

TUV File No.: R 72081037

Designed In: Millimeters

electrical

Voltage: Power—600V max.

Signal—250V max.

Current: Power—60.0A max.

Signal—2.5A max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force:

Power Contacts—

Vertical Receptacle: 764g (1.684 lb) max.

Right Angle Receptacle: 460g (1.014 lb) max.

Signal Contacts—75g (.165 lb)

Unmating Force:

Power Contacts—

Vertical Receptacle: 340g (.749 lb) max.

Right Angle Receptacle: 235g (.518 lb) max.

Signal Contacts—30g (.066 lb)

Durability: 100 cycles

Physical

Housing: 30% glass-filled LCP, UL 94V-0

Contact: Power Contacts—Copper Alloy

Signal Contacts—Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

E-18 MX10

Power Connectors

www.molex.com/product/power/ext-pwredge.html

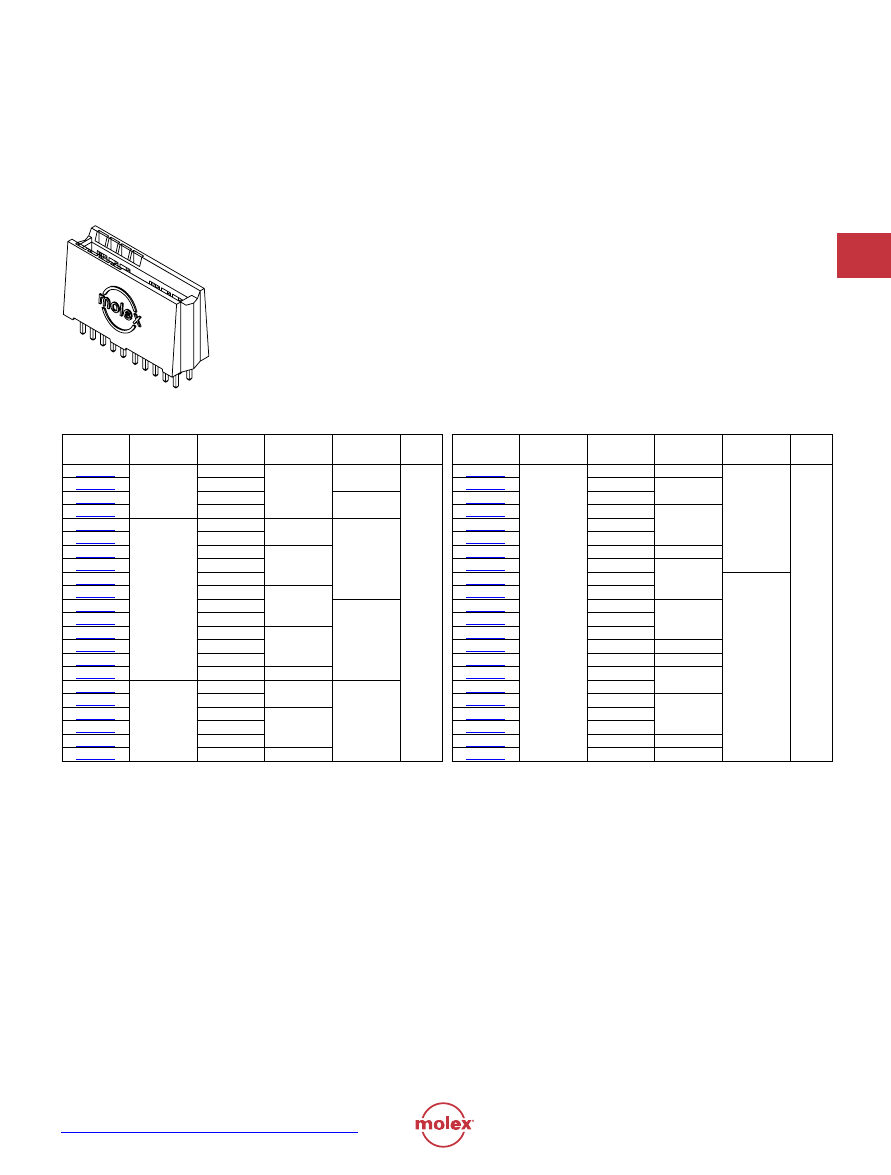

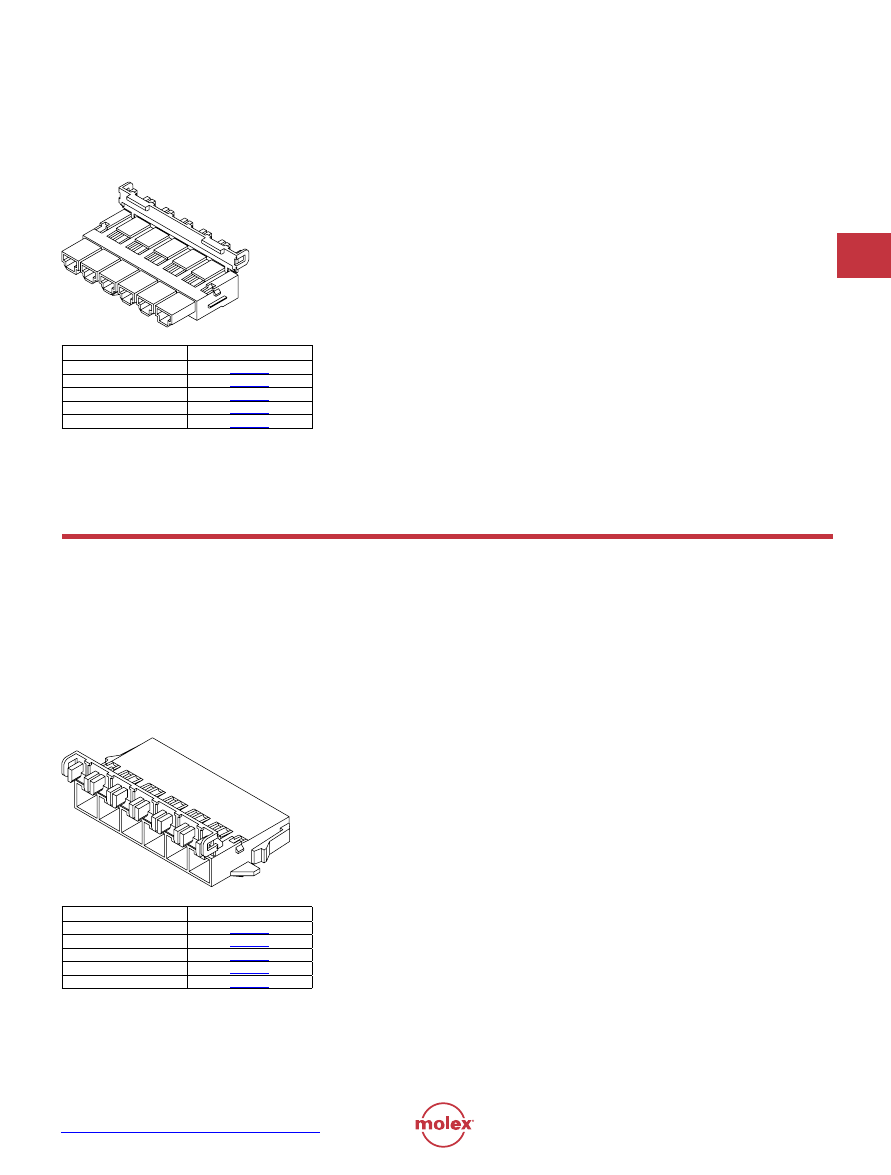

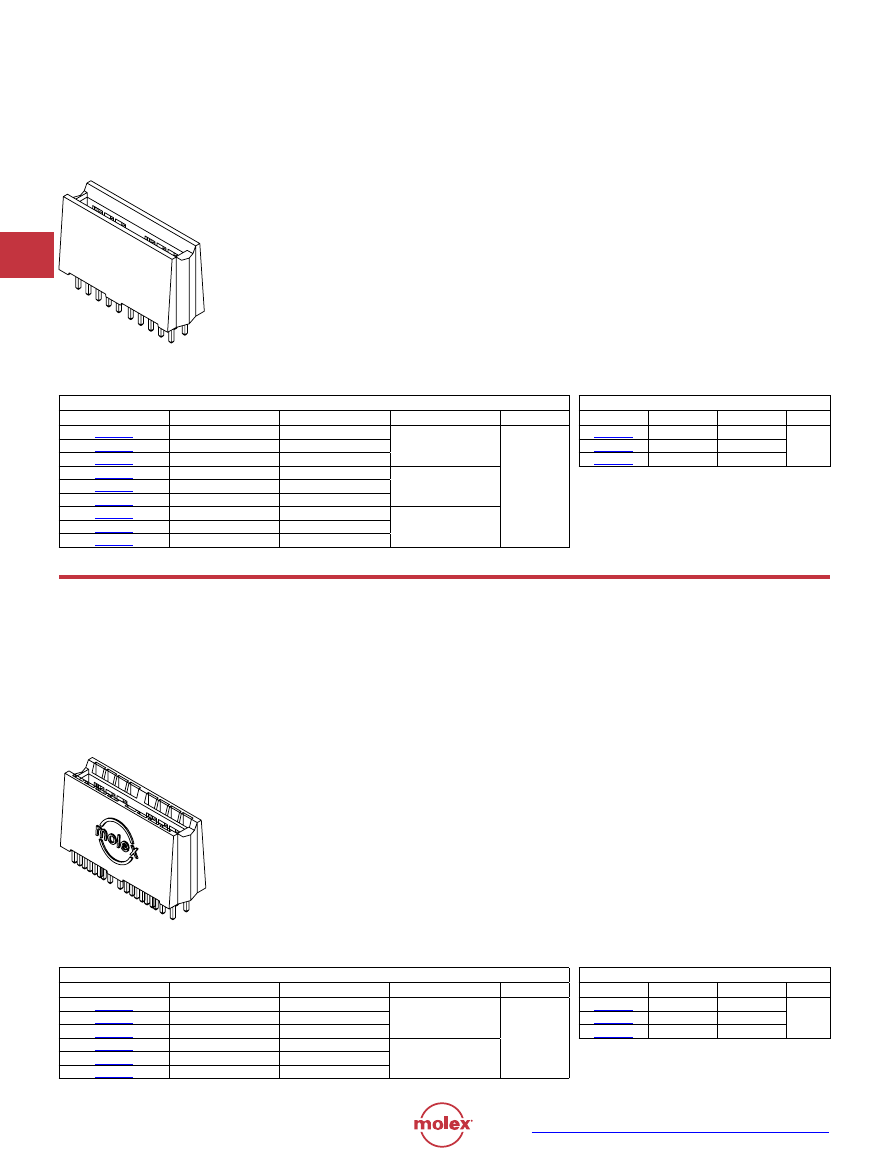

EXTreme PowerEdge

™

Card Edge or Bus Bar

Connector

45714/45719

High Current Contacts

Features and Benefits

•

High current, up to 40.0A per contact

•

Rated for current interruption

•

Press-fit or solder terminations

•

Available in 2, 3 or 4 segments

•

End-to-end stackable

Reference Information

Product Specification: PS-45719-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R72042763

Mates With: 1.58mm (.062") thick card edge or bus bar

Stackable With: 45844, 45845, 45911 or 45912

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 40.0A max.

Contact Resistance: 1 milliohm max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: 8.8N Typ.

Unmating Force: 4.4N Typ.

Durability: 250 Cycles

Physical

Housing: Glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder or Press-fit Tail Area—Tin

Underplating—Nickel

PCB Thickness: Series 45714—2.36mm (.093") or greater;

Series 45719—Separate parts available for 1.57mm

(.062") max., 2.36mm (.093") max or 3.18mm (.125")

max.

Through Hole Solder PCB Termination

Order No.

Segments

Total Contacts

Max. PCB Thickness

Lead-free

45719-0001

3.18mm (.125")

Yes

2.36mm (.093")

1.57mm (.062")

Press-fit PCB Termination

Order No.

Segments

Total Contacts

Lead-free

45714-0001

Yes

45714-0002

45714-0003

EXTreme PowerEdge

™

Card Edge or Bus Bar

Connector

45844/45845

Signal Contacts

Features and Benefits

•

For slow speed signal applications

•

Press-fit or solder terminations

•

Available in 2, 3 or 4 segments

•

End-to-end stackable

Reference Information

Product Specification: PS-45844-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R72042763

Mates With: 1.58mm (.062") thick card edge or bus bar

Stackable With: 45845, 45844, 45911 and 45912

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 3.0A max.

Contact Resistance: 15 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: 1.4N Typ.

Unmating Force: 0.14N Typ.

Durability: 250 Cycles

Physical

Housing: Glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder or Press-fit Tail Area—Tin

Underplating—Nickel

PCB Thickness: Series 45844—Separate parts available for

1.57mm (.062") max. or 3.18mm (.125") max.;

Series 45845—2.36mm (.093") or greater

Through Hole Solder PCB Termination

Order No.

Segments

Total Contacts

Max. PCB Thickness

Lead-free

45844-0001

3.18mm (.125")

Yes

1.57mm (.062")

Press-fit PCB Termination

Order No.

Segments

Total Contacts

Lead-free

45845-0001

Yes

45845-0002

45845-0003

MX10 E-19

Power Connectors

www.molex.com/product/power/ext-pwredge.html

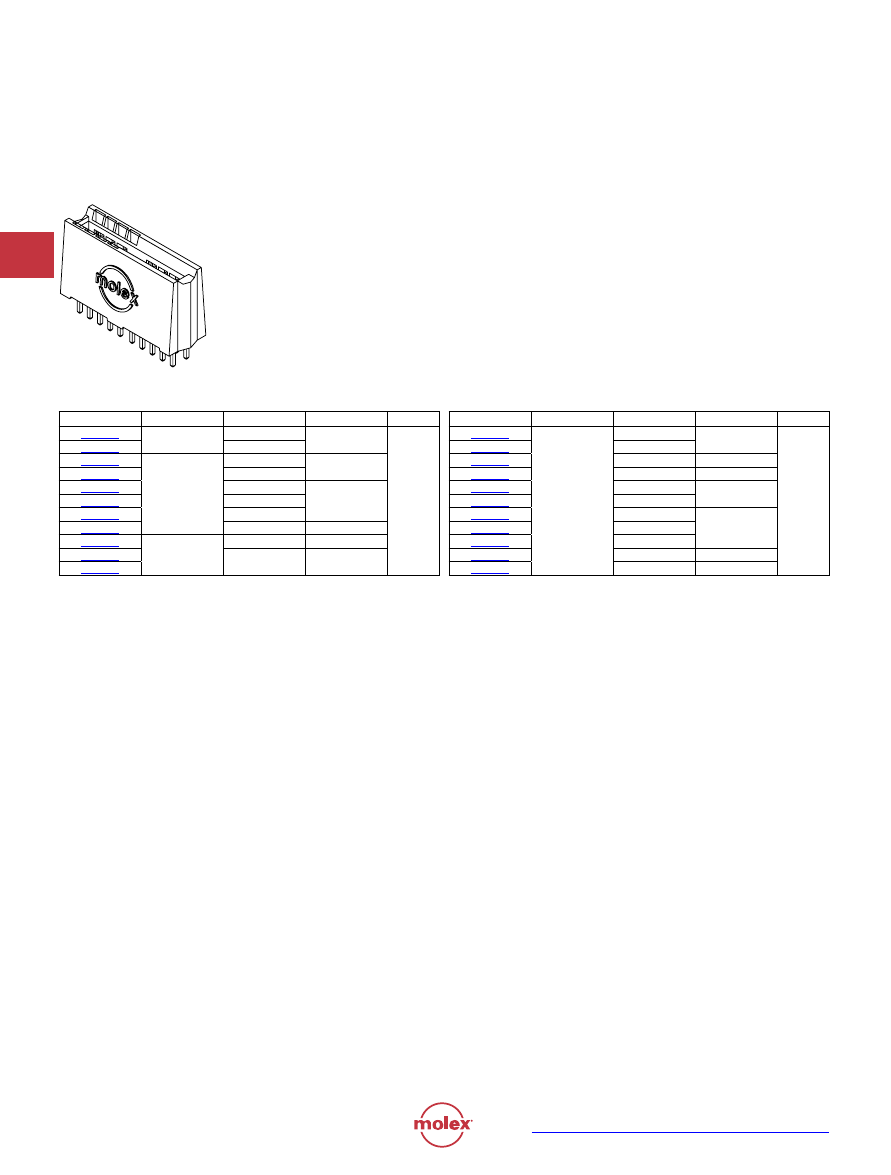

EXTreme PowerEdge

™

Card Edge or Bus Bar

Connector

45911

Mixed High Current and Signal

Contacts, Through-Hole

Solder PCB Termination

Features and Benefits

•

High current, up to 40.0A per contact

•

Power and signal contacts in same connector

•

Rated for current interruption

•

Available in 2, 3 or 4 segments

•

End-to-end stackable

Reference Information

Product Specification: PS-45719-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R72042763

Mates With: 1.58mm (.062") thick card edge or bus bar

Stackable With: 45719 and 45844

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—40.0A max.

Signal Contacts—3.0A max.

Contact Resistance: Power Contacts—1 milliohm max.

Signal Contacts—15 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Power Contacts—8.8N Typ.

Signal Contacts—1.4N Typ.

Unmating Force: Power Contacts—4.4N Typ.

Signal Contacts—0.14N Typ.

Durability: 250 Cycles

Physical

Housing: Glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Solder Tail Area—Tin

Underplating—Nickel

PCB Thickness: Separate parts available for 1.57mm (.062")

max. or 3.18mm (.125") max.

Order No.

Segments

Segment

Sequence*

Total

Contacts*

Max. PCB

Thickness

Lead-free

45911-0001

P, S

2 P, 8 S

3.18mm (.125")

Yes

45911-0002

S, P

45911-0003

P, S

1.57mm (.062")

45911-0004

S, P

45911-0007

P, P, S

4 P, 8 S

3.18mm (.125")

45911-0008

P, S, P

45911-0009

P, S, S

2 P, 16 S

45911-0010

S, P, S

45911-0011

S, S, P

45911-0012

S, P, P

4 P, 8 S

45911-0013

P, P, S

1.57mm (.062")

45911-0014

P, S, P

45911-0015

P, S, S

2 P, 16 S

45911-0016

S, P, S

45911-0017

S, S, P

45911-0018

S, P, P

4 P, 8 S

45911-0025

P, P, P, S

6 P, 8 S

3.18mm (.125")

45911-0026

P, P, S, P

45911-0027

P, P, S, S

4 P, 16 S

45911-0028

P, S, P, S

45911-0029

P, S, S, P

45911-0030

P, S, P, P

6 P, 8 S

Order No.

Segments

Segment

Sequence*

Total

Contacts*

Max. PCB

Thickness

Lead-free

45911-0031

P, S, S, S

2 P, 24 S

3.18mm (.125")

Yes

45911-0032

S, P, P, S

4 P, 16 S

45911-0033

S, P, S, P

45911-0034

S, P, S, S

2 P, 24 S

45911-0035

S, S, P, S

45911-0036

S, S, S, P

45911-0037

S, S, P, P

4 P, 16 S

45911-0038

S, P, P, P

6 P, 8 S

45911-0039

P, P, P, S

1.57mm (.062")

45911-0040

P, P, S, P

45911-0041

P, P, S, S

4 P, 16 S

45911-0042

P, S, P, S

45911-0043

P, S, S, P

45911-0044

P, S, P, P

6 P, 8 S

45911-0045

P, S, S, S

2 P, 24 S

45911-0046

S, P, P, S

4 P, 16 S

45911-0047

S, P, S, P

45911-0048

S, P, S, S

2 P, 24 S

45911-0049

S, S, P, S

45911-0050

S, S, S, P

45911-0051

S, S, P, P

4 P, 16 S

45911-0052

S, P, P, P

6 P, 8 S

*P = Power, S = Signal

E-20 MX10

Power Connectors

www.molex.com/product/power/ext-pwredge.html

EXTreme PowerEdge

™

Card Edge or Bus Bar

Connector

45912

Mixed High Current and Signal

Contacts, Press-fit PCB Termination

Features and Benefits

•

High current, up to 40.0A per contact

•

Power and signal contacts in same connector

•

Rated for current interruption

•

Available in 2, 3 or 4 segments

•

End-to-end stackable

Reference Information

Product Specification: PS-45719-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R72042763

Mates With: 1.58mm (.062") thick card edge or bus bar

Stackable With: 45714 and 45845

Designed In: Millimeters

Electrical

Voltage: 250V

Current: Power Contacts—40.0A max.

Signal Contacts—3.0A max.

Contact Resistance: Power Contacts—1 milliohm max.

Signal Contacts—15 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Mating Force: Power Contacts—8.8N Typ.

Signal Contacts—1.4N Typ.

Unmating Force: Power Contacts—4.4N Typ.

Signal Contacts—0.14N Typ.

Durability: 250 Cycles

Physical

Housing: Glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—Select Gold

Press-fit Tail Area—Tin

Underplating—Nickel

PCB Thickness: 2.36mm (.093") or greater

Order No.

Segments

Segment Sequence*

Total Contacts*

Lead-free

45912-0001

P, S

2 P, 8 S

Yes

45912-0002

S, P

45912-0007

P, P, S

4 P, 8 S

45912-0008

P, S, P

45912-0009

P, S, S

2 P, 16 S

45912-0010

S, P, S

45912-0011

S, S, P

45912-0012

S, P, P

4 P, 8 S

45912-0025

P, P, P, S

6 P, 8 S

45912-0026

P, P, S, S

4 P, 16 S

45912-0027

Order No.

Segments

Segment Sequence*

Total Contacts*

Lead-free

45912-0028

P, S, P, S

4 P, 16 S

Yes

45912-0029

P, S, S, P

45912-0030

P, S, P, P

6 P, 8 S

45912-0031

P, S, S, S

2 P, 24 S

45912-0032

S, P, P, S

4 P, 16 S

45912-0033

S, P, S, P

45912-0034

S, P, S, S

2 P, 24 S

45912-0035

S, S, P, S

45912-0036

S, S, S, P

45912-0037

S, S, P, P

4 P, 16 S

45912-0038

S, P, P, P

2 P, 24 S

*P = Power, S = Signal

MX10 E-21

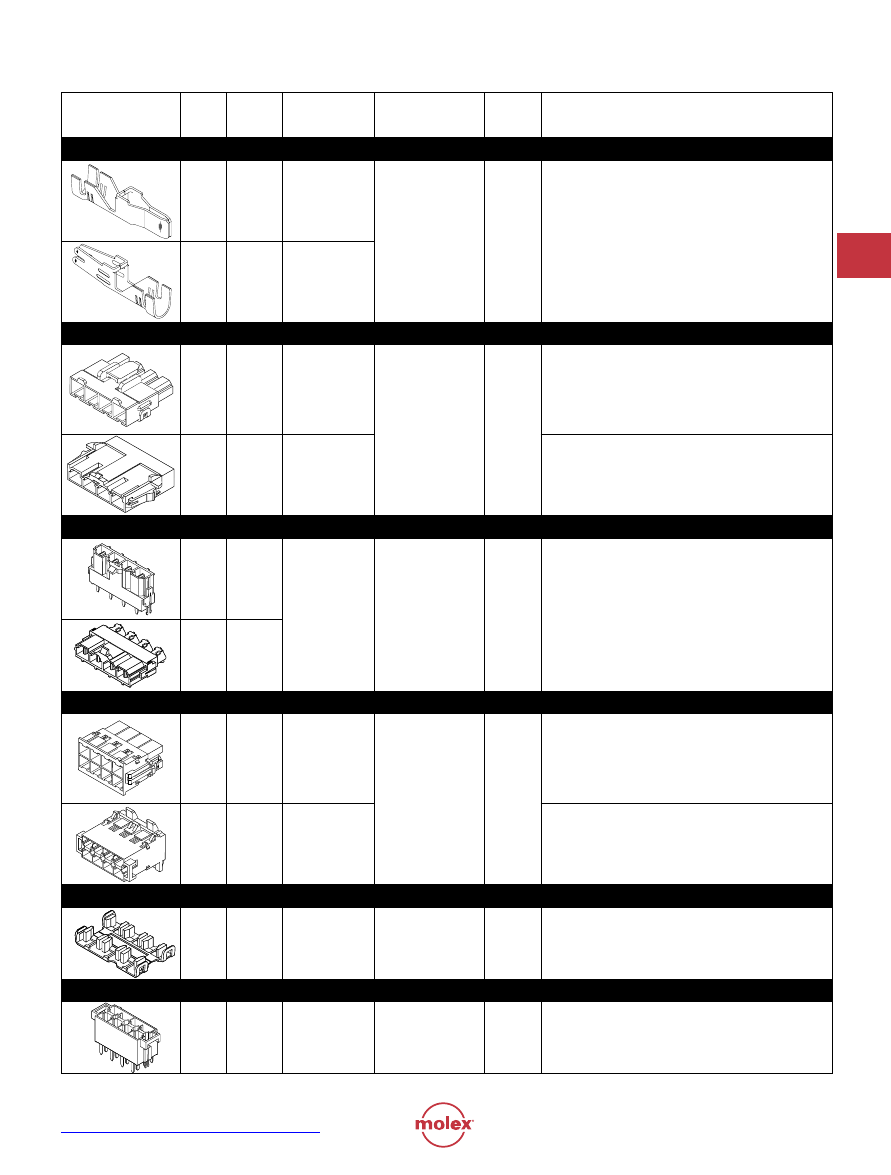

Power Connectors

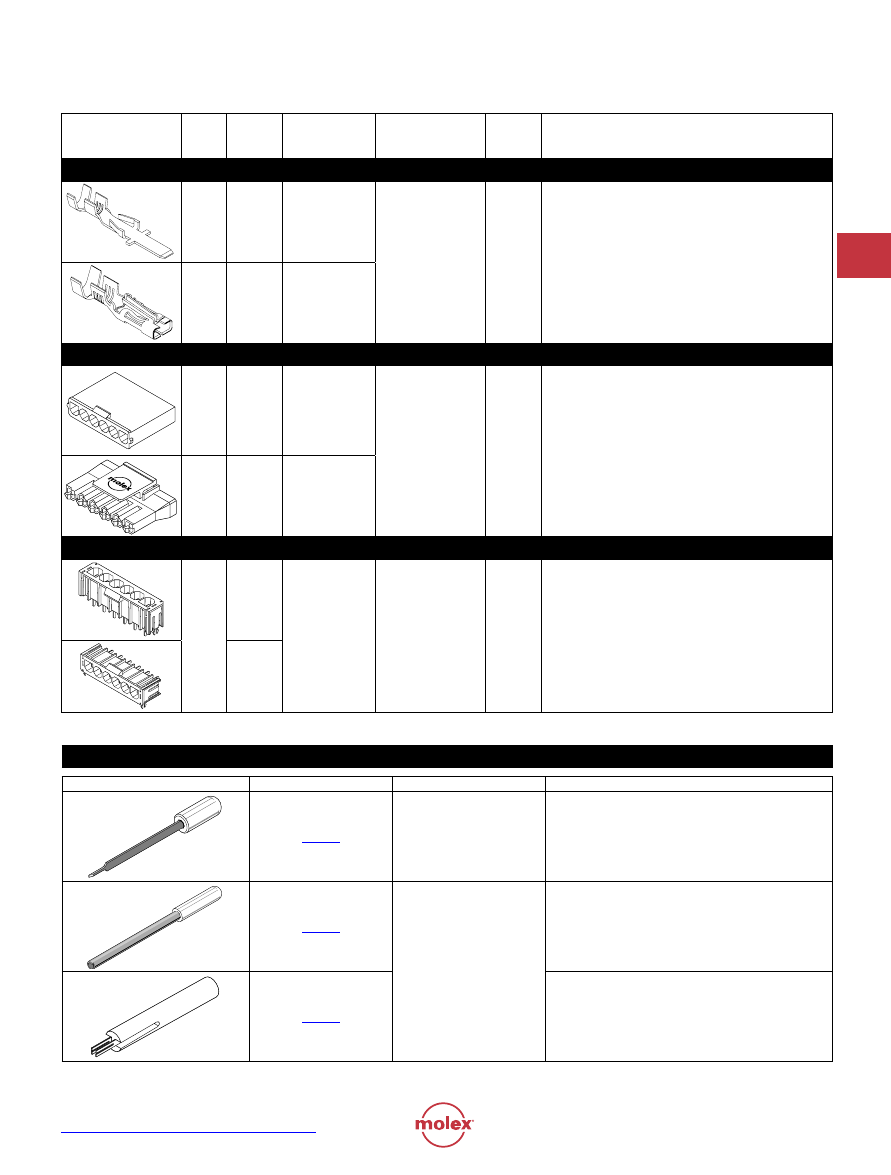

Series

Description

Mates With/

Use With

Material

Circuits/

Wire

Gauge

Features and Benefits

Terminals

42817

Male

Terminal

Mates with

42815 Terminal

Used in 42818 and 43938

Housings

Tin or Select Gold-plated

Copper Alloy

8 to 16

AWG

•

Mating Cycles—Tin: 30/Gold: 100

•

Four points of electrical contact provide high reliability

•

Low insertion force design for greater ease in assembly

42815

Female

Terminal

Mates with 42817 Terminal

and PCB Header Terminal

Used in 42816 and

43914 Housings

Single Row Housings

42816

Receptacle

Housing

Mates with

42818,

42819, 42820

Black

Polyester,

UL 94V-0

2, 3, 4, 5 and 6

Circuits

•

TPA (Terminal Position Assurance) piece attached to housing to prevent terminal backouts

•

Positive latch guards against accidental disengagement of housings

•

Polarized housing helps prevent improper mating

•

Used in wire-to-wire and wire-to-board applications

42818

Plug

Housing

Mates with

42816

•

TPA (Terminal Position Assurance) piece attached to housing to prevent terminal backouts

•

Used in wire-to-wire applications (panel mount or free hanging) only

Single Row PC Board Headers

42819

Vertical

Header

Mates with

42816

Housings: Black

Glass-filled 4/6 Nylon,

UL 94V-0

Terminals:

Tin or Select Gold-plated Copper

Alloy

2, 3, 4, 5 and 6

Circuits

•

Metal forklocks for secure retention to PC board

•

Accommodates 1.57, 2.36, 3.18 and 6.35mm

(.062, .093, .125 and .250") thick PC Boards

42820

Right

Angle

Header

Dual Row Housings

43914

Receptacle

Housing

Mates with

43938, 43915

Use with

43980

Black Polyester,

UL 94V-0

6, 8, 10, 12 and

14 Circuits

•

Mandatory TPA (Terminal Position Assurance) piece

(43980 series) sold separately

•

Positive latch guards against accidental disengagement of housings

•

Polarized housing helps prevent improper mating

•

Used in wire-to-wire or wire-to-board applications

43938

Plug

Housing

Mates with

43914

Use with

43980

•

Mandatory TPA (Terminal Position Assurance) piece

(43980 series) sold separately

•

Used in wire-to-wire applications (panel mount or free hanging)

Dual Row TPA (Terminal Position Assurance Piece)

43980

TPA

Must Use With

43914, 43938

White Polyester,

UL 94V-0

6, 8, 10, 12 and

14 Circuits

•

Virtually eliminates terminal back out

•

White color for easy activation identification

Dual Row Vertical PC Board Header

43915

Vertical Header

Mates with

43914

Housing: Black Glass-filled 4/6

Nylon, UL 94V-0

Terminals: Tin or Select Gold-plated

Copper Alloy

6, 8, 10, 12 and

14 Circuits

•

Metal forklocks for secure retention to PC board

•

Accommodates 1.57, 2.36, 3.18 and 6.35mm (.062, .093,

.125 and .250")

*Maximum current is dependent on wire gauge and circuit size. See Mini-Fit, Sr. product specification PS-42815-001.

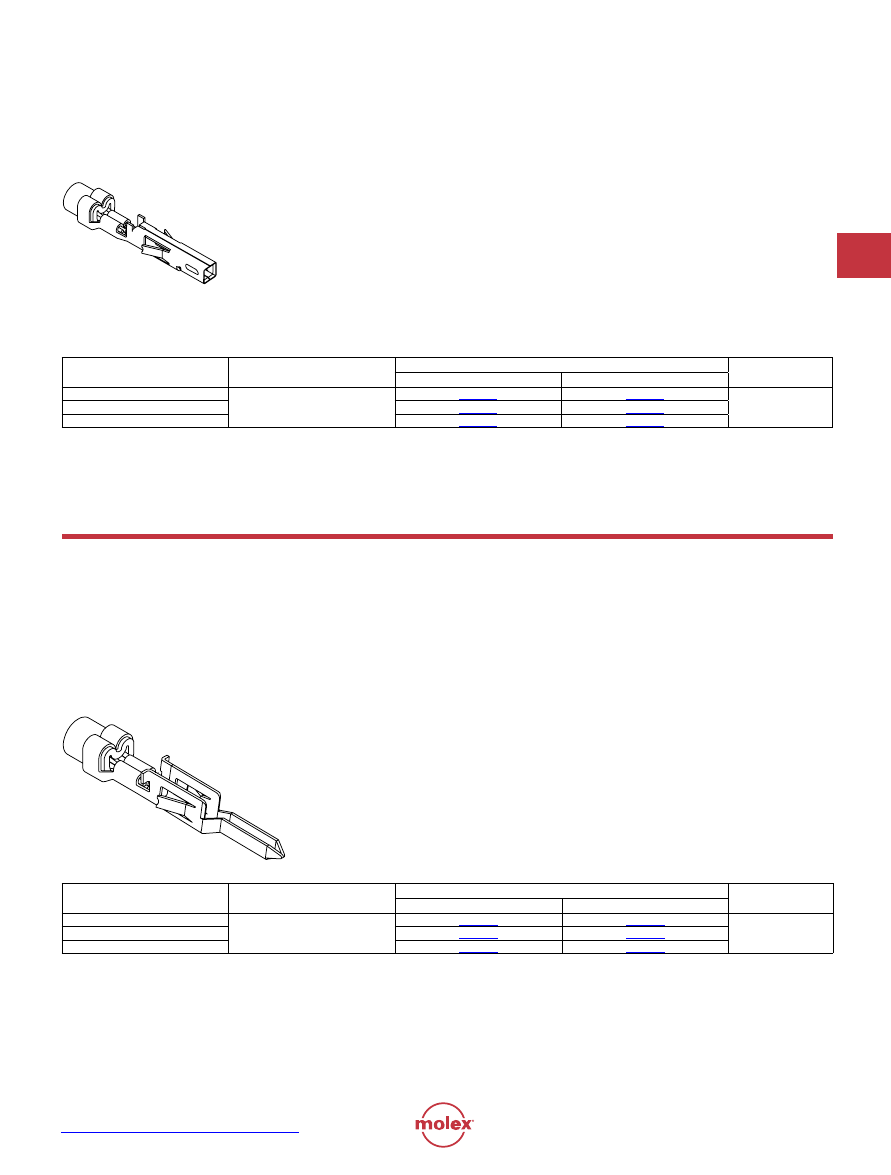

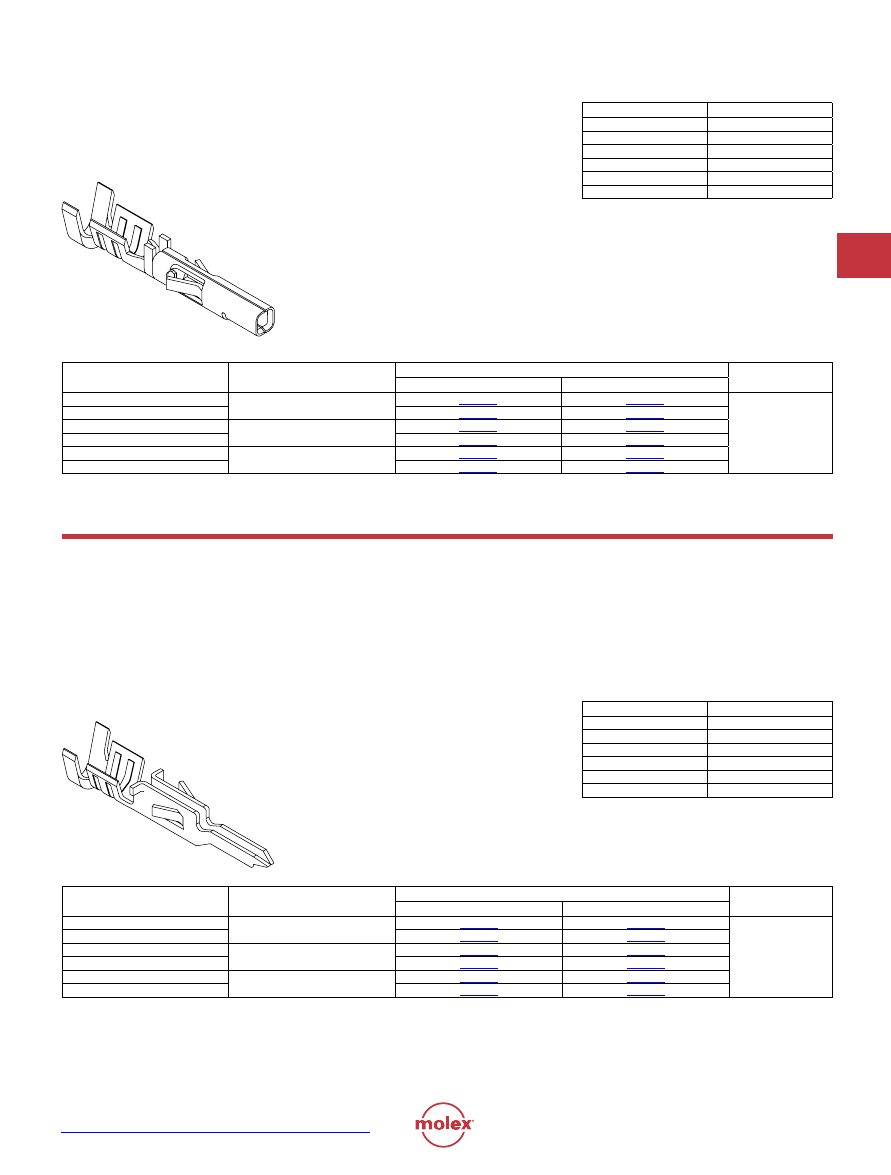

10.00mm (.393") Pitch

Mini-Fit Sr.

™

•

Wire-to-Wire (free hanging and panel mount)

•

Wire-to-Board

•

Mandatory Terminal Position Assurance (TPA) Piece

•

Voltage: 600V

•

Current: 50.0A max.*

E-22 MX10

Power Connectors

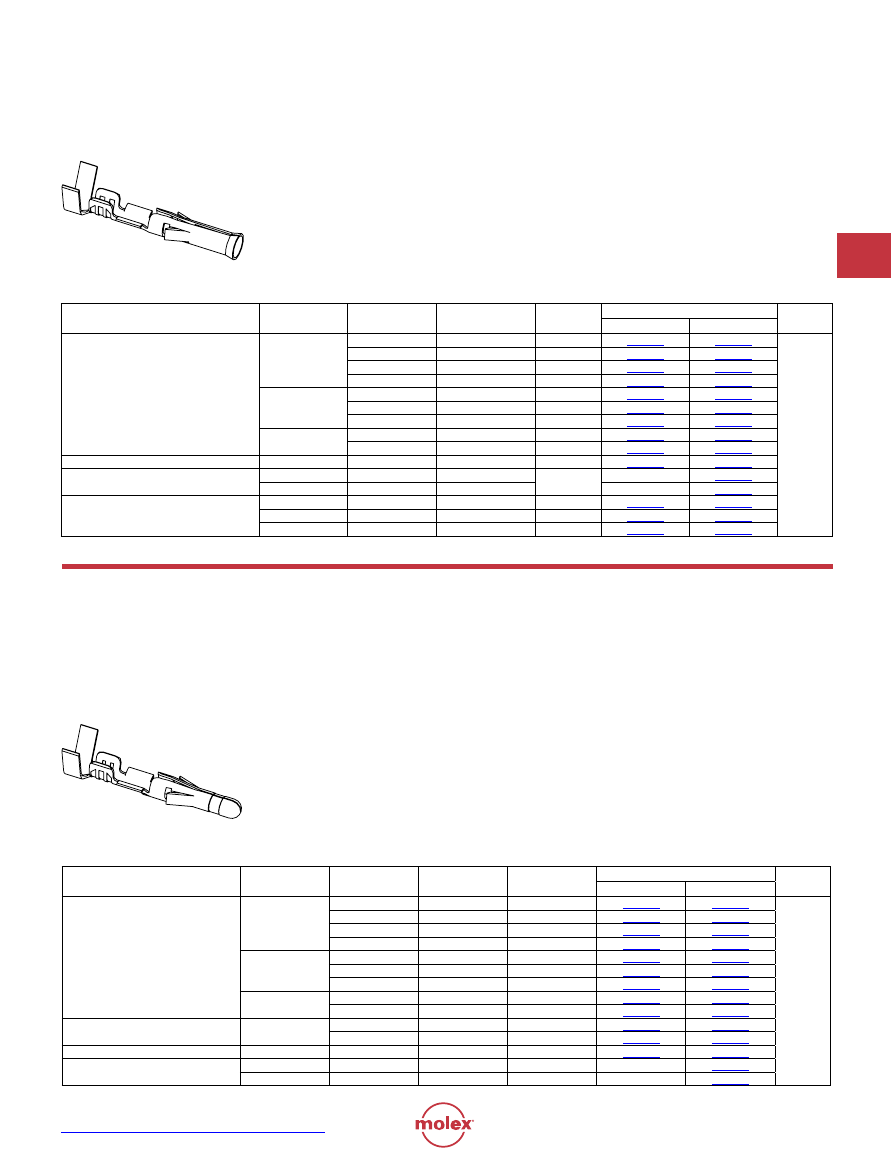

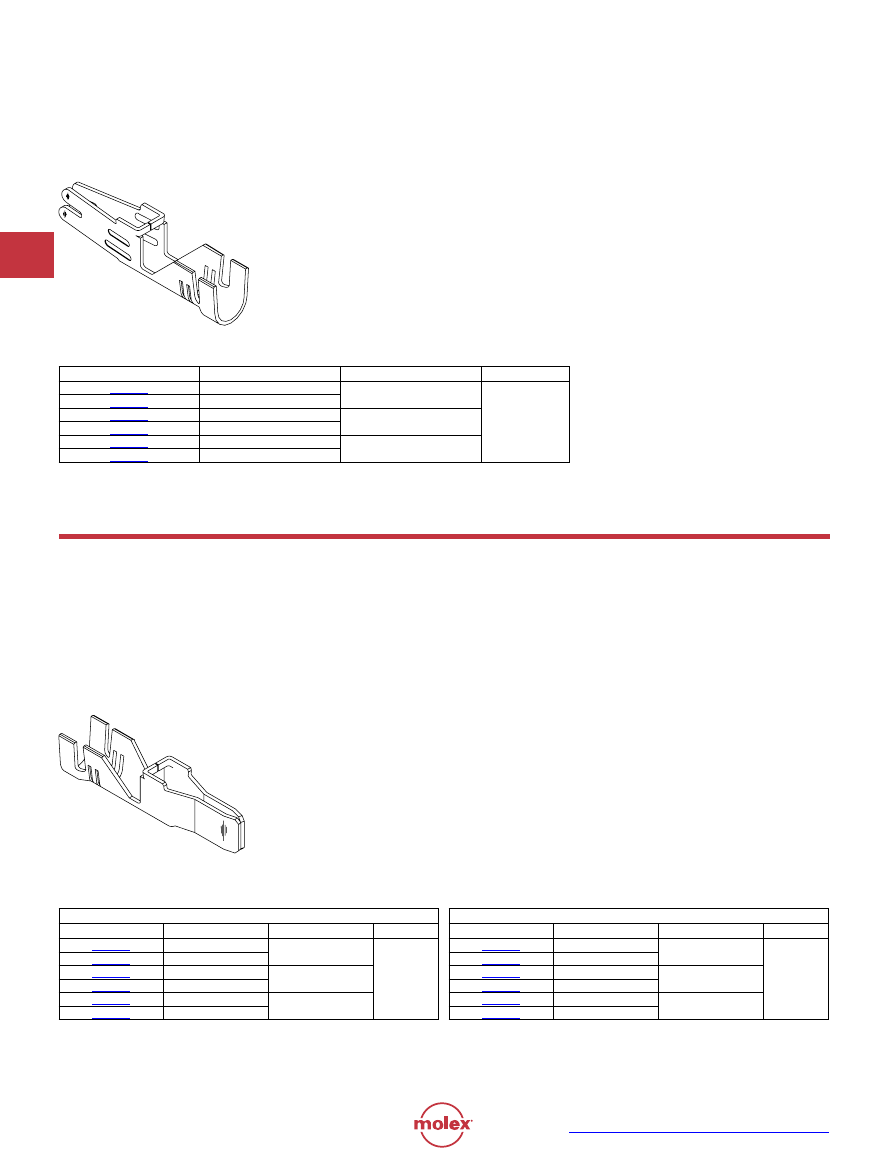

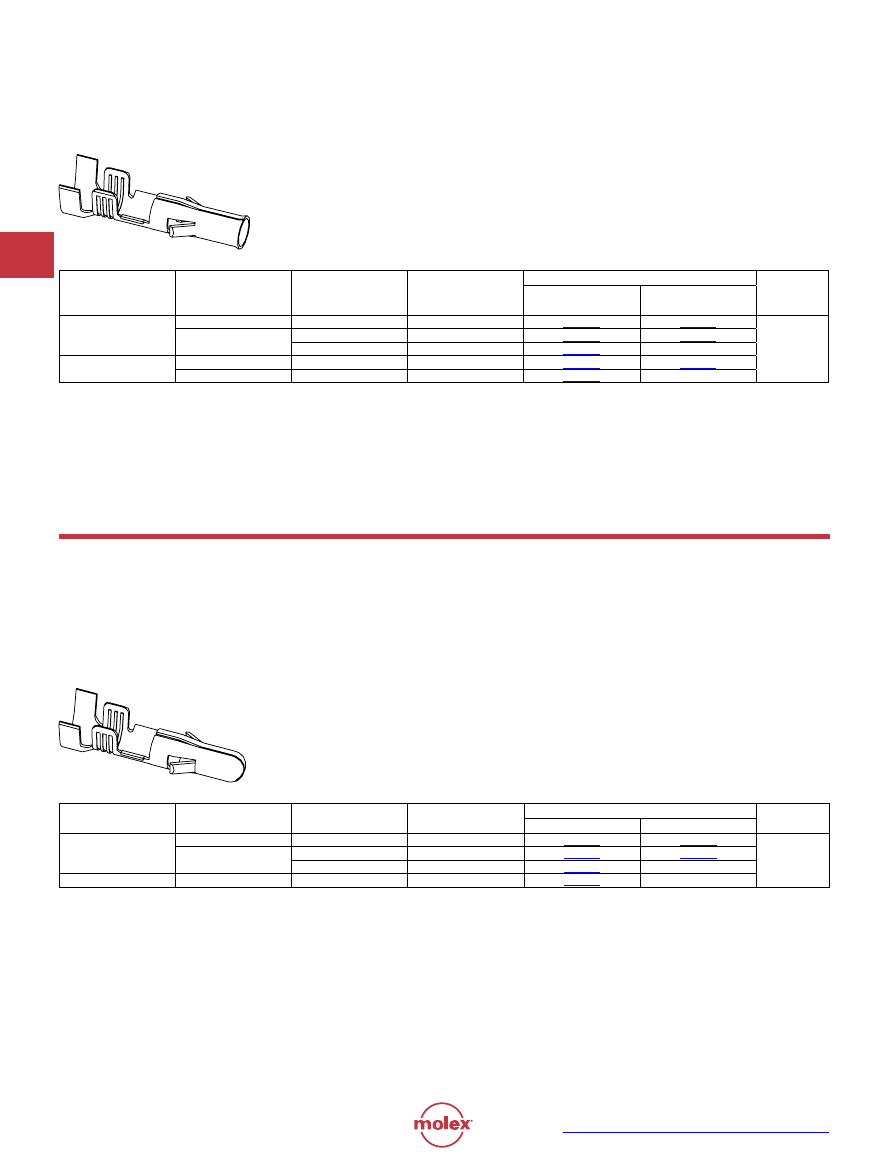

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Terminal

42815

Female

Features and Benefits

•

High current

•

Low engagement force

•

Wire-to-wire, wire-to-board

•

Four points of electrical contact

Reference Information

Product Specification: PS-42815-0001

Packaging: Reel

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Use With: 42816 and 43914 receptacle housings

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 50.0A max.*

Contact Resistance: 1.5 milliohms max.

Dielectric Withstanding Voltage: 2200V

Insulation Resistance: 1000 Megohms min.

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Mating Force: 29.4N max.

Unmating Force: 4.9N min.

Normal Force: 1.96N min.

Durability: Tin—30 cycles; Gold—100 cycles

Physical

Contact: Copper Alloy

Plating: Tin or Select Gold

Wire gauge: 8, 10, 12, 14, 16 AWG

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Order No.

Plating*

Wire Size (AWG)

Lead-free

42815-0041

Tin

14-16

Yes

42815-0042

Select Gold

42815-0011

Tin

10-12

42815-0012

Select Gold

42815-0031

Tin

42815-0032

Select Gold

* Select Gold plated terminals recommended. See product specification for additional information.

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Terminal

42817

Male

Features and Benefits

•

High current

•

Four points of electrical contact

•

Low engagement force

•

Wire-to-wire

•

Grounding contacts available

Reference Information

Product Specification: PS-42815-0001

Packaging: Reel

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Use With: 42818 and 43938 plug housings

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 50.0A max.*

Contact Resistance: 1.5 milliohms max.

Dielectric Withstanding Voltage: 2200V

Insulation Resistance: 1000 Megohms min.

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Mating Force: 29.4N max.

Unmating Force: 4.9N min.

Normal Force: 1.96N min.

Durability: Tin—30 cycles; Select Gold—100 cycles

Physical

Contact: Copper Alloy

Plating: Tin or Select Gold

Wire gauge: 8, 10, 12, 14 and 16 AWG

* Depending on circuit size and wire gauge. Please refer to

product specification.

Standard Contacts

Order No.

Plating*

Wire Gauge

Lead-free

42817-0041

Tin

14-16

Yes

42817-0042

Select Gold

42817-0011

Tin

10-12

42817-0012

Select Gold

42817-0031

Tin

42817-0032

Select Gold

* Select Gold plated terminals recommended. See product specification for additional information.

Grounding Contacts

Order No.

Plating*

Wire Gauge

Lead-free

42817-0141

Tin

14-16

Yes

42817-0142

Select Gold

42817-0111

Tin

10-12

42817-0112

Select Gold

42817-0131

Tin

42817-0132

Select Gold

MX10 E-23

Power Connectors

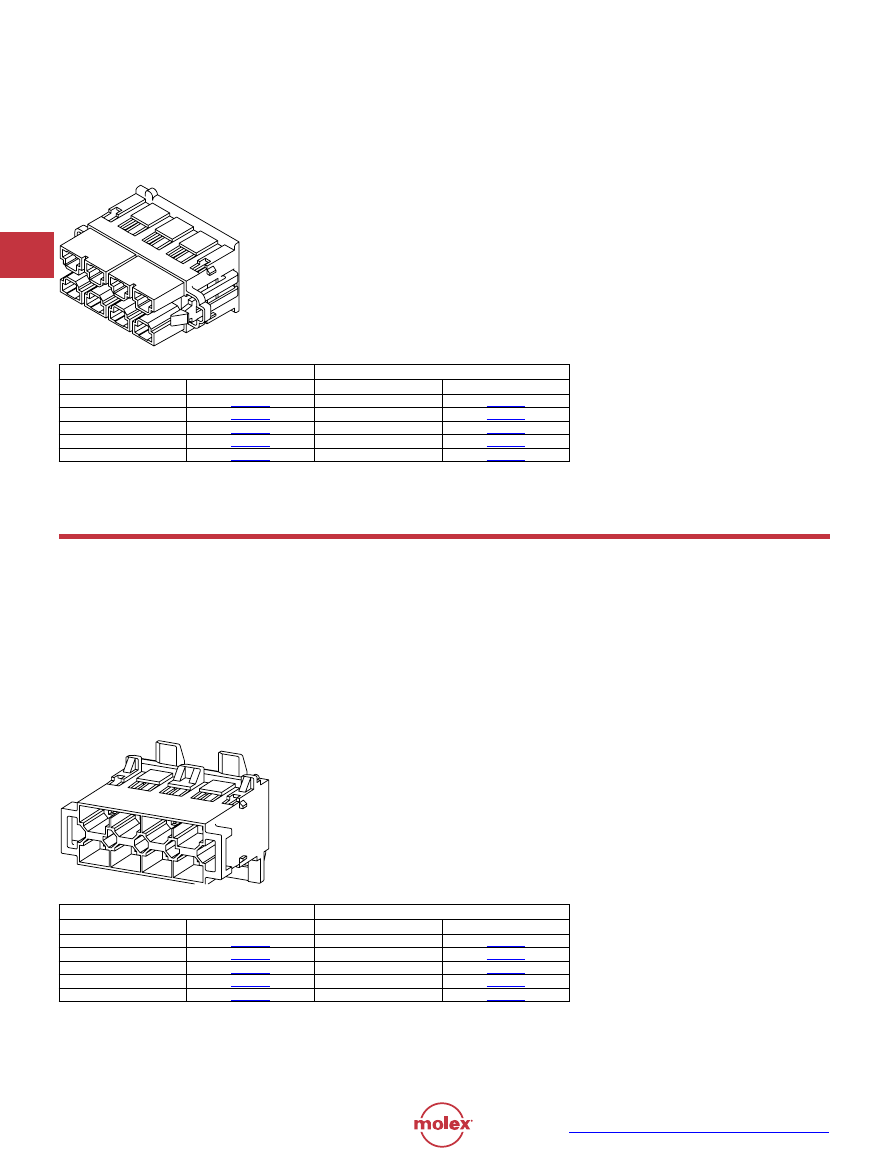

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Receptacle Housing

42816

Single Row

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-wire, wire-to-board

•

Includes mandatory Terminal Position Assurance

(TPA) clip

Reference Information

Product Specification: PS-42815-0001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Mates With: 42818 plug housing, 42819 and

42820 headers

Use With: 42815 female terminal

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 50.0A max.*

Insulation Resistance: 1000 Megohms min.

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Physical

Housing: Polyester, UL 94V-0

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Circuits

Order No.

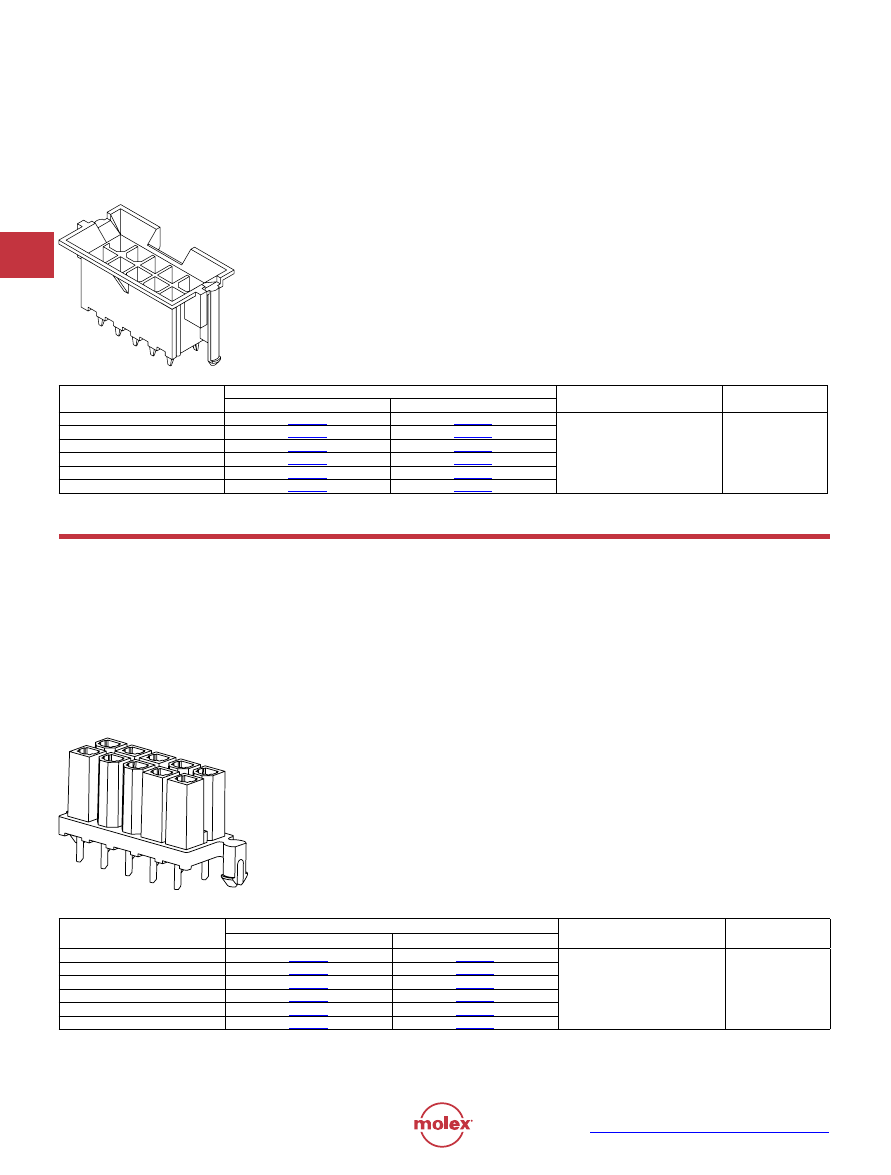

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Plug Housing

42818

Panel Mount

Single Row

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-wire

•

Panel Mountable

•

Includes mandatory Terminal Position Assurance

(TPA) clip

Reference Information

Product Specification: PS-42815-001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Mates With: 42816 receptacle housing

Use With: 42817 male terminal

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 50.0A max.*

Insulation Resistance: 1000 Megohms min.

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Physical

Housing: Polyester, UL 94V-0

* Depending on circuit size and wire gauge. Please refer to

product specification.

Circuits

Order No.

E-24 MX10

Power Connectors

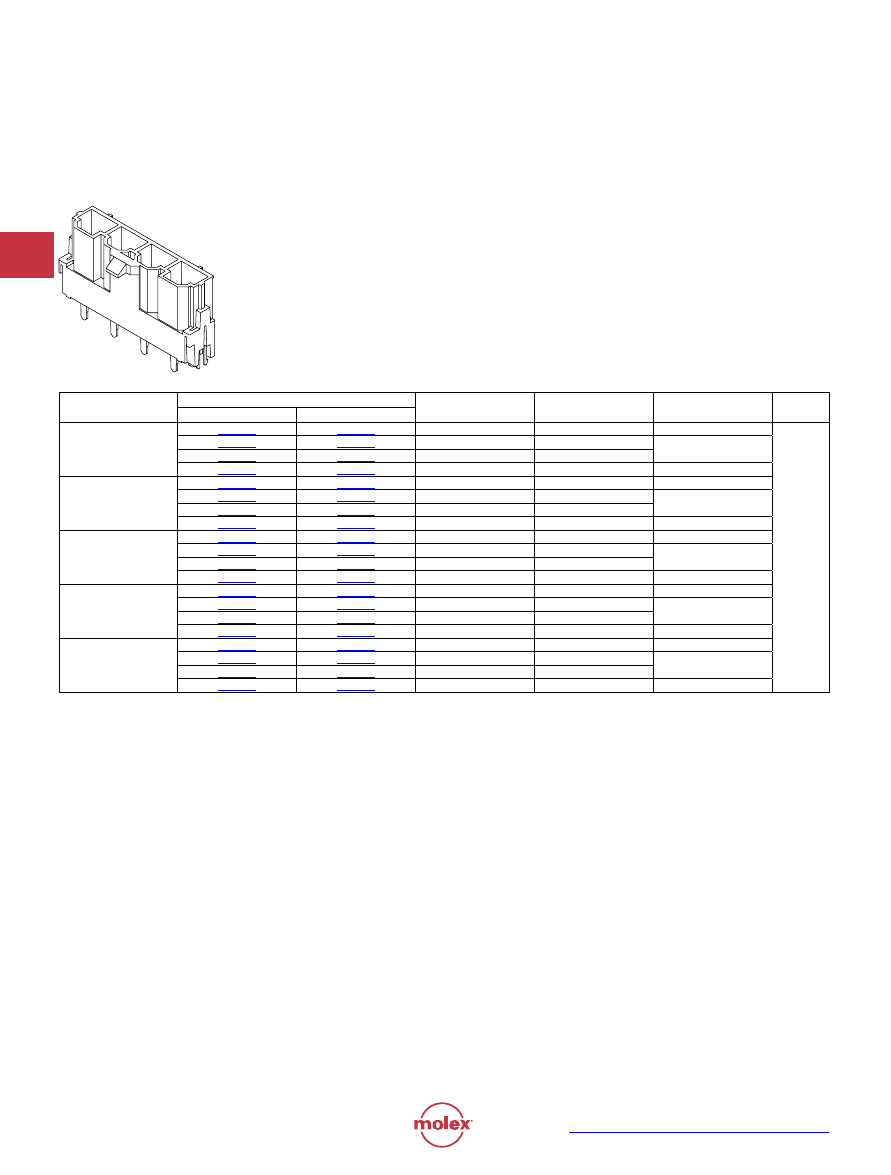

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Header

42819

Vertical, Single Row

Metal Clip Mount

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-board

•

Metal board retention clip

Reference Information

Product Specification: PS-42815-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Mates With: 42816 receptacle housing

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 48.0A max.*

Contact Resistance: 1.5 milliohms max.

Dielectric Withstanding Voltage: 2200V

Insulation Resistance: 1000 Megohms min.

Mechanical

Insertion Force to PCB: 19.6N max.

Normal Force: 1.96N min.

Durability: Tin—30 cycles; Gold—100 cycles

Physical

Housing: Glass-filled, 4/6 nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin or Select Gold

PCB Thickness: 1.57, 2.36, 3.17, or 6.35mm

(.062, .093, .125, or .250")

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Circuits

Order No.

PCB Thickness

Retention Clip Length

PC Tail Length

Lead-free

Tin*

Select Gold

42819-2212

42819-2213

1.57 (.062)

1.80 (.070)

3.50 (.137)

Yes

42819-2222

42819-2223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42819-2232

42819-2233

3.18 (.125)

3.40 (.133)

42819-2242

42819-2243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42819-3212

42819-3213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42819-3222

42819-3223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42819-3232

42819-3233

3.18 (.125)

3.40 (.133)

42819-3242

42819-3243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42819-4212

42819-4213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42819-4222

42819-4223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42819-4232

42819-4233

3.18 (.125)

3.40 (.133)

42819-4242

42819-4243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42819-5212

42819-5213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42819-5222

42819-5223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42819-5232

42819-5233

3.18 (.125)

3.40 (.133)

42819-5242

42819-5243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42819-6212

42819-6213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42819-6222

42819-6223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42819-6232

42819-6233

3.18 (.125)

3.40 (.133)

42819-6242

42819-6243

6.35 (.250)

6.58 (.259)

8.30 (.327)

* Select Gold headers recommended. See product specification for additional information.

MX10 E-25

Power Connectors

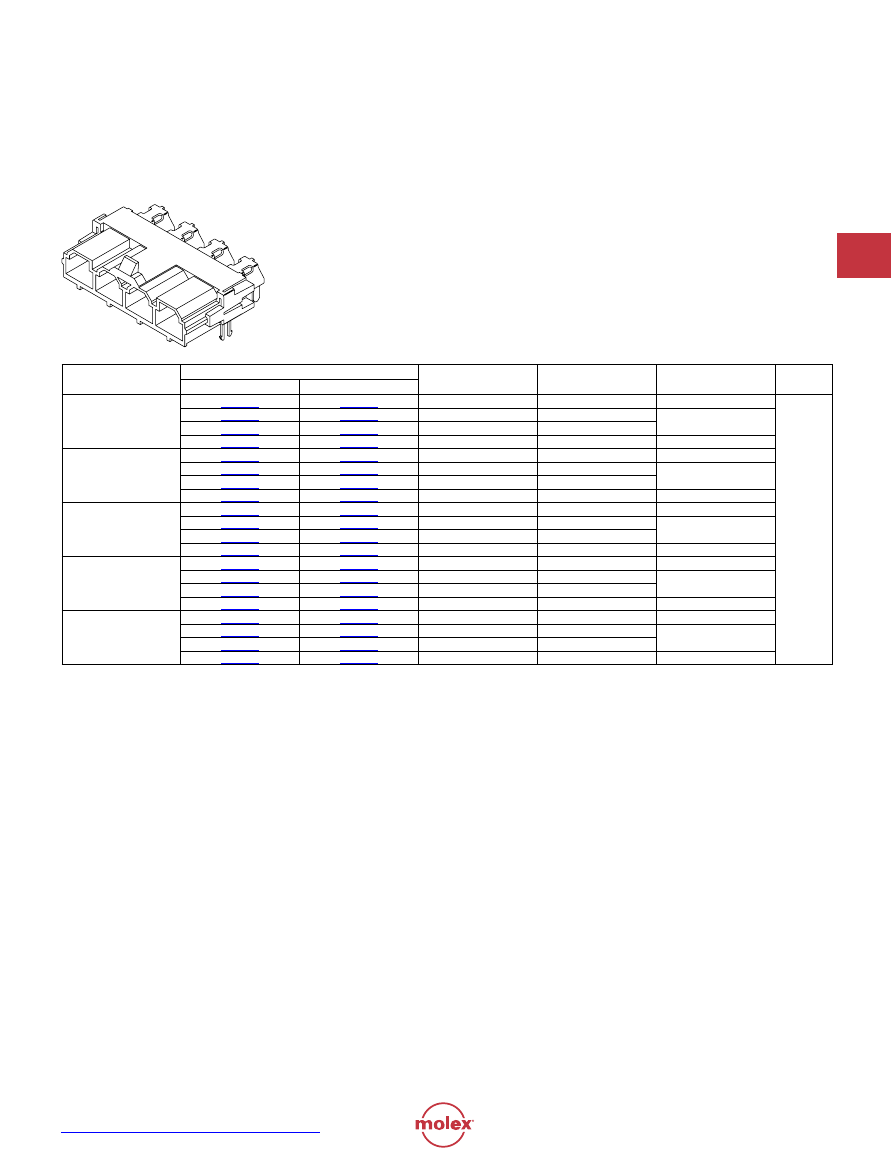

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Header

42820

Right Angle, Single Row

Metal Clip Mount

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-board

•

Metal board retention clip

Reference Information

Product Specification: PS-42815-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9751144

Mates With: 42816 receptacle housing

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 48.0A max.*

Contact Resistance: 1.5 milliohms max.

Dielectric Withstanding Voltage: 2200V

Insulation Resistance: 1000 Megohms min.

Mechanical

Insertion Force to PCB: 19.6N max.

Normal Force: 1.96N min.

Durability: 30 cycles

Physical

Housing: Glass-filled, 4/6 nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin or Select Gold

PCB Thickness: 1.57, 2.36, 3.18, or 6.35mm

(.062, .093, .125, or .250")

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Circuits

Order No.

PCB Thickness

Retention Clip Length

PC Tail Length

Lead-free

Tin*

Select Gold

42820-2212

42820-2213

1.57 (.062)

1.80 (.070)

3.50 (.137)

Yes

42820-2222

42820-2223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42820-2232

42820-2233

3.18 (.125)

3.40 (.133)

42820-2242

42820-2243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42820-3212

42820-3213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42820-3222

42820-3223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42820-3232

42820-3233

3.18 (.125)

3.40 (.133)

42820-3242

42820-3243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42820-4212

42820-4213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42820-4222

42820-4223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42820-4232

42820-4233

3.18 (.125)

3.40 (.133)

42820-4242

42820-4243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42820-5212

42820-5213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42820-5222

42820-5223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42820-5232

42820-5233

3.18 (.125)

3.40 (.133)

42820-5242

42820-5243

6.35 (.250)

6.58 (.259)

8.30 (.327)

42820-6212

42820-6213

1.57 (.062)

1.80 (.070)

3.50 (.137)

42820-6222

42820-6223

2.36 (.093)

2.60 (.102)

5.10 (.200)

42820-6232

42820-6233

3.18 (.125)

3.40 (.133)

42820-6242

42820-6243

6.35 (.250)

6.58 (.259)

8.30 (.327)

* Select Gold headers recommended. See product specification for additional information.

E-26 MX10

Power Connectors

www.molex.com/product/ext-zpwr.html

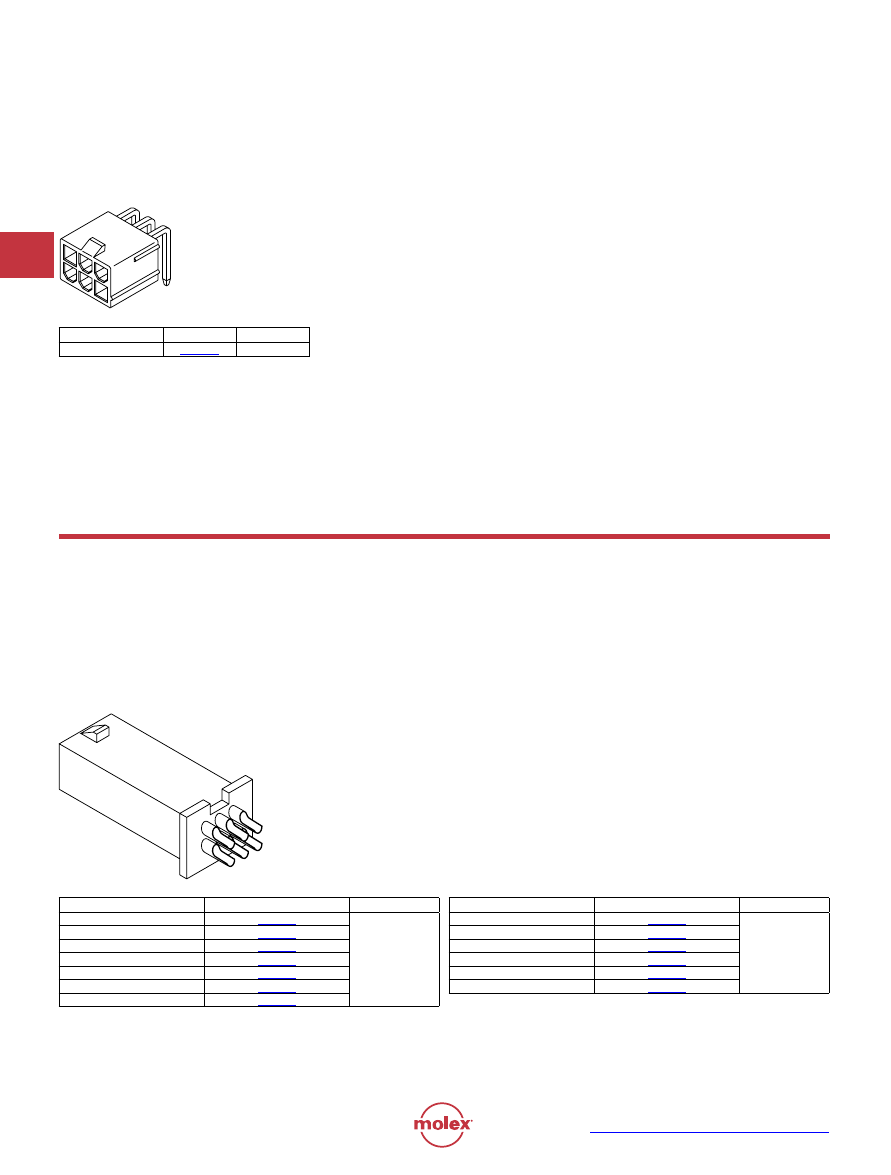

10.00mm (.393") Pitch

Mini-Fit Sr.

™

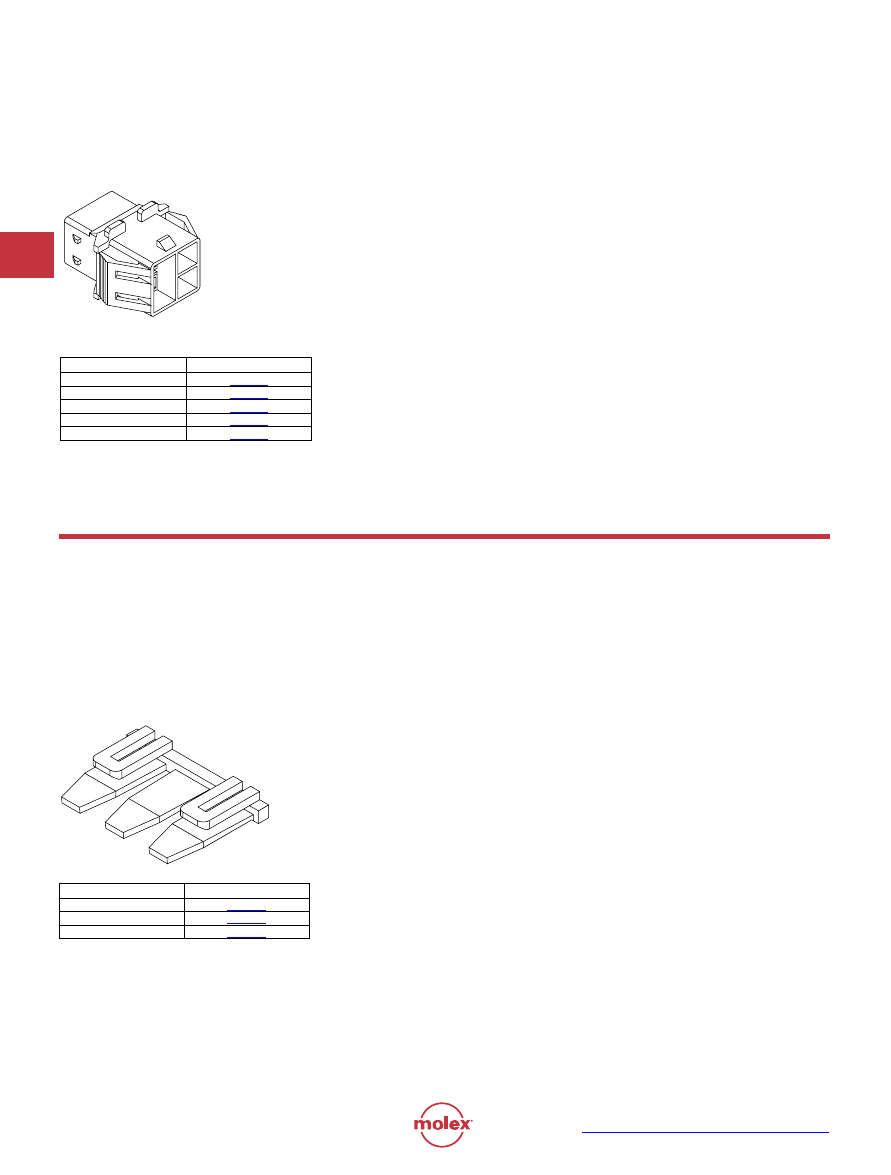

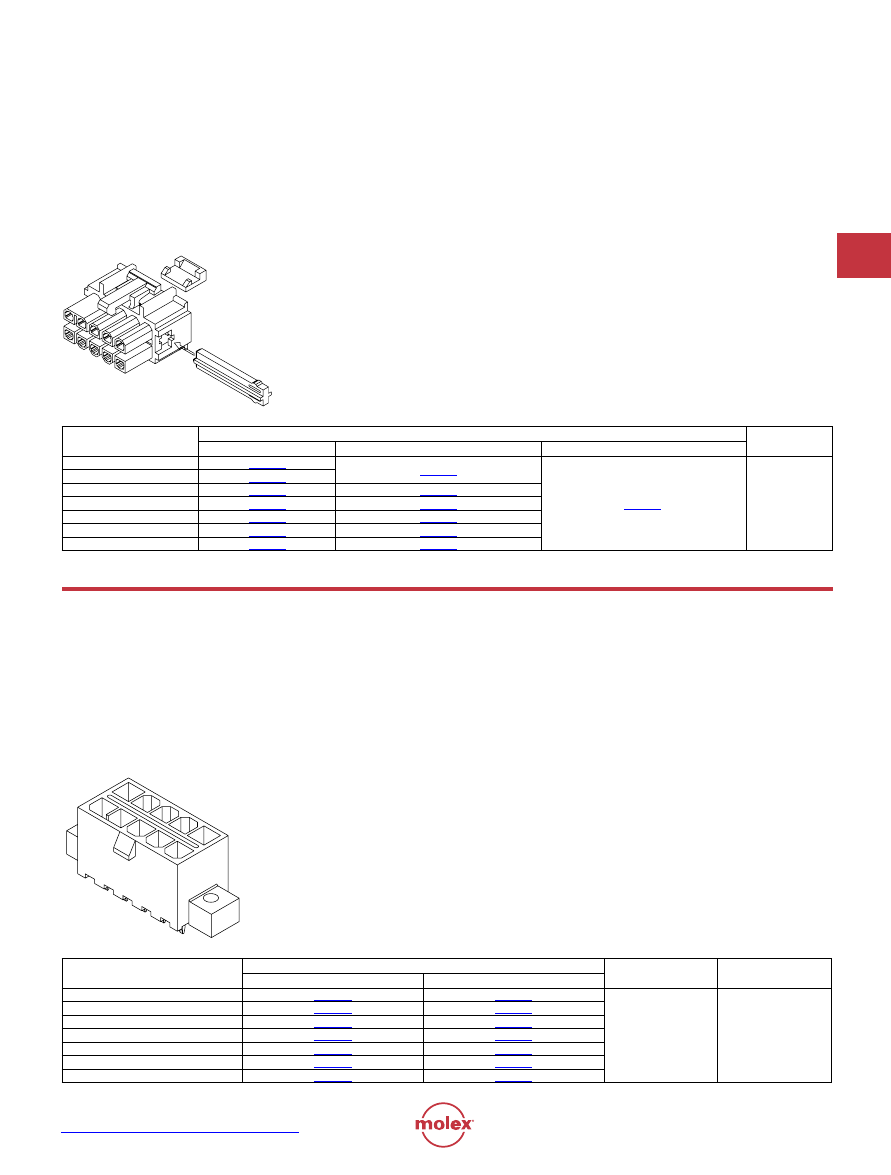

Receptacle and TPA Clip

43914/43980

Dual Row

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-wire, wire-to-board (vertical only)

•

Mandatory 43980 Series Terminal Position Assurance

(TPA) clip, order separately

Reference Information

Product Specification: PS-42815-001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No: R9751144

Mates With: 43938 plug housing and 43915 header

Use With: 42815 female terminal and 43980 Terminal

Position Assurance (TPA) clip

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 43.0A max*

Insulation Resistance: 1000 Megohms min.

Dielectric withstanding voltage: 2200V

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Physical

Housing: Polyester, UL 94V-0

*Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Dual Row Receptacles

TPA Clip

Circuits

Order No.

Circuits

Order No.

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Plug and TPA Clip

43938/43980

Dual Row

Panel Mount

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Wire-to-wire

•

Mandatory 43980 Series Terminal Position Assurance

(TPA) clip, order separately

Reference Information

Product Specification: PS-42815-001

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980

TUV License No: R9751144

Mates With: 43914 Receptacle housing

Use With: 42817 male terminal and 43980 Terminal

Position Assurance (TPA) clip

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 43.0A max*

Insulation Resistance: 1000 Megohms min.

Dielectric withstanding voltage: 2200V

Mechanical

Contact Insertion Force: 29.4N max.

Contact Retention to Housing: 98.1N min.

Physical

Housing: Polyester, UL 94V-0

*Depending on circuit size and wire gauge. Please refer to

product specification.

Dual Row Plug

TPA Clip

Circuits

Order No.

Circuits

Order No.

MX10 E-27

Power Connectors

www.molex.com

/product/power/minisr.html

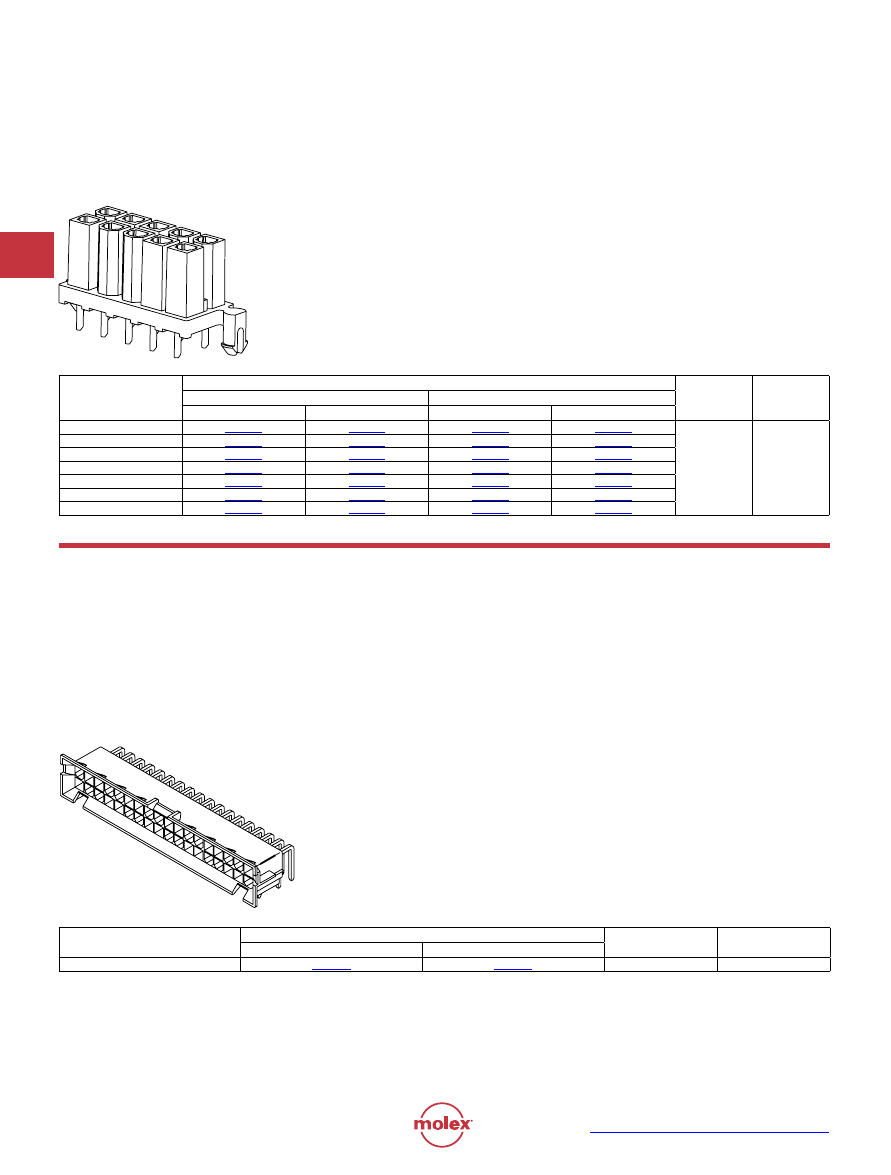

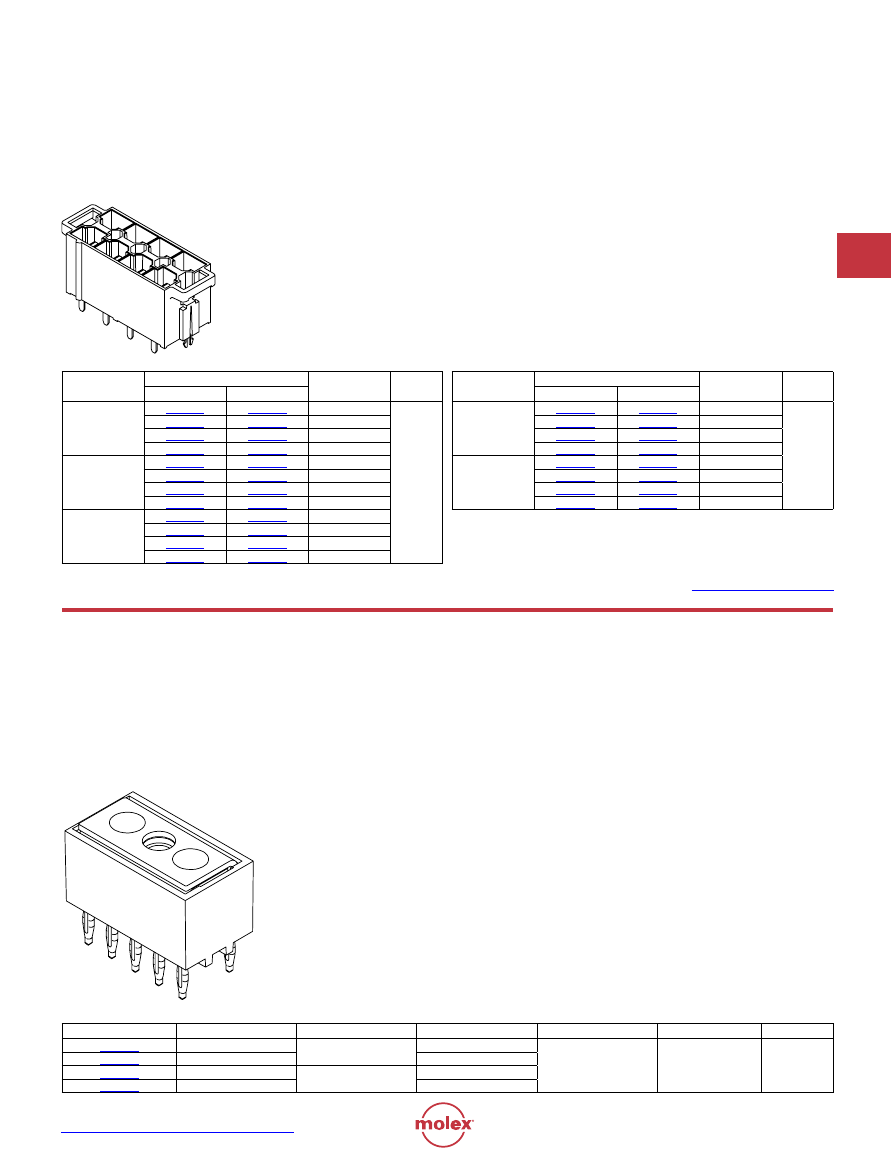

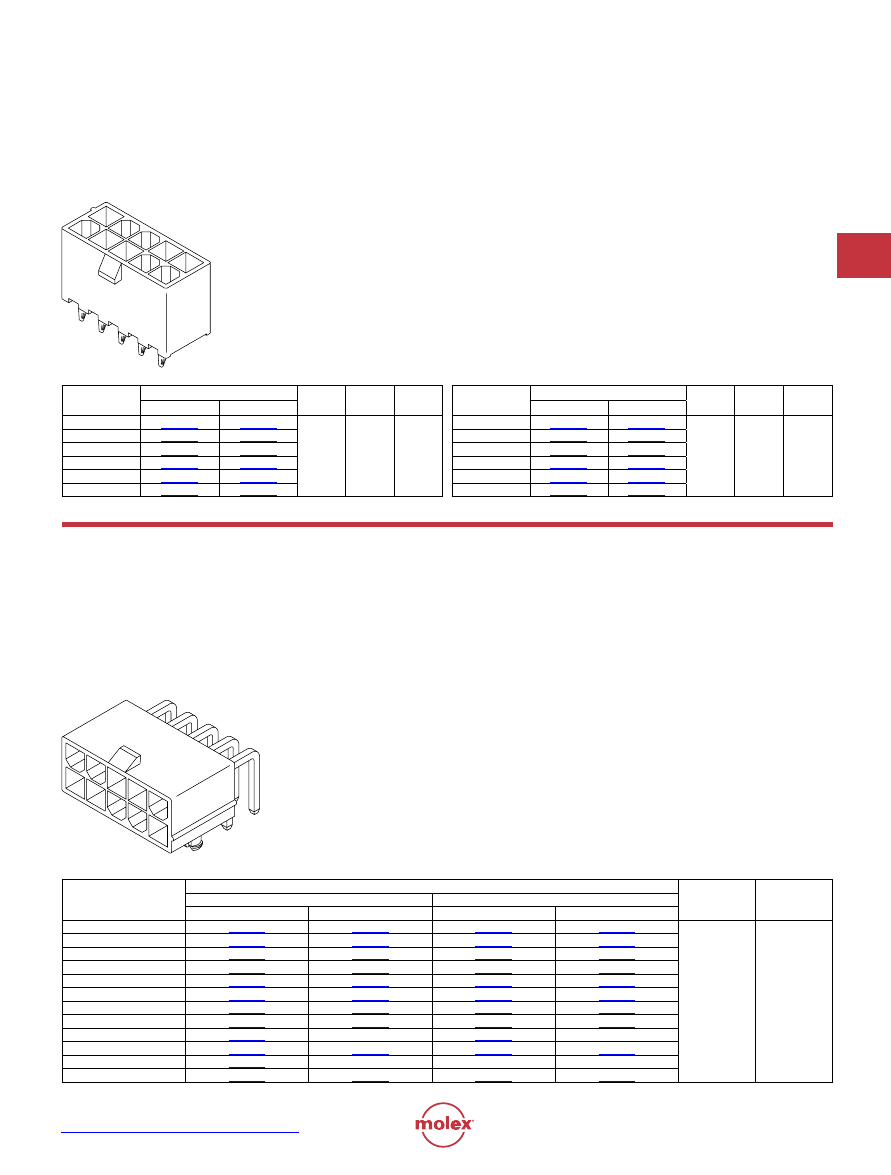

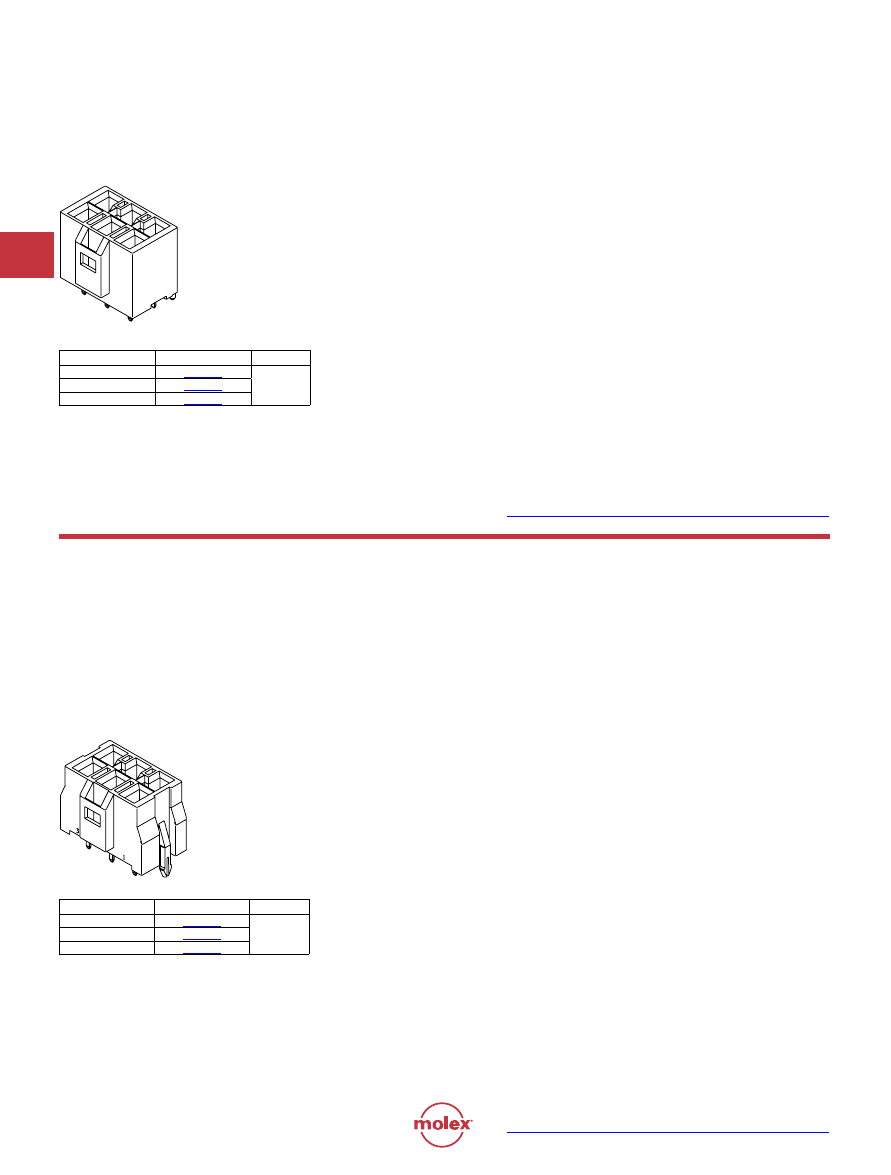

10.00mm (.393") Pitch

Mini-Fit Sr.

™

Header

43915

Vertical, Dual Row

Metal Clip Mount

Features and Benefits

•

High current

•

Fully polarized

•

Positive locks

•

Low engagement force

•

Metal board retention clips

•

Wire-to-board

Reference Information

Product Specification: PS-42815-0001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV License No: R9751144

Mates With: 43914 receptacle housing

Designed In: Millimeters

Electrical

Voltage: 600V

Current: 37.0A max.*

Contact Resistance: 1.5 milliohms max.

Dielectric Withstanding Voltage: 2200V

Insulation Resistance: 1000 Megohms min.

Mechanical

Insertion Force to PCB: 19.6kg max.

Normal Force: 1.96N min.

Durability: Tin—30 cycles; Gold—100 cycles

Physical

Housing: Glass-filled, 4/6 nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin or Select Gold

PCB Thickness: 1.57, 2.36, 3.18 or 6.35mm

(.062, .093, .125 or .250")

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Circuits

Order No.

PCB Thickness

Lead-free

Tin*

Select Gold

43915-1101

43915-1201

1.57 (.062)

Yes

2.36 (.093)

3.18 (.125)

6.35 (.250)

1.57 (.062)

2.36 (.093)

3.18 (.125)

6.35 (.250)

1.57 (.062)

2.36 (.093)

3.18 (.125)

6.35 (.250)

* Select Gold headers recommended. See product specification for additional information.

Circuits

Order No.

PCB Thickness

Lead-free

Tin*

Select Gold

43915-1104

43915-1204

1.57 (.062)

Yes

2.36 (.093)

3.18 (.125)

6.35 (.250)

1.57 (.062)

2.36 (.093)

3.18 (.125)

6.35 (.250)

Order No.

Tails

Current

Plating

Mating PCB Thickness

Press-Fit PCB Thickness

Lead Free

76001-0006

30.0A

Gold

0.063" 0.093" 0.125"

0.093"

Yes

76001-0106

Tin

76001-0010

50.0A

Gold

76001-0110

Tin

10.30mm (.405") Stack

EXTreme ZPower

™

Connector

Parallel Board Spacing

76001

Right Angle, Signal Only

Features and Benefits

•

Patented internal terminal design allows a rigid, secure

interface while helping to isolate press-fit pins from the

load of shock and vibration

•

Screw contact interface can accept standard wire-crimp,

ring-lug terminals for wire-to-board applications (Tin

plating for use with ring lug terminal connection)

•

Captured internal nut for ease of assembly

•

High normal force, high-reliability interface

•

One piece ridged Board-to-Board high current

interconnect

•

Hertzian (high pressure) contact areas create a

reliable (gas-tight) mating surface

Reference Information

Packaging: Tray

UL File No.: E29179

Designed In: Millimeters

Electrical

Voltage: 600V max.

Current: 10 Circuit—50.0A max.

6 Circuit—30.0A max.

Contact Resistance (per blade):

Initial—0.15 milliohms

End of Life—0.10 milliohms max. change

Dielectric Withstanding Voltage: 1500VDC

Insulation Resistance: 5000 Megohms min.

Mechanical

MInsertion Force to PCB: 9.07N (20lbf) per tail

Recommended Torque: 0.75 N-m (6.6 Inch-lbs)

Durability: 5 cycles

Physical

Housing: LCP, UL 94V-0

Contact: Copper Alloy

Plating:

Contact Area— 30

" Gold min.

or 100

" select matte Tin min.

Solder Tail Area—100

" select matte Tin min.

Underplating—50

" Nickel min.

E-32 MX10

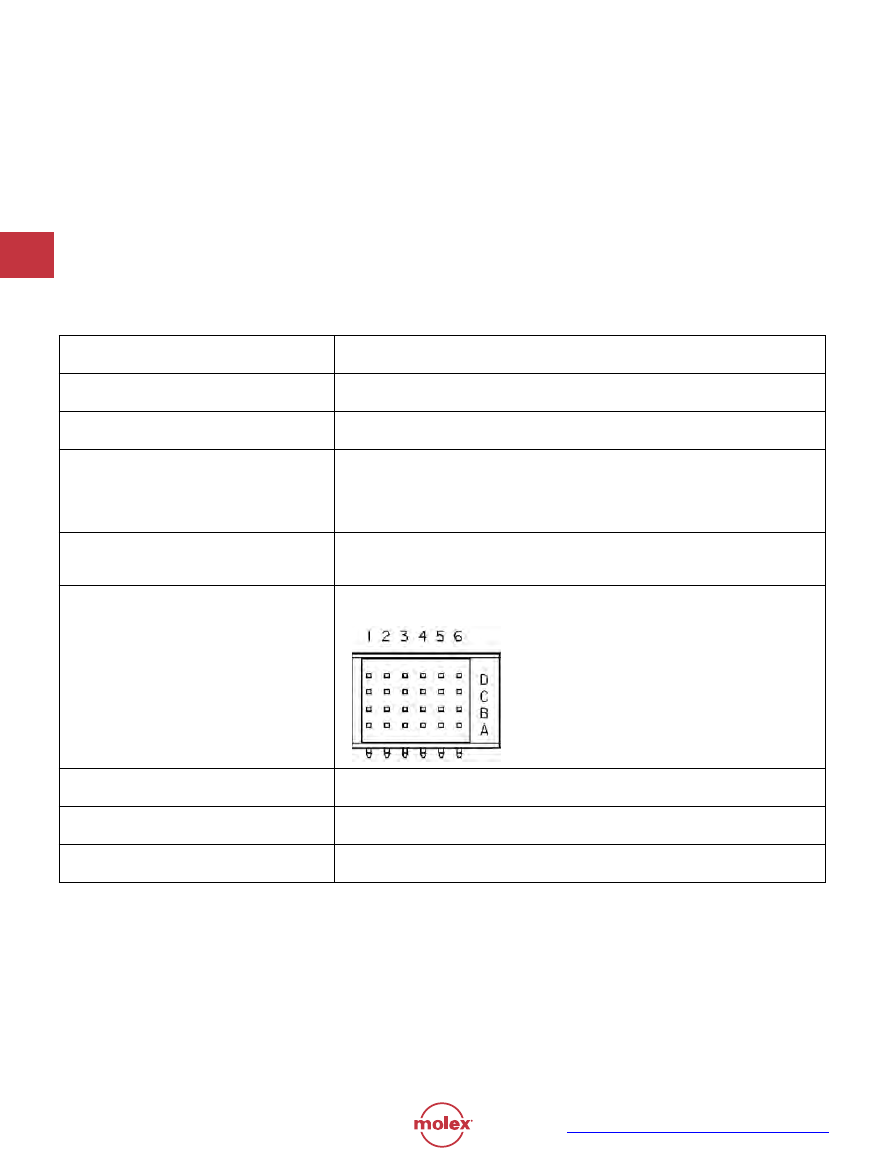

Power Connectors

www.molex.com

/customer.html?seriesNumber=94213

www.molex.com/customer.html?seriesNumber=94535

5.00mm (.197") Pitch

Wire-to-Wire/Wire-to-Tab

Receptacle Housing

94535

For Female Terminals

With Secondary Lock

Features and Benefits

•

Rast 5 crimping technology

•

Used for domestic appliances

•

Secondary locking

•

Designed for high currents

Reference Information

Packaging: Box

Use With: 94518 and 94539 Terminals

Designed In: Millimeters

Mechanical

Contact Insertion Force: 20N (4.50 lb) max.

Contact Retention to Housing: 100N (22.48 lb) min.

Durability: 100 cycles

Physical

Housing: White PA 66, UL 94V-2

Mating Force: 1.0kgf max. (2.2 lb) per contact

Normal Force: 375gf max. (0.32 lb)

Circuits

Order No.

94535-7002

94535-7004

94535-7008

5.00mm (.197") Pitch

PCB Header

94213

4 Circuit

Vertical

Features and Benefits

•

Rast 5 technology

•

Used for domestic appliances

Reference Information

Packaging: Box

Mates With: 84540 housing

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 25.0A max.

Contact Resistance: 30 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Contact Insertion Force: 6N (1.35 lb) max.

Mating Force: 30N (6.74 lb) max.

Unmating Force: 8N (1.80 lb) min.

Durability: 100 cycles

Physical

Housing: PA 66, UL 94V-2

Contact: Brass

Plating: Preplated Tin

PCB Thickness: 1.50mm (.059")

Order No.

Color

Lead-free

94213-2004

White

Yes

94213-2014

Black

www.molex.com/customer.html?seriesNumber=94213

www.molex.com/customer.html?seriesNumber=94535

5.00mm (.197") Pitch

Wire-to-Wire/Wire-to-Tab

Receptacle Housing

94535

For Female Terminals

With Secondary Lock

Features and Benefits

•

Rast 5 crimping technology

•

Used for domestic appliances

•

Secondary locking

•

Designed for high currents

Reference Information

Packaging: Box

Use With: 94518 and 94539 Terminals

Designed In: Millimeters

Mechanical

Contact Insertion Force: 20N (4.50 lb) max.

Contact Retention to Housing: 100N (22.48 lb) min.

Durability: 100 cycles

Physical

Housing: White PA 66, UL 94V-2

Mating Force: 1.0kgf max. (2.2 lb) per contact

Normal Force: 375gf max. (0.32 lb)

Circuits

Order No.

94535-7002

94535-7004

94535-7008

5.00mm (.197") Pitch

PCB Header

94213

4 Circuit

Vertical

Features and Benefits

•

Rast 5 technology

•

Used for domestic appliances

Reference Information

Packaging: Box

Mates With: 84540 housing

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 25.0A max.

Contact Resistance: 30 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 5000 Megohms min.

Mechanical

Contact Insertion Force: 6N (1.35 lb) max.

Mating Force: 30N (6.74 lb) max.

Unmating Force: 8N (1.80 lb) min.

Durability: 100 cycles

Physical

Housing: PA 66, UL 94V-2

Contact: Brass

Plating: Preplated Tin

PCB Thickness: 1.50mm (.059")

Order No.

Color

Lead-free

94213-2004

White

Yes

94213-2014

Black

E-34 MX10

Power Connectors

www.molex.com/product/power/hcs125.html

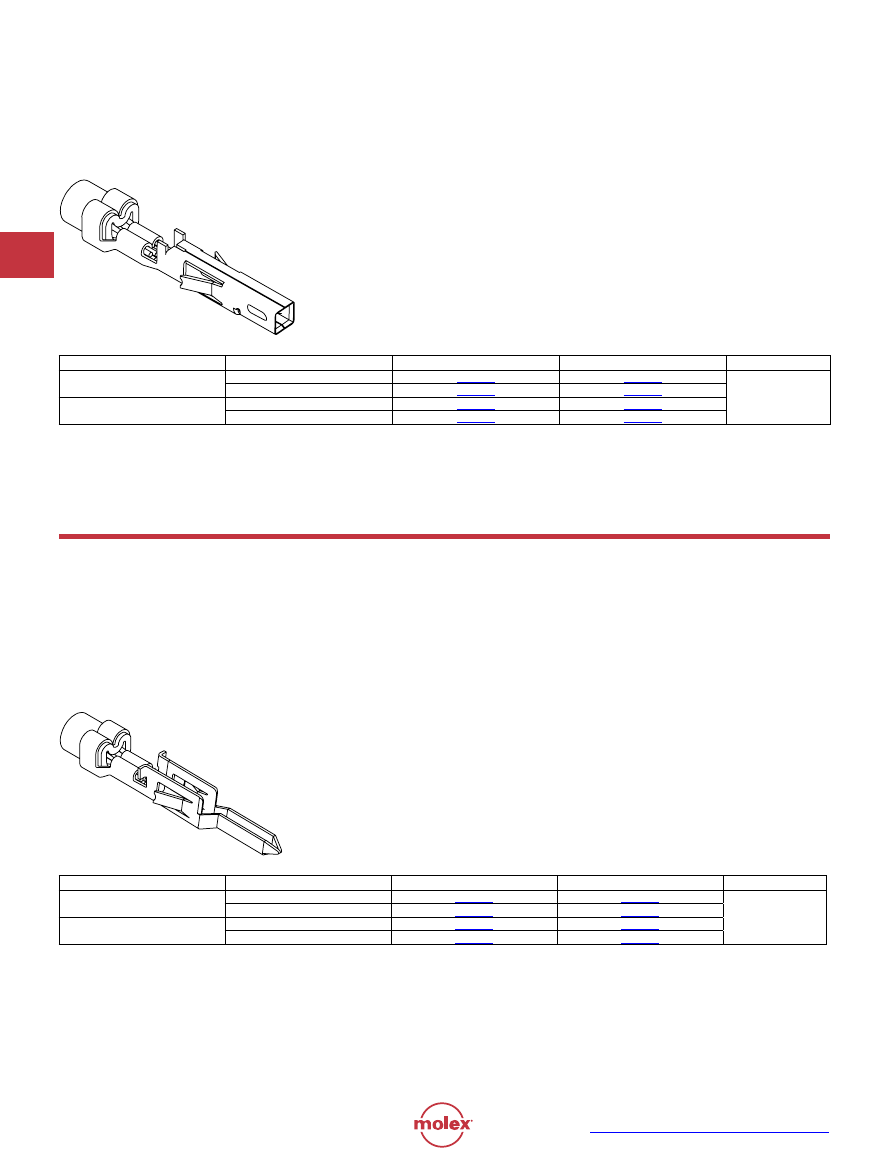

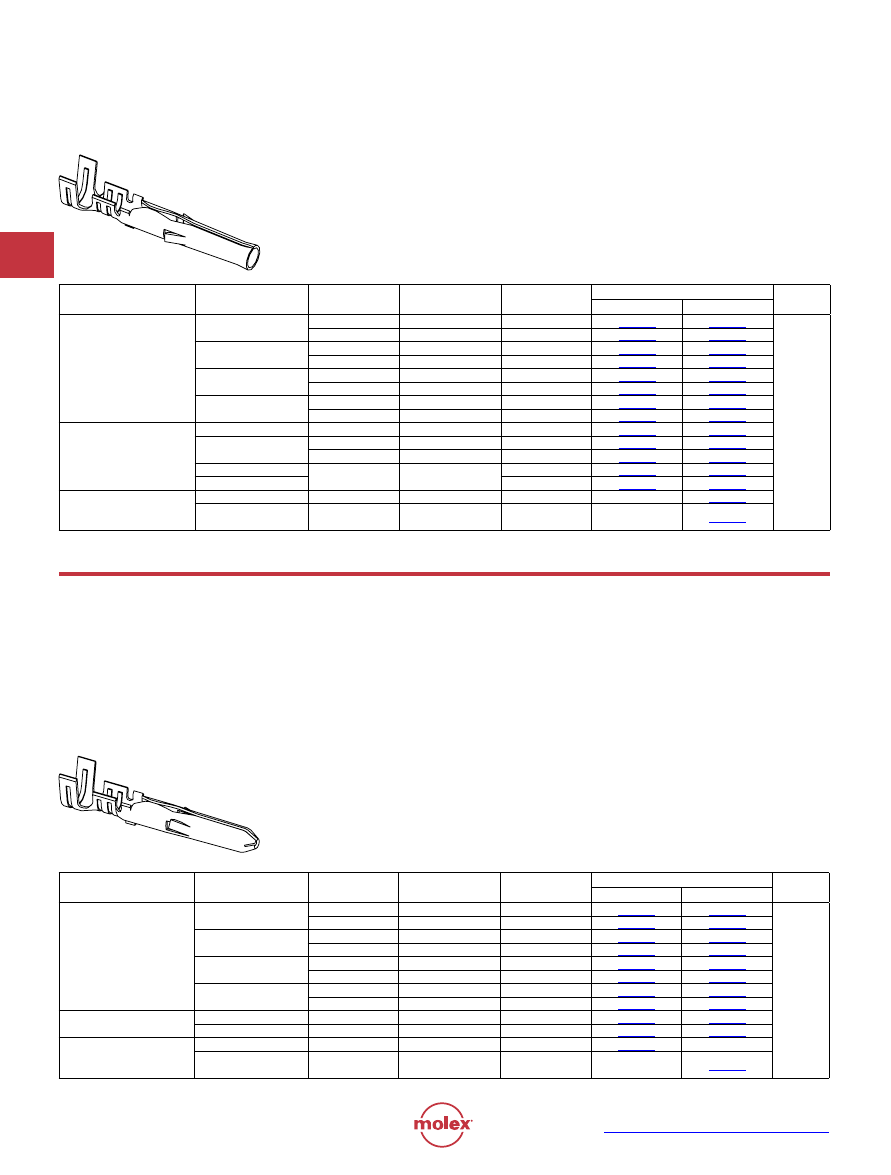

3.18mm (.125") Pin Diameter

HCS-125

Pin and Socket

Female Crimp Terminal

Features and Benefits

•

Round contact design for easy insertion into housing

•

High current in pin and socket format

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Use With: 42179 receptacle housing

Designed In: Inches

Electrical

Current: 20A max.

Contact Resistance: 10 milliohms max.

Mechanical

Contact Retention to Housing: 88.96N min.

Mating Force: 24.78N max.

Unmating Force: 8.90N min.

Mating Cycles: 25 mating/unmating cycles max.

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin

Type

Wire Size AWG

Maximum

Insulation Diameter

Series

Order No.

Lead-free

Chain

Loose

Brass

10-14

4.57 (.180)

1901

18-12-1601

18-12-1602

Yes

16-18

3.04 (.120)

2047

18-12-1221

18-12-1222

4.57 (.180)

42555

18-12-1605

Phosphor Bronze

10-14

4.57 (.180)

42547

18-12-1603

18-12-1604

16-18

3.04 (.120)

8947

18-12-1404

3.18mm (.125") Pin Diameter

HCS-125

Pin and Socket

Male Crimp Terminal

Features and Benefits

•

Round contact design for easy insertion into housing

•

High current in pin and socket format

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Use With: 42179 plug housing

Designed In: Inches

Electrical

Current: 20A max.

Contact Resistance: 10 milliohms max.

Mechanical

Contact Retention to Housing: 88.96N min.

Mating Force: 24.78N max.

Unmating Force: 8.90N min.

Mating Cycles: 25 mating/unmating cycles max.

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin

Type

Wire Size AWG

Maximum

Insulation Diameter

Series

Order No.

Lead-free

Chain

Loose

Brass

10-14

4.57 (.180)

1900

18-12-2601

18-12-2602

Yes

16-18

3.04 (.120)

2046

18-12-2221

18-12-2222

4.57 (.180)

42554

18-12-2405

Phosphor Bronze

10-14

4.57 (.180)

42546

18-12-1607

MX10 E-35

Power Connectors

www.molex.com/product/power/hcs125.html

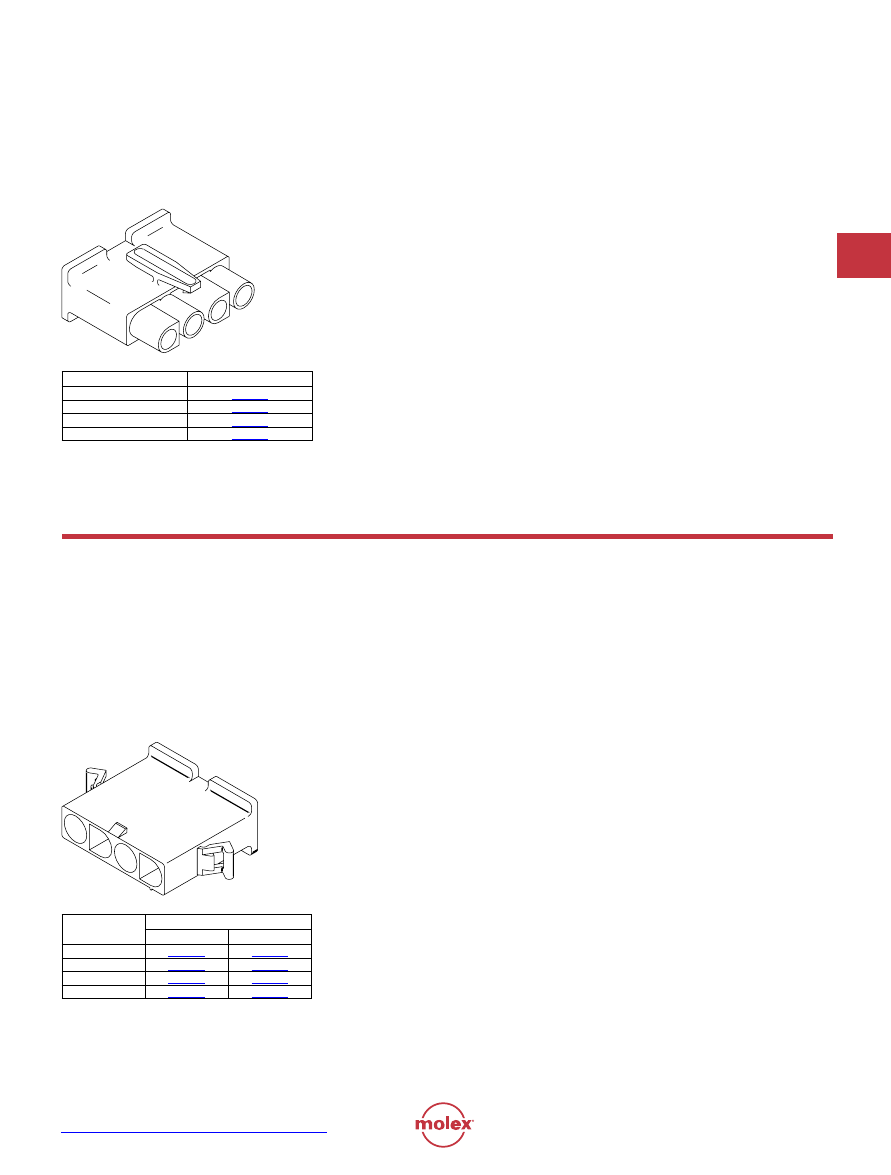

8.38mm (.330") Pitch

HCS-125

Crimp Terminal Housing

Receptacle

42179

Single Row

Features and Benefits

•

Meets the need for a connector system rated at greater

than industry standards

•

Positive locks prevent accidental unmating

•

Individual terminal silos protect terminals

•

Pull tabs for easy disengagement

•

1, 2, 3 and 4 circuit housings

Reference Information

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9151436

Mates with: 42179 Plug housing

Use With: .125" terminals

Electrical

Voltage: 600V

Current: 20.0A

Mechanical

Contact Retention to Housing: 88.96N min.

Physical

Housing: Nylon, UL 94V-2

Wire Range: See product specification and application

tooling specification

Circuits

Order No.

8.38mm (.330") Pitch

HCS-125

Crimp Terminal Housing

Plug

42179

Single Row

Features and Benefits

•

Meets the need for a connector system rated at greater

than industry standards

•

Positive locks prevent accidental unmating

•

Fully isolated terminals protect terminals

•

Pull tabs for easy disengagement

•

1, 2, 3 and 4 circuit housings

Reference Information

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9151436

Mates With: 42179 Receptacle housing

Use With: .125" terminals

Electrical

Voltage: 600V

Current: 20.0A max.

Mechanical

Contact Retention to Housing: 88.96N min.

Physical

Housing: Nylon, UL 94V-2

Wire Accommodation: See product specification and

application specification

Circuits

Order No.

Panel Mount

Free Hanging

E-36 MX10

Power Connectors

7.50мм (.295") шаг

Sabre™

Преимущества SABRE

Характеристики

Èäåàëåí äëÿ ïðîâîäîâ 14¾18 AWG

. . . . . . . . . . . . . . . . . . . .

Ïîëíîñòüþ èçîëèðîâàííûå òåðìèíàëû

. . . . . . . . . . . . . . . . .

Çàìîê-ôèêñàòîð

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . .

Ùåë÷îê ïðè ôèêñàöèè

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

×åòûðå òî÷êè ýëåêòðè÷åñêîãî êîíòàêòà

. . . . . . . . . . . .

. .

Ìàòåðèàë òåðìèíàëîâ — ëàòóíü ñ ïîêðûòèåì îëîâîì

. . .

Çàìîê íà ðîçåòêàõ ñ çàùèòîé îò íåïðàâèëüíîãî
ñî÷ëåíåíèÿ

. . . . . . . . . . . . .

. . . . . . . .

. . . . . . . . . . . . . . .

Ìàòåðèàë êîðïóñà – íåéëîí UL94 V-0 èëè V-2

. . . . . . . . .

Èíòåãðàëüíûé âòîðè÷íûé ôèêñàòîð (TPA)

. . . . . . . . . . . .

Íåò îòäåëüíûõ ïëàñòèêîâûõ ôèêñàòîðîâ

. . . . . . . . . . . . .

Ãíåçäîâîé òåðìèíàë ñ äâîéíûì ôèêñàòîðîì òèïà «ïó÷îê»

Äëèíà âûâîäîâ ïîä ïàéêó âèëîê íà ïëàòó .150 è .210"

. . .

Îïöèîíàëüíî ôèêñàòîðû â ïå÷àòíîé ïëàòå
äëÿ òîëùèí .062, .093 è .125"

. . . . . . . . . . . . . . . . . . . . . . . .

Ïî çàïðîñó òåðìèíàëû, êîëîäêè è âèëêè íà ïëàòó
ñ ñîîòâåòñòâèåì ñòàíäàðòó UL 1950 äëÿ ïðèìåíåíèé,
ãäå íàäåæíîñòü ýëåêòðè÷åñêîãî êîíòàêòà îïðåäåëÿþùàÿ.

Преимущества

Øèðîêèé âûáîð âàðèàíòîâ ïî ñå÷åíèþ è òîëùèíå èçîëÿöèè
ïðèìåíÿåìûõ ïðîâîäîâ, âîçìîæíîñòü êðèìïà äâîéíîãî ïðîâîäà
Çàùèòà òåðìèíàëîâ è ïîëÿðèçàöèÿ
Çàùèòà îò ñëó÷àéíîãî ðàñ÷ëåíåíèÿ
Ñëûøèìûé ùåë÷îê ïðè ñî÷ëåíåíèè
Íàäåæíûé ýëåêòðè÷åñêèé êîíòàêò
Íå âûñîêàÿ ñòîèìîñòü

Óñòîé÷èâîñòü ê ãðóáîìó îáðàùåíèþ
Ðàáîòàåò ïðè òåìïåðàòóðå îò –40 äî +75°C
Çàùèòà îò âûïàäåíèÿ òåðìèíàëà
Îòñóòñòâèå äîïîëíèòåëüíûõ äåòàëåé èñêëþ÷àåò
çàòðàòû íà èõ õðàíåíèå è ñáîðêó
Áîëåå íàäåæíûé ìåõàíèçì ôèêñàöèè òåðìèíàëà â êîëîäêå

Ïîäõîäèò ê øèðîêîìó äèàïàçîíó òîëùèí ïå÷àòíîé ïëàòû

Äëÿ íàèáîëåå ïîïóëÿðíûõ òîëùèí ïå÷àòíûõ ïëàò

Ñîâðåìåííîå ïðîèçâîäñòâî ïîñòîÿííî ðàçâèâàåòñÿ
â íàïðàâëåíèÿõ óëó÷øåíèÿ ñòàíäàðòîâ êà÷åñòâà,
ïîâûøåíèÿ ïðîèçâîäèòåëüíîñòè òðóäà è ñíèæåíèÿ
ñåáåñòîèìîñòè. Ñåðèÿ ñèëîâûõ ðàçúåìîâ Sabre ïîëíîñòüþ
ñîîòâåòñòâóåò ýòèì òðåáîâàíèÿì. Îíà ïîäõîäèò äëÿ
ñèëîâûõ ïðèìåíåíèé ñ òîêàìè äî 18 À.
Ðàçðàáîòàííàÿ è çàïàòåíòîâàííàÿ èíæåíåðàìè Molex,
Sabre, â èòîãå, ñòàëà ïðîìûøëåííûì ñòàíäàðòîì
ïîäêëþ÷åíèÿ, ïðåäëàãàÿ ðåøåíèÿ òèïà ïðîâîä — ïðîâîä,
ïðîâîä — ïëàòà. Íåâàæíî õîòèòå ëè Âû ïðèìåíèòü
â ñâîåì äèçàéíå ïðîâîä 18 AWG èëè 14 AWG, Sabre
ïðèñïîñîáëåí ïîä ñàìûé øèðîêèé âûáîð âàðèàíòîâ
ïî ñå÷åíèþ è òîëùèíå èçîëÿöèè.

Sabre èìååò è äðóãèå îòëè÷èòåëüíûå îñîáåííîñòè,
ñîîòâåòñòâóþùèå òðåáîâàíèÿì Âàøèõ ðàçðàáîòîê ê
ñèëîâûì ðàçúåìàì. Îñíîâíàÿ çàùåëêà ôèêñèðóåò
òåðìèíàë â êîðïóñå. Êðîìå òîãî, òåðìèíàë ñîäåðæèò
çàïàòåíòîâàííûé Molex âòîðè÷íûé ôèêñàòîð ÒÐÀ,
êîòîðûé ôàêòè÷åñêè èñêëþ÷àåò âåðîÿòíîñòü âûïàäåíèÿ
òåðìèíàëà èç êîëîäêè. Àêòèâàöèÿ ýòîé ôóíêöèè
îïöèîíàëüíà. Çàìîê íà ðîçåòêå ïðåïÿòñòâóåò ñëó÷àéíîìó
ðàñ÷ëåíåíèþ ñîåäèíåíèÿ. Åãî êîíñòðóêöèÿ ðàçðàáîòàíà,
â òîì ÷èñëå, ñ öåëüþ ïðåäîòâðàùåíèÿ íåïðàâèëüíîãî
ïîäêëþ÷åíèÿ, ÷òî îáëåã÷àåò ðàáîòó ñ íèìè. Êîðïóñ
ñäåëàí èç óäàðîïðî÷íîãî íåéëîíà V-0 èëè V-2, ÷òî
äåëàåò êîëîäêè óñòîé÷èâûìè ê ãðóáîìó îáðàùåíèþ.

MX10 E-37

Power Connectors

Series

Description

Mates With/

Use With

Material

Circuits/

Wire

Gauge

Features and Benefits

Terminals

43178

Male

Terminal

Mates with

43375 Terminals

Used in 43680 Housings

Tin-plated

Brass

14 to 18 AWG

double

18 AWG crimps

•

Four points of electrical contact between terminal mating interface provides a more reliable

electrical connection

•

Patented integral Terminal Position Assurance (TPA) on mated male and female terminals.

Activation is optional. Virtually eliminates terminal backouts from housing

•

Male terminal part numbers available for use with 43680 plug housings that meet UL 1950

finger proofing in environments where contact safety is a consideration

43375

Female

Terminal

Mates with 43178 Terminal

and

43160 Headers

Used in 44441 Housings

Single Row Housings

43680

Plug

Housing

Mates with

44441

Nylon,

UL 94V-0

UL 94V-2

2, 3, 4, 5 and 6

Circuits

•

Positive thumblatch on receptacle prevents accidental disengagement with plug or header

•

Receptacle thumblatch has anti-tangle design to prevent breakage during harness assembly

and improves production handling

•

Polarized housing helps prevent improper mating

•

43680 plug housings meet UL 1950 finger proofing requirements when used with

designated 43178 male terminals. 44441 receptacle housings meet same requirement

when used with standard 43375 female terminals

44441

Receptacle

Housing

Mates with

43680 and 43160

Single Row Headers

43160

Vertical

Header

Mates with

44441

Glass-filled

Nylon,

UL 94V-0

2, 3, 4, 5 and 6

Circuits

•

Individual part numbers available to match 1.57, 2.36 or 3.17mm (.062, 093 or .125")

PCB thicknesses

•

Optional PCB retention clips for secure retention of the header

to the PCB prior to and during the solder process

•

Special part numbers available upon request that meet

UL 1950 finger proofing requirements

Right

Angle

Header

*Wave solder compatible only

7.50mm (.295") Pitch

Sabre

™

•

Wire-to-Wire (free hanging only)

•

Wire-to-Board

•

Patented Terminal Position Assurance (TPA) feature

•

Voltage: 600V

•

Current: 18.0A* per circuit

•

UL 1950 Finger Proof Safe available

*Depending on circuit size, wire gauge and PCB design

Terminal TPA Activation/Deactivation and Extraction Hand Tools

Order No.

Used With

Features and Benefits

63813-0500

44441 Receptacle Housing

43375 Female Terminal

•

Female terminal extraction

•

TPA activation

•

TPA de-activation

63813-0600

43680 Plug Housing

43178 Male Terminal

•

Male terminal TPA activation

•

TPA de-activation

63813-0800

•

Male terminal extraction

E-38 MX10

Power Connectors

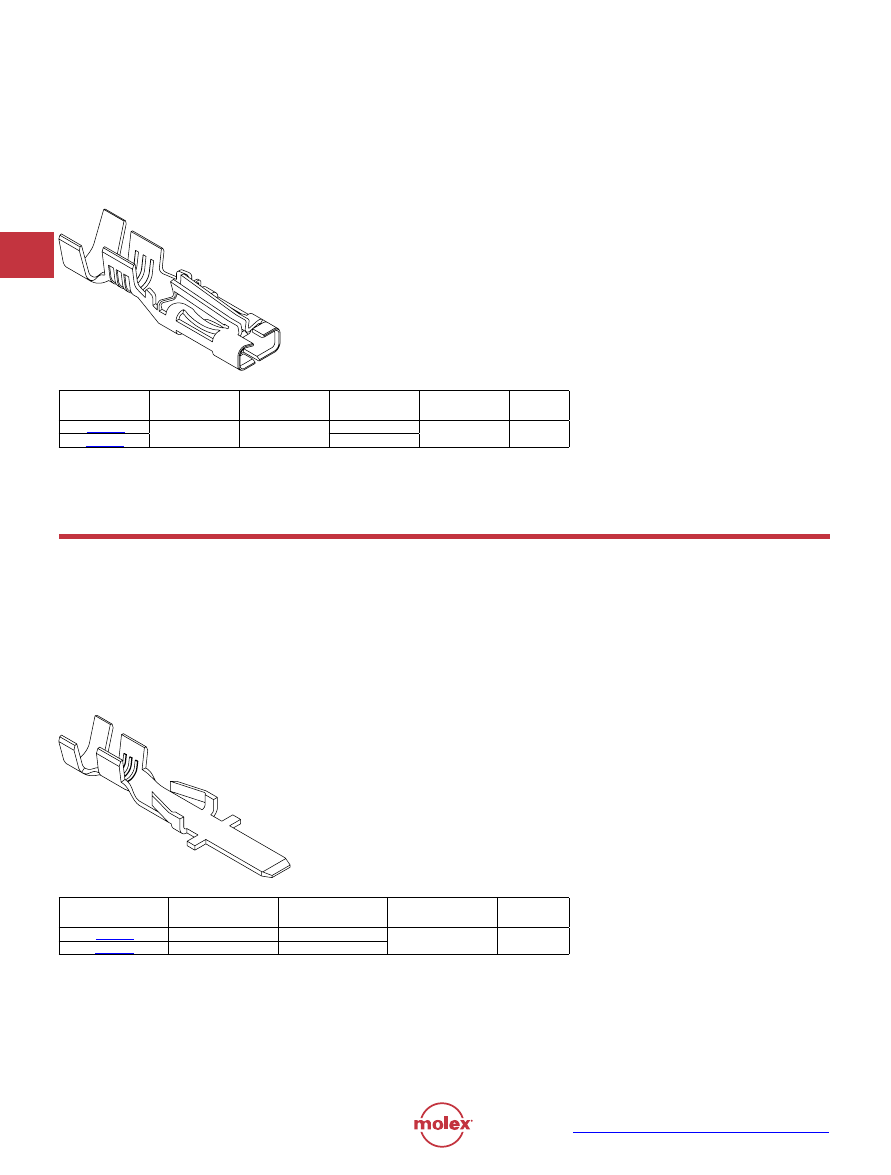

Order No.

Wire Size AWG

Maximum

Insulation Diameter

Packaging

Lead-free

43178-1002

3.30 (.130)

Chain

Yes

†

43178-2002

14-18

4.57 (.180)

†

Accommodates single 14, 16 or 18 AWG wire crimps, or double 18 AWG wire crimps

7.50mm (.295") Pitch

Sabre

™

Wire-to-Wire Terminal

43178

Male

Features and Benefits

•

Patented new integral Terminal Position Assurance

(TPA) on male and female terminal virtually eliminates

terminal backout

•

Accommodates 14 to 18 gauge wire

•

Four points of electrical contact

•

Wire-to-wire

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Use With: 43680 housing

Electrical

Voltage: 600V

Current: 18.0A max.*

Contact Resistance: 10 milliohms max.

Dielectric Withstanding Voltage: 5000V

Insulation Resistance: 1000 Megohms min.

Mechanical

Mating Force: 13.3N max.

Unmating Force: 2.2N min.

Normal Force: 13.34N nominal

Durability: 25 cycles

Physical

Contact: Brass

Plating: Tin

Wire Gauge: 14, 16, 18 AWG

Insulation Diameter: 4.57mm (.180") max.

* Depending on circuit size and wire gauge. Please refer to

product specification.

Order No.

Plating

Wire Size AWG

Maximum

Insulation Diameter

Packaging

Lead-free

43375-0001

Tin

14-18

3.30 (.130)

Chain

Yes

†

43375-1001

4.57 (.180)

†

Accommodates single 14, 16 or 18 AWG wire crimps or double 18 AWG wire crimps

7.50mm (.295") Pitch

Sabre

™

Wire-to-Wire or

Wire-to-Board Terminal

43375

Female

Features and Benefits

•

Patented new integral Terminal Position Assurance

(TPA) on female and male terminal virtually eliminates

terminal backout

•

Four points of electrical contact

•

Wire-to-wire; wire-to-board

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Use With: 44441 housing

Electrical

Current: 18.0A max.*

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 13.3N max.

Unmating Force: 2.2N min.

Normal Force: 13.34N nominal per contact

Mating Cycles: 25

Physical

Contact: Brass

Plating: Tin

Wire Gauge: 14, 16, 18 AWG

Insulation Diameter: 4.57mm (.180") max

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

MX10 E-39

Power Connectors

7.50mm (.295") Pitch

Sabre

™

Receptacle

44441

Single Row

Features and Benefits

•

Patented new integral Terminal Position Assurance

(TPA) on mated male and female terminal virtually

eliminates terminal backout

•

Wire-to-wire and wire-to-board connector system

•

Polarized housing assures proper mating

•

Terminals are fully isolated in housing

•

Positive latch reduces accidental disengagement

from plug

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Use With: 43375 terminal

Mates With: 43160 header and 43680 plug

Mechanical

Contact Insertion Force: 8.90N max.

Contact Retention to Housing: 88.96N min.

Physical

Housing: Nylon, UL 94V-2 or 94V-O

Circuits

Order No.

94V-2

94V-0

7.50mm (.295") Pitch

Sabre

™

Wire-to-Wire Plug

43680

Single Row

Features and Benefits

•

Patented new integral Terminal Position Assurance

(TPA) on mated male and female terminal virtually

eliminates terminal backout

•

Polarized housing assures proper mating

•

Terminals are fully isolated in housing

•

Positive latch reduces accidental disengagement

from receptacle

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Use With: 43178 terminal

Mates With: 44441 receptacle

Mechanical

Contact Insertion Force: 8.90N max.

Contact Retention to Housing: 88.96N min.

Physical

Housing: Nylon, UL 94V-2 or 94V-O

Circuits

Order No.

94V-0

94V-2

E-40 MX10

Power Connectors

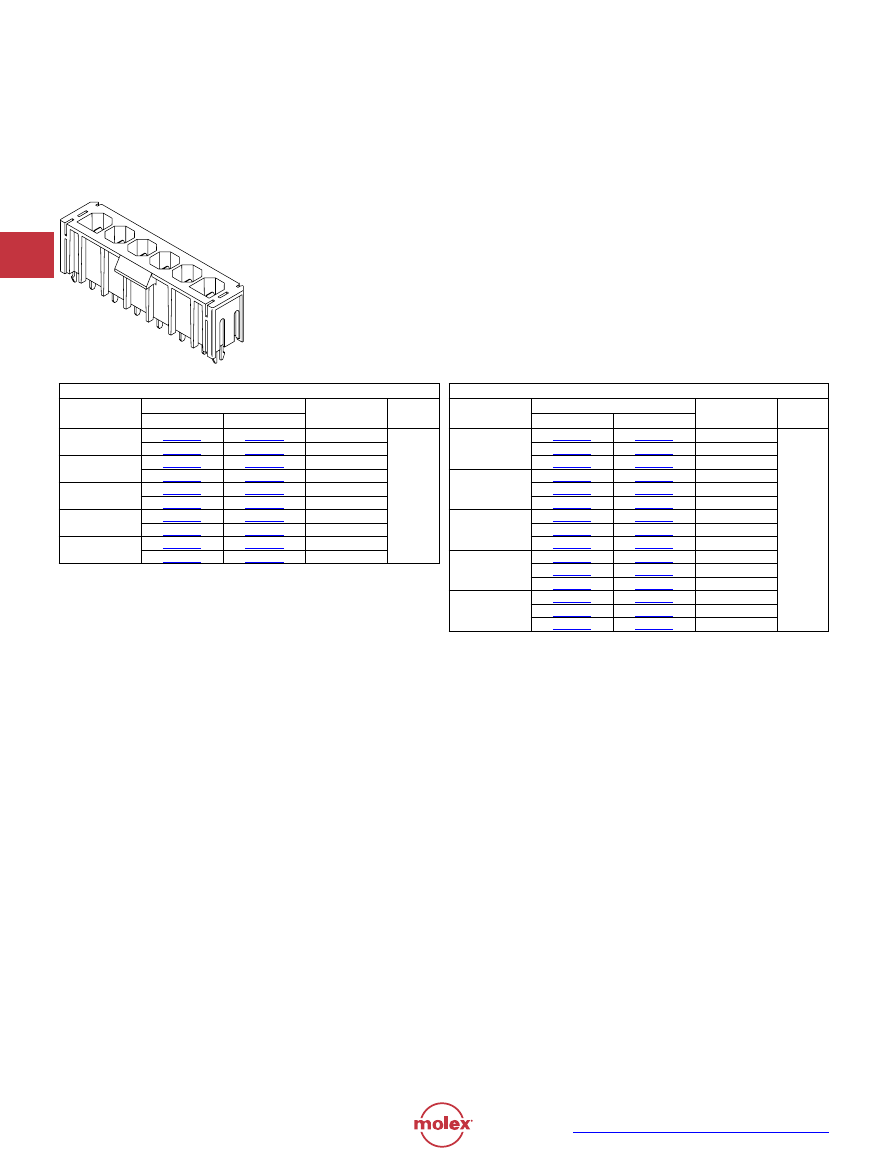

7.50mm (.295") Pitch

Sabre

™

Wire-to-Board Header

43160

Vertical, Single Row

With and without Board Lock

Features and Benefits

•

Sizes 2 to 6 circuits

•

Optional board lock features offered in 1.57, 2.36

and 3.18mm (.062, .093 and .125) lengths

•

Positive lock

•

Fully polarized

•

Wire-to-board

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Mates With: 44441 housing

Electrical

Voltage: 600V

Current: 18.0A max.*

Contact Resistance: 10 milliohms max.

Mechanical

Insertion Force to PCB: 22.24N max.

Mating Cycles: 25

Physical

Housing: Black glass-filled nylon, UL 94V-O or

natural unfilled nylon, UL 94V-2

Contact: Brass

Plating: Tin

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Without Board Lock

Circuits

Order No.

PC Tail Length

Lead-free

94V-0

94V-2

43160-0102

43160-0202

3.81 (.150)

Yes

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

With Board Lock

Circuits

Order No.

PCB Thickness

Lead-free

94V-0

94V-2

43160-2102

43160-2202

1.57 (.062)

Yes

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

1.57 (.125)

MX10 E-41

Power Connectors

www.molex.com/product/versablade.html

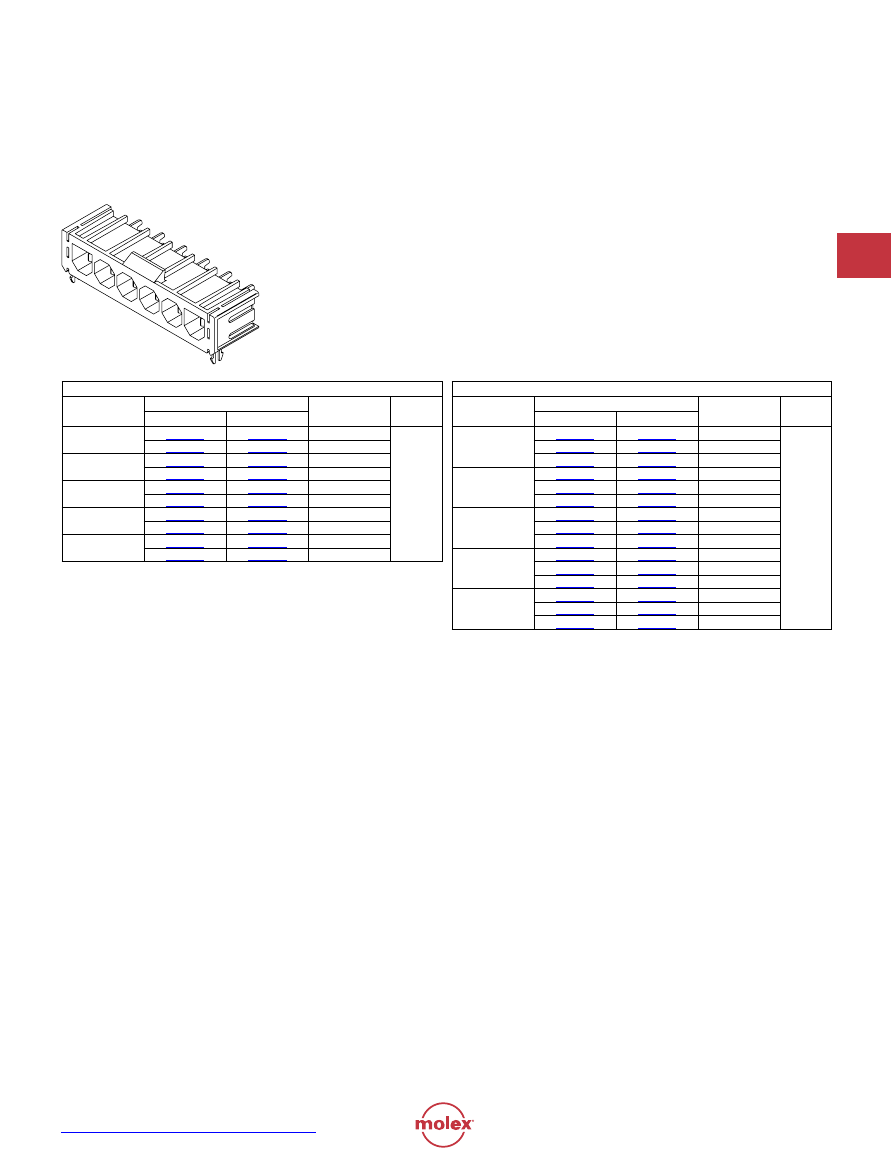

7.50mm (.295") Pitch

Sabre

™

Wire-to-Board Header

43160

Right Angle, Single Row

With and without Board Lock

Features and Benefits

•

Sizes 2 to 6 circuits

•

Wire-to-board

•

Optional board lock features offered in 1.57, 2.36

and 3.18mm (.062, .093 and .125") lengths

•

Positive lock

•

Fully polarized

Reference Information

Product Specification: PS-44441-9999

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: TBA

Mates With: 44441 housing

Electrical

Voltage: 600V

Current: 18.0A max.*

Contact Resistance: 10 milliohms max.

Mechanical

Insertion Force to PCB: 22.24N max.

Normal Force: 13.34N nominal

Mating Cycles: 25

Physical

Housing: Black glass-filled nylon, UL 94V-O or

natural unfilled nylon UL 94V-2

Contact: Brass

Plating: Tin

* Depending on circuit size, wire gauge and PCB. Please refer to

product specification.

Without Board Lock

Circuits

Order No.

PC Tail Length

Lead-free

94V-0

94V-2

43160-1102

43160-1202

3.81 (.150)

Yes

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

3.81 (.150)

5.33 (.210)

With Board Lock

Circuits

Order No.

PCB Thickness

Lead-free

94V-0

94V-2

43160-3102

43160-3202

1.57 (.062)

Yes

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

1.57 (.062)

2.36 (.093)

3.18 (.125)

MX10 E-43

Power Connectors

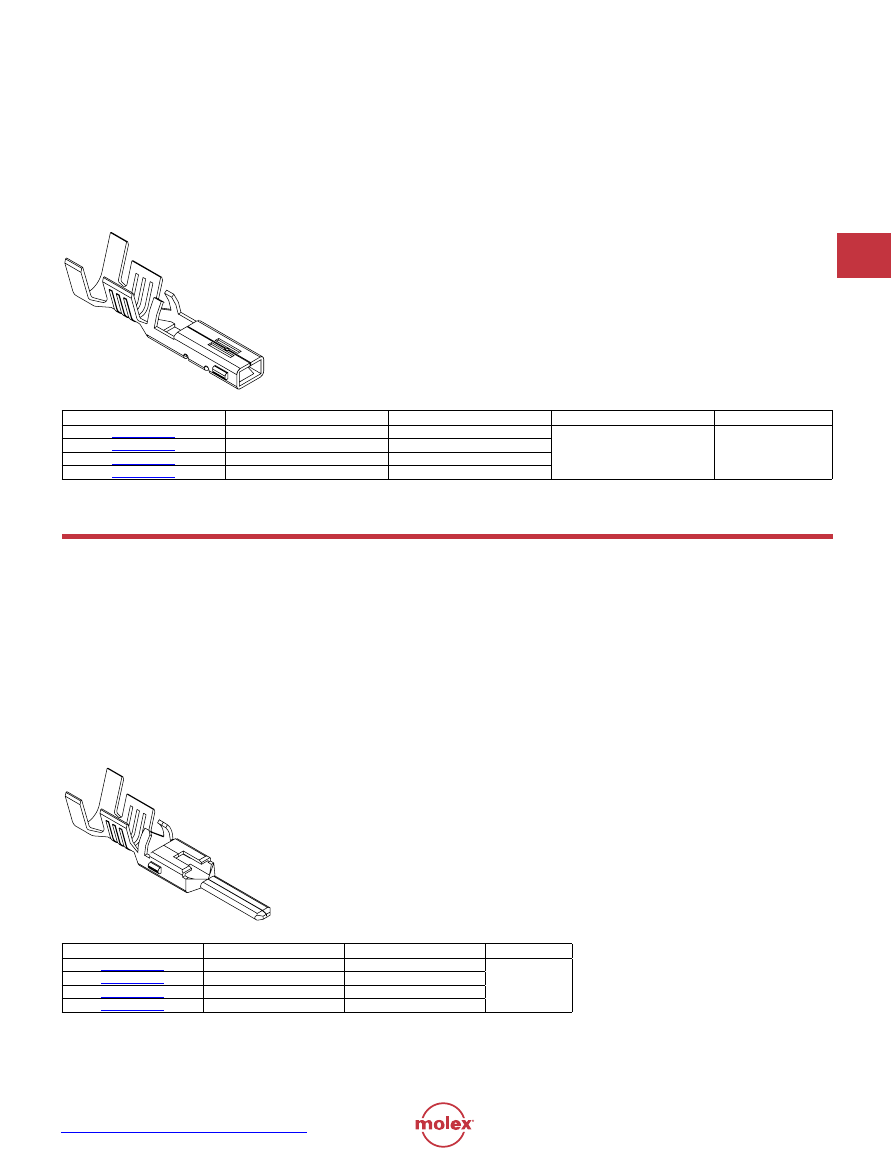

1.80mm (.070") Width

VersaBlade

™

Wire-to-Wire

Terminal

35746/35748

Female, Crimp

With Polarizing Dimple

Features and Benefits

•

Low insertion force

•

Housing-locking feature avoids deformation

of terminal

•

Fully enclosed box design protects contact area from

damage and provides 3 points of contact

•

Accepts wide wire range (14 to 22 AWG)

•

Strip length: 4.0 to 4.8mm

Reference Information

Product Specification: PS-35150

Tooling Information: Semi-automatic crimping press

and applicator

Mates With: 35745 and 35747 male terminals

Use With: 35150, 35151, 35180 and 35181 housings

Electrical

Voltage: 300V

Current: 15A max. See applicable product spec.

Contact Resistance: 10 milliohms max.

Mechanical

Contact Insertion Force: 2.5kgf max.

Contact Retention to Housing: 4.0kgf min.

Wire Pull-Out Force: 14AWG—15.0kgf min.

Mating Force: 1.6kgf max.

Unmating Force: 0.5kgf min.

Mating Cycles: 30

Physical

Contact: Phosphor Bronze

Plating: Tin

Wire Range: 14-22 AWG

Order No.

Wire Range AWG

Insulation Range (max.)

Packaging

Lead-free

35746/35748-0110

20-22

2.70 (.106)

Reel

Yes

35746/35748-0210

14-18

3.40 (.134)

35746/35748-0310

18+18, 20+20

6.00 (.236)

35746/35748-0410

24-26

2.35 (.093)

1.80mm (.070") Width

VersaBlade

™

Wire-to-Wire

Terminal

35745/35747

Male, Crimp

With Polarizing Dimple

Features and Benefits

•

Low insertion force

•

Housing-locking feature avoids deformation

of terminal

•

Accepts wide wire range (14 to 22 AWG)

•

Strip length: 4.0 to 4.5mm

Reference Information

Product Specification: PS-35150

Tooling Information: Semi-automatic crimping press

and applicator

Mates With: 35746 and 35748 female terminals

Use With: 35150, 35151, 35180 and 35181 housings

Electrical

Voltage: 300V

Current: 15A max. See applicable product spec.

Contact Resistance: 10 milliohms max.

Dielectric Withstanding Voltage: 1500V

Insulation Resistance: 100 Megohms min.

Mechanical

Contact Insertion Force: 2.5kgf max.

Contact Retention to Housing: 4.0kgf min.

Wire Pull-Out Force: 14AWG—15.0kgf min.

Mating Force: 1.6kgf max.

Unmating Force: 0.5kgf min.

Mating Cycles: 30

Physical

Contact: Brass

Plating: Tin

Order No.

Wire Range AWG

Insulation Range (max.)

Lead-free

35745/35747-0110

20-22

2.70 (.106)

Yes

35745/35747-0210

14-18

3.40 (.134)

35745/35747-0310

18+18, 20+20

6.00 (.236)

35745/35747-0410

24-26

2.35 (.093)

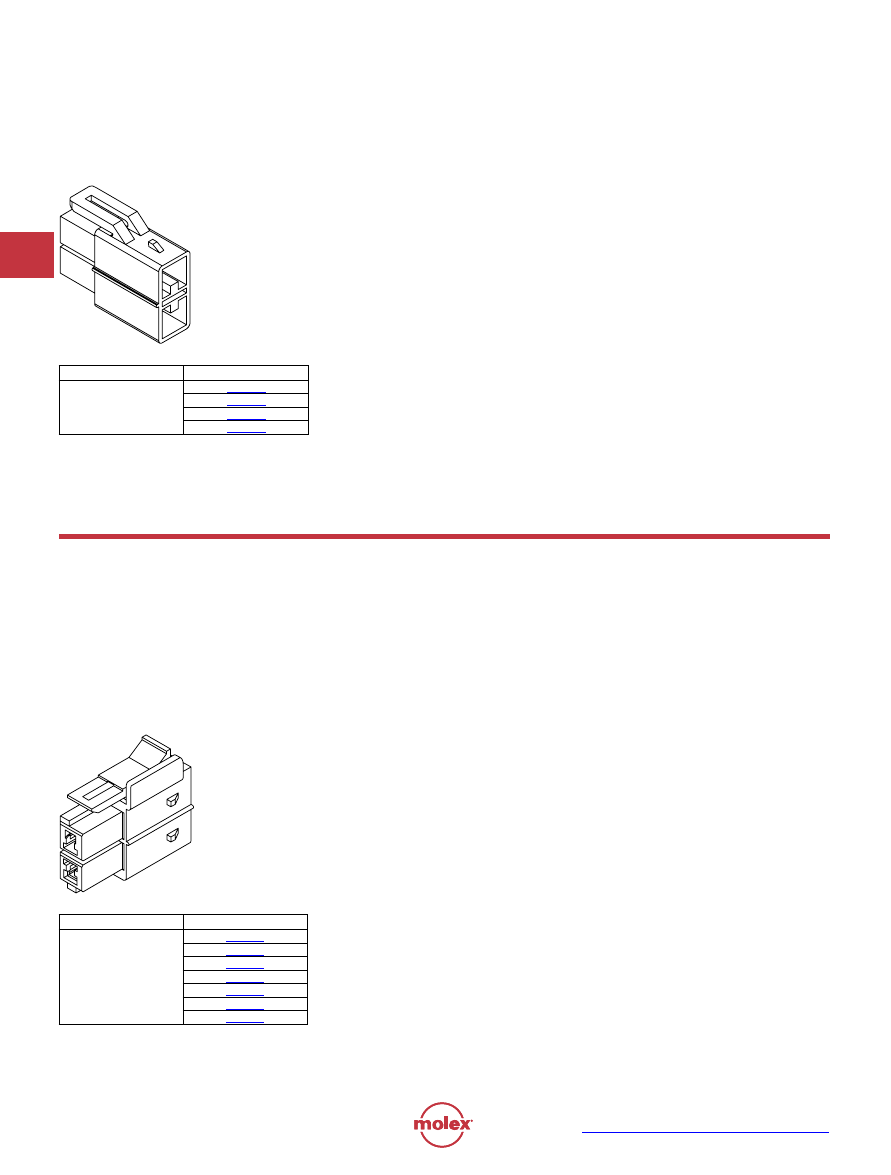

MX10 E-45

Power Connectors

www.molex.com/product/versablade.html

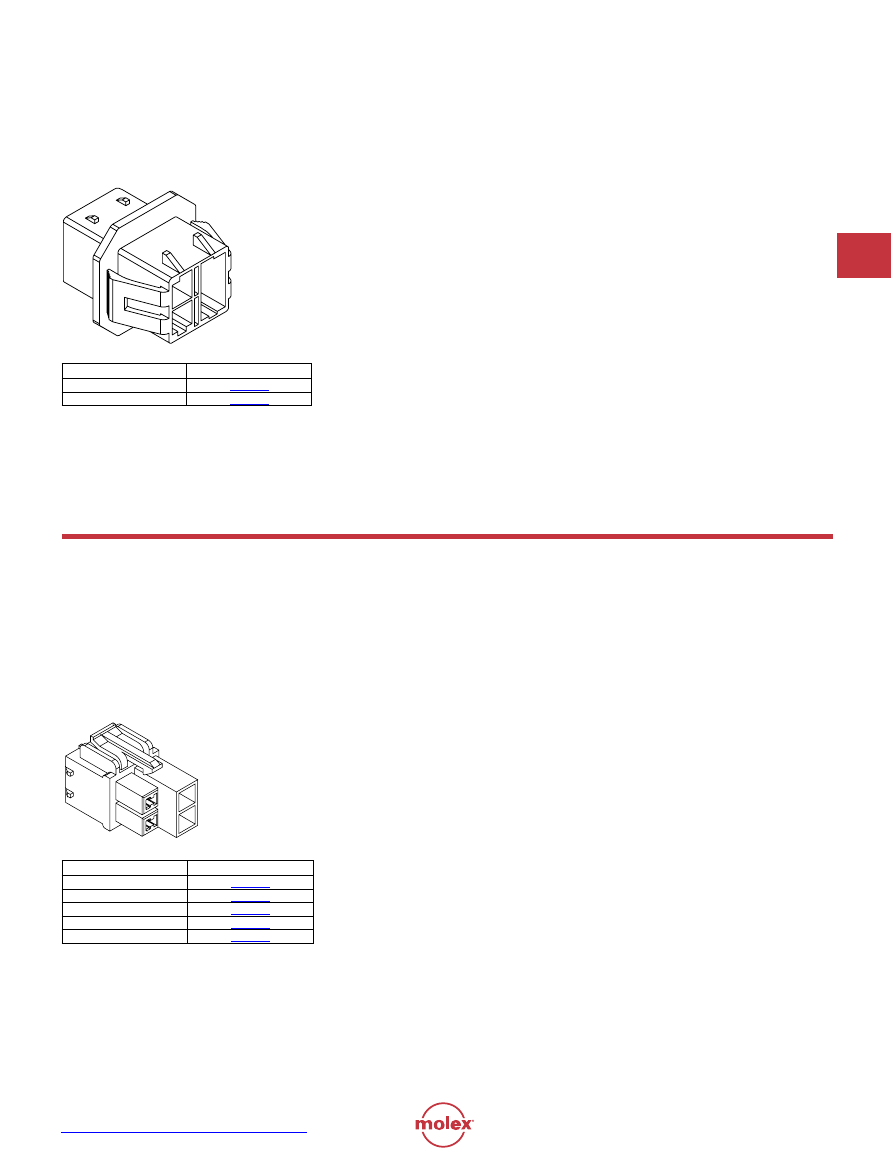

1.80mm (.070") Tab

VersaBlade

™

Wire-to-Wire

Male Housing

35180

Features and Benefits

•

Polarization prevents mismating

•

Mounting ears snap firmly into place

•

Housing-locking feature avoids deformation of terminal

•

Fully-enclosed box design protects contact area from

damage

•

Accepts 35182-029 TPA secondary lock

•

Hybrid connector accommodates 4 types of terminals:

female terminals 35746 and 35748, and male terminals

35745 and 35747

Reference Information

Product Specification: PS-35180-002

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R9551811

Mates With: 35181 and 35965

Use With: 35182, 35745, 35746, 35747 and 35748

Mechanical

Contact Insertion Force: 29.4N (6.61 lb)

Contact Retention to Housing: 39N (8.77 lb)

Physical

Housing: Polyester, UL 94V-0

Circuits

Order No.

35180-0400

35180-0600

1.80mm (.070") Width

VersaBlade

™

Wire-to-Wire

Hybrid Receptacle

35151

Features and Benefits

•

Sizes 1 to 6 circuits

•

Hybrid connector accommodates 4 types

of terminals

•

Positive lock ensures secure mating

•

Polarization prevents mismating

•

Accepts 35150 TPA secondary lock

Reference Information

Product Specification: PS-35150

UL File No.: E29179

CSA File No.: LR19980

TUV File No.: R9551811

Mates With: 35150 housing

Use With: 35745, 35746, 35747 and

35748 terminals

Mechanical

Contact Insertion Force: 2.5kgf max.

Contact Retention to Housing: 4.0kgf min.

Mating Force: 5.0kgf max.

Unmating Force: 1.5kgf min.

Mating Cycles: 30

Physical

Housing: Polyester, UL 94V-0

Circuits

Order No.

MX10 E-47

Power Connectors

www.molex.com/product/power/std093.html

Type

Plating

Crimp Wire Size

Insulation Diameter

Series

Order No.

Lead-free

Chain Form

Loose Form

Standard Brass .010"

Tin

14-20

1.65/4.06 (.065/.160)

1189

02-09-1102

02-09-1104

Yes

18-22

1.52/3.05 (.060/.120)

1381

02-09-1117

02-09-1119

22-24

1.27/1.78 (.050/.070)

2871

02-09-1138

02-09-1139

24-30

0.76/1.52 (.030/.060)

1433

02-09-1142

02-09-1144

" Gold

14-20

1.65/4.06 (.065/.160)

1189

02-09-5100

02-09-5106

18-22

1.52/3.05 (.060/.120)

1381

02-09-5143

02-09-5142

24-30

0.76/1.52 (.030/.060)

1433

02-09-5146

02-09-5147

" Gold

14-20

1.65/4.06 (.065/.160)

1189

02-09-5102

02-09-5111

18-22

1.52/3.05 (.060/.120)

1381

02-09-5130

02-09-5133

.013" High Current/Low Force

Tin

14-18

3.56 (.140) max.

42477

02-09-1615

02-09-1616

PC Tail for Standard .093" Housing

Tin

1377

02-09-1134

" Gold

02-09-5132

Phos-Bronze .010"

Tin

14-20

1.65/4.06 (.065/.160)

4550

02-09-1205

02-09-1206

18-22

1.52/3.05 (.060/.120)

2151

02-09-1203

02-09-1204

" Gold

14-20

1.65/4.06 (.065/.160)

4550

02-09-5169

02-09-5170

2.36mm (.093") Pin Diameter

.093" Pin and Socket

Female Crimp Terminal

Standard .093" and 3191

Features and Benefits

•

Round contact design for easy insertion into housing

•

Can be used in plug or receptacle

•

Accommodates 14 to 30 gauge wire

•

Available in crimp or PC tail versions

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Designed In: Inches

Electrical

Current: Standard Terminal—14.0A max.*

High Current Terminal—17.0A max.*

Contact Resistance: 10 milliohms max.

Mechanical

Contact Insertion Force: 22.29N max.

Contact Retention Force: 88.96N min.

Mating force: 15.57N max.

Unmating Force: 4.45N max.

Durability: Tin plating—25 cycles max.

Gold plating—50 cycles max.

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin or Gold

Strip Length: See tooling section

* Depending on circuit size and wire gauge. Please refer to

product specifications

Type

Plating

Crimp Wire Size

Insulation Diameter

Series

Order No.

Lead-free

Chain Form

Loose Form

Standard Brass .010"

Tin

14-20

1.65/4.06 (.065/.160)

1190

02-09-2101

02-09-2103

Yes

18-22

1.52/3.05 (.060/.120)

1380

02-09-2116

02-09-2118

22-24

1.27/1.78 (.050/.070)

2870

02-09-2136

02-09-2137

24-30

0.76/1.52 (.030/.060)

1434

02-09-2141

02-09-2143

" Gold

14-20

1.65/4.06 (.065/.160)

1190

02-09-6100

02-09-6106

18-22

1.52/3.05 (.060/.120)

1380

02-09-6122

02-09-6123

24-30

0.76/1.52 (.030/.060)

1434

02-09-6144

02-09-6145

" Gold

14-20

1.65/4.06 (.065/.160)

1190

02-09-6101

02-09-6110

18-22

1.52/3.05 (.060/.120)

1380

02-09-6125

02-09-6126

Grounding Pin

Tin

14-18

1.65/3.56 (.065/.140)

1973-2

02-09-8108

02-09-8109

18-22

1.52/3.05 (.060/.120)

1973

02-09-8103

02-09-8104

.013" High Current/Low Force

Tin

14-18

3.56 (.140) max.

42478

02-09-2611

02-09-2612

PC Tail for Standard .093" Housing

Tin

1376

02-09-2134

" Gold

1376

02-09-6132

2.36mm (.093") Pin Diameter

.093" Pin and Socket

Male Crimp Terminal

Standard .093" and 3191

Features and Benefits

•

Round contact design for easy insertion into housing

•

Can be used in plug or receptacle

•

Accommodates 14 to 30 gauge wire

•

Available in crimp or PC tail versions

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Electrical

Current: Standard terminal—14.0A max.*

High Current Terminal—17.0A max.*

Contact Resistance: 10 milliohms max

Mechanical

Contact Insertion Force: 22.24N max.

Contact Retention Force: 88.96N min.

Mating Force: 15.57N max.

Unmating Force: 4.45N max.

Durability: Tin plating—25 cycles max.

Gold plating—50 cycles max.

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin or Gold

* Depending on circuit size and wire gauge; please refer to

product specifications

E-48 MX10

Power Connectors

www.molex.com/product/power/std093.html

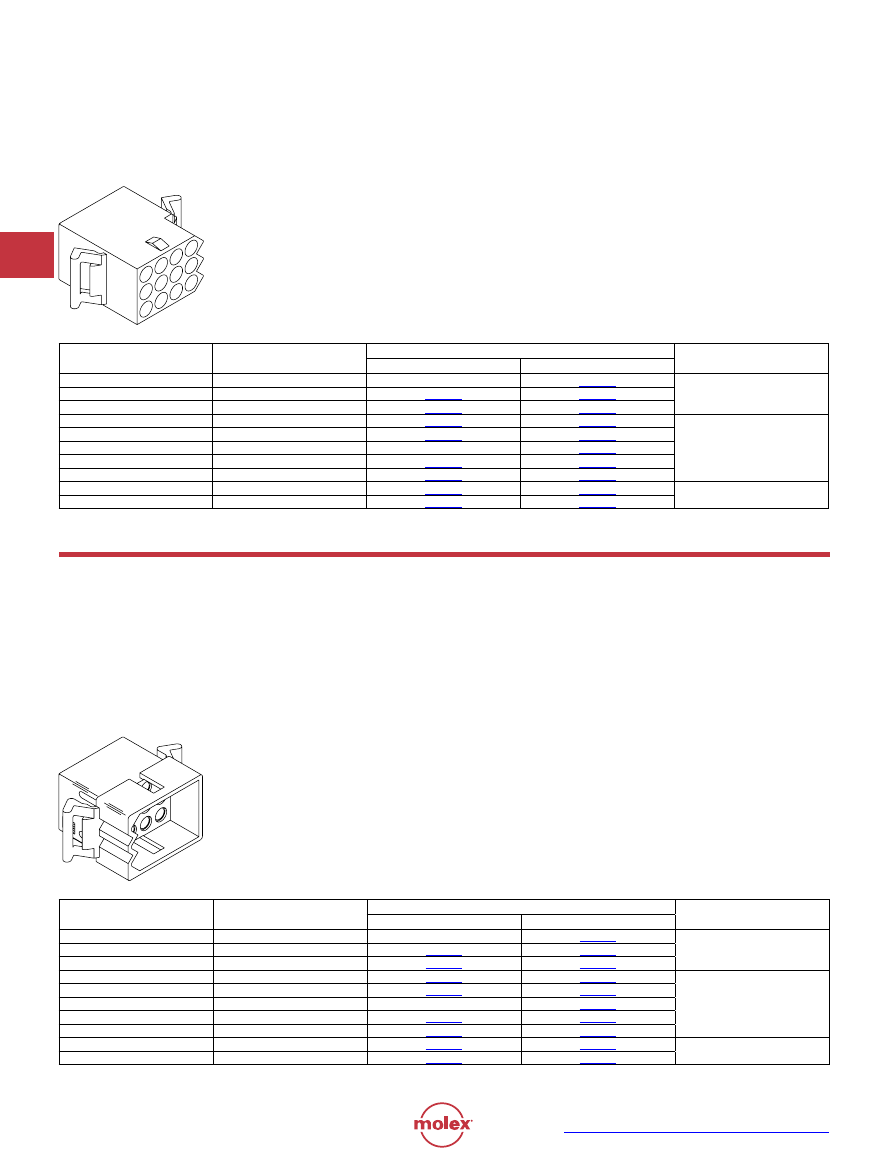

5.03mm (.198") Pitch

.093 Pin and Socket

Crimp Terminal Housing

Receptacle

Standard .093"

Features and Benefits

•

Passive (friction) lock

•

1 to 15 circuit housings

•

Panel and PCB mountable

•

Mating headers available

•

Male and female terminals may be used in

receptacle housing

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Mates With: Standard .093" plug and 3099 headers

Use With: Standard .093" terminal

Electrical

Voltage: 250V

Current: See chart

Mechanical

Contact Retention to Housing: 88.96N min.

Physical

Housing: Nylon, UL 94V-2

Circuits

Series No.

Order No.

Amperes per Circuit*

Panel Mount

Free Hanging

1619

N/A

03-09-1011

14.0

1545

1396

4 (1 x 4)

1490

03-09-1041

03-09-1042

11.0

4 (2 x 2)

2163

03-09-1040

03-09-1049

2629

N/A

1261

1292

1360

9.5

1375

03-09-1154

03-09-1157

* Rating based on fully loaded housings and 14 AWG wire

5.03mm (.198") Pitch

.093" Pin and Socket

Crimp Terminal Housing

Plug

Standard .093"

Features and Benefits

•

Passive (friction) lock

•

1 to 15 circuit housings

•

Panel and PCB mountable

•

Male and female terminals may be used in

plug housing

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Mates With: Standard .093" receptacle

Use With: Standard .093" terminal

Electrical

Voltage: 250V

Current: See chart

Mechanical

Contact Retention to Housing: 20 lb min.

Physical

Housing: Nylon, UL 94V-2

Circuits

Series No.

Order No.

Amperes per Circuit*

Panel Mount

Free Hanging

1619

N/A

03-09-2011

14.0

1545

1396

4 (1 x 4)

1490

03-09-2041

03-09-2042

11.0

4 (2 x 2)

2163

03-09-2040

03-09-2049

2629

N/A

1261

1292

1360

9.5

1375

03-09-2159

03-09-2158

* Rating based on fully loaded housings and 14 AWG wire

MX10 E-49

Power Connectors

www.molex.com/product/power/std093.html

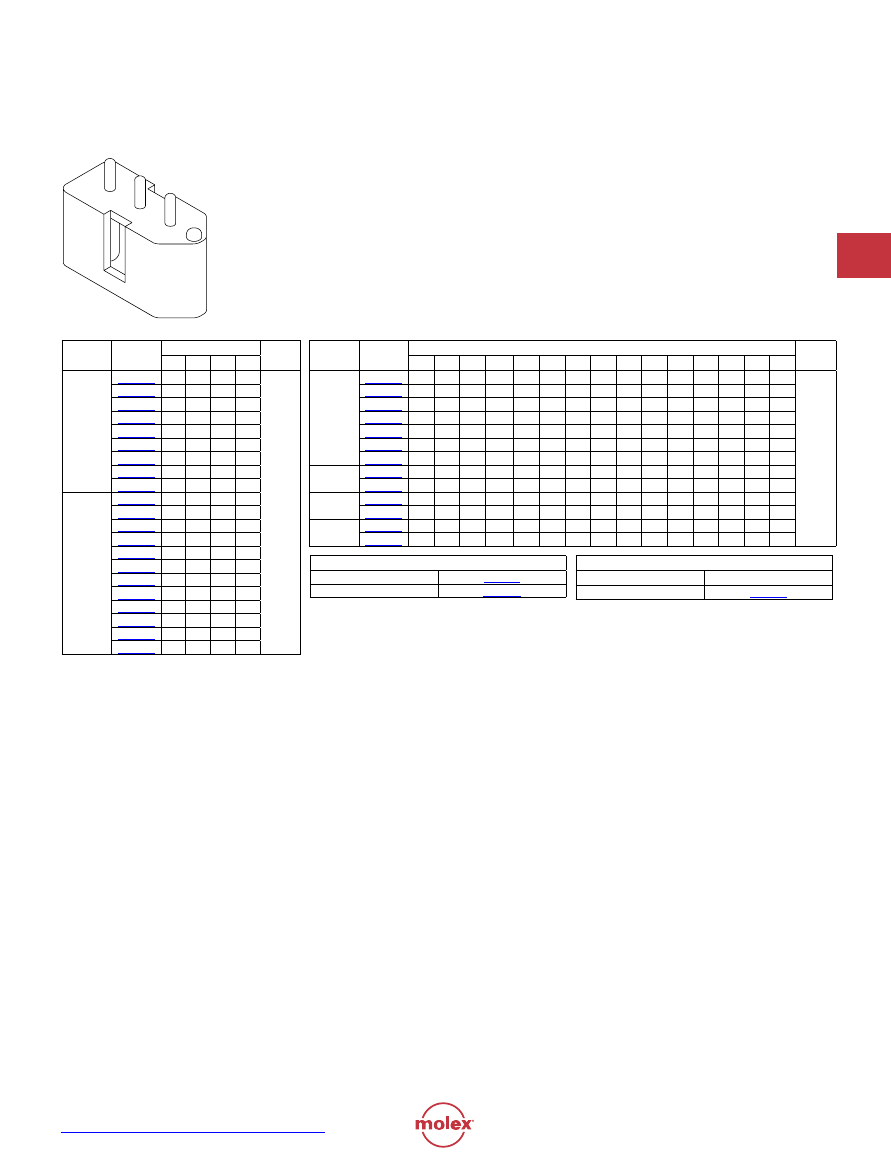

5.03mm (.198") Pitch

.093" Pin and Socket

Shrouded Header

3099

Features and Benefits

•

3, 4, 6, 9, 12 and 15 circuits available

•

Pre-assembled

•

Intermix of male and female terminals for polarization

•

Polarized housing design assures proper mating

Reference Information

UL File No.: E29179

CSA File No.: LR19980

Mates With: Standard .093" receptacles

Use With: 1840 header as a board-to-board connector

(contact Molex for details)

Electrical

Voltage: 250V

Current: 5.0A max.

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 15.6N max.

Unmating Force: 6.7N min.

Mating Cycles: 25

Physical

Housing: Polyester, UL 94V-0

Contact: Male—Brass, Female—Phosphor Bronze

Plating: Tin

Circuits

Order No.

Terminal Pattern

Lead-free

Circuits

Order No.

Terminal Pattern

Lead-free

Yes

Yes

M = Male terminal, F = Female terminal, B = Blank, no terminal

Order No. for Loose Terminals

Male

16-06-0002

Female

43080-0001

Assembly Tooling*

Description

Order No.

Arbor Press with Universal Tool Kit

11-20-1172

* Used for assembling blank housings and loose terminals

E-50 MX10

Power Connectors

www.molex.com/customer.html?seriesNumber=3191

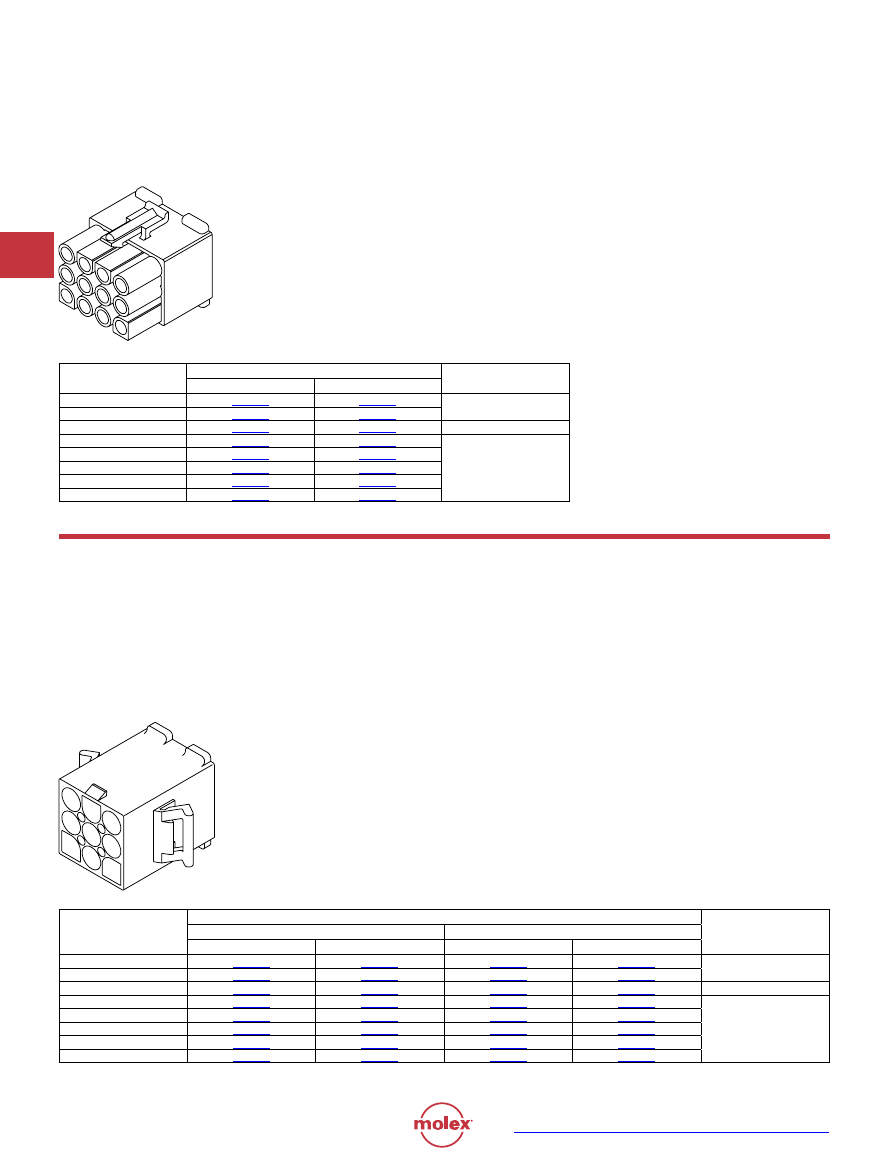

6.71mm (.264") Pitch

.093" Pin and Socket

Crimp Terminal Housing

Receptacle

3191

Features and Benefits

•

Positive lock

•

Fully isolated terminals

•

Polarized housing assures proper mating

•

Male and female terminals may be used in receptacle

housing

Reference Information

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75107

Mates With: 5219 header and 3191 plug

Use With: Standard .093" terminal

Electrical

Voltage: 600V

Current: 12.0A max.*

Mechanical

Contact Retention to Housing: 20 lb min.

Physical

Housing: Nylon, UL 94V-0 or 94V-2

* Depending on circuit size and wire gauge; please refer to

product specifications

Circuits

Order No.

Amperes

per Circuit

94V-2

94V-0

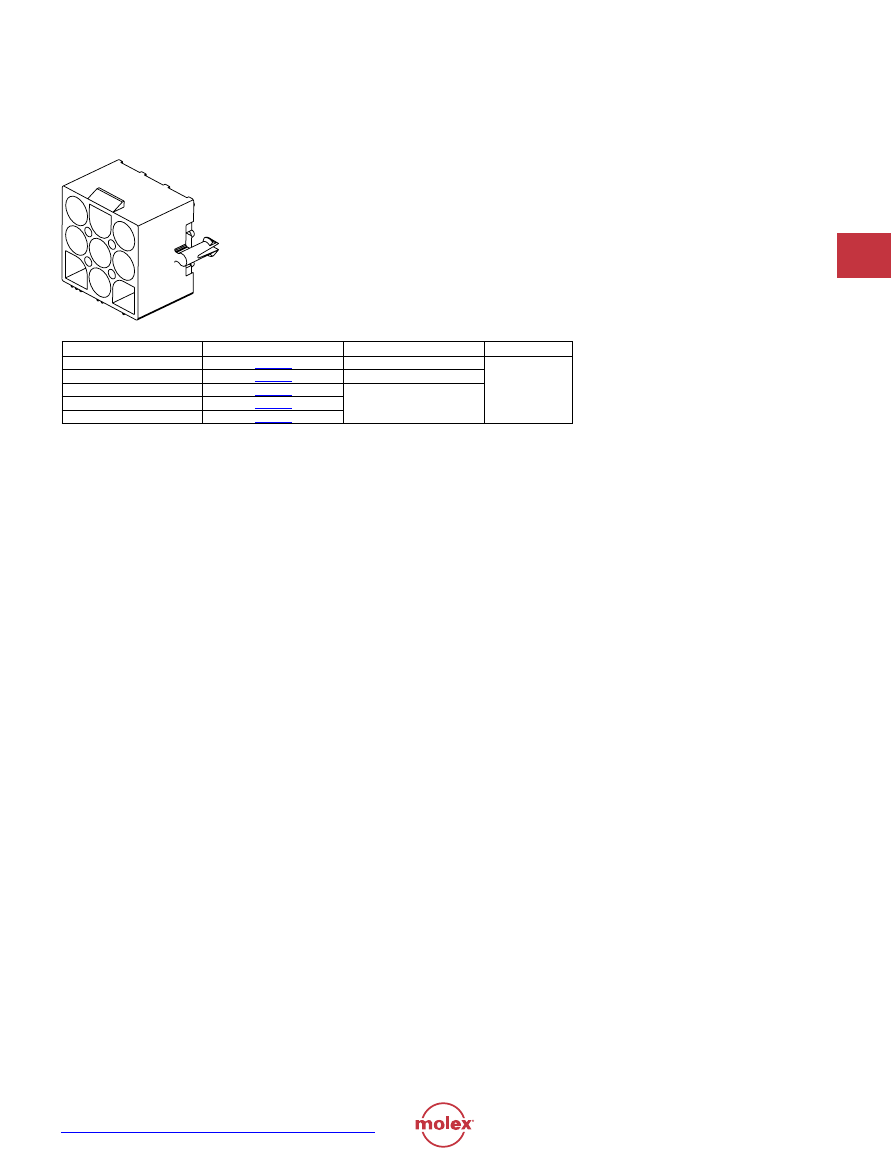

6.71mm (.264") Pitch

.093" Pin and Socket

Crimp Terminal Housing

Plug

3191

Features and Benefits

•

Positive lock

•

Fully isolated terminals

•

Polarized housing assures proper mating

•

Male and female terminals may be used in plug housing

Reference Information

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75107

Mates With: 3191 receptacle

Use With: Standard .093" terminal

Electrical

Voltage: 600V

Current: 12.0A max.*

Mechanical

Contact Retention to Housing: 20 lb min.

Physical

Housing: Nylon, UL 94V-0 or 94V-2

* Depending on circuit size and wire gauge; please refer to

product specifications

Circuits

Order No.

Amperes

per Circuit

Panel Mount

Free Hanging

94V-2

94V-0

94V-2

94V-0

E-52 MX10

Power Connectors

www.molex.com/product/power/mlx.html

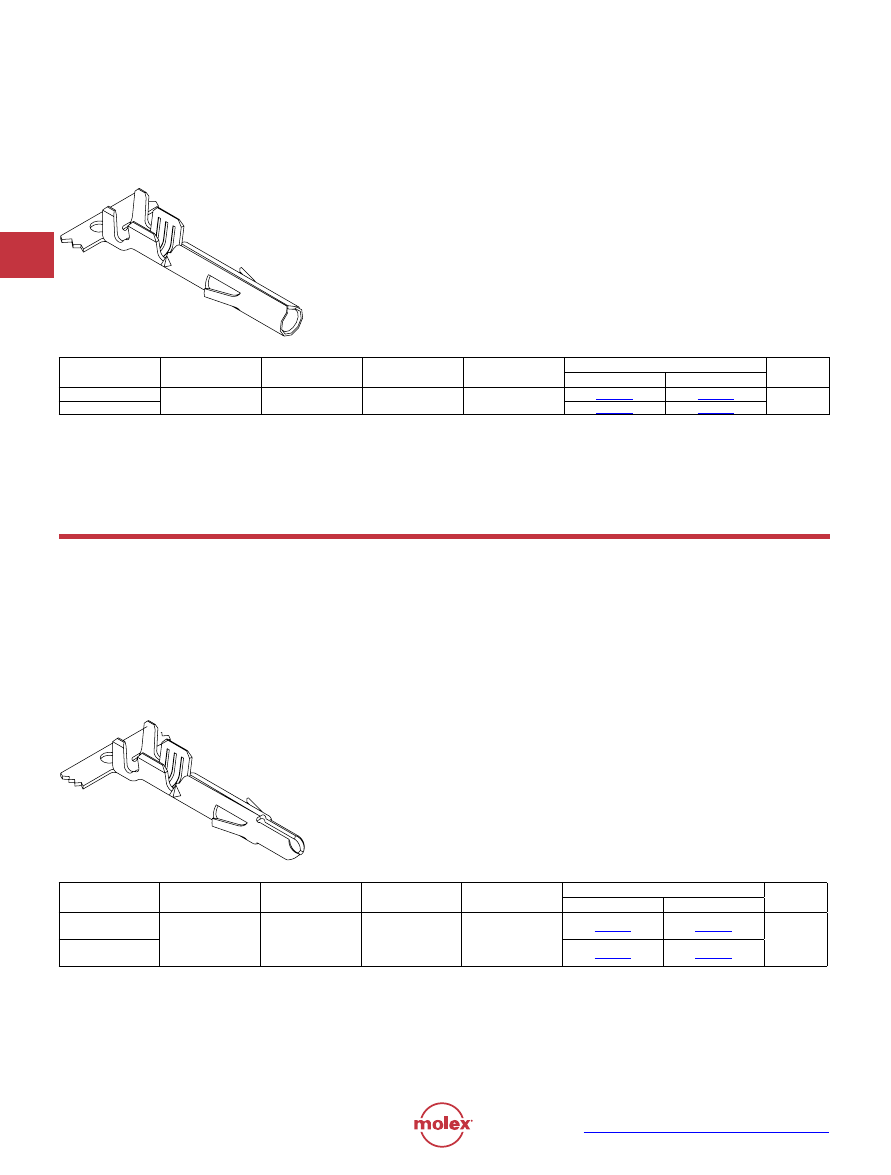

2.13mm (.084") Diameter

MLX

™

Pin and Socket

Male Crimp Terminal

42023

Features and Benefits

•

Cross tested to assure industry compatibility

•

Can be terminated with Molex or commercially available

terminating equipment

•

Split pin (male) for reduced mating forces

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Use With: 42021 and 42022 housings

Electrical

Voltage: 600V

Current: 13.5A*

Contact Resistance: 3.5 milliohms max.

Mechanical

Contact Insertion Force: 8.92N (2 lb)

Mating Force: 6.68N (1.5 lb) max.

Unmating Force: 4.46 (0.5 lb) min.

Mating Cycles: Tin plating—25 mating/unmating cycles

Gold plating—50 mating/unmating cycles

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin

*See product specification

Type

Plating

Wire Size AWG

Insulation Diameter

Series

Split Pin

Lead-free

Reel Form

Bag Form

Standard Brass .012"

Tin

14-20

1.52 (.060) min.

3.30 (.130) max.

42023

02-08-2003

02-08-2004

Yes

Phosphor Bronze .012"

02-08-2005

02-08-2006

2.13mm (.084") Diameter

MLX

™

Pin and Socket

Female Crimp Terminal

42024

Features and Benefits

•

Cross tested to assure industry compatibility

•

Can be terminated with Molex or commercially available

terminating equipment

•

Split pin (male) for reduced mating forces

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Use With: 42021 and 42022 housings

Electrical

Voltage: 600V

Current: 13.5A*

Contact Resistance: 3.5 milliohms max.

Mechanical

Contact Insertion Force: 8.92N (2 lb)

Mating Force: 6.68N (1.5 lb) max.

Unmating Force: 4.46 (0.5 lb) min.

Mating Cycles: Tin plating—25 mating/unmating cycles

Gold plating—50 mating/unmating cycles

Physical

Contact: Brass or Phosphor Bronze

Plating: Tin

*See product specification

Type

Plating

Wire Size AWG

Insulation Diameter

Series

Socket

Lead-free

Reel Form

Bag Form

Standard Brass .012"

Tin

14-20

1.52 (.060) min.

3.30 (.130) max.

42024

02-08-1001

02-08-1002

Yes

Phosphor Bronze .012"

02-08-1003

02-08-1004

MX10 E-53

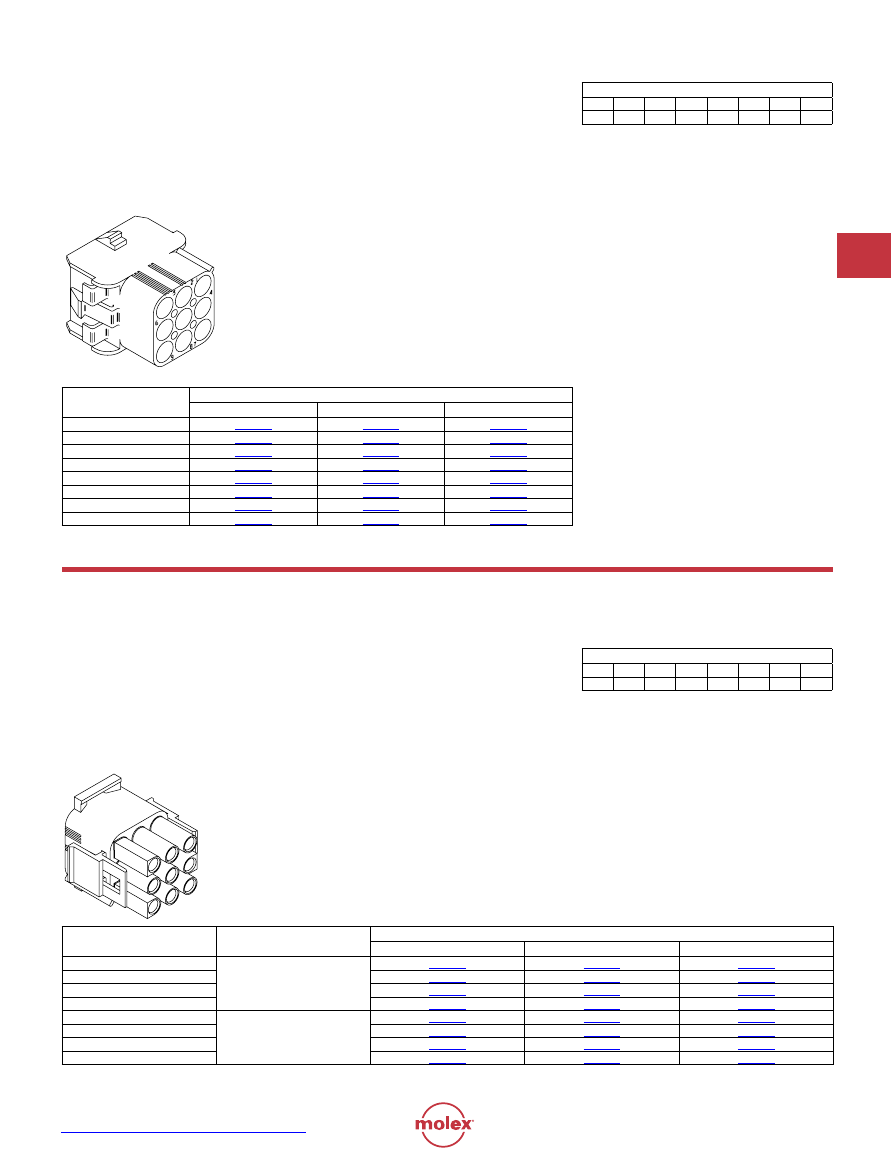

Power Connectors

www.molex.com/product/power/mlx.html

2.13mm (.084") Diameter

MLX

™

Pin and Socket

Crimp Terminal Housing

Plug

42021

Features and Benefits

•

Intermateable, intermountable and interchangeable

with industry-standard versions

•

Cross tested to assure industry compatibility

•

Positive locks

•

Fully isolated contacts

•

Circuit ID grooves to reduce assembly errors

•

Anti-stress positioning tabs to reduce breakage

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Mates With: 42002 header, 42022 cap and

43255 header

Electrical

Voltage: 600V

Current: See product specification for detail

Circuits

13.5A

11.0A

Dielectric Withstanding Voltage: 2900V (Header),

5000V (Wire-To-Wire)

Insulation Resistance: 1000 Megohms min.

Mechanical

Contact Retention to Housing: 66.88N (15 lb)

Physical

Plug Housing: Nylon, 94V-2 or 94V-0

Circuits

Amperes/Circuit

(Max.)

Order No.

94V-2 (White)

94V-0 (Brick Red)

94V-0 (White)

13.5

2.13mm (.084") Diameter

MLX

™

Pin and Socket

Crimp Terminal Housing

Receptacle

42022

Features and Benefits

•

Intermateable, intermountable and interchangeable

with industry-standard versions

•

Cross tested to assure industry compatibility

•

Positive locks

•

Fully isolated contacts

•

Circuit ID grooves to reduce assembly errors

•

Anti-stress positioning tabs to reduce breakage

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Electrical

Voltage: 600V

Current: See product specification for detail

Circuits

13.5A

11.0A

Mechanical

Contact Retention to Housing: 66.88N (15 lb)

Physical

Cap Housing: Nylon, 94V-2 or 94V-0

Circuits

Order No.

94V-2 (White)

94V-0 (Brick Red)

94V-0 (White)

Cap housing should be installed into panel in the same direction as the panel cutout is punched

E-54 MX10

Power Connectors

www.molex.com/product/power/mlx.html

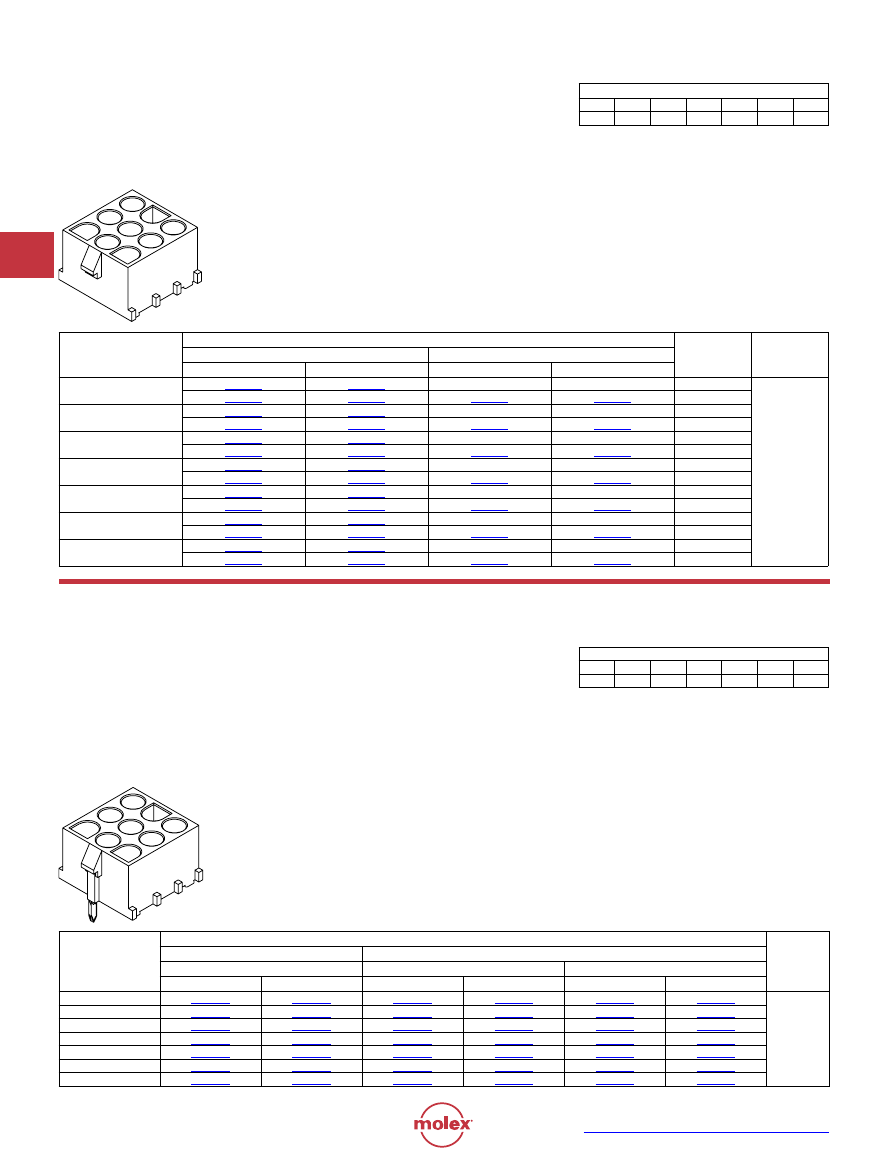

2.13mm (.084") Diameter

MLX

™

Power Connector

Header

43255

Vertical

Polarizing Peg

Features and Benefits

•

Intermateable, intermountable and interchangeable

with industry-standard versions

•

Cross tested to assure industry compatibility

•

Positive locks

•

Fully isolated contacts

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Electrical

Voltage: 600V*

Current: See product specification for detail

Circuits

13.5A

11.0A

* Ratings are per circuit, based on fully loaded housings

Contact Resistance: 3.5 milliohms max.

Physical

Header Housing: See Table

Header Contact: Phosphor Bronze

Plating: Tin

Circuits

Order No.

Lead-free

UL 94V-2

UL 94V-0

White

Brick Red

Male

Female

Male

Female

Male

Female

Yes

2.13mm (.084") Diameter

MLX

™

Power Connector

Header

42002

Vertical

Features and Benefits

•

Intermateable, intermountable and interchangeable

with industry-standard versions

•

Cross tested to assure industry compatibility

•

Positive locks

•

Fully isolated contacts

Reference Information

Product Specification: PS-42022-0001

UL File No.: E29179

CSA File No.: LR19980

Electrical

Voltage: 600V

Current: See product specification for detail

Circuits

13.5A

11.0A

Contact Resistance: 3.5 milliohms max.

Physical

Header Housing: See Table

Header Contact: Phosphor Bronze

Plating: Tin

Circuits

Order No.

Housing

Lead-free

White

Brick Red

Male

Female

Male

Female

10-84-4020

10-84-4022

94V-2

Yes

94V-0

94V-2

94V-0

94V-2

94V-0

94V-2

94V-0

94V-2

94V-0

94V-2

94V-0

94V-2

94V-0

E-56 MX10

Power Connectors

6.50mm (.256") Pitch

Wire-to-Board

Header

53721

Vertical

With Snap-Fit Pegs

Features and Benefits

•

Sizes 2, 4 and 6 circuits

•

Inner positive lock provides easy attachment

and secure mating retention

•

Stand-offs prevent flux wicking

•

Snap-fit pegs for secure PCB retention

•

Side walls protect PCB peg

Reference Information

Product Specification: PS-51142-003

Packaging: Tray

Mates With: 51142

Designed In: Millimeters

Electrical

Voltage: 600V max.

Current: 10.0A max.

Contact Resistance: 10 milliohms max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 Megohms min.

Physical

Housing: Glass-filled Nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin over Nickel

Circuits

Order No.

Lead-free

53721-0270

Yes

53721-0470

53721-0670

6.50mm (.256") Pitch

Wire-to-Board

Header

53728

Vertical with Peg

Features and Benefits

•

Sizes 2, 4 and 6 circuits

•

Inner positive lock provides easy attachment and secure

mating retention

•

Stand-offs prevent flux wicking

•

Locating peg for placement guidance and

polarization

Reference Information

Product Specification: PS-51142-003

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With: 51142

Designed In: Millimeters

Electrical

Voltage: 600V max.

Current: 10.0A max.

Contact Resistance: 10 milliohms max.

Dielectric Withstanding Voltage: 1500V AC/1 min.

Insulation Resistance: 1000 Megohms min.

Physical

Housing: Glass-filled Nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin over Nickel

Circuits

Order No.

Lead-free

53728-0219

Yes

53728-0419

53728-0619

www.molex.com/customer.html?seriesNumber=53728

www.molex.com/customer.html?seriesNumber=53721

MX10 E-57

Power Connectors

Mini-Fit

общий обзор серии

MiniFit Jr.™

MiniFit BMI™

MiniFit TPA™

MiniFit Plus HCS™

MiniFit Plus HMC™

MiniFit RTC™

MiniFit H2O

Family

Description

Current Rating

(Smallest Circuit)

Current Rating

(Largest Circuit)

Housing Lock

Configurations

Agency Approvals

Circuit Sizes

Wire Gauge

Flammability

Mini-Fit

Plus HCS

Mini-Fit Plus HCS (High Current System) is capable of carrying
up to 12A per circuit. The terminals fit in all Mini-Fit Jr, BMI,
and TPA plugs and receptacles.

12A

‡

11A

‡

Positive

or None

W-to-W

W-to-B

B-to-B

Pending

2, 3, 4, 5, 6,

8, 10, 12,

14, 16, 18,

20, 22, 24

16,

18-20

94V-0

Mini-Fit

Plus HMC

Mini-Fit Plus HMC (High Mating Cycle) is capable of being mated
and unmated hundreds of times and still able to provide reliable
electrical connections. It is available only in the BMI format.

None

W-to-W

W-to-B

B-to-B

Pending

4, 6, 10, 14,

18, 24

16,

18-20,

22-24

94V-0

Mini-Fit

Jr.

Mini-Fit Jr connectors are suitable for positive locking
high current/high density applications.

†

Positive

W-to-W

W-to-B

CSA
TUV

2, 3, 4, 5, 6,

8, 10, 12,

14, 16, 18,

20, 22, 24

16,

18-20,

22-24

94V-2,

94V-0

Mini-Fit

TPA

Mini-Fit TPA (Terminal Position Assurance) connectors assure
the terminals are fully seated in their housing and cannot back
out for added reliability.

†

Positive

W-to-W

W-to-B

CSA
TUV

2, 4, 6, 8,

10, 12, 16

16,

18-20,

22-24

94V-0

Mini-Fit

BMI

Mini-Fit BMI (Blindmate Interface) connectors are designed for
applications that require blind-mating of PCBs, daughtercards,
or subassemblies.

†

None

W-to-W

W-to-B

B-to-B

CSA
TUV

4, 6, 10,

14,18, 24

16,

18-20,

22-24

94V-2,

94V-0

Mini-Fit

BMI (SMC)

Mini-Fit BMI (SMC) are surface mount compatible headers
suitable for high temperature reflow processes. They mate to
the standard Mini-Fit BMI crimp receptacle or PCB receptacle to
allow blind mating.

†

None

W-to-W

W-to-B

B-to-B

CSA
TUV

4, 6, 10,

14, 18, 24

16,

18-20,

22-24

94V-0

Mini-Fit

BMI (CPI)

Mini-Fit BMI (CPI) are press fit vertical headers suitable for
high temperature reflow processes. They mate to the standard
Mini-Fit BMI crimp receptacle or PCB receptacle to allow
blind mating.

†

None

W-to-W

W-to-B

B-to-B

CSA
TUV

4, 6, 10,

14, 18, 24

16,

18-20,

22-24

94V-0

Mini-Fit

PCIe

Mini-Fit PCIe connectors feature a unique polarization scheme
so they are suitable for PCI Express* high end graphic card
applications only.

8A**

Positive

W-to-B

None

16,

18-24,

22-28

94V-0

Mini-Fit

RTC

Mini-Fit RTC headers can withstand high temperature solder
processes. Compatible with lead free solder processes.

12.0A

11.0A

Positive

W-to-B

Pending

4, 6, 8,

10,12, 24

16,

18-20,

22-24

94V-0

Mini-Fit

H2O

Mini-Fit H2O is IP 67 rated for weatherproof, waterproof
applications.

9.0A

Positive

W-to-W

Pending

18-20

94V-0

†

Mini-Fit Plus Crimp Terminals: 46083 (Female) and 46134 (Male)

Mini-Fit High Cycle Crimp Terminals: 46018 (Female) and 46098 (Male)

‡

Mini-Fit Plus HCS Crimp Terminals: 45750 (Female) and 46012 (Male)

**Mini-Fit Crimp Terminals: 5556 (Female)

*Note: PCI Express is a registered trademark of the Peripheral Component Interchange Special Interest Group (PCI-SIG).

Mini-Fit Jr. áûë ñïåöèàëüíî ðàçðàáîòàí ñ ôèêñàòîðîì äëÿ
ðåøåíèé ïðîâîä — ïðîâîä, ïðîâîä — ïëàòà. Èìåþòñÿ
äâóõðÿäíûå è îäíîðÿäíûå ðåøåíèÿ. Â ñåðèè ïðåäëàãàþò

ñÿ ðåøåíèÿ íà ðàçëè÷íîå êîëè÷åñòâî êîíòàêòîâ.

Ýòà âåðñèÿ ñåìåéñòâà Mini-Fit áûëà ñïåöèàëüíî
ðàçðàáîòàíà, ÷òîáû îáåñïå÷èòü íàäåæíîå çàêðåïëåíèå
òåðìèíàëîâ â ðîçåòêàõ è âèëêàõ. Ïðè ñî÷ëåíåíèè
êîëîäêè çàùåëêèâàþòñÿ, ñåðèÿ ïîäõîäèò äëÿ ðåøåíèé
òèïà ïðîâîä — ïðîâîä, ïðîâîä — ïëàòà.

Mini-Fit Plus High Mating Cycle ïîäõîäèò äëÿ ïðèìåíåíèÿ
â ñèñòåìàõ, ãäå íåîáõîäèìû ñîòíè öèêëîâ ñî÷ëåíåíèé.
Äîïóñêàåò òàêæå ñîåäèíåíèå «âñëåïóþ». Ðåøåíèÿ òèïà
ïàíåëü — ïàíåëü, ïàíåëü — ïëàòà è ïëàòà — ïëàòà.

Âèëêè íà ïëàòó Mini-Fit RTC äîïóñêàþò ïàéêó ïî
áåññâèíöîâîé òåõíîëîãèè ïðè 260°. Îíè ñäåëàíû
èç âûñîêîòåìïåðàòóðíîãî ñòåêëîíàïîëíåííîãî ïëàñòèêà
(LCP) è ñî÷ëåíÿþòñÿ ñî ñòàíäàðòíûìè ðîçåòêàìè

Mini-Fit Jr.

The Mini-Fit H2O èìååò ñòåïåíü çàùèòû IP 67
è ïîäõîäèò äëÿ ãåðìåòè÷íûõ ïðèìåíåíèé. Êîðïóñà
ñäåëàíû èç óñòîé÷èâîãî ê óëüòðàôèîëåòó ìàòåðèàëà,
÷òî äàåò âîçìîæíîñòü èñïîëüçîâàòü èõ íà îòêðûòîì
âîçäóõå. Mini-Fit H2O èìååò âñòðîåííîå óïëîòíåíèå,
÷òî ïðåïÿòñòâóåò ïðîíèêíîâåíèþ âíóòðü âëàãè è ãðÿçè,
êîòîðîå ïðåäóñòàíîâëåíî â ñîåäèíèòåëü è, òàêèì
îáðàçîì, ñíèæàåò âàøè ðàñõîäû.

Mini-Fit Plus HCS áûëè ðàçðàáîòàíû äëÿ ðàáîòû íà
áîëüøèõ òîêàõ è ñïîñîáíû ïðîïóñêàòü äî 12A. Òåðìèíàëû
è êîíòàêòû âèëîê íà ïëàòó ïîêðûòû çîëîòîì è
èäåàëüíû äëÿ «ãîðÿ÷åãî» ñîåäèíåíèÿ. Ýòî ñàìàÿ
óíèâåðñàëüíàÿ ñèñòåìà Mini-Fit, ïîñêîëüêó äîñòóïíà
â äèçàéíå Mini-Fit Jr, Mini-Fit BMI è Mini-Fit TPA.

Mini-Fit BMI áûëè ðàçðàáîòàíû äëÿ ïîäêëþ÷åíèÿ
«âñëåïóþ». Êîðïóñà ðîçåòîê ñàìîöåíòðèðóþùèåñÿ è
äîïóñêàþò îòêëîíåíèå íà 1.27ìì ïî îñÿì x è y îò
ïðàâèëüíîé óñòàíîâêè. Ñåðèÿ ïîäõîäèò äëÿ ðåøåíèé òèïà
ïàíåëü — ïàíåëü, ïàíåëü — ïëàòà, ïëàòà — ïëàòà.
Â ñåðèþ âõîäÿò âèëêè íà ïëàòó êàê ïîä âîëíîâóþ ïàéêó,
òàê è âûäåðæèâàþùèå ïàéêó ïðè 260°, à òàêæå ïîä
çàïðåññîâêó.

MX10 E-59

Power Connectors

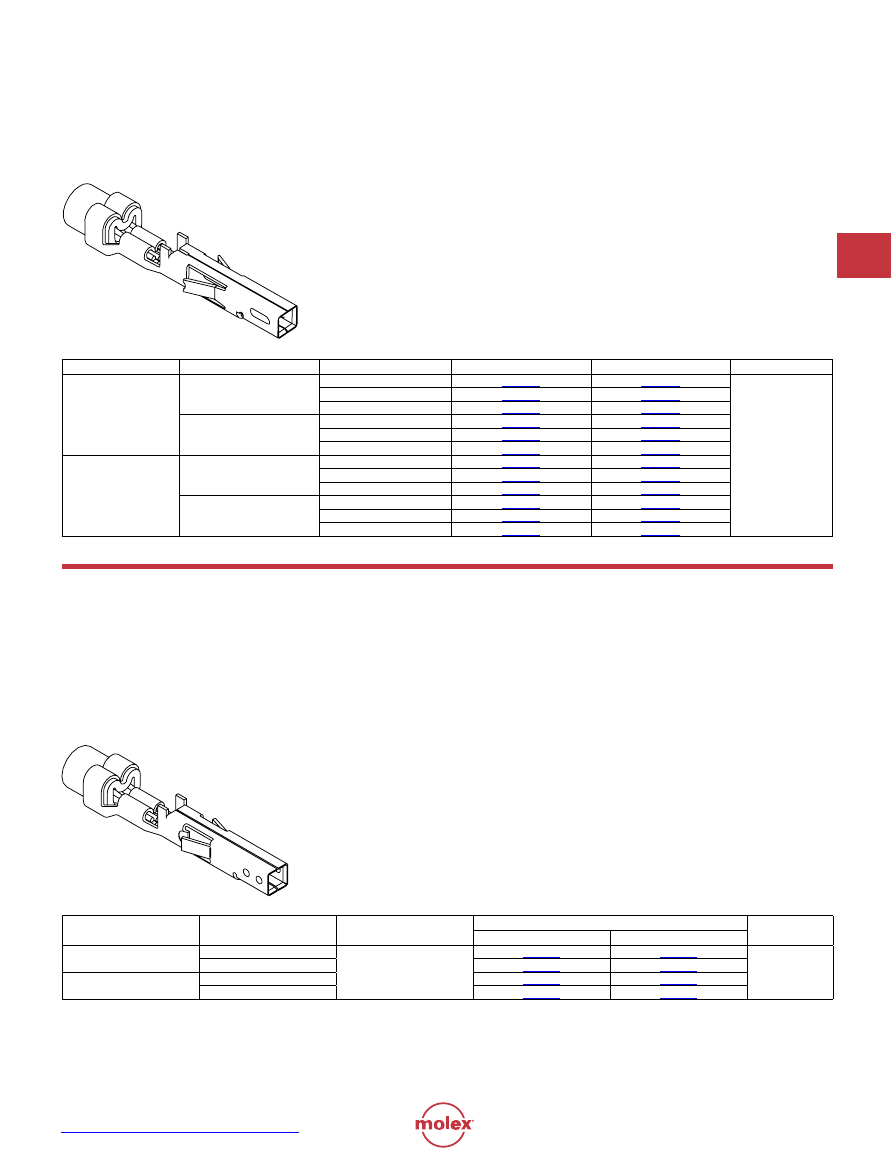

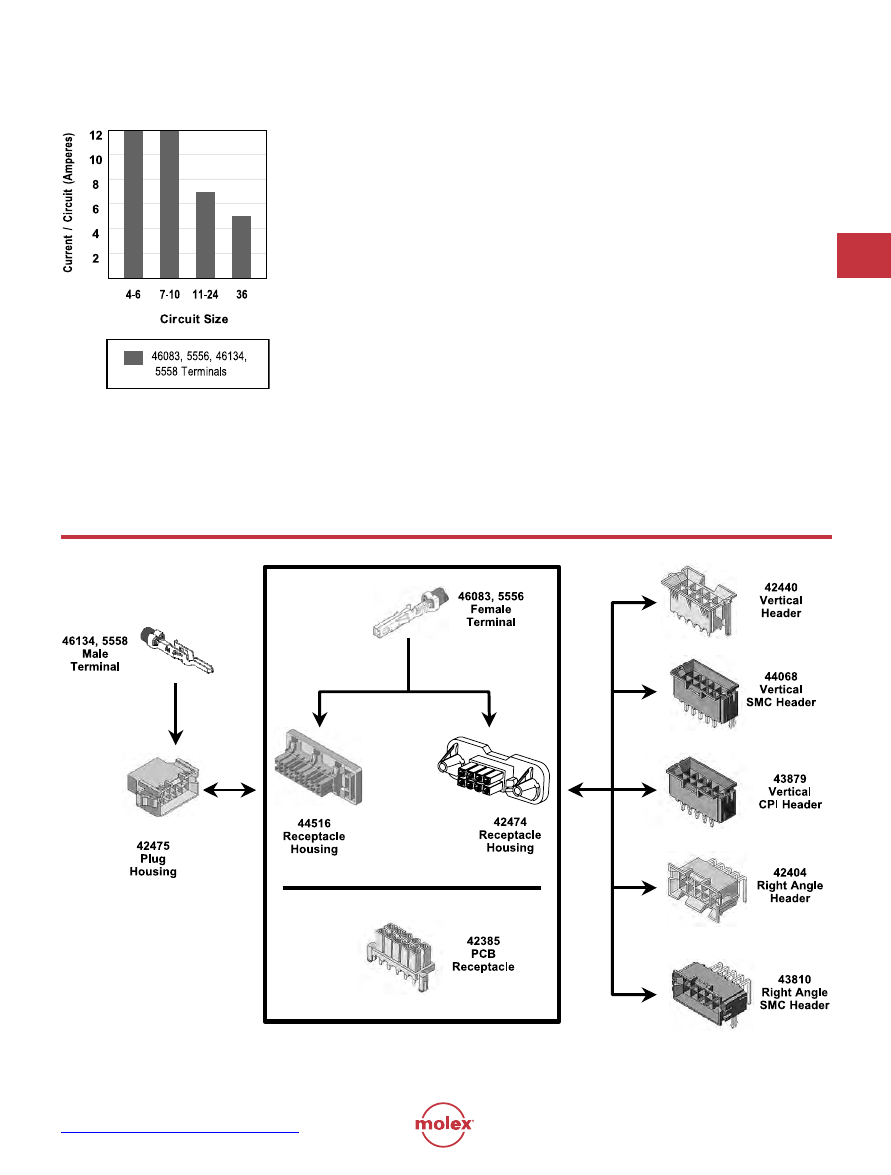

4.20mm (.165") Pitch

Mini-Fit Plus

™

Terminal

46083

Crimp, Female

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

Reliable elongated dimple which provides full and

consistent engagement between female box terminal and

male pin

Reference Information

Product Specification: PS-46083-001

Application Specifications: ATS-639002600

ATS-639002800

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Use With: 5557, 30067, 42474 and 44516 receptacles

Electrical

Current: 10.0 max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N min. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Contact Material: Brass or Phosphor Bronze

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Base Material

Plating

Wire Range AWG

Reel

Bag

Lead-free

Brass

Tin

46083-3111

46083-3112

Yes

18-20

22-24



" Select Gold

18-20

22-24

Phosphor

Bronze

Tin

18-20

22-24



" Select Gold

18-20

22-24

4.20mm (.165") Pitch

Mini-Fit

Family

Terminal

5556

Crimp, Female

Features and Benefits

•

Four gas-tight points of contact

Reference Information

Product Specification: PS-5556-001

Application Specifications: ATS-639002600

ATS-639002800

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Use With: 5557, 30067, 42474 and 44516 receptacles

Electrical

Current: 9.0 max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N min. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: 30 cycles

Physical

Contact Material: Brass or Phosphor Bronze

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Contact Material

Wire Size (AWG)

Plating

Order No. 5556

Lead-free

Reel

Bag

Brass

Tin

39-00-0077

39-00-0078

Yes

18-24

Phosphor Bronze

18-24

E-60 MX10

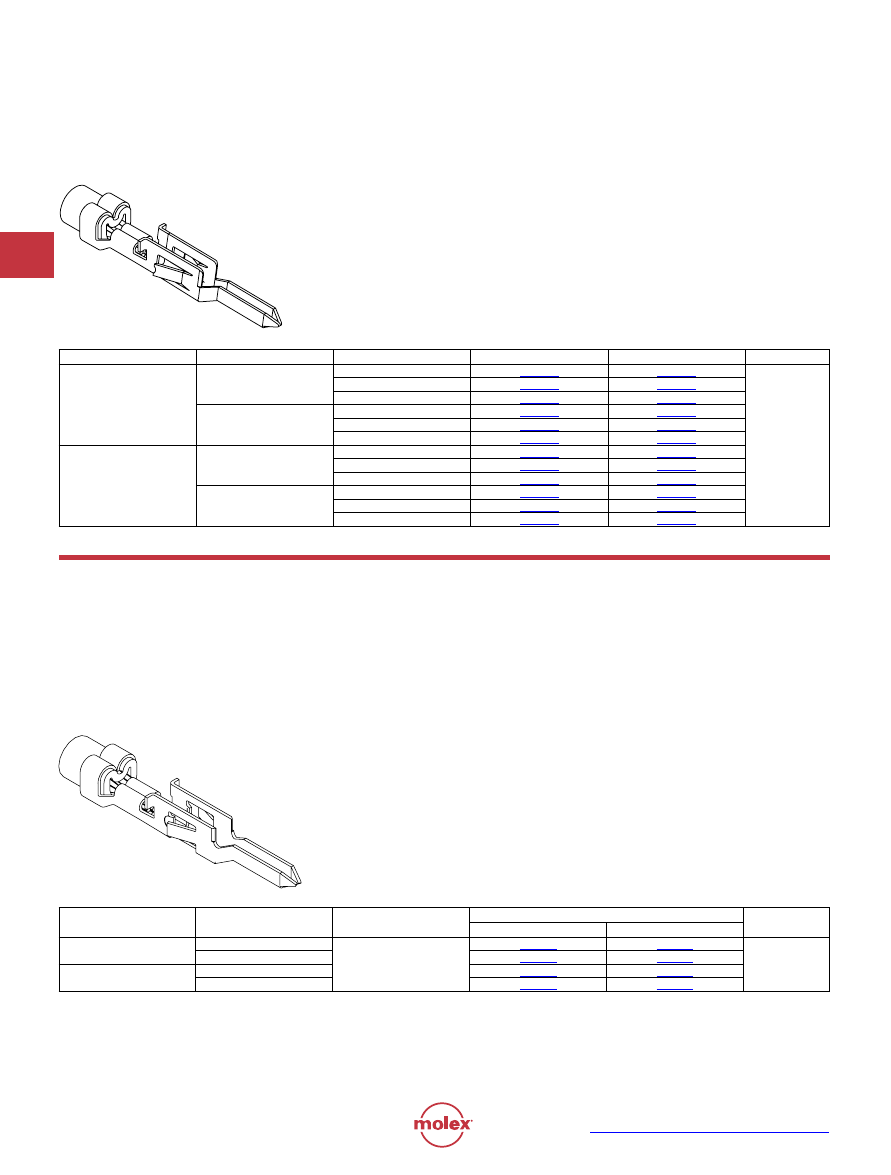

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Plus

™

Terminal

46134

Crimp, Male

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

Locking tangs assure high contact retention to

the housing

Reference Information

Product Specification: PS-46083-001

Application Specifications: ATS-639002600

ATS-639002800

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Use With: 5559, 42475 and 30068 plug housings

Electrical

Current: 10.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N max. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Contact Material: Brass or Phosphor Bronze

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Base Materterial

Plating

Wire Range AWG

Reel

Bag

Lead-free

Brass

Tin

46134-3111

46134-3112

Yes

18-20

22-24



" Select Gold

18-20

22-24

Phosphor Bronze

Tin

18-20

22-24



" Select Gold

18-20

22-24

4.20mm (.165") Pitch

Mini-Fit

Family

Terminal

5558

Crimp, Male

Features and Benefits

•

Crimp terminal for use in all Mini-Fit, Jr., BMI and TPA

plug housings

Reference Information

Product Specification: PS-5556-001

Application Specifications: ATS-639002600

ATS-639002800

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Use With: 5559, 42475 and 30068 plug housings

Electrical

Voltage: 600V

Current: 9.0A max.

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N max. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: 30 cycles

Physical

Contact Material: Brass or Phosphor Bronze (See applicable

product specification.)

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Contact Material

Wire Size (AWG)

Plating

Order No.

Lead-free

Reel

Bag

Brass

Tin

39-00-0081

39-00-0082

Yes

18-24

Phosphor Bronze

18-24

MX10 E-61

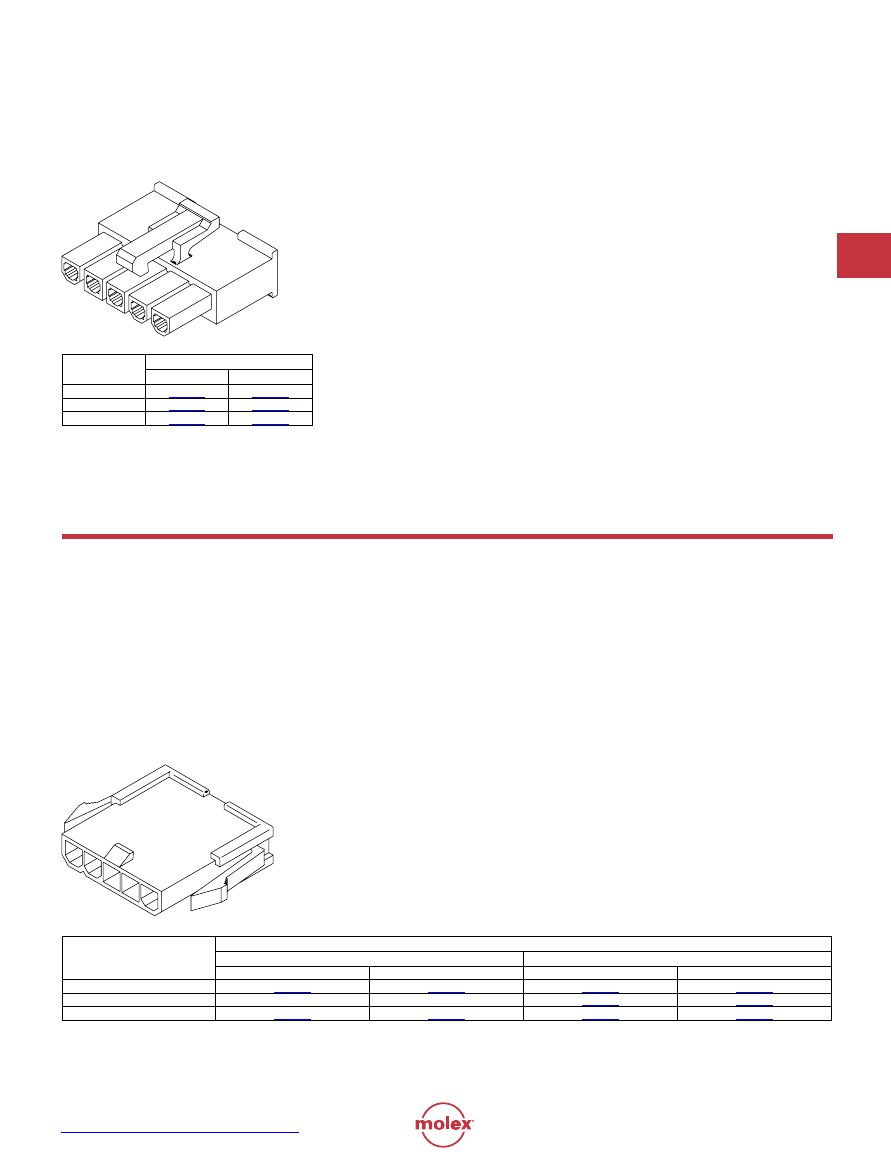

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Crimp Terminal Receptacle

5557

Single Row

Features and Benefits

•

Low profile design to accommodate height constraints

•

Fully isolated terminals to protect contacts from damage

•

For wire-to-wire or wire-to-board applications

Reference Information

Product Specification: PS-5556-001

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Mates With: 5559, 5566 and 5569 single row connectors

Use With: 5556, 46083 or 45750 terminals

Electrical

See Crimp Terminal page.

Mechanical

Locking: Positive

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

94V-2

94V-0

*3-circuit receptacle designed for first-mate/last-break applications

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Crimp Terminal Housing

Plug

5559

Single Row, with and

Without Panel Mount Ears

Features and Benefits

•

Wire-to-wire plug for panel-mounted or free-

hanging applications

•

Available with and without panel mounting ears

•

Positive housing locks to mate with Mini-Fit Jr.

receptacle

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 single row receptacles

Use With: 5558, 30490, 46134 or 46012 terminals

Panel Thickness: .079 to 2.00mm (.031 to 0.80")

Electrical

See Crimp Terminal page.

Mechanical

Locking: Positive

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

Panel Mount

Free Hanging

94V-2

94V-0

94V-2

94V-0

*3-circuit plug designed for first-mate/last-break applications

E-62 MX10

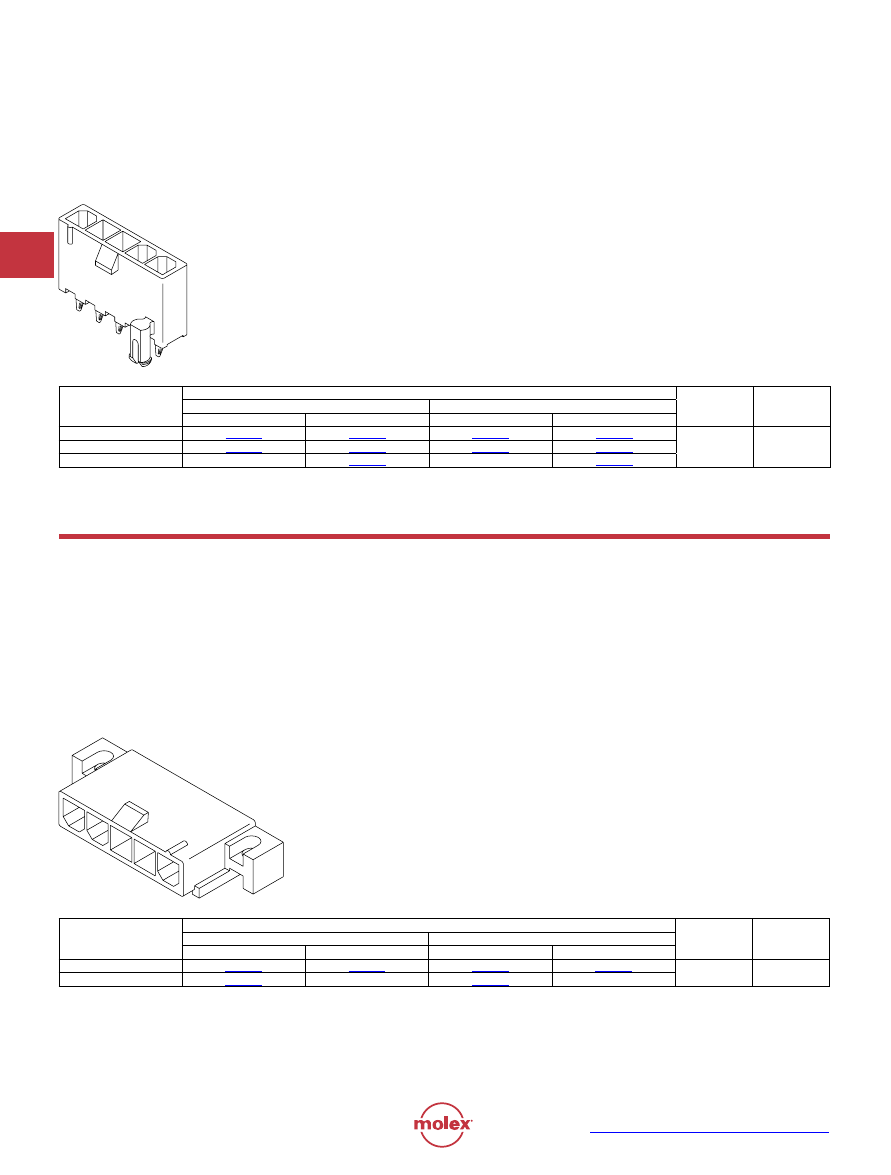

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5566

Vertical, Single Row

With Pegs

Features and Benefits

•

Positive housing locks to mate with Mini-Fit Jr.

single row receptacle

•

Fully isolated terminals to protect contacts

from damage

•

Peg-mounted vertical headers for increased

board retention

•

Drain holes are standard to allow washing of PCB

after processing (contact Molex for headers

without drain holes)

Reference Information

Product Specification: PS-5556-001

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Mates With: 5557 Single row receptacles

Use With: 5556 and 46083 terminals

Electrical

Current: 9.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Plated

Select Gold Plated (30

94V-2

94V-0

94V-2

94V-0

3.5mm (0.14")

Yes

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5569

Right Angle, Single Row

With Flanges

Features and Benefits

•

Flanges allow for screw-in retention to board-mounted

headers

•

Low profile is ideal for power applications with

space constraints

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 single row receptacle

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Plated

Select Gold Plated

94V-2

94V-0

94V-2

94V-0

3.6mm

Yes

39-30-6049

50-30-4443

MX10 E-63

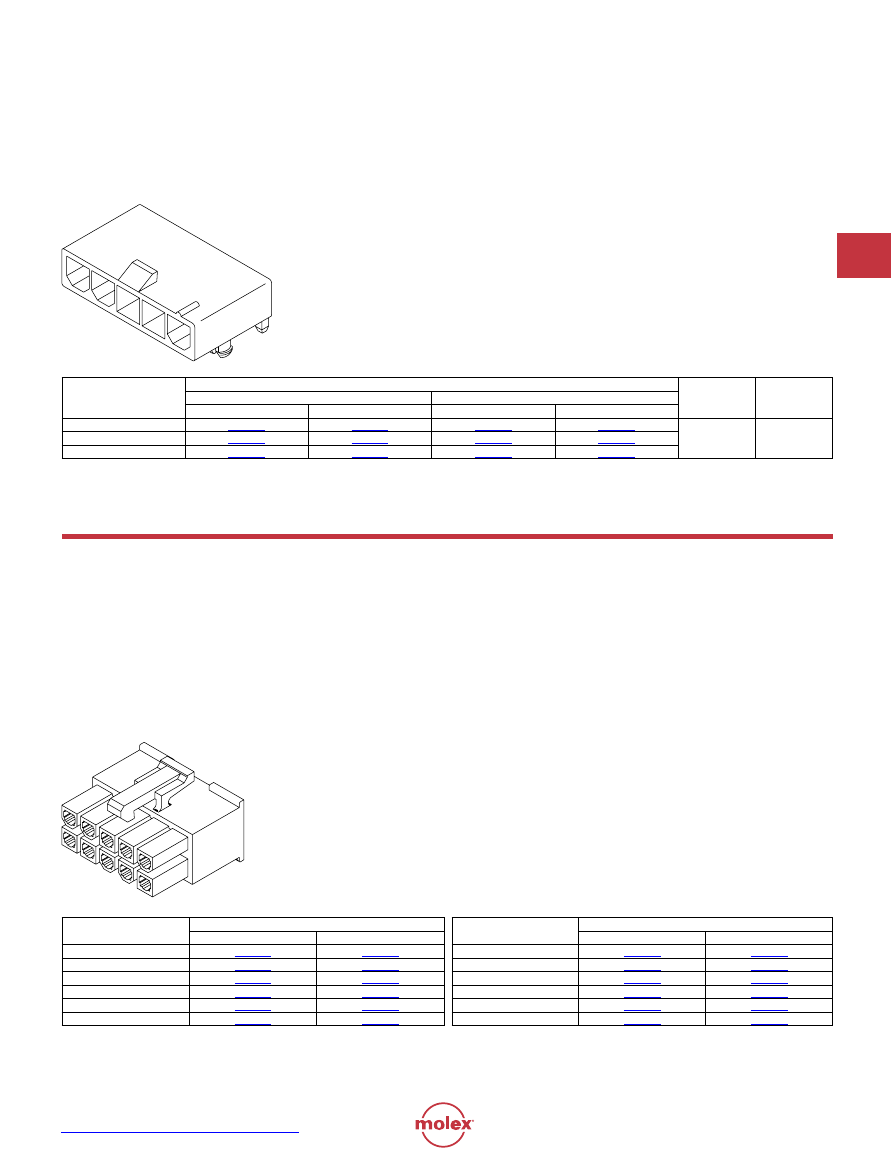

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5569

Right Angle, Single Row

With Pegs

Features and Benefits

•

Pegs provide increased board retention

•

Ideal for low profile power applications

•

Positive housing locks to mate with Mini-Fit Jr.

single row receptacles

•

Fully isolated terminals to protect contacts from damage

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 single row receptacles

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specificaton.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Plated

Select Gold Plated

94V-2

94V-0

94V-2

94V-0

3.6mm

Yes

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Crimp Terminal Housing

Receptacle

5557

Dual Row

Features and Benefits

•

Positive housing lock for secure mating retention

•

Fully isolated terminals to protect contacts from

damage

•

Thumblatch for easy unmating

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5559, 5566, 5569, 42404, 42440, 42475,

43810, 43879 and 44068 dual row connectors

Use With: 5556, 46083 or 45750 terminals

Electrical

See Crimp Terminal page.

Mechanical

Locking: Positive

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

94V-2

94V-0

Circuits

Order No.

94V-2

94V-0

E-64 MX10

Power Connectors

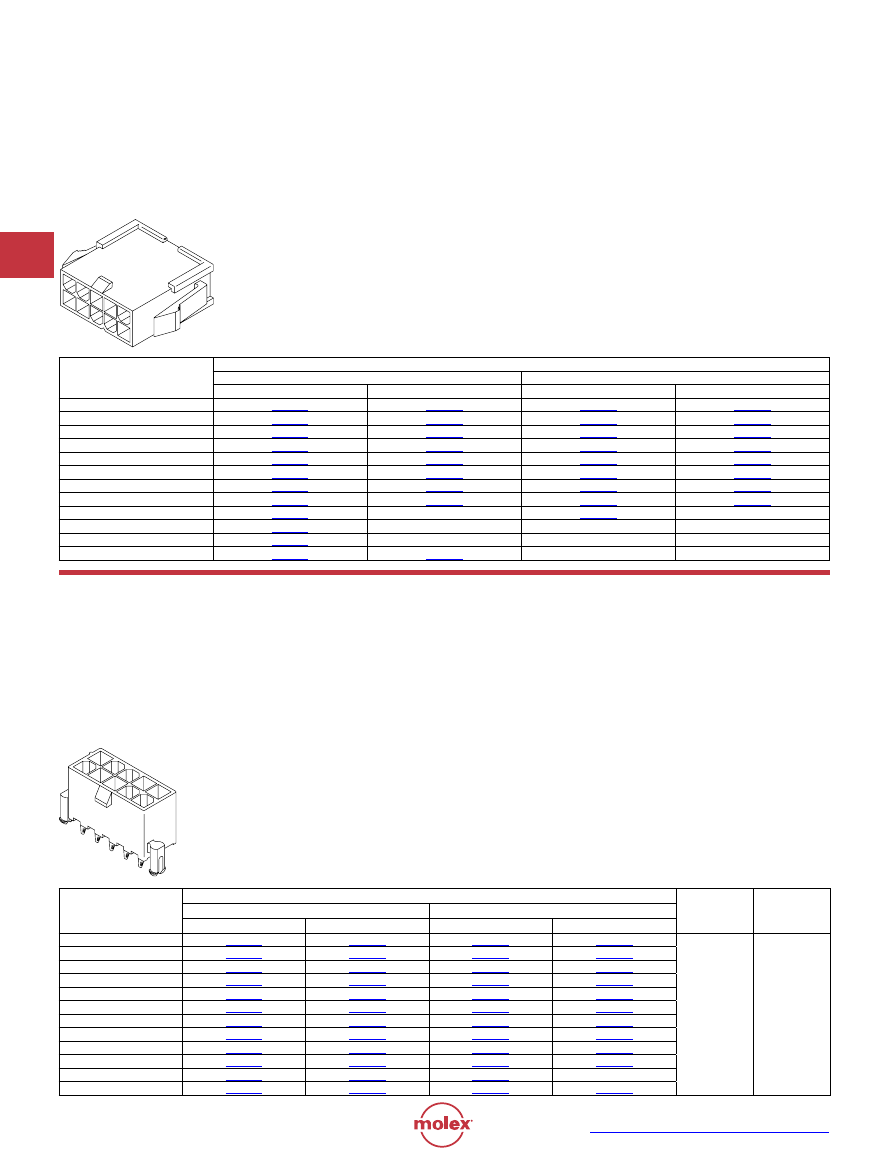

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Crimp Terminal Housing

Plug

5559

Dual Row

With and without Panel Mount Ears

Features and Benefits

•

Wire-to-wire plug for panel-mounted or free-

hanging applications

•

Positive housing locks to mate with Mini-Fit Jr.

receptacle

•

Fully isolated terminals to protect contacts from

damage

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacle

Use With: 5558, 30490, 46134 or 46012 terminals

Panel Thickness: .079 to 2.00mm (.031 to 0.80")

Electrical

See Crimp Terminal page.

Mechanical

Locking: Positive

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

Panel Mount

Free Hanging

94V-2

94V-0

94V-2

94V-0

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5566

Vertical, Dual Row

With Pegs, with Drain Holes

Features and Benefits

•

Board-mounting pegs provide polarization during

placement on the PCB and increased retention during

soldering process

•

Positive housing locks to mate with Mini-Fit Jr. receptacle

•

Fully isolated terminals to protect contacts from damage

•

Drain holes are standard to allow washing of PCB after

processing (contact Molex for headers without drain holes)

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacle

Use With: 5556 and 46083 terminals

Electrical

Current: 19.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Plated

Gold Plated (30

94V-2

94V-0

94V-2

94V-0

3.5mm

Yes

MX10 E-65

Power Connectors

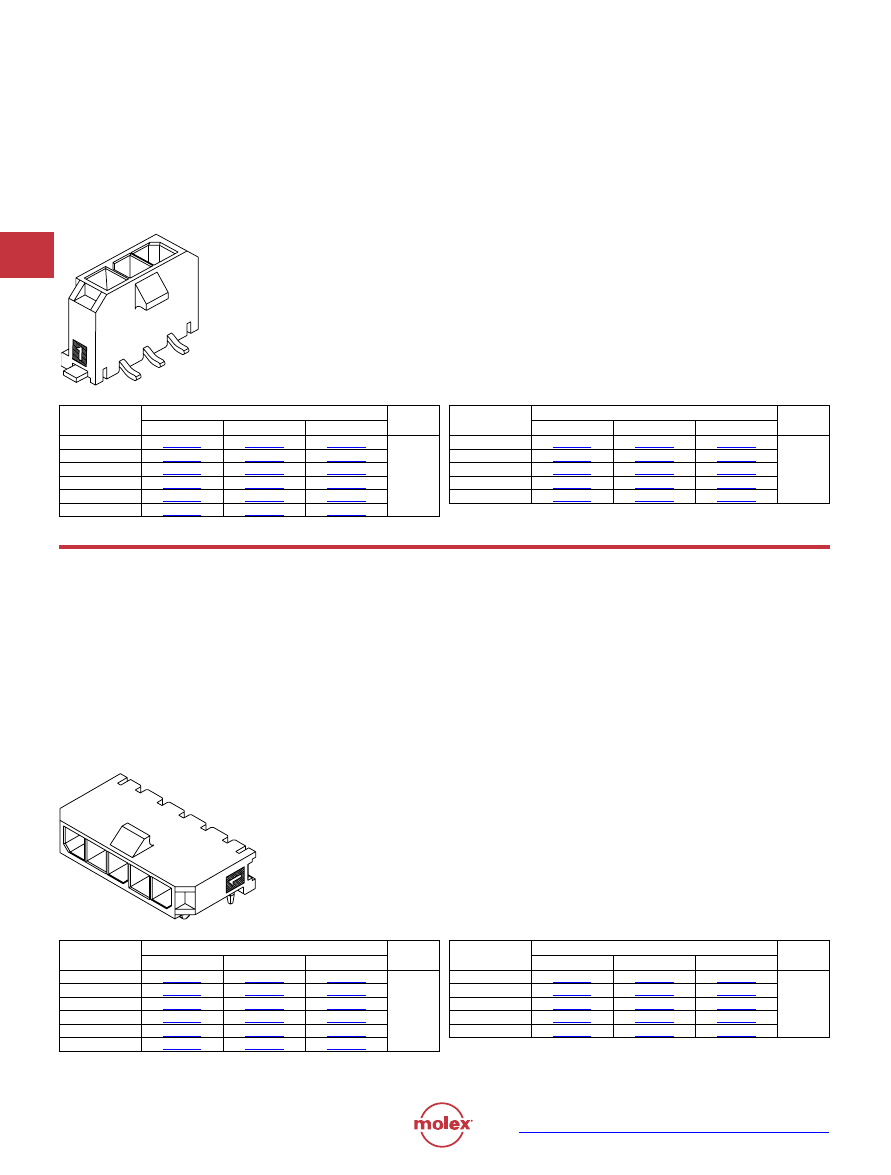

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5566

Vertical, Dual Row

Without Pegs, without Drain Holes

Features and Benefits

•

Positive housing locks to mate with Mini-Fit Jr.

receptacle

•

Fully isolated terminals to protect contacts from damage

•

Drain hole option available, contact Molex

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacle

Use With: 5556 and 46083 terminals

Electrical

Current: 19.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Plating

Tail Length

Lead-free

94V-2

94V-0

39-28-1023

39-28-8020

Tin

3.5mm

Yes

Circuits

Order No.

Plating

Tail Length

Lead-free

94V-2

94V-0

39-28-1143

39-28-8140

Tin

3.5mm

Yes

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5569

Right Angle, Dual Row with Pegs

Features and Benefits

•

Board mounting pegs provide polarization during

placement on PCB and increased board retention

during solder processing

•

Low profile for space constraints

•

Positive housing locks

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacles

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Plated

Select Gold Plated (30

94V-2

94V-0

94V-2

94V-0

3.6mm

Yes

E-66 MX10

Power Connectors

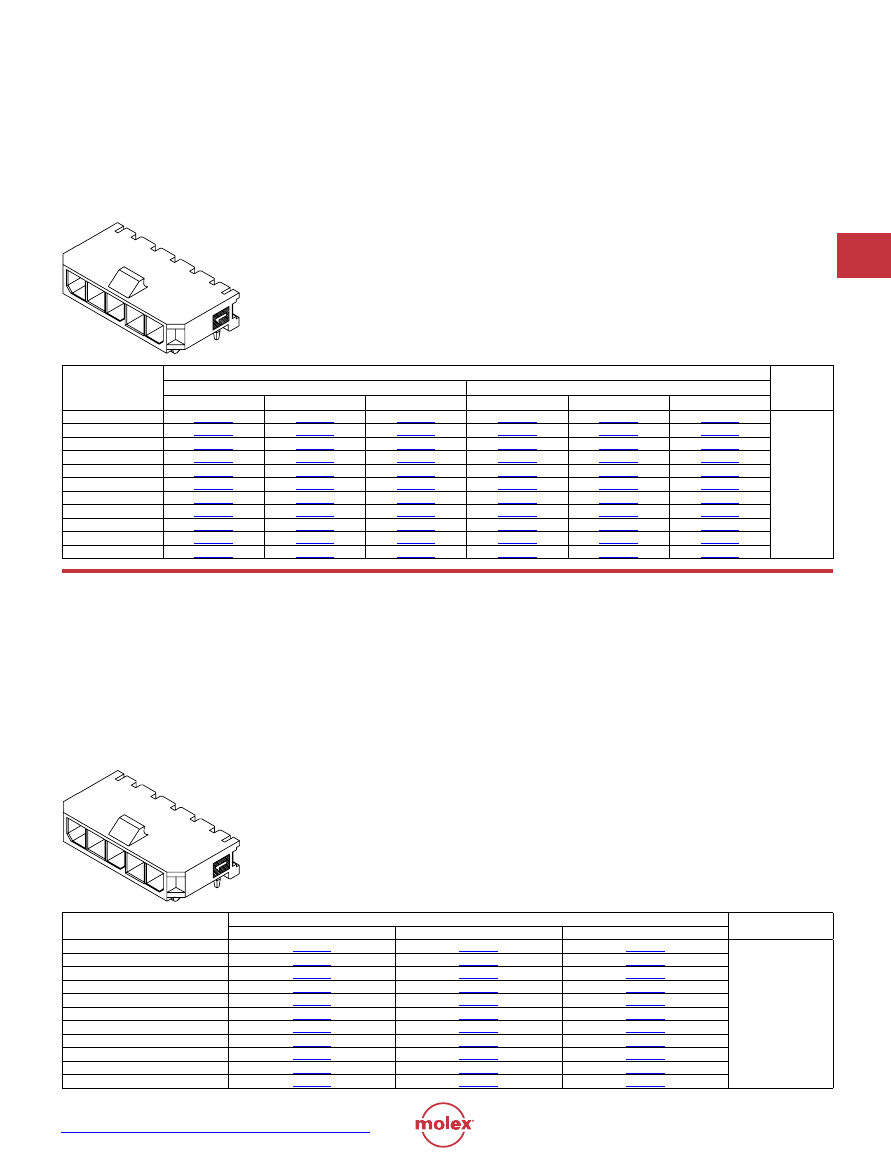

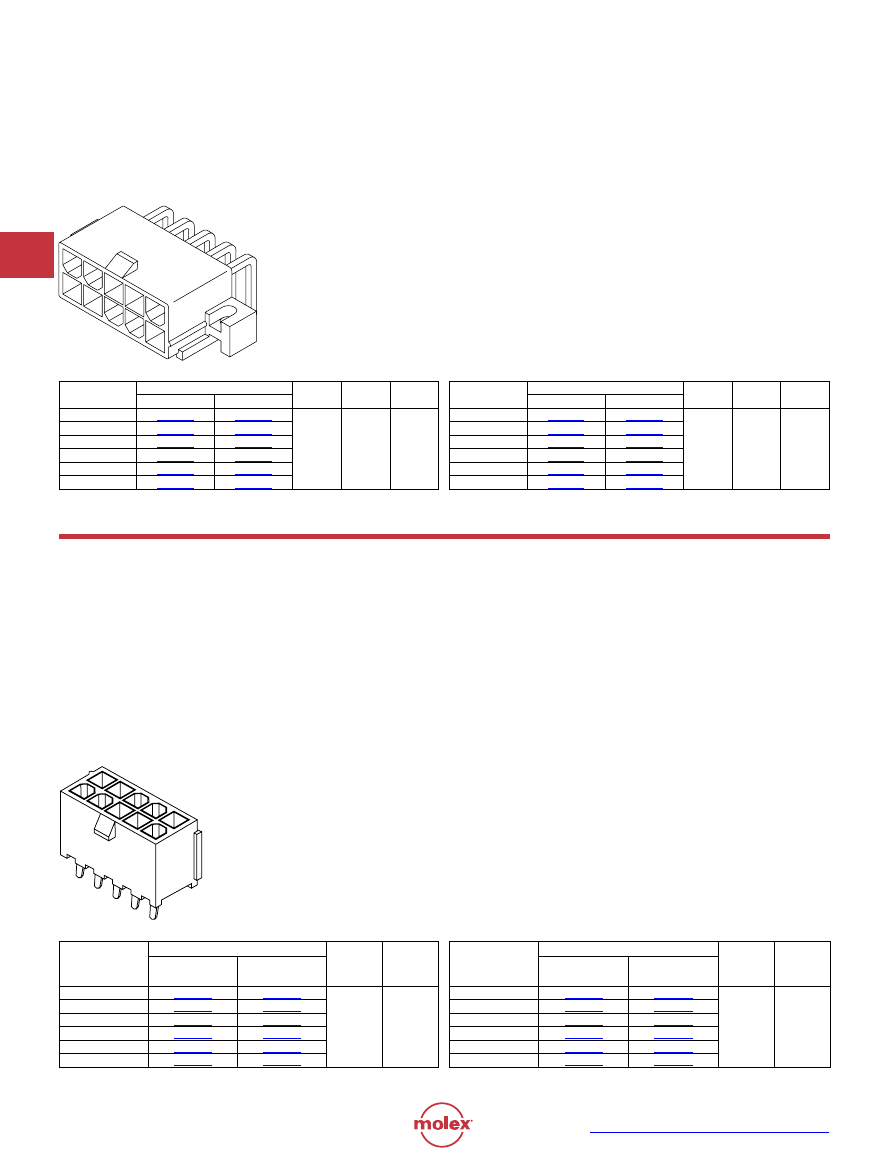

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Header

5569

Right Angle, Dual Row

With Flanges

Features and Benefits

•

Flanges allow for screw-in retention to

board-mounted header

•

Low profile for space constraints

•

Positive housing locks

Reference Information

Product Specification: PS-5556-001

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557 dual row receptacles

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact Material: Brass

Circuits

Order No.

Plating

Tail Length

Lead-free

94V-2

94V-0

39-29-1028

39-29-1027

Tin

3.5mm

Yes

Circuits

Order No.

Plating

Tail Length

Lead-free

94V-2

94V-0

39-29-1148

39-29-1147

Tin

3.5mm

Yes

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Wire-to-Board

Header

87427

Vertical without Flanges

High Temperature Material

Features and Benefits

•

Molded in high temperature, surface mount

compatible material

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-87427-0001

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5557 dual row receptacles

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 4/6 Nylon, UL 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-0242

87427-0243

3.3mm

Yes

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-1442

87427-1443

3.3mm

Yes

MX10 E-67

Power Connectors

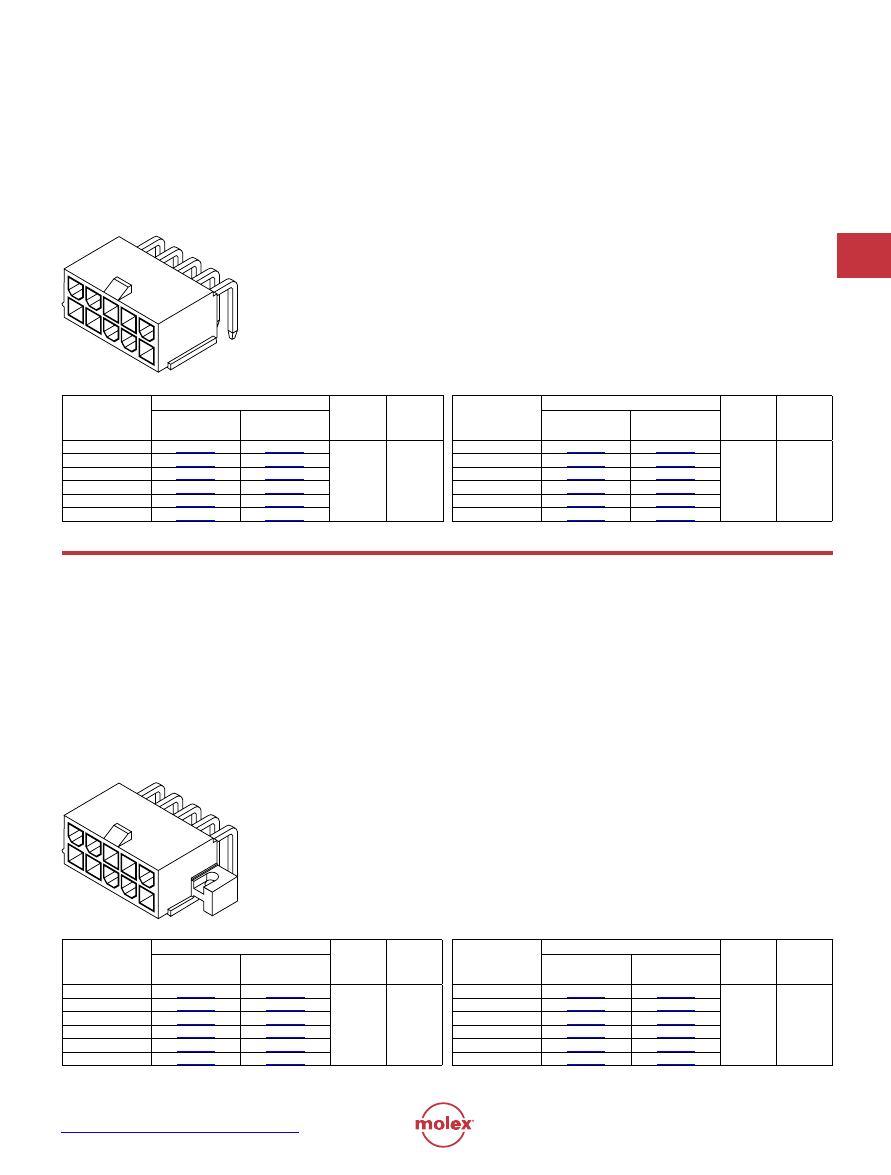

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Wire-to-Board

Header

87427

Right Angle without Flanges

High Temperature Material

Features and Benefits

•

Molded in high temperature, surface mount

compatible material

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-87427-0001

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5557 dual row receptacle

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: Nylon 4/6, UL 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-0202

87427-0203

3.3mm

Yes

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-1402

87427-1403

3.3mm

Yes

4.20mm (.165") Pitch

Mini-Fit Jr.

™

Wire-to-Board

Header

87427

Right Angle with Flange

High Temperature Material

Features and Benefits

•

Molded in high temperature, surface mount compatible

material

•

Fully isolated terminals to protect contacts from damage

Reference Information

Product Specification: PS-87427-0001

UL File No.: E29179

CSA File No.: LR19980

Mates With: 5557 dual row receptacle

Use With: 5556, 46083 and 45750 terminals

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 4/6 Nylon, UL 94V-0

Contact Material: Brass

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-0212

87427-0213

3.3mm

Yes

Circuits

Order No.

Tail Length

Lead-free

Tin Over

Nickel Plating

Tin Over

Copper Plating

87427-1412

87427-1413

3.3mm

Yes

E-68 MX10

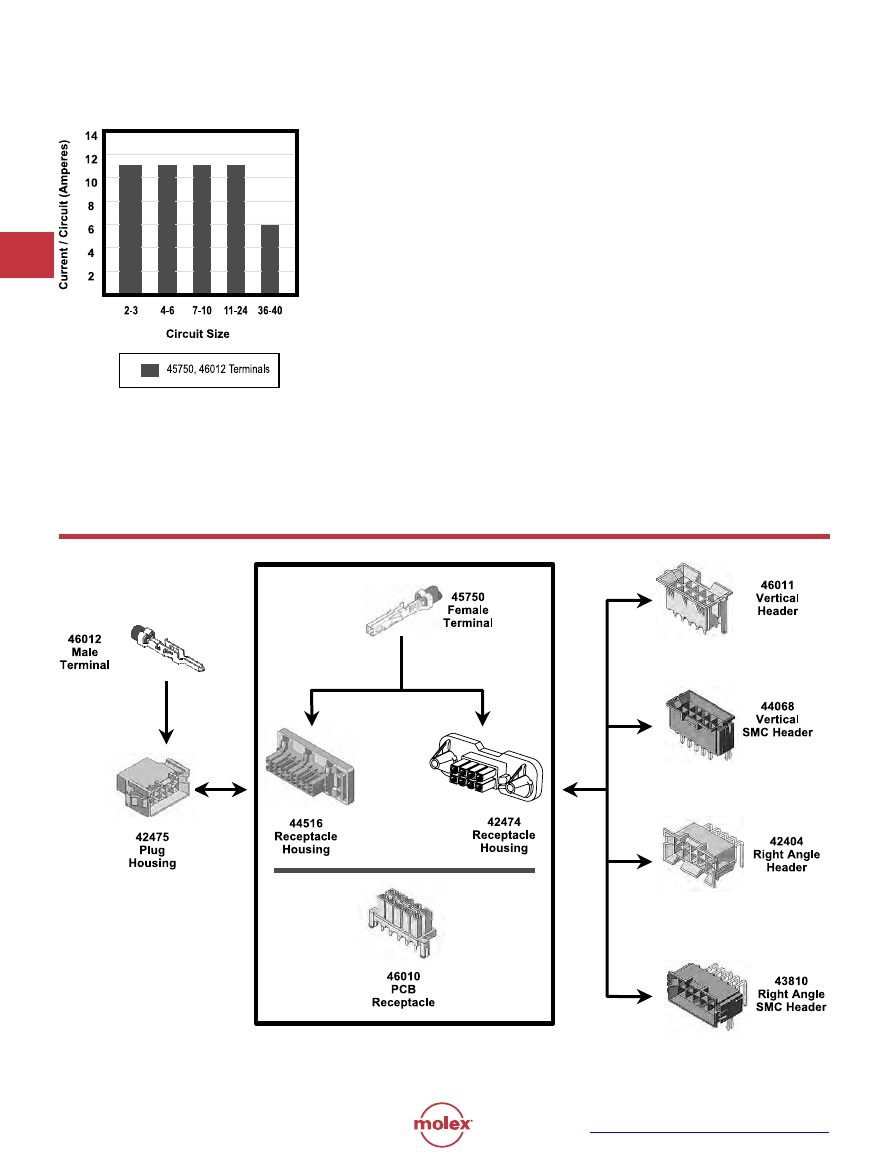

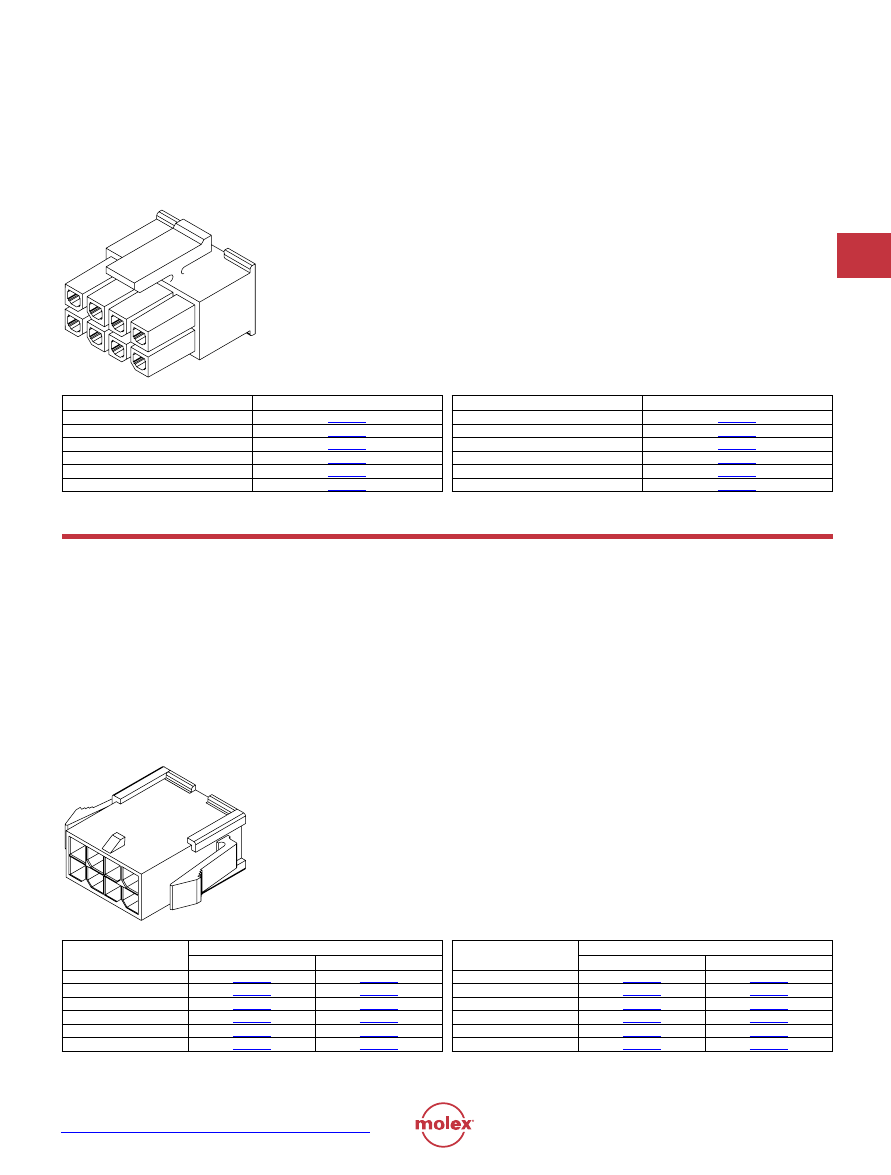

Power Connectors

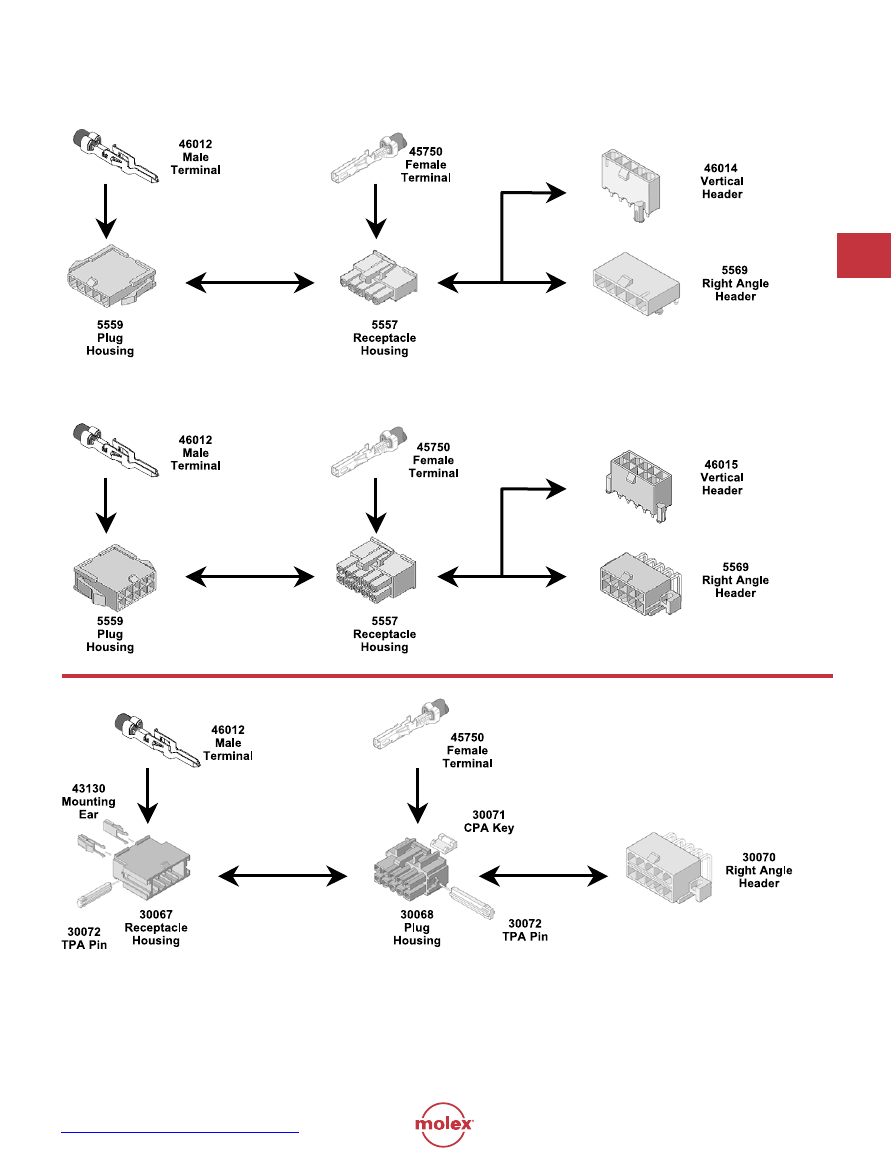

4.20мм (.165") шаг

Mini-Fit Plus HCS™

Характеристики

•

Высокие токи

•

Подключение в «горячем» режиме

•

Бессвинцовые технологии

Поляризация

Конфигурации

Гибкий дизайн

Характеристики

Ìàêñèìàëüíûé òîê: 12A (16 AWG)

Ìàêñèìàëüíî äîïóñòèìîå íàïðÿæåíèå: 600Â

Ñîïðîòèâëåíèå êîíòàêòîâ:

10ìÎì max. (íà÷àëüíîå),
20ìÎì (ïî îêîí÷àíèè òåñòîâ)

Òèï ïðîâîäà:

16 AWG (äèàìåòð èçîëÿöèè îò 2.20 äî 3.15ìì)

18 äî 20 AWG (äèàìåòð èçîëÿöèè îò 1.65 äî 2.95ìì)

Ïîêðûòèå: Îëîâî èëè Çîëîòî âûáîðî÷íî

Ñðîê ñëóæáû: 1 000 öèêëîâ

Äîïóñòèìûå âàðèàíòû ïàéêè ïå÷àòíîé ïëàòû:

Ïðåðûâàíèå òîêà (âîçìîæíîñòü ïîäêëþ÷åíèÿ â «ãîðÿ÷åì ðåæèìå»):

8A ìàêñ., 24Â ìàêñ., 50 öèêëîâ ìàêñ. (ñ çîëîòûì ïîêðûòèåì)

Âîëíîâàÿ ïàéêà — 42440, 42404, 42385, 43644, 43810,
43973, 44068, 45567 è 46011

Ïîâåðõíîñòíûé ìîíòàæ (260°) — 44068, 43810

Ïðè ïðîèçâîäñòâå êîíòàêòîâ èñïîëüçóåòñÿ ìåäíûé ñïëàâ

ñ âûñîêîé ïðîâîäèìîñòüþ. Òåïëî, âûðàáàòûâàåìîå â çîíå

êîíòàêòà, áûñòðî ðàññåèâàåòñÿ. Äàííàÿ ñèñòåìà ïîäõîäèò

äëÿ ýêñïëóàòàöèè ïðè áîëüøèõ òîêàõ.

Ïîêðûòûå çîëîòîì êîíòàêòîâ, âèëêè è ðîçåòêè íà PCB

èäåàëüíîå ðåøåíèå äëÿ «ãîðÿ÷åãî» ñîåäèíåíèÿ.

Ïîäêëþ÷åíèå «âñëåïóþ», ôèêñèðóþùèé çàæèì

è ôèêñàòîð êîíòàêòîâ TPA, — äîñòóïíû äëÿ ñîåäèíèòå

ëåé Mini-Fit Plus HCS.

Ðîçåòêè è âèëêè, êàê íà êàáåëü, òàê è íà ïå÷àòíóþ

ïëàòó â ðàçëè÷íûõ ñî÷åòàíèÿõ îáåñïå÷èâàþò ðåøåíèÿ äëÿ

ïîäêëþ÷åíèé òèïà ïðîâîä — ïðîâîä, ïðîâîä — ïëàòà,

ïàíåëü — ïàíåëü, ïàíåëü — ïëàòà, ïëàòà — ïëàòà.

Ðîçåòêè íà êàáåëü è ïëàòó îáëàäàþò êëþ÷àìè äëÿ

ìèíèìèçàöèè âîçìîæíîñòè íåâåðíîãî ïîäêëþ÷åíèÿ.

Âñå ñîåäèíèòåëè Mini-Fit Plus HMC ñäåëàíû áåç

äîáàâëåíèÿ ñâèíöà.

E-70 MX10

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

Crimp Terminal

45750

Female

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

Suitable for high current applications

•

Locking tangs secure terminal to housing

Reference Information

Product Specification: PS-45250

Application Specification:

Mates With: 46012, 46104, 46015, 46011

Use With: 5557, 42474, 44516 and 30067 housings

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max.

Unmating Force: 1.0N min.

Normal Force: 200g min.

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Contact: Copper Alloy

Plating

Wire Range AWG

Reel

Bag

Lead-free

Tin

45750-3111

45750-3112

Yes

18-20

45750-1111

45750-1112



" Select Gold

18-20

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

Crimp Terminal

46012

Male

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

Suitable for high current applications

•

Locking tangs secure terminal to housing

Reference Information

Product Specification: PS-45750

Application Specification:

Mates With: 45750 and 46010

Use With: 5559, 42475 and 30068 housings

Electrical

Voltage: 600V

Current: 12.0A (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max.

Unmating Force: 1.0N max.

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Contact: Copper Alloy

Plating: Tin or Select Gold

Wire Size: 16-20 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Plating

Wire Range AWG

Reel

Bag

Lead-free

Tin

46012-3141

46012-3142

Yes

18-20

46012-1141

46012-1142



" Select Gold

18-20

MX10 E-71

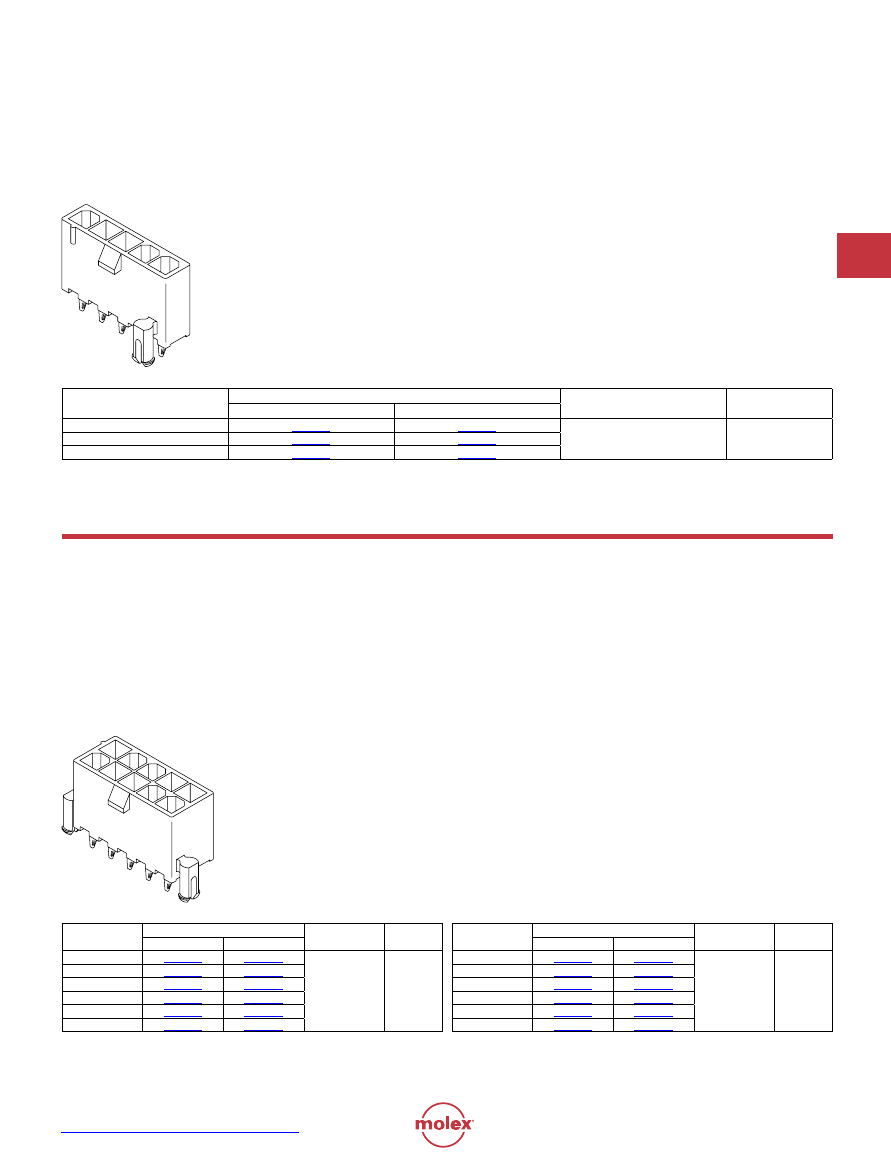

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

Header

46014

Single Row, Vertical

With Pegs and Drain Holes

Features and Benefits

•

Carries more amperes per circuit than 5566 series headers

•

Headers standard with mounting pegs for increased

board retention

•

Single row configuration saves board space

Reference Information

Product Specification: PS-45750

Mates With: 5557 single row receptacle housing

using 45750 terminal

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: High Copper Alloy

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

46014-0300

46014-0302

3.5mm (.14")

Yes

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

Header

46015

Dual Row, Vertical

With Pegs, Without Drain Holes

Features and Benefits

•

Carries more amperes per circuit than

5566 series headers

•

Headers standard with mounting pegs for

increased board retention

•

Positive housing locks

Reference Information

Product Specification: PS-45750

Mates With: 5557 housings using 45750 terminal

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: High Copper Alloy

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

46015-0201

46015-0208

3.5mm (.14")

Yes

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

46015-1401

46015-1408

3.5mm (.14")

Yes

E-72 MX10

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

Header

46011

Dual Row, Vertical

With Pegs and Drain Holes

Features and Benefits

•

Carries more amperes per circuit than 42440

series headers

•

.100" lead-in for self-aligning connection

with receptacle

•

Polarizing pegs for increased board retention

during wave soldering

Reference Information

Product Specification: PS-45750

Mates With: 42474, 44516 and 5557 receptacles and

46010 PCB receptacles

Use With: 44476 HCS terminals

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: High Copper Alloy

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

46011-0402

46011-0403

3.5mm (.14")

Yes

4.20mm (.165") Pitch

Mini-Fit Plus HCS

™

PCB Receptacle

46010

Vertical

Dual Row

Features and Benefits

•

Fully polarized housing prevents mismating

•

Board mounted receptacle for board-to-board

applications

•

Mateable with Mini-Fit BMI

™

style housings and

headers only

•

The 46010 is not a floating connector. Guidance

and float must be provided to align the connectors during

mating and to provide stress-free positioning after

mating.

Reference Information

Product Specification: PS-45750

Mates With: 42404 and 46011 headers, 42475 plug

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max.

Unmating Force: 1.0N min.

Normal Force: 1.47 N min.

Mating Cycles: Tin—30 cycles

Gold—100 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Copper Alloy

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

46010-0421

46010-0422

3.5mm (.14")

Yes

E-74 MX10

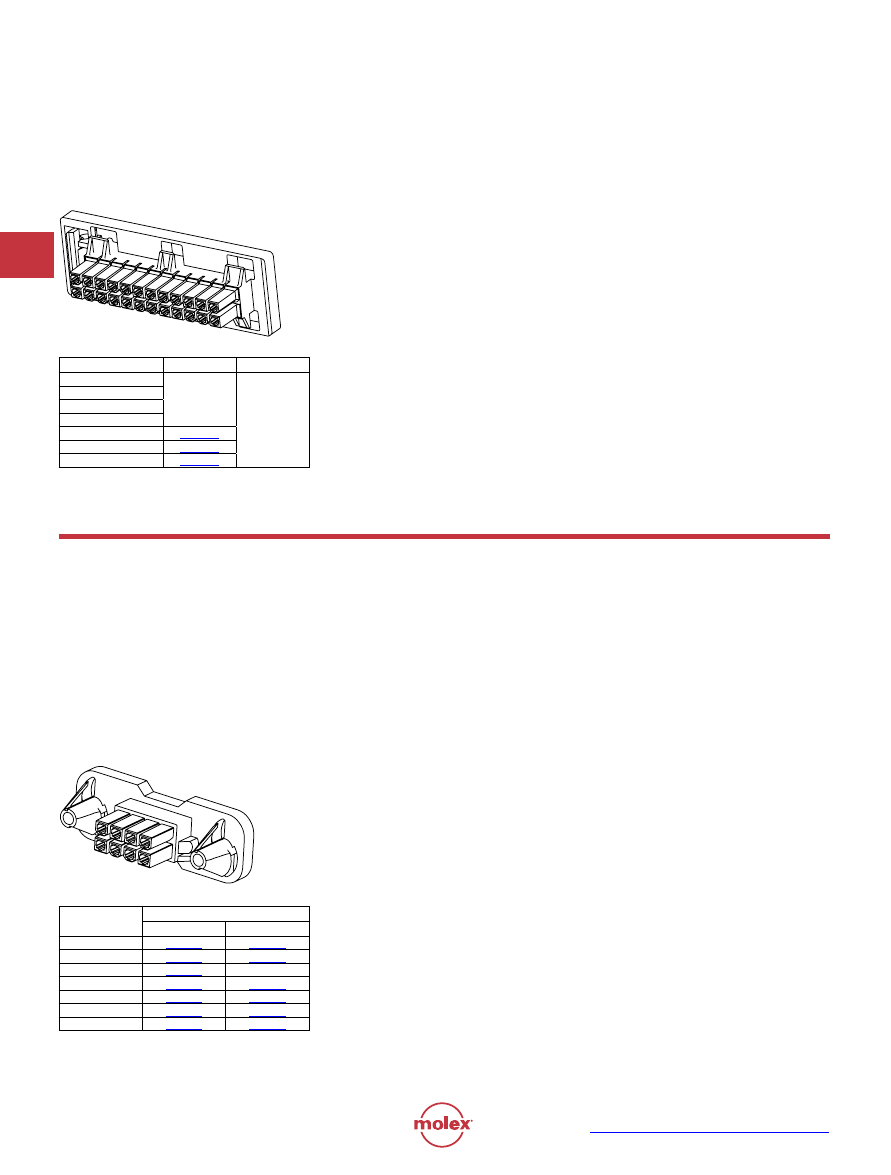

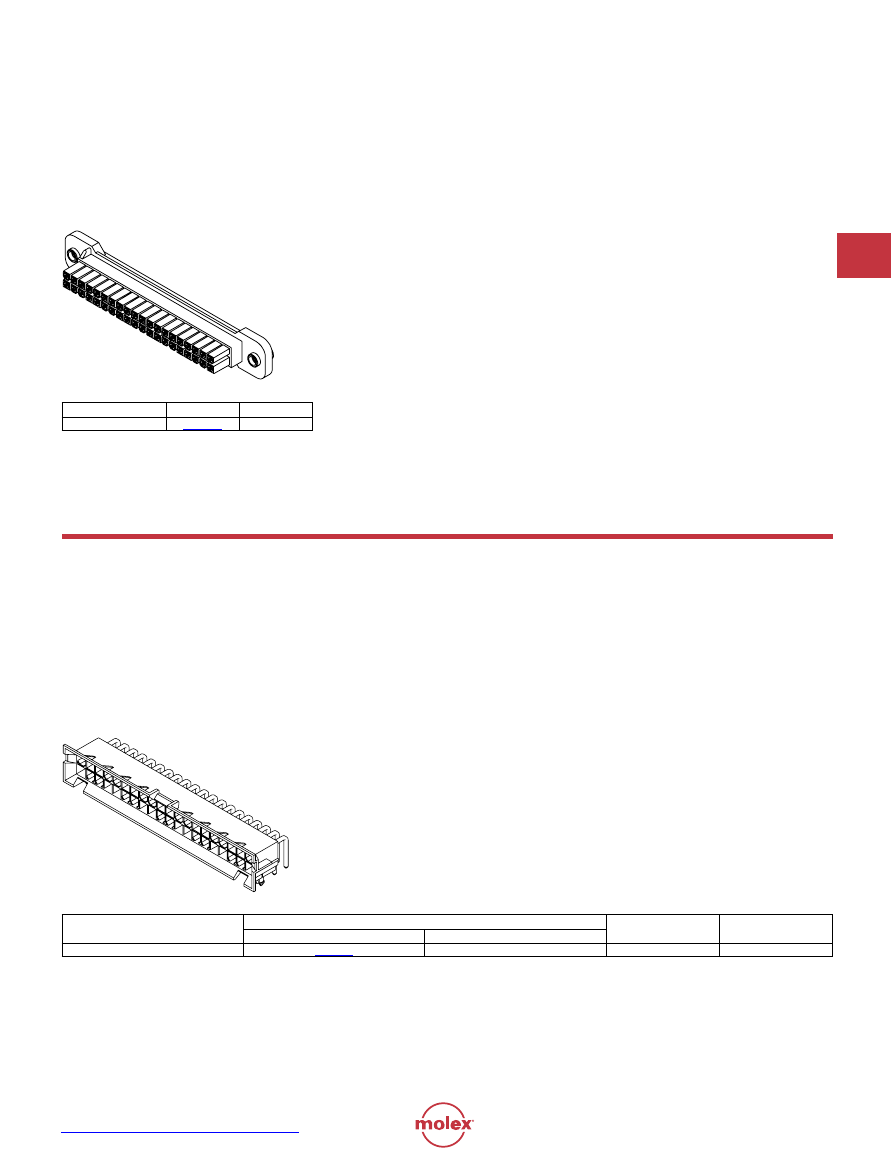

Power Connectors

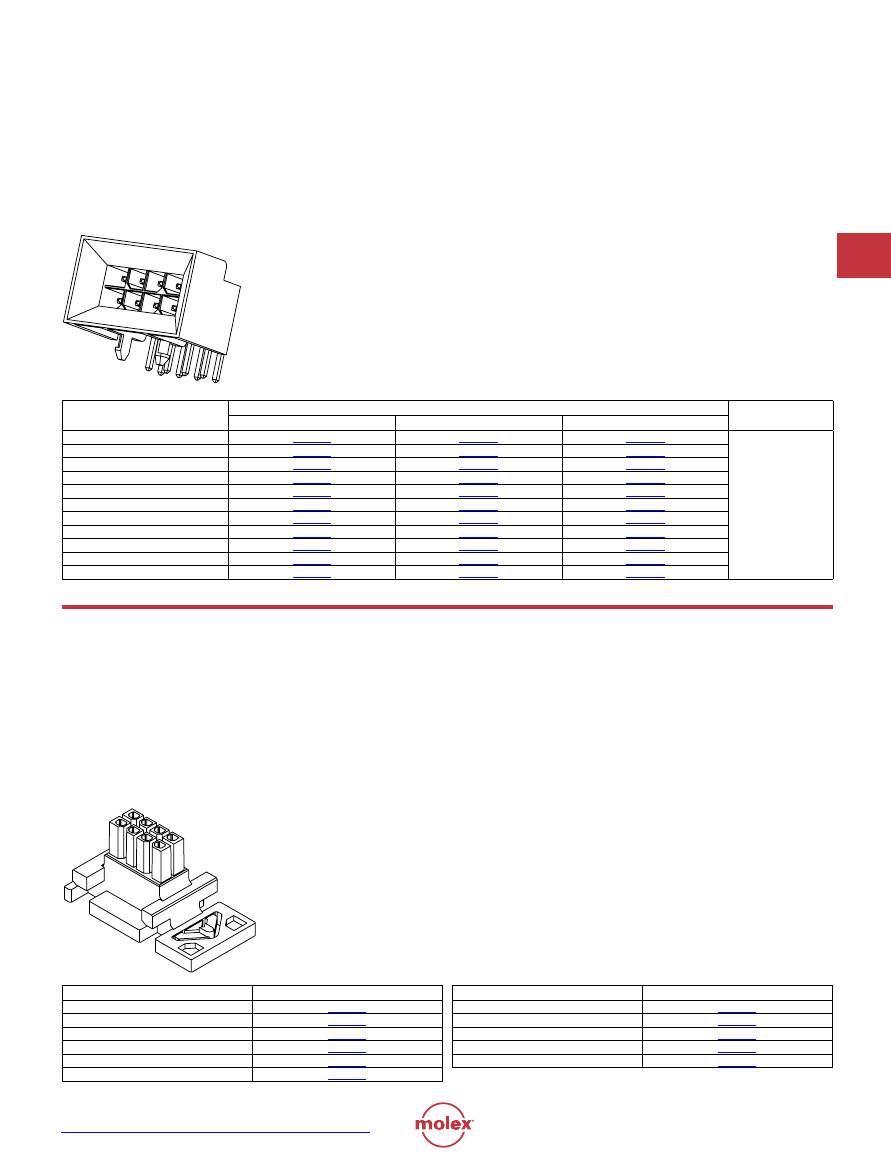

4.20mm (.165") Pitch

Mini-Fit BMI Slide-and-Lock

™

Crimp Terminal Housing

Receptacle

44516

Dual Row, Panel Mount

Features and Benefits

•

Blindmating panel mount connector

•

Designed for wire-to-board or wire-to-wire applications

•

Fully isolated silos to protect contacts from damage

•

Slide-and-Lock feature allows receptacles to be installed

and removed many times

Reference Information

Product Specification: PS-44516-001

UL File No.: E29197

CSA File No.: LR19980

Mates With: 42440, 42404, 43759, 46011, 44068, 43810,

43879, 46099 or 46100 headers and 42475 or 43770

plug housings

Use With: 46083, 5556, 45750 or 46018 terminals

Panel Thickness: 1.19 to 1.57mm (.047 to .062")

Physical

Housing: PBT polyester, UL 94V-0

Circuits

Order No.

Lead-Free

Contact Molex

Yes

6
10
14
18

44516-0009

44516-0012

44516-0013

4.20mm (.165") Pitch

Mini-Fit BMI

™

Crimp Terminal Housing

Receptacle

42474

Dual Row

With Panel Mount Ears

Features and Benefits

•

Blind mating panel mount receptacle

•

For wire-to-wire and wire-to-board applications

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-002

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142-8

Mates With: 42404, 42440, 43810, 43879, 44068,

46011, 46099 and 46100 headers or 42475 plug

Use With: 5556, 46083, 45750 or 46018 terminals

Panel Thickness: 0.97 to 1.57mm (.038 to .062")

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

94V-2

94V-0

MX10 E-75

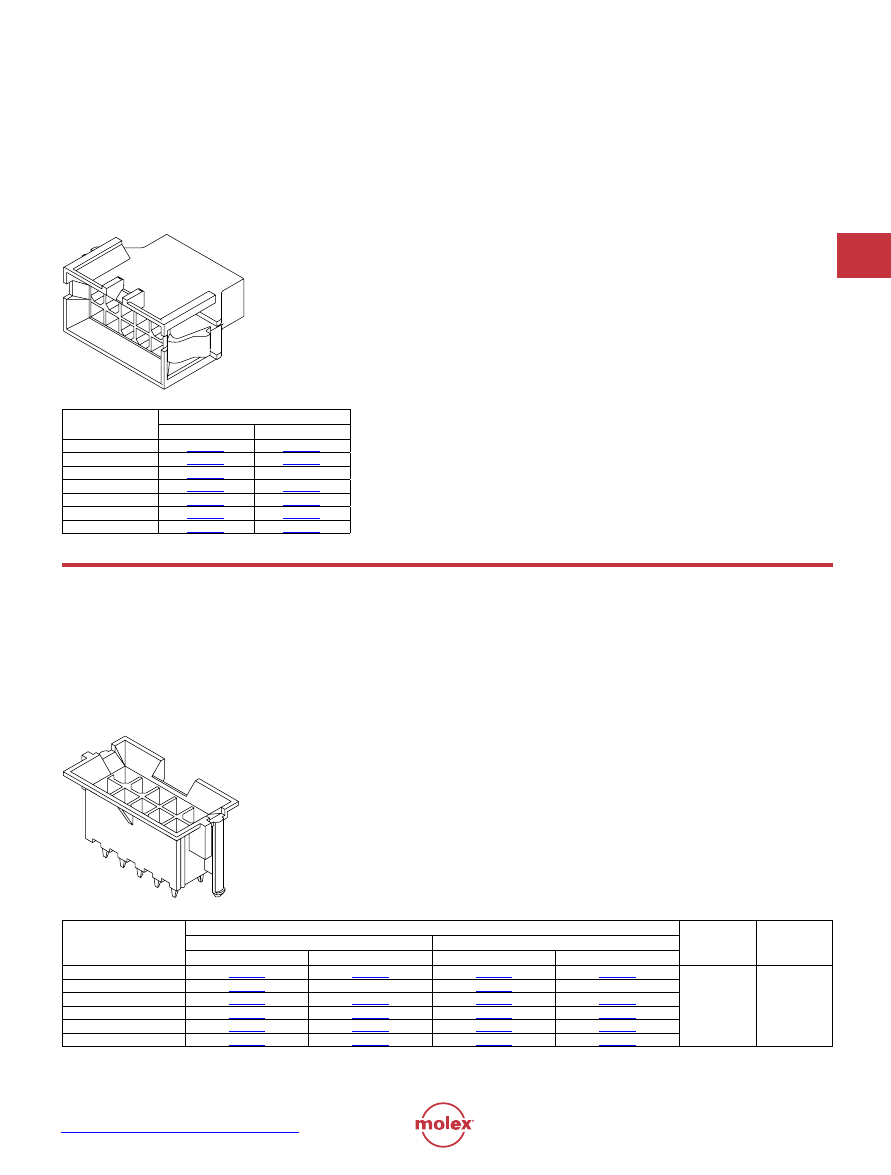

Power Connectors

4.20mm (.165") Pitch

Mini-Fit BMI

™

Crimp Terminal Housing

Plug

42475

Dual Row

With Panel Mount Ears

Features and Benefits

•

Blind mating panel mounted plug

•

Positive housing locks to mate with Mini-Fit Jr.

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-002

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 5557, 42474 or 44516 receptacles and 42385,

46010 or 46101 PCB receptacles

Use With: 5558, 46134, 46012 or 46098 terminals

Panel Thickness: 1.60mm (.063") max.

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

Order No.

94V-2

94V-0

4.20mm (.165") Pitch

Mini-Fit BMI

™

Header

42440

Dual Row, Vertical, with Pegs

Features and Benefits

•

.100" lead-in for self aligning connection with receptacle

•

Standard with drain holes to allow PCB washing after

wave soldering (contact Molex for headers without

drain holes)

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-002

UL File No.: E29179

CSA File No.: LR19980

Mates With: 44516, 42474 and 5557 dual row receptacles

or 42385 PCB receptacles

Electrical

Voltage: 600V

Current: 9.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycle: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

94V-2

94V-0

94V-2

94V-0

3.5mm (.14")

Yes

E-76 MX10

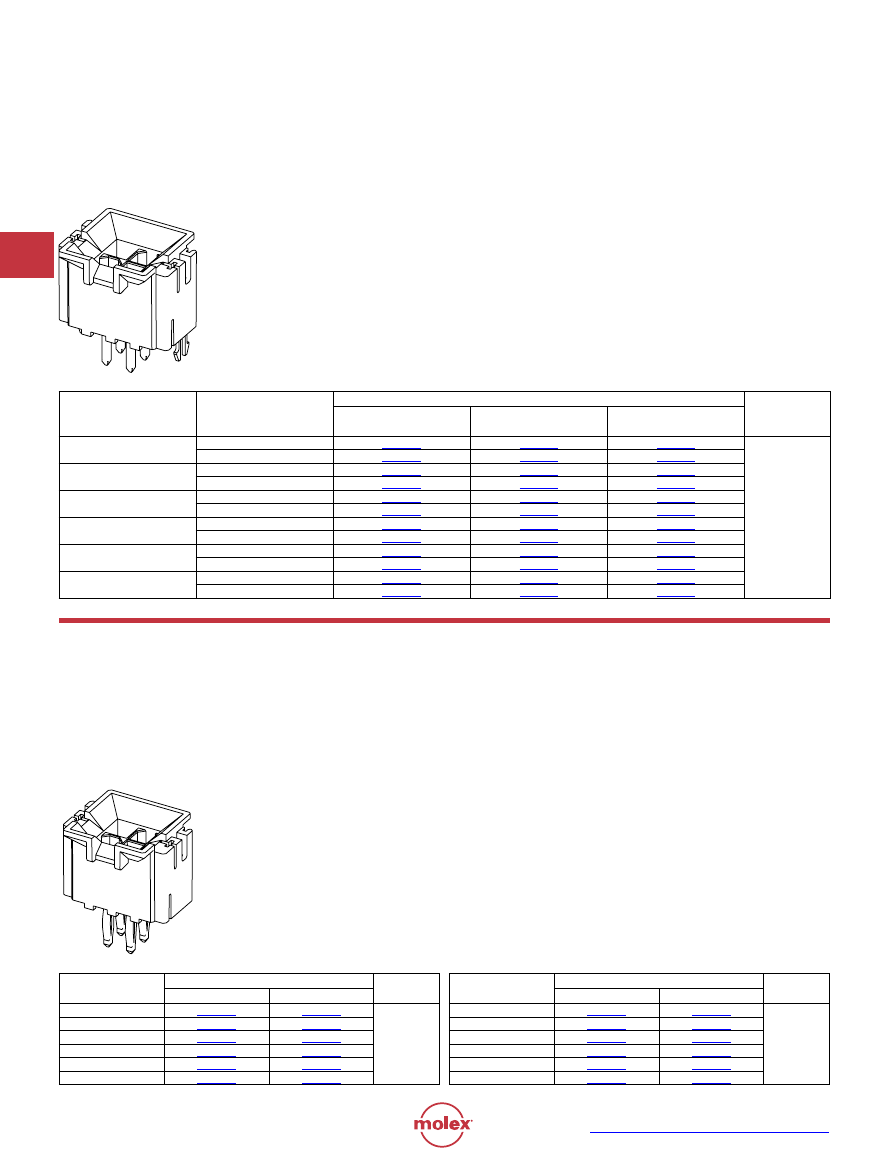

Power Connectors

4.20mm (.165") Pitch

Mini-Fit BMI

™

Surface Mount

Compatible Header

44068

Vertical, Dual Row

Features and Benefits

•

Surface Mount Compatible (245˚C)

•

Fully isolated terminals to protect contacts

from damage

•

Designs for variety of board thicknesses

•

Metal retention clip holds product before and after the

soldering process

•

Blind-mating capabilities

•

Availaable without clips

Reference Information

Product Specification: PS-43810-001

Mates With: 42474, 44516 and 5557 dual row receptacles

and 42385 or 46010 PCB receptacle headers

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 4/6 nylon, UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Plating

Order No.

Lead-Free

Tail Length

3.30mm (.130")

Tail Length

4.42mm (.174")

Tail Length

4.88mm (.192")

Tin

44068-0001

44068-0045

44068-0089

Yes



" Select Gold

Tin



" Select Gold

Tin



" Select Gold

Tin



" Select Gold

Tin



" Select Gold

Tin



" Select Gold

44068-0022

44068-0066

44068-0110

4.20mm (.165") Pitch

Mini-Fit BMI

™

Compliant Pin Header

43879

Vertical, Dual Row

Features and Benefits

•

Press-fit pin requiring no soldering

•

Blindmating capabilities

•

Designed for multiple board thicknesses

Reference Information

Product Specification: PS-43879-001

Mates With: 5557, 42385 and 42474 receptacles

PCB Thickness: .088" min.

Process: Press fit

Electrical

Voltage: 600V

Current: 7.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Insertion Force to PCB: 20kg max.

Mating Cycles: 30 cycles

Physical

Housing: 4/6 nylon, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin or Select Gold

Circuits

Order No.

Lead-free

Tin



" Select Gold

Yes

Circuits

Order No.

Lead-free

Tin



" Select Gold

MX10 E-77

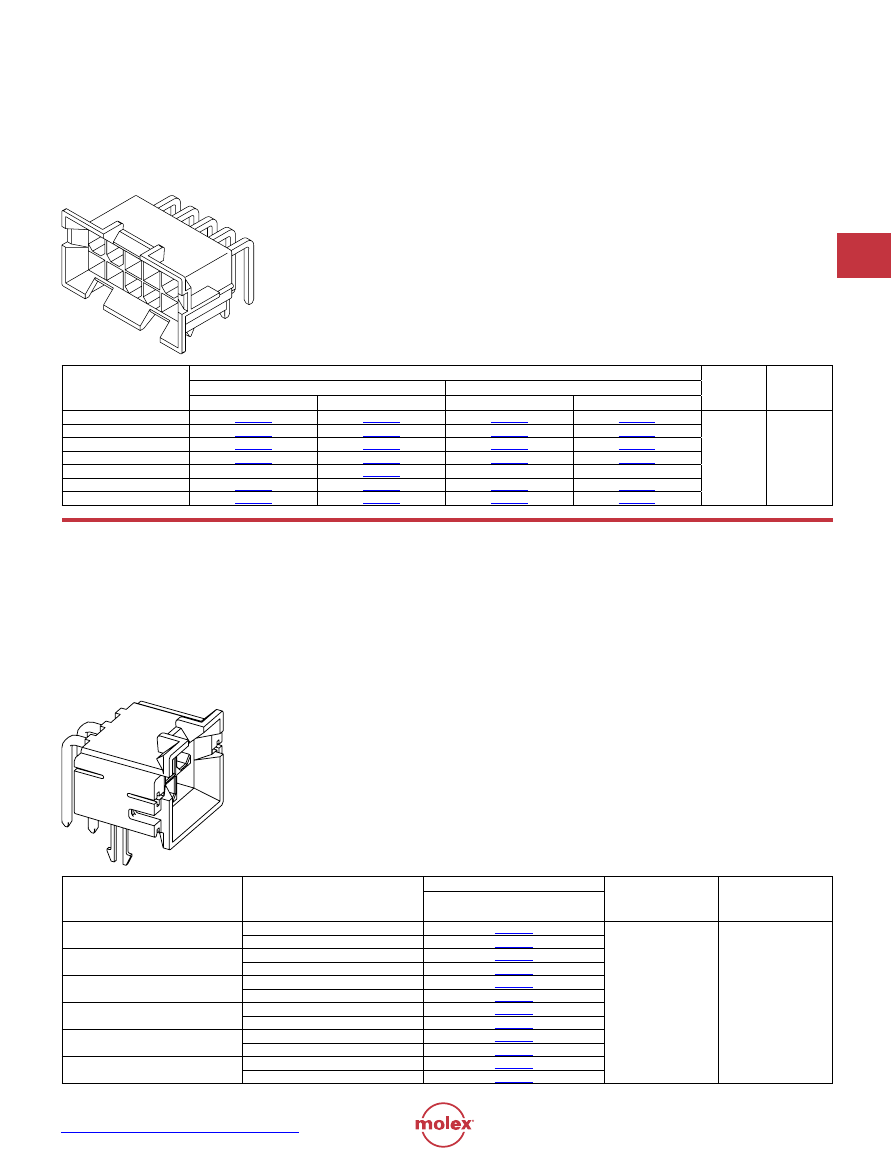

Power Connectors

4.20mm (.165") Pitch

Mini-Fit BMI

™

Header

42404

Right Angle

Dual Row

Features and Benefits

•

Blindmating capabilities

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Product Specification: PS-5556-002

UL File No.: E29179

CSA File No.: LR19980

Mates With: 42474, 44516 and 5557 dual row housings

or 42385 and 46010 PCB receptacle headers

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

94V-2

94V-0

94V-2

94V-0

3.3mm (.13")

Yes

4.20mm (.165") Pitch

Mini-Fit BMI

™

Surface Mount

Compatible Header

43810

Right Angle, Dual Row

Features and Benefits

•

Surface Mount Compatible (245˚C)

•

Fully isolated terminals to protect contacts

from damage

•

Metal retention clip holds product before and

after the soldering process

•

Blind-mating capabilities

•

Designs for variety of board thicknesses available

•

Available without clips

Reference Information

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 42474, 44516 and 5557 receptacles

and 42385 or 46010 PCB receptacles

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: 4/6 nylon, UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Plating

Order No.

Tail Length

Lead-free

1.60mm (.063")

PCB Thickness

Tin

43810-0001

3.12mm (.123")

Yes



" Select Gold

43810-0012

Tin

43810-0002



" Select Gold

43810-0013

Tin

43810-0004



" Select Gold

43810-0015

Tin

43810-0006



" Select Gold

43810-0017

Tin

43810-0008



" Select Gold

43810-0019

Tin

43810-0011



" Select Gold

43810-0022

E-78 MX10

Power Connectors

4.20mm (.165") Pitch

Mini-Fit BMI

™

PCB Receptacle

42385

Vertical

Dual Row

Features and Benefits

•

Board-mounted receptacle for board-to-board

applications

•

Fully isolated terminals to protect contacts

from damage

•

The 42385 series is not inherently blindmating.

Guidance to align the connectors during mating and

float to provide stress-free positioning after mating

must be provided

Reference Information

Product Specification: PS-5556-002

UL File No.: E29179

CSA File No.: LR19980

Mates With: 42475 plug, 42404, 42440, 43810,

43879 and 44068 headers

Electrical

Voltage: 600V

Current: 9.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max.

Unmating Force: 1.0N max.

Normal Force: 1.47N min.

Mating Cycles: 30 cycles

Physical

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

94V-2

94V-0

94V-2

94V-0

3.5mm (.14")

Yes

4.20mm (.165") Pitch

Mini-Fit BMI

™

Header

45567

Right Angle

Dual Row

Features and Benefits

•

Blindmating capabilities

•

Top row of pins in header are longer and engage first

when mated to reduce overall insertion force

•

Fully isolated terminals to protect contacts

from damage

Reference Information

Mates With: 44516 housing

Electrical

Voltage: 600V

Current: 6.0A

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: Black polyester, UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

45567-0001

45567-0002

3.3mm (.13")

Yes

MX10 E-81

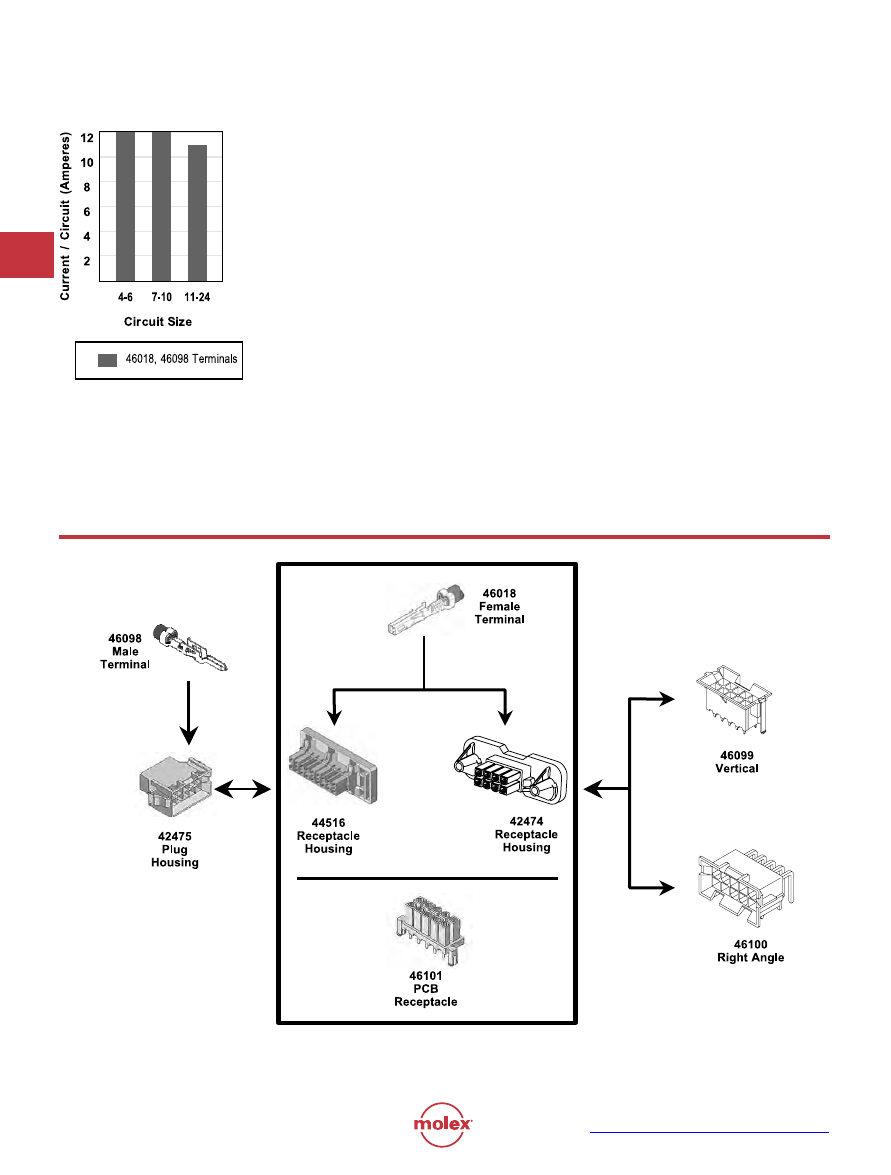

Power Connectors

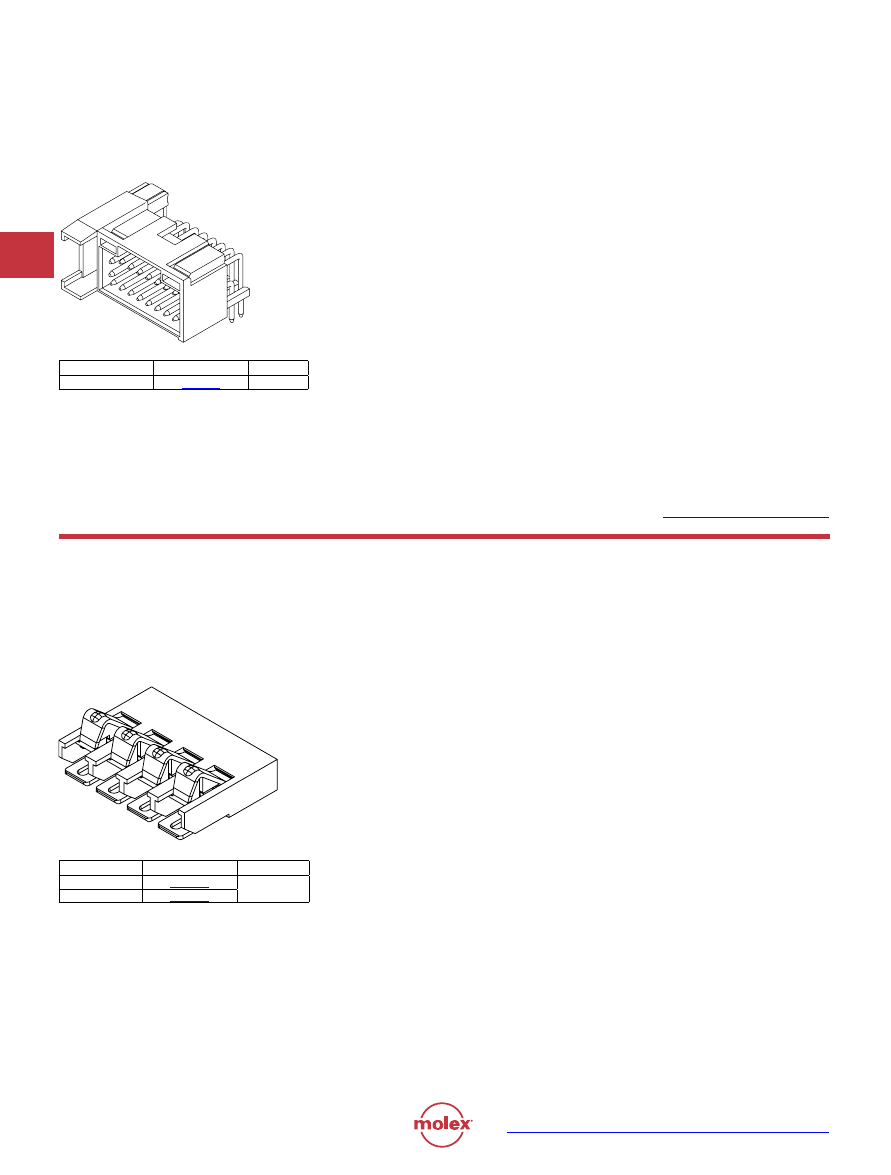

4.20mm (.165") Pitch

Mini-Fit Plus HMC

™

Terminal

46098

Crimp, Male

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

High cycle terminal for power/signal applications

•

Ideal for rack-mounted or drawer connecting modules

requiring multiple insertions

Reference Information

Product Specification: PS-46018

UL File No: E29179

Use With: 42475 plug housing

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N max. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: 1,000 cycles

Physical

Contact Material: Copper Alloy

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Wire Range AWG

Plating

Order Number

Lead-free

Reel

Bag

Gold Flash

over

Palladium Nickel

46098-3541

46098-3542

Yes

18-20

22-24

4.20mm (.165") Pitch

Mini-Fit Plus HMC

™

Terminal

46018

Crimp, Female

Features and Benefits

•

Post-plated contacts for superior electrical performance

over time

•

High cycle terminal for power/signal applications

•

Ideal for rack-mounted or drawer connecting modules

requiring multiple insertions

Reference Information

Product Specification: PS-46018

UL File No: E29179

CSA File No: LR19980

TUV License No: R75142

Use with: 42474 and 44516 receptacles

Electrical

Current: 12.0A max. (See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Force: 14.7N max. per contact

Unmating Force: 1.0N min. per contact

Normal Force: 0.49N min. per contact

Mating Cycles: 1,000 cycles

Physical

Contact Material: Copper Alloy

Wire Size: 16-24 AWG (See Product and Application Tooling

specifications for complete crimping guidelines.)

Wire Size (AWG)

Plating

Order Number

Lead-free

Reel

Bag

Gold flash over Palladium Nickel

46018-3541

46018-3542

Yes

18-20

22-24

E-82 MX10

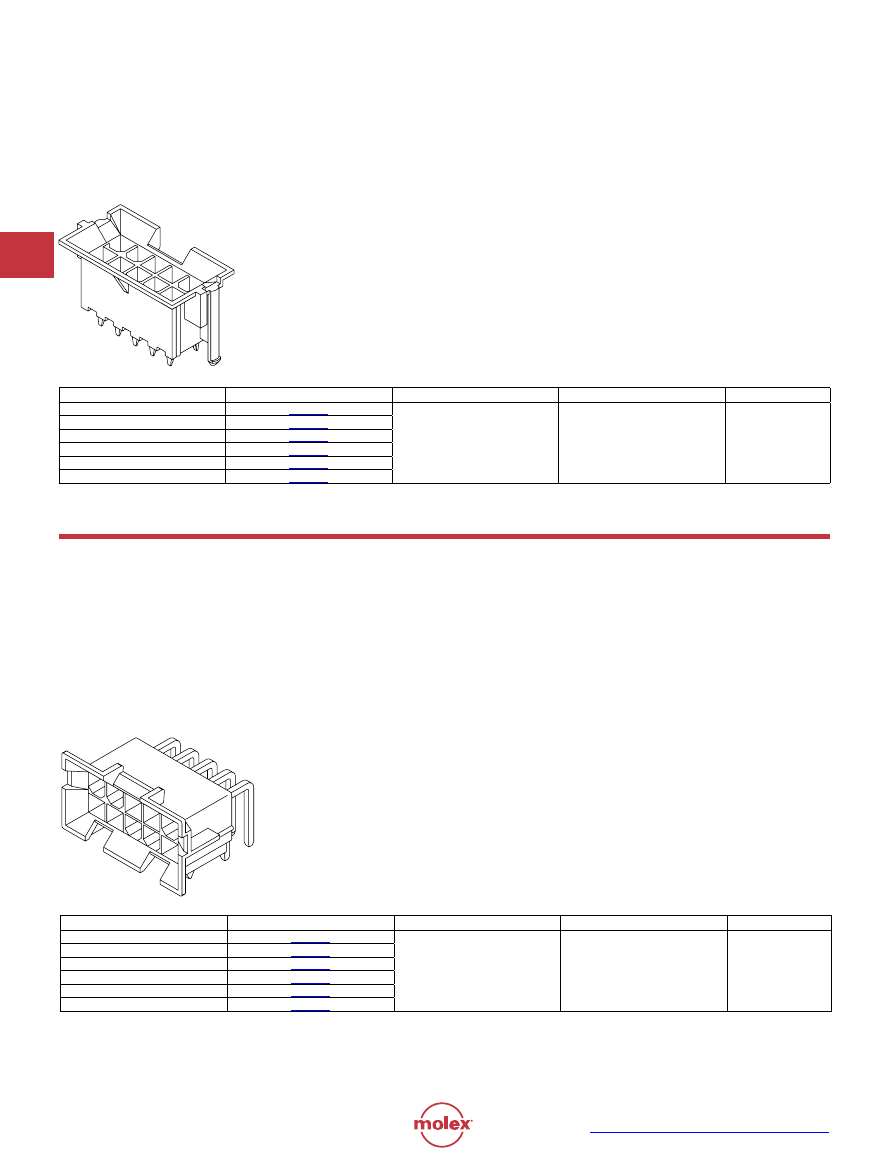

Power Connectors

4.20mm (.165") Pitch

Mini-Fit Plus HMC

™

Header

46100

Right Angle

Dual Row

Features and Benefits

•

Fully isolated terminals to protect contacts

from damage

•

Blind-mating header

Reference Information

Product Specification: PS-46018

UL File No: E29179

Mates With: 46101 PCB receptacles and 42474 or

44516 receptacles

Use With: 46018 High-cycle terminals

Electrical

Current: 12.0A max. (16 AWG wire) (See applicable product

specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 1,000 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact Material: Copper Alloy

Circuits

Order No.

Tail Length

Plating

Lead-Free

46100-0411

3.3mm

Gold Flash

over

Palladium Nickel

Yes

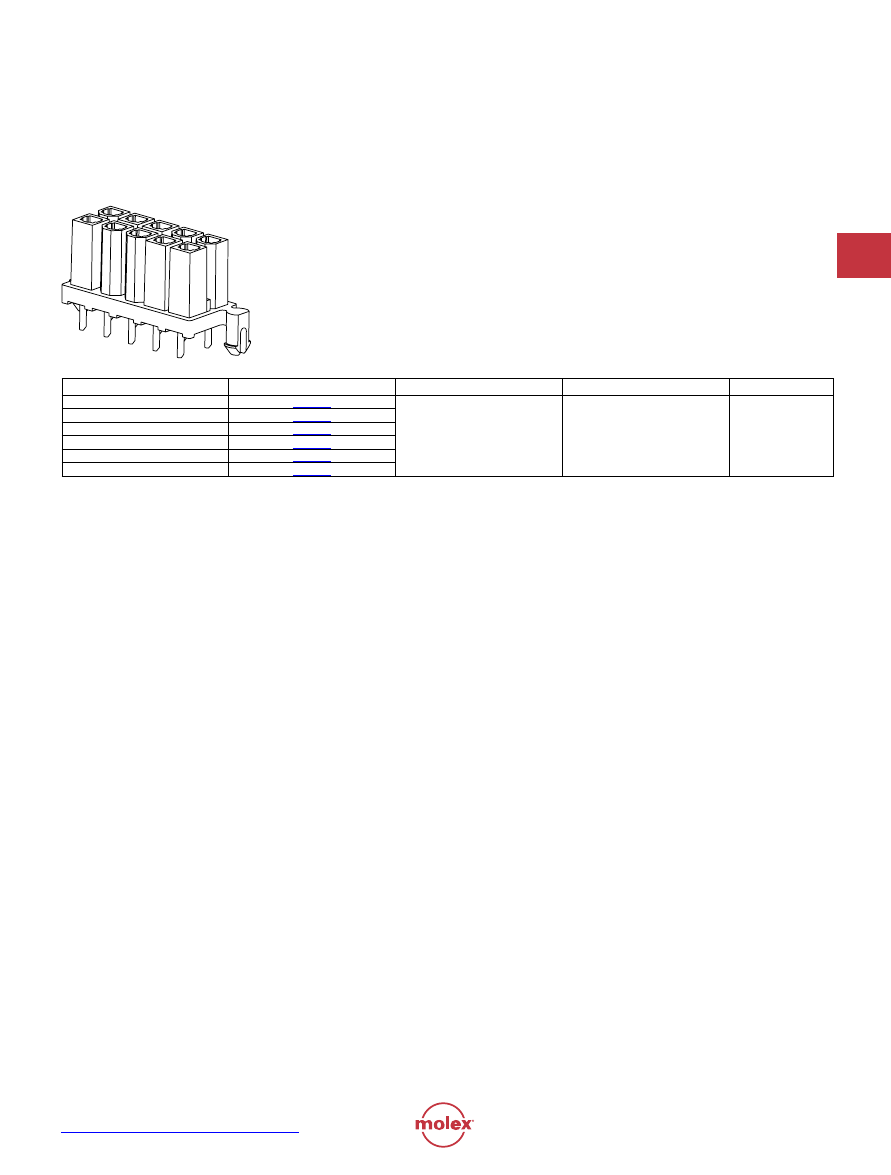

4.20mm (.165") Pitch

Mini-Fit Plus HMC

™

Header

46099

Vertical

Dual Row

Features and Benefits

•

Fully isolated terminals to protect contacts

from damage

•

Blind-mating header

Reference Information

Product Specification: PS-46018

UL File No: E29179

Mates With: 46101 PCB receptacles and 42474 or

44516 receptacles

Use With: 46018 High-cycle terminals

Electrical

Current: 12.0A max. (16 AWG min.)

(See applicable product specification.)

Voltage: 600V

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 1,000 cycles

Physical

Housing: 6/6 nylon, UL 94V-0

Contact Material: Copper Alloy

Circuits

Order No.

Tail Length

Plating

Lead-Free

46099-0411

3.5mm

Gold Flash

over

Palladium Nickel

Yes

MX10 E-85

Power Connectors

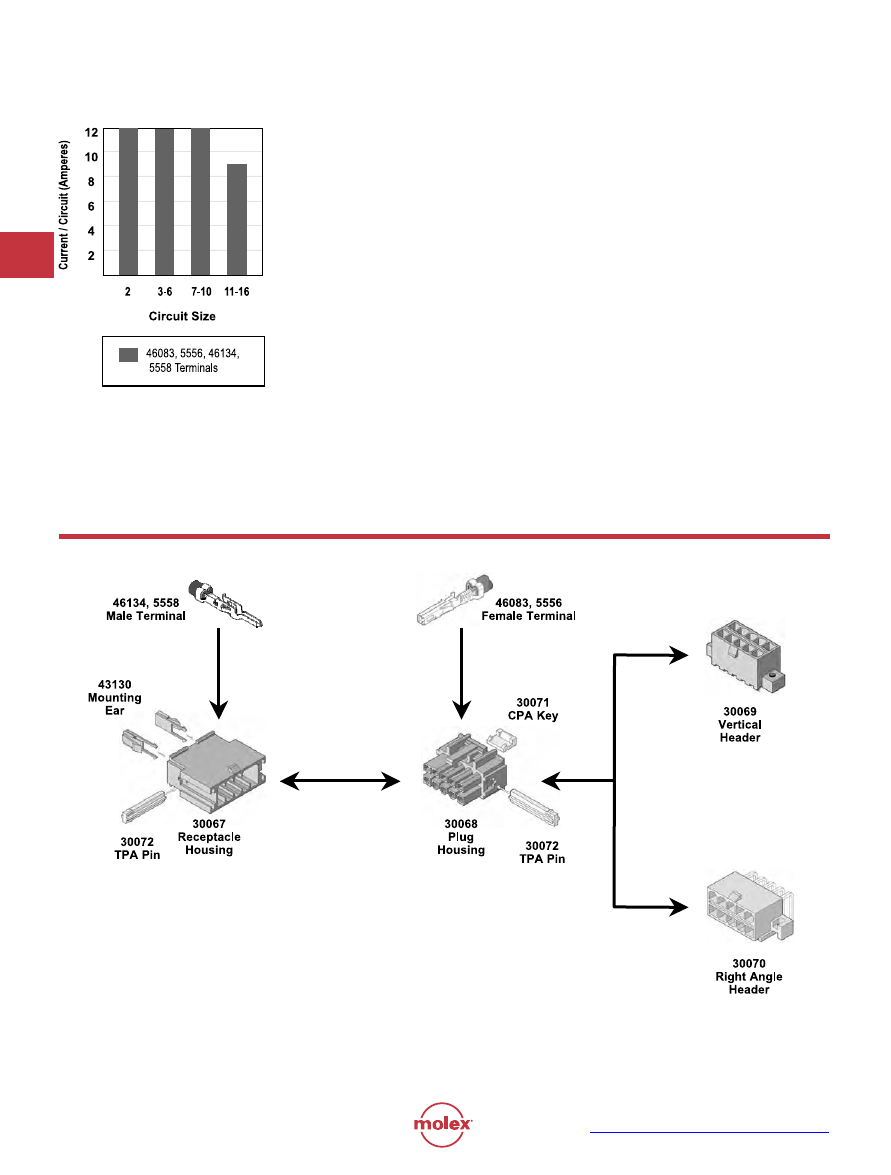

4.20mm (.165") Pitch

Mini-Fit TPA

™

Header

30069

Vertical, Dual Row

With Flanges, Without Drain Holes

Features and Benefits

•

Wire-to-board vertical header with mounting flanges

for increased retention

•

Positive housing locking ramp

•

Fully isolated terminals

Reference Information

Product Specification: PS-5556-003

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 30067 receptacle

Electrical

Voltage: 600V

Current: 9.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: Black polyester, UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

30069-0211

15-97-7024

3.50mm (.140")

Yes

4.20mm (.165") Pitch

Mini-Fit TPA

™

Crimp Terminal Housing

Receptacle

30067

Dual Row

With Secondary Terminal

Retention

CPA

TPA

Features and Benefits

•

Receptacle housing for wire-to-wire and wire-to-board

applications

•

Terminal Position Assurance (TPA) allows the terminal

to be fully seated in the housing assuring that it will not

back out during high vibration applications

•

Connector Position Assurance (CPA) assures

housing cannot be inadvertently disengaged

•

Contrasting color (white) TPA/CPA for high visibility

•

TPA and CPA keys are sold individually to meet customer-

specific needs

Reference Information

Product Specification: PS-5556-003

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Use With: 46083, 45750, and 5556 terminals

Mates With: 30068 housing, 30069 and

30070 headers

Physical

Housing: Black polyester, UL 94V-0

Circuits

Order No.

Lead-free

Receptacle (30067 Series)

TPA Pin (30072 Series)

CPA Key (30071 Series)

15-97-5021

15-97-9041

15-97-0071

†

Yes

* The same TPA pin is used for both the 2 and 4 circuit receptacles

†

The same CPA key is used for all receptacles, regardless of circuit size

E-86 MX10

Power Connectors

4.20mm (.165") Pitch

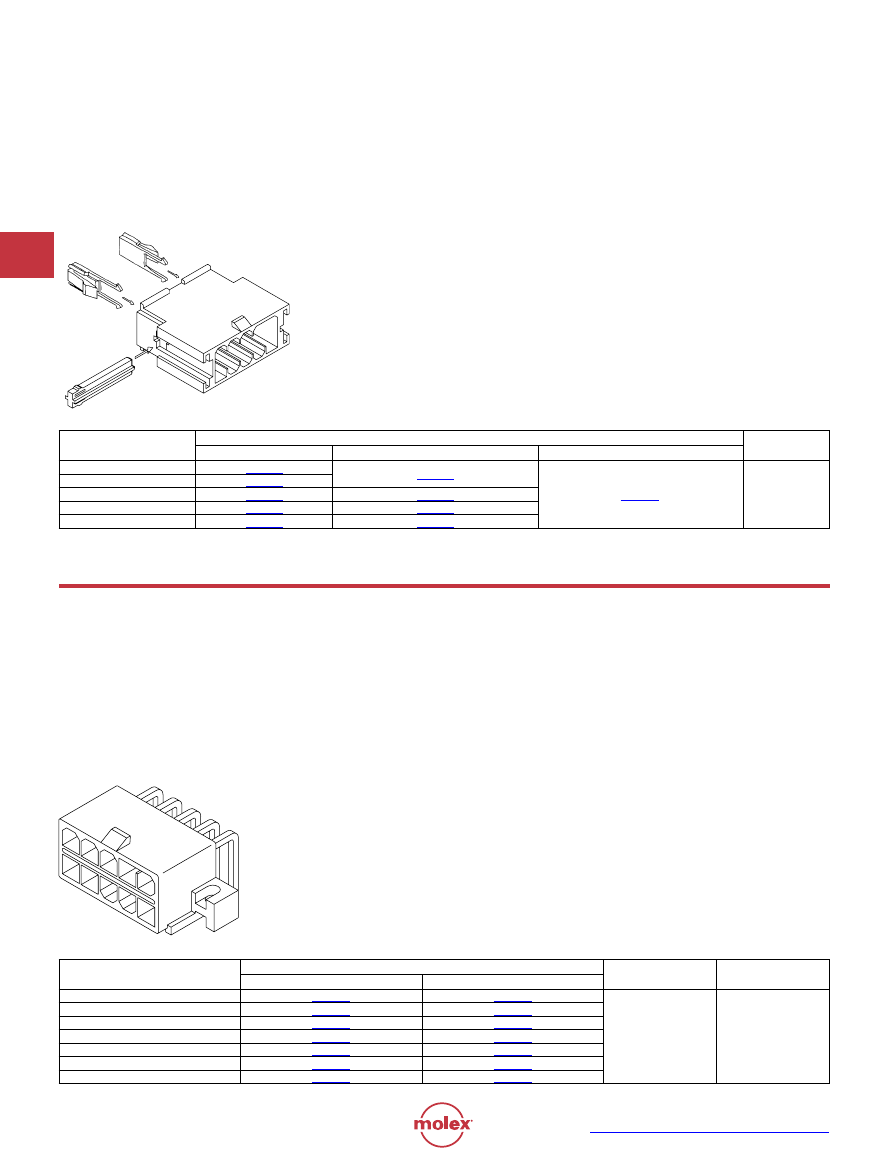

Mini-Fit TPA

™

Crimp Terminal Housing

Plug

30068

Dual Row with Secondary

Terminal Retention

TPA

Snap-On
Mounting Ears

Features and Benefits

•

Plug housing for wire-to-wire applications

•

Terminal Position Assurance (TPA) allows the terminal

to be fully seated in the housing, assuring that it will

not back out during high-vibration applications

•

TPA key is sold individually to meet customer-

specific needs

•

Optional snap-on ears for panel mounting

•

Contrasting color (white) TPA/CPA for high visibility

Reference Information

Product Specification: PS-5556-003

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Use With: 46314, 46012 and 5558 terminals

Mates With: 30067 housing

Physical

Housing: Black polyester, UL 94V-0

Circuits

Order No.

Lead-free

Plug (30068 Series)

TPA Pin (30072 Series)

Snap-on Mounting Ears

15-97-6021

15-97-9041

43130-0001

†

Yes

* The same TPA pin is used for both the 2 and 4 circuit plugs

†

Two snap-on mounting ears required per plug housing for panel mounting application

4.20mm (.165") Pitch

Mini-Fit TPA

™

Header

30070

Right Angle, Dual Row

With Flanges

Features and Benefits

•

Wire-to-board right angle header

with mounting flanges

•

Positive housing locking ramp

•

Fully isolated contacts

Reference Information

Product Specification: PS-5556-003

UL File No.: E29179

CSA File No.: LR19980

TUV License No.: R75142

Mates With: 30067 receptacle

Electrical

Voltage: 600V

Current: 12.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Mechanical

Mating Cycles: 30 cycles

Physical

Housing: Black polyester, UL 94V-0

Contact: Brass

Plating: Tin or Select Gold

Circuits

Order No.

Tail Length

Lead-free

Tin



" Select Gold

30070-0225

30070-0222

3.50mm (.140")

Yes

MX10 E-87

Power Connectors

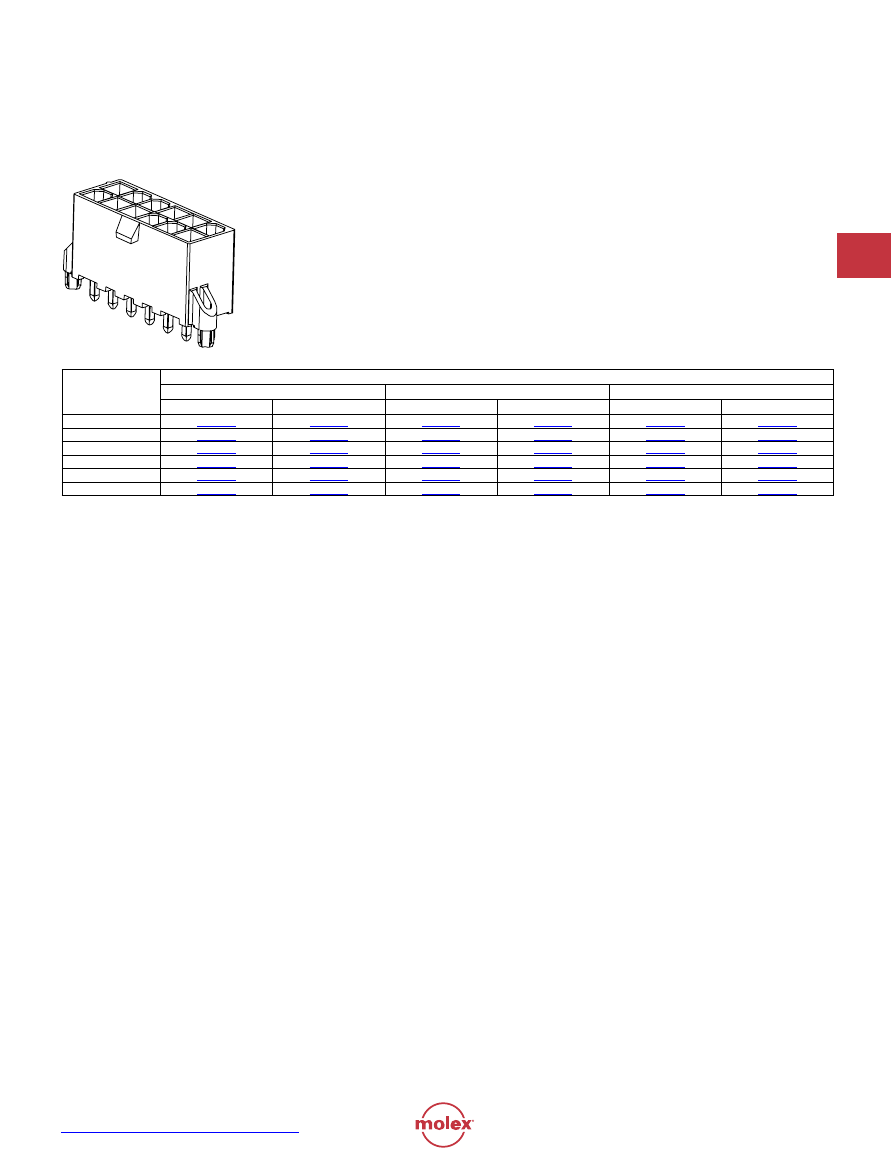

4.20mm (.165") Pitch

Mini-Fit RTC

Header

46207

Vertical with and without Pegs

Features and Benefits

•

RTC-reflow temperature compatible

•

Optional board-mounting pegs provide polarization

during placement on the PCB and increased retention

during soldering process

•

Positive housing locks to mate with Mini-Fit Jr.

™

receptacle

•

Fully isolated terminals to protect contacts from damage

Reference Information

Product Specification: PS-46207-001

Mates With: 5557 Receptacles

Electrical

Voltage: 600V

Current: 12.0A max. (see applicable product spec)

Contact Resistance: 10 milliohms max.

Mechanical

Durability: 30 cycles

Physical

Housing: LCP, UL 94V-0

Contact: Brass

Plating: Tin

Circuits

Order No.

Tail Length = 3.66mm (.144")

Tail Length = 4.46mm (.176")

Tail Length = 5.26mm (.207")

With Pegs

Without Pegs

With Pegs

Without Pegs

With Pegs

Without Pegs

MX10 E-89

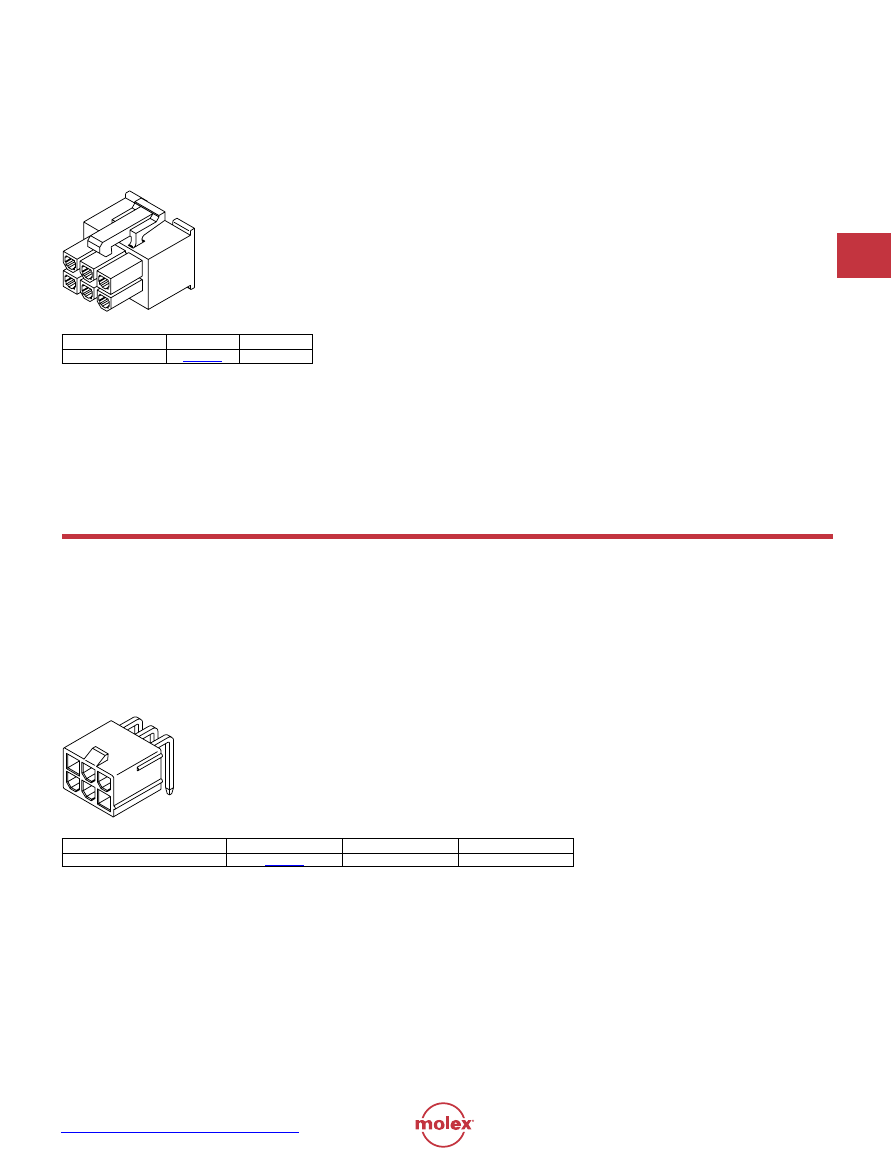

Power Connectors

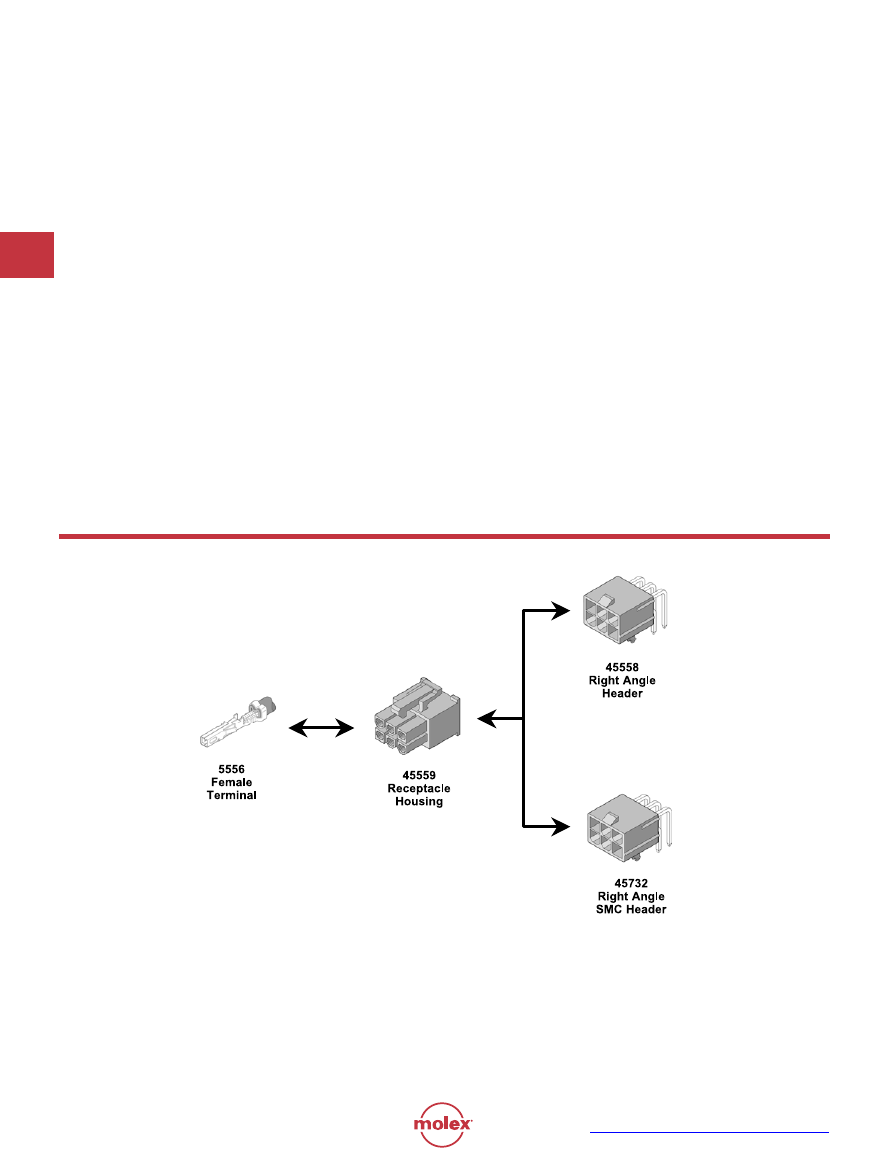

4.20mm (.165") Pitch

Mini-Fit

PCI Express*

Crimp Terminal Housing

Receptacle

45559

Features and Benefits

•

Designed for wire-to-board PCI Express high-end graphics

card applications only

•

Positive locking latch for secure retention to a header

when mated

•

Integral pull tabs for ease in unmating

•

Fully isolated terminals to protect contacts from

damage

•

Polarized geometry to prevent mismating the

header and receptacle

Reference Information

Product Specification: PS-45558-001

Mates With: 45558 or 45732 headers only

Use With: 5556 or 46083 terminals

Designed In: Millimeters

Physical

Housing: 6/6 nylon, UL 94V-0

Circuits

Order No.

Lead-Free

45559-0002

Yes

*Note: PCI Express is a registered trademark of the Peripheral Component Interchange Special Interest Group (PCI-SIG).

4.20mm (.165") Pitch

Mini-Fit

PCI Express*

Header

45558

Right Angle

Features and Benefits

•

Designed for wire-to-board PCI Express high-end graphics

card applications only

•

Positive locking for secure retention to a receptacle

when mated

•

Locking pegs assure optimum PCB retention during

wave-soldering

•

Fully isolated terminals to protect contacts from

damage

•

Polarized geometry to prevent mismating the header and

receptacle

Reference Information

Product Specification: PS-45558-001

Mates With: 45559 receptacle housing only

Electrical

Voltage: 600V

Current: 8.0A max. (See applicable product specification.)

Contact Resistance: 10 milliohms max.

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Brass

Plating: Tin

Circuits

Order No.

Tail Length

Lead-Free

45558-0002

3.5mm (.140")

Yes

*Note: PCI Express is a registered trademark of the Peripheral Component Interchange Special Interest Group (PCI-SIG).

E-90 MX10

Power Connectors
