Matsushita

Relays

Shortform

2

Matsushita Relay Technology.
Innovation across the board.

Telecommunications, machine
construction, measurement and
control systems, automotive
electronics, building security and
installation – today there is virtually
no branch of human activity that can
exist without using modern relays.
Matsushita is able to meet both
simple or complex demands from its
vast range of sophisticated, economic
switching technologies by offering the
relay most appropriate to solving the
specific application.

Economic and technical
competence.

With over 30 years experience at the
forefront of relay innovation and
development, Matsushita today offers
one of the world`s most comprehensive
ranges of electro-mechanical and
semi conductor types.
Currently the Matsushita product
range extends from ultra-miniature
SMD semi conductor types to robust,
compact industrial devices. Load
switching capability ranges from
low-level signals to double digit
ampères.

Application dependent, Matsushita
relays are available for all common
mounting configurations with screw,
pcb, solder or surface mount terminals
to meet most of the demands made
by different operating environments
or conditions.

A principal area of application for the
modern relay is in the already booming
market of telecommunications.
With its well established,
comprehensive T-series relay ranges,
and the new GN/GQ 4th generation
telecom relays, Matsushita is making
significant contributions within the
field of global data transmission.

3

Matsushita power relays, particularly
those of the J-series are not only used
in mains isolation applications, but
also in diverse ranges of consumer
appliances, automotive electrics and
diverse OEM manufacturing
industries.
In the field of safety of man and
machine, the introduction of SF2, SF3
and SF4 relays, with forced operated
contacts has set a new standard of
security.

Matsushita has developed a wide
range of SMD miniature relays for the
new-generation of surface mounting,
automated assembly processes. In
addition to electromechanical SMD
types such as TQ, TX, GN and GQ
series Matsushita has made significant
developments in the rapidly expanding
field of PhotoMOS semi conductor
relays.

With the AQV212 SOP type,
Matsushita is able to supply what is
currently one of the smallest semi
conductor relay. Measuring just
2,1 mm high this type reflects the
extent to which electronics and
communication systems are being
miniaturised.

Quality to ISO9001 standards.

For Matsushita the supply of quality
products is paramount. To achieve
this the Company implement strict
test and inspection procedures to
comply with most international
specifications. The award of ISO9001
certification has set the seal on our
production capabilities.

If you need more detailed information
about Matsushita relays please ask
us to send you a full relay catalogue.

Matsushita Relays.
Ideas for Tomorrow`s World.

CONTENTS

PAGE

SIGNAL RELAYS

A relay

4

DF relay

5

DS2-E(F)[S]/DSBT relay

8

DSE-M(S) / DS2Y-S relay

8

DX relay

4

GN/GQ relay

5

HX2 / HX2-SA relay

6

HY relay

4

K relay

9

NF relay

8

NL relay

9

R relay

4

S relay

9

SX / SX2-SA relay

7

TF2 relay

6

TK1 relay

7

TN2 relay

6

TQ2 relay

5

TQ2-SA relay

5

TX2 / TX2-SA relay

6

TXS2 / TXS2-SA relay

7

TX-D2 / TX-D2-SA relay

7

HIGH-FREQUENCY RELAYS

RA relay

NEW !

11

RD relay

11

RE relay

NEW !

10

RG relay

11

RK relay

10

RM relay

11

RP relay

10

RX relay

10

POWER RELAYS

DE relay

12

DK relay

12

DSP relay

12

HA relay

13

HC/HJ relay

NEW !

14

HE relay

15

HG relay

15

HL relay

15

HP relay

14

JA relay

18

JC relay

17

JE-X relay

15

JG/JG-P relay

16

JK relay

17

JM relay

19

JQ relay

16

JR1aF relay

19

JS relay

16

JV relay

16

JW relay

16

JY relay

18

JZ relay

18

LA relay

17

LD relay

17

LE relay

NEW !

18

LF relay

NEW !

19

LK, LK-P, LK-S relay

17

MC mini contactor

19

NC relay

13

NT relay

14

PA/PAD relay

12

PE relay

13

PQ relay

13

RT3 relay terminal

13

SP relay

14

ST relay

12

VC relay

19

AUTOMOTIVE RELAYS

CA relay

21

CB relay

22

CF relay

21

CM relay

22

CP relay

20

CQ relay

20

CT1/2/5 relay

21

EV relay

22

JJM(2W) relay

20

JSM relay

21

JT/JTN relay

22

SAFETY RELAYS

SF2 relay

23

SF3 relay

23

SF4 relay

23

TIME DELAY RELAYS

TR time delay relay

24

TS time delay relay

24

MODULES

VS module

25

IC module

25

PhotoMOS Technology

26

PhotoMOS Overview

30

PhotoMOS Signal Relays

32

1 channel type

1NO contact

32

1NC contact

36

Low cost types

37

2 channel type

2NO contact

39

2NC contact

40

1NO/1NC contact

40

Low cost types

41

Special types

43

POWER PhotoMOS Relay

44

PhotoMOS
for High Frequency

48

PhotoMOS
Multifunction types

51

PhotoMOS Linear Coupler 52

1NO

normally open

1NC

normally closed

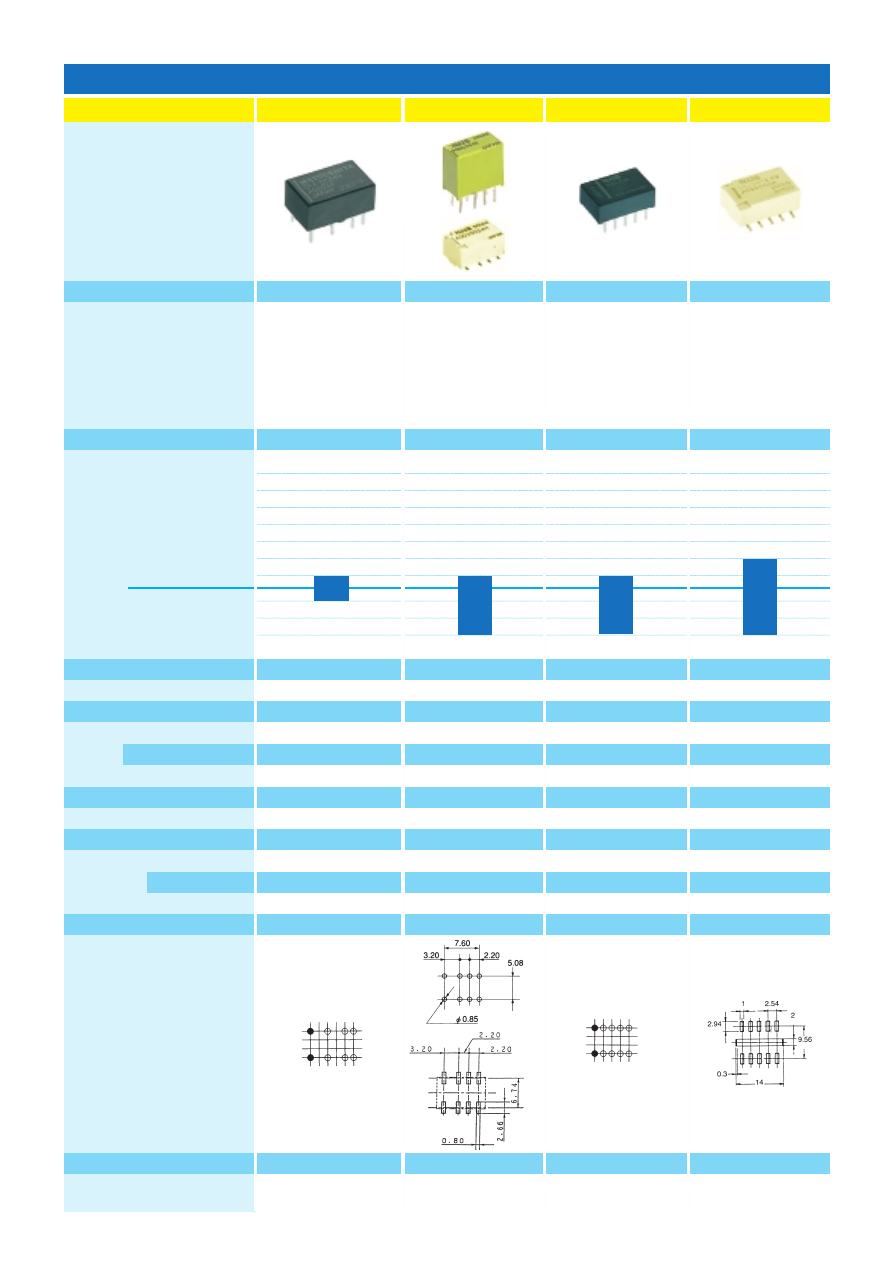

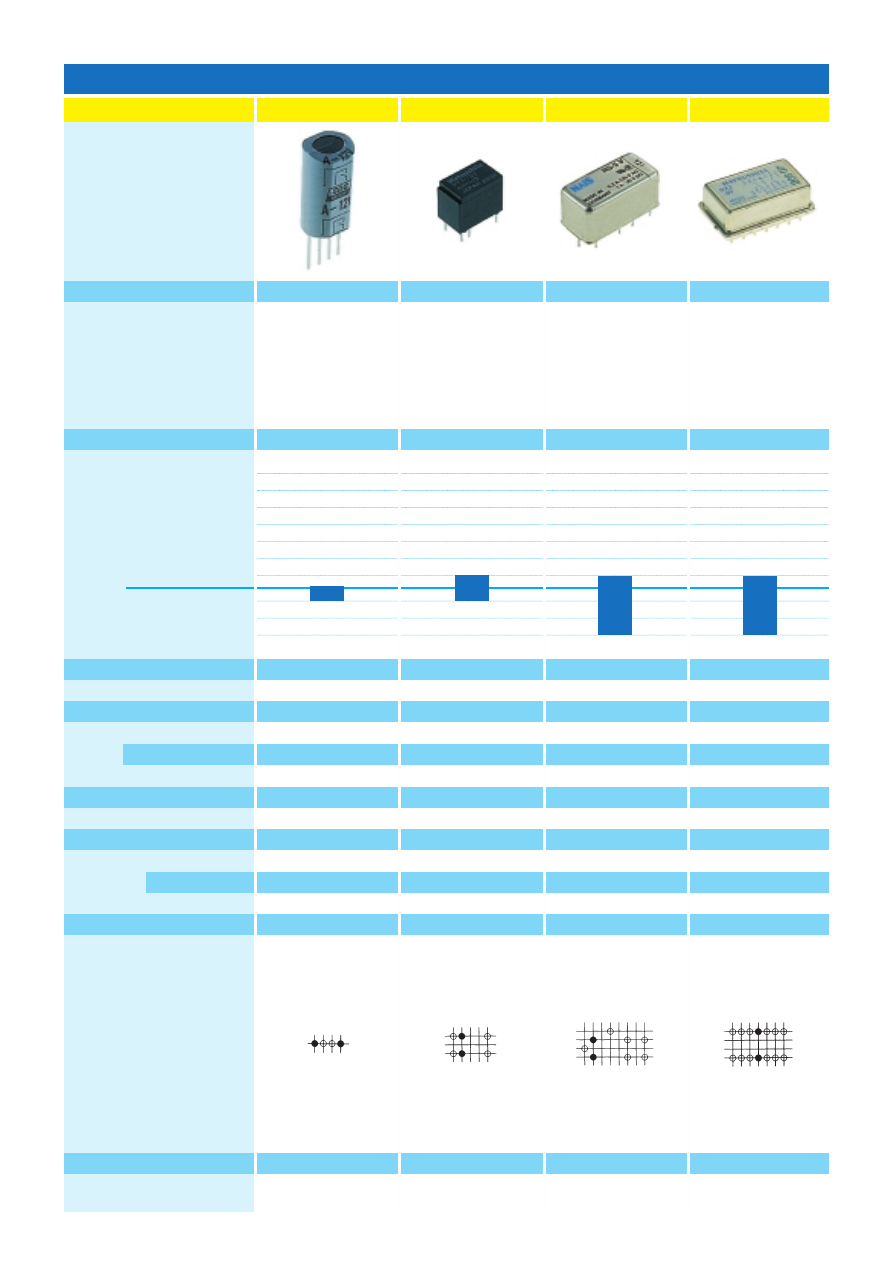

4

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

A

9.5 x 20

Reed relay with single-in-line
pcb pins

Can also be mounted flat

Not for a new design-in

1NO

0.1 … 50

… 50

monostable

250

—

500

—

5/ 12/ 24

—

180

—

—

IP67

PCB

HY

12 x 7.4 x 10.1

Small sensitive relay

1CO

0.1 … 60

… 125

monostable

500

—

1000

—

1.5 – 24

—

sensititive: 150; standard: 200

—

—

IP67

PCB

UL (E 43149),

CSA (LR 26550)

0.1

R

20 x 10 x 10.2

Polarised monostable or
bistable (latching) reed
changeover relay

Outstanding reliability

VS-compatible

IC-compatible

Not for a new design-in

1CO

0.001 … 30

… 110

monostable, bistable

350

—

1000

1000

1.5 – 60

—

150 – 280

70 – 100

150 – 230

IP67

PCB

VDE, UL (E 43149),

CSA (LR 26550)

DX

20 x 12 x 6.3

Metal encapsulated
miniature relay

For dry load or HF circuits

Sealed to IP68

IC-compatible

VS-compatible

2CO

0.001 … 30

… 110

monostable, bistable

500

500

500

—

3 – 24

—

125 – 144

125 – 144

250 – 288

IP68

PCB

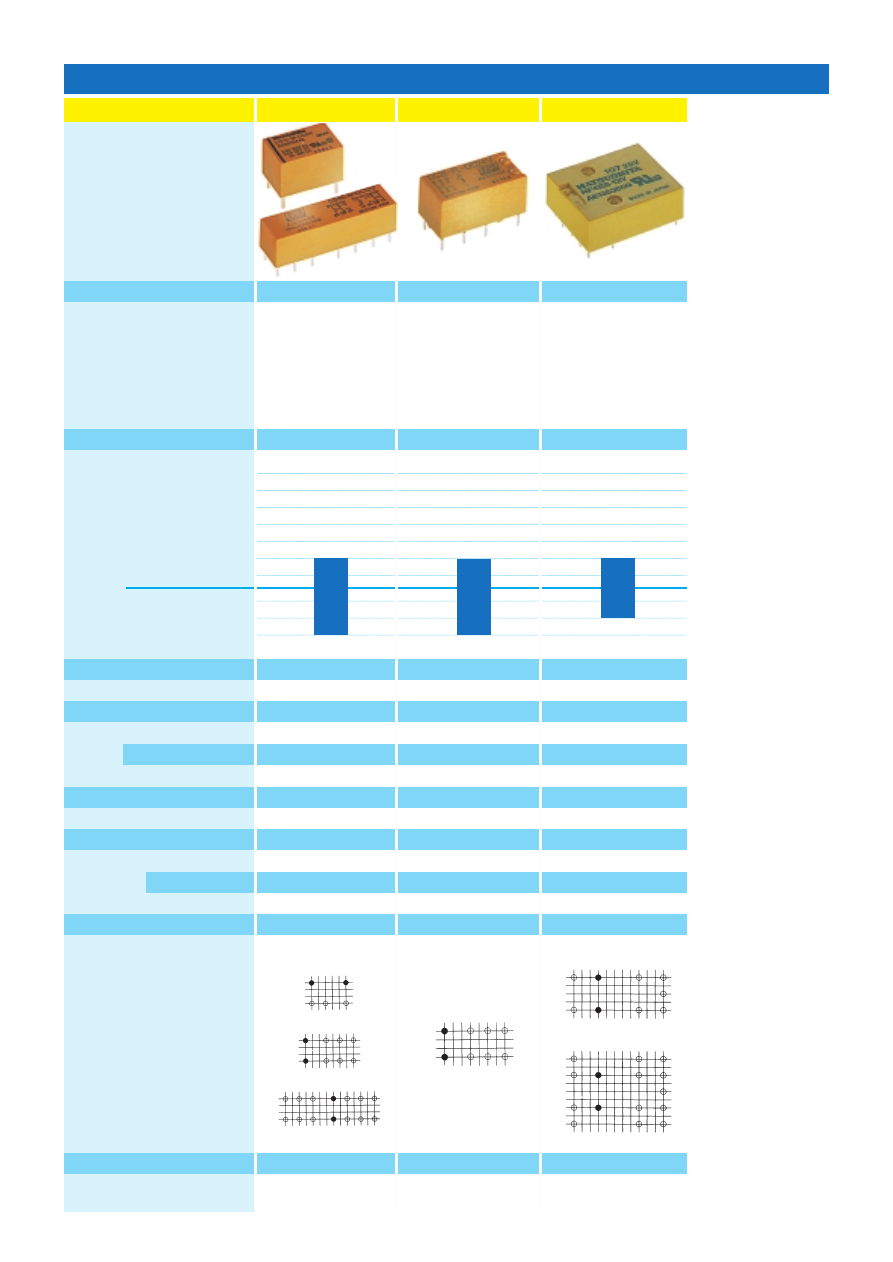

5

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

DF

16 x 9.9 x 7

Polarised DIL relay

8 cN dual contact force

1 – 2 µV thermovoltage for
dry load or power switching

BT type 53 version available

IC-compatible

VS-compatible

Not for a new design-in

2CO

0.1 … 60

… 125

monostable, bistable

500

500

1000

1500

1.5 – 24

—

200

100

200

IP67

PCB

UL (E 43149)

CSA (LR 26550)

GN/GQ

GN 10.6 x 5.7 x 9.0/GQ 10.6 x 7.2 x 5.2

Extremely compact ultraminiature relay

2 changeover contacts

Very high impulse voltage
withstand 2.5 kV complying
Bellcore standard

High density mounting due to
decreased relay size.

IC-compatible

2 CO

0,01 … 110

… 125

monostable, bistable

750

1000

1500

2500 Bellcore

1.5 – 24

—

140 – 230

100 – 120

—

IP67

PCB, SM technology

UL, CSA, BSI,

EN 60950

TQ2-SA

14 x 9 x 5.6

New, very low profile
SM version

2 changeover contacts

2 A switched current

Very high impulse voltage
withstand 2,5 kV complying
with Bellcore standard

IC-compatible, VS-compatible

2CO

0.01 … 220

… 125

monostable, bistable

1000

1000

1500

2500 Bellcore

1.5 – 48

—

140 – 300

70 – 100

140 – 200

IP67

SM technology

UL (E 43149),

CSA (LR 26550)

TQ2

14 x 9 x 5

Ultra-miniature relay

Universal performance
capability for use in
telecommunications,
measurement
and instrumentation

IC-compatible

VS-compatible

2CO

0.01 … 110

… 125

monostable, bistable

750

1000

1000

1500

1.5 – 48

—

140 – 300

100 – 150

200 – 300

IP67

PCB

UL (E 43149), BSI,

CSA (LR 26550)

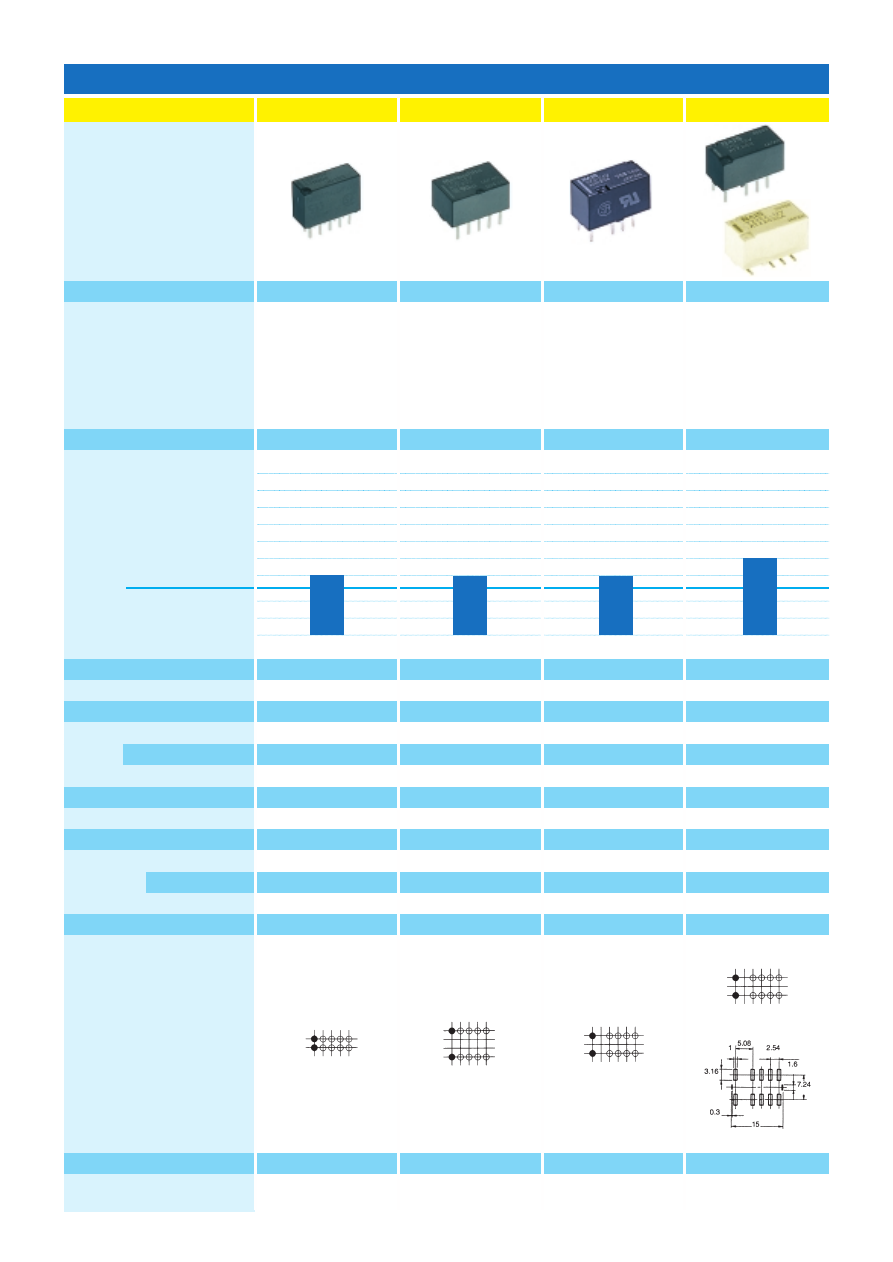

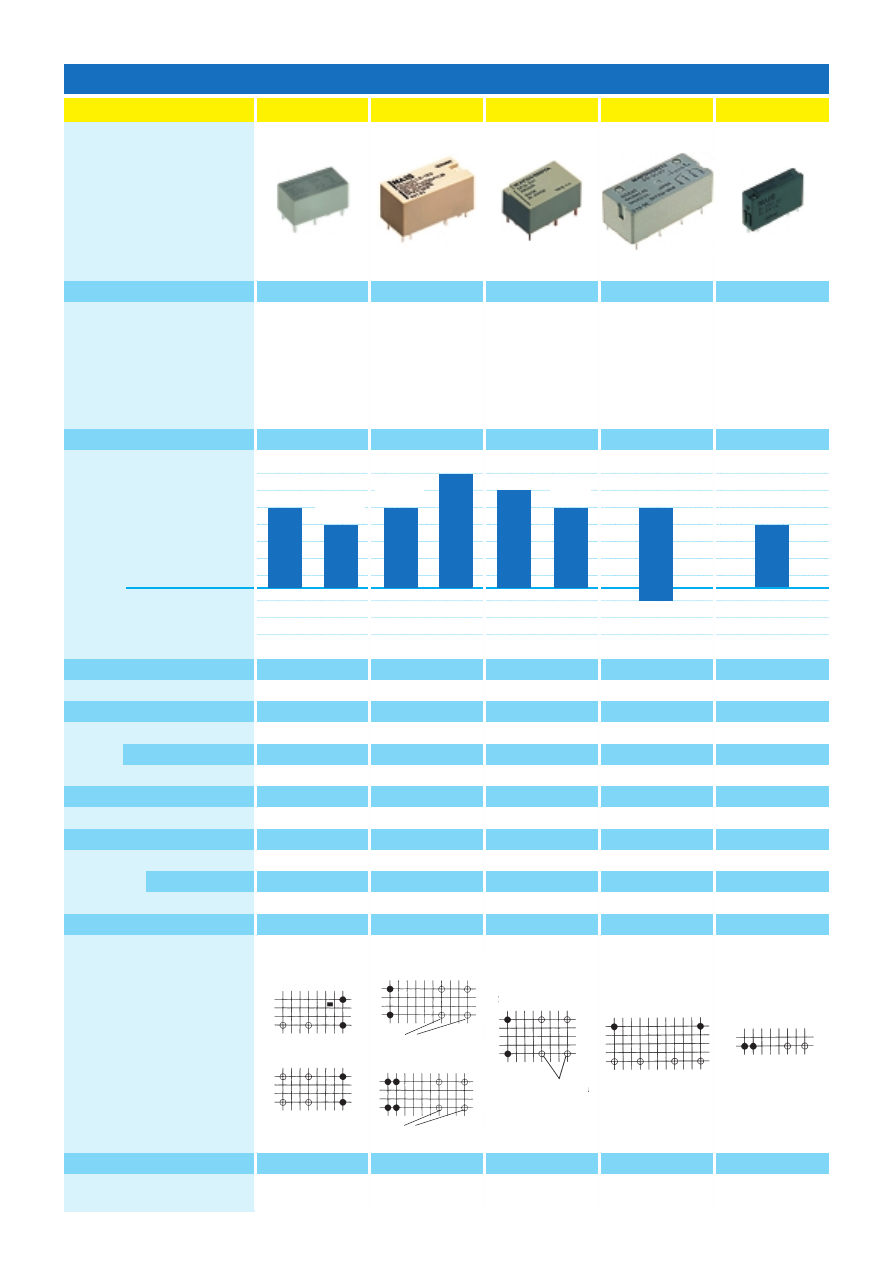

6

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

TN2

14 x 5.6 x 9.8

Ultra-miniature relay

Upright version of TQ

High packing density
due to very small
footprint

IC-compatible

VS-compatible

2CO

0.01 … 110

… 125

monostable, bistable

750

1000

1000

1500

3 – 48

—

140 – 300

100 – 150

200 – 300

IP67

PCB

UL (E 43149),

CSA (LR 26550)

TX2 / TX2-SA

15 x 7.4 x 8.2

High efficiency
ultra-miniature relay

SM version

Very high impulse voltage
withstand 2.5 kV complying
with Bellcore standard

IC-compatible

VS-compatible

2CO

0.01 … 220

… 220

monostable, bistable

1000

1000

2000

2500 Bellcore

1.5 – 48

—

140 – 270

100

200

IP67

PCB, SM technology

UL (E 43149), BSI,

CSA (LR 26550)

TF2

14 x 9 x 7.8

Ultra-miniature relay

High control sensitivity

IC-compatible

VS-compatible

2CO

0.01 … 110

… 125

monostable, bistable

750

1000

1000

1500

3 – 48

—

80 – 260

55 – 100

110 – 200

IP67

PCB

UL (E 43149), BSI,

CSA (LR 26550)

HX2

15 x 7.4 x 9.4

Surge withstand of
1.500 V FCC

Pin compatible to
TX relay

2CO

0.01 … 110

… 125

monostable

750

1000

1000

1500

1.5 – 24

—

320

—

—

IP67

PCB

UL (E 43149),

CSA (LR 26550)

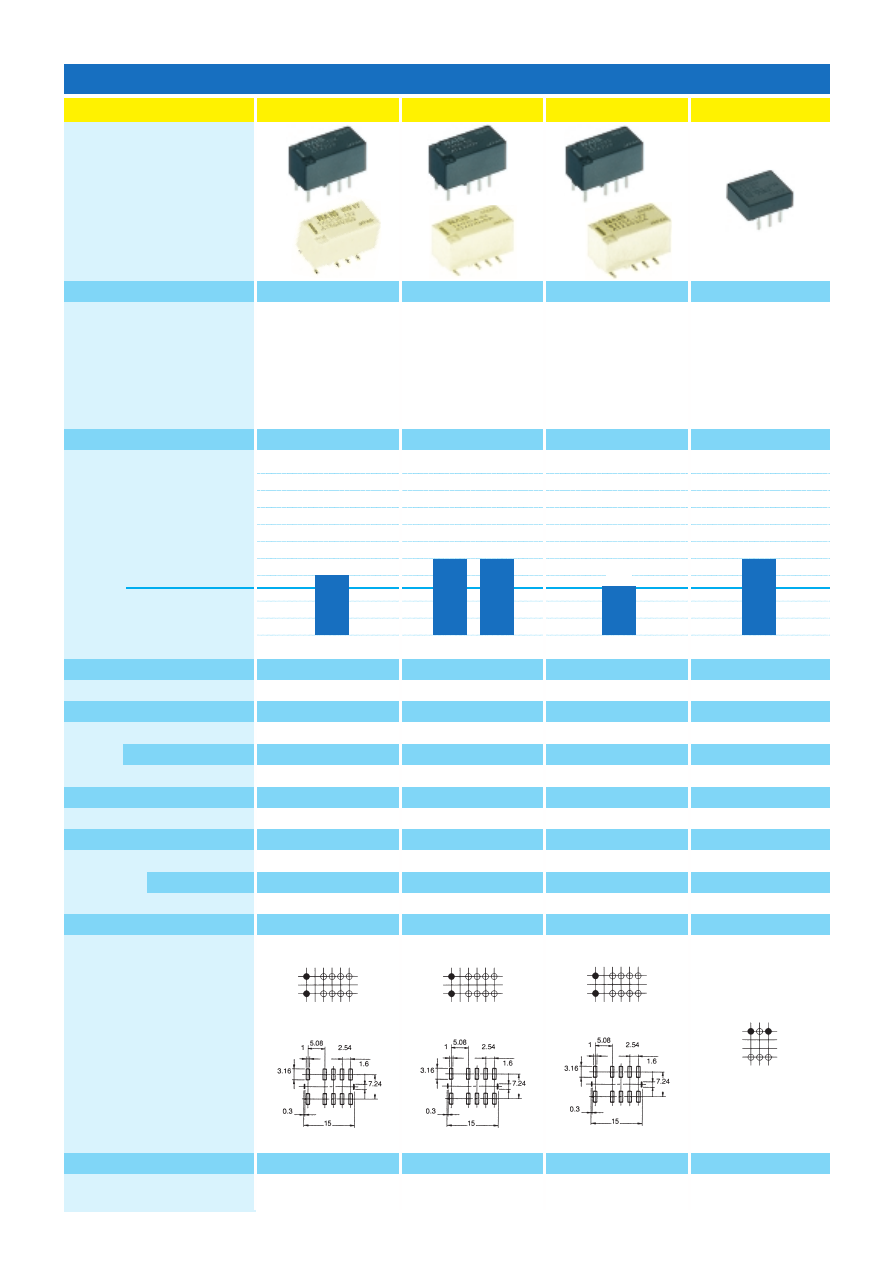

7

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

TXS2 / TXS2-SA

15 x 7.4 x 8.2 (8.4)

High sensitive
relay (50mW)

Low thermal
electromotive force
(approx. 0.3 µV)

Surge voltage
withstand of
1500 V FCC

2CO

0.01 … 110

… 125

monostable, bistable

750

1000

1800

1500

1.5 – 24

—

50 – 70

35 – 50

70 – 150

IP67

PCB, SM technology

UL (E 43149), BSI,

CSA (LR 26550)

TX-D2 / TX-D2-SA

15 x 7.4 x 8.2

Approved to EN41003
supplementary isolation

Very high surge resistance

1500 V 10 x 160 µs
(FCC part 68)

2500 V 2 x 10 µs (Bellcore)

2000 V breakdown voltage

Also available for MBB

2CO (BBM)

2CO (MBB)

… 220

… 125

… 250

… 125

monostable, bistable

1000

500

1000

2000

2500 Bellcore

1.5 – 24

—

200 – 230

250 – 270

150 – 170

—

—

IP67

PCB, SM technology

UL (E 43149), BSI,

CSA (LR 26550),

EN 60950

SX2/SX2-SA

15 x 7.4 x 8.2

Low level switching
capability
(10 µA 1m V DC)

High sensitivity
(50 mW)

2CO

0.01 … 10

—

monostable, bistable

750

1000

1000

—

1.5 – 24

—

50 – 70

35 – 50

70 – 150

IP67

UL (E 43149), BSI,

CSA (LR 26550)

TK1

10.6 x 9 x 4

Smallest relay with 2 A
capability

Very high impulse voltage
withstand 2.5 kV complying
with Bellcore standard

IC-compatible

1CO

0.01 … 220

… 220

monostable, bistable

750

1000

1500

2500 Bellcore

1.5 – 24

—

140 – 270

100 – 150

200 – 400

IP67

PCB

UL (E 43149),

CSA (LR 26550)

0.01

8

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

DS2E(F)/ DSBT2

20 x 9.9 x 9.8

FLOC version [DS2E(F)]

12 cN contact force

(F) = high sensitivity version

BT = 4000 V

rms

breakdown

voltage

DSBT also available for MBB*

)

BABT approvals

IC/ VS-compatible

2CO

0.01 … 220

… 250

monostable, bistable

1000, Type BT: 750

1000

1500, Type BT: 4000

1500

1.5 – 48

—

200, Type F: 140, Type BT: 360

100, Type F: 70

200, Type F: 140

IP67

PCB

UL (E 43149), CSA (LR 26550),

BABT CR No.: 0104

*

) MBB = make before break

NF

2CO: 29.6 x 19.4 x 10.8

4CO: 29.6 x 24 x 10.8

Proven pcb relay

High reliability due to
bifurcated linear Au/ Ag
contacts

Not for a new design-in

2CO / 4CO

0.1 … 220

… 220

monostable

750

1000

1000

1500

5 – 60

—

2CO: 300; 4CO: 480

—

—

IP67

PCB

VDE, UL (E 43149),

CSA (LR 26550)

2 CO

4 CO

DSE-M(S)/DS2Y-S

15/ 20/ 35.2 x 9.9 x 9.8

Dimensions of
1CO / 2CO / 4CO x 9.9 x 9.8

Universal pcb relay with
large switching range

M = 400 mW
(S) = 200 mW version

IC-compatible

VS-compatible

1CO/2CO/4CO

0.01 … 220

… 250

monostable, bistable

1000, DS1E-S: –500, DS2Y: –750

1000

1500, DS1E-S / DS2Y: 1000

1500

1.5 – 48

—

400, Type S: 200

180, Type S: 100

360, Type S: 180

IP67

PCB

UL (E 43149),

CSA (LR 26550)

DS 2, DS 2Y

DS 1

DS 4

9

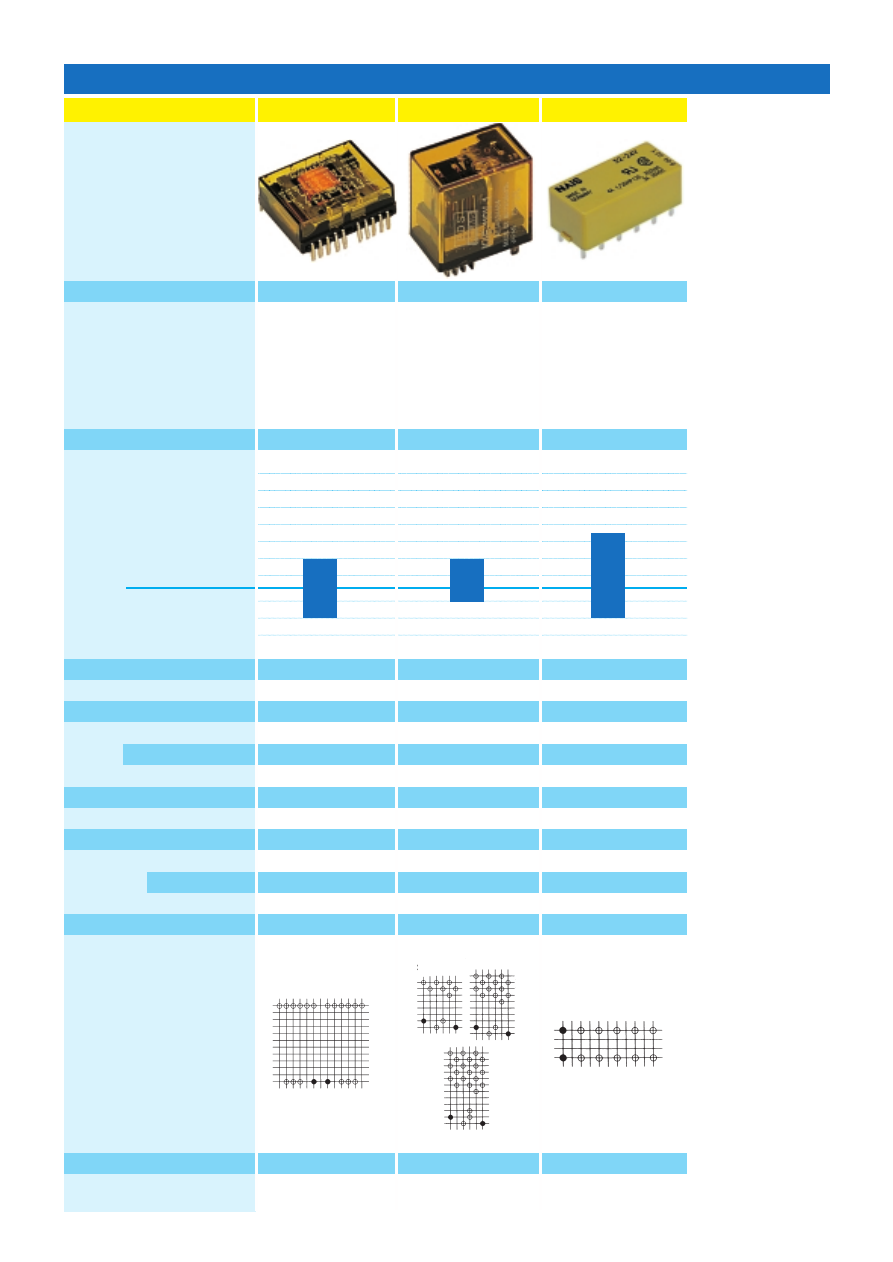

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

I

G

N

A

L



R

E

L

A

Y

S

S

28 x 12 x 10.4

Wide switching range due
to 5-layer contacts

Good HF switching
characteristics

Low thermo voltage

IC-compatible

VS-compatible

2NO 2NC/3NO 1NC/4NO

0.01 … 200

… 250

monostable, bistable

750

1000

1500

—

1.5 – 48

—

200 – 271

83 – 144

200 – 355

IP67

PCB

UL (E 43028),

CSA (LR 26550)

4

NL

25.4 x 32.4 x 10.9

Flat pcb relay

6 changeover contacts

Not for a new design-in

6CO

0.01 … 110

… 110

monostable, bistable

1000

1000

2000

—

5 – 110

—

– 60 V: 720; 110 V: 900

—

1600

IP67

PCB

UL (E 43149),

CSA (LR 26550)

K

24/ 29/ 35 x 19 x 30

Dimensions for
2CO/ 4CO/ 6CO x 19 x 30

Relay with proven cam
operated Au / Ag contacts

Plug-in or pcb connection

Not for a new design-in

2CO/4CO/6CO

0.1 … 220

… 250

monostable

750

750

750

—

3 – 110

—

2CO: 400; 4CO: 700; 6CO: 1300

—

—

IP67

PCB, solder, plug-in

VDE, UL (E 43149),

CSA (LR 26550)

2 CO

6 CO

4 CO

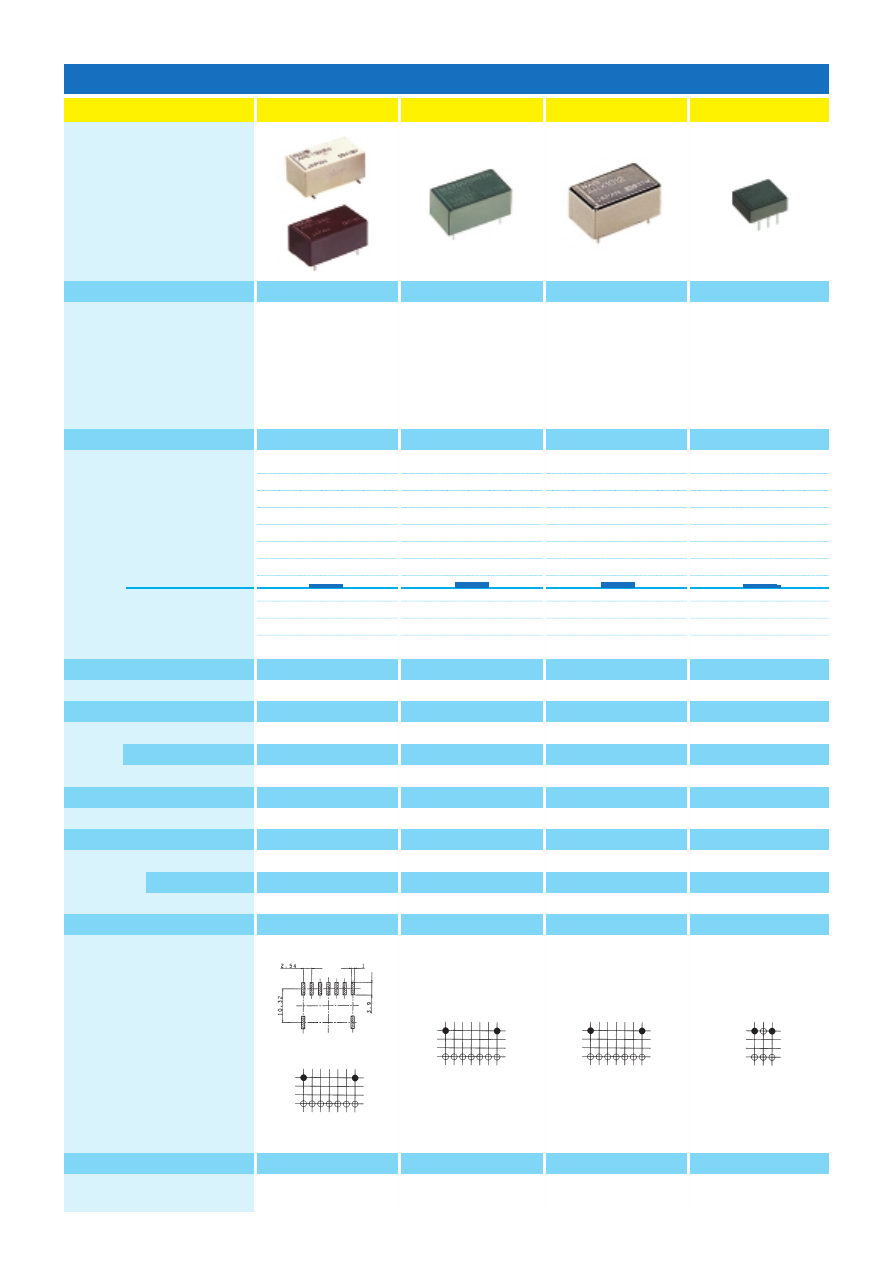

10

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

H

I

G

H

-

F

R

E

Q

U

E

N

C

Y



R

E

L

A

Y

S

RP

10.6 x 9 x 4

Extremely small
HF relay

Use up to 1.8 GHz

High sensitivity

Insertion loss: 1 dB

Isolation 10 dB

V.S.W.R. 1.3

Impedance 50

Ω

1CO

… 30

—

monostable

750

—

1500

—

1.5 – 24

—

12 V: –140/24 V: –270

—

—

IP67

PCB

RK

20.2 x 11.2 x 9.7

Polarised HF relay for
for pcb up to 1.3 GHz

High sensitivity

Small size

Insertion loss: 0.3 dB

Isolation 60 dB

V.S.W.R. 1.5

Impedance 50

Ω

1CO

…30

30

mono-, bistable

500

—

1000

—

3 – 24

—

200

200

400

IP67

PCB

RE

20.2x11.2x8.9/9.6

Up to 2.6 GHz

SMD-type available

Isolation 30 dB /
2.6 GHz

Impedance 75

Ω

1CO/2CO

… 30

—

mono-, bistable

500

—

1000

—

3 – 24

—

200

—

—

IP40

PCB

0.1

0.5

0.01

Insertion loss (max)

Isolation (min)

V.S.W.R. (max)

RX

20.5 x 12.4 x 9.4

Polarised small micro wave
relay for up to 2.5 GHz

High sensitivity
200 mW

Isol.: 60 dB or more

Insertion loss: 0.2 dB

V.S.W.R. 1.2

Impedance 50

Ω

1CO

… 30

—

mono-, bistable

500

—

1000

—

3 – 24

—

200

200

400

IP67

PCB

0.5

new

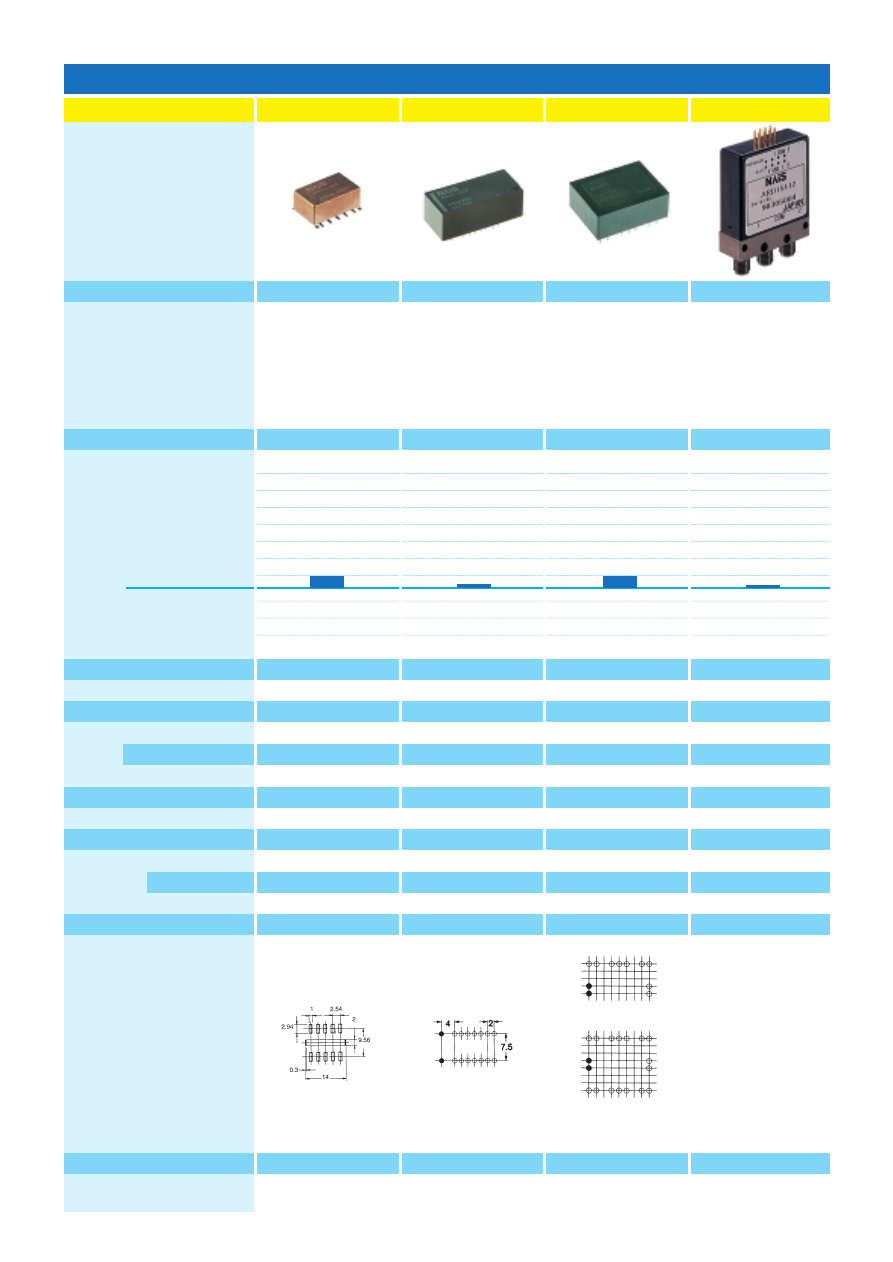

11

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

H

I

G

H

-

F

R

E

Q

U

E

N

C

Y



R

E

L

A

Y

S

RG

25 x 19 x 10.4

Polarised miniature
HF relay for up to 1 GHz

Monostable or
bistable (latching)

Insertion loss: 1 dB

Isolation 65 dB

V.S.W.R. 1.2 – 2.0

Impedance 50

Ω

or 75

Ω

1CO/2CO

… 24

24

mono-, bistable

1000

—

2000

—

3 – 48

—

350 – 400

180 – 200

350 – 400

IP67

PCB

RA

14.7 x 9.7 x 5.9

300 kHz – 1.0 GHz

Insertion loss
max: 0.3 dB

Isolation min:
20 dB

V.S.W.R. max.: 1.2

Impedance 50

Ω

2CO

… 30

24

mono-, bistable

750

1000

1000

—

1.5 – 48

—

140 – 300

70 – 100

140 – 200

IP67

SM technology

RD

34 x 38 x 13.2

1 GHz – 18 GHz

Insertion loss
0.2 – 0.5 dB

Isolation min.
dB 60 – 85

V.S.W.R. max.:
1.1 – 1.5

1CO–4/1

… 30

—

mono-, bistable

500

500

500

—

12, 24

—

700

500

—

IP54

SMA

100 mA

1

1

1 CO

2 CO

Insertion loss (max)

Isolation (min)

V.S.W.R. (max)

new

RM

28 x 12.4 x 10.5

Polarised miniature
relay for up to 4 GHz

High sensitivity

Isolation: 40 dB or
more (at 4 GHz)

Insertion loss: 1 dB

Isolation 40 dB

Impedance 50

Ω

2CO

… 24

—

mono-, bistable

500

—

1000

—

3 – 24

—

360

250

500

IP67

PCB

0.01

12

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

DSP

20.2 x 11 x 10.5

Miniature power relay

DIL construction

IC-compatible

VS-compatible

1NO/1NO 1NC/2NO

0.1 … 220

… 400

monostable, bistable

1000

2000

3000

5000

1.5 – 24

—

300

150

300

IP67

PCB

TÜV, UL (E 43028),

CSA (LR 26550), SEV

DE

25 x 12.5 x 12.5

Small dimensions

High switching capacity

16 A = 25.000,
10 A = 100.000
operations

8 mm air gaps and
creepage distances

1NO/2NO/1NO 1NC

… 230

… 440

monostable, bistable

1000

4000

5000

12000

1.5 – 48

—

200

100

200

IP67

PCB

TÜV, UL,

CSA, VDE

10/16

1NO

1NO 1NC

2NO

1NO 1NC

2NO

1NO

DK

20 x 12.5 x 10 / 20 x 15 x 10

Width for 1NO: 12.5 mm /
2NO and 1NO 1NC:15mm

Polarised miniature
power relay

PCB mounting

8 mm airgaps and
creepage distances

Test voltage: 4 kV

1NO/1NO 1NC/2NO

… 125

… 400

monostable, bistable

1000

4000

4000

10000

1.5 – 48

—

200

100

200

IP67

PCB

VDE, TÜV, UL (E 43028),

CSA (LR 48525), SEV

1NO

1NO 1NC

2NO

ST

31 x 14 x 11.3

Friction-free rotating
armature

Air gaps and creepage
distances > 4 mm

High voltage withstand

IC-compatible

VS-compatible

1NO 1NC/2NO

0,1 … 250

… 400

monostable, bistable

1200

2000

3750

6000

3 – 48

—

240

110

225

IP67

PCB

UL (E 43028),

CSA (LR 26550), SEV, VDE,

TV rating

PA/PAD

20 x 5 x 12.5

Extremely small and
narrow power relay

Au plated Ag contacts

High packing density

Pin compatible to
PhotoMOS AQZ relay

1NO

0.1 … 110

… 250

monostable

1000

—

2000

4000

5 – 24

—

120 – 180

—

—

IP67

PCB

UL (E 43149),

CSA (LR 26550), TÜV

1NO

1NO 1NC / 2NO

2NO / 1NO 1NC

Not for 1NO

single side stable

1 coil latching

”dummy“ terminals for

1a-version, 2 coil latching

”dummy“ terminals for

1a-version

13

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

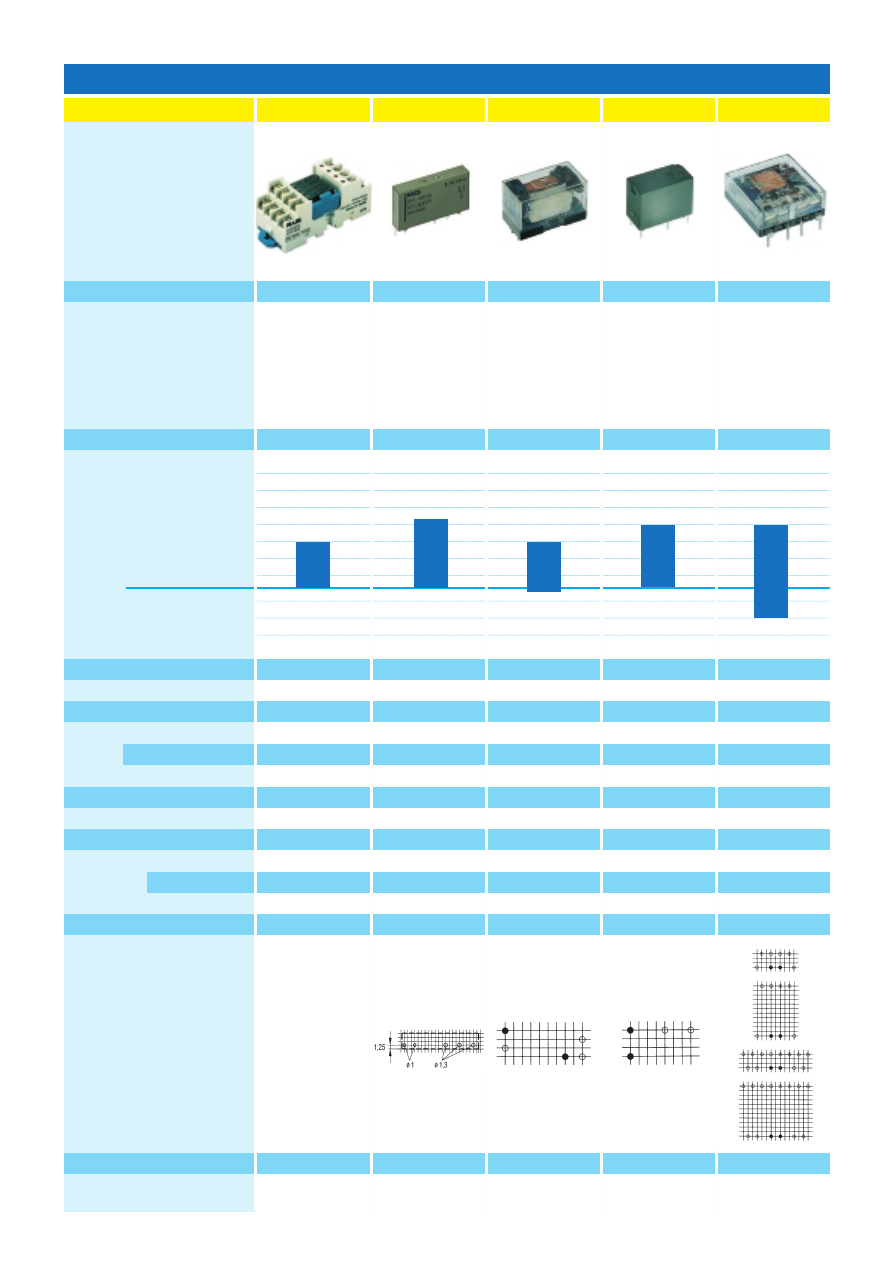

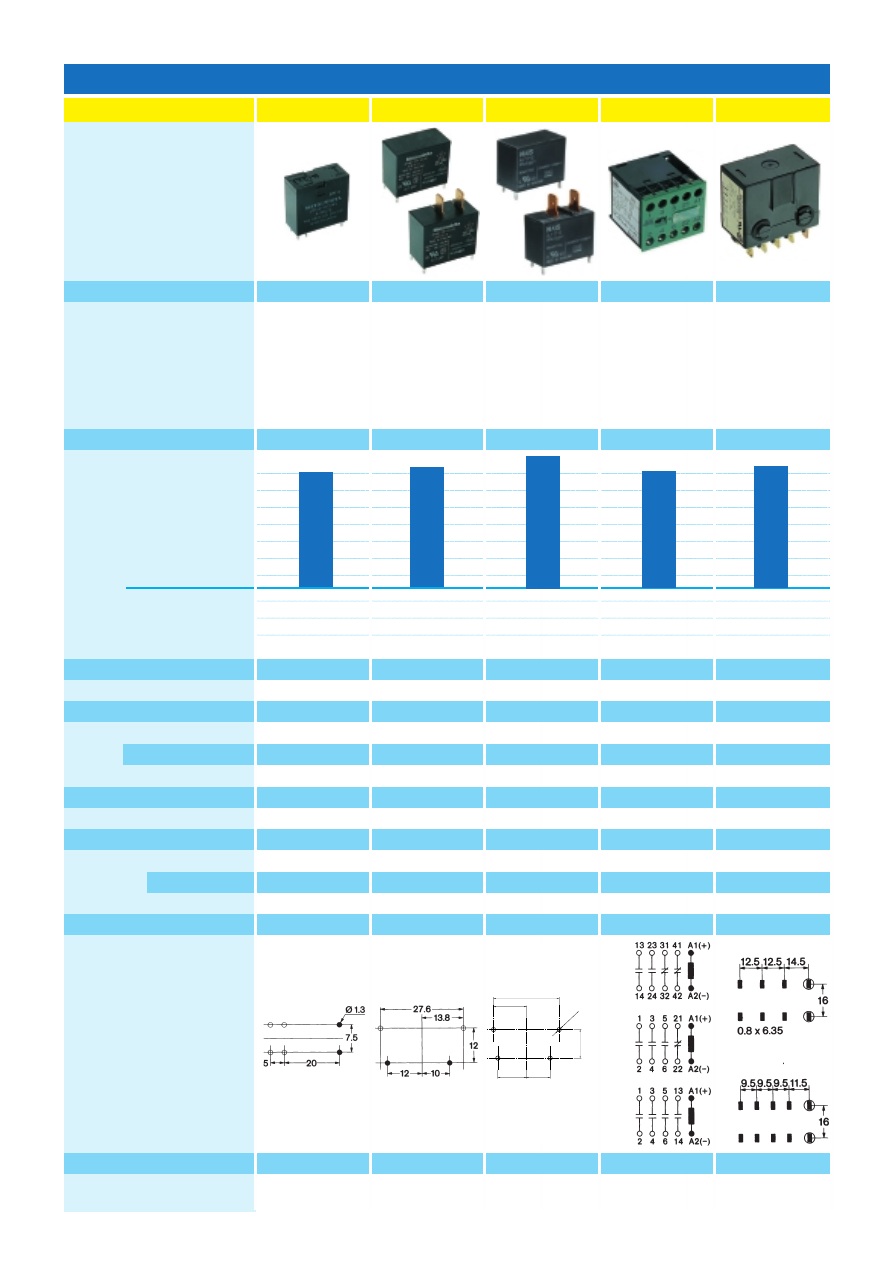

RT-3 module

67 x 33 x 32

Space saving relay module
for DIN rail mounting

Four PA relays per module

Separate indicator LED
for each relay

Also available with
PhotoMOS relays AQZ
type

4 x 1NO

0.1 … 110

… 250

monostable

1000

—

2000

—

12, 24

—

180

—

—

—

Screw terminal

PE

28 x 5 x 15

Compact and small foot
print area

High insulation resistance
meeting VDE0700

8 mm creapage and
clearance distances

1NO/1CO/1NC

1 … 300

… 400

monostable

1000

—

4000

6000

5 – 48

—

170

—

—

IP67

Print

UL (E 43149),

VDE (122402),

CSA (LR 26550)

PQ

20 x 10 x 15.6

Power relay with high
switching capability

High impulse voltage
withstand

High sensitivity

1NO

… 110

… 250

monostable

1000

—

4000

8000

3 – 24

—

200

—

—

IP67

PCB

TÜV, UL (E 43028),

CSA (LR 26550), SEV,

VDE, SEMKO

HA

26.3 x 14 x 16.9

Dust tight/ sealed pcb
relay

AC or DC coil

Also available sealed
with gold contacts

1CO

1 … 30

… 250

monostable

750

—

1500

—

5 – 48

6 – 115

DC: - 360; AC: - 900

—

—

IP50 / IP67

PCB

TÜV, UL (E 43149),

CSA (LR 26550), SEV

NC

25.4 / 38.1 x 25.4 x 10.9

Dimensions of
2CO/4CO x 25.4 x 10.9

High efficiency power
relay

Flat or upright versions

Bifurcated contacts

2CO/4CO

0.01 … 250

… 250

monostable, bistable

1000

1000

2000

—

5 – 110

—

2CO: 360; 4CO: 720

—

2CO: 800; 4CO: 1600

IP50 / IP67

PCB, solder, plug-in

VDE, UL (E 43025),

CSA (LR 26550)

2 CO

4 CO

6

14

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand  (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

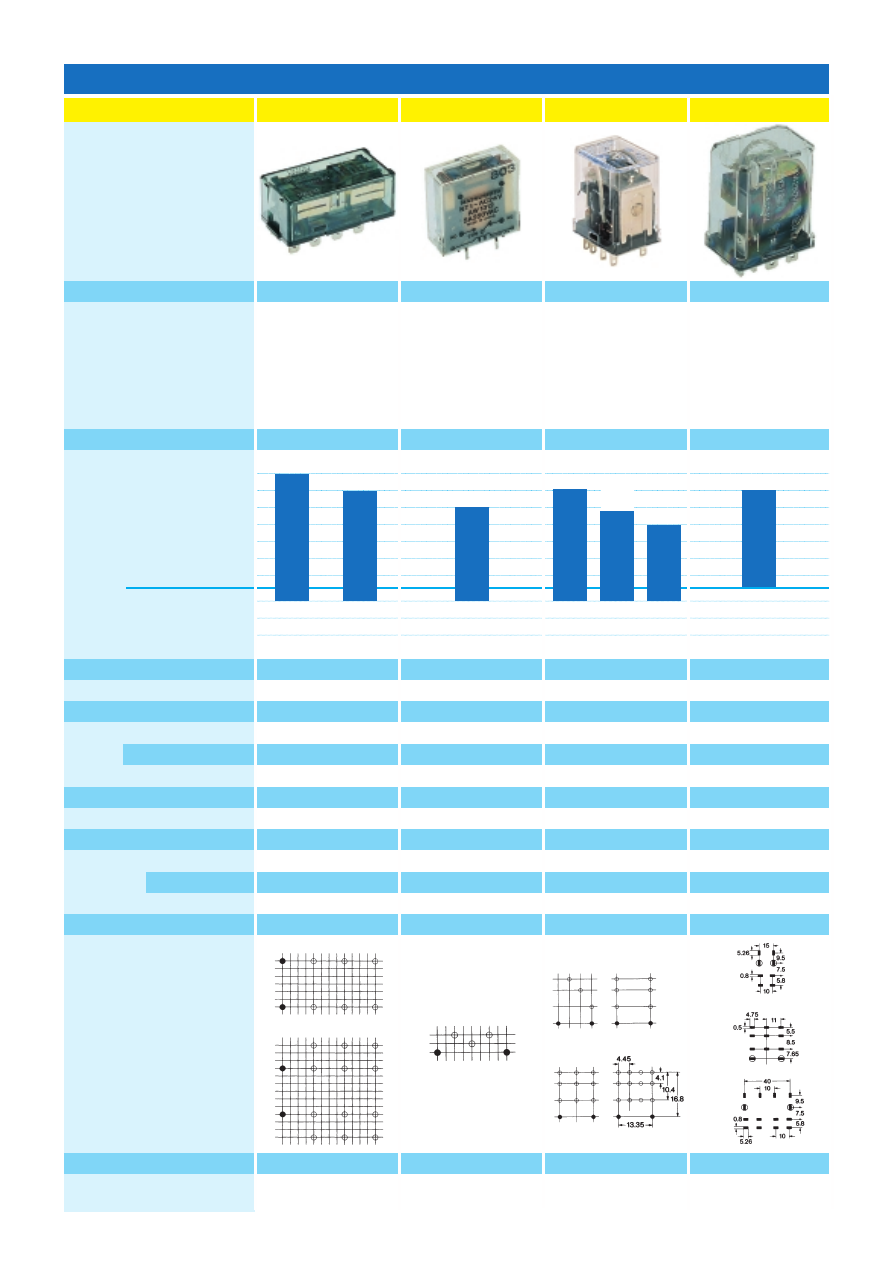

SP

2CO: 50 x 25.6 x 22
4CO: 50 x 36.8 x 22

Polarised power relay

Rotating armature

2CO/4CO

10 … 110

… 250

monostable, bistable

1500

3000

3000

—

3 – 48

—

300

100

300

IP40

PCB, Plug-in

UL (E 43028), TÜV,

CSA (LR 26550)

2CO

4CO

HC/HJ

27.2 x 20.8 x 35.2

Compact power relay

DC and AC-types
available

1CO/2CO/3CO/4CO

0.1 … 30

… 250

monostable

700

700

2000

—

6 – 110

6 – 240

900, AC: 1200

—

—

IP50 / IP67

PCB, solder, screw

VDE, UL (E 43028), CSA (LR 26550),

SEV (1CO, 2CO, 3CO), TV rating

7

1CO

4CO

2CO
3CO

HP

25/ 38/ 50 x 36 x 44.5

Dimensions for
2CO/ 3CO/ 4CO x 36 x 44

Power relay with long
operational life

2CO/3CO/4CO

1 … 125

… 250

monostable

2CO/4CO: 1000; 3CO: 2000

2CO/4CO: 1500; 3CO: 2600

2CO/4CO: 1500; 3CO: 2000

—

6 – 110

6 – 240

1500, AC: 1900 – 4900

—

—

IP50

Plug-in

VDE, UL (E 43028),

CSA (LR 26550), SEV

2 CO

4 CO

3 CO

4 CO

2CO

3CO

4CO

NT

25.4 x 10.6 x 25.7

Au plated Ag/Ni contacts

12 cN contact force

1CO

0.1 … 30

… 250

monostable

1000

—

2000

—

5 – 48

—

290

—

—

IP54

PCB

VDE, UL (E 43028),

CSA (LR 48525), SEV

1 CO

2 CO

new

15

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

mW [VA]

P

O

W

E

R



R

E

L

A

Y

S

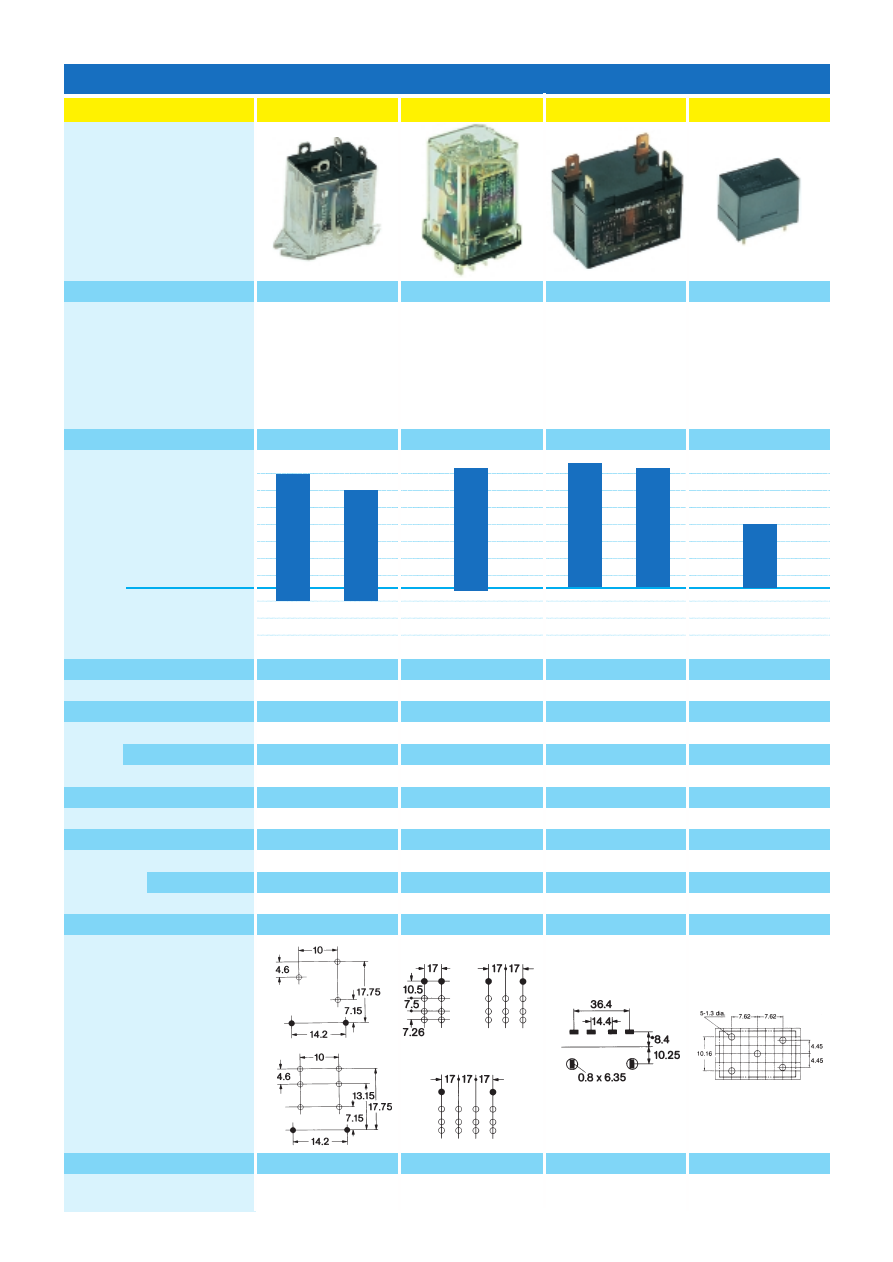

HL

27.2 x 20.8 x 35.4

Compact power relay

High operational life

Wide switching range

1CO/2CO

1 … 30

… 250

monostable

1000

1500

2000

—

6 – 110

6 – 240

900 – 1000 [1.2 – 1.3]

—

—

IP40

PCB, plug-in, top mount

UL (E 43028),

CSA (LR 26550), TV5

1CO

2CO

HG

34 / 50 / 68 x 36 x 56

Dimensions for
2CO / 3CO / 4CO x 36 x 56 mm

Compact power relay
with up to  4 switching contacts

2CO/3CO/4CO

10 … 125

… 250

monostable

2000

2000

2000

—

6 – 110

6 – 240

2CO: 1400 [3.6]/ 3CO: 1600 [5.2]/ 4CO: 2100 [7.6]

—

—

IP40

—

UL (E 43028),

CSA (LR 26550)

20

HE

50 x 33 x 35.8

Compact power relay for DC
or AC

8 mm air gaps and creepage
distances

3 mm contact gap

1NO/2NO

… 100

… 277

monostable

2000

4000

5000

10000

6 – 110

6 – 240

1920 [1.65 – 2.65]

—

—

—

Plug-in, screw, flange

TÜV, UL (E 43028),

CSA (LR 26550), VDE, TV rating

20

1NO

2NO

2CO

1CO

2CO

3CO

4CO

30

JE–X

22 x 14 x 18.7

Very low cost
power relay

Compact size

1NO/1CO

… 30

… 277

monostable

750

—

1500

5000

5 – 48

—

400

—

—

IP50 / IP67

PCB

TÜV, UL (E 43028),

CSA (LR 48525), VDE

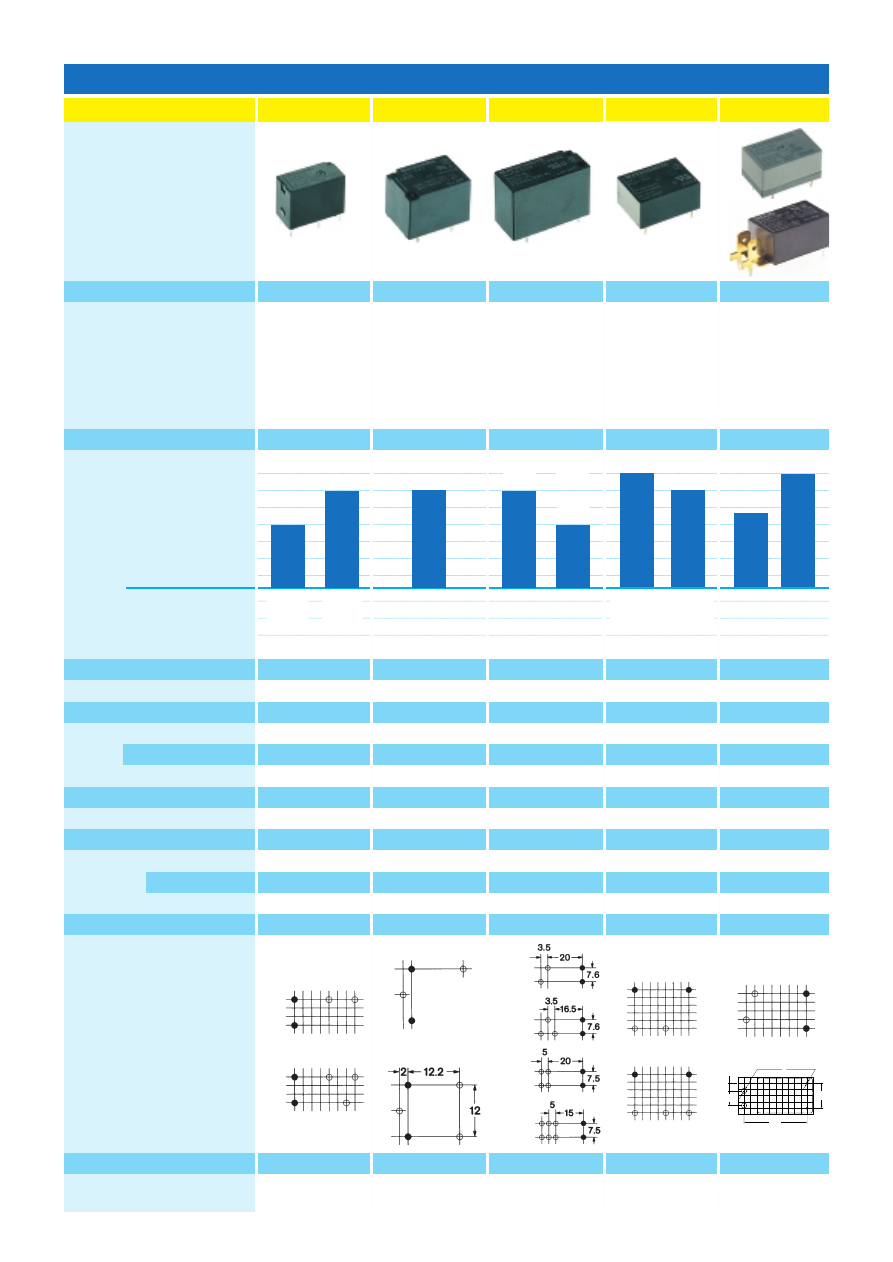

16

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

JQ

20 x 10 x 15.6

Low power
consumption

Very low cost

High impulse voltage
withstand

1NO/1CO

… 110

… 250

monostable

1NO: 1000, 1CO: 750

—

4000

8000

3 – 48

—

1NO: 200, 1CO: 400

—

—

IP67

PCB

TÜV, VDE, UL (E 43028),

CSA (LR 26550), SEV, SEMKO

Standard

version

Power

version

JW

28.6 x 12.8 x 20.4

Compact mains isolation
relay

Air gaps and creepage
distances > 7.5 mm bet-
ween contacts and coil

Test voltage 5000 V

rms

between contacts and
coil

1NO/1CO/2NO/2CO

… 100

… 250

monostable

1000

—

5000

10000

5 – 48

—

530

—

—

IP67

PCB

VDE, TÜV, UL (E 43028),

CSA (LR 26550), SEV, TV5

1NO

1CO

1NO

1CO

2NO

2CO

1NO

1CO

2CO

2NO

1CO

1NO

JG / JG-P

22 x 14 x 11.6

Compact pcb relay

High impulse
voltage withstand

1NO

… 100

… 250

monostable

750

—

2000

10000

5 – 24

—

200 / 400

—

—

IP54

PCB

TÜV, UL (E 43028), VDE,

SEMKO, CSA (LR 26550)

10.16

.400

6

.236

3.12

.123

25.4

1.000

2-0.9 dia.

2-.035 dia.

2-2 dia.

2-.079 dia.

JS

22 x 16 x 16.4

Universal miniature
power relay

High switching capability

Very suitable for auto-
motive applications

Special type for high
ambient temperatures

Very low cost

1NO/1CO

… 100

… 277

monostable

750

—

1500

—

5 – 48

—

360

—

—

IP67

PCB

VDE, TÜV, UL (E 43028),

CSA (LR 26550), TV5

1NO

1CO

JV

22 x 16 x 10.9

High switching capability
within low profile small
package

High sensitivity

Suitable for automotive
applications

Flat construction

1NO/ 1CO

… 110

… 250

monostable

1000

—

1500

—

5 – 100

—

200 – 450

—

—

IP50 / IP67

PCB

UL (E 43028),

CSA (LR 26550)

1CO, 1NO

Standard

version

1NO

16

Power

version

1NO

JG/JG-P

1CO

JG-P

17

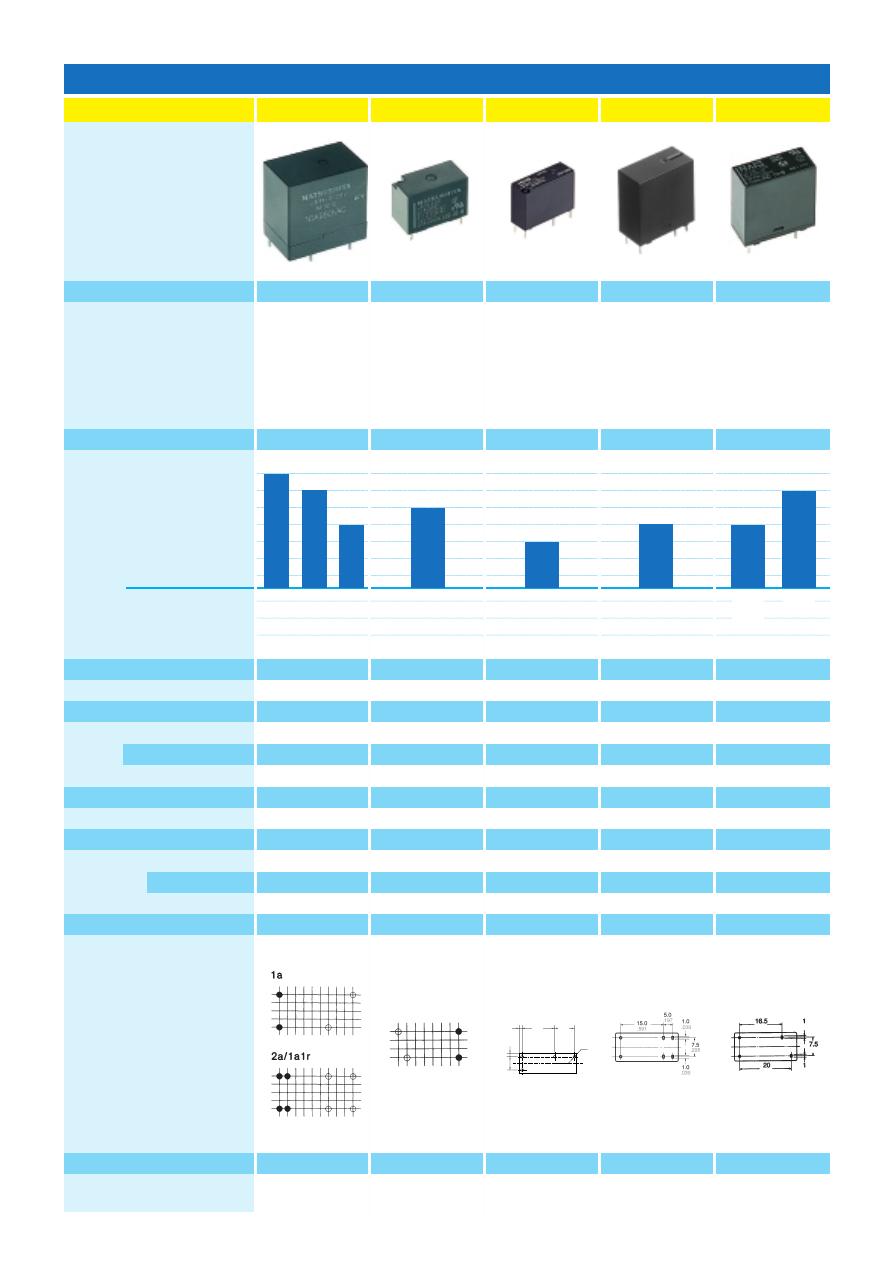

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

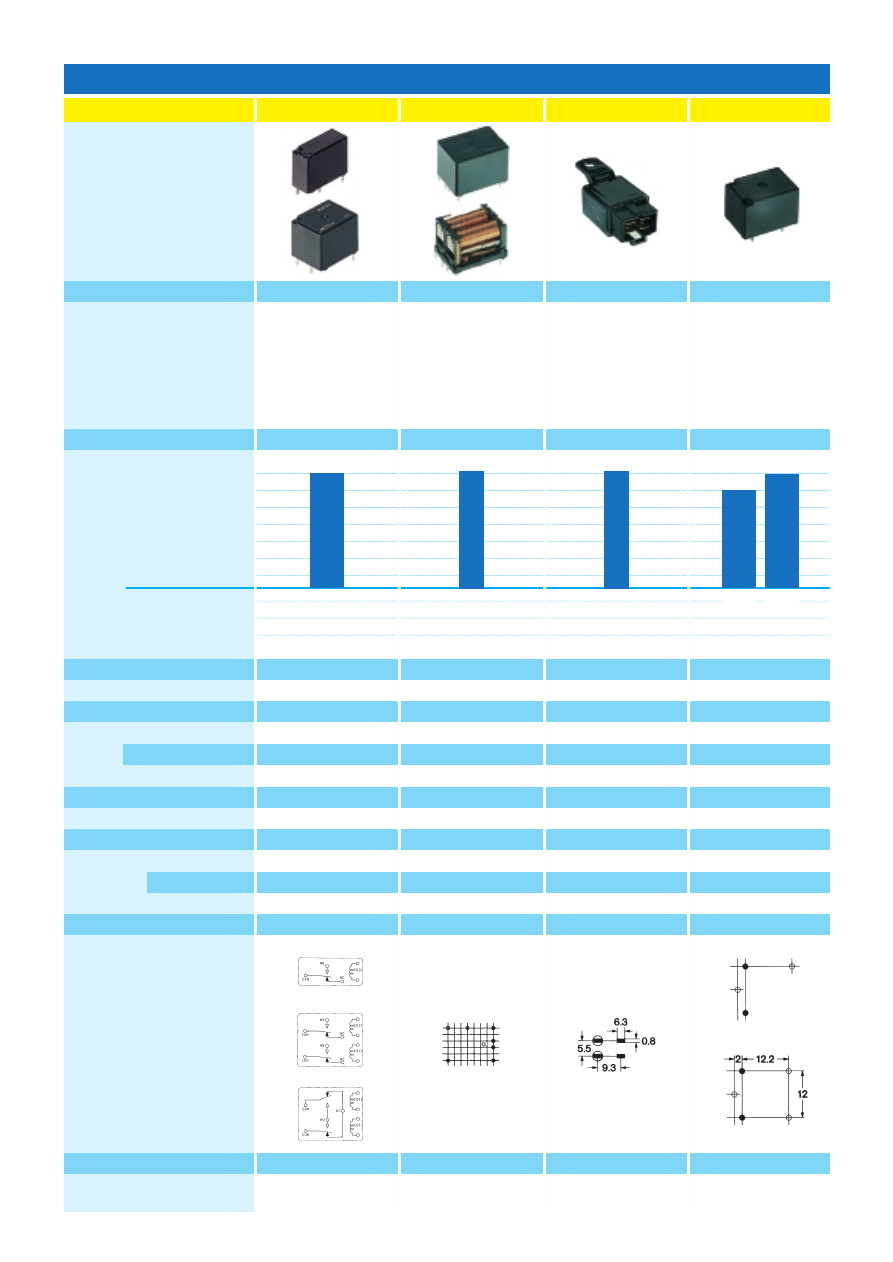

LD

20.5 x 7.2 x 15.3

Slim 7 mm width

200 mW
operating power

6 mm creapage
distance and
clearances

1NO

… 30

… 277

monostable

750

—

4000

10000

4.5 – 24

—

200

—

—

IP40

PCB

TÜV, UL (E 43149) ,

CSA  (LR 26550)

4-1

(1.15)

(1.05)

11.5

4.7

7.0

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

LA

24 x 12 x 25

Low-cost power relay

Surge withstand
voltage 10 kV

6 mm creapage
distance and
clearances

3 A type best suited
for switching speakers

2NO

… 30

… 277

monostable

1000

1000

4000

10000

12, 24

—

530

—

—

IP40

PCB

TÜV, UL (E 43149)  CSA ,

(LR 26550), SEMKO, SEV

LK/LK-S/LK-P

24 x 11 x 25

High switching
capacity 20 A
277 V AC

111A inrush
current capacity

Surge withstand
at 10000V

1NO

… 30

… 277

monostable

1000

—

4000

10000

5 – 24

—

530 / 250

—

—

IP40

PCB

UL (E43028), CSA (LR26550),

TÜV, VDE, SEMKO, SEV,

TV rating

JK

21.4 x 11 x 15.7

Small, narrow pcb
relay

JK-Q quiet (30dB)
switching noise

1NO

… 110

… 250

monostable

750

—

2000

8000

3 – 48

—

200

—

—

IP54 / IP67

PCB

TÜV, UL (E 43028),

CSA (LR 26550)

2NO

2NO/1NO 1NC

JC

30 x 19 x 30.4

8 mm air gaps and
creepage distances

High make current
capability

2 NO spezial type with
blow magnet for
250 V DC / 5 A

1NO/2NO/ 1NO 1NC

… 125/250 with blow magnet

… 250

monostable

2000

2000

4000

10000

6 – 48

—

1NO: 900,  2NO / 1NO 1NC: 1000

—

—

IP40

PCB, Plug-in

UL (E 43028), VDE, SEV,

SEMKO,CSA (LR 26550), TV5

1NO

2NO

1NO 1NC

LK

LK-S

LK-P

18

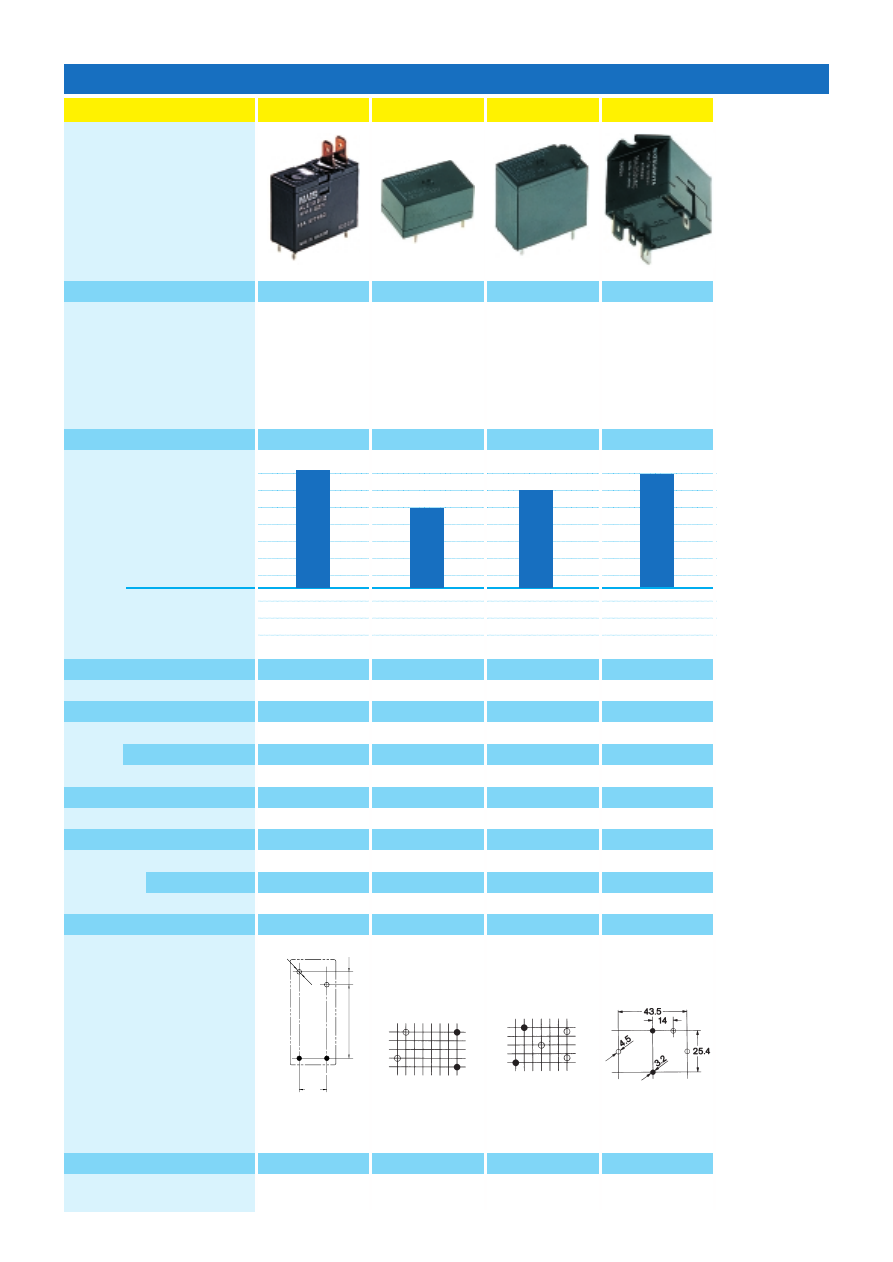

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

P

O

W

E

R



R

E

L

A

Y

S

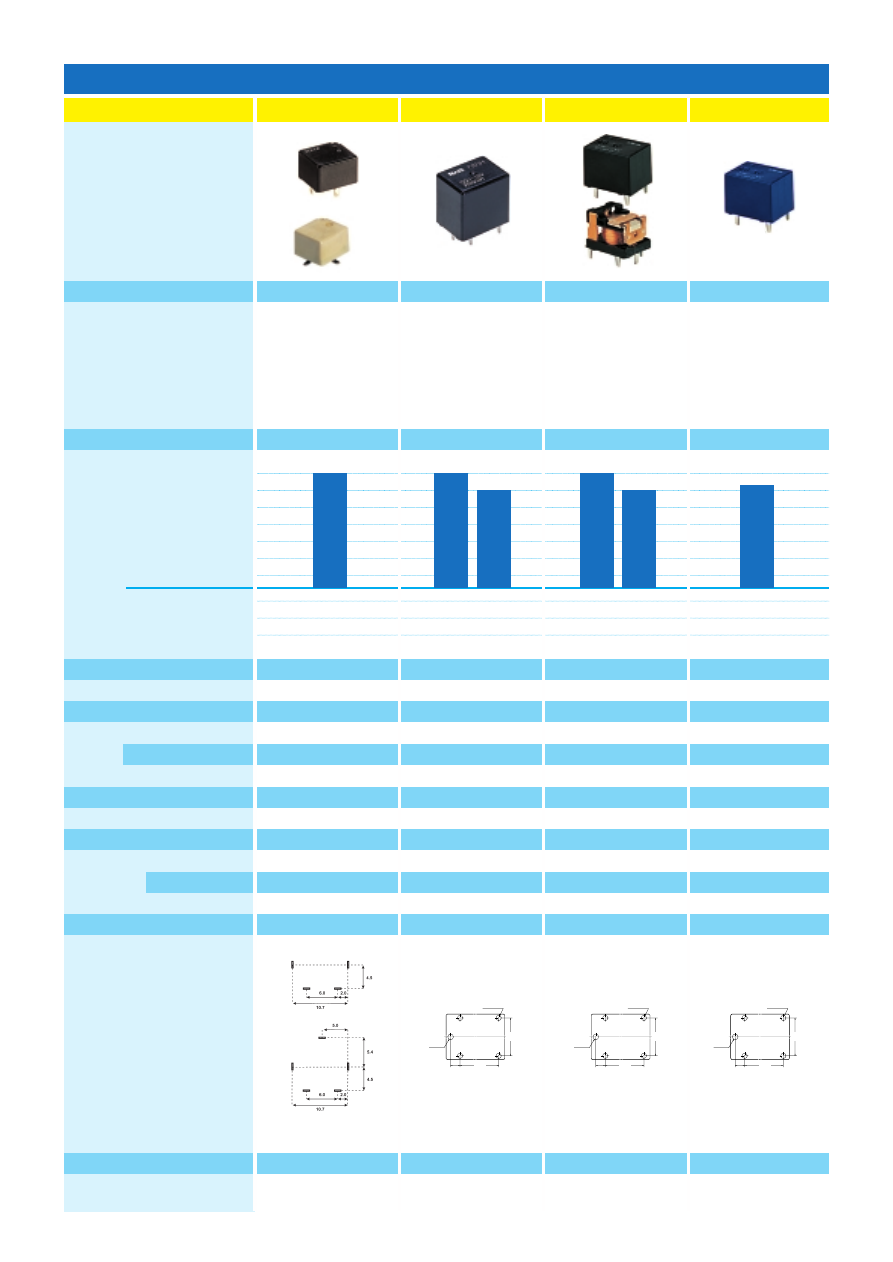

JA

34.7 x 30.1 x 28.5

High switching capability

FAST-ON connections
for contacts

Plug-in or pcb (TMP)
connections for coil

Max. make current
55 A

1NO/1NC/1CO

… 100

… 250

monostable

1000

—

2000

5000

6 – 24

6 – 115

1200, AC: 1300

—

—

IP67

PCB, Chassis

TÜV, UL (E 43028),

CSA (LR 26550), SEV, TV5

JY

22 x 12 x 22.5

Compact pcb relay

High switching capability

Special type for high
ambient temperatures

1NO/1CO

… 100

… 250

monostable

800

—

2000

5000

5 – 48

—

400

—

—

IP67

PCB

TÜV, UL (E 43028),

CSA (LR 26550)

JZ

22 x 14 x 11.6

Small pcb relay

High impulse voltage
withstand

Special type for low
switching noise (30dB)

1NO

… 110

… 250

monostable

750

—

2000

10000

5 – 24

—

200 – 400

—

—

IP50/ IP67

PCB

TÜV, UL (E 43028), SEMKO,

VDE, CSA (LR 26550), TV5

LE

28.6 x 12.4 x 24.9

Relay for home
appliances

Excellent heat
resistance
(+85°C ambient)

Low operating
power

#187 terminals

1NO

––

277

monostable

1000

—

4000

10000

5 – 48

—

400

—

—

IP40

PCB

TÜV, UL (E43028),

CSA (LR48525),

PCB and TMP/PCB-type

(Layout of TMP/PCB type with

3 terminals is different)

20.0

.787

3.5

.138

4-1.3 dia

.071 dia

7.5

.295

new

19

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

mW [VA]

P

O

W

E

R



R

E

L

A

Y

S

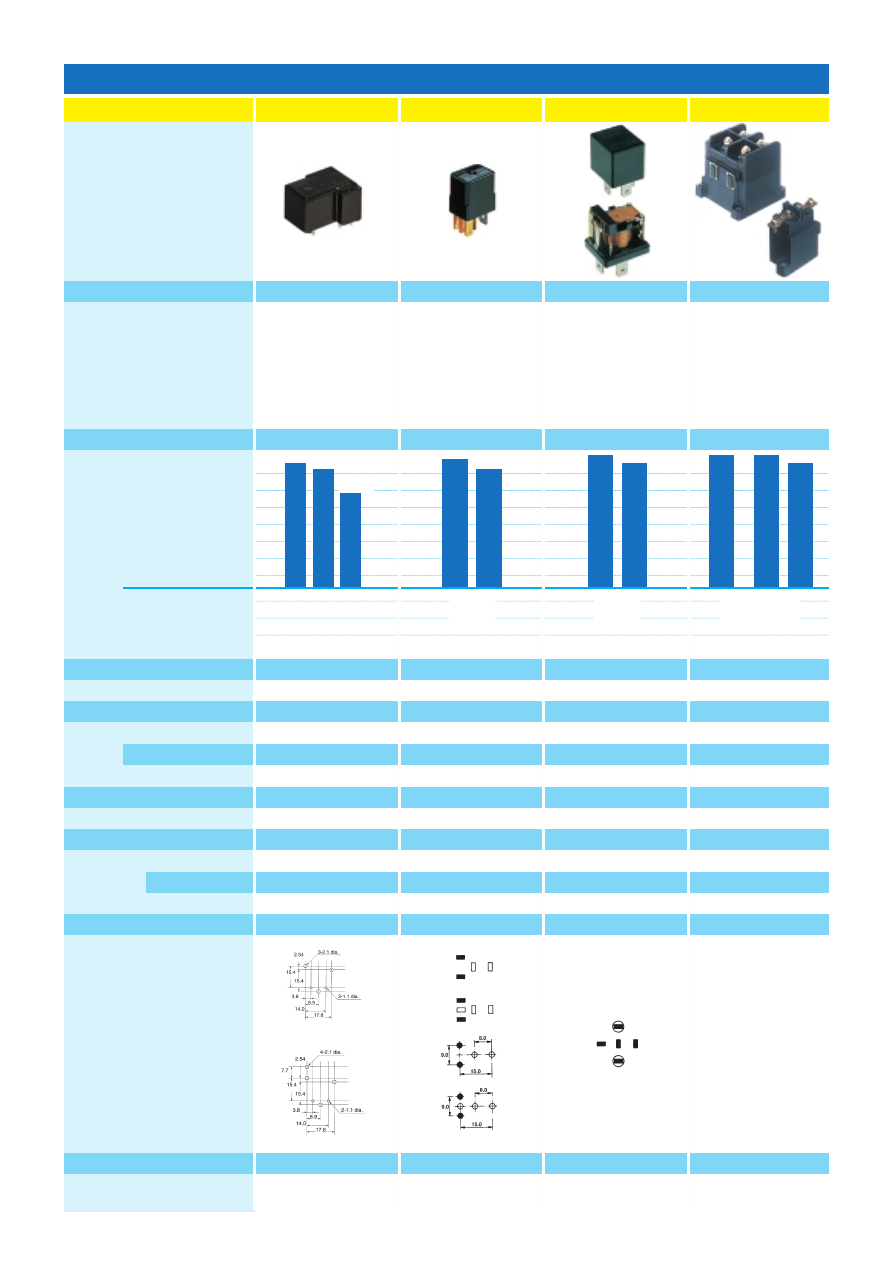

VC

60 x 40 x 49.5

High switching
capability
due to bridge contacts

1, 2, 3 or 4 NO/1NO 1NC/2NO 1NC/3NO 1NC

—

400

monostable

2500

2500

2500

—

12, 24, 48

24 – 240

—

—

—

IP40

Flat plug-in, screw

VDE, TÜV, UL (E 43028),

CSA (LR 26550)

20

3 NO (2NO 1 NC)

MC

45 x 45.2 x 40

Minicontactor for
controlling motor,
airconditioning and
heating loads

Energy saving

Also available in
PCB version

3 mm contact opening

4NO/3NO 1NC/2NO 2NC

440

400

monostable, bistable

2500

2500

2500

—

3 – 48

24 – 380

500

—

—

IP40

PCB, screw, plug-in, DIN rail

UL (E 43028),

CSA (LR 26550)

16

2NO 2NC

3NO 1NC

4NO

2NO 1NC

2NO 2NC

JM

30.4 x 16 x 26.5

Relay for large motor
loads

High impulse voltage
withstand

Make current up to
70 A

1NO

… 100

… 250

monostable

1000

—

5000

—

5 – 48

—

900

—

—

IP40

Top mount contact, coil to pcb

UL (E 43028),

CSA (LR 26550),

TÜV 88121645536,

VDE 3584

20

JR1aF

28.6 x 12.8 x 28.5

According Isolation
VDE0660 with 8 mm
air gaps and
creepage distances

Test voltage 5 kV

1NO

… 110

… 277

monostable

1000

3000

5000

10000

6 – 48

115

530

—

—

IP50

PCB

UL (E 43028), TÜV,

CSA (LR 26550), TV5

16

LF

30.1x 15.7x 23.3

For compressor or
motor loads

Air and creepage
distance > 8 mm

102 A inrush current /
200 V AC

1a

—

… 250

monostable

1000

—

5000

10000

5 – 24

—

900

—

—

IP40

Print

UL, CSA, TÜV,

VDE, SEMKO

4-1.8 dia.

4-.071 dia.

±

.004

1.087

±

0.1

27.6

±

0.1

13.8

±

.004

.543

±

0.1

12.0

±

0.1

10.0

±

.004

.472

±

.004

.394

±

0.1

12.0

±

.004

.472

25

new

20

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Power

consumption

(mW)

Voltage

withstand

JJM

15.5 x 12 x 13.9

Miniature power relay

Typical application:
air conditioning
systems, power
window door lock

New: double make 1a
contact arrangement

1NO / 1CO

… 16

—

monostable

500

—

500

—

12

—

640

—

—

IP67

PCB

JJM2W

15.5 x 12 x 13.9

Double make
contact for
car alarm systems

2W

… 16

—

monostable

500

—

500

—

12

—

1000

—

—

IP67

PCB

CP

14 x 13 x 9.5

Ultra miniature
automotive relay

High carrying current
and high temperature
capabilities

High inrush current capa-
bility (40A, lamp load)

Available in
SMD version

1NO / 1CO

… 16

—

monostable

500

—

500

—

12

—

640

—

—

IP67

PCB, SM technology

A

U

T

O

M

O

T

I

V

E



R

E

L

A

Y

S

Tolerance :

±

0.1

4-1.4 dia

1.5 dia

10.0

10.2

2.5

CQ

17 x 13 x 16.6

Quiet type
Noise reduced by
approx. 20 dB

1CO

… 16

—

monostable

500

—

500

—

12

—

640

—

—

IP67

PCB

1NO

1CO

20

20

1CO (NC)

(2 x 6 A)

lampload

1NO

1CO (NO)

20

NC

NO

Tolerance :

±

0.1

4-1.4 dia

1.5 dia

10.0

10.2

2.5

Tolerance :

±

0.1

4-1.4 dia

1.5 dia

10.0

10.2

2.5

21

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Power

consumption

(mW)

Voltage

withstand

A

U

T

O

M

O

T

I

V

E



R

E

L

A

Y

S

CT1/2/5

17.4 x 7.2 (14) x 13.5

Narrow automotive
relay

Available in single/
twin/dual coil
packages

All types are
footprint compatible

1CO/2CO(H-bridge)/2 x 1CO

… 16

—

monostable

500

500

500

—

12

—

800

—

—

IP67

PCB

JSM

22 x 16 x 16.4

Miniature power relay
for automotive applications

Standard version
JSM-4 for max.
make current 25 A

High power version
JSM-5 for max.
make current 50 A

1NO/1CO

… 16

—

monostable

750

—

1000

—

9, 12

—

640

—

—

IP67

PCB

20

JSM-4

JSM-5

1NO

CT1

CT5

1CO

CT2

CA

26.2 x 19.4 x 40

Small,
low weight
automotive relay

Plug-in terminals

1NO

… 30

—

monostable

500

—

500

—

5 – 24

—

1800

—

—

IP67

Flat plug-in

20

CF

22.5 x 16.5 x 16.5

Power relay for
automotive
applications

2 separate coils in
a single housing

For high DC current

Low noise < 50 dB
type available

2 CO (H-bridge)

… 16

—

monostable

1000

—

1000

—

12

—

640

—

—

IP67

PCB

20

22

Voltage

withstand

Power

consumption

(mW)

A

U

T

O

M

O

T

I

V

E



R

E

L

A

Y

S

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

A

U

T

O

M

O

T

I

V

E



R

E

L

A

Y

S

CB

26 x 22 x 25

40 A automotive
relay

High shock
withstand

Low contact losses

1 NO power type
for 70 A available

1NO/1CO

… 75

—

monostable

500

—

500

—

12, 24

—

12 V: 1400; 24 V: 1800

—

—

IP50 / IP67

Flat plug-in, PCB

EV

88 x 87 x 87

80 x 38 x 71

Power capsule contact
relay for electric vehicle,
hybrid electric vehicle

Safety, small construction

DC power cutt-off with
compact body

1NO/2NO

1NO

… 400

—

monostable

2500

—

2500

—

12 / 24

—

5000 stable

—

—

IP67

Screw for wiring

40

150

30

60

30

CM

20 x 15 x 22

35 A contact rating

High temperature
range -40°C to +85°C

High shock
resistance for drop
test requirements

Quick connect
and PCB type

1NO/1CO

… 16 /… 28

—

monostable

500

—

500

—

12, 24

—

1500

—

—

IP50 / IP67

Flat plug-in, PCB

35

20

1NO: 40A,

1NC: 30A

1NO/2NO: 150A,

1NO: 60A/30A

1NO: 35A,

1NC: 20A

JTN

30.5 x 24.2 x 16.9

High switching
capability

Up to 30 A lamp
load

Sealed and
TMP types
available

1NO/1CO

… 30

… 277

monostable

1500

—

1500

—

5 – 24

—

890

—

—

IP40 / IP67

PCB, Plug-in

UL (E 43028)

CSA (LR 26550)

20

1NO 1CO (NO)

1CO (NC)

1NO

1CO

30

23

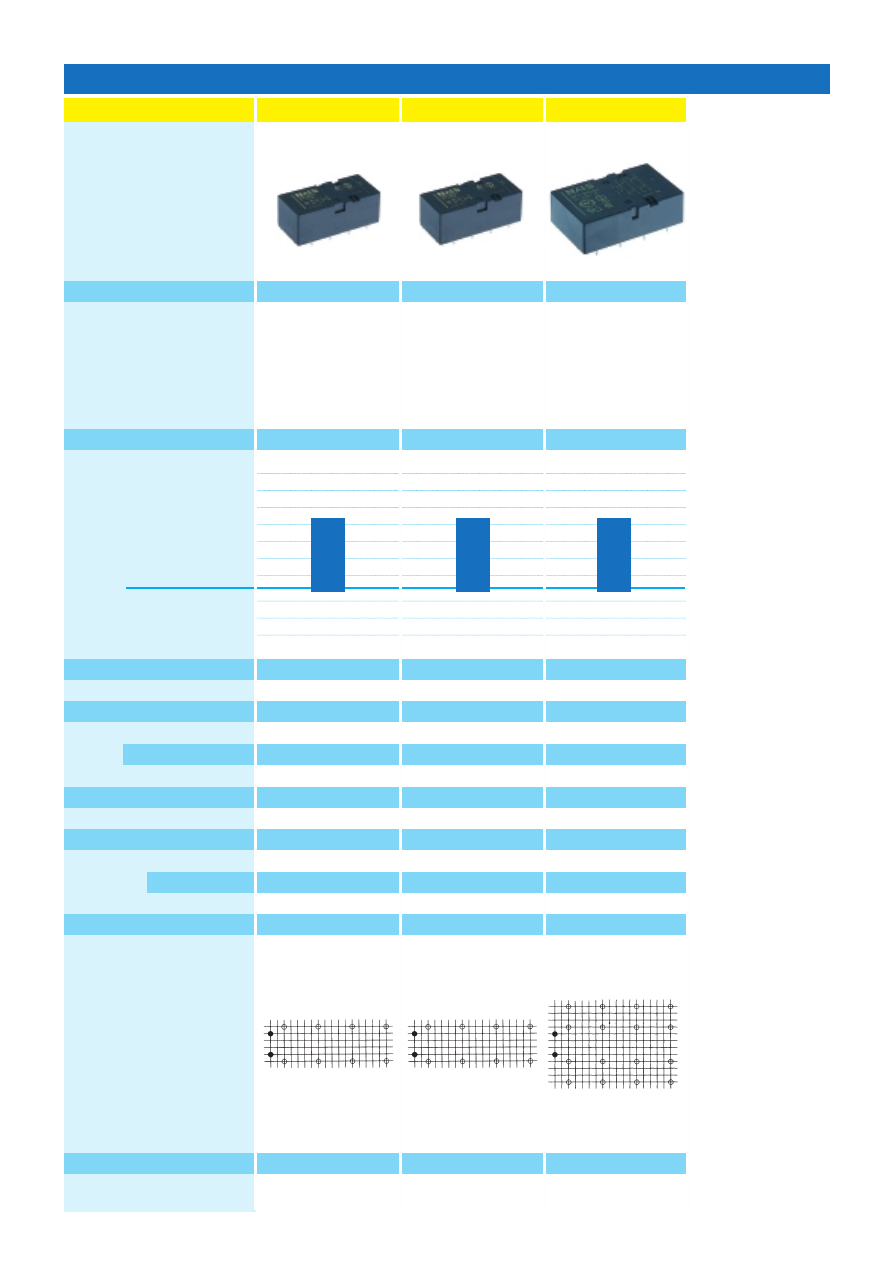

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

S

A

F

E

T

Y



R

E

L

A

Y

S

SF2/SF2D

53.3 x 25 x 16.5

Polarised relay with forced
operated contacts according to
EN 50205

min. 10 V / 10 mA

D = Double contacts

2NO 2NC

5 … 400

… 400

monostable

2500

2500

2500

—

5 – 60

—

500

—

—

IP67

PCB

UL, CSA, SEV, TÜV, SUVA

6

SF3

53.3 x 25 x 16.5

Polarised relay with forced
operated contacts according to
EN 50205

min. 10 V / 10 mA

3NO 1NC

5 … 400

… 400

monostable

2500

2500

2500

—

5 – 60

—

500

—

—

IP67

PCB

UL, CSA, SEV, SUVA, TÜV

6

SF4/SF4D

53.3 x 33.4 x 16.5

Polarised relay with forced
operated contacts according to
EN 50205

min. 10 V / 10 mA

D = Double contacts

4NO 4NC

5 … 400

… 400

monostable

2500

2500

2500

—

5 – 60

—

500

—

—

IP67

PCB, DIN rail

UL, CSA, SEV, SUVA, TÜV

6

new with

double contacts

new with

double contacts

24

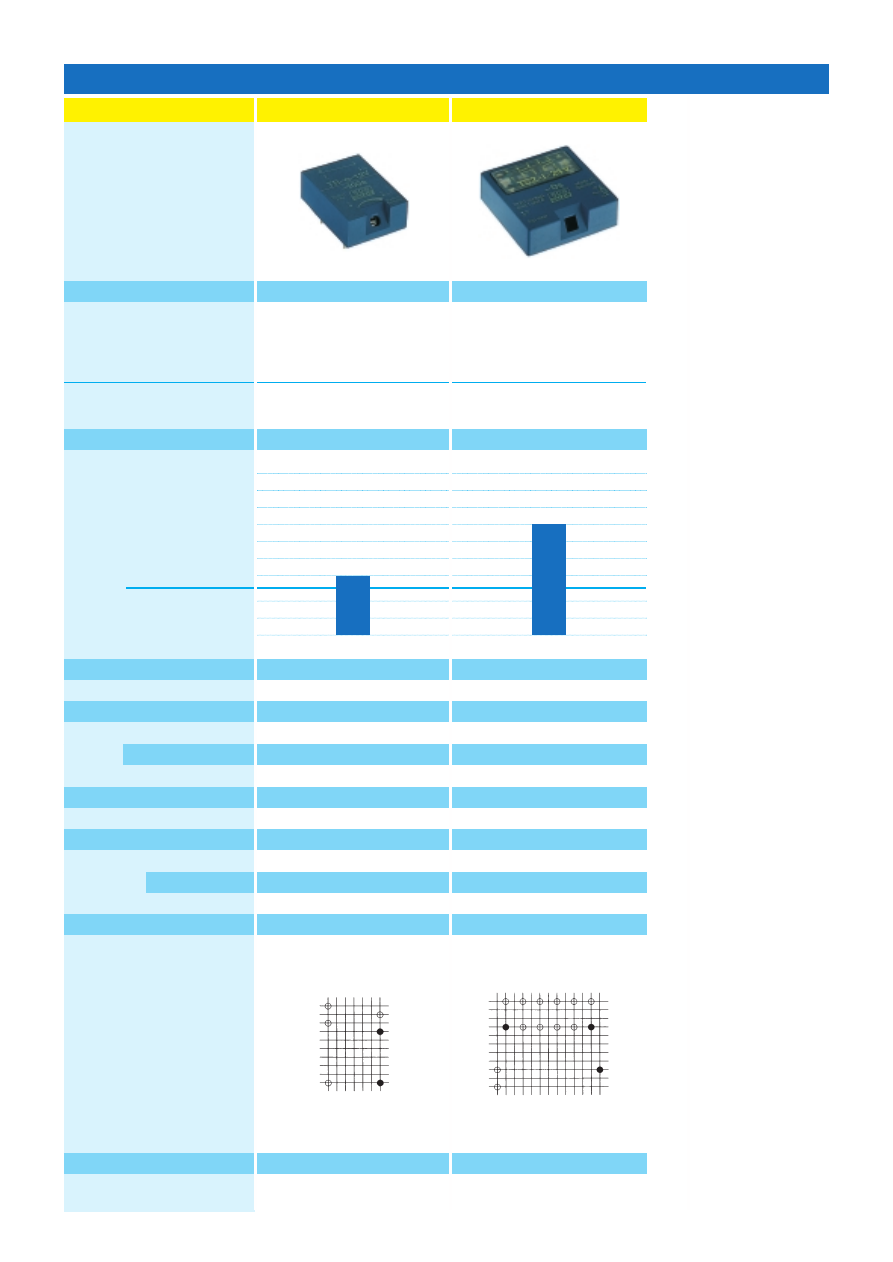

Type

Dimensions (mm) LxWxH

Features

Contact arrangement

Switched load range

15 A

(resistive load)

10 A

8 A

5A

3 A

Maximum

2 A

1 A

1 mA

Minimum

100 µA

10 µA

Switched voltage range

VDC

VAC

Switching configuration

Open contact

V

rms

Between contact sets

V

rms

Coil / contact

V

rms

Impulse voltage withstand (1.25 / 50 µs) V

Nominal coil voltage

VDC

VAC

Monostable

Bistable 1 coil

Bistable 2 coils

Degree of protection

Connection diagram
(Bottom view)
Pin grid 2.54 mm
unless stated
otherwise

Coil connection

Connection type

Approvals

Voltage

withstand

Power

consumption

(mW)

T

I

M

E



D

E

L

A

Y



R

E

L

A

Y

S

TR

30.4 x 22.1 x 10.7

Universal adjustable pcb
time delay relay for ON or OFF delay,
pulse or wiper action

Also available for external
remote adjustment

1CO

0.1 … 30

… 110

—

350

—

1000

1000

5, 12, 24

—

—

—

—

IP50

PCB

C E

TS

34 x 34 x 10.8

Universal adjustable pcb
time delay relay for ON or OFF delay,
pulse or wiper action

Also available for external
remote adjustment

2NO 2NC/3NO 1NC/4NO

0.1 … 200

… 250

—

750

1000

1500

—

5, 12, 24

—

—

—

—

IP50

PCB

C E

Pull-in delay:  0,1 – 10 s; 1 – 100 s; 8 – 800 s;

1–1000 s for external Potentiometer

Release delay:  0,1 – 10 s or

0,3 – 100 s with external Potentiometer

Pull-in delay: 0,1 – 10 s; 1 – 100 s; 8 – 800 s;

1–1000 s for external Potentiometer

Release delay:  0,1 – 10 s or

0,3 – 100 s with external Potentiometer

Global Network Services

North America

Aromat

Corporation

Asia Pacific

Matsushita
Electric Works
(Asia Pacific)

China

Matsushita
Electric Works

Japan

Matsushita
Electric Works, Ltd.
Automation
Controls Group

Europe

Matsushita
Electric Works

Please contact our Sales Companies in:

Europe



Austria

Matsushita Electric Works Austria GmbH.,

Stojanstraße 12, A-2344 Maria Enzersdorf, Tel. (0 22 36) 2 68 46, Fax (0 22 36) 4 61 33, http://www.matsushita.at



Benelux

Matsushita Electric Works Benelux B.V.,

De Rijn 4, (Postbus 211), 5684 PJ Best, (5680 AE Best), Netherlands, Tel. (0 4 99) 37 27 27, Fax (0 4 99) 37 2185, http://www.matsushita.nl



France

Matsushita Electric Works France S.A.R.L.,

B.P. 44, F-91371 Verrières le Buisson CEDEX, Tél. 01 60 13 57 57, Fax 01 60 13 57 58, http://www.matsushita-france.fr



Germany

Matsushita Electric Works Deutschland GmbH,

Rudolf-Diesel-Ring 2, D-83 607 Holzkirchen, Tel. (0 80 24) 6 48-0, Fax (0 80 24) 6 48-5 55, http://www.matsushita.de



Ireland

Matsushita Electric Works UK Ltd.,

Irish Branch Office, Waverley, Old Naas Road, Bluebell, Dublin 12, Republic of Ireland, Tel: (01) 4600969, Fax: (01) 4601131



Italy

Matsushita Electric Works Italia s.r.l.,

Via del Commercio 3–5 (Z.I. Ferlina), I-37012 Bussolengo (VR), Tel. (045) 6 75 27 11, Fax (045) 6 70 04 44, http://www.matsushita.it



Portugal

Matsushita Electric Works España S.A.,

Portuguese Branch Office,  Avda 25 de Abril, Edificio Alvorada 5 -° E, 2750-512 Cascais, Portugal, Tel. (21) 4 82 82 66, Fax (21) 4 82 74 21



Scandinavia

Matsushita Electric Works Scandinavia AB,

Sjöängsvägen 10, 19272 Sollentuna, Sweden, Tel. (08) 594 766 80, Fax (08) 594 766 90



Spain

Matsushita Electric Works España S.A.,

Barajas Park, San Severo 20, E-28042 Madrid, Tel. (91) 329 3875, Fax (91) 329 2976



Switzerland

Matsushita Electric Works Schweiz AG,

Grundstrasse 8, CH-6343 Rotkreuz, Tel. (041) 799 70 50, Fax (041) 799 70 55, http://www.matsushita.ch



United Kingdom  Matsushita Electric Works UK Ltd.,

Sunrise Parkway, Linford Wood East, Milton Keynes, MK14 6LF, England, Tel. (01908) 231555, Fax (019 08) 231599, http://www.matsushita.co.uk

North & South America



USA

Aromat Corporation Head Office USA,

629 Central Avenue, New Providence, N.J. 07974, Tel. 1-908-464-3550, Fax 1-908-464-8513, http://www.aromat.com

Asia



China

Matsushita Electric Works, Ltd. China Office,

2013, Beijing Fortune, Building No. 5, Dong San Huan Bei Lu, Chaoyang District, Beijing, Tel. 86-10-6590-8646, Fax 86-10-6590-8647



Hong Kong

Matsushita Electric Works Ltd. Hong Kong,

Rm1601, 16/F, Tower 2, The Gateway, 25 Canton Road, Tsimshatsui, Kowloon, Hong Kong, Tel. (852) 2956-3118, Fax (852) 2956-0398



Japan

Matsushita Electric Works Ltd. Automation Controls Company,

1048 Kadoma, Kadoma-shi, Osaka 571-8686, Japan, Tel. 06-6908-1050; Fax 06-6908-5781,

http://www.mew.co.jp/e-acg/



Singapore

Matsushita Electric Works Pte. Ltd. (Asia Pacific),

101 Thomson Road, #25-03/05, United Square, Singapore 307591, Tel. (65) 255-5473; Fax (65) 253-5689

Printed in Germany · Copyright © 1999

1060 eu en 03/01

Matsushita Electric Works
