ADCRC Series

www.adivatech.com

(888) 30-ADIVA (23482)

O

100

Choke Coils

ADCRC Series

Radial Leaded Thru Hole

FEATURES

• Small-sized, lightweight vertical radial lead.
• Specially designed magnetic core for higher

self-resonant frequency.

• Excellent temperature and humidity characteristics.
• Low priced.
• Applications: Radio & Radio-Cassette Tape

Recorders and Toys.

BENEFITS

Temperature Rise

20ºC

Ambient Temperature

60ºC

Operating Temperature Range

-20ºC to +60ºC

Dielectric withstanding Voltage

250V r.m.s

Rated Current

Based on inductance variation

Terminal Tensile Strength

1.5 Kg min.

Terminal Bending Strength

0.5 Kg min.

STANDARD SPECIFICATIONS

TYPE

ADCRC-5080

ADCRC-7010B

ADCRC-9013

ADCRC-1314

Inductance Range (uH)

1 uH ~ 27000 uH

1.2 uH ~ 68000 uH

10 uH ~ 56000 uH

10 uH ~ 100 uH

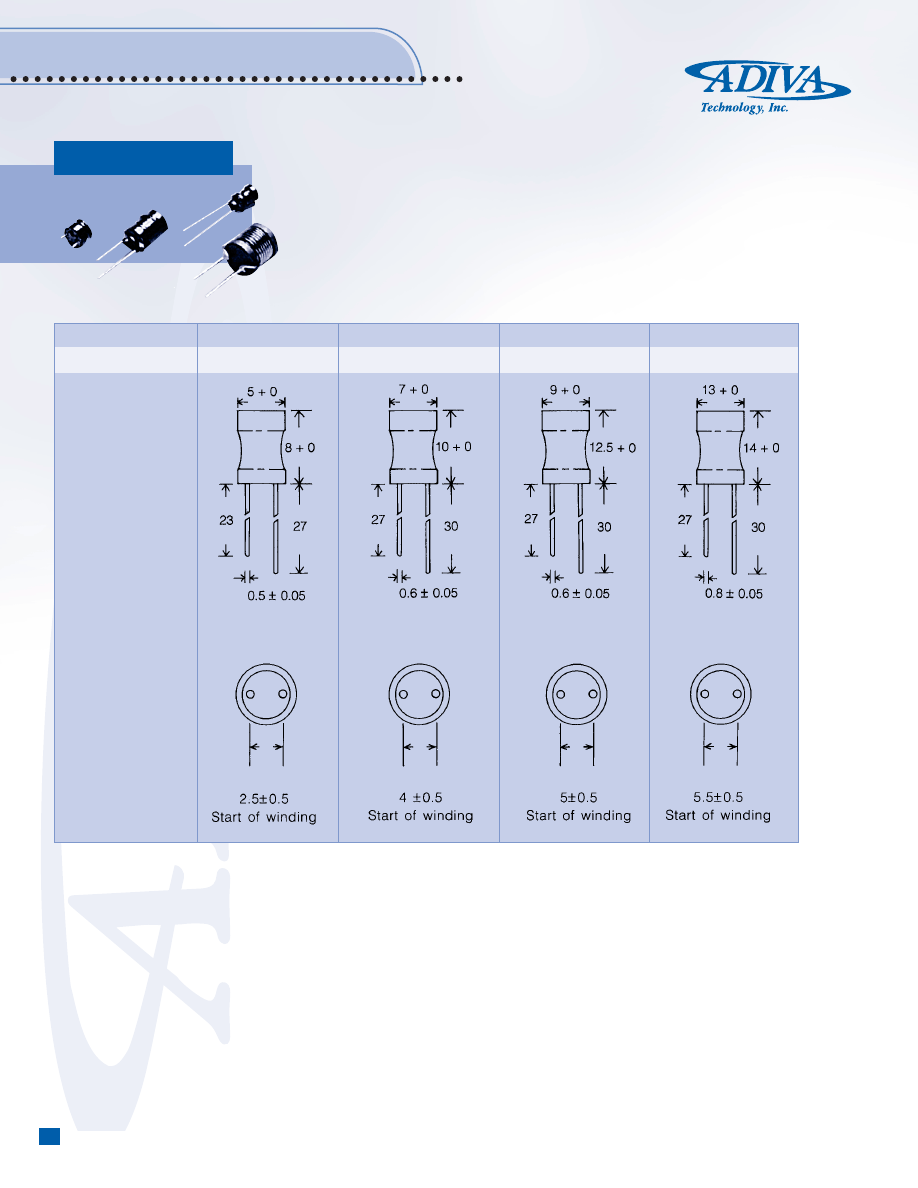

External Dimensions (mm)

(Connection Bottom)

O

INDUCT

ORS

103

XTAL

OSC

VCXO

VCO

TCXO

VCTCXO

FLTR

RES

IND

ADCRC Series — Continued

Choke Coils

Radial Leaded Thru Hole

ADCRC-9013 SERIES STANDARD SPECIFICATIONS

ORDERING CODE

INDUCTANCE

Q

TEST FREQUENCY

SELF-RESONANT

DC

RATED DC

(uH)

min.

(MHz)

FREQUENCY (MHz)

RESISTANCE (ohm)

CURRENT (mA)

min.

max.

max.

ADCRC-7010B-473

❑

47000 ±10%, ±5%

50

0.0796

0.2

123

8

ADCRC-7010B-563

❑

56000 ±10%, ±5%

50

0.0796

0.2

140

8

ADCRC-7010B-683

❑

68000 ±10%, ±5%

50

0.0796

0.2

200

8

ADCRC-9013-100

❑

10 ±10%, ±5%

50

2.52

17

0.04

2500

ADCRC-9013-120

❑

12 ±10%, ±5%

50

2.52

16

0.04

2500

ADCRC-9013-150

❑

15 ±10%, ±5%

50

2.52

13

0.04

2500

ADCRC-9013-180

❑

18 ±10%, ±5%

50

2.52

12

0.04

2000

ADCRC-9013-220

❑

22 ±10%, ±5%

50

2.52

12

0.05

2000

ADCRC-9013-270

❑

27 ±10%, ±5%

50

2.52

11

0.06

1500

ADCRC-9013-330

❑

33 ±10%, ±5%

50

2.52

8.9

0.07

1500

ADCRC-9013-390

❑

39 ±10%, ±5%

50

2.52

8.7

0.09

1500

ADCRC-9013-470

❑

47 ±10%, ±5%

50

2.52

7

0.1

1200

ADCRC-9013-560

❑

56 ±10%, ±5%

50

2.52

6.6

0.11

1200

ADCRC-9013-680

❑

68 ±10%, ±5%

30

2.52

5.9

0.12

1200

ADCRC-9013-820

❑

82 ±10%, ±5%

30

2.52

5.2

0.13

1000

ADCRC-9013-101

❑

100 ±10%, ±5%

30

2.52

4.8

0.15

1000

ADCRC-9013-121

❑

120 ±10%, ±5%

30

0.796

4

0.27

900

ADCRC-9013-151

❑

150 ±10%, ±5%

30

0.796

3.7

0.29

800

ADCRC-9013-181

❑

180 ±10%, ±5%

30

0.796

3.5

0.33

800

ADCRC-9013-221

❑

220 ±10%, ±5%

30

0.796

3

0.35

800

ADCRC-9013-271

❑

270 ±10%, ±5%

30

0.796

2.7

0.58

500

ADCRC-9013-331

❑

330 ±10%, ±5%

30

0.796

2.5

0.61

500

ADCRC-9013-391

❑

390 ±10%, ±5%

30

0.796

2.2

0.68

500

ADCRC-9013-471

❑

470 ±10%, ±5%

30

0.796

1.8

1.17

400

ADCRC-9013-561

❑

560 ±10%, ±5%

30

0.796

1.7

1.3

400

ADCRC-9013-681

❑

680 ±10%, ±5%

30

0.796

1.6

1.45

400

ADCRC-9013-821

❑

820 ±10%, ±5%

30

0.796

1.5

1.65

400

ADCRC-9013-102

❑

1000 ±10%, ±5%

30

0.796

0.9

2.7

300

ADCRC-9013-122

❑

1200 ±10%, ±5%

30

0.252

0.9

3

300

ADCRC-9013-152

❑

1500 ±10%, ±5%

30

0.252

0.9

3.3

200

ADCRC-9013-182

❑

1800 ±10%, ±5%

30

0.252

0.9

3.85

200

ADCRC-9013-222

❑

2200 ±10%, ±5%

30

0.252

0.8

4.2

200

ADCRC-9013-272

❑

2700 ±10%, ±5%

30

0.252

0.8

4.9

200

ADCRC-9013-332

❑

3300 ±10%, ±5%

30

0.252

0.7

5.5

200

ADCRC-9013-392

❑

3900 ±10%, ±5%

30

0.252

0.5

9.8

120

ADCRC-9013-472

❑

4700 ±10%, ±5%

30

0.252

0.5

10.9

120

ADCRC-9013-562

❑

5600 ±10%, ±5%

30

0.252

0.5

12.5

120

ADCRC-9013-682

❑

6800 ±10%, ±5%

30

0.252

0.4

13.8

120

ADCRC-9013-822

❑

8200 ±10%, ±5%

30

0.252

0.4

15.8

80

ADCRC-9013-103

❑

10000 ±10%, ±5%

30

0.252

0.4

16

80

ADCRC-9013-123

❑

12000 ±10%, ±5%

30

0.0796

0.3

32

80

ADCRC-9013-153

❑

15000 ±10%, ±5%

30

0.0796

0.2

36.5

80

ADCRC-9013-183

❑

18000 ±10%, ±5%

30

0.0796

0.2

41

50

ADCRC-9013-223

❑

22000 ±10%, ±5%

20

0.0796

0.2

47

50

ADCRC-9013-273

❑

27000 ±10%, ±5%

20

0.0796

0.2

53

50

ADCRC-9013-333

❑

33000 ±10%, ±5%

20

0.0796

0.2

60

50

ADCRC-9013-393

❑

39000 ±10%, ±5%

20

0.0796

0.1

84

50

ADCRC-9013-473

❑

47000 ±10%, ±5%

20

0.0796

0.1

121

30

ADCRC-9013-563

❑

56000 ±10%, ±5%

20

0.0796

0.1

133

30

Inductance Tolerance:

❑

M±20%, K±10%, J±5%, H±2.5%.
