www.adivatech.com
(888) 30-ADIVA (23482)
O
110
Molded Chokes
ADMC Series
Axial Leaded Thru Hole
ADMC
FEATURES
• Low cost.
• High Q and SRF, Low RDC.
• Permanent Color Band.
STANDARD SPECIFICATIONS

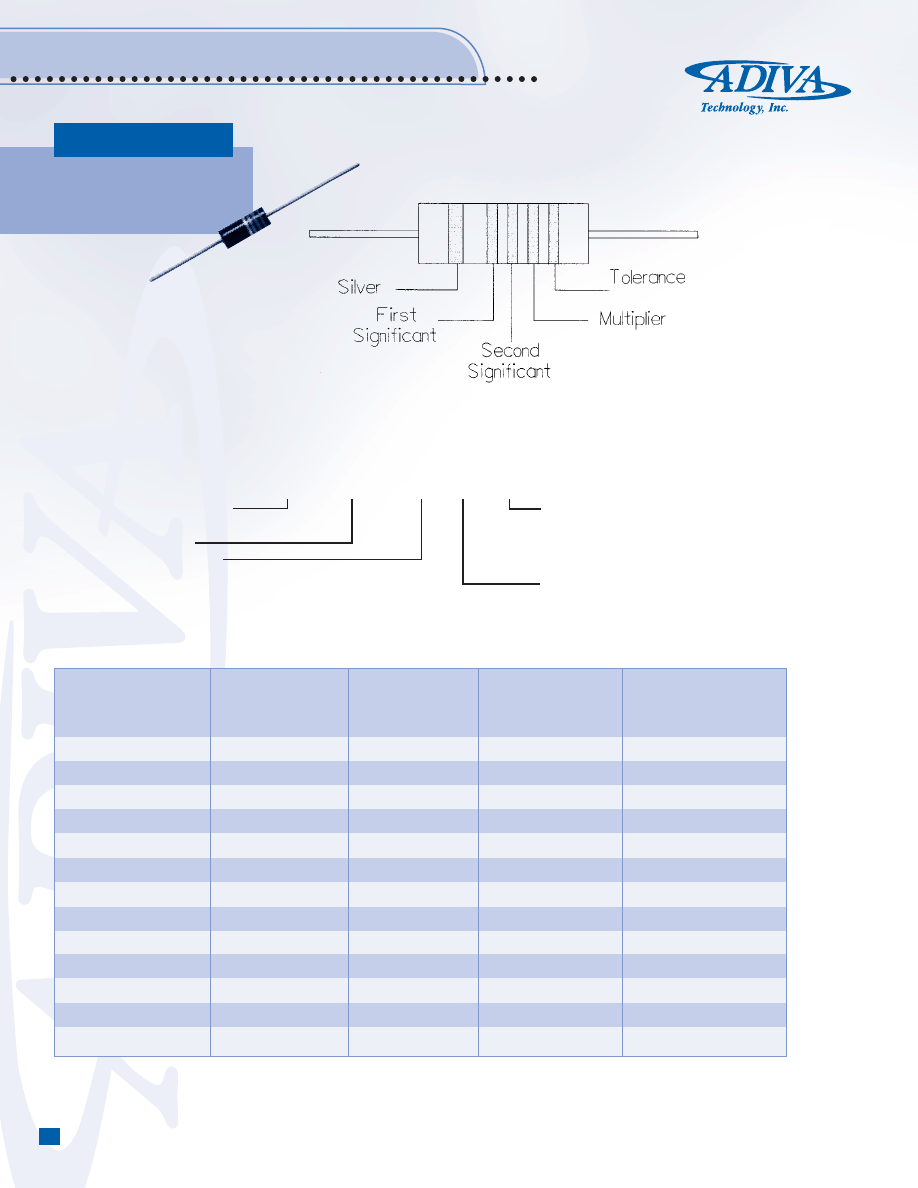

COLOR CODE
FIRST
SECOND
MULTIPLIER
INDUCTANCE
SIGNIFICANT
SIGNIFICANT
TOLERANCE
FIGURE
FIGURE
(%)
Black
0
0
1
-
Brown
1
1
10
-
Red
2
2
100
-
Orange
3
3
1000
-
Yellow
4
4
-
-
Green
5
5
-
-
Blue
6
6
-
-
Violet
7
7
-
-
Gray
8
8
-
-
White
9
9
-
-
Black (M)
-
-
-
±20
Gold (J)
-
-
0.1
±5
Silver (K)
-
-
0.01
±10
ADMC -
❑ ❑ ❑ ❑
-
❑ ❑ ❑
❑
-
❑
PACKAGE TYPE
ADMC: MOLDED CHOKE
SIZE
INDUCTANCE:
OPTIONS
B Bulk
TA
Tapping with Ammo Box
T
TAPE & REEL
INDUCTANCE TOLERANCE:
M ±20%
K ±10%
J ±5%
PART NUMBERING GUIDE
INDUCTANCE VALUES ARE INDICATED WITH COLOR CODE AS SHOWN BELOW.
FIRST SILVER COLOR CODE MEANS AMERICAN MILITARY SPECIFICATION TYPE.
ADMC SERIES
O
INDUCT
ORS
111
Molded Chokes
ADMC Series — Continued
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Axial Leaded Thru Hole
ADMC SERIES

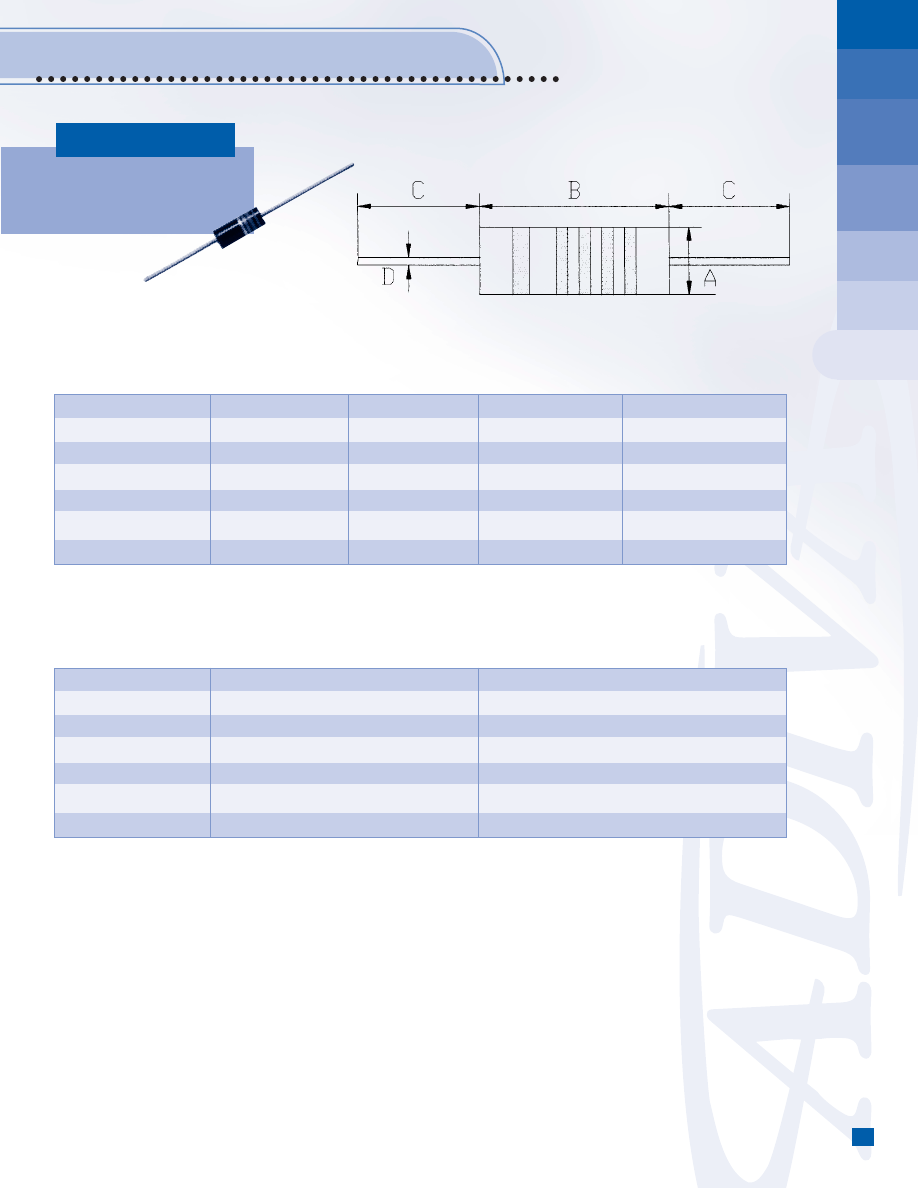

STANDARD SPECIFICATIONS
PACKAGE TYPE
Ø A (mm)
B (mm)
C (mm)
Ø D (mm)
ADMC-4812
4.83 ±0.25
11.18 ±0.25
25.91 (min.)
0.635 ±0.05
ADMC-2434
2.41 ±0.25
3.35 ±0.25
25.91 (min.)
0.500 ±0.05
ADMC-4095
3.96 ±0.25
9.53 ±0.25
25.91 (min.)
0.600 ±0.05
ADMC-6515
6.50 ±0.10
14.50 ±0.25
25.91 (min.)
0.800 ±0.05
ADMC-2051
1.98 ±0.25
5.08 ±0.25
25.91 (min.)
0.410 ±0.05
ADMC-4110
4.11 ±0.25
10.41 ±0.25
25.91 (min.)
0.600 ±0.05
INDUCTANCE & RATED CURRENT RANGES
PACKAGE TYPE
INDUCTANCE
RATED CURRENT
ADMC-4812
0.15
1000 uH
3050
78 mA (max.)
ADMC-2434
0.10
1000 uH
1380
28 mA (max.)
ADMC-4095
0.15
1000 uH
2740
82 mA (max.)
ADMC-6515
0.10
1000 uH
1900
80 mA (max.)
ADMC-2051
0.10
270 uH
895
39 mA (max.)
ADMC-4110
0.10
10000 uH
1790
24 mA (max.)
ADMC
O
INDUCT
ORS
117
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Molded Chokes
ADMC-4095 Series — Continued
Axial Leaded Thru Hole
STANDARD SPECIFICATIONS
ORDERING CODE
INDUCTANCE
Q
FREQUENCY
SELF-RESONANT
RDC
IDC
(L)
min.
(MHz)
FREQUENCY (MHz)
(
Ω
)
(mA)
min.
max.
max.
ADMC-4095-510
❑❑
51.00 uH
55
2.5
12.7
2.85
189
ADMC-4095-560
❑❑
56.00 uH
55
2.5
12
3.00
184
ADMC-4095-620
❑❑
62.00 uH
55
2.5
11.5
3.15
180
ADMC-4095-680
❑❑
68.00 uH
55
2.5
11
3.30
176
ADMC-4095-750
❑❑
75.00 uH
55
2.5
10.5
3.70
166
ADMC-4095-820
❑❑
82.00 uH
50
2.5
10.3
3.90
162
ADMC-4095-910
❑❑
91.00 uH
50
2.5
10
4.30
154
ADMC-4095-101
❑❑
100.00 uH
50
2.5
9.5
4.50
151
ADMC-4095-111
❑❑
110.00 uH
60
0.79
8.9
4.90
144
ADMC-4095-121
❑❑
120.00 uH
65
0.79
8.7
5.20
140
ADMC-4095-131
❑❑
130.00 uH
65
0.79
8.5
5.45
137
ADMC-4095-151
❑❑
150.00 uH
65
0.79
8
6.05
130
ADMC-4095-161
❑❑
160.00 uH
65
0.79
7.5
6.40
126
ADMC-4095-181
❑❑
180.00 uH
65
0.79
8
6.05
130
ADMC-4095-201
❑❑
200.00 uH
65
0.79
6.5
7.10
123
ADMC-4095-221
❑❑
220.00 uH
65
0.79
6.2
7.45
117
ADMC-4095-241
❑❑
240.00 uH
65
0.79
5.9
7.80
115
ADMC-4095-271
❑❑
270.00 uH
65
0.79
5.7
11.00
143
ADMC-4095-301
❑❑
300.00 uH
65
0.79
5.4
11.50
140
ADMC-4095-331
❑❑
330.00 uH
65
0.79
5.1
12.00
136
ADMC-4095-361
❑❑
360.00 uH
65
0.79
4.8
12.50
134
ADMC-4095-391
❑❑
390.00 uH
65
0.79
4.5
16.30
117
ADMC-4095-431
❑❑
430.00 uH
65
0.79
4.2
17.10
115
ADMC-4095-471
❑❑
470.00 uH
65
0.79
3.9
17.90
112
ADMC-4095-511
❑❑
510.00 uH
65
0.79
3.7
18.80
109
ADMC-4095-561
❑❑
560.00 uH
65
0.79
3.8
19.50
107
ADMC-4095-621
❑❑
620.00 uH
65
0.79
3.3
25.90
93
ADMC-4095-681
❑❑
680.00 uH
65
0.79
3.1
27.20
91
ADMC-4095-751
❑❑
750.00 uH
65
0.79
2.9
28.60
88
ADMC-4095-821
❑❑
820.00 uH
65
0.79
2.7
30.00
86
ADMC-4095-911
❑❑
910.00 uH
65
0.79
2.5
31.50
84
ADMC-4095-102
❑❑
1.00 mH
65
0.79
2.3
33.00
82
