Molded Chokes
ADMC Series
Axial Leaded Thru Hole
ADMC
FEATURES
• Low cost.
• High Q and SRF, Low RDC.
• Permanent Color Band.

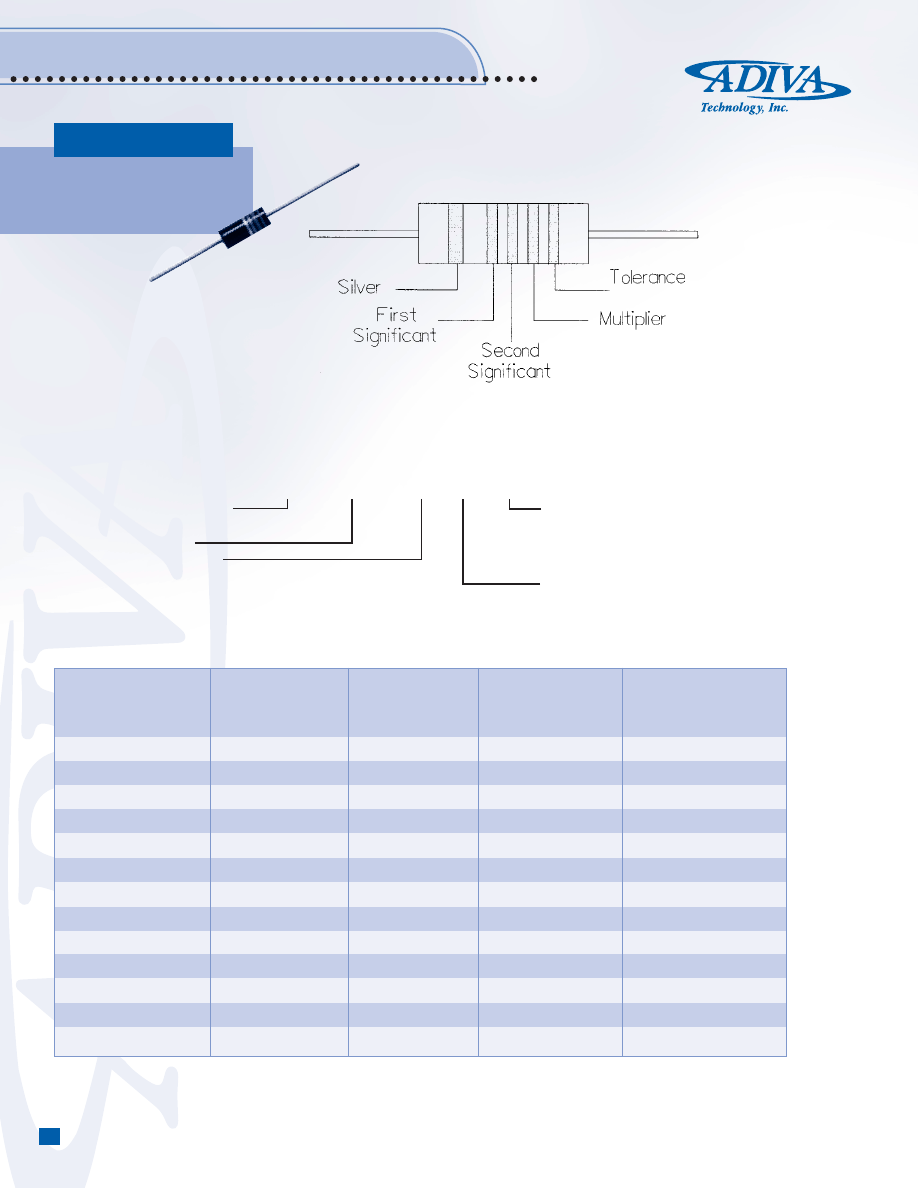

STANDARD SPECIFICATIONS
COLOR CODE
FIRST
SECOND
MULTIPLIER
INDUCTANCE
SIGNIFICANT
SIGNIFICANT
TOLERANCE
FIGURE
FIGURE
(%)
Black
0
0
1
-
Brown
1
1
10
-
Red
2
2
100
-
Orange
3
3
1000
-
Yellow
4
4
-
-
Green
5
5
-
-
Blue
6
6
-
-
Violet
7
7
-
-
Gray
8
8
-
-
White
9
9
-
-
Black (M)
-
-
-
±20
Gold (J)
-
-
0.1
±5
Silver (K)
-
-
0.01
±10
ADMC -
❑ ❑ ❑ ❑
-
❑ ❑ ❑
❑
-
❑
PACKAGE TYPE
ADMC: MOLDED CHOKE
SIZE
INDUCTANCE:
OPTIONS
B Bulk
TA
Tapping with Ammo Box
T
TAPE & REEL
INDUCTANCE TOLERANCE:
M ±20%
K ±10%
J ±5%
PART NUMBERING GUIDE
INDUCTANCE VALUES ARE INDICATED WITH COLOR CODE AS SHOWN BELOW.
FIRST SILVER COLOR CODE MEANS AMERICAN MILITARY SPECIFICATION TYPE.
ADMC SERIES
O
INDUCT
ORS
111

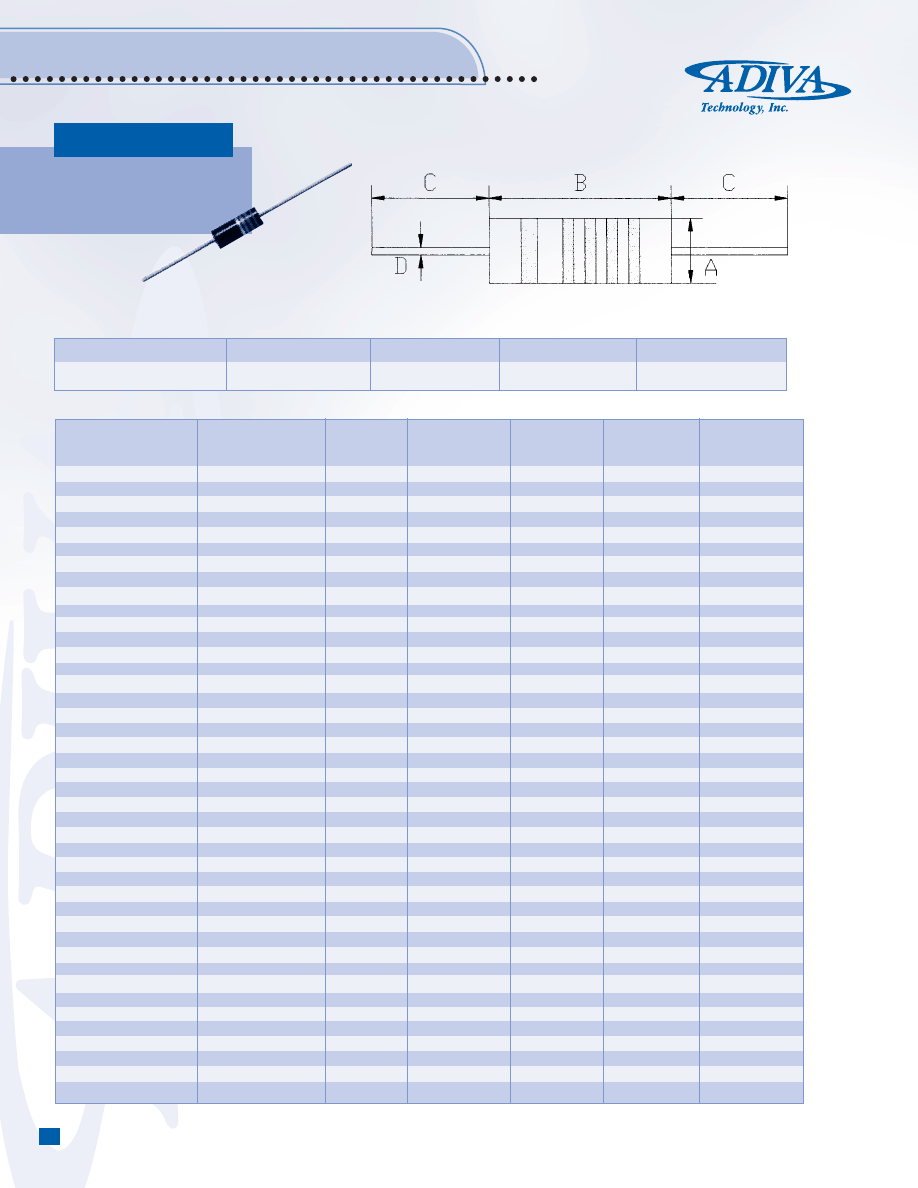

Molded Chokes
ADMC Series — Continued
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Axial Leaded Thru Hole

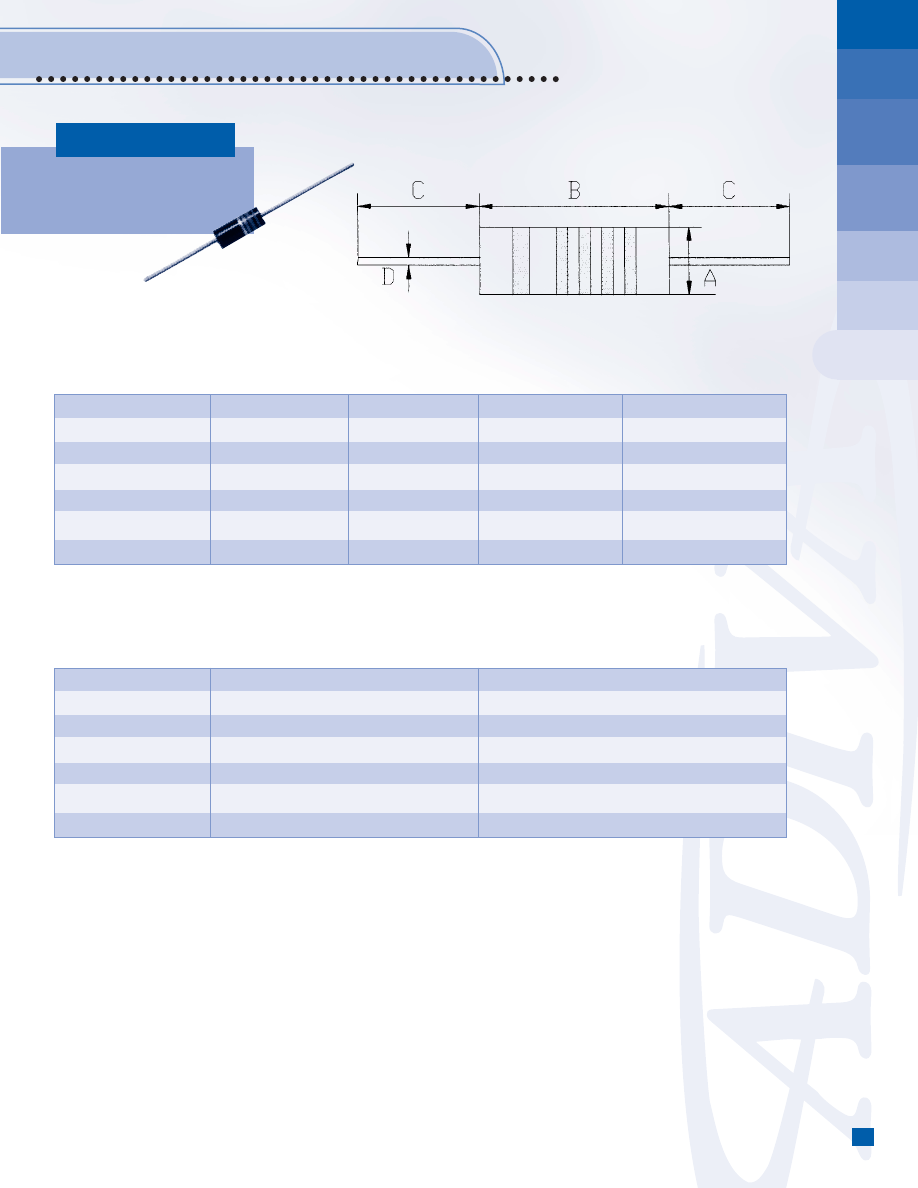

ADMC SERIES
STANDARD SPECIFICATIONS
PACKAGE TYPE
Ø A (mm)
B (mm)
C (mm)
Ø D (mm)
ADMC-4812
4.83 ±0.25
11.18 ±0.25
25.91 (min.)
0.635 ±0.05
ADMC-2434
2.41 ±0.25
3.35 ±0.25
25.91 (min.)
0.500 ±0.05
ADMC-4095
3.96 ±0.25
9.53 ±0.25
25.91 (min.)
0.600 ±0.05
ADMC-6515
6.50 ±0.10
14.50 ±0.25
25.91 (min.)
0.800 ±0.05
ADMC-2051
1.98 ±0.25
5.08 ±0.25
25.91 (min.)
0.410 ±0.05
ADMC-4110
4.11 ±0.25
10.41 ±0.25
25.91 (min.)
0.600 ±0.05
INDUCTANCE & RATED CURRENT RANGES
PACKAGE TYPE
INDUCTANCE
RATED CURRENT
ADMC-4812
0.15
1000 uH
3050
78 mA (max.)
ADMC-2434
0.10
1000 uH
1380
28 mA (max.)
ADMC-4095
0.15
1000 uH
2740
82 mA (max.)
ADMC-6515
0.10
1000 uH
1900
80 mA (max.)
ADMC-2051
0.10
270 uH
895
39 mA (max.)
ADMC-4110
0.10
10000 uH
1790
24 mA (max.)
