Power Inductors
ADT1608CA Series
Surface Mount
ADT1608CA
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.
BENEFITS
Frequency Range:
0.1 ~ 1 MHz
Inductance Range:
1.0 ~ 4700 uH
Tested:
100 KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
≥
Rated L at rated current
STANDARD SPECIFICATIONS
PACKAGE TYPE
INDUCTANCE*
DC
RATED L
RATED
(uH ±20%)
RESISTANCE (
Ω
)
(uH)
CURRENT (A)
max.
min.
max.
ADT1608CA-102
❑
1.0
0.045
0.6
2.21
ADT1608CA-152
❑
1.5
0.050
0.8
1.80
ADT1608CA-222
❑
2.2
0.060
0.9
1.49
ADT1608CA-332
❑
3.3
0.070
1.5
1.21
ADT1608CA-472
❑
4.7
0.080
2.0
1.02
ADT1608CA-682
❑
6.8
0.085
3.0
0.84
ADT1608CA-103
❑
10
0.095
5.0
0.70
ADT1608CA-153
❑
15
0.135
6.0
0.57
ADT1608CA-223
❑
22
0.160
10
0.47
ADT1608CA-333
❑
33
0.275
12
0.38
ADT1608CA-473
❑
47
0.550
20
0.32
ADT1608CA-683
❑
68
0.575
30
0.26
ADT1608CA-104
❑
100
1.10
40
0.220
ADT1608CA-154
❑
150
1.40
60
0.180
ADT1608CA-224
❑
220
2.25
90
0.150
ADT1608CA-334
❑
330
2.90
100
0.120
ADT1608CA-474
❑
470
4.30
150
0.100
ADT1608CA-684
❑
680
5.40
200
0.080
ADT1608CA-105
❑
1000
8.80
400
0.070
ADT1608CA-225
❑
2200
17.0
1000
0.047
ADT1608CA-475
❑
4700
40.0
1500
0.035

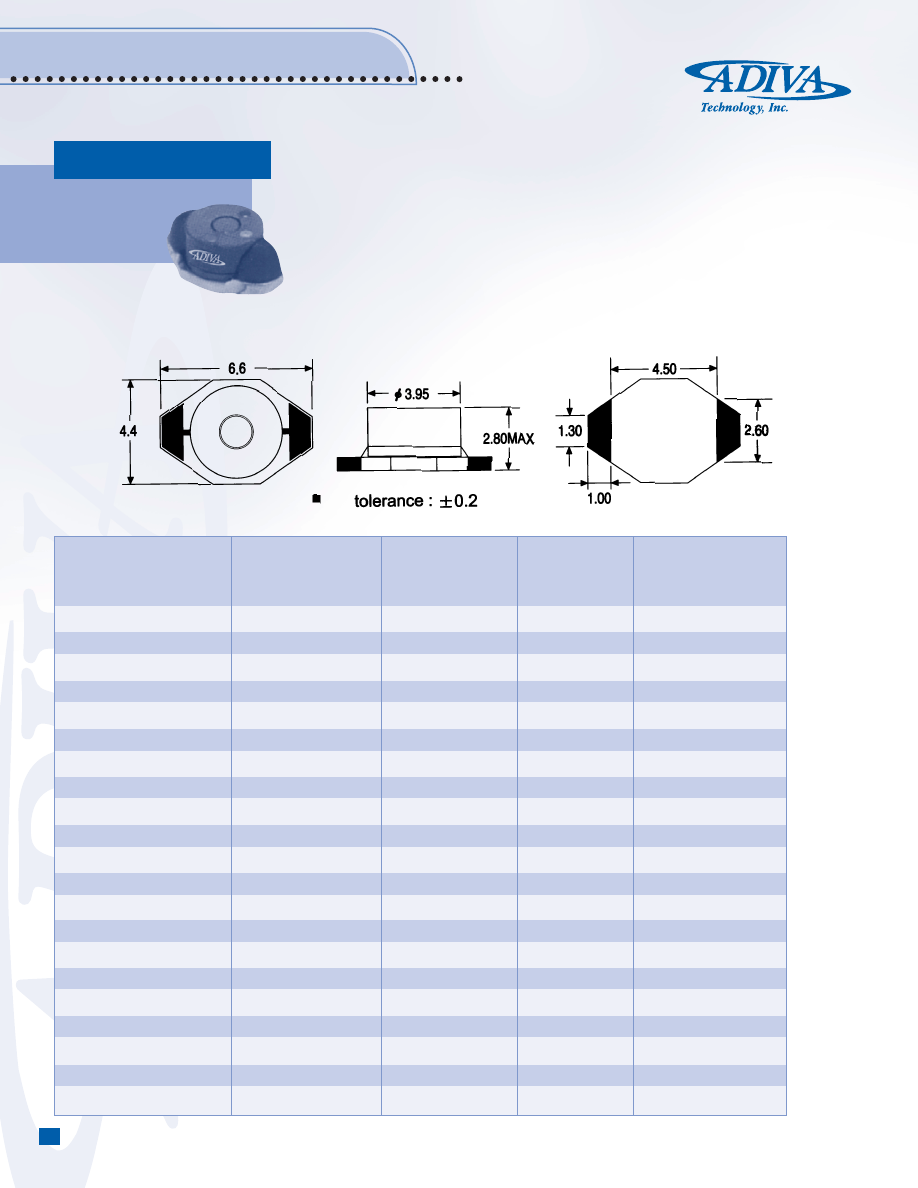

UNIT DIMENSION (unit: mm)
