Power Inductors

ADO3308PA Series

Surface Mount

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter and backlight

BENEFITS

Frequency Range:

0.1 ~ 10 MHz

Inductance Range:

4.7 ~ 1000 uH

Tested:

100 KHz and 0.05V

Operating Temperature Range:

-40ºC to +85ºC

Inductance

measured by HP 4194A, impedance

and gain phase analyzer

Inductance Drop

10% at rated current

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

DC

RATED

(uH ±20%)

RESISTANCE (

)

CURRENT (A)

max.

max.

ADO3308PA-472

47

0.05

3.10

ADO3308PA-103

10

0.11

2.15

ADO3308PA-153

15

0.15

1.80

ADO3308PA-223

22

0.23

1.45

ADO3308PA-333

33

0.30

1.20

ADO3308PA-473

47

0.39

1.00

ADO3308PA-683

68

0.66

0.80

ADO3308PA-104

100

0.84

0.68

ADO3308PA-154

150

1.20

0.55

ADO3308PA-224

220

1.90

0.45

ADO3308PA-334

330

2.70

0.37

ADO3308PA-474

470

4.00

0.30

ADO3308PA-684

680

5.3

0.2

ADO3308PA-105

1000

8.4

0.1

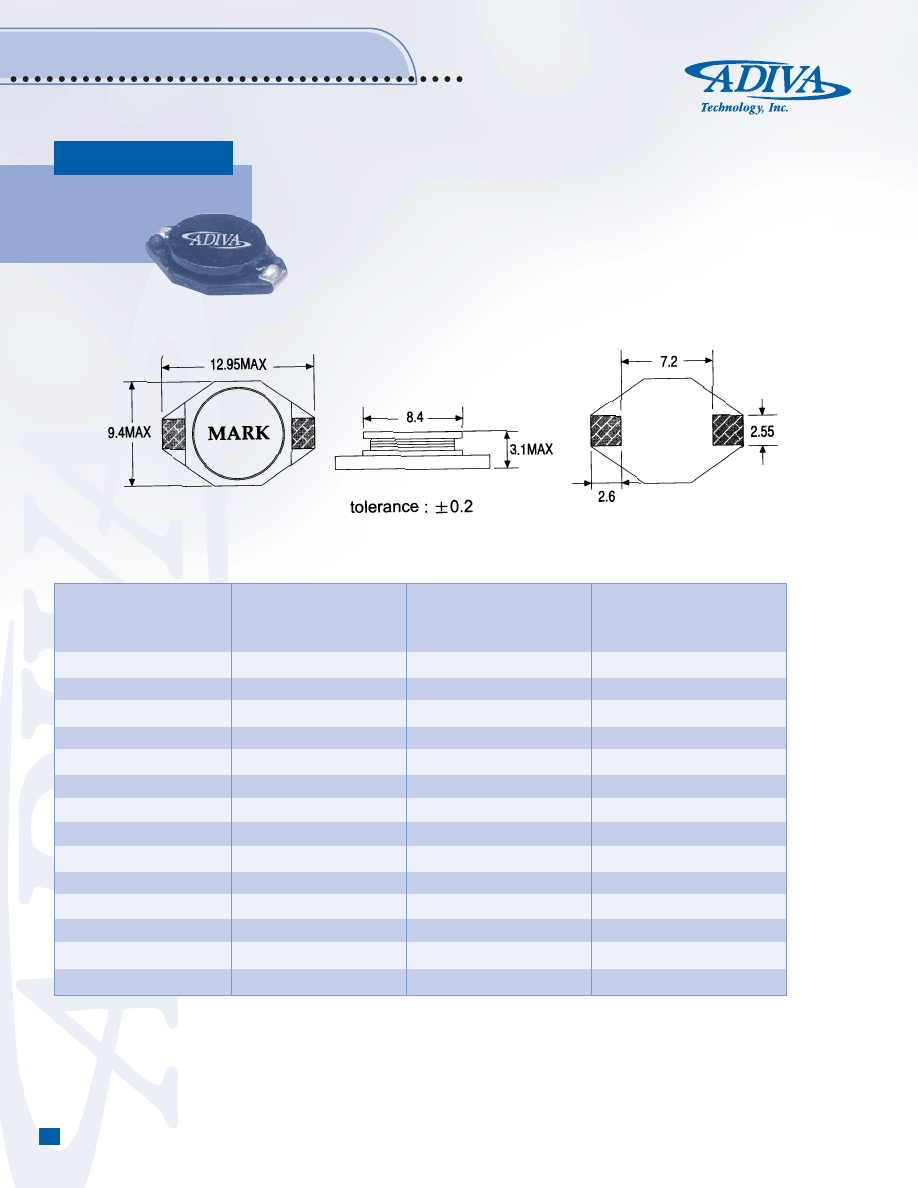

UNIT DIMENSION (unit: mm)
