ADO5022PA
www.adivatech.com
(888) 30-ADIVA (23482)
O
134
Power Inductors
ADO5022PA Series
Surface Mount
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.
BENEFITS
Frequency Range:
0.1 ~ 1 MHz
Inductance Range:
10 ~ 1000 uH
Tested:
100 KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
10% at rated current
STANDARD SPECIFICATIONS
PACKAGE TYPE
INDUCTANCE
DC
SRF
Isat4
Irms5
(uH ±20%)
RESISTANCE (
Ω
)
TYP3
(A)
(A)
max.
(MHz)
ADO5022PA-102
❑
1.0
0.009
80
20
8.6
ADO5022PA-222
❑
2.2
0.014
80
16
7.1
ADO5022PA-332
❑
3.3
0.018
60
14
6.2
ADO5022PA-562
❑
5.6
0.02
40
12
5.3
ADO5022PA-103
❑
10
0.031
30
10
4.3
ADO5022PA-153
❑
15
0.036
22
8
4
ADO5022PA-223
❑
22
0.047
20
7
3.5
ADO5022PA-333
❑
33
0.066
15
5.5
3
ADO5022PA-473
❑
47
0.086
9
4.5
2.6
ADO5022PA-683
❑
68
0.13
8
3.5
2.3
ADO5022PA-104
❑
100
0.19
7
3
1.8
ADO5022PA-154
❑
150
0.25
6
2.6
1.5
ADO5022PA-224
❑
222
0.38
5
2.4
1.2
ADO5022PA-334
❑
330
0.56
4
1.9
1
ADO5022PA-474
❑
470
0.85
3
1.4
0.82
ADO5022PA-684
❑
680
1.1
2.5
1.2
0.72
ADO5022PA-105
❑
1000
1.8
2
1
0.56

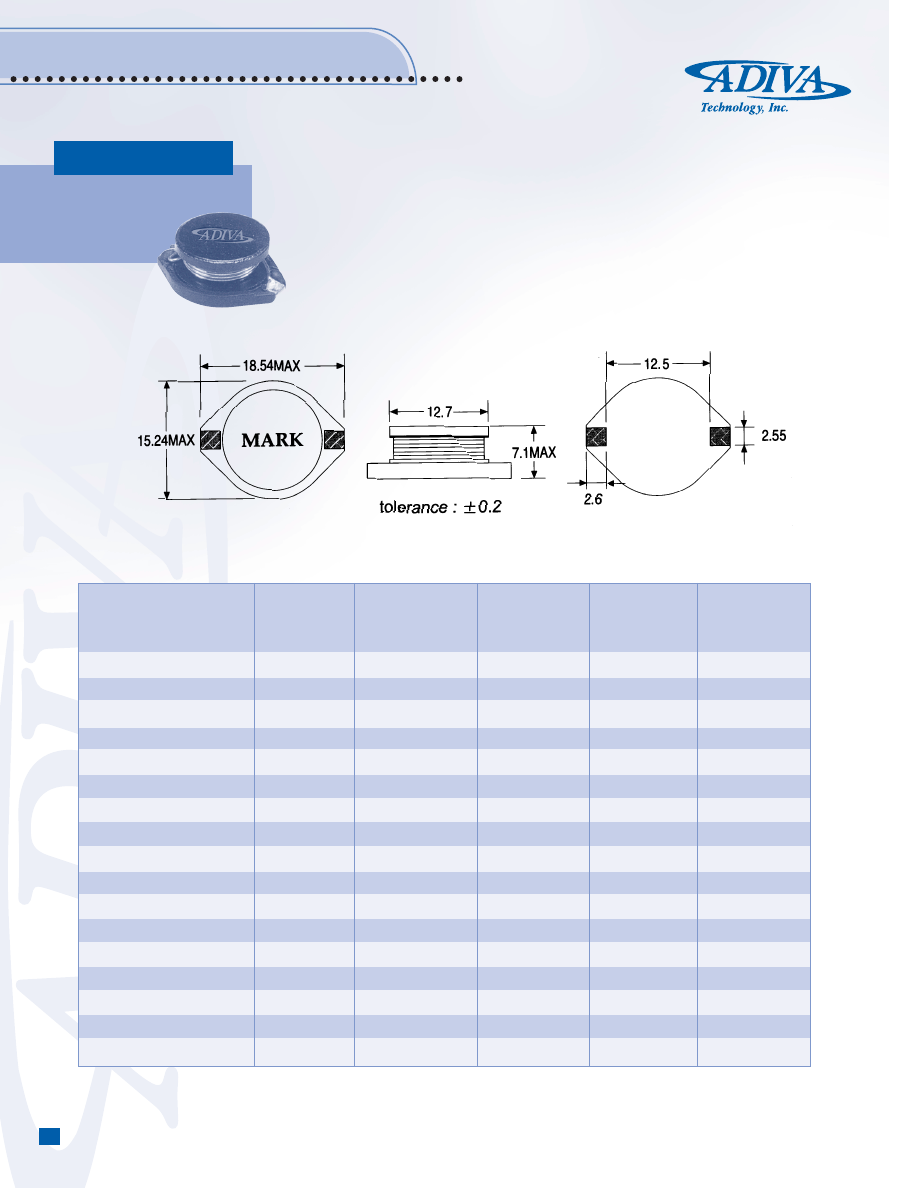

UNIT DIMENSION (unit: mm)
