Power Inductors

ADO43A Series

Surface Mount

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.

BENEFITS

Frequency Range:

0.1 ~ 10 MHz

Inductance Range:

1.4 ~ 1000 uH

Tested:

* KHz and 0.05V

Operating Temperature Range:

-40ºC to +85ºC

Inductance

measured by HP 4194A, impedance

and gain phase analyzer.

Inductance Drop

10% at rated current

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

FREQUENCY*

DC

RATED

(uH)

(KHz)

RESISTANCE (

Ω

)

CURRENT (A)

max.

max.

ADO43A-142

❑

1.4 ±20%

7960

0.040

3.00

ADO43A-182

❑

1.8 ±20%

7960

0.048

2.50

ADO43A-222

❑

2.2 ±20%

7960

0.050

2.40

ADO43A-332

❑

3.3 ±20%

7960

0.075

1.80

ADO43A-472

❑

4.7 ±20%

7960

0.100

1.40

ADO43A-682

❑

6.8 ±20%

7960

0.150

1.00

ADO43A-103

❑

10 ±20%

2520

0.182

0.74

ADO43A-153

❑

15 ±20%

2520

0.290

0.52

ADO43A-223

❑

22 ±20%

2520

0.378

0.48

ADO43A-333

❑

33 ±10%

2520

0.540

0.37

ADO43A-473

❑

47 ±10%

2520

0.844

0.33

ADO43A-683

❑

68 ±10%

2520

1.200

0.28

ADO43A-104

❑

100 ±10%

1

1.450

0.260

ADO43A-154

❑

150 ±10%

1

1.900

0.210

ADO43A-224

❑

220 ±10%

1

2.850

0.160

ADO43A-334

❑

330 ±10%

1

4.010

0.145

ADO43A-474

❑

470 ±10%

1

6.500

0.120

ADO43A-684

❑

680 ±10%

1

10.10

0.100

ADO43A-105

❑

1000 ±10%

1

20.00

0.075

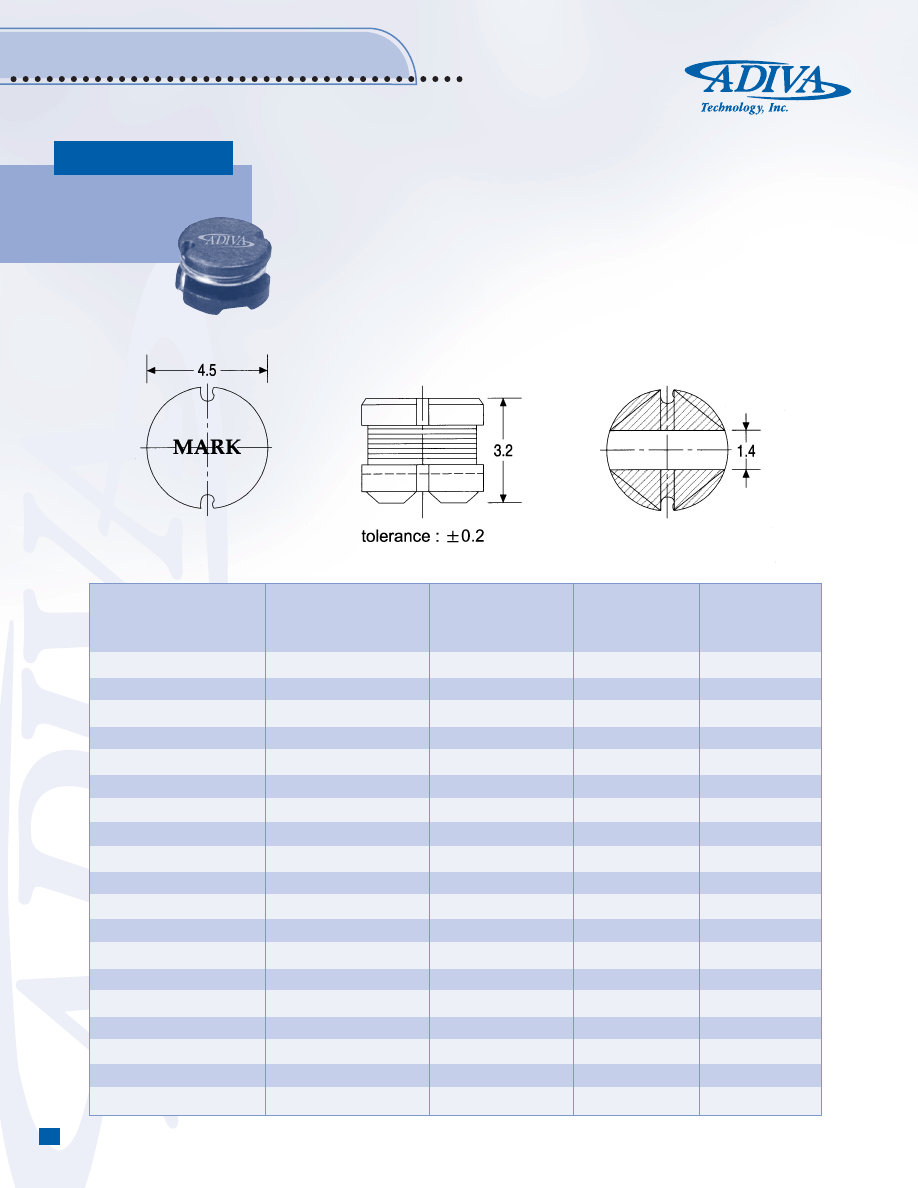

UNIT DIMENSION (unit: mm)
