ADO75A

www.adivatech.com

(888) 30-ADIVA (23482)

O

142

Power Inductors

ADO75A Series

Surface Mount

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.

BENEFITS

Frequency Range:

0.1 ~ 10 MHz

Inductance Range:

1.8 ~ 470 uH

Tested:

* KHz and 0.05V

Operating Temperature Range:

-40ºC to +85ºC

Inductance

measured by HP 4194A, impedance

and gain phase analyzer.

Inductance Drop

10% at rated current

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

FREQUENCY*

DC

RATED

(uH)

(KHz)

RESISTANCE (

Ω

)

CURRENT (A)

max.

max.

ADO75A-182

❑

1.8 ±20%

7960

0.035

3.50

ADO75A-272

❑

2.7 ±20%

7960

0.041

3.30

ADO75A-472

❑

4.7 ±20%

7960

0.048

3.00

ADO75A-682

❑

6.8 ±20%

7960

0.055

2.70

ADO75A-822

❑

8.2 ±20%

7960

0.065

2.50

ADO75A-103

❑

10 ±20%

2520

0.07

2.10

ADO75A-123

❑

12 ±20%

2520

0.075

2.00

ADO75A-153

❑

15 ±20%

2520

0.08

1.80

ADO75A-183

❑

18 ±20%

2520

0.10

1.61

ADO75A-223

❑

22 ±20%

2520

0.11

1.50

ADO75A-273

❑

27 ±20%

2520

0.13

1.30

ADO75A-333

❑

33 ±10%

2520

0.14

1.20

ADO75A-393

❑

39 ±10%

2520

0.16

1.15

ADO75A-473

❑

47 ±10%

2520

0.20

1.10

ADO75A-563

❑

56 ±10%

2520

0.24

0.94

ADO75A-683

❑

68 ±10%

2520

0.28

0.85

ADO75A-823

❑

82 ±10%

2520

0.37

0.78

ADO75A-104

❑

100 ±10%

1

0.44

0.72

ADO75A-124

❑

120 ±10%

1

0.47

0.67

ADO75A-154

❑

150 ±10%

1

0.64

0.58

ADO75A-184

❑

180 ±10%

1

0.80

0.51

ADO75A-224

❑

220 ±10%

1

0.96

0.49

ADO75A-274

❑

270 ±10%

1

1.11

0.42

ADO75A-334

❑

330 ±10%

1

1.26

0.40

ADO75A-394

❑

390 ±10%

1

1.77

0.36

ADO75A-474

❑

470 ±10%

1

1.96

0.35

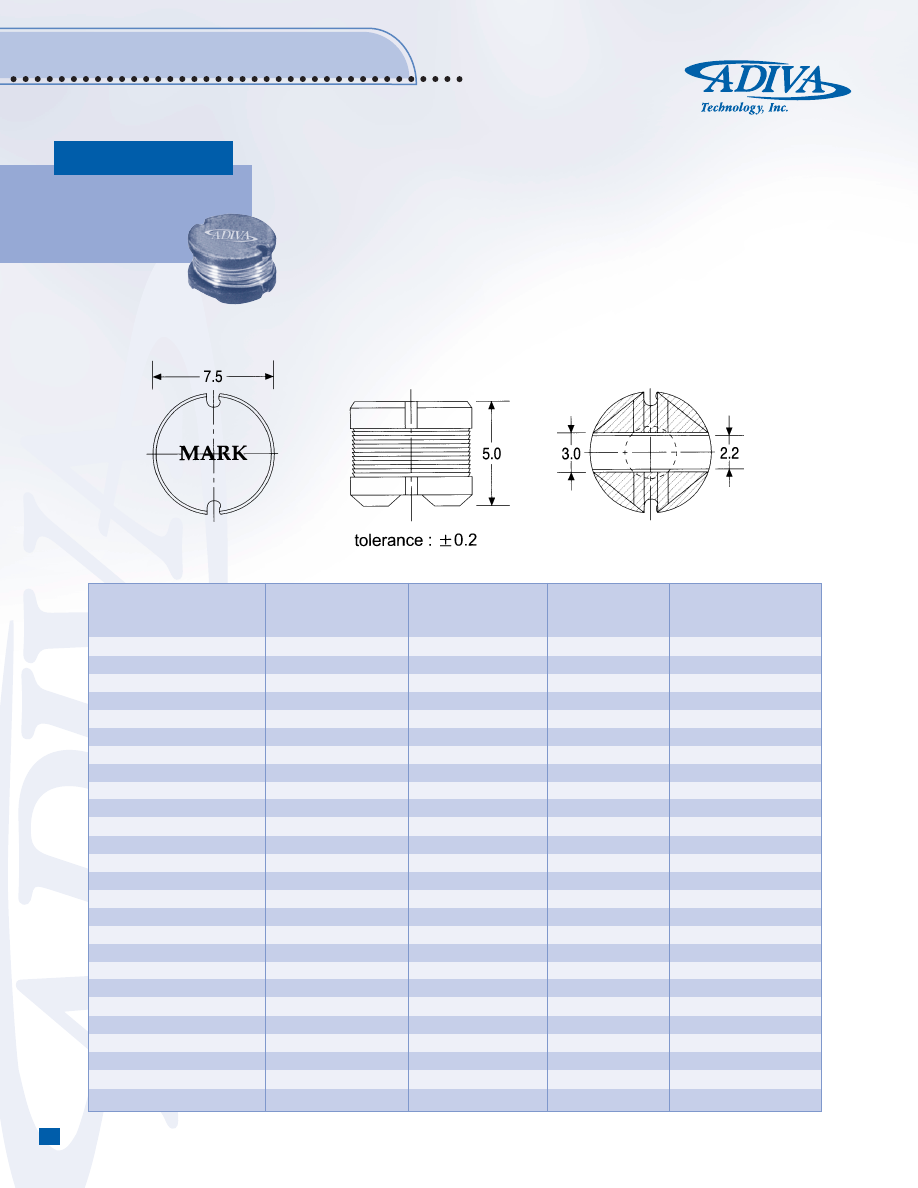

UNIT DIMENSION (unit: mm)
