www.adivatech.com

(888) 30-ADIVA (23482)

O

30

Voltage Controlled Clock OSC.

ADVCXO Series

Surface Mount & Thru Hole

-

A

6

A

A

B    -

❑

M

PACKAGE TYPE
FREQUENCY STABILITY
DUTY CYCLE
DEVIATION

FREQUENCY
OUTPUT
LINEARITY

EXAMPLE

45/55%

5

40/60%

6

±100 ppm min

A

±75ppm min

B

±50 ppm min

C

±200 ppm min

D

20%

A

15%

B

10%

C

None

Blank

TTL

A

CMOS

B

CMOS Compatible

C

Package Type

Duty Cycle

Deviation

Linearity

Output

±100 ppm

A

±50 ppm

B

±30 ppm

C

±25 ppm

D

Custom

E

Frequency Stability

ADVCXO G4 SMD

pg31

ADVCXO G6 SMD

pg31

ADVCXO I

SMD

pg32

ADVCXO H

Thru Hole pg33

www.adivatech.com

(888) 30-ADIVA (23482)

SEE PAGE 30 FOR PART NUMBERING GUIDE

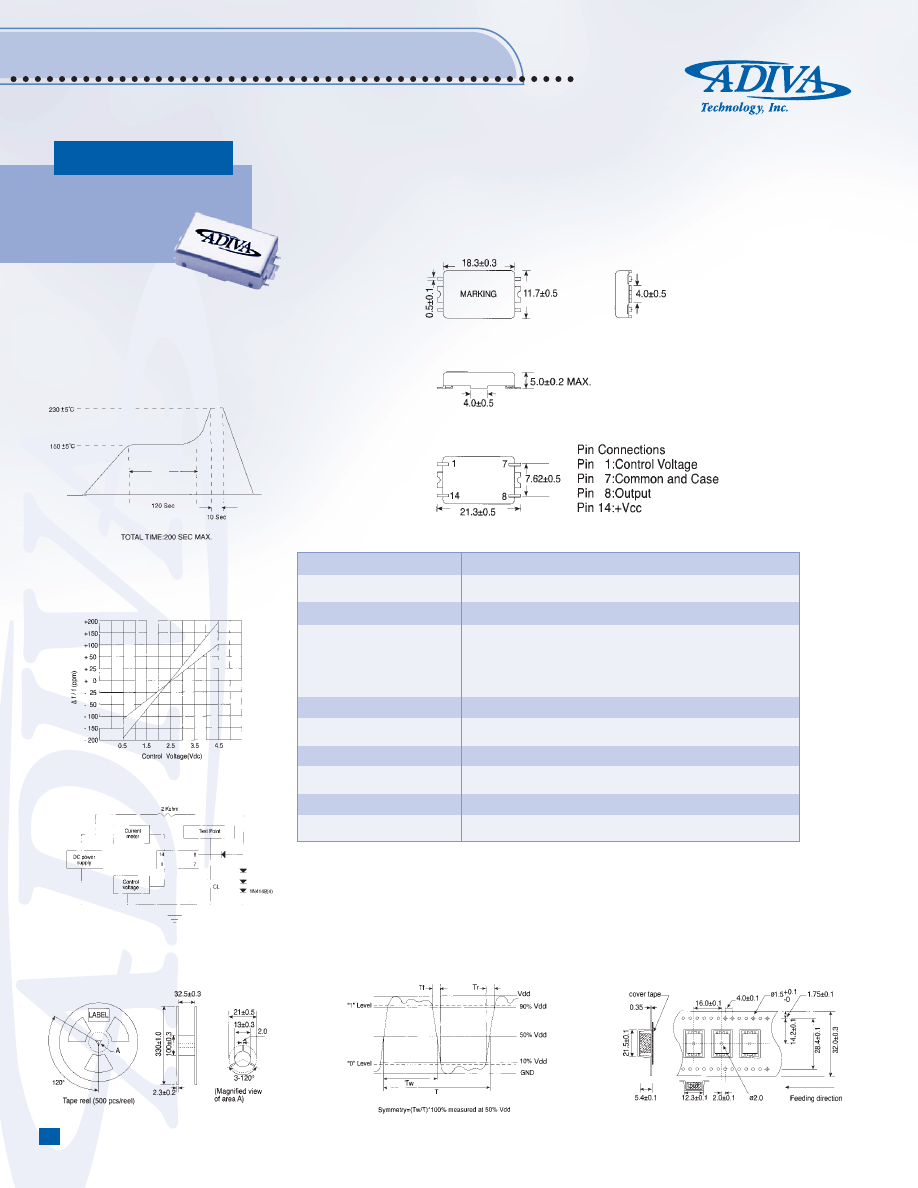

Voltage Controlled Clock OSC.

ADVCXO Series (ADVCXOI)

Surface Mount

UNIT DIMENSION (unit: mm)

OUTPUT WAVEFORM FOR CMOS

TAPE SPECIFICATIONS

TEST CIRCUIT

SOLDERING REFLOW PROFILE

REEL PACKING (UNIT: mm)

FREQUENCY/MODULATION

VOLTAGE CHARACTERISTICS

FEATURES

• Frequency adjustable
• Superior quality
• Low power consumption

• Application: Data communications,

Set top box, ADSL modem.

STANDARD SPECIFICATIONS

Package Type

ADVCXOI

Standard Frequency

8.192, 10.24, 16.384, 27, 35.328 MHz

Frequency Range

8.000 ~ 52.000 MHz

Frequency Stability

vs. Temperature Range

±50 ppm (0ºC ~ 50ºC)

±30 ppm (-20ºC ~ 60ºC)

±50 ppm (0ºC ~ 70ºC)

Custom

Frequency  Control Voltage

2.5  ±2.0 Vdc

Frequency Control Range

±100 ppm min.

Output Load

2 TTL or CMOS

Output Symmetry (Tw/T)

40% ~ 60%

Supply Voltage

5.0  ±0.25 Vdc

Aging

±5 ppm/year

ADVCXOI

O

32
