ETALDOC 705/8

Page 1 of 4

January 2001

PRODUCT DATA SHEET

LOW COST, LOW DISTORTION

P3410

LINE MATCHING TRANSFORMER

Features

Applications

∗

Low cost

∗

V.90 and V.92 modems

∗

Low distortion

∗

V.34 modems

∗

12.6mm (0.5”) seated height

∗

Industry Standard Pinout

∗

Extended Frequency Response

∗

IEC 950, UL 1950 and EN 60950 Certified

∗

UL Recognized Component

∗

BABT Certificate of Recognition

∗

Flat TX and RX Responses

∗

High thermal stability

∗

Directly replaces 9010 and EMIT-4020L

DESCRIPTION

P3410 is intended for V.90 and V.92 (56kbps)
modems and other high-speed applications where
low distortion at high power levels and very low
voiceband frequencies is required at the most
competitive price.

P3410 has extended flat frequency response from
30Hz to 4kHz with very low levels of signal
distortion at signal frequencies as low as 150Hz.

P3410 is electrically and mechanically compatible
with P3146 and P3176, and directly replaces 9010
and EMIT-4020L without changes to matching
components, but with the added benefit of
considerably improved thermal stability.

P3410 uses patented design and construction
methods to achieve excellent signal performance
and safety isolation to international standards at
truly low cost. P3410 is certified to EN 60950,
IEC 950, UL1950 and EN 41003. P3410 is a UL
Recognized Component and is supported by a
BABT Certificate of Recognition and an IEC CB
Test Certificate.

Patented

E203175

to Electronic Techniques

(Anglia) Limited

P3410

ETALDOC 705/8

Page 2 of 4

January 2001

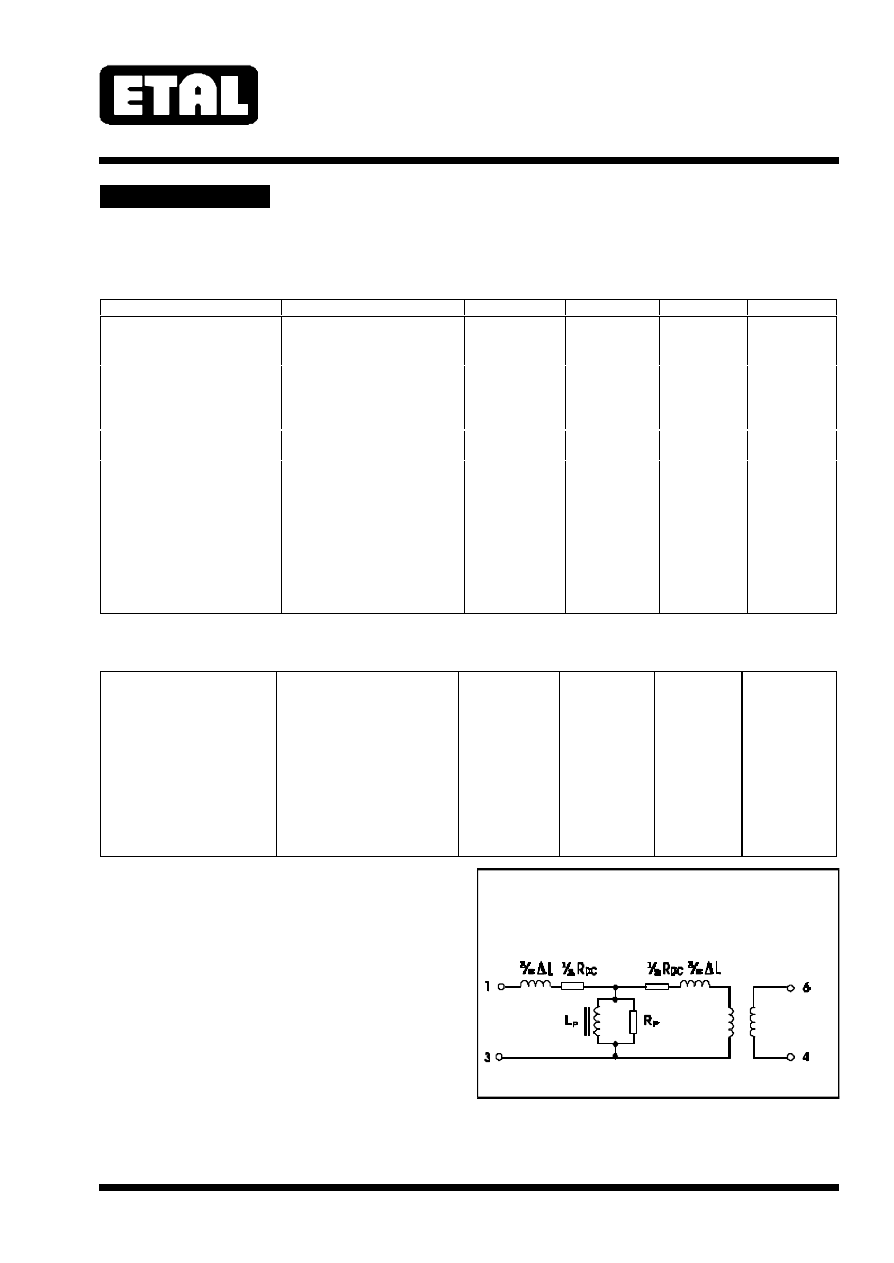

SPECIFICATIONS

Electrical

At T = 25ºC and as circuit Fig. 2 unless otherwise stated.

Parameter

Conditions

Min

Typ

Max

Units

Insertion Loss

f = 2kHz, R

= 510

Ω

= 600

Ω

-
-

2.5
1.7

-
-

dB
dB

Frequency Response

LF -3dB cutoff
HF -3dB cutoff
100Hz - 4kHz

-
-
-

±0.6

-
-
-

kHz

Return Loss

200Hz - 4kHz

Third Harmonic
Distortion

(1)

450Hz 0dBm in line
150Hz –3dBm

-
-

-85
-78

-
-

dBm
dBm

Voltage
isolation

(2)

50Hz
DC

2.12

3.0

-
-

kVrms

Operating range:
Functional
Storage

Ambient temperature

-40

-
-

+70
+85

ºC
ºC

Lumped equivalent circuit parameters as Fig. 1

DC resistance R

(3)

Leakage inductance

∆

Shunt inductance Lp

Shunt loss Rp

Sum of windings

200Hz 10mV
200Hz 1V

200Hz 10mV

180

22.3

8.5

11
19

220

27.7

-
-

Ω

H
H

Ω

Notes

Third harmonic typically exceeds other
harmonics by 10dB.

Components are 100% tested at 3.25kV DC.

Caution: do not pass DC through windings.
Telephone line current, etc. must be diverted
using choke or semiconductor line hold circuit.

Equivalent Circuit

IDEAL

1:1

Fig 1

P3410

ETALDOC 705/8

Page 3 of 4

January 2001

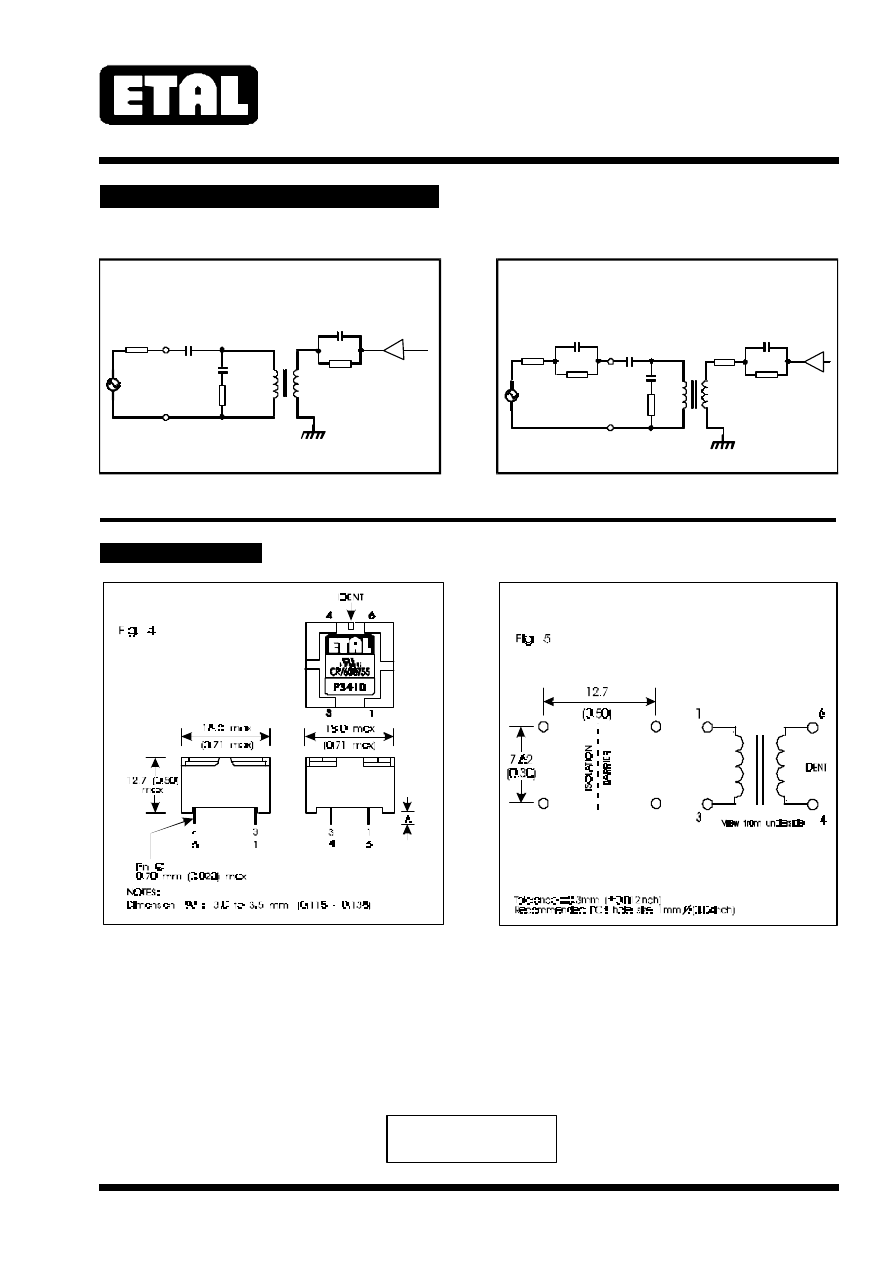

MATCHING RECOMMENDATIONS

CONSTRUCTION

Dimensions shown are in millimetres (inches).
Geometric centres of outline and pin grid coincide within a tolerance circle of 0.6mm
Windings may be used interchangeably as primary or secondary.

Recommended Circuit

Fig 2

LINE

600

33nF

330

2 2 F

600 MATCH

Ω

EUROPEAN CTR21 COMPLEX MATCH

Recommended Circuit

Fig 3

LINE

270

68nF

100

750

2 2 F

150nF

510

39nF

910

100nF

120

Connections

Patented

Dimensions

P3410

ETALDOC 705/8

Page 4 of 4

January 2001

SAFETY

ABSOLUTE MAXIMUM RATINGS

(Ratings of components independent of circuit).

Constructed in accordance with IEC950:1991,
EN60950:1992 (BS7002:1992), supplementary
insulation, 250Vrms maximum working voltage,
flammability class V-0.

There are no special installation requirements
(beyond attending to usual PCB track separations)
since the integral cover provides supplementary
insulation from its external faces to internal core
and windings.

Short term isolation voltage (1s)

DC current
Storage temperature

Lead temperature, 10s

2.12kVrms,
3.0 kVDC
100

-40ºC to
+85ºC
260ºC

CERTIFICATION

COPYRIGHT

Certified under the IEC CB scheme (Certificate
GB445W) to IEC 950:1991, up to amendment 4, sub-
clauses 1.5, 1.5.1, 1.5.3, 2.2, 2.2.3, 2.2.4, 2.9.2, 2.9.3,
2.9.4, 4.4, 4.4.3.2 (class V-0) and 5.3 for a maximum
working voltage of 250Vrms, nominal mains supply
voltage not exceeding 300Vrms and a maximum
operating temperature of 70ºC in Pollution Degree
2 environments.

Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian requirements CAN/CSA C22.2
No. 950-95/UL1950, Third Edition, including revisions
through to revision date March 1, 1998, based on
Fourth Amendment of IEC 950, Second Edition,
maximum working voltage 250Vrms, Pollution Degree
2, supplementary insulation.

UL File number E203175.
Approved and certified by BABT to EN 60950 and
EN 41003.
BABT Certificate of Recognition 608755

Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
2.12kVrms, 3kV DC minimum. All shipments are
supported by a certificate of conformity to current
applicable safety standards.

ETAL, P3410, P3176 and P3146 are Trade Marks
of Profec Technologies Ltd.
The Trade Mark ETAL is registered at the UK
Trade Marks Registry.

Profec Technologies Ltd. is the owner of the
design right under the Copyright Designs and
Patents Act 1988 and no rights or licences are
hereby granted or implied to any third party.

P3410 design and construction are protected by
patents and registered design.
British Patent No. 2340667.
UK Registered Design No. 2077360.
French Registered Design No. 991512.
Germany Registered Design 49902311.0.
United States Registered Design 426,815.
Other patents and registered designs pending.
