www.adivatech.com

(888) 30-ADIVA (23482)

O

34

Temp. Controlled Oscillators

ADVTCXO & ADVCTCXO Series

SMD & Thru Hole

-

B

B

10

5  -

❑

M

PACKAGE TYPE
FREQUENCY STABILITY
vs. TEMPERATURE
OUTPUT

FREQUENCY
VOLTAGE
FREQUENCY DEVIATION

EXAMPLE

ADTCXOH

SMD

pg36

ADTCXOI

SMD

pg36

ADTCXOJ

SMD

pg36

ADTCXOK

SMD

pg36

ADTCXOL

SMD

pg36

ADVTCXOH

SMD

pg36

ADVTCXOI

SMD

pg36

ADVTCXOJ

SMD

pg36

ADVTCXOK

SMD

pg36

ADVTCXOL

SMD

pg36

ADTCXOG

Thru Hole pg37

ADVCTCXOG Thru Hole pg38

Package Type

Frequency Stability

vs. Temperature

±5ppm (0˚C~50˚C)

A

±2.5ppm (-15˚C~55˚C) B

±2.5ppm (-30˚C~75˚C) C
Custom

D

Frequency Deviation

No Connection

BLANK

±5ppm min

5

±10ppm min

10

3.3V

3

5.0V

5

Voltage

TTL

A

CMOS

B

CMOS Compatible

C

Clipped SINEwave

D

Output

ADVCTCXOH-L

www.adivatech.com

(888) 30-ADIVA (23482)

O

36

SEE PAGE 34 FOR PART NUMBERING GUIDE

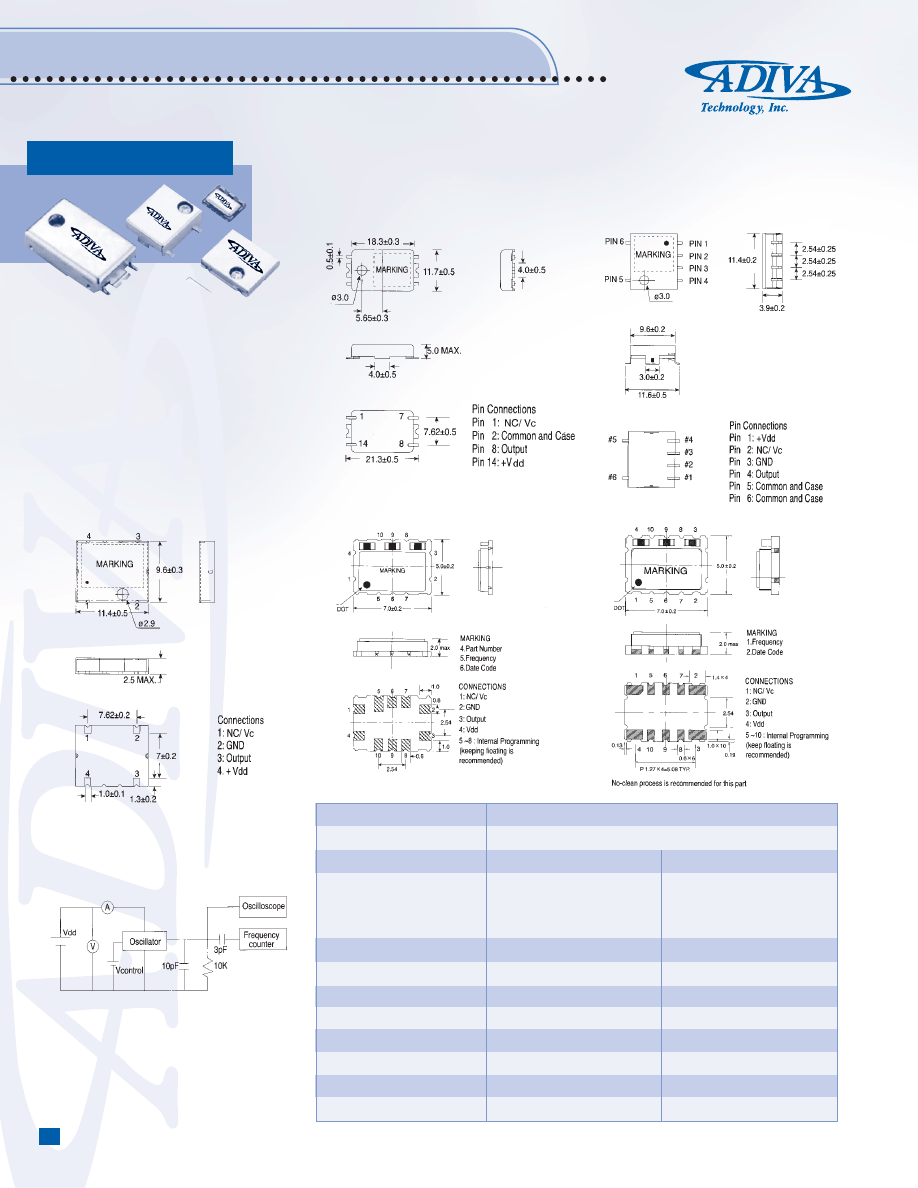

Voltage & Temp. Controlled OSC.

ADVCTCXO Series (H, I, J, K, L)

Surface Mount

ADVCTCXOH (unit: mm)

ADVCTCXOJ (unit: mm)

ADVCTCXOK (unit: mm)

ADVCTCXOL (unit: mm)

ADVCTCXOI (unit: mm)

TEST CIRCUIT

*TTL/CMOS output level available (depended on custom requirement).

FEATURES

• Ultra miniature package suitable for portable products.
• Excellent frequency stability and aging.
• Custom requirements available.

• Application: Cellular/PCS handsets, Wireless platforms

(MMDS, LMDS, Base station satellite communications).

STANDARD SPECIFICATIONS

Package Type

ADVCXOH, ADVCXOI, ADVCXOJ, ADVCXOK, ADVCXOL

Standard Frequency

9.6, 10, 12, 12.8, 13, 14.4, 15.36, 19.68, 20 MHz

Frequency Range

9.6 ~ 35 MHz

9.6 ~ 35 MHz

Frequency Stability
vs. Temperature Range

±5 ppm (0ºC ~ 50ºC)

±2.5 ppm (-15ºC ~ 55ºC)

±2.5 ppm (-30ºC ~ 75ºC)

Custom

Frequency Stability vs. Voltage

±0.3 ppm (Vdd ±5%)

±0.3 ppm (Vdd ±5%)

Frequency Adjustment

±3 ppm min. (tuned by internal trimmer) ±3 ppm min. (tuned by internal trimmer)

Frequency Control Range

±5 ppm min. ±12 ppm max.

1.5 ±1 Vdc

Supply Voltage

Vdd = 5V

Vdd = 3V

Output Level (Clipped Sinewave)*

1.0 Vpp  min.

0.8 Vpp  min.

Supply Current

2 mA max.

2 mA max.

Output Load

10K

Ω

//10 pF

10K

Ω

//10 pF

Aging

±1 ppm/year

±1 ppm/year
