Wire Wound Chip
ADWIA Series
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Surface Mount
FEATURES
• Operating Temperature: -40ºC to 85ºC.
• Excellent solderability and resistance to soldering heat.
• Suitable for flow and reflow soldering.
• Good dimensions, high reliability, and easy surface
mount assembly.
• 3 types of materials provide wide range of
induction value for flexible needs.
INTRODUCTION
The ADWIA series are wire wound type chip inductors widely used in the communication applications such
as cellular phones, pagers, television tuners, radios, and other electronic devices. The wire wound features
advance in higher self resonate frequency, better Q factor, and much stabler performance.
SPECIFICATIONS
LENGTH (L)
WIDTH (W)
THICKNESS (T)
TERMINAL (S)
SIZE
(inch)
(inch)
(inch)
(inch)
mm
mm
mm
mm

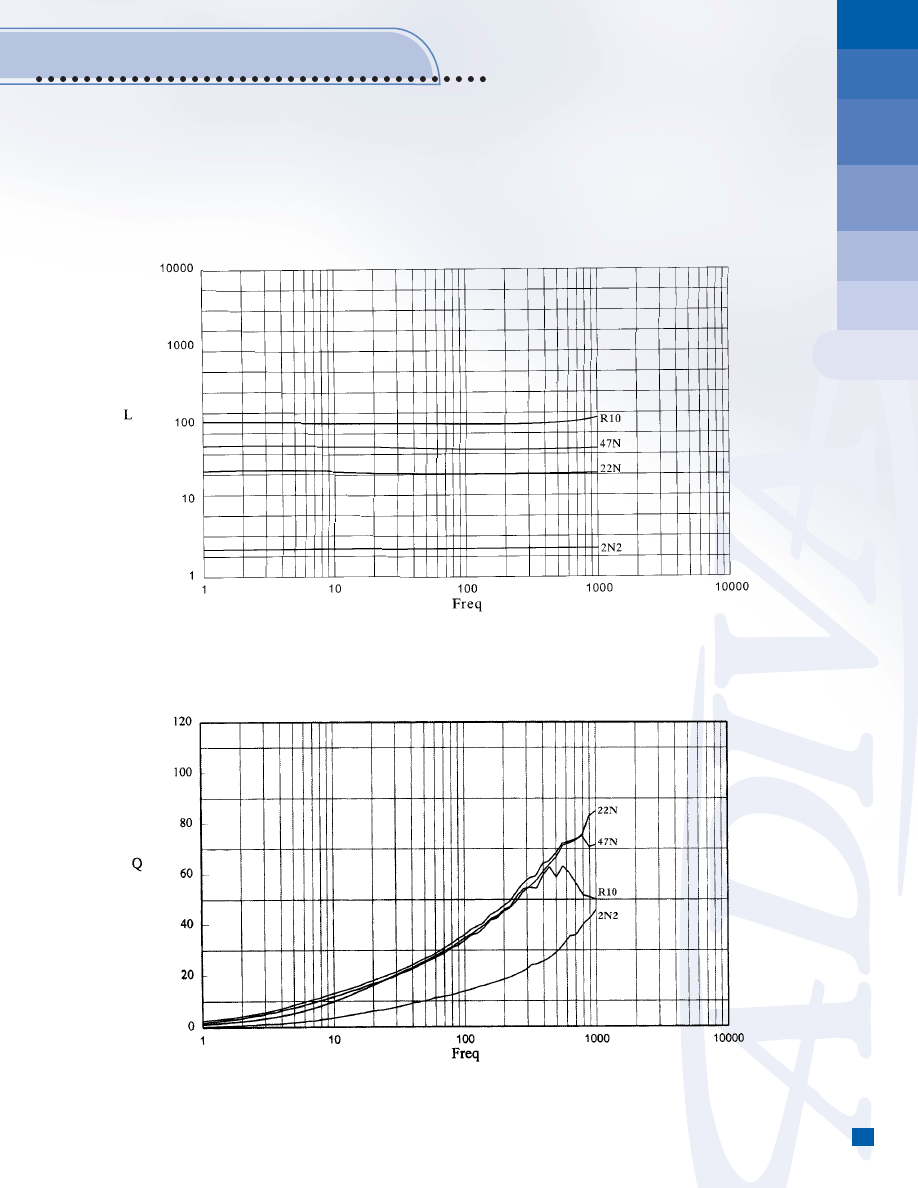

ADWIA-0603
(0.063 ± 0.008)
(0.041 ± 0.008)
(0.041 ± 0.008)
(0.014 ± 0.004)
1.60 ± 0.2
1.05 ± 0.2
1.05 ± 0.2
0.35 ± 0.1
ADWIA-0805
(0.080 ± 0.008)
(0.050 ± 0.008)
(0.048 ± 0.008)
(0.016 ± 0.004)
2.00 ± 0.2
1.25 ± 0.2
1.20 ± 0.2
0.40 ± 0.1
ADWIA-1008
(0.098 ± 0.008)
(0.063 ± 0.008)
(0.063 ± 0.008)
(0.020 ± 0.004)
2.5 ± 0.2
2.00 ± 0.2
1.60 ± 0.2
0.50 ± 0.1

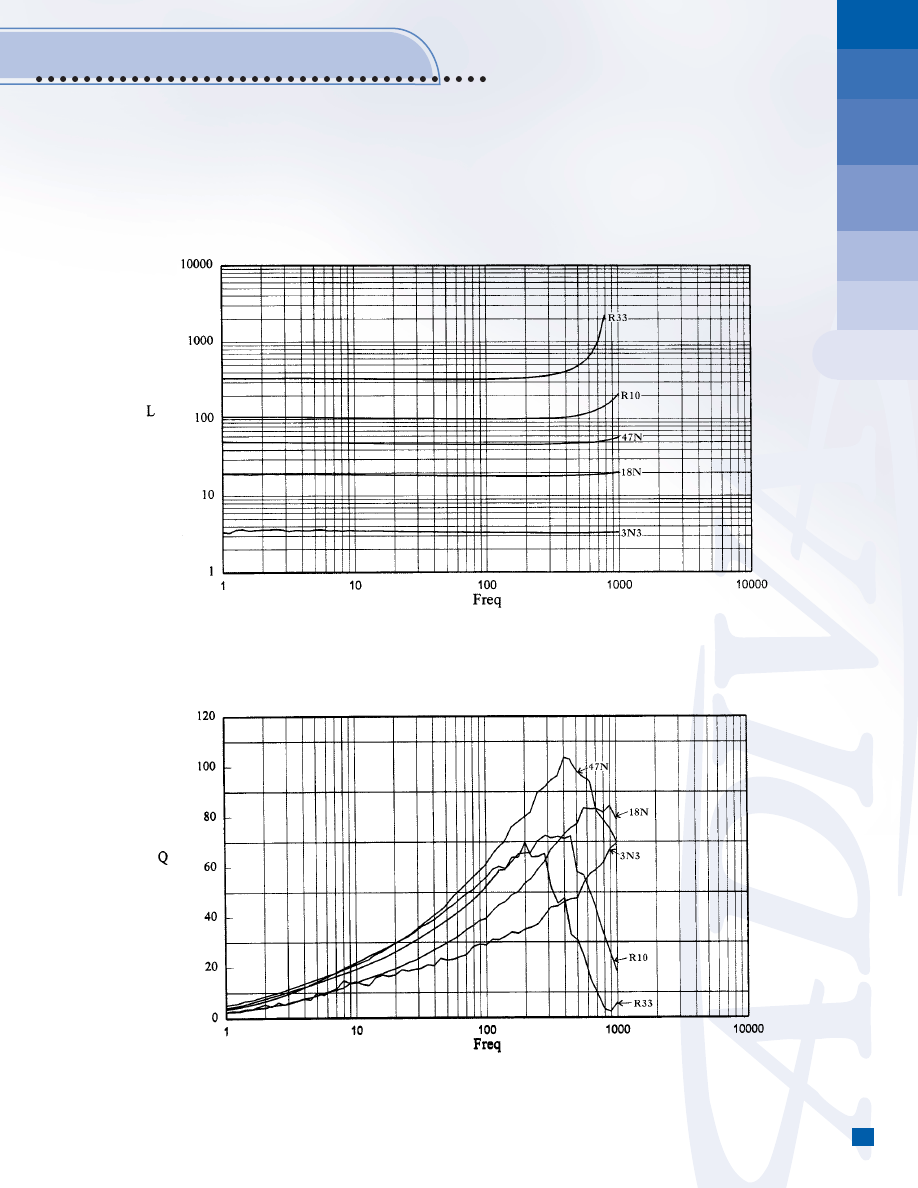

ADWIA-1210
(0.126 ± 0.008)
(0.098 ± 0.008)
(0.087 ± 0.008)
(0.020 ± 0.004)
3.20 ± 0.2
2.50 ± 0.2
2.20 ± 0.2
0.50 ± 0.1
ADWIA
❑
-
1608 - CS - 3N3 - J -
T
PACKAGE TYPE
ADWIA: WIRE WOUND
CHIP DIMENSION
MATERIAL TYPE:
CS: CERAMIC
FS: FERRITE
TAPE & REEL
TOLERANCE:
B = ±0.15 NH
S = ±0.30 NH
G = ±2%
J = ±5%
K = ±10%
INDUCTANCE VALUE:
3N3 = 3.3 NH
33N = 33 NH
R33 = 330 NH
3R3 = 3.3 UH
330 = 33 UH
331 = 330 UH
PART NUMBERING GUIDE
ADWIA
