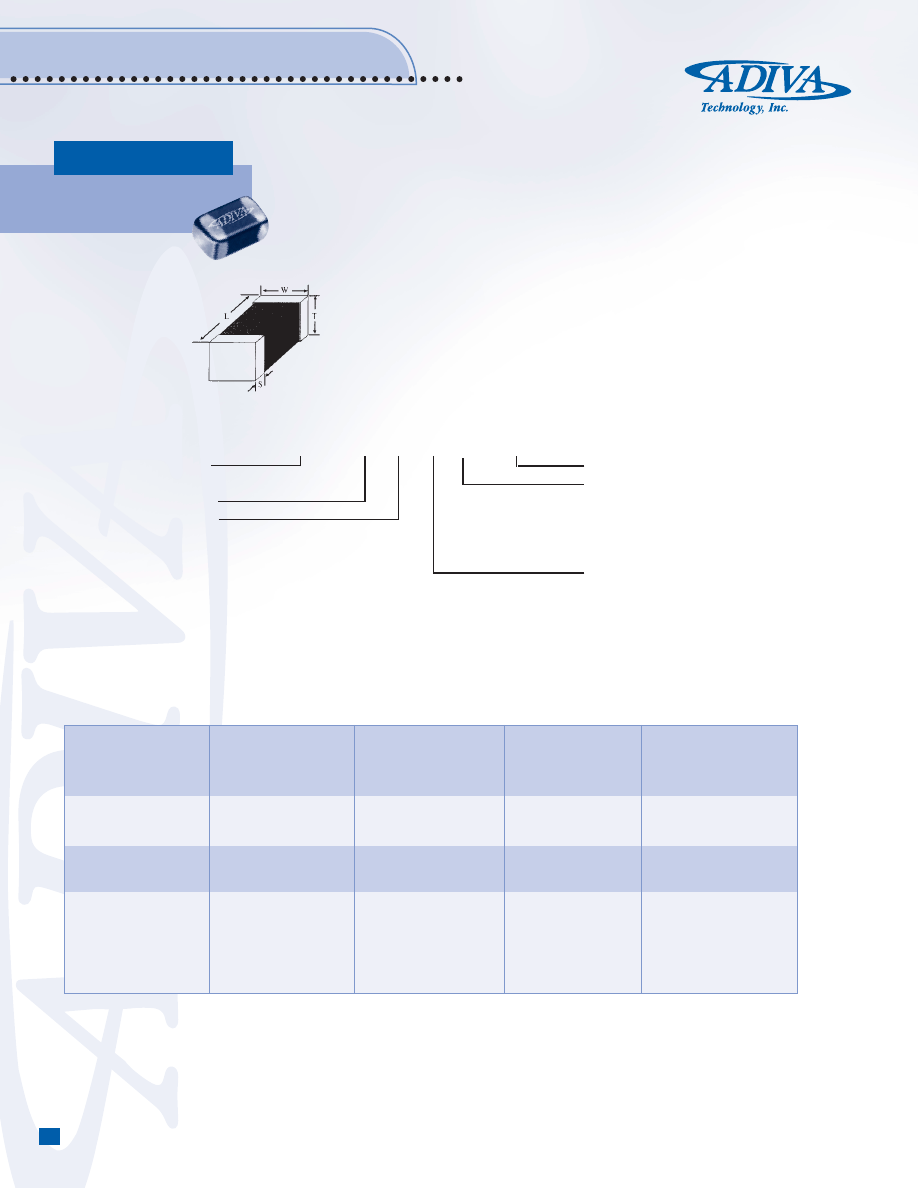

Multilayer Chip

ADMLIA Series

Surface Mount

FEATURES

• Operating Temperature: -40ºC to 85ºC.
• Excellent solderability and resistance to soldering heat.
• Suitable for flow and reflow soldering.

• Good dimensions, high reliability, and easy surface

mount assembly.

• 3 types of materials provide wide range of

induction value for flexible needs.

INTRODUCTION

The ADMLIA series are chip inductors widely used in the communication applications such as cellular phones,

pagers, computers and other electronic devices. The device features in magnetic shielding which avoids cross

coupling and crosstalk.

SPECIFICATIONS

LENGTH (L)

WIDTH (W)

THICKNESS (T)

TERMINAL (B)

SIZE

(inch)

(inch)

(inch)

(inch)

mm

mm

mm

mm

AMLIA-1005

(0.040 +/- 0.004)

(0.020 +/- 0.004)

(0.020 +/- 0.004)

(0.0092 +/- 0.004)

1.0 +/- 0.10

0.50 +/- 0.10

0.50 +/- 0.10

0.23 +/- 0.10

ADMLIA-1608

(0.063 ± 0.006)

(0.031 ± 0.006)

(0.031 ± 0.006)

(0.016 ± 0.004)

1.60 ± 0.15

0.80 ± 0.15

0.80 ± 0.15

0.30 ± 0.1

ADMLIA-2012

(0.080 ± 0.008)

(0.050 ± 0.008)

(0.033 ± 0.008)

(0.020 ± 0.012)

2.00 ± 0.2

1.25 ± 0.2

0.85 ± 0.2

0.50 ± 0.30

ADMLIA-2012

(0.080 ± 0.008)

(0.050 ± 0.008)

(0.050 ± 0.008)

(0.020 ± 0.012)

2.00 ± 0.2

1.25 ± 0.2

1.25 ± 0.2

0.50 ± 0.30

ADML1A

❑

-

1608 - FS - 68N - K    -

T

PACKAGE TYPE

ADMLIA: MULTILAYER

CHIP DIMENSION
MATERIAL TYPE:

CS: CERAMIC
FS: FERRITE

TAPE & REEL
TOLERANCE:

B = ±0.15 NH
S = ±0.30 NH
G = ±2%
J = ±5%
K = ±10%

INDUCTANCE VALUE:

S = ±0.30 nH
D = ±0.50 nH
J = ±5%
K = ±10%
M = ±20%

PART NUMBERING GUIDE

ADMLIA

www.adivatech.com

(888) 30-ADIVA (23482)

O

90

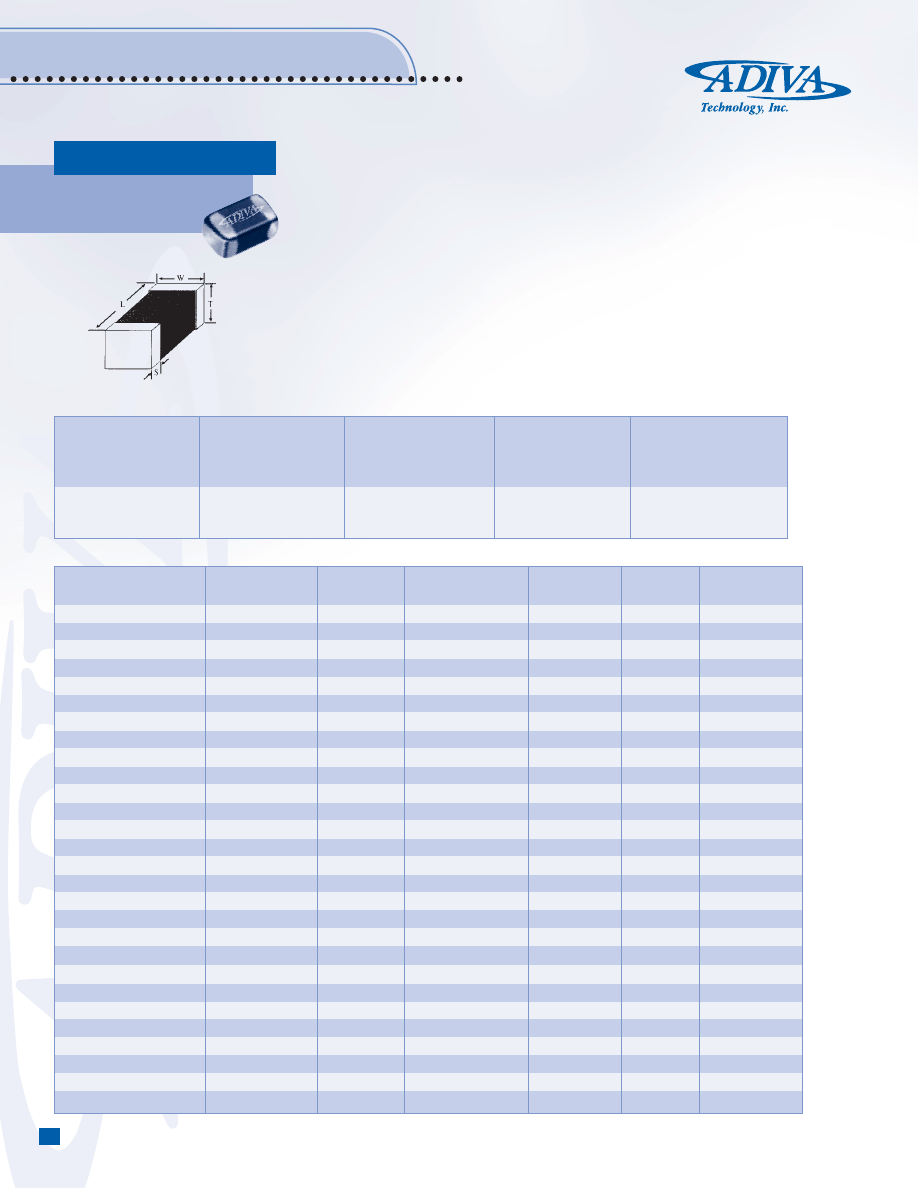

Multilayer Chip

ADMLIA Ferrite Series

Surface Mount

SPECIFICATIONS

LENGTH (A)

WIDTH (B)

THICKNESS ( C)

TERMINAL (S)

SIZE

(inch)

(inch)

(inch)

(inch)

mm

mm

mm

mm

ADMLIA-1608

(0.063 ± 0.006)

(0.031 ± 0.006)

(0.031 ± 0.006)

(0.016 ± 0.004)

1.60 ± 0.15

0.80 ± 0.15

0.80 ± 0.15

0.30 ± 0.1

FEATURES

• Operating Temperature: -40ºC to 85ºC.
• Excellent solderability and resistance to soldering heat.
• Suitable for flow and reflow soldering.

• Good dimensions, high reliability, and easy surface

mount assembly.

• 3 types of materials provide wide range of

induction value for flexible needs.

INTRODUCTION

The ADMLIA series are chip inductors widely used in the communication applications such as cellular phones,

pagers, computers and other electronic devices. The device features in magnetic shielding which avoids cross

coupling and crosstalk.

1

Inductance is measured in HP-4291B impedance analyzer with HP-16192 fixture.

2

Q is measured in HP-4291B impedance analyzer with HP-16192 fixture.

3

SRF is measured in HP-8753E RF network analyzer with HP-16192 fixture.

4

RDC is measured in HP-4338B millohmeter.

5

For 15ºC Rise.

ADMLIA-1608FS (0603) SERIES STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

1

PERCENT

Q

2

S.R.F.

3

RDC

4

IDC

5

(uH)

TOLERANCE

min.

min. (MHz)

max. (

Ω

)

max. (mA)

ADMLIA-1608FS-47N

❑

-

T

0.047 @ 50 MHz

M

10 @ 50 MHz

260

0.30

50

ADMLIA-1608FS-68N

❑

-

T

0.068 @ 50 MHz

M

10 @ 50 MHz

250

0.30

50

ADMLIA-1608FS-82N

❑

-

T

0.082 @ 50 MHz

M

10 @ 50 MHz

245

0.30

50

ADMLIA-1608FS-R10

❑

-

T

0.10 @ 25 MHz

K,M

15 @ 25 MHz

240

0.50

50

ADMLIA-1608FS-R12

❑

-

T

0.12 @ 25 MHz

K,M

15 @ 25 MHz

205

0.50

50

ADMLIA-1608FS-R15

❑

-

T

0.15 @ 25 MHz

K,M

15 @ 25 MHz

180

0.60

50

ADMLIA-1608FS-R18

❑

-

T

0.18 @ 25 MHz

K,M

15 @ 25 MHz

165

0.60

50

ADMLIA-1608FS-R22

❑

-

T

0.22 @ 25 MHz

K,M

15 @ 25 MHz

150

0.80

50

ADMLIA-1608FS-R27

❑

-

T

0.27 @ 25 MHz

K,M

15 @ 25 MHz

136

0.80

50

ADMLIA-1608FS-R33

❑

-

T

0.33 @ 25 MHz

K,M

15 @ 25 MHz

125

0.85

35

ADMLIA-1608FS-R39

❑

-

T

0.39 @ 25 MHz

K,M

15 @ 25 MHz

110

1.00

35

ADMLIA-1608FS-R47

❑

-

T

0.47 @ 25 MHz

K,M

15 @ 25 MHz

105

1.35

35

ADMLIA-1608FS-R56

❑

-

T

0.56 @ 25 MHz

K,M

15 @ 25 MHz

95

1.55

35

ADMLIA-1608FS-R68

❑

-

T

0.68 @ 25 MHz

K,M

15 @ 25 MHz

90

1.70

35

ADMLIA-1608FS-R82

❑

-

T

0.82 @ 25 MHz

K,M

15 @ 25 MHz

85

2.10

35

ADMLIA-1608FS-1R0

❑

-

T

1.0 @ 10 MHz

K,M

35 @ 10 MHz

75

0.60

25

ADMLIA-1608FS-1R2

❑

-

T

1.2 @ 10 MHz

K,M

35 @ 10 MHz

65

0.80

25

ADMLIA-1608FS-1R5

❑

-

T

1.5 @ 10 MHz

K,M

35 @ 10 MHz

60

0.80

25

ADMLIA-1608FS-1R8

❑

-

T

1.8 @ 10 MHz

K,M

35 @ 10 MHz

55

0.95

25

ADMLIA-1608FS-2R2

❑

-

T

2.2 @ 10 MHz

K,M

35 @ 10 MHz

50

1.15

15

ADMLIA-1608FS-2R7

❑

-

T

2.7 @ 10 MHz

K,M

35 @ 10 MHz

45

1.35

15

ADMLIA-1608FS-3R3

❑

-

T

3.3 @ 10 MHz

K,M

35 @ 10 MHz

40

1.55

15

ADMLIA-1608FS-3R9

❑

-

T

3.9 @ 10 MHz

K,M

35 @ 10 MHz

35

1.70

15

ADMLIA-1608FS-4R7

❑

-

T

4.7 @ 10 MHz

K,M

35 @ 10 MHz

33

2.10

15

ADMLIA-1608FS-5R6

❑

-

T

5.6 @ 4 MHz

K,M

35 @   4 MHz

22

1.55

5

ADMLIA-1608FS-6R8

❑

-

T

6.8 @ 4 MHz

K,M

35 @   4 MHz

20

1.70

5

ADMLIA-1608FS-8R2

❑

-

T

8.2 @ 4 MHz

K,M

35 @   4 MHz

18

2.10

5

ADMLIA-1608FS-100

❑

-

T

10 @ 2 MHz

K,M

30 @   2 MHz

17

1.85

3

ADMLIA-1608FS

O

INDUCT

ORS

91

Multilayer Chip

ADMLIA Ferrite Series  — Continued

Surface Mount

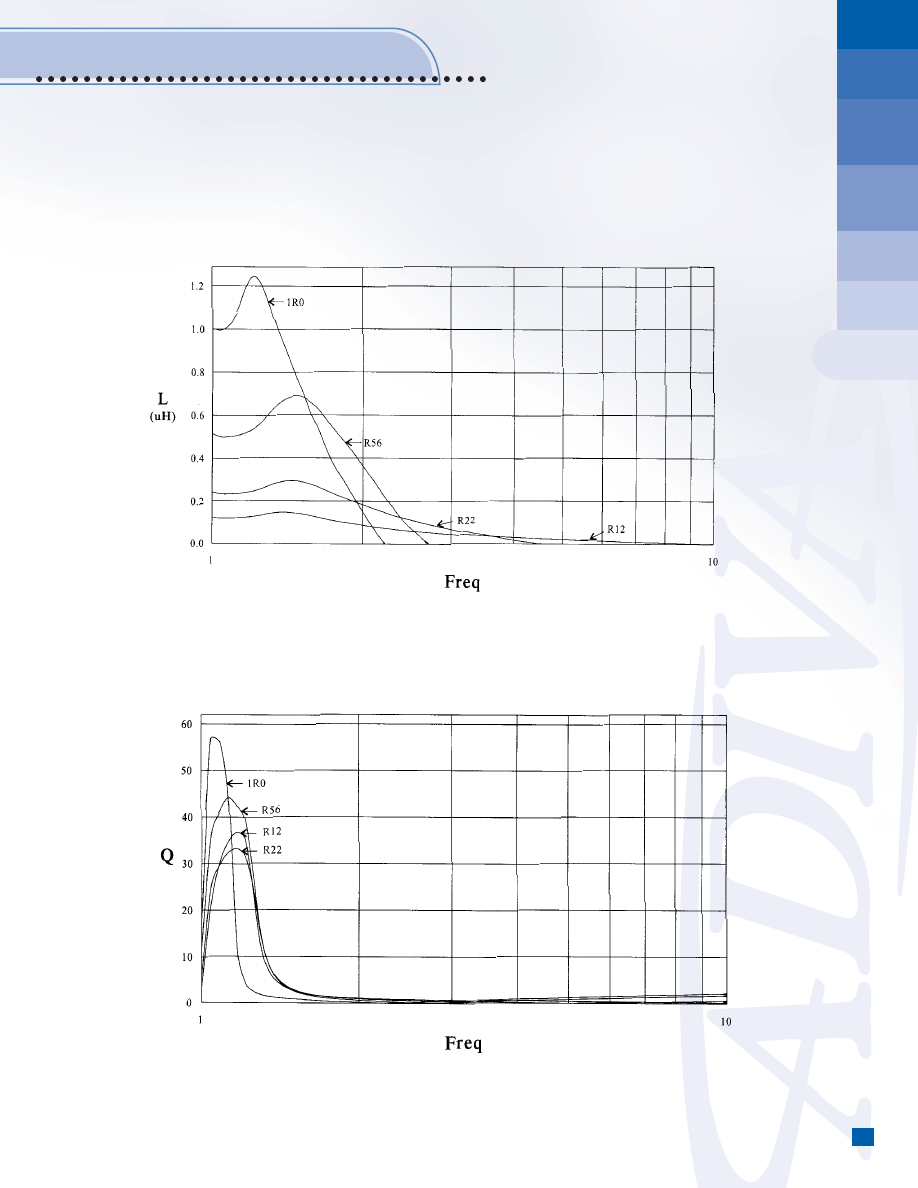

ELECTRICAL CHARACTERISTIC
