VT53



SUBMINIATURE SURFACE MOUNT VCTCXO









































TYPICAL P/N  VT53-13M0































FEATURES



10 to 26 MHz



+3.0 ±5% Vdc



5.0 mm x 3.2 mm





1.25  mm tall



2.0 mA maximum





Surface mount

13M0

=   13.000000 MHz







VT53

 =   Voltage Tune only

ELECTRICAL SPECIFICATIONS



Frequency Range:



10 - 26 MHz

Input Voltage:



3.0 Vdc ±5%

Calibration Tolerance:

±2.5 ppm at +23 ±2°C

Temperature Stability:

±2.5 ppm -30°C to +85°C

Voltage Stability:



±0.3 ppm (VDD ±5%)

Load Stability:



±0.2 ppm (RL ±5%)

Load Capacitance:



10 pF Typical

Aging at +25°C



<1.0 ppm/year

Operating Temperature:

-30°C to +85°C

Output Voltage:



0.7 VP-P minimum

Output

Format:

  Clipped

Sinewave

Input Current:



2 mA maximum

Control Voltage Range:

0.5 to 2.5 Vdc

Voltage Tuning Range:

±3.0 ppm minimum
±10 ppm typical

Harmonics



             2nd  harmonic   -3 dBc
             3rd   harmonic   -6 dBc
             4th   harmonic -10 dBc
Phase Noise (Typical)
           -115 dBc/Hz

at  100  Hz Offset

           -135 dBc/Hz

at  1.0 KHz Offset

          -140 dBc/Hz

at  10  KHz Offset

FREQUENCY STABILITY vs

TEMPERATURE

Typical Characteristics



±1.5 ppm     0 to +50°C
±2.0 ppm -25°C to +75°C
±2.5 ppm -30°C to +85°C

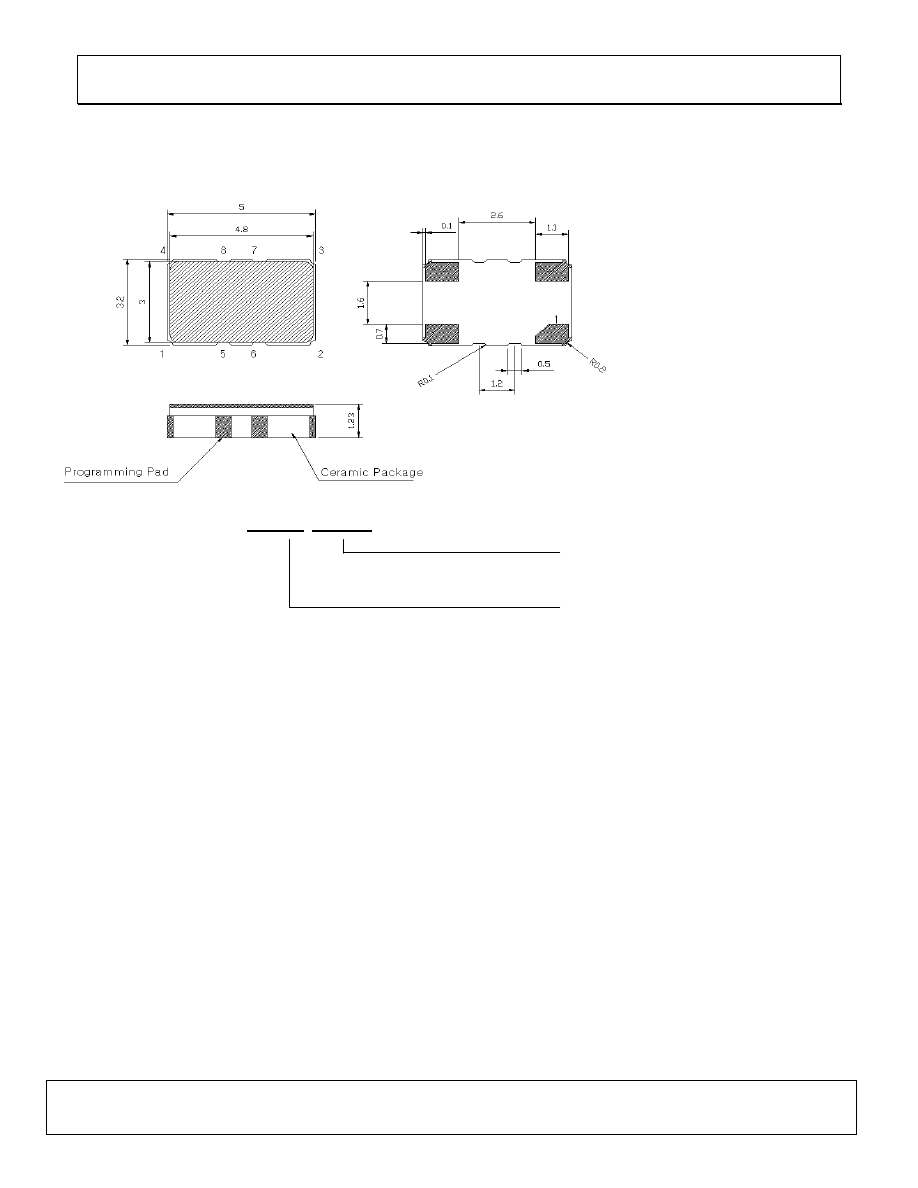

PAD CONNECTIONS


PAD 1 = Control Voltage
PAD 2 = Ground
PAD 3 = Output
PAD 4 = +3.0 Vdc
