Part Number: MS32 2R025



Ordering Different Lead Types:



Inside Kinked Leads

Not available

Outside Kinked Leads  Use

–B

 after Ametherm’s Part #

For example: to order an outside kinked lead use part number MS32 2R025-

B
















Resistance @ 25

°

C

2.0

Ω

 ± 25%

Max Steady State Current Up to 65

°

C

25 A

Max Recommended Energy Rating

300 J

Actual Failure Point of Instantaneous Energy

548.0 J

Resistance @ 100 % of Maximum Current

0.024

Ω



Resistance @ 50% of Maximum Current

0.055

Ω



Body Temperature @ Max Current

236 °

C

Dissipation Constant

65.4 mW/

°

C

Thermal Time Constant

208 seconds

Material Type

“C”

Max Recommended Capacitance @ 240/440
VAC

5200

µ

F/1500

µ

F








D

30.0 ±2.5 mm

T

6.55 ± 1.0 mm

Lead Diameter

1.0 ± 0.1 mm

S

7.8 ± 2.0 mm

L

38.0 ± 9.0 mm

Coating Run Down
Straight Leads

5.0 ± 1.0 mm

B

9.35 ± 0.85 mm

C

3.82 ± 1.0 mm











Revision Date 3/16/2004

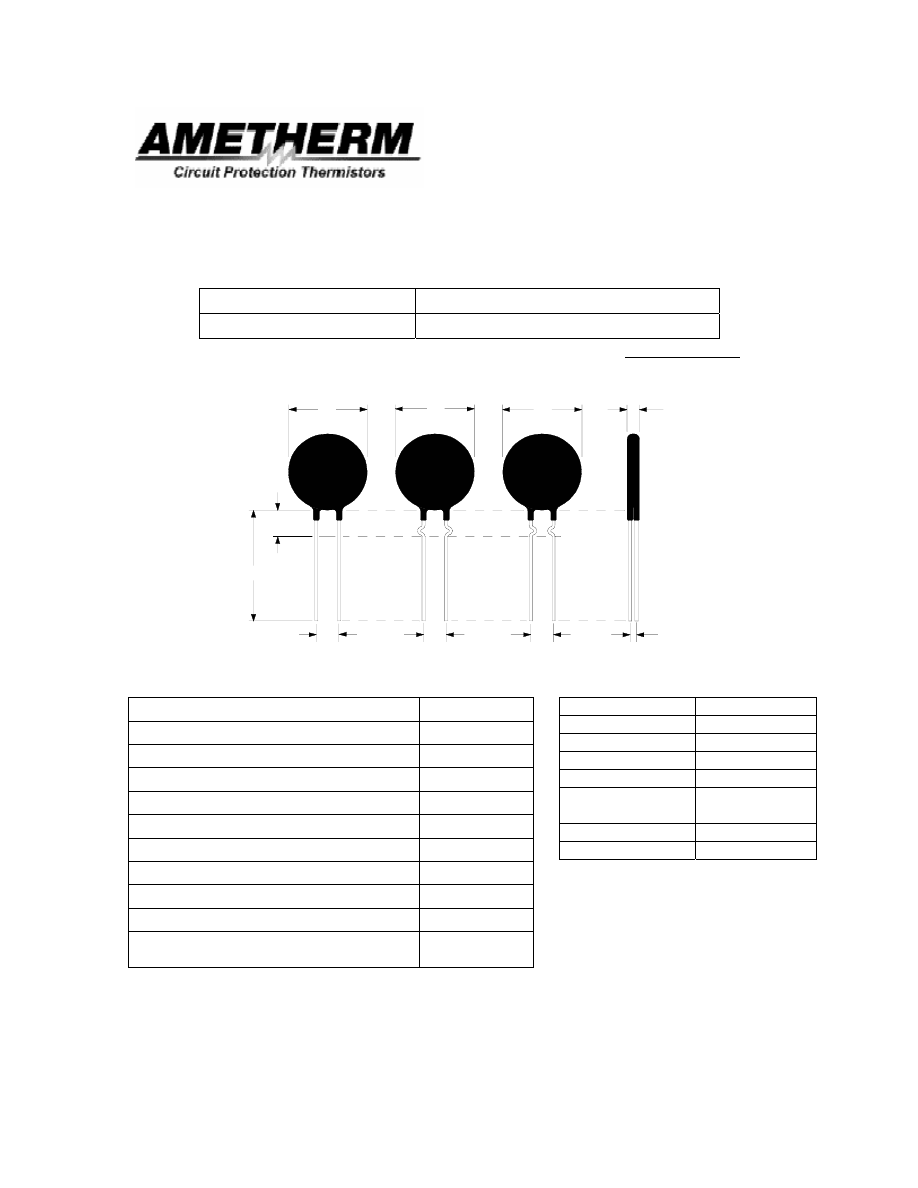

L



OUTSIDE

KINKED LEADS

S



STRAIGHT



LEADS



B



INSIDE

KINKED LEADS

S

S

D



D

D

C



T
