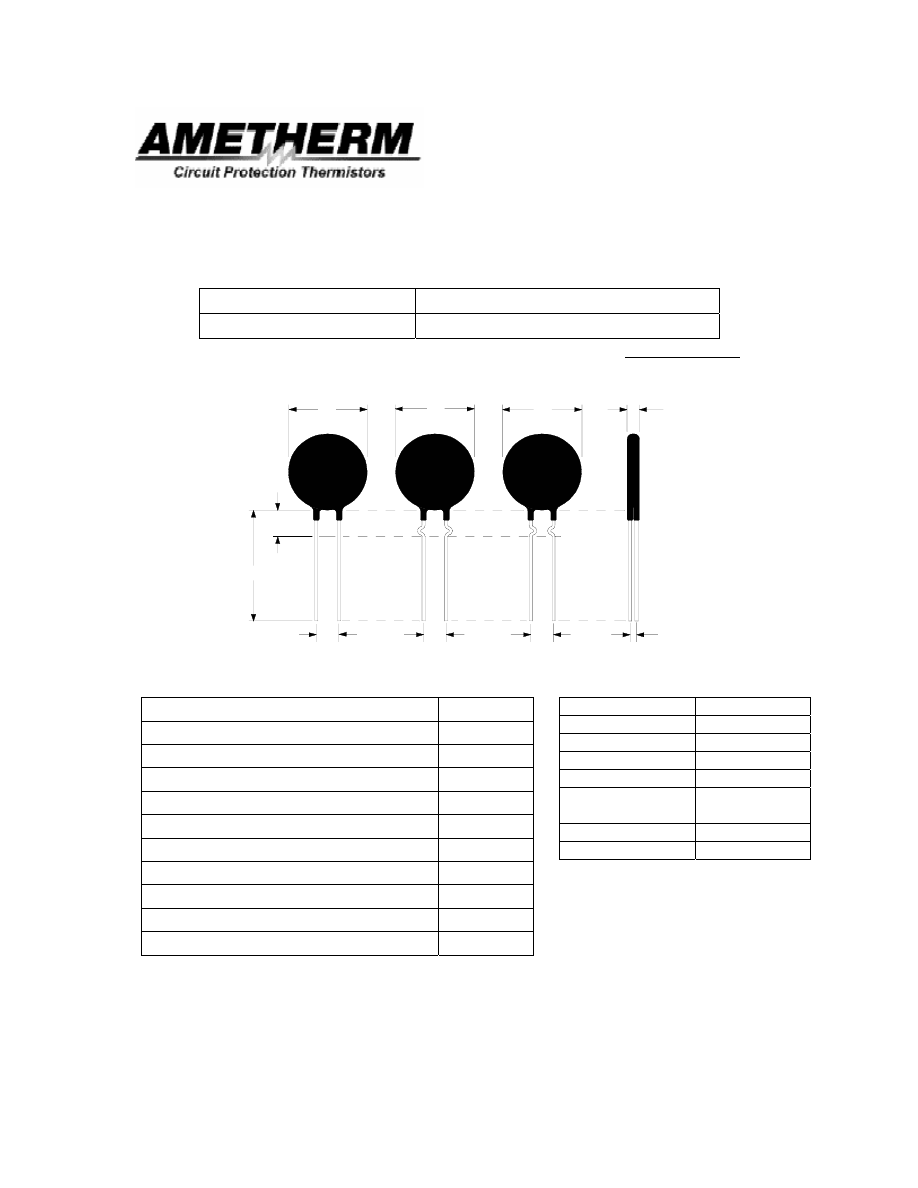

Ametherm, Inc

. 3111 N. Deer Run Road #4 Carson City, NV 89701

Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670

www.ametherm.com



DATA SHEET

Part Number: MS32 7R015



Ordering Different Lead Types:



Inside Kinked Leads

Not available

Outside Kinked Leads  Use

–B

 after Ametherm’s Part #

For example: to order an outside kinked lead use part number MS32 7R015-

B
















Resistance @ 25

°

C

7.0

Ω

 ± 20%

Max Steady State Current Up to 65

°

C

15.0 A

Max Recommended Energy Rating

250.0 J

Actual Failure Point of Instantaneous Energy

500.0 J

Resistance @ 100 % of Maximum Current

0.042

Ω



Resistance @ 50% of Maximum Current

0.158

Ω



Body Temperature @ Max Current

214

 °

C

Dissipation Constant

63.7 mW/

°

C

Thermal Time Constant

194 seconds

Material Type

“G”

Maximum Capacitance @ 440 VAC

1250

µ

F








D

30.0 ±2.5 mm

T

8.0 ± 1.0 mm

Lead Diameter

1.0 ± 0.1 mm

S

7.8 ± 2.0 mm

L

38.0 ± 9.0 mm

Coating Run Down
Straight Leads

5.0 ± 1.0 mm

B

9.30 ± 0.85 mm

C

3.82 ± 1.0 mm











Revision Date 3/16/2004

L



OUTSIDE

KINKED LEADS

S



STRAIGHT



LEADS



B



INSIDE

KINKED LEADS

S

S

D



D

D

C



T
