DATA SHEET

Part Number: SL32 0R530



Ordering Different Lead Types:



Inside Kinked Leads

Not available

Outside Kinked Leads  Use

–B

 after Ametherm’s Part #

For example: to order an outside kinked lead use part number SL32 0R230-

B
















Resistance @ 25

°

C

0.5

Ω

 ± 20%

Max Steady State Current Up to 65

°

C

30.0 A

Max Recommended Energy Rating

150.0 J

Actual Failure Point of Instantaneous Energy

295.0 J

Resistance @ 100 % of Maximum Current

0.011

Ω



Resistance @ 50% of Maximum Current

0.058

Ω



Body Temperature @ Max Current

214

°

C

Dissipation Constant

45.4 mW/

°

C

Thermal Time Constant

194 seconds

Material Type

“B”

Maximum Capacitance @ 120/240/440 VAC

10000µ

F/  2500

µ

F/775

µ

F








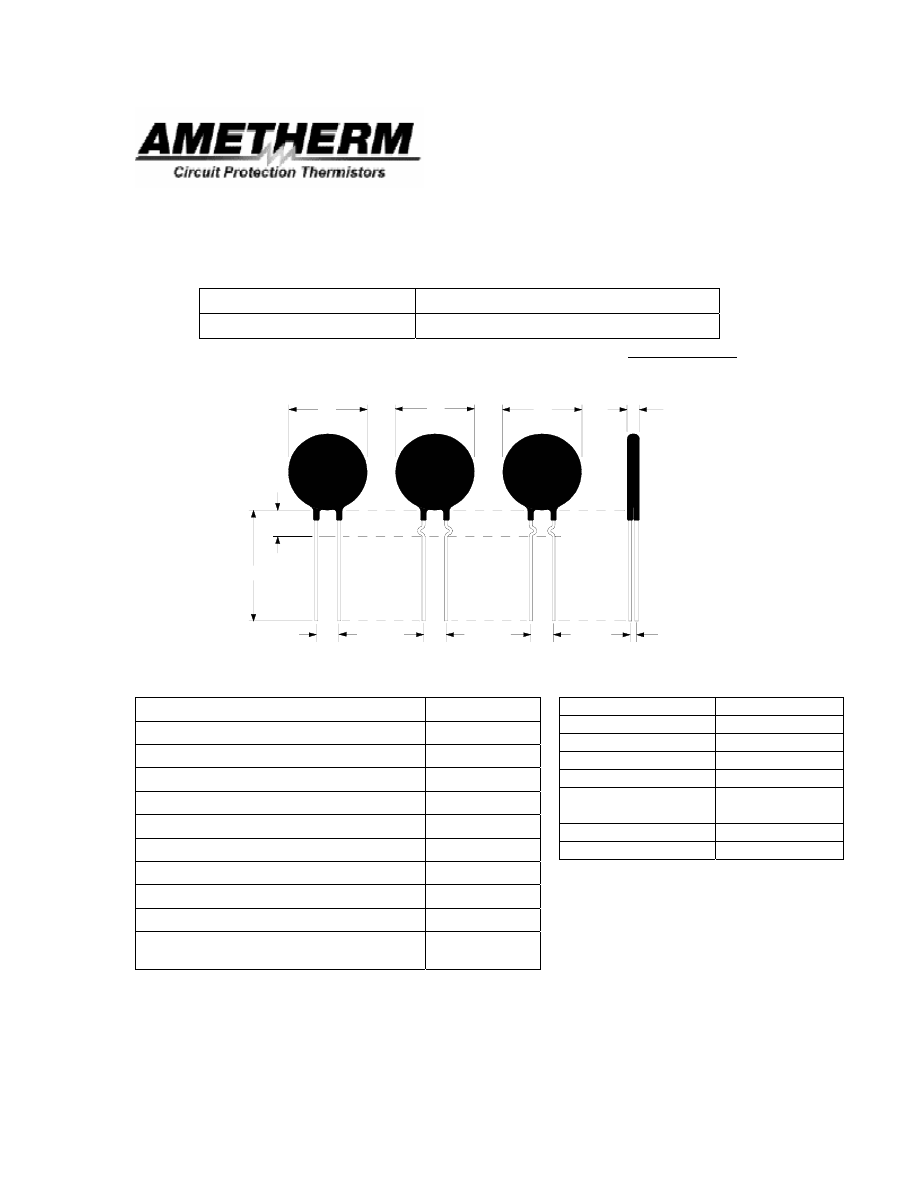

D

20.0 ± 2.5 mm

T

5.0 ± 1.0 mm

Lead Diameter

1.0 ± 0.1 mm

S

7.8 ± 2.0 mm

L

38.0 ± 9.0 mm

Coating Run Down
Straight Leads

5.0 ± 1.0 mm

B

7.5 ± 3.50 mm

C

 3.82 ± 1.0 mm











Revision Date 3/16/2004

L



OUTSIDE

KINKED LEADS

S



STRAIGHT



LEADS



B



INSIDE

KINKED LEADS

S

S

D



D

D

C



T
