CONTENTS

Recycled Paper

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U. S. A.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Part Numbering

(Part Number)

Product ID

Trimmer Capacitors

Product ID

Maximum Capacitance

Expressed by three figures. The unit is pico-farad(pF). The first
and second figures are significant digits, and the third figure
expresses the number of zeros which follow the two numbers.
If there is a decimal point, it is expressed by the capital letter "

In this case, all figures are significant digits.

Ceramic Trimmer Capacitors

Terminal Shape

Code

Terminal Shape

Top Adjustment;

Rear Adjustment;

Top Adjustment;

Rear Adjustment;

Top Adjustment;

Rear Adjustment;

Top Adjustment;

Rear Adjustment;

Top Adjustment;

Side Adjustment;

TZR1

TZS2

TZY2

TZV2

TZC3

TZW4

TZB4

(SMD Type)

TZB4

(SMD Type),

TZ03

(Lead Type)

TZB4

(Lead Type)

TZB4

(Lead Type)

TZ03

(Lead Type),

TZB4

(SMD Type)

TZ03

(Lead Type)

TZ03

(Lead Type)

TZ03

(Taping Type)

TZ03

(Lead Type)

Packaging

Code

A00

B00

M00

R00

R01

Ammo Pack (Radial Taping)

Bulk

Magazine

Reel (Taping ø180mm)

Reel (Taping ø330mm)

Packaging

Series/Terminal

Code

6mm Size Lead Type

4mm Size SMD/Lead Type

4mm Size SMD Type

3mm Size SMD Type

2mm Size SMD Type (Height 1.0mm)

2mm Size SMD Type (Height 1.25mm)

2mm Size SMD Type (Height 1.45mm)

1mm Size SMD Type (Height 0.90mm)

Series/Terminal

Temperature Characteristics

Code

NP0 ppm/

N150ppm/

N200ppm/

N450ppm/

N750ppm/

N1000ppm/

N1200ppm/

Temperature Characteristics

Please refer to dimensions for terminals in detail.

Individual Specification

Code

001

110

169

310

A10

B10

TZR1

TZS2

TZY2

TZW4

Standard Type

TZV2

TZC3

(Minus Slot) Standard Type

TZ03

Standard Type

TZC3

(Plus Slot) Standard Type

TZB4

No-cover Film Standard Type

TZB4

with Cover Film Standard Type

Individual Specifications

Please refer to ratings for tolerance of temperature characteristics.

001

R00

200

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Start

Mounting Method

Soldering Method

Insertion Method

Surface Mount

PCB Insertion

Reflow

Flow

Manual Insertion

Automatic Insertion

Height 0.90mm

max.

1.5(W) x 1.7(L)

TZR1

Height 3.2mm

max.

4.0(W) x 4.5(L)

TZB4_A

(with cover film)

TZB4_B

(with cover film)

TZB4_E

(with cover film)

Height 3.2mm

max.

4.0(W) x 4.5(L)

TZB4_C

TZB4_D

Height 5.3mm

max.

6.0(W) x 6.0(L)

TZ03_F

TZ03_E

TZ03_N

TZ03_B

Height 6.6mm

max.

6.0(W) x 6.0(L)

TZ03_T

Radial Taping Type

Height 1.00mm

max.

2.2(W) x 2.7(L)

TZS2

Height 1.25mm

max.

2.5(W) x 3.2(L)

TZY2

Height 1.45mm

max.

2.3(W) x 3.2(L)

TZV2

Height 1.7mm

max.

3.2(W) x 4.5(L)

TZC3

Height 1.8mm

max.

3.2(W) x 4.5(L)

TZC3

Height 7.7mm

max.

7.0(W) x 7.5(L)

TZ03_Y

Height 2.5mm

max.

4.2(W) x 5.2(L)

TZW4

Height 3.2mm

max.

4.0(W) x 4.5(L)

TZB4_A TZB4_B TZB4_E

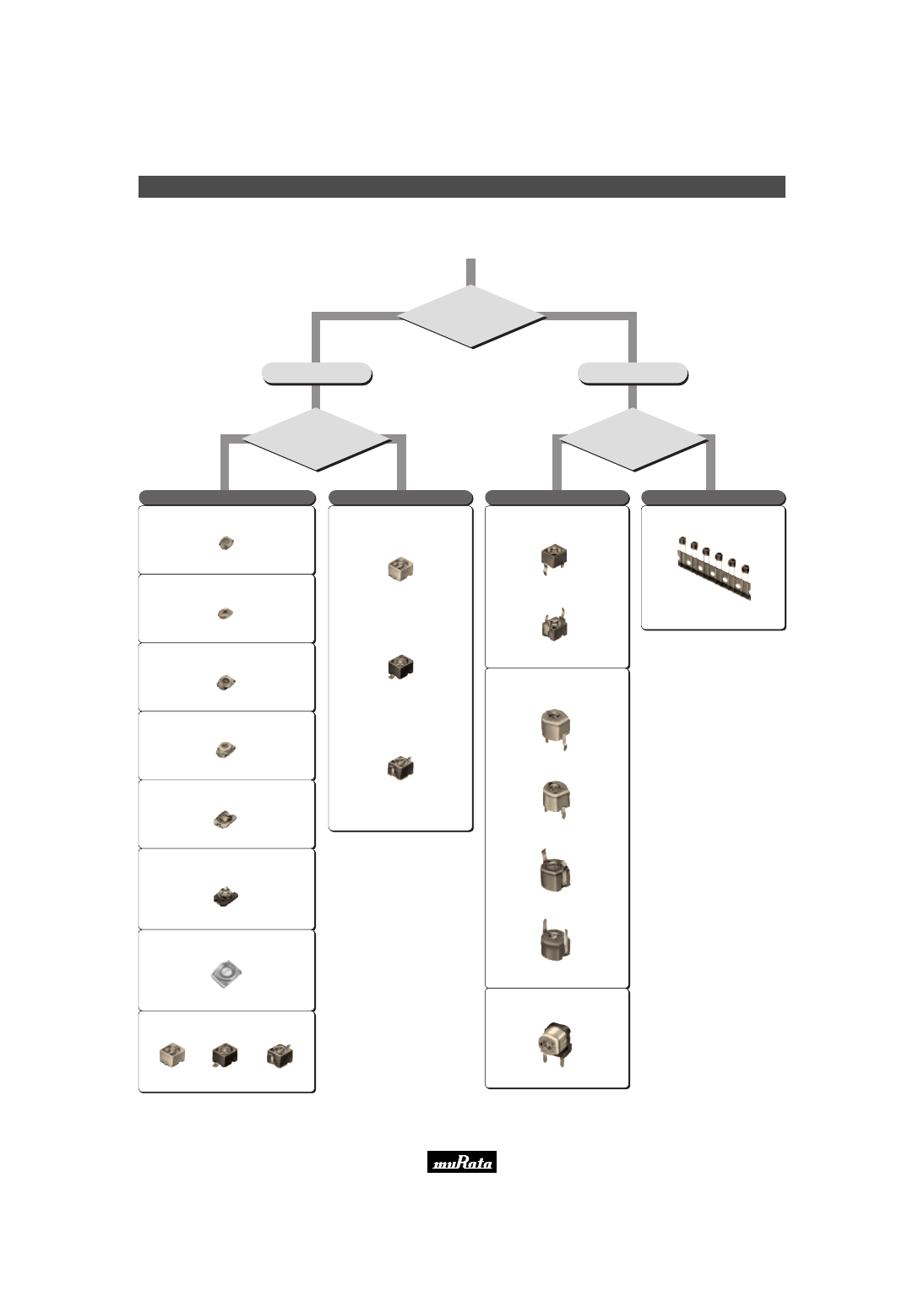

Selection Guide of Ceramic Trimmer Capacitor

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Ceramic Trimmer Capacitors

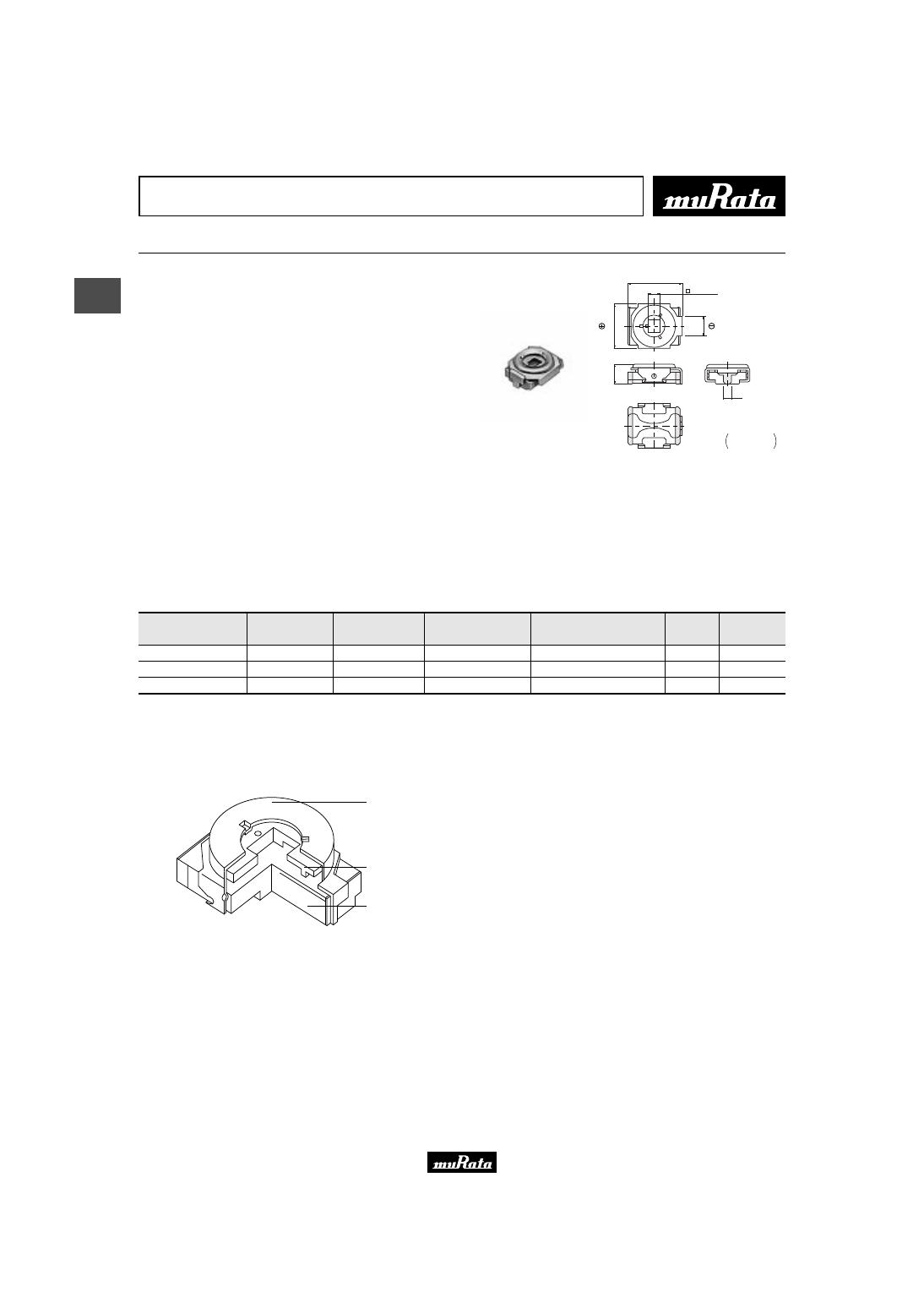

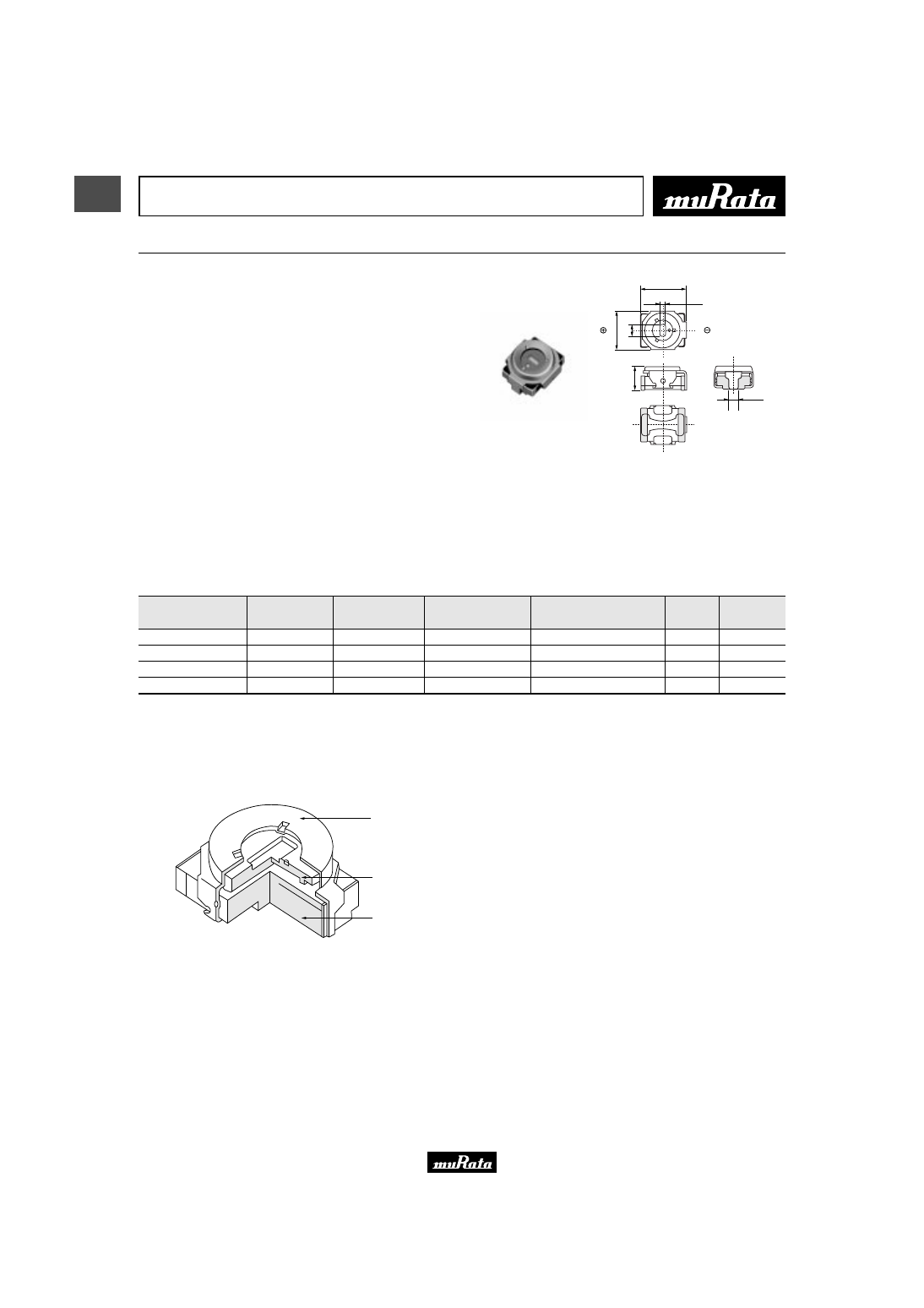

TZR1 Series

■

Features

1. Ultra-small and thin with external dimensions

of 1.5(W)x1.7(L)x0.85(H)mm

(80% less in volume than the current product).

2. Unique construction with no plastic material

provides superior soldering heat resistance to

maintain excellent characteristic performance

after reflow soldering.

3. Suitable for high frequency circuit due to high

self resonant frequency (6.2GHz of TZR1Z010 at

1.0pF setting)

■

Applications

1. "Bluetooth" 2. Crystal oscillators

3. Crystal filters 4. Hand radios

5. Miniature tuner packs (FM Radio, TV)

6. Remote keyless entry systems

7. Pagers

0.35

0.9 max.

1.5

0.45

1.7

0.2

(Depth;0.15)

(

Tolerance:

0.1

)

in mm

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

TZR1Z010A001

0.55

1.0 +100/-0%

NP0

300ppm/

200min. at 200MHz, Cmax.

25Vdc

55Vdc

TZR1Z1R5A001

0.7

1.5 +100/-0%

NP0

300ppm/

200min. at 200MHz, Cmax.

25Vdc

55Vdc

TZR1Z040A001

1.5

4.0 +100/-0%

NP0

500ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

TZR1R080A001

3.0

8.0 +100/-0%

N750

500ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

Insulation Resistance : 10000M ohm Torque : 0.1 to 1.0mNm Operating Temperature Range : -25 to +85

■

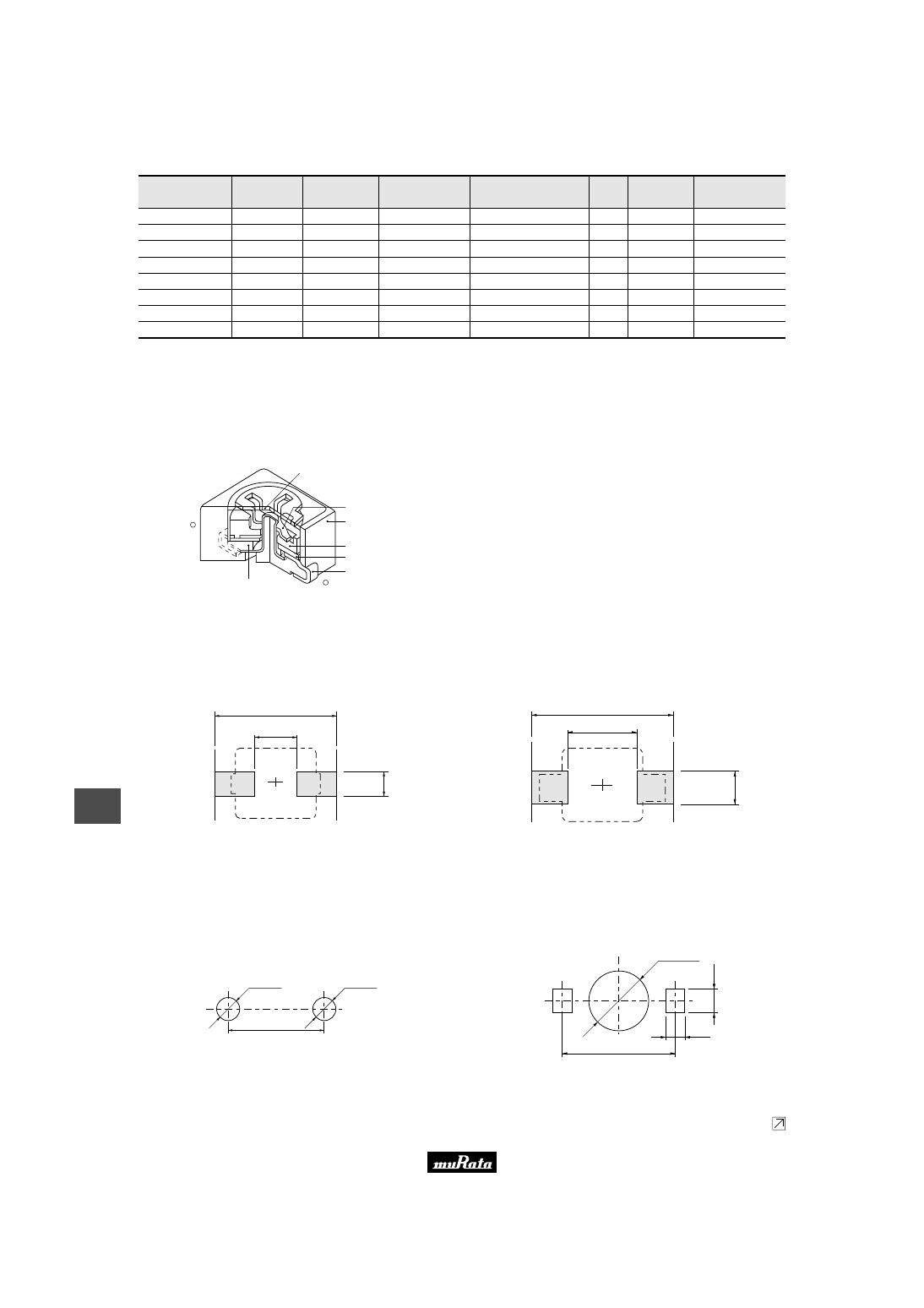

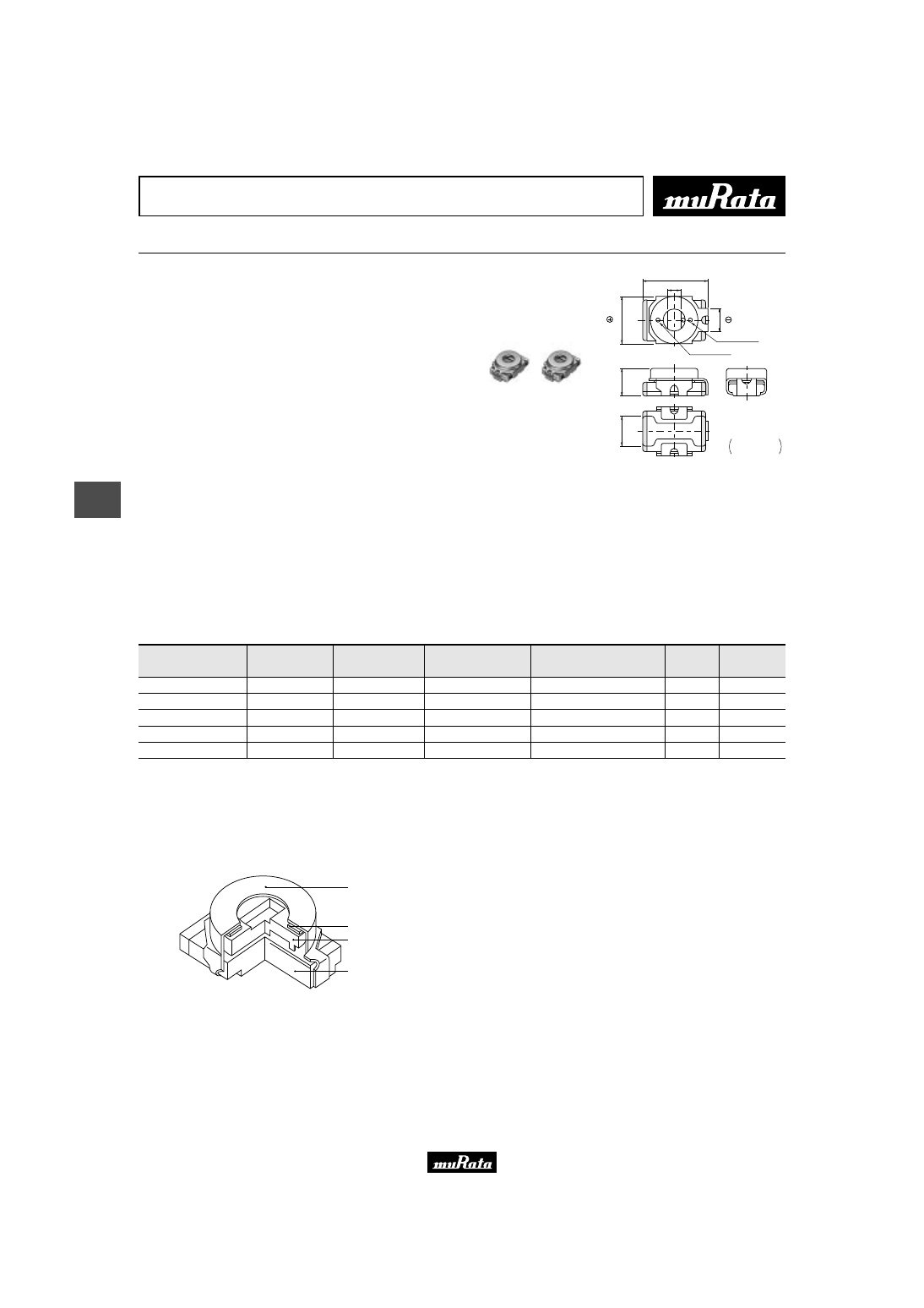

Construction

Cover

Metal Rotor

Monolithic
Stator

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

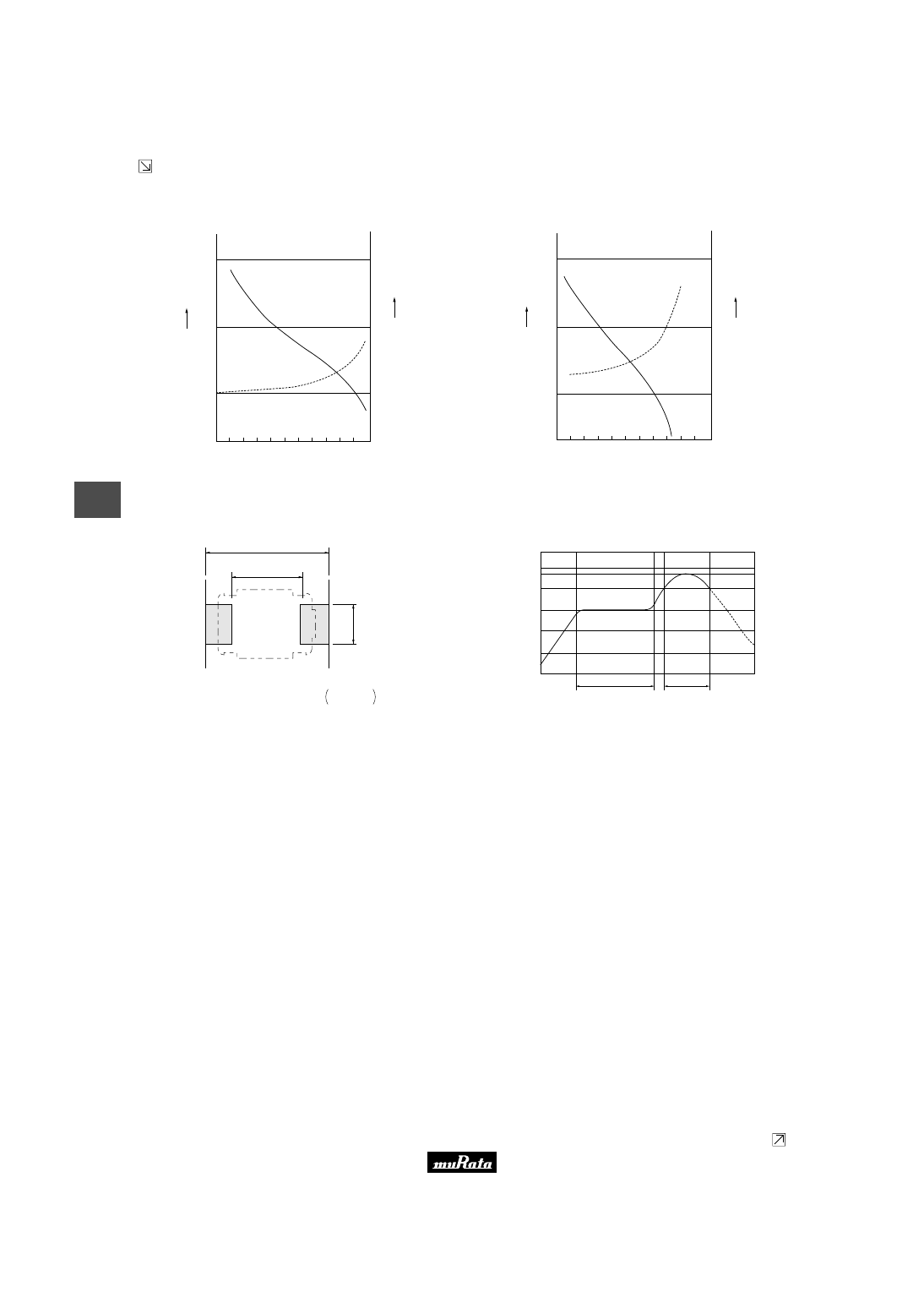

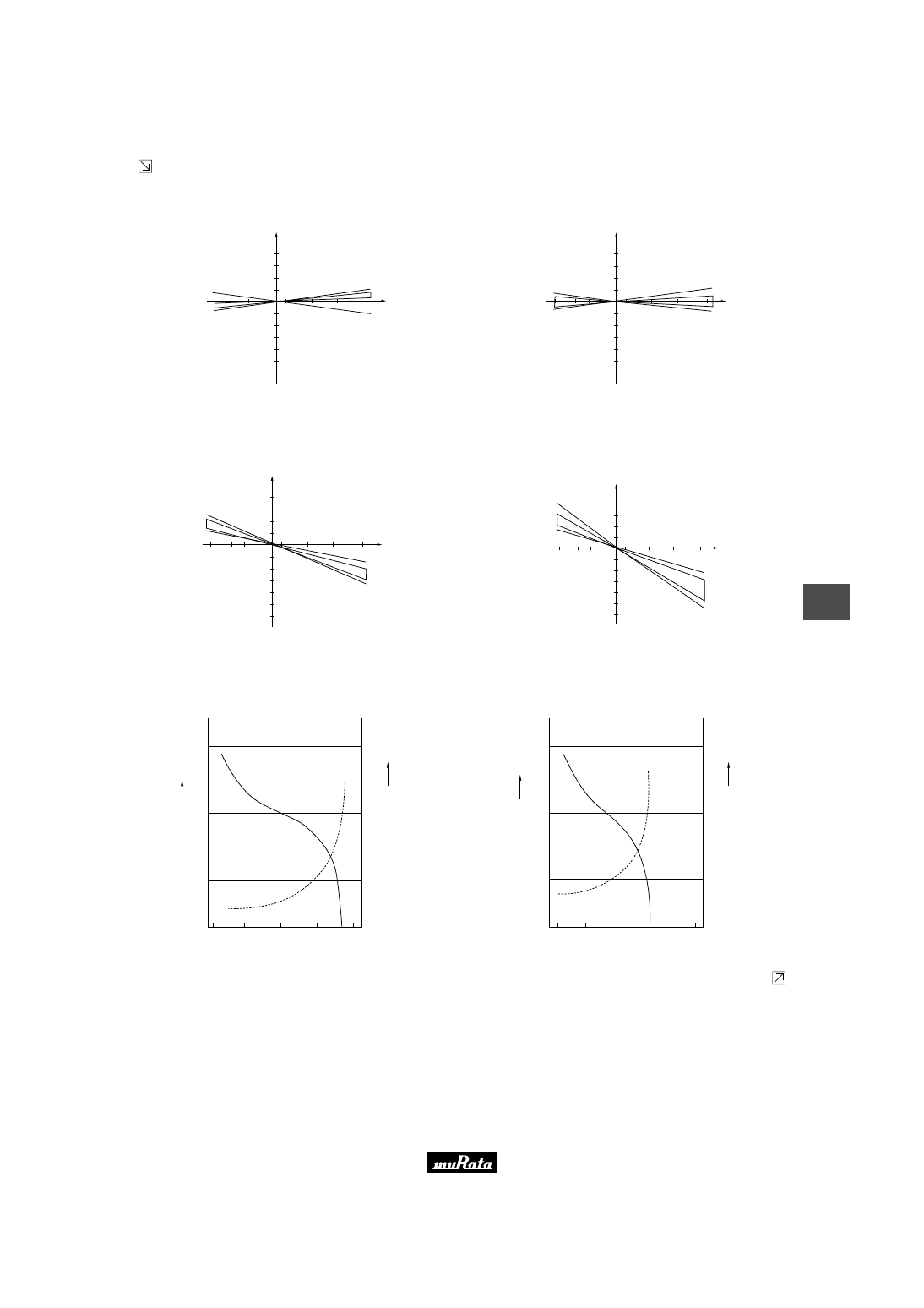

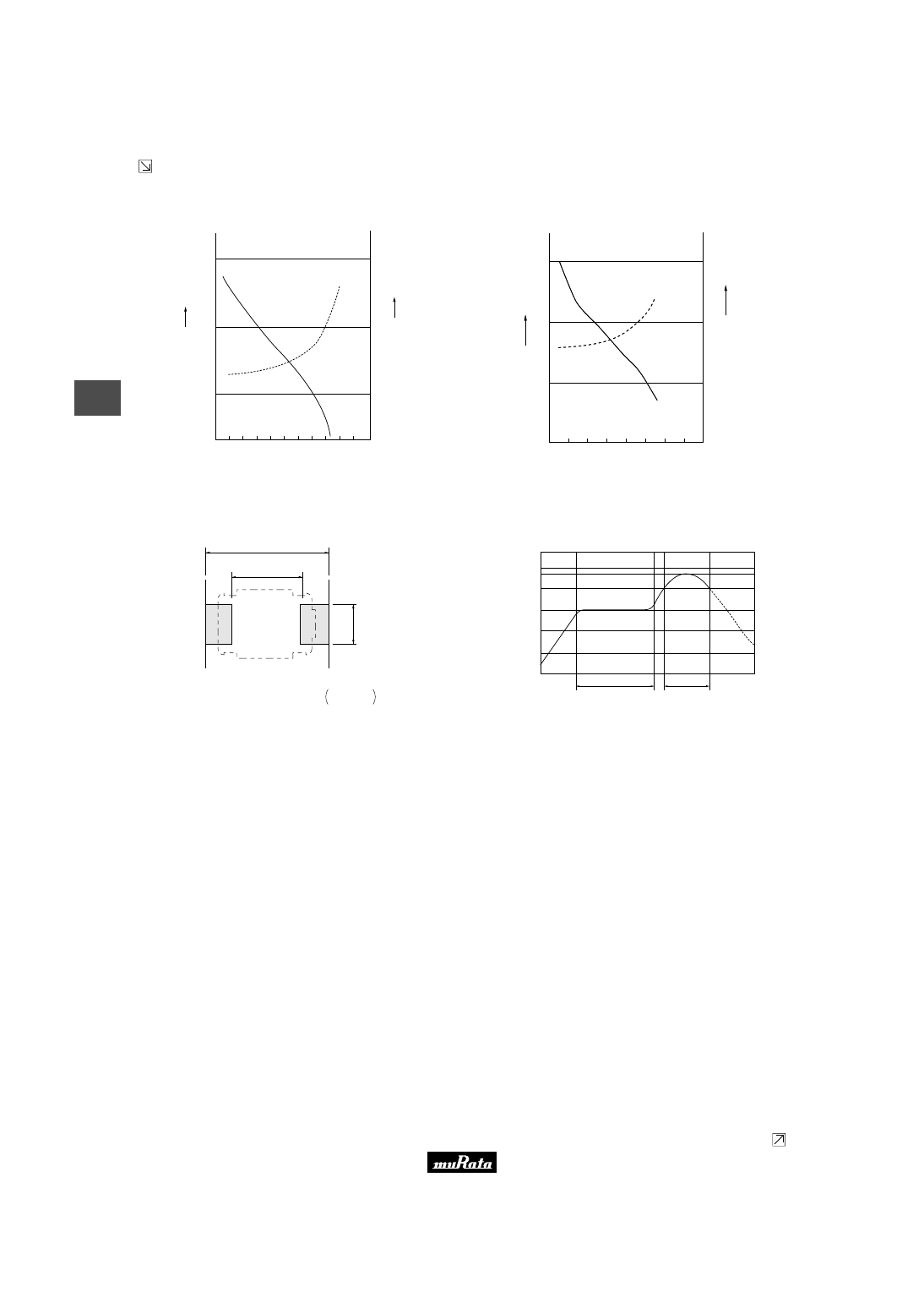

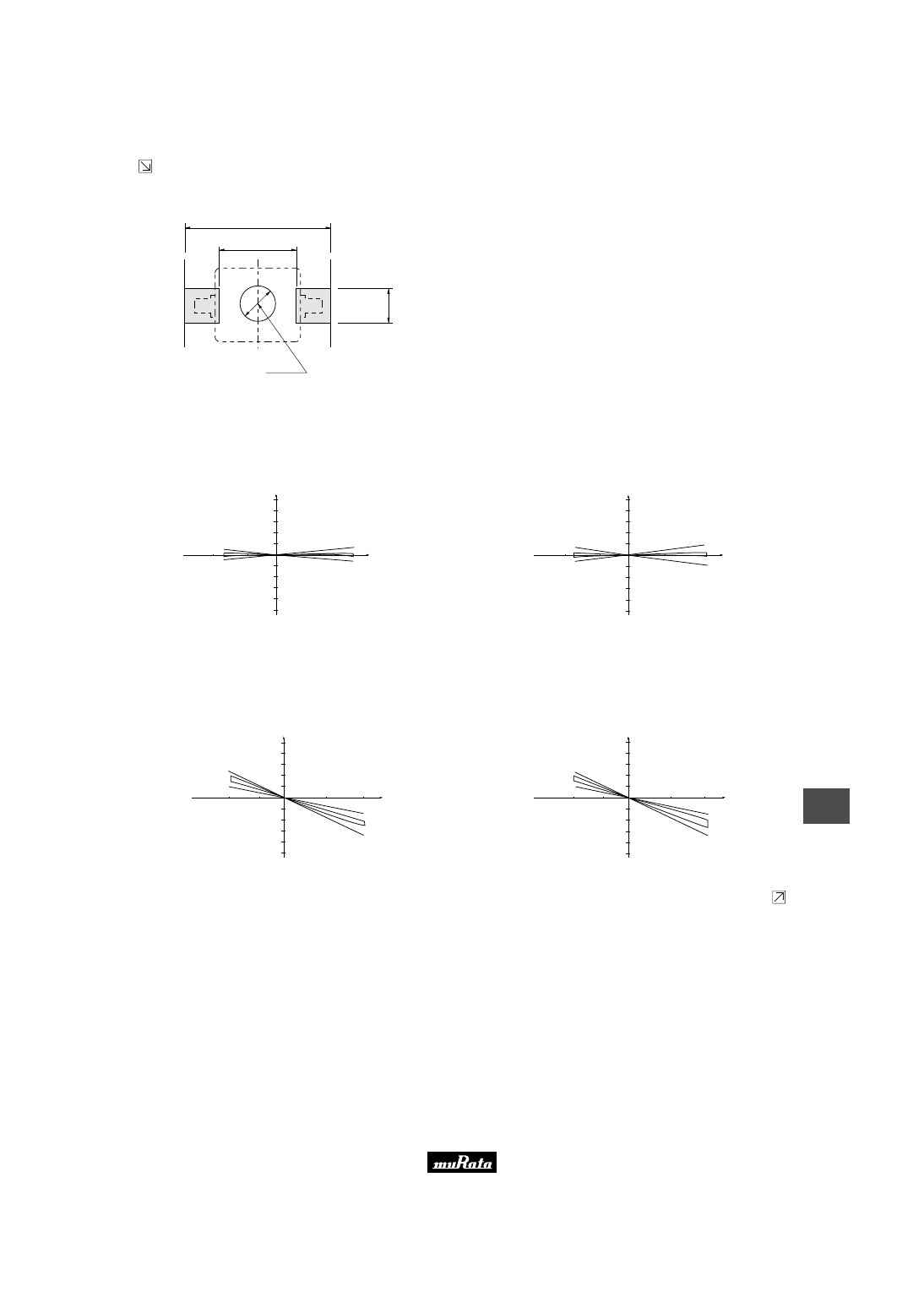

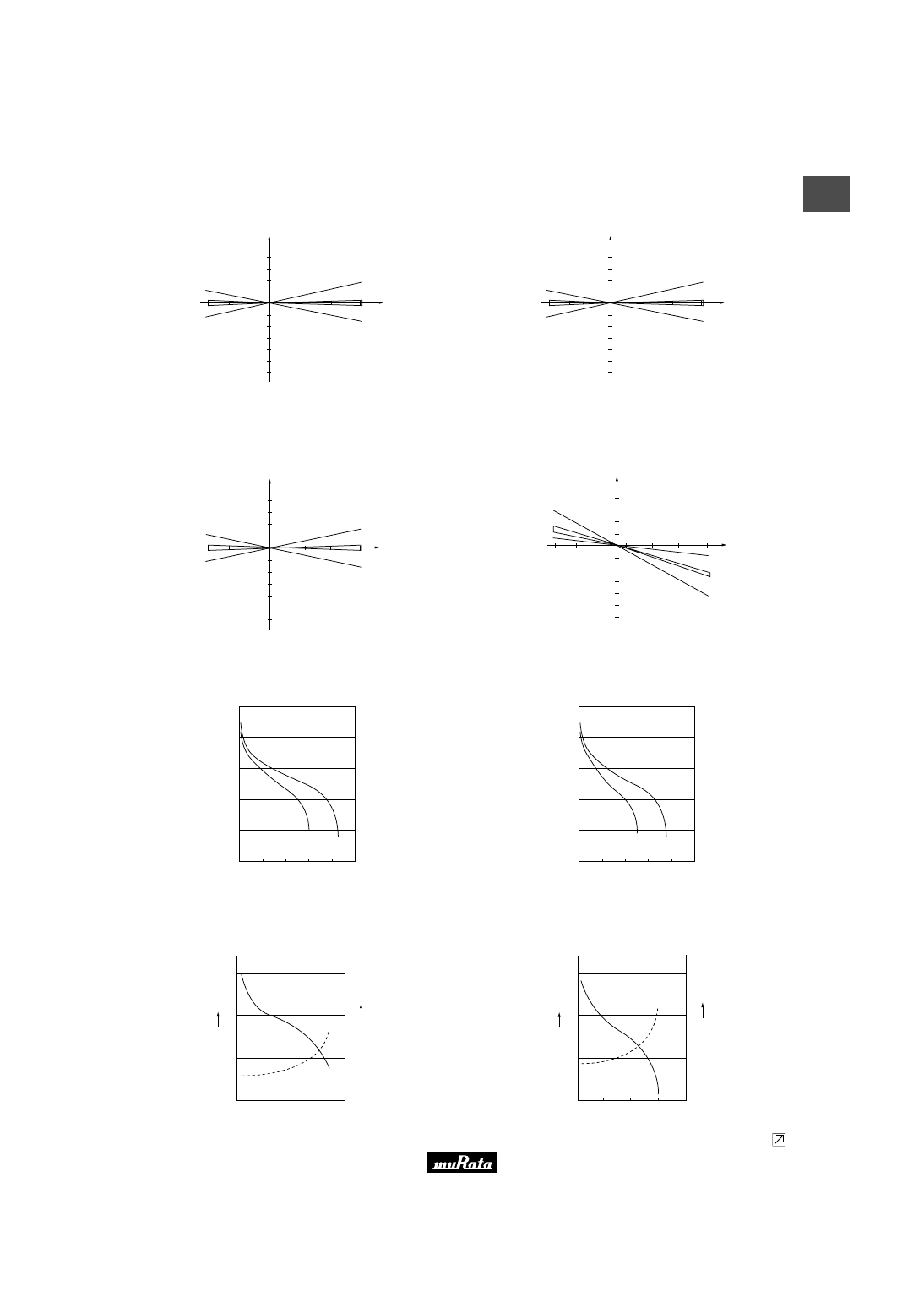

Temperature Characteristics

TZR1Z010

-2

-4

-6

-8

-10

-12

-25

-10

010 (NP0

300 ppm/

Temp. (

(

)

TZR1Z1R5

-2

-4

-6

-8

-10

-12

-25

-10

1R5 (NP0

300 ppm/

Temp. (

(

)

TZR1Z040

−

Z040 (NP0

500 ppm/˚C)

)

Temp.(˚C)

TZR1R080

−

R080 (N750

500 ppm/˚C)

)

Temp.(˚C)

■

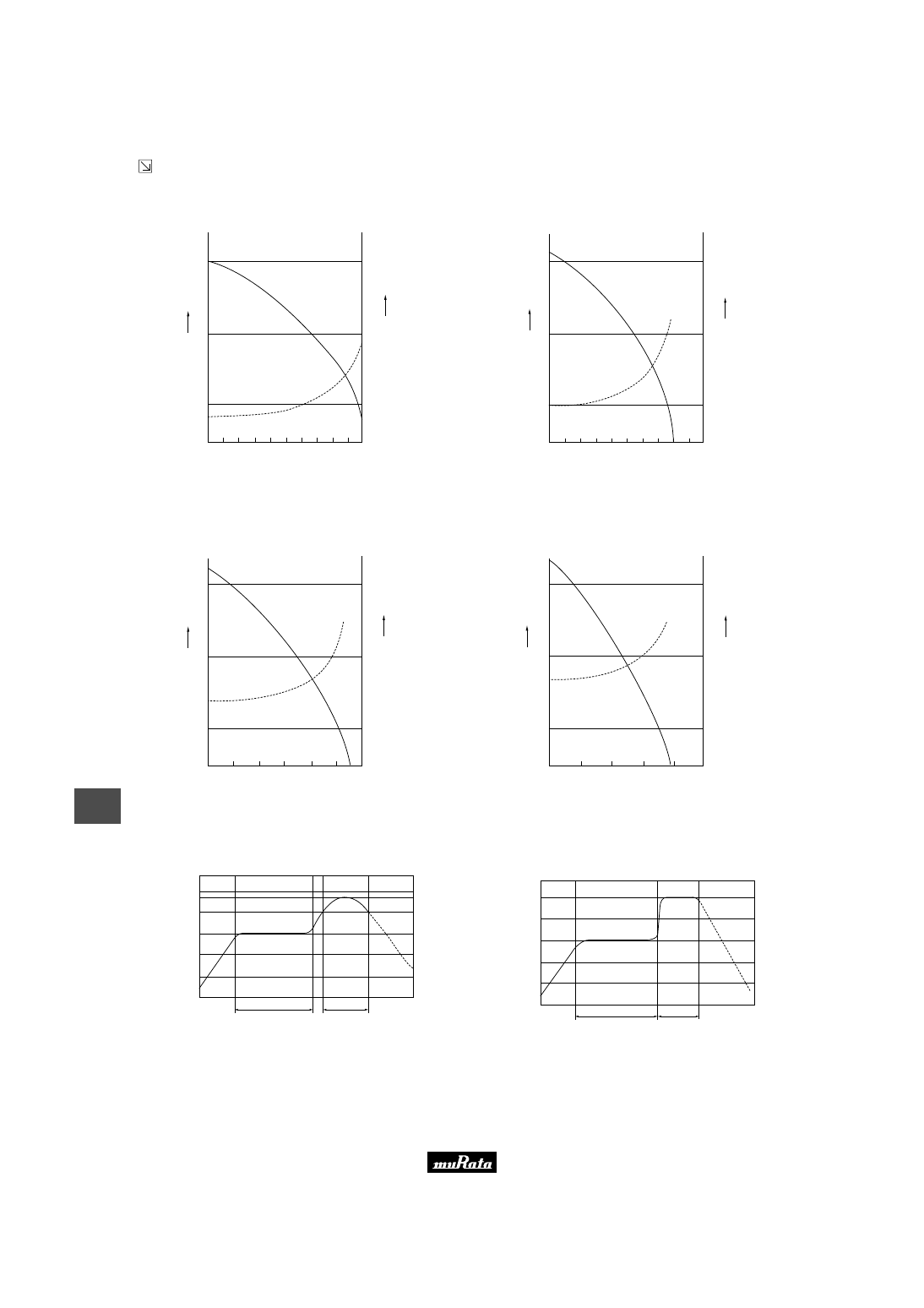

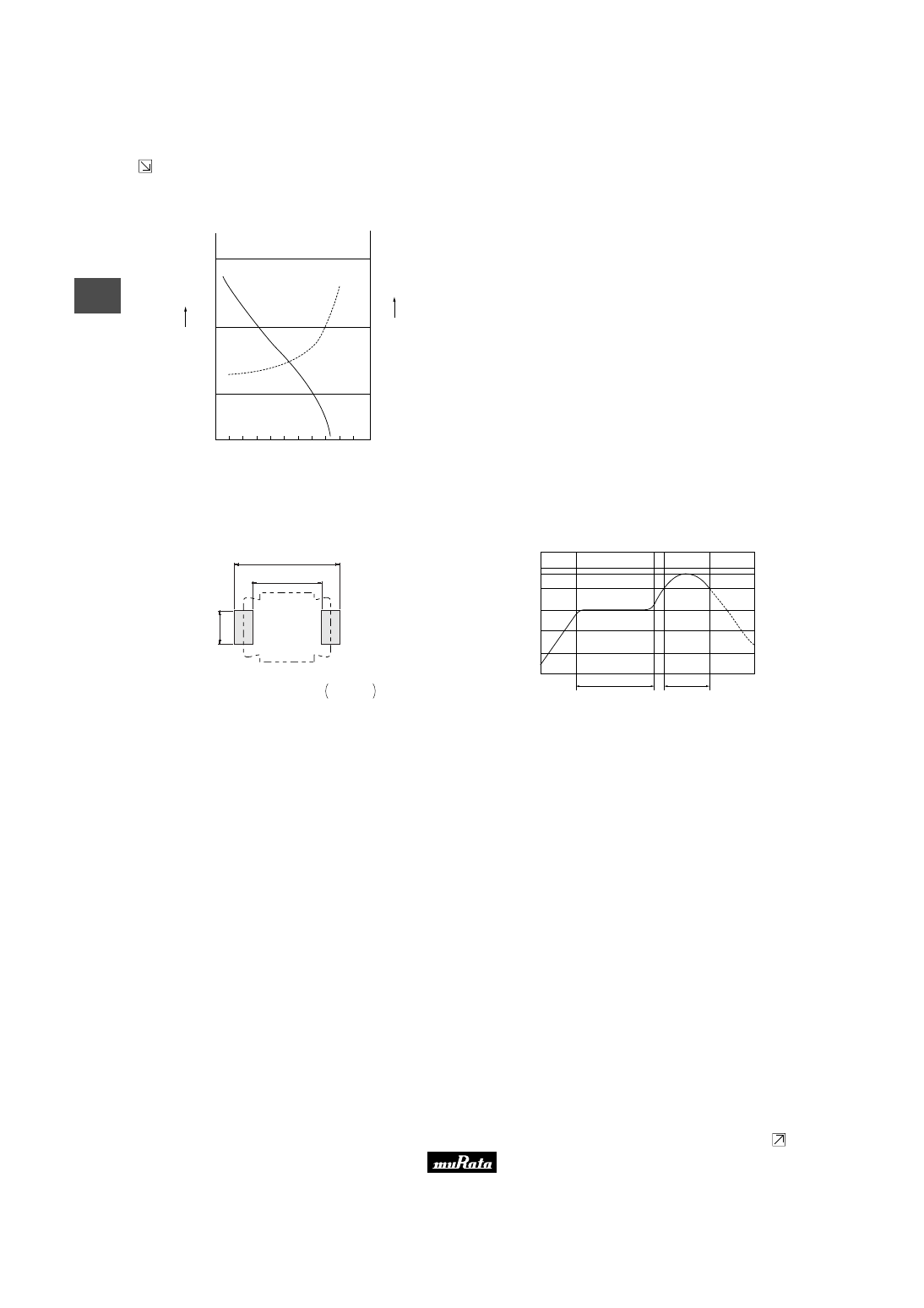

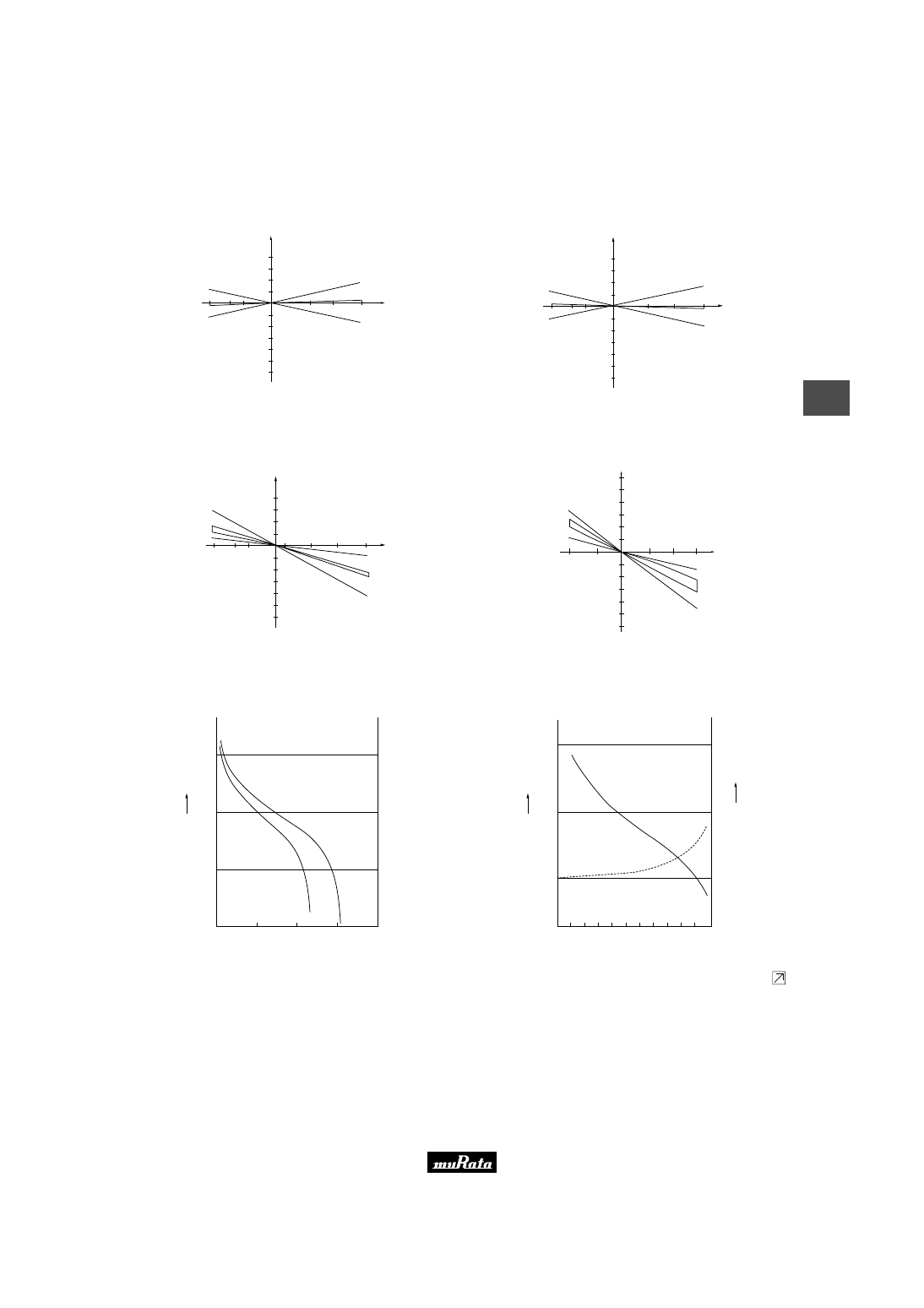

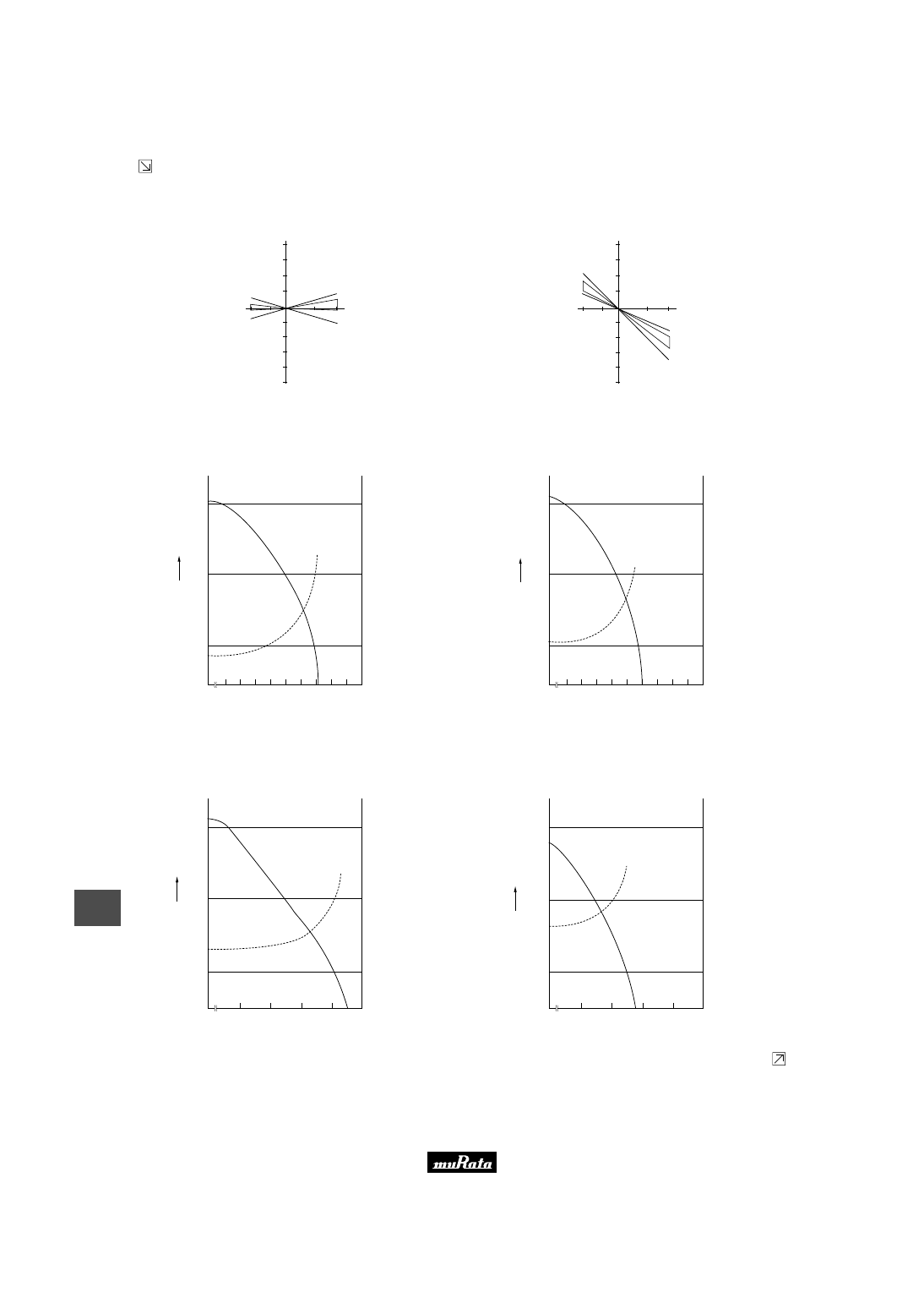

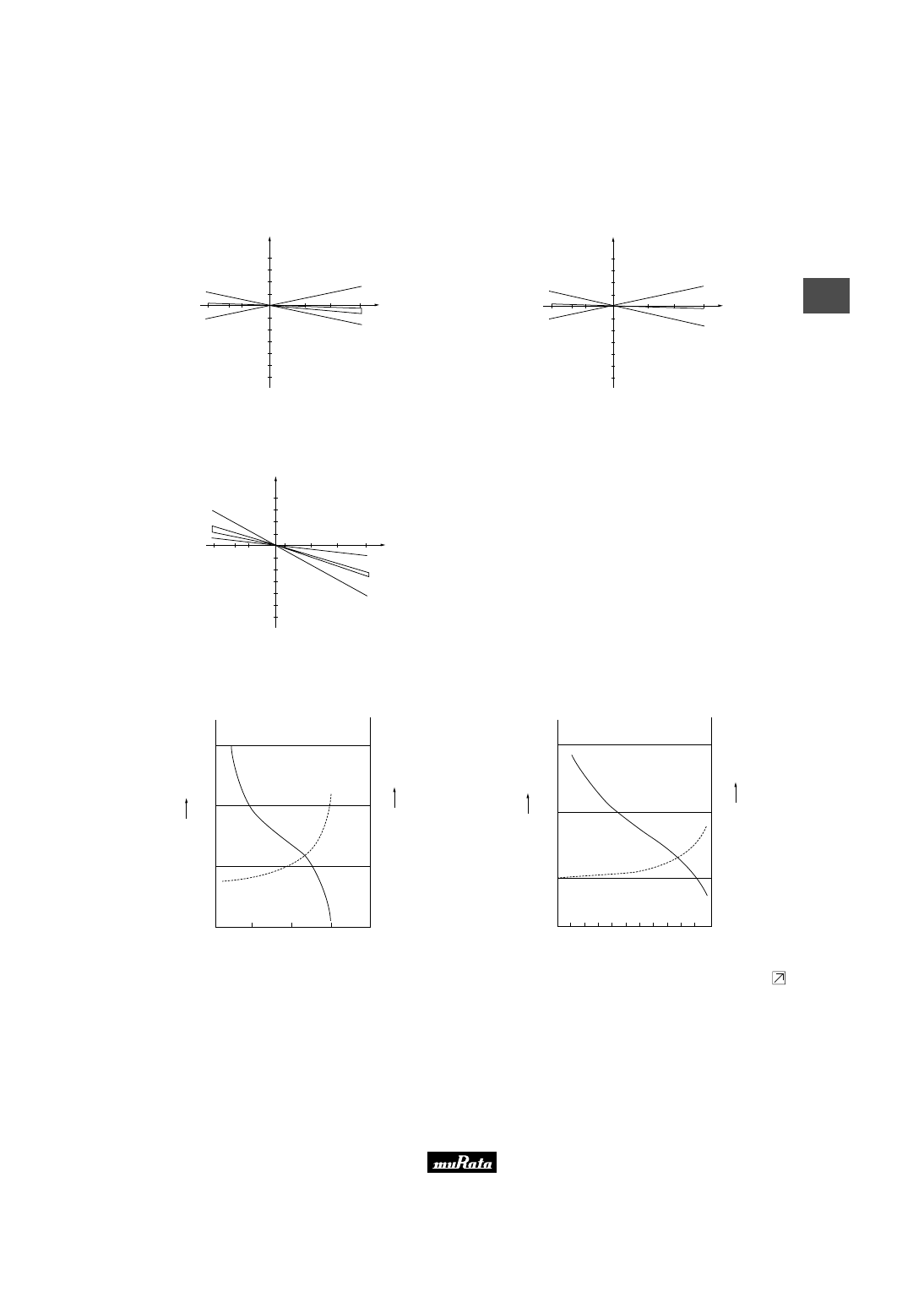

Frequency Characteristics

TZR1Z010

10000

1000

100

Frequency (GHz)

0.55pF set

1.0pF set

Z010

TZR1Z1R5

10000

1000

100

Frequency (GHz)

0.7pF set

1.5pF set

Z1R5

TZR1Z040

1000

100

500

1000

1500

2000

2500

Frequency (MHz)

)

Z040

TZR1R080

1000

100

500

1000

1500

2000

Frequency (MHz)

)

R080

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

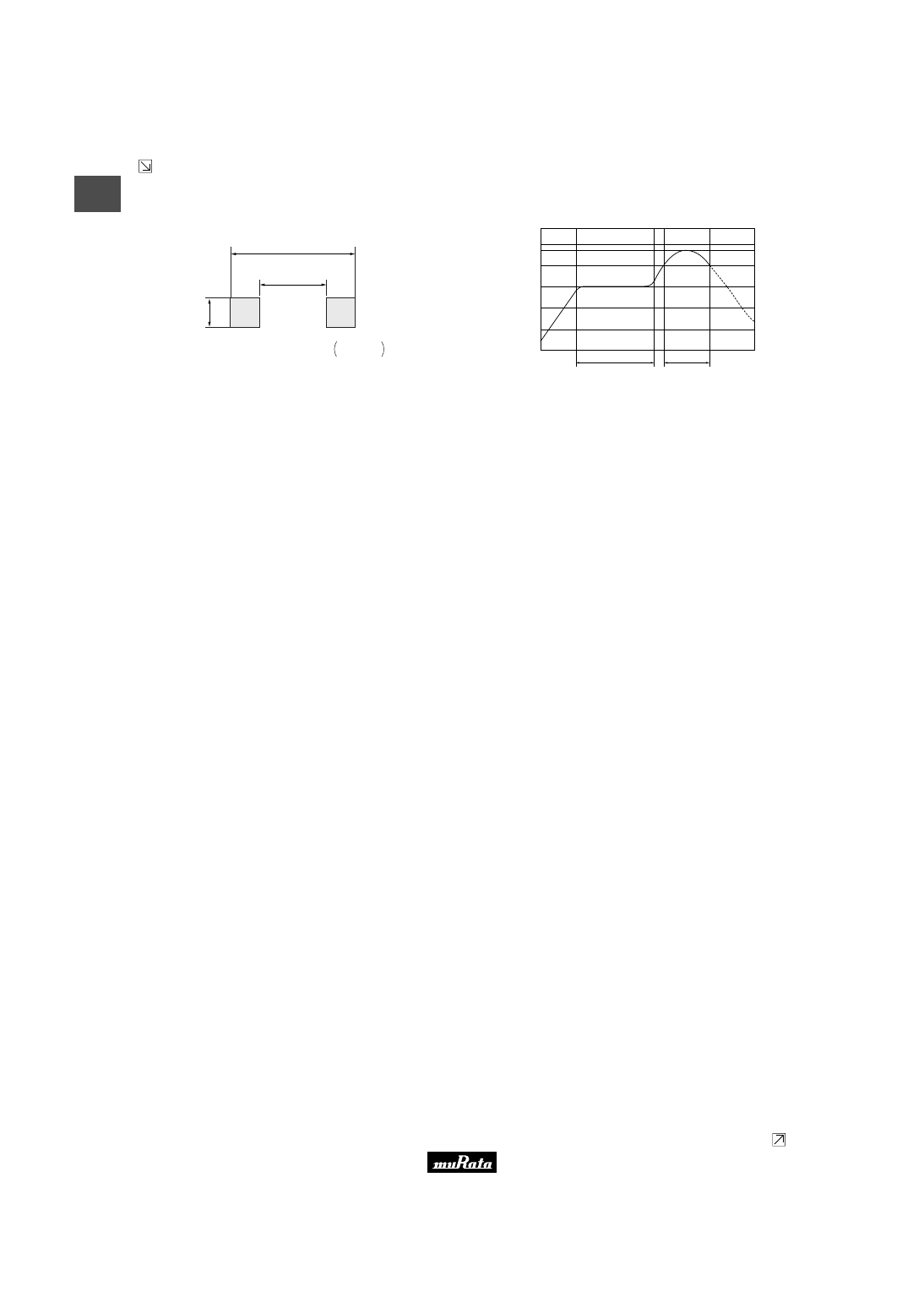

Land Pattern

2.2

1.2

Tolerance:

0.1

in mm

■

Temperature Profile

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZR1 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 0.5mm max.

> Wattage of iron 20W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 100 micro m to 150 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply flux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause fixed metal rotor or

the contact failure due to flux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breaking.

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

(3) Use the suitable dimension of the pick-up nozzle.

(1.1-1.2mm external diameter and 0.8-0.9mm bore

diameter.)

3. Cleaning

Can not be cleaned because of open construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

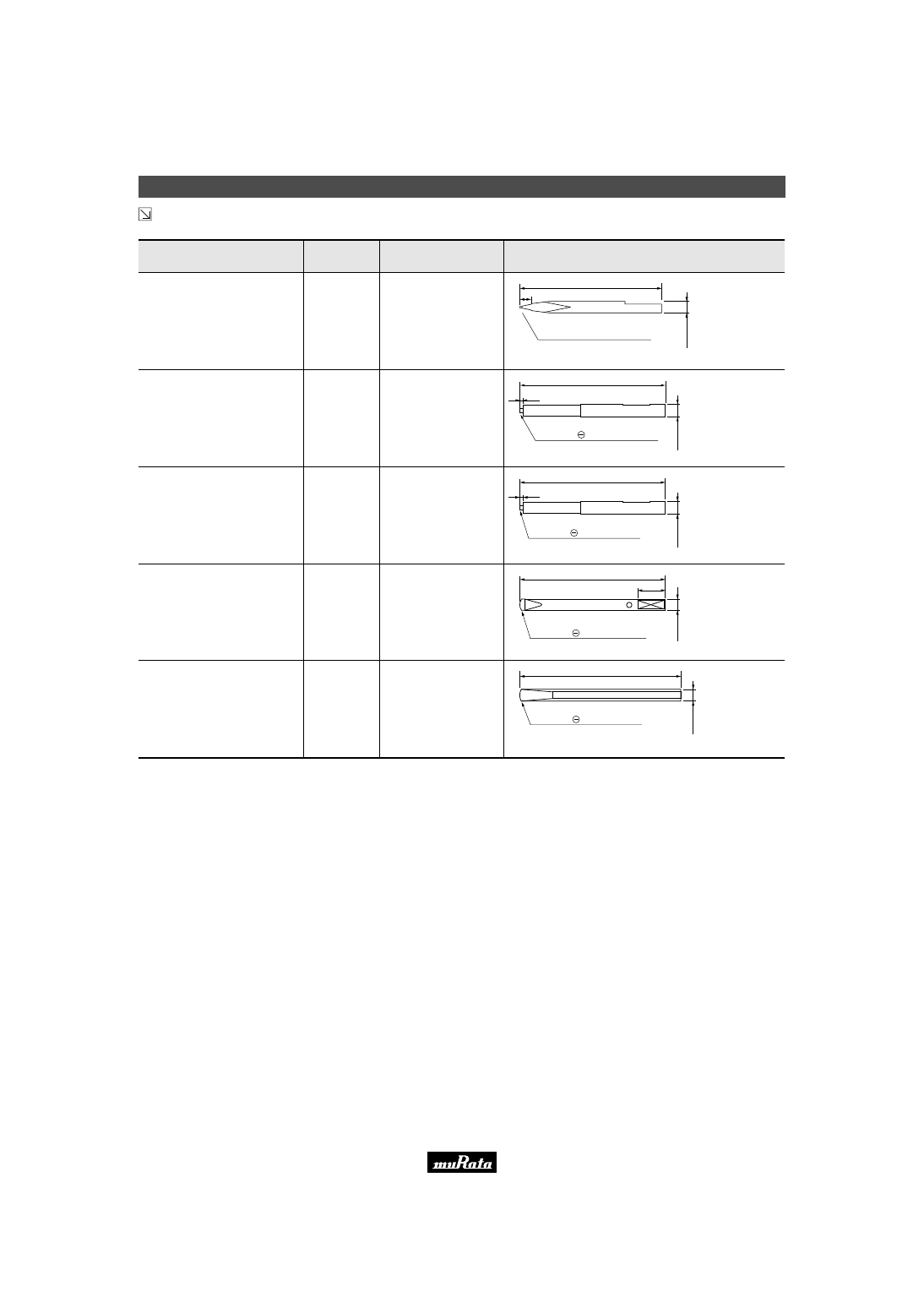

Notice (Handling)

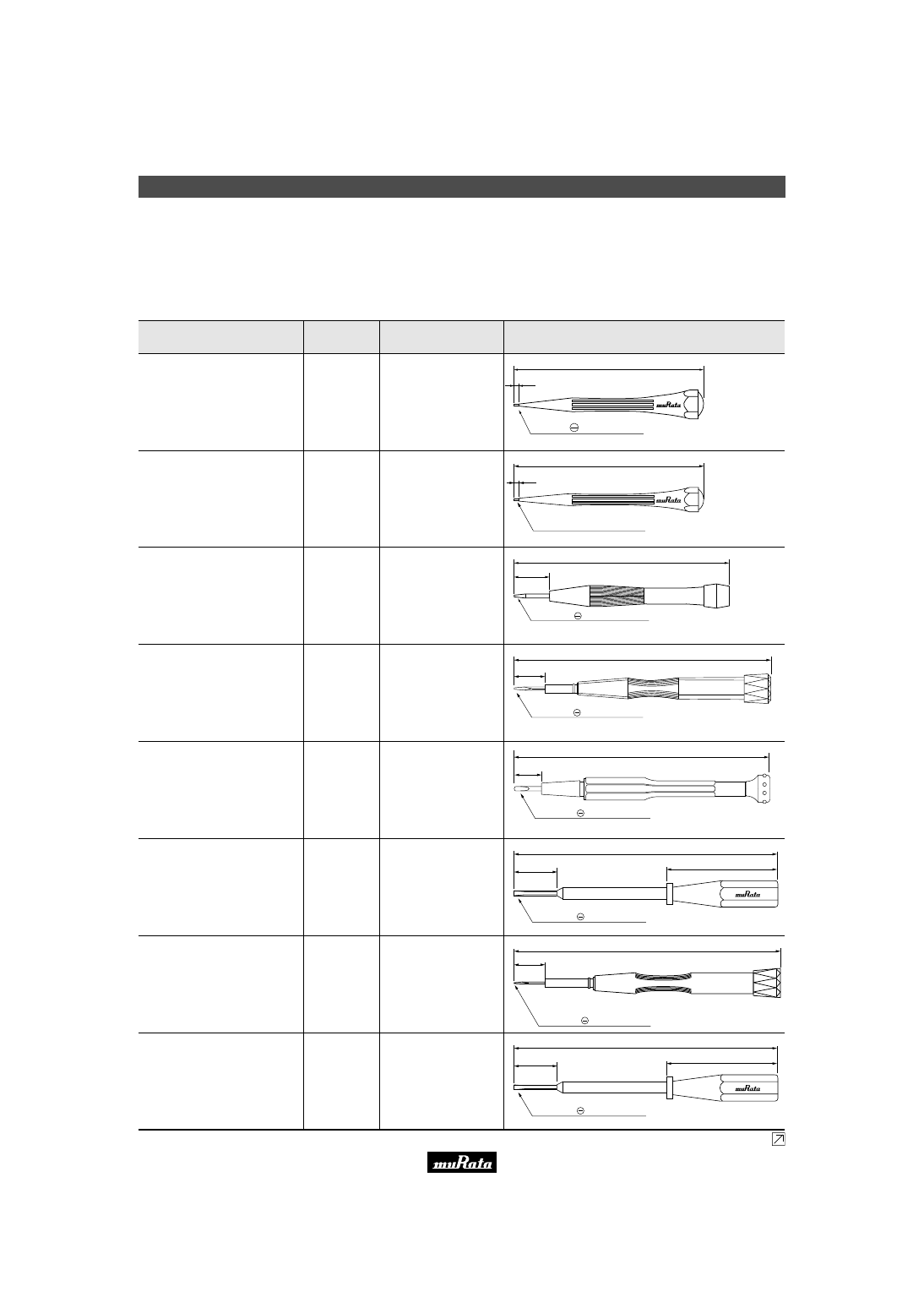

1. Use suitable screwdrivers that fit comfortably in

driver slot.

*Recommended screwdriver for manual adjustment

MURATA: KMDR160

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 0.5N (Ref; 50gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Ceramic Trimmer Capacitors

TZS2 Series

■

Features

1. Ultra-small and thin type with external dimensions

of 2.2(W)x2.7(L)x0.95(H)mm

(30% less in volume from the current product).

2. Unique construction with no plastic material

provides superior soldering heat resistance to

maintain excellent characteristic performance

after reflow soldering.

3. Pierced square hole allows for high resistance to

tuning force and in-process automatic adjustment.

■

Applications

1. Crystal oscillators 2. Crystal filters

3. Hand radios 4. Cordless telephones

5. Cellular telephones 6. Tuner packs

7. Pagers 8. Remote keyless entry systems

9. PHS 10. Radar detectors

11. W-LAN 12. Compact radios

13. Headphone stereos

in mm

Tolerance:

0.1

2.7

0.6

0.4

0.20 Depth

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

TZS2Z060A001

3.0

6.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZS2Z100A001

3.5

10.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZS2R200A001

7.0

20.0 +100/-0%

N750

500ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

Insulation Resistance : 10000M ohm Torque : 0.5 to 5.0mNm Operating Temperature Range : -25 to +85

■

Construction

Cover

Metal Rotor

Monolithic
Stator

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Temperature Characteristics

TZS2Z060

−

Z060 (NP0

300 ppm/˚C)

)

Temp.(˚C)

TZS2Z100

−

Z100 (NP0

300 ppm/˚C)

)

Temp.(˚C)

TZS2R200

−

R200 (N750

500 ppm/˚C)

)

Temp.(˚C)

■

Frequency Characteristics

TZS2Z060

Z060

1000

100

500

1000

1500

2000

1000

100

Frequency (MHz)

(

)

TZS2Z100

Z100

1000

100

200

600

400

800

1000

100

Frequency (MHz)

(

)

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Frequency Characteristics

TZS2R200

R200

1000

100

200

1000

600

800

400

1000

100

Frequency (MHz)

(

)

■

Land Pattern

3.2

2.1

Tolerance:

0.1

in mm

■

Temperature Profile

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZS2 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 1.0mm max.

> Wattage of iron 20W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

excessive time and/or excessive temperature,

the trimmer capacitor may deviate from the

specified characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 100 micro m to 150 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower part

of the terminal only. Do not apply flux except

to the terminals. Excessive amounts of solder

and/or applying solder to the upper part of the

terminal may cause fixed metal rotor or contact

failure due to flux invasion into the movable

part and/or the contact point. The soldering

iron should not come in contact with the

monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breakage.

(3) Use the suitable dimension of the pick-up nozzle

(1.8mm external diameter and 1.3mm bore

diameter).

3. Cleaning

Cannot be cleaned because of open construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

MURATA: KMDR050

(2) Recommended screwdriver bit for automatic

adjustment

MURATA: KMBT050

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Ceramic Trimmer Capacitors

TZY2 Series

■

Features

1. Small and thin size with external dimensions

of 2.5(W)x3.2(L)x1.25max.(H)mm

2. New shape of cover can improve the flux invasion

compared with current products.

3. Improvement of the adhesion between rotor and

stator leads to superior stability.

4. Unique construction with no plastic material

provides superior soldering heat resistance to

maintain excellent characteristic performance

after reflow soldering.

5. Suitable for high frequency circuit due to high

self resonant frequency (4.8GHz of TZY2Z010 at

1.0pF setting)

■

Applications

1. Crystal oscillators 2. Crystal filters

3. Pagers 4. Cordless telephones

5. PHS 6. Hand radios

7. Cellular telephones 8. Watches

9. Remote keyless entry systems

10. W-LAN 11. Radar detectors

12. Compact radios 13. DVD

14. Burglarproof devices 15. Headphone stereos

3.2

0.2

0.45

0.5

(

Tolerance:

0.1

)

in mm

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

TZY2Z010A001

0.5

1.0 +100/-0%

NP0

300ppm/

200min. at 200MHz, Cmax.

25Vdc

55Vdc

TZY2Z2R5A001

0.65

2.5 +100/-0%

NP0

300ppm/

200min. at 200MHz, Cmax.

25Vdc

55Vdc

TZY2Z030A001

1.5

3.0 +100/-0%

NP0

300ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

TZY2Z060A001

2.5

6.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZY2Z100A001

3.0

10.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZY2R200A001

4.5

20.0 +100/-0%

N750

500ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZY2R250A001

5.5

25.0 +100/-0%

N750

500ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

TZY2K450A001

8.0

45.0 +100/-0%

N1000

500ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

Insulation Resistance : 10000M ohm Torque : 0.5 to 5.0mNm Operating Temperature Range : -25 to +85

■

Construction

Cover

Metal Rotor

Monolithic
Stator

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Temperature Characteristics

TZY2Z010

-2

-4

-6

-8

-10

-12

-25

-10

Z010 (NP0

300 ppm/

Temp. (

(

)

TZY2Z100

−

Z100 (NP0

300 ppm/˚C)

)

Temp.(˚C)

TZY2R200

−

R200 (N750

500 ppm/˚C)

)

Temp.(˚C)

TZY2K450

K450 (N1000

500ppm/

Temp. (

(

)

+12

+10

–2

–4

–6

–8

–10

–12

■

Frequency Characteristics

TZY2Z010

1000

100

Frequency (GHz)

0.5pF set

1.0pF set

Z010

TZY2Z100

Z100

1000

100

200

600

400

800

1000

100

Frequency (MHz)

(

)

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Frequency Characteristics

TZY2R200

R200

1000

100

200

1000

600

800

400

1000

100

Frequency (MHz)

(

)

TZY2K450

1000

100

1000

100

200

400

600

800

(

)

Frequency (MHz)

K450

1000

100

1000

100

200

400

600

800

(

)

Frequency (MHz)

K450

■

Land Pattern

Tolerance:

0.1

in mm

4.0

2.4

■

Temperature Profile

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZY2 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 1mm max.

> Wattage of iron 20W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 120 micro m to 170 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply flux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause fixed metal rotor or

contact failure due to flux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breakage.

(3) Use the suitable dimension of the pick-up nozzle

(1.8mm external diameter and 1.3mm bore

diameter).

3. Cleaning

Cannot be cleaned because of open construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

ENGINEER INC.: DA-89

(Murata P/N is KMDR060)

(2) Recommended screwdriver bit for automatic

adjustment

MURATA: KMBT060

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Ceramic Trimmer Capacitors

TZV2 Series

■

Features

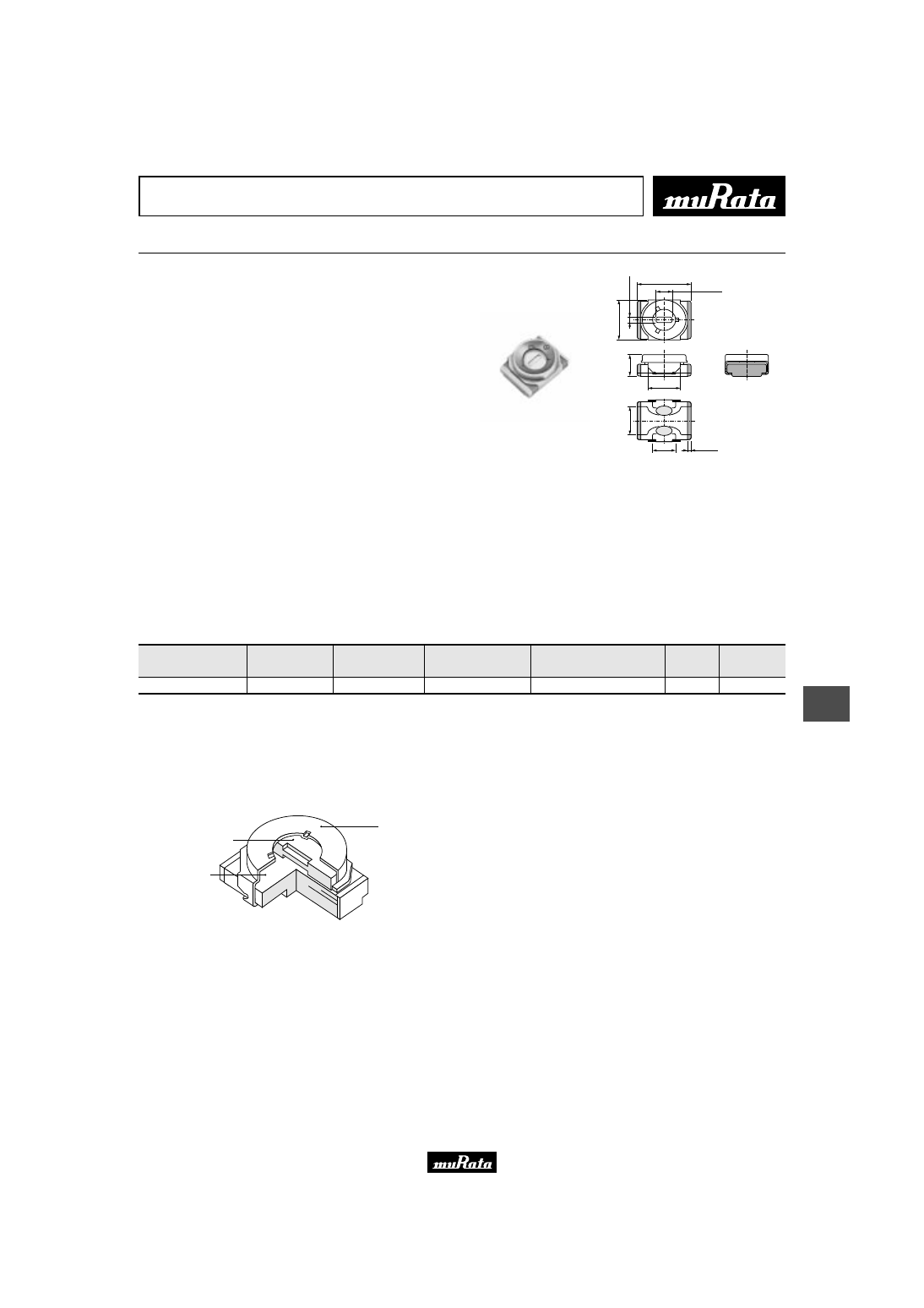

1. Small size with external dimensions of

2.3(W)x3.2(L)x1.45max.(H)mm

2. Unique construction with no plastic material

provides superior soldering heat resistance to

maintain excellent characteristic performance after

reflow soldering.

3. Designed for automatic placement in surface mount

applications.

4. Funnel shaped metal case enables in-process

automatic adjustment.

■

Applications

1. Crystal oscillator 2. Crystal filters

3. Hand radios 4. Cordless telephones

5. Cellular telephones 6. Tuner packs

7. Pagers 8. Remote keyless entry systems

9. PHS 10. Radar detectors

11. W-LAN 12. Compact radios

13. Headphone stereos 14. DVD

15. Burglarproof devices

3.2

0.2

0.5 Depth 0.2

Marking(6pF)

Marking(10pF)

Tolerance:

0.1

in mm

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

TZV2Z2R5A110

0.65

2.5 +100/-0%

NP0

300ppm/

200min. at 200MHz, Cmax.

25Vdc

55Vdc

TZV2Z030A110

1.5

3.0 +100/-0%

NP0

300ppm/

300min. at 1MHz, Cmax.

25Vdc

55Vdc

TZV2Z060A110

2.5

6.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZV2Z100A110

3.0

10.0 +100/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

TZV2R200A110

4.5

20.0 +100/-0%

N750

500ppm/

500min. at 1MHz, Cmax.

25Vdc

55Vdc

Insulation Resistance : 10000M ohm Torque : 1.0 to 10.0mNm Operating Temperature Range : -25 to +85

■

Construction

Cover

Spring Washer

Metal Rotor

Monolithic Stator

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

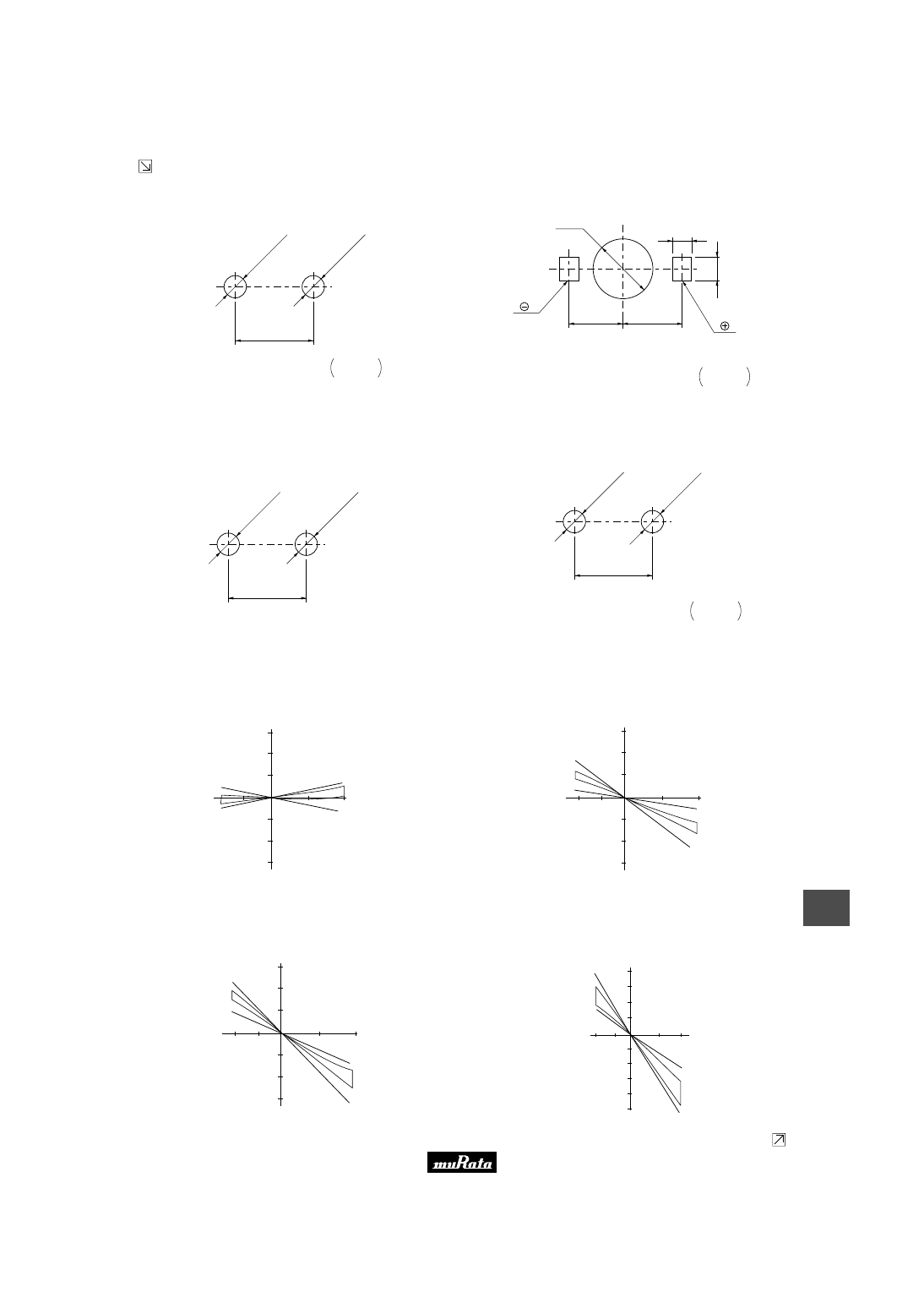

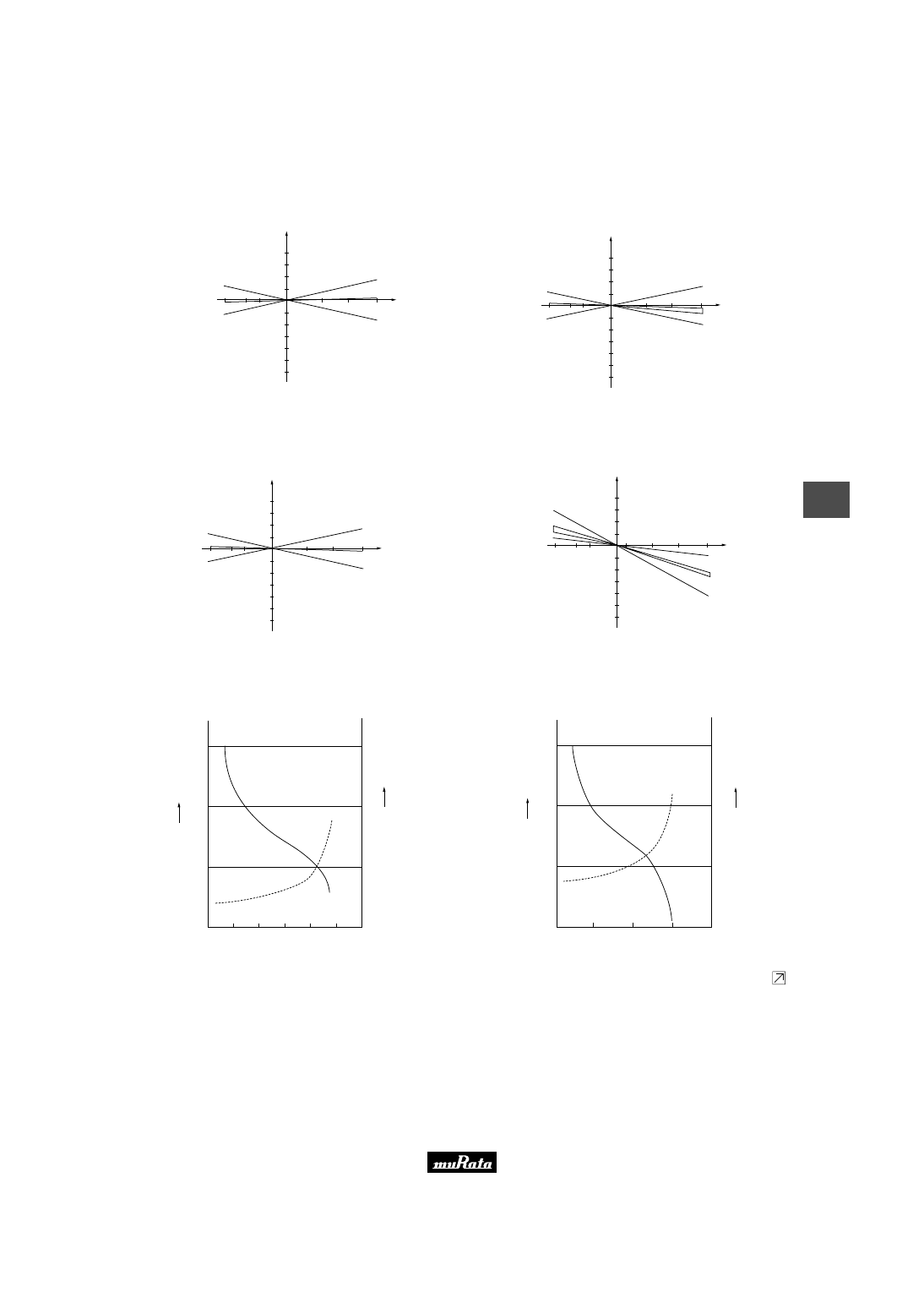

Temperature Characteristics

TZV2Z2R5

−

Z2R5 (NP0

300 ppm/˚C)

Temp.(˚C)

)

TZV2Z060

−

Z060 (NP0

300 ppm/˚C)

)

Temp.(˚C)

TZV2Z100

−

Z100 (NP0

300 ppm/˚C)

)

Temp.(˚C)

TZV2R200

−

R200 (N750

500 ppm/˚C)

)

Temp.(˚C)

■

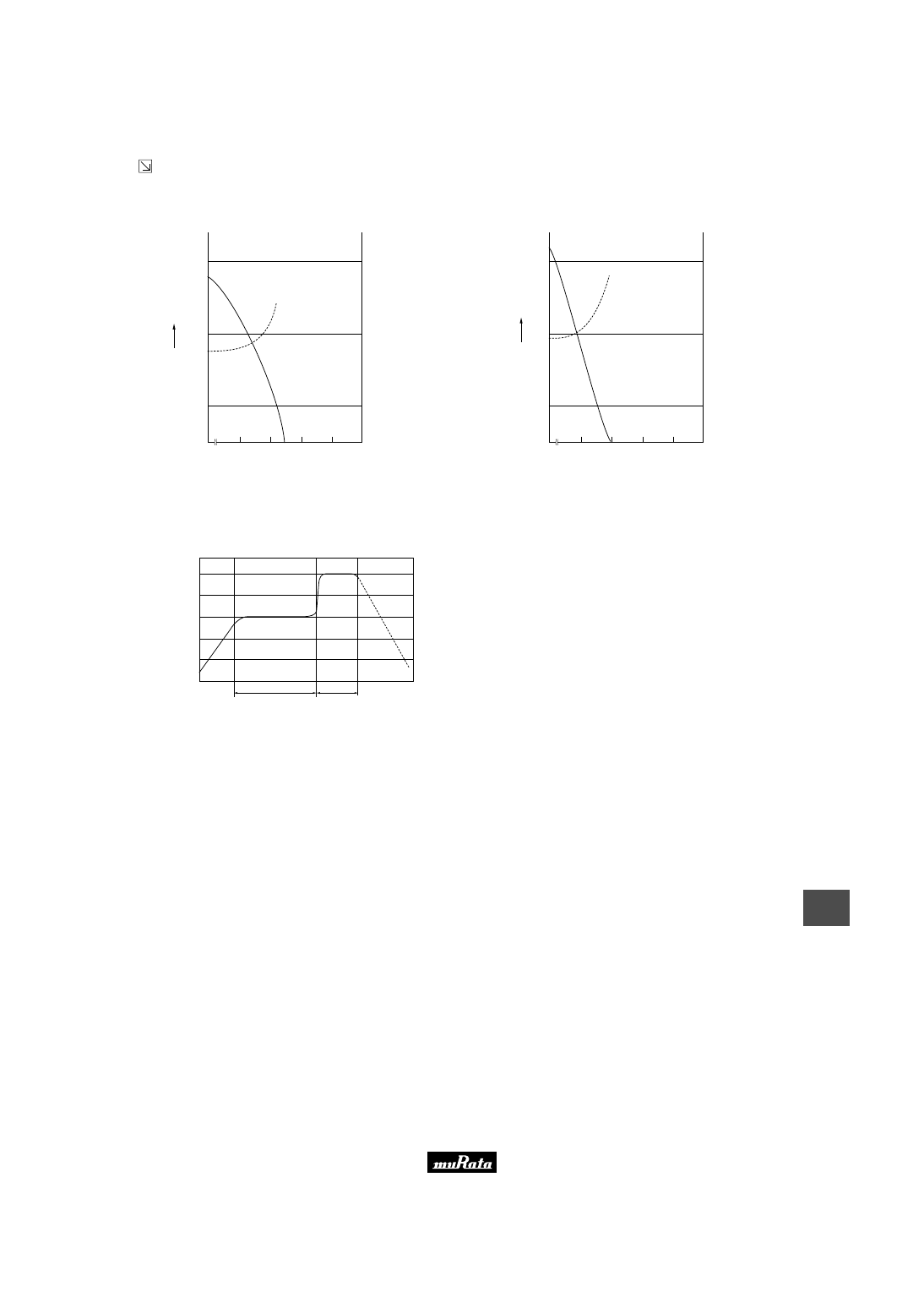

Frequency Characteristics

TZV2Z2R5

Z2R5

1000

100

500

1000

1500

2000

2500

3000

1000

100

Frequency (MHz)

(

)

TZV2Z060

Z060

1000

100

500

1000

1500

2000

1000

100

Frequency (MHz)

(

)

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Frequency Characteristics

TZV2Z100

Z100

1000

100

200

600

400

800

1000

100

Frequency (MHz)

(

)

TZV2R200

R200

1000

100

200

1000

600

800

400

1000

100

Frequency (MHz)

(

)

■

Land Pattern

Tolerance:

0.1

in mm

4.0

2.4

■

Temperature Profile

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZV2 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

>Temperature of tip 260+-10 degree C

>Soldering time 3 sec. max.

>Diameter 1mm max.

>Wattage of iron 20W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 120 micro m to 170 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause the

bridging between the terminals or the contact

failure due to flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply flux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause fixed metal rotor or

contact failure due to flux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breakage.

(3) Use the suitable dimension of the pick-up nozzle

(1.8mm external diameter and 1.3mm bore

diameter).

3. Cleaning

Cannot be cleaned because of open construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

VESSEL: No.9000-0.9x30

(Murata P/N : KMDR020)

(2) Recommended screwdriver bit for automatic

adjustment

MURATA: KMBT020

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

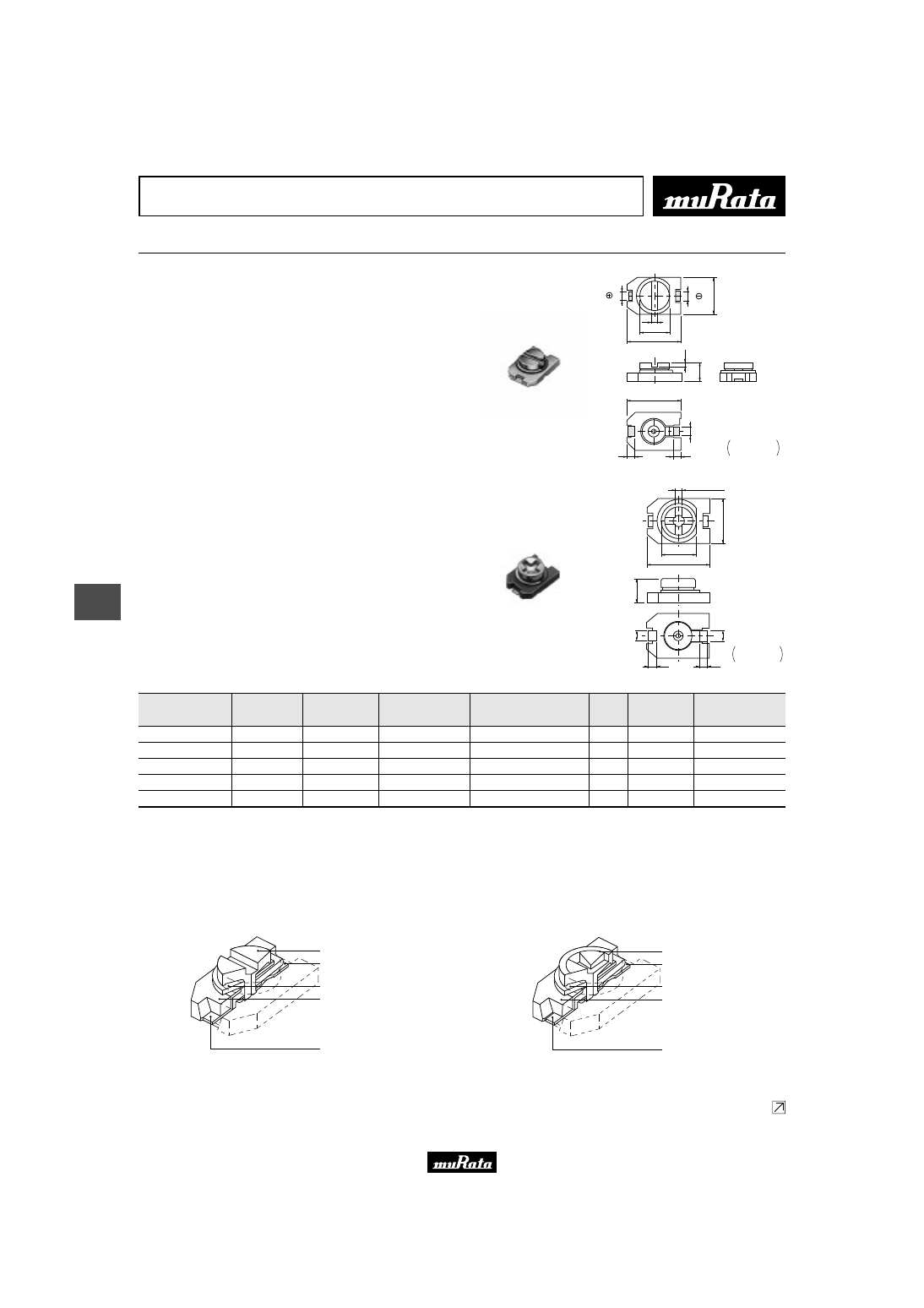

Ceramic Trimmer Capacitors

TZC3 Series

■

Features

1. Small size with external dimension of

3.2(W)x4.5(L)x1.6(H)mm (Cross slot type: 1.7(H)mm)

2. Color coded stator permits easy identification of

capacitance and reduces mounting errors.

3. Can be adjusted with conventional adjustment tools

having a thickness of 0.5mm.

4. Available for cross slot type to provide better

adjustability.

5. Providing mechanism to prevent air leak offers

better mountability with automatic mounter.

(Cross slot type)

6. Designed for automatic placement in surface mount

applications.

7. Heat resistant resin withstands reflow soldering

temperatures.

■

Applications

1. Compact radios 2. Headphone stereos

3. Pagers 4. Portable radio equipments

5. Hybrid ICs 6. Cellular telephones

7. Cordless telephones 8. Remote keyless entry systems

0.5

2.5 dia.

4.5

0.6

Tolerance:

0.1

in mm

Standard Type

ø2.5

4.5

0.6

0.5

0.05

Depth 0.4

0.05

0.6

Tolerance:

0.1

in mm

Cross Slot Type

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

Stator/Case Color

TZC3Z030A

ppp

1.4

3.0 +50/-0%

NP0

300ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Brown

TZC3Z060A

ppp

2.0

6.0 +50/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Blue

TZC3R100A

ppp

3.0

10.0 +50/-0%

N750

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

White

TZC3P200A

ppp

5.0

20.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Red

TZC3P300A

ppp

6.5

30.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Green

Insulation Resistance : 10000M ohm Torque : 1.5 to 10.0mNm Operating Temperature Range : -25 to +85

The last three digits show the slot type. 110: standard (minus) type, 310 : cross slot type.

■

Construction

Standard Type

Center axis

Rotor spring terminal

Ceramic plate

Stator
(One molded injection
with stator terminal)

Stator terminal

Cross Slot Type

Center axis

Rotor spring terminal

Ceramic plate

Stator
(One molded injection
with stator terminal)

Stator terminal

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Temperature Characteristics

TZC3Z030

−

Temp.(˚C)

Z030 (NP0

300 ppm/˚C)

(

)

TZC3Z060

−

Temp.(˚C)

Z060 (NP0

300 ppm/˚C)

)

TZC3R100

−

Temp.(˚C)

R100 (N750

300 ppm/˚C)

)

TZC3P200

–10

–25

–2

–4

–6

–8

–10

–12

Temp.(

P200 (N1200

500ppm/

(

)

■

Frequency Characteristics

TZC3Z030

Z030

1000

100

500

1000

1500

Frequency (MHz)

2000

1000

100

(

)

TZC3Z060

Z060

1000

100

500

2000

1500

1000

Frequency (MHz)

1000

100

(

)

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

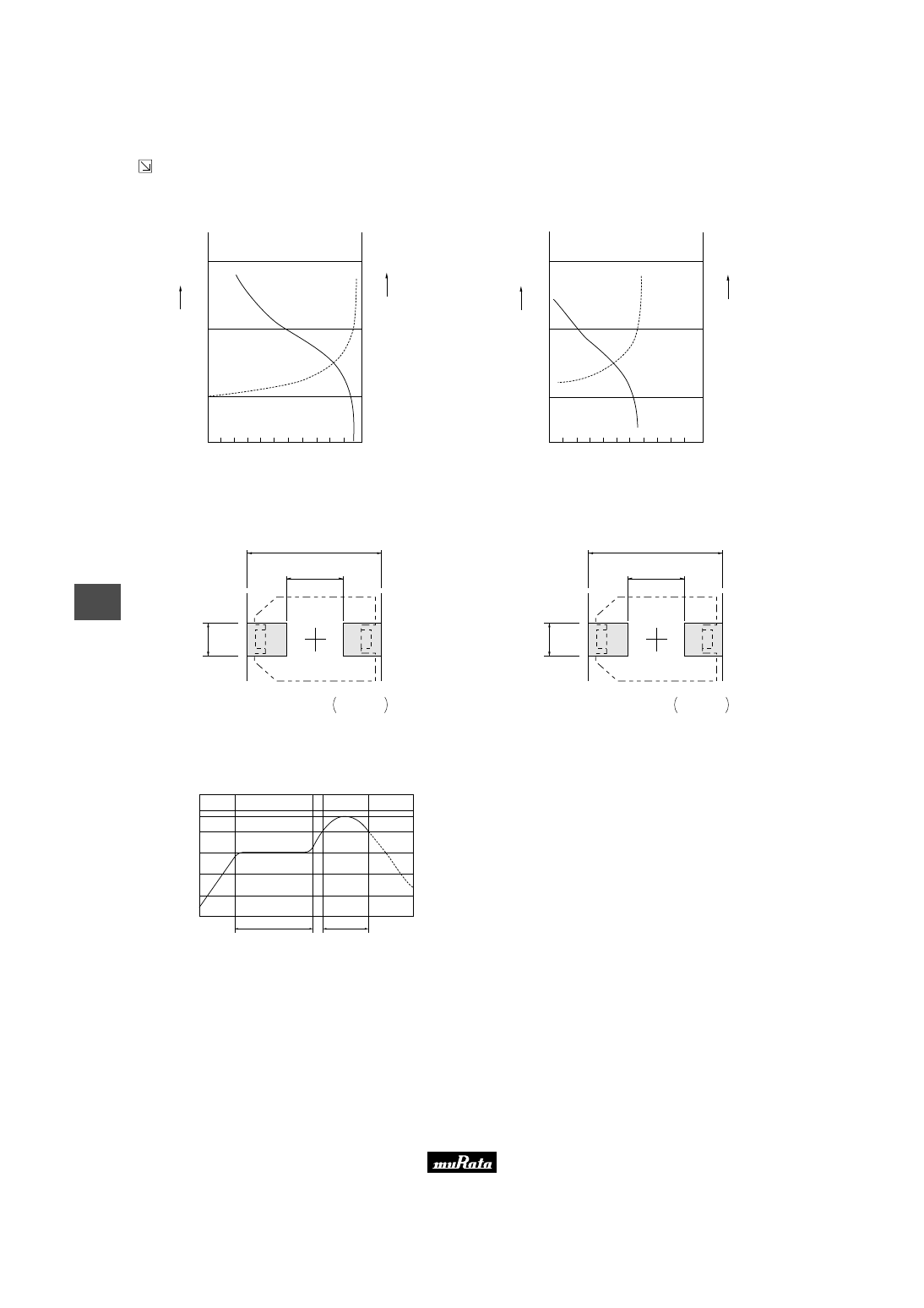

Continued from the preceding page.

■

Frequency Characteristics

TZC3R100

R100

1000

100

200

600

400

800

1000

Frequency (MHz)

1000

100

(

)

TZC3P200

P200

1000

100

200

1000

600

800

400

Frequency (MHz)

1000

100

(

)

■

Land Pattern

Standard Type

5.0

−

0.5

3.3

0.1

Tolerance:

0.1

in mm

Cross Slot Type

5.0

−

0.5

3.3

0.1

Tolerance:

0.1

in mm

■

Temperature Profile

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZC3 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 1mm max.

> Wattage of iron 20W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply flux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause fixed metal rotor or

contact failure due to flux invasion into the

movable part and/or the contact point. The

soldering iron should not come in contact with

the stator of the trimmer capacitor. If such

contact does occur, the trimmer capacitor may

be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

(8) When soldering the TZC3 series, the solder

should not flow into the staking part of the

substrate. If such flow does occur, driver slot

rotation will be damaged.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breakage.

(3) Use the suitable dimension of the pick-up nozzle

(2.5mm external diameter and 1.5mm bore

diameter).

3. Cleaning

Cannot be cleaned because of open construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

Standard type --> MURATA: KMDR010

Cross slot type --> TORAY: SA-1825

(Murata P/N is KMDR040)

(2) Recommended screwdriver bit for automatic

adjustment

Standard type --> MURATA: KMBT010

Cross slot type --> TORAY: JB-1825

(Murata P/N is KMBT040)

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Ceramic Trimmer Capacitors

TZW4 Series

■

Features

1. To meet high power application due to withstanding

voltage 550Vdc.

2. Extremely high self resonant frequency.

(More than 3GHz at 1.5pF setting)

3. Typical application: Impedance matching for Cellular

Base Station.

4. High Q value in more than VHF,UHF and Micro wave band.

(More than 200 in 500MHz, C max.)

5. Available for pick and place machine. Possible

thinner design due to 2.5mm low profile.

6. Non electrical contact construction

(rotor as middle electrode) provides high reliability.

7. Compact size due to 4.2(W)x5.2(L)x2.5max.(H)mm.

■

Applications

1. Transmitting power amplifier for Cellular Base Station

2. Transmitting amplifier for PHS Base Station

3. High frequency electric circuit

4. High power radio transmission

5. Transponder amplifier for cable TV

5.2

0.2

(

Tolerance:

0.1

)

in mm

+0.1

-0.2

0.3

1.6

0.2

0.5 Depth

3.0

2.2

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

TZW4Z1R5A001

0.4

1.5 +100/-0%

NP0

300ppm/

200min. at 500MHz, Cmax.

250Vdc

550Vdc

Insulation Resistance : 10000M ohm Torque : 2.0 to 10.0mNm Operating Temperature Range : -55 to +125

■

Construction

Cover

Metal Rotor

Monolithic

Stator

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

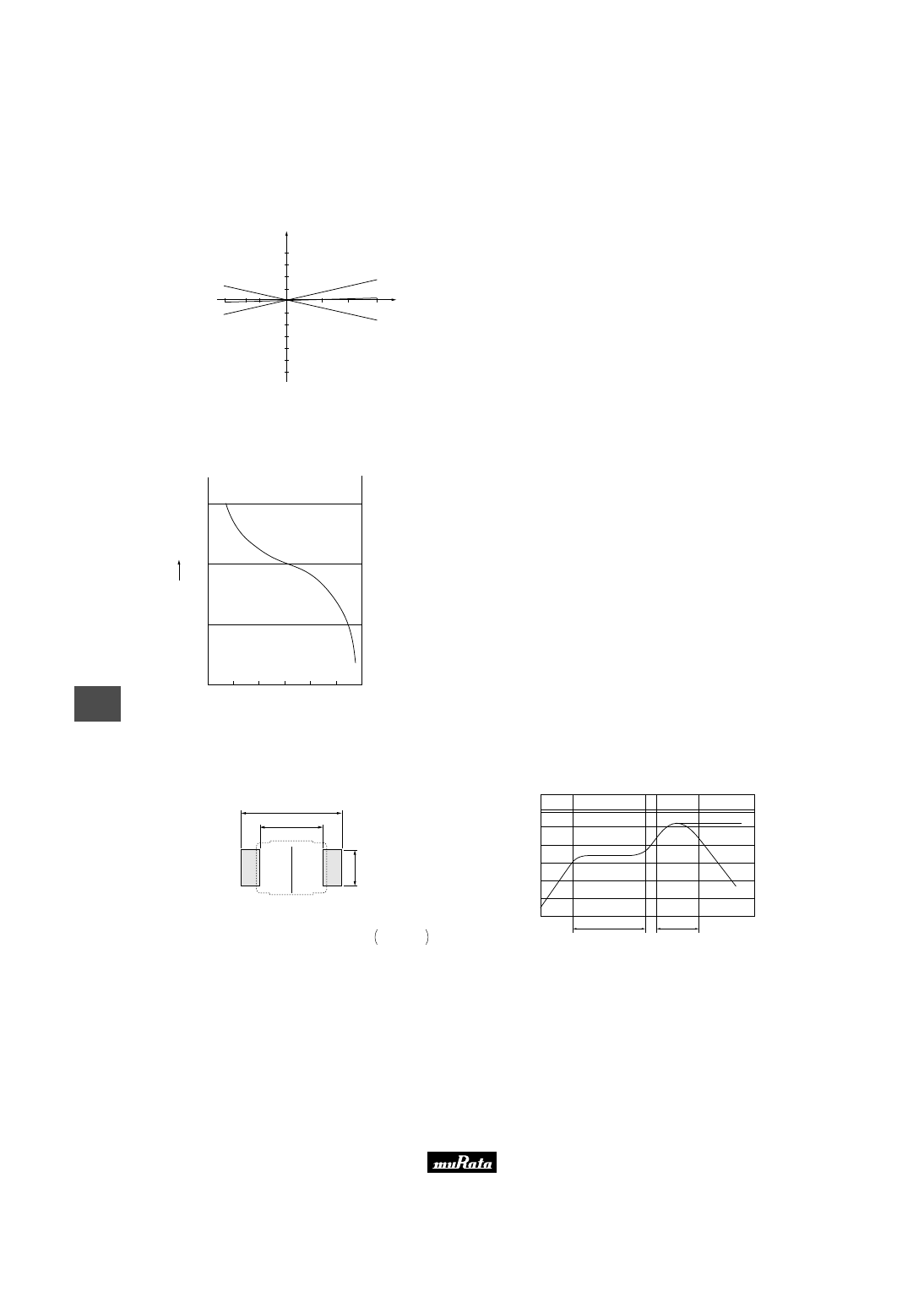

Temperature Characteristics

TZW4Z1R5

−

Z1R5 (NP0

300 ppm/˚C)

Temp.(˚C)

)

■

Frequency Characteristics

TZW4Z1R5

Z1R5

1000

100

500

1000

1500

2000

2500

3000

Frequency (MHz)

1.5pF set

■

Land Pattern

Tolerance:

0.1

in mm

4.4

7.0

■

Temperature Profile

300

250

200

150

100

220

150 to 180

30 to 60 sec.

60 to 120 sec.

(Solder melting zone)

(

)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

260

C Peak

-0

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 C. and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Open the package just before using.

6. Do not store under direct sunlight.

7. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(Ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxie gas,

etc.)

(2) In liquid (Ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZW4 series can be soldered by reflow soldering

method and soldering iron. Do not use flow

soldering method (dipping).

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 390+-10 degree C

> Soldering time 5 sec. max.

> Diameter 1.0mm max.

> Wattage of iron 30W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering.

Insufficient amounts of solder can lead to

insufficient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

flux wicking up.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply flux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause fixed metal rotor or

the contact failure due to flux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breaking.

(3) Use the suitable dimension of the pick-up nozzle.

(1.8mm external diameter and 1.1mm bore

diameter.)

3. Cleaning

Can not be cleaned because of open construction.

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

-Recommended screwdriver for manual adjustment

VESSEL : NO.9000 -1.3x30

(Murata P/N is KMDR130)

2. When adjusting with a screwdriver, do not apply

excessive force(preferable 1.0N(Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

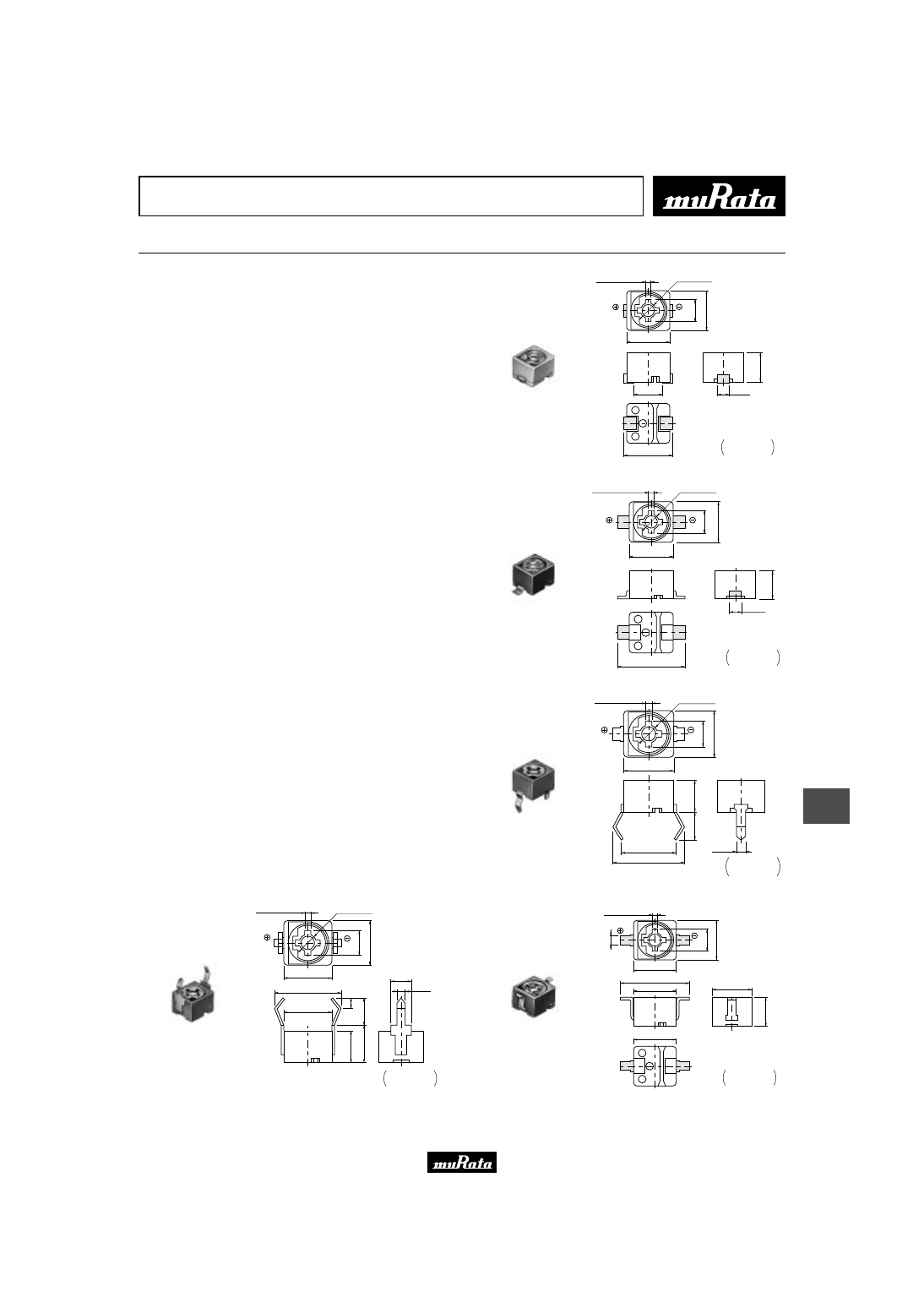

Ceramic Trimmer Capacitors

TZB4 Series

■

Features

1. Miniature rectangular shape:

4.0(W)x4.5(L)x3.0(H)mm

2. Color coded case facilitates identification of

capacitance range.

3. Designed for automatic placement in surface mount

applications.

4. Designed to withstand flux baths and solder baths

(with cover film type)

5. Can be temporarily attached to PCB with adhesives

(Terminal style A and B)

6. Can be reflow and flow (with cover film type)

soldering method

7. Stable characteristics over a wide frequency range

(Resonant frequency: 1000MHz min. / 6pF)

■

Applications

1. Car audio systems 2. Cordless telephones

3. Hybrid ICs 4. Pagers

5. Remote keyless entry systems

6. Tuner packs 7. Surveillance cameras

8. DVD 9. Burglarproof devices

0.6

0.1 Depth 0.5

1.4

0.1 dia.

2.7

0.3

4.5

0.2

5.0

1.2

0.1

Tolerance:

0.5

in mm

A Type

0.6

0.1 Depth 0.5

1.4

0.1 dia.

4.5

0.2

7.0

1.2

0.1

Tolerance:

0.5

in mm

B Type

0.6

0.1 Depth 0.5

1.4

0.1 dia.

5.0

4.5

0.2

6.2

0.8

0.1

Tolerance:

0.5

in mm

C Type

0.6

0.1 Depth 0.5

1.4

0.1 dia.

5.0

4.5

0.2

6.2

0.8

0.1

Tolerance:

0.5

in mm

2.0

0.2

D Type

0.6

0.1 Depth 0.5

4.8

4.5

0.2

4.5

4.0

0.2

Tolerance:

0.5

in mm

7.0

E Type

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

Stator/Case Color

TZB4Z030

1.4

3.0 +50/-0%

NP0

200ppm/

300min. at 1MHz, Cmax

100Vdc

220Vdc

Brown

TZB4Z060

2.0

6.0 +50/-0%

NP0

200ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Blue

TZB4Z100

3.0

10.0 +50/-0%

NP0

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

White

TZB4R200

4.5

20.0 +50/-0%

N750

300ppm/

500min. at 1MHz, Cmax

100Vdc

220Vdc

Red

TZB4P300

6.5

30.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax

100Vdc

220Vdc

Green

TZB4P400

8.5

40.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax

100Vdc

220Vdc

Yellow

TZB4Z250

4.0

25.0 +100/-0%

NP0

300ppm/

300min. at 1MHz, Cmax.

50Vdc

110Vdc

Black+Marking

TZB4R500

7.0

50.0 +100/-0%

N750

300ppm/

300min. at 1MHz, Cmax

50Vdc

110Vdc

Black+Marking

Insulation Resistance : 10000M ohm Torque : 1.5 to 10.0mNm Operating Temperature Range : -25 to +85

First blank: Terminal Type Second blank: Cover film codes (A: not provided, B: provided)

■

Construction

Plastic Case

Rotor Spring

Metal Rotor

Ceramic Plate

Stator Terminal

Cover Film (Cover film type)

Rotor Terminal

−

■

Land Pattern/Mounting Holes

A Type

7.0

- 0.5

2.4

0.2

(in mm)

B Type

(in mm)

4.0

0.2

8.0

- 0.5

C Type

1.1

0.1 dia.

1.1

0.1 dia.

5.0

0.5

(in mm)

D Type

2.8

0.2 dia.

0.8

0.1

5.0

0.5

(in mm)

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Land Pattern/Mounting Holes

E Type

8.0

- 0.5

4.2

0.2

3.2

0.2 dia.

(in mm)

■

Temperature Characteristics

+10

+20

–25

+55

+85

–2

–4

–6

–8

–10

Z060 (NP0

200ppm/

Temp. (

(

)

+10

+20

–25

+55

+85

–2

–4

–6

–8

–10

Z100 (NP0

300ppm/

(

)

Temp. (

+10

+20

–25

+55

+85

–2

–4

–6

–8

–10

R200 (N750

300ppm/

(

)

Temp. (

+10

+20

–25

+55

+85

–2

–4

–6

–8

–10

R500 (N750

200ppm/

(

)

Temp.(

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Frequency Characteristics

Z060

1000

100

1000

100

800

700

600

500

400

300

200

100

900 1000

Frequency (MHz)

(

)

Z100

1000

100

800

700

600

500

400

300

200

100

900 1000

Frequency (MHz)

1000

100

(

)

R200

1000

100

200

100

400

300

500

600

Frequency (MHz)

1000

100

(

)

R500

1000

100

500

300

400

200

Frequency (MHz)

1000

100

(

)

■

Temperature Profile

Reflow

230

183

100

30 sec. max.

60 sec. to 120 sec.

(Solder melting zone)

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

Flow

200

250

100

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

5 sec. max.

60 sec. to 120 sec.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Do not store under direct sunlight.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) Can be soldered by reflow soldering method, flow

soldering method, and soldering iron.

(2) Standard soldering condition

(a) Reflow soldering: Refer to the standard

temperature profile.

*Available for terminal shape A, B, and E.

(b) Flow soldering: Refer to the standard

temperature profile.

> Immerse the body in solder bath

- Available for cover film type

> Only immerse the terminal in solder bath

- Availabe for terminal shape C and D.

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 3mm max.

> Wattage of iron 30W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the specified

characteristics.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reflow soldering. Insufficient

amounts of solder can lead to insufficient

soldering strength on PCB. Excessive amounts of

solder may cause bridging between the terminals

or contact failure due to flux wicking up.

(5) When using soldering iron, the string solder

shall be applied to the lower part of the

terminal only. Do not apply flux except to the

terminals. Excessive amounts of solder and/or

applying solder to the upper part of the

terminal may cause fixed rotor or contact failure

due to flux invasion into the movable part and/or

the contact point. The soldering iron should not

come in contact with the plastic case of the

trimmer capacitor. If such contact does occur,

the trimmer capacitor may be damaged.

(6) Our recommendable chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble flux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply flux

only to terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to prevent trimmer

capacitor from breakage.

(3) Use the suitable PCB holes which are the same

pitch as the terminal of the trimmer capacitor.

If it would not fit with the terminal, the

excessive stress would be applied to the

terminal and the trimmer capacitor may deviate

from the specified characteristics (Terminal

shape C and D).

(4) Do not apply bending stress more than 10.0N

(Ref.; 1kgf) after the trimmer capacitor has

been mounted on the PCB (Terminal shape C and D).

(5) Mount trimmer capacitor in contact with PCB

(Terminal shape C and D).

(6) In case of bending the terminals, do not apply

excessive force to the body of the product and

prevent the terminal fixing part from damaging.

(7) Use the suitable dimension of the pick-up nozzle.

> Without cover film type

- External dimensions of 4.5x4.0mm and

2.5mm bore diameter.

> With cover film type

- 4.0mm external diameter and 2.0mm bore

diameter.

3. Cleaning [with cover film type]

(1) Isopropyl alcohol and Ethyl alcohol are

available material for cleaning. Water group

material like Pinealpha, Cleanthru can not be

used. For other materials, please consult with

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

Murata factory representative prior to using.

(2) The total cleaning time by dipping, vapor and

ultra-sonic method shall be less than 2 minutes.

For ultra-sonic cleaning, the available

condition is as follows.

> Cleaning time: 1 min. max.

> Power: 20W/liter max.

> Frequency: 20 - 60kHz

> Temperature: Ambient temperature

Due to the ultra-sonic cleaning equipment's

peculiar self resonance point and the cleaning

compatibility usually depends on the jig

construction and/or the cleaning condition such

as the depth of immersion, please check the

cleaning equipment to determine the suitable

conditions. If the trimmer capacitor is cleaned

by other conditions, the trimmer capacitor may

deviate from the specified characteristics.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

MURATA: KMDR010

(2) Recommended screwdriver bit for automatic

adjustment

MURATA: KMBT010

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

4. Do not break the cover film before the completion

of PCB mounting, soldering, and cleaning.

5. Do not clean the trimmer capacitor after the cover

film has been broken.

6. To break the cover film, first turn the screwdriver

more than 45 deg., the set the capacitance value.

(Only inserting the screwdriver cannot break the

cover film.)

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

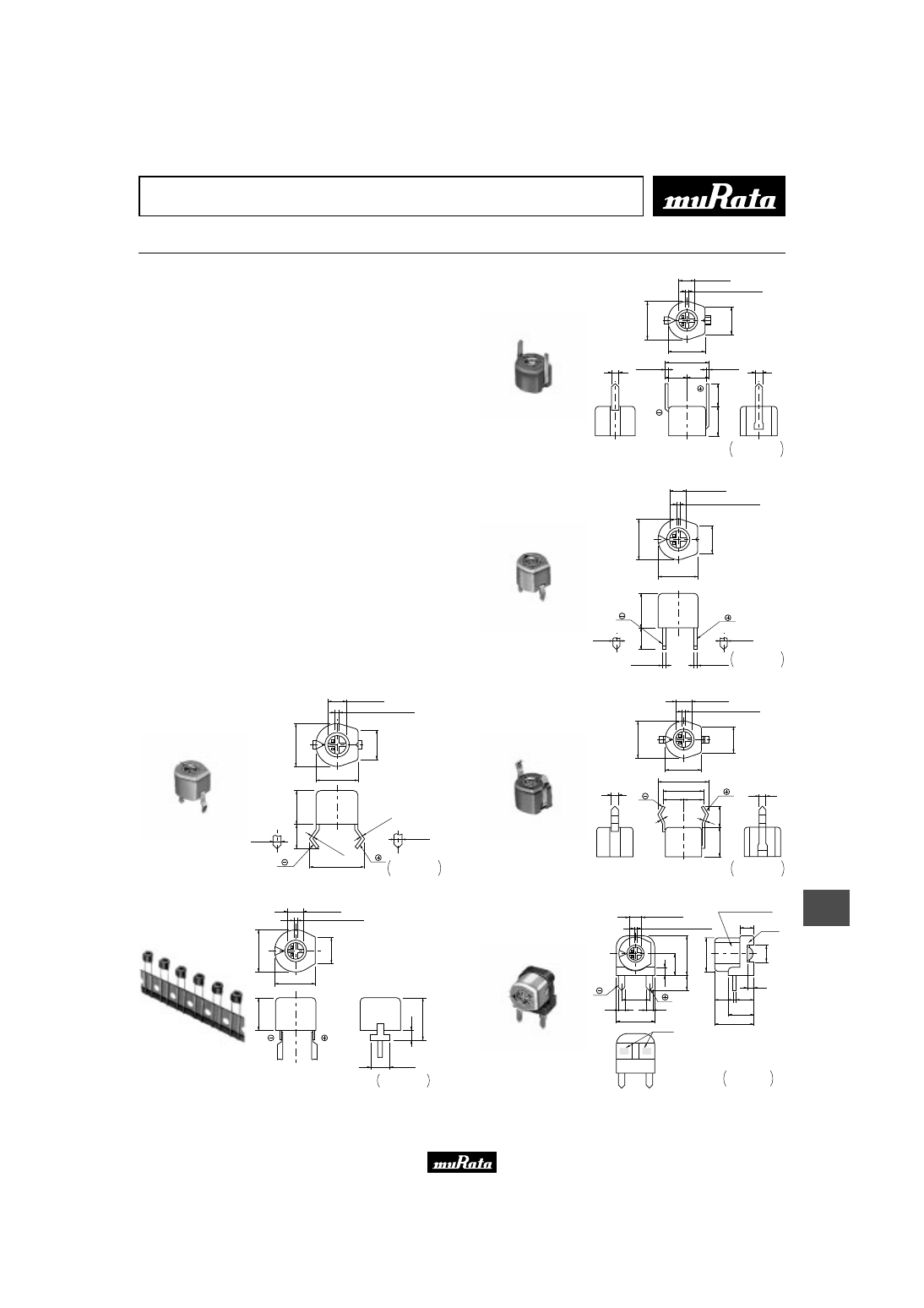

Ceramic Trimmer Capacitors

TZ03 Series

■

Features

1. Color coded case facilitates identification of

capacitance range.

2. Sealed construction prevents the penetration of

flux and dust.

3. Available in three adjustment styles: Top/Rear/

Side.

4. Available in both tape and reel and magazine

packaging for automatic insertion.

5. + (Cross-shaped) slot enables automatic adjustment.

■

Applications

1. Car audio systems 2. Car clocks

3. Stereos 4. Radio cassette tape recorders

5. Cordless telephones 6. Video games

7. Compact radio equipments

8. Remote keyless entry systems

9. Burglarproof devices

Tolerance:

0.5

in mm

2.5

0.2 dia.

0.5

0.2 Depth 0.5 min.

6.6

3.1

3.5

0.25

0.05

0.2

0.05

1.0

0.1

1.2

0.1

B Type

2.5

0.2 dia.

0.5

0.2 Depth 0.5 min .

1.0

0.1

0.2

0.05

0.25

0.05

1.0

0.1

Tolerance:

0.5

in mm

E Type

2.5

0.2 dia.

0.5

0.2 Depth 0.5 min.

Tolerance:

0.5

in mm

1.0

0.1

1.0

0.1

6.6

0.2

0.0

0.2

0.0

F Type

2.5

0.2 dia.

0.5

0.2 Depth 0.5 min.

6.0

1.2

0.1

7.8

6.4

3.0

3.4

1.0

0.1

Tolerance:

0.5

in mm

0.2

0.0

0.2

0.05

N Type

0.5

0.2 Depth 0.5 min.

2.5

0.2 dia.

2.5

0.3

6.0

Tolerance:

0.5

in mm

T Type

2.5

3.7

0.3

1.2

7.5

4.5

3.5

Trimmer Cap. Body

Socket

Solder

0.5

0.2 Depth 0.5 min.

2.5

0.2 dia.

Tolerance:

0.5

in mm

1.2

Y Type

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

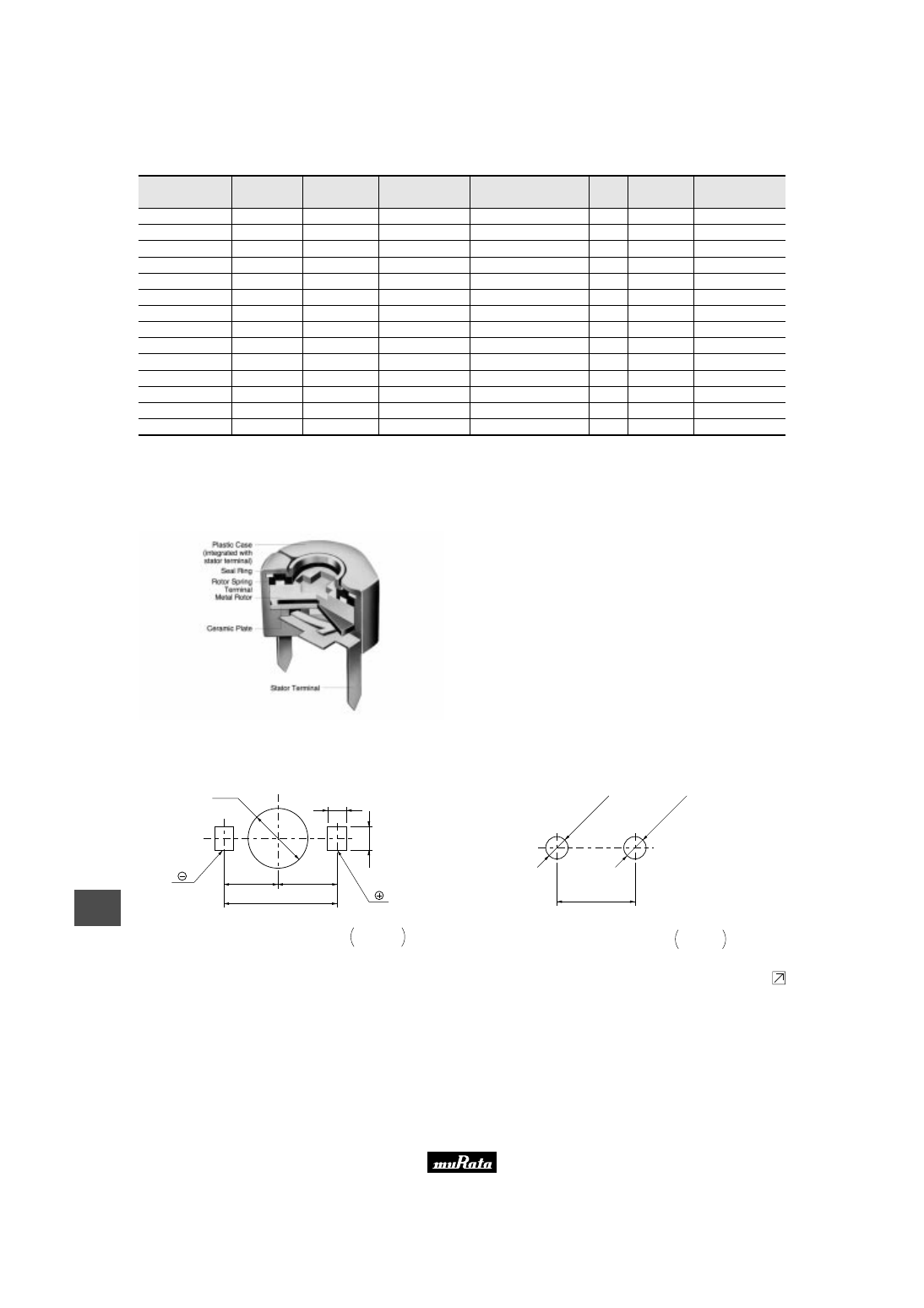

Part Number

Cmin. (max.)

(pF)

Cmax.

(pF)

Rated

Voltage

Withstanding

Voltage

Stator/Case Color

TZ03Z2R3

169

1.25

2.3 +50/-0%

NP0

200ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Black

TZ03Z050

169

1.5

5.0 +50/-0%

NP0

200ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Blue

TZ03Z070

169

2.0

7.0 +50/-0%

NP0

200ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Blue

TZ03N100

169

2.1

10.0 +50/-0%

N200

200ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

White

TZ03Z100

169

2.7

10.0 +50/-0%

NP0

200ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Blue

TZ03T110

169

3.0

11.0 +50/-0%

N450

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

White

TZ03R200

169

4.2

20.0 +50/-0%

N750

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Red

TZ03T200

169

4.2

20.0 +50/-0%

N450

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Pink

TZ03R300

169

5.2

30.0 +50/-0%

N750

300ppm/

500min. at 1MHz, Cmax.

100Vdc

220Vdc

Green

TZ03P450

169

6.8

45.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Yellow

TZ03P600

169

9.8

60.0 +50/-0%

N1200

500ppm/

300min. at 1MHz, Cmax.

100Vdc

220Vdc

Brown

TZ03Z500

169

6.0

50.0 +100/-0%

NP0

300ppm/

300min. at 1MHz, Cmax.

50Vdc

110Vdc

Orange

TZ03R900

169

9.0

90.0 +100/-0%

N750

300ppm/

300min. at 1MHz, Cmax.

50Vdc

110Vdc

Black+Dot

TZ03R121

169

10.0

120.0 +100/-0%

N750

300ppm/

300min. at 1MHz, Cmax.

50Vdc

110Vdc

Black

Insulation Resistance : 10000M ohm Torque : 2.0 to 15.0mNm Operating Temperature Range : -25 to +85

A blank column is filled with terminal type codes.

■

Construction

■

Mounting Holes

B Type

6.3

3 dia.

0.1

3.3

Tolerance:

0.5

in mm

E Type

Tolerance:

0.5

in mm

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Mounting Holes

F Type

Tolerance:

0.5

in mm

N Type

3 dia.

0.1

3.3

Tolerance:

0.5

in mm

T Type

5.0

0.2

(in mm)

Y Type

Tolerance:

0.5

in mm

■

Temperature Characteristics

–25

–2

–4

–6

Temp. (

(

)

Z070 (NP0

200ppm/

–25

–2

–4

–6

Temp. (

(

)

T110 (N450

300ppm/

–25

–2

–4

–6

Temp. (

(

)

R200 (N750

300ppm/

–25

–2

–4

–6

Temp. (

–8

–10

(

)

P600 (N1200

500ppm/

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Temperature Characteristics

–25

–2

–4

–6

Temp. (

–8

–10

(

)

Z500 (NP0

300ppm/

–25

–2

–4

–6

Temp. (

–8

–10

(

)

R121 (N750

300ppm/

■

Frequency Characteristics

1000

100

200 300 400 500 600 700 800 900 1000

1000

100

Frequency(MHz)

)

Z070

1000

100

200 300 400 500 600 700 800 900 1000

1000

100

Frequency (MHz)

(

)

T110

1000

100

200

300

400

500

1000

100

Frequency (MHz)

(

)

R200

1000

100

200

300

400

500

1000

100

Frequency (MHz)

(

)

P450

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

Frequency Characteristics

1000

100

200

300

400

500

1000

100

Frequency (MHz)

(

)

P600

1000

100

200

300

400

500

1000

100

Frequency (MHz)

(

)

R900

■

Temperature Profile

Flow

200

250

100

Preheating (in air)

Gradual Cooling

(in air)

Solderring

(

)

5 sec. max.

60 sec. to 120 sec.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

Notice (Storage and operating condition)

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

2. Before using trimmer capacitor, please store under

the condition of -10 to +40 degree C and 30 to

85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of deliverly.

5. Open the package just before using.

6. Prior to storing previously opened packages, the

packaging should be heat-sealed. Avoid using

rubber bands for repackaging.

7. Do not store under direct sunlight.

8. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulfide gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage nor electric/magnetic fields

(6) Direct sea breeze

(7) Other variations of the above

■

Notice (Soldering and mounting)

1. Soldering

(1) TZ03 series can be soldered by flow soldering

method and soldering iron. Do not use reflow

soldering method.

(2) Standard soldering condition

(a) Flow soldering: Refer to the standard

temperature profile.

(b) Soldering iron:

> Temperature of tip 260+-10 degree C

> Soldering time 3 sec. max.

> Diameter 3mm max.

> Wattage of iron 30W max.

Before using other soldering conditions than

those listed above, please consult with Murata

factory representative prior to using. If the

soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature,

the trimmer capacitor may deviate from the

specified characteristics.

(3) The dimension of mounting hole should be Murata's

standard mounting hole used at flow soldering.

The amount of solder is critical. Insufficient

amounts of solder can lead to insufficient

soldering strength on PCB. Excessive amounts of

solder may cause bridging between the terminals

or contact failure due to flux wicking up.

(4) When using soldering iron, the string solder

shall be applied to the lower part of the

terminal only. Do not apply flux except to the

terminals. Excessive amounts of solder and/or

applying solder to the upper part of the

terminal may cause fixed rotor or the contact

failure due to flux invasion into the movable

part and/or the contact point. The soldering

iron should not come in contact with the plastic

case of the trimmer capacitor. If such contact

does occur, the trimmer capacitor may be damaged.

(5) Our recommendable chlorine content of string

solder is 0.5wt% max.

(6) Do not use water-soluble flux (for water cleaning).

To prevent the deterioration of trimmer

capacitor characteristics, apply flux only to

terminals.

2. Mounting

(1) Do not apply excessive force (preferable 5.0N

(Ref.; 500gf) max.), when the trimmer capacitor

is mounted on the PCB.

(2) Use the suitable PCB holes which are the same

pitch as the terminal of the trimmer capacitor.

If it would not fit with the terminal, the

excessive stress would be applied to the

terminal and the trimmer capacitor may deviate

from the specified characteristics.

(3) Do not apply bending stress more than 10.0N

(Ref.; 1kgf) after the trimmer capacitor has

been mounted on the PCB.

(4) Mount trimmer capacitor in contact with PCB.

(5) In case of bending the terminals, do not apply

excessive force to the body of the product and

prevent the terminal fixing part from damaging.

3. Cleaning

(1) Isopropyl alcohol and Ethyl alcohol are available

material for cleaning. Water group materials like

Pinealpha, Cleanthru cannot be used. For other

materials, please consult with Murata factory

representative prior to using.

(2) The total cleaning time by dipping, vapor and

ultra-sonic method shall be less than 2 minutes.

For ultra-sonic cleaning, the available

condition is as follows.

> Cleaning time: 30 sec. max.

> Power: 20W/liter max.

> Frequency: 20 - 60kHz

> Temperature: Ambient temperature

Due to the ultra-sonic cleaning equipment's

peculiar self resonance point and the cleaning

compatibility usually depends on the jig

construction and/or the cleaning condition such

as the depth of immersion, please check the

cleaning equipment to determine the suitable

conditions. If the trimmer capacitor is cleaned

by other conditions, the trimmer capacitor may

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

deviate from the specified characteristics.

4. Other

Note the polarity of the trimmer capacitor to

minimize influence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

■

Notice (Handling)

1. Use suitable screwdrivers that fit comfortably in

driver slot.

(1) Recommended screwdriver for manual adjustment

MURATA: KMDR010

(2) Recommended screwdriver bit for automatic

adjustment

MURATA: KMBT010

2. When adjusting with a screwdriver, do not apply

excessive force (preferable 1.0N (Ref; 100gf) max.)

to minimize capacitance drift. If excessive force

is applied to the screwdriver slot, it may cause

deformation of the products.

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

■

Notice (Other)

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Packaging

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

■

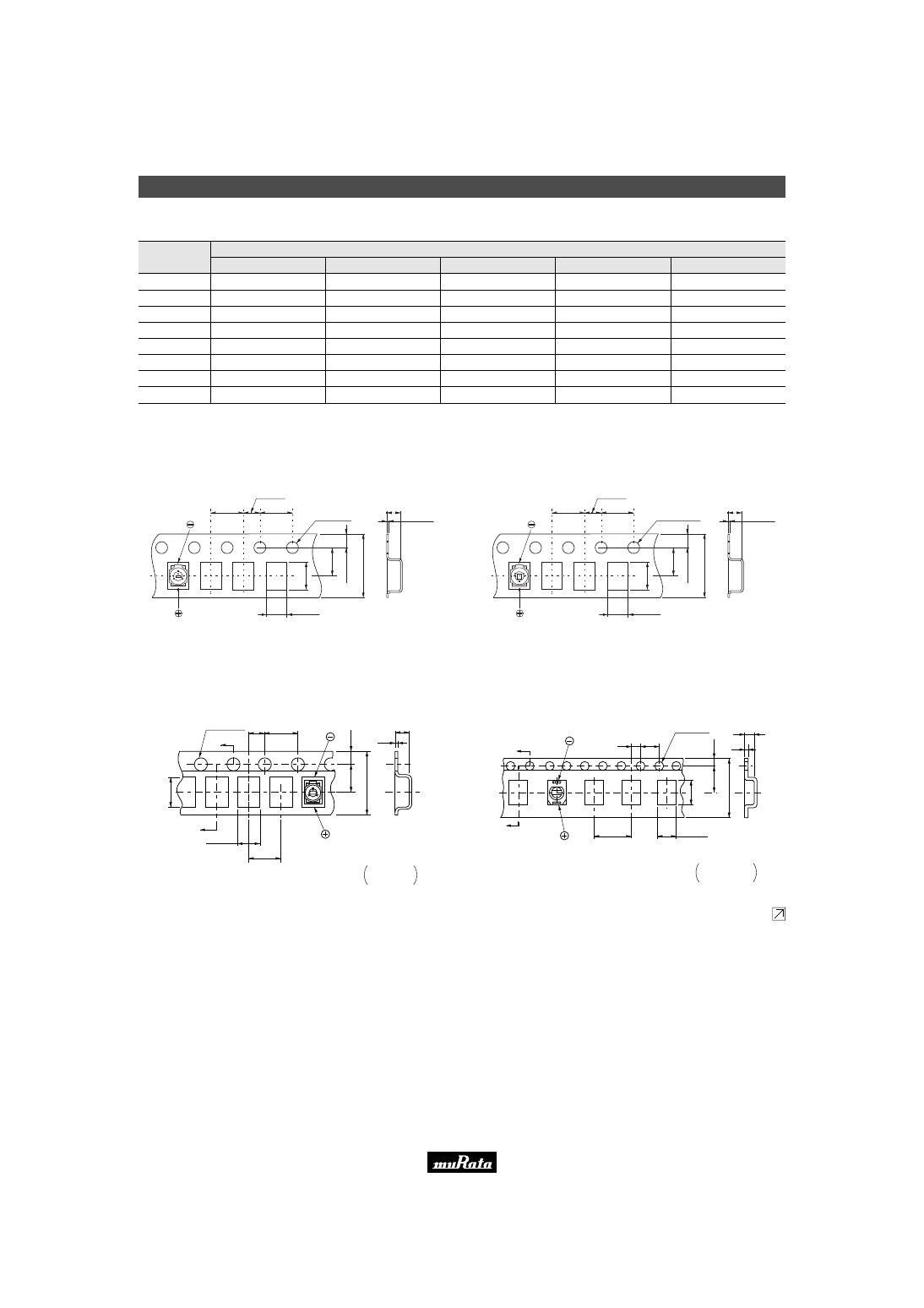

Minimum Quantity

Part Number

TZR1

TZS2

TZY2

TZV2

TZC3

TZW4

TZB4

TZ03

3000

2000

1000

500

180mm Reel

10000

8000

4000

2500

330mm Reel

1000

Ammo Pack

Magazine

500

100

500

1000

∗

Bulk

Minimum Quantity (pcs.)

∗

Y terminal type is supplied on the 500pcs./bulk basis.

■

Dimension of Tape

TZR1 Series

4.0

0.1

2.0

0.1

4.0

0.1

1.5

Dia.

+0.1

-0

1.8

0.2

1.05

0.2

0.25

0.1

(in mm)

TZS2 Series

4.0

0.1

2.0

0.1

4.0

0.1

1.5 -0 dia.

+0.1

2.5

0.2

1.25

0.2

0.25

0.1

(in mm)

TZY2/TZV2 Series

1.5

0.1

−

0 dia.

2.0

4.0

2.7

0.2

4.0

0.25

A-Across
section

t=TZY2 (TZVY2) : 1.6

0.2

TZV2 (TZV02) : 1.9

0.2

Tolerance:

0.1

in mm

TZC3 Series

1.5

0.1

−

0 dia.

0.3

2.0

0.2

A-Across
section

Tolerance :

0.1

in mm

3.6

0.2

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Packaging

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

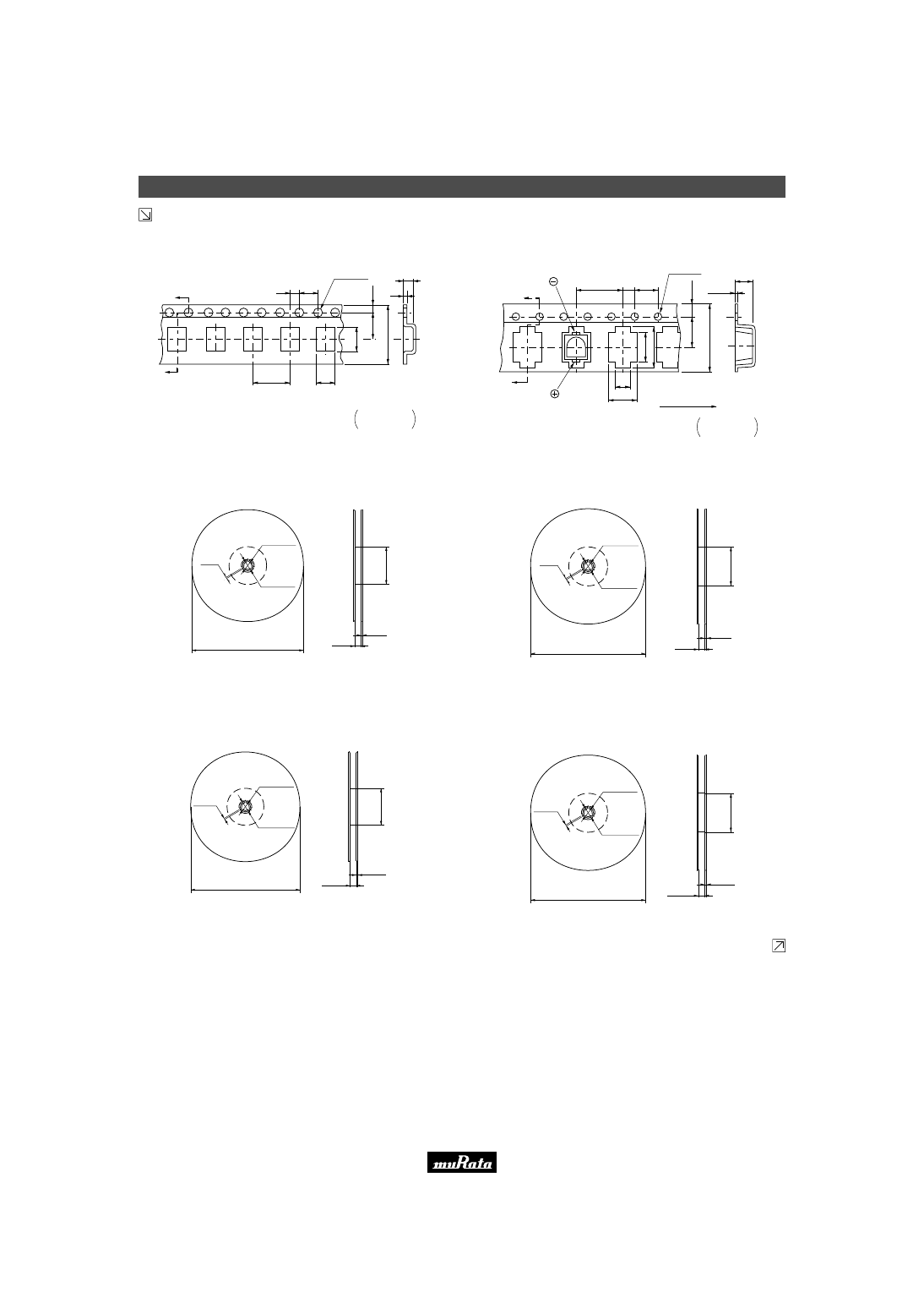

Dimension of Tape

TZW4 Series

1.5

0.1

−

0 dia.

0.3

2.6

A-Across
section

Tolerance:

0.1

in mm

4.6

TZB4 Series

1.5

0.1

−

0 dia.

8.0

2.0

4 .0

1.8

4.3

3.55

0.2

0.3

0.1

A-Across
section

Direction of feed

Tolerance:

0.1

in mm

■

Dimension of dia. 178mm Reel

TZR1/TZS2/TZY2/TZV2 Series

(in mm)

0.8 dia.

178

2 dia.

0.5 dia.

0.5

1.5

TZC3/TZW4/TZB4 Series

(in mm)

0.8 dia.

178

2 dia.

0.5 dia.

0.5

1.5

■

Dimension of dia. 330mm Reel

TZR1/TZS2/TZY2/TZV2 Series

(in mm)

21.0

0.8 dia.

328

2 dia.

13.0

0.5 dia.

2.0

0.5

2.0

0.5

9.5

1.5

TZC3/TZB4 Series

(in mm)

21.0

0.8 dia.

328

2 dia.

13.0

0.5 dia.

2.0

0.5

2.0

0.5

14.0

1.5

Continued on the following page.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Packaging

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Continued from the preceding page.

■

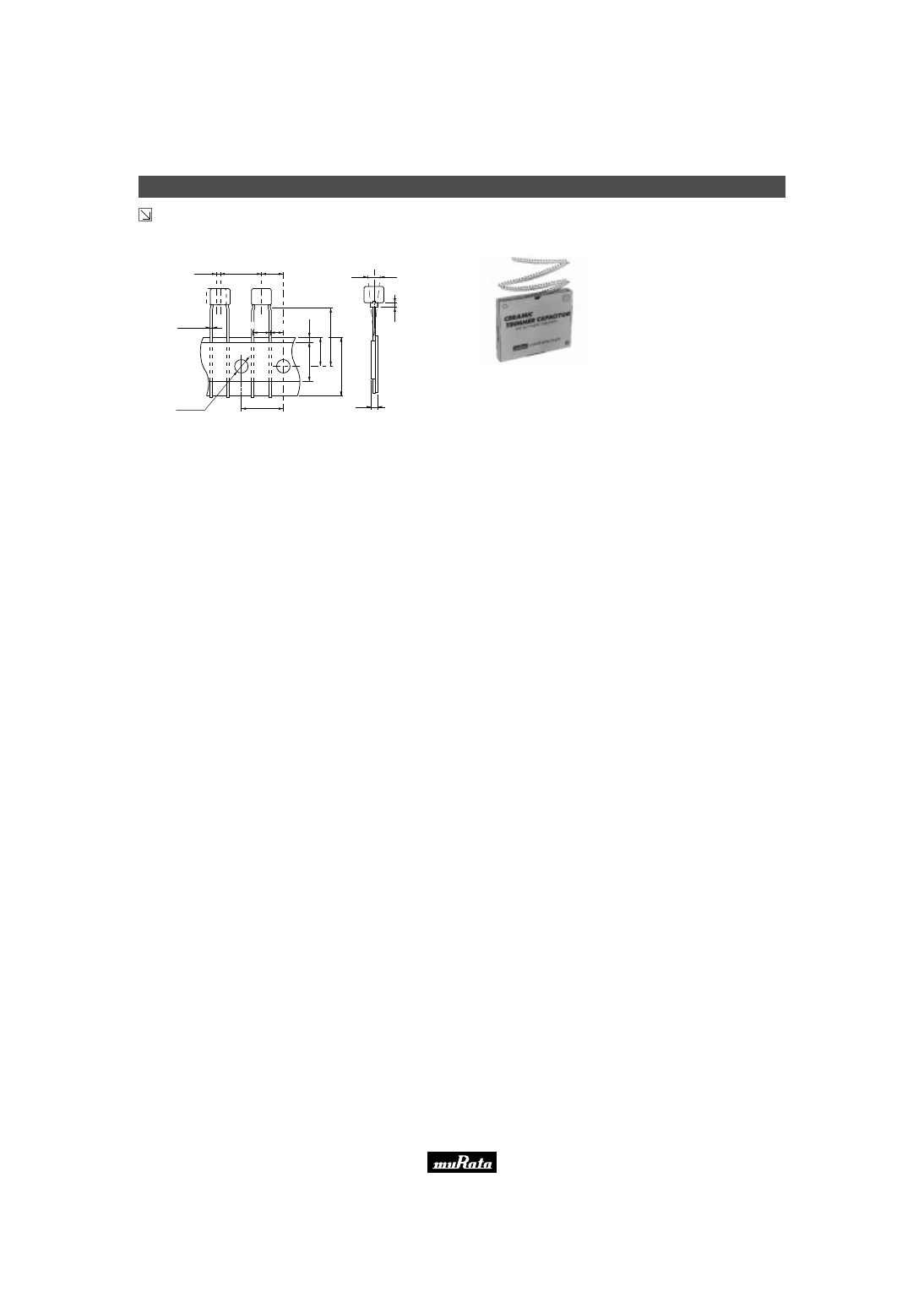

Dimension of Tape

TZ03 Series

12.7

6.35

1.3

1.5

ø0.6

0.1

ø4.0

0.1

12.7

0.3

1.7 max.

1.5 max.

3.85

0.7

5.0

0.8

−

0.2

∗

1 : Tolerance varies with

∆

∗

2 : Except 1mm from the stand-off position.

(in mm)

■

Ammo Pack

TZ03 Series

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

■

For Manual Adjusutment

Series

MURATA

Model Number

Manufacturers

Model Number

Shape

TZR1

TZS2

TZY2

TZV2

TZC3

Cross Slot Type

TZC3

Standard Type (Minus Slot)

TZW4

TZB4

TZ03

KMDR160

KMDR050

KMDR060

KMDR020

KMDR040

KMDR010

KMDR130

KMDR010

MURATA MFG.

KMDR160

MURATA MFG.

KMDR050

ENGINEER INC.

DA-89

VESSEL MFG.

NO.9000-0.9

TORAY INDUSTRIES, INC.

SA-1825

MURATA MFG.

KMDR010

VESSEL MFG.

NO.9000-1.3

MURATA MFG.

KMDR010

Please use the following recommended screwdriver.

You can order this driver with part number below.

Though you can also adjust the capacitance value by commercial products, please use one which has the same head size as

the driver below.

Continued on the following page.

1.5

Bit shape: Minus (0.3

0.13)

(in mm)

Bit shape: Square (0.54

0.54)

1.5

108

(in mm)

Bit shape: Minus (0.8

0.35)

(in mm)

9000

0.9-30

125

Bit shape: Minus (0.9

0.4)

(in mm)

120

Bit shape: Minus (1.8

0.45)

(in mm)

122

Bit shape: Minus (2.2

0.4)

(in mm)

122

Bit shape: Minus (2.2

0.4)

(in mm)

125

9000

1.3-30

CERAMIC BLADE

ELECTRONICS

Bit shape: Minus (1.3

30)

■

Screwdriver

Recommended Adjustment Tools

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

■

For Automatic Adjustment

TZS2

TZY2

TZV2

TZC3

Cross Slot Type

TZC3

Standard Type (Minus Slot)

TZB4

TZ03

KMBT050

KMBT060

KMBT020

KMBT040

KMBT010

MURATA MFG.

KMBT050

MURATA MFG.

KMBT060

MURATA MFG.

KMBT020

TORAY INDUSTRIES, INC.

JB-1825

MURATA MFG.

KMBT010

Continued from the preceding page.

Series

MURATA

Model Number

Manufacturers

Model Number

Shape

(in mm)

Bit shape: Square (0.54

0.54)

(in mm)

0.6

Bit shape: Minus (0.56

0.25)

(in mm)

0.6

Bit shape: Minus (0.9

0.4)

(in mm)

Bit shape: Minus (1.8

0.45)

(in mm)

Bit shape: Minus (2.2

0.4)

Recommended Adjustment Tools

Note

• Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Head Office

2-26-10, Tenjin Nagaokakyo-shi, Kyoto 617-8555, Japan Phone: 81-75-951-9111

International Division

3-29-12, Shibuya, Shibuya-ku, Tokyo 150-0002, Japan
Phone: 81-3-5469-6123 Fax: 81-3-5469-6155 E-mail: intl@murata.co.jp

http://www.murata.com/

Please read rating and

CAUTION (for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specifications before ordering.

Note

T13E9.pdf 04.6.15

Note:

1. Export Control

For customers outside Japan

Murata products should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destructive
weapons (nuclear weapons, chemical or biological weapons, or missiles), or any other weapons.

For customers in Japan

For products which are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required
for export.

2. Please contact our sales representatives or product engineers before using the products in this catalog for the applications listed below, which require especially

high reliability for the prevention of defects which might directly damage to a third party's life, body or property, or when one of our products is intended for use
in applications other than those specified in this catalog.

Aircraft equipment

Aerospace equipment

Undersea equipment

Power plant equipment

Medical equipment

Transportation equipment (vehicles, trains, ships, etc.)

Traffic signal equipment

Disaster prevention / crime prevention equipment

Data-processing equipment

Application of similar complexity and/or reliability requirements to the applications listed in the above

3. Product specifications in this catalog are as of April 2004. They are subject to change or our products in it may be discontinued without advance notice. Please

check with our sales representatives or product engineers before ordering. If there are any questions, please contact our sales representatives or product
engineers.

4. Please read rating and CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

5. This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or

transact the approval sheet for product specifications before ordering.

6. Please note that unless otherwise specified, we shall assume no responsibility whatsoever for any conflict or dispute that may occur in connection with the effect

of our and/or a third party's intellectual property rights and other related rights in consideration of your use of our products and/or information described or
contained in our catalogs. In this connection, no representation shall be made to the effect that any third parties are authorized to use the rights mentioned
above under licenses without our consent.

7. No ozone depleting substances (ODS) under the Montreal Protocol are used in our manufacturing process.
