Power Connectors Product Selection Guide
2
Wire Sizes
AWG
- A U.S. measurement standard of the diameter of non-ferrous wire, which includes copper and aluminum
- The thicker the wire, the greater the current-carrying capacity and the longer the distance it can span
- The smaller the AWG number, the thicker the wire
KCMIL
- In the North American electrical industry, conductors larger than 4/0 AWG are generally identified by the area in thousands of circular mils (kcmil)
- A circular mil is the area of a wire one mil in diameter
- One million circular mils is the area of a rod with 1000 mil = 1 inch diameter
- The smaller the KCMIL number, the thinner the wire
Code
Flex
Part Number System for Pan-Lug
™
Compression Lugs
—
—
X
1 = 1
3 = 3
5 = 5
6 = 6
X = 10
E = 20
Q = 25
L = 50
C = 100
Standard
Package Size
F
Tongue Angle
H = 45°
F = 90°
No Letter = Straight
D
Two Stud
Hole Spacing
A = 0.625"
B = 0.750"
C = 0.875"
D = 1.0"
E = 1.25"
G = 1.5"
J = 0.5"
K = 2"
M = 1.375"
P = 0.688"
Q = 1.125"
No Letter = 1.75" or 44.5mm
CD = 22.0-25.0mm
38
Stud Hole
Size
10 = #10
14 = 1/4"
56 = 5/16"
38 = 3/8”
12 = 1/2"
58 = 5/8"
34 = 3/4"
78 = 7/8"
00 = Blank Tongue
5 = M5
6 = M6
8 = M8
10 = M10
12 = M12
14 = M14
16 = M16
20 = M20
LCD
Type
Lug, Copper
Two-Hole
Standard Barrel
example:
LCD =
2/0
Conductor
Size
2/0 = 2/0 AWG
Panduit Power Connectors
Panduit
®
Pan-Lug
™
Compression Connectors provide permanent terminations for a variety of power and grounding applications,
with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices
that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies.
Smallest to Largest
▼
▼
#26 A
WG
#24 A
WG
#22 A
WG
#20 A
WG
#18 A
WG
#16 A
WG
#14 A
WG
#12 A
WG
#10 A
WG
#8 A
WG
#6 A
WG
#4 A
WG
#2 A
WG
#1 A
WG
#1/0 A
WG
#2/0 A
WG
#3/0 A
WG
#4/0 A
WG
#250 KCMIL
#300 KCMIL
#350 KCMIL
#400 KCMIL
#500 KCMIL
#600 KCMIL
#750 KCMIL
#1000 KCMIL
Terminals
Power Connectors
Blackfin
- Innovative tools lead the industry in safety and reliability, meeting OSHA requirements for operator safety
3

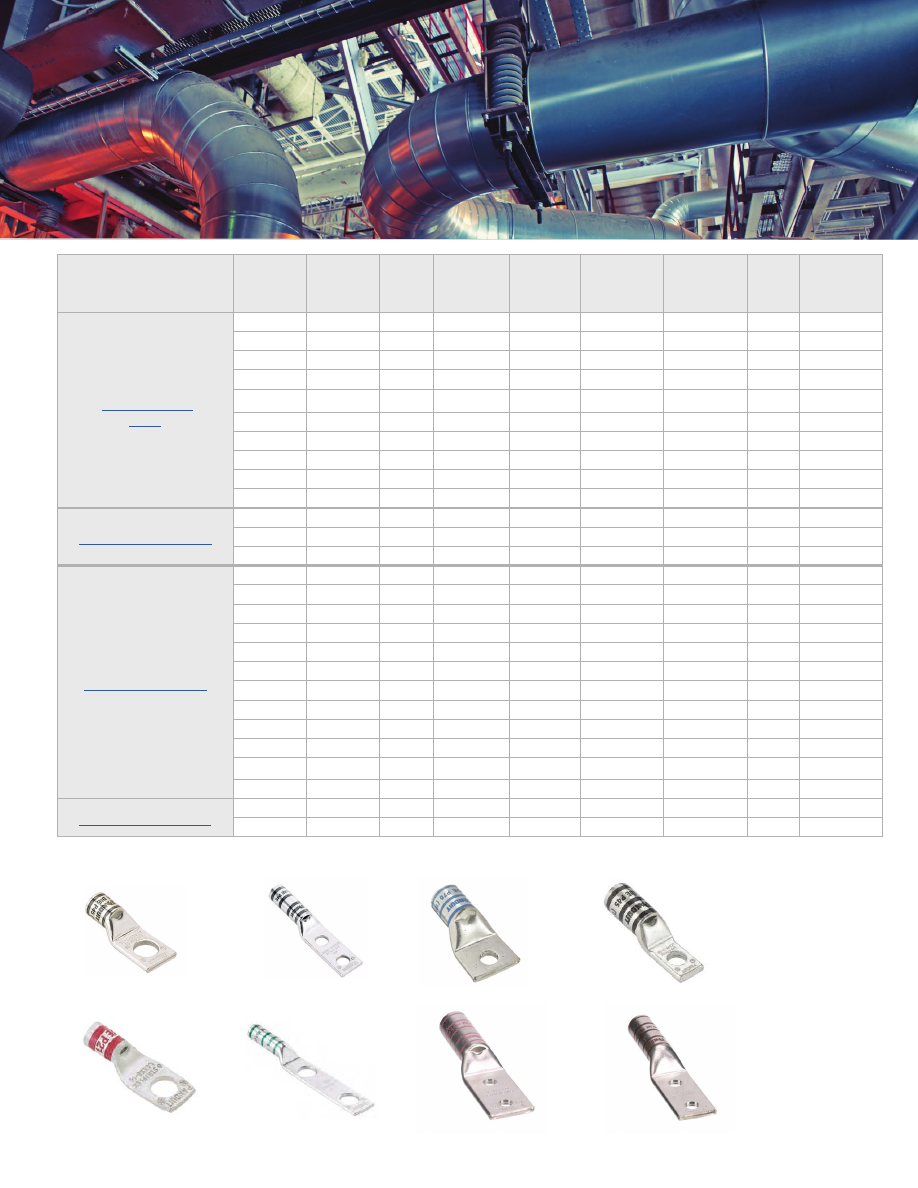

One Hole Lug
Two Hole Lug
Standard Tongue
Narrow Tongue
Standard Barrel
Long Barrel
Inspection Window
No Inspection Window
Product
Families
Standard
Barrel
Long
Barrel
Standard
Tongue
Narrow
Tongue
Inspection
Window
No
Inspection
Window
Code
Cable
Flex
Cable
LCA
✓
✓
✓
✓
LCAN
✓
✓
✓
✓
LCAX
✓
✓
✓
✓
✓
LCAXN
✓
✓
✓
✓
✓
LCAF
✓
✓
✓
✓
S-R
✓
✓
✓
✓
A-R
✓
✓
✓
✓
LAA*
✓
✓
✓
✓
LCB
✓
✓
✓
✓
✓
LCBX
✓
✓
✓
✓
✓
LCMA
✓
✓
✓
✓
✓
LIECA
✓
✓
✓
✓
LCMB
✓
✓
✓
✓
✓
LCD
✓
✓
✓
✓
LCDN
✓
✓
✓
✓
LCDX
✓
✓
✓
✓
✓
LCDXN
✓
✓
✓
✓
✓
LCC
✓
✓
✓
✓
✓
LCCN
✓
✓
✓
✓
LCCX
✓
✓
✓
✓
✓
LCYX
✓
✓
✓
✓
✓
LCCXN
✓
✓
✓
✓
✓
LCCF
✓
✓
✓
✓
LCCXF
✓
✓
✓
✓
✓
LAB*
✓
✓
✓
✓
LCMD
✓
✓
✓
✓
✓
LCMC
✓
✓
✓
✓
✓
* Alumium Body and Aluminum Conductor Only- LAA & LAB Series
Tooling and
Solutions
Panduit Corp.
World Headquarters
Tinley Park, IL 60487
cs@panduit.com
US and Canada: 800.777.3300
Europe, Middle East, and Africa:
44.20.8601.7200
Latin America: 52.33.3777.6000
Asia Pacific: 65.6305.7575
©2021 Panduit Corp. ALL RIGHTS RESERVED.
PCSG2--WW-ENG
01/2021
The Panduit
®
StructuredGround
™
Direct Burial Compression Grounding System
provides the highest performance and most reliable compression connection
in the industry.
Innovative tools lead the industry in safety and reliability, meeting OSHA
requirements for operator safety.
