PINTEK

ELECTRONICS INSTRUMENT

TABLE OF CONTENTS

Function Generator

DC Power Supply

Digital Storage Oscilloscope

Muti-Function Oscilloscope

Oscilloscope

Differential Probe

High Voltage Amplifier

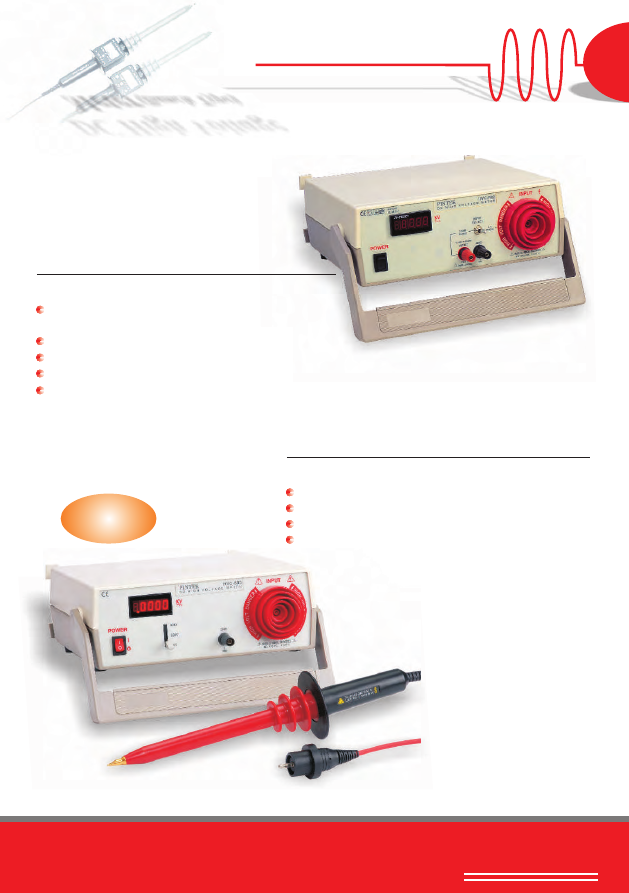

DC High Voltage Meter(Banch Type)

AC High Voltage Probe(To Oscilloscope)

DC High Voltage Probe(To DMM)

Oscilloscope Probe

Accessories

DDS Function Generator

(New!) Programable DC Power Supply

FG-52

FG-32

FG-30

6 Function, 6 Range.
Linear/Log Sweep.
Auto Range Counter.
0.001Hz Resolution.
Auto Gatetime Counter.
Counter Trigger Detect.

3MHz FUNCTION GENERATOR.

6 Function, 6 Range.
0.5Hz~3MHz.
Linear/Log Sweep.
20Vp-p Out Put.
Sweep Control Signal Output.

3MHZ F.G. +60MHz COUNTER

4 FUNCTION, 8 RANGE WITH AUTO COUNTER

4 Function, 8 Range.
Linear/Log Sweep.
0.001Hz Resolution.
Auto Range Counter.
Auto Gatetime Counter.
Invert Function.

5MHz!

Convenience!

Economic

Function Generator

MODEL!

PINTEK

ELECTRONICS INSTRUMENT

PINTEK

ELECTRONICS INSTRUMENT

FG-72

7MHz DDS FUNCTION GENERATOR

DDS
Function Generator

0.3 Hz~7MHz
Hz/KHz/MHz Key , Easy Operation.
LED: 0.56”, 6 Digits.
2 Attenuator, -20dB x 2(-40dB)
Built-In USB Interface.
Duty Cycle ADJ To 3MHz
PC Control:
Frequency, Waveform, -20dB Attenuator.
Waveform: Sine, Square, Triangle to 7MHz

FG-102

10MHz DDS FUNCTION GENERATOR

0.3Hz~10MHz
Hz/KHz/MHz Key , Easy Operation.
LED: 0.56”, 6 Digits.
2 Attenuator, -20dB x 2(-40dB)
Built-In USB Interface.
Duty Cycle ADJ To 3MHz
PC Control: Frequency, Waveform, -20dB Attenuator.
Waveform: Sine, Square, Triangle to 10MHz

NEW!

DC Power Supply

PINTEK

ELECTRONICS INSTRUMENT

PW-5032

PRECISION 100VA DC POWER SUPPLY

PW-5033

PRECISION 200VA DC POWER SUPPLY

High Resolution display:
4 digits voltage display( resolution 10mV)
4 digits current display (resolution 1mA)
High quality 10 turns variable resistor for easy
and stable setup of voltage and current reading.
Build in output enable switch.
Build in current limit setup switch.
Triple output:
Programmable Output: 0~30V/0~3A x 2
Fixed Output: 5V/0~3A

High Resolution display:
4 digits voltage display( resolution 10mV)
4 digits current display (resolution 1mA)
Build in output enable switch.
Build in current limit setup switch.
Dual output:
Programmable Output: 0~30V/0~3A
Fixed Output: 5V/0~3A

BP-253N

for model 5033/5003/4033 (2 sets)
for model 5032/5002/4032(1 set)

ACCESSORIES

Precision!

4 digits

4 display!

Banana Plug to

Alligator Clip

UL 3239, 18AWG,
6KV,10A, 150 C,
Silicone Wire, 100 cm

BP-253N

DC Power Supply

PINTEK

ELECTRONICS INSTRUMENT

PW-5002

DUAL OUTPUT 100VA DC POWER SUPPLY

PW-5003

TRIPLE OUTPUT 200VA DC POWER SUPPLY

Build in output enable switch.
Build in current limit setup switch.
Dual output:
Programmable Output: 0~30V/0~3A
Fixed Output: 5V/0~3A

Convenience!

Output Switch Series

Build in output enable switch.
Build in current limit setup switch.
Triple output:
Programmable Output: 0~30V/0~3A x 2
Fixed Output: 5v/0~3A
Tracking Operation
4 display(3 digits 0.56")

PW-5002

PW-5003

PW-5032

PW-5033

DC Power Supply

PINTEK

ELECTRONICS INSTRUMENT

Toroidal
Transformer!

PW-3033R

30V/3A+30V/3A+5V/3A Triple output.
Tracking operation.
<0.3mVrms Ripple & Noise(C.V.)
<2mArms Ripple & Noise(C.C.)
Low EMI & High EMS.
4 Display.

200W WITH TOROIDAL TRANSFORMER

PW-4032

100W WITH HIGH RESOLUTION DISPLAY

PW-4033

4 digits LED, 4 display.
10 mV, 1mA Resolution.
30V/3Ax2+5V/3A Triple output.
Tracking operation.
10 Turn VRx4, Easy operation.

200W WITH HIGH RESOLUTION DISPLAY

4 digits LED, 2 display.
10 mV, 1mA Resolution.
30V/3A+5V/3A Dual output.
10 Turn Vrx2, Easy operation.

High

Resolution!

4 digits

4 display!

DC Power Supply

PINTEK

ELECTRONICS INSTRUMENT

PW-3032

30V/3A+5V/3A Dual output.
<0.5mVrms Ripple & Noise(C.V.)
<3mArms Ripple & Noise(C.C.)
Dual display.

100W DC POWER SUPPLY

PW-3032R

30V/3A+5V/3A Dual output.
<0.3mVrms Ripple & Noise(C.V.)
<2mArms Ripple & Noise(C.C.)
Low EMI & High EMS.
Dual display.

100W DC P.S. WITH TOROIDAL TRANSFORMER

PW-3033

30V/3A+30V/3A+5V/3A Triple output.
Tracking operation.
<0.5mVrms Ripple & Noise(C.V.)
<3mArms Ripple & Noise(C.C.)
4 Display.

200W DC POWER SUPPLY

Toroidal

Transformer!

Economic

Model!

4 Display

Triple Out!

PINTEK

ELECTRONICS INSTRUMENT

DC Power Supply

PW-4063R

PRECISION HIGH POWER 400VA DC

PW-3063R

HIGH POWER 400VA DC POWER SUPPLY

400VA, Toroidal Transformer.
Triple Output:
0~32V/0~6Ax2; 5V Fix/3A
Tracking Operation:
SER. 0~64V/0~6A
PAR. 0~32V/0~12A
4 Display, 4 Digits.
Resolution: 0.01V/0.001A
10 Turn VR x 4, nice selection!

400VA, Toroidal Transformer.
Triple Output:
0~32V/0~6Ax2; 5V Fix/3A
Tracking Operation:
SER. 0~64V/0~6A
PAR. 0~32V/0~12A
4 Display, 3Digits.
Resolution: 0.1V/0.01A

400 VA

POWER SUPPLY

NEW!

PINTEK

ELECTRONICS INSTRUMENT

DS-303P

30MHz ANALOG + 40MHz MSPS

Analog Bandwidth 30MHz.
Sampling Rate 40MSPS+2000MSPS(EQU).
Memory: 2x2048x8 bit.
Equivalent Mode Bandwidth 40MHz.
Pre-Trigger, Roll, Single, Slow.
USB Interface.

Digital Storage

Oscillloscope

CP-260

CP-260

for DS-303P/FS-409/CS-406/FS-404 (2 sets)

60MHz Bandwidth
X1, x10
1.4M Cable Length
< 1% DC Accuracy

ACCESSORIES

3 In 1

Model!

FS-404

BUILD IN 5MHz FUNCTION GENERATOR

CS-406

SCOPE:

40MHz Scope + AUTO COUNTER

* 1mV Sensitivity.
* 10ns Resolution.
* Time Base 23 Range.

* 1mV Sensitivity.
* 0.001Hz Resolution.
* Auto Range; Auto Gatetime.
* Auto Detect; Auto Reset.

SCOPE:

* 40MHz Dual Trace, Dual Trigger.
* 1mV Sensitivity, 10ns Resolution.
* Time Base 23 Range.

FS-409

BUILD IN 5MHz FG & AUTO COUNTER

SCOPE:

* 40MHz Dual Trace, Dual Trigger.
* 1mV Sensitivity; 10ns Resolution.

* 5 Digits 0.36" Red LED Display.
* 0.1Hz~50MHz Auto Range; 0.001Hz Resolution.
* Auto Gatetime; Auto Detect; Auto Reset.
* 1mV Sensitivity.

Function
Generator:

* 0.5Hz~5MHz Frequence(6 Ranges).
* Sine, Square, Triangle, 3 Waveforms.
* Max Output: 20Vp-p(No Load).
* TTL Synchronous Out Put.

COUNTER:

Function
Generator:

* 0.5Hz~5MHz Frequence(6 Ranges).
* Sine, Square, Triangle, 3 Waveforms.
* Max Output: 20Vp-p(No Load).
* TTL Synchronous Out Put.

* Auto Range; Auto Gatetime.
* Auto Detect; Auto Reset.

With

Counter!

With

5MHz F.G.!

Muti-Function
Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

PS-1000

100MHz ANALOG OSCILLOSCOPE

PS-1005

100MHz Dual trace, ALT Trigger.
1mV Sensitivity, 2nS Resolution.
20MHz Limit.
Hold-off, X-Y, Z-Mod, Y-output.
With Delay Sweep.
Two Sweep MIX Function.

100MHz WITH DELAY SWEEP

100MHz Dual trace, ALT Trigger.
1mV Sensitivity, 2nS Resolution.
20MHz Limit.
Hold-off, X-Y, Z-Mod, Y-output.

CP-2100

for model PS-1000/PS-1005 (2 sets)

100MHz Bandwidth.

x1, x10

1.4M Cable Length

< 1% DC Accuracy

ACCESSORIES

CP-2100

2nS

Resolution!

100MHz

ECONOMIC

MODEL!

Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

PS-605

60MHz WITH DELAY SWEEP

Vert. Sensitivity From 1mV/DIV to 15V/DIV.
Sweep Rate From 10nS/DIV to 1S/DIV.
Built-in Component Tester.
X-Y Operation, Z-Mod. Input, Y-Ouput.
Beam-Finder, Hold-Off, Illuminate.
With Delay Sweep.
Two Sweep Mix Function.
23 Range Delay Sweep.

PS-600

60MHz ANALOG OSCILLOSCOPE

60MHz Dual Trace, Dual Trigger.
Vert. Sensitivity From 1mV/DIV to 15V/DIV.
Sweep Rate From 10nS/DIV to 2S/DIV.
Hold-Off, X-Y Operation.
23 Range Time Base.

RS-608

60MHz WITH CURSOR READOUT

Cursor Readout Function.
60MHz Dual Trace, ALT Trigger.
1mV Sensitivity, 10nS Resolution.
Hold-off, X-Y, Z-Mod, Y-output.
Panel Setting Display.
Cursor Measurement Reso. 1/25 div.

Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

PS-400

40MHz ANALOG OSCILLOSCOPE

PS-500

0MHz OSCILLOSCOPE

40MHz dual trace, ALT trigger.
Vert Sensitivity From 1mV/DIV to 15V/DIV.
Sweep Rate From 10nS/DIV to 2S/DIV.
Hold-off, X-Y Operation.
23 Range Time Base.
12KV Accel. Voltage.

Sweep Time 23 Steps
50MHz Vert. Bandwidth
Dual Trace, ALT Trigger
Hold-off, X-Y Operation
High Vert. Sensitivity: 1mV/DIV
High Sweep Resolution: 10ns/DIV

PS-505

50MHz WITH DELAY SWEEP

50MHz Bandwidth

Z-Input, Y-Output

1mV/DIV Sensitivity

10ns/DIV Resolution

Hold-off, X-Y Operation

Component Tester

With Delay Sweep

Beam-Finder, Illuminate

Two Sweep Mix Function

Dual Trace: ALT Trigger

Economic

Model!

Economic

Model!

High

Intensity!

Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

PS-350

40MHz ANALOG OSCILLOSCOPE

40MHz Dual Trace, ALT Trigger.
1mV Sensitivity; 10nS Resolution.
Hold-Off, X-Y Operation.
23 Range Time Base.

PS-251

25MHz WITH COMPONENT TESTER

25MHz, ALT Trigger.
1mV Sensitivity; 10nS Resolution.
With Component Test, Beam-Finder.
Illuminate, Hold-Off, X-Y.

PS-355

40MHz WITH DELAY SWEEP

40MHz dual trace, ALT trigger.
1mV Sensitivity, 10nS resolution.
Comp.-Test, Beam-finder, illuminate.
Hold-off, X-Y, Z-Mod, Y-output.
With Delay sweep.
Two sweep MIX function.
23 Range Delay Sweep.

With Component

Tester!

40MHz

ECONOMIC

MODEL!

Oscilloscope

PINTEK

ELECTRONICS INSTRUMENT

PS-200

20MHz ANALOG OSCILLOSCOPE

PS-205

20MHz With Delay Sweep

20MHz dual trace, ALT trigger.
Vert. Sensitivity 1mV/div.
Hor. Resolution 10nS.
Hold-off, X-Y operation.
23 Range Time Base.

20MHz dual trace, ALT trigger.
Vert. Sensitivity 1mV; Hor. Resolution 10nS.
Comp.-Test, Beam-finder, illuminate.
Hold-off, X-Y, Z-Mod, Y-output.
With DELAY sweep.
Two sweep MIX function.
23 Range Delay Sweep.

CP-260

Delay Type!

CP-260

for all 20MHz~60MHz oscilloscopes (2 sets)

60MHz Bandwidth
X1, x10
1.4M Cable Length
< 1% DC Accuracy

ACCESSORIES

20MHz

ECONOMIC

MODEL!

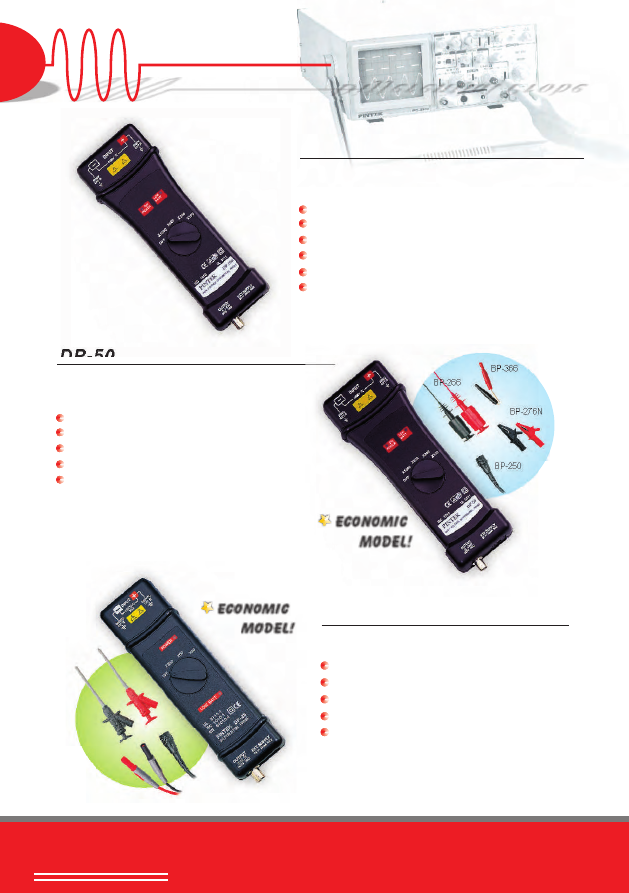

Differential Probe

PINTEK

ELECTRONICS INSTRUMENT

DP-30

3 RANGE X1, X2, X10
(High Sensitivity

)

Model

DP-40

High Sensitivity Model.
65 Vp-p/ 30MHz Max.
3 Range: x1/ x2/ x10
Input Impedance 2M

//1.7PF

Option PL-10 to Connect With Digital DMM.

Low Voltage Model.
650 Vp-p/ 40MHz Max.
3 Range: x10/ x20/ x100
Input Impedance 4M

//1.2PF

Option PL-10 to Connect With Digital DMM.

3 RANGE X10, X120, X100
(Low Voltage

)

Model

DP-65

Pro

Performance Model.
1600 Vp-p/ 65MHz Max.
3 Range: x20/ x50/ x200
Input Impedance 18M

//1.7PF

Over Range Indicate LED.
Adaptor Input Auto Regulation System.

3 RANGE X20, X50, X200
(Performance

)

Model

ADP-100V/115V/230V

ACCESSORIES

BP-250

BP-276N

PX-501

BP-256N

BP-356N

BP-286

for DS-30HS / DP-40LV / DP-65pro / DP-200pro

High Sensitivity

1:1 Range

X10

Range

Differential Probe

PINTEK

ELECTRONICS INSTRUMENT

BP-250

BP-266

BP-276N

BP-366

DP-100

4 RANGE X100, X200, X500, X1000

DP-25

3 Range x20, x50, x200
1000V Input CAT III.

Meet CE, IEC 1010, EN 61010, UL 3111.

Separating Design, Convenient, Durable.

4 Range Attenuator.
7KV High Voltage Input.
Over Range Indicate LED.
High Input Impedance: 100M

// 1.3PF

Adaptor Input Auto Regulation System.

(7KVp-p / 100MHz)

(1.3KVp-p / 25MHz)

DP-50

4 RANGE X100, X200, X500, X1000
(7KVp-p / 50MHz)

4 Range Attenuator.
7KV High Voltage Input.

Over Range Indicate LED.
High Input Impedance: 54M

// 1.3PF

Adaptor Input Auto Regulation System.

Economic

MODEL!

BP-250

BP-356N

BP-256N

Economic

MODEL!

Carry Box.

Adaptor Input Auto Regulation System.

Differential Probe

PINTEK

ELECTRONICS INSTRUMENT

DP-200

pro

200MHz / 1.6KVp-p
(Super High Frequence Performance Model)

DP-150

pro

150MHz / 8KVp-p
(Super Range Performance Model)

ADP-100V/115V/230V

BP-250

BP-276N

PX-501

BP-266

BP-366

BP-286

for DP-100 / DP-150pro / DP-14K / DP-20K

ACCESSORIES

Super High Frequence Performance Model.
Measuring Range: 20mVp-p~1.6KVp-p.
Bandwidth: DC~200MHz(-3dB)
4 Range: x20, x50, x100, x200.
Input Impedance: 18M

//1.7PF

Over Range Indicate LED.
Adapter Input Auto Regulation System.

Super Range Performance Model.
Measuring Range: 10mVp-p~8KVp-p.
Bandwidth: DC~150MHz(-3dB).
5 Range: x10, x30, x100, x300, x1000.
Input Impedance: 100M

//1PF

Over Range Indicate LED.
Adapter Input Auto Regulation System.

Differential Probe

PINTEK

ELECTRONICS INSTRUMENT

DP-20K

4 RANGE X300, X600, X1500, X3000
(

)

20KVp-p / 20MHz H.V.Model

DP-14K

4 RANGE X200, X400, X1000, X2000
(

)

14KVp-p / 75MHz

Feed 10M
Impedance

DMM

MT-246

PL-10

Oscillossope

DP-14K/DP-20K

High Voltage

Differential Probe

BP-2 50

High Impedance 100M

//1.3PF.

4 Range Attenuator.
20KVp-p High Voltage Input.
Over Range Indicate LED.
Adapter Input Auto Regulation System.
Separating Design, Convenient, Durable.
Option PL-10 to Connect With Digital DMM.

High Impedance 100M

//1.3PF.

4 Range Attenuator.
14KVp-p High Voltage Input.
Over Range Indicate LED.
Adapter Input Auto Regulation System.
Separating Design, Convenient, Durable.
Option PL-10 to Connect With Digital DMM.

20KVp-p

14KVp-p

Differential Probe

PINTEK

ELECTRONICS INSTRUMENT

DP-22Kpro

Super Range Performance Model.
Measuring Range: 30mVp-p~22KVp-p.
Bandwidth: DC~120MHz(-3dB).
5 Range: x30, x100, x300, x1000, x3000.
Input Impedance: 100M

//1PF

Over Range Indicate LED.
Adapter Input Auto Regulation System.

High

speed

Switch

Mode

Power

Supply

Design.

Digital

Design

and

Characterization.

Manufacturing

Engineering

Test.

Research

and

Development.

High

Speed

Digital

Design.

CAN

LIN

Bus

Design.

Applications:

ADP-100V/115V/230V

BP-250

BP-276N

PX-502

BP-266

BP-366

BP-286

(Super High Frequence Performance Model)

120MHz / 22KVp-p

NEW!

ACCESSORIES

22KVp-p

HA-805

(800Vp-p / 100mA) (High Power Model)

Max. Output Voltage : 800Vp-p (±400V)
Bandwidth : DC~300KHz(400Vp-p)
Output Current :

≦

100mA

Offset:

≦

0~ ±400V DC(10 Turn VR)

Voltage Gain :

≦

0~180(10 Turn VR)

Slew Rate(Typ): 300V/us
Output Protection Switch(7.5K

/80Watt)

Microprocess Control Protection.

HA-800

(800Vp-p / 35mA)

Max. Output Voltage : 800Vp-p (±400V)
Bandwidth : DC~200KHz(400Vp-p)
Max Output Current : 35mA
Offset:

≦

0~ ±400V DC(10 Turn VR)

Voltage Gain :

≦

0~180(10 Turn VR)

Slew Rate(Typ): 200V/us
Output Protection Switch(15K

/40Watt)

Microprocess Control Protection.

800 Vp-p

100mA

800 Vp-p

35mA

ACCESSORIES

BNC Plug to BNC Plug
(50

RG58C UL, 100 cm)

Banana Plug to
Alligator Clip

BP-250

(x 2pcs)

BP-253N

High Voltage

Amplifier

PINTEK

ELECTRONICS INSTRUMENT

HA-405

(400Vp-p / 200mA)(High Power High Bandwidth )

Max. Output Voltage : 400Vp-p (±200V)
Bandwidth : DC~1MHz(200Vp-p)
Output Current :

≦

200mA

Offset:

≦

0~ ±200V DC(10 Turn VR)

Voltage Gain :

≦

0~90(10 Turn VR)

Slew Rate(Typ): 500V/us
Output Protection Switch(2K

/80 Watt)

Microprocess Control Protection.

HA-400

(400Vp-p / 80mA)

Max. Output Voltage : 400Vp-p (±200V)
Bandwidth : DC~600KHz(200Vp-p)
Max Output Current : 80mA
Offset:

≦

0~ ±200V DC(10 Turn VR)

Voltage Gain :

≦

0~90(10 Turn VR)

Slew Rate(TPY): 300V/us
Output Protection Switch.

APPLICATION

Function Generator Amplifier

High Voltage Power Supply

(

≦

27mA/

400V DC)

Semiconductor High Voltage Driver

TFT Field High Voltage Driver

函數波形產生器波幅放大

高壓電源供應器

(

≦

27mA/

400V DC)

半導體高壓驅動

TFT

產業高壓驅動

High Voltage Engineering /

MEMS Engineering /

Nano Technology /

PZT Driver /

Static Charge Engineering /

Biomedical Engineering /

各種高壓工程

微機電工程

奈米科技

壓電材料驅動

靜電科技工程

生醫檢測工程

400 Vp-p

80mA

400 Vp-p

200mA

PINTEK

ELECTRONICS INSTRUMENT

High Voltage

Amplifier

High Voltage

Amplifier

PINTEK

ELECTRONICS INSTRUMENT

HA-205

(170Vp-p/450mA, High Speed Model)

HA-305

(300Vp-p/300mA, High Power Model)

ACCESSORIES

BNC Plug to BNC Plug
(50

RG58C UL, 100 cm)

Banana Plug to
Alligator Clip

BP-250

(x 2pcs)

BP-253N

300Vp-p(

150V DC)

600mAp-p(

300mA DC)

Bandwidth: 100KHz(150Vp-p)
Slew Rate: 50V/us
Gain(AMPL):0~60(10 Turn VR)
Offset:

≦

150V(10 Turn VR+SW)

Output Resistor: 10

Microprocess Control Protection

Very High Speed: 2500V/us
High Current Output:
450mA DC, 900mA ACp-p
Voltage Output:170Vp-p
Offset:

80V(10 Turn VR)

Voltage Gain: 0~35(10 Turn VR)
Bandwidth: DC~3MHz(100Vp-p)
Microprocess Control Protection

NEW!

170 Vp-p

450mA

300 Vp-p

300mA

HVC-802

10GΩ / 40KVDC BANCH TYPE METER

High voltage meter / High voltage probe meter,
2 in 1 instrument.
Input impedance: 10G

Temperature coefficient:100PPM /

4 1/2 Red LED display, convenient for observation.
Accuracy

≦

0.5%, Resolution 10V

HVC-803

10GΩ / 40KV DC BANCH TYPE METER / 3 RANGES

BP-83

3 Range Voltage Selector: 40KV, 20KV, 2KV
High Resolution: 0.0001KV (2KV Range)
High lnput Impedance: 10GΩ
4 1/2 Red LED Display.

DC High Voltage

Meter

(Banch Type)

10G

High Impedance!

0.1V

Resolution

PINTEK

ELECTRONICS INSTRUMENT

HVP-39pro

18KVDC+ACpeak
200M

Impedance

DC~150MHz
1000:1

39KVDC+ACpeak
900M

Impedance

DC~220MHz(-3dB)
1000:1 for Oscilloscope
Very Low Nosie

HVP-28HF

28KVDC+ACpeak
500M

Impedance

DC~200MHz
1000:1

HVP-18HF

18KV

200M

39KV

220MHz

900M

28KV

500M

PINTEK

ELECTRONICS INSTRUMENT

AC High Voltage Probe

(To Oscilloscope)

Performance Model!

10KVDC+ACpeak
100M

Impedance

DC~120MHz
100:1, Read Out
High Sensitivity

HVP-10R

100:1
10KV

HVP-08

Mini

Type

8KV/40MHz
1:1000
100M

//3PF

Accuracy:
DC:

≦

2% to 5KV,

≦

3% to 8KV

AC:

≦

3% at 1KV/1KHz, -3dB to 40MHz

Read Out

Mini

Type

PINTEK

ELECTRONICS INSTRUMENT

AC High Voltage Probe

(To

Oscilloscope

)

HVP-15HF

1000:1, 50MHz, LOW NOISE HV PROBE

100M

Impedance.

Bandwidth:

DC~50MHz.

Division Ratio:

x1000.

Signal/Noise:

>60dB(1KHz).

Connect with PL-10, can be used for DMM.

Feed 10M
Impedance

DMM

MT-246

PL-10

Oscillossope

High Frequence
High Voltage Probe

Economic

MODEL!

PINTEK

ELECTRONICS INSTRUMENT

AC High Voltage Probe

(To Oscilloscope)

PINTEK

ELECTRONICS INSTRUMENT

DC High Voltage Probe

(To DMM)

Economic

Model

40KVDC, 2000MΩ , 3999LCD Display

40KVDC, 600MΩ , Analog Meter

HVP-41 / HVP-40

40KV DC, 1000MΩ

MAX. Voltage :
DC : 40KV
AC : 28KV, (50/60Hz only) CAT II.
1000MΩ Input Impedance.
Accuracy
DC: ± 1% to 20KV. ± 2% to 40KV.
AC: -5% to -10% (50/60Hz)
Division Ration : 1000:1
CE, GS, UL, CUL, IEC1010

HVP-40

HVP-40DM

DC 40KV CAT II Pollution 2.
2000M

Impedance; 3999 LCD display.

Accuracy 1% full range.
T.C. 100 ppm/ C; 400V/4KV/40KV, 3 range.
Resolution 0.1V/1V/10V.
PEAK HOLD, Auto power off.
CE, GS, UL, CUL, IEC1010

HVP-40M

DC 40KV CAT II Pollution 2.
600M

Impedance; 25KV

2%, 40KV

3%.

T.C. 200 ppm/ C; Positive Polarity only.
Resolution 1KV; Need not power.
CE, GS, UL, CUL, IEC1010

HVP-40M

HVP-40DM

Need Not

Power!

High

Resolution!

HVP-41

NEW!

PINTEK

ELECTRONICS INSTRUMENT

Oscilloscope Probe

CP-260

60MHz Bandwidth.
x1, x10
600V CAT I

CP-360

60MHz Bandwidth.
x1, x10
Plastics Insulator.

CP-2100

100MHz Bandwidth.
x1, x10

600V CAT I

CP-3101R

100MHz Bandwidth.
Readout Function.
x10 Fix

CP-2250

250MHz Bandwidth.
x1, x10
600V CAT I

ECONOMIC

MODEL!

PINTEK

ELECTRONICS INSTRUMENT

Oscilloscope Probe

CP-3351R

350MHz Bandwidth.

Readout Function.
x10 Fix

300MHz Bandwidth.

X100 Fix

Readout Function

300 MHz

CP-2350

350MHz Bandwidth.
x1, x10

CP-3308R

2000V CAT I

100:1

2KV

CP-3501R/pro

500MHz Bandwidth.

Readout Function.
x10 Fix

500 MHz

PINTEK

ELECTRONICS INSTRUMENT

Accessories

IC Clip
(UL 1000V CAT III, 5A)

HV IC Clip
(MAX. 7KV RMS, 5A)

(UL 1000V CAT III, 10A)

Test Leader

BNC Plug to BNC Plug
(50

RG58C UL, 100 cm,

BNC Plug to
Alligator Plug
(RG58C UL, 115 cm,

Banana Plug to
Alligator Clip

Banana Plug to
Banana Plug

HV Banana Plug to

Banana Plug

Alligator Clip

BP-256N

BP-266

BP-276N

BP-286

BP-250

BP-251

BP-253N

BP-356N

BP-366

(UL 94V-2,
1000V CAT III, 10A,
11.5x120mm)

(UL 3239, 18AWG,
6KV DC,10A, 150 C,
Silicone Wire, 60 cm )

(UL 3239, 18AWG,
6KV DC,10A, 150 C,
Silicone Wire, 100 cm )

(UL 3239, 16AWG,
20KV DC,10A, 150 C,
Silicone Wire, 60 cm )

1G Hz, 3A)

PL-50

BP-250

Generator

Oscilloscope

PL-10

DMM IMPEDANCE CONVERTER

Impedance 1.12M

;ACCURACY

0.5%.

Frequency B.W. DC~50MHz.
Working Power MAX. 1Watt.
Input Voltage MAX.250VDC or 200V rms AC.
Dimension 46mm(L)x 16mm(D)

PL-50

FEED-THROUGH TERMINATION

Impedance: 50

Z-Tol:

0.5

Frequence B.W.: DC~1GHz
Working Power: 2watt (Max.)
Dimension/weight: 46mmx

6mm/25g

PINTEK

ELECTRONICS INSTRUMENT

Accessories

SALES AGENT

PINTEK

Pintek Electronics Co., Ltd

2F No.32 Tai-Pen Rd., Shulin City, Taipei Hsien, Taiwan

Tel:

886-2-86859562 / 886-2-86859563 / 886-2-86861898

Fax: 886-2-86852081 / 886-2-86861114
http://www.pintek.com.tw
E-Mail : pintek@pintek.com.tw ; pintek@ms26.hinet.net

PRODUCTS CATALOG

台灣台北縣樹林市太平路

號

樓
