General Information, Plastics/Packaging Industry

Thermocouples and RTD’s

SensorTec’s high quality sensors for the plastics, packaging and rubber industries provide an
economical means of temperature sensing and are available in several standard thermocouple
and RTD configurations.

Sensor styles shown in this catalog section represent some of the standard constructions avail-
able.  We have several other styles, sheath sizes and materials, leadwire types and thread sizes
available.  We also manufacture retrofit sensors for European equipment and offer a complete
selection of metric sheath sizes and thread types.  Contact our Technical Assistance Team for
aid in selecting a sensor for your specific requirement.

All sheaths and tips are constructed from 316 stainless steel for superior resistance to corrosion,
abrasion and deterioration.  All sensor junctions are GTAW (TIG) or plasma welded.  Brazing
or silver soldering of sensor junction is not utilized due to the potential for flux contamination
or deterioration.

RTD’s shown in this section are available in two different temperature ranges and leadwire
types,  the “L” Series and the “M” series.  Corresponding specifications are listed on each page
for the two different RTD ranges.  All sheaths and tips are constructed from 316 stainless steel
for superior resistance to corrosion, abrasion and deterioration.  For specific information re-
garding RTD elements specification and standards, wiring configurations and color coding, see
the RTD general information section of this catalog.

Applications:

Plastic injection molding machinery

Adhesive systems

Pipe tracing control

Industrial heat treating

Packaging equipment

Oven temperature control

Cooling fluid systems

plastics-catalog-html.html
background image

P-3

PART NUMBERING EXAMPLES

FOR PLASTICS/PACKAGING

CONSTRUCTION

CALIBRATION

SINGLE/DUPLEX

JUNCTION TYPE

SHEATH DIAMETER (Inch)

SHEATH LENGTH ("A")

PAJ0G-I00G-F060B

T/C - Type "J", 8" Spring, Grounded, 3/16" Dia. Tip,

1/4" Long, Stranded Fiberglass with SS Overbraid,

5 Ft. Long, 2-1/2 Split Leads. Refer to page P-4.

PEK0U-I03L-E072C

T/C - Type "K", Fixed Bayonet with a 45

°

 Bend,

Ungrounded, 3/16" Dia. Sheath 3-1/2" Long,

Stranded Fiberglass with SS Flex Armor, 6 Ft.

Long, Split Leads with #8 Spade Lugs. Refer to

page P-6.

PIE0G-I04A-E024K-3A

T/C - Type "E", Rigid Tube with a 90

°

 Bend,

Grounded,  3/16" Dia. Sheath 4" Long, Stranded

Fiberglass with SS Flex Armor, Standard Male Plug,

Re-Adjustable SS Compression Fitting 1/8" NPT.

Refer to page P-7.

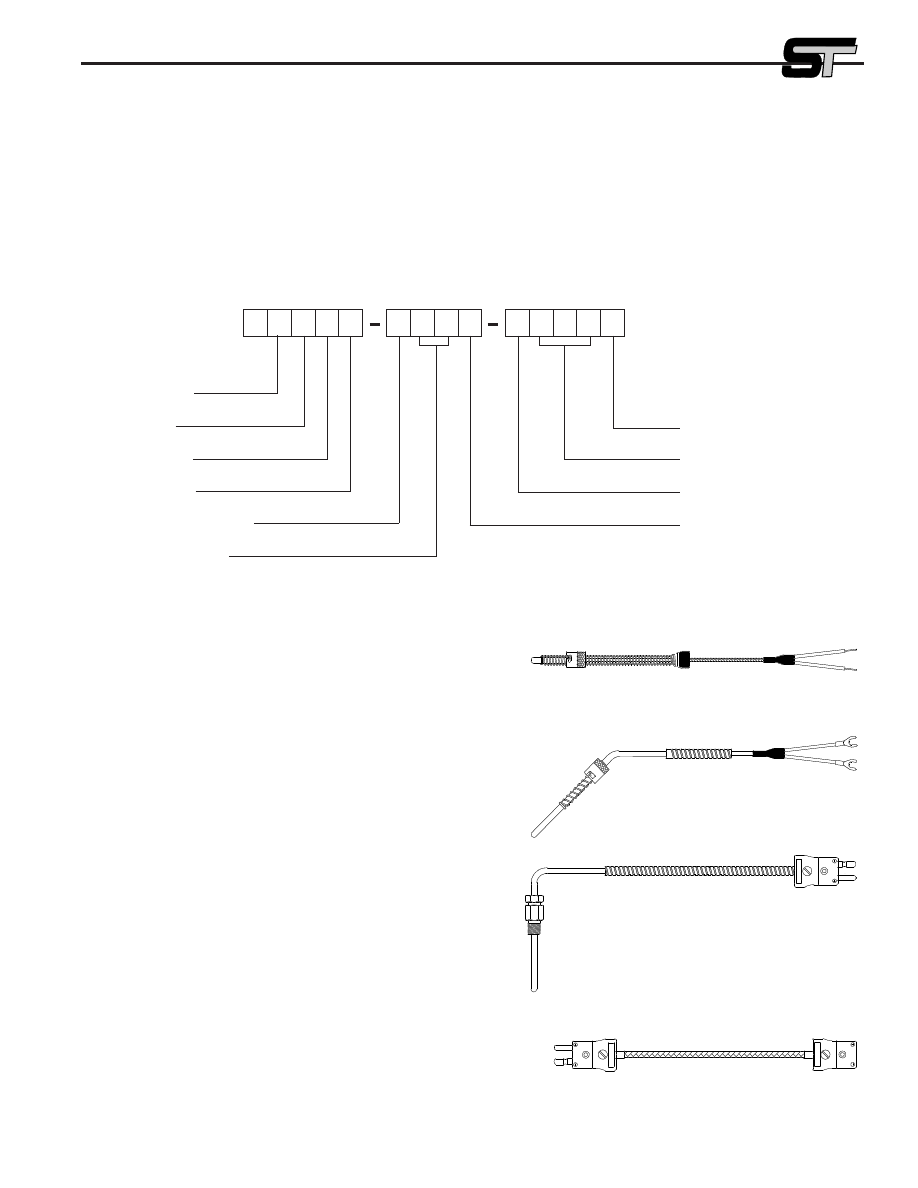

J0EXT-K-C060M

T/C - Extension Type "J", Standard Plug, Solid

Fiberglass with SS Overbraid, 5 Ft. Long, Standard

Jack. Refer to page P-22.

LEADWIRE TERMINATIONS

LEADWIRE LENGTH ("B")

LEADWIRE TYPE

SHEATH LENGTH

 ("A" Fractional)

1 2 3 4 5

6 7 8 9

10 11 12 13 14

P

plastics-catalog-html.html
background image

P-4

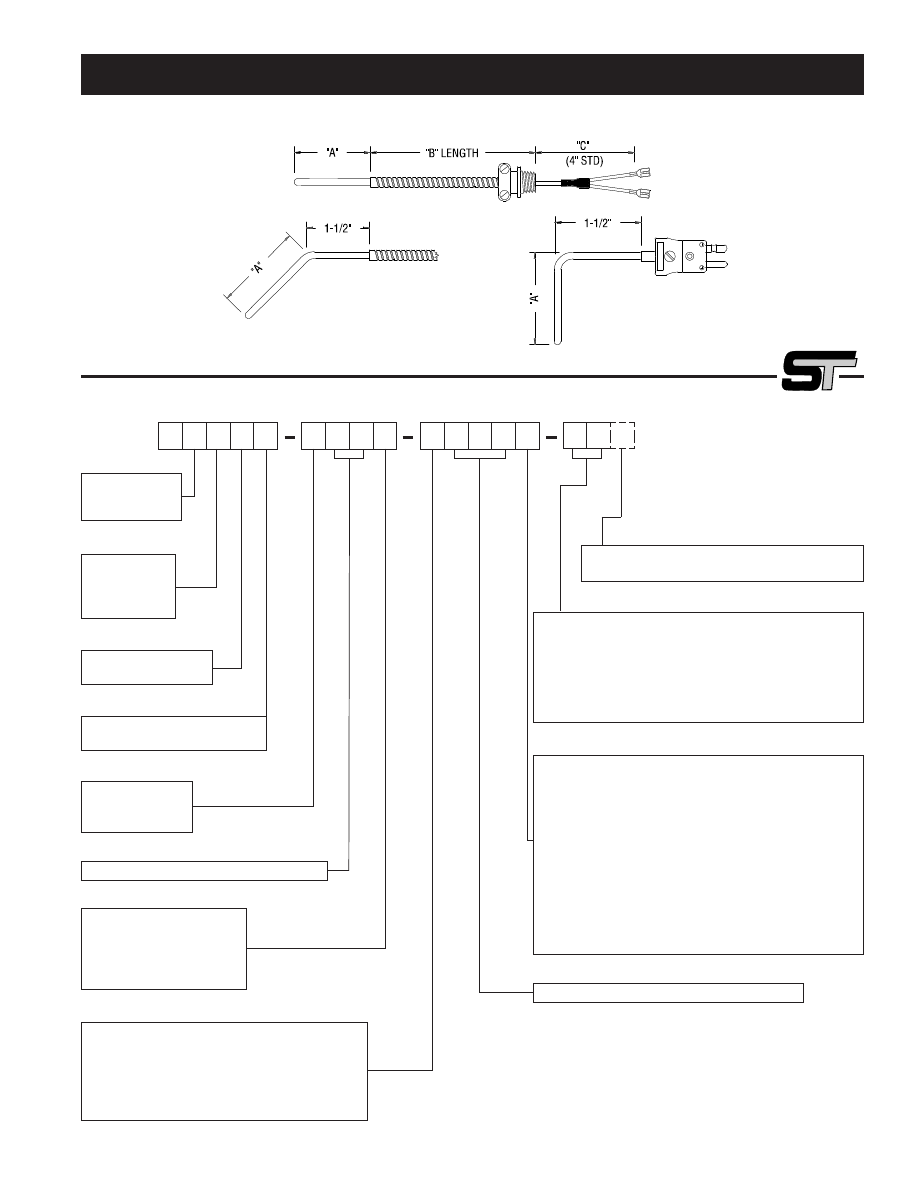

STYLE A

STYLE B

CONSTRUCTION

A = 8” Spring

B = 12” Spring

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

SHEATH LENGTH ("A")

Whole Inches: Example 00 = None

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

     SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.  Example 048 (012)

LEADWIRE TYPE

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

8 = Stranded Fiberglass with SS Overbraid

& Flex Armor

NOTES:

Duplex and 1/8” OD sensors are generally

constructed with 24 ga. wire. All others are

generally constructed with 20 ga. wire.

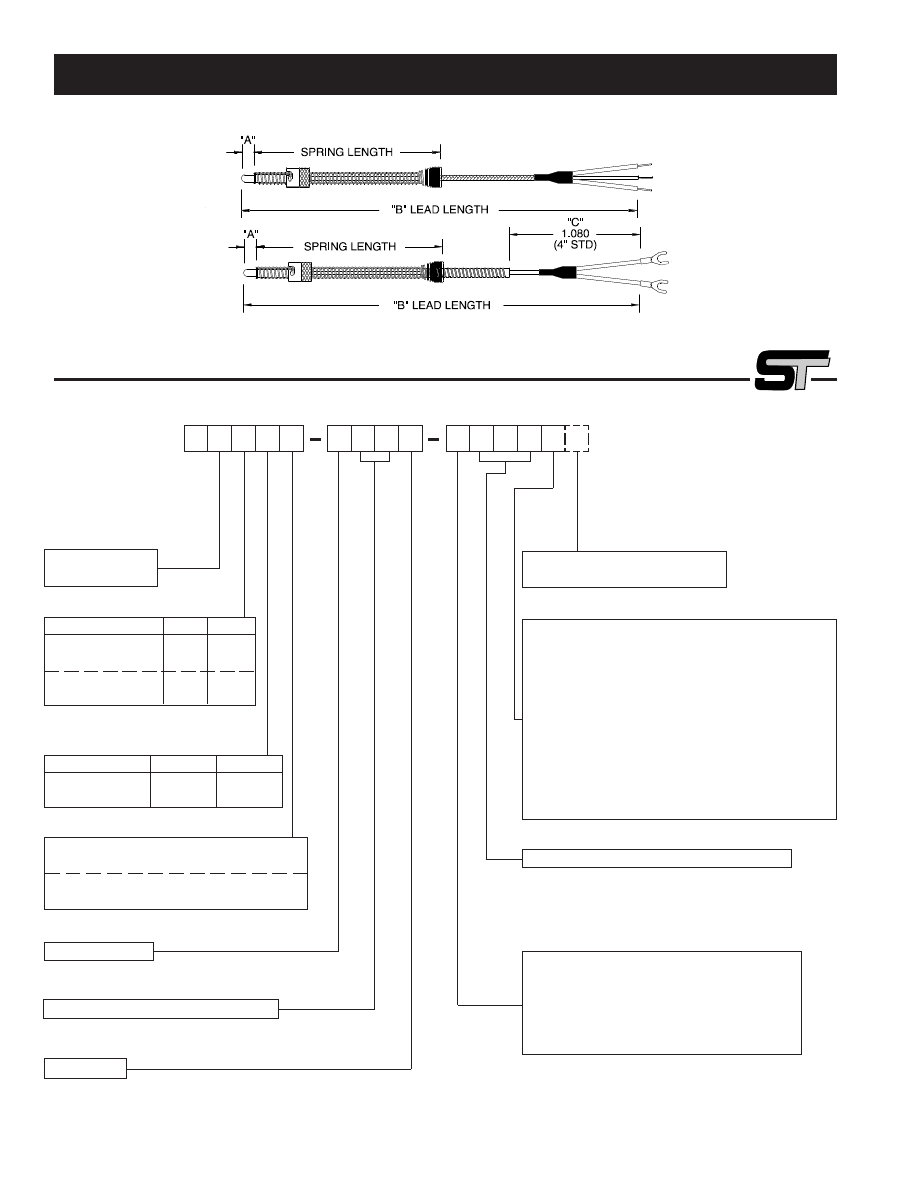

SPRING ADJUSTABLE DEPTH THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P

I 0 0

plastics-catalog-html.html
background image

P-5

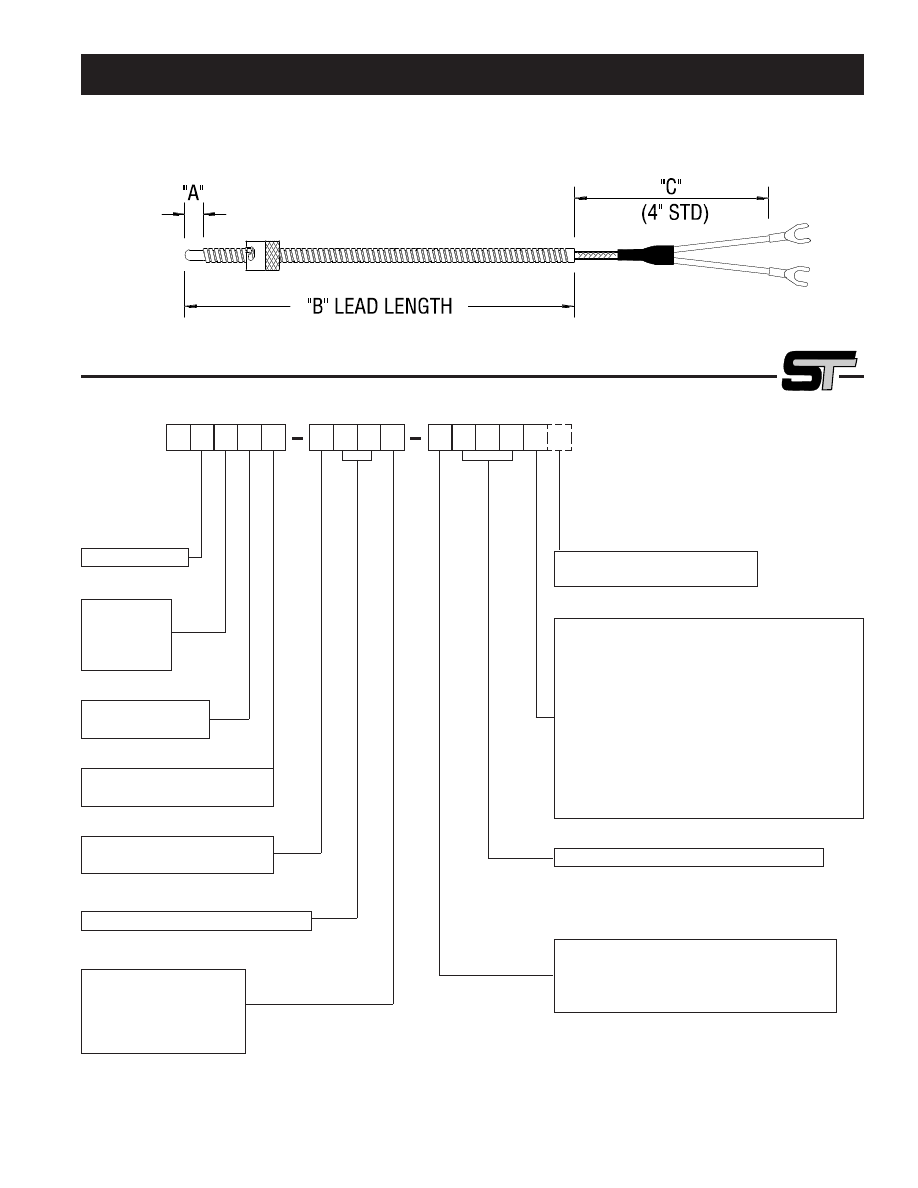

STYLE C

     SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.  Example 048 (012)

LEADWIRE TYPE

B = Solid Fiberglass with SS Flex Armor

E = Stranded Fiberglass with SS Flex Armor

8 = Stranded Fiberglass with SS Overbraid

& Flex Armor

NOTES:

Duplex and 1/8” OD sensors are generally

constructed with 24 ga. wire. All others are

generally constructed with 20 ga. wire.

CONSTRUCTION

C = Flex Armor

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

.280" OD Flex Armor

SHEATH LENGTH ("A")

Whole Inches: Example 00 = None

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

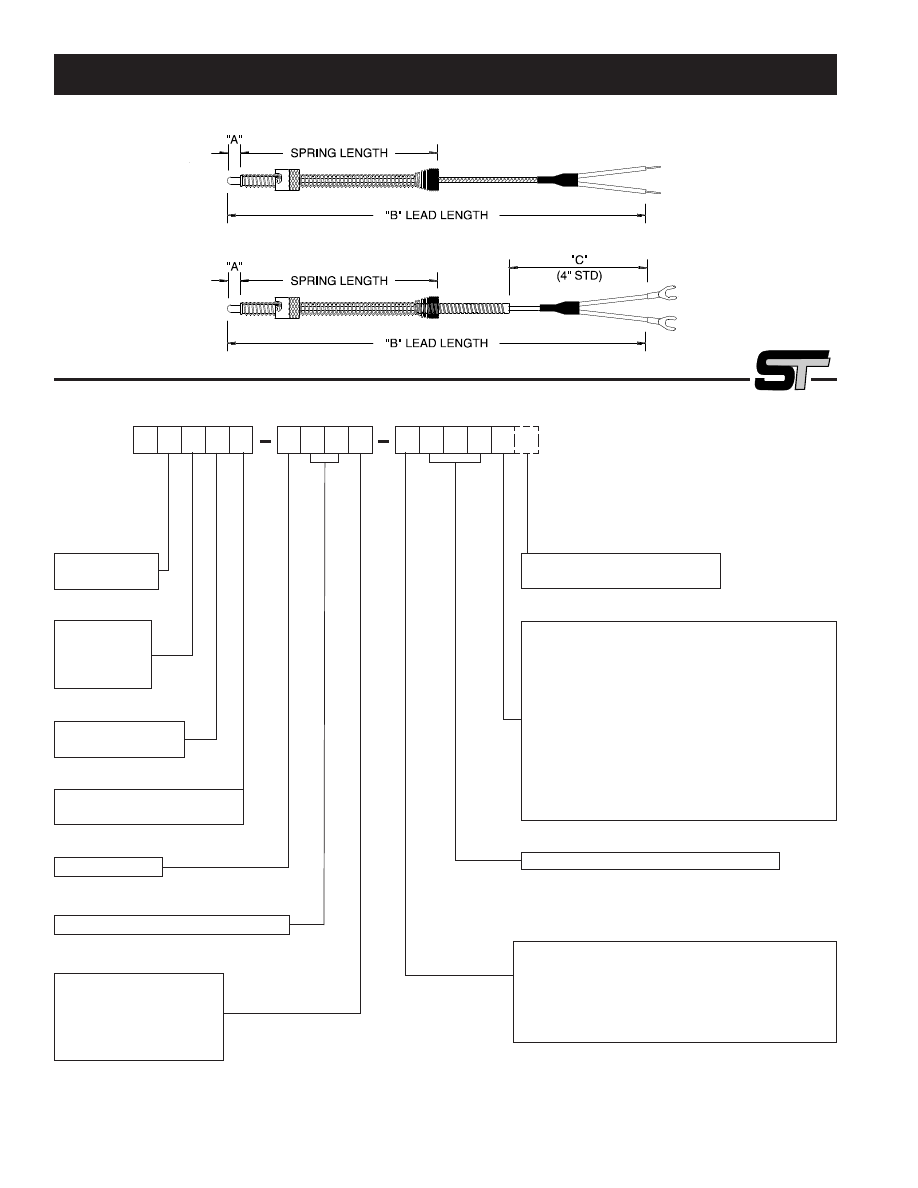

FLEX ARMOR ADJUSTABLE DEPTH THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P C

0 0

plastics-catalog-html.html
background image

P-6

STYLE E

STYLE F

STYLE D

CONSTRUCTION

D = Straight

E = Bent 45

o

F = Bent 90

o

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

G = 1/8 (.125)

I = 3/16 (.188)

K = 1/4 (.250)

SHEATH LENGTH ("A")

1

Whole Inches: Example 02 = 2 inches

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

1

Refer to Table A on page P-21 for

immersion depth calculations

     SPECIAL OPTIONS

C = Cable Clamp/Tube Adapter on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length), include

length after “B” length.  Example 048 (012)

LEADWIRE TYPE

A = Solid Fiberglass

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

NOTES:

Duplex and 1/8” OD sensors are generally

constructed with 24 ga. wire. All others are

generally constructed with 20 ga. wire.

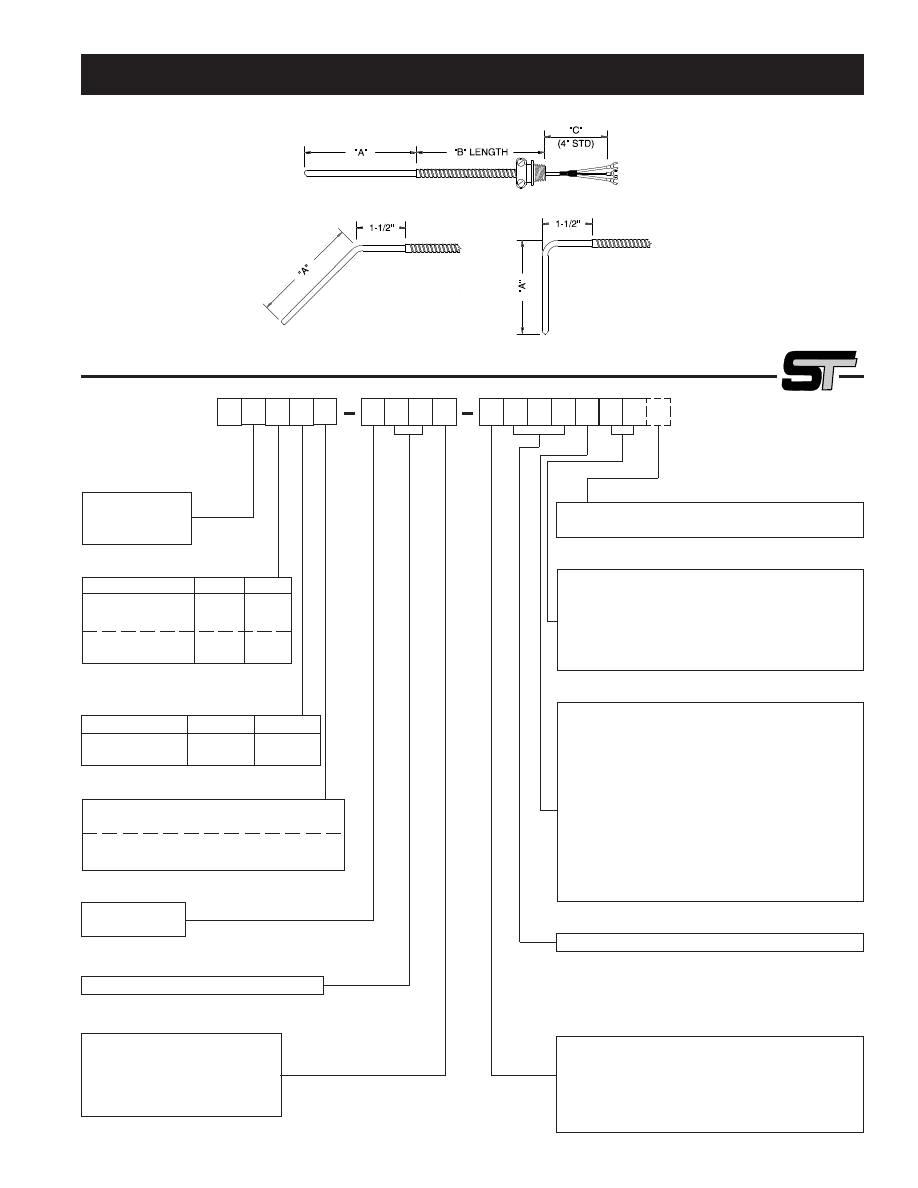

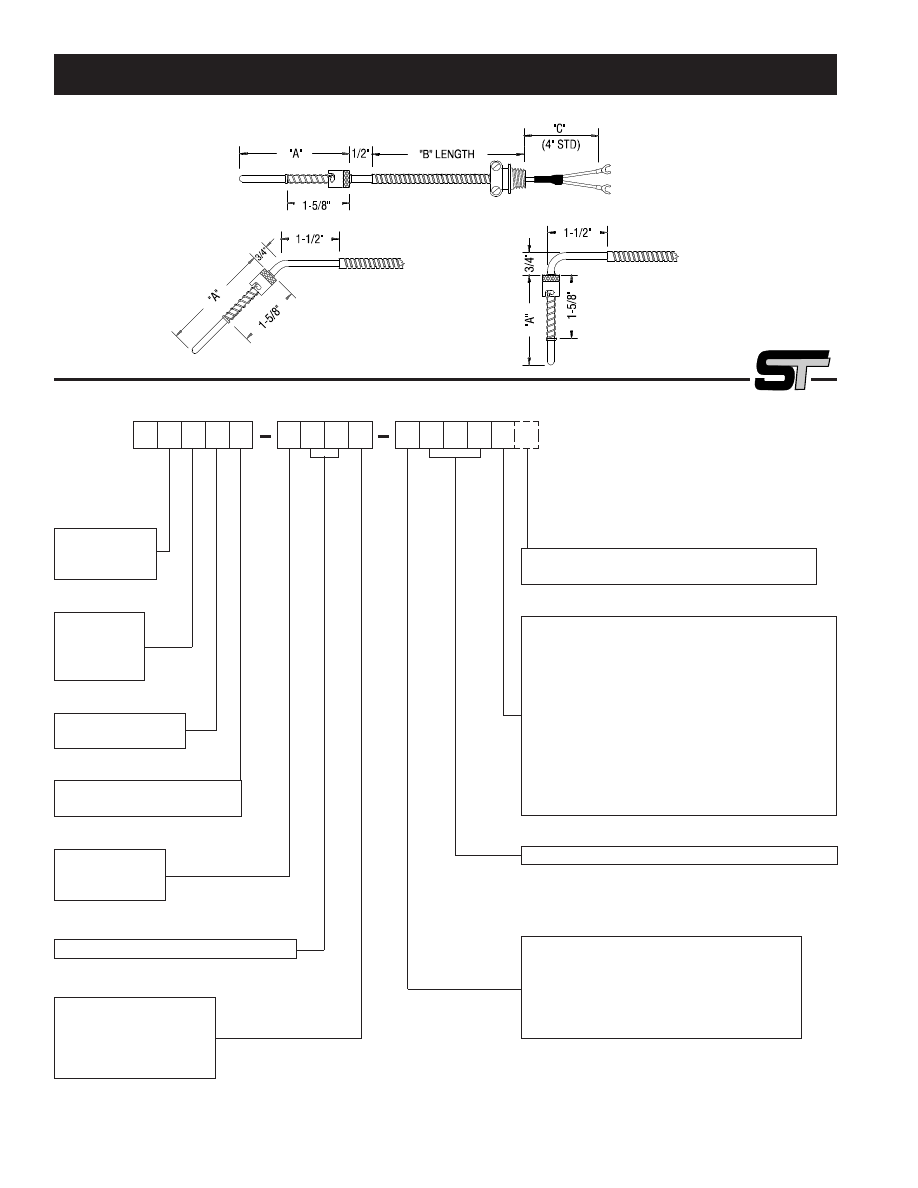

FIXED BAYONET THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P

plastics-catalog-html.html
background image

P-7

STYLE H

STYLE I

STYLE G

CONSTRUCTION

G = Straight

H = Bent 45

o

I = Bent 90

o

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

G = 1/8 (.125)

I = 3/16 (.188)

K = 1/4 (.250)

SHEATH LENGTH ("A")

Whole Inches: Example 02 = 2 inches

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

LEADWIRE TYPE

A = Solid Fiberglass

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

                                 SPECIAL OPTIONS

C = Cable Clamp/Tube Adapter on Connector

F = BX Connector on Leads

                 SHEATH MOUNTING FITTINGS

1A = Adjustable SS Compression Fitting, 1/8" NPT

2A = Adjustable Brass Compression Fitting, 1/8" NPT

2B = Adjustable Brass Compression Fitting, 1/4" NPT

3A = Re-Adjustable SS Compression Fitting, 1/8" NPT

25 = Mounting Flange with Brass Compression Fitting

28 = Adjustable Bayonet Fitting (1/8" OD Sheath Only)

00 = None

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

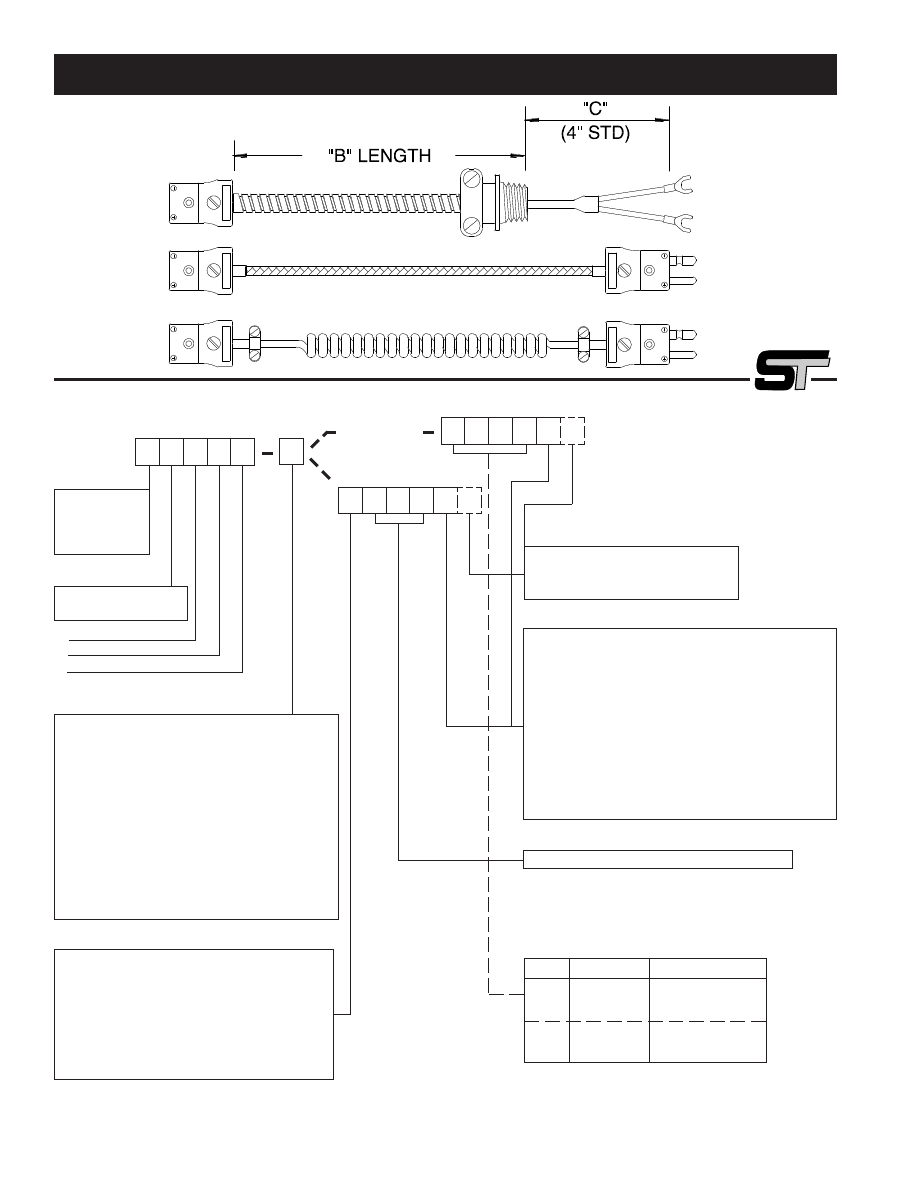

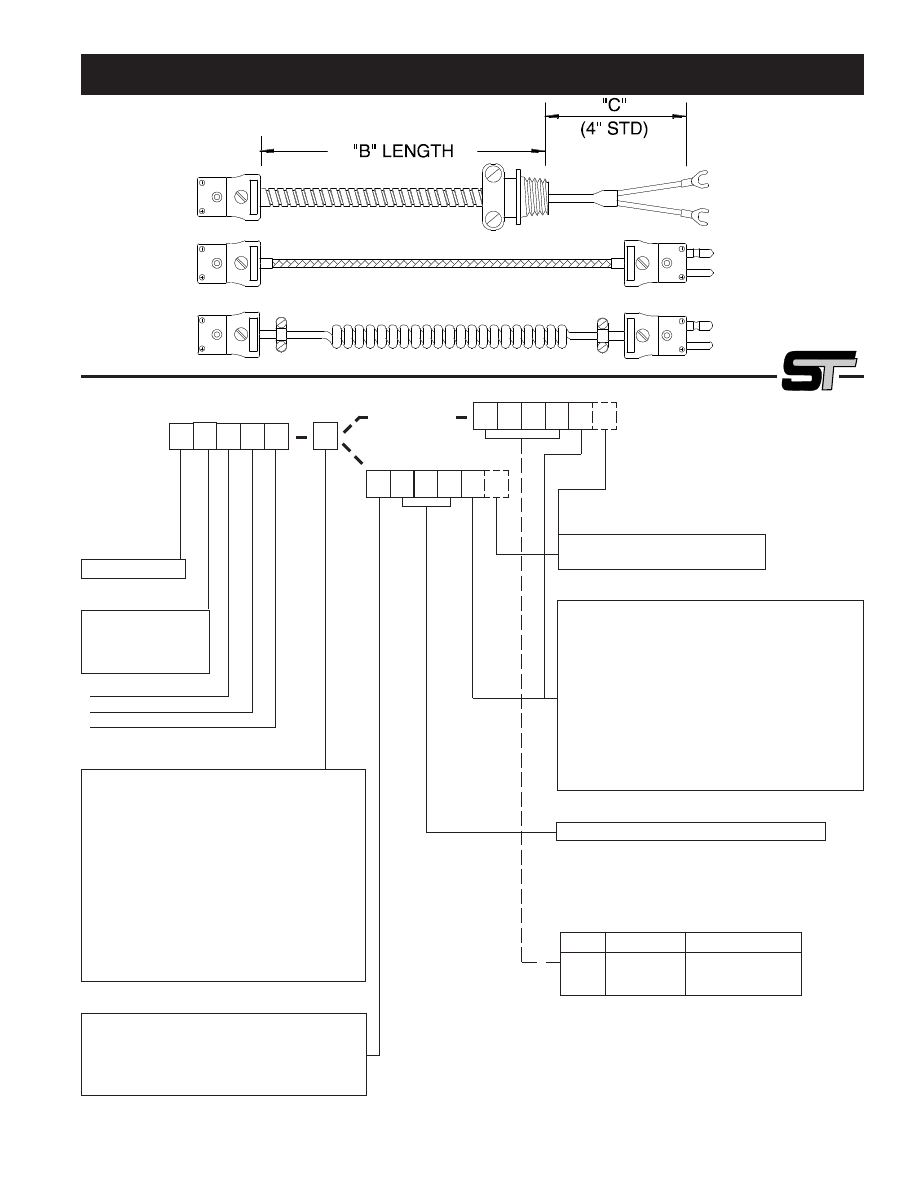

RIGID TUBE THERMOCOUPLES

NOTES:

 For leads beyond flex armor (“C” length),

include length after “B” length.
Example 048 (012)

Duplex and 1/8” OD sensors are generally

constructed with 24 ga. wire. All others are

generally constructed with 20 ga. wire.

1 2 3 4 5

6 7 8 9

10 11 12 13 14

15 16 17

P

plastics-catalog-html.html
background image

P-8

STYLE J

CONSTRUCTION

J = Spade T/C

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE

0 = Single (2 wire)

JUNCTION TYPE

G = Grounded

SPADE MATERIAL

B = Brass

S = Stainless Steel

X

X

X

LEADWIRE TYPE

A = Solid Fiberglass

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

F = Stranded Fiberglass with SS Overbraid

    SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTES:

These assemblies are generally

constructed with 20 ga. wire.

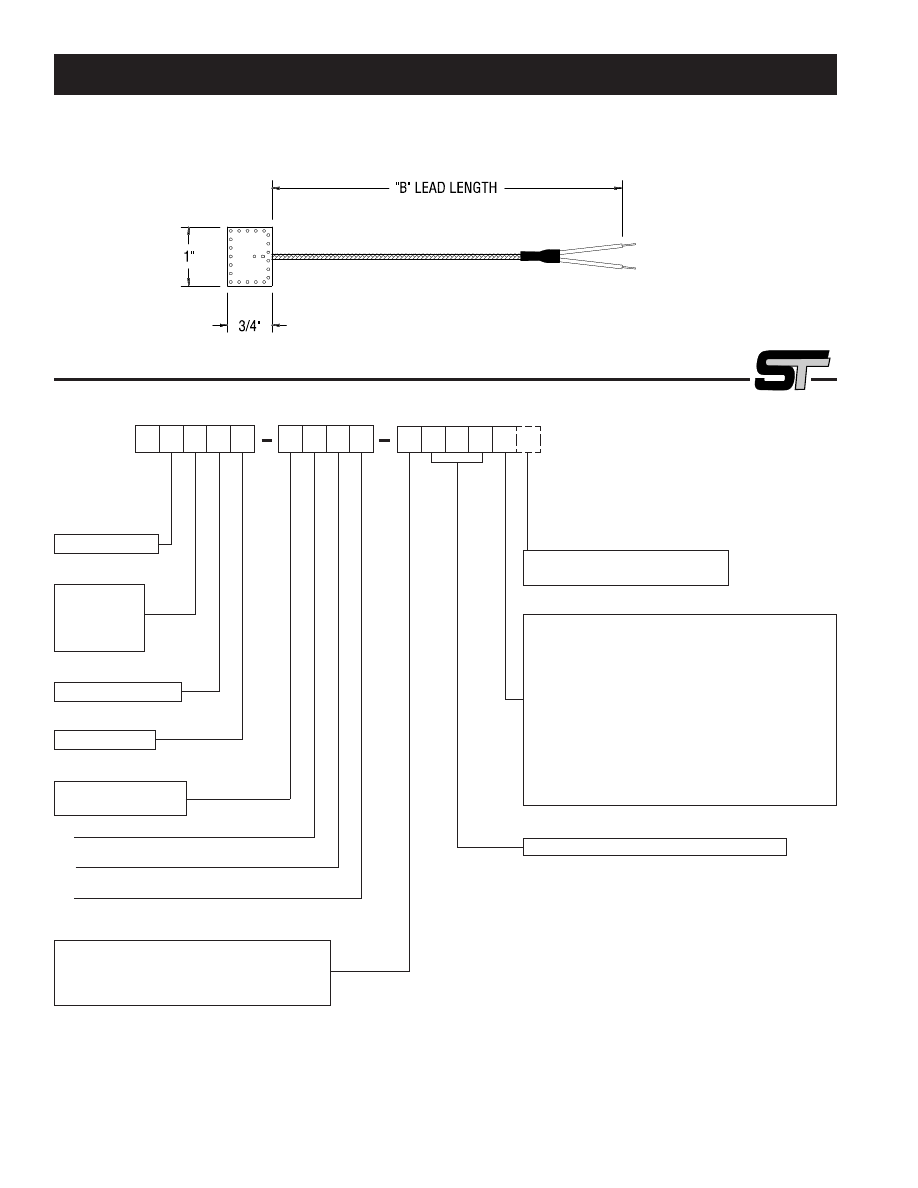

SPADE THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P J

0 G

X X X

plastics-catalog-html.html
background image

P-9

D = Washer Style

L = Lug Style

STYLE K

CONSTRUCTION

K = Washer/Lug T/C

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE

0 = Single

JUNCTION TYPE

1

G = Grounded

RING TYPE

D = Double Cupped Washer

L = Electrical Lug

BOLT/STUD SIZE

Code

Washer ID Lug ID

1=#6

.187"

.144"

2=#8

.187"

.144"

3=#10

.203"

.196"

4=1/4"

.328"

.266"

5=5/16"

.328"

.328"

6=3/8"

.406"

.390"

X

X

LEADWIRE TYPE

A = Solid Fiberglass

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

    SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTES:

These assemblies are generally constructed

with 20 ga. wire.

1

Ungrounded t/c available only in Electrical

Lug style. Consult sales for availability.

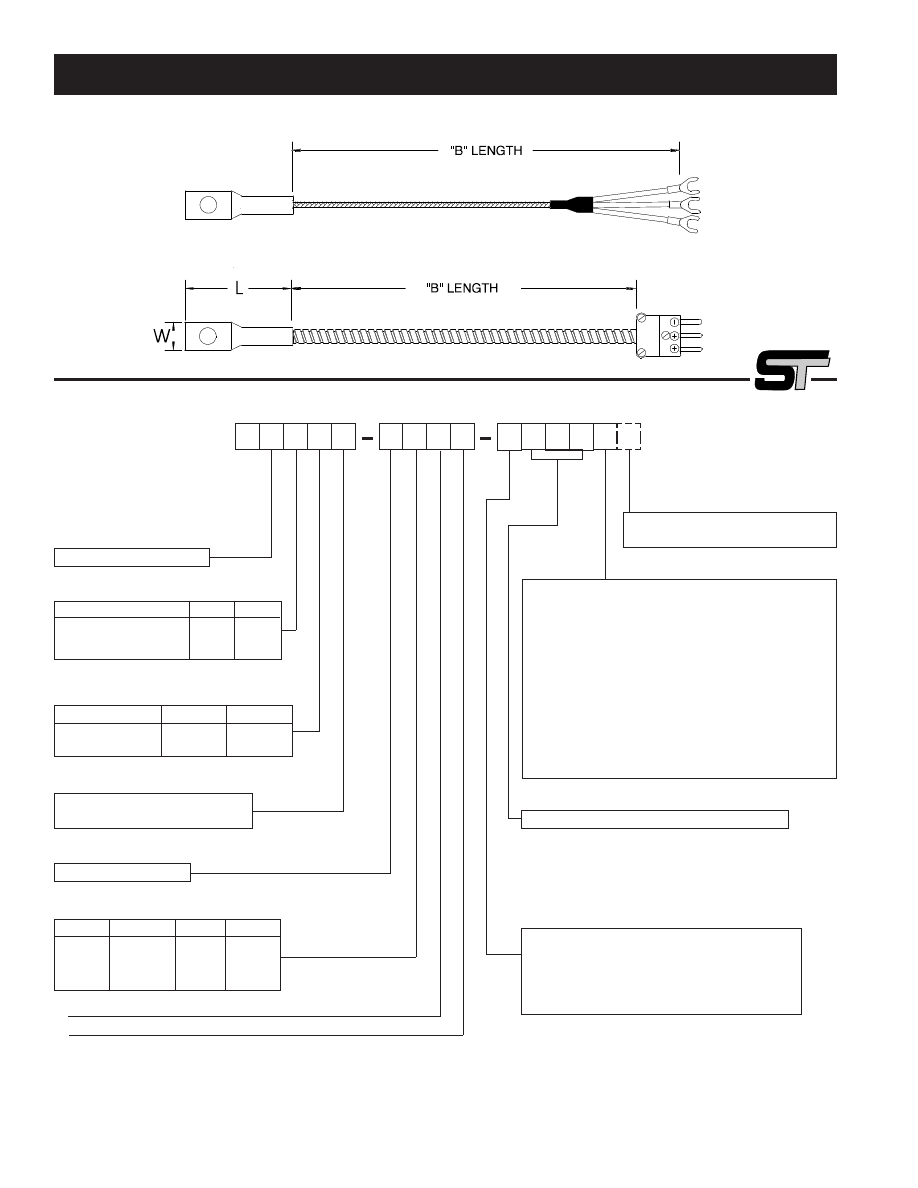

WASHER/LUG THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P K

0 G

X X

plastics-catalog-html.html
background image

P-10

STYLE L

CONSTRUCTION

L = Gasket T/C

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE

0 = Single (2 wire)

JUNCTION TYPE

G = Grounded

GASKET SIZE

J = 10mm (.39"ID)
L = 12mm (.47"ID)

M = 14mm (.55"ID)

FORK STYLE

S = Straight

B = Bent 70

o

X

X

LEADWIRE TYPE

C = Solid Fiberglass with SS Overbraid

F = Stranded Fiberglass with SS Overbraid

6 = Solid Teflon with SS Overbraid (500

o

F)

4 = Solid Teflon (500

o

F)

     SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B” )

Whole Inches: Example: 048 = 48 Inches

NOTES:

These assemblies are generally con-

structed with 24 ga. wire.

Consult sales for other gasket sizes.

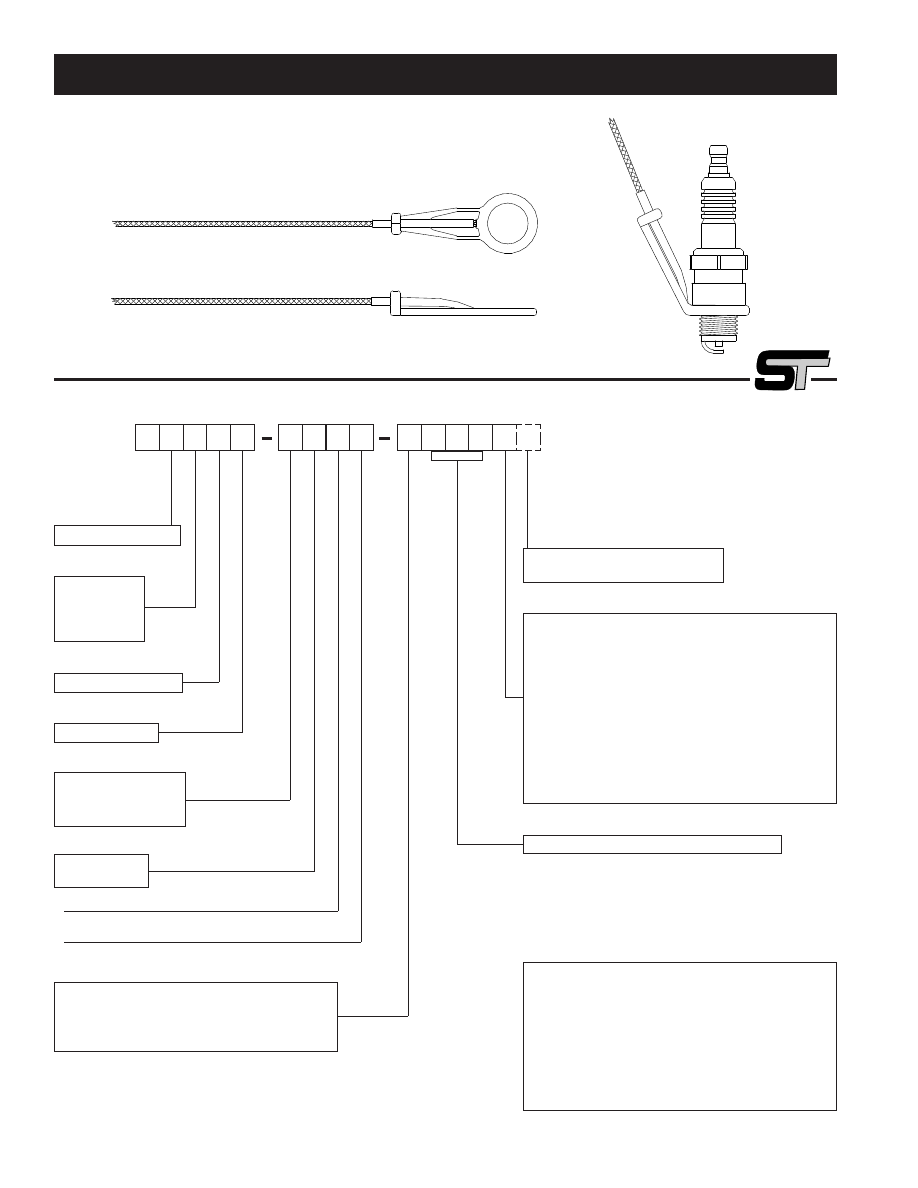

The Spark Plug Gasket Thermocouple is a simple

effective method to monitor the cylinder head

temperature on a variety of single and multiple

cylinder engines.  The spark plug is inserted

through the sensor and then torqued into the

head as usual.  SensorTec's unique one piece

design allows the use of the standard spark plug

and eliminates the need for machining of the

cylinder head.

SPARK PLUG GASKET THERMOCOUPLES

P L

0 G

X X

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

plastics-catalog-html.html
background image

P-11

STYLE M, N, & O

CONSTRUCTION

M = 3" Melt Bolt

N = 4" Melt Bolt

O = 6" Melt Bolt

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

G = 1/8 (.125)

I = 3/16 (.188)

SHEATH LENGTH ("A")

Whole Inches: Example 00 = None

SHEATH LENGTH ("A" Fractional)

A = Flush

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

     SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

1

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length), include

length after “B” length.  Example 048 (012)

LEADWIRE TYPE

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

NOTES:

 Duplex and 1/8” OD sensors are generally

constructed with 24 ga. wire. All others are

generally constructed with 20 ga. wire.

1

For rigid mount connector, insert 000

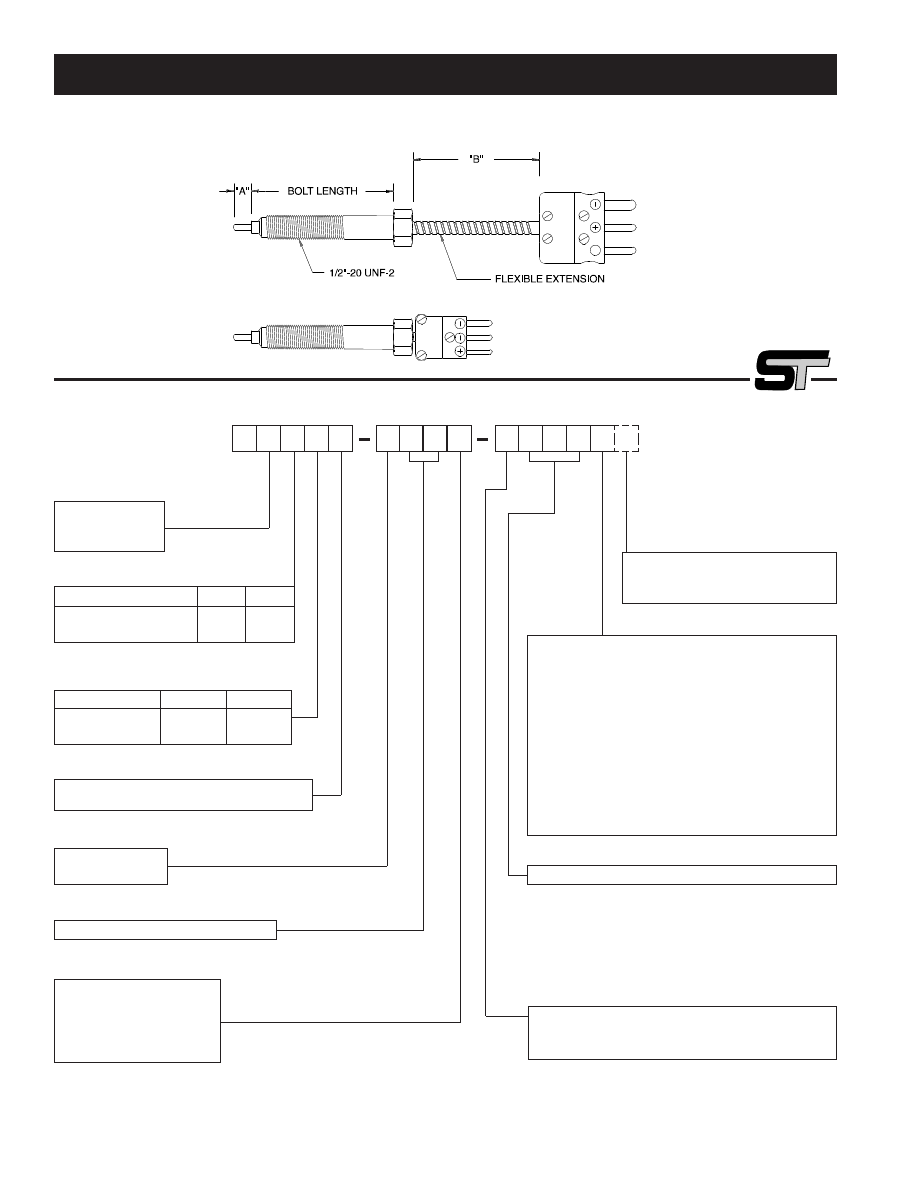

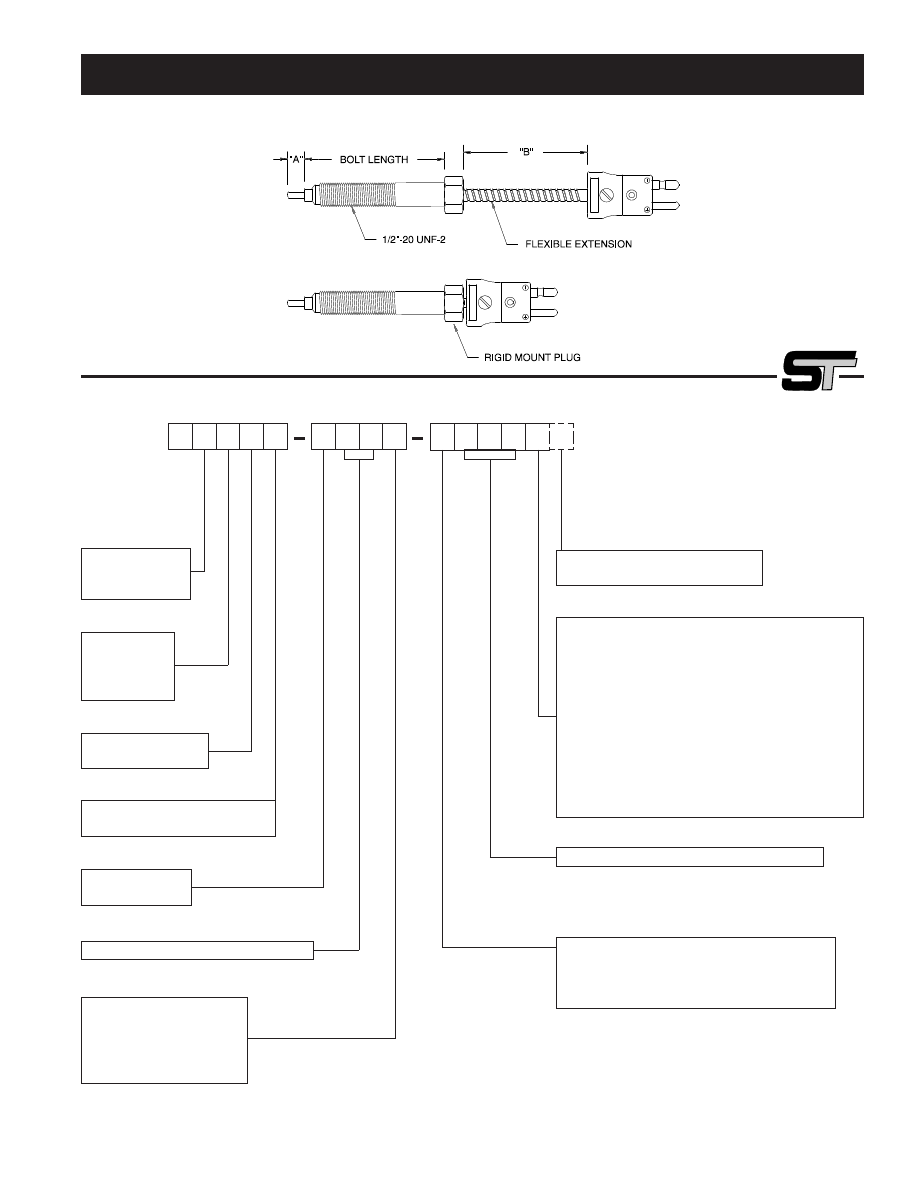

MELT BOLT THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P

0 0

plastics-catalog-html.html
background image

P-12

STYLE R

                    SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

BOLT SIZES

1 = 1/4"-20 X 3/8" Long

2 = 1/4"-28 X 3/8" Long
3 = M6 X 1.00 X 12

4 = M8 X 1.25 X 12

Consult factory for other bolt sizes

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B” )

Whole Inches: Example: 048 = 48 Inches

NOTES:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012).

These assemblies are generally constructed

with 24 ga. wire.

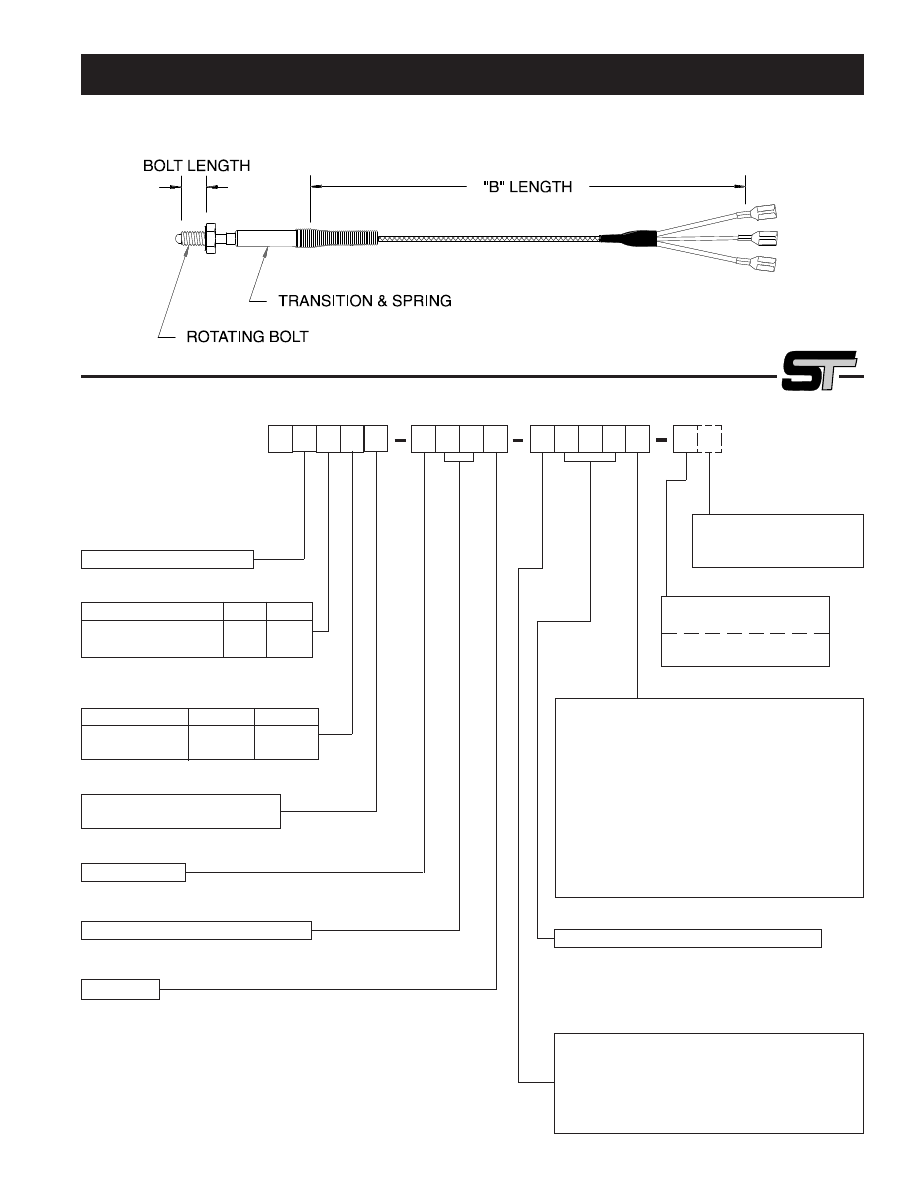

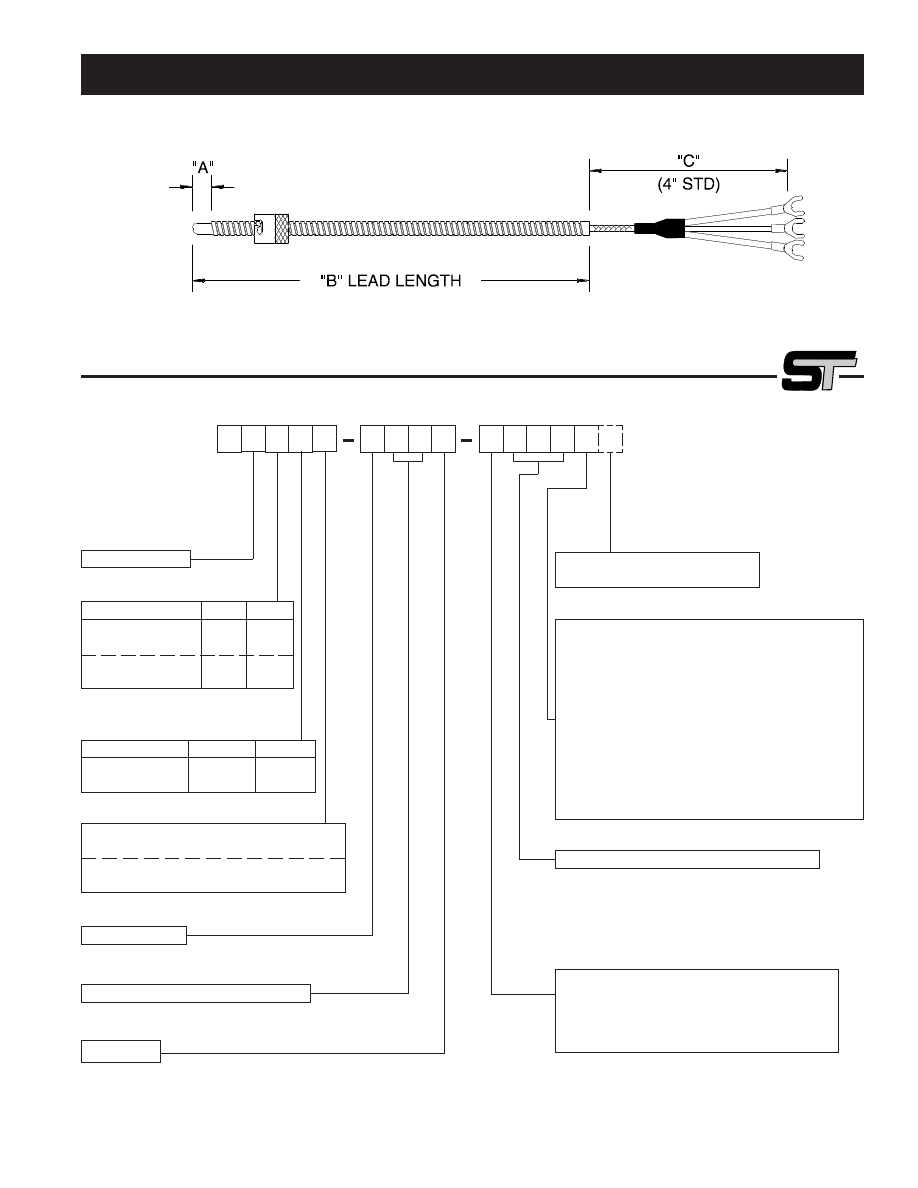

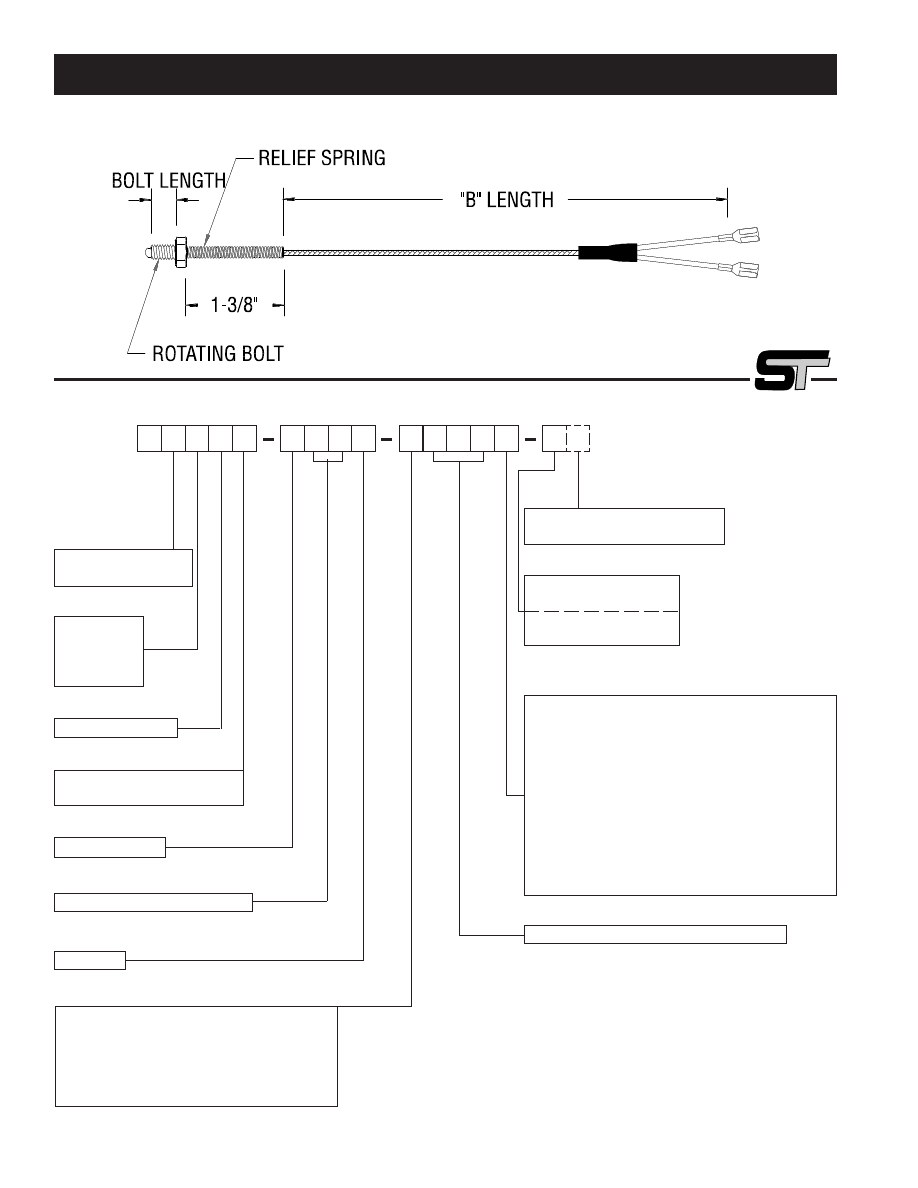

THREADED NOZZLE BOLT THERMOCOUPLES

CONSTRUCTION

R = Threaded Nozzle

T/C

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE

0 = Single (2 wire)

JUNCTION TYPE

G = Grounded, Round Tip

U = Ungrounded, Round Tip

SHEATH DIAMETER (Inch)

G = 1/8 (.125)

SHEATH LENGTH ("A")

Whole Inches: Example 01=1"

SHEATH LENGTH (Fractional)

A = None

LEADWIRE TYPE

A = Solid Fiberglass

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

1 2 3 4 5

6 7 8 9

10 11 12 13 14

P R

0

G 0 1 A

15 16

plastics-catalog-html.html
background image

P-13

STYLE U

CONSTRUCTION

U = Pipe Clamp

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE

0 = Single (2 wire)

JUNCTION TYPE

1

G = Grounded

CLAMP DIAMETER RANGE

Code

Diameter

IPS Size

12

11/16 to 1-1/4"

1/2 & 3/4"

24

1-1/16 to 2"

1 & 1-1/2"

44

2 to 3-1/4"

2 & 2-1/2"

60

3 to4-1/4"

3 & 3-1/2"

88

4-3/4 to 6"

4"

96

5-1/4 to 6-1/2"

5"

98

5-3/4 to 7

6"

X

LEADWIRE TYPE

C = Solid Fiberglass with SS Overbraid

F = Stranded Fiberglass with SS Overbraid

   SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B” )

Whole Inches: Example: 048 = 48 Inches

NOTES:

These assemblies are generally con-

structed with 20 ga. wire.

Pipe clamps are made of stainless steel.

1

Consult sales for ungrounded style

thermocouple availability.

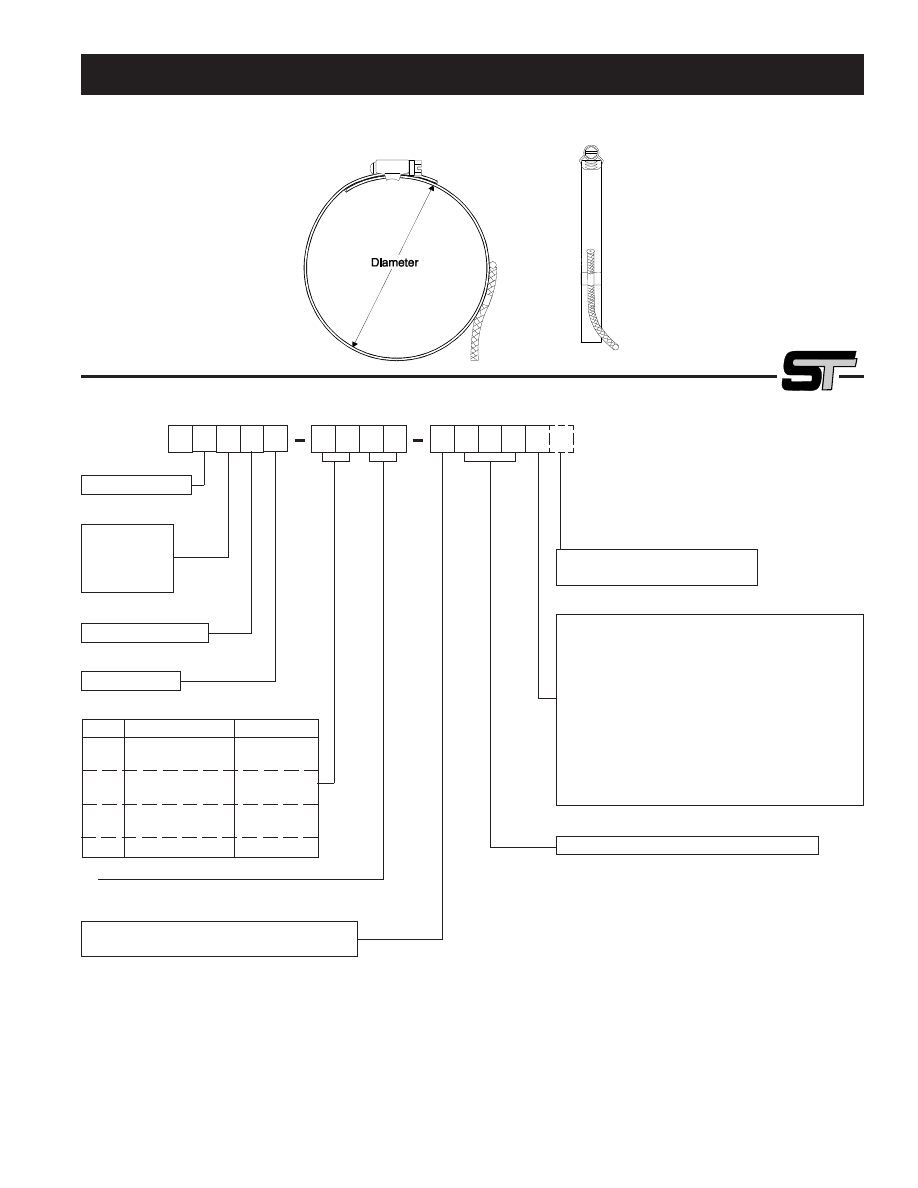

PIPE CLAMP THERMOCOUPLES

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

P U

0 G

X X

plastics-catalog-html.html
background image

P-14

STYLE A & B

CONSTRUCTION

A = 8” Spring

B = 12” Spring

ELEMENT TYPE

Resistance @ 0

o

C 2 Wire 3 Wire

Platinum 100

     Single

A

B

Platinum 100

     Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

Note:  Requires Leadwire Type M or N.
-50 to +450

o

 C

M

Note:  Requires Leadwire Type D, E, or F.

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

SHEATH LENGTH ("A")

Whole Inches: Example 01 = 1 inch

SHEATH LENGTH ("A" Fractional)

A = None

                    SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.  Example 048 (012)

LEADWIRE TYPE

D = Stranded Fiberglass (450

o

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

O = Stranded Teflon with SS Overbraid

SPRING ADJUSTABLE DEPTH RTD'S

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

I 0 1 A

F

plastics-catalog-html.html
background image

P-15

STYLE C

                    SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

LEADWIRE TYPE

D = Stranded Fiberglass (450

o

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

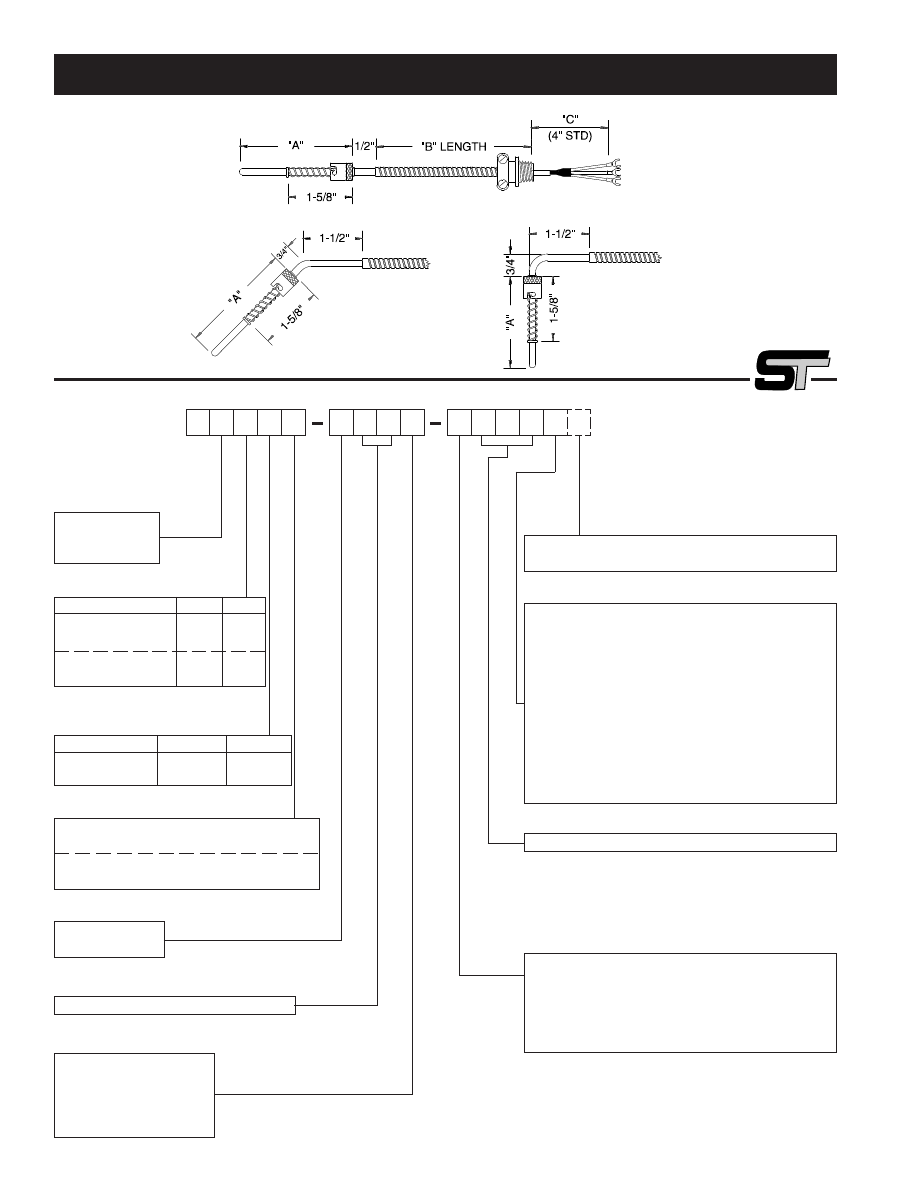

FLEX ARMOR ADJUSTABLE DEPTH RTD'S

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

I 0 1 A

F C

CONSTRUCTION

C = Flex Armor

ELEMENT TYPE

Resistance @ 0

o

C 2 Wire 3 Wire

Platinum 100

     Single

A

B

Platinum 100

     Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

Note:  Requires Leadwire Type M or N.
-50 to +450

o

 C

M

Note:  Requires Leadwire Type D, E, or F.

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

SHEATH LENGTH ("A")

Whole Inches: Example 01 = 1 inch

SHEATH LENGTH ("A" Fractional)

A = None

plastics-catalog-html.html
background image

P-16

STYLE D

STYLE E

STYLE F

FIXED BAYONET RTD'S

                    SPECIAL OPTIONS

C = Cable Clamp/Tube Adapter on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

LEADWIRE TYPE

D = Stranded Fiberglass (450

o

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

O = Stranded Teflon with SS Overbraid

CONSTRUCTION

D = Straight

E = Bent 45

o

F = Bent 90

o

ELEMENT TYPE

 Resistance @ 0

o

C  2 Wire 3 Wire

Platinum 100

     Single

A

B

Platinum 100

     Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

 Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

Note:  Requires Leadwire Type M or N.
-50 to +450

o

 C

M

Note:  Requires Leadwire Type D, E, or F.

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

K = 1/4  (.250)

SHEATH LENGTH ("A")

1

Whole Inches: Example 03 = 3 inches

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

I

F

1

Refer to Table A on page P-21 for immersion depth calculations

plastics-catalog-html.html
background image

P-17

STYLE G

STYLE H

STYLE I

RIGID TUBE RTD'S

                    SPECIAL OPTIONS

C = Cable Clamp/Tube Adapter on Connector

F = BX Connector on Leads

SHEATH MOUNTING FITTINGS

1A = Adjustable SS Compression Fitting, 1/8" NPT

2A = Adjustable Brass Compr. Fitting, 1/8" NPT

2B = Adjustable Brass Compr. Fitting, 1/4" NPT

3A = Re-Adjustable SS Compr. Fitting, 1/8" NPT

25 = Mounting Flange with Brass Compr. Fitting

00 = None

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

LEADWIRE TYPE

D = Stranded Fiberglass (450

o

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

O = Stranded Teflon with SS Overbraid

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15 16 17

F

CONSTRUCTION

G = Straight

H = Bent 45

o

I = Bent 90

o

ELEMENT TYPE

 Resistance @ 0

o

C 2 Wire 3 Wire

Platinum 100

     Single

A

B

Platinum 100

     Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

 Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

Note:  Requires Leadwire Type M or N.
-50 to +450

o

 C

M

Note:  Requires Leadwire Type D, E, or F.

SHEATH DIAMETER (Inch)

I = 3/16 (.188)

K = 1/4   (.250)

SHEATH LENGTH ("A")

Whole Inches: Example 06 = 6 Inches

SHEATH LENGTH ("A" Fractional)

A = None

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

plastics-catalog-html.html
background image

P-18

STYLE K

LUG STYLE SURFACE MOUNT RTD'S

CONSTRUCTION

K = Lug Style RTD

ELEMENT TYPE

Resistance @ 0

o

C

2 Wire 3 Wire

Platinum 100

 Single

A

B

Platinum 100

 Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

-50 to +450

o

 C

M

LUG TYPE

L = Heavy Duty Lug

BOLT/STUD SIZE

Code

Lug ID

"W"

"L"

3=#10

.196"

.50

1.80

4=1/4"

.266"

.50

1.80

5=5/16" .328"

.59

1.95

X
X

  SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

LEADWIRE TYPE

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

O = Stranded Teflon with SS Overbraid

1 2 3 4 5

10 11 12 13 14 15

6 7 8 9

F K

L

X X

plastics-catalog-html.html
background image

P-19

STYLE R

CONSTRUCTION

R = Threaded Nozzle RTD

ELEMENT TYPE

Resistance @ 0

o

C

  2 Wire 3 Wire

Platinum 100

 Single

A

 B

Platinum 100

 Dual

D

 E

ACCURACY & TEMPERATURE

COEFFICIENT

Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

-50 to +450

o

 C

M

SHEATH DIAMETER (Inch)

G = 1/8 (.125)

SHEATH LENGTH ("A")

Whole Inches:  01 = 1 "

SHEATH LENGTH ("A" Fractional)

A = None

1 2 3 4 5

6 7 8 9

10 11 12 13 14

15 16

F R

        SPECIAL OPTIONS

C = Cable Clamp on

Connector

F = BX Connector on Leads

        BOLT SIZES

1 = 1/4" - 20 X 3/8" Long

2 = 1/4" - 28 X 3/8" Long

3 = M6 X 1.00 X 12

4 = M8 X 1.25 X 12

             LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads with1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug with Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:



For leads beyond flex armor (“C” length), include

length after “B” length.  Example 048 (012)

LEADWIRE TYPE

D = Stranded Fiberglass (450

o

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon with SS Flex Armor

O = Stranded Teflon with SS Overbraid

G 0 1 A

THREADED NOZZLE BOLT RTD'S

plastics-catalog-html.html
background image

P-20

STYLE M, N, & O

CONSTRUCTION

M = 3" Melt Bolt

N = 4" Melt Bolt

O = 6" Melt Bolt

ELEMENT TYPE

Resistance @ 0

o

C

2 Wire 3 Wire

Platinum 100

 Single

A

B

Platinum 100

 Dual

D

E

ACCURACY & TEMPERATURE

COEFFICIENT

Accuracy @ 0

o

C Din.00385 Jis.00392

Class B (.12%)

G

H

Class A (.06%)

J

K

TEMPERATURE RANGE

-50 to +200

o

 C

L

-50 to +450

o

 C

M

SHEATH DIAMETER (Inch)

G = 1/8

(.125)

I = 3/16 (.188)

SHEATH LENGTH ("A")

Whole Inches: Example 00 = None

SHEATH LENGTH ("A" Fractional)

A = Flush

J = 3/8

B = 1/16

L = 1/2

C = 1/8

N = 5/8

E = 3/16

Q = 3/4

G = 1/4

S = 7/8

1 2 3 4 5

6 7 8 9

10 11 12 13 14 15

SPECIAL OPTIONS

C = Cable Clamp on

 Connector

F =  BX Connector on Leads

                        LEADWIRE TERMINATIONS

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

1

Whole Inches: Example: 048 = 48 Inches

NOTES:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

1

For rigid mount connector, insert 000.

LEADWIRE TYPE

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

N = Stranded Teflon with SS Flex Armor

0 0

F

MELT BOLT RTD'S

plastics-catalog-html.html
background image

P-21

2"

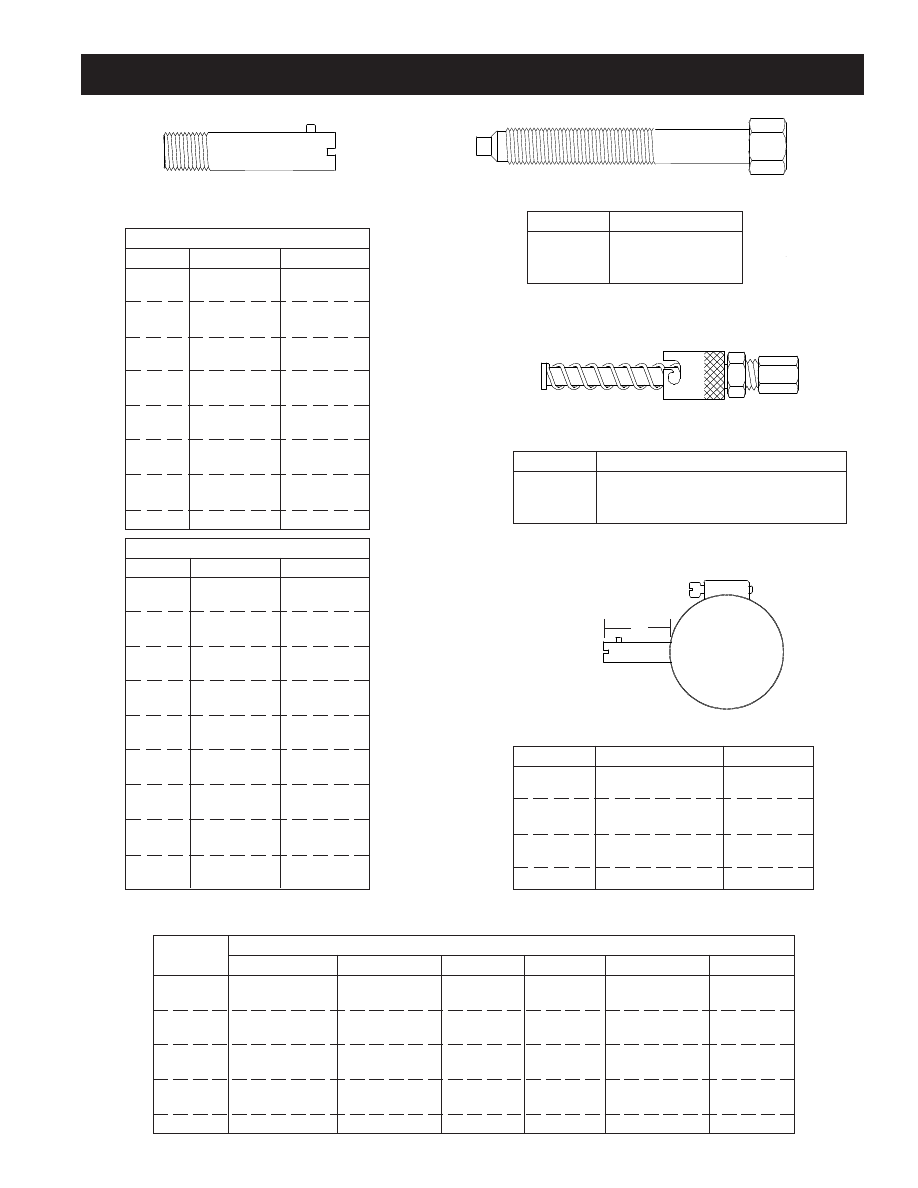

BLANK MELT BOLTS

Part #

Description

45203B

3" Long Blank Bolt

45204B

4" Long Blank Bolt

45206B

6" Long Blank Bolt

ADJUSTABLE BAYONET FITTING

Part #

Description (For 1/8" OD Sheath Only)

441080

Adjustable Bayonet w/Brass Ferrule

441080N

Adjustable Bayonet w/Nylon Ferrule

441080S

Adjustable Bayonet w/SST Ferrule

BAYONET ADAPTERS

(See Table A)
NICKEL PLATED STEEL

Part #

Length

Thread

441050

7/8"

1/8" NPT

441052

1-1/4"

1/8" NPT

441053

1-1/2"

1/8" NPT

441055

2"

1/8" NPT

441056

2-1/4"

1/8" NPT

441057

2-1/2"

1/8" NPT

441058

3"

1/8" NPT

441059

3-1/2"

1/8" NPT

441060

4"

1/8" NPT

441061

5"

1/8" NPT

441062

6"

1/8" NPT

441065

7/8"

3/8"-24

441066

1-1/2"

3/8"-24

441068

2-1/2"

3/8"-24

441069

3-1/2"

3/8"-24

STAINLESS STEEL

Part #

Length

Thread

441050S

7/8"

1/8"-27 NPT

441052S

1-1/4"

1/8"-27 NPT

441053S

1-1/2"

1/8"-27 NPT

441055S

2"

1/8"-27 NPT

441056S

2-1/4"

1/8"-27 NPT

441057S

2-1/2"

1/8"-27 NPT

441058S

3"

1/8"-27 NPT

441059S

3-1/2"

1/8"-27 NPT

441060S

4"

1/8"-27 NPT

441061S

5"

1/8"-27 NPT

441062S

6"

1/8"-27 NPT

441065S

7/8"

3/8"-24

441066S

1-1/2"

3/8"-24

441067S

1-3/4"

3/8"-24

441068S

2-1/2"

3/8"-24

441069S

3-1/2"

3/8"-24

441075S

2-1/2"

M10 X 1.5

441076S

2-3/8"

M10 X 1.5

PIPE CLAMP ADAPTERS

Part #

Clamp Diameter

Pipe Size

PA 12

11/16 to 1-1/4"

1/2 to 3/4"

PA 24

1-1/6 to 2"

1 to 1-1/2"

PA 44

2 to 3-1/4"

2 to 2-1/2"

PA 60

3 to 4-1/4"

3 to 3-1/2"

PA 88

4-3/4 to 6"

4"

PA 96

5-1/4 to 6-1/2"

5"

PA 98

5-3/4 to 7"

6"

TABLE A

 - IMMERSION DEPTH CALCULATION

      "A"

Immersion Depth For Various Bayonet Adapter Lengths

Dimension

7/8"

1-1/4"

1-1/2"

2"

2-1/4"

2-1/2"

2"

5/8 to 1-1/8"

1/4 to 3/4"

-----

-----

-----

-----

2-1/2"

1-1/8 to 1-5/8"

3/4 to 1-1/4"

1/2 to 1"

-----

-----

-----

3"

1-5/8 to 2-1/8"

1-1/4 to 1-3/4"

1 to 1-1/2"

1/2 to 1"

1/4 to 3/4"

-----

3-1/2"

2-1/8 to 2-5/8"

1-3/4 to 2-1/4"

1-1/2 to 2"

1 to 1-1/2"

3/4 to 1-1/4"

1/2 to 1"

4"

2-5/8 to 3-1/8"

2-1/4 to 2-3/4"

2 to 2-1/2"

1-1/2 to 2" 1-1/4 to 1-3/4"

1 to 1-1/2"

4-1/2"

3-1/8 to 3-5/8"

2-3/4 to 3-1/4"

2-1/2 to 3"

2 to 2-1/2" 1-3/4 to 2-1/4"

1-1/2 to 2"

5"

3-5/8 to 4-1/8"

3-1/4 to 3-3/4"

3 to 3-1/2"

2-1/2 to 3" 2-1/4 to 2-3/4"

2 to 2-1/2"

5-1/2"

4-1/8 to 4-5/8"

3-3/4 to 4-1/4"

3-1/2 to 4"

3 to 3-1/2" 2-3/4 to 3-1/4"

2-1/2 to 3"

6"

4-5/8 to 5-1/8"

4-1/4 to 4-3/4"

4 to 4-1/2"

3-1/2 to 4" 3-1/4 to 3-3/4"

3 to 3-1/2"

ACCESSORIES FOR  PLASTICS INDUSTRY SENSORS

plastics-catalog-html.html
background image

P-22

CALIBRATION

J = Type “J”

K = Type “K”

E = Type “E”

T = Type “T”

SINGLE/DUPLEX

0 = Single (2 wire)

4 = Duplex (4 wire)

E

X

T

LEADWIRE TERMINATIONS ("A")

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs &

BX Connector

E = 2-1/2" Split Leads with1/4" Push-on

Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug with Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE TYPE

A = Solid Fiberglass

B = Solid Fiberglass with SS Flex Armor

C = Solid Fiberglass with SS Overbraid

D = Stranded Fiberglass

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

8 = Stranded Fiberglass with SS Overbraid

& Flex Armor

   SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

S = Solid Pins on Plug

LEADWIRE TERMINATIONS ("C")

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

COIL CORD CONSTRUCTION

Code Coil Length    Extended Length
CC10

10"

60"

CC24

24"

120"

CC32

32"

180"

CC60

60"

360"

NOTE:  26 Gauge stranded conductors maximum

temperature rating, 221

°

F

FLEXIBLE THERMOCOUPLE EXTENSIONS

COIL CORD

OPTION

7 8 9 10 11

7 8 9 10 11

1 2 3 4 5

E X T

6

C C

12

12

plastics-catalog-html.html
background image

P-23

C C

11 12

R =

RTD Extention

CONFIGURATIONS

2 = 2 wire

3 = 3 wire

4 = 4 wire

6 = 6 wire

E

X

T

LEADWIRE TERMINATIONS ("A")

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs &

BX Connector

E = 2-1/2" Split Leads w/1/4" Push-on

Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE TYPE

D = Stranded Fiberglass (450

°

C)

E = Stranded Fiberglass with SS Flex Armor

F = Stranded Fiberglass with SS Overbraid

M = Stranded Teflon (200

o

C)

N = Stranded Teflon  with SS Flex Armor

  SPECIAL OPTIONS

C = Cable Clamp on Connector

F = BX Connector on Leads

LEADWIRE TERMINATIONS ("C")

A = None

B = 2-1/2" Split Leads

C = 2-1/2" Split Leads w/#8 Spade Lugs

D = 2-1/2" Split Leads w/#8 Spade Lugs & BX

Connector

E = 2-1/2" Split Leads w/1/4" Push-on Connectors

K = Standard Male Plug (200

o

C)

L = Standard Plug with Mating Jack (200

o

C)

M = Standard Female Jack (200

o

C)

Q = Miniature Male Plug (200

o

C)

R = Miniature Plug Mating Jack (200

o

C)

S = Miniature Female Jack (200

o

C)

LEADWIRE LENGTH (“B”)

Whole Inches: Example: 048 = 48 Inches

NOTE:

 For leads beyond flex armor (“C” length),

include length after “B” length.

Example 048 (012)

COIL CORD CONSTRUCTION

Code Coil Length    Extended Length
CC10

10"

60"

CC36

36"

180"

Available in 2 or 3 conductor styles only.

NOTE:  26 Gauge stranded conductors maximum

temperature rating, 221

°

F

FLEXIBLE RTD EXTENSIONS

COIL CORD

OPTION

7 8 9 10 11

R

E X T

1 2 3 4 5

6

12

7 8 9 10

plastics-catalog-html.html
background image
