swiss world connects
PRECI-DIP
SWISS QUALITY
CONNECTION
TECHNOLOGY
INTERCONNECT COMPONENTS
FROM STANDARD PRODUCTS
TO CUSTOM DESIGN
FIND A WORLD
OF SWISS QUALITY
UNDER
ONE ROOF
FULL CONTROL OF THE ENTIRE
MANUFACTURING PROCESS.
FROM RAW MATERIAL TO FINISHED
PRODUCT, FROM PRODUCT
DEVELOPMENT TO SALES.
HOME TO SUCH UNIQUE QUALITY
IS DELEMONT, SWITZERLAND.
SINCE 1976.
Excellence and Substained Growth – the Reason why
Preci-dip received the Entrepreneur of the Year Award
for Western Switzerland

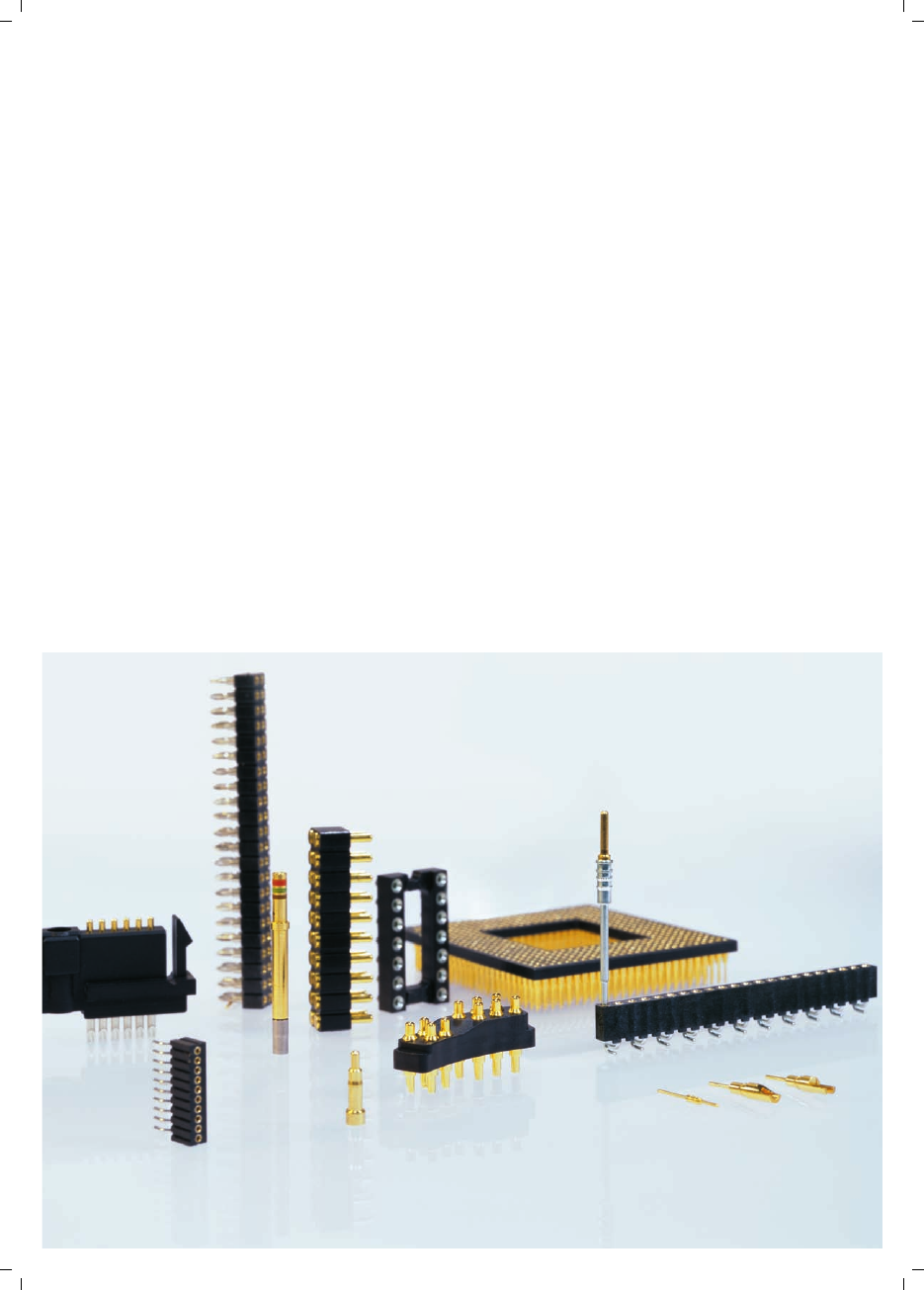

Preci-Dip packs unequaled expertise into cutting-edge interconnect
components. Advanced designs, top materials, incomparable
Swiss precision. Developed by men and women driven by passion
and know-how.
Key data for one of the world’s leading producers of screw-machined
contacts: 25,000 m
2
, more than 20,000 different products, R & D
supported by state-of-the-art CAD systems and 3D projections.
Compliance with the Standards ISO 9001, ISO 14001 and MIL Standard
790 verifi ed in our own test laboratory.
ISO 14001 Environmental Management Systems. Ahead of its time,
Preci-Dip exceeds the world’s most stringent environmental standards
( Switzerland, California ). State-of-the-art fi lter systems help preserve
the atmosphere, a closed water circuit protects the ground water
and saves valuable resources. These are but some of the accomplish-
ments the Company can be proud of. Environmental responsibility
is a core value embraced by all Preci-Dip employees.

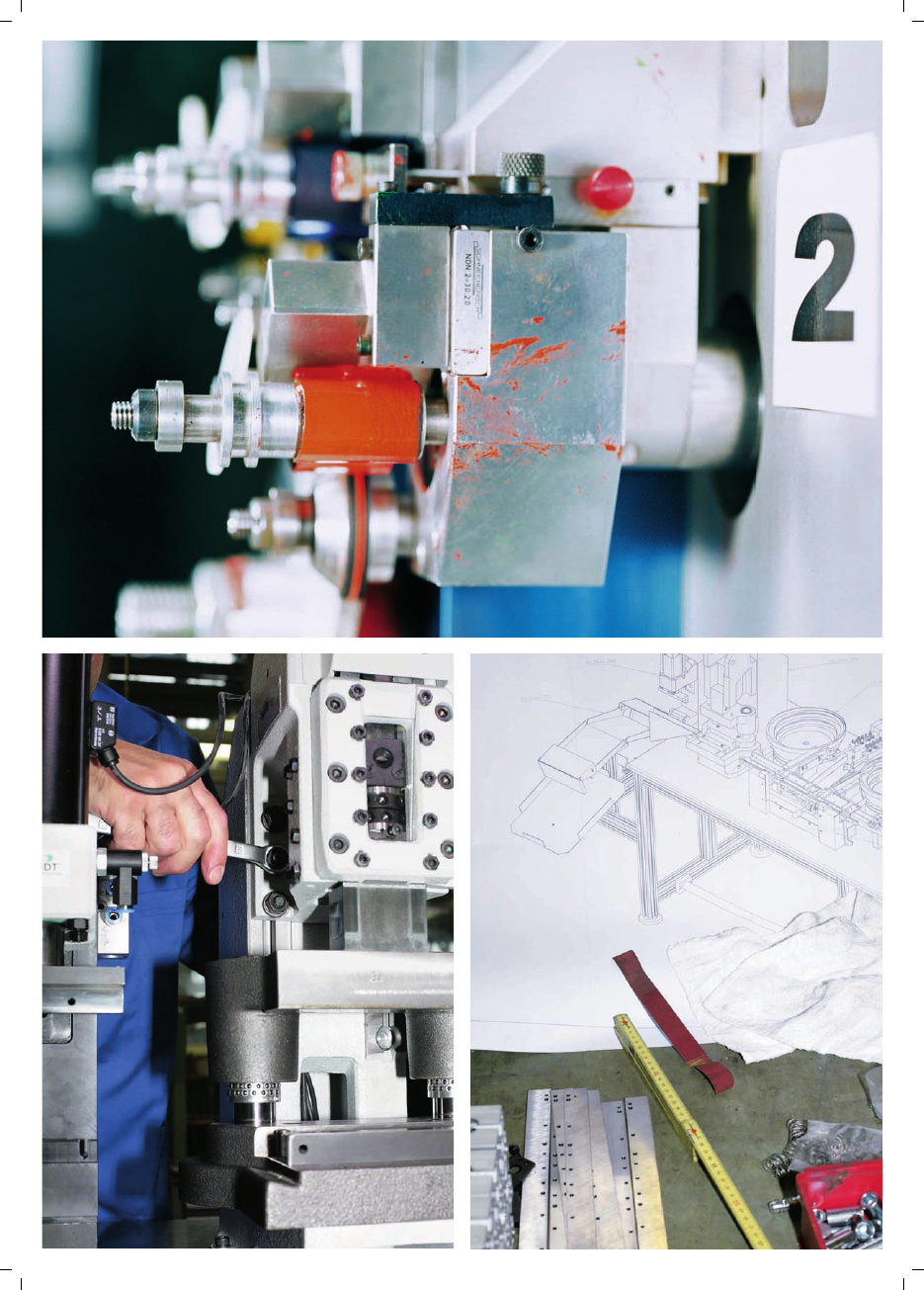

Precision tools and contact assembly machines are developed,
designed and produced by Preci-Dip experts. Principle of vertical
single-site command structure put into practice – from raw material
to fi nished product. Each step under control.

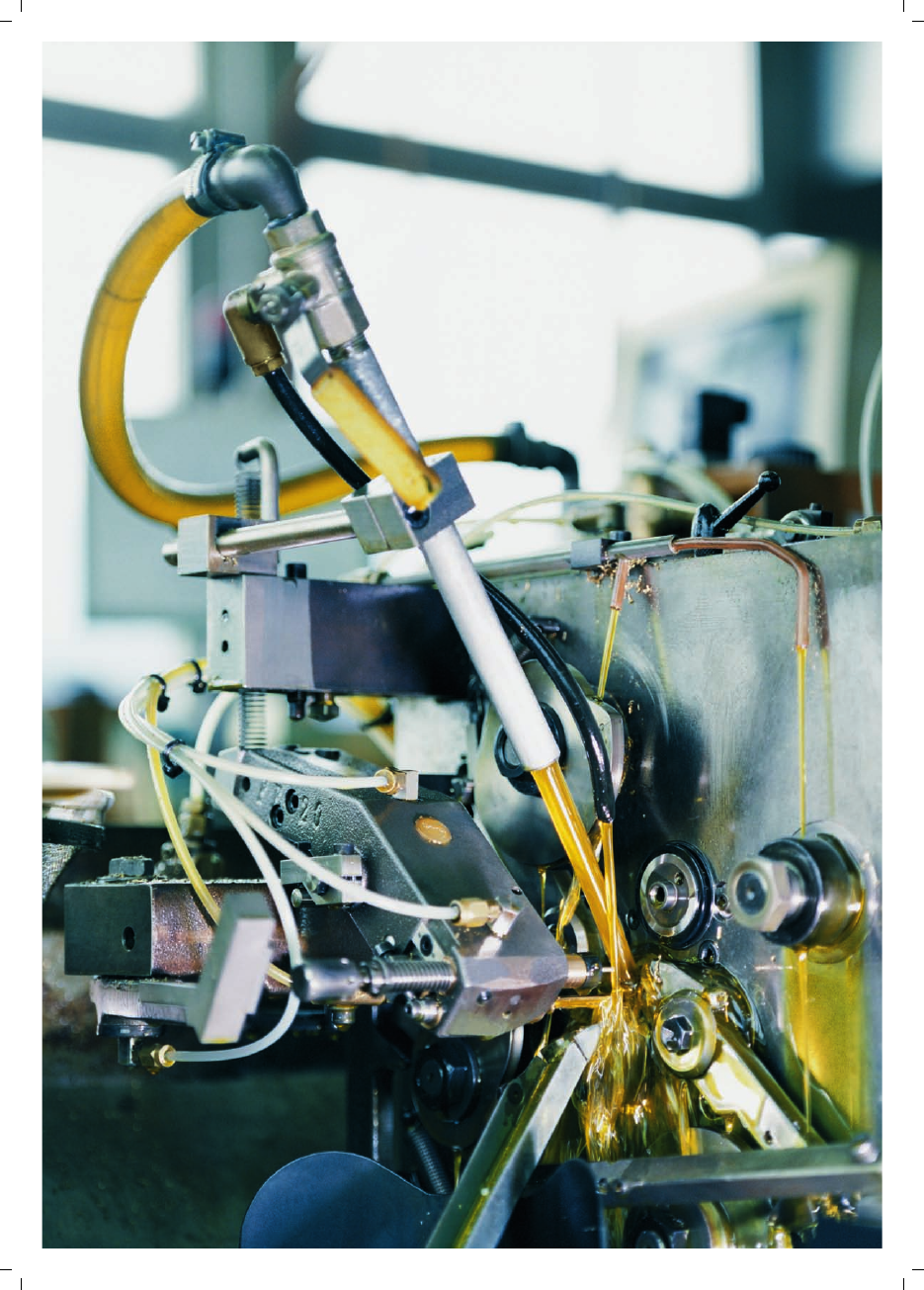

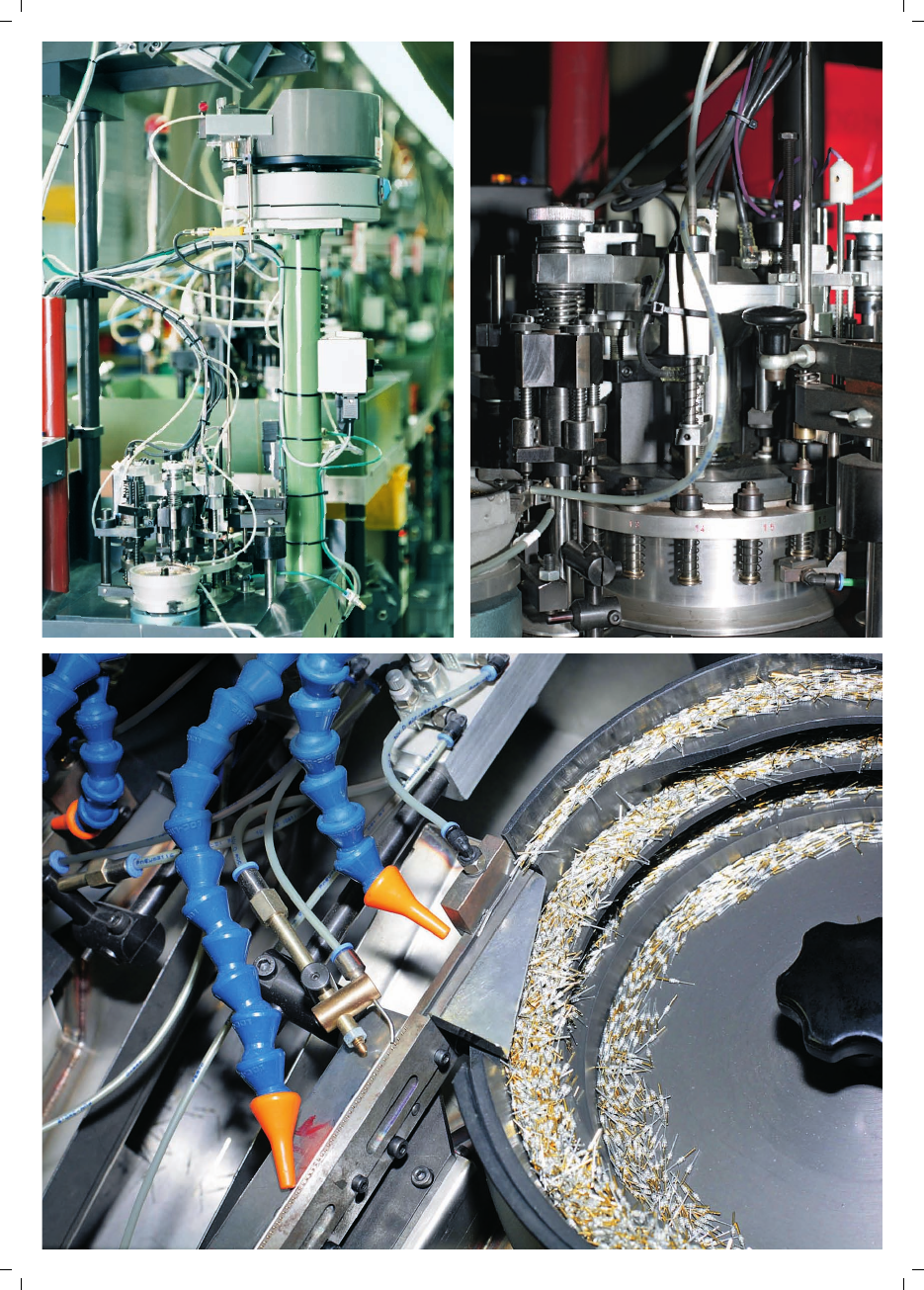

300 high-speed turning machines for producing precision contacts
made of various copper alloys. Capacity: more than 150 million pieces/
week.
Preci-Dip is also a leader in spring-loaded contacts – a top-quality
industrial production.
Custom-made insulators for special requirements – 150 contact
assembly machines for high-speed clip insertion in the contact body.
Custom-designed products developed in close partnership with
the client – a welcome challenge for the Preci-Dip Team.
SAP-supported production controls for short lead times.
Expertise, qualifi cations and commitment for high output, fl exibility
and customer orientation. Under one and the same roof. Supported
by a worldwide logistic network.
Preci-Dip: Come and visit us. On the Internet. Or in person. Experience
for yourself what it means to rely on Swiss quality.
SCREW - MACHINING
• 300 automatic high-speed turning machines for cylindrical parts
• Up to 150 million pieces/week capacity
• From 1.83 to 6 mm bar diameter
• Material: brass or bronze wire in drum or bar

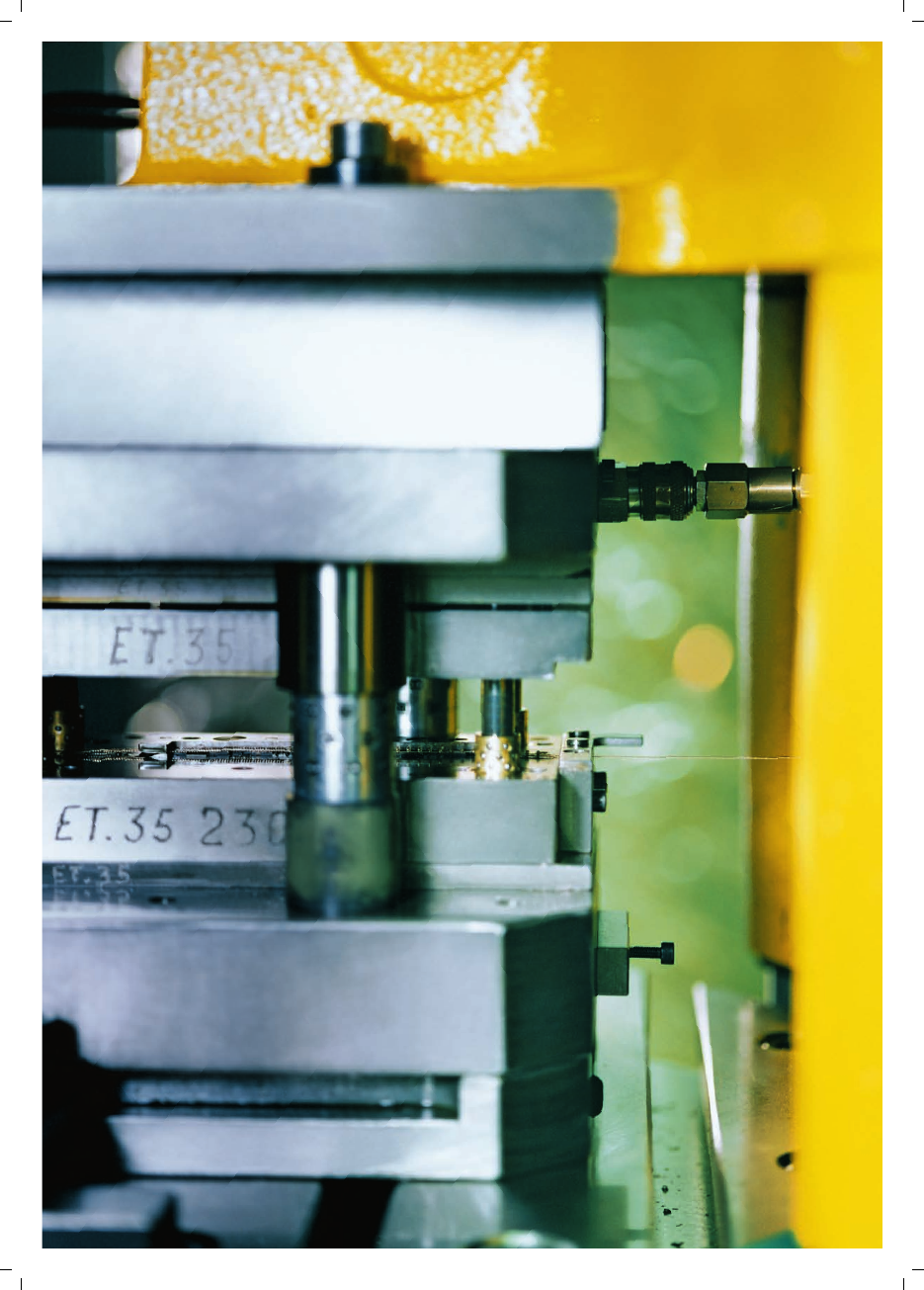

CLIP STAMPING
• 10 high-speed stamping presses
• 130 million clips/week capacity
• BeCu material, heat treated and deburred
• More than 40 multi-fi nger clip references
CONNECTOR
ASSEMBLY
• Final assembly of the contact in the insulator
• 150 assembly machines and equipment
• Assembly PCB connectors, IC and PGA sockets
• Capacity 80 million assembled contacts per week
CONTACTS
ASSEMBLY
• 150 contact assembly machines for the insertion
of the clip in the contact body
• 150 million contacts per week assembly capacity
SPRING-LOADED
CONTACTS ASSEMBLY
• Over 10 million contacts per week assembly capacity
• Multi-station rotary table :
– Components loading
– Crimping press
– In-line functionality checks
PLATING LINES
• 6 fully automated plating lines of the vibratory basket type
• 180 million parts / week capacity
• Layer deposition: electro nickel, chemical nickel,
tin lead, gold, lead-free tin
• Chemical lab for plating bathes and waste water treatment
analysis and maintenance
• Waste water treatment installation
with ultra fi ltration system
SPRING COILING
• Ultramodern miniature spring coiling machines
• Material: music wire or stainless steel
• In-built, closed loop measuring system
with self-adjustment of spring length

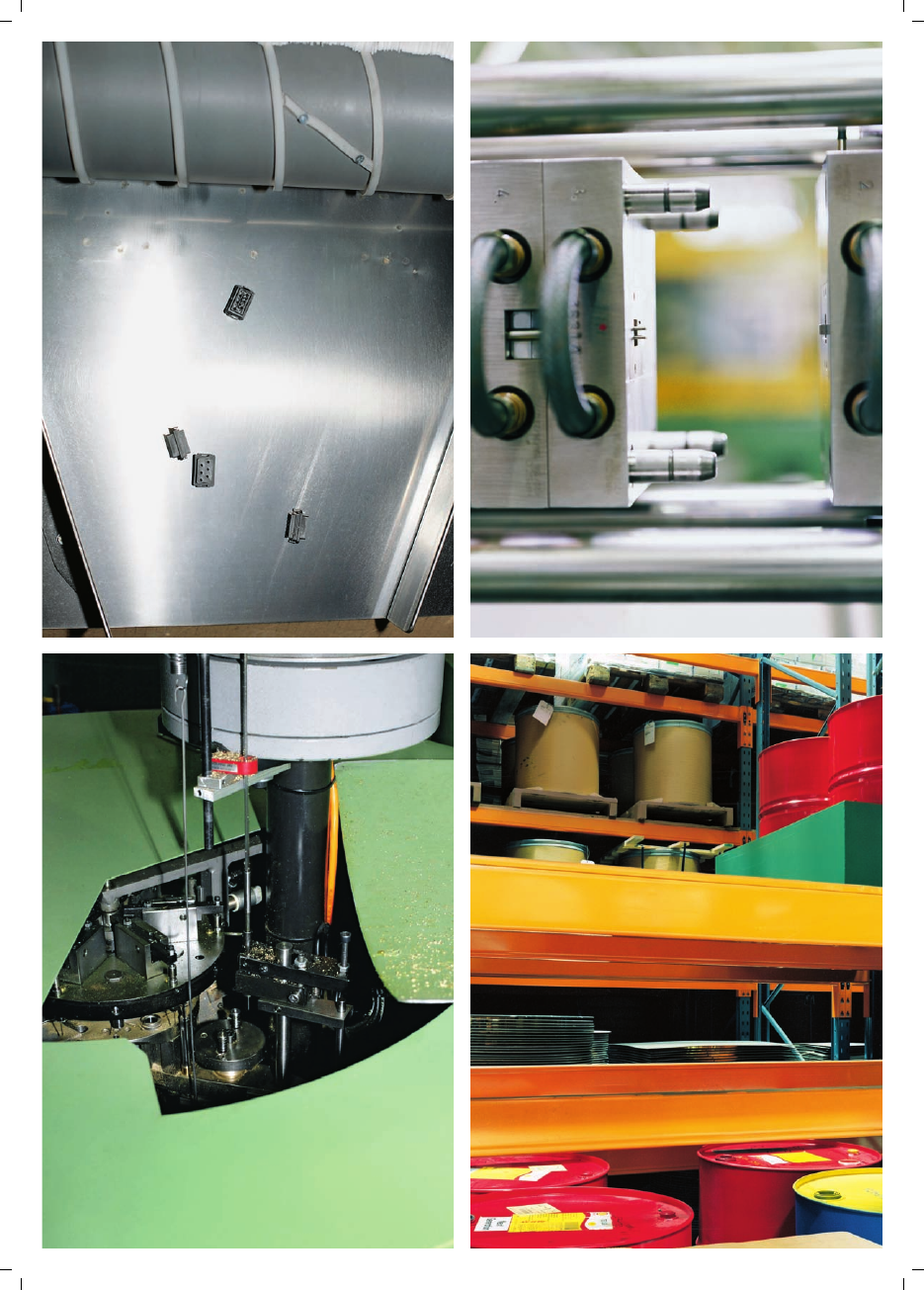

INJECTION
MOULDING
• 25 machines including latest fully programmable control
• Over 2 million parts per week
• Material : thermoplastic PBT, PCT, PA, LCP
• Epoxy plate machining for prototypes and small series
SECONDARY
OPERATIONS
• 85 machines to complement machining
of elaborated turned parts
• Typical operations: bleeding hole, solder cup, press-fi t,
slanted face, polarizing fl at, wire wrap
• Multi-station rotary table machines
RAW MATERIAL
STOCK
• Brass, bronze and beryllium copper
• Injection moulding plastics
• 36 tons raw material consumption per week
• 1,200 km of brass wire per week
MECHANICAL
WORKSHOP
• Development and realization of automatic
assembling equipment
• Construction of mould tools
• Maintenance team for production equipment
COLOR CODING
OF CONTACTS
• 8 color coding machines
• BIN code or similar identifi cation rings
• Deposition of thermo-sensitive paint ink
SALES AND MARKETING
DEPARTMENT
• Highly experienced sales force (Key Account Managers – Sales Assistants)
• Languages spoken: French, English, German, Spanish, Italian, Japanese,
Finnish, Chinese, Korean

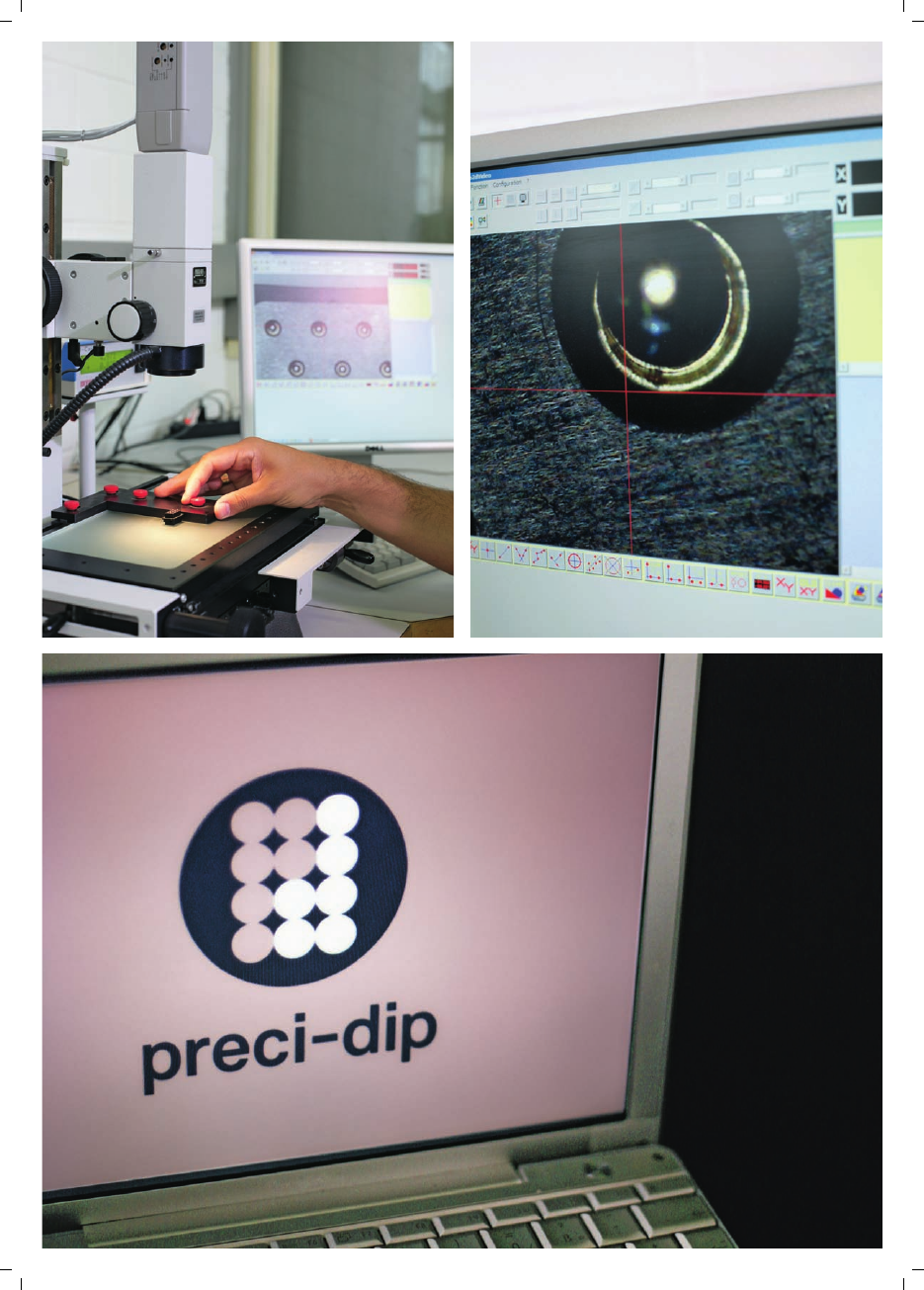

INSPECTION
AND TEST LAB
• Laboratory for dimensional, mechanical,
electrical and environmental testing
• First article inspection and new product qualifi cation
Awards from prestigious institutions and customers. Major certifi cations.
Worldwide recognition. For ongoing innovation, perfect teamwork,
environmental responsibility as well as entrepreneurial excellence and
sustained growth. In short, for swiss quality.
Excellence and sustained growth – the reason why
Preci-Dip received the Entrepreneur of the Year Award
for Western Switzerland.
PROFIT FROM OUR WORLDWIDE
RECOGNITION
ADVANTAGE CLIENT
DEMAND THE BEST SOLUTIONS
FOR YOUR IDEAS

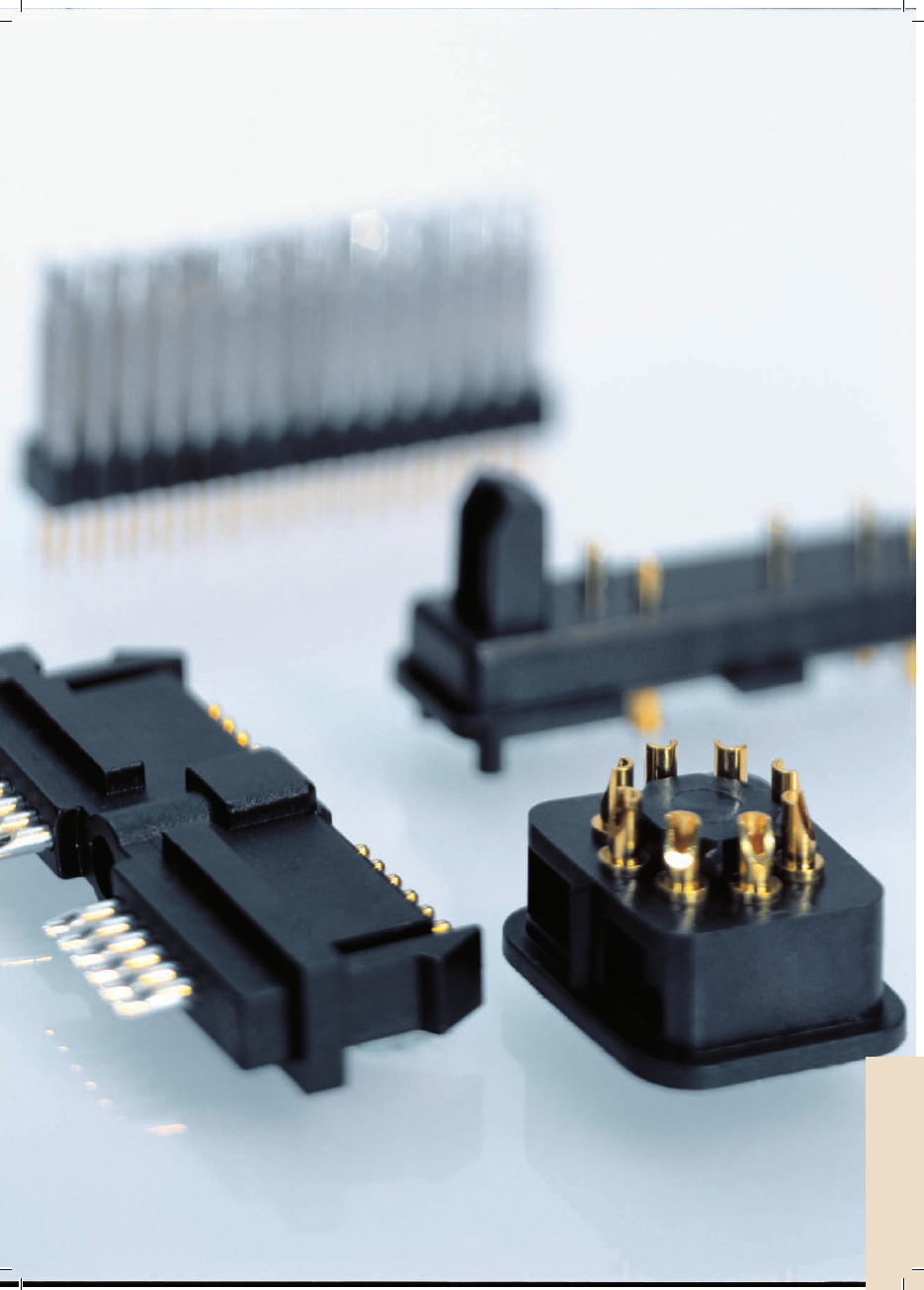

OUR CUSTOM
DESIGN
A competitive edge, the ability to innovate, and high productivity
are some of the core values at Preci-Dip. When it comes to Custom
Design, there’s an additional value: Teamwork.
Time and again, turning customer ideas and imagination into
reality is a very special challenge. This is one of Preci-Dip’s core
strengths.
Everything under one roof: the incomparable advantage of Preci-Dip
becomes even more obvious when it comes to Custom Design.
Ready access to material resources is as critical as the expertise
of our engineers and the art of developing and designing our own
production equipment.
Our experience with countless standard products and more than
20,000 references underlie the incessant development of new
top-quality products designed with cost-effectiveness and effi ciency
in mind. Preci-Dip has integrated Product Development and
Product Engineering into one Design Offi ce to create the necessary
synergies for best results and top product quality.
Companies in all industrial sectors value their collaboration with
Preci-Dip for complete product and component solutions – today
and tomorrow.
Your Preci-Dip Team welcomes your Custom Design challenge!
CHOOSE THE BEST CONNECTION
AROUND
THE WORLD
EUROPE
2 x AUSTRIA
2 x BELGIUM
2 x BULGARIA
1 x BYELORUSSIA
1 x CROATIA
2 x CZECH REPUBLIC
3 x DENMARK
3 x ESTONIA
3 x FINLAND
6 x FRANCE
5 x GERMANY
2 x GREECE
2 x HUNGARY
2 x IRELAND
2 x ISRAEL
3 x ITALY
3 x LATVIA
2 x LITHUANIA
2 x NETHERLANDS
3 x NORWAY
2 x POLAND
2 x PORTUGAL
2 x ROMANIA
2 x RUSSIA
1 x SLOVAKIA
2 x SLOVENIA
3 x SPAIN
3 x SWEDEN
2 x SWITZERLAND
2 x TURKEY
3 x UNITED KINGDOM
1 x UKRAINE
AMERICA
1 x BRAZIL
4 x CANADA
4 x MEXICO
4 x USA
3 x MIL DISTRIBUTORS
ASIA
3 x CHINA
2 x INDIA
1 x INDONESIA
3 x JAPAN
1 x SOUTH KOREA
1 x MALAYSIA
1 x SINGAPORE
1 x TAIWAN
2 x THAILAND
2 x VIETNAM
OCEANIA
1 x AUSTRALIA
1 x NEW ZEALAND
AFRICA
1 x SOUTH AFRICA
More than 100 Distributors around the world distribute Preci-Dip
products across the fi ve continents
ENJOY THE BENEFITS
HEADED FOR
SUCCESS
• COMPLETE RANGE OF HIGHLY RELIABLE
INTERCONNECT COMPONENTS
• DIVERSE FIELDS OF APPLICATION
• IN-HOUSE MANUFACTURING – FROM RAW
MATERIAL TO FINISHED PRODUCT
• EFFECTIVE MANAGEMENT SYSTEM
• HIGHLY SKILLED AND MOTIVATED
WORKFORCE
• STRONG CUSTOMER SUPPORT
• CUSTOM DESIGN
• COMPETITIVE PRICING, FLEXIBILITY
AND SWISS QUALITY
• WORLDWIDE PRESENCE
• PRESTIGIOUS CLIENT BASE
PRECI-DIP
INTERCONNECT
COMPONENTS
• SPRING-LOADED CONNECTORS
• PCB CONNECTORS
• DIL SOCKETS
• PGA / BGA / PLCC SOCKETS
• SCREW-MACHINED CONTACTS
• CUSTOM DESIGN CONNECTORS
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SPRING - LOADED CONNECTORS
28
GENERAL SPECIFICATIONS
31
FINE PITCH CONNECTORS
32
LOW RESISTANCE MODULAR CONNECTORS
33, 35
BASIC MODULAR CONNECTORS
34, 36
FLOATING MOUNT CONNECTORS
38
PAD CONNECTORS
39
DIL SOCKETS
124
GENERAL SPECIFICATIONS
127
DIL SOCKETS AND CARRIERS
128
TO SOCKETS
149
STAGGERED DIL SOCKETS
150
DISPLAY SOCKETS
144, 151
PCB CONNECTORS
40
GENERAL SPECIFICATIONS
43
1 mm
44
1.27 mm
46
1.778 mm
55
1.8 mm
55
2 mm
57
2.54 mm
69
JUMPERS
122
PGA / BGA / PLCC SOCKETS
152
GENERAL SPECIFICATIONS
155
1 mm
169
1.27 mm
165
INTERSTITIAL
161
2.54 mm
156
CONTACTS 174
GENERAL SPECIFICATIONS
178
SPRING–LOADED CONTACTS
179
SOCKET CONTACTS
180
MIL CONTACTS
181
PIN CONTACTS
182
CONTACT DATA
183
CUSTOM DESIGN
192
APPLICATION FIELDS FOR TELECOMMUNICATION
DATA PROCESSING, TRANSPORTATION
MIL / AERO, AUTOMATION, TEST AND MEASUREMENT
MEDICAL, PROFESSIONAL AND CONSUMER GOODS
194
STANDARD PRODUCTS
CONTACTS
CUSTOM DESIGN
G
E
NE
R
A
L
INF
O
R
A
M
T
IO
N
GENERAL INFORMATION
25
NUMERICAL INDEX
26
23
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
INTERNET
GO
Preci-Dip Sockets are recognized by Underwriters Laboratories Inc. and listed under Esto del illamet nullan velisim eniam, cor ipsumsan ulputpat.
Non ullamcon ut la consectet veoluptat.listed under Esto del illamet nullan velisimiam,
cor ipsumsan ulputpat.Non ullamcoct ist deth muitu al uiDignisl iriureetum acil dolorer aessi. Em at.
Duis nulla alisciduis augue eum ex etum venis nos dit aliquisit irilisl ute feugait am iriure min hendrer ostrud eu facil dolorpe rostis adiamco
nsequatis adiate commod estrud magnis autpat nulputat, sequame tummod dolore dolorem enit am, vel exerostrud tem vel et ulla feugiam vel
ullum vel ilit nis niat irit praessi.
Lortis num in ut volenis alit wis doloreet lorperos adiamcommy nonullandre et ex erciliquam zzrit in
SPRING-LOADED
CONNECTORS
DIL / SIL / TO
SOCKETS
SCREW-MACHINED
CONTACTS
PGA /BGA
PLCC SOCKETS
PCB
CONNECTORS
CUSTOM DESIGN
≥ ABOUT US
2
search by product code
FULL CONTROL OF THE ENTIRE MANUFACTURING PROCESS. FROM RAW MATERIAL TO FINISHED PRODUCT, FROM PRODUCT DEVELOPMENT
TO SALES. HOME TO SUCH UNIQUE QUALITY IS DELEMONT, SWITZERLAND. SINCE 1976.
Preci-Dip packs unequaled expertise into cutting-edge interconnect components. Advanced designs, top materials, incomparable Swiss precision.
Developed by men and women driven by passion and know-how.
Key data for one of the world’s leading producers of screw-machined contacts: 25,000 m
2
, more than 20,000 different products, R & D supported by
state-of-the-art CAD systems and 3D projections. Compliance with the Standards ISO 9001, ISO 14001 and MIL Standard 790 verifi ed in our own test
laboratory.
ISO 14001 Environmental Management Systems. Ahead of its time, Preci-Dip exceeds the world’s most stringent environmental standards ( Switzer-
land, California ). State-of-the-art fi lter systems help preserve the atmosphere, a closed water circuit protects the ground water and saves valuable
resources. These are but some of the accomplishments the Company can be proud of. Environmental responsibility is a core value embraced by all
Preci-Dip employees.
S I T E M A P
P R I N T
H O M E
swiss world connects
PRECI-DIP SA
Rue Saint-Maurice 34 P.O. Box 834
CH-2800 Delémont / Switzerland
P H O N E
+41 ( 0 ) 32 421 04 00
FA X
+41 ( 0 ) 32 421 04 01
E - M A I L
sales@precidip.com
Home
About Us
Products
Technical Assistance
Distributors & Reps
Distributors Login
Contact Us
Job Opportunities
Newsletter
NEWS
GO
SPRING-LOADED
CONNECTORS
DIL / SIL / TO
SOCKETS
SCREW-MACHINED
CONTACTS
PGA /BGA
PLCC SOCKETS
PCB
CONNECTORS
CUSTOM DESIGN
search by product code
swiss world connects
PRECI-DIP SA
Rue Saint-Maurice 34 P.O. Box 834
CH-2800 Delémont / Switzerland
P H O N E
+41 ( 0 ) 32 421 04 00
FA X
+41 ( 0 ) 32 421 04 01
E - M A I L
sales@precidip.com
Home
About Us
Products
Technical Assistance
Distributors & Reps
Distributors Login
Contact Us
Job Opportunities
Newsletter
NEWS
GRID
1.25 mm
2 mm
2.54 mm
2
S I T E M A P
P R I N T
H O M E
Straight
Right angel
Suface mount
Surface mount
Surface mount
solder tail
solder tail
perpendicular
perpendicular with
parallel
positioning pins

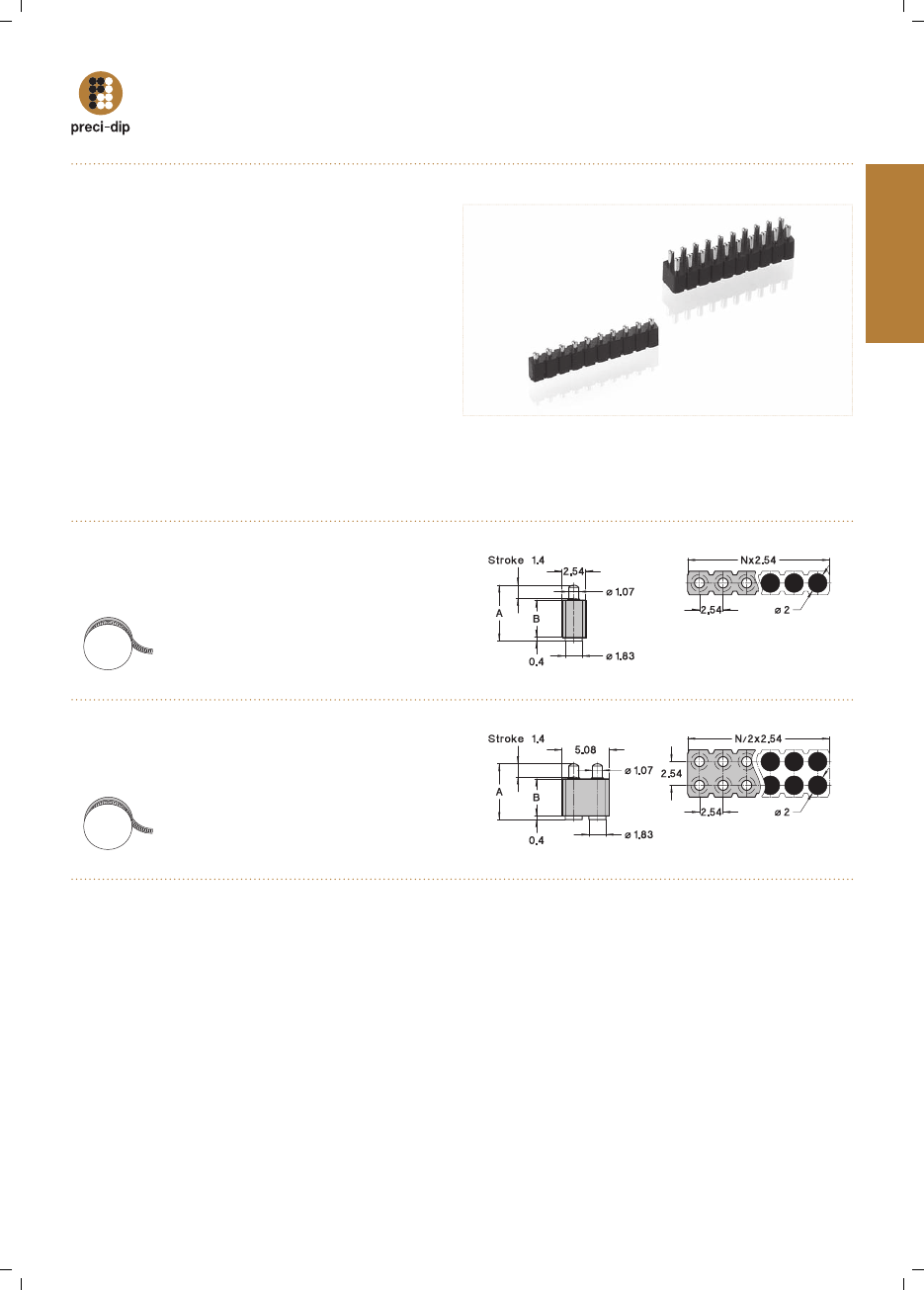

≥ SPRING-LOADED CONNECTORS — SLC CONNECTORS
ROWS
Single Row
Double Row
ROWS
ROWS
Floating mount
SIM card socket

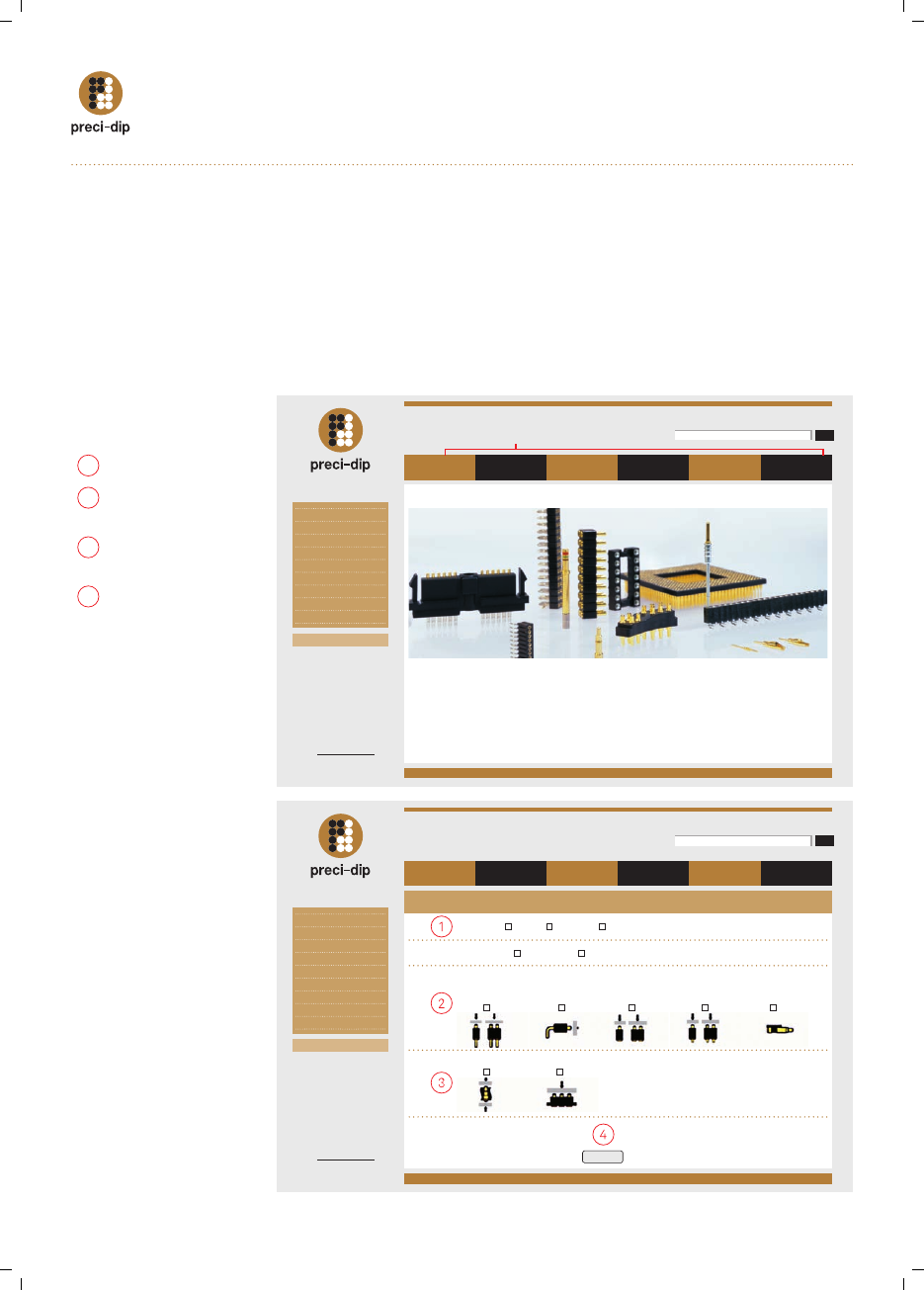

INTERNET PRODUCT SEARCH ENGINE
Welcome to our new website. Just click the product tabs and follow the selection steps
for the search result to appear.
The login function is intended for authorized dealers and allows for an easy search of inventory.
For more information, please visit our new website.
HOW TO USE
THE PRODUCT SEARCH
ENGINE:
1
Select
grid
2
Select
number
of
rows
3
Select
type
of
termination
4
Click
“Search”
to obtain the result
TABS FOR QUICK PRODUCT SEARCH
search
24
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
GENERAL INFORMATION
PART NUMBERS AND PRODUCT
IDENTIFICATION
Preci-Dip products are all identified with a unique part number. These numbers are built with up
to 5 groups of digits separated by dashes. Each of these groups has its own signification, making
it possible to identify the major characteristics of the product from the part number.
Please find below a brief explanation of Preci-Dip identification codes for connectors and sockets:

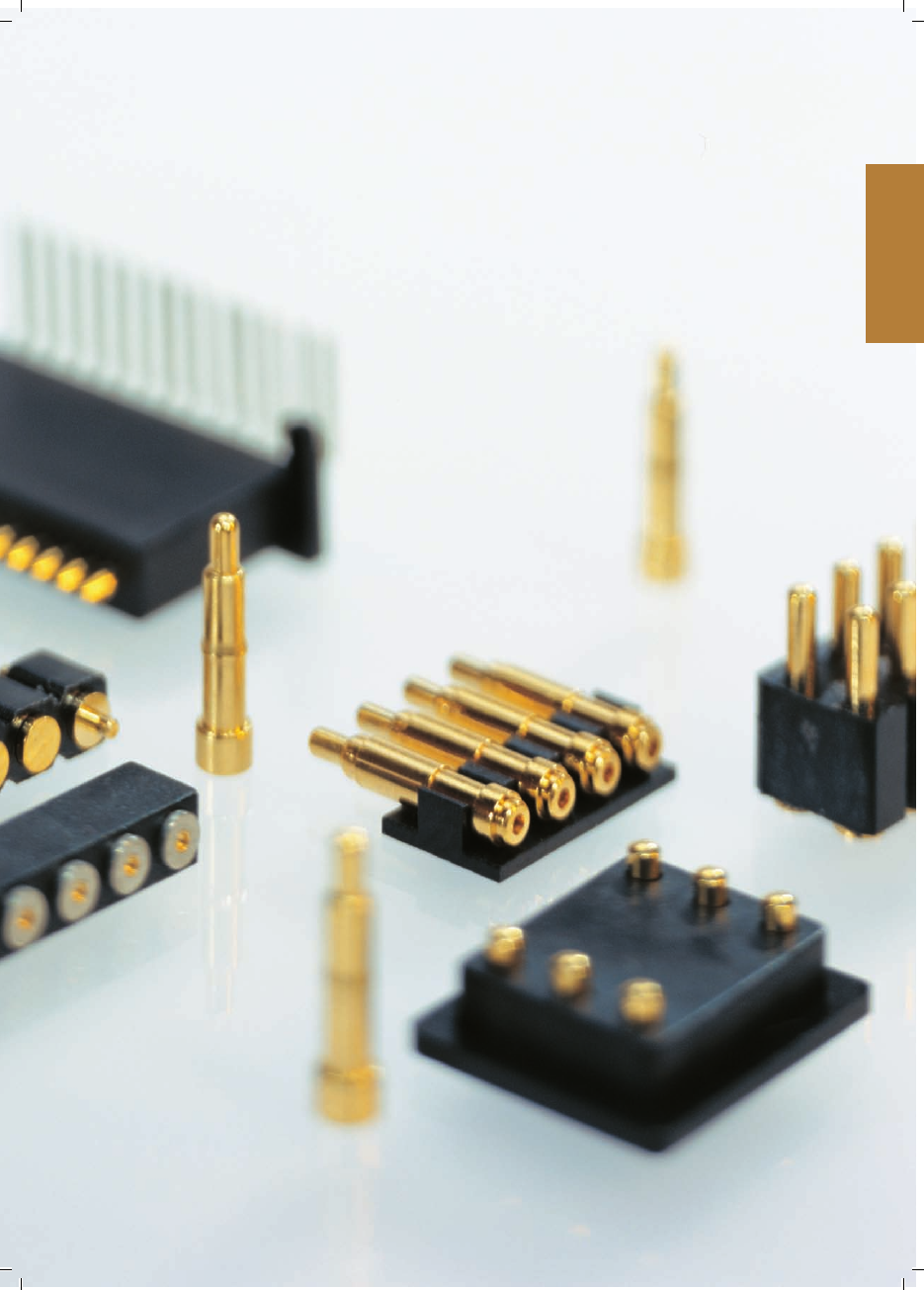

SPRING - LOADED CONNECTORS
•
1
xx, 2

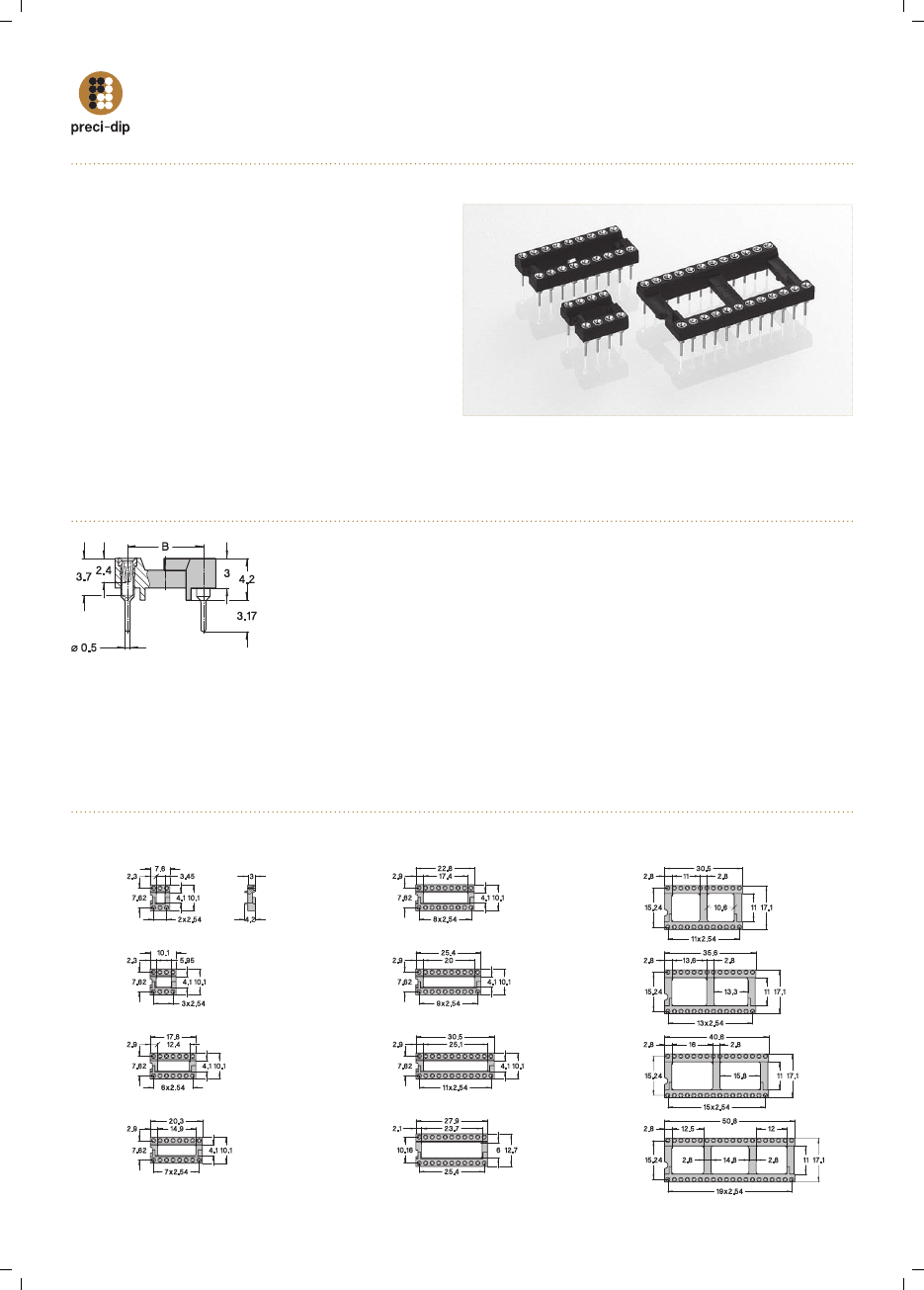

xx DIL
sockets
•
3
xx, 4
xx, 8
xx PCB
connectors
•
5vxx

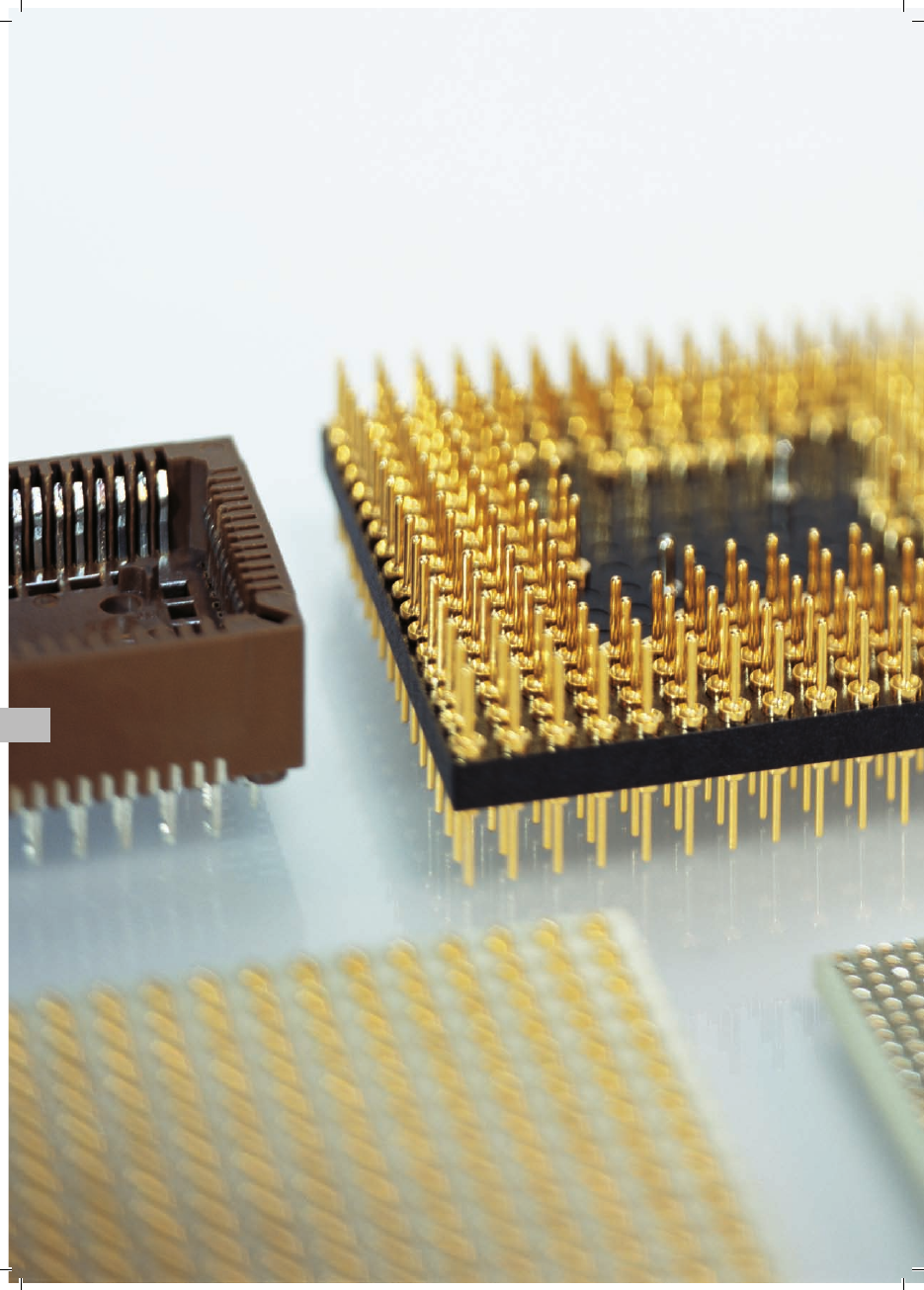

BGA, PGA and PLCC sockets
•
6
xx, 7
xx Carriers
•
9
xx

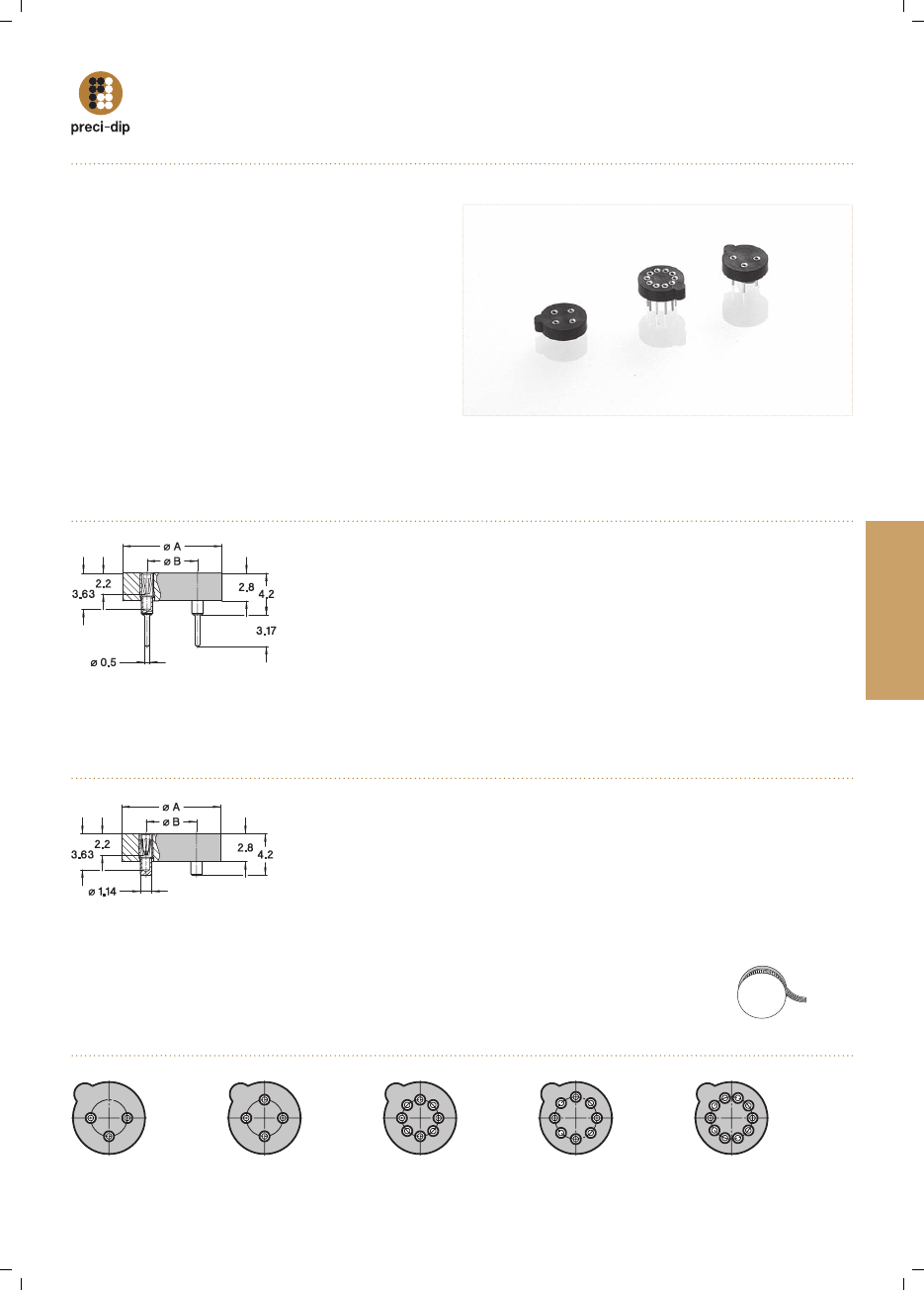

Circular connectors, TO sockets
PLATING CODE
The standard plating codes are listed and specified in the catalog section Contacts under
General technical specifications at page 178.
Tin-plated Preci-Dip products had to be changed to become RoHS compliant and have
received a new part number to allow clear identification. Tin-lead plating was replaced
by pure tin plating and the old plating code 9x was replaced by 8x.
NUMBER OF PINS
These figures indicate always the total number of contacts of the product.
SPECIFIC INFORMATIONS
The last two groups of digits can have different significations depending on the product family:
•
Type of terminations (PCB connectors):
10
Straight solder pin
20
Right angle solder pin
30 and 40 SMD
5x
Wire-wrap
6x
Solderless press fit
•
Type of clip (DIL sockets):
00
no clip
4
x
4 finger
31
3 finger
6
x
6 finger
•
Packaging versions:
003101 for box or tube packaging
003191 for Tape and Reel packaging
EXAMPLES
114-87-628-41-134191: DIL socket, 28 pins, 4 finger clip, tape and reel packaging
803-87-014-10-003101: PCB connectors, 14 pins, with straight solder pins, box packaging
ROHS-COMPLIANT PLATING
All products displayed in this catalog are compliant with the European Directive 2002/95/EC
on the restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS).
Please note that standard Preci-Dip RoHS-compliant parts are additionally identified with
a green dot on the packaging.
PRODUCT FAMILY
PLATING CODE
NUMBER OF PINS
SPECIFIC INFORMATIONS
801
87
014
10
001101
–
–
–
–
G
E
NE
R
A
L
INF
O
R
A
M
T
IO
N
25
26
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
612…41-001101
143
614…XX-XXX101
143
614…XX-XXX112
158
614…XX-XXX144
162
712…41-001101
83
714…31-008101
84
714…31-012101
84
714…31-018101
84
714…41-001101
83
714…41-014101
83
800…10-001101
109
800…10-002101
109
800…12-002101
111
800…12-422101
111
800…20-001101
112
800…20-004101
113
800…20-101101
112
800…22-002101
113
800…30-001101
114
800…30-480101
114
800…30-507101
39
800…32-002101
115
800…40-001101
115
800…65-001101
116
800…66-001101
116
800…6B-002101
117
801…10-001101
87
801…10-003101
89
801…10-004101
100
801…10-005101
90
801…10-012101
86
801…10-101101
88
801…10-132101
75
801…10-143101
88
801…10-173101
75
801…10-216101
91
801…10-268101
85
801…10-458101
86
801…20-001101
92
801…20-002101
92
801…20-101101
93
801…20-442101
92
801…30-001101
95
801…30-002101
94
801…30-480101
94
801…40-001101
96
801…40-002101
96
801…53-001101
99
801…65-001101
97
801…65-410101
80
801…65-461101
98
801…66-001101
97
110…01-505101
150
110…01-XXX101
151
110…10-XXX101
151
110…41-001101
129
110…41-001151
129
110…41-005101
129
110…41-105101
132
110…41-105161
133
110…41-605101
130
110…41-801101
131
111…41-001101
129
114…41-117101
134
114…41-134161
135
115…41-001101
137
115…41-003101
137
116…41-XXX101
138
117…41-005101
141
117…41-105101
141
121…41-001101
139
122…41-001101
139
123…41-001101
139
124…41-002101
139
146…41-XXX101
142
150…00-012101
141
150…00-106101
146
150…00-106161
147
150…00-XXX101
145
151…00-XXX101
145
160…00-001101
148
170…00-001101
148
180…00-001101
148
210…41-001101
129
217…41-005101
141
299…10-001101
144
299…10-002101
144
299…XX-001101
144
310…01-609101
70
310…01-640101
72
310…01-666101
70
310…01-754101
72
310…41-001101
70
310…41-105101
77
310…41-205101
78
311…41-001101
71
314…01-899101
77
315…01-881101
69
315…41-001101
69
315…41-003101
69
316…41-XXX101
74
317…01-687101
55
317…41-005101
55
317…41-022101
55
317…41-026101
55
322…41-001101
81
323…41-001101
81
326…41-XXX101
82
346…41-035101
79
346…41-036101
79
350…00-001101
102
350…00-006101
101
350…00-012101
56
350…00-013101
103
350…00-018101
110
350…00-019101
101
350…00-024101
101
350…00-106101
106
350…00-206101
107
350…01-609101
103
350…01-666101
102
350…01-714101
102
350…01-899101
106
351…00-XXX101
104
353…00-001101
121
356…00-014101
108
360…00-001101
120
363…00-001101
121
370…00-001101
120
373…00-001101
121
380…00-001101
120
383…00-001101
121
399…10-003101
76
399…10-009101
105
410…01-640101
72
410…10-001101
150
410…10-002101
150
410…41-001101
70
410…41-105101
77
411…41-001101
71
414…41-134101
77
415…41-001101
69
416…41-XXX101
74
422…41-001101
81
423…41-001101
81
426…41-XXX101
82
446…41-035101
79
446…41-036101
79
450…00-001101
102
450…00-006101
101
450…00-013101
103
450…00-018101
110
450…00-106101
106
450…01-899101
106
451…00-XXX101
104
453…00-001101
121
456…00-014101
108
460…00-001101
120
463…00-001101
121
470…00-001101
120
473…00-001101
121
480…00-001101
120
483…00-001101
121
499…10-003101
76
499…10-009101
105
510…01-504101
151
510…XX-XXX101
156
514…XX-XXX117
156
514…XX-XXX148
166
514…XX-XXX154
161
514…XX-XXX159
169
517…XX-XXX111
161
518…XX-XXX105
165
518…XX-XXX106
165
540…XXX-17-400
172
540…XXX-24-000-1
173
546…XX-XXX135
157
546…XX-XXX136
157
546…XX-XXX147
161
550…XX-XXX101
158
550…XX-XXX135
162
550…XX-XXX152
167
550…XX-XXX166
166
558…XX-XXX101
165
558…XX-XXX102
169
558…XX-XXX103
169
558…XX-XXX104
167
REFERENCE PAGE
REFERENCE PAGE
REFERENCE PAGE
REFERENCE PAGE
INDEX
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
INDEX
27
Due to technical progress, all information provided is subject to change without prior notice.
880…10-001101
68
880…20-001101
68
882…10-001101
68
882…20-001101
68
890…10-XXX101
118
890…20-XXX101
119
892…10-XXX101
118
892…20-XXX101
119
894…10-001101
118
894…20-001101
119
8FM…02-146
96
8MM…02-131
39
8PC…01-828
32
8PD…01-812
32
8PM…01-913
37
8PM…02-131
37
917…41-005101
149
917…41-053101
149
999-11-110-10
122
999-11-112-10
122
999-11-113-10
122
999-11-210-10
122
999-11-210-11
122
999-11-220-10
122
999-11-220-11
122
999-11-230-10
122
999-11-230-11
122
999-19-210-00
123
999-19-210-02
123
999-19-210-06
123
999-19-220-00
123
999-19-310-00
123
999-19-310-02
123
999-19-310-06
123
999-19-320-00
123
999-51-110-10
122
999-51-112-10
122
999-51-113-10
122
802…10-001101
109
802…10-002101
109
802…10-193101
110
802…12-002101
111
802…20-001101
112
802…22-002101
113
802…30-001101
114
802…30-480101
114
802…30-507101
39
802…32-002101
115
802…65-001101
116
802…66-001101
116
802…6B-002101
117
803…10-001101
87
803…10-003101
89
803…10-004101
100
803…10-005101
90
803…10-012101
86
803…10-132101
75
803…10-216101
91
803…10-249101
91
803…10-268101
85
803…10-269101
90
803…20-001101
92
803…30-001101
95
803…30-002101
94
803…30-480101
94
803…53-001101
99
803…65-001101
97
803…65-410101
80
803…65-461101
98
803…66-001101
97
804…10-193101
110
804…12-002101
111
804…22-002101
113
804…6B-002101
117
805…10-001101
87
805…10-003101
89
805…10-005101
90
805…10-012101
86
805…10-132101
75
805…10-229101
73
811…10-014101
33
811…10-015101
33
811…10-016101
33
811…10-017101
33
811…30-001101
34
811…30-002101
34
811…30-003101
34
811…30-004101
34
811…30-005101
34
811…30-006101
34
811…30-007101
34
811…30-008101
34
811…30-014101
35
811…30-015101
35
811…30-016101
35
811…30-017101
35
811…30-021101
36
811…30-022101
36
811…30-023101
36
811…30-024101
36
811…30-025101
36
811…30-026101
36
811…30-027101
36
813…10-014101
33
813…10-015101
33
813…10-016101
33
813…10-017101
33
813…10-474101
33
813…30-001101
34
813…30-002101
34
813…30-003101
34
813…30-004101
34
813…30-005101
34
813…30-006101
34
813…30-007101
34
813…30-014101
35
813…30-015101
35
813…30-016101
35
813…30-017101
35
813…30-021101
36
813…30-022101
36
813…30-023101
36
813…30-024101
36
813…30-025101
36
813…30-026101
36
813…30-027101
36
830…10-001101
64
830…12-002101
64
830…20-001101
65
830…22-002101
65
830…30-001101
66
830…32-002101
66
830…40-001101
67
831…10-001101
57
831…10-230101
58
831…10-242101
59
831…10-273101
57
831…20-001101
60
831…30-001101
61
831…30-242101
61
831…40-001101
62
831…64-001101
63
831…64-242101
63
832…10-001101
64
832…12-002101
64
832…20-001101
65
832…22-002101
65
832…30-001101
66
832…32-002101
66
833…10-001101
57
833…10-245101
59
833…10-273101
57
833…10-287101
58
833…10-453101
58
833…10-457101
58
833…20-001101
60
833…30-001101
61
833…30-245101
61
833…64-001101
63
833…64-245101
63
837…30-291101
62
850…10-001101
51
850…20-001101
52
850…30-001101
53
850…30-135101
53
850…40-001101
54
850…40-251101
54
851…10-001101
46
851…10-477101
47
851…20-001101
48
851…30-001101
49
851…30-136101
49
851…40-001101
50
851…40-252101
50
852…10-001101
51
852…10-002101
51
852…20-001101
52
852…20-002101
52
852…30-001101
53
852…30-002101
53
852…30-051101
54
853…10-001101
46
853…10-002101
46
853…20-001101
48
853…20-002101
48
853…30-001101
49
853…30-002101
49
853…30-051101
50
854…10-001101
51
854…20-001101
52
855…10-001101
46
855…20-001101
48
860…10-001101
45
860…40-001101
45
861…10-001101
44
861…40-001101
44
REFERENCE
PAGE REFERENCE
PAGE REFERENCE
PAGE REFERENCE
PAGE
G
E
NE
R
A
L
INF
O
R
A
M
T
IO
N
SPRING - LOADED
CONNECTORS
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
30
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
QUICK SELECTOR CHART
SPRING-LOADED CONNECTORS AND PAD CONNECTORS
GRID
1.25 mm
2.54 mm
SLC CONNECTORS
SEE PAGE
Straight
32
33
33
solder tail
Right angle
32
solder tail
Surface mount
34, 35
34, 35
perpendicular
Surface mount
36
36
perpendicular
with positioning pins
Surface mount
37
parallel
SIM card socket
37
Floating mount
38
PAD CONNECTORS
Surface mount
39
39
perpendicular
Surface mount
39
parallel
SI
NGL
E
R
O
W
SI
NGL
E
R
O
W
DO
U
B
LE
RO
W
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SPRING-LOADED CONNECTORS
PAD CONNECTORS
GENERAL SPECIFICATIONS
31
Due to technical progress, all information provided is subject to change without prior notice.
The values listed below are general specs applying for Preci-Dip spring-loaded connectors. Please see individual catalog page for additional and
product specific technical data.
OPERATING TEMPERATURE RANGE
-55 ... +125 °C
CLIMATIC CATEGORY (IEC)
55/85/21
OPERATING HUMIDIT Y RANGE
Annual mean 75%
MA X. WORKING VOLTAGE
100
V
RMS
/150 V
DC
(2.54 mm grid)
Preci-Dip products are recognized by Underwriters Laboratories Inc. and listed under “Connectors for Use in Data, Signal, Control and
Power Applications“, File Nr. E174442.
PACKAGING
• Standard connector packaging is card box.
• SMD mount connectors available on request
with Tape & Reel packaging acc. to EIA Standard 481.
These products are marked with the symbol:
Please consult
www.precidip.com
for availability,
size of tape, size of reel, number of components
per reel and packing units.
MECHANICAL CHARACTERISTICS
BASIC
LOW RESISTANCE
LOW RESISTANCE
HOLLOW PISTON T YPE
SHAPED PISTON T YPE
CLIP IN-LINE DESIGN T YPE
MIN. INITIAL HEIGHT
3 mm
6 mm
10 mm
STROKE/HEIGHT RATIO
Max. 0.3
Max. 0.2
Max. 0.15
MA X STROKE
2 mm
2 mm
1.5 mm
MIN. INITIAL SPRING FORCE
0.2 N
0.2 N
0.2 N
ELECTRICAL CHARACTERISTICS
INSUL ATION RESISTANCE BETWEEN ANY TWO ADJACENT CONTACTS
Min. 10’000 M
Ω
at 500 V
AC
CAPACITANCE BETWEEN ANY TWO ADJACENT CONTACTS
Max. 1 pF
ENVIRONMENTAL CHARACTERISTICS
The sockets withstand the following environmental tests without mechanical
and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH,
1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g,
1 octave/min, 10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests, no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Moisture sensitivity J-STD-020C level 1
• Resistance to corrosion:
1) Salt spray test IEC 60068-2-11.Ka: 48 h
2) Sulfur dioxide (SO2) test IEC 60068-2-42 Kc: 96 h at 25 ppm SO2,
25 °C, 75 %rH
3) Hydrogen sulfide (H2S) test IEC 60068-2-43 Kd: 96 h at 12 ppm H2S,
25 °C, 75 %rH
®
UL
T & R Packaging
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
32
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL
94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
CONTACT CLIP
Beryllium copper (C17200)
SPRING
Stainless steel X12 CrNi177, DIN 17224
MA X. STROKE
1.4
mm
FORCES
0.2 N initial
0.36 N at
1
/
2
stroke
MECHANICAL LIFE
40'000
cycles
OPERATING CURRENT
Max.
2
A
CONTACT RESISTANCE
20
m
Ω
(static measurement, halfway position)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
PIN
PISTON
28
Tin
0.3 μm min. gold

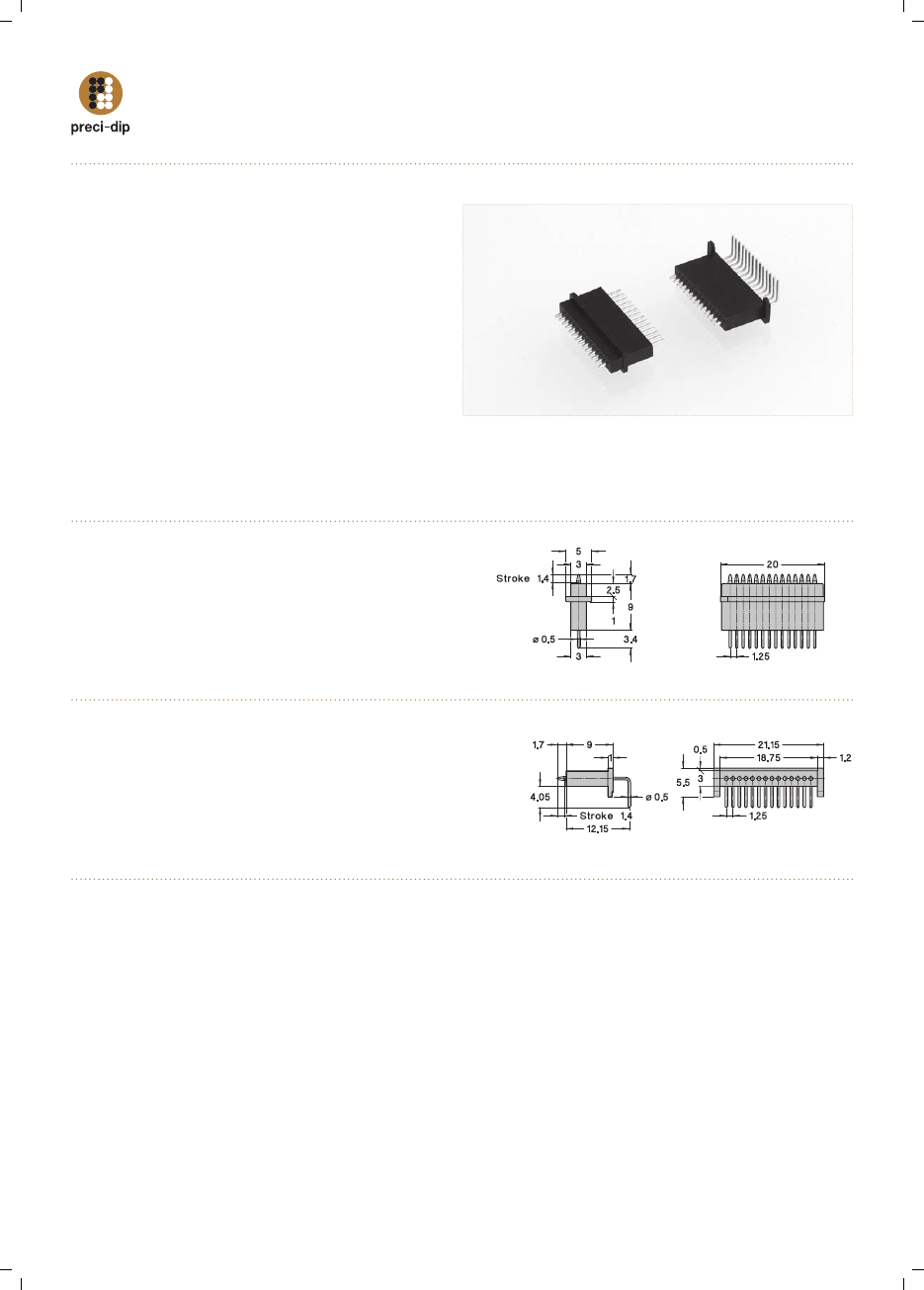

Fine pitch connectors with spring-loaded contacts (SLC), solder tail. High-rel contacts with clip, patented in-line design.
See page 178 for plating specs.
Surface mount miniature SLC connectors available on request.
Please consult.
8PD-28-0014-01-812
Straight SLC connector, solder tail, single row
Standard number of contacts: 14
Please consult for other pin number or partially equipped connectors
8PC-28-0014-01-828
Right angle SLC connector, solder tail, single row
Standard number of contacts: 14
Please consult for other pin number or partially equipped connectors
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

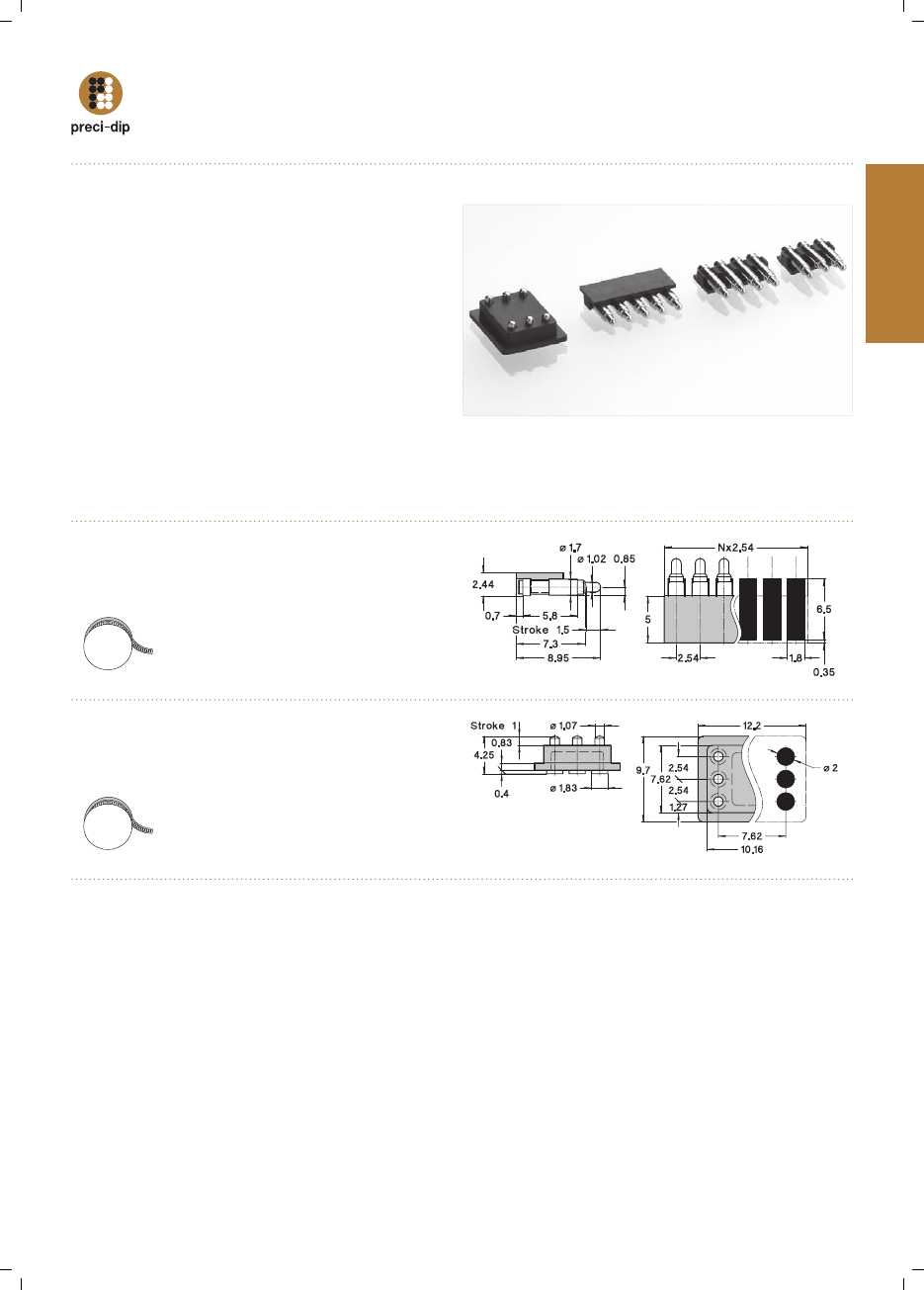

SPRING-LOADED CONNECTORS
1.25 mm GRID / SINGLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM TEL +41 32 421 04 00 SALES@PRECIDIP.COM

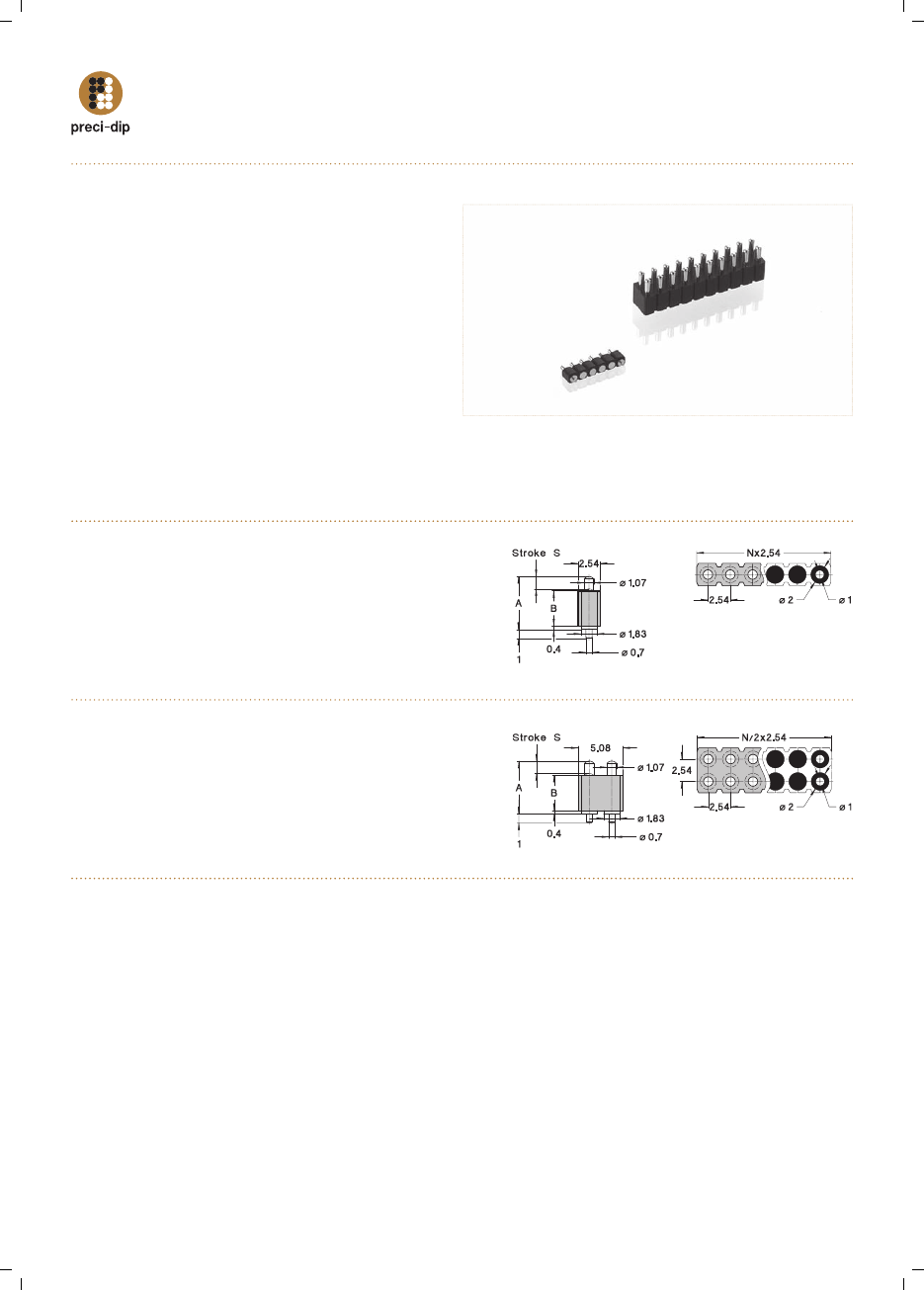

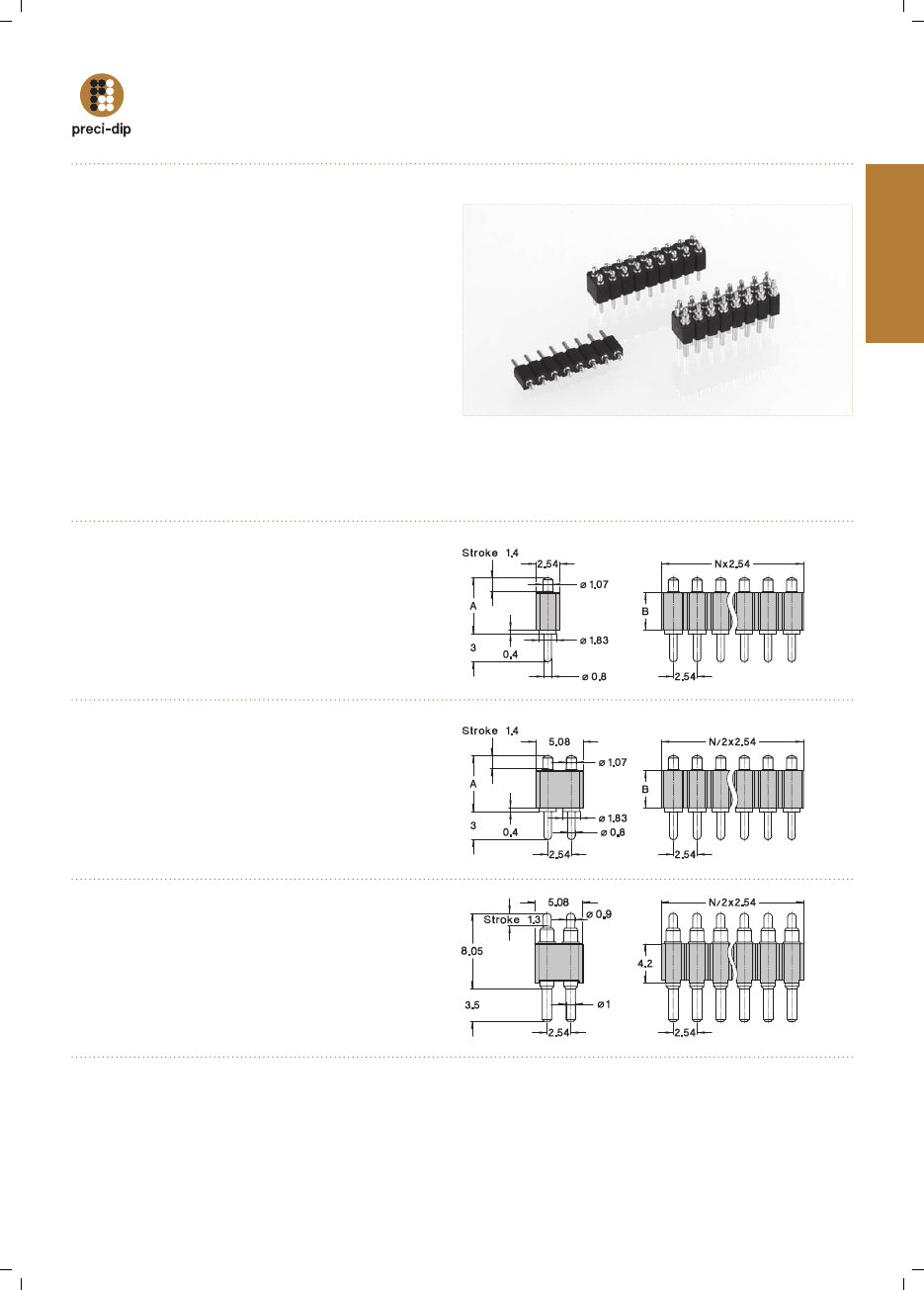

SPRING-LOADED CONNECTORS
2.54 mm GRID / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
33
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL
94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
SPRING
Music wire DIN 17223, gold plated
MA X. STROKE
1.4
mm
FORCES
0.25 N initial
0.85 N at
1
/
2
stroke
MECHANICAL LIFE
50'000
cycles
OPERATING CURRENT
Max.
3.5
A
CONTACT RESISTANCE
10
m
Ω
(static measurement, halfway position)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
BARREL
PISTON
S1
0.25 μm gold
0.5 μm gold
SS
0.5 μm gold
0.5 μm gold
Low resistance modular connectors with spring-loaded contacts (SLC), solder tail. Contacts with improved, shaped piston design.
See page 178 for plating specs.
NNN number of poles:
Replace
NNN
with the requested number of poles,
e.g. 813-S1-
NNN
-10-014101 for a double row version with 16 pins
becomes 813-S1-0
16
-10-01410110-001101.
811-S1-
NNN
-10-
XXX
101
Straight SLC connector, low profile, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
813-S1-
NNN
-10-
XXX
101
Straight SLC connector, low profile, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
813-SS-
NNN
-10-474101
Straight SLC connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
AVAILABLE CONNECTOR HEIGHTS
INITIAL HEIGHT A (mm)
PL ASTIC BODY HEIGHT B (mm)
X X X CODE
6 4
014
6.5 4
015
7 4
016
7.5 4
017
34
Basic modular connectors with spring-loaded contacts (SLC), surface mount. Contacts with hollow piston design for low profile.
See page 178 for plating specs.
NNN number of poles
. Replace
NNN
with the requested number of poles,
e.g. 811-SS-
NNN
-30-002101 for a single row version with 16 pins
becomes 811-SS-0
16
-30-002101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SPRING-LOADED CONNECTORS
2.54 mm GRID / SINGLE ROW / DOUBLE ROW /SURFACE MOUNT
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL
94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
SPRING
Stainless steel X12 CrNi177, DIN 17224
(Music wire DIN 17223, gold plated for 811...008101)
MA X. STROKE
1.4 mm (1 mm for 811-...-008101
and
811/813-...-001101)
FORCES
0.25 N initial
0.6 N at
1
/
2
stroke
MECHANICAL LIFE
100'000
cycles
OPERATING CURRENT
Max.
3.5
A
CONTACT RESISTANCE
15
m
Ω
(static measurement, halfway position)
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
BARREL
PISTON
SS
0.5 μm gold
0.5 μm gold
811-SS-
NNN
-30-008101
Surface mount SLC connector, very low profile, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
811-SS-
NNN
-30-
XXX
101
Surface mount SLC connector, low profile, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
813-SS-
NNN
-30
-XXX
101
Surface mount SLC connector, low profile, double row
AVAIL ABILIT Y FROM
4 to 20 contacts
(standard number of contacts: 20)
See
page 31
T & R Packaging
See
page 31
T & R Packaging
See
page 31
T & R Packaging
AVAILABLE CONNECTOR HEIGHTS
INITIAL HEIGHT A (mm)
STROKE S (mm)
PL ASTIC BODY HEIGHT B (mm)
X X X CODE
4.5 1.15
2.95
001
5 1.4
2.95
002
5.5 1.4
2.95
003
6 1.4
4
004
6.5 1.4
4
005
7 1.4
4
006
7.5 1.4
4
007
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SPRING-LOADED CONNECTORS
2.54 mm GRID / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
35
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
SPRING
Music wire DIN 17223, gold plated
MA X. STROKE
1.4 mm
FORCES
0.25 N initial 0.85
N at
1
/
2
stroke
MECHANICAL LIFE
50'000 cycles
OPERATING CURRENT
Max. 3.5 A
CONTACT RESISTANCE
10 m
Ω
(static measurement, halfway position)
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
BARREL
PISTON
S1
0.25 μm gold
0.5 μm gold
Low resistance modular connectors with spring-loaded contacts (SLC), surface mount. Contacts with improved shaped piston design.
See page 178 for plating specs.
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 813-S1-
NNN
-30-014101 for a double row version with 16 pins
becomes 813-S1-0
16
-30-014101.
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
811-S1-
NNN
-30-
XXX
101
Surface mount SLC connector, low profile, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
813-S1-
NNN
-30-
XXX
101
Surface mount SLC connector, low profile, double row
AVAIL ABILIT Y FROM
4 to 20 contacts
(standard number of contacts: 20)
See
page 31
T & R Packaging
See
page 31
T & R Packaging
AVAILABLE CONNECTOR HEIGHTS
INITIAL HEIGHT A (mm)
PL ASTIC BODY HEIGHT B (mm)
X X X CODE
6 4
014
6.5 4
015
7 4
016
7.5 4
017
811-SS-
NNN
-30-
XXX
101
Surface mount SLC connector, low profile, single row, with 2 positioning pins
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
813-SS-
NNN
-30-
XXX
101
Surface mount SLC connector, double row, with 4 positioning pins
AVAIL ABILIT Y FROM
4 to 20 contacts
(standard number of contacts: 20)
36
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL
94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
SPRING
Stainless steel X12 CrNi177, DIN 17224
MA X. STROKE
1.4 mm (1.15 mm for 811/813-...-021101)
FORCES
0.25 N initial
0.6 N at
1
/
2
stroke
MECHANICAL LIFE
100'000
cycles
OPERATING CURRENT
Max.
3.5
A
CONTACT RESISTANCE
15
m
Ω
(static measurement, halfway position)
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
BARREL
PISTON
SS
0.5 μm gold
0.5 μm gold
Basic modular connectors with spring-loaded contacts (SLC), surface mount with positioning pins. Contacts with hollow piston design for low profile.
See page 178 for plating specs.
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 813-SS-
NNN
-30-021101 for a double row version with 16 pins
becomes 813-SS-0
16
-30-021101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SPRING-LOADED CONNECTORS
2.54 mm GRID / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
AVAILABLE CONNECTOR HEIGHTS
INITIAL HEIGHT A (mm)
STROKE S (mm)
PL ASTIC BODY HEIGHT B (mm)
X X X CODE
4.5 1.15
2.95
021
5 1.4
2.95
022
5.5 1.4
2.95
023
6 1.4
4
024
6.5 1.4
4
025
7 1.4
4
026
7.5 1.4
4
027
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SPRING-LOADED CONNECTORS
2.54 mm GRID / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
37
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
8PM...131 8PM...913
SPRING
Music wire DIN 17723,
Stainless steel X12
gold plated
CrNi177, DIN 17224
MA X. STROKE
1.5 mm
1 mm
FORCES
0.2 N initial 0.25
N initial
0.9 N at
1
/
2
stroke
0.6 N at
1
/
2
stroke
MECHANICAL LIFE
50'000 cycles
100'000 cycles
OPERATING CURRENT
Max. 3 A
Max. 3 A
CONTACT RESISTANCE
10 m
Ω
15 m
Ω
(static measurement, halfway position)
COPL ANARIT Y
SMD TERMINATIONS
Max 0.1 mm (measured on 25 mm long connectors)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
BARREL
PISTON
11
0.25 μm gold
0.25 μm gold
SS
0.5 μm gold
0.5 μm gold
Connectors with spring-loaded contacts (SLC), surface mount.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 8PM-11-00
NN
-02-131 with 5 pins becomes 8PM-11-00
05
-02-131.
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
8PM-11-00
NN
-02-131
Parallel surface mount SLC connector for pick & place
automatic assembly
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
8PM-SS-0006-01-913
SLC connector for chipcards with contacting pads
acc. to ISO 7816
Standard number of contacts: 6
See
page 31
T & R Packaging
See
page 31
T & R Packaging
SPRING-LOADED CONNECTORS WITH FLOATING MOUNT CONTACTS
A solderless connecting system with double-sided pressure connection.
38
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
PISTON AND BARREL
Brass CuZn36Pb3 (C36000)
SPRING
Stainless steel X12 CrNi177, DIN 17224
MA X. STROKE
2 mm
FORCES
0.25 N initial 0.5
N at
1
/
2
stroke
MECHANICAL LIFE
50'000 cycles
OPERATING CURRENT
Max. 3.5 A
CONTACT RESISTANCE
10 m
Ω
(static measurement, halfway position)
ORDERING INFORMATION ROHS COMPLIANT PARTS
Floating mount contacts for applications with 4.5 to more
than 10 mm distance (D) between connecting surfaces (see Fig. 3)
have been designed to be assembled on plastic bodies
or to be integrated by customer into specific assemblies.
Please consult for more information.
Connectors with floating mount spring-loaded contacts (SLC) for solderless pressure connection.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SPRING-LOADED CONNECTORS
DOUBLE-SIDED, FLOATING MOUNT

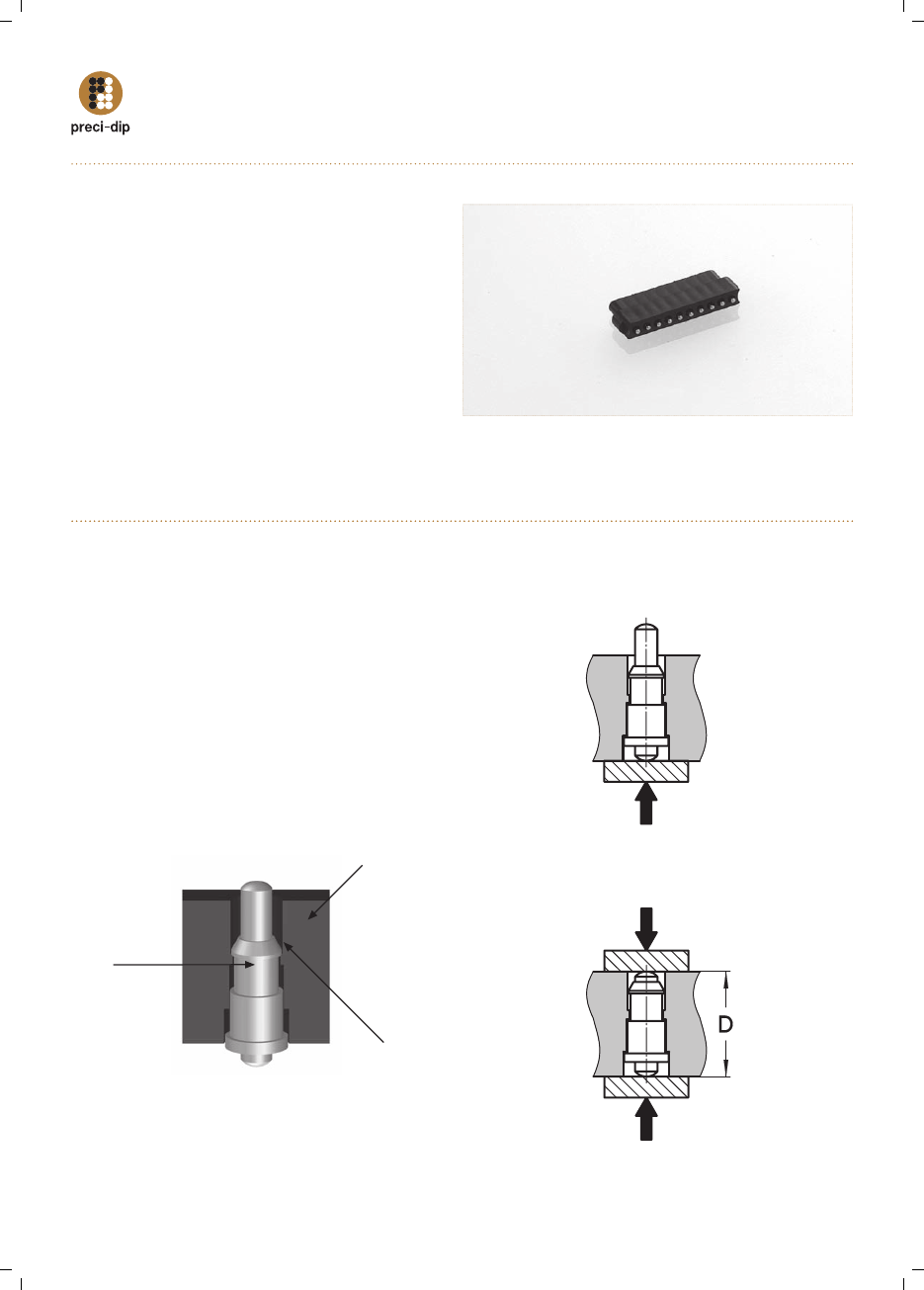

Double-side contact effect can be achieved using spring-loaded
contacts in a floating mounting design ( Fig.1).

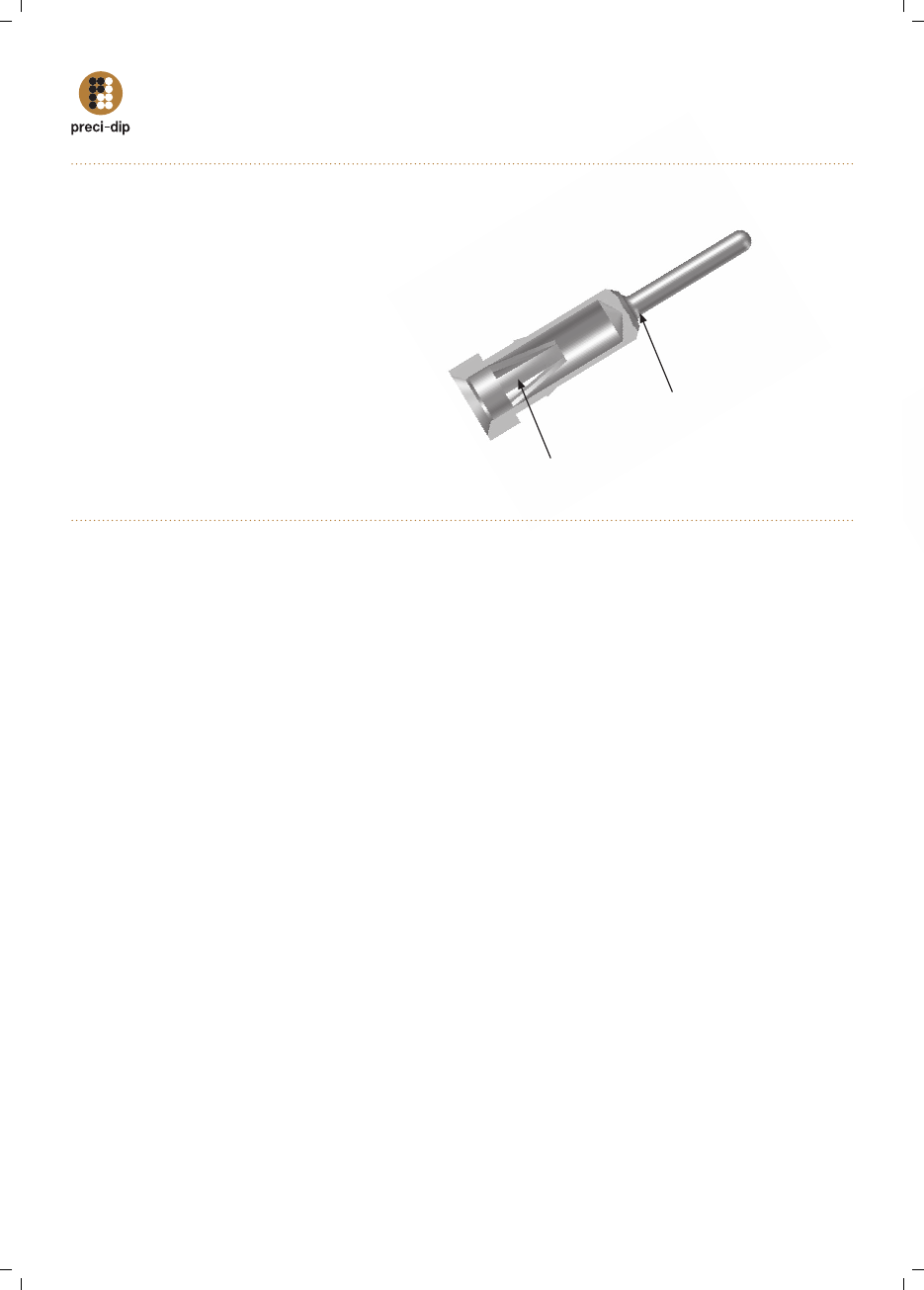

The conventional spring-loaded contact
➀
made of a barrel, spring
and plunger (piston) is mounted in a frame (housing)
➁
.
The barrel has a groove behind a retention barb
➂
. The frame has a
restriction in the cavity hole.
The diameters are chosen so that the barrel is nicely guided but can
move freely inside the hole once it has been clicked over the
retention feature.
Fig. 1
The first contact surface is positioned on one side of the SLC (Fig. 2).
The second contact surface will actuate the spring-loaded contact.
The spring-loaded contact is self-aligned between the two planes.
An equal contact pressure applies on both surfaces (Fig. 3).
Fig. 2
Fig. 3
➂
➀
➁
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

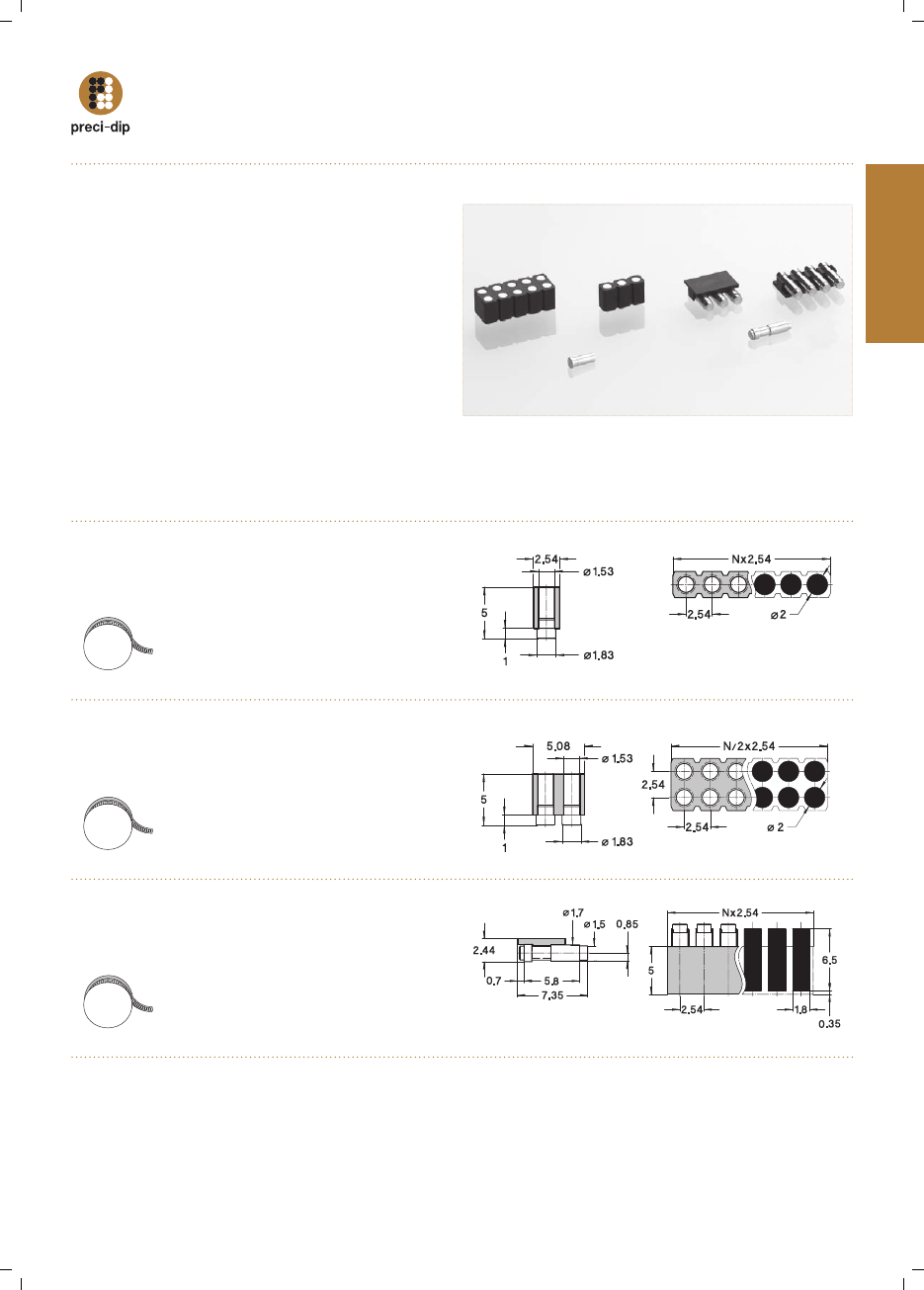

PAD CONNECTORS
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
39
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 31)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONTACTING AREA Ø
1.5 mm
OPERATING CURRENT
Max. 3.5 A
DIELECTRIC STRENGTH
Min. 1'000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PL ATING CODE
TERMINATION
CONTACTING AREA
10, 11
0.25 μm gold
0.25 μm gold
Pad connectors with fixed contacts, counterparts for spring- loaded connectors.
See page 178 for plating specs.
S
P
R
IN
G
–L
OA
D
E
D
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
800-10-NNN-30-507101
SMD pad connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
802-10-NNN-30-507101
SMD pad connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 20 contacts
(standard number of contacts: 20)
8MM-11-00NN-02-131
SMD pad connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
See
page 31
T & R Packaging
See
page 31
T & R Packaging
See
page 31
T & R Packaging
PCB CONNECTORS
P
C
B
C
O
NNEC
T
O
R
S
42
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

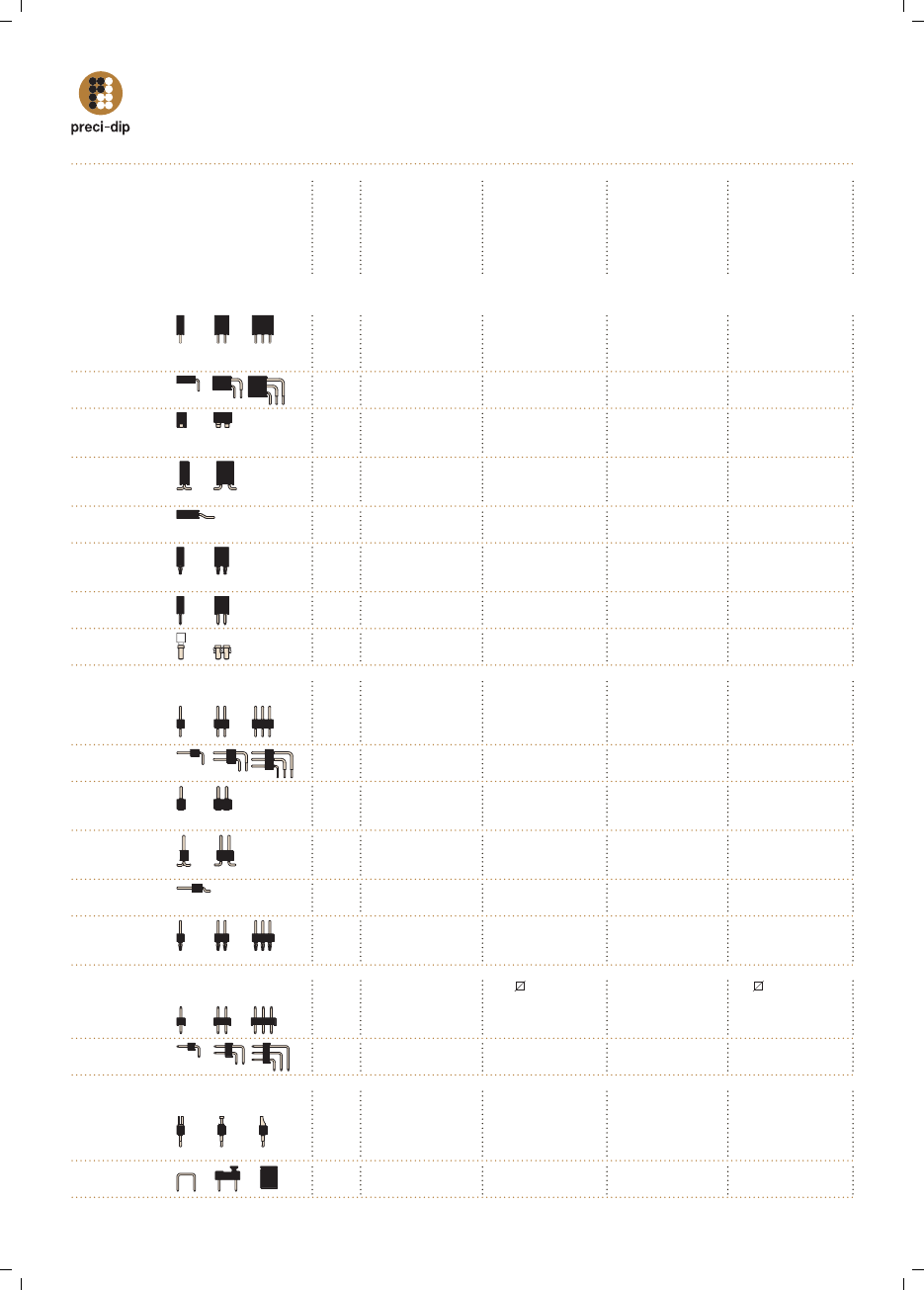

QUICK SELECTOR CHART
PCB CONNECTORS
GRID
1 mm
1.27 mm
2 mm (* 1.778 / 1.8 mm)
2.54 mm
2.54 mm
MATING
PIN
MATING
PIN
dia. 0.47 mm
dia. 0.76 mm (* ◊ 1 mm)
SOCKET CONNECTORS
SEE PAGE
Straight
44
46
46
46
55*, 57
57
69, 70 69, 70
72
85, 86 85,86 86, 87
solder tail
47
58, 59 58, 59
71, 72 71,72
75
87, 88 87, 89 89, 90
74, 75 73, 74
89, 90 90, 91
75
91, 100* 100*
Right angle
48
48
48
60
60
76
76
92, 93
92
solder tail
Surface
mount
62
77
77
94
94
perpendicular
floating pin
Surface mount
49
49, 50
61
61
77
77
94, 95 94, 95
perpendicular
gull-wing
Surface mount
44
50
62
78
96
parallel
Solderless
63
63
79, 80 79, 80
97, 98 97, 98
compliant
press-fit
Wire-wrap
81,
82
81,
82
99
99
Carrier
83,
84
PIN CONNECTORS
Straight
45
51
51
51
56*, 64
65
101
101
109
109
110
solder tail
to 104 to 104
to 111 to 111
111
Right angle
52
52
52
65
65
105
105
112
112
113
solder tail
113*
113
Surface
mount
106
106
114
114
perpendicular
floating pin
Surface mount
53
53, 54
66
66
106
106
114
114
perpendicular
115
115
gull-wing
Surface mount
45
54
67
107
115
parallel
Solderless
108
108
116
116
117
compliant
117
117
press-fit
SQUARE PIN CONNECTORS
0.5 mm
0.635 mm
Straight
68
68
118
118
118
solder tail
Right angle
68
68
119
119
119
solder tail

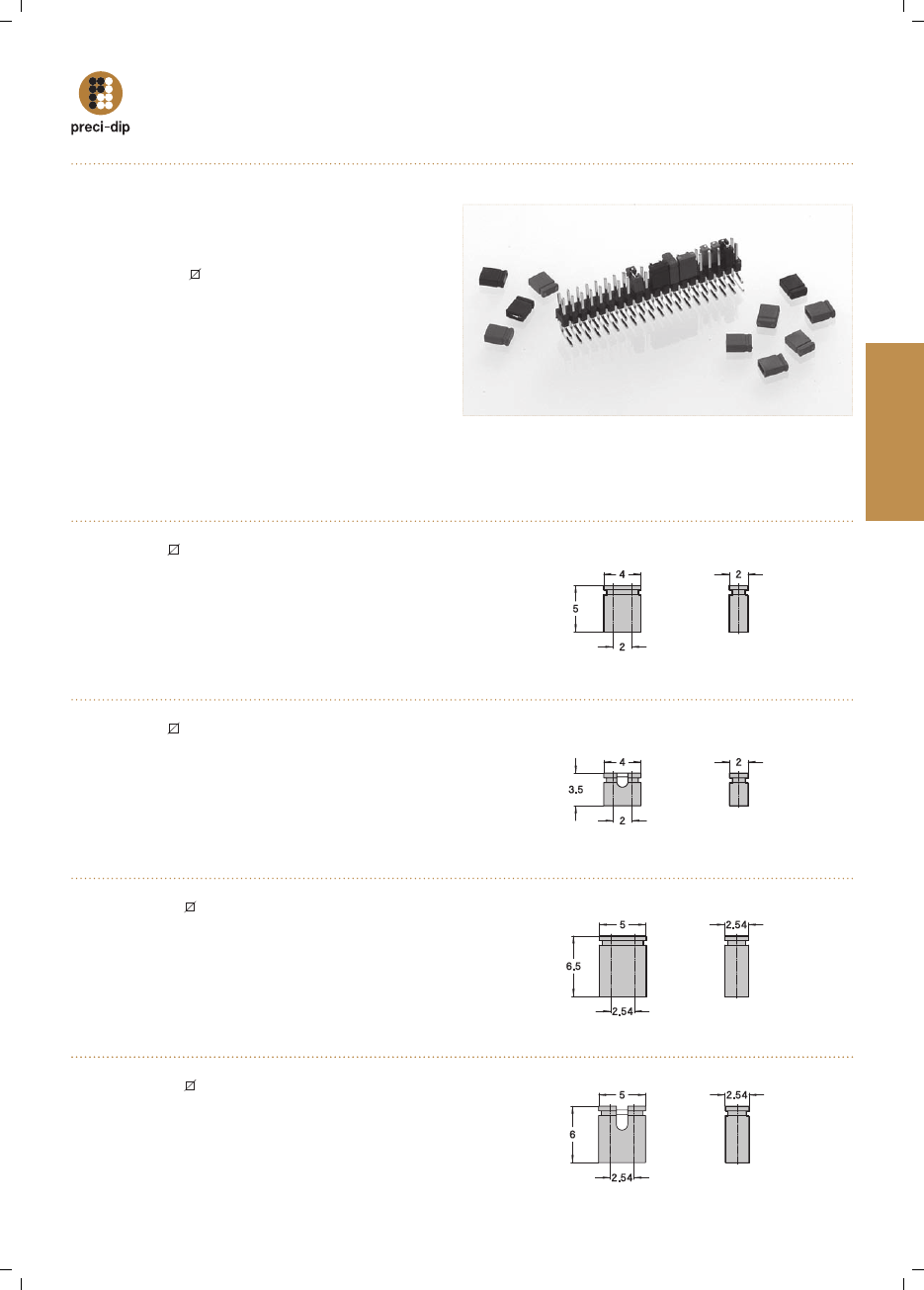

HEADERS / JUMPERS
•
Slotted
head
120
• Turret head
121
• Solder cup
• Male jumpers
123
122
•
Female
jumpers
123
SI
NGL
E
R
O
W
SI
NGL
E
R
O
W
DO
U
B
LE
RO
W
TR
IP
LE
RO
W
SI
NGL
E
R
O
W
DO
U
B
LE
RO
W
QU
A
D
R
O
W
SI
NGL
E
R
O
W
DO
U
B
LE
RO
W
TR
IP
LE
RO
W
SI
NGL
E
R
O
W
DO
U
B
LE
RO
W
TR
IP
LE
RO
W
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PCB CONNECTORS
GENERAL SPECIFICATIONS
43
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
The values listed below are general specs applying for Preci-Dip socket and pin connectors. Please see individual catalog page for additional and
product specific technical data.
OPERATING TEMPERATURE RANGE
-55 ... +125 °C
CLIMATIC CATEGORY (IEC)
55/125/21
OPERATING HUMIDIT Y RANGE
Annual mean 75%
MA X. WORKING VOLTAGE
100
V
RMS
/150 V
DC
(2.54 mm grid)
Preci-Dip products are recognized by Underwriters Laboratories Inc. and listed under “Connectors for Use in Data, Signal, Control and
Power Applications“, File Nr. E174442.
PACKAGING
• Standard connector packaging is card box.
• SMD mount connectors available on request
with Tape & Reel packaging acc. to EIA Standard 481.
These products are marked with the symbol:
Please consult
www.precidip.com
for availability
size of tape, size of reel, number of components
per reel and packing units.
MECHANICAL CHARACTERISTICS
CLIP RETENTION
Min. 40 N (no displacement under axial force applied)
CONTACT (SLEEVE / CLIP) RETENTION
Min. 3.3 N acc. to MIL-DTL-83734, pt 4.6.4.2
ELECTRICAL CHARACTERISTICS
INSUL ATION RESISTANCE BETWEEN ANY TWO ADJACENT CONTACTS
Min. 10’000 M
Ω
at 500 V
AC
CAPACITANCE BETWEEN ANY TWO ADJACENT CONTACTS
Max. 1 pF
AIR AND CREEPAGE DISTANCES BETWEEN ANY TWO ADJACENT CONTACTS
SERIE
3xx/4xx/7xx 80x
83x 85x
86x
mm
0.7
0.85 / 0.7
0.5
0.4 / 0.5
0.5
ENVIRONMENTAL CHARACTERISTICS
The sockets withstand the following environmental tests without mechanical
and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH,
1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min.
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g,
1 octave/min., 10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests, no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Moisture sensitivity J-STD-020C level 1
• Resistance to corrosion:
1) Salt spray test IEC 60068-2-11.Ka: 48 h
2) Sulfur dioxide (SO2) test IEC 60068-2-42 Kc: 96 h at 25 ppm SO2,
25 °C, 75 %rH
3) Hydrogen sulfide (H2S) test IEC 60068-2-43 Kd: 96 h at 12 ppm H2S,
25 °C, 75 %rH
SOLDERLESS COMPLIANT PRESS-FIT CHARACTERISTICS
PRESS-FIT CHARACTERISTICS MEASURED ACC. TO IEC 60352-5
• Press-in force:
90 N max. (at min. hole dia.) / 65 N typ.
• Push-out force:
30 N min. (at max. hole dia.) / 50 N typ.
• Push-out 3rd cycle:
20 N min. (at max. hole dia.)
PCB HOLE DIMENSIONS
• 2 mm grid
Finished hole Ø: 0.7 + 0.09/-0.06 mm
Drilled hole Ø: 0.8 ± 0.02 mm
• 2.54 mm grid
Finished hole Ø: 1 + 0.09/-0.06 mm
Drilled hole Ø: 1.15 ± 0.02 mm
PCB HOLE PL ATING
PCB surface finish
Hole plating
• Tin
5-15 μm tin over min. 25 μm copper
• Copper
min. 25 μm copper
• Gold over nickel
0.05-0.2 μm gold over 2.5-5 μm nickel
over min. 25 μm copper
®
UL
T & R Packaging
861-
PP
-
NNN
-10-001101

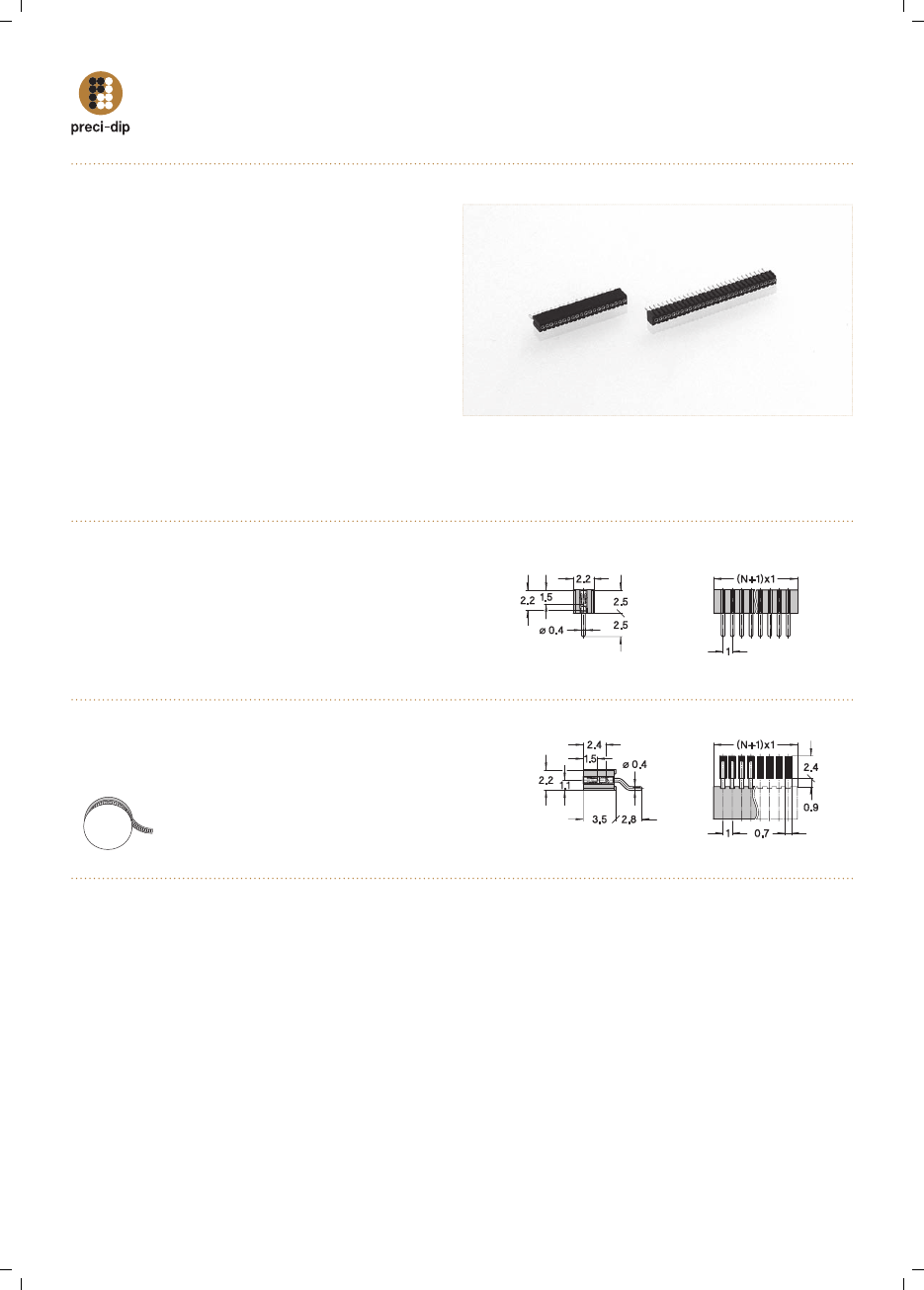

Straight socket connector low profile, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
861-
PP
-
NNN
-40-001101
SMD socket connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 24 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
44
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.36 to 0.46 mm
FORCES
0.25 N typ. insertion
0.15 N typ. withdrawal
(polished steel gauge Ø 0.40 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see page 45.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, solder tail and SMD parallel mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 861-87-
NNN
-10-001101 for a single row version with 8 pins becomes
861-87-
008
-10-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

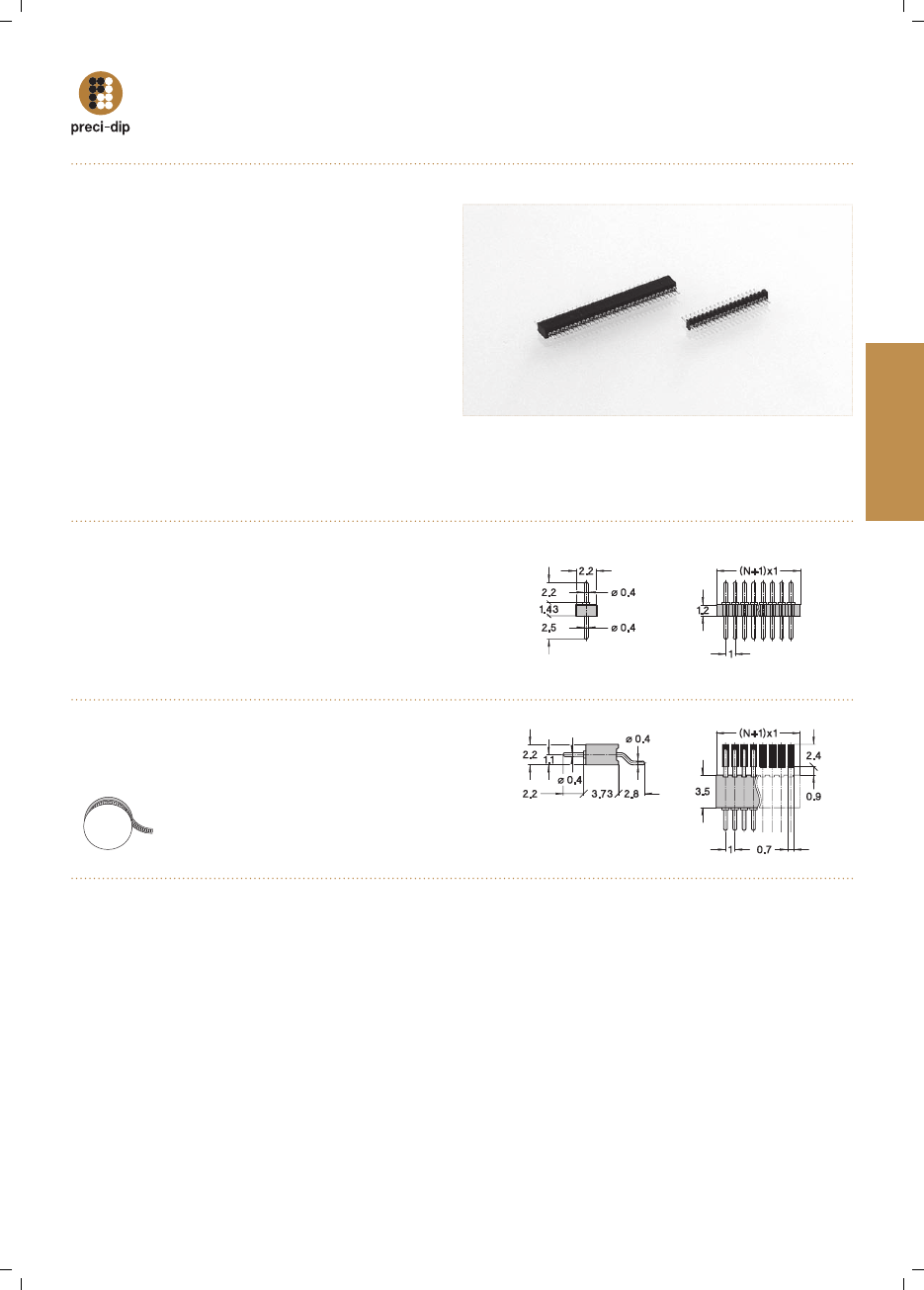

SOCKET CONNECTORS 1 mm
SINGLE ROW / SOLDER TAIL / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 1 mm
SINGLE ROW / SOLDER TAIL / SURFACE MOUNT
45
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.40 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 500 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see page 44.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
Ultraminiature PCB pin connectors, solder tail and SMD parallel mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 860-10-
NNN
-10-001101 for a single row version with 8 pins becomes
860-10-
008
-10-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
860-10-
NNN
-10-001101
Straight pin connector low profile, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
860-10-
NNN
-40-001101
SMD pin connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 24 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging

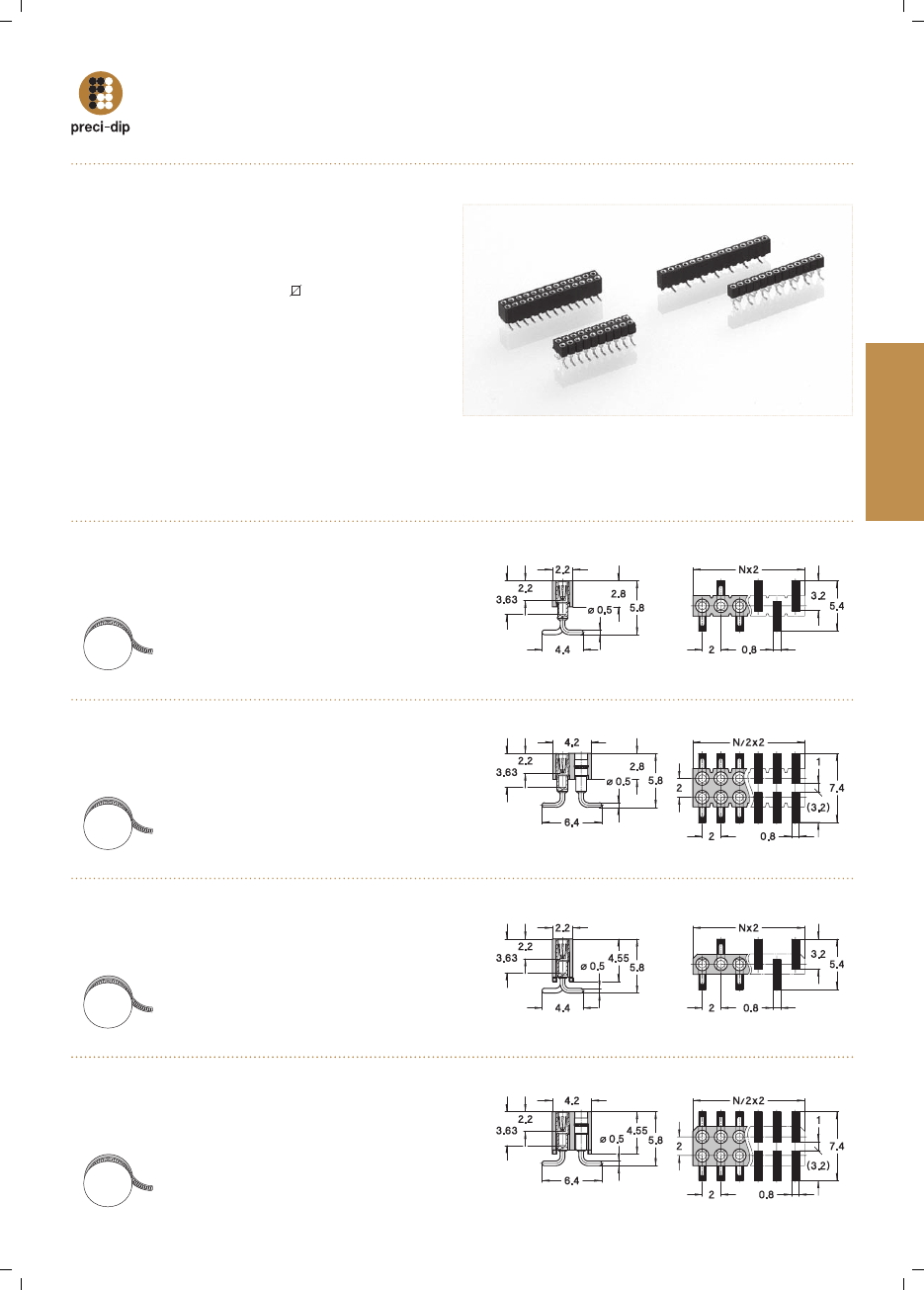

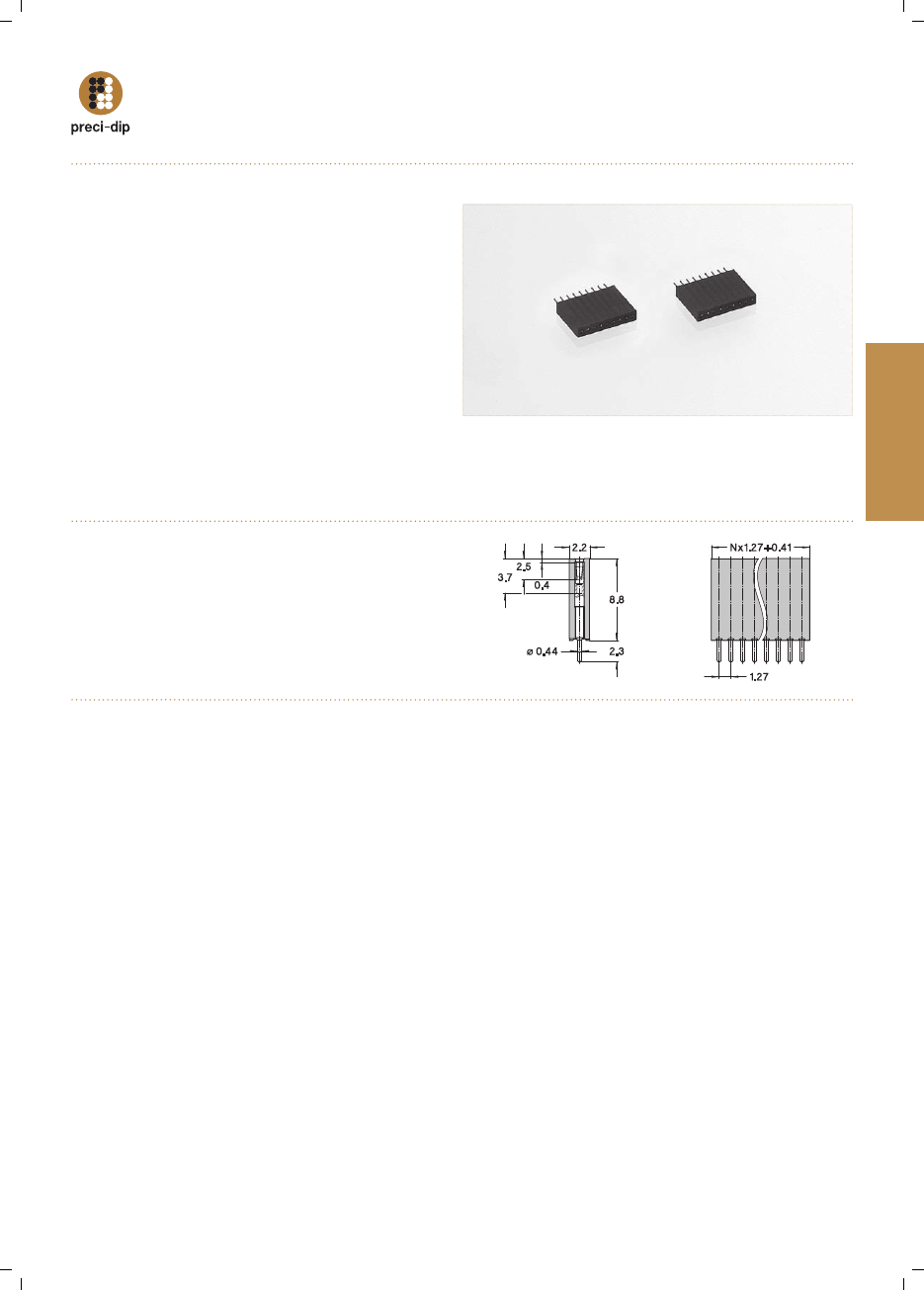

851-
PP
-
NNN
-10-001101
Straight socket connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
853-
PP
-
NNN
-10-001101
Straight socket connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
46
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.38 to 0.50 mm
FORCES
0.5 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.41 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
For corresponding pin connectors, see pages 51-54.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, solder tail
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 851-87-
NNN
-10-001101 for a single row version with 8 pins becomes
851-87-
008
-10-001101
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / TRIPLE ROW / SOLDER TAIL
853-
PP
-
NNN
-10-002101
Straight socket connector, solder tail, double row with 2.54 mm
row to row distance
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
855-
PP
-
NNN
-10-001101
Straight socket connector, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 150 contacts
(standard number of contacts: 150)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 1.27 mm
SINGLE ROW / SOLDER TAIL
47
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.38 to 0.50 mm
FORCES
0.5 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.41 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
For corresponding pin connectors, see pages 51-54.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, solder tail
Other plating on request (see page 178 for plating specs).
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
851-
PP
-009-10-477101
Straight socket connector height 8.8 mm, solder tail, single row
Standard number of contacts: 9
Please consult for other pin number
851-
PP
-
NNN
-20-001101

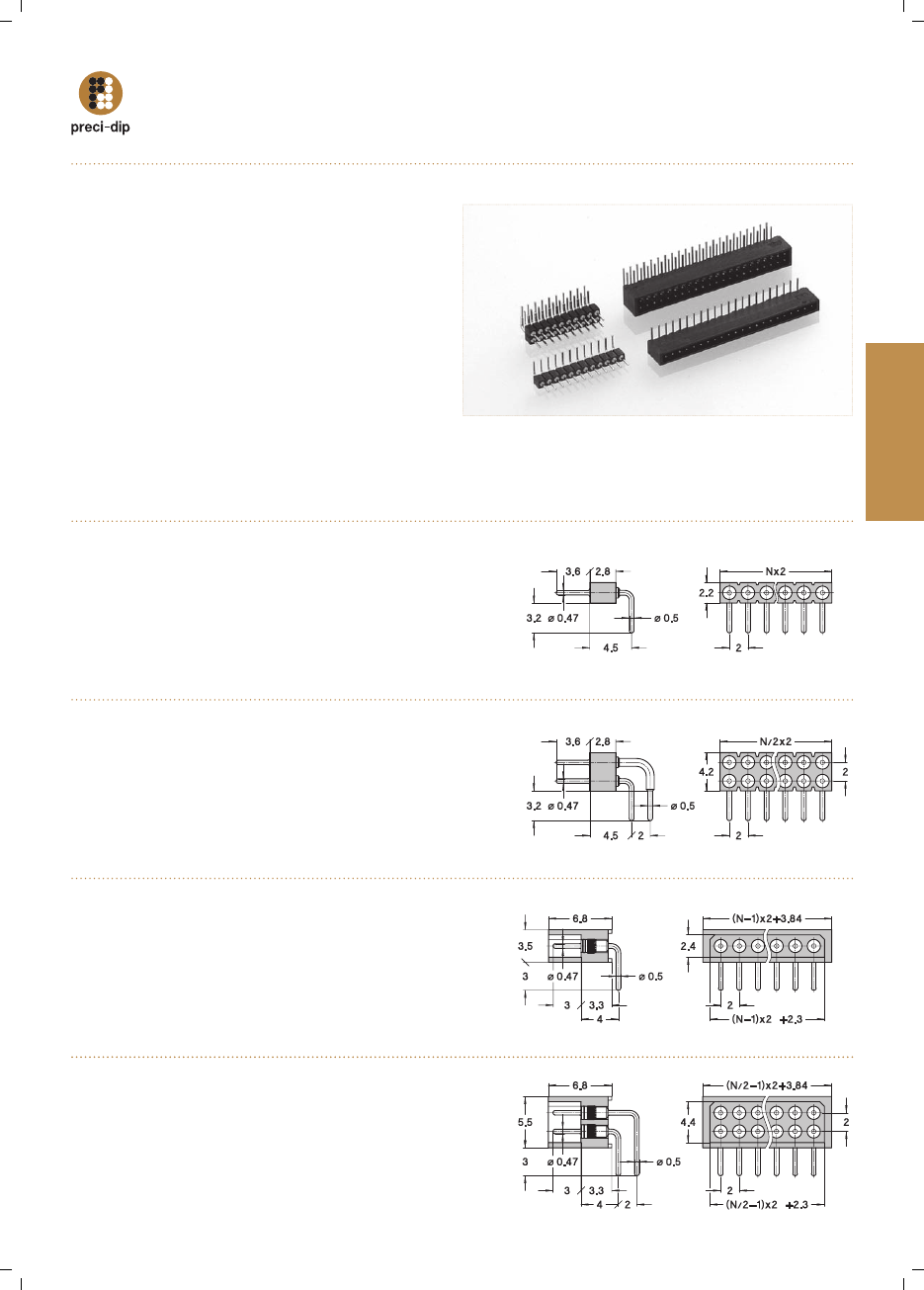

Right angle socket connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
853-
PP
-
NNN
-20-001101
Right angle socket connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
48
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.38 to 0.50 mm
FORCES
0.5 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.41 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
For corresponding pin connectors, see pages 51-54.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, solder tail right angle.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 851-87-
NNN
-20-001101 for a single row version with 8 pins becomes
851-87-
008
-20-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

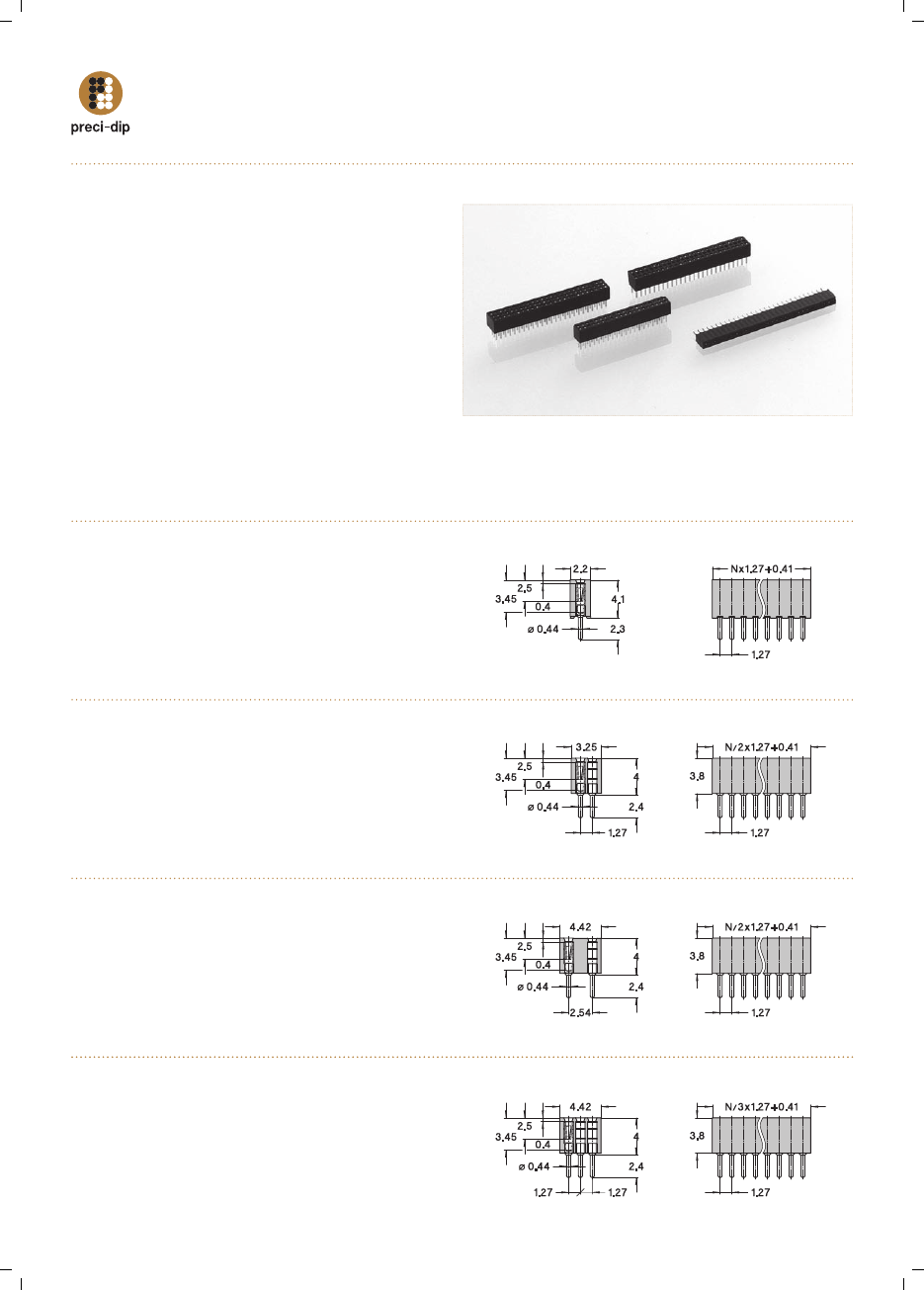

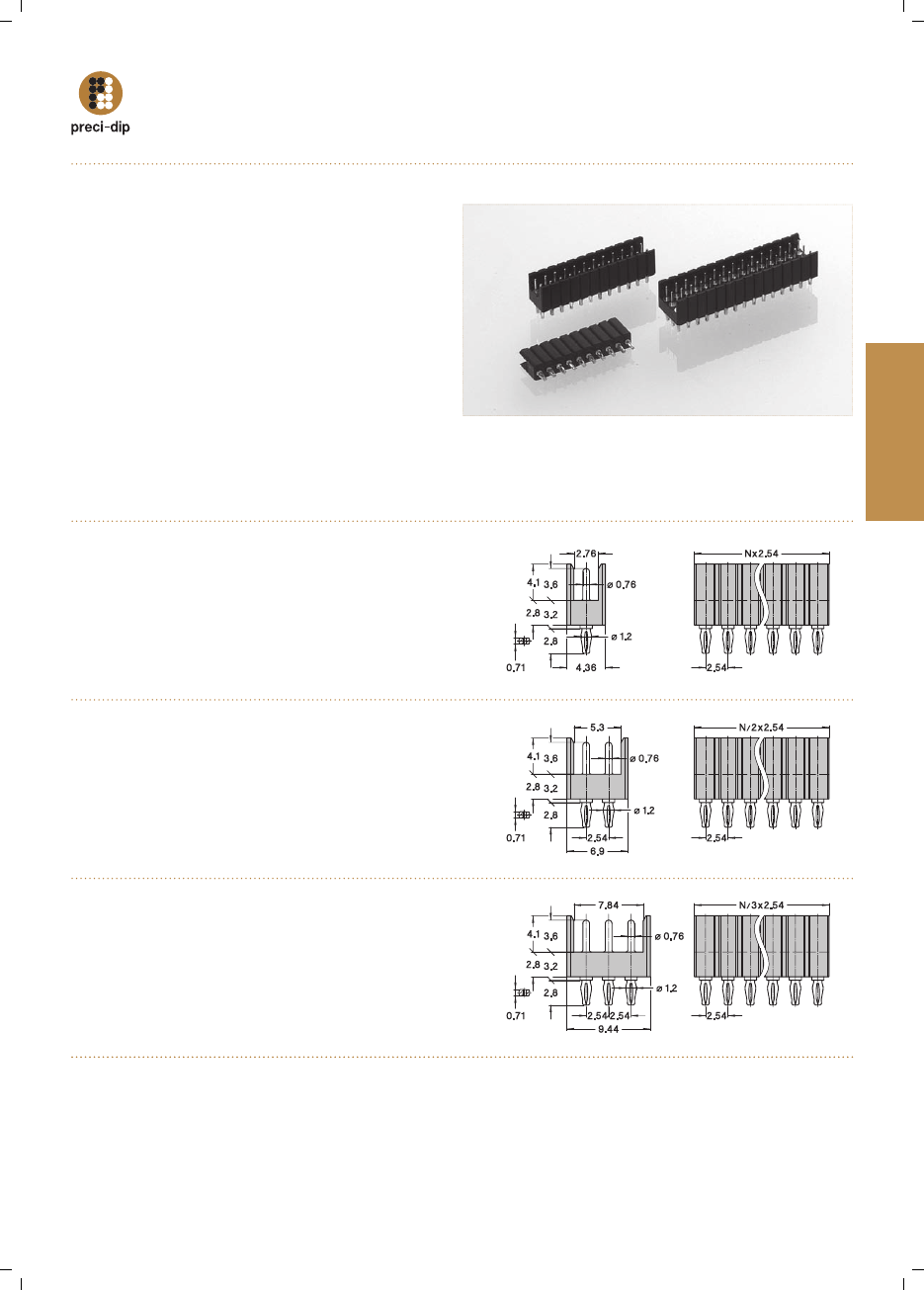

SOCKET CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / TRIPLE ROW / SOLDER TAIL, RIGHT ANGLE
853-
PP
-
NNN
-20-002101
Right angle socket connector, solder tail, double row with 2.54 mm
row to row distance
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
855-
PP
-
NNN
-20-001101
Right angle receptacle, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 150 contacts
(standard number of contacts: 150)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / TRIPLE ROW / SURFACE MOUNT
49
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.35 to 0.50 mm
FORCES
0.5 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.41 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 51-54.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 851-83-
NNN
-30-001101 for a single row version with 8 pins becomes
851-83-
008
-30-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
851-
PP
-
NNN
-30-001101
SMD socket connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
853-
PP
-
NNN
-30-001101
SMD socket connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
853-
PP
-
NNN
-30-002101
SMD socket connector, double row with 2.54 mm row to row distance,
perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
851-
PP
-
NNN
-30-136101
SMD socket connector, single row, perpendicular mount
with 2 positioning pins
AVAIL ABILIT Y FROM
5 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
853-
PP
-
NNN
-30-051101
SMD socket connector, double row with 2.54 mm row to row distance,
perpendicular mount with 2 positioning pins
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
851-
PP
-
NNN
-40-001101
SMD socket connector, single row, parallel mount with long solder
termination
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
50
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.38 to 0.50 mm
FORCES
0.5 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.41 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 51-54.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Ultraminiature PCB socket connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 851-83-
NNN
-40-001101 for a single row version with 8 pins becomes
851-83-
008
-40-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
851-
PP
-
NNN
-40-252101
SMD socket connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

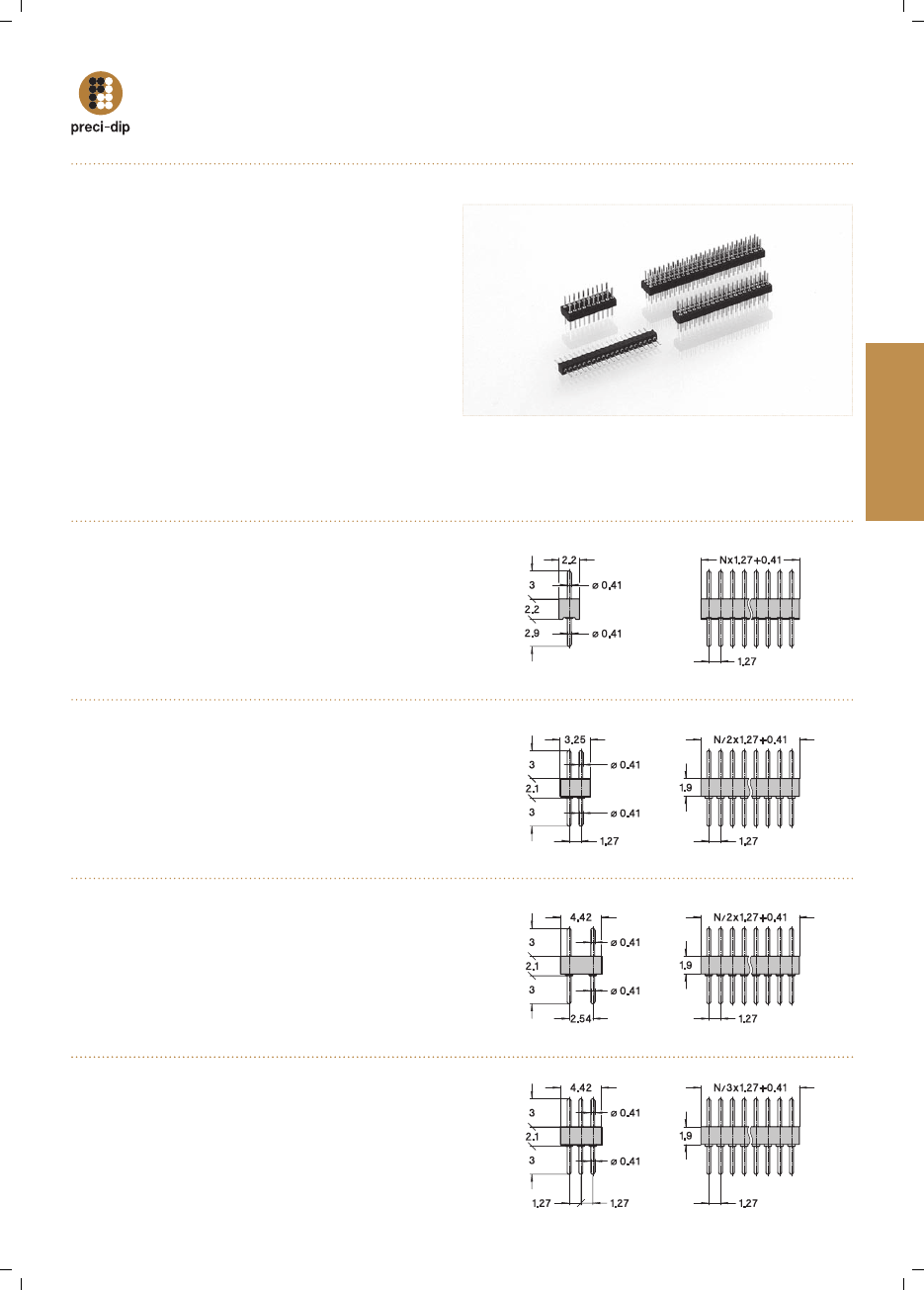

PIN CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / TRIPLE ROW / SOLDER TAIL
51
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.41 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 46-50.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
Ultraminiature PCB pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 852-10-
NNN
-10-001101 for a double row version with 16 pins
becomes 852-10-
016
-10-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
850-
PP
-
NNN
-10-001101
Straight pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
852-
PP
-
NNN
-10-001101
Straight pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
852-
PP
-
NNN
-10-002101
Straight pin connector, solder tail, double row with 2.54 mm
row to row distance
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
854-
PP
-
NNN
-10-001101
Straight pin connector, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 150 contacts
(standard number of contacts: 150)
850-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
852-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
52
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.41 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 46-50.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
Ultraminiature PCB pin connectors, solder tail, right angle.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 852-10-
NNN
-20-001101 for a double row version with 16 pins
becomes 852-10-
016
-20-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

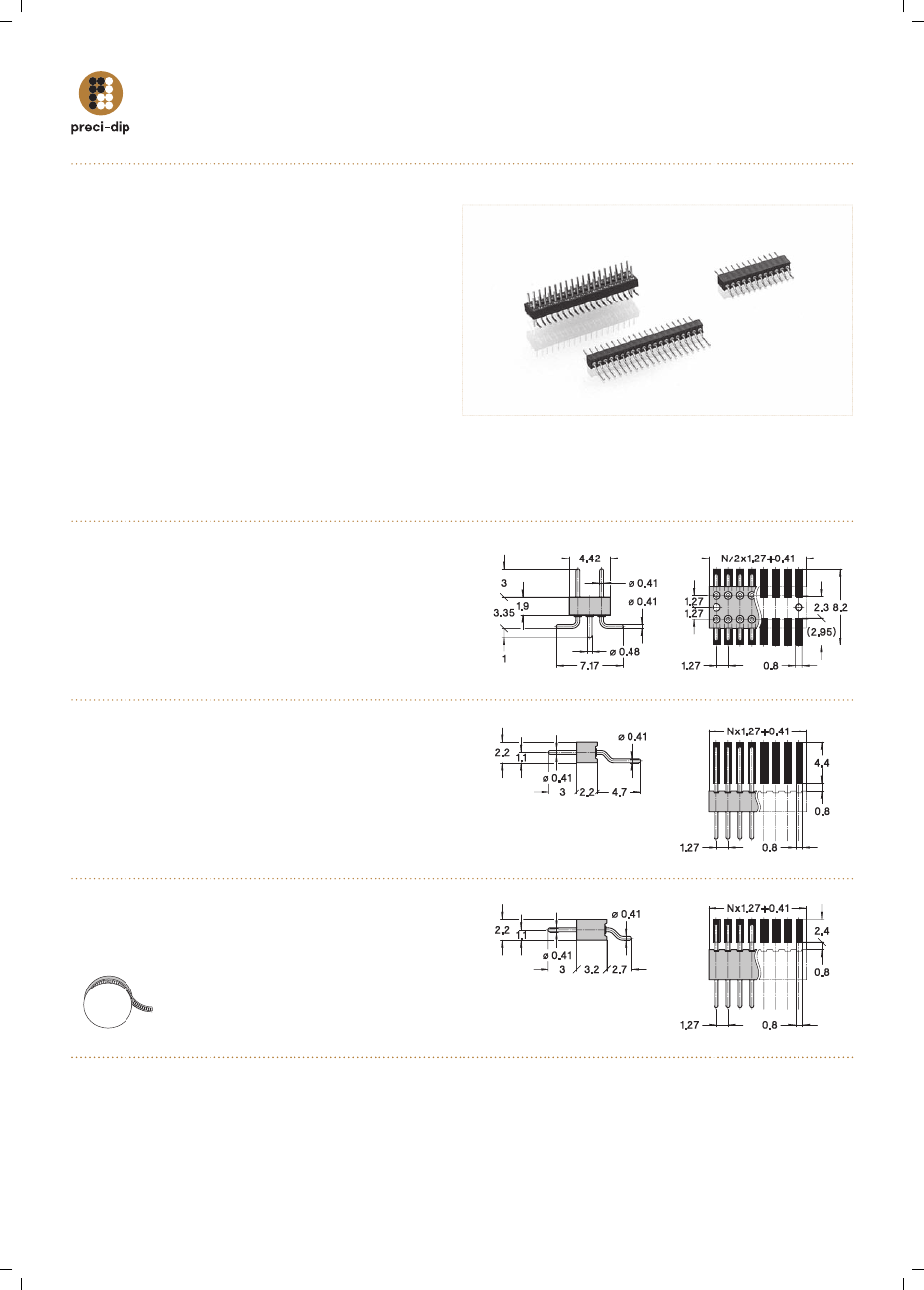

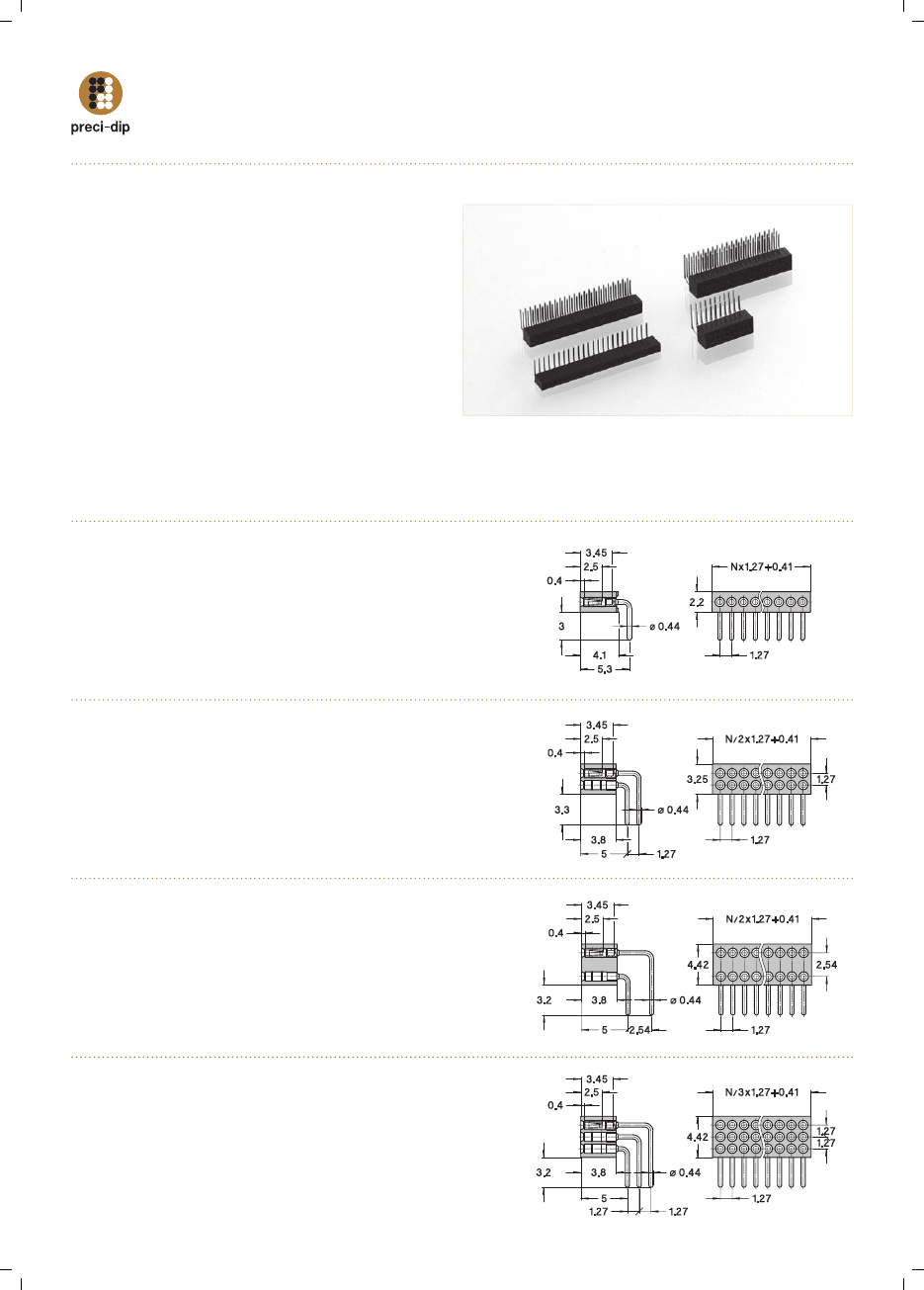

PIN CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / TRIPLE ROW / SOLDER TAIL, RIGHT ANGLE
852-
PP
-
NNN
-20-002101
Right angle pin connector, solder tail, double row with 2.54 mm
row to row distance
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
854-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 150 contacts
(standard number of contacts: 150)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
53
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.41 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 46-50.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
Ultraminiature PCB pin connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 852-10-
NNN
-30-001101 for a double row version with 16 pins
becomes 852-10-
016
-30-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
850-
PP
-
NNN
-30-001101
SMD pin connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
852-
PP
-
NNN
-30-001101
SMD pin connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 50 and 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
852-
PP
-
NNN
-30-002101
SMD pin connector, double row with 2.54 mm row to row distance,
perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
850-
PP
-
NNN
-30-135101
SMD pin connector, single row, perpendicular mount with 2 positioning pins
AVAIL ABILIT Y FROM
5 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
852-
PP
-
NNN
-30-051101
SMD pin connector, double row with 2.54 mm row to row distance,
perpendicular mount with 2 positioning pins
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 19 contacts per row,
the coplanarity issue is to be addressed specifically
850-
PP
-
NNN
-40-001101
SMD pin connector, single row, parallel mount with long solder termination
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 25 and 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically

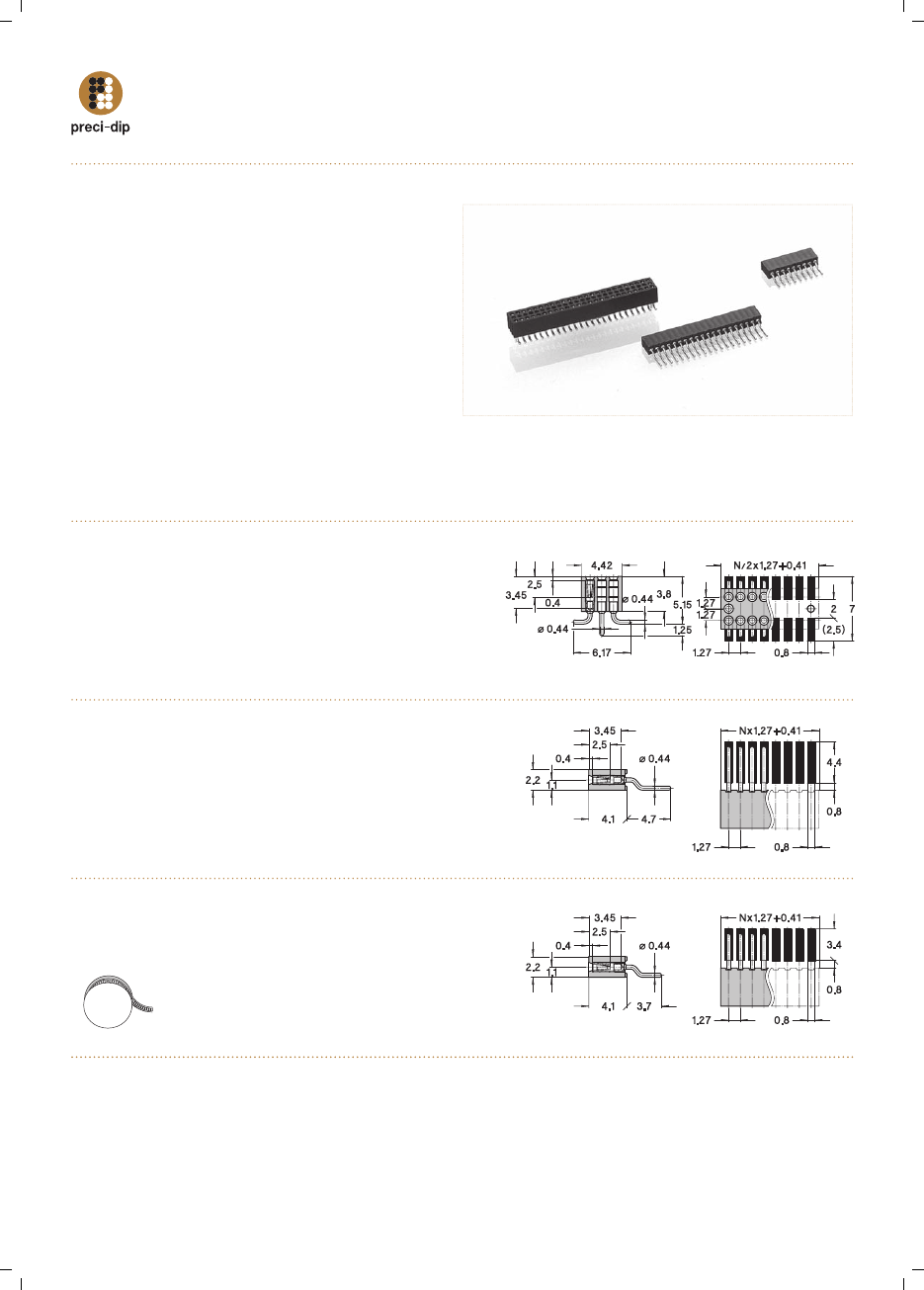

54
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.41 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 46-50.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
Ultraminiature PCB pin connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 850-10-
NNN
-40-001101 for a single row version with 16 pins
becomes 850-10-
016
-40-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 1.27 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
850-
PP
-
NNN
-40-251101
SMD pin connector, single row, parallel mount short solder termination
and wider insulator for easier pick and place
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 19 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS
1.778 and 1.8 mm
SINGLE ROW / SOLDER TAIL
55
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see page 56.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, with reduced grid spacing 1.778 and 1.8 mm, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 317-87-1
NN
-41-005101 for a single row version with 8 pins becomes
317-87-1
08
-41-005101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
317-
PP
-1
NN
-41-005101
Straight socket connector, single row, grid spacing 1.778 mm
AVAIL ABILIT Y FROM
2 to 38 contacts
(standard number of contacts: 38)
317-
PP
-1
NN
-41-022101
Straight socket connector elevated, single row, grid spacing 1.778 mm
AVAIL ABILIT Y FROM
2 to 38 contacts
(standard number of contacts: 38)
317-
PP
-1
NN
-41-026101
Straight socket connector elevated, single row, grid spacing 1.778 mm
AVAIL ABILIT Y FROM
2 to 38 contacts
(standard number of contacts: 38)
317-
PP
-1
NN
-01-687101
Straight socket connector, single row, grid spacing 1.8 mm for LCD-displays
AVAIL ABILIT Y FROM
2 to 42 contacts
(standard number of contacts: 42)
350-
PP
-1
NN
-00-012101
Straight pin connector, single row, grid spacing 1.778 mm
AVAIL ABILIT Y FROM
2 to 38 contacts
(standard number of contacts: 38)
56
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see page 55.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
PCB pin connectors, solder tail with reduced pin spacing 1,778 mm.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 350-10-1
NN
-00-012101 for a single row version with 8 pins becomes
350-10-1
08
-00-012101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

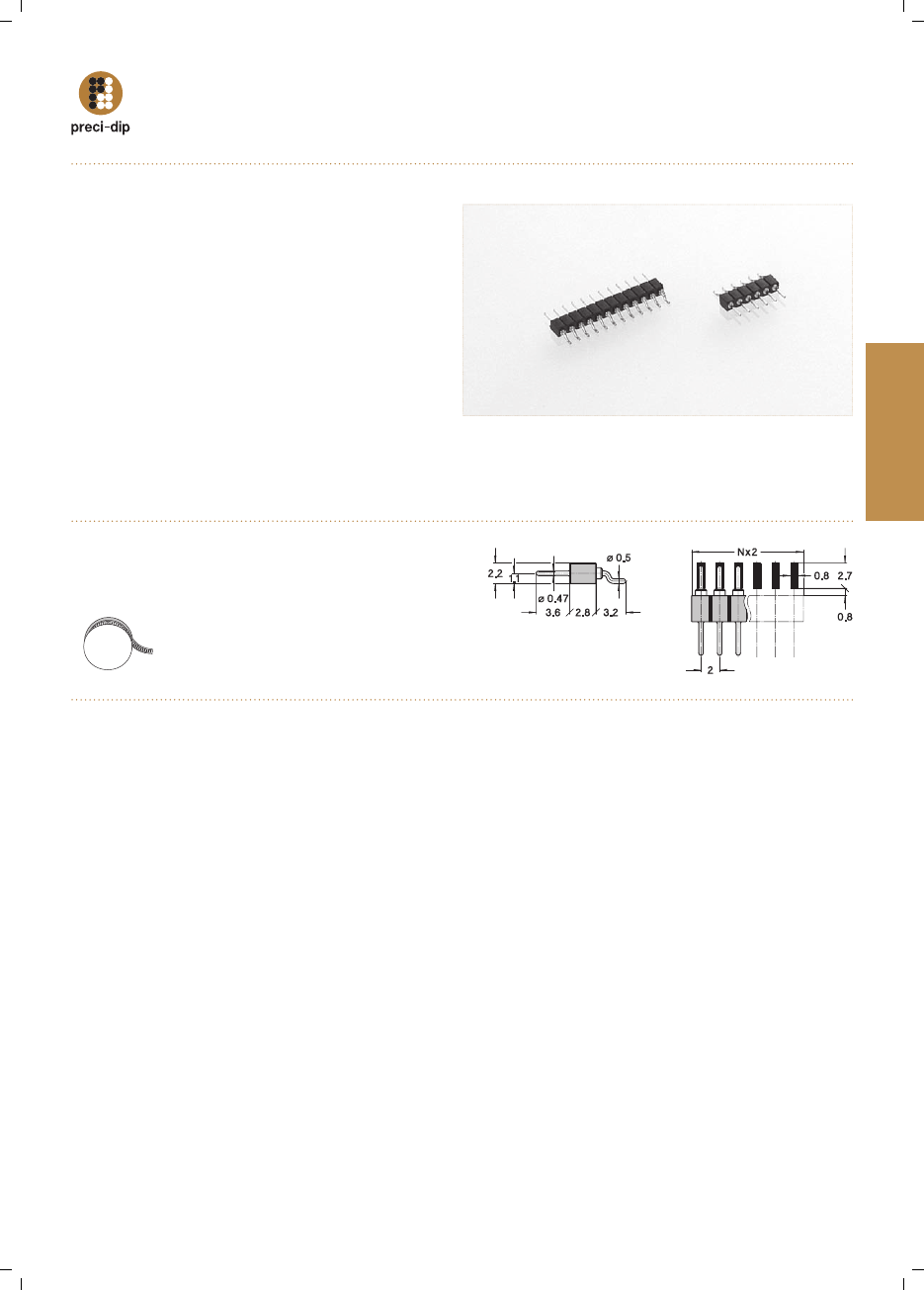

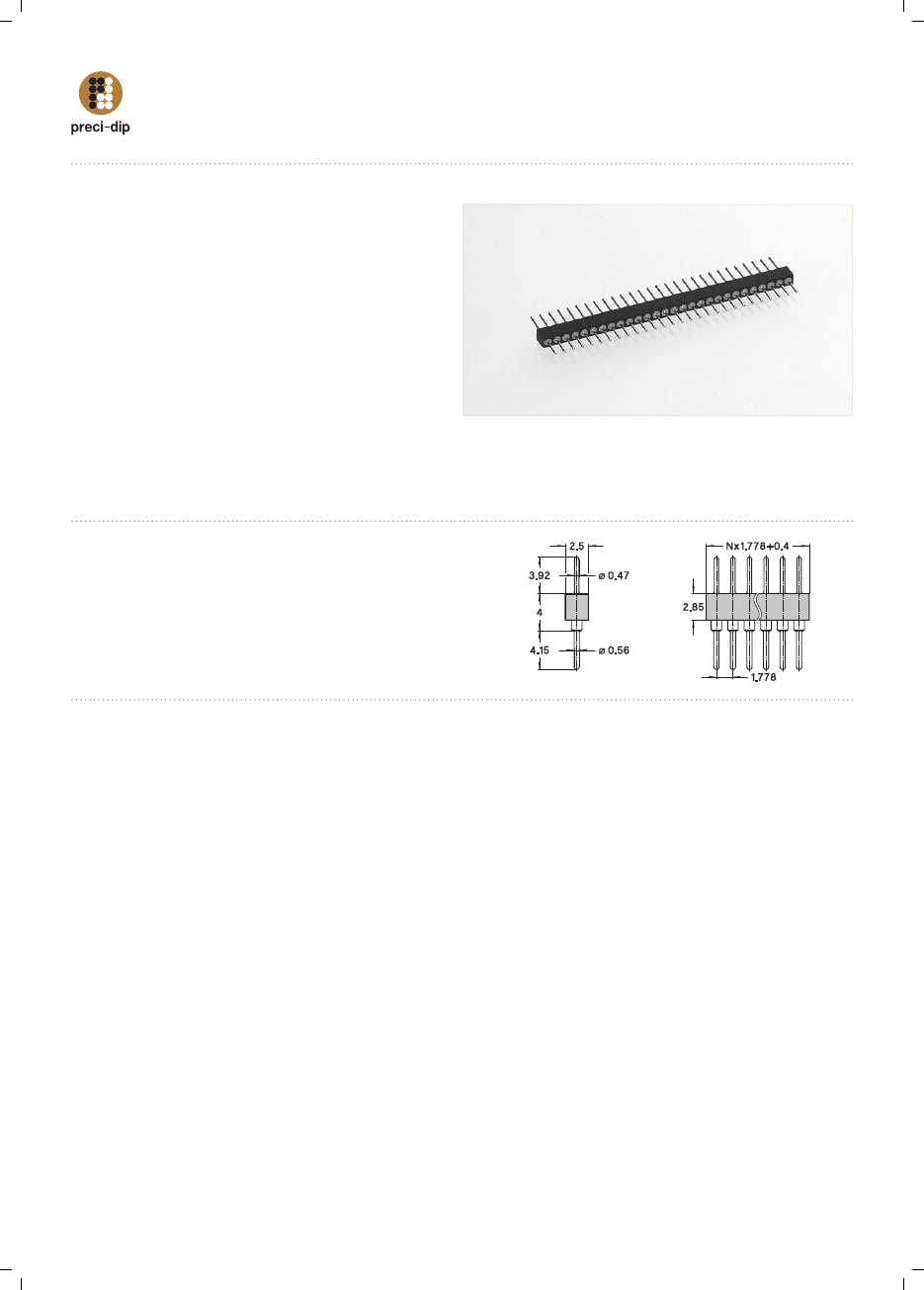

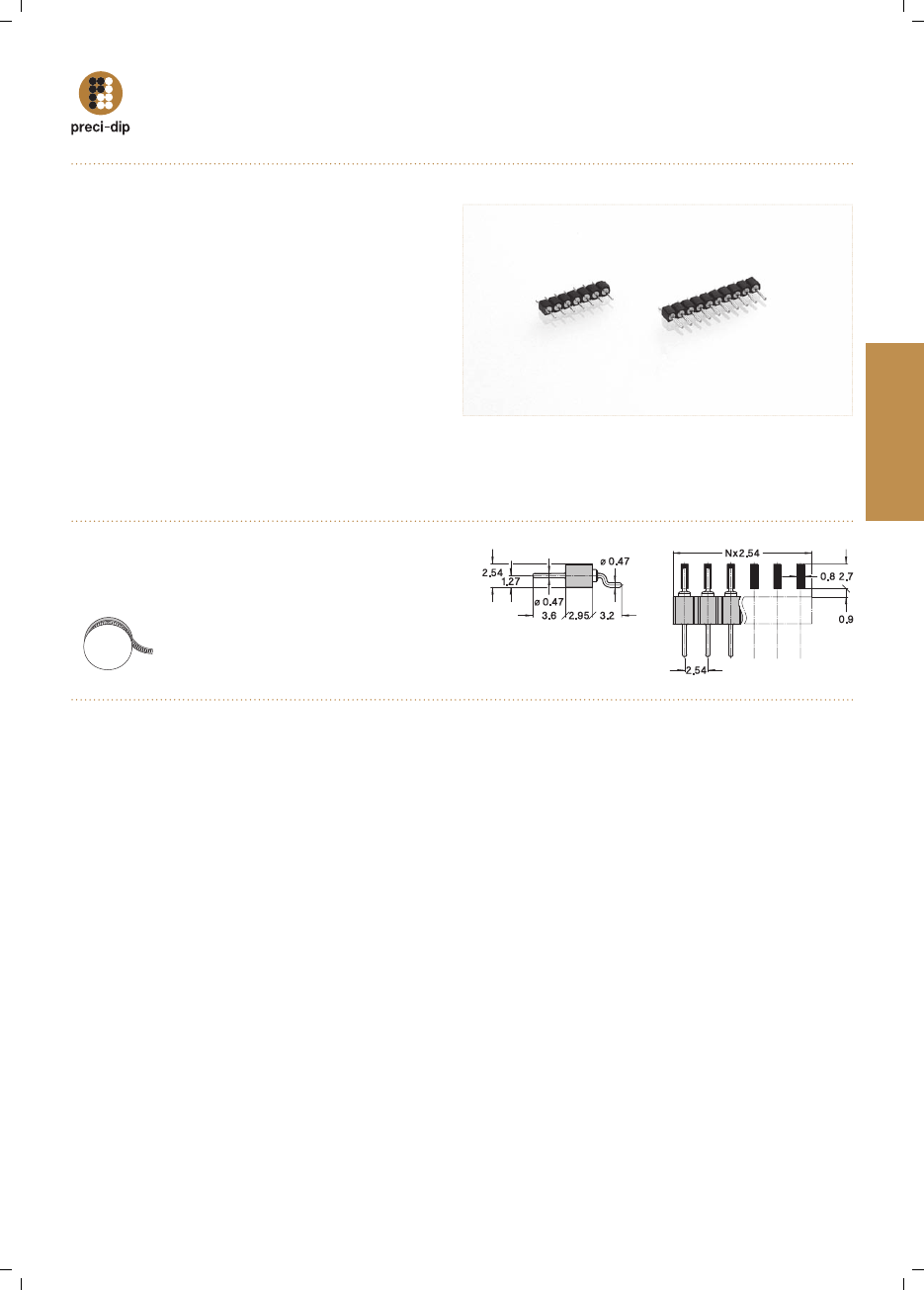

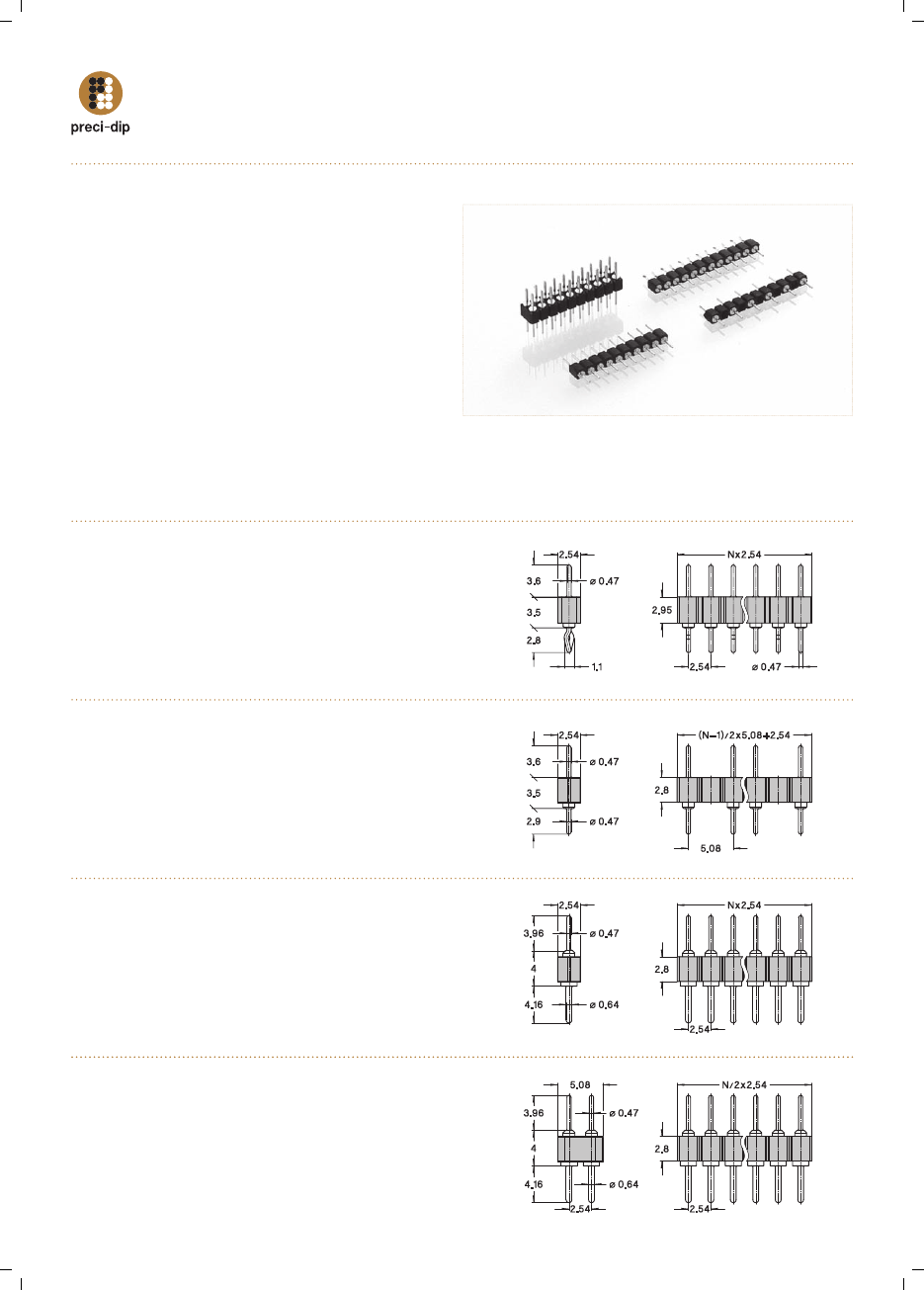

PIN CONNECTORS 1.778 mm
SINGLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

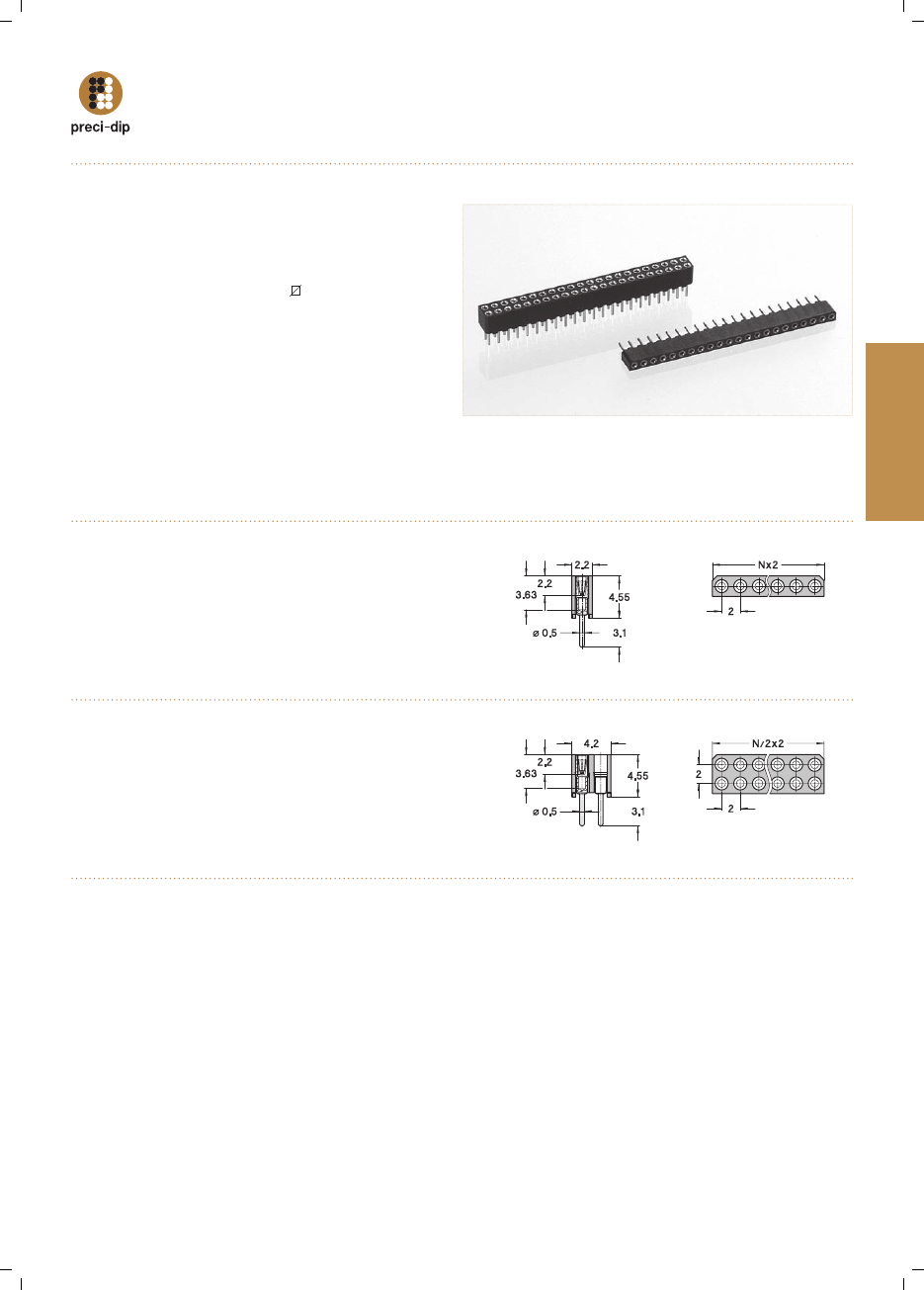

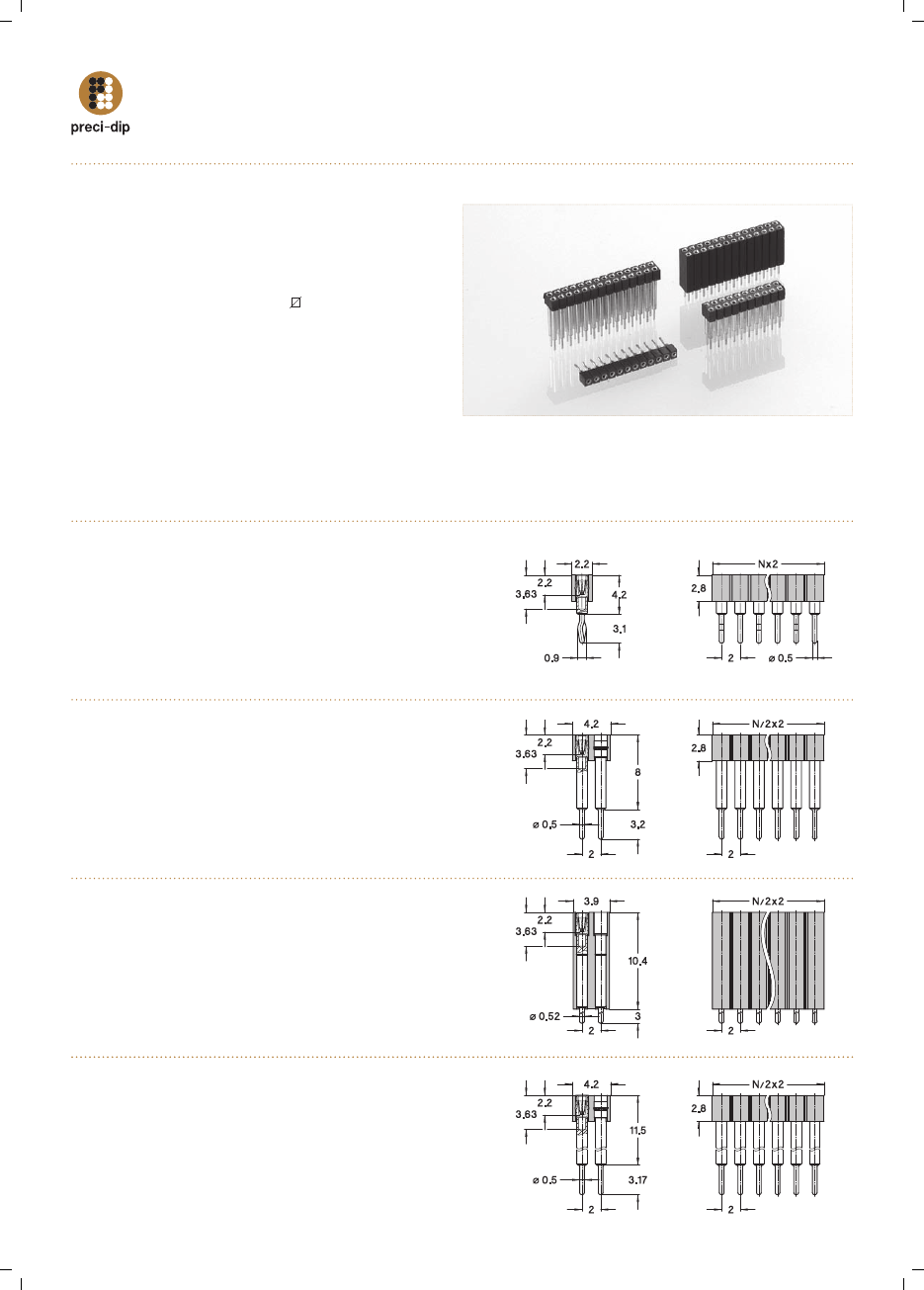

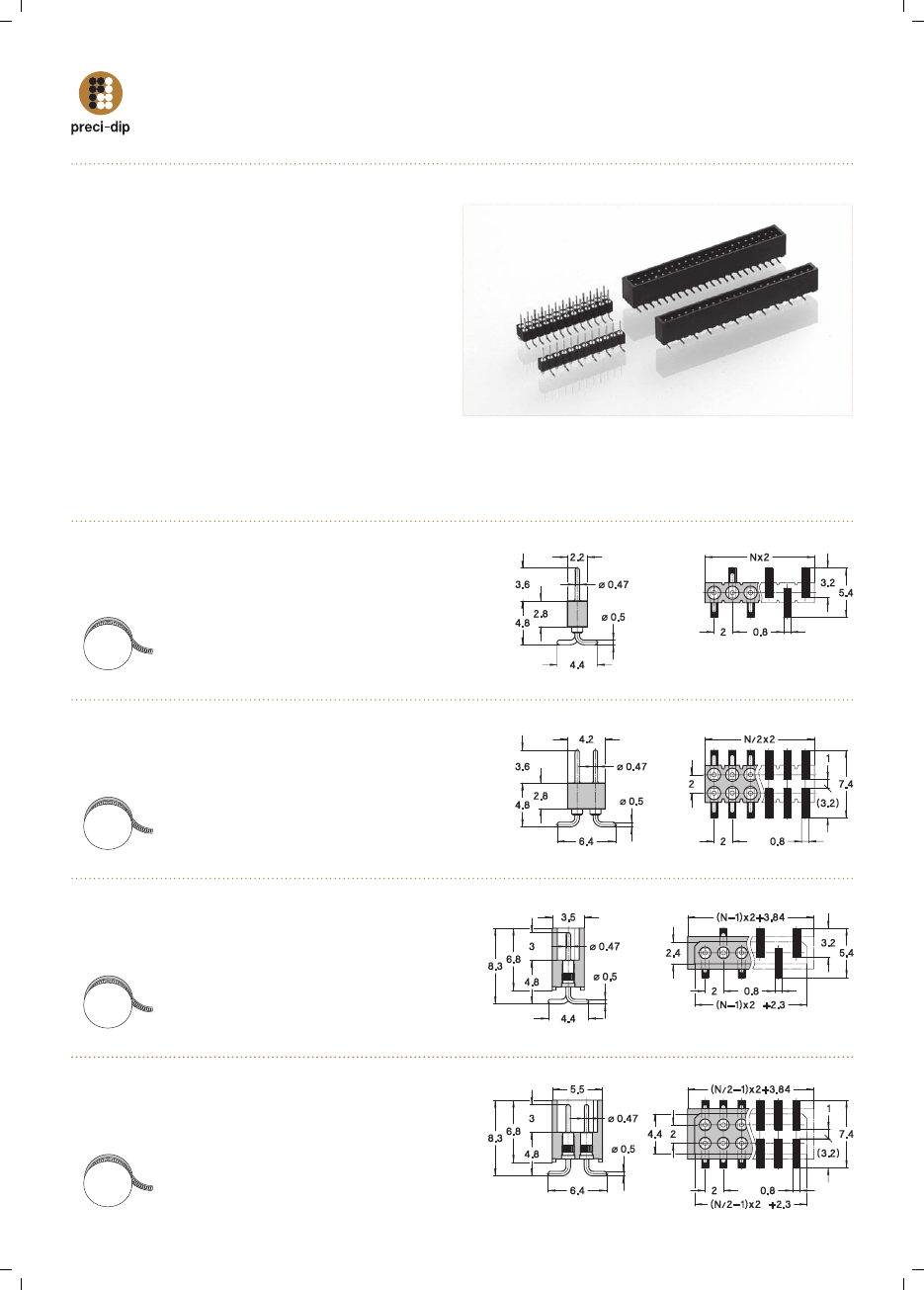

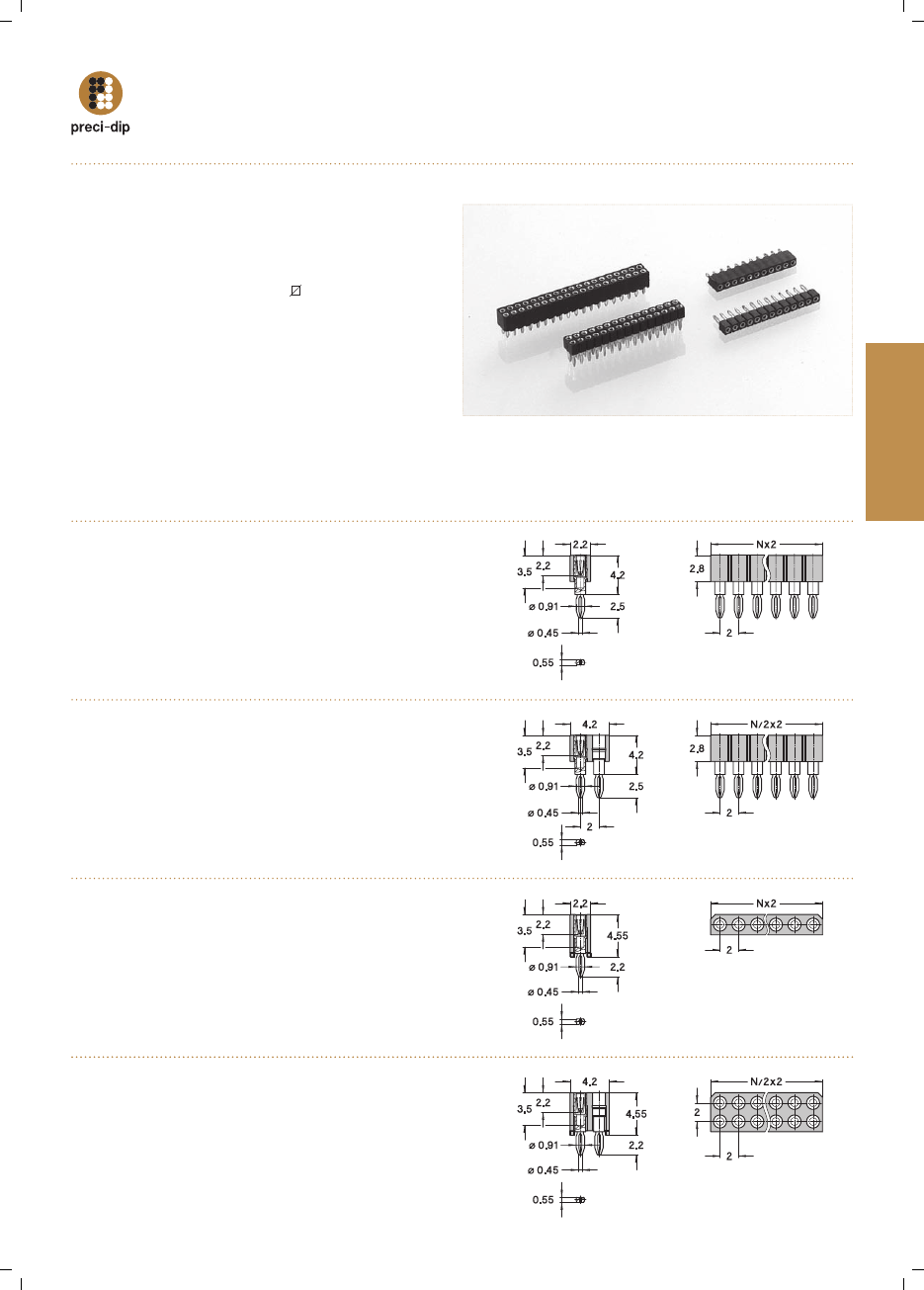

SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
57
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.66 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-10-001101 for a double row version with 16 pins
becomes 833-87-
016
-10-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
831-
PP
-
NNN
-10-273101
Straight socket connector, low profile height 2.8 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-10-273101
Straight socket connector, low profile height 2.8 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
831-
PP
-
NNN
-10-001101
Straight socket connector, height 4.2 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-10-001101
Straight socket connector, height 4.2 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
831-
PP
-
NNN
-10-230101
Straight socket connector, height 4.2 mm, with clinched (right/left)
solder tails, single row
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-10-453101
Straight socket connector, height 8 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
58
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
(PCT-GF30-FR for 833...10-457101)
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.56 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-10-453101 for a double row version with 16 pins
becomes 833-87-
016
-10-453101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
833-
PP
-
NNN
-10-457101
Straight socket connector, height 10.4 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-10-287101
Straight socket connector, height 11.5 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
59
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.66 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, solder tail, polarised.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-10-245101 for a double row version with 26 pins
becomes 833-87-
026
-10-245101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
831-
PP
-
NNN
-10-242101
Straight socket connector height 4.55 mm, solder tail, single row, polarised
AVAIL ABILIT Y FROM
22
contacts
Other pin number on request
833-
PP
-
NNN
-10-245101
Straight socket connector height 4.55 mm, solder tail, double row, polarised
AVAIL ABILIT Y FROM
26 and 44 contacts
Other pin number on request
831-
PP
-
NNN
-20-001101
Right angle socket connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-20-001101
Right angle socket connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
60
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.66 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors right angle, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-20-001101 for a double row version with 16 pins
becomes 833-87-
016
-20-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
61
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.56 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, SMD perpendicular mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-30-001101 for a double row version with 16 pins
becomes 833-87-
016
-30-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
831-
PP
-
NNN
-30-001101
SMD socket connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
833-
PP
-
NNN
-30-001101
SMD socket connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
831-
PP
-
NNN
-30-242101
SMD socket connector, single row, perpendicular mount, polarised
AVAIL ABILIT Y
22
contacts
Other pin number on request
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
833-
PP
-
NNN
-30-245101
SMD socket connector, double row, perpendicular mount, polarised
AVAIL ABILIT Y FROM
26 and 44 contacts
Other pin number on request
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
837-83-
NNN
-30-291101

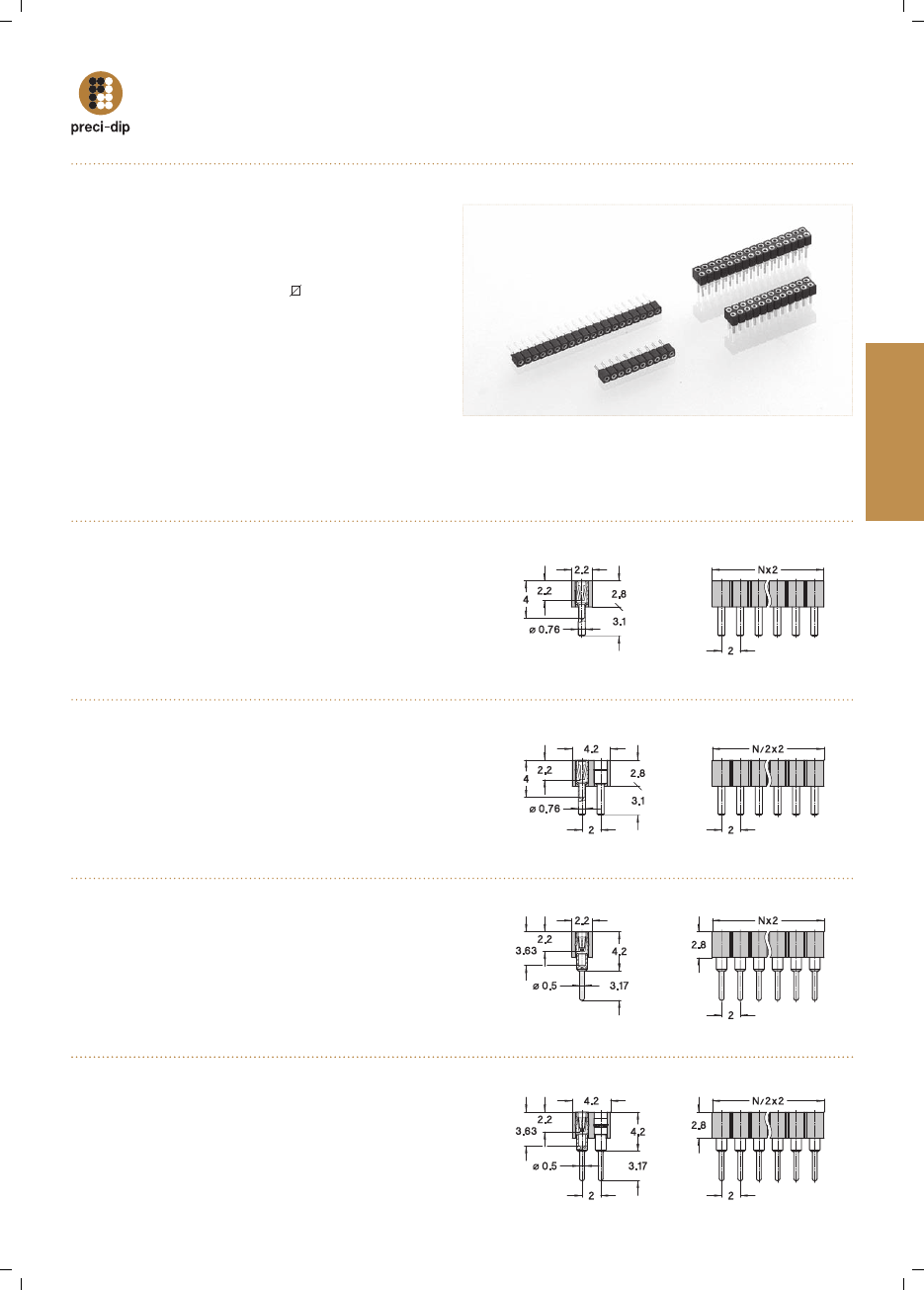

SMD socket connector, 4 row, perpendicular mount, floating pin
AVAIL ABILIT Y
72 and 200 contacts
Other pin number on request
831-
PP
-
NNN
-40-001101
SMD socket connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
62
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
(PCT-GF30-FR for 837...30-291101)
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.66 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 831-87-
NNN
-40-001101 for a single row version with 16 pins
becomes 831-87-
016
-40-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2 mm
SINGLE ROW / QUAD ROW / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / PRESS-FIT
63
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.40 to 0.66 mm,
0.50 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
0.7 +0.07/-0.05 mm finished (0.8 ±0.025 mm drill)
For corresponding pin connectors, see pages 64-68.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
"Hard metric" PCB socket connectors, solderless press-fit mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 833-87-
NNN
-64-001101 for a double row version with 16 pins
becomes 833-87-
016
-64-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
831-
PP
-
NNN
-64-001101
Press-fit socket connector, single row, compliant pin
for PCB thickness 1.5 to 2 mm
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
833-
PP
-
NNN
-64-001101
Press-fit socket connector, double row, compliant pin
for PCB thickness 1.5 to 2 mm
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
831-
PP
-
NNN
-64-242101
Press-fit socket connector polarised, single row, compliant pin
for PCB thickness 1.5 to 2 mm
AVAIL ABILIT Y
22
contacts
Other pin number on request
833-
PP
-
NNN
-64-245101
Press-fit socket connector polarised, double row, compliant pin
for PCB thickness 1.5 to 2 mm
AVAIL ABILIT Y
26 and 44 contacts
Other pin number on request
830-
PP
-
NNN
-10-001101
Straight pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
832-
PP
-
NNN
-10-001101
Straight pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)

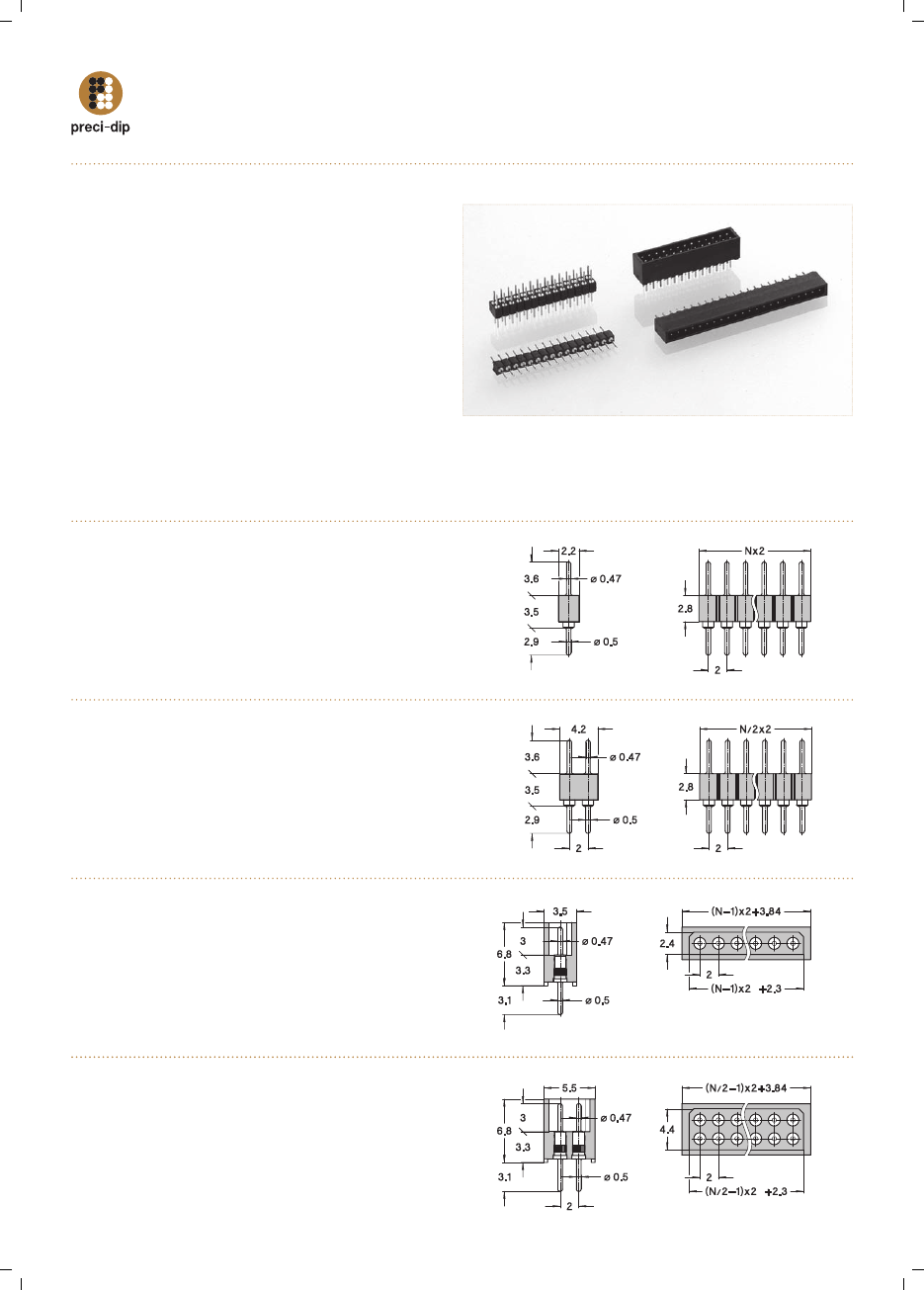

64
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
V3*
Tin
0.75 μm gold
*only for 830/832...12-002101 series
"Hard metric" PCB pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 830-10-
NNN
-10-001101 for a single row version with 8 pins becomes
830-10-
008
-10-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
830-V3-
NNN
-12-002101
Straight pin connector, solder tail, single row, shrouded and polarised
AVAIL ABILIT Y
22
contacts
Other pin number on request
832-V3-
NNN
-12-002101
Straight pin connector, solder tail, double row, shrouded and polarised
AVAIL ABILIT Y
26 and 44 contacts
Other pin number on request
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
65
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
V3*
Tin
0.75 μm gold
*only for 830/832...22-002101 series
"Hard metric" PCB pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 830-10-
NNN
-20-001101 for a single row version with 8 pins becomes
830-10-
008
-20-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
830-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
832-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
830-V3-
NNN
-22-002101
Right angle pin connector, solder tail, single row, shrouded and polarised
AVAIL ABILIT Y
22
contacts
Other pin number on request
832-V3-
NNN
-22-002101
Right angle pin connector, solder tail, double row, shrouded and polarised
AVAIL ABILIT Y
26 and 44 contacts
Other pin number on request
830-
PP
-
NNN
-30-001101
SMD pin connector, single row, perpendicular mount
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
832-
PP
-
NNN
-30-001101
SMD pin connector, double row, perpendicular mount
AVAIL ABILIT Y FROM
4 to 100 contacts
(Standard number of contacts: 100)
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
66
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
V3*
Tin
0.75 μm gold
*only for 830/832...32-002101 series
"Hard metric" PCB pin connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 830-10-
NNN
-30-001101 for a single row version with 8 pins becomes
830-10-
008
-30-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2 mm
SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
830-V3-
NNN
-32-002101
SMD pin connector, single row, perpendicular mount, shrouded and polarised
AVAIL ABILIT Y
22
contacts
Other pin number on request
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
832-V3-
NNN
-32-002101
SMD pin connector, double row, perpendicular mount, shrouded
and polarised
AVAIL ABILIT Y
26 and 44 contacts
Other pin number on request
For connectors having more than 12 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2 mm
SINGLE ROW / SURFACE MOUNT
67
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polymer LCP-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin Tin
"Hard metric" PCB pin connectors, SMD mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 830-10-
NNN
-40-001101 for a single row version with 8 pins becomes
830-10-
008
-40-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
830-
PP
-
NNN
-40-001101
SMD pin connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 12 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
880-70-
NNN
-10-001101
Straight square pin header, solder tail, single row
AVAIL ABILIT Y FROM
2 to 40 contacts
(standard number of contacts: 40)
882-70-
NNN
-10-001101
Straight square pin header, solder tail, double row
AVAIL ABILIT Y FROM
4 to 80 contacts
(standard number of contacts: 80)
68
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyamide PA-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass
CONNECTING PIN
0.5 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 500 V
RMS
For corresponding socket connectors, see pages 57-63.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
70
Flash gold
Flash gold
Square pin headers, solder tail.
See page 178 for plating specs.
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 880-70-
NNN
-10-001101 for a single row version with 8 pins becomes
880-70-
008
-10-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2 mm
SQUARE PIN
0.5 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
880-70-
NNN
-20-001101
Right angle square pin header, solder tail, single row
AVAIL ABILIT Y FROM
2 to 40 contacts
(standard number of contacts: 40)
882-70-
NNN
-20-001101
Right angle square pin header, solder tail, double row
AVAIL ABILIT Y FROM
4 to 80 contacts
(standard number of contacts: 80)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

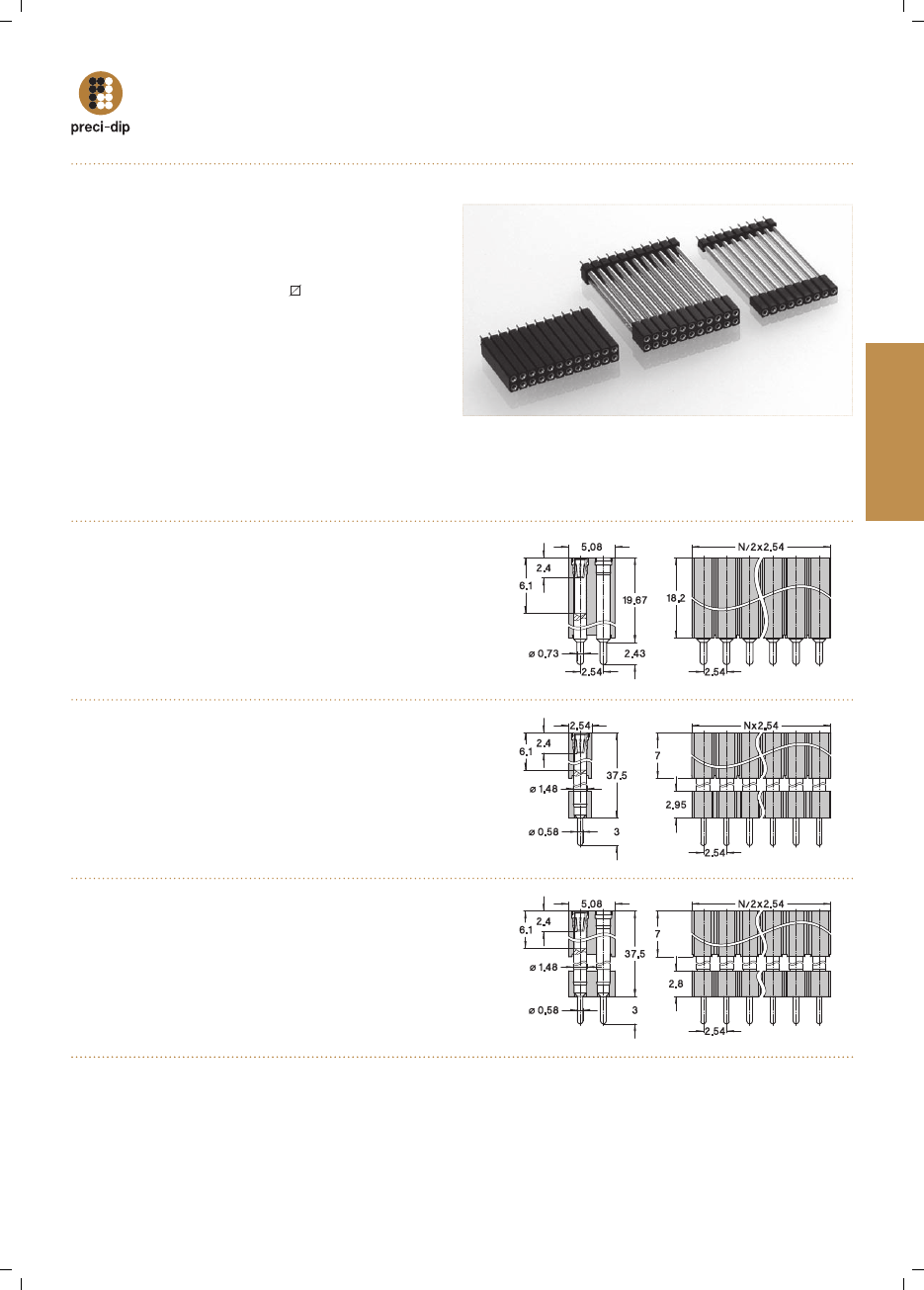

SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
69
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.52 mm
FORCES
3 N typ. insertion
1.5 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin Flash
gold
83 Tin 0.75
μm
gold

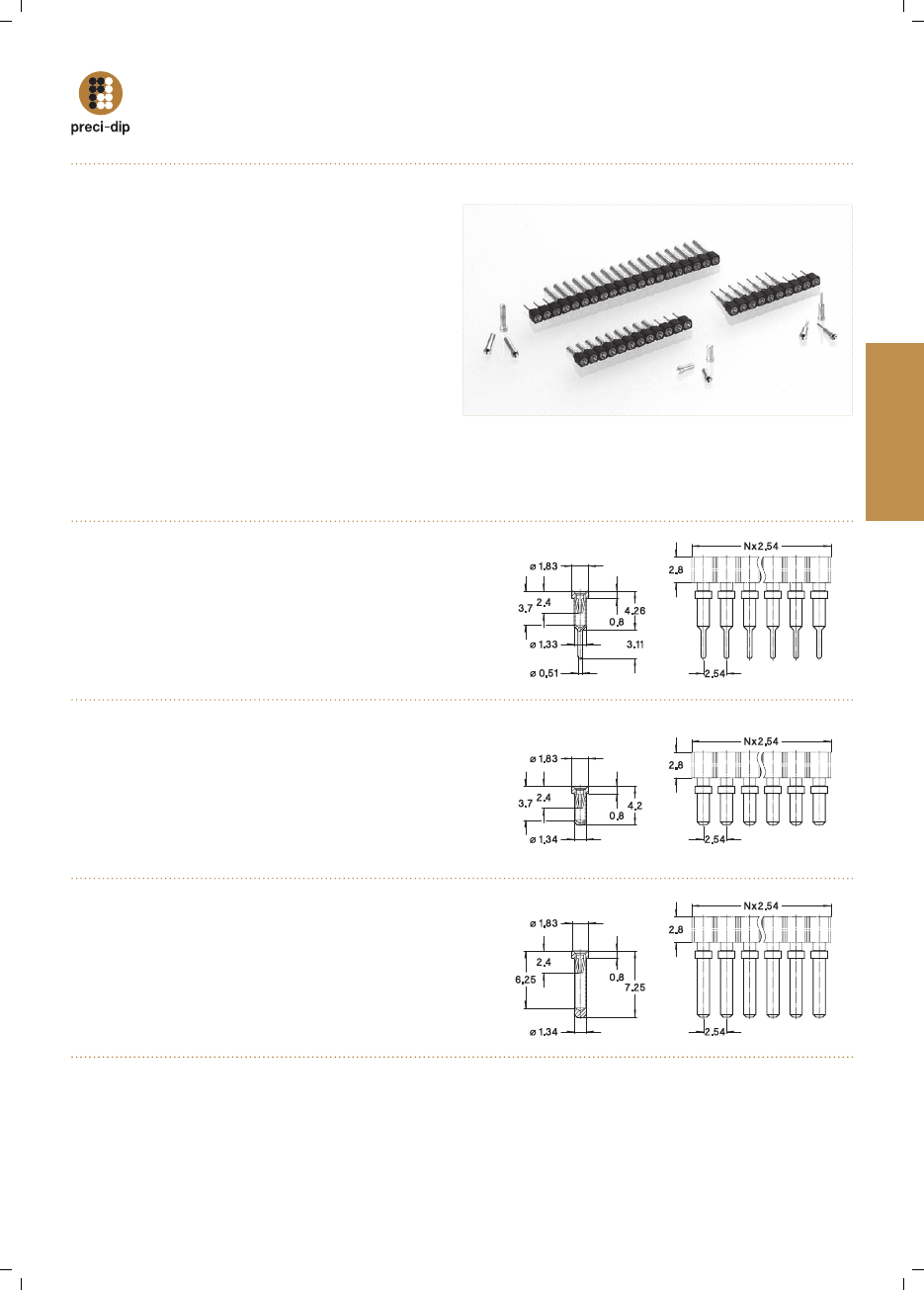

Ultralow and very low profile socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 415-83-2
NN
-41-001101 for a double row version with 16 pins
becomes 415-83-2
16
-41-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.

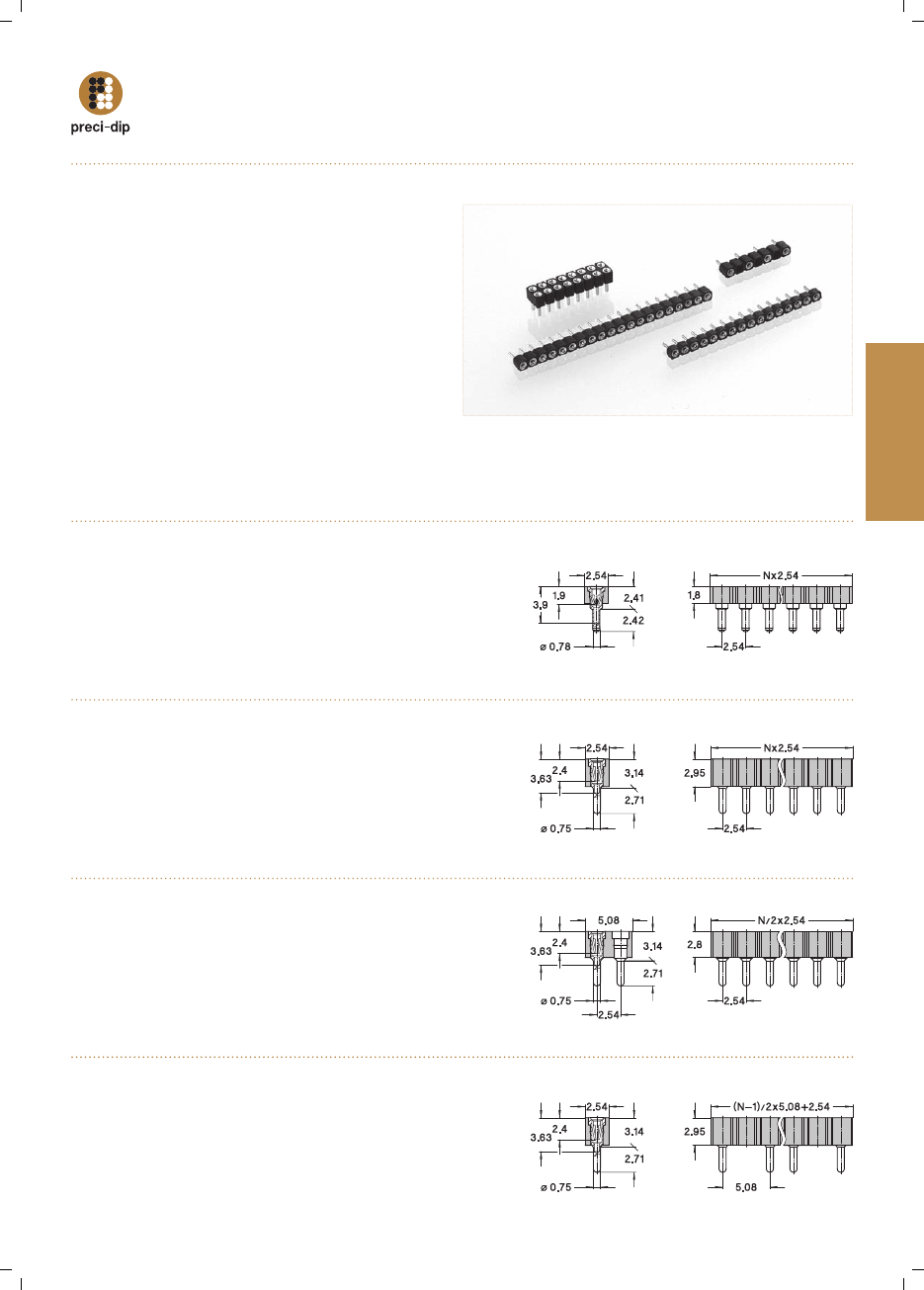

315-
PP
-1
NN
-41-003101

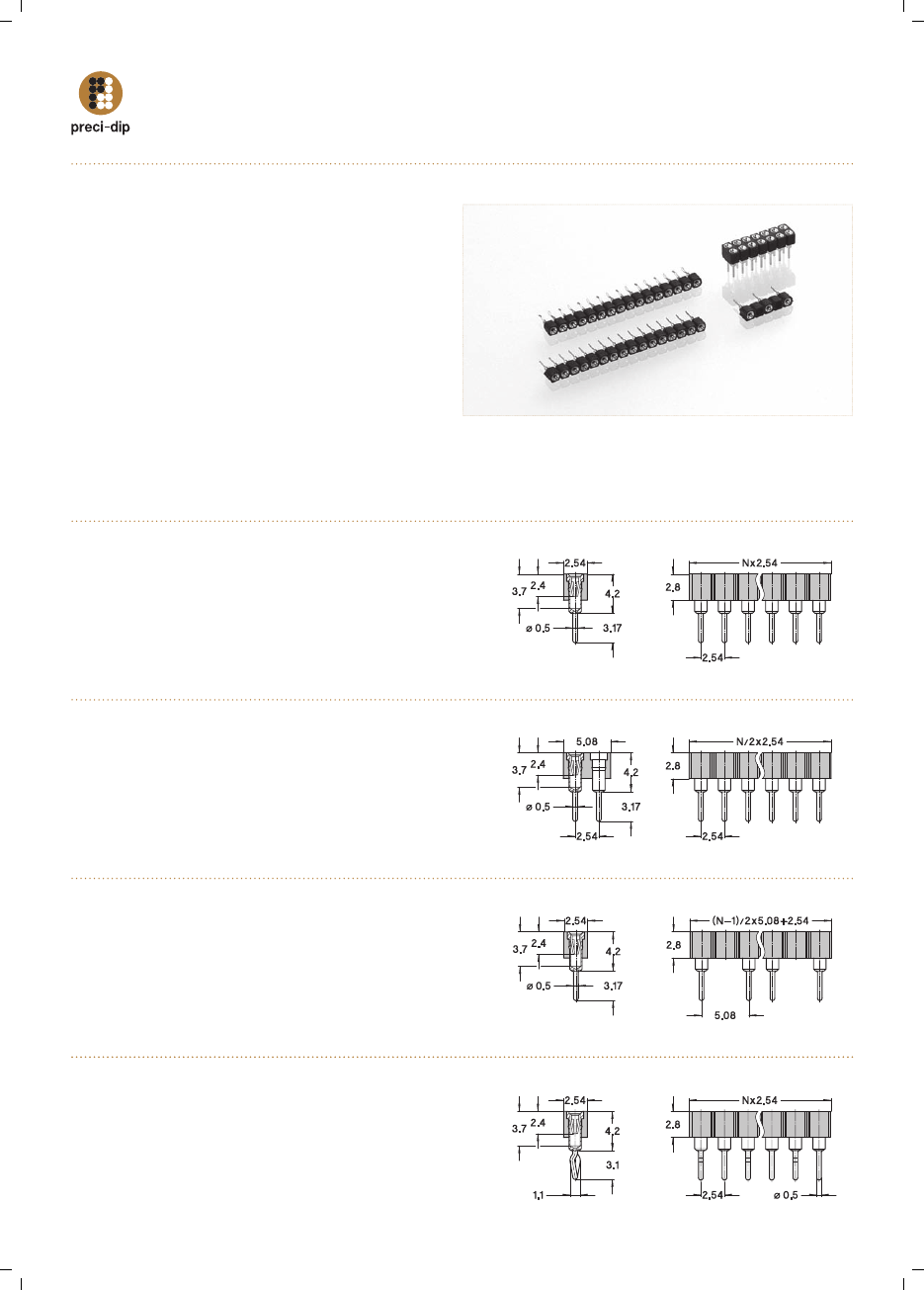

Straight socket connector ultralow profile, height 2.4 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Please note: ultralow version not available as double row
315-
PP
-1
NN
-41-001101
Straight socket connector very low profile, height 3.14 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
415-
PP
-2
NN
-41-001101
Straight socket connector very low profile, height 3.14 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
Please note: ultralow version not available as double row
315-
PP
-1
YY
-01-881101
Straight socket connector very low profile, height 3.14 mm, partially
equipped 5.08 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 32 contacts
YY number of poles:
please consult for ordering code
310-
PP
-1
NN
-41-001101
Straight socket connector height 4.2 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
410-
PP
-2
NN
-41-001101
Straight socket connector height 4.2 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
70
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see page 45.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connector strips, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 410-83-2
NN
-41-001101 for a double row version with 16 pins
becomes 410-83-2
16
-41-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
310-
PP
-1
YY
-01-609101
Straight socket connector height 4.2 mm, solder tail, single row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YY number of poles:
please consult for ordering code
310-
PP
-1
NN
-01-666101
Straight socket connector height 4.2 mm, with clinched (right/left)
solder tails, single row
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
71
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, long solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 411-83-2
NN
-41-001101 for a double row version with 16 pins
becomes 411-83-2
16
-41-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
311-
PP
-1
NN
-41-001101

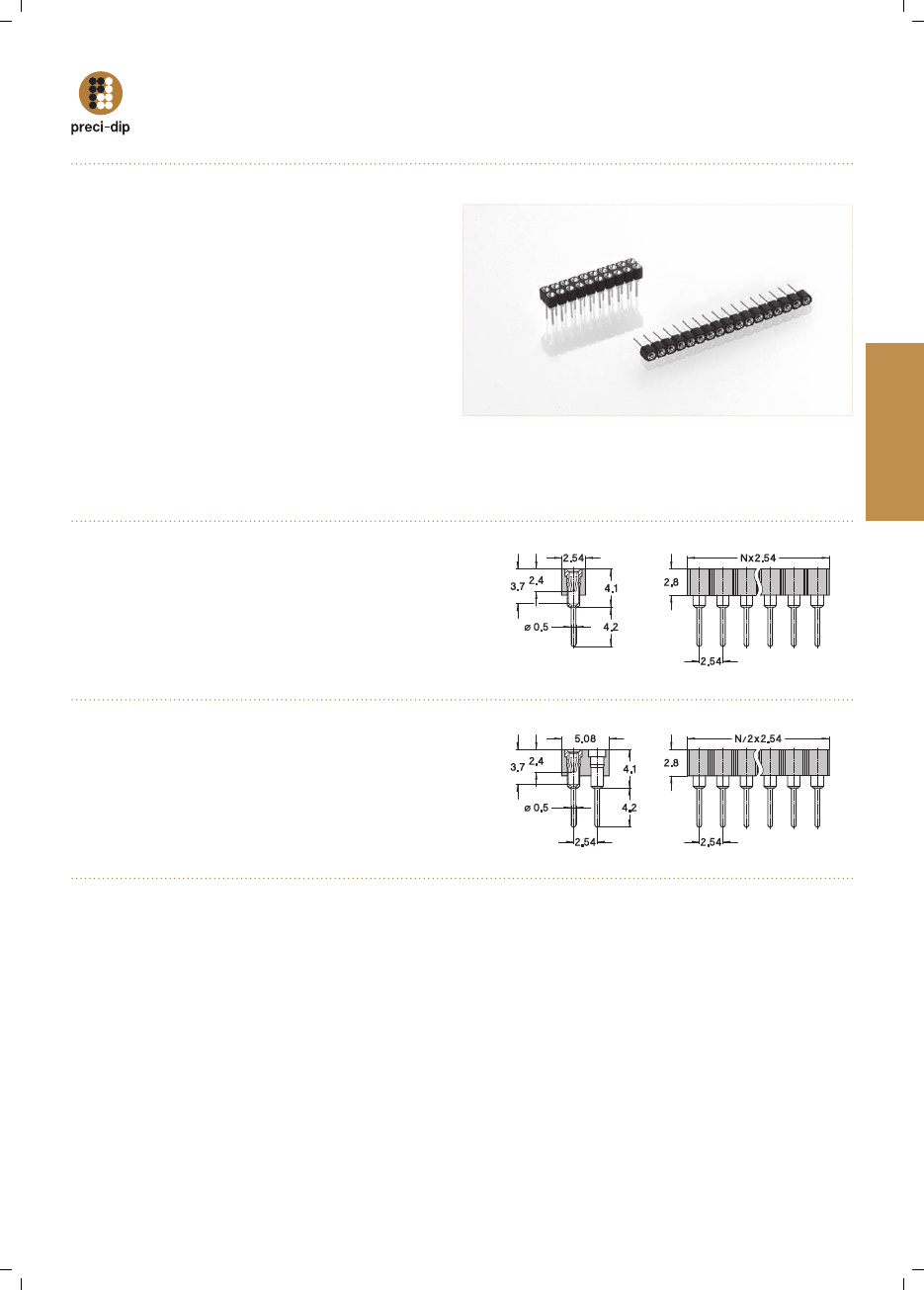

Straight socket connector height 4.1 mm, long solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
411-
PP
-2
NN
-41-001101
Straight socket connector height 4.1 mm, long solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
310-
PP
-1
NN
-01-640101
Straight socket connector height 4.2 mm, solder tail, single row,
with standoff
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
410-
PP
-2
NN
-01-640101
Straight socket connector height 4.2 mm, solder tail, double row,
with standoff
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
72
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200))
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see page 45.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail with standoff.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested nu.mber of poles,
e.g. 410-83-2
NN
-01-640101 for a double row version with 16 pins
becomes 410-83-2
16
-01-640101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.

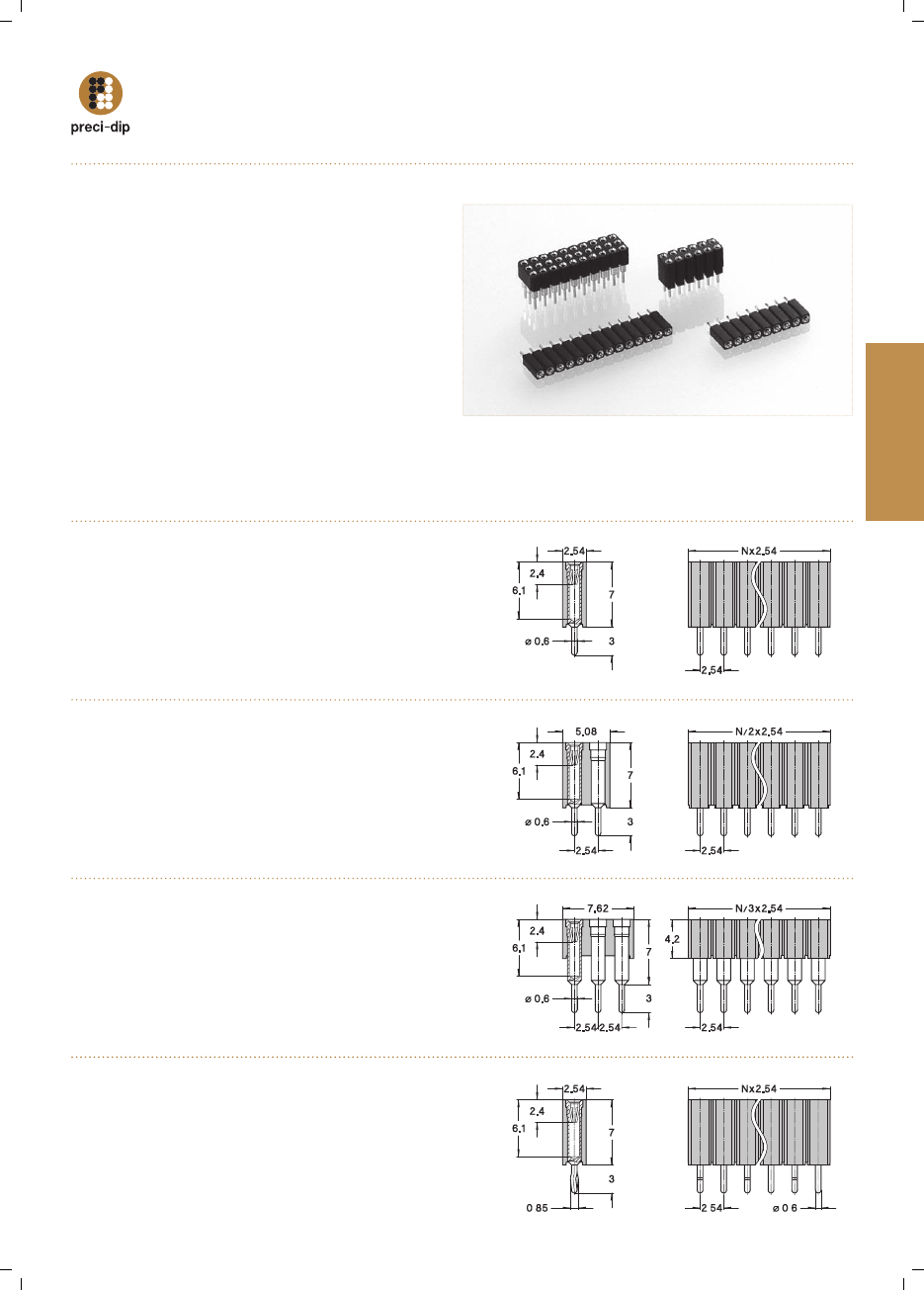

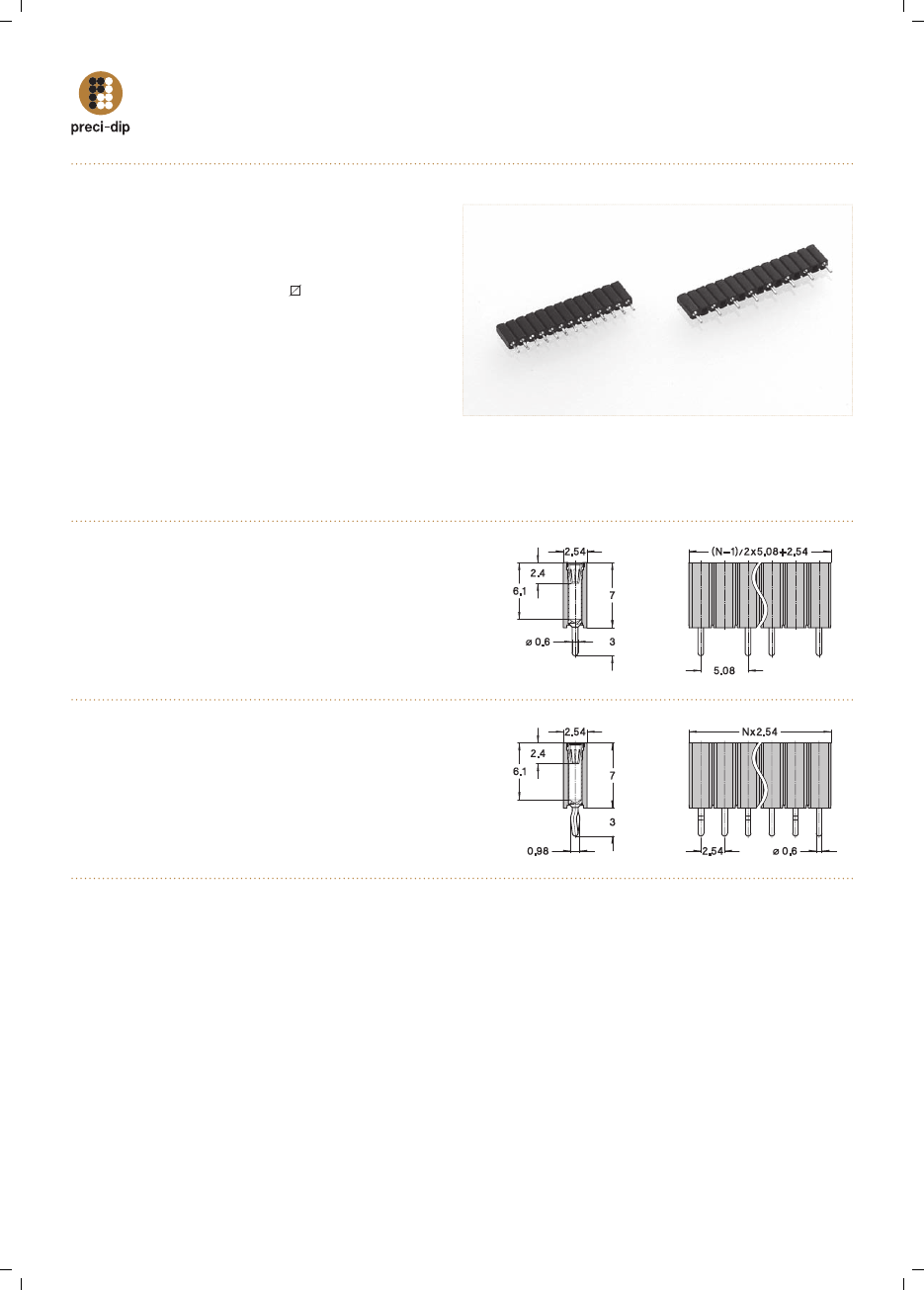

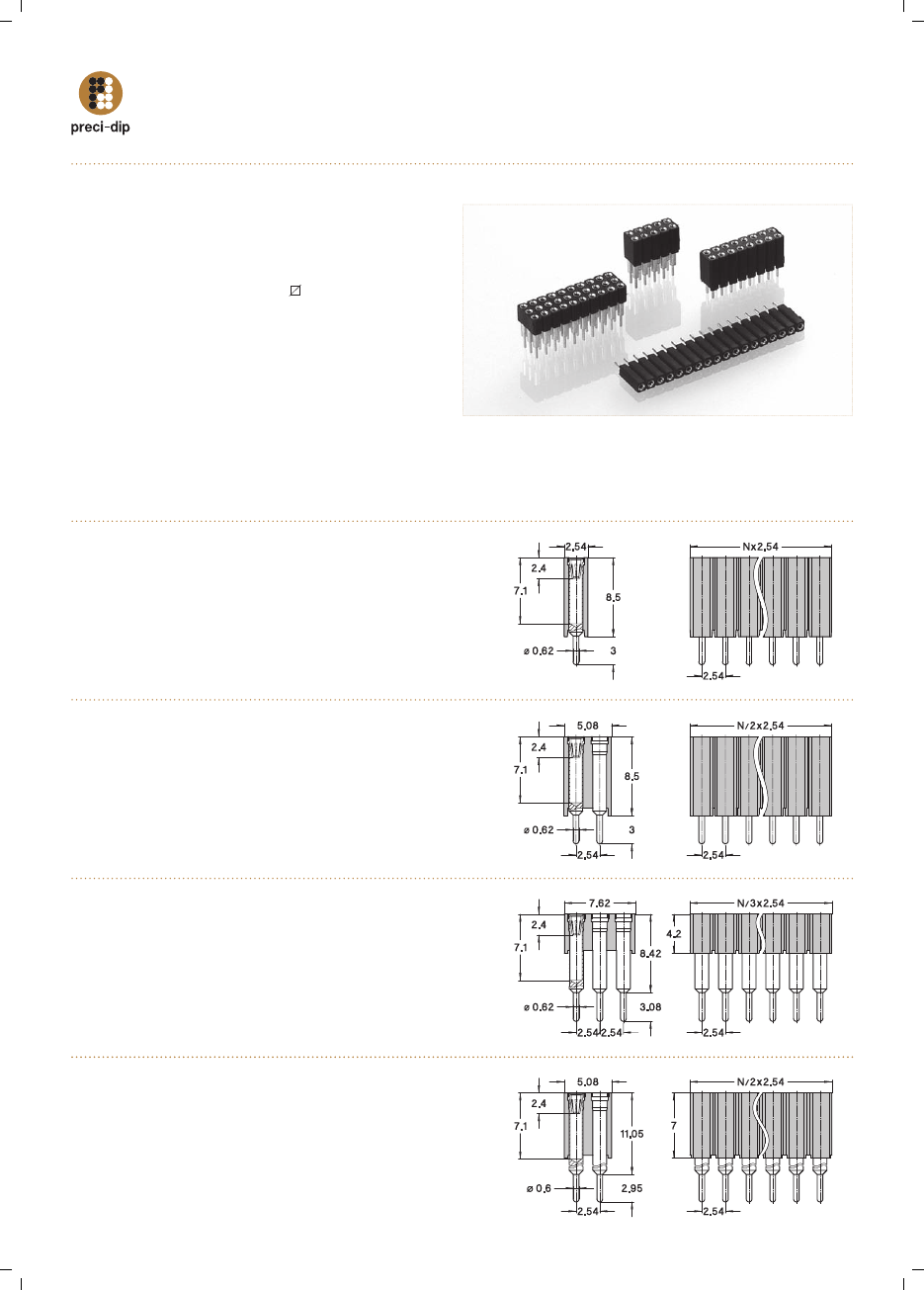

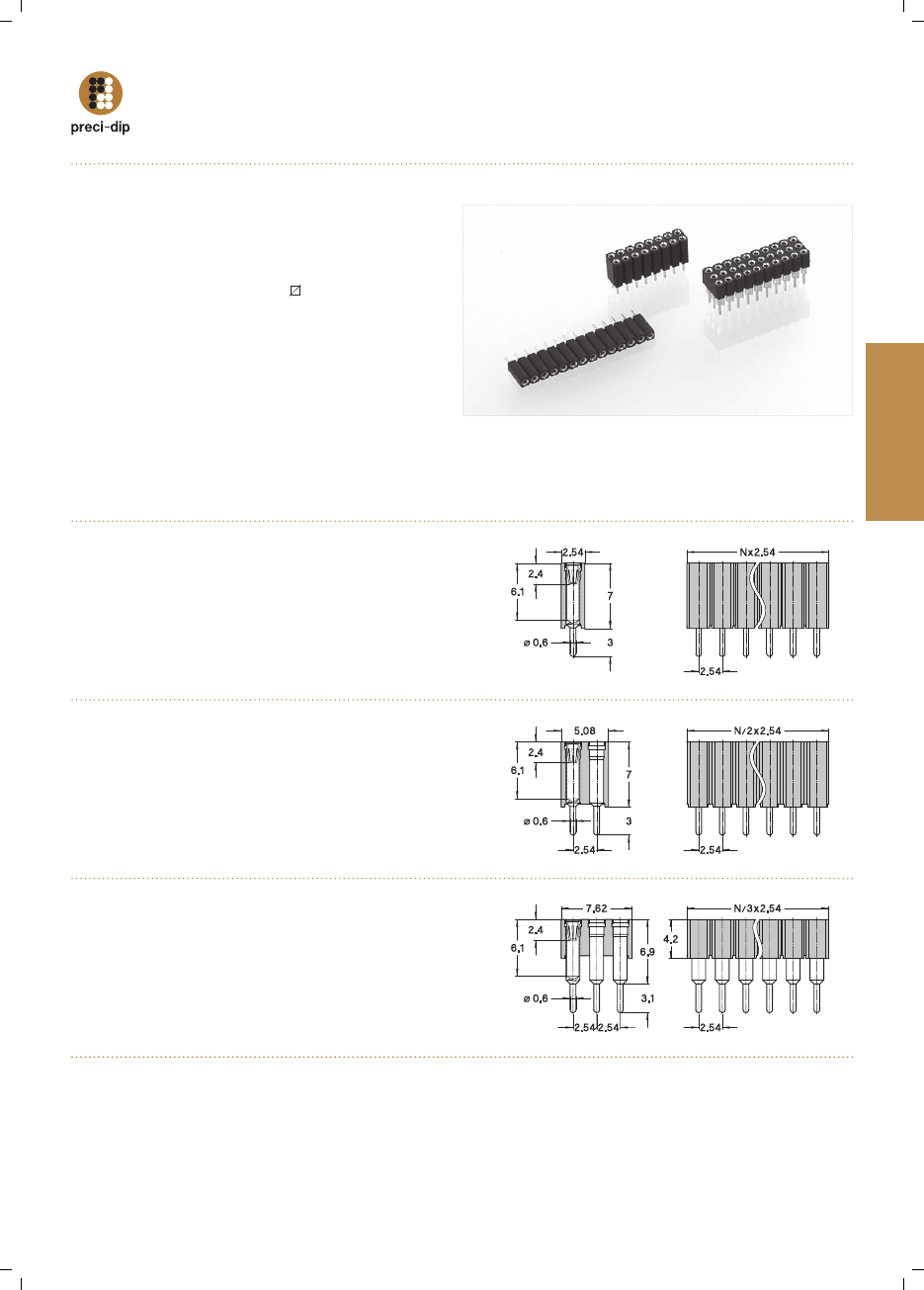

SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
410-
PP
-3
NN
-01-640101
Straight socket connector height 4.2 mm: solder tail, triple row,
with standoff
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
310-
PP
-1
NN
-01-754101
Straight socket connector height 4.2 mm, with clinched (right/left)
solder tails, single row, with standoff
AVAIL ABILIT Y FROM
3 to 32 contacts
(standard number of contacts 32):
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / DOUBLE ROW / SOLDER TAIL
73
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.36 to 0.46 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.

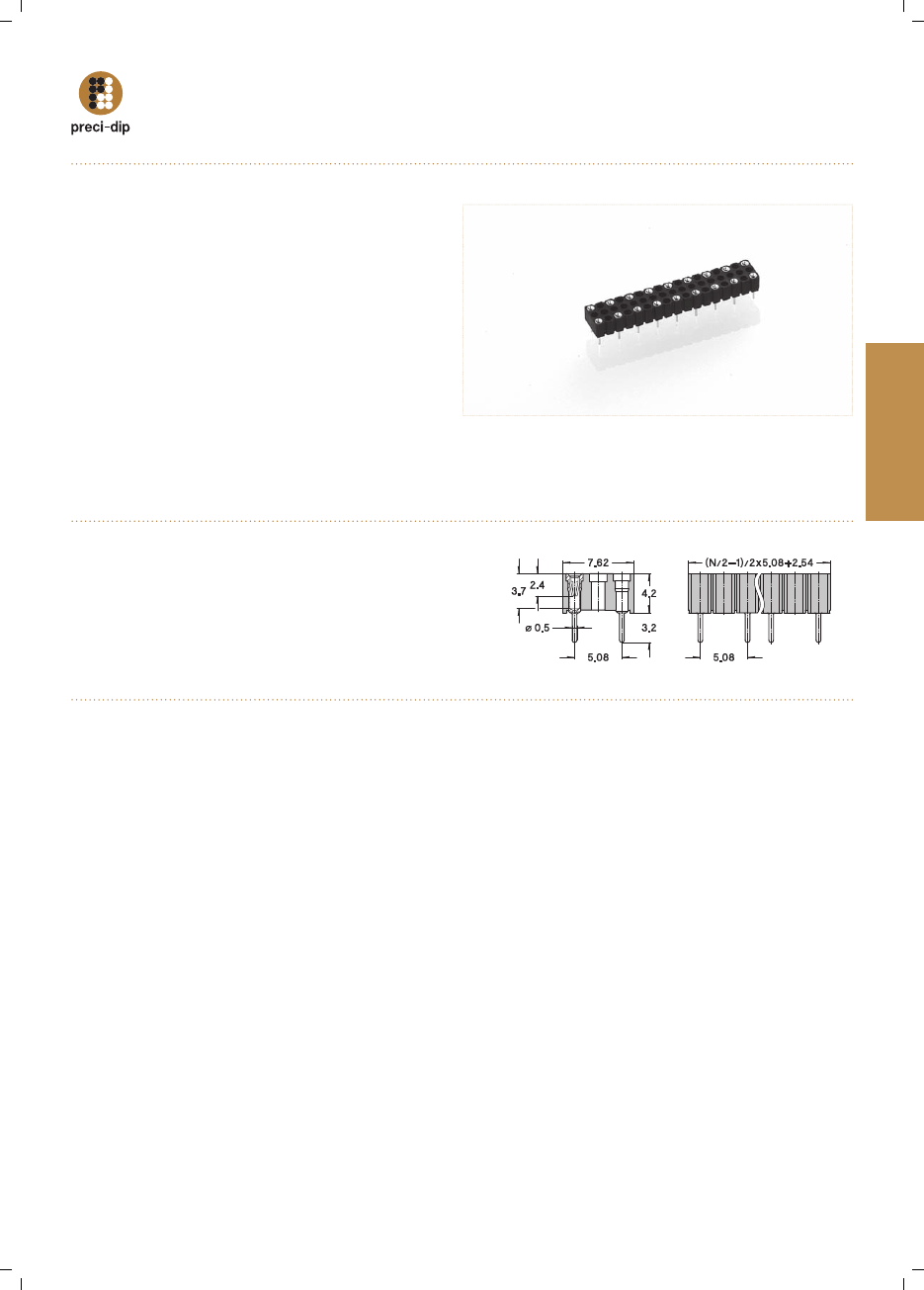

805-
PP
-
YYY
-10-229101
Straight socket connector height 4.2 mm. solder tail, double row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
4 to 32 contacts
YYY number of poles:
please consult for ordering code
316-
PP
-1
NN
-41-XXX101
Interconnect socket strip, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
416-
PP
-2
NN
-41-XXX101
Interconnect socket strip, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
74
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Interconnect socket strips, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 416-83-2
NN
-41-007101 for a double row version with 16 pins
becomes 416-83-2
16
-41-007101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
AVAILABLE CONTACT LENGTHS
CONTACT LENGTH
CONTACT DIAMETER
X X X CODE
L1 (mm)
L2 (mm)
D1 (mm)
D2 (mm)
6 4.2 1 0.51
006
7 4.2 1 0.51
018
8 4.2 1 0.51
003
9 4.85
1 0.46
012
10 4.2 1 0.51
007
11 4.2 0.85
0.51
002
12 4.2 1 0.51
008
13 4.2 1 0.51
009
15 4.2 1 0.51
001
18 4.2 1 0.51
011
22 4.2 1 0.51
004
33 4.2 1.18
0.51
013
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
75
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-83-
NNN
-10-132101 for a double row version with 16 pins
becomes 803-83-
016
-10-132101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.

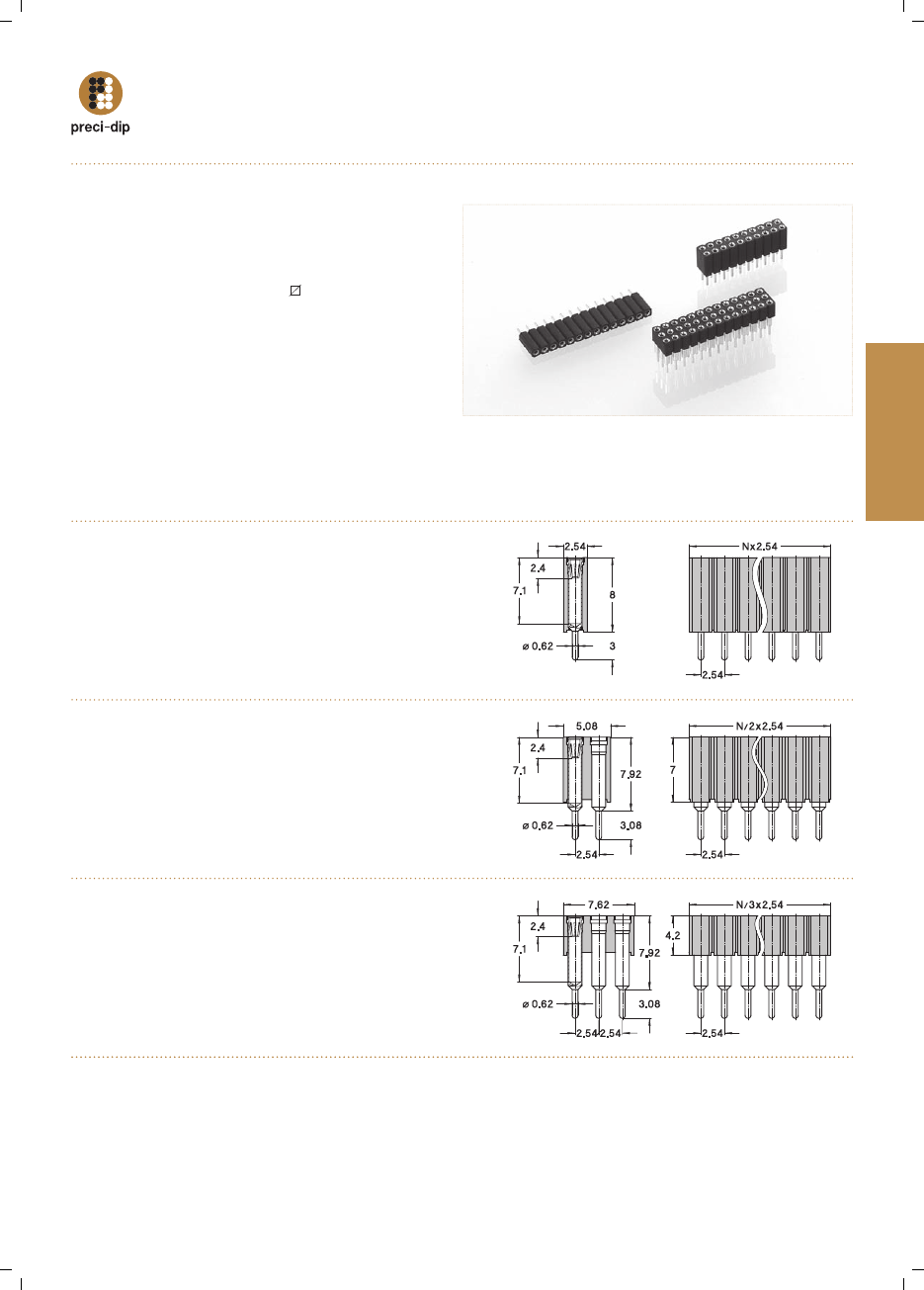

801-
PP
-
NNN
-10-132101
Straight socket connector height 7 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-10-132101
Straight socket connector height 7 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
805-
PP
-
NNN
-10-132101
Straight socket connector height 7 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
801-
PP
-
NNN
-10-173101
Straight socket connector height 7 mm, with clinched (right/left)
solder tails, single row
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
399-
PP
-1
NN
-10-003101

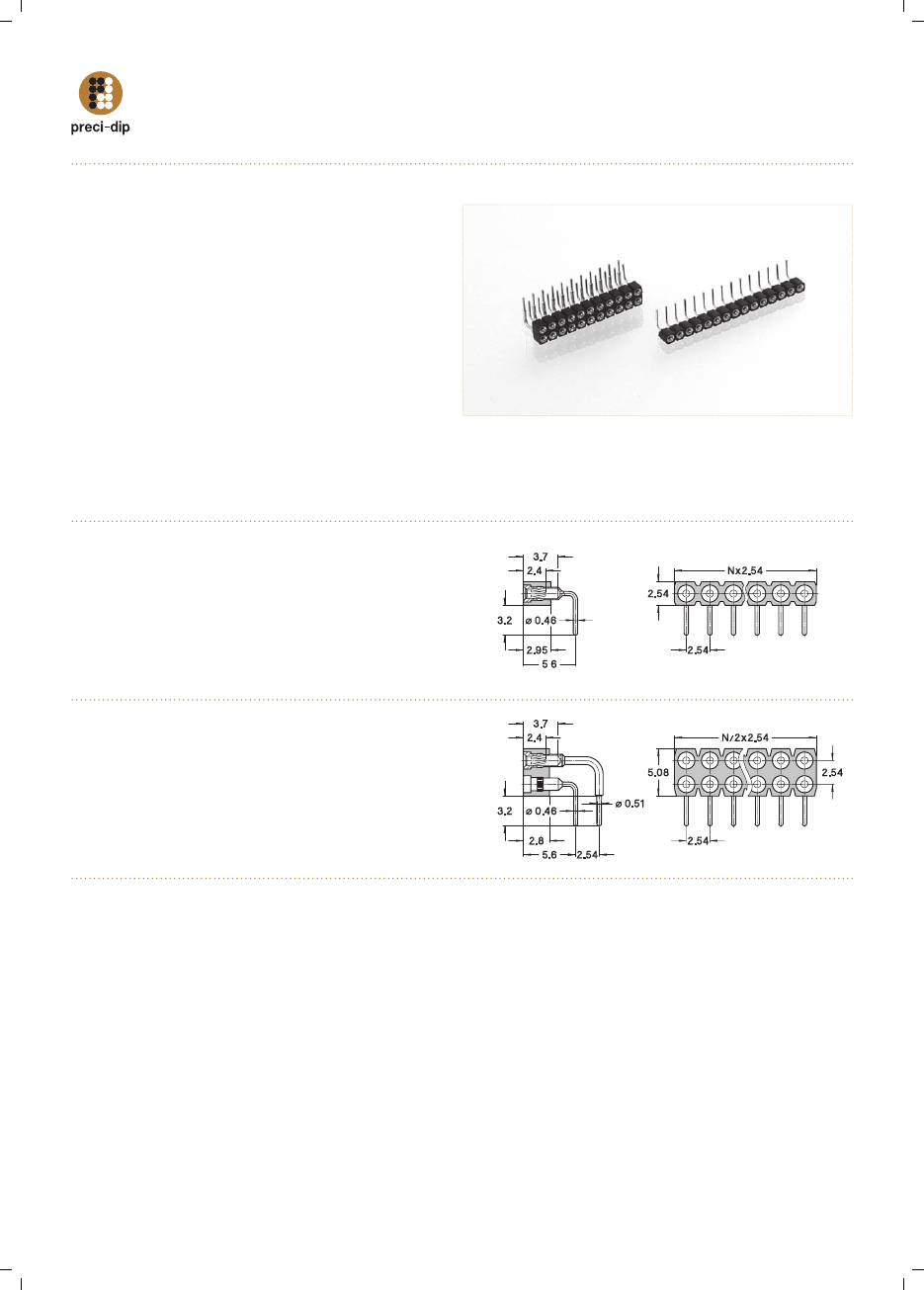

Right angle socket connector, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
499-
PP
-2
NN
-10-003101
Right angle socket connector, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts 72):
76
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Right angle socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 499-83-2
NN
-10-003101 for a double row version with 16 pins
becomes 499-83-2
16
-10-003101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT

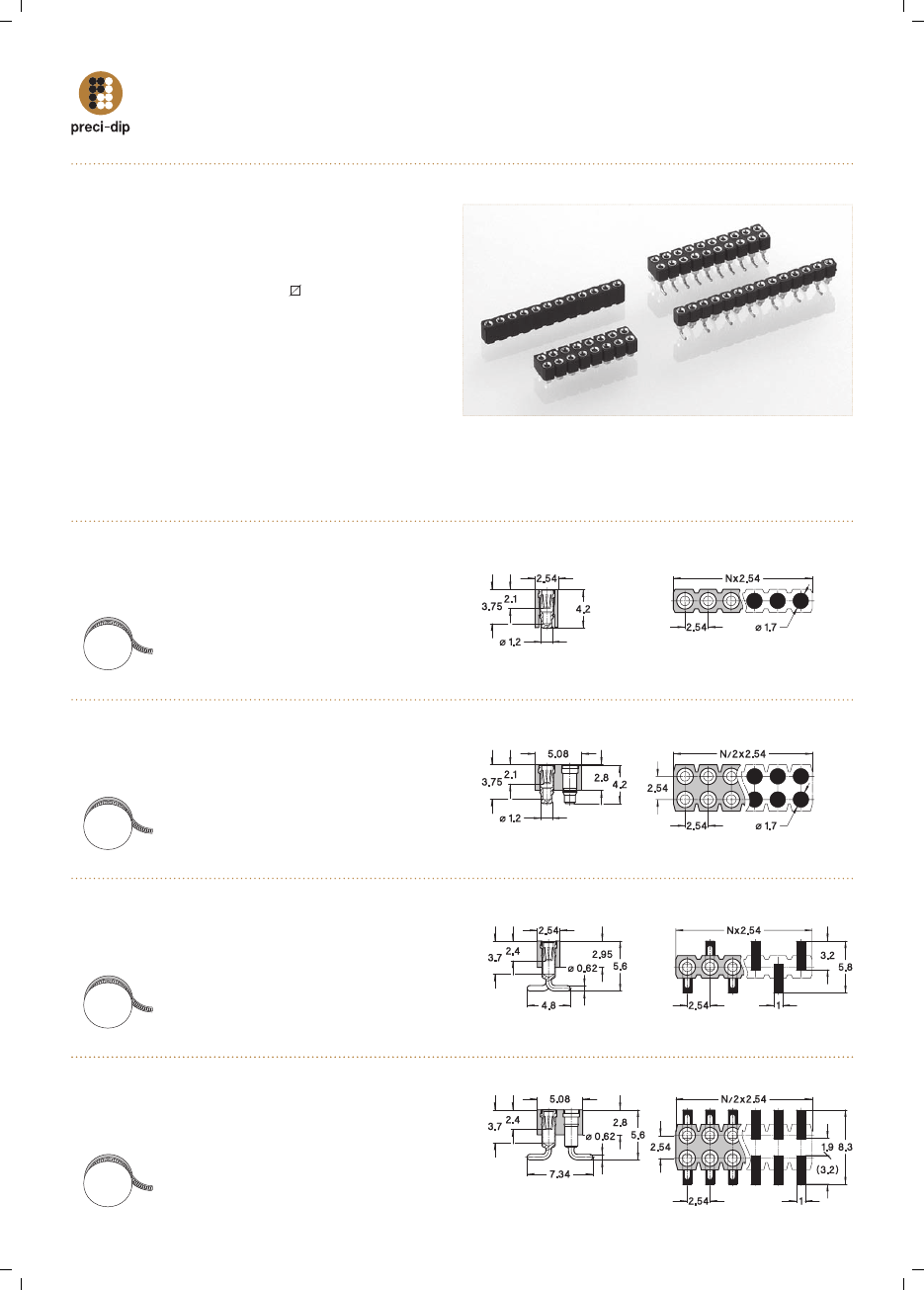

77
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, SMD perpendicular mount.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 410-87-2
NN
-41-105101 for a double row version with 16 pins
becomes 410-87-2
16
-41-105101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
314-
PP
-1
NN
-01-899101
SMD socket connector, low profile, single row, perpendicular mount
with self-levelling floating contacts
AVAIL ABILIT Y FROM
2 to 12 contacts
(standard number of contacts: 12)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
414-
PP
-2
NN
-41-134101
SMD socket connector, low profile, double row, perpendicular mount
with self-levelling floating contacts
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
310-
PP
-1
NN
-41-105101
SMD socket connector, single row, perpendicular mount
with gull-wing terminations
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
410-
PP
-2
NN
-41-105101
SMD socket connector, double row, perpendicular mount
with gull-wing terminations
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging

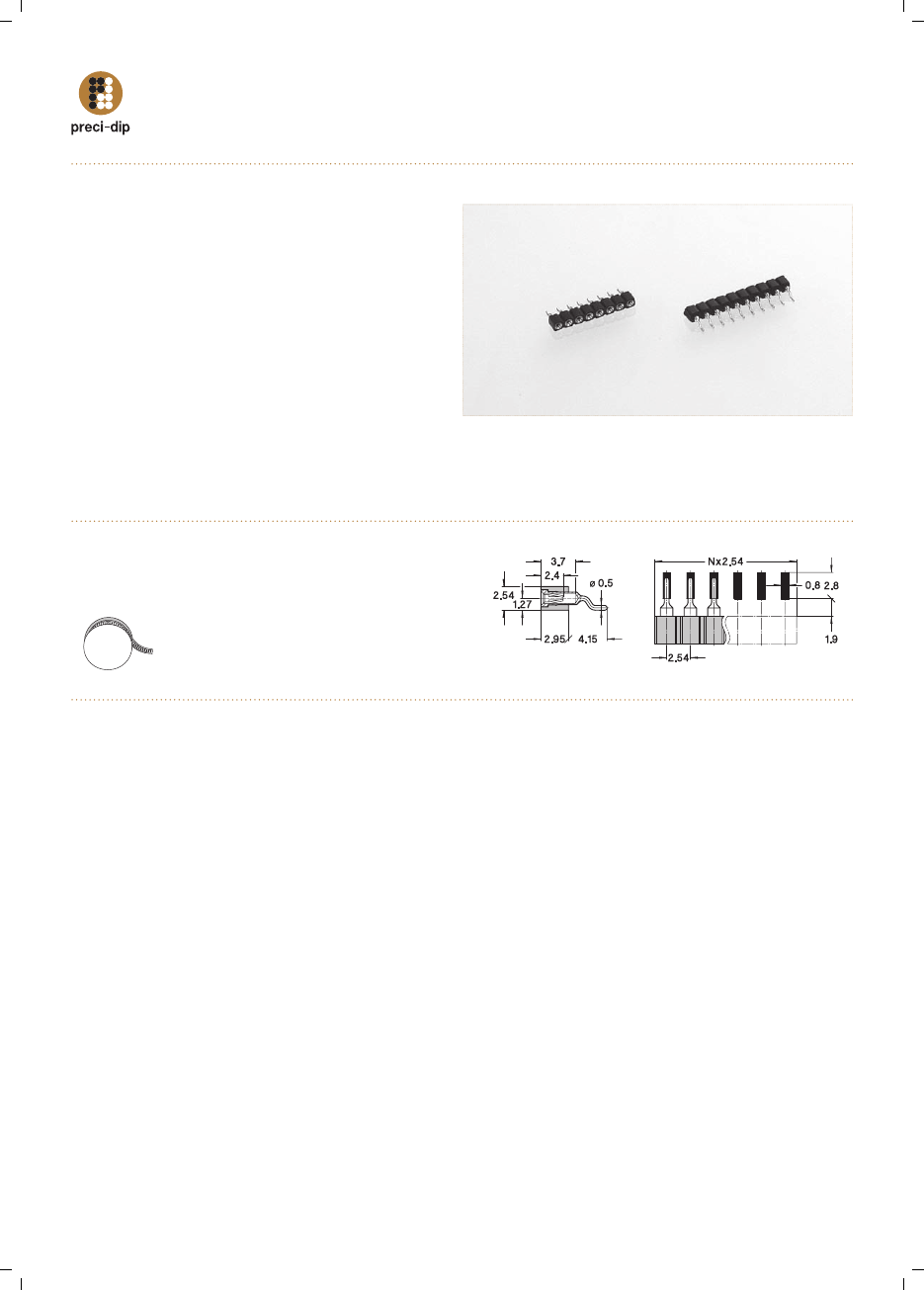

310-
PP
-1
NN
-41-205101
SMD socket connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
78
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, SMD parallel mount.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 310-87-1
NN
-41-205101 for a single row version with 8 pins becomes
310-87-1
08
-41-205101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

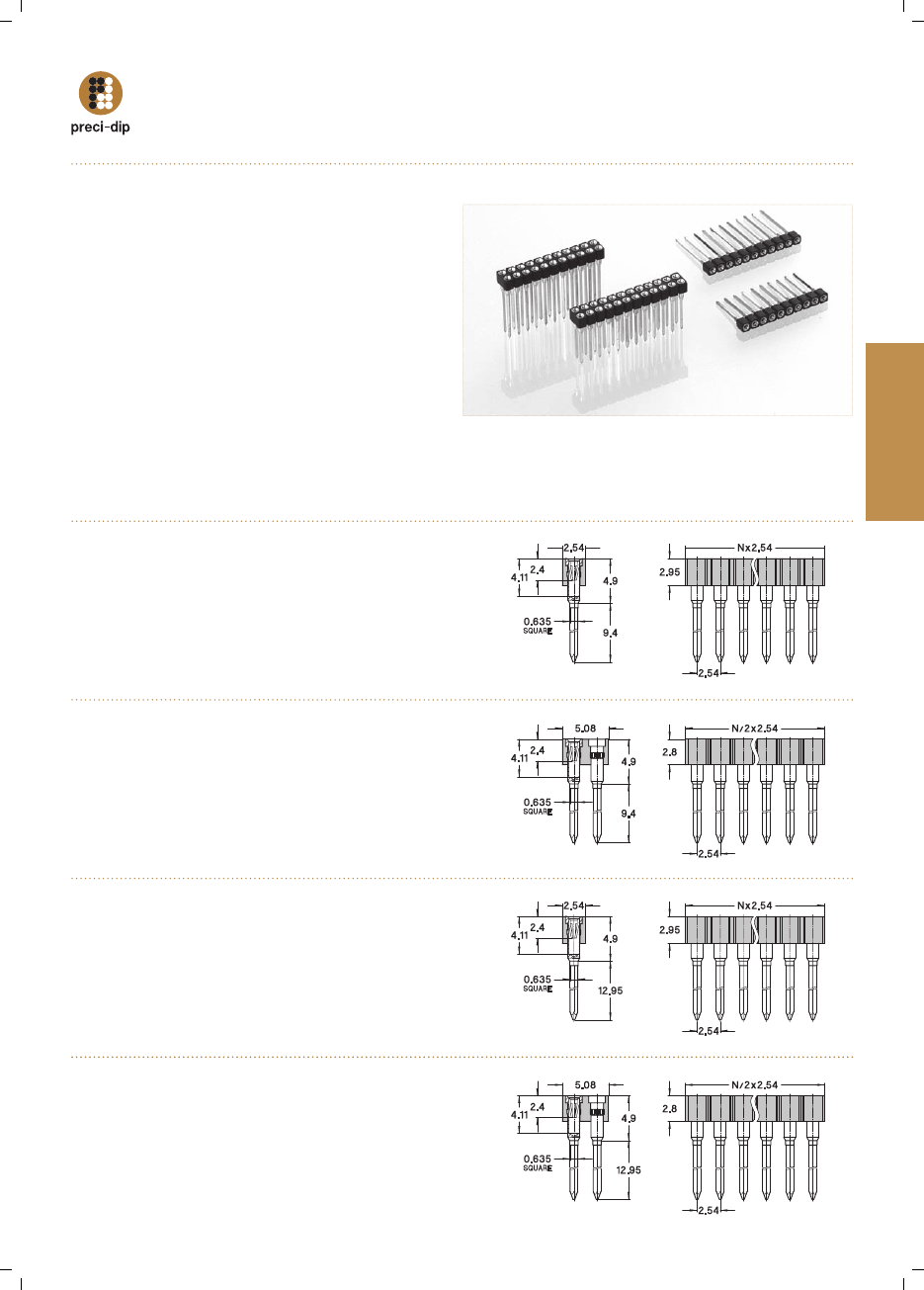

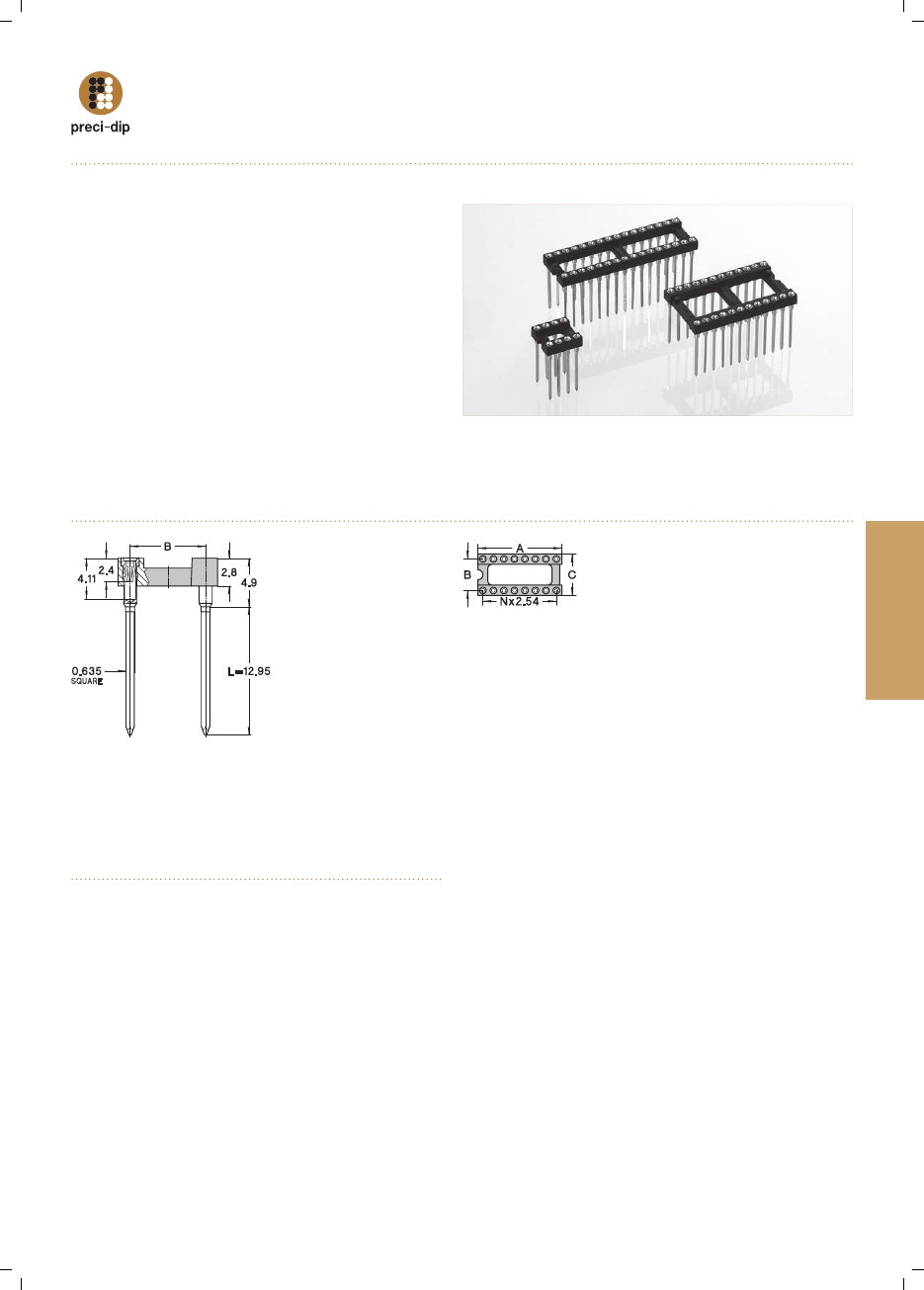

SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
79
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 346-83-1
NN
-41-036101 for a single row version with 8 pins becomes
346-83-1
08
-41-036101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
346-
PP
-1
NN
-41-036101
Press-fit socket connector, single row, compliant pin
for PCB thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
446-
PP
-2
NN
-41-036101
Press-fit socket connector,double row, compliant pin
for PCB thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
346-
PP
-1
NN
-41-035101
Press-fit socket connector,single row, compliant pin
for PCB thickness 2.1 to 3.2 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
446-
PP
-2
NN
-41-035101
Press-fit socket connector, double row, compliant pin
for PCB thickness 2.1 to 3.2 mm
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
801-
PP
-
NNN
-65-410101
Press-fit socket connector height 7 mm, single row, compliant pin
for PCB thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-65-410101
Press-fit receptacle socket height 7 mm, double row, compliant pin
for PCB thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)

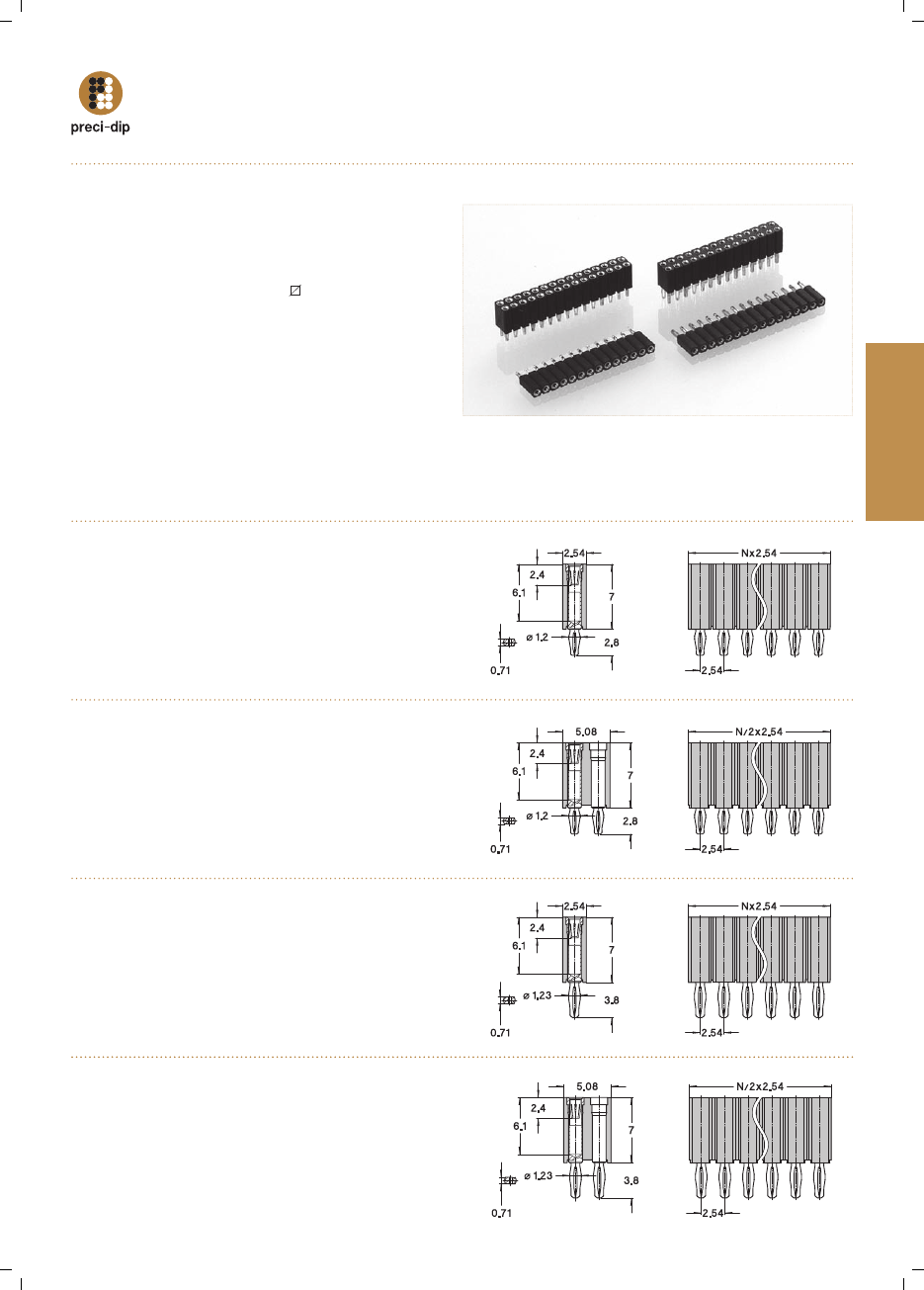

80
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-
NNN
-65-410101 for a single row version with 8 pins becomes
801-87-
008
-65-410101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / WIRE-WRAP
81
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors with wire-wrap terminations.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 422-83-2
NN
-41-001101 for a double row version with 16 pins
becomes 422-83-2
16
-41-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
322-
PP
-1
NN
-41-001101
Wire-wrap socket connector height 4.9 mm, 2-level, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
422-
PP
-2
NN
-41-001101
Wire-wrap socket connector height 4.9 mm, 2-level, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
323-
PP
-1
NN
-41-001101
Wire-wrap socket connector height 4.9 mm, 3-level, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
423-
PP
-2
NN
-41-001101
Wire-wrap socket connector height 4.9 mm, 3-level, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
326-83-1
NN
-41-
XXX
101
Wire-wrap socket connector with connecting pin, height 4.9 mm, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
426-83-2
NN
-41-
XXX
101
Wire-wrap socket connector with connecting pin, height 4.9 mm, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
82
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
83
Tin
0.75 μm gold
Socket connectors with wire-wrap terminations and connecting pin for board stacking.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 426-83-2
NN
-41-001101 for a double row version with 16 pins
becomes 426-83-2
16
-41-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / WIRE-WRAP
AVAILABLE CONTACT LENGTHS
CONTACT LENGTH L (mm)
WW-LEVEL
X X X CODE
5.9
1
001
8.9
2
002
11.9 3
003
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / CARRIER ASSEMBLIES
83
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold

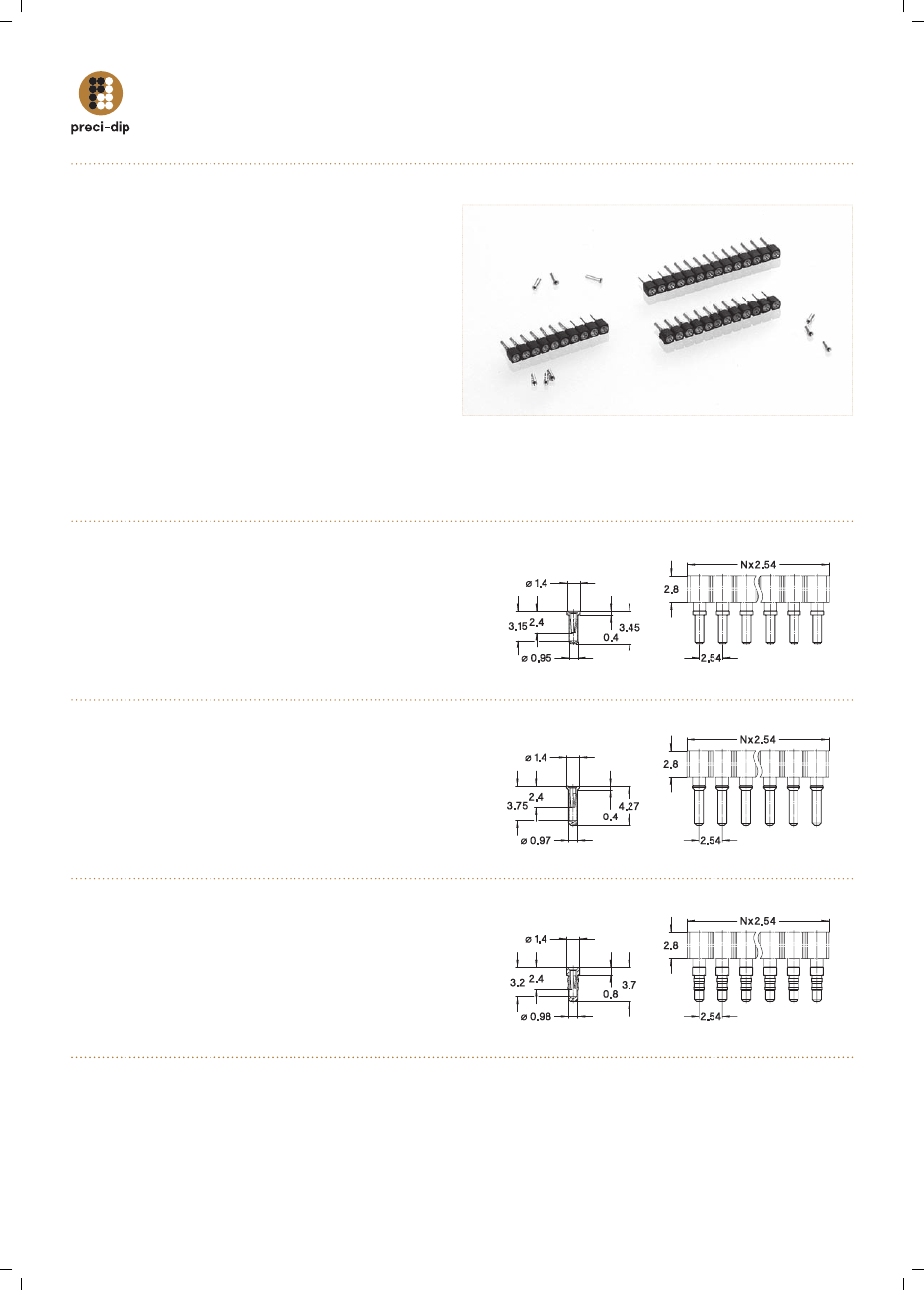

“Zero profile” socket connectors. Single socket contacts for solder mount into PCB, supplied on disposable carriers.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested nu.mber of poles,
e.g. 714-83-1
NN
-41-001101 for a single row version with 8 pins becomes
714-83-1
08
-41-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
712-
PP
-1
NN
-41-001101
Single row carrier with standard socket contact with solder tail
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
714-
PP
-1
NN
-41-001101
Single row carrier with low profile contact
for solder mount into PCB hole Ø 1.4-1.8 mm, PCB thickness 1 to 2.6 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
714-
PP
-1
NN
-41-014101
Single row carrier with low profile contact
for solder mount into PCB hole Ø 1.4-1.8 mm, PCB thickness 1 to 5 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
714-
PP
-1
NN
-31-012101
Single row carrier with ultra thin, low profile contact
or solder mount into PCB hole Ø 1-1.3 mm, PCB thickness 1 to 2.4 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
714-
PP
-1
NN
-31-018101
Single row carrier with ultra thin, low profile contact
for solder mount into PCB hole Ø 1-1.3 mm, PCB thickness 1 to 3.4 mm
AVAIL ABILIT Y FROM
to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
84
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.40 to 0.52 mm
FORCES
1 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
“Zero profile” socket connectors. Single socket contacts for solder and press-fit solderless mount into PCB, supplied on disposable carriers.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 714-83-1
NN
-31-018101 for a single row version with 8 pins becomes
714-83-1
08
-31-018101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / CARRIER ASSEMBLIES
714-
PP
-1
NN
-31-008101
Single row carrier with contacts for solderless press-fit mount into plated
trough PCB hole Ø 1.05 ±0.05 mm finished, PCB thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Double row, disposable carrier strips on request
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

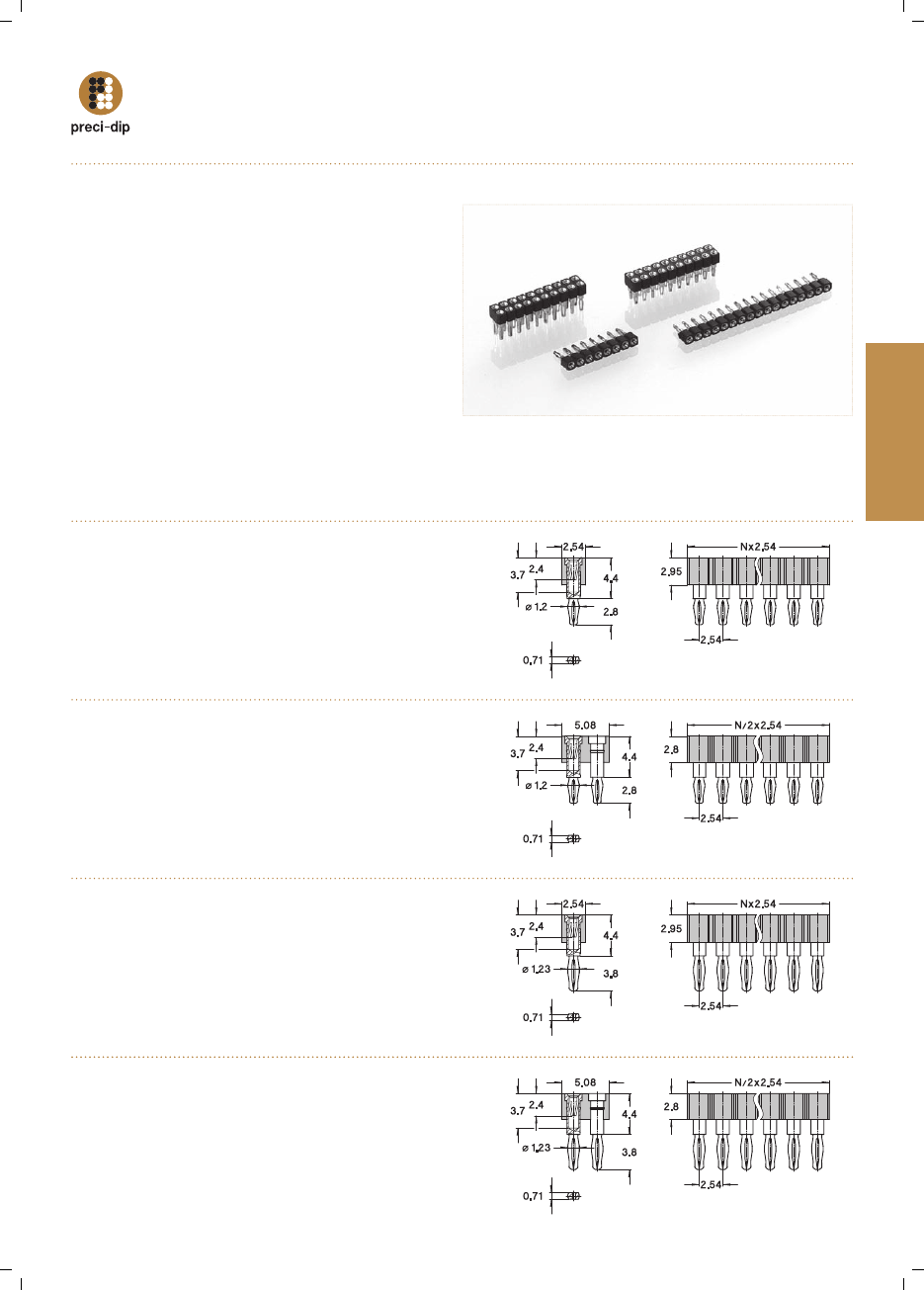

SOCKET CONNECTORS 2.54 mm

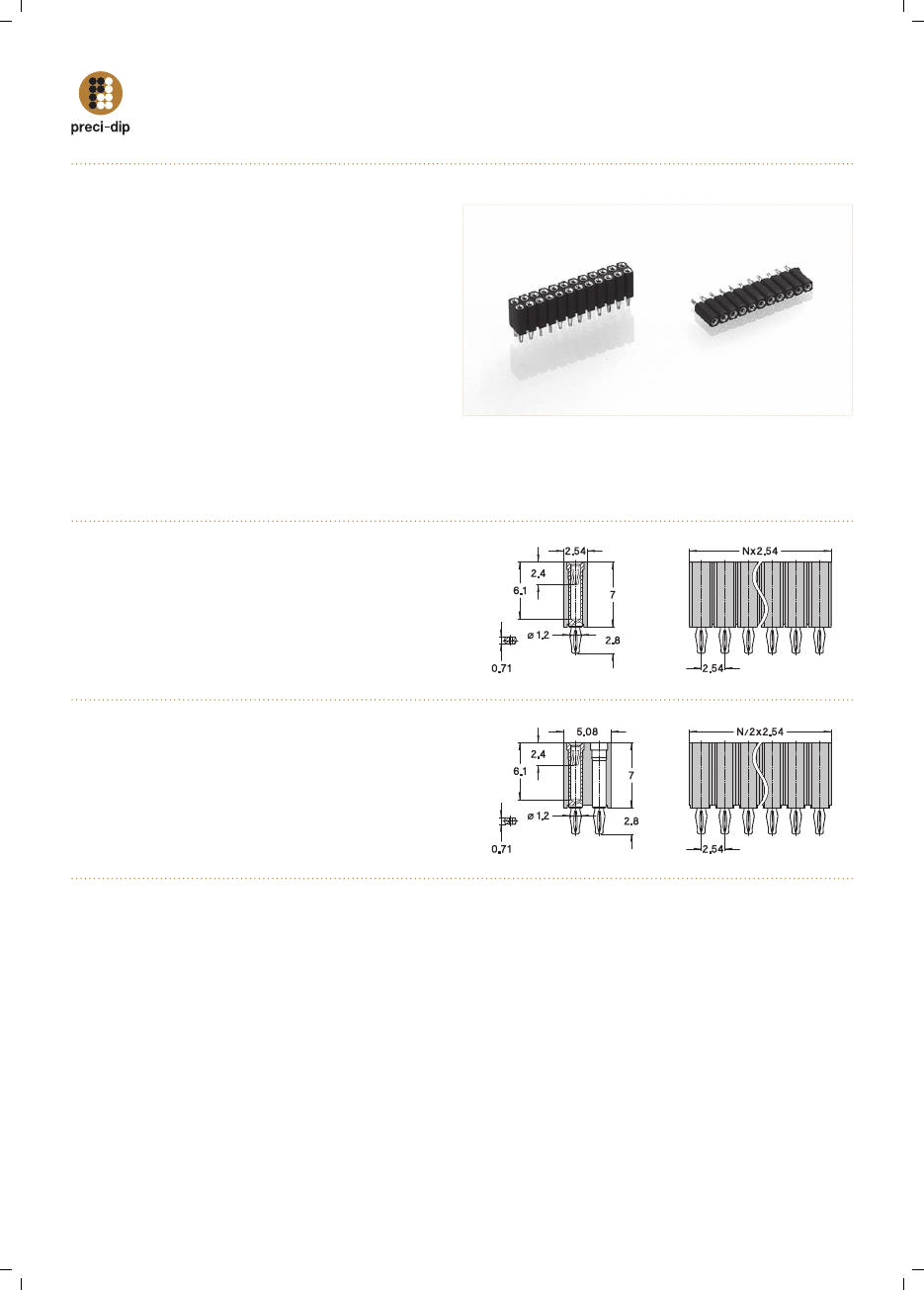

MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
85
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Very low profile socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-268101 for a double row version with 16 pins
becomes 803-87-
016
-10-268101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-10-268101
Straight socket connector, very low profile, height 2.95 mm, solder tail,
single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
803-
PP
-
NNN
-10-268101
Straight socket connector, very low profile, height 2.95 mm, solder tail,
double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
801-
PP
-
NNN
-10-012101
Straight socket connector, low profile, height 4.2 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
803-
PP
-
NNN
-10-012101
Straight socket connector, low profile, height 4.2 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
86
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Very low profile socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-012101 for a double row version with 16 pins
becomes 803-87-
016
-10-012101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
805-
PP
-
NNN
-10-012101
Straight socket connector, low profile, height 4.2 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
801-
PP
-
YYY
-10-458101
Straight socket connector, low profile, height 4.2 mm, solder tail, single row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 16 contacts
YYY number of poles:
please consult for ordering code
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
87
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-001101 for a double row version with 16 pins
becomes 803-87-
016
-10-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-10-001101
Straight socket connector, height 7 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-10-001101
Straight socket connector, height 7 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
805-
PP
-
NNN
-10-001101
Straight socket connector, height 6.9 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
801-PP-YYY-10-101101
Straight socket connector, height 7 mm, solder tail, single row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 25 contacts
YYY number of poles:
please consult for ordering code
801-PP-NNN-10-143101
Straight socket connector, height 7 mm with clinched (right/left) solder tail,
single row
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
88
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-
NNN
-10-143101 for a double row version with 16 pins
becomes 801-87-
016
-10-143101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
89
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-003101 for a double row version with 16 pins
becomes 803-87-
016
-10-003101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-10-003101
Straight socket connector, height 8 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 36 contacts
(standard number of contacts: 36)
803-
PP
-
NNN
-10-003101
Straight socket connector, height 7.9 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
805-
PP
-
NNN
-10-003101
Straight socket connector, height 7.9 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
801-
PP
-
NNN
-10-005101
Straight socket connector, height 8.5 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 36 contacts
(standard number of contacts: 36)
803-
PP
-
NNN
-10-005101
Straight socket connector, height 8.5 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
90
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-005101 for a double row version with 16 pins
becomes 803-87-
016
-10-005101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
805-
PP
-
NNN
-10-005101
Straight socket connector, height 8.4 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
803-
PP
-
NNN
-10-269101
Straight socket connector, height 11 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
91
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-216101 for a double row version with 16 pins
becomes 803-87-
016
-10-216101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
803-
PP
-
NNN
-10-249101
Straight socket connector, height 19.7 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 40 contacts
(standard number of contacts: 40)
801-
PP
-
NNN
-10-216101
Straight socket connector, height 37.5 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
803-
PP
-
NNN
-10-216101
Straight socket connector, height 37.5 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)

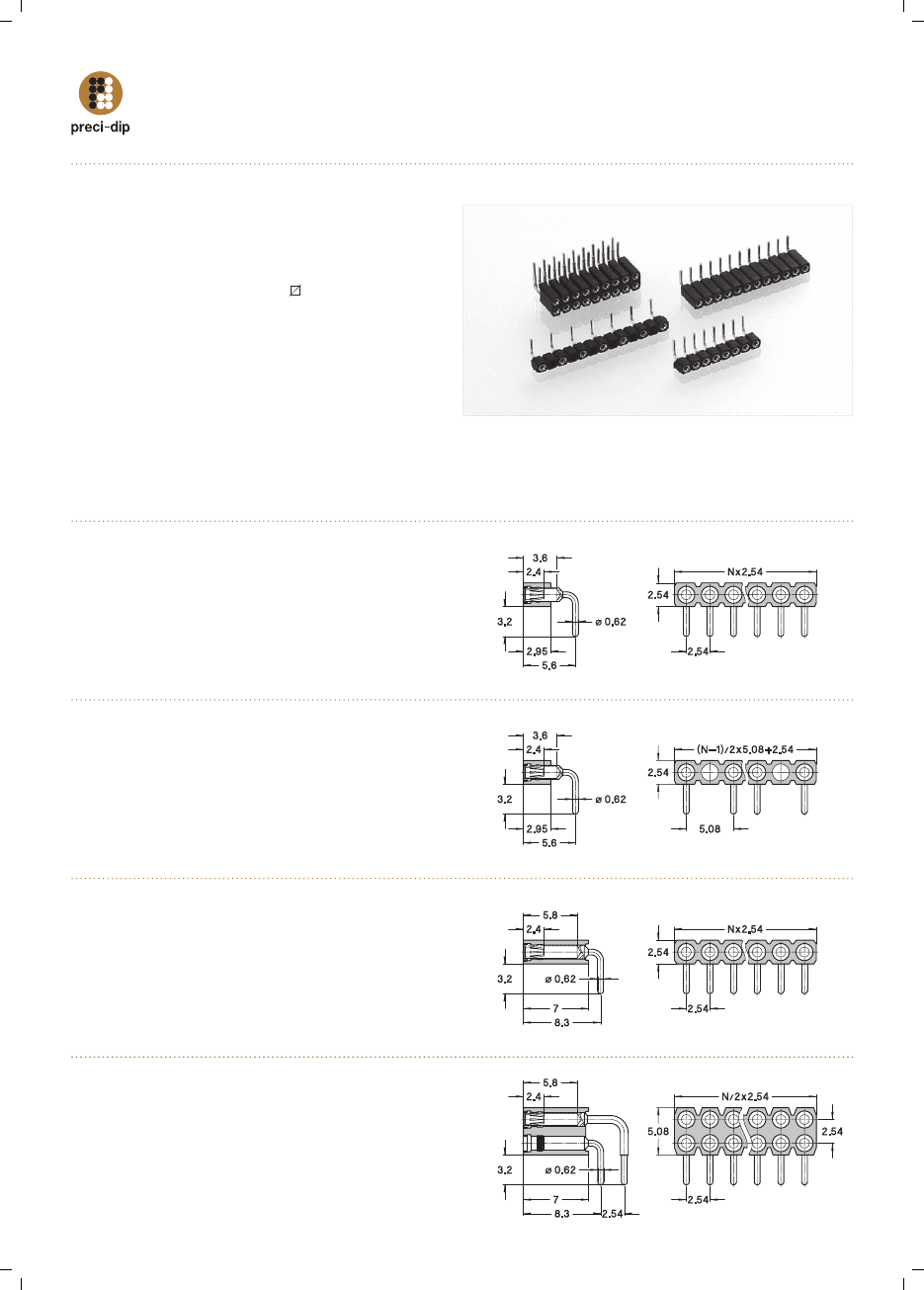

801-
PP
-
NNN
-20-002101
Right angle short socket connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Option: right angle short receptacle, solder tail,
double row available on request

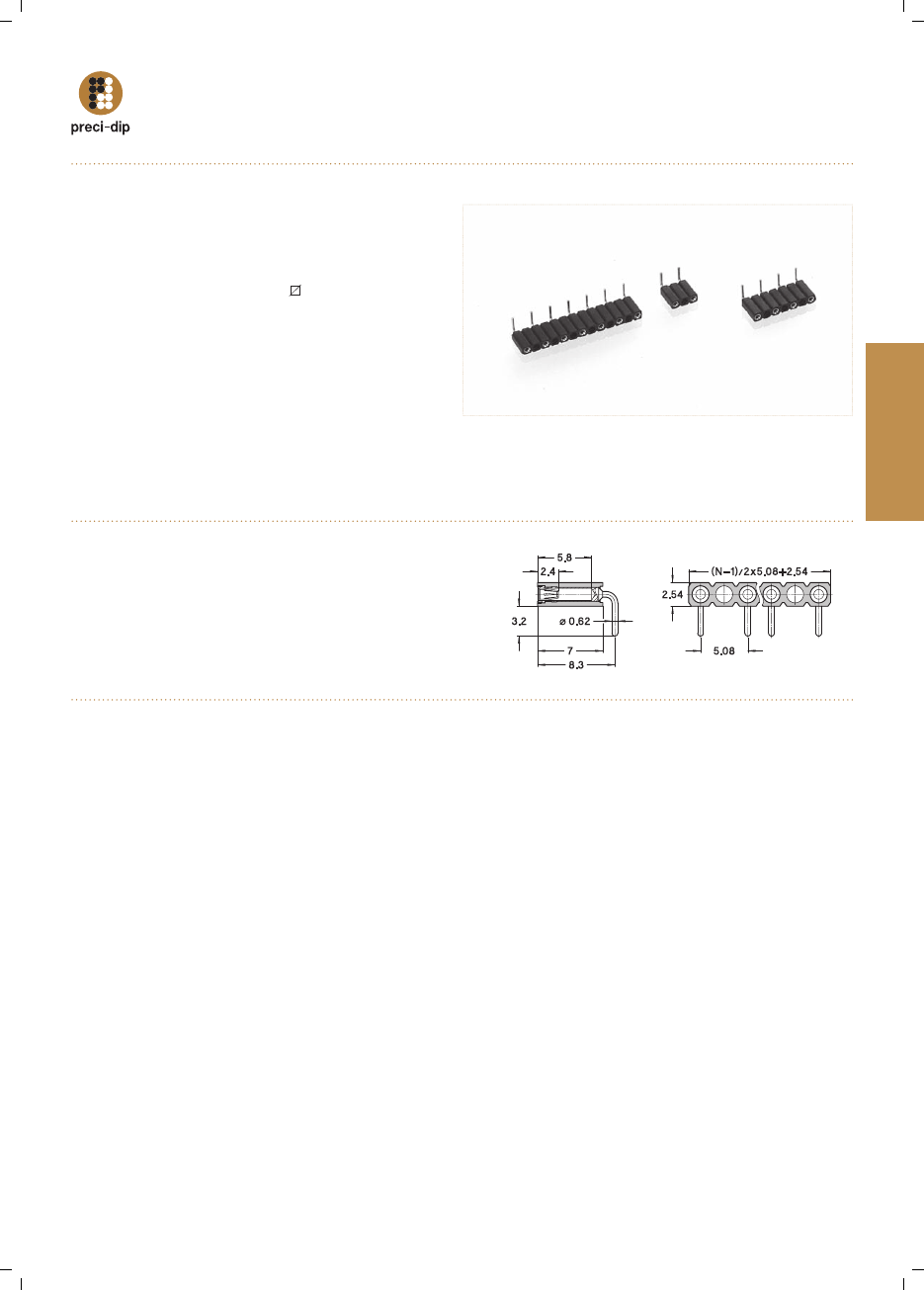

801-
PP
-
YYY
-20-442101
Right angle short socket connector, solder tail, single row, partially
equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YYY number of poles:
please consult for ordering code
92
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Right angle socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-20-001101 for a double row version with 16 pins
becomes 803-87-
016
-20-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
801-
PP
-
NNN
-20-001101
Right angle socket connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-20-001101
Right angle socket connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / SOLDER TAIL
93
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Right angle socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
YYY
-20-101101
Right angle socket connector, solder tail, single row, partially
equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 25 contacts
YYY number of poles:
please consult for ordering code
801-
PP
-
NNN
-30-480101
SMD socket connector, single row, perpendicular mount with self-levelling
floating contacts
AVAIL ABILIT Y FROM
2 to 12 contacts
(standard number of contacts: 12)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
803-
PP
-
NNN
-30-480101
SMD socket connector, double row, perpendicular mount with self-levelling
floating contacts
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
94
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, SMD perpendicular mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-30-002101 for a double row version with 16 pins
becomes 803-87-
016
-30-002101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
801-
PP
-
NNN
-30-002101
SMD socket connector, single row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
803-
PP
-
NNN
-30-002101
SMD socket connector, double row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 40 and 72)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
95
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, SMD perpendicular mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles
. Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-30-001101 for a double row version with 16 pins
becomes 803-87-
016
-30-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-30-001101
SMD socket connector, single row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
803-
PP
-
NNN
-30-001101
SMD socket connector, double row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
8FM-
PP
-0
NNN
-02-146
SMD socket connector, parallel mount, low profile minimum PCB space
requirement, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
801-
PP
-
NNN
-40-002101
SMD socket connector, parallel mount, short contact, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
96
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
78, 87
Tin
Gold flash
38, 83
Tin
Gold 0.75 μm
Code 78, 38 for 8FM...02-146 series / 87, 83 for 801...40-00X101 series
Socket connectors, SMD parallel mount.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-
NNN
-40-002101 for a single row version with 8 pins becomes
801-87-
008
-40-002101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / SURFACE MOUNT
801-
PP
-
NNN
-40-001101
SMD socket connector, parallel mount, long contact, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
97
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-
NNN
-65-001101 for a single row version with 8 pins becomes
801-87-
008
-65-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-65-001101
Press-fit socket connector, single row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-65-001101
Press-fit socket connector, double row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
801-
PP
-
NNN
-66-001101
Press-fit socket connector, single row, compliant pin for PCB thickness
2.1 to 3.2 mm
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-66-001101
Press-fit socket connector, double row, compliant pin for PCB thickness
2.1 to 3.2 mm
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
801-
PP
-
NNN
-65-461101
Press-fit receptacle connector, single row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 36 contacts
(standard number of contacts: 36)
803-
PP
-
NNN
-65-461101
Press-fit receptacle connector, double row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
98
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Receptacle connectors, press-fit with compliant pin for solderless mount in PCB plated through holes and connecting pin for board stacking.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-
NNN
-65-461101 for a double row version with 16 pins
becomes 801-87-
016
-65-461101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / WIRE-WRAP
99
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PINS
Ø 0.70 to 0.90 mm,
0.635 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-53-001101 for a double row version with 16 pins
becomes 803-87-
016
-53-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
801-
PP
-
NNN
-53-001101
Wire-wrap socket connector, height 7 mm, 3-level, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-53-001101
Wire-wrap socket connector, height 7 mm, 3-level, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)

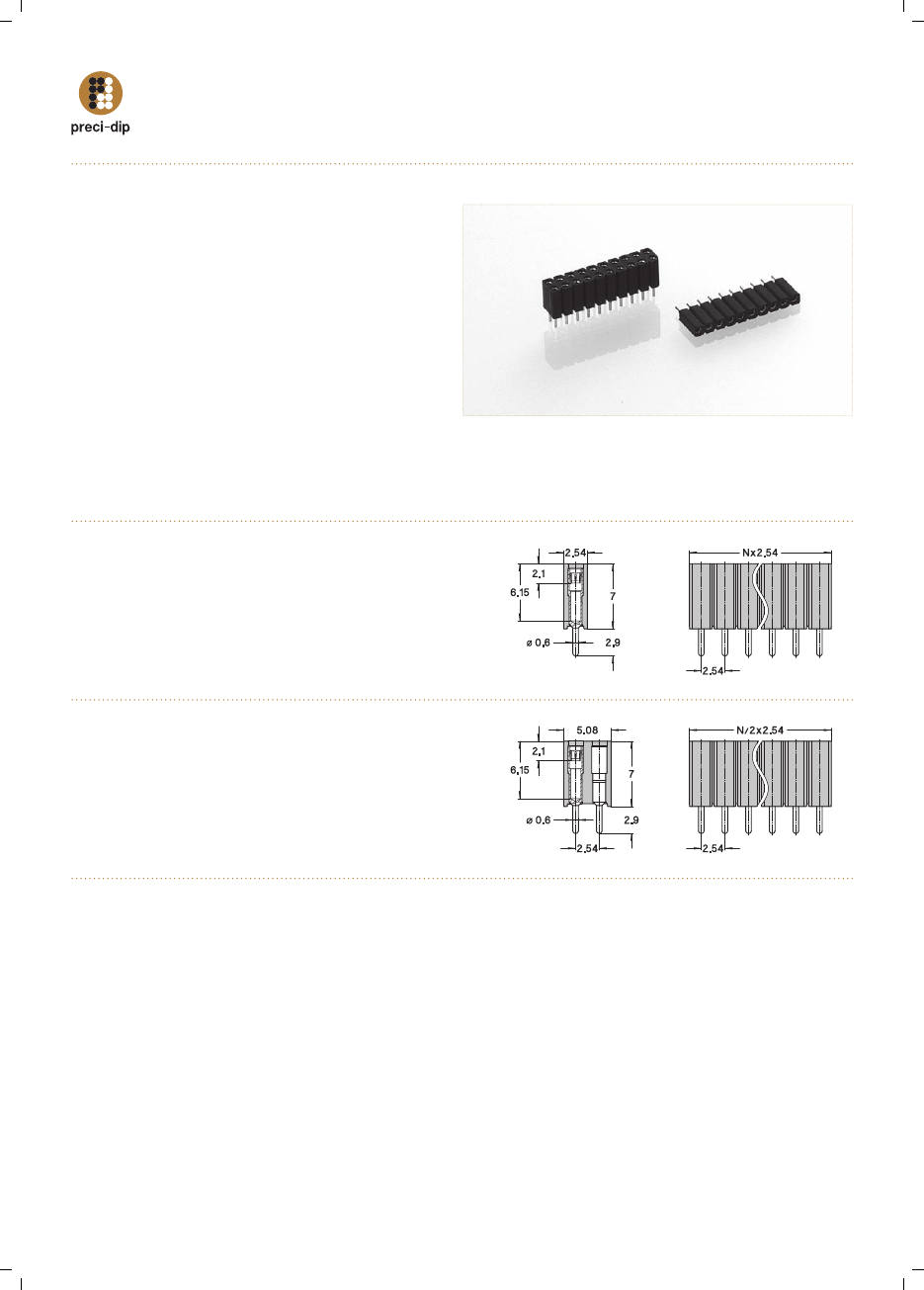

801-
PP
-
NNN
-10-004101
Straight socket connector, height 7 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
803-
PP
-
NNN
-10-004101
Straight socket connector, height 7 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
100
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
MATING PIN Ø
0.95 to 1.08 mm
FORCES
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 1 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding pin connectors, see page 113.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Socket connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-
NNN
-10-004101 for a double row version with 16 pins
becomes 803-87-
016
-10-004101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 1 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

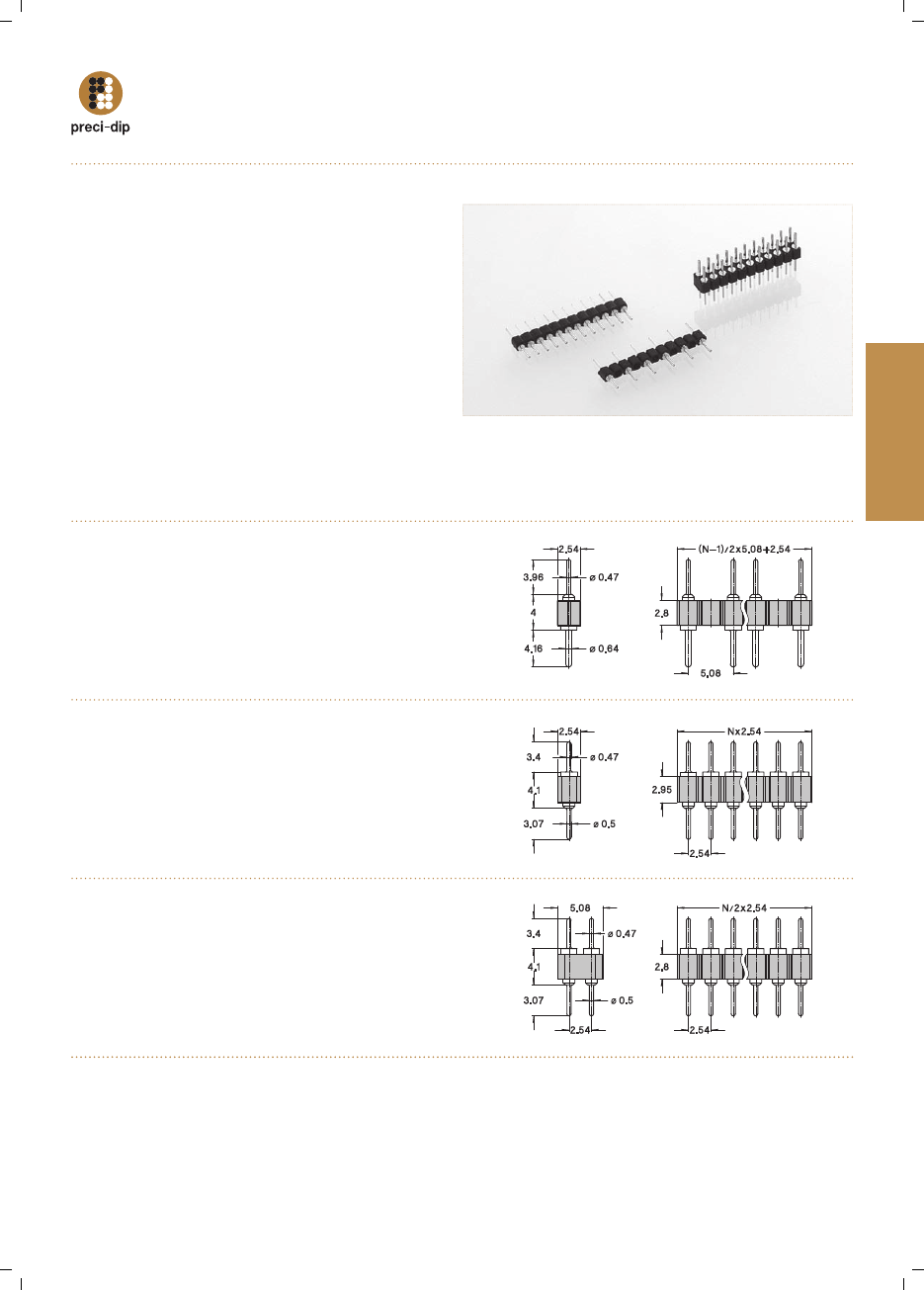

PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
101
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3*
Tin
0.75 μm gold
*only for 350/450...00-006101 series
Pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 450-10-2NN-00-006101 for a double row version with 16 pins
becomes 450-10-2
16
-00-006101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
350-
PP
-1
NN
-00-019101
Straight pin connector ultralow profile, height 1.9 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
350-
PP
-1
NN
-00-024101
Straight pin connector ultralow profile, height 2.2 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
350-
PP
-1
NN
-00-006101
Straight pin connector low profile, height 3.5 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
450-
PP
-2
NN
-00-006101
Straight pin connector low profile, height 3.5 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
350-
PP
-1
NN
-01-666101
Straight pin connector, height 3.5 mm, with clinched (right/left) solder tails,
single row
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
350-
PP
-1
YY
-01-714101
Straight pin connector, height 3.5 mm, solder tail, single row, partially
equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YY number of poles:
please consult for ordering code
102
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 350-10-1
NN
-00-001101 for a single row version with 8 pins becomes
350-10-1
08
-00-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
350-
PP
-1
NN
-00-001101
Straight pin connector, height 4 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
450-
PP
-2
NN
-00-001101
Straight pin connector, height 4 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
103
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 450-10-2
NN
-00-013101 for a double row version with 16 pins
becomes 450-10-2
16
-00-013101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
350-
PP
-1
YY
-01-609101
Straight pin connector, low profile, height 4 mm, solder tail, single row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YY number of poles:
please consult for ordering code
350-
PP
-1
NN
-00-013101
Straight pin connector, height 4.1 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
450-
PP
-2
NN
-00-013101
Straight pin connector, height 4.1 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)

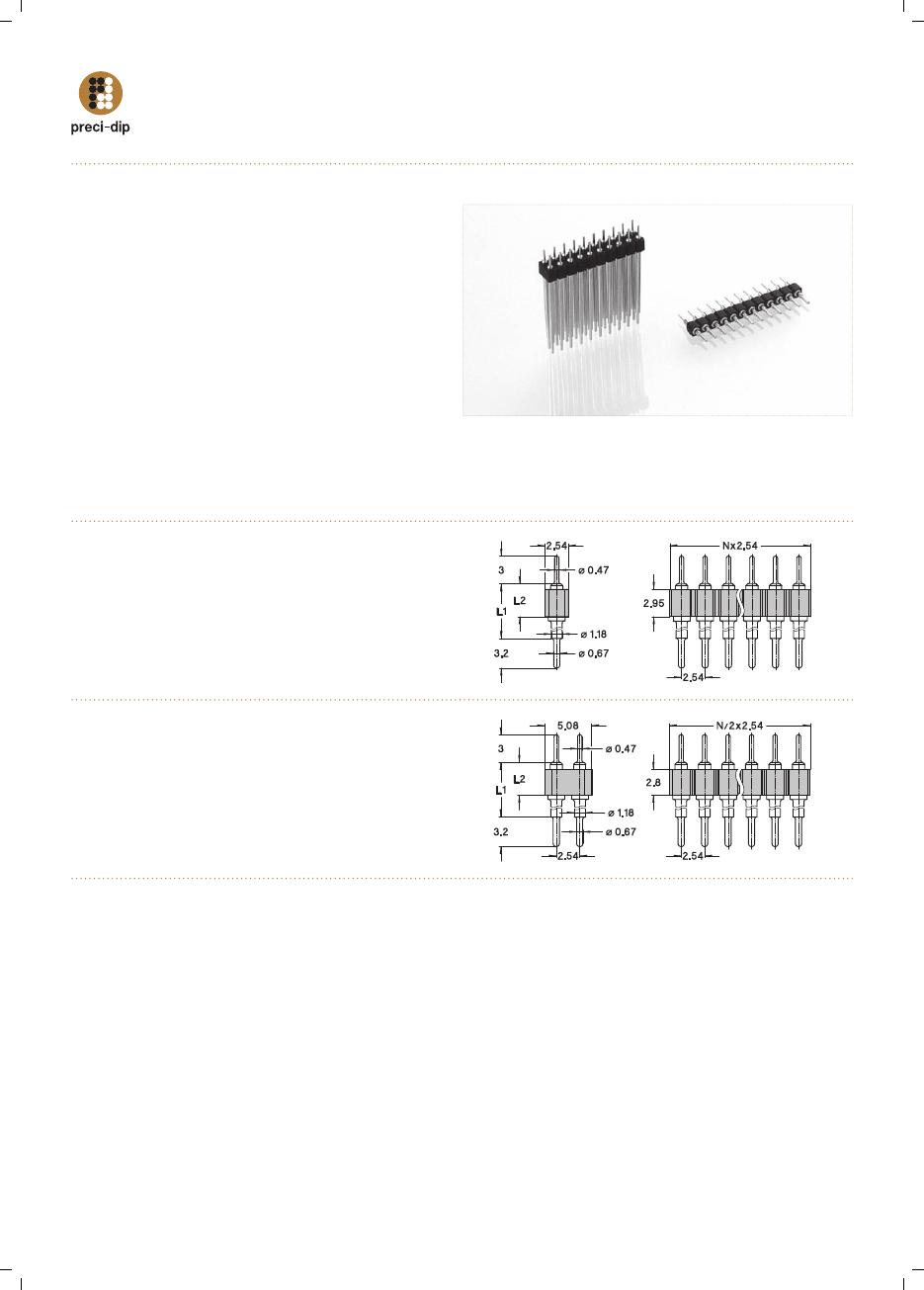

351-
PP
-1
NN
-00-
XXX
101
Straight interconnect pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
451-
PP
-2
NN
-00-
XXX
101
Straight interconnect pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
104
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-80.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin interconnect connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 451-10-2
NN
-00-003101 for a double row version with 8 pins becomes
451-10-2
08
-00-003101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
AVAILABLE CONTACT LENGTHS
CONTACT LENGTH
X X X CODE
L1 (mm)
L2 (mm)
6.2
4.7
003
8.4
3.55
004
15.3 3.55
005
21.2 3.55
016
27.4 3.55
017
Other lengths on request
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
105
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3
Tin
0.75 μm gold
Right angle pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 499-10-2
NN
-10-009101 for a double row version with 8 pins becomes
499-10-2
08
-10-009101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.

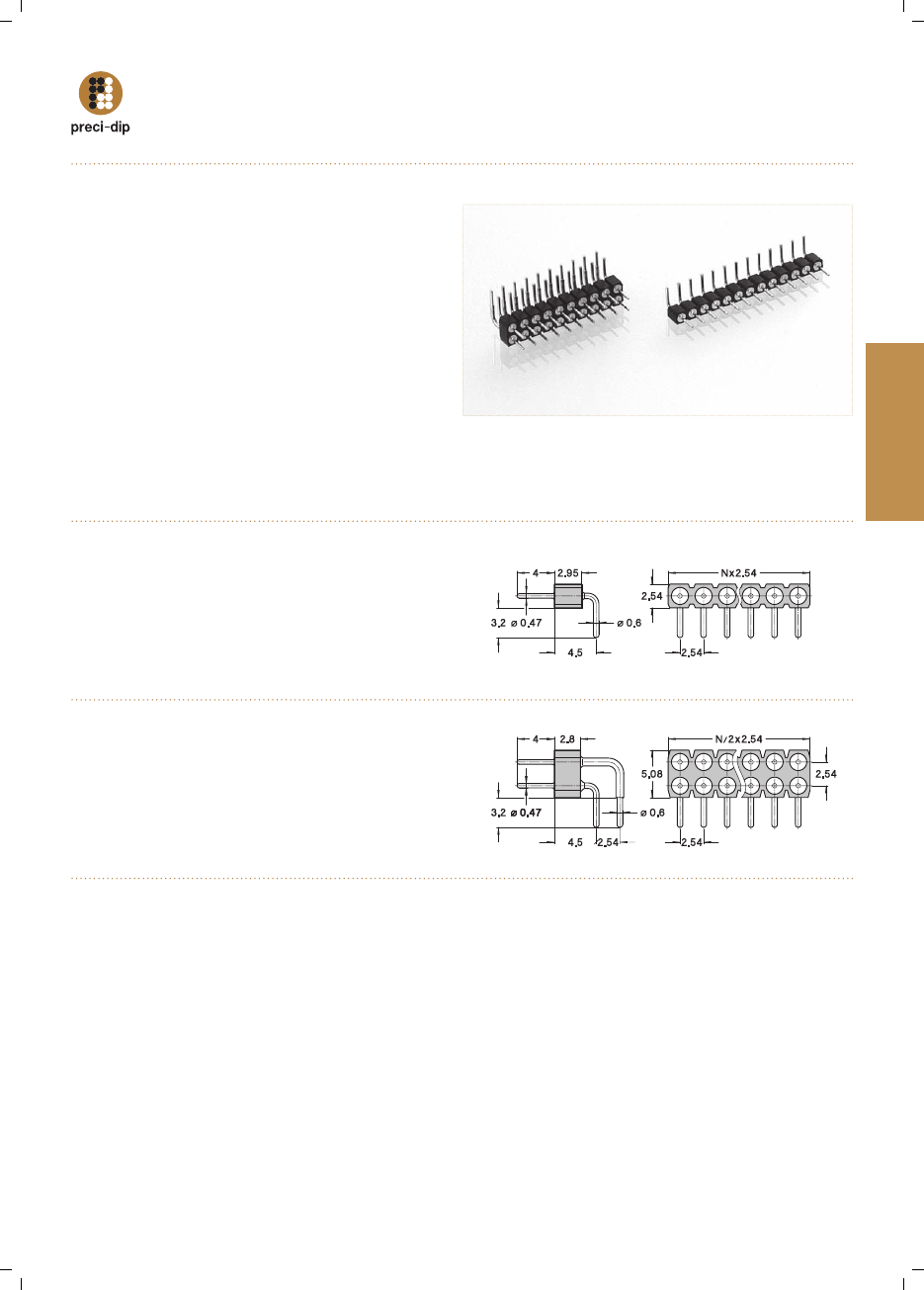

399-
PP
-1
NN
-10-009101
Right angle pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
499-
PP
-2
NN
-10-009101
Right angle pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
350-
PP
-1
NN
-01-899101
SMD pin connector, low profile, single row, perpendicular mount with
self-levelling floating contacts
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
450-
PP
-2
NN
-01-899101
SMD pin connector, low profile, double row, perpendicular mount with
self-levelling floating contacts
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
106
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3*
Tin
0.75 μm gold
*only for 350/450...00-106101 series
Pin connectors, SMD.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 350-10-1
NN
-00-106101 for a single row version with 8 pins becomes
350-10-1
08
-00-106101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW
SURFACE MOUNT
350-
PP
-1
NN
-00-106101
SMD pin connector, single row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
450-
PP
-2
NN
-00-106101
SMD pin connector, double row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / SURFACE MOUNT
107
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin connectors, SMD.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 350-10-1
NN
-00-206101 for a single row version with 8 pins becomes
350-10-1
08
-00-206101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
350-
PP
-1
NN
-00-206101
SMD pin connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
356-V3-1
NN
-00-014101
Press-fit pin connector, single row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
456-V3-2
NN
-00-014101
Press-fit pin connector, double row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
108
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Bronze CuSn4Pb4Zn4 (C54400)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
V3
Tin
0.75 μm gold
Pin connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 356-V3-1
NN
-00-014101 for a single row version with 8 pins becomes
356-V3-1
08
-00-014101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
109
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-10-
NNN
-10-001101 for a single row version with 8 pins becomes
800-10-
008
-10-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.

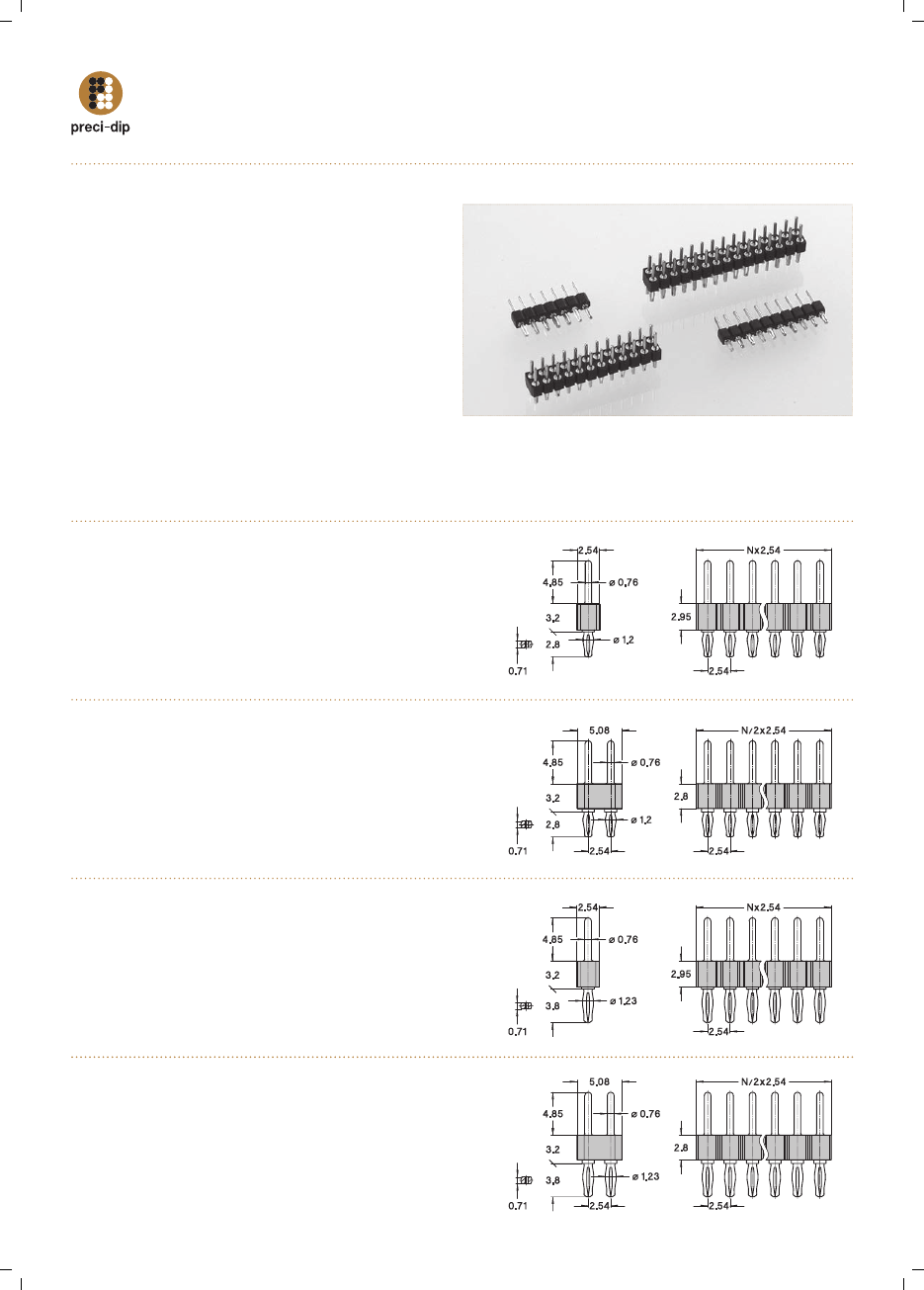

800-
PP
-
NNN
-10-002101
Straight pin connector, height 3.2 mm, short pin, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
802-
PP
-
NNN
-10-002101
Straight pin connector, height 3.2 mm, short pin, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
800-
PP
-
NNN
-10-001101
Straight pin connector, height 3.2 mm, long pin, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
Option: partially equipped 5.08 mm connector
PN 800-PP-Y Y Y-10-101001 available on request
802-
PP
-
NNN
-10-001101
Straight pin connector, height 3.2 mm, long pin, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)

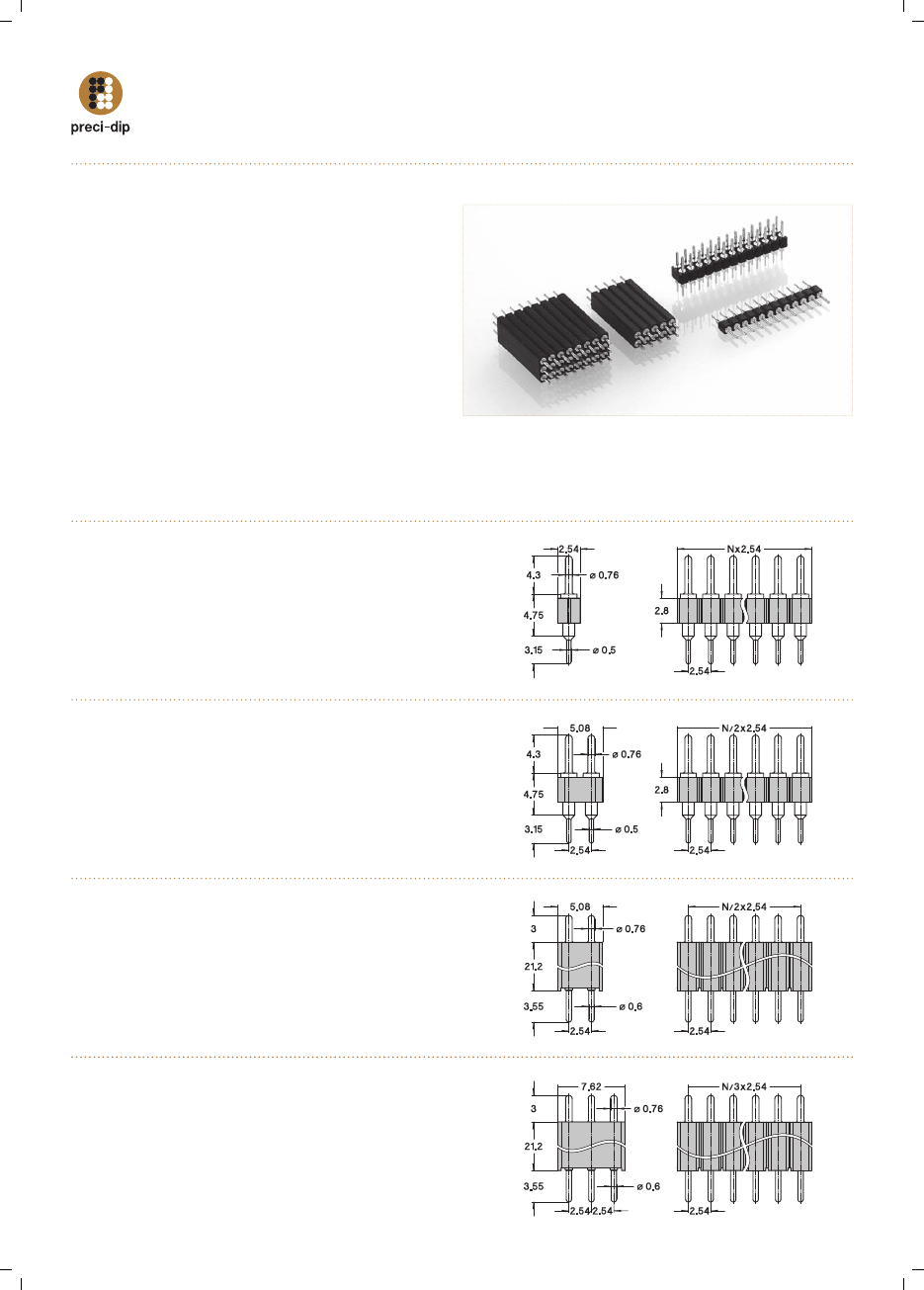

350-
PP
-1
NN
-00-018101
Straight pin connector, height 4.75 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
450-
PP
-2
NN
-00-018101
Straight pin connector, height 4.75 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
110
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3*
Tin
0.75 μm gold
*only for 802/804...10-193101 series
Pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 802-10-
NNN
-10-193101 for a double row version with 16 pins
becomes 802-10-
016
-10-193101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
802-
V3
-
NNN
-10-193101
Straight pin connector, height 21.2 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
804-
V3
-
NNN
-10-193101
Straight pin connector, height 21.2 mm, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
111
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
V3
Tin
0.75 μm gold
Shrouded pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-V3-
NNN
-12-002101 for a single row version with 8 pins becomes
800-V3-
008
-12-002101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
800-V3-
NNN
-12-002101
Straight shrouded pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
802-V3-
NNN
-12-002101
Straight shrouded pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
804-V3-
NNN
-12-002101
Straight shrouded pin connector, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
800-V3-
YYY
-12-422101
Straight shrouded pin connector, solder tail, single row, partially
equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 16 contacts
YYY number of poles:
please consult for ordering code

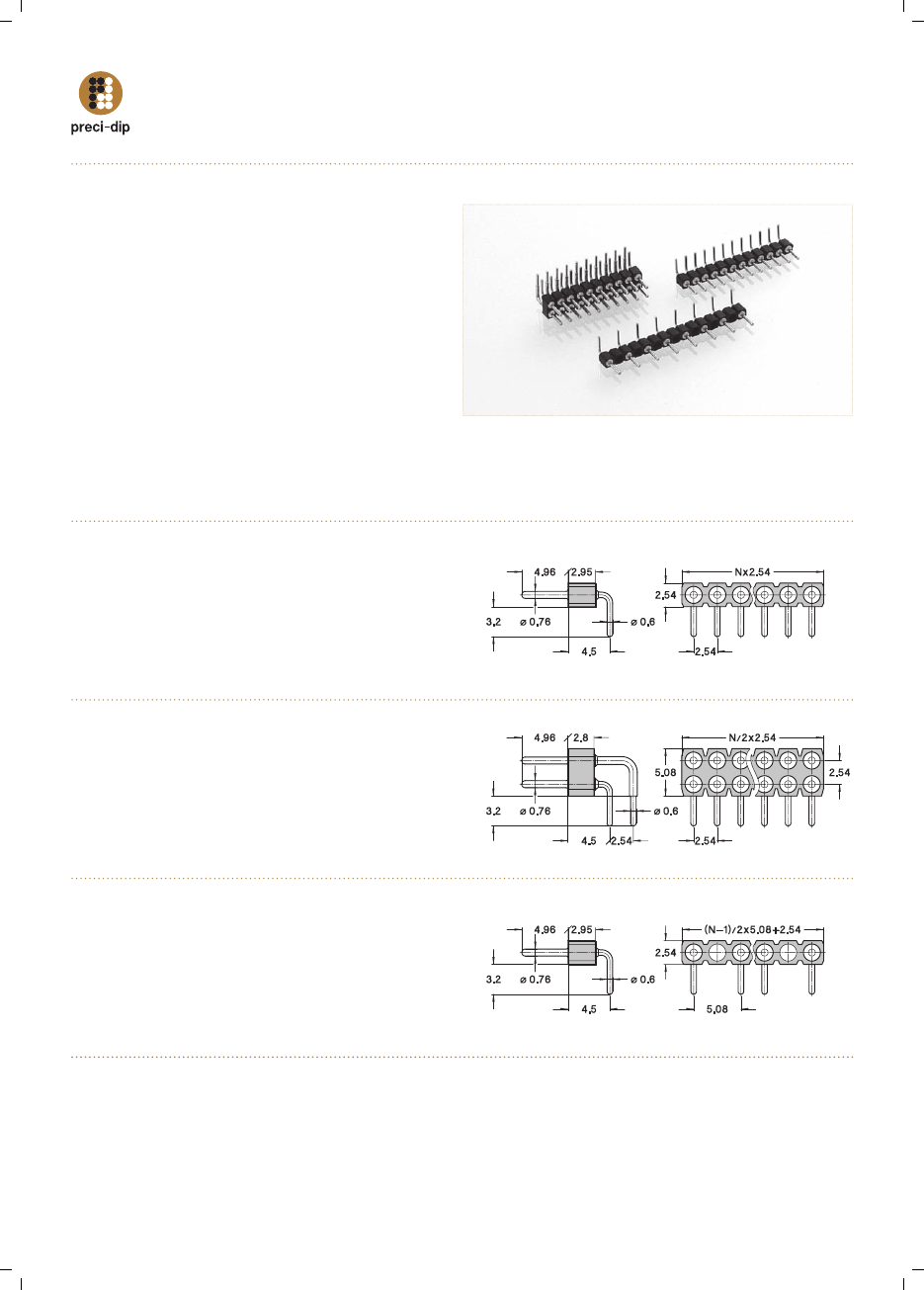

800-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
802-
PP
-
NNN
-20-001101
Right angle pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
112
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3
Tin
0.75 μm gold
Right angle pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-10-
NNN
-20-001101 for a single row version with 8 pins becomes
800-10-
008
-20-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW
SOLDER TAIL
800-
PP
-
YYY
-20-101101
Right angle pin connector, solder tail, single row, partially
equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YYY number of poles:
please consult for ordering code
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 / 1 mm / SINGLE ROW / DOUBLE ROW
TRIPLE ROW / SOLDER TAIL
113
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm / 1 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-100.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10*
0.25 μm gold
0.25 μm gold
80* Tin
Tin
V3
Tin
0.75 μm gold
*only for 800...-20-004101 series
Right angle pin connectors, solder tail.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-V3-
NNN
-22-002101 for a single row version with 8 pins becomes
800-V3-
008
-22-002101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
800-V3-
NNN
-22-002101
Right angle shrouded pin connector, solder tail, single row
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
802-V3-
NNN
-22-002101
Right angle shrouded pin connector, solder tail, double row
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
804-V3-
NNN
-22-002101
Right angle shrouded pin connector, solder tail, triple row
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
800-
PP
-
NNN
-20-004101
Right angle pin connector Ø 1 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)

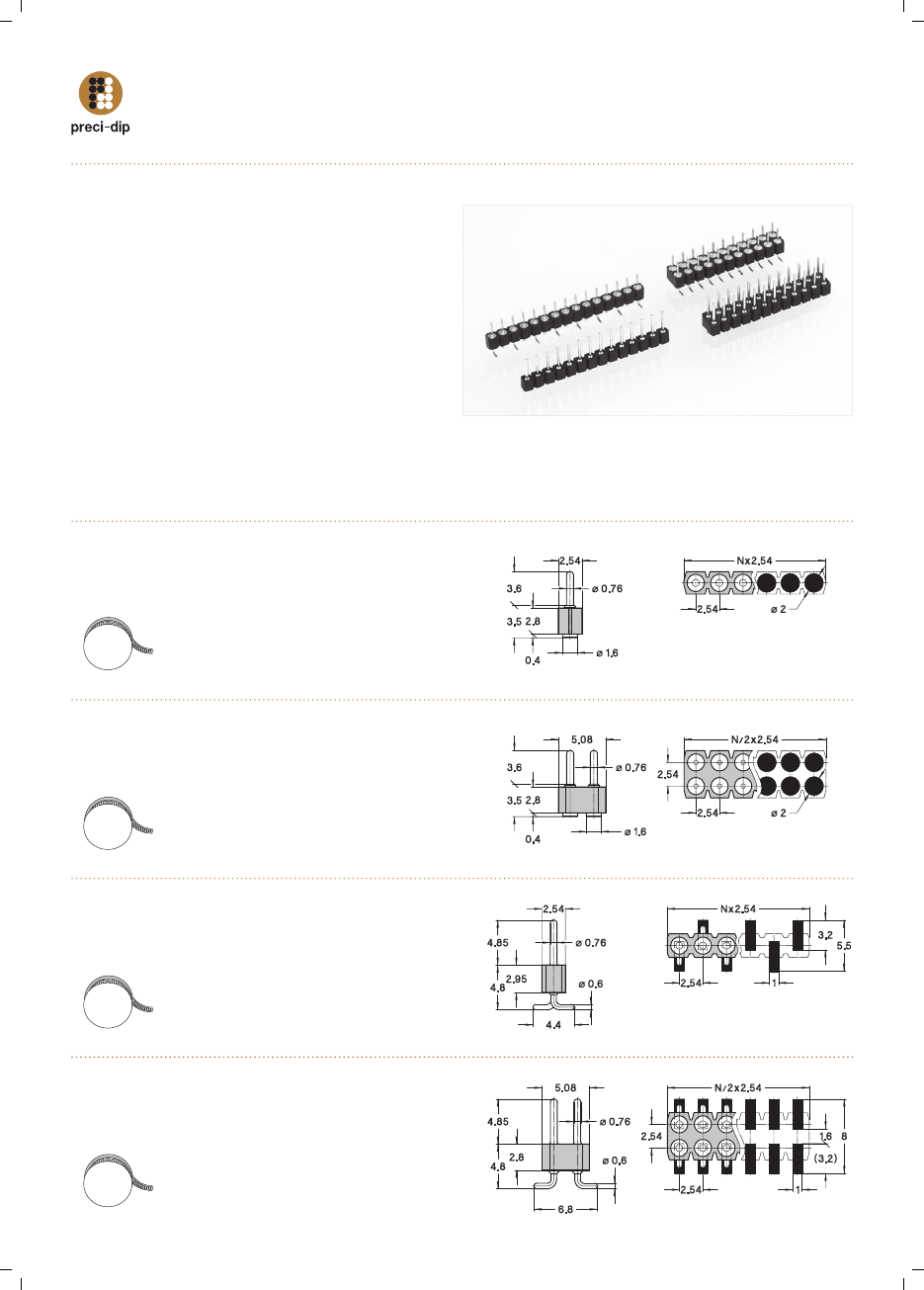

800-
PP
-
NNN
-30-480101
SMD pin connector, low profile, single row, perpendicular mount with
self-levelling floating contacts
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
802-
PP
-
NNN
-30-480101
SMD pin connector, low profile, double row, perpendicular mount with
self-levelling floating contacts
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
114
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3*
Tin
0.75 μm gold
*only for 800/802...30-001101 series
Pin connectors, SMD.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-10-
NNN
-30-001101 for a single row version with 8 pins becomes
800-10-
008
-30-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW
SURFACE MOUNT
800-
PP
-
NNN
-30-001101
SMD pin connector, single row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
802-
PP
-
NNN
-30-001101
SMD pin connector, double row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

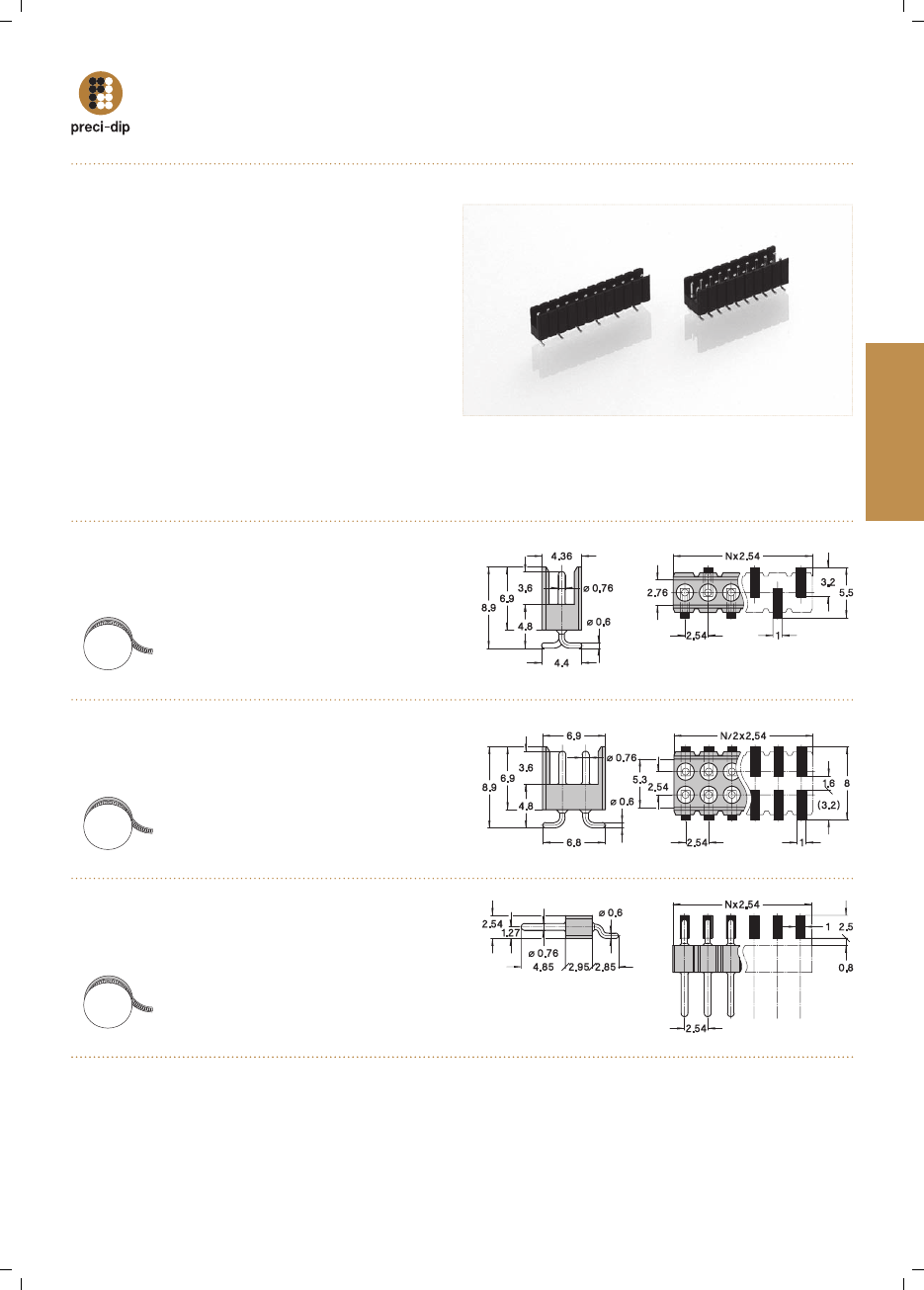

PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW
SURFACE MOUNT
115
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10*
0.25 μm gold
0.25 μm gold
80* Tin
Tin
V3
Tin
0.75 μm gold
*only for 800...40-001101 series
Pin connectors, SMD.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-V3-
NNN
-32-002101 for a single row version with 8 pins becomes
800-V3-
008
-32-002101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
800-V3-
NNN
-32-002101
SMD shrouded pin connector, single row, perpendicular mount
with gull-wing terminations
AVAIL ABILIT Y FROM
3 to 32 contacts
(standard number of contacts: 32)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
802-V3-
NNN
-32-002101
SMD shrouded pin connector, double row, perpendicular mount
with gull-wing terminations
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
See
page 43
T & R Packaging
800-
PP
-
NNN
-40-001101
SMD pin connector, single row, parallel mount
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
See
page 43
T & R Packaging
800-
PP
-
NNN
-65-001101
Press-fit pin connector, single row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
802-
PP
-
NNN
-65-001101
Press-fit pin connector, double row, compliant pin for PCB thickness
1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
116
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Bronze CuSn4Pb4Zn4 (C54400)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
Pin connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-10-
NNN
-65-001101 for a single row version with 8 pins becomes
800-10-
008
-65-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / PRESS-FIT
800-
PP
-
NNN
-66-001101
Press-fit pin connector, single row, compliant pin for PCB thickness
2.1 to 3.2 mm
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
802-
PP
-
NNN
-66-001101
Press-fit pin connector, double row, compliant pin for PCB thickness
2.1 to 3.2 mm
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PIN CONNECTORS 2.54 mm
CONNECTING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
PRESS-FIT
117
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Bronze CuSn4Pb4Zn4 (C54400)
CONNECTING PIN Ø
0.76 mm
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 mm +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
V3
Tin
0.75 μm gold
Pin connectors, press-fit with compliant pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 800-V3-
NNN
-6B-002101 for a single row version with 8 pins becomes
800-V3-
008
-6B-002101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
800-V3-
NNN
-6B-002101
Press-fit shrouded pin connector, single row, compliant pin for PCB
thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
(standard number of contacts: 32)
802-V3-
NNN
-6B-002101
Press-fit shrouded pin connector, double row, compliant pin for PCB
thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
4 to 64 contacts
(standard number of contacts: 64)
804-V3-
NNN
-6B-002101
Press-fit shrouded pin connector, triple row, compliant pin for PCB
thickness 1.5 to 2.5 mm
AVAIL ABILIT Y FROM
9 to 96 contacts
(standard number of contacts: 96)
890-
PP
-
NNN
-10-
XXX
101
Straight square pin header, solder tail, single row
AVAIL ABILIT Y FROM
2 to 40 contacts
(standard number of contacts: 40)
892-
PP
-
NNN
-10-
XXX
101
Straight square pin header, solder tail, double row
AVAIL ABILIT Y FROM
4 to 80 contacts
(standard number of contacts: 80)
118
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyamide PA-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass
CONNECTING PIN
0.635 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
70 Flash
gold
Flash
gold
80 Tin
Tin
18 Tin
0.25
μm
gold
Square pin headers, solder tail.
See page 178 for plating specs.
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 890-70-
NNN
-10-001101 for a single row version with 8 pins becomes
890-70-
008
-10-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN CONNECTORS 2.54 mm
SQUARE PIN
0.635 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
894-
PP
-
NNN
-10-001101
Straight square pin header, solder tail, triple row
Only contact length code 001 available
AVAIL ABILIT Y FROM
9 to 120 contacts
(standard number of contacts: 120)
AVAILABLE CONTACT LENGTHS
CONNECTING PIN A (mm)
SOLDER PIN B (mm)
X X X CODE
6
3.1
001
7
3
002
8.5
3
003
14.9 3
004
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

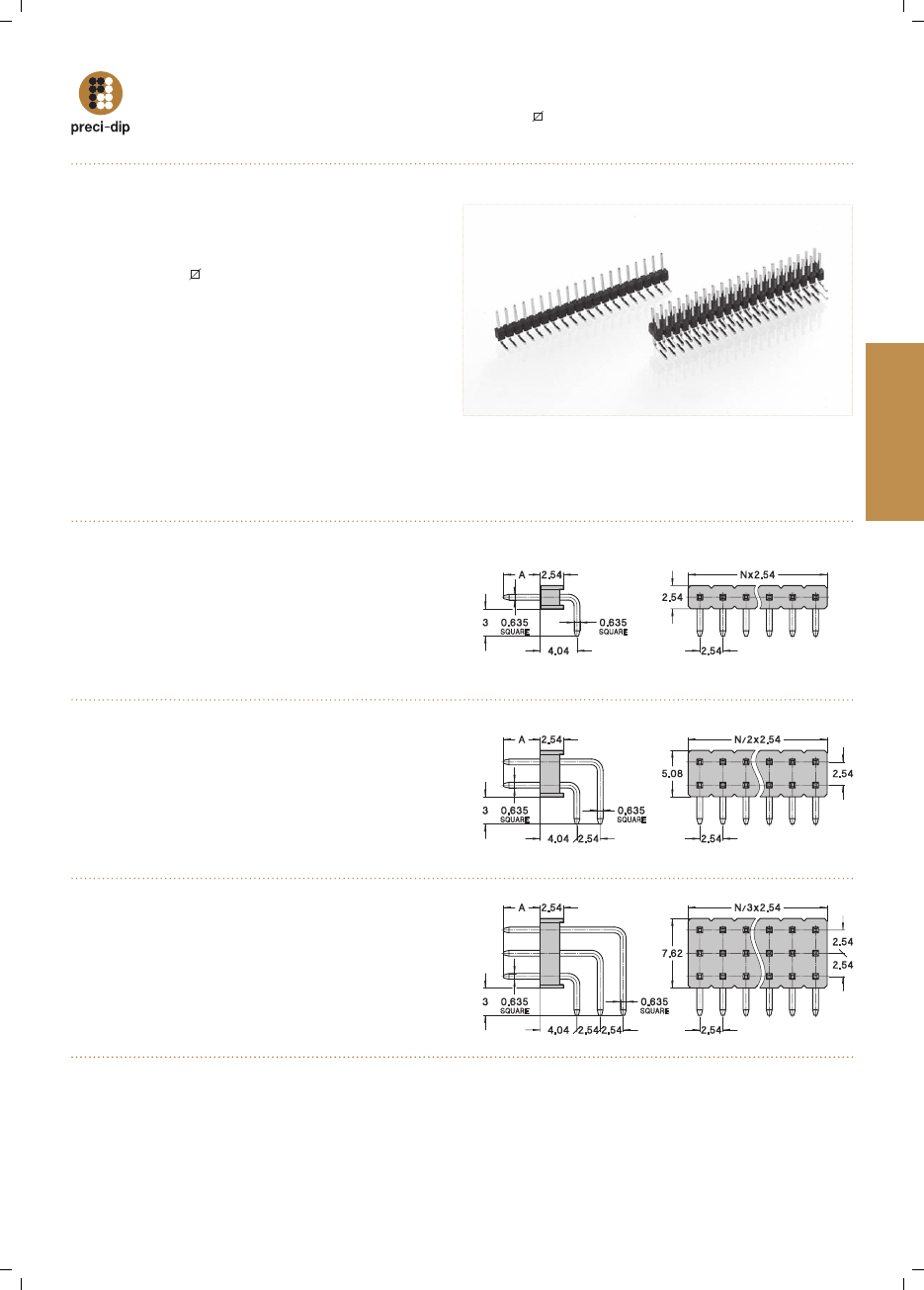

PIN CONNECTORS 2.54 mm
SQUARE PIN
0.635 mm / SINGLE ROW / DOUBLE ROW / TRIPLE ROW
SOLDER TAIL
119
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyamide PA-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass
CONNECTING PIN Ø
0.635 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 85-99.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
70 Flash
gold
Flash
gold
80 Tin
Tin
18 Tin
0.25
μm
gold
Right angle square pin headers, solder tail.
See page 178 for plating specs.
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 890-70-
NNN
-20-006101 for a single row version with 8 pins becomes
890-70-
008
-20-006101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
890-
PP
-
NNN
-20-
XXX
101
Right angle square pin header, solder tail, single row
AVAIL ABILIT Y FROM
2 to 40 contacts
(standard number of contacts: 40)
892-
PP
-
NNN
-20-
XXX
101
Right angle square pin header, solder tail, double row
AVAIL ABILIT Y FROM
4 to 80 contacts
(standard number of contacts: 80)
894-
PP
-
NNN
-20-001101
Right angle square pin header, solder tail, triple row
Only contact length code 001 available
AVAIL ABILIT Y FROM
9 to 120 contacts
(standard number of contacts: 120)
AVAILABLE CONTACT LENGTHS
CONNECTING PIN A (mm)
X X X CODE
6
001
7
002
360-
PP
-1
NN
-00-001101
Slotted head strip with solder tail / connecting pin, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
460-
PP
-2
NN
-00-001101
Slotted head strip with solder tail / connecting pin, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
370-
PP
-1
NN
-00-001101
Turret head strip with solder tail / connecting pin, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
470-
PP
-2
NN
-00-001101
Turret head strip with solder tail / connecting pin, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
120
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.5 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
PCB header strips for wiring application with solder tail / connecting pin.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 460-10-2
NN
-00-001101 for a double row version with 16 pins
becomes 460-10-2
16
-00-001101.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PCB HEADER STRIPS 2.54 mm
SINGLE ROW / DOUBLE ROW / SOLDER TAIL
380-
PP
-1
NN
-00-001101
Solder cup strip with solder tail / connecting pin, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
480-
PP
-2
NN
-00-001101
Solder cup strip with solder tail / connecting pin, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PCB HEADER STRIPS 2.54 mm
SINGLE ROW / DOUBLE ROW / WIRE-WRAP
121
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
WIRE-WRAP TERMINAL
0.635 mm, 3-level
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
For corresponding socket connectors, see pages 69-84.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
PCB header strips for wiring application, wire-wrap.
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 453-10-2
NN
-00-001101 for a double row version with 16 pins
becomes 453-10-2
16
-00-001101.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
353-10-1
NN
-00-001101
Pin header strip with wire-wrap termination, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
453-10-2
NN
-00-001101
Pin header strip with wire-wrap termination, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
363-10-1
NN
-00-001101
Slotted head strip with wire-wrap termination, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
463-10-2
NN
-00-001101
Slotted head strip with wire-wrap termination, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
373-10-1
NN
-00-001101
Turret head strip with wire-wrap termination, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
473-10-2
NN
-00-001101
Turret head strip with wire-wrap termination, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
383-10-1
NN
-00-001101
Solder cup strip with wire-wrap termination, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
483-10-2
NN
-00-001101
Solder cup strip with wire-wrap termination, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
Jumpers for socket connectors, B = 2.54 mm, not insulated (Fig. 1)
999-11-110-10
Jumpers for socket connectors, B = 2.54 mm (Fig. 2):
999-11-210-10
Black insulator
999-11-210-11
Red insulator
Jumpers for socket connectors, B = 5.08 mm, not insulated (Fig. 3)
999-11-112-10
Jumpers for socket connectors, B = 5.08 mm (Fig. 4):
999-11-220-10
Black insulator
999-11-220-11
Red insulator
122
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PBT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.56 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
3 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
P PL ATING CODE
TERMINATION
1
0.25 μm gold
Available with or without insulator and with 2.54, 5.08 or 7.62 mm pitch. For use with standard socket connectors.
See page 178 for plating spec.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
MALE JUMPERS
2.54 mm GRID
Jumpers for socket connectors, B = 2.54 mm, not insulated (Fig. 1)
999-11-113-10
Jumpers for socket connectors, B = 2.54 mm (Fig. 2):
999-11-230-10
Black insulator
999-11-210-11
Red insulator
OPTION
Jumpers without insulator with wire Ø 0.50 mm instead of 0.56 mm.
WIDTH B (MM)
PART NUMBER
2.54
999-51-110-10
5.08
999-51-112-10
7.62
999-51-113-10
Fig.
1
Fig.
2
Fig. 3
Fig. 4
Fig.
5
Fig.
6
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
FEMALE JUMPERS
2 mm / 2.54 mm GRID
123
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
Black glass filled polyester PBT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Phosphor bronze
MATING PIN
0.635 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A (2 mm) / 3 A (2.54 mm)
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
19 Flash
gold
Female jumpers, colour coded, closed or open top of insulator body.
See page 178 for plating specs.
P
C
B
C
O
NNEC
T
O
R
S
Due to technical progress, all information provided is subject to change without prior notice.
2 mm jumpers for
0.5 mm pin headers, closed body:
999-19-220-00
Black insulator
2 mm jumpers for
0.5 mm pin headers, stackable open body:
999-19-320-00
Black insulator
2.54 mm jumpers for
0.635 mm pin headers, closed body:
999-19-210-00
Black insulator
999-19-210-02
Red insulator
999-19-210-06
Blue insulator
2.54 mm jumpers for
0.635 mm pin headers, stackable open body:
999-19-310-00
Black insulator
999-19-310-02
Red insulator
999-19-310-06
Blue insulator
DIL SOCKETS
DI
L
S
O
CK
E
T
S
126
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
QUICK SELECTOR CHART
DIL / SIL / TO SOCKETS
DIL SIL TO
STAGGERED
STAGGERED
GRID
2.54 mm
1.778 mm
2.54 mm
2.54 mm
SOCKETS SEE
PAGE
Solder tail
129
141
150
150
149
Solder tail automatic
130
insertion
Solder tail
131
with decoupling capacitor
Surface mount
132, 134
141
Surface mount
133, 135
149
pick and place
Solder tail
137
ultralow profile
Solder tail
138
interconnect
Wire-wrap 139
Solderless 142
press-fit mount
Carrier 143
Display right angle
144
solder tail
Crystal, relay and display,
151
partially equipped
solder tail
HEADERS
Solder tail
145
141
Solder tail interconnect
145
Surface mount
146
Surface mount
147
pick and place
Solder tail
148
wiring slotted head
Solder tail
148
wiring turret head
Solder tail
148
wiring solder cup
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DIL SOCKETS
GENERAL SPECIFICATIONS
127
Due to technical progress, all information provided is subject to change without prior notice.
The values listed below are general specs applying for Preci-Dip DIL sockets. Please see individual catalog page for additional and product
specific technical data.
OPERATING TEMPERATURE RANGE
-55 ... +125 °C
CLIMATIC CATEGORY (IEC)
55/125/21
OPERATING HUMIDIT Y RANGE
Annual mean 75%
MA X. WORKING VOLTAGE
100
V
RMS
/150 V
DC
Preci-Dip sockets are recognized by Underwriters Laboratories Inc. and listed under “Connectors for Use in Data, Signal, Control and
Power Applications“, File Nr. E174442.
PACKAGING
• Standard packaging for DIL sockets is tube
packaging.
• SMD mount sockets available on request
with Tape & Reel packaging acc. to EIA Standard 481.
These products are marked with the symbol:
Please consult
www.precidip.com
for availability,
size of tape, size of reel, number of components
per reel and packing units.
MECHANICAL CHARACTERISTICS
CLIP RETENTION
Min. 40 N (no displacement under axial force applied)
CONTACT (SLEEVE / CLIP) RETENTION
Min. 3.3 N acc. to MIL-DTL-83734, pt 4.6.4.2
ELECTRICAL CHARACTERISTICS
INSUL ATION RESISTANCE AT 500 V AC BETWEEN ANY TWO ADJACENT CONTACTS
Min. 10’000 M
Ω
CAPACITANCE BETWEEN ANY TWO ADJACENT CONTACTS
Max. 1 pF
AIR AND CREEPAGE DISTANCES BETWEEN ANY TWO ADJACENT CONTACTS
(Min. 0.2 mm FOR SHRINK-DIP SOCKETS)
Min. 0.6 mm
ENVIRONMENTAL CHARACTERISTICS
The sockets withstand the following environmental tests without mechanical
and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH,
1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min.
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g,
1 octave/min, 10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests, no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Moisture sensitivity J-STD-020C level 1
• Resistance to corrosion:
1) Salt spray test IEC 60068-2-11.Ka: 48 h
2) Sulfur dioxide (SO2) test IEC 60068-2-42 Kc: 96 h at 25 ppm SO2,
25 °C, 75 %rH
3) Hydrogen sulfide (H2S) test IEC 60068-2-43 Kd: 96 h at 12 ppm H2S,
25 °C, 75 %rH
SOLDERLESS COMPLIANT PRESS-FIT CHARACTERISTICS
PRESS-FIT CHARACTERISTICS MEASURED ACC. TO IEC 60352-5
• Press-in force:
90 N max. (at min. hole dia.) / 65 N typ.
• Push-out force:
30 N min. (at max. hole dia.) / 50 N typ.
• Push-out 3rd cycle:
20 N min. (at max. hole dia.)
PCB HOLE DIMENSIONS
• 2.54 mm grid
Finished hole Ø: 1 + 0.09/-0.06 mm
Drilled hole Ø: 1.15 ± 0.025 mm
PCB HOLE PL ATING
PCB surface finish
Hole plating
• Tin
5-15 μm tin over min. 25 μm copper
• Copper
min. 25 μm copper
• Gold over nickel
0.05-0.2 μm gold over 2.5-5 μm nickel
over min. 25 μm copper
®
UL
T & R Packaging
DI
L
S
O
CK
E
T
S
128
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
INSULATOR BODIES / STANDARD, OPEN FRAME
210
Fig. 1
304
Fig. 2
306
Fig. 3
308
Fig. 4
310
Fig. 5
312
Fig. 6
314
Fig. 7
316
Fig. 8
318
Fig. 9
320
Fig. 10
322
Fig. 11
324
Fig. 12
328
Fig. 13
420
Fig. 14
422
Fig. 15
424
Fig. 16
428
Fig. 17
432
Fig. 18
610
Fig. 19
624
Fig. 20
628
Fig. 21
632
Fig. 22
636
Fig. 23
640
Fig. 24
642
Fig. 25
648
Fig. 26
650
Fig. 27
652
Fig. 28
950
Fig. 29
952
Fig. 30
964
Fig. 31
ORDERING INFORMATION
Example:
Row spacing
Number of pins
110-PP-
314
-41-00110
1
(Order Code)
314
Fig. 7
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE SOCKETS
OPEN FRAME / SOLDER TAIL
129
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Open frame standard low profile DIL Sockets.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
110-
PP
-210-41-001101
4
5.0
7.62 10.1 Fig.
2
110-
PP
-304-41-001101
6
7.6
7.62 10.1 Fig.
3
110-
PP
-306-41-001101
8 10.1
7.62 10.1 Fig.
4
110-
PP
-308-41-001101
10 12.6
7.62 10.1 Fig.
5
110-
PP
-310-41-001101
12 15.2
7.62 10.1 Fig.
6
110-
PP
-312-41-001101
14 17.7
7.62 10.1 Fig.
7
110-
PP
-314-41-001101
16 20.3
7.62 10.1 Fig.
8
110-
PP
-316-41-001101
18* 22.8
7.62 10.1 Fig.
9
110-
PP
-318-41-001101
20* 25.3
7.62 10.1 Fig.
10
110-
PP
-320-41-001101
22* 27.8
7.62 10.1 Fig.
11
110-
PP
-322-41-001101
24* 30.4
7.62 10.1 Fig.
12
110-
PP
-324-41-001101
28 35.5
7.62 10.1 Fig.
13
110-
PP
-328-41-001101
20 25.4
10.16
12.6
Fig.
14
110-
PP
-420-41-001101
22 27.8
10.16
12.6
Fig.
15
110-
PP
-422-41-001101
24 30.4
10.16
12.6
Fig.
16
110-
PP
-424-41-001101
28 35.5
10.16
12.6
Fig.
17
110-
PP
-428-41-001101
32 40.6
10.16
12.6
Fig.
18
110-
PP
-432-41-001101
10 12.7
15.24
17.7
Fig.
19
110-
PP
-610-41-001101
24* 30.5
15.24
17.7
Fig.
20
110-
PP
-624-41-001101
28* 35.5
15.24
17.7
Fig.
21
110-
PP
-628-41-001101
32* 40.6
15.24
17.7
Fig.
22
110-
PP
-632-41-001101
36 45.7
15.24
17.7
Fig.
23
110-
PP
-636-41-001101
40* 50.8
15.24
17.7
Fig.
24
110-
PP
-640-41-001101
42 53.3
15.24
17.7
Fig.
25
110-
PP
-642-41-001101
48* 60.9
15.24
17.7
Fig.
26
110-
PP
-648-41-001101
50 63.5
15.24
17.7
Fig.
27
110-
PP
-650-41-001101
52 66.0
15.24
17.7
Fig.
28
110-
PP
-652-41-001101
50 63.5
22.86
25.3
Fig.
29
110-
PP
-950-41-001101
52 66.0
22.86
25.3
Fig.
30
110-
PP
-952-41-001101
64 81.2
22.86
25.3
Fig.
31
110-
PP
-964-41-001101
DI
L
S
O
CK
E
T
S
OPTIONS
1
Insulators without center bar
*
Open frame insulators 318, 320, 322, 324, 624, 628, 632, 640
and 648 available on special request without center bars; add
suffix 151 to the part number. Example
110-83-628-41-001101
becomes
110-83-628-41-001
151
2
Sockets with increased solder tail length of 4.2 mm
allowing application on multilayer PCBs up to 3.4 mm
thickness
replace
110
-..-...-..-......
by
111
-..-...-..-......
3
Sockets with soft brass pin series
110-..-...-..-
005101
,
please
consult
4
For DIL Sockets with closed frame insulators
replace
110
-...
by
210
-...
Please consult for available pin numbers
130
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
AUTOMATIC INSERTION / OPEN FRAME / SOLDER TAIL
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
DIL sockets with ribbed insulator body and soft copper alloy contacts compatible with automatic insertion equipment.
Other plating on request (see page 178 for plating specs).
Other pin count please consult.
NO. OF POLES
B
SEE BELOW
ORDER CODES
6
7.62 Fig.
1
110-
PP
-306-41-605101
8
7.62 Fig.
2
110-
PP
-308-41-605101
14
7.62 Fig.
3
110-
PP
-314-41-605101
16
7.62 Fig.
4
110-
PP
-316-41-605101
18
7.62 Fig.
5
110-
PP
-318-41-605101
20
7.62 Fig.
6
110-
PP
-320-41-605101
24
7.62 Fig.
7
110-
PP
-324-41-605101
22
10.16
Fig.
8
110-
PP
-422-41-605101
24
15.24
Fig.
9
110-
PP
-624-41-605101
28
15.24
Fig.
10
110-
PP
-628-41-605101
32
15.24
Fig.
11
110-
PP
-632-41-605101
40
15.24
Fig.
12
110-
PP
-640-41-605101
INSULATOR BODIES
306
Fig. 1
308
Fig. 2
314
Fig. 3
316
Fig. 4
318
Fig. 5
320
Fig. 6
324
Fig. 7
422
Fig. 8
624
Fig. 9
628
Fig. 10
632
Fig. 11
640
Fig. 12
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE CAPACITOR
SOCKETS
OPEN FRAME / SOLDER TAIL
131
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
TEMPERATURE RANGE
-25°C to +85°C
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
83
Tin
0.75 μm gold
With ceramic multilayer decoupling capacitor 100 nF +80% -20% / 50 V, epoxy encapsulated.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
14
17.7 7.62 10.1
Fig. 7
110-
PP
-314-41-801101
16 20.3
7.62
10.1
Fig.
8
110-
PP
-316-41-801101
18 22.8
7.62
10.1
Fig.
9
110-
PP
-318-41-801101
20 25.3
7.62
10.1
Fig.
10
110-
PP
-320-41-801101
24 30.5
15.24
17.7
Fig.
20
110-
PP
-624-41-801101
28 35.5
15.24
17.7
Fig.
21
110-
PP
-628-41-801101
32 40.6
15.24
17.7
Fig.
22
110-
PP
-632-41-801101
40 50.8
15.24
17.7
Fig.
24
110-
PP
-640-41-801101
DI
L
S
O
CK
E
T
S
132
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
OPEN FRAME / SURFACE MOUNT
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with gull wing terminations for maximum strength and easy in-circuit test.
Other plating on request (see page 178 for plating specs).
NO. OF POLES
A
B
C
D
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6
9.72 Fig.
1
110-
PP
-210-41-105101
4
5.0
7.62 10.1 12.26 Fig.
2
110-
PP
-304-41-105101
6
7.6
7.62 10.1 12.26 Fig.
3
110-
PP
-306-41-105101
8 10.1
7.62 10.1 12.26 Fig.
4
110-
PP
-308-41-105101
10 12.6
7.62 10.1 12.26 Fig.
5
110-
PP
-310-41-105101
12 15.2
7.62 10.1 12.26 Fig.
6
110-
PP
-312-41-105101
14 17.7
7.62 10.1 12.26 Fig.
7
110-
PP
-314-41-105101
16 20.3
7.62 10.1 12.26 Fig.
8
110-
PP
-316-41-105101
18 22.8
7.62 10.1 12.26 Fig.
9
110-
PP
-318-41-105101
20 25.3
7.62 10.1 12.26 Fig.
10
110-
PP
-320-41-105101
22 27.8
7.62 10.1 12.26 Fig.
11
110-
PP
-322-41-105101
24 30.4
7.62 10.1 12.26 Fig.
12
110-
PP
-324-41-105101
28 35.5
7.62 10.1 12.26 Fig.
13
110-
PP
-328-41-105101
20 25.4
10.16
12.6
14.80
Fig.
14
110-
PP
-420-41-105101
22 27.8
10.16
12.6
14.80
Fig.
15
110-
PP
-422-41-105101
24 30.4
10.16
12.6
14.80
Fig.
16
110-
PP
-424-41-105101
28 35.5
10.16
12.6
14.80
Fig.
17
110-
PP
-428-41-105101
32 40.6
10.16
12.6
14.80
Fig.
18
110-
PP
-432-41-105101
24 30.5
15.24
17.7
19.88
Fig.
20
110-
PP
-624-41-105101
28 35.5
15.24
17.7
19.88
Fig.
21
110-
PP
-628-41-105101
32 40.6
15.24
17.7
19.88
Fig.
22
110-
PP
-632-41-105101
36 45.7
15.24
17.7
19.88
Fig.
23
110-
PP
-636-41-105101
40 50.8
15.24
17.7
19.88
Fig.
24
110-
PP
-640-41-105101
42 53.3
15.24
17.7
19.88
Fig.
25
110-
PP
-642-41-105101
48 60.9
15.24
17.7
19.88
Fig.
26
110-
PP
-648-41-105101
PCB LAYOUT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE SOCKETS
OPEN FRAME / SURFACE MOUNT, PICK AND PLACE
133
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with gull wing terminations for maximum strength and easy in-circuit test.
Other plating on request (see page 178 for plating specs).
Tape & Reel packaging:
replace 161 by suffix 191 to part number
Other pin counts please consult.
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
D
E
ORDER CODES
6
7.6
7.62 10.1 12.26
7.6
110-
PP
-306-41-105161
8 10.1
7.62 10.1 12.26 10.1
110-
PP
-308-41-105161
10 12.6
7.62 10.1 12.26 12.6
110-
PP
-310-41-105161
14 17.8
7.62 10.1 12.26
5.3
110-
PP
-314-41-105161
16 20.3
7.62 10.1 12.26
5.3
110-
PP
-316-41-105161
18 22.9
7.62 10.1 12.26
5.3
110-
PP
-318-41-105161
20 25.4
7.62 10.1 12.26
8.3
110-
PP
-320-41-105161
24 30.4
7.62 10.1 12.26
8.3
110-
PP
-324-41-105161
28 35.6
7.62 10.1 12.26
8.3
110-
PP
-328-41-105161
28 35.5
15.24
17.7
19.88
10.0
110-
PP
-628-41-105161
32 40.6
15.24
17.7
19.88
10.0
110-
PP
-632-41-105161
40 50.8
15.24
17.7
19.88
10.0
110-
PP
-640-41-105161
42 53.4
15.24
17.7
19.88
10.0
110-
PP
-642-41-105161
DI
L
S
O
CK
E
T
S
INSULATOR
See
page 127
T & R Packaging
PCB LAYOUT
134
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
OPEN FRAME / SURFACE MOUNT
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with unique self-aligning floating contacts.
Other plating on request (see page 178 for plating specs).
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
114-
PP
-210-41-117101
4
5.0
7.62 10.1 Fig.
2
114-
PP
-304-41-117101
6
7.6
7.62 10.1 Fig.
3
114-
PP
-306-41-117101
8 10.1
7.62 10.1 Fig.
4
114-
PP
-308-41-117101
10 12.6
7.62 10.1 Fig.
5
114-
PP
-310-41-117101
12 15.2
7.62 10.1 Fig.
6
114-
PP
-312-41-117101
14 17.7
7.62 10.1 Fig.
7
114-
PP
-314-41-117101
16 20.3
7.62 10.1 Fig.
8
114-
PP
-316-41-117101
18 22.8
7.62 10.1 Fig.
9
114-
PP
-318-41-117101
20 25.3
7.62 10.1 Fig.
10
114-
PP
-320-41-117101
22 27.8
7.62 10.1 Fig.
11
114-
PP
-322-41-117101
24 30.4
7.62 10.1 Fig.
12
114-
PP
-324-41-117101
28 35.5
7.62 10.1 Fig.
13
114-
PP
-328-41-117101
20 25.4
10.16
12.6
Fig.
14
114-
PP
-420-41-117101
22 27.8
10.16
12.6
Fig.
15
114-
PP
-422-41-117101
24 30.4
10.16
12.6
Fig.
16
114-
PP
-424-41-117101
28 35.5
10.16
12.6
Fig.
17
114-
PP
-428-41-117101
32 40.6
10.16
12.6
Fig.
18
114-
PP
-432-41-117101
24 30.5
15.24
17.7
Fig.
20
114-
PP
-624-41-117101
28 35.5
15.24
17.7
Fig.
21
114-
PP
-628-41-117101
32 40.6
15.24
17.7
Fig.
22
114-
PP
-632-41-117101
36 45.7
15.24
17.7
Fig.
23
114-
PP
-636-41-117101
40 50.8
15.24
17.7
Fig.
24
114-
PP
-640-41-117101
42 53.3
15.24
17.7
Fig.
25
114-
PP
-642-41-117101
48 60.9
15.24
17.7
Fig.
26
114-
PP
-648-41-117101
PCB LAYOUT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE SOCKETS
OPEN FRAME / SURFACE MOUNT PICK AND PLACE
135
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with unique self-aligning floating contacts.
Other plating on request (see page 178 for plating specs).
Tape & Reel packaging:
replace 161 by suffix 191 to part number
Other pin counts please consult.
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
E
ORDER CODES
6
7.6
7.62 10.1
7.6
114-
PP
-306-41-134161
8 10.1
7.62 10.1 10.1
114-
PP
-308-41-134161
10 12.6
7.62 10.1 12.6
114-
PP
-310-41-134161
14 17.8
7.62 10.1
5.3
114-
PP
-314-41-134161
16 20.3
7.62 10.1
5.3
114-
PP
-316-41-134161
18 22.9
7.62 10.1
5.3
114-
PP
-318-41-134161
20 25.4
7.62 10.1
8.3
114-
PP
-320-41-134161
24 30.4
7.62 10.1
8.3
114-
PP
-324-41-134161
28 35.6
7.62 10.1
8.3
114-
PP
-328-41-134161
28 35.5
15.24
17.7
10.0
114-
PP
-628-41-134161
32 40.6
15.24
17.7
10.0
114-
PP
-632-41-134161
40 50.8
15.24
17.7
10.0
114-
PP
-640-41-134161
42 53.4
15.24
17.7
10.0
114-
PP
-642-41-134161
DI
L
S
O
CK
E
T
S
INSULATOR
PCB LAYOUT
See
page 127
T & R Packaging
136
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
INSULATOR BODIES / ULTRALOW, OPEN FRAME
ORDERING INFORMATION
Example:
Row spacing
Number of pins
115-PP-
314
-41-00310
1
(Order Code)
314
Fig. 4
306
Fig. 1
308
Fig. 2
310
Fig. 3
314
Fig. 4
316
Fig. 5
318
Fig. 6
320
Fig. 7
322
Fig. 8
324
Fig. 9
328
Fig. 10
420
Fig. 11
422
Fig. 12
424
Fig. 13
428
Fig. 14
624
Fig. 15
628
Fig. 16
632
Fig. 17
636
Fig. 18
640
Fig. 19
648
Fig. 20
650
Fig. 21
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE SOCKETS
ULTRALOW AND VERY LOW PROFILE / OPEN FRAME / SOLDER TAIL
137
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.52 mm
FORCES
3 N typ. insertion
1.5 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
“Ultralow” sockets have specially designed contacts for reduced socket height above PCB.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 136
ORDER CODES
6
7.6
7.62 10.1 Fig.
1
115-
PP
-306-41-003101
8 10.1
7.62 10.1 Fig.
2
115-
PP
-308-41-003101
10 12.6
7.62 10.1 Fig.
3
115-
PP
-310-41-003101
14 17.7
7.62 10.1 Fig.
4
115-
PP
-314-41-003101
16 20.3
7.62 10.1 Fig.
5
115-
PP
-316-41-003101
18 22.8
7.62 10.1 Fig.
6
115-
PP
-318-41-003101
20 25.3
7.62 10.1 Fig.
7
115-
PP
-320-41-003101
22 27.9
7.62 10.1 Fig.
8
115-
PP
-322-41-003101
24 30.4
7.62 10.1 Fig.
9
115-
PP
-324-41-003101
28 35.5
7.62 10.1 Fig.
10
115-
PP
-328-41-003101
20 25.4
10.16
12.6
Fig.
11
115-
PP
-420-41-003101
22 27.8
10.16
12.6
Fig.
12
115-
PP
-422-41-003101
24 30.4
10.16
12.6
Fig.
13
115-
PP
-424-41-003101
28 35.5
10.16
12.6
Fig.
14
115-
PP
-428-41-003101
24 30.5
15.24
17.7
Fig.
15
115-
PP
-624-41-003101
28 35.5
15.24
17.7
Fig.
16
115-
PP
-628-41-003101
32 40.6
15.24
17.7
Fig.
17
115-
PP
-632-41-003101
36 45.7
15.24
17.7
Fig.
18
115-
PP
-636-41-003101
40 50.8
15.24
17.7
Fig.
19
115-
PP
-640-41-003101
48 60.9
15.24
17.7
Fig.
20
115-
PP
-648-41-003101
50 63.5
15.24
17.7
Fig.
21
115-
PP
-650-41-003101
DI
L
S
O
CK
E
T
S
OPTIONS:
VERY LOW VERSION
Very low version (Fig. 2) is optional; change suffix
003101
to
001101
.
Insulator body dimensions see page 128 Fig. 1 to 31. Same number
of poles as standard series 110.
ULTRALOW SOCKET
Fig. 1
Fig. 2
138
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
INTERCONNECT / OPEN FRAME / SOLDER TAIL
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
For mechanical and electrical interconnection, PCB stacking or elevated positioning of display modules.
Other plating on request (see page 178 for plating specs).
For complete part number replace
XXX
with the code given below left
for the required contact length
L
.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
116-
PP
-210-41-
XXX
101
4
5.0
7.62 10.1 Fig.
2
116-
PP
-304-41-
XXX
101
6
7.6
7.62 10.1 Fig.
3
116-
PP
-306-41-
XXX
101
8 10.1
7.62 10.1 Fig.
4
116-
PP
-308-41-
XXX
101
10 12.6
7.62 10.1 Fig.
5
116-
PP
-310-41-
XXX
101
12 15.2
7.62 10.1 Fig.
6
116-
PP
-312-41-
XXX
101
14 17.7
7.62 10.1 Fig.
7
116-
PP
-314-41-
XXX
101
16 20.3
7.62 10.1 Fig.
8
116-
PP
-316-41-
XXX
101
18 22.8
7.62 10.1 Fig.
9
116-
PP
-318-41-
XXX
101
20 25.3
7.62 10.1 Fig.
10
116-
PP
-320-41-
XXX
101
22 27.8
7.62 10.1 Fig.
11
116-
PP
-322-41-
XXX
101
24 30.4
7.62 10.1 Fig.
12
116-
PP
-324-41-
XXX
101
28 35.5
7.62 10.1 Fig.
13
116-
PP
-328-41-
XXX
101
20 25.4
10.16
12.6
Fig.
14
116-
PP
-420-41-
XXX
101
22 27.8
10.16
12.6
Fig.
15
116-
PP
-422-41-
XXX
101
24 30.4
10.16
12.6
Fig.
16
116-
PP
-424-41-
XXX
101
28 35.5
10.16
12.6
Fig.
17
116-
PP
-428-41-
XXX
101
32 40.6
10.16
12.6
Fig.
18
116-
PP
-432-41-
XXX
101
10 12.7
15.24
17.7
Fig.
19
116-
PP
-610-41-
XXX
101
24 30.5
15.24
17.7
Fig.
20
116-
PP
-624-41-
XXX
101
28 35.5
15.24
17.7
Fig.
21
116-
PP
-628-41-
XXX
101
32 40.6
15.24
17.7
Fig.
22
116-
PP
-632-41-
XXX
101
36 45.7
15.24
17.7
Fig.
23
116-
PP
-636-41-
XXX
101
40 50.8
15.24
17.7
Fig.
24
116-
PP
-640-41-
XXX
101
42 53.3
15.24
17.7
Fig.
25
116-
PP
-642-41-
XXX
101
48 60.9
15.24
17.7
Fig.
26
116-
PP
-648-41-
XXX
101
50 63.5
15.24
17.7
Fig.
27
116-
PP
-650-41-
XXX
101
52 66.0
15.24
17.7
Fig.
28
116-
PP
-652-41-
XXX
101
50 63.5
22.86
25.3
Fig.
29
116-
PP
-950-41-
XXX
101
52 66.0
22.86
25.3
Fig.
30
116-
PP
-952-41-
XXX
101
64 81.2
22.86
25.3
Fig.
31
116-
PP
-964-41-
XXX
101
AVAILABLE CONTACT LENGTHS
CONTACT LENGTH
CONTACT DIAMETER
X X X CODE
L1 (mm)
L2 (mm)
D1 (mm)
D2 (mm)
6 4.2
1 0.51
006
7 4.2
1 0.51
018
8 4.2
1 0.51
003
9 4.85
1 0.46
012
10 4.2 1 0.51
007
11 4.2
0.85
0.51
002
12 4.2
1 0.51
008
13 4.2 1 0.51
009
15 4.2
1 0.51
001
18 4.2 1 0.51
011
22 4.2 1 0.51
004
33 4.2 1.18
0.51
013
OPTION
Other lengths for 1-level, 2-level or 4-level wrapping available
on request
Replace
123
-...
in order code by
-
121
-83-...
for 1-level
L = 6.6 mm
-
122
-...
for 2-level
L = 9.4 mm
-
124
-83-...-002101
for 4-level
L = 16 mm
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE SOCKETS
OPEN FRAME / WIRE-WRAP
139
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Solderless wire-wrap terminals are firmly fitted in the insulator body to withstand torque of wrapping tool.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
123-
PP
-210-41-001101
0
4
5.0
7.62 10.1 Fig.
2
123-
PP
-304-41-001101
6
7.6
7.62 10.1 Fig.
3
123-
PP
-306-41-001101
8 10.1
7.62 10.1 Fig.
4
123-
PP
-308-41-001101
10 12.6
7.62 10.1 Fig.
5
123-
PP
-310-41-001101
12 15.2
7.62 10.1 Fig.
6
123-
PP
-312-41-001101
14 17.7
7.62 10.1 Fig.
7
123-
PP
-314-41-001101
16 20.3
7.62 10.1 Fig.
8
123-
PP
-316-41-001101
18 22.8
7.62 10.1 Fig.
9
123-
PP
-318-41-001101
20 25.3
7.62 10.1 Fig.
10
123-
PP
-320-41-001101
22 27.8
7.62 10.1 Fig.
11
123-
PP
-322-41-001101
24 30.4
7.62 10.1 Fig.
12
123-
PP
-324-41-001101
28 35.5
7.62 10.1 Fig.
13
123-
PP
-328-41-001101
20 25.4
10.16
12.6
Fig.
14
123-
PP
-420-41-001101
22 27.8
10.16
12.6
Fig.
15
123-
PP
-422-41-001101
24 30.4
10.16
12.6
Fig.
16
123-
PP
-424-41-001101
28 35.5
10.16
12.6
Fig.
17
123-
PP
-428-41-001101
32 40.6
10.16
12.6
Fig.
18
123-
PP
-432-41-001101
10 12.7
15.24
17.7
Fig.
19
123-
PP
-610-41-001101
24 30.5
15.24
17.7
Fig.
20
123-
PP
-624-41-001101
28 35.5
15.24
17.7
Fig.
21
123-
PP
-628-41-001101
32 40.6
15.24
17.7
Fig.
22
123-
PP
-632-41-001101
36 45.7
15.24
17.7
Fig.
23
123-
PP
-636-41-001101
40 50.8
15.24
17.7
Fig.
24
123-
PP
-640-41-001101
42 53.3
15.24
17.7
Fig.
25
123-
PP
-642-41-001101
48 60.9
15.24
17.7
Fig.
26
123-
PP
-648-41-001101
50 63.5
15.24
17.7
Fig.
27
123-
PP
-650-41-001101
52 66.0
15.24
17.7
Fig.
28
123-
PP
-652-41-001101
50 63.5
22.86
25.3
Fig.
29
123-
PP
-950-41-001101
52 66.0
22.86
25.3
Fig.
30
123-
PP
-952-41-001101
64 81.2
22.86
25.3
Fig.
31
123-
PP
-964-41-001101
DI
L
S
O
CK
E
T
S
140
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
INSULATOR BODIES / SHRINKDIP, OPEN FRAME
ORDERING INFORMATION
Example:
Row spacing
Number of pins
117-PP-
624
-41-00510
1
(Order Code)
624
Fig. 7
316
Fig. 1
428
Fig. 2
430
Fig. 3
432
Fig. 4
448
Fig. 5
620
Fig. 6
624
Fig. 7
628
Fig. 8
640
Fig. 9
642
Fig. 10
648
Fig. 11
652
Fig. 12
656
Fig. 13
664
Fig. 14
668
Fig. 15
764
Fig. 16
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SHRINKDIP SOCKETS
OPEN FRAME / SOLDER TAIL
141
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
High density DIL sockets for devices featuring 0.07” (1.778 mm) lead spacing.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 140
ORDER CODES
16 14.6
7.62
10.10
Fig.
1
117-
PP
-316-41-005101
28 25.2
10.16
12.70
Fig.
2
117-
PP
-428-41-005101
30 27.0
10.16
12.70
Fig.
3
117-
PP
-430-41-005101
32 28.8
10.16
12.70
Fig.
4
117-
PP
-432-41-005101
48 43.1
10.16
12.70
Fig.
5
117-
PP
-448-41-005101
20 18.1
15.24
17.64
Fig.
6
117-
PP
-620-41-005101
24 21.7
15.24
17.64
Fig.
7
117-
PP
-624-41-005101
28 25.2
15.24
17.64
Fig.
8
117-
PP
-628-41-005101
40 35.8
15.24
17.64
Fig.
9
117-
PP
-640-41-005101
42 37.7
15.24
17.64
Fig.
10
117-
PP
-642-41-005101
48 43.1
15.24
17.64
Fig.
11
117-
PP
-648-41-005101
52 46.7
15.24
17.64
Fig.
12
117-
PP
-652-41-005101
56 50.2
15.24
17.64
Fig.
13
117-
PP
-656-41-005101
64 57.3
15.24
17.64
Fig.
14
117-
PP
-664-41-005101
68 60.9
15.24
17.64
Fig.
15
117-
PP
-668-41-005101
64* 57.3
19.05
21.50
Fig.
16
117-
PP
-764-41-005101
DI
L
S
O
CK
E
T
S
OPTIONS AVAILABLE ON REQUEST
- * Socket
117-PP-764-41-005101
available with closed frame
insulator PN
2
17-PP-764-41-005101
- Surface mount Shrinkdip socket with gull wing terminations
Series
117-...-41-105101
- Shrinkdip pin header, solder tail Series
150-10...-00-012101
or
150-80...-00-012101
Please consult
142
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
OPEN FRAME / PRESS-FIT
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 500 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
PCB HOLE Ø
1 +0.09/-0.06 mm finished
(1.15 ±0.025 mm drill)
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
DIL Sockets with compliant press-fit pin for solderless mount in PCB plated through holes.
Other plating on request (see page 178 for plating specs).
For complete part number replace
XXX
with the code given below left
for the required contact length
L
.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
146-
PP
-210-41-
XXX
101
4
5.0
7.62 10.1 Fig.
2
146-
PP
-304-41-
XXX
101
6
7.6
7.62 10.1 Fig.
3
146-
PP
-306-41-
XXX
101
8 10.1
7.62 10.1 Fig.
4
146-
PP
-308-41-
XXX
101
10 12.6
7.62 10.1 Fig.
5
146-
PP
-310-41-
XXX
101
12 15.2
7.62 10.1 Fig.
6
146-
PP
-312-41-
XXX
101
14 17.7
7.62 10.1 Fig.
7
146-
PP
-314-41-
XXX
101
16 20.3
7.62 10.1 Fig.
8
146-
PP
-316-41-
XXX
101
18 22.8
7.62 10.1 Fig.
9
146-
PP
-318-41-
XXX
101
20 25.3
7.62 10.1 Fig.
10
146-
PP
-320-41-
XXX
101
22 27.8
7.62 10.1 Fig.
11
146-
PP
-322-41-
XXX
101
24 30.4
7.62 10.1 Fig.
12
146-
PP
-324-41-
XXX
101
28 35.5
7.62 10.1 Fig.
13
146-
PP
-328-41-
XXX
101
20 25.4
10.16
12.6
Fig.
14
146-
PP
-420-41-
XXX
101
22 27.8
10.16
12.6
Fig.
15
146-
PP
-422-41-
XXX
101
24 30.4
10.16
12.6
Fig.
16
146-
PP
-424-41-
XXX
101
28 35.5
10.16
12.6
Fig.
17
146-
PP
-428-41-
XXX
101
32 40.6
10.16
12.6
Fig.
18
146-
PP
-432-41-
XXX
101
24 30.5
15.24
17.7
Fig.
20
146-
PP
-624-41-
XXX
101
28 35.5
15.24
17.7
Fig.
21
146-
PP
-628-41-
XXX
101
32 40.6
15.24
17.7
Fig.
22
146-
PP
-632-41-
XXX
101
36 45.7
15.24
17.7
Fig.
23
146-
PP
-636-41-
XXX
101
40 50.8
15.24
17.7
Fig.
24
146-
PP
-640-41-
XXX
101
AVAILABLE CONTACT LENGTH
CONTACT LENGTH L (mm)
PCB THICKNESS (mm)
X X X CODE
2.8 1.5-2.0
036
3.8 2.1-3.2
035
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE PIN CARRIER
ASSEMBLIES
LOW PROFILE / LOW PROFILE ULTRA THIN / SOLDER TAIL
143
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
CONTACT CLIP
(3 FINGER)
(Series 614…012101)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. (1.0 N typ. 614…012001) insertion
1 N typ. (0.4 N typ. 614…012001) withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
Easy mounting due to the disposable plastic carrier, no solder or flux wicking problems.
Other plating on request (see page 178 for plating specs).
For complete part number replace
X
-...-
XX
-
XXX
with the code given
below left.
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
61
X
-
PP
-210-
XX
-
XXX
101
4
5.0
7.62 10.1 Fig.
2
61
X
-
PP
-304-
XX
-
XXX
101
6
7.6
7.62 10.1 Fig.
3
61
X
-
PP
-306-
XX
-
XXX
101
8 10.1
7.62 10.1 Fig.
4
61
X
-
PP
-308-
XX
-
XXX
101
10 12.6
7.62 10.1 Fig.
5
61
X
-
PP
-310-
XX
-
XXX
101
12 15.2
7.62 10.1 Fig.
6
61
X
-
PP
-312-
XX
-
XXX
101
14 17.7
7.62 10.1 Fig.
7
61
X
-
PP
-314-
XX
-
XXX
101
16 20.3
7.62 10.1 Fig.
8
61
X
-
PP
-316-
XX
-
XXX
101
18 22.8
7.62 10.1 Fig.
9
61
X
-
PP
-318-
XX
-
XXX
101
20 25.3
7.62 10.1 Fig.
10
61
X
-
PP
-320-
XX
-
XXX
101
22 27.8
7.62 10.1 Fig.
11
61
X
-
PP
-322-
XX
-
XXX
101
24 30.4
7.62 10.1 Fig.
12
61
X
-
PP
-324-
XX
-
XXX
101
28 35.5
7.62 10.1 Fig.
13
61
X
-
PP
-328-
XX
-
XXX
101
20 25.4
10.16
12.6
Fig.
14
61
X
-
PP
-420-
XX
-
XXX
101
22 27.8
10.16
12.6
Fig.
15
61
X
-
PP
-422-
XX
-
XXX
101
24 30.4
10.16
12.6
Fig.
16
61
X
-
PP
-424-
XX
-
XXX
101
28 35.5
10.16
12.6
Fig.
17
61
X
-
PP
-428-
XX
-
XXX
101
32 40.6
10.16
12.6
Fig.
18
61
X
-
PP
-432-
XX
-
XXX
101
10 12.7
15.24
17.7
Fig.
19
61
X
-
PP
-610-
XX
-
XXX
101
24 30.5
15.24
17.7
Fig.
20
61
X
-
PP
-624-
XX
-
XXX
101
28 35.5
15.24
17.7
Fig.
21
61
X
-
PP
-628-
XX
-
XXX
101
32 40.6
15.24
17.7
Fig.
22
61
X
-
PP
-632-
XX
-
XXX
101
36 45.7
15.24
17.7
Fig.
23
61
X
-
PP
-636-
XX
-
XXX
101
40 50.8
15.24
17.7
Fig.
24
61
X
-
PP
-640-
XX
-
XXX
101
42 53.3
15.24
17.7
Fig.
25
61
X
-
PP
-642-
XX
-
XXX
101
48 60.9
15.24
17.7
Fig.
26
61
X
-
PP
-648-
XX
-
XXX
101
50 63.5
15.24
17.7
Fig.
27
61
X
-
PP
-650-
XX
-
XXX
101
52 66.0
15.24
17.7
Fig.
28
61
X
-
PP
-652-
XX
-
XXX
101
50 63.5
22.86
25.3
Fig.
29
61
X
-
PP
-950-
XX
-
XXX
101
52 66.0
22.86
25.3
Fig.
30
61
X
-
PP
-952-
XX
-
XXX
101
64 81.2
22.86
25.3
Fig.
31
61
X
-
PP
-964-
XX
-
XXX
101
DI
L
S
O
CK
E
T
S
AVAILABLE VERSIONS
-
Standard carrier
612…-41-001101
see Fig. 1
-
Low profile
614…-41-001101
see Fig. 2 for PCB hole Ø 1.4-1.8 mm
-
Low profile, ultra thin
614…-31-012101
see Fig. 3 for PCB hole Ø 1.0-1.3 mm
Fig. 1
Fig. 2
Fig. 3
144
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE SOCKETS
RIGHT ANGLE VERSION / CLOSED FRAME / SOLDER TAIL
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Right angle DIL Sockets for components to be mounted perpendicularly to the PCB such as displays.
Other plating on request (see page 178 for plating specs).
For complete part number replace
XX
with the code given below left.
NO. OF POLES
A
B
C
SEE
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
299-
PP
-210-10-001101
6
7.6
7.62 10.1 Fig.
2
299-
PP
-306-
XX
-001101
8 10.1
7.62 10.1 Fig.
2
299-
PP
-308-
XX
-001101
10 12.6
7.62 10.1 Fig.
2
299-
PP
-310-
XX
-001101
12 15.2
7.62 10.1 Fig.
2
299-
PP
-312-
XX
-001101
14 17.7
7.62 10.1 Fig.
2
299-
PP
-314-
XX
-001101
16 20.3
7.62 10.1 Fig.
2
299-
PP
-316-
XX
-001101
18 22.8
7.62 10.1 Fig.
2
299-
PP
-318-
XX
-001101
20 25.3
7.62 10.1 Fig.
2
299-
PP
-320-
XX
-001101
22 27.8
7.62 10.1 Fig.
2
299-
PP
-322-
XX
-001101
24 30.4
7.62 10.1 Fig.
2
299-
PP
-324-
XX
-001101
8 10.1
15.24
17.7
Fig.
3
299-
PP
-608-10-002101
10 12.6
15.24
17.7
Fig.
3
299-
PP
-610-10-002101
12 15.2
15.24
10.1
Fig.
3
299-
PP
-612-10-002101
14 17.7
15.24
10.1
Fig.
3
299-
PP
-614-10-002101
16 20.1
15.24
17.7
Fig.
3
299-
PP
-616-10-002101
18 22.8
15.24
17.7
Fig.
3
299-
PP
-618-10-002101
20 25.3
15.24
17.7
Fig.
3
299-
PP
-620-10-002101
22 27.8
15.24
17.7
Fig.
3
299-
PP
-622-10-002101
24 30.4
15.24
17.7
Fig.
3
299-
PP
-624-10-002101
26 33.0
15.24
17.7
Fig.
3
299-
PP
-626-10-002101
28 35.5
15.24
17.7
Fig.
3
299-
PP
-628-10-002101
30 38.0
15.24
17.7
Fig.
3
299-
PP
-630-10-002101
32 40.6
15.24
17.7
Fig.
3
299-
PP
-632-10-002101
36 45.7
15.24
17.7
Fig.
3
299-
PP
-636-10-002101
40 50.6
15.24
17.7
Fig.
3
299-
PP
-640-10-002101
48 61.0
15.24
17.7
Fig.
3
299-
PP
-648-10-002101
ROW SPACING E
E (mm)
ORDER CODE X X
7.62
299...
10
-001101
2.54
299...
11
-001101
Fig. 1
Fig. 2
Fig. 3
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE PIN HEADERS
OPEN FRAME / SOLDER TAIL
145
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
DIL pin headers with male contacts pluggable into standard female socket contacts.
Other plating on request (see page 178 for plating specs).
For complete part number replace
X
-...-
XXX
with the code given
below left.
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
15
X
-
PP
-210-00-
XXX
101
4
5.0
7.62 10.1 Fig.
2
15
X
-
PP
-304-00-
XXX
101
6
7.6
7.62 10.1 Fig.
3
15
X
-
PP
-306-00-
XXX
101
8 10.1
7.62 10.1 Fig.
4
15
X
-
PP
-308-00-
XXX
101
10 12.6
7.62 10.1 Fig.
5
15
X
-
PP
-310-00-
XXX
101
12 15.2
7.62 10.1 Fig.
6
15
X
-
PP
-312-00-
XXX
101
14 17.7
7.62 10.1 Fig.
7
15
X
-
PP
-314-00-
XXX
101
16 20.3
7.62 10.1 Fig.
8
15
X
-
PP
-316-00-
XXX
101
18 22.8
7.62 10.1 Fig.
9
15
X
-
PP
-318-00-
XXX
101
20 25.3
7.62 10.1 Fig.
10
15
X
-
PP
-320-00-
XXX
101
22 27.8
7.62 10.1 Fig.
11
15
X
-
PP
-322-00-
XXX
101
24 30.4
7.62 10.1 Fig.
12
15
X
-
PP
-324-00-
XXX
101
28 35.5
7.62 10.1 Fig.
13
15
X
-
PP
-328-00-
XXX
101
20 25.4
10.16
12.6
Fig.
14
15
X
-
PP
-420-00-
XXX
101
22 27.8
10.16
12.6
Fig.
15
15
X
-
PP
-422-00-
XXX
101
24 30.4
10.16
12.6
Fig.
16
15
X
-
PP
-424-00-
XXX
101
28 35.5
10.16
12.6
Fig.
17
15
X
-
PP
-428-00-
XXX
101
32 40.6
10.16
12.6
Fig.
18
15
X
-
PP
-432-00-
XXX
101
10 12.7
15.24
17.7
Fig.
19
15
X
-
PP
-610-00-
XXX
101
24 30.5
15.24
17.7
Fig.
20
15
X
-
PP
-624-00-
XXX
101
28 35.5
15.24
17.7
Fig.
21
15
X
-
PP
-628-00-
XXX
101
32 40.6
15.24
17.7
Fig.
22
15
X
-
PP
-632-00-
XXX
101
36 45.7
15.24
17.7
Fig.
23
15
X
-
PP
-636-00-
XXX
101
40 50.8
15.24
17.7
Fig.
24
15
X
-
PP
-640-00-
XXX
101
42 53.3
15.24
17.7
Fig.
25
15
X
-
PP
-642-00-
XXX
101
48 60.9
15.24
17.7
Fig.
26
15
X
-
PP
-648-00-
XXX
101
50 63.5
15.24
17.7
Fig.
27
15
X
-
PP
-650-00-
XXX
101
52 66.0
15.24
17.7
Fig.
28
15
X
-
PP
-652-00-
XXX
101
50 63.5
22.86
25.3
Fig.
29
15
X
-
PP
-950-00-
XXX
101
52 66.0
22.86
25.3
Fig.
30
15
X
-
PP
-952-00-
XXX
101
64 81.2
22.86
25.3
Fig.
31
15
X
-
PP
-964-00-
XXX
101
DI
L
S
O
CK
E
T
S
AVAILABLE VERSIONS
STANDARD HEADER
150-...-001101
See
Fig.
1
150-...-006101
See
Fig.
2
150-...-018101
See
Fig.
3
INTERCONNECT HEADER
151-...-XXX101
See
Fig.
4
CONTACT LENGTH
X X X CODE
L1 (mm)
L2 (mm)
6.2 4.7
003
8.4 3.55
004
15.3 3.55
005
21.2 3.55
016
27.4 3.55
017
Other lengths on request
Fig. 2
Fig. 3
Fig. 4
Fig. 1
146
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE PIN HEADERS
OPEN FRAME / SURFACE MOUNT
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with male contacts pluggable into standard socket contacts and gull wing terminations.
Other plating on request (see page 178 for plating specs).
NO. OF POLES
A
B
C
D
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6
9.76 Fig.
1
150-
PP
-210-00-106101
4
5.0
7.62 10.1 12.30 Fig.
2
150-
PP
-304-00-106101
6
7.6
7.62 10.1 12.30 Fig.
3
150-
PP
-306-00-106101
8 10.1
7.62 10.1 12.30 Fig.
4
150-
PP
-308-00-106101
10 12.6
7.62 10.1 12.30 Fig.
5
150-
PP
-310-00-106101
12 15.2
7.62 10.1 12.30 Fig.
6
150-
PP
-312-00-106101
14 17.7
7.62 10.1 12.30 Fig.
7
150-
PP
-314-00-106101
16 20.3
7.62 10.1 12.30 Fig.
8
150-
PP
-316-00-106101
18 22.8
7.62 10.1 12.30 Fig.
9
150-
PP
-318-00-106101
20 25.3
7.62 10.1 12.30 Fig.
10
150-
PP
-320-00-106101
22 27.8
7.62 10.1 12.30 Fig.
11
150-
PP
-322-00-106101
24 30.4
7.62 10.1 12.30 Fig.
12
150-
PP
-324-00-106101
28 35.5
7.62 10.1 12.30 Fig.
13
150-
PP
-328-00-106101
20 25.4
10.16
12.6
14.84
Fig.
14
150-
PP
-420-00-106101
22 27.8
10.16
12.6
14.84
Fig.
15
150-
PP
-422-00-106101
24 30.4
10.16
12.6
14.84
Fig.
16
150-
PP
-424-00-106101
28 35.5
10.16
12.6
14.84
Fig.
17
150-
PP
-428-00-106101
32 40.6
10.16
12.6
14.84
Fig.
18
150-
PP
-432-00-106101
24 30.5
15.24
17.7
19.92
Fig.
20
150-
PP
-624-00-106101
28 35.5
15.24
17.7
19.92
Fig.
21
150-
PP
-628-00-106101
32 40.6
15.24
17.7
19.92
Fig.
22
150-
PP
-632-00-106101
36 45.7
15.24
17.7
19.92
Fig.
23
150-
PP
-636-00-106101
40 50.8
15.24
17.7
19.92
Fig.
24
150-
PP
-640-00-106101
42 53.3
15.24
17.7
19.92
Fig.
25
150-
PP
-642-00-106101
48 60.9
15.24
17.7
19.92
Fig.
26
150-
PP
-648-00-106101
PCB LAYOUT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
DUAL-IN-LINE HEADERS
OPEN FRAME / SURFACE MOUNT PICK AND PLACE
147
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.47 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.10 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
V3
Tin
0.75 μm gold
Specially designed for reflow soldering including vapor phase with male contact pluggable into standard socket contacts and gull wing terminations.
Other plating on request (see page 178 for plating specs).
Tape & Reel packaging:
replace 161 by suffix 191 to part number
Other pin counts please consult.
Due to technical progress, all information provided is subject to change without prior notice.
NO. OF POLES
A
B
C
D
E
ORDER CODES
6
7.6
7.62 10.1 12.30
7.6
150-
PP
-306-00-106161
8 10.1
7.62 10.1 12.30 10.1
150-
PP
-308-00-106161
10 12.6
7.62 10.1 12.30 12.6
150-
PP
-310-00-106161
14 17.8
7.62 10.1 12.30
5.3
150-
PP
-314-00-106161
16 20.3
7.62 10.1 12.30
5.3
150-
PP
-316-00-106161
18 22.9
7.62 10.1 12.30
5.3
150-
PP
-318-00-106161
20 25.4
7.62 10.1 12.30
8.3
150-
PP
-320-00-106161
24 30.4
7.62 10.1 12.30
8.3
150-
PP
-324-00-106161
28 35.6
7.62 10.1 12.30
8.3
150-
PP
-328-00-106161
28 35.5
15.24
17.7
19.22
10.0
150-
PP
-628-00-106161
32 40.6
15.24
17.7
19.22
10.0
150-
PP
-632-00-106161
40 50.8
15.24
17.7
19.22
10.0
150-
PP
-640-00-106161
42 53.4
15.24
17.7
19.22
10.0
150-
PP
-642-00-106161
DI
L
S
O
CK
E
T
S
INSULATOR
PCB LAYOUT
See
page 127
T & R Packaging
148
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
DUAL-IN-LINE HEADERS
SLOTTED HEAD / TURRET / SOLDER CUP / OPEN FRAME / SOLDER TAIL
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
CONNECTING PIN Ø
0.5 mm
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
80 Tin
Tin
DIL headers for wiring applications.
Other plating on request (see page 178 for plating specs).
For complete part number replace
XX
with the code given
below left.
NO. OF POLES
A
B
C
SEE PAGE 128
ORDER CODES
10 12.6
5.08
7.6 Fig.
1
1
XX
-
PP
-210-00-001101
4
5.0
7.62 10.1 Fig.
2
1
XX
-
PP
-304-00-001101
6
7.6
7.62 10.1 Fig.
3
1
XX
-
PP
-306-00-001101
8 10.1
7.62 10.1 Fig.
4
1
XX
-
PP
-308-00-001101
10 12.6
7.62 10.1 Fig.
5
1
XX
-
PP
-310-00-001101
12 15.2
7.62 10.1 Fig.
6
1
XX
-
PP
-312-00-001101
14 17.7
7.62 10.1 Fig.
7
1
XX
-
PP
-314-00-001101
16 20.3
7.62 10.1 Fig.
8
1
XX
-
PP
-316-00-001101
18 22.8
7.62 10.1 Fig.
9
1
XX
-
PP
-318-00-001101
20 25.3
7.62 10.1 Fig.
10
1
XX
-
PP
-320-00-001101
22 27.8
7.62 10.1 Fig.
11
1
XX
-
PP
-322-00-001101
24 30.4
7.62 10.1 Fig.
12
1
XX
-
PP
-324-00-001101
28 35.5
7.62 10.1 Fig.
13
1
XX
-
PP
-328-00-001101
20 25.4
10.16
12.6
Fig.
14
1
XX
-
PP
-420-00-001101
22 27.8
10.16
12.6
Fig.
15
1
XX
-
PP
-422-00-001101
24 30.4
10.16
12.6
Fig.
16
1
XX
-
PP
-424-00-001101
28 35.5
10.16
12.6
Fig.
17
1
XX
-
PP
-428-00-001101
32 40.6
10.16
12.6
Fig.
18
1
XX
-
PP
-432-00-001101
10 12.7
15.24
17.7
Fig.
19
1
XX
-
PP
-610-00-001101
24 30.5
15.24
17.7
Fig.
20
1
XX
-
PP
-624-00-001101
28 35.5
15.24
17.7
Fig.
21
1
XX
-
PP
-628-00-001101
32 40.6
15.24
17.7
Fig.
22
1
XX
-
PP
-632-00-001101
36 45.7
15.24
17.7
Fig.
23
1
XX
-
PP
-636-00-001101
40 50.8
15.24
17.7
Fig.
24
1
XX
-
PP
-640-00-001101
42 53.3
15.24
17.7
Fig.
25
1
XX
-
PP
-642-00-001101
48 60.9
15.24
17.7
Fig.
26
1
XX
-
PP
-648-00-001101
50 63.5
15.24
17.7
Fig.
27
1
XX
-
PP
-650-00-001101
52 66.0
15.24
17.7
Fig.
28
1
XX
-
PP
-652-00-001101
50 63.5
22.86
25.3
Fig.
29
1
XX
-
PP
-950-00-001101
52 66.0
22.86
25.3
Fig.
30
1
XX
-
PP
-952-00-001101
64 81.2
22.86
25.3
Fig.
31
1
XX
-
PP
-964-00-001101
AVAILABLE VERSIONS
Replace
1
XX
-...
in order code by
ORDER CODE
DESCRIPTION
DIMENSIONS
1
60
Header with slotted head See Fig. 1
to accept wires
or component leads
1
70
Header with turret head
See Fig. 2
1
80
Header with solder cup
See Fig. 3
Fig. 1
Fig. 2
Fig. 3
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
TO SOCKETS
SOLDER TAIL / SURFACE MOUNT
149
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Sockets for packages with contacts arranged on .200” (5.08 mm) and .230” (5.84 mm) diameter acc. to JEDEC TO-Series outlines.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
SOCKETS, SOLDER TAIL, FIG. 1
NO. OF POLES
A
B
SEE
ORDER CODES
3 10.0
5.08
Fig.
3
917-
PP
-103-41-005101
4 10.0
5.08
Fig.
4
917-
PP
-104-41-005101
8 10.0
5.08
Fig.
5
917-
PP
-108-41-005101
8 10.0
5.84
Fig.
6
917-
PP
-208-41-005101
10 10.0
5.84
Fig.
7
917-
PP
-210-41-005101
DI
L
S
O
CK
E
T
S
Fig. 1
Fig. 2
SOCKETS, SMD MOUNT, FIG. 2
NO. OF POLES
A
B
SEE
ORDER CODES
3 10.0
5.08
Fig.
3
917-
PP
-103-41-053101
4 10.0
5.08
Fig.
4
917-
PP
-104-41-053101
8 10.0
5.08
Fig.
5
917-
PP
-108-41-053101
8 10.0
5.84
Fig.
6
917-
PP
-208-41-053101
10 10.0
5.84
Fig.
7
917-
PP
-210-41-053101
See
page 127
T & R Packaging
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
150
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SPECIFIC APPLICATIONS
SOCKETS
SOLDER TAIL / STAGGERED DIL AND SIL SOCKETS
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Quad-in-line sockets and staggered (zig-zag) strips are suitable for IC's with staggered double row Dual-in-line type pin patterns.
Other plating on request (see page 178 for plating specs).
STAGGERED ZIG-ZAG STRIPS
NO. OF POLES
A
C
VERSION
SEE
ORDER CODES
left
Fig.
2
410-
PP
-214-10-001101
14* 19.00
5.0
right Fig.
3
410-
PP
-214-10-002101
left
Fig. 2
410-
PP
-216-10-001101
16 21.50
5.0
right Fig.
3
410-
PP
-216-10-002101
left
Fig.
2
410-
PP
-220-10-001101
20 26.57
5.0
right Fig.
3
410-
PP
-220-10-002101
left
Fig.
2
410-
PP
-224-10-001101
24 31.65
5.0
right Fig.
3
410-
PP
-224-10-002101
left
Fig.
2
410-
PP
-228-10-001101
28 36.73
5.0
right Fig.
3
410-
PP
-228-10-002101
left
Fig.
2
410-
PP
-230-10-001101
30 39.27
5.0
right Fig.
3
410-
PP
-230-10-002101
left
Fig.
2
410-
PP
-240-10-001101
40 52.00
5.0
right Fig.
3
410-
PP
-240-10-002101
Fig.
1
Fig.
2
Fig.
3
* 14-pin strips are not stackable end to end
QUAD-IN-LINE SOCKET
NO. OF POLES
SEE
ORDER CODES
64 Fig.
1
110-
PP
-064-01-505101
Note:
Suitable for quad-in-line packages with 19.05 / 23.50 mm row
spacing acc. to JEDEC MO-030.
Quad-in-line socket layout requires 19.05 / 24.13 mm row spacing.
PARTIALLY EQUIPPED DIL SOCKETS
NO. OF POLES
TOTAL EQUIPPED
A
B
C
SEE
ORDER CODES
10 /
6 12.6
5.08
7.6
Fig.
1
110-
PP
-210-01-742101
10 /
8 12.6
5.08
7.6
Fig.
2
110-
PP
-210-01-839101
12 /
6 15.2
7.62
10.1
Fig.
3
110-
PP
-312-01-680101
14 /
4 17.7
7.62
10.1
Fig.
4
110-
PP
-314-10-001101
14 /
8 17.7
7.62
10.1
Fig.
5
110-
PP
-314-10-002101
16 /
4 20.3
7.62
10.1
Fig.
6
110-
PP
-316-01-822101
16 /
8 20.3
7.62
10.1
Fig.
7
110-
PP
-316-01-931101
16 /
8 20.3
7.62
10.1
Fig.
8
110-
PP
-316-10-003101
28 / 14
35.5
7.62
10.1
Fig. 9
110-
PP
-328-01-777101
28 / 16
35.5
7.62
10.1
Fig. 10
110-
PP
-328-01-762101
Other pin count and arrangement please consult
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
SPECIFIC APPLICATIONS
SOCKETS
CRYSTAL, RELAY AND DISPLAY SOCKETS / SOLDER TAIL
151
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 127)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
CONTACT CLIP
(6 FINGER)
(Series 510...504101)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
2 N typ. (0.7 N typ. 510...504101) insertion
1 N typ. (0.4 N typ. 510...504101) withdrawal
(polished steel gauge Ø 0.43 mm)
(6 finger: Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Partially equipped DIL sockets and display sockets.
Other plating on request (see page 178 for plating specs).
Due to technical progress, all information provided is subject to change without prior notice.
DI
L
S
O
CK
E
T
S
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
DISPLAY SOCKETS FOR 7 SEGMENT
DISPLAYS (1 OR 2 DIGITS)
NO. OF POLES
SEE
ORDER CODES
10 Fig.
11
510-
PP
-010-01-504101
18 Fig.
12
510-
PP
-018-01-504101
Please consult for other display sockets, single or multidigits
PGA / BGA / PLCC
SOCKETS
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
154
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
QUICK SELECTOR CHART
PGA / BGA / PLCC
PGA
BGA
PLCC
GRID
2.54 mm
INTERSTITIAL
1.27 mm
1.27 mm
1 mm
SOCKETS SEE
PAGE
Solder tail
156
161
165
173
Surface mount
156
161
165
166
169
172
Solderless compliant
157
161
press-fit
Carrier
158
162
Interconnect pin
158
162
165
167
Interconnect pin
167
169
surface mount
BGA pin-adapter
166
169
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
PGA / BGA / PLCC
GENERAL SPECIFICATIONS
155
Due to technical progress, all information provided is subject to change without prior notice.
The values listed below are general specs applying for Preci-Dip PGA, BGA and PLCC sockets. Please see individual catalog page for additional and
product specific technical data.
OPERATING TEMPERATURE RANGE
-55 ... +125 °C
CLIMATIC CATEGORY (IEC)
55/125/21
OPERATING HUMIDIT Y RANGE
Annual mean 75%
MA X. WORKING VOLTAGE
100
V
RMS
/150 V
DC
(2.54 mm grid)
Preci-Dip sockets are recognized by Underwriters Laboratories Inc. and listed under “Connectors for Use in Data, Signal, Control and
Power Applications“, File Nr. E174442.
PACKAGING
• Standard packaging for PGA, BGA and PLCC sockets
is tube packaging.
• SMD mount sockets available on request
with Tape & Reel packaging acc. to EIA Standard 481.
These products are marked with the symbol:
Please consult
www.precidip.com
for availability
size of tape, size of reel, number of components
per reel and packing units.
MECHANICAL CHARACTERISTICS
CLIP RETENTION
Min. 40 N (no displacement under axial force applied)
CONTACT RETENTION
Min. 3.3 N acc. to MIL-DTL-83734, pt 4.6.4.2
ELECTRICAL CHARACTERISTICS
INSUL ATION RESISTANCE BETWEEN ANY TWO ADJACENT CONTACTS
Min. 10’000 M
Ω
at 500 V
AC
CAPACITANCE BETWEEN ANY TWO ADJACENT CONTACTS
Max. 1 pF (PLCC max. 2 pF)
SELF INDUCTANCE PER CONTACT
Max. 2 nH
ENVIRONMENTAL CHARACTERISTICS
The sockets withstand the following environmental tests without mechanical
and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH,
1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min.
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g,
1 octave/min., 10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests, no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Moisture sensitivity J-STD-020C level 1
• Resistance to corrosion:
1) Salt spray test IEC 60068-2-11.Ka: 48 h
2) Sulfur dioxide (SO2) test IEC 60068-2-42 Kc: 96 h at 25 ppm SO2,
25 °C, 75 %rH
3) Hydrogen sulfide (H2S) test IEC 60068-2-43 Kd: 96 h at 12 ppm H2S,
25 °C, 75 %rH
SOLDERLESS COMPLIANT PRESS-FIT CHARACTERISTICS
PRESS-FIT CHARACTERISTICS MEASURED ACC. TO IEC 60352-5
• Press-in force:
90 N max. (at min. hole dia.) / 65 N typ.
• Push-out force:
30 N min. (at max. hole dia.) / 50 N typ.
• Push-out 3rd cycle:
20 N min. (at max. hole dia.)
PCB HOLE DIMENSIONS
• 2.54 mm grid
Finished hole Ø: 1 + 0.09/-0.06 mm
Drilled hole Ø: 1.15 ± 0.025 mm
• Interstitial grid
Finished hole Ø: 0.7 + 0.09/-0.06 mm
Drilled hole Ø: 0.8 ± 0.02 mm
PCB HOLE PL ATING
PCB surface finish
Hole plating
• Tin
5-15 μm tin over min. 25 μm copper
• Copper
min. 25 μm copper
• Gold over nickel
0.05-0.2 μm gold over 2.5-5 μm nickel
over min. 25 μm copper
®
UL
T & R Packaging
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
DIMENSIONS
Calculate with n1 = number of contacts in one line and n2 =
characteristic size of the window
A = n1x2.54
B = (n1-1)x2.54
C = (n2x2.54)-0.40
510-
PP
-
NNN
-
XX
-
XXX
101
PGA sockets with standard solder tails, length 3.17 mm.
156
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Pin grid array sockets, standard solder version and surface mount with floating contacts.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on pages 159 to 160.
For example a 17x17 pin configuration with window and 168 contacts
as shown on page 130 becomes 510-83-
168
-
17
-
101
101.
Options:
please consult for availability
- PGA sockets with optional standoffs
- PGA sockets with solder tails, length 4.2 mm
- PGA sockets with low profile contacts and solder tails of 2.8 mm length
- PGA interconnect sockets with other contact lengths.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
SOLDER TAIL / SURFACE MOUNT
514-
PP
-
NNN
-
XX
-
XXX
117
PGA sockets with self-aligning SMD floating contacts.
Contact diameter of soldering end 0.98 mm, allowing PCB pads
as small as 1.1 mm.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
157
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
DIMENSIONS
Calculate with n1 = number of contacts in one line and n2 =
characteristic size of the window
A = n1x2.54
B = (n1-1)x2.54
C = (n2x2.54)-0.40
546-
PP
-
NNN
-
XX
-
XXX
136
PGA sockets with solderless compliant press-fit terminations
for 1.5 to 2.0 mm PCB thickness.
Hole diameter 1 (+0.09/-0.06) mm after metallization
(Drill diameter 1.15±0.025 mm).
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Bronze CuSn4Pb4Zn4 (C54400)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
0.7 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Pin grid array sockets with compliant press-fit terminations.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on pages 159 to 160.
For example a 17x17 pin configuration with window and 168 contacts
as shown on page 130 becomes 546-83-
168
-
17
-
101
136.
546-
PP
-
NNN
-
XX
-
XXX
135
PGA sockets with solderless compliant press-fit terminations
for 2.1 to 3.2 mm PCB thickness.
Hole diameter 1 (+0.09/-0.06) mm after metallization
(Drill diameter 1.15±0.025 mm).
PIN GRID ARRAY SOCKETS
PRESS-FIT TERMINATIONS
DIMENSIONS
Calculate with n1 = number of contacts in one line and n2 =
characteristic size of the window
A = n1x2.54
B = (n1-1)x2.54
C = (n2x2.54)-0.40
550-
PP
-
NNN
-
XX
-
XXX
101
PGA interconnect sockets with through hole solder tails
and connecting pin Ø 0.47 mm.
158
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
0.8 N typ. insertion
0.4 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 1’000 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10 (Serie 550)
0.25 μm gold
0.25 μm gold
80 (Serie 550)
Tin
Tin
PP PL ATING CODE
SLEEVE
CLIP
87 (Serie 614)
Tin
Flash gold
83 (Serie 614)
Tin
0.75 μm gold
Pin grid array sockets, interconnect pin and carriers with disposable plastic body.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on pages 159 to 160.
For example a 17x17 pin configuration with window and 168 contacts
as shown on page 130 becomes 550-10-
168
-
17
-
101
101.
Options:
please consult for availability
- PGA interconnect sockets with other contact lengths
- PGA carrier sockets with other contacts.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
INTERCONNECT PIN AND CARRIERS
614-
PP
-
NNN
-
XX
-
XXX
112
PGA carrier sockets with disposable plastic body.
Low profile ultra thin contacts with solder termination Ø 0.95 mm
that requires Ø 1 mm holes in PCB.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
159
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
2.54 mm GRID / FOOTPRINTS / TOP VIEW
5x5
…-012-05-001…
10x10
…-064-10-051…
10x10
…-084-10-031…
11x11
…-068-11-061…
11x11
…-073-11-061…
11x11
…-085-11-041…
13x13
…-088-13-081…
13x13
…-100-13-062…
13x13
…-101-13-061…
13x13
…-121-13-061…
13x13
…-124-13-041…
13x13
…-128-13-041…
13x13
…-132-13-041…
13x13
…-144-13-041…
14x14
…-132-14-071…
14x14
…-133-14-071…
15x15
…-145-15-081…
15x15
…-149-15-063…
15x15
…-177-15-061…
15x15
…-181-15-051…
16x16
…-175-16-072…
10x10
…-068-10-061…
11x11
…-084-11-042…
13x13
…-100-13-063…
13x13
…-114-13-061…
13x13
…-114-13-062…
15x15
…-176-15-061…
160
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
2.54 mm GRID / FOOTPRINTS / TOP VIEW
17x17
…-168-17-101…
17x17
…-169-17-101…
17x17
…-192-17-081…
17x17
…-208-17-081…
17x17
…-209-17-081…
18x18
…-179-18-111…
18x18
…-179-18-112…
18x18
…-223-18-091…
18x18
…-224-18-091…
18x18
…-225-18-091…
18x18
…-241-18-071…
19x19
…-238-19-101…
19x19
…-280-19-081…
19x19
…-281-19-081…
20x20
…-257-20-111…
20x20
…-299-20-091…
21x21
…-273-21-121…
17x17
…-207-17-081…
18x18
…-191-18-091…
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
161
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
DIMENSIONS
Calculate with n1 = number of contacts on the external row and n2 =
characteristic size of the window
A = (n1x2.54)+1.30
B = (n1-1)x2.54
C = (n2x2.54)-0.40
517-
PP
-
NNN
-
XX
-
XXX
111
Interstitial PGA sockets with through hole solder tails,
length 3.17 mm.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE
Brass CuZn36Pb3 (C36000)
(Bronze CuSn4Pb4Zn4 (C54400)
for press-fit contacts)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
0.4 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 700 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 Tin
Flash
gold
83
Tin
0.75 μm gold
Pin grid array sockets with interstitial contact rows, solder tails, surface mount floating contacts and solderless compliant.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on pages 163 to 164.
For example a 19x19 pin configuration with window and 296 contacts
as shown on page 133 becomes 517-83-
296
-
19
-
131
111.
Options:
please consult for availability
- PGA sockets with optional standoffs.
514-
PP
-
NNN
-
XX
-
XXX
154
Interstitial PGA sockets with self-aligning SMD floating contacts.
Contact diameter of soldering end 0.8 mm allowing PCB pads
with 0.9 mm diameter.
546-
PP
-
NNN
-
XX
-
XXX
147
Interstitial PGA sockets with solderless compliant press-fit
terminations for 1.2 to 2.5 mm PCB thickness.
Hole diameter 0.7 (+0.07/-0.05) mm after metallization
(Drill diameter 0.85±0.025 mm).
PIN GRID ARRAY SOCKETS
INTERSTITIAL / SOLDER TAIL / SURFACE MOUNT
PRESS-FIT TERMINATIONS
DIMENSIONS
Calculate with n1 = number of contacts on the external row and n2 =
characteristic size of the window
A = (n1x2.54)+1.30
B = (n1-1)x2.54
C = (n2x2.54)-0.40
550-
PP
-
NNN
-
XX
-
XXX
135
Interstitial PGA interconnect sockets with through hole solder tails
and connecting pin Ø 0.44 mm.
162
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Black glass filled polyester PCT-GF30-FR
FL AMMABILIT Y
UL 94V-O
SLEEVE / PIN
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.40 to 0.56 mm
FORCES
0.3 N typ. insertion
0.15 N typ. withdrawal
(polished steel gauge Ø 0.46 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 700 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10 (Serie 550)
0.25 μm gold
0.25 μm gold
80 (Serie 550)
Tin
Tin
PP PL ATING CODE
SLEEVE
CLIP
87 (Serie 614)
Tin
Flash gold
83 (Serie 614)
Tin
0.75 μm gold
Pin grid array sockets with intersitial contact rows, interconnect pin and carriers with disposable plastic body.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on pages 163 to 164.
For example a 19x19 pin configuration with window and 296 contacts
as shown on page 133 becomes 550-10-
296
-
19
-
131
135.
Options:
please consult for availability
- PGA pin header interconnect sockets with other contact lengths
- PGA carrier sockets with other contacts.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
INTERSTITIAL / INTERCONNECT PIN AND CARRIER
614-
PP
-
NNN
-
XX
-
XXX
144
Interstitial PGA carrier sockets with disposable plastic body
and low profile, ultra-thin contacts with Ø 0.84 mm
that requires Ø min 0.9 mm PCB holes.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
163
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
INTERSTITIAL / FOOTPRINTS / TOP VIEW
14x14
…-183-14-091…
14x14
…-304-14-051…
14x14
…-365-14-000…
16x16
…-299-16-091…
17x17
…-321-17-101…
17x17
…-364-17-091…
17x17
…-545-17-000…
18x18
…-280-18-101…
18x18
…-293-18-101…
18x18
…-305-18-101…
18x18
…-325-18-111…
18x18
…-361-18-101…
18x18
…-391-18-101…
18x18
…-431-18-091…
19x19
…-296-19-131…
19x19
…-320-19-131…
19x19
…-321-19-121…
19x19
…-370-19-121…
19x19
…-372-19-111…
19x19
…-401-19-111…
17x17
…-365-17-091…
18x18
…-369-18-091…
164
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
PIN GRID ARRAY SOCKETS
INTERSTITIAL / FOOTPRINTS / TOP VIEW
19x19
…-403-19-111…
19x19
…-419-19-111…
19x19
…-420-19-111…
19x19
…-429-19-101…
19x19
…-463-19-101…
20x20
…-411-20-111…
20x20
…-447-20-121…
20x20
…-557-20-091…
21x21
…-475-21-121…
21x21
…-528-21-121…
21x21
…-565-21-111…
22x22
…-503-22-131…
22x22
…-559-22-131…
24x24
…-599-54-131…
19x19
…-428-19-101…
20x20
…-539-20-101…
21x21
…-529-21-121…
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
165
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
DIMENSIONS
Calculate with n1 = number of contacts in one line and n2 =
characteristic size of the window
A = (n1x1.27)+1.27
B = (n1-1)x1.27
C = (n2x1.27)-0.40
518-77-
NNN
M
XX
-
XXX
105
μPGA sockets 1.27 mm grid with through hole solder tails length 2.79 mm.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass-epoxy laminate FR4
FL AMMABILIT Y
UL 94V-O
SLEEVE / PIN
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (6 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.30 to 0.35 mm
FORCES
0.2 N typ. insertion
0.15 N typ. withdrawal
(polished steel gauge Ø 0.3 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
77 (Serie 518)
Flash gold
Flash gold
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10 (Serie 558)
0.25 μm gold
0.25 μm gold
Micro pin grid array sockets (μPGA) with contacts placed on 1.27 mm grid, solder tail, surface mount and interconnect pin.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on page 168.
For example a 26x26 pin configuration with window and 478 contacts
as shown on page 138 becomes 518-77-
478
M
26
-
131
105.
Options:
please consult for availability
- μPGA interconnect headers for SMD mount.
518-77-
NNN
M
XX
-
XXX
106
μPGA sockets 1.27 mm grid, surface mount.
Contact diameter of soldering end 0.31 mm allowing PCB pads with
0.4 mm diameter.
558-10-
NNN
M
XX
-
XXX
101
μPGA 1.27 mm grid, interconnect sockets with through hole solder tail
and connecting pin Ø 0.31 mm.
MICRO PIN GRID ARRAY
SOCKETS
1.27 mm GRID / SOLDER TAIL / SURFACE MOUNT / INTERCONNECT PIN
DIMENSIONS
Calculate with n1 = number of contacts in one line
for sockets
A = (n1x1.27)+1.27
B = (n1-1)x1.27
for adapters
A = (n1x1.27)+3.27
B = (n1-1)x1.27
514-
PP
-
NNN
M
XX
-
XXX
148
BGA sockets 1.27 mm grid with self-aligning surface mount floating contacts.
Same foot print as the BGA device, to mate with the corresponding adapter.
166
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass-epoxy laminate FR4
FL AMMABILIT Y
UL 94V-O
SLEEVE / PIN
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (4 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.36 to 0.46 mm
FORCES
0.3 N typ. insertion
0.15 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87 (Serie 514)
Tin
Flash gold
83 (Serie 514)
Tin
0.75 μm gold
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10 (Serie 550)
0.25 μm gold
0.25 μm gold
80 (Serie 550)
Tin
Tin
Ball grid array sockets and adapters, surface mount.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on page 168.
For example a 20x20 pin configuration with 256 contacts as shown
on page 138 becomes 514-83-
256
M
20
-
001
148.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
BALL GRID ARRAY SOCKETS
1.27 mm GRID / SURFACE MOUNT / SOCKET AND ADAPTER
550-10-
NNN
M
XX
-
XXX
166
BGA adapter 1.27 mm grid pluggable into the corresponding socket.
Connecting pin Ø 0.42 mm.
BGA device is SMD soldered on the solder pads.
BGA socket and adapter systems are the reliable solution to make BGAs pluggable:
- the BGA socket Series 514
➀
is soldered to the PCB in place of the BGA device
and using the same footprint
- the BGA device
➂
is soldered to the adapter Series 550
➁
- the BGA + adapter sub-assembly is plugged into the socket
➀
➁
➂
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
167
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
DIMENSIONS
Calculate with n1 = number of contacts in one line
A = (n1x1.27)+3.27
B = (n1-1)x1.27
550-10-
NNN
M
XX
-
XXX
152
BGA interconnect sockets 1.27 mm grid, through hole solder tails
and connecting pin Ø 0.40 mm.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass-epoxy laminate FR4
FL AMMABILIT Y
UL 94V-O
CONTACT
Brass CuZn36Pb3 (C36000)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10
0.25 μm gold
0.25 μm gold
Ball grid array interconnect pin, through hole solder tail and surface mount.
Other plating on request (see page 178 for plating specs).
Replace
NNN
with the number of poles and
XX
-
XXX
with body size
and layout numbers as indicated on page 168.
For example a 20x20 pin configuration with 256 contacts as shown
on page 138 becomes 550-10-2
56
M
20
-
001
152.
558-10-
NNN
M
XX
-
XXX
104
BGA interconnect sockets 1.27 mm grid, with surface mount terminations
and connecting pin Ø 0.41 mm.
BALL GRID ARRAY SOCKETS
1.27 mm GRID / INTERCONNECT PIN / SOLDER TAIL / SURFACE MOUNT
168
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
BALL/PIN GRID ARRAY
SOCKETS
1.27 mm GRID / FOOTPRINTS / TOP VIEW
16x16
…-192M16-001…
16x16
…-255M16-001…
16x16
…-256M16-000…
17x17
…-120M17-001…
17x17
…-233M17-001…
19x19
…-357M19-001…
19x19
…-360M19-001…
20x20
…-256M20-001…
20x20
…-272M20-001…
20x20
…-292M20-001…
20x20
…-400M20-000…
23x23
…-304M23-001…
26x26
…-352M26-001…
26x26
…-356M26-001…
26x26
…-388M26-001…
26x26
…-420M26-001…
26x26
…-456M26-001…
29x29
…-480M29-001…
29x29
…-504M29-001…
30x30
…-500M30-001…
30x30
…-576M30-001…
31x31
…-432M31-001…
31x31
…-520M31-001…
31x31
…-956M31-001…
33x33
…-560M33-001…
35x35
…-600M35-001…
35x35
…-652M35-001…
26x26
…-478M26-131…
23x23
…-385M23-001…
24x24
…-575M24-001…
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
169
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
DIMENSIONS
Calculate with n1 = number of contacts in one line
A = n1+2.81
B = n1-1
514-11-
NNN
P
XX
-
XXX
159
BGA sockets 1 mm grid, surface mount.
Same foot print as the BGA device to mate with the corresponding
adapter.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass-epoxy laminate FR4
FL AMMABILIT Y
UL 94V-O
SLEEVE / PIN
Brass CuZn36Pb3 (C36000)
CONTACT CLIP (3 FINGER)
Beryllium copper (C17200)
ACCEPTED PIN Ø
0.20 to 0.30 mm
FORCES
0.4 N typ. insertion
0.2 N typ. withdrawal
(polished steel gauge Ø 0.25 mm)
MECHANICAL LIFE
Min. 100 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 10 m
Ω
DIELECTRIC STRENGTH
Min. 500 V
RMS
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
11 (Serie 514)
0.25 μm gold
0.25 μm gold
PP PL ATING CODE
TERMINATION
CONNECTING PIN
10 (Serie 558)
0.25 μm gold
0.25 μm gold
Ball grid array sockets and adapter surface mount.
Other plating on request (see page 178 for plating specs).
Please consult for complete part number and available footprints.
Options:
please consult for availability
- Through hole adapter.
558-10-
NNN
P
XX
-
XXX
102
BGA adapter 1 mm grid, pluggable into the corresponding socket.
Connecting pin Ø 0.25 mm.
BGA device is SMD soldered on the solder pads.
558-10-
NNN
P
XX
-
XXX
103
BGA interconnect sockets 1 mm grid with surface mount terminations
and connecting pin Ø 0.25 mm.
BALL GRID ARRAY SOCKETS
1 mm GRID / SURFACE MOUNT SOCKET, ADAPTER / INTERCONNECT PIN
170
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
BALL/PIN GRID ARRAY
SOCKETS
PART NUMBER IDENTIFICATION
TYPE OF SOCKET
Standard PGA, Interstitial PGA and μPGA
PAGE
510-...01
Solder pin 2.54 mm grid
156
514-...34
SMD 2.54 mm grid
156
514-...54
SMD
interstitial
161
517-...11
Solder pin interstitial
161
518-...05
Solder pin 1.27 mm grid
165
518-...06
SMD 1.27 mm grid
165
546-...35
Press-fit 2.54 mm, PCB 2.1-3.2 mm
157
546-...36
Press-fit 2.54 mm, PCB 1.5-2.0 mm
157
546-...47
Press-fit
interstitial
161
550-...01
Interconnect, solder pin, 2.54 mm grid
158
550-...35
Interconnect, solder pin, interstitial
162
558-...01
Interconnect, solder pin, 1.27 mm grid
165
614-...12
Carrier 2.54 mm grid
158
614-...44
Carrier
interstitial
162
BGA
514-...48
Socket SMD, 1.27 mm grid
166
514-...59
Socket SMD, 1 mm grid
169
550-...66
Adapter, 1.27 mm grid
166
550-...52
Interconnect, solder pin, 1.27 mm grid
167
558-...02
Adapter, 1 mm grid
169
558-...03
Interconnect SMD, 1 mm grid
169
558-...04
Interconnect SMD, 1.27 mm grid
167
XXX – PP – NNN X XX – XXX 1 XX
PLATING CODE ROHS COMPLIANT
PARTS
CODE SLEEVE
CLIP
77
Flash
gold
Flash
gold
83
Tin
0.75 μm gold
87
Tin
Flash
gold
TERMINATION
CONNECTING
PIN
10
0.25 μm gold
0.25 μm gold
80
Tin
Tin
TOTAL
NUMBER
OF PINS
SIZE OF
BODY
SIZE OF WINDOW AND FOOTPRINT
Grid:
– 2.54 mm or interstitial
M
1.27
mm
grid
P
1
mm
grid
See pages 159, 160, 163, 164 and 168 for most popular footprints.
ORDERING INFORMATION
Type of socket
(see opposite page)
Plating code PP
(see opposite page)
Grid
Standard
2.54
mm
Interstitial
1.27
mm
1
mm
Size of body
x
Semiconductor device used
Quantity
EXAMPLE
Fill in the position
of pins
Mark of the
window
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
171
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
BALL/PIN GRID ARRAY
SOCKETS
CUSTOM GRID DESIGN
If the desired footprint does not exist in this catalogue,
please photocopy this page, complete it and send it to your
local Preci-Dip distributor.
Your address
TOP VIEW
PCB LAYOUT SERIES 540, SMD TYPES
172
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass filled thermoplastic PPS-GF30-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Phosphor bronze
CONTACT PRESSURE
Min. 1.5 N per contact
MECHANICAL LIFE
Min. 50 cycles
RATED CURRENT
1 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 600 V
RMS
INSUL ATION RESISTANCE
Min. 5’000 M
Ω
CAPACITANCE
Max. 2 pF
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONTACT
88 Tin
Tin
Series 540 PLCC sockets with SMT terminations come with square sizes for IC-packages according to JEDEC MO-047 and rectangular size (32) according
to JEDEC MO-052, low profile.
Option:
parts with positioning pegs add suffix
-2
to part number (only
available for No. of poles 32, 44, 68 and 84).
Tape & Reel packaging:
add suffix
-TR
to part number.
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
SOCKETS FOR PLASTIC LEADED
CHIP CARRIERS (PLCC)
SMT TERMINATIONS
See
page 155
T & R Packaging
NO. OF POLES
A1/A2
B1/B2
C1/C2
D
E
ORDER CODES
20
14.86 7.02 9.20 4.60
16.00
540-88-020-17-400
28 17.34
9.50
11.76
4.60
19.70
540-88-028-17-400
16.95 / 9.40 / 11.60 /
32*
19.50
11.90
14.20
3.80
22.00
540-88-032-17-400
44 22.42
14.50
16.70
4.60
27.00
540-88-044-17-400
52 25.40
17.24
19.46
4.60
30.80
540-88-052-17-400
68 30.54
22.26
24.40
4.60
37.65
540-88-068-17-400
84 35.56
27.34
29.58
4.60
45.10
540-88-084-17-400
* RECTANGUL AR
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
173
P
G
A / B
G
A / P
L
C
C
S
O
C
K
E
T
S
Due to technical progress, all information provided is subject to change without prior notice.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 155)
INSUL ATOR
Glass filled thermoplastic PPS-GF40-FR
FL AMMABILIT Y
UL 94V-O
CONTACT
Phosphor bronze
CONTACT PRESSURE
Min. 1.5 N per contact
MECHANICAL LIFE
Min. 50 cycles
RATED CURRENT
2 A
CONTACT RESISTANCE
Max. 20 m
Ω
DIELECTRIC STRENGTH
Min. 600 V
RMS
INSUL ATION RESISTANCE
Min. 5’000 M
Ω
CAPACITANCE
Max. 2 pF
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
TERMINATION
CONTACT
88 Tin
Tin
Series 540 PLCC sockets, solder tail, with precision stamped contacts providing component retention thanks to positive spring action.
SOCKETS FOR PLASTIC LEADED
CHIP CARRIERS (PLCC)
SOLDER TAIL
PCB HOLE PATTERNS SERIES 540, THRU-HOLE TYPES
NO. OF POLES
A1/A2
B1/B2
C1/C2
D
E
ORDER CODES
28 17.52
7.62
11.78
9.10
20.45
540-88-028-24-000-1
17.42 / 7.62 / 11.78 /
32*
19.98
10.16
14.32
8.40
22.20
540-88-032-24-000-1
44 22.60
12.70
16.76
8.40
27.20
540-88-044-24-000-1
52 25.15
15.24
19.30
8.40
30.80
540-88-052-24-000-1
68 30.22
20.32
24.38
9.10
37.30
540-88-068-24-000-1
84 35.31
25.40
29.46
9.10
44.50
540-88-084-24-000-1
* RECTANGUL AR
CONTACTS
CO
N
T
A
C
T
S
176
Due to technical progress, all information provided is subject to change without prior notice.
176
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
INTRODUCTION
Preci-Dip, a world wide leading manufacturer of precision machined contacts and related interconnect components is continuously improving
its ability to design innovative contacts. This catalog provides general technical information on Preci-Dip contacts. It should help potential users
make the best technical choice for a given application.
TO FIND INDIVIDUAL SPECIFICATIONS OF STANDARD CONTACTS, PLEASE CONSULT OUR SEARCH ENGINE AT
WWW.PRECIDIP.COM
If no adequate solution can be found there, please contact us, only a selected choice of all existing contacts is displayed. Further, Preci-Dip will
be pleased to offer full support to design and manufacture customer specific contacts.
THREE MAIN GROUPS OF CONTACT PRODUCTS ARE DESCRIBED AND OFFERED
• Spring-loaded contacts
• Socket contacts also called female contacts or pin receptacles
• Pin or male contacts and PCB terminals
All of these can be manufactured with different type of terminations:
PCB SOLDER TAIL
SMD TERMINATION
PRESS-FIT FOR PCB
SOLDERLESS CONNECTION
WRAPOST
WIRING CRIMP
SOLDER CUP
WIRING TURRET
WIRING SLOT
THIS CATALOG SECTION CONTAINS GENERAL TECHNICAL INFORMATION ON PRECI-DIP CONTACTS
PAGE
PAGE
Socket contact selector
177
Socket contacts
180
General technical specifications
178
Pin contacts
182
Spring-loaded contacts
179
Data sheet clip contacts
183
1 TO SEARCH A SUITABLE SOCKET CONTACT TO MATE WITH A KNOWN PIN:
With the graph on the right, find
the group code corresponding to
the mating pin diameter.
In the table below right, search
the clip codes corresponding to
the group and the page number of
the corresponding data sheet.
All clip codes from the same
group are interchangeable
within a given contact body.
This allows for contacts with
a larger range of insertion
characteristics to fulfill the
requirements of special
applications
177
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT SELECTOR BY MATING PIN DIAMETER
The mating pin diameter range and insertion characteristics of socket contacts are identified with the clip code, given by the last 4 digits of the
part number.
O
u
ts
id
e d
ia
m
e
te
r [
m
m
]
A
B
C
D
E
F
G
H
I
J
K
L
M
GROUP
CLIP CODE
T YP. INSERTION
TEST PIN
SEE
FORCE [N]
DIAM. [mm]
PAGE
0110
0.25
0.38
183
5410
0.20
0.30
183
1110
1.0
0.43
183
2110
0.8
0.46
184
0510
0.5
0.52
184
3020
0.45
0.30
184
1210
3.0
0.43
185
3010
2.0
0.43
185
2210
0.6
0.46
185
3110
0.7
0.46
186
3130
0.4
0.46
186
3160
0.2
0.46
186
5210
0.56
0.76
187
1410
1.5
0.78
187
1610
3.5
0.76
187
0610
1.5
0.76
188
4710
0.4
0.76
188
1810
2.0
1.04
188
3410
4.0
1.04
189
0210
5.0
1.15
189
2710
2.2
1.15
189
4910
3.0
1.61
190
1310
1.3
1.27
190
2310
3.0
1.30
190
3920
2.5
1.61
191
0710
4.0
1.88
191
4010
10.0
2.41
191
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
177
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
SOCKET CONTACT SELECTOR
CO
N
T
A
C
T
S
2 TO SEARCH THE CHARACTERISTICS OF A KNOWN CLIP CODE:
Find the corresponding page
number for each clip code data
sheet in the table on the right side
3.5
3
2.5
2
1.5
1
0.5
178
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
GENERAL SPECIFICATIONS
GENERAL TECHNICAL SPECIFICATIONS
The contacts are manufactured by high speed turning process with, if necessary, additional secondary machining operation for example
for flats, slots or solder cups. The preferred diameter range lies between 1 and 6 mm and contact length up to 40 mm are standard.
MATERIALS
CONTACT BODIES
• Brass CuZn36Pb3, C36000
• Brass CuZn35Pb2, C34500 for contacts with crimp terminations
• Bronze CuSn4Pb4Zn4, C54400 for contacts with compliant press-fit terminations
CLIPS
• Beryllium copper alloy C17200
SPRINGS
• Stainless steel X12CrNi177 mat. Nr 1.4310, DIN 17224
• Music wire mat. Nr 1.1211, DIN 17223
HOODS
• Stainless steel AISI 305
All these materials are compliant with RoHS requirements. Lead content of copper alloys is less than 4%
in accordance with Exception 6 of the RoHS directive 2002/95/CE.
PLATING
Contact plating is made up of basis underplating acting as diffusion barrier and of finishing layer.
UNDERPL ATING
• Nickel (Ni) electro-deposited, acc. to SAE-AMS-QQ-N-290
• Electroless nickel phosphorus alloy for max. corrosion and wear resistance and for lowest magnetic permeability
(plating suffix N)
FINISH
• Gold (Au) acc. to ASTM B488, type II C, plating codes 1 (0.25 μm), 3 (0.75 μm), 4 (1.27 μm) and 7 (gold flash)
• Tin (pure tin Sn), plating code 8, standard tin plating with excellent solderability, RoHS compliant
• Tin-Lead (SnPb90/10) acc. to ASTM B545, plating code 9. This plating is
not RoHS compliant
.
• Silver (Ag) acc. to ASTM B700, plating code 6
ELECTRICAL AND MECHANICAL CHARACTERISTICS
See individual data pages
ENVIRONMENTAL CHARACTERISTICS
The contacts withstands following environmental tests without mechanical and electrical defects:
• Dry heat steady state IEC 60512-11-9.11i / 60068-2-2.Bb: 125 °C, 16 h
• Damp heat cyclic IEC 60512-11-12.11m / 60068-2-30.Db: 25/55 °C, 90 – 100 %rH, 1 cycle of 24 h
• Cold steady state IEC 60512-11-10.11j / 60068-2-1.A: -55 °C, 2 h
• Thermal shock IEC 60512-11-4.11d / 60068-2-14.Na: -55/125 °C, 5 cycles 30 min
• Sinusoidal vibrations IEC 60512-6-4.6d / 60068-2-6.Fc: 10 to 500 Hz, 10 g, 1 octave/min,
10 cycles for each axis
• Shock IEC 60512-6-3.6c / 60068-2-27.Ea: 50 g, 11 ms, 3 shocks in three axis
During the above two tests no contact interruption >50 ns does appear.
• Solderability J-STD-002A, Test A, 245 °C, 5 s, solder alloy SnAg3.8Cu0.7
• Resistance to soldering heat J-STD-020C, 260 °C, 20 s
• Resistance to corrosion:
1) Salt spray test IEC 60068-2-11.Ka: 48 h
2) Sulfur dioxide (SO2) test IEC 60068-2-42.Kc: 96 h at 25 ppm SO2, 25 °C, 75 %rH
3) Hydrogen sulfide (H2S) test IEC 60068-2-43.Kd: 96 h at 12 ppm H2S, 25 °C, 75 %rH
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
179
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
SPRING-LOADED CONTACTS
CO
N
T
A
C
T
S
SPRING-LOADED CONTACTS
Spring-loaded contacts were initially designed since 1995 for
mobile phones. The application requires miniature, reliable,
contacts with very high mating cycles count at low cost.
The basic design of spring-loaded contact with hollow piston
consists of a contact body or barrel, a contact member or
piston and an helical compression spring. The piston is retained
in the barrel by a crimp.
The electrical contact is established by pressure between the piston
and a fixed, flat, conducting area of the opposite part.
Based on this initial model, new contacts with improved
characteristics were designed:
• Low resistance spring-loaded contacts with shaped piston
• High-reliable contacts with clip. This contact design is protected by
international patents
Main advantages
• Very long life time
• Many types of terminations available (see page Introduction)
• Small dimensions for use in applications with limited space (min.
contact height 3 mm, min. contact diameter 1 mm)
• Very good resistance to shocks and vibrations
• Best adapted where conventional connection solutions cannot
satisfy the application requirements:
In case of important positioning tolerances of the connectors
parts
For compensation of errors of parallelism and flatness
To make connection with pivoting, rotating or non parallel
mating movement
For connections with sliding mating action (push and lock)
HOLLOW PISTON
SHAPED PISTON
CLIP
CLIP
+ BARREL
+ BARREL
COA XIAL DESIGN
IN-LINE DESIGN
MECHANICAL
Min. diameter
1.8 mm
1.5 mm
1.8 mm
1.0 mm
Min. initial height
3 mm
6 mm
5 mm
10 mm
Travel / height ratio
Max. 0.3
Max. 0.2
Max. 0.2
Max. 0.15
Max. travel (stroke)
2 mm
2 mm
1.5 mm
1.5 mm
Min. initial spring force
0.2 N
0.2 N
0.2 N
0.2 N
Mechanical life
Min. 100'000 cycles
Min. 50'000 cycles
Min. 40'000 cycles
Min. 40'000 cycles
ELECTRICAL
Contact resistance
Max. 15 m
Ω
*
Max. 10 m
Ω
*
Max. 20 m
Ω
Max.
20
m
Ω
Max. operating current
3.5 A cont.** / 7 A peak
2 A cont.** / 4 A peak
*
* Static measurement in halfway position of piston travel.
** Above max. current values are for single contacts in free air and for 10°C temperature rise.
Contact body
Clip
180
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
SOCKET CONTACTS
SOCKET CONTACTS
The Preci-Dip technology for socket contacts is based on a two-parts design:
• Contact body
• Multi-finger contact spring called clip
These socket contacts with clip are compatible with all existing machined
and stamped mating pin contacts of same size
CONTACT BODIES AND CLIPS ARE MANUFACTURED
AND PLATED SEPARATELY
The contact bodies are manufactured by high speed turning process
with additional secondary machining operation if required.
The clip are stamped and formed from sheet material. Depending on
size and characteristics, the clips are designed with 3 to 8 contact
finger. The choice of heat treated beryllium copper alloy gives the
best possible combination of mechanical and electrical properties
for use in electrical contacts. More than 40 clips are pre-tooled,
covering a mating pin diameter range from 0.25 to 2.5 mm. They can
accept square or rectangular pin.
The clip is assembled into the contact body by press-fit on automatic
equipment including on-line inspections.
MAIN ADVANTAGES OF THE TECHNOLOGY
• The combination of existing standard clip with specific contact
body gives a flexibility unknown with traditional contact design
• Production of machined specific contact bodies is cost effective
starting at medium sized quantities
• Preci-Dip automatic high speed contact assembly lines are
optimized for large production runs but also for smaller series
MECHANICAL CHARACTERISTICS
• Insertion characteristics
Insertion and withdrawal force for standard clips are displayed on
the corresponding data sheets. The values are measured with
polished steel gauges with spherical tip and are typical average
measurements. These data are for general information and
selection of best suited clip for a given application.
• Compliancy
Each clip is able to accept a broad range of mating pins. This
ability is called «compliancy». The compliancy factor
Δ
specifies
the resulting operating range after insertion of the largest
permissible mating pin.
• Clip retention
This is the force needed to pull-out the press-fitted clip from its
contact body. Clip retention is greater than 40 N.
• Mechanical life
The mechanical life expectancy is dependent on the surface
smoothness and diameter of the mating pin and on the plating.
For some applications, more than 1000 mating cycles are possible.
ELECTRICAL CHARACTERISTICS
• Current rating
The given currents are for one mated combination of socket and
pin contact, in free air and for 10°C temperature rise.
Reversed clip
Hood
Contact body
MIL contact
with colour code
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
181
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
SOCKET CONTACTS
CO
N
T
A
C
T
S
CONTACTS WITH REVERSED CLIP
The clip technology for socket contacts was improved with the
introduction of a new, patented, reversed clip. This was designed
to overcome some limitations of the basic clip, especially to place
the first contact point closer to the front end of the contact. The
geometry of the contact fingers shows a very smooth contact area
allowing high cycles count.
The technical characteristics of reversed clip contacts match with
the highest requirements of military aerospace standard AS39029
(former MIL-C-39029).
This standard is the reference for many connectors dedicated for
other fields of applications like aircrafts, railway and heavy duty
industries.
Furthermore, the three-part design of these contacts allows
localized finish for best cost-performance ratio.
MIL QUALIFIED CONTACTS
Crimp contacts, pin and socket, size 22, 20, 16 and 12, have passed
successfully all qualification tests according to AS39029 and are
QPL listed for applications in connectors MIL-DTL-38999 Series I, III
and IV.
The test results have shown results that are much superior to specs
requirements.
These removable crimp contacts must be supplied with color co-
ding for single contact identification. Preci-Dip has completed its
manufacturing capacities with marking equipments for color code.
T YPE OF CONTACT
SIZE
MIL PART NUMBER
PRECI-DIP PART NUMBER
Socket 22
AS/M39029/56-348
83011-1P4-7010-B1
20
AS/M39029/56-351
83021-1P4-7110-B1
16
AS/M39029/56-352
83031-1P4-7210-B1
12
AS/M39029/56-353
83041-1P4-7310-B1
Pin 22
AS/M39027/58-360
82011-40-01
20
AS/M39027/58-363
82021-40-01
16
AS/M39027/58-364
82031-40-01
12
AS/M39027/58-365
82041-40-01
182
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT TECHNOLOGY
PIN CONTACTS
PIN CONTACTS
Precision screw-machined pin contacts are the best choice for many
applications:
• High quality, low dimensional tolerances
• Best surface of the mating end for applications requiring high
mating cycle count
• Wide range of dimensions and geometry
• Length from 3 to 50 mm
• Diameter from 0.25 to 6 mm
• Low initial (tooling) costs and attractive prices for medium and high
volume production due to manufacturing on high speed automatic
lathes
With its own plating unit, Preci-Dip offers single source services for
finished contacts
BI-BLOC PIN CONTACTS
Preci-Dip offers «selective plated» bi-bloc pin
contact with the high quality of machined contact
and the advantages of selective plating.
These contacts are made from 2 parts: the contact
body with termination and the connecting or
mating pin manufactured separately
and assembled after plating.
Contact body
Mating pin
183
Due to technical progress, all information provided is subject to change without prior notice.
CO
N
T
A
C
S
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
183
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CO
N
T
A
C
T
S
Force [N]
Mating pin diameter [mm]
CLIP CODE
0110
4-FINGER
MATING PIN DIAMETER RANGE
0.36-0.46 mm
COMPLIANCY
Δ
0.08 mm
MIN. MATING PIN LENGTH
1.8 mm
CURRENT RATING
1
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
5410
6-FINGER
MATING PIN DIAMETER RANGE
0.3-0.5
mm
COMPLIANCY
Δ
0.12
mm
MIN. MATING PIN LENGTH
1.8
mm
CURRENT RATING
1
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Force [N]
Mating pin diameter [mm]
CLIP CODE
1110
3-FINGER
MATING PIN DIAMETER RANGE
0.36-0.52
mm
COMPLIANCY
Δ
0.12
mm
MIN. MATING PIN LENGTH
2.3
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Force [N]
Mating pin diameter [mm]
184
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CLIP CODE
2110
3-FINGER
MATING PIN DIAMETER RANGE
0.38-0.54
mm
COMPLIANCY
Δ
0.16
mm
MIN. MATING PIN LENGTH
2.2
mm
CURRENT RATING
2
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
0510
3-FINGER
MATING PIN DIAMETER RANGE
0.4-0.56
mm
COMPLIANCY
Δ
0.1
mm
MIN. MATING PIN LENGTH
2.2
mm
CURRENT RATING
2
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
3020
4-FINGER
MATING PIN DIAMETER RANGE
0.3-0.5
mm
COMPLIANCY
Δ
0.2
mm
MIN. MATING PIN LENGTH
2.4
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
185
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CO
N
T
A
C
T
S
CLIP CODE
1210
4-FINGER
MATING PIN DIAMETER RANGE
0.32-0.52
mm
COMPLIANCY
Δ
0.14
mm
MIN. MATING PIN LENGTH
2
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
3010
4-FINGER
MATING PIN DIAMETER RANGE
0.36-0.56
mm
COMPLIANCY
Δ
0.2
mm
MIN. MATING PIN LENGTH
2.4
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
2210
6-FINGER
MATING PIN DIAMETER RANGE
0.4-0.64
mm
COMPLIANCY
Δ
0.14
mm
MIN. MATING PIN LENGTH
2
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
186
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CLIP CODE
3110
6-FINGER
MATING PIN DIAMETER RANGE
0.38-0.7
mm
COMPLIANCY
Δ
0.3
mm
MIN. MATING PIN LENGTH
2.5
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
3130
6-FINGER
MATING PIN DIAMETER RANGE
0.38-0.7
mm
COMPLIANCY
Δ
0.26
mm
MIN. MATING PIN LENGTH
2.5
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
3160
6-FINGER
MATING PIN DIAMETER RANGE
0.42-0.72
mm
COMPLIANCY
Δ
0.28
mm
MIN. MATING PIN LENGTH
2.5
mm
CURRENT RATING
3
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
187
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CO
N
T
A
C
T
S
CLIP CODE
5210
6-FINGER
MATING PIN DIAMETER RANGE
0.7-0.8
mm
COMPLIANCY
Δ
0.1
mm
MIN. MATING PIN LENGTH
2.2
mm
CURRENT RATING
4.5
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
1410
6-FINGER
MATING PIN DIAMETER RANGE
0.66-0.84
mm
COMPLIANCY
Δ
0.16
mm
MIN. MATING PIN LENGTH
2.2
mm
CURRENT RATING
4.5
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
CLIP CODE
1610
6-FINGER
MATING PIN DIAMETER RANGE
0.56-0.84
mm
COMPLIANCY
Δ
0.2
mm
MIN. MATING PIN LENGTH
2.7
mm
CURRENT RATING
5
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Shoulder preferred
to assist assembly
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Mating pin diameter [mm]
188
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CLIP CODE
0610
4-FINGER
MATING PIN DIAMETER RANGE
0.56-0.84
mm
COMPLIANCY
Δ
0.28
mm
MIN. MATING PIN LENGTH
3.5
mm
CURRENT RATING
5
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Shoulder
preferred
to assist
assembly
CLIP CODE
4710
6-FINGER
MATING PIN DIAMETER RANGE
0.64-0.92
mm
COMPLIANCY
Δ
0.24
mm
MIN. MATING PIN LENGTH
2.6
mm
CURRENT RATING
5
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Shoulder
preferred
to assist
assembly
CLIP CODE
1810
6-FINGER
MATING PIN DIAMETER RANGE
0.92-1.06
mm
COMPLIANCY
Δ
0.14
mm
MIN. MATING PIN LENGTH
2.2
mm
CURRENT RATING
8
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact body
Shoulder
preferred
to assist
assembly
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
189
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CO
N
T
A
C
T
S
CLIP CODE
3410
4-FINGER
MATING PIN DIAMETER RANGE
0.7-1.06
mm
COMPLIANCY
Δ
0.34
mm
MIN. MATING PIN LENGTH
3.7
mm
CURRENT RATING
8
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
CLIP CODE
0210
6-FINGER
MATING PIN DIAMETER RANGE
0.98-1.2
mm
COMPLIANCY
Δ
0.22
mm
MIN. MATING PIN LENGTH
3
mm
CURRENT RATING
8
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
CLIP CODE
2710
6-FINGER
MATING PIN DIAMETER RANGE
0.96-1.3
mm
COMPLIANCY
Δ
0.24
mm
MIN. MATING PIN LENGTH
3
mm
CURRENT RATING
8
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
190
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CLIP CODE
4910
6-FINGER
MATING PIN DIAMETER RANGE
1.4-1.65
mm
COMPLIANCY
Δ
0.25
mm
MIN. MATING PIN LENGTH
3.4
mm
CURRENT RATING
11
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
CLIP CODE
1310
4-FINGER
MATING PIN DIAMETER RANGE
1.1-1.5
mm
COMPLIANCY
Δ
0.35
mm
MIN. MATING PIN LENGTH
4.2
mm
CURRENT RATING
11
A
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
CLIP CODE
2310
6-FINGER
MATING PIN DIAMETER RANGE
1.15-1.55
mm
COMPLIANCY
Δ
0.3
mm
MIN. MATING PIN LENGTH
3.5
mm
CURRENT RATING
11
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
191
Due to technical progress, all information provided is subject to change without prior notice.
CONTACT DATA
STANDARD CLIP
CO
N
T
A
C
T
S
CLIP CODE
3920
6-FINGER
MATING PIN DIAMETER RANGE
1.4-1.7
mm
COMPLIANCY
Δ
0.25
mm
MIN. MATING PIN LENGTH
3.5
mm
CURRENT RATING
11
A
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Precision
machined body
(custom design
welcome)
Clip press-fit
into contact
body
Shoulder
preferred
to assist
assembly
CLIP CODE
0710
4-FINGER
MATING PIN DIAMETER RANGE
1.5-2
mm
COMPLIANCY
Δ
0.45
mm
MIN. MATING PIN LENGTH
5
mm
CURRENT RATING
15 A
Precision
machined body
(custom design
welcome)
Shoulder
preferred
to assist
assembly
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Clip press-fit
into contact
body
CLIP CODE
4010
8-FINGER
MATING PIN DIAMETER RANGE
2-2.45
mm
COMPLIANCY
Δ
0.4
mm
MIN. MATING PIN LENGTH
4.7
mm
CURRENT RATING
18
A
Precision
machined body
(custom design
welcome)
Shoulder
preferred
to assist
assembly
Initial insertion force
Insertion force 2nd cycle
Withdrawal force
Force [N]
Mating pin diameter [mm]
Clip press-fit
into contact
body
CUSTOM DESIGN
CUS
T
OM
DESI
G
N
194
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELD
TELECOMMUNICATION
1. Dead connector system interface,
professional
mobile
radio
2. SMD connector for automatic assembly
for mobile phone loudspeaker
3. Flex-print connector with orientation
pins and protective cover, GSM base
station
4. Double action connector, cover
position detector on mobile phone
5. Connector with integrated guiding
system for docking station for
professional
mobile
radio
6. System interface connector with
locking device for professional mobile
radio
7. SMD spring-loaded board-to-board
connector for blind assembly on
professional
mobile
radio
8. SIM card connector in mobile phones
and professional mobile radios
9. Connector with holding bracket for
remote microphone and control unit
for mobile radio
10. Connector for sealed assembly for
mobile phone battery
11. Miniature spring-loaded connector, very
low profile with less than 2.5 mm
working
height
EXAMPLES
햽
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
195
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELDS
DATA PROCESSING AND ACQUISITION
CUS
T
OM
DESI
G
N
1. Spring-loaded and pad connectors for
portable voice directed data acquisition
terminal
2. Miniature high density connector for
single board industrial processor
3. LED display socket control panel
4. 545 way interstitial PGA socket with
compliant press-fit terminations,
multi-processor, parallel computing,
mainframe
computer
5. PCB interconnect component for
electronic banking terminal
6. Power connector hard-disk drive
7. SMD connector for docking station for
tablett-PC, PDA and bar code readers
8. Connector for security control loop on
automatic cash dispenser, banking and
vending
machines
EXAMPLES
196
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELD
TRANSPORTATION
1. Connector for car dash-board
instrument
2. Car dash-board connector for blind
mating
3. LED lamp socket for back-lighting,
car
radio
4. Spring-loaded connector for vehicles
for secured cash transport
5. SMD connector for internal dash board
connection
6. SMD spring-loaded and pad connector
for dash board add-on for
telecommunication
equipment
7. Spring-loaded connector for food
conveyor
trolley
8. Card connectors air conditioning
control equipment, railway
9. Connector for press-fit assembly and
connection to removable operation
panel for car radio
EXAMPLES
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
197
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELDS
AIRCRAFT, AEROSPACE AND MILITARY
CUS
T
OM
DESI
G
N
1. Miniature board to board connectors
avionics
equipment
2. Interface socket PCB to ARINC
connector
3. Board-to-board connection in tactical
manpack
radio
4. Radar equipment of military helicopter
5. Miniature board to board connectors
avionics
equipment
6. Interface socket PCB to ARINC
connector
7. Interface socket PCB to MIL connector
8. Miniature dead connector used in test
systems for satellite navigation system
9. High-stiffness 2 mm-pitch connector
for avionics equipment
10. Sealed connector with very high
contact pressure for avionics
equipment, electronic defence systems
11. Floating spring-loaded contact with
insulator body for electronic defense
systems
EXAMPLES
햽
198
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELDS
AUTOMATION AND INDUSTRIAL EQUIPMENT
1. Test jack for calibration of industrial
transmitter
2. SMD connector for industrial sensor
3. Socket for gas pressure sensor
4. Spring-loaded connector for
programming module for industrial
sensor
5. Pin connectors for industrial position
sensor
6. Polarized PCB socket connector,
controller for building automation
system
7. Spring-loaded and dead connector for
gate control on automatic conveyor
system
8. Press-fit socket for coding module in
industrial control unit
9. Socket for photomultiplier tube for
industrial measurement system
EXAMPLES
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
199
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELDS
TESTING AND MEASURING
CUS
T
OM
DESI
G
N
1. Data interface connector for weighing
and counting systems
2. Test probe connector
3. Sensor connector for liquid analysis
4. Connector with mixed SMD and
throughhole terminations for
bare-board
test
systems
5. Connector for test systems for
hard-disk
drives
6. Shielded contacts connector pair for
industrial flow rate measuring systems
7. Base plate / connector system between
sensor system and transmitter
8. Spring-loaded connector with recessed
pistons for functional test systems for
disk
drives
9. Spring-loaded and pad connector for IR
thermography
camera
EXAMPLES
200
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELD
MEDICAL
1. Spring-loaded + pad connector for
breathing assistance equipment
2. Battery connector for portable blood
pressure measuring equipment
3. Spring-loaded connector for removable
display
module
4. Electrode connector for muscular
electro-stimulation
systems
5. Spring-loaded and pad connector data
exchange from portable patient
monitoring unit into computer system
6. Socket for gas sensor
7. Socket for CCD image sensor for digital
radiography
8. Overmoulded miniature connectors
with high degree of protection IP 67
for patient monitoring systems
9. Floating-pin spring-loaded connector
with integrated snap-in bracket for
motherboard to mezzanine board
connection
EXAMPLES
911
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
201
Due to technical progress, all information provided is subject to change without prior notice.
APPLICATION FIELDS
PROFESSIONAL AND CONSUMER
ELECTRONIC
CUS
T
OM
DESI
G
N
1. Miniature connector for ink-jet printing
unit
2. Clamp-on connector to load data from
wristwatch type diving computer into
PC
3. Double-action connector for modular
system of professional camera
4. Connection in bayonet mating for
camera with interchangeable lenses
5. PCB connector for add-on modules
6. LED display sockets for household
washing
machine
7. Cable-to-cable connector for audio
professional
headset
8. Battery connector for portable media
player
9. Board-to-board connection for model
train
10. Spring-loaded connector for boiler
control
panel
EXAMPLES
NOTES
NOTES
DISTRIBUTORS
204
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
EUROPE
AUSTRIA
Avnet Time
www.avnettime.com
Ineltro Electronics
www.ineltro.at
BELGIUM
Alcom Electronics
www.alcom.be
Avnet Time
www.avnettime.com
BULGARIA
Arrow Electronics
www.arroweurope.com
Avnet Time
www.avnettime.com
BYELORUSSIA
Avnet Time
www.avnettime.com
CROATIA
Avnet Time
www.avnettime.com
CZECH REPUBLIC
CiS Systems
www.cis-systems.cz
Offi cial Electronic
www.offi cial.cz
DENMARK
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
Fr-Tech
www.fr-tech.dk
ESTONIA
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
Perel
www.perel.ee
FINLAND
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
Perel
www.perel.fi
FRANCE
Arrow Electronics
www.arroweurope.com
Avnet Time
www.avnettime.com
Copel
www.corel-electronique.com
Direct
www.direct.fr
Mateleco
www.mateleco.online.fr
Rutronik
www.rutronik.com
GERMANY
Avnet Time
www.avnettime.com
Cab-Produkttechnik
www.cabgmbh.com
CiS Electronic
www.cis-electronic.de
Elektronik-Kontor
www.elektronik-kontor.de
Rutronik
www.rutronik.com
GREECE
Arrow Electronics
www.arroweurope.com
Avnet Time
www.avnettime.com
HUNGARY
Avnet Time
www.avnettime.com
Lomex
www.lomex.hu
IRELAND
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
ISRAEL
A.M. Components
kobi@amcomp.co.il
Avnet Time
www.avnettime.com
Rapac-Arrow Electronics
www.arroweurope.com
ITALY
Avnet Time
www.avnettime.com
Comprel
www.comprel.it
Silverstar - Arrow
Electronics
www.arroweurope.com
LATVIA
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
Perel
www.perel-latvia.lv
LITHUANIA
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
NETHERLANDS
Alcom Electronics
www.alcom.nl
Avnet Time
www.avnettime.com
NORWAY
Acte
www.acte.no
Arrow Electronics
www.arrowne.com
Avnet Time
www.avnettime.com
POLAND
Acte
www.acte.pl
Avnet Time
www.avnettime.com
Semicon sp.
www.semicon.com.pl
PORTUGAL
Arrow Electronics
www.arroweurope.com
Avnet Time
www.avnettime.com
ROMANIA
Arrow Electronics
www.arroweurope.com
Avnet Time
www.avnettime.com
RUSSIA
Avnet Time
www.avnettime.com
Perel
www.perel-russia.ru
SLOVAKIA
Offi cial Electronic
www.offi cial.cz
SLOVENIA
Avnet Time
