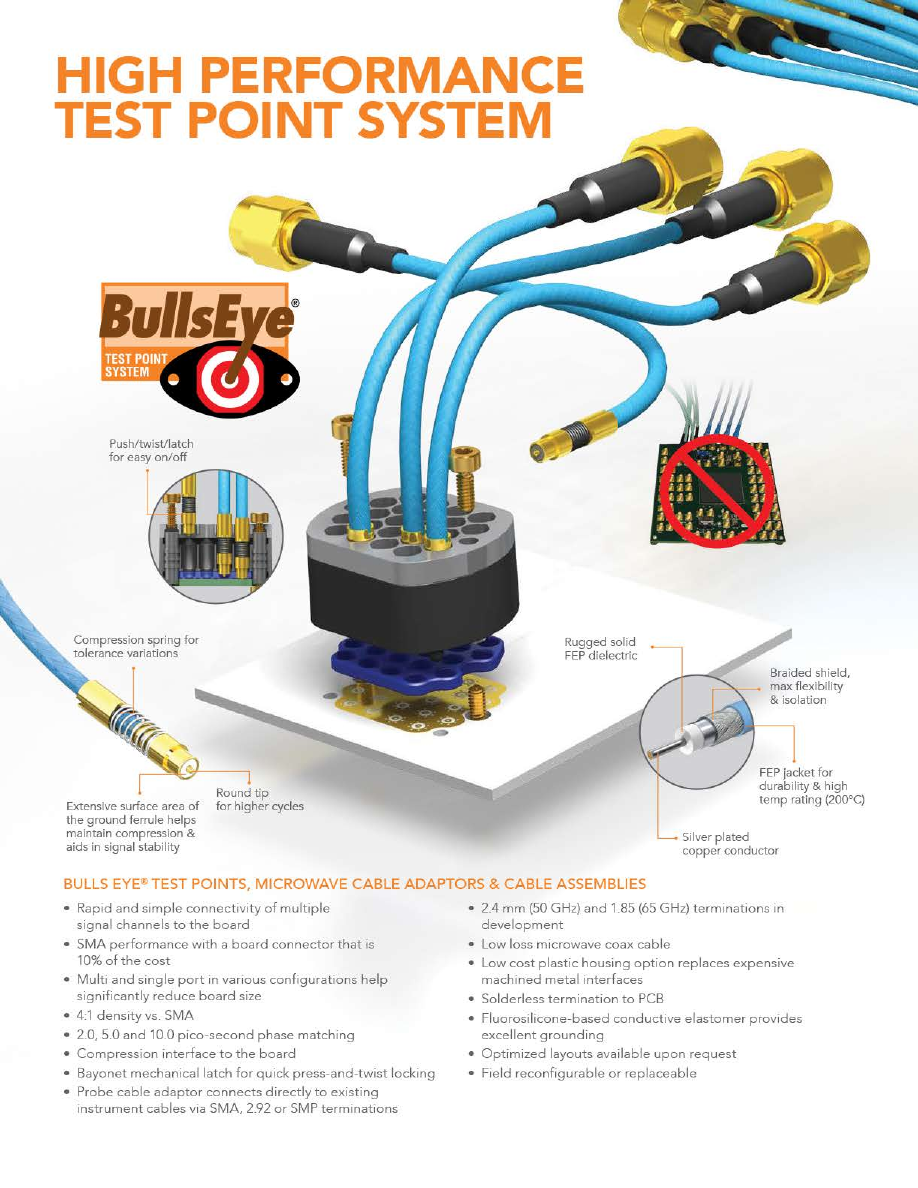

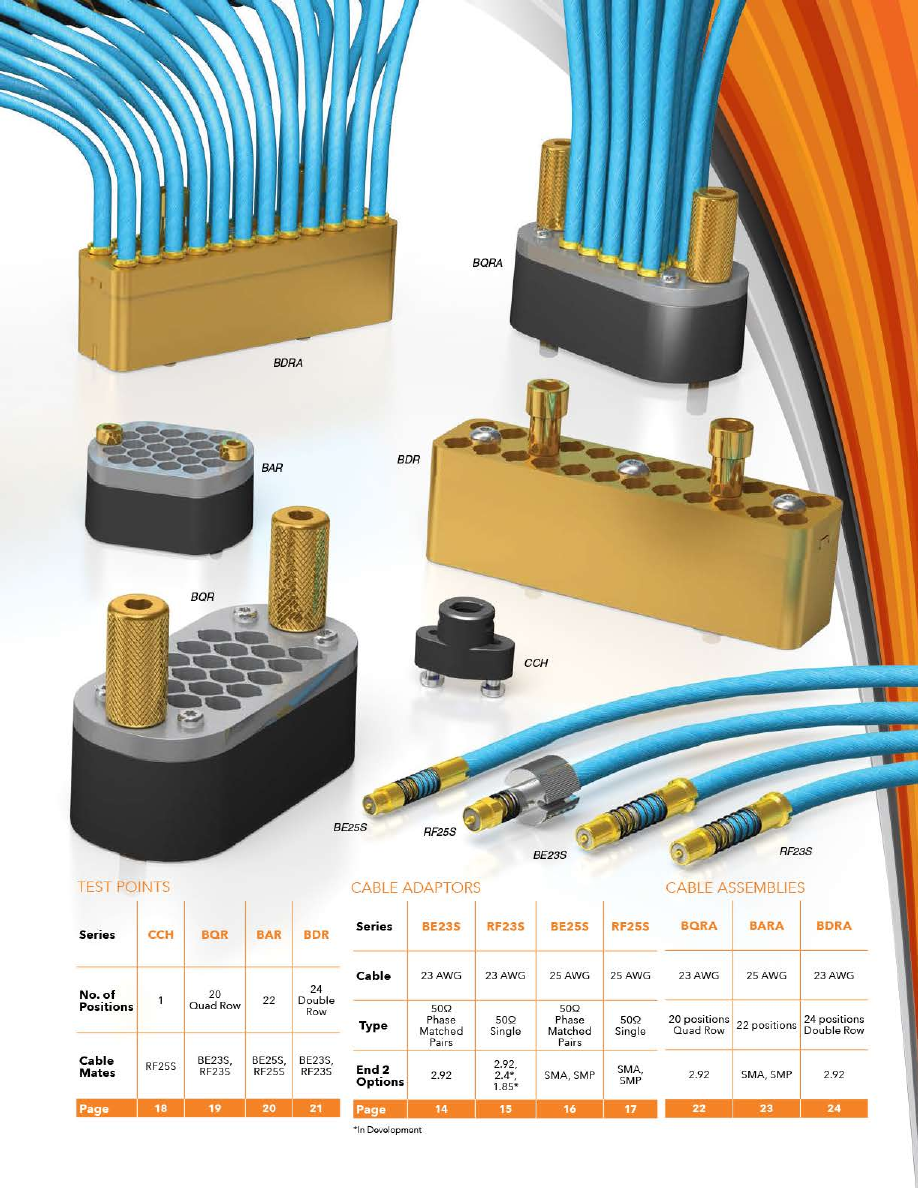

BQR SERIES

BQR–J–20

Solderless

termination

to PCB

Fluorosilicone-based conductive

elastomer provides excellent grounding

Compression

interface to

the board

Low cost plastic

housing replaces

expensive machined

metal interfaces

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.

RF-16 (Rev 10MAR16)

J

NUMBER OF POSITIONS

BQR

Mates with:

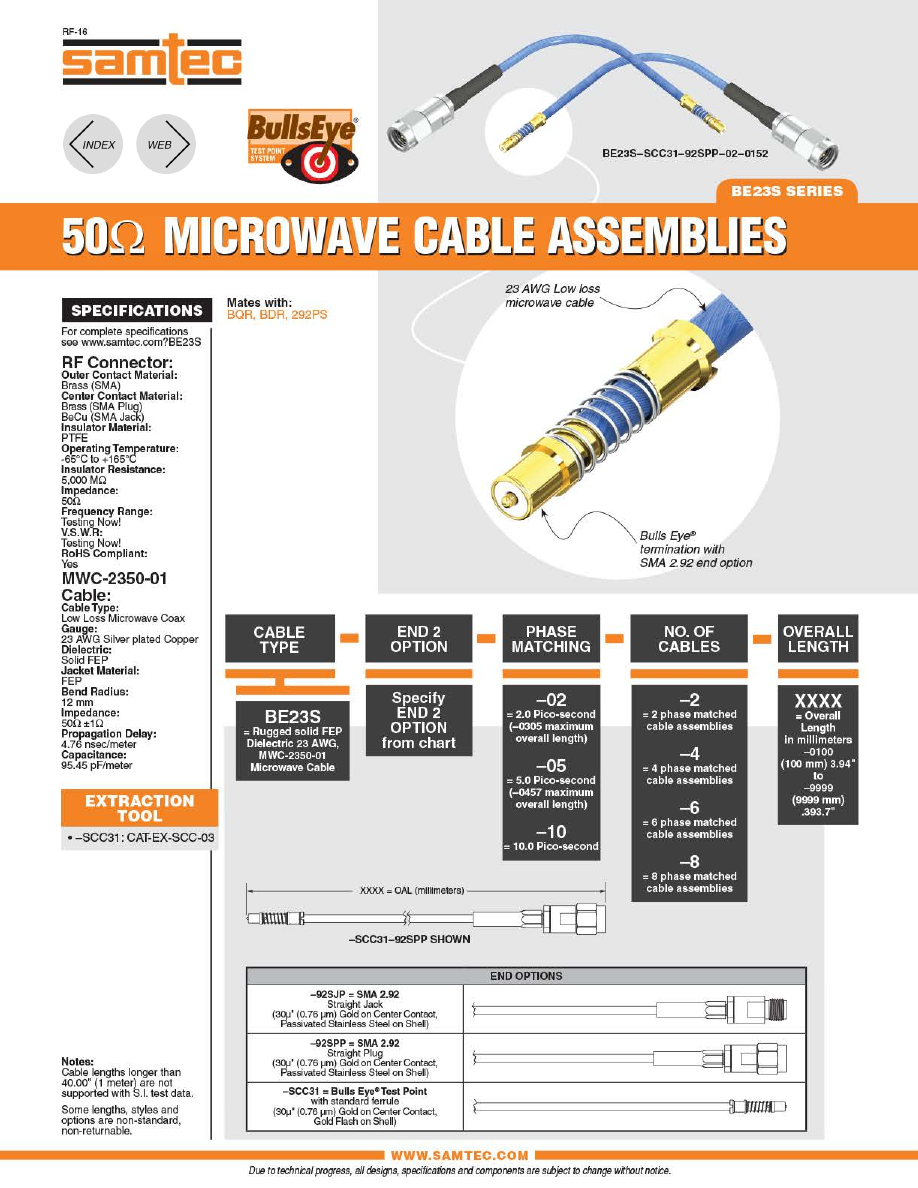

BE23S, RF23S

For complete specifications and

recommended PCB layouts

see www.samtec.com?BQR

SPECIFICATIONS

–20

= 20 Positions

Note:

 Some sizes, styles and

options are non-standard,

non-returnable.

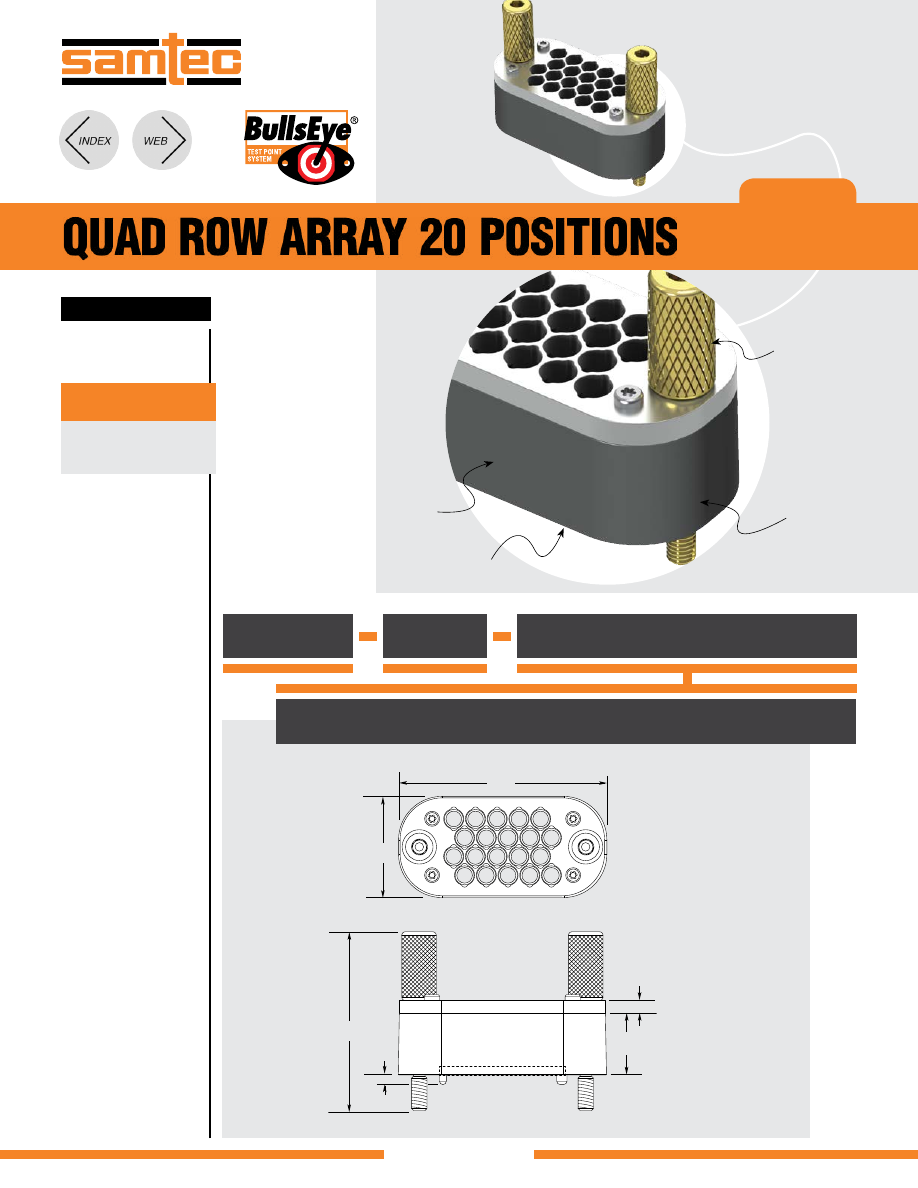

QUAD  ROW  ARRAY  20  POSITIONS

• Replacement elastomer

gaskets available

Contact Samtec.

OTHER

SOLUTIONS

(18.68)

.735

(11.46)

.451

(33.02)

1.300

(38.46)

1.514

(2.54)

.100

(1.78)

.070

BAR SERIES

BAR–J–22

Solderless

termination

to PCB

Fluorosilicone-based

conductive elastomer

provides excellent grounding

Compression

interface to

the board

Low cost plastic

housing replaces

expensive machined

metal interfaces

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.

RF-16 (Rev 10MAR16)

J

NUMBER OF POSITIONS

BAR

Mates with:



BE25S, RF25S

SPECIFICATIONS

–22

= 22 Positions

Note:

 Some sizes, styles and

options are non-standard,

non-returnable.

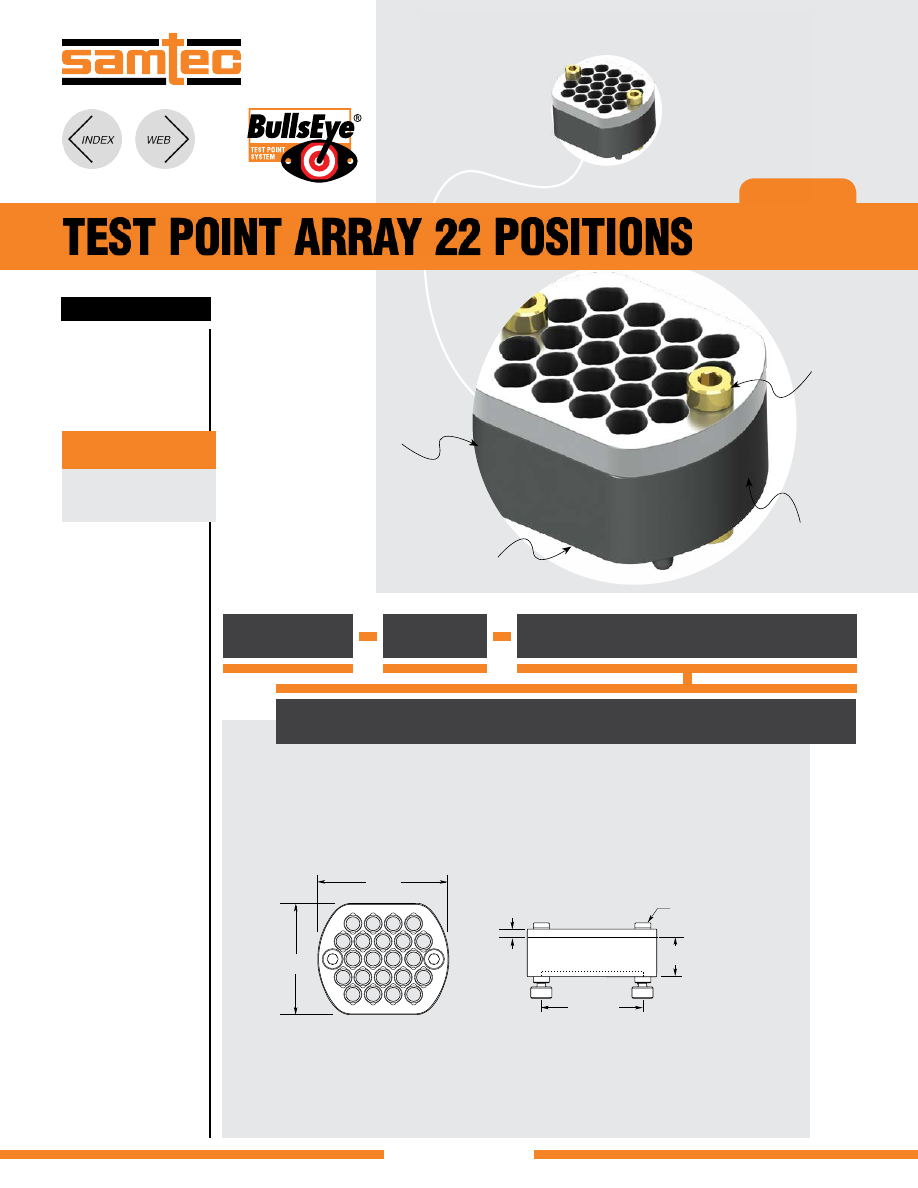

TEST  POINT  ARRAY  22  POSITIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?BAR

Insulator Material:

Black LCP

Gasket Material:

MIL-DTL-83528C, Type D

(7.75)

.305

(2.48)

.097

(1.57)

.062

Hex

(16.08) .633

(17.99)

.708

(21.22)

.835

• Replacement elastomer

gaskets available

Contact Samtec.

OTHER

SOLUTIONS

BDR SERIES

BDR–J–24

Solderless

termination

to PCB

Fluorosilicone-based conductive

elastomer provides excellent grounding

Compression

interface to

the board

WWW.SAMTEC.COM

Due to technical progress, all designs, specifications and components are subject to change without notice.

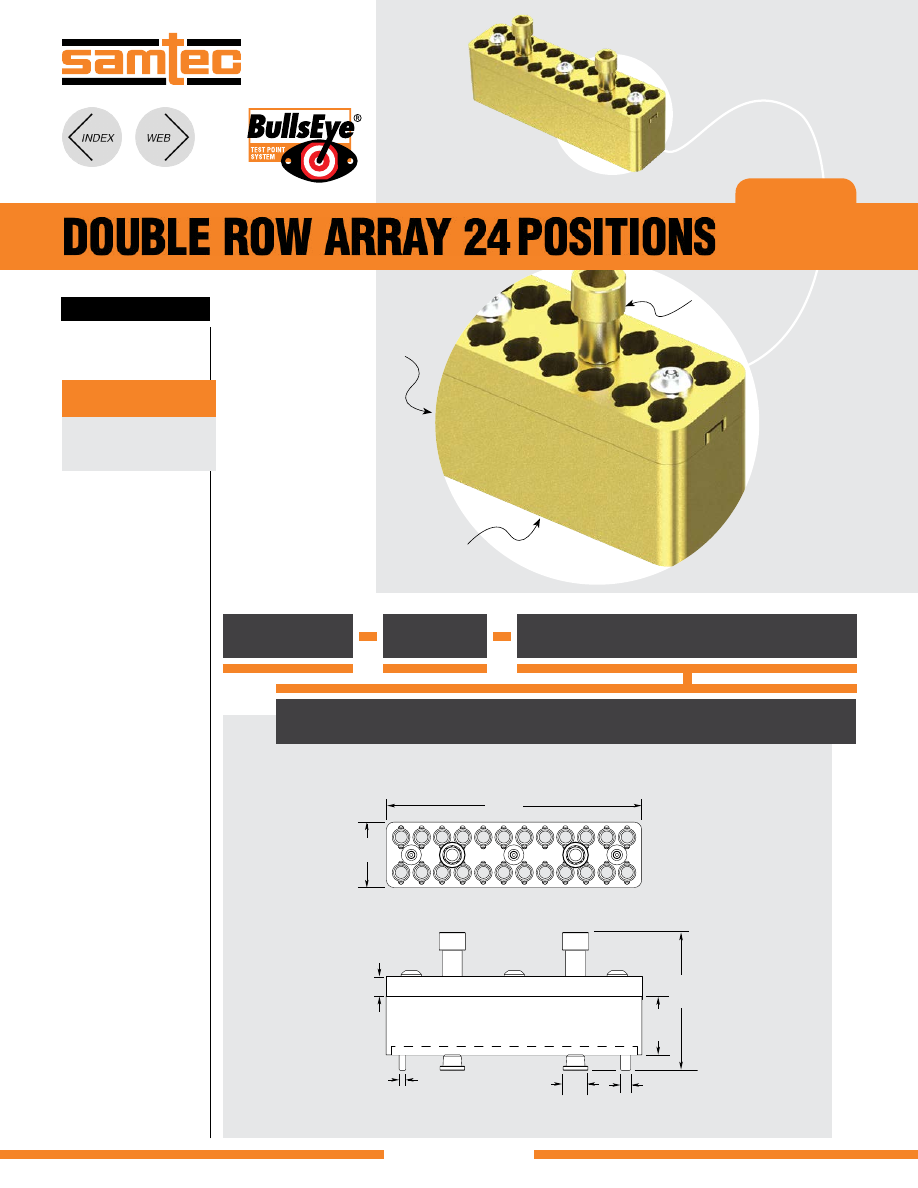

DOUBLE  ROW  ARRAY  24 POSITIONS

Note:

 Some sizes, styles and

options are non-standard,

non-returnable.

SPECIFICATIONS

RF-16 (Rev 10MAR16)

For complete specifications and

recommended PCB layouts

see www.samtec.com?BDR

Mates with:

BE23S, RF23S

J

NUMBER OF POSITIONS

BDR

–24

= 24 Positions

(4.80)

.189

DIA

(1.28)

.050

DIA

(49.79)

1.960

(12.65)

.498

(26.83)

1.056

(1.93)

.076

DIA

(3.81)

.150

(11.46)

.103

• Replacement elastomer

gaskets available

Contact Samtec.

OTHER

SOLUTIONS
