A-1

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

LIGHTNING PROTECTION INFO.

Basic rules for selection are:
1. Must be like material to the conductor.

2. Two bolts to ground rod - minimum.

3. Cable to cable connections can be anything,

one bolt, two bolt, compression, etc.

4. Cable to steel structure must have 8 square

inch contact with steel.

Complies with NFPA 78-86 Ordinary Structures.

Complies with NFPA 78-86 Heavy Duty

Stacks. (Order: LD for Lead Plating for Heavy

Duty Stack applications.)

5. Heavy duty stacks - mechanical only.

6. On all connectors with heavy duty stack

rating, we must offer 1/16” thick lead plating

as an option. The reason for that is closest

25 ft. to stack opening must use lead coated

product.

SPECIAL FEATURES

Other features are also available for products

listed, such as undrilled or special drilling, 45

pad angles, belling for extra flexible cable,

smooth or special threaded studs, special label-

ALL OTHER SPECIAL REQUESTS

PLEASE CONTACT

BURNDY CUSTOMER SERVICE

1-800-346-4175

REVOLUTIONARY

BURNDY

DESIGN

MEETS STRICT UL486B

STANDARDS

... and puts the bite on

aluminum connections

forever!

For use on all combinations

•

Aluminum to aluminum

•

Aluminum to copper

•

Copper to copper

Patented

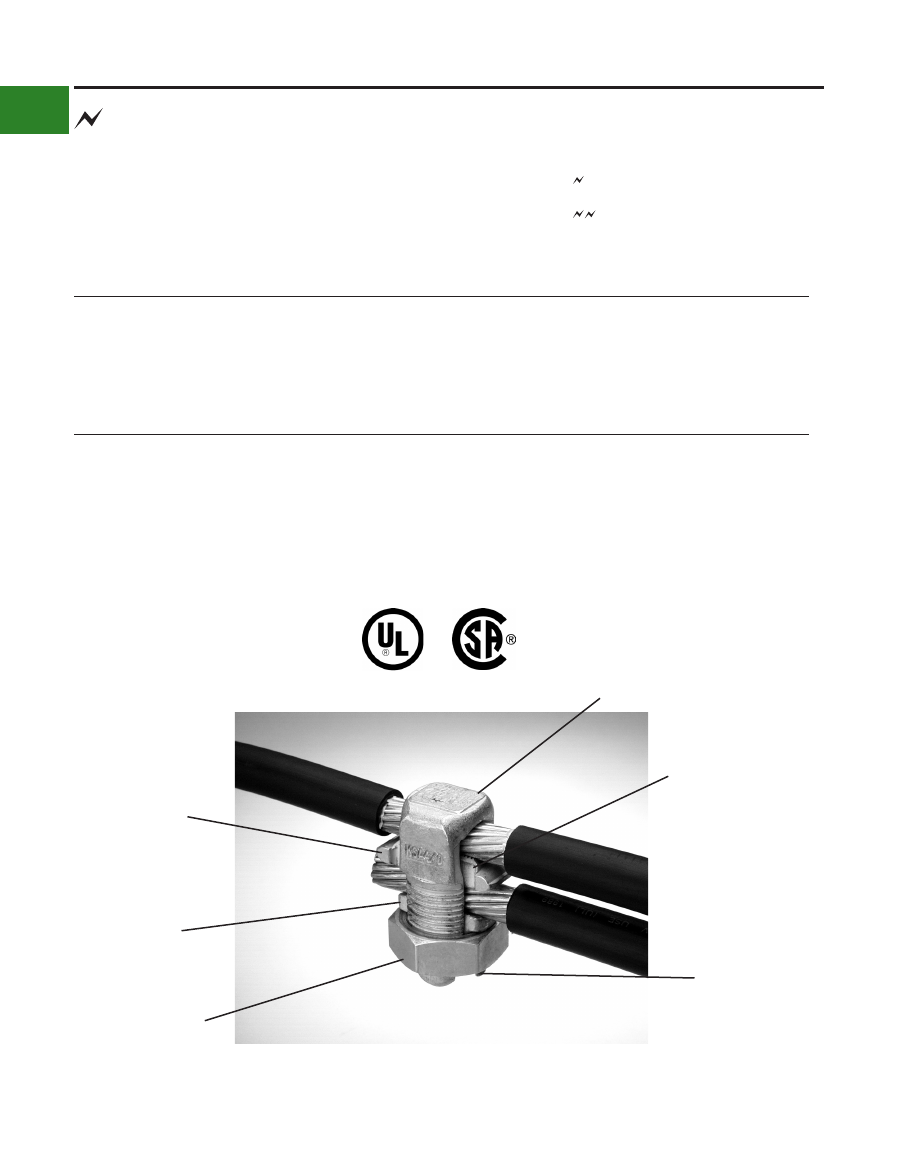

Unique “bite and grip”

TRITAP™ SERVIT

contact

delivers safe, long-term

reliability — even without

scratch brushing ... without

oxide inhibiting compounds.†

Available in sizes from #10 through 500 kcmil

Spacer provides built-in

separation to retard

galvanic corrosion

Triangular edges bite into

cable to break through

surface oxides:

•

provide low contact

resistance

•

produces gas tight

seal

Tin-plated contact

surface inhibits oxide

formation

Special heat-treated hard,

aluminum alloy

Anti-galling, high

efficiency threaded

components result

in high contact force.

Easily installed using

standard, everyday

wrenches.

†

When used in NEC applications of insulated

cables only.

ing or packaging, extra long braid, and nuclear

certification. Please contact BURNDY Customer

Service for any inquiries.

Lightning Protection Information; Special Features

A-2

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

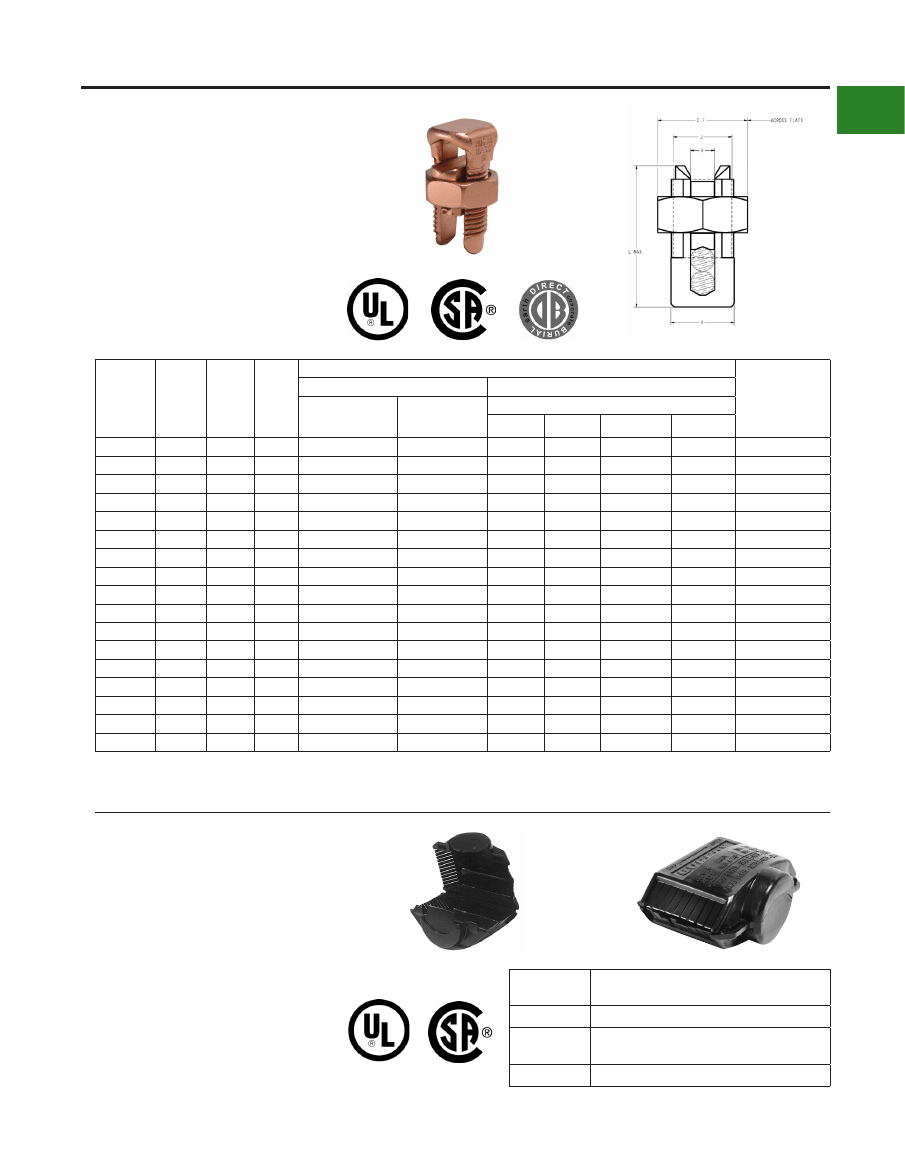

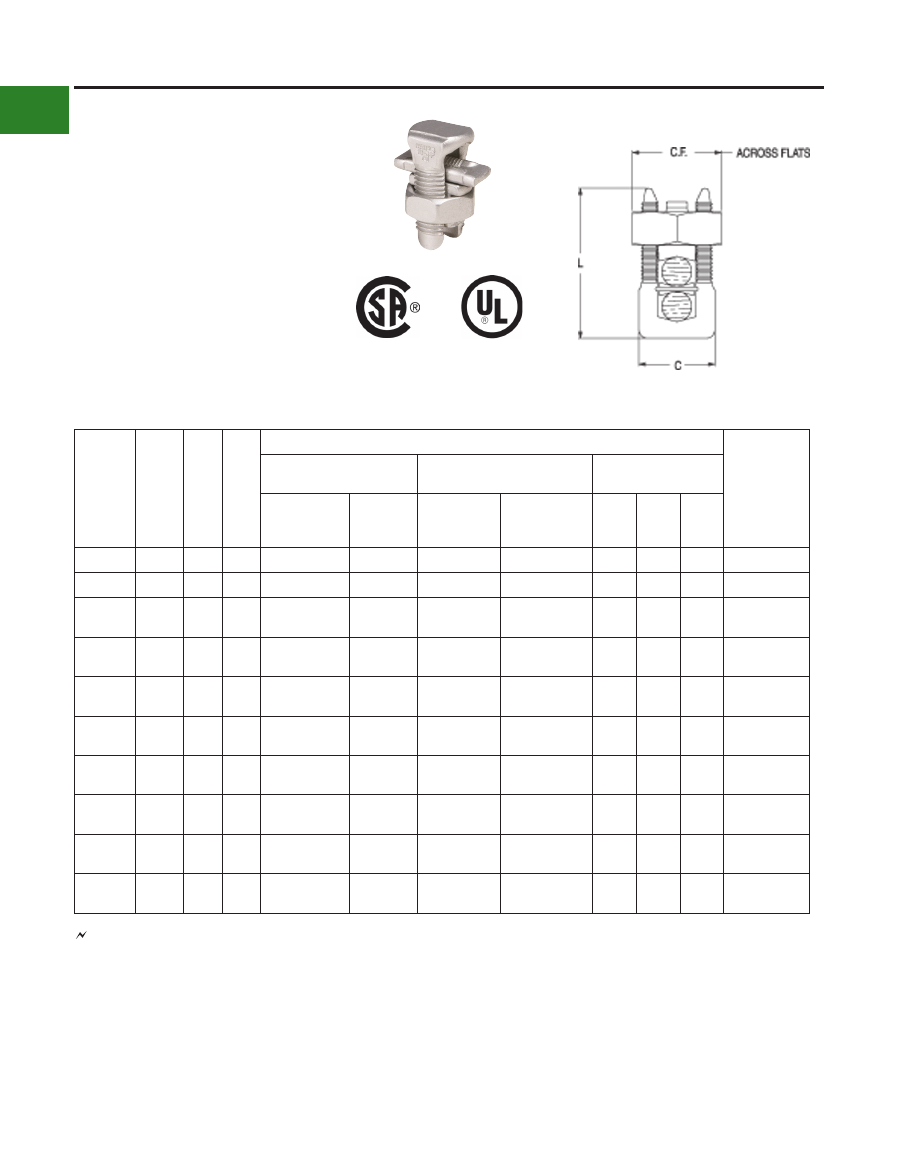

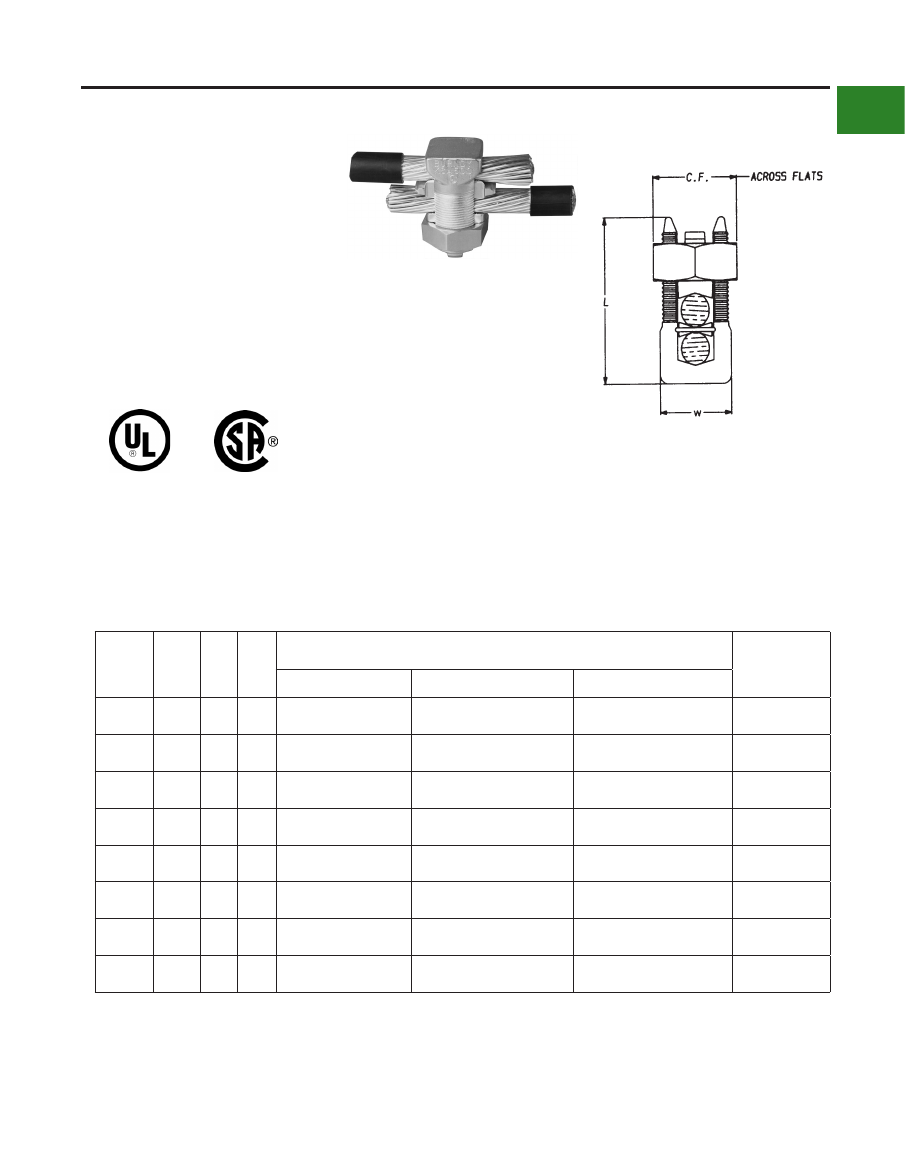

TYPES KS & KS-3

SERVIT

For Copper, Copperweld

Compact, high strength, high copper alloy SERVIT

split-bolt has free-running threads and easy to grip

wrench flats. Highly resistant to season cracking

and corrosion, the SERVIT

provides maximum

pressure and assures a secure connection on

all combinations of run and tap conductors. Type

KS-3 accommodates 3 maximum size conductors.

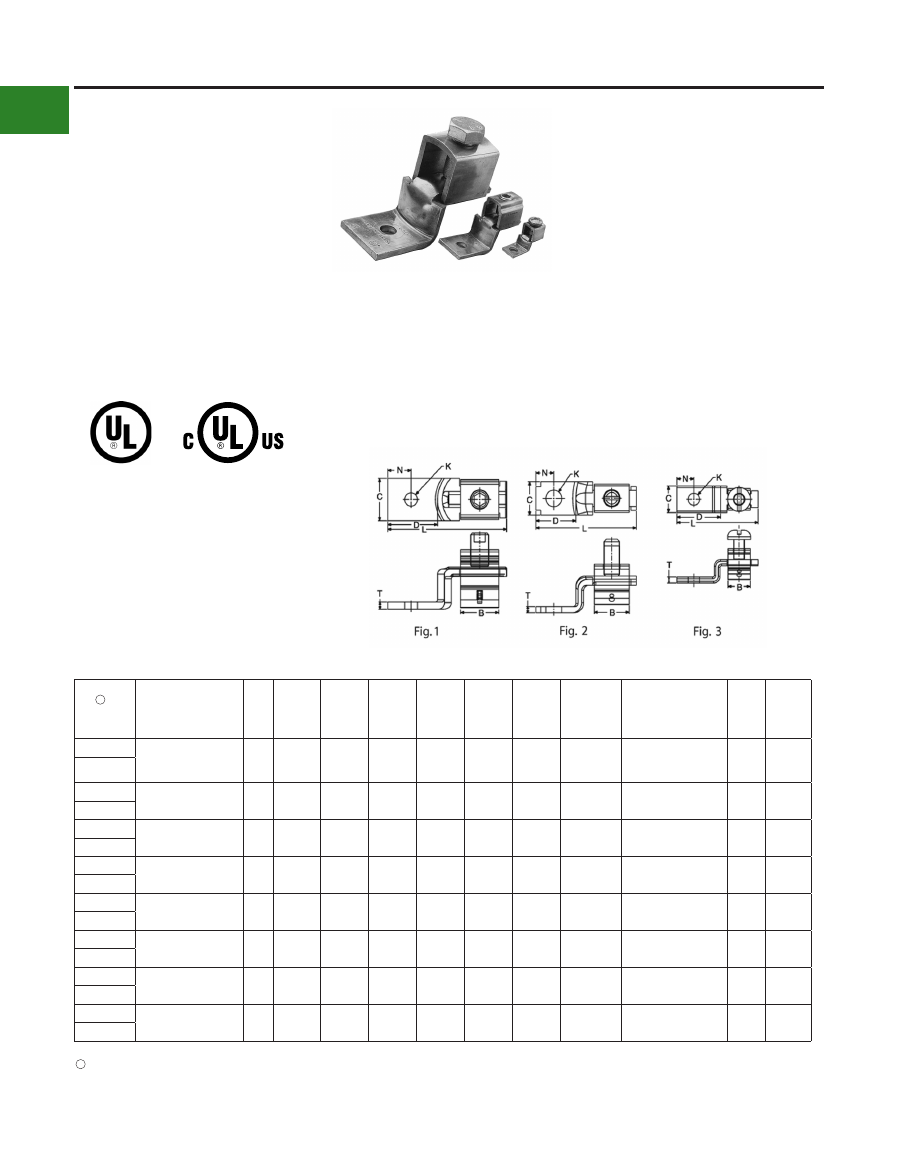

Catalog

Number

Cross

Flats

Conductor

▲

Recommended

Tightening

Torque (in-lb)

Copper

Copperweld

Equal Run & Tap Min Tap with

Max Run

Maximum Run and Tap

Sol.

Str.

Type A

Type D

†

KS90

0.50

0.85

0.38

12 - 10 Str.

16 Str.

#10

—

†

KS15

0.50

0.85

0.38

10 - 8 Str.

14 Str.

—

†

KS17

0.63

1.14

0.45

8 Str. - 6 Sol.

14 Str.

3 #12

9-1/2D

165

KS17-3

0.62

0.98

0.70

8 Str. - 6 Sol.

16 Str.

3 #12

9-1/2D

165

†

KS20

0.69

1.20

0.51

8 Str. - 4 Sol.

14 Str.

3 #10

165

KS20-3

0.68

1.17

0.78

8 Str. - 4 Sol.

14 Str.

3 #10

165

†

KS22

0.75

1.50

0.60

6 Str. - 2 Sol.

14 Str.

3 #8

275

KS22-3

0.74

1.33

0.84

6 Str. - 2 Sol.

14 Str.

3 #8

275

†

KS23

0.82

1.54

0.62

6 Str. - 2 Str.

14 Str.

3 #7

275

†

KS25

0.94

1.77

0.73

4 Str. - 1/0 Str.

14 Str.

2/0

3 #5

385

†

KS26

1.05

1.94

0.82

2 Str. - 2/0 Str.

14 Str.

3/0

7 #7

—

385

†

KS27

1.36

1.86

1.17

1 Str. - 3/0 Str.

8 Sol.

—

500

†

KS29

1.36

2.07

1.17

1 Str. - 250

8 Str.

4/0

7 #5

—

650

†

KS31

1.70

2.51

1.41

1/0 Str. - 350

1/0 Str.

—

19 #8

—

650

†

KS34

1.82

2.79

1.48

2/0 Str. - 500

2/0 Str.

—

19 #6

—

825

KS39

2.31

3.29

1.94

4/0 Str. - 750

4/0 Str.

—

19 #5

—

1000

KS44

2.56

3.73

2.19

300 - 1000

4/0 Str.

—

1100

▲ Listed torque values are for maximum conductor combinations accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor combinations.

See note LIGHTNING PROTECTION INFO.

* Not UL Listed or CSA Certified.

† In addition to UL Listed for wire connectors and CSA Certified, these items are also UL rated for direct burial.

TYPE SC

SERVIT

COVER

HUG-A-BUG

Used indoors or outdoors, this compact, one-piece

plastic SERVIT

cover saves time and material,

eliminates costly taping of split-bolts. Positive latch

snaps easily and quickly over connector, ideal for

tight quarters. Self-positioning plastic fingers wrap

around wires fully insulating joint. UL Listed for 600

volt indoor application with type KS. Three covers

accommodate a range of 6 SERVIT

sizes through

2/0 Str.

Catalog

Number

For Use With

SC4

KS17, KS17-3, KS20, KSU17, KSU20

SC2

KS22, KS20-3, KS23, KS22-3, KSA6, KSA4,

KSU22, KSU23

SC2/0

KS25, KS26, KSA2, KSA1/0, KSU25, KSU26

SERVIT

Split-bolts for Copper/Copperweld; SERVIT

Covers

A-3

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

TYPE KSU

UNIVERSAL SERVIT

For Use On All Combinations of

Copper, Aluminum, ACSR, AAAC,

5005, and Steel

Tin-plated, high strength, copper alloy SERVIT

split-bolt with spacer. Spacer separates dissimilar

conductors and provides long contact length that

prevents high pressure point contacts between run

and tap conductors.

Use of PENETROX™ joint compound

recommended with Aluminum and ACSR.

Catalog

Number

Cross

Flats

Conductor

Recommended

Tightening

Torque (in-lb)

Run

Tap

Steel

(Max Conductor)

Copper &

Aluminum

ACSR

AAAC

5005

Copper &

Aluminum

ACSR AAAC

5005

Sol.

BWG

3 Str.

BWG

Nom.

Dia.

KSU17

0.62

0.92

0.42

12 Sol. - 6 Sol.

8 (6-1)

12 Sol. - 6 Sol.

8 (6-1)

—

5/32

165

KSU20

0.69

1.05

0.48

10 Sol. - 4 Sol.

6 (6-1)

10 Sol. - 4 Sol.

6 (6-1)

7/32

165

KSU22

0.74

1.25

0.57

10 Sol. - 2 Sol.

6 (6-1) -

4 (7-1)

10 Sol. - 2 Sol.

6 (6-1) - 4 (7-1)

1/4

275

KSU23

0.81

1.48

0.59

8 Str. - 2 Str.

3 (6-1) -

2 (6-1)

8 Sol. - 2 Str.

6 (6-1) - 2 (6-1)

—

5/16

275

KSU25

0.93

1.77

0.70

2 Str. - 1/0 Str.

3 (6-1) -

1 (6-1)

10 Str. - 1/0 Str.

6 (6-1) - 1 (6-1)

—

3/8

385

KSU26

1.04

1.93

0.79

2 Str.-2/0 Str.

1 (6-1) -

1/0 (6-1)

8 Str. - 2/0 Str.

6 (6-1) - 1/0 (6-1)

—

7/16

385

KSU27

1.38

2.34

1.12

1 Str. - 3/0 Str.

1 (6-1) -

2/0 (6-1)

8 Sol. - 3/0 Str.

8 (6-1) - 2/0 (6-1)

—

1/2

500

KSU29

1.38

2.50

1.58

1Str. -250 kcmil

2/0 (6-1) -

4/0 (6-1)

8 Str. - 250

6 (6-1) - 4/0 (6-1)

—

1/2

650

KSU31

1.69

2.88

1.36

1/0 Str. -

350 kcmil

3/0 (6-1) -

4/0 (6-1)

4 Str. - 350

4 (6-1) - 4/0 (6-1)

—

5/8

650

KSU34

2.00

3.12

1.47

400 - 500 kcmil

336 (30-7) -

477 (18-1)

2 Str. - 500

2 (6-1) - 477

(18-1)

—

825

Copper Only

486A

Copper Only

Accommodates compressed conductors within conductor ranges.

See note LIGHTNING PROTECTION INFO.

Universal SERVIT

Split-bolts for Copper/Aluminum/ACSR/AAAC/5005/Steel

A-4

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPE KSA

TRITAP™ SERVIT

For All Combinations of Aluminum to

Aluminum, Aluminum to Copper and

Copper to Copper, Aluminum Alloy Tin

Plated

PATENTED TRIANGULAR

PENETRATION TECHNOLOGY

CONTACT

Catalog

Number

Cross

Flats

Alum. to Alum., Alum. to Copper, Copper to Copper Conductors

Recommended

▲ Tightening

Torque (in-lb)

Max Run to Max Tap

Min Run to Min Tap

Max Run to Min Tap

KSA6

0.75

1.58 0.56

#6 Str. (0.184) -

#6 Str. (0.184)

#10 Sol. (0.102) -

#10 Sol. (0.102)

#6 Str. (0.184) -

#10 Sol. (0.102)

165

KSA4

0.81

1.38 0.62

#4 Str. (0.232) -

#4 Str. (0.232)

#8 Sol. (0.129) -

#10 Sol. (0.102)

#4 Str. (0.232) -

#10 Sol. (0.102)

165

KSA2

0.94

1.58 0.69

#2 Str. (0.292) -

#2 Str. (0.292)

#6 Sol. (0.169) -

#8 Str. (0.146)

#2 Str. (0.292) -

#8 Sol. (0.146)

275

KSA1/0

1.00

1.92 0.75

#1/0 Str. (0.373) -

#1/0 Str. (0.373)

#2 Str. Compact (0.268) -

#8 Sol. (0.129)

#1/0 Str. (0.373) -

#8 Sol. (0.129)

385

KSA2/0

1.12

1.92 0.88

#2/0 Str. (0.418) -

#2/0 Str. (0.418)

#2 Str. Compact (0.268) -

#8 Str. (0.146)

#2/0 Str. (0.418) -

#8 Str. (0.146)

385

KSA4/0

1.49

2.54 1.13

#4/0 Str. (0.528) -

#4/0 Str. (0.528)

#2 Str. Compact (0.268) -

$6 Str. (0.184)

#4/0 Str. (0.528) -

$6 Str. (0.184)

500

KSA350

1.69

3.24 1.50

350 kcmil (0.681) -

350 kcmil (0.681)

#1/0 Str. Compact (0.336) -

#4 Str. (0.232)

350 kcmil (0.681) -

#4 Str. (0.232)

650

KSA500

2.00

3.62 1.73

500 kcmil (0.813) -

500 kcmil (0.813)

400 kcmil Compact (0.659) -

#2 Str. Compact (0.268)

500 kcmil (0.813) -

#2 Str. Compact (0.268)

825

Features & Benefits

• No scratch brushing required.

• No oxide inhibitor required.

• Orients the conductor.

• Provides maximum pressure and

assures a secure connection of run and

tap conductors.

• Facilitates piercing the aluminum

conductor surface oxides.

• UL 486B listed, 90°C rated.

• Provides a low contact resistance.

• Provides equal coefficient of expansion

• Inhibits the reformation of oxides by

producing a gas-tight seal.

• Provides improved retention of minimum

to maximum conductor combinations.

▲ Listed torque values are for maximum conductor combinations accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor combinations.

** No scratch brushing or oxide inhibiting compounds required for insulated 90° C max. rated conductor for N.E.C. applications.

TRITAP™ SERVIT

Split-bolt for Aluminum/Copper

A-5

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

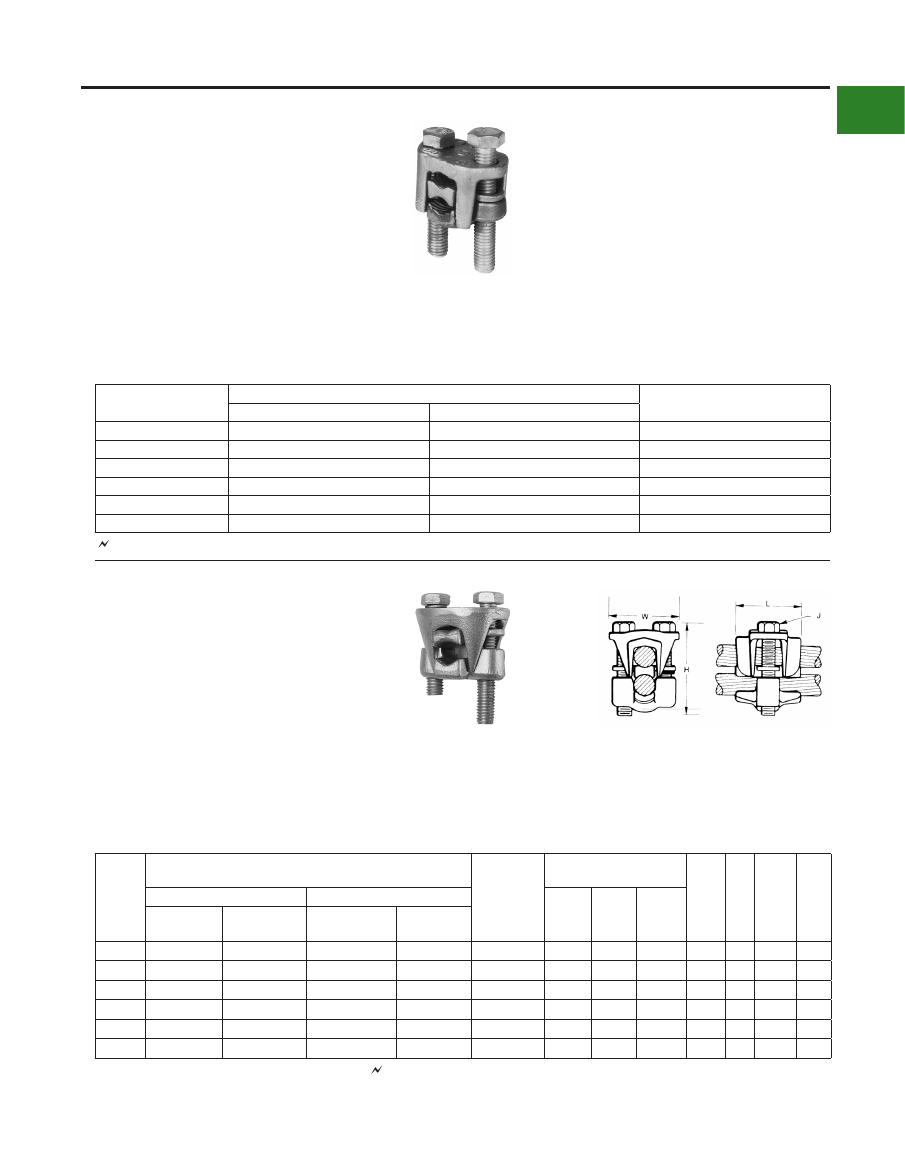

TYPE KVS

OKLIP™

Copper & Copperweld

Compact, two-piece, high strength, high copper

alloy BURNDY

OKLIP™ recommended for

heavy duty connections. Neoprene rings hold

DURIUM™ silicon bronze bolts in place during

installation. Installed with ordinary wrench.

Catalog

Number

Conductor

▲

Recommended

Tightening

Torque (in-lb)

Copper

Copperweld

Max Run & Tap

Run

Tap

Sol.

Str.

Type V

KVS26

2 Str. - 2/0 Str.

6 Str. - 2/0 Str.

3/0

7 #8

—

180

KVS28

1/0 Str. - 4/0 Str.

10 Str. - 4/0 Str.

4/0

7 #6

V3/0

250

KVS31

250 - 350 kcmil

10 Str. - 350 kcmil

—

19 #8

V250

325

KVS34

400 - 500 kcmil

10 Str. - 500 kcmil

—

19 #6

V350

375

KVS40

400- 800 kcmil

3/0 Str. - 800 kcmil

—

19 #5

—

500

KVS44

500 - 1000 kcmil

3/0 Str. - 1000 kcmil

—

500

▲ Listed torque values are for maximum conductor combinations accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor combinations.

See note LIGHTNING PROTECTION INFO.

TYPE KVSU

UNIVERSAL OKLIP™

Mechanical Connector All

Combinations of Copper, Aluminum,

ACSR, AAAC & 5005

Compact, high strength, tin plated copper alloy two-

piece connector with spacer and tin-plated silicon

bronze DURIUM™ hardware. Recommended

for heavy duty connections. Spacer separates

dissimilar conductors and provides long contact

length. Neoprene ring prevents loss of shorter

bolt during installation. Longer peened bolt

Catalog

Number

Conductor

Rec.

Tightening

Torque

(in-lb)

Run

Tap

Run

Tap

Copper &

Alum

ACSR,

AAAC, &

5005

Copper & Alum

ACSR,

AAAC,

& 5005

Copper

Sol.,

Copperweld

Sol.

Steel

Nom.

Dia.

Copper

Sol.,

Copper-

weld Sol.

Steel

Nom.

Dia.

KVSU26

2 Str. - 2/0 Str.

3 - 2/0

6 Str. - 2/0 Str.

6 - 2/0

1 - 3/0

5/16 -

7/16

#6 - 3/0

3/16 -

7/16

5/16

1-1/2

180

KVSU28

1/0 Str. - 4/0 Str.

1/0 - 4/0

6 Str. - 4/0 Str.

6 - 4/0

2/0 - 4/0

3/8 - 1/2

#6 - 4/0

5/32 - 1/2 2-3/8

3/8

1-1/8 1-3/4

250

KVSU31

250 - 350 kcmil

4/0 - 300

#6 - 350

6 - 300

9/16 - 5/8

#6 - 4/0

3/16 - 5/8 2-5/8

1/2

1-3/8 2-1/8

325

KVSU34

400 - 500 kcmil 336.4 - 397.5

#4 - 500

5 - 397.5

3/4 - 3/4

#4 - 4/0

7/32 - 3/4

1/2

1-1/2 2-1/4

375

KVSU40

400 - 800 kcmil

4/0 - 800

3/0 - 715.5

3/4 - 1

1/2 - 1

3-1/2

1/2

1-5/8 2-1/2

500

KVSU44

500 - 1000

kcmil

4/0 - 1000

4/0 - 1000 kcmil

4/0 - 900

7/8 - 1

1/8

1/2 - 1

1/8

3/8

500

permits swivel action for easier installation. Use

of PENETROX™ joint compound recommended

with aluminum and ACSR.

See note LIGHTNING PROTECTION INFO.

Accomodates compressed conductors within diameter range.

OKLIP™ Connectors Copper/Copperweld and Copper/Aluminum/ACSR/AAAC/5005

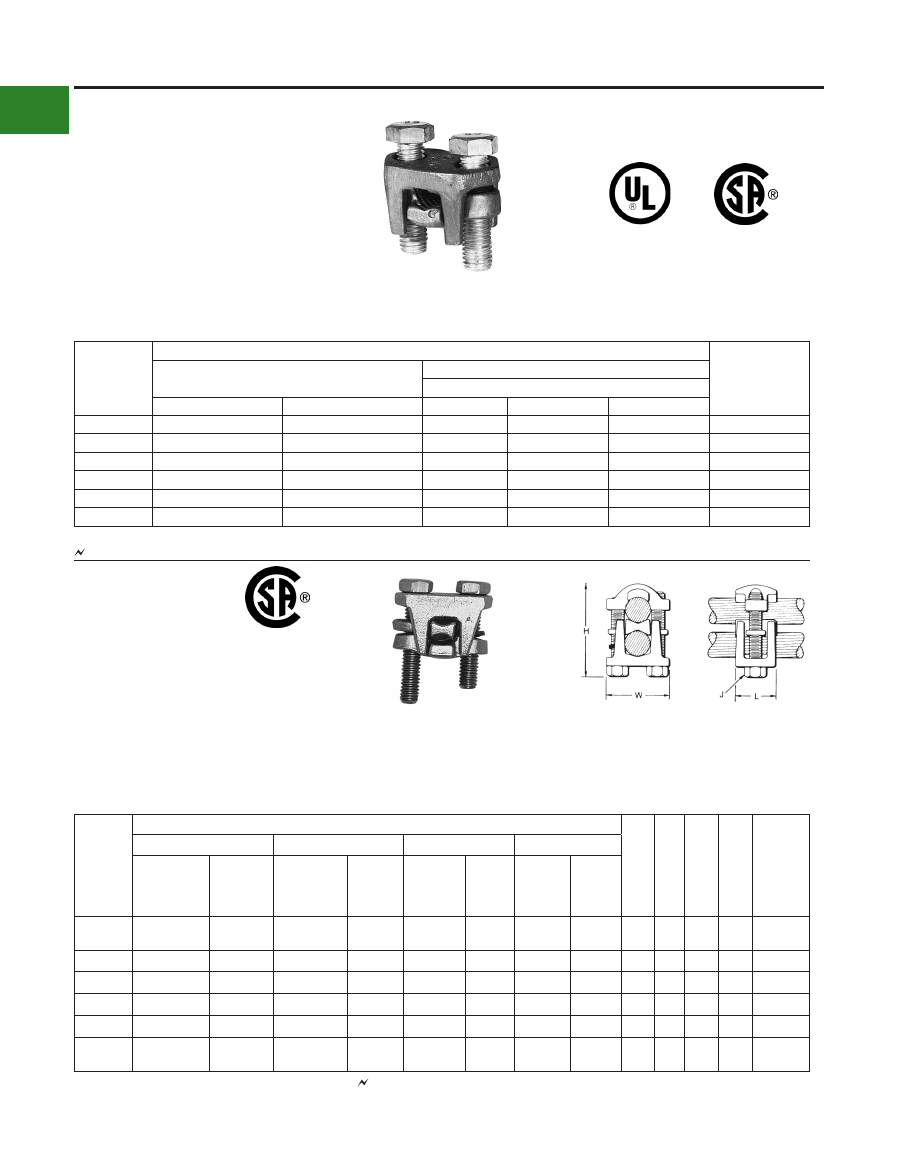

A-6

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

See note LIGHTNING PROTECTION INFO.

TYPE KVSW

OKLIP™

Mechanical Connector

For Copper and Copperweld

Similiar to OKLIP™ Type KVS except for a high

copper alloy spacer that separates run and tap

conductors. Provides high contact pressure,

confines conductor strands, and assures vibration-

proof connection. Longer peened bolt, permits

swivel action for easier installation. Silicon bronze

DURIUM™ hardware.

Catalog

Number

Conductor

Recommended Tightening

Torque (in-lb)

Run

Tap

KVSW26

2 Str. - 2/0 Str.

6 Sol. - 2/0 Str.

180

KVSW28

1/0 Str. - 4/0 Str.

6 Sol. - 4/0 Str.

250

KVSW31

250 - 350 kcmil

4 Sol. - 350 kcmil

325

KVSW34

400 - 500 kcmil

4 Str. - 500 kcmil

375

KVSW40

400 - 800 kcmil

AWG 4/0 - 800 kcmil

500

KVSW44

500 - 1000 kcmil

250 - 1000 kcmil

500

See note LIGHTNING PROTECTION INFO.

TYPE KVS-A

ALUMINUM OKLIP™

For Use On All Combinations of

Copper, Aluminum†, ACSR†, AAAC

and 5005

Three-piece, high-conductivity, non-copper

bearing aluminum alloy connector with thick spacer

and aluminum hardware. Hardware in KVS26A

and KVS28A is stainless steel. Recommended for

heavy duty dissimilar metal applications. Spacer

separates conductors and provides long contact

length. Belled entrances prevent chafing, permit

easier assembly of conductors. Longer peened

bolt permits swivel action for easier installation.

Neoprene ring prevents loss of shorter bolt.

PENETROX™ joint compound recommended

with aluminum and ACSR.

Catalog

Number

Conductor

Rec.

Tightening

Torque (in-lb)

Conductor Range by

Diameter

Run

Tap

Min.

Run

Dia.

Min.

Tap

Dia.

Max.

Run &

Tap Dia.

Copper,

& Alum.†

ACSR†,

AAAC, & 5005

Copper,

& Alum.†

ACSR†,

AAAC & 5005

KVS26A

2 Str. - 2/ 0 Str.

#4 - 2/0

10 Str. - 2/0 Str.

#6 - 2/0

180

0.28

0.12

0.45

2-1/4 5/16

1-1/4

1-5/8

KVS28A

1/0 Str. - 4/0 Str.

1/0 - 4/0

10 Str. - 4/0 Str.

#6 - 4/0

240

0.36

0.12

0.56

3/8

1-5/8 2-1/16

KVS31A

250 - 350

4/0 - 336.4

6 Str. - 350 kcmil

#6 - 336.4 kcmil

300

0.57

0.18

0.68

3-1/16 1/2 1-15/16 2-7/16

KVS34A

400 - 500

336.4 - 397.5

4 Str. - 500 kcmil

#5 -397.5 kcmil

300

0.73

0.22

0.81

3-9/16 1/2

2-5/16 2-5/8

KVS40A

400 - 800

336.4 - 715.5 kcmil 3/0 Str. - 800 kcmil

#3/0 - 715.5

300

0.73

0.47

1.04

4-1/16 1/2

2-7/16

2-7/8

KVS44A

500 - 1000

397.5 - 900 kcmil 3/0 Str. - 1000 kcmil #3/0 - 900 kcmil

480

0.80

0.47

1.16

4-7/8

5/8

2-1/2

3-1/8

† Accommodates compressed conductors within diameter range.

THESE CONNECTORS CAN ACCOMMODATE

ACSR CONDUCTORS OVER ARMOR ROD

WITHIN THE DIAMETER RANGE INDICATED.

APPLICATION OVER ARMOR ROD

OKLIP™ Connectors for Copper/Copperweld and Copper/Aluminum/ACSR/AAAC/5005

A-7

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

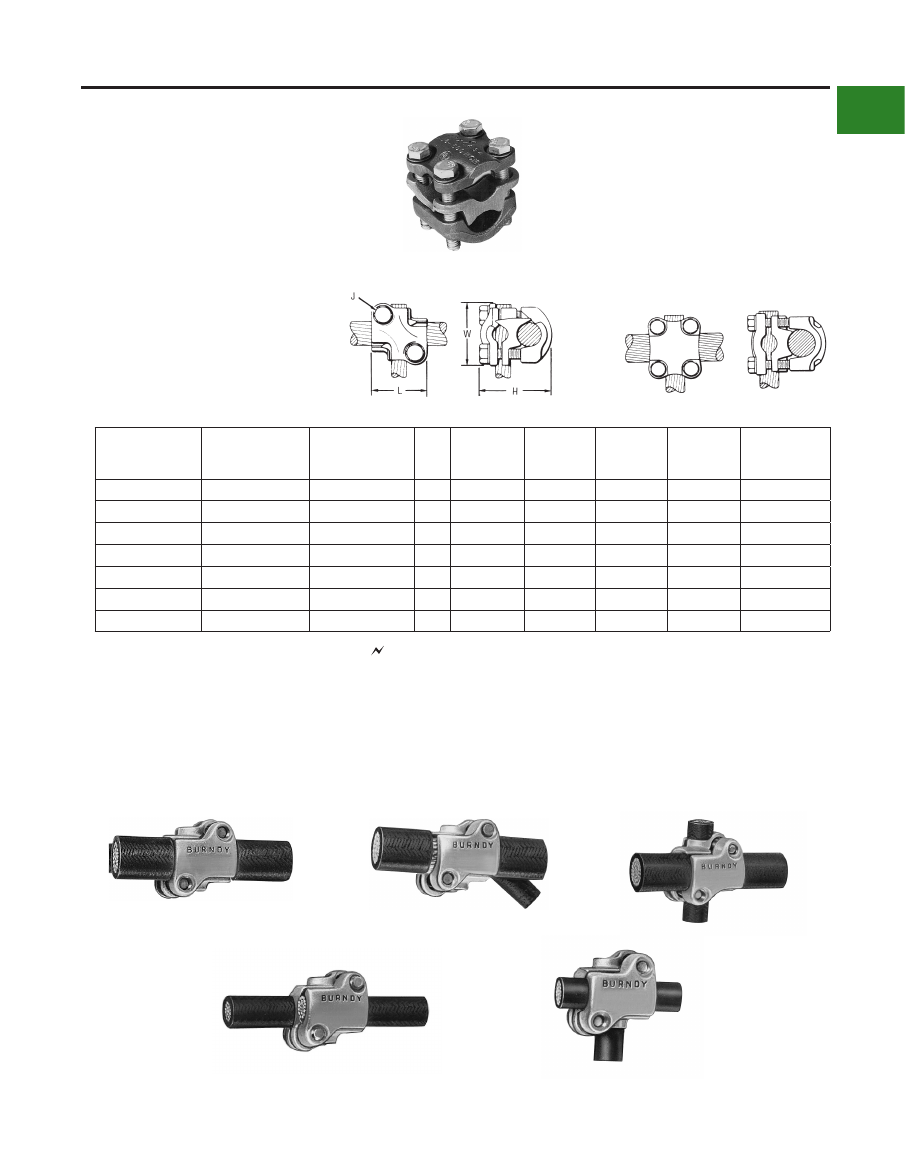

TYPE QPX

VERSITAP™

Parallel Clamp For Copper,

Copperweld, Copperweld-Copper

The VERSITAP™ Type QPX is recommended for

Tee, Cross, Parallel, Butt and Tap connections.

Range-taking, only 10 connectors required to

accommodate conductor sizes from #6 Str. to

1000 kcmil. Edges are rounded for easy taping.

Made of high strength, high-conductivity copper

alloy and silicon bronze DURIUM™ hardware.

Catalog

Number

Copper Conductor

Fig.

No.

Dimensions

Rec.

Tightening

Torque

in-lb ▲

Conductor

Run

Tap

Run

Tap

Copperweld Copperweld

- Copper

Copperweld Copperweld

- Copper

QPX2C2C

6 Str. - 2 Str.

1-1/2

5/16 1-5/16

1-3/8

150

5 Sol. - 3 #7

8A - 4A

5 Sol. - 3 #7

8A - 4A

QPX282C

1 Str. - 4/0 Str.

6 Str. - 2 Str.

2-1/16

1-9/16

250

7 #9 - 7 #5

3A - 3/0V

QPX2828

1 Str. - 4/0 Str.

2-3/8

3/8 1-13/16 1-13/16

7 #9 - 7 #5

3A - 3/0V

QPX342C

250 - 500 kcmil

6 Str. - 2 Str.

5/16 1-3/8

1-7/8

375

19 #19 - 19 #6

4/0 EK

5 Sol. - 3 #7

8A - 4A

QPX3428

250 - 500 kcmil 1 Str. - 4/0 Str.

2-3/4

3/8

1-3/4

2-1/16

7 #9 - 7 #5

3A - 3/0 V

QPX3434

250 - 500 kcmil 250 - 500 kcmil

2-1/16 2-3/16

19 #19 - 19 #6

4/0 EK

QPX442C

500 - 1000

kcmil

6 Str. - 2 Str.

2-11/16 5/16 1-3/8

2-1/4

500

19 #6

—

5 Sol. - 3 #7

8A - 4A

QPX4428

500 - 1000

kcmil

1 Str. - 4/0 Str.

2-7/8

3/8

1-13/16

2-7/16

7 #9 - 7 #5

3A - 3/0V

QPX4434

500 - 1000

kcmil

250 - 500 kcmil

3-1/16

2-1/16

19 #19 - 19 #6

4/0 EK

QPX4444

500 - 1000

kcmil

500 - 1000

kcmil

3-7/16

2-5/8

2-9/16

19 #6

—

▲ Listed torque values are for maximum conductor combinations

accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for smaller

conductor combinations.

See note LIGHTNING PROTECTION INFO.

Fig. 1

Fig. 2

* For various configurations, see page

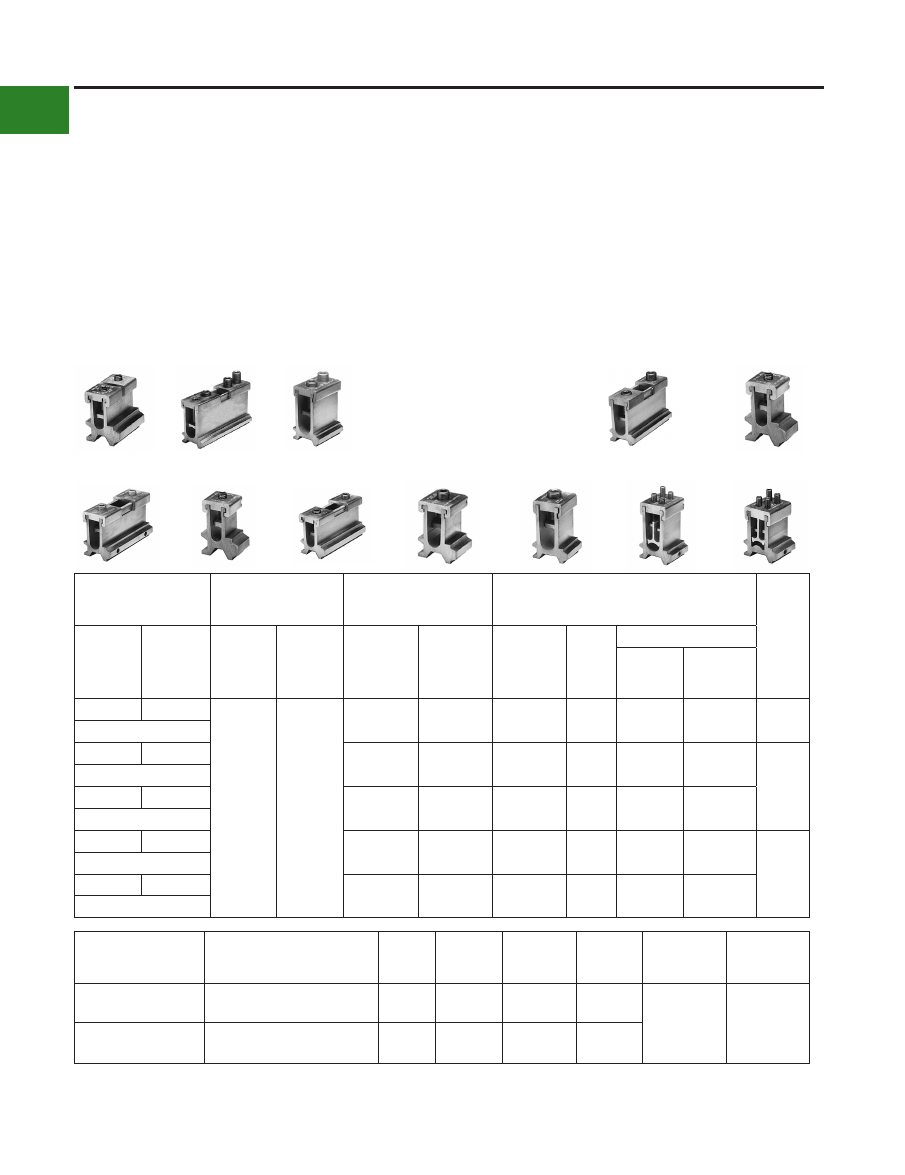

TYPE QPX-Y

VERSITAP™ Parallel Clamps for Copper/Copperweld

A-8

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

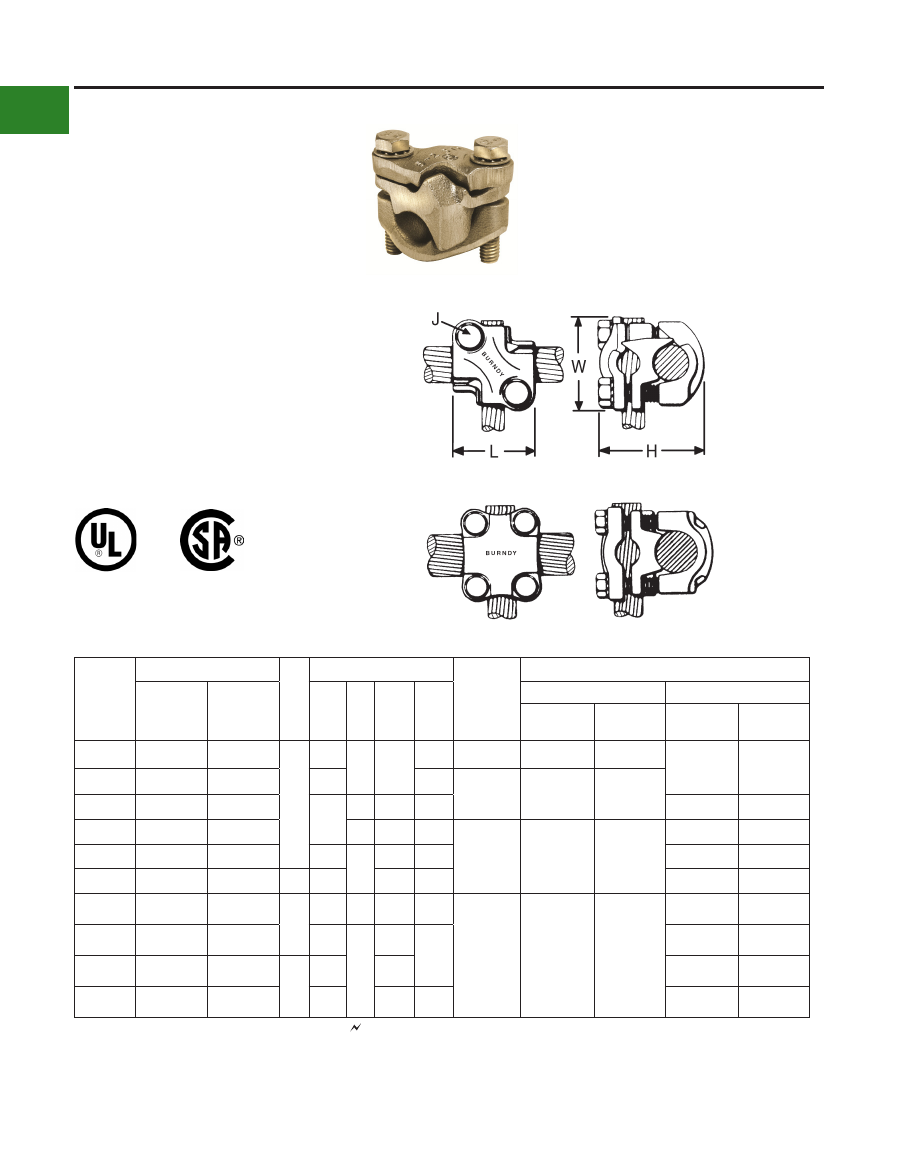

TYPE QPX-Y

UNIVERSAL VERSITAP™

Universal Parallel Clamp For Copper

and Aluminum

High copper alloy cast connector, tin-plated for use

with copper or aluminum cable. Makes parallel,

tap, tee, cross or end-to-end connections. Edges

rounded for easy taping. PENETROX™ joint

compound recommended.

Catalog

Number

Run

Tap

Fig.

No.

Recommended

Tightening

Torque in-lb ▲

QPX2C2C-Y

6 Str.-2 Str.

1-5/8

5/16

1-1/2

1-5/8

150

QPX282C-Y

1 Str. - 4/0 Str.

6 Str.-2 Str.

1-7/8

5/16

1-1/2

1-7/8

150

QPX2828-Y

1 Str. - 4/0 Str.

3/8

2-1/8

250

QPX342C-Y

250 - 500 kcmil

6 Str.-2 Str.

2-1/4

5/16

1-1/2

2-1/8

375

QPX3428-Y

250 - 500 kcmil

1 Str. - 4/0 Str.

2-1/2

3/8

2-1/2

375

QPX3434-Y

250 - 500 kcmil

200 - 500 kcmil

2-7/8

3/8

2-1/2

2-5/8

375

QPX4444-Y

750 - 1000 kcmil

3-7/8

1/2

3-1/2

500

Fig. 1

Fig. 2

▲ Listed torque values are for maximum conductor

combinations accommodated. Consult UL486 Tables

7-4, 7-5 7-6 for smaller conductor combinations.

See note LIGHTNING PROTECTION INFO.

APPLICATION

VARIATIONS

PARALLEL

SPLICE

CROSS

TAP

TEE

Universal VERSITAP™ Parallel Clamps for Copper/Aluminum

A-9

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

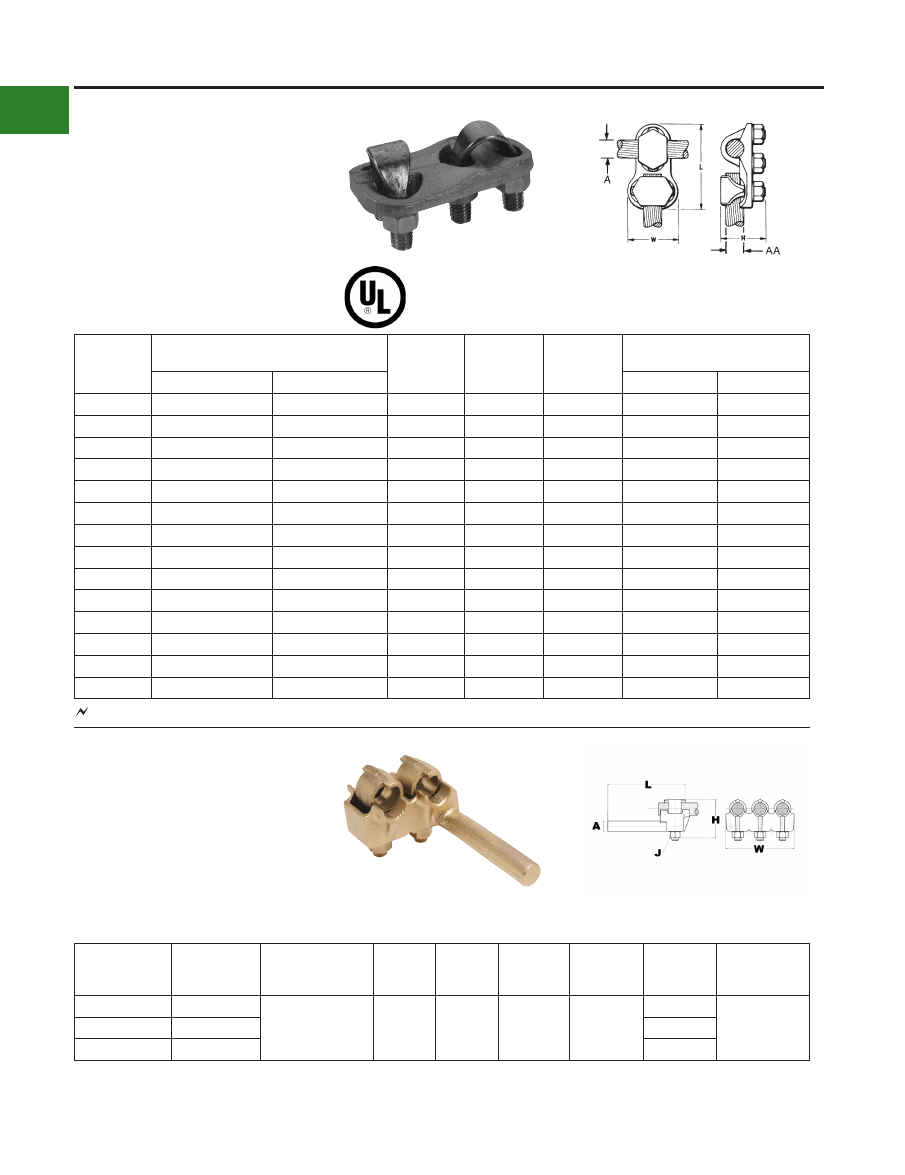

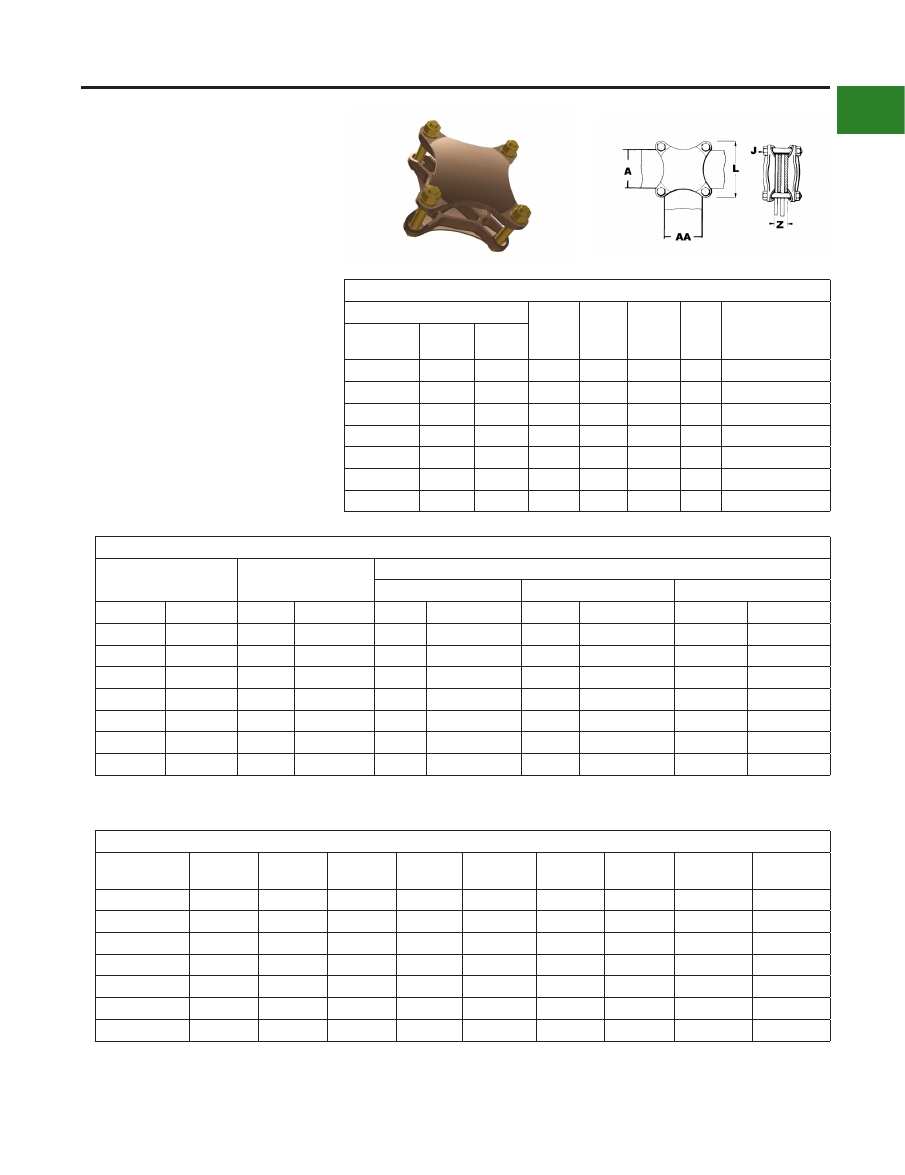

TYPE VT

VARITAP™ T-CONNECTOR

For Copper Cable to Cable

High copper alloy T-connector for cable run, cable

tap. V-bolt clamping elements accommodate large

range of cable and are particularly suited for extra

flexible cable. One-wrench installation.

Catalog

Number

Conductor

Recommended

Tightening Torque

Run (A)

Tap (AA)

Run

Tap

VT2C2C

8 AWG-2 AWG

1-5/16

2-5/16

1-5/16

275

VT2525

6 AWG-1/0

1-5/8

2-5/8

1-7/16

385

VT2825

1/0 -4/0 AWG

6 AWG-1/0

1-5/8

3-1/8

1-1/4

250

385

VT2828

1/0 -4/0 AWG

1-5/8

3-1/16

1-11/16

250

VT3025

1/0 -300 kcmil

6 AWG-1/0

1-7/8

3-3/8

1-3/8

325

385

VT3030

1/0 -300 kcmil

1-7/8

3-5/16

1-15/16

325

VT3425

300 kcmil-500 kcmil

6 AWG-1/0

3-11/32

3-11/16

1-1/2

375

385

VT3428

300 kcmil-500 kcmil

1/0 -4/0 AWG

3-11/32

3-1/2

1-11/16

375

250

VT3430

300 kcmil-500 kcmil

1/0 -300 kcmil

3-11/32

3-5/8

1-15/16

375

325

VT3434

300 kcmil-500 kcmil

3-11/32

3-3/4

2-1/4

375

VT4040

500 kcmil-800 kcmil

2-9/16

4-1/2

2-5/8

500

VT4425

750 kcmil-1000 kcmil

6 AWG-1/0

2-7/8

4-5/16

1-3/16

500

385

VT4428

750 kcmil-1000 kcmil

1/0 -4/0 AWG

2-7/8

4-1/8

1-11/16

500

250

VT4834

1500 kcmil-2000 kcmil

300 kcmil-500 kcmil

4-1/4

5-1/4

2-1/4

600

375

TYPE E-C-G

TRANSFORMER TAP ADAPTER

For Copper

Multi-tap, range-taking cast copper alloy connector

designed to take 2, 3 or 4 conductors from a single

secondary transformer outlet.

See note LIGHTNING PROTECTION INFO.

Catalog Number

Number of

Conductors

Conductor

Size

A dia

Recommended

Tightening

Torque

E2C34G1

1/0 Sol. - 500 kcmil

0.78

2-7/8

1/2"-13

6-1/4

3-1/2

480

E3C34G1

5-1/4

E4C34G1

6-7/8

VARITAP™ T-Connectors for Copper; Transformer Tap Adapter for Copper

A-10

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPE QGFL

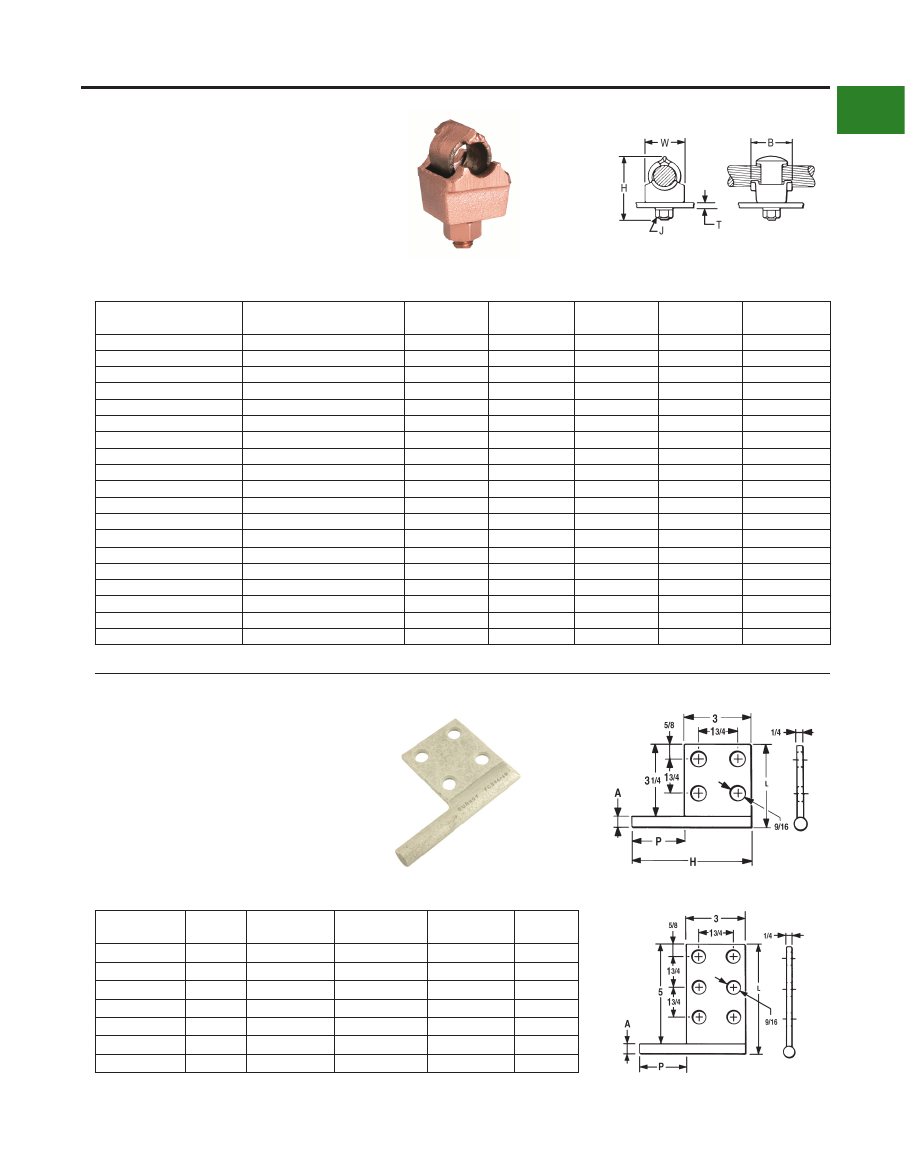

BARTAP™

For Copper Cable to Flat Bar or

Pad

High copper alloy BARTAP™ for joining a range

of cable to bar or pad. One-wrench installation.

DURIUM™ nut and lockwasher.

Catalog

Number

Copper

Conductor

(Max)

QGFL1CB1

#10 Sol-#1 Str

1-1/8

1-7/8

3/8

1/4

QGFL1CB1T6

#10 Sol-#1 Str

1-1/8

2-3/8

3/8

3/4

QGFL26B1

#8 Sol-#2/0 Str

1-1/4

2-1/8

3/8

1/4

1-1/8

QGFL26B1T6

#8 Sol-#2/0 Str

1-1/4

2-5/8

3/8

3/4

1-1/8

QGFL26B2*

#8 Sol-#2/0 Str

1-1/4

2-5/16

1/2

1/4

1-1/8

QGFL26B2T6*

#8 Sol-#2/0 Str

1-1/2

2-13/16

1/2

3/4

1-1/8

QGFL29B1*

#6 Str-250 kcmil

1-3/8

2-5/8

1/2

1/4

1-3/8

QGFL29B1T6*

#6 Str-250 kcmil

1-5/8

3-1/8

1/2

3/4

1-3/8

QGFL31B1*

2 AWG-350 kcmil

1-3/4

2-7/8

1/2

1/4

1-5/8

QGFL31B1T6*

2 AWG-350 kcmil

1-3/4

3-1/4

1/2

3/4

1-5/8

QGFL34B1

1/0 -500 kcmil

3-1/8

1/2

1/4

1-3/4

QGFL34B1T6

1/0 -500 kcmil

3-5/8

1/2

3/4

1-3/4

QGFL39B1

350 kcmil-750 kcmil

2-1/4

3-1/4

1/2

1/4

1-3/4

QGFL39B1T6

350 kcmil-750 kcmil

2-1/4

3-5/8

1/2

3/4

1-3/4

QGFL44B1

750 kcmil-1000 kcmil

2-1/4

3-3/8

1/2

1/4

2-1/8

QGFL44B1T6

750 kcmil-1000 kcmil

2-1/4

4-1/8

1/2

3/4

2-1/8

QGFL46B1

1000 kcmil-1500 kcmil

2-1/4

1/2

1/4

2-1/2

QGFL46B1T6

1000 kcmil-1500 kcmil

2-1/4

4-1/2

1/2

3/4

2-1/2

QGFL48B1

1500 kcmil-2000 kcmil

2-1/4

4-3/4

1/2

1/4

* Can be installed side by side or in-line on NEMA drilled bar.

TYPE FCB

TRANSFORMER TAP ADAPTER

Copper and Aluminum

Cast in one piece from copper alloy. Transformer

tap adapter designed to accommodate from 1

to 6 NEMA drilled copper or aluminum terminal

taps from a single secondary transformer outlet.

Tin-plated. Order mounting hardware and tap

terminals separately.

Catalog

Number

Fig.

No.

Diameter

Ref.

FCB63-4N

0.50

5.25

3.75

2.25

FCB63-6N

0.50

5.25

5.50

2.25

FCB64-4N

0.75

5.75

4.00

2.75

FCB64-6N

0.75

5.75

2.75

FCB65-4N

1.00

7.00

4.25

4.00

FCB63-2NP300

Not Shown

0.50

5.00

3.50

3.00

FCB64-44NP50

Not Shown

0.75

9.00

5.00

NOTE:

All pads are NEMA drilled.

Fig. 1

Fig. 2

BARTAP™ for Copper Cable to Flat Bar or Pad; Transformer Tap Adapter for Copper/Aluminum

A-11

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

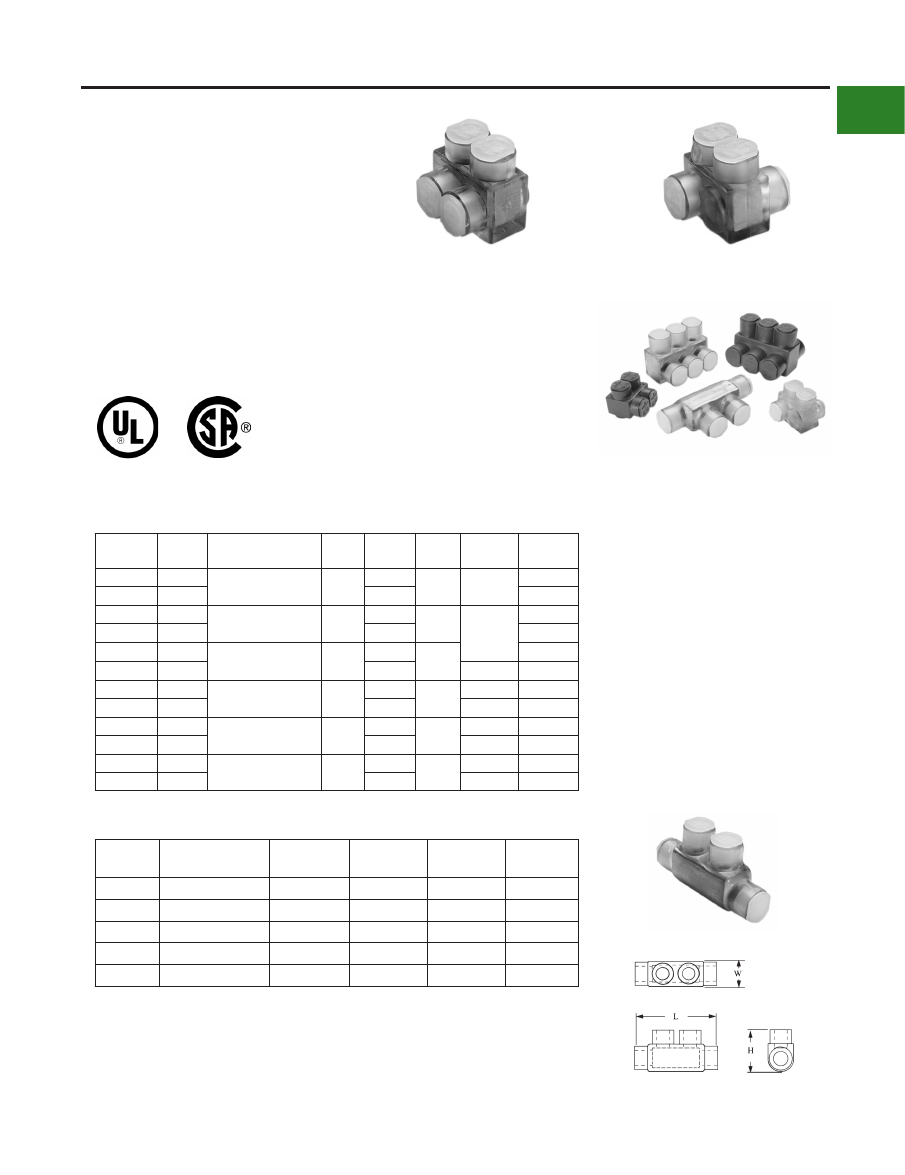

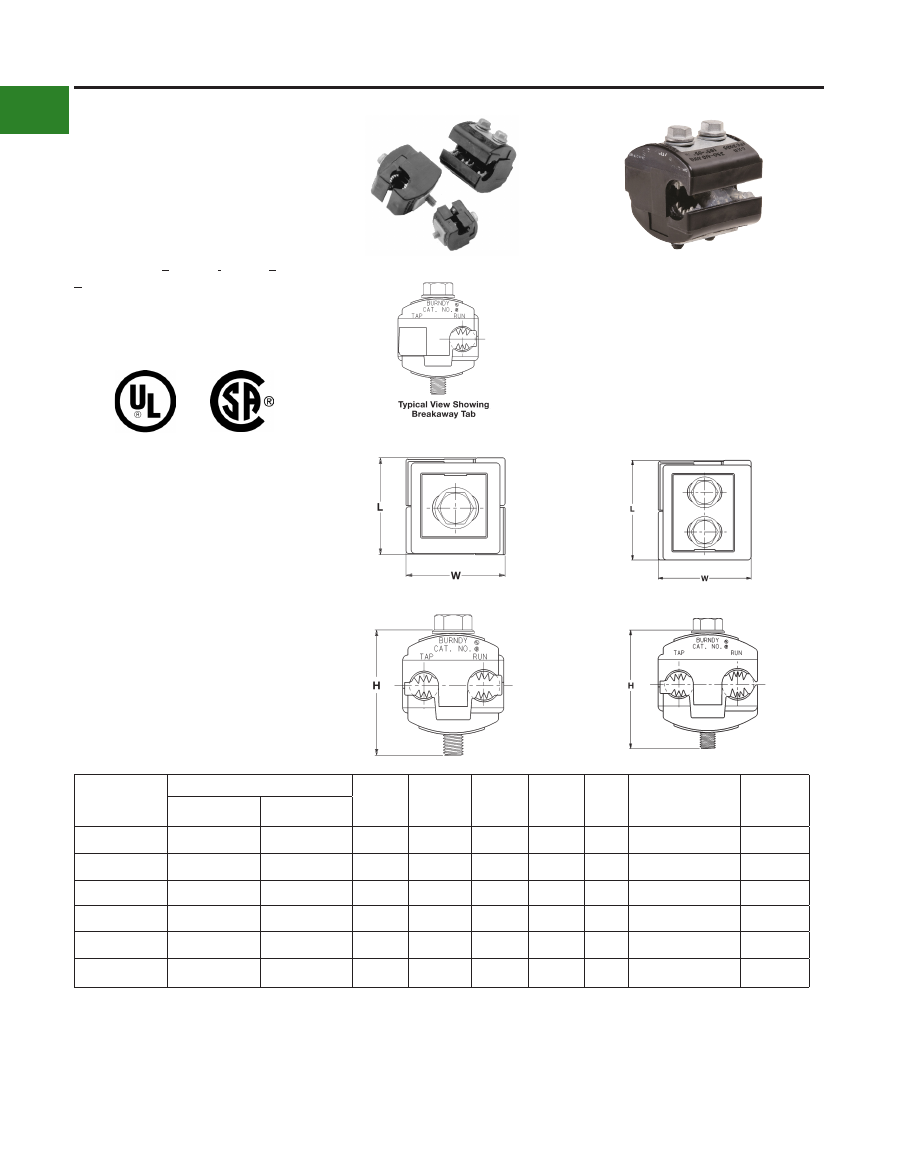

TYPE BIPC

Insulation Piercing Connector for

Copper and Aluminum

UL Listed 90° C, *600 Volt

The Type BIPC, BURNDY

Insulation Piercing

Connector is ideally suited for splicing and tapping

aluminum and copper conductor wire sizes: #10

AWG to 500 kcmil.

Catalog

Number

Conductor Range

Bolt Size

Socket

Size

Recommended

Tightening

Torque

Max.

Voltage

Rating

Run

Tap

BIPC1/0-2*

1/0 - 8 AWG

2 - 8 AWG

5/16

1/2

2.00

1.53

180

600 V

BIPC4/0-6

4/0 - 1/0 AWG

1/0 - 6 AWG

5/16

1/2

2.50

2.12

2.00

250

300 V

BIPC4/0-1/0

4/0 - 1/0 AWG

5/16

1/2

2.50

2.12

2.06

250

300 V

BIPC350-4/0

350 - 4/0 AWG

4/0 - 10 AWG

3/8

9/16

3.00

1.59

2.50

375

300 V

BIPC350-350

350 - 4/0 AWG

3/8

9/16

3.00

2.62

2.75

300

300 V

BIPC500-4/0*

500 - 350 kcmil

4/0 - 4 AWG

3/8

9/16

3.25

1.80

2.62

400

600 V

Features & Benefits

• Insulation piercing capability

◊ Eliminates the need for conductor

insulation stripping.

• UL486B Listed, AL9CU rated

◊ For copper and aluminum conductor

combinations up to 90° *600 Volt

applications.

• Insulation piercing design

◊ For use on hot-line applications -

eliminates the need for taping.

• Easy snap-out tabs

◊ Eases installation, protects connection

from dirt and debris.

• Simple bolt-on connection

◊ Eases installation.

Fig. 1

Fig. 2

* 600 Volt

Insulation Piercing Connector for Copper/Aluminum

A-12

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

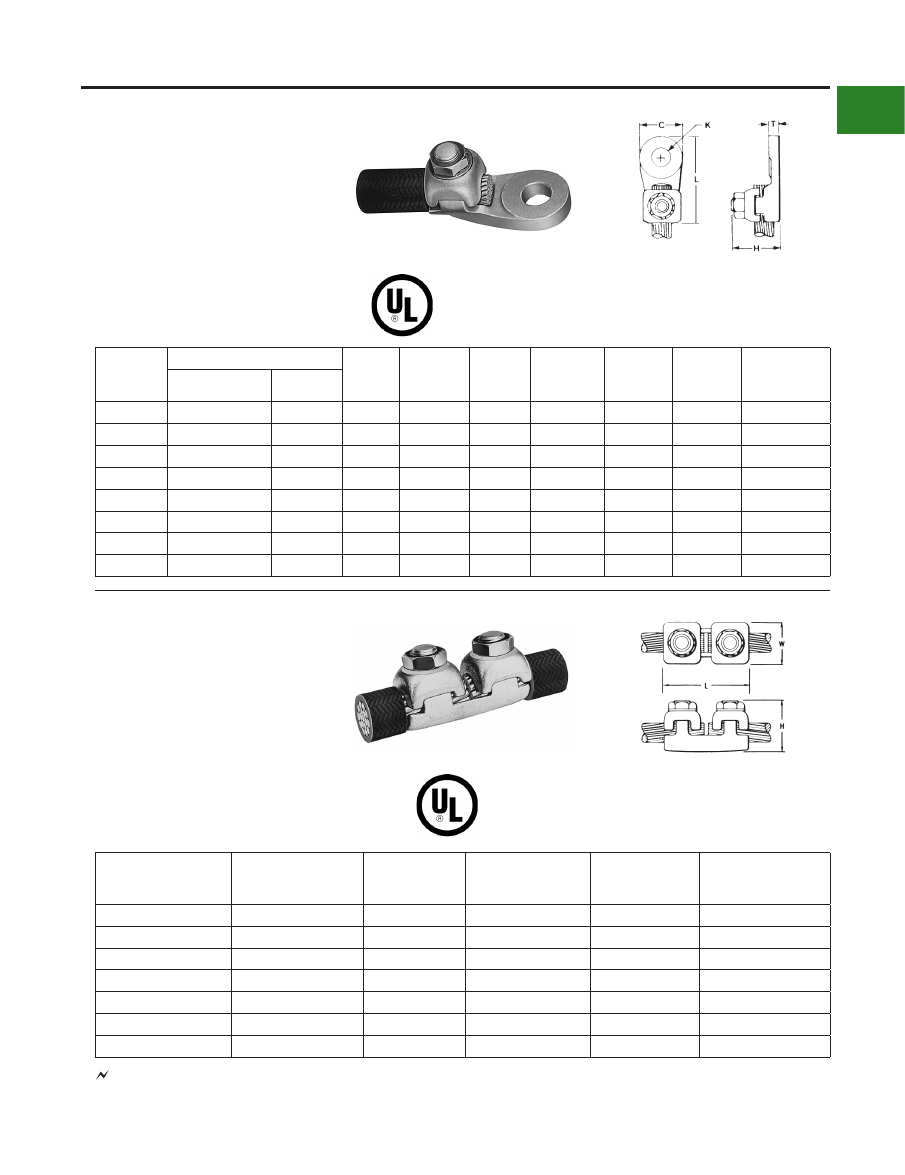

TYPE KPA

SCRULUG™

For Copper Cable

High copper alloy tin-plated terminal for joining

a wide range of cable to equipment pads or

terminal blocks. Especially good in light industrial

applications. The tongue and body are a one-piece

design. The pressure bar equalizes pressure over

the conductor and prevents the screw from cutting

into the cable.

Catalog

Number

Wire Range

Fig.

No.

Stud

Hole Size

Recommended

Tightening

Torque (in-lb)

KPA8C

14 Sol. - 8 Str.

0.38

0.47

0.72

0.21

#10

0.97

0.22

0.06

KPA4C

14 Sol. - 4 Str.

0.50

0.59

0.94

0.27

1/4

1.22

0.30

0.06

KPA25

4 Str. - 1/0 Str.

0.75

0.81

1.25

0.33

5/16

1.82

0.41

0.10

180

KPA28

1/0 Str. - 4/0 Str.

0.97

1.12

1.66

0.39

3/8

2.40

0.53

0.13

250

KPA34

4/0 Str. - 500 kcmil

1.38

2.44

0.54

1/2

3.32

0.75

0.20

375

Fig. 1

Fig. 2

TYPE KPA-UP

SCRULUG™

For Copper Cable

High copper alloy terminal for joining a wide range

of cable to equipment pads or terminal blocks.

Plain copper finish.

Features & Benefits

• One piece design.

◊ Superior torque and pull out

performance.

• Convenient range taking design.

◊ Reduces catalog numbers. One

catalog number accommodates several

conductor sizes.

• High conductivity copper alloy.

◊ Long lasting, reliable contact.

• Compact design.

◊ Easy to use.

• Slot Robertson screw, hex head, hex

socket bolt.

◊ No special installation tools required.

Eliminates over-torquing/potential

conductor damage.

Catalog

Number

Wire Range

Fig.

No.

Stud Hole

Size

Hardware

Recommended

Tightening

Torque (in-lb)

KPA8CUP

14 Sol. - 6 Str.

0.38

0.56

0.81

0.20

#10

1.04

0.22

0.07

# 12-24 SLOT

KPA4CUP

14 Sol. - 4 Str.

0.50

0.71

1.00

0.28

1/4

1.28

0.33

5/16 DIA.SLOT

ROBERTSON

NOTE:

For tin plating drop “-UP” suffix and add “-TP” suffix

(example: KPA4CTP).

For use in grounding applications with a green screw, contact

factory. Listed for grounding per UL467.

Fig. 1

NOTE:

For unplated version add “UNPL” suffix.

SCRULUG™ Terminals for Copper; Tin-plated / Unplated

A-13

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

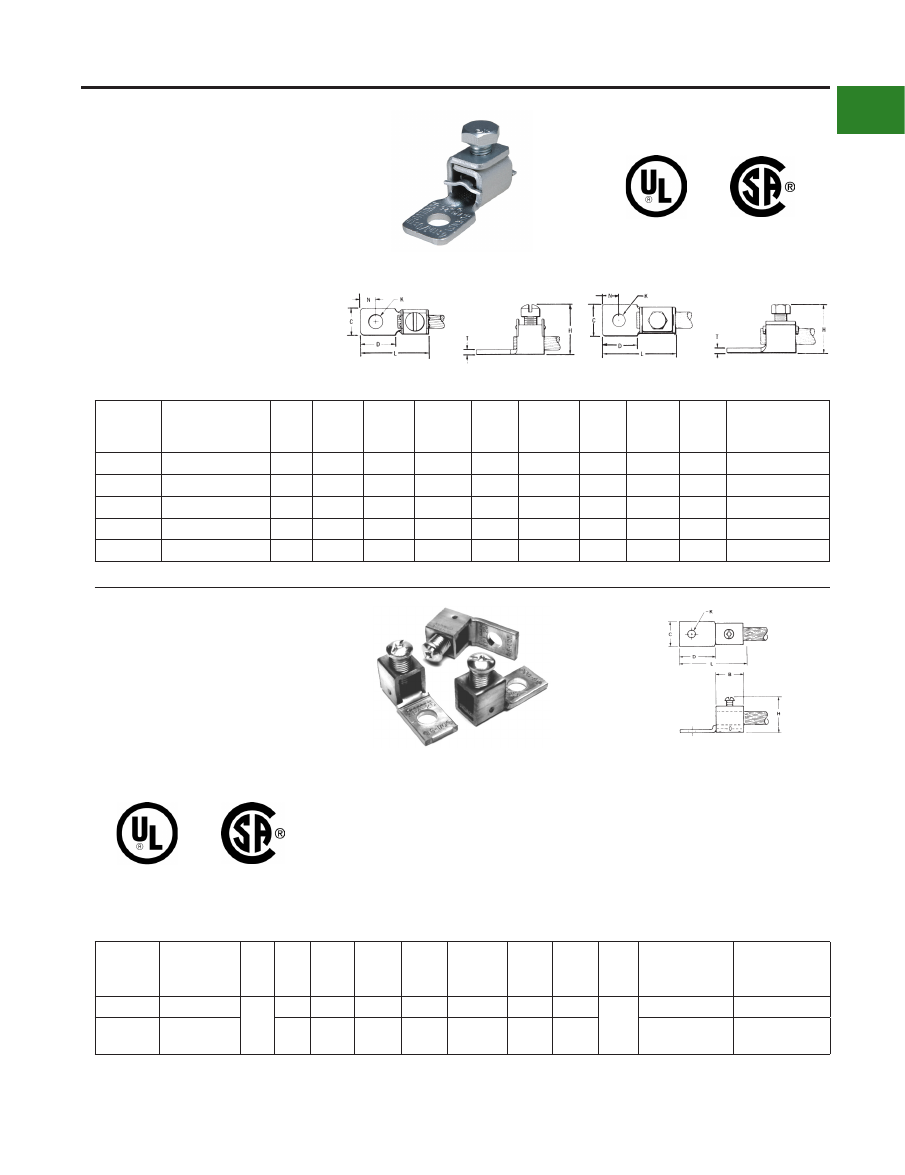

TYPE KLU

SCRULUG™

FOR COPPER CABLE -

OFFSET TONGUE - NON-PLATED

High copper alloy terminal with offset tongue for

joining a wide range of cable to equipment pads

or bar. Easy to install with screwdriver or wrench.

Connector is reusable. Plain copper finish.

Catalog

Number

Conductor

Fig.

No.

(MM/IN)

Rec.

Tightening

Torque

(in-lb)

Hardware

Stud

Hole

Size

Strip

Length

(in)

KLU25

14 Sol. .064 Dia.to

10 Sol. .102 Dia. CU

7.00

0.28

8.00

0.31

4.00

0.14

26.0

1.02

5.00

0.21

2.00

0.07

No. 8-32 Slotted Round

Machine Screw

7/16

KLU25TP

KLU35

14 Sol. .0641 Dia.to

6 Str. .184 Dia. CU

11.0

0.43

10.0

0.39

5.00

0.20

31.0

1.24

6.00

0.22

2.00

0.07

1/4 UNF Slotted Set

Screw

#10

5/8

KLU35TP

KLU70

8 Sol. .129 Dia. to

2 Str. .292 Dia. CU

13.0

0.50

12.0

0.47

7.00

0.26

39.0

1.55

6.00

0.25

2.00

0.08

5/16 UNF Slotted Set

Screw

1/4

3/4

KLU70TP
KLU125

2 Str. .292 Dia. to

1/0 Str. .372 Dia. CU

15.0

0.61

16.0

0.62

7.00

0.26

50.0

1.98

11.0

0.42

3.00

0.11

3/8 UNF Slotted Set

Screw

1/4

15/16

KLU125TP
KLU175

4 Str. .232 Dia. to

3/0 Str. .470 Dia. CU

18.0

0.72

19.0

0.75

10.0

0.39

56.0

2.20

11.0

0.43

4.00

0.16

250

3/8 UNF Socket/Hex

Screw

3/8

KLU175TP
KLU225

2 Str. .292 Dia. to

4/0 Str. .528 Dia. CU

24.0

0.94

25.0

0.99

9.00

0.34

65.0

2.55

13.0

0.51

3.00

0.12

250

7/16 UNF Socket/Hex

Screw

5/16

1-5/16

KLU225TP
KLU300

1/0 Str. .372 Dia. to

350 kcmil .681 Dia. CU

31.0

1.22

25.0

0.99

10.0

0.39

72.0

2.83

13.0

0.52

3.00

0.12

325

5/8 UNF Socket/Hex

Screw

3/8

1-5/8

KLU300TP
KLU400

1/0 Str. .372 Dia. to

500 kcmil .813 Dia. CU

36.0

1.42

38.0

1.50

10.0

0.39

104.0

4.09

23.0

0.91

5.00

0.18

375

5/8 UNF Socket/Hex

Screw

3/8

1-5/32

KLU400TP

Features & Benefits

• Convenient range-taking design.

◊ Reduces catalog numbers.

One conductor accommodates several

conductor sizes.

• High conductivity copper alloy

◊ Long lasting reliable contact.

• Compact design

◊ Easy to use. Reduces labor time.

• Slot Robertson screw, hex head/hex

socket bolt

◊ No special installation tools required.

eliminates over-torquing/potential

conductor damage.

NOTES:

Suffix “-TP” on catalog number denotes tin plate (example: KLU400TP).

2 Material: Copper alloy.

SCRULUG™ Terminals for Copper; Offset Tongue; Unplated/Tin-plated

A-14

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPE KA

KA-LUG™

For Copper Cable

Compact, economical, high copper alloy terminal

for joining a wide range of cable to equipment pads

or terminal blocks.

Catalog

Number

Conductor

Fig.

No.

Stud

Hole

Size

Recommended

Tightening

Torque (in-lb)

KA8C

# 14 Sol. (0.064 Dia.) -

8 Str. (0.416 Dia.)

3/8

5/8

#12

7/32

#10

13/16

3/16

3/32

KA4C

# 14 Sol. (0.064 Dia.) -

4 Str. (0.232 Dia.)

9/16

3/4

5/16

9/32

1/4

1-1/8

1/4

7/64

KA25 *

# 4 Str. (0.232 Dia.) -

1/0 Str. (0.373 Dia.)

3/4

15/16

1/2

27/64

3/8

1-11/16

3/8

1/8

200

KA25-2TC38 *

# 4 Str. (0.232 Dia.) -

1/0 Str. (0.373 Dia.)

3/4

15/16

1/2

27/64

3/8

2-13/16

3/8

1/8

200

KA28 *

# 1 Str. (0.332 Dia.) -

4/0 Str. (0.528 Dia.)

15/16

1-1/4

5/8

27/64

3/8

1-15/16

7/16

3/16

275

KA34 *

4/0 Str. (0.528 Dia.) -

500 kcmil (0.814 Dia.)

1-3/8

2-3/32

13 /16

9/16

1/2

2-9/16

9/16

9/32

375

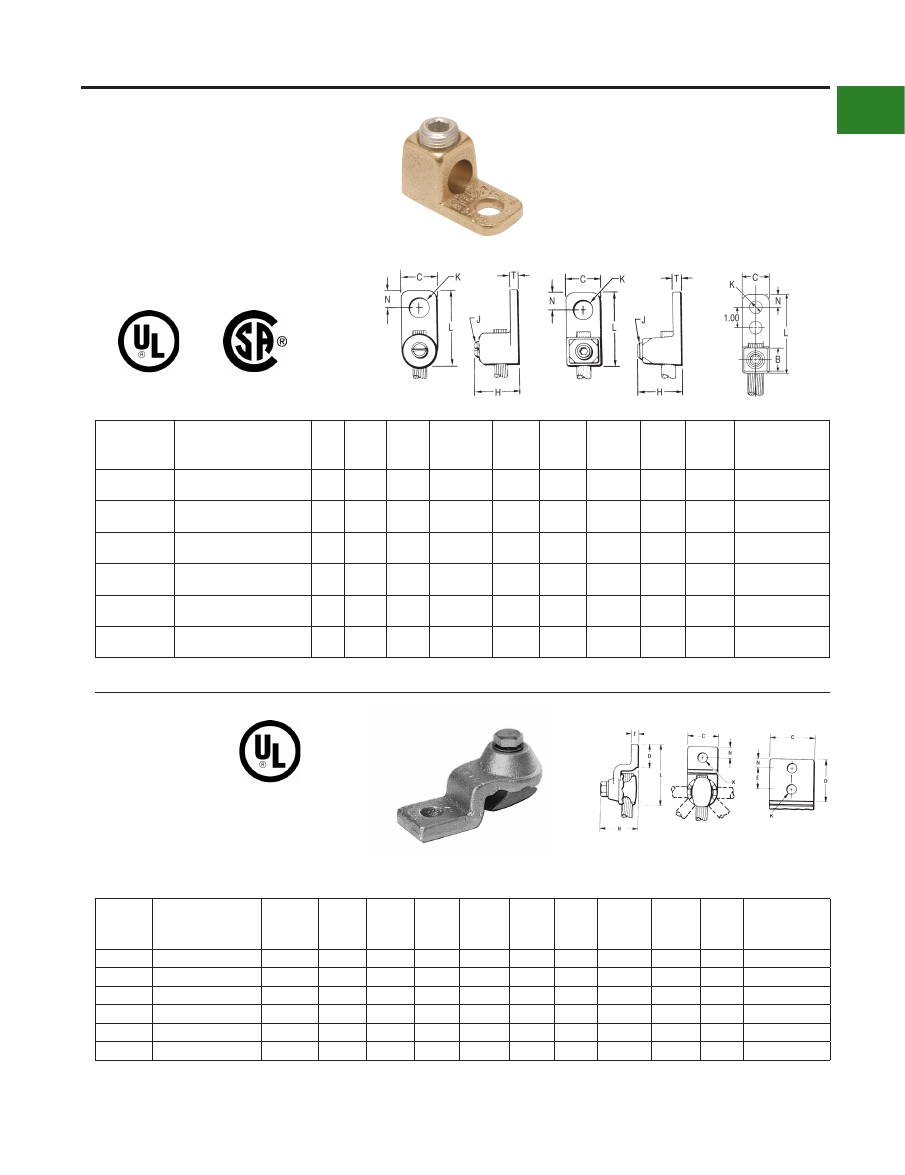

TYPE EA

VERSILUG™

For Copper Cable

Compact, high copper alloy terminal for joining

a wide range of cable to equipment pads or bar.

Clamping element adjustable to several angles.

One-wrench installation.

Catalog

Number

Wire Range

No. of

holes in

pad

Stud

Hole

Size

Rec.

Tightening

Torque (in-lb)

EA2C

8 AWG-2 AWG

13/16

1-1/16

—

1-3/8

7/16

3/8

2-1/2

13/32

1/4

150

EA25

2 AWG-1/0

7/8

1-1/8

—

1-7/16

7/16

3/8

2-11/16

7/16

1/4

180

EA28

1/0 -4/0 AWG

1-1/16

1-3/8

—

1-3/4

7/16

3/8

3-3/16

17/32

5/16

250

EA28-2N

1/0 -4/0 AWG

1-1/16

3-5/8

1-3/4

9/16

1/2

5-1/8

5/8

5/16

250

EA34

250 kcmil-500 kcmil

1-3/8

1-5/8

—

2-1/4

9/16

1/2

13/16

3/8

375

EA34-2N

250 kcmil-500 kcmil

1-3/8

3-5/8

1-3/4

2-1/4

9/16

1/2

5-5/8

5/8

3/8

375

▲ Listed torque values are for maximum conductor sizes

accommodated.

Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor sizes.

* Not CSA Certified

* “N” indicates NEMA standard stud holes.

▲ Listed torque values are for maximum conductor sizes

accommodated.

Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor sizes.

Fig. 1

Fig. 2

Fig. 3

KA-LUG™ Terminals for Copper; VERSILUG™ Terminals for Copper - Adjustable for Angled Orientation

A-15

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

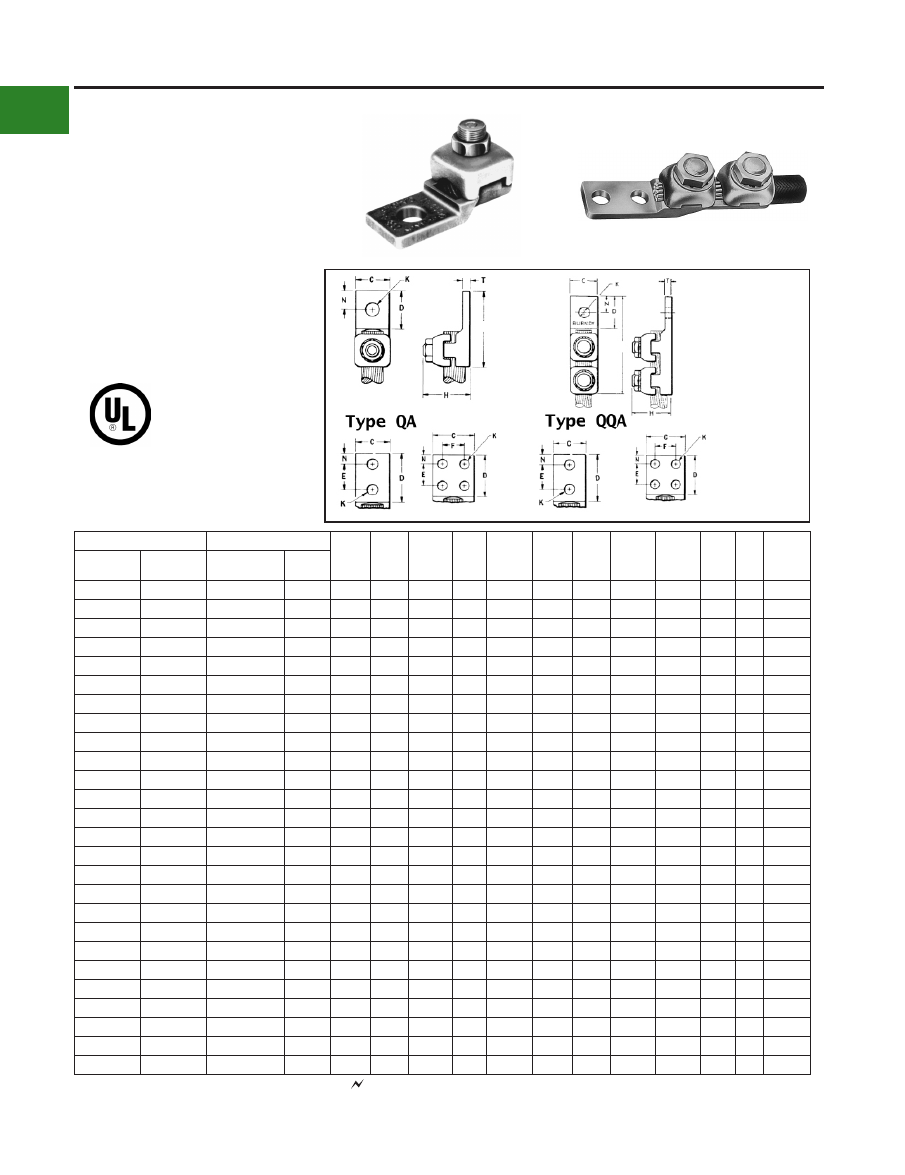

TYPES QA, QQA

QIKLUG™

Copper Cable

Type QA heavy duty, compact, high copper

alloy terminal for joining a wide range of cable

to equipment pads or bar. Fast one-wrench

installation. Type QQA heavy duty, high copper

alloy terminal for joining cable to equipment

pads or bar. Twin clamping elements secure joint

vibration and flexing. One-wrench installation.

Catalog Number*

Conductor

Holes

in Pad

E & F

Stud

Hole

Size

Torque

(in-lb)

Type QA

Type QQA

Commercial

Navy

QA8C-B

QQA8C

14 Sol. - 8 Str.

4-14

9/16

—

11/16

7/32

#10

1-3/8

2-5/16

9/32 5/32

QA8C-2B

QQA8C-2

14 Sol. - 8 Str.

4-14

9/16

1-1/14

5/8

11/16

7/32

#10

5/16 5/32

QA4C-B

QQA4C

8 Str. - 4 Str.

23-40

5/8

—

3/4

9/32

1/4

1-7/16

2-3/8

5/16 3/16

110

QA4C-2B

QQA4C-2

8 Str. - 4 Str.

23-40

5/8

1-3/16

5/8

3/4

9/32

1/4

2-15/16

5/16 3/16

110

QA1C-B

QQA1C

4 Str. - 1 Str.

50-75

5/8

3/4

—

9/32

1/4

1-3/4

2-13/16 11/32 7/32

150

QA1C-2B

QQA1C-2

4 Str. - 1 Str.

50-75

5/8

1-9/16

7/8

11/32

5/16

2-9/16

3-5/8

11/32 7/32

150

QA26-B

QQA26

1/0 Str. - 2/0 Str. 100-125

13/16

—

1-3/16

13/32

3/8

3-3/16

7/16 7/32

180

QA26-2B

QQA26-2

1/0 Str. - 2/0 Str. 100-125

13/16 1-15/16

1-3/16

13/32

3/8

4-3/16

7/16 7/32

180

QA28-B

QQA28

3/0 Str. - 4/0 Str. 150-200

1-1/16

—

1-5/16

13/32

3/8

2-1/4

3-9/16

17/32 1/4

250

QA28-2B

—

3/0 Str. - 4/0 Str.

—

1-9/29

13/32

3/8

3-1/5

—

7/16

1/4

250

QA28-2N*

QQA28-2N*

3/0 Str. - 4/0 Str. 150-200

3-1/8

1-3/4

1-5/16

9/16

1/2

4-5/16

5-5/8

5/8

1/4

250

QA31-B

QQA31

250 - 350 kcmil 250-350

1-3/16

1-3/8

—

1-11/16

17/32

1/2

2-11/36

4-1/8

11/16 5/16

325

QA31-2B

—

250 - 350 kcmil 250-350

1-3/16 1-31/32

1-11/16

7/16

3/8

3-3/8

—

7/16 5/16

325

QA31-2N

QQA31-2N*

250 - 350 kcmil 250-350

1-3/16

1-3/4 1-11/16

9/16

1/2

4-7/16

5-7/8

5/8

5/16

325

QA34-B

—

400 - 500 kcmil 400-500

1-3/8

1-5/8

—

17/32

1/2

3-3/16

4-7/8

13/16 5/16

375

QA34-2B

—

400 - 500 kcmil 400-500

1-3/8

13/32

3/8

3-9/16

—

7/16 5/16

375

QA34-4B

QQA34

400 - 500 kcmil 400-500

1-7/8

1-15/16

7/16

3/8

3-1/2

—

7/16 5/16

375

QA34-2N*

QQA34-2N*

400 - 500 kcmil 400-500

1-3/8

3-3/32 1-3/4

9/16

1/2

4-11/16

6-9/32

5/8

5/16

375

QA40-B

—

600 - 800 kcmi 650-800

1-5/8

1-7/8

—

2-7/16

11/16

5/8

3-11/16

—

27/32 3/8

500

QA40-2N*

QQA40-2N*

600 - 800 kcmi 650-800

1-5/8

1-3/4

2-7/16

9/16

1/2

4-14/16

7-3/32

5/8

3/8

500

QQA40-4N*

—

600 - 800 kcmi 650-800

1-3/4

2-7/16

9/16

1/2

—

7-3/32

5/8

3/8

500

QA44-B

—

850 - 1000 kcmil

1000

1-7/8

—

2-3/4

11/16

5/8

3-15/16

—

1/2

500

QA44-2N*

QQA44-2N*

850 - 1000 kcmil

1000

1-7/8

1-3/4

2-3/4

9/16

1/2

7-1/8

5/8

1/2

500

QA44-4N*

QQA44-4N*

850 - 1000 kcmil

1000

3-1/16

1-3/4

2-3/4

9/16

1/2

7-1/8

5/8

1/2

500

QA46-2N*

—

1100 - 1500 kcmil

1300

2-1/8

1-3/4

3-1/8

9/16

1/2

5-1/4

—

5/8

9/16

600

QA46-B

—

1100 - 1500 kcmil

1300

2-1/8

—

3-1/8

13/16

3/4

4-3/8

—

1-1/16 9/16

600

* ‘‘N’’ indicates NEMA standard stud holes.

All 4N items see note LIGHTNING PROTECTION INFO.

QIKLUG™ Terminals for Copper; Single or Twin Clamping Elements

A-16

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

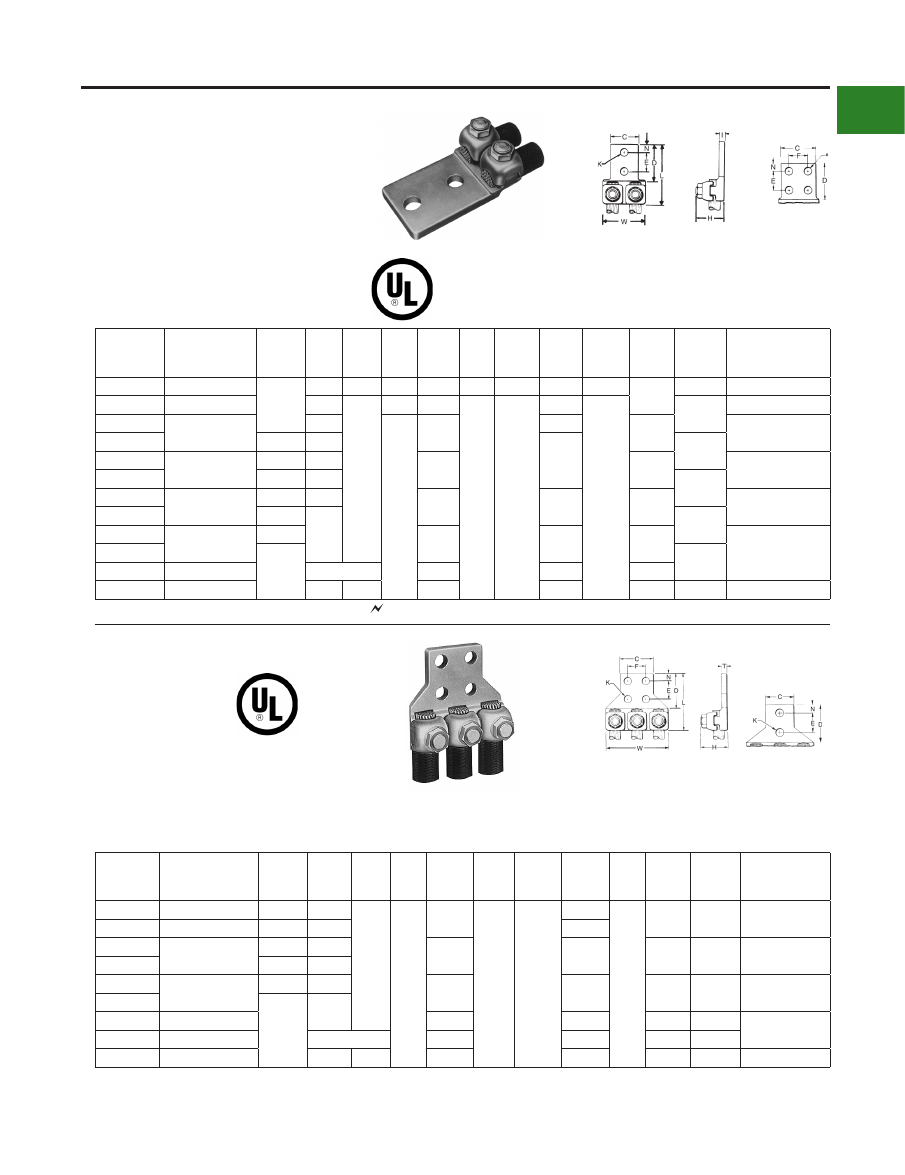

TYPE Q2A

QIKLUG™

For Copper Cable

Compact, high copper alloy terminal for joining two

cables to equipment pads or bars. Each element

accommodates a wide range of cable. One-

wrench installation.

Catalog

Number*

Conductor

No. of

Holes in

Pad

E & F

Stud

Hole

Size

Recommended

Tightening

Torque in-lb

Q2A1C-2

4 Str. - 1 Str.

1-1/2 1-7/8

1-1/16 7/16

3/8

2-7/8

7/16

7/32

1-13/16

150

Q2A26-2N

1/0 Str. - 2/0 Str.

1-5/8

3-1/8

3/4

1-3/16

9/16

1/2

4-3/16

5/8

1-15/16

180

Q2A28-2N

3/0 Str. - 4/0 Str.

1-7/8

1-3/4

1-3/8

4-3/8

1/4

250

Q2A28-4N

4-1/2

2-1/8

Q2A31-2N

250 - 350 kcmil

2-3/8

1-11/16

5/16

325

Q2A31-4N

Q2A34-2N

400 - 500 kcmil

2-1/2

4-11/16

3/8

375

Q2A34-4N

3-3/4

Q2A40-2N

600 - 800 kcmil

2-7/16

7/16

500

Q2A40-4N

4-11/32

Q2A44-4N

850 - 1000 kcmil

3-1/4

2-3/4

5-1/4

1/2

Q2A46-4N

1100 - 1500 kcmil

3-1/2 3-1/4

3-1/8

5-1/2

11/16

600

TYPE Q3A

QIKLUG™

For Copper Cable

Compact, high copper alloy terminal for joining

three cables to equipment pads or bar. Each

element accommodates a wide range of cable.

One-wrench installation.

Catalog

Number*

Conductor

No. of

Holes in

Pad

E & F

Stud

Hole

Size

Recommended

Tightening

Torque in lb

Q3A28-2N

3/0 Str. - 4/0 Str.

1-7/8

3-1/8

1-3/4

1-3/8

9/16

1/2

4-5/16

5/8

1/4

3-3/16

250

Q3A28-4N

3/0 - 4/0 Str.

4-3/8

Q3A31-2N

250 - 350 kcmil

2-3/8

1-11/16

4-7/16

5/16

4-1/16

325

Q3A31-4N

Q3A34-2N

400 - 500 kcmil

2-1/2

1-15/16

4-3/4

3/8

4-9/16

375

Q3A34-4N

Q3A40-4N

600 - 800 kcmil

2-7/16

7/16

5-13/16

500

Q3A44-4N

850 - 1000 kcmil

3-1/4

2-3/4

5-1/4

1/2

6-5/8

Q3A46-4N

1100 - 1500 kcmil

3-1/2

3-1/4

3-1/8

5-1/2

11/16

7-7/8

600

* ‘‘N’’ indicates NEMA standard stud holes.

All 4N items see note LIGHTNING PROTECTION INFO.

* ‘‘N’’ indicates NEMA standard stud holes.

QIKLUG™ Terminals for Copper; Two or Three Conductor Designs

A-17

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

TYPE QB

QIKLUG™

For Copper Cable

Compact, high copper alloy side entrance terminal

for joining a range of cable at right angles to

terminal blocks. One-wrench installation.

Catalog

Number*

Conductor

No. of

Holes in

Pad

Stud

Hole

Size

Recommended

Tightening

Torque in-lb

QB8C

14 Sol. - 8 Str.

9/16

—

7/8

7/32

#10

1-1/8

9/32

5/32

QB4C

8 Str. - 4 Str.

11/16

27/32

—

13/16

9/32

1/4

1-3/8

11/32

1/4

110

QB1C

4 Str. - 1 Str.

11/16

13/16

—

9/32

1/4

1-1/2

11/32

7/32

150

QB26

1/0 Str. - 2/0 Str.

13/16

—

1-1/32

13/32

3/8

1-13/16

7/16

7/32

180

QB28

3/0 Str. - 4/0 Str.

1-1/16

—

1-5/16

13/32

3/8

2-1/16

17/32

1/4

250

QB31-2N

250 - 350 kcmil

13/16

3-1/4

1-3/4

1-11/16

9/16

1/2

4-1/2

5/8

5/16

325

* ‘‘N’’ indicates NEMA standard stud holes.

TYPE Q2B

QIKLUG™

For Copper Cable

Compact, high copper alloy terminal for joining two

cables at right angles to a single terminal block.

Each element accommodates a range of cable.

One-wrench installation.

Catalog

Number*

Conductor

No. of

Holes in

Pad

E & F

Stud

Hole

Size

Recommended

Tightening

Torque in-lb

Q2B28-2N

3/0 Str. - 4/0 Str.

1-7/8

3-1/8

1-3/4

1-3/8

9/16

1/2

5-3/16

5/8

1/4

250

Q2B31-2N

250 - 350 kcmil

2-3/8 3-3/16 1-11/16

1-3/8

9/16

5-7/8

5/8

5/16

325

Q2B40-4N

600 - 800 kcmil

3-1/16

1-3/8

2-5/16 9/16

3/4

6-11/16

5/8

7/16

500

* ‘‘N’’ indicates NEMA standard stud holes.

All 4N items see note LIGHTNING PROTECTION INFO.

QIKLUG™ Terminals for Copper; Side Entrance (90

Right Angle); One or Two Conductor Designs

A-18

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPE QDA

QIKLUG™

For Copper Cable

Compact, high copper alloy terminal for joining a

wide range of cable to equipment studs. Provides

low contact resistance when gripped between two

contact nuts. One wrench installation.

Catalog

Number

Conductor

Stud

Hole

Size

Recommended

Tightening

Torque in-lb

Commercial

Navy

QDA8C

14 Sol. - 8 Str.

3 - 14

11/16

7/16

3/8

1-7/8

3/16

QDA4C

8 Str. - 4 Str.

23 - 40

3/4

7/16

3/8

1-7/8

7/32

110

QDA1C

4 Str. - 1 Str.

50 - 75

7/16

3/8

2-3/16

9/32

150

QDA26

1/0 Str. - 2/0 Str.

100 - 125

1-1/4

1-3/16

9/16

1/2

2-1/2

5/16

180

QDA28

3/0 Str. - 4/0 Str.

150 - 200

1-1/4

1-5/16

9/16

1/2

2-5/8

5/16

250

QDA31

250 - 350 kcmil

250 - 350

1-1/2

1-11/16

11/16

5/8

5/16

325

QDA34

400 - 500 kcmil

400 - 500

1-7/8

13/16

3/4

3-5/8

5/16

375

QDA40

600 - 800 kcmil

650 - 800

2-1/8

2-5/16

1-1/16

4-3/16

3/8

500

TYPE QR

QIKLINK™ SPLICE OR REDUCER

For Copper Cable to Cable

High copper alloy splicer/reducer for joining a

range of cable end to end. Neat, compact easy to

tape installation. One-wrench installation.

Catalog Number

Conductor

Either Side

Recommended

Tightening

Torque in-lb

QR4C

6 Sol. - 4 Str.

3/4

1-11/16

5/8

110

QR1C

4 Str. - 1 Str.

1-1/16

1-15/16

11/16

150

QR26

1/0 Str. - 2/0 Str.

1-3/16

2-1/8

13/16

180

QR28

3/0 Str. - 4/0 Str.

1-3/8

2-3/8

250

QR31

250 - 350 kcmil

1-11/16

2-5/8

1-1/4

325

QR34

400 - 500 kcmil

1-15/16

3-1/16

1-7/16

375

QR40

600 - 800 kcmil

2-7/16

3-5/8

1-7/8

500

See note LIGHTNING PROTECTION INFO.

QIKLUG™ Terminals for Copper - Rounded Tongue Design; QIKLINK™ Splice/Reducer for Copper

A-19

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

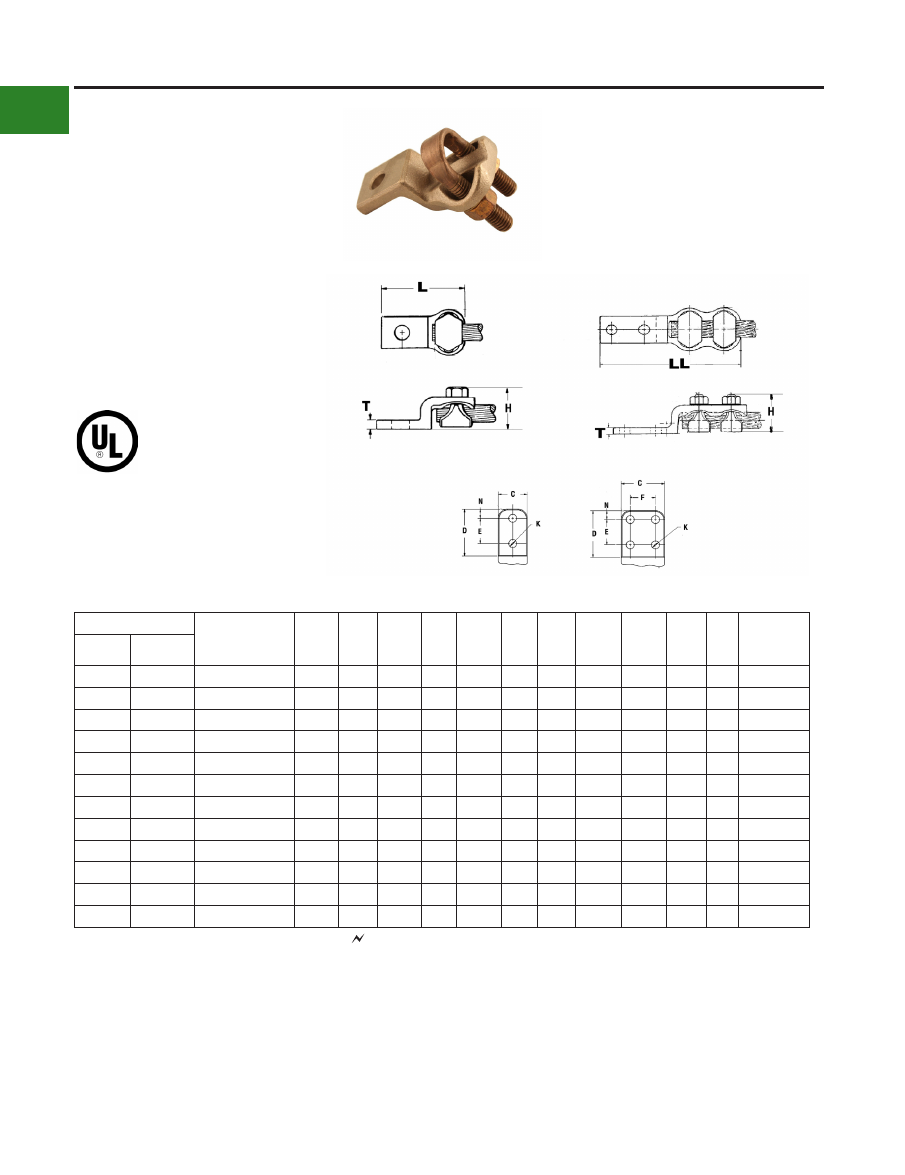

TYPES VA, VVA

VARILUG™

For Copper Cable

High copper alloy terminal for joining a wide range

of cable to equipment pads or bar. Particularly

suitable for use on extra flexible cable. One-

wrench installation. Type VVA, twin elements

secure joint against vibration and flexing.

Particularly recommended for use on extra flexible

cables. One-wrench installation.

Catalog Number*

Conductor

No. of

Holes

in Pad

E&F

Stud

Hole

Size

Rec.

Tightening

Torque

Type VA Type VVA

VA2C

VVA2C

8 AWG-2 AWG

13/16

1-1/4

—

1-1/2

7/16

3/8

2-3/4

4-1/16 13/32 1/4

275

VA25

VVA25

6 AWG-1/0

7/8

1-5/16

—

1-7/8

7/16

3/8

2-7/8

4-5/16

7/16

1/4

385

VA28

VVA28

1/0 -4/0 AWG

1-1/16 1-1/2

—

2-1/4

7/16

3/8

2-7/8

4-1/8

17/32 5/16

250

VA28-2N VVA28-2N

1/0 -4/0 AWG

1-1/16 3-1/2 1-3/4 2-1/4

9/16

1/2

4-15/16 6-1/5

5/8

5/16

250

VA30

VVA30

1/0 -300 kcmil

1-1/8

1-5/8

—

2-3/16 7/16

3/8

3-1/4

4-5/8

5/8

5/16

325

VA30-2N VVA30-2N

1/0 -300 kcmil

1-1/8 3-9/16 1-3/4 2-3/16 9/16

1/2

5-3/16 6-9/16

5/8

5/16

325

VA34

VVA34

300 kcmil-500 kcmil

1-3/8

—

3-11/32 9/16

1/2

3-13/16 5-5/16 13/16 3/8

375

VA34-2N VVA34-2N

300 kcmil-500 kcmil

1-3/8 3-5/8 1-3/4 3-11/32 9/16

1/2

5-3/8

6-7/8

5/8

3/8

375

VA34-4N VVA34-4N

300 kcmil-500 kcmil

3-5/8 1-3/4 3-11/32 9/16

1/2

5-3/8

6-7/8

5/8

3/8

375

VA40

VVA40

500 kcmil-800 kcmil

1-5/8 2-5/16

—

2-7/8 11/16 5/8

4-1/2

6-3/8

15/16 3/8

500

VA40-2N VVA40-2N

500 kcmil-800 kcmil

1-5/8 3-5/8 1-3/4 2-7/8

9/16

1/2

5-13/16 7-11/16

5/8

3/8

500

VA40-4N VVA40-4N

500 kcmil-800 kcmil

2-5/8 1-3/4 2-7/8

9/16

1/2

5-13/16 7-11/16

5/8

3/8

500

All 4N items see note LIGHTNING PROTECTION INFO.

* “N” indicates NEMA standard stud holes.

Type VA

Type VVA

VARILUG™ Terminals for Copper; Single or Twin Clamping Elements

A-20

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPE HFB-P1

BAR CLAMP ASSEMBLY

COMPONENTS

For Copper Bar

To build your own high strength clamp assembly

for multiple flat bar using type HFB-P1 bar clamps

and clamping hardware, the following tables have

been provided. The clamp assembly eliminates the

need for drilling the flat bar and is used in indoor

and outdoor applications.

One Clamp Half

Bar Clamp Bar

“J” Bolt

Dia.

Recommended

Tightening

Torque in-lb

Catalog

Number

Run ‘A’ Tap ‘AA’

HFB22P1

3/8

4.38

240

HFB33P1

3/8

4.38

240

HFB42P1

3/8

5.75

240

HFB44P1

1/2

5.75

480

HFB63P1

1/2

7.75

4.75

480

HFB66P1

5/8

8.12

660

HFB88P1

3/4

10.50

1990

Bar Clamp Assembly Components †

Copper Bus Bar Width (in)

Bar Clamp

Silicon Bronze Clamping Hardware

Bolts

Nuts

Split Lock Washers

Run-A

Tap-AA

Qty

Cat. No.

Qty

Cat. No.

Qty

Cat. No.

Qty

Cat. No.

HFB22P1

38 X (*) HEB

38CHEN

38SW

HFB33P1

38 X (*) HEB

38CHEN

38SW

HFB42P1

38 X (*) HEB

38CHEN

38SW

HFB44P1

50 X (*) HEB

50CHEN

50SW

HFB63P1

50 X (*) HEB

50CHEN

50SW

HFB66P1

62 X (*) HEB

62CHEN

62SW

HFB88P1

75 X (*) HEB

75CHEN

75SW

Bolt Length

Clamp

Number

“J”

Bolt Dia.

When

Z = 1.25

When

Z = 1.50

When

Z = 1.75

When

Z = 2.00

When

Z = 2.25

When

Z = 2.50

When

Z = 2.75

When

Z = 3.00

HFB22P1

3/8

3.00

3.25

3.50

4.00

4.50

5.00

HFB33P1

3/8

3.00

3.25

3.50

4.00

4.50

5.00

HFB42P1

3/8

3.00

3.25

3.50

4.00

4.50

5.00

HFB44P1

1/2

3.25

3.50

3.75

4.00

4.50

5.00

HFB63P1

1/2

3.25

3.50

3.75

4.00

4.50

5.00

HFB66P1

5/8

3.50

4.00

4.50

5.00

5.50

HFB88P1

3/4

3.75

4.00

4.50

5.00

5.50

*Z=Space between the bar clamp contact surfaces

† Ordered separately from BURNDY

* See table below when ordering assembly clamping

bolts to specify correct bolt length in Cat. #.

NOTE:

When ordering assembly bolts specify correct bolt

length in catalog number as indicated in table.

Bar Clamp Assembly Components for Copper Bar

A-21

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

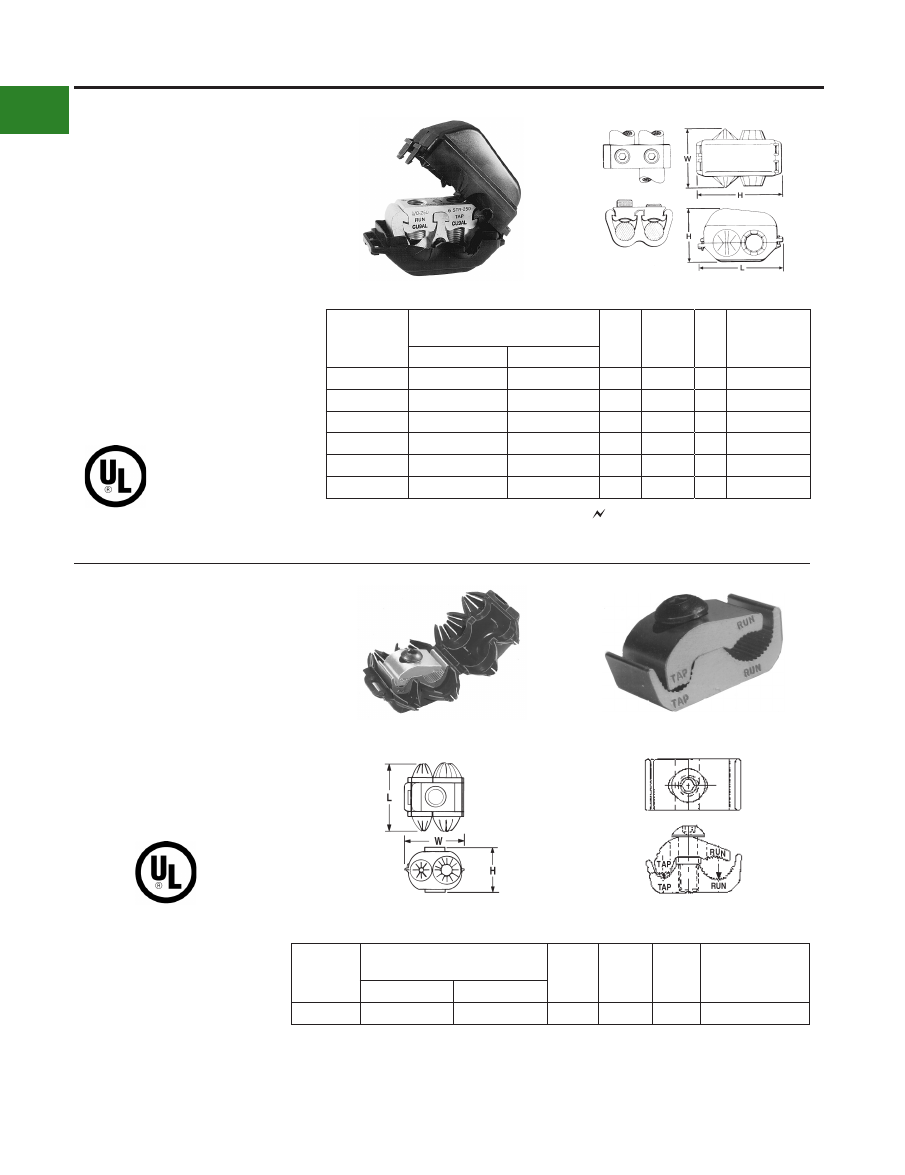

TYPE KPU-AC

POLYTAP™

Insulated Gutter Tap for All Copper

and Aluminum Combinations

Wide range-taking tin-plated aluminum parallel

clamp and insulating cover assembly for industrial

and multiple story structure applications. Only

six connectors cover the entire 14 Sol.-750 kcmil

range. Covers having flexible fingers that conform

to conductor, fully insulating the connection.

UL486B Listed for 600 volts maximum 90° C

service. Cover and connector are packaged

together. No taping required.

600 Volt Max. 90° C

Catalog

Number

Conductor

Copper or Aluminum

Rec.

Tightening

▲ Torque in-lb

Run

Tap

KPU29A26AC

1/0 -250 kcmil

14 AWG-2/0 AWG

3-1/8

3-3/8

4.24

375

KPU29A29AC

1/0 -250 kcmil

6 AWG-250 kcmil

3-1/8

3-3/8

4.24

375

KPU34A26AC

4/0 AWG-500 kcmil 14 AWG-2/0 AWG

3-1/2

4.58

450

KPU34A34AC

4/0 AWG-500 kcmil

6 AWG-500 kcmil

3-1/2

4.58

450

KPU39A26AC

500 kcmil-750 kcmil 14 AWG-2/0 AWG

3-1/2

3-83/100 5.06

600

KPU39A39AC

500 kcmil-750 kcmil

1/0 -750 kcmil

3-1/2

3-83/100 5.06

600

▲ Listed torque values are for maximum conductor

combinations accommodated. Consult UL486 Tables

7-4, 7-5, 7-6 for smaller combinations.

▲ Listed torque values are for maximum conductor

combinations accommodated. Consult UL486 Tables

7-4, 7-5, 7-6 for smaller combinations.

See note LIGHTNING PROTECTION INFO.

TYPE UCU-AC

RISER TAP

600 VOLT MAX. 90° C MAX.

Parallel-groove riser tap and insulation cover for

copper and aluminum. Wide range-taking assembly

for apartment house and light industrial applications.

Cover and connector are packaged together. Covers

having insulating fingers that conform to conductors,

fully insulating the connection. UL486B Listed for 600

volts max. 90° C service.

Catalog

Number

Conductor

Copper or Aluminum

Recommended

Tightening ▲

Torque in-lb

Run

Tap

UCU28AC

#2 Str.- 4/0 Str.

#10 Sol. - #2 Str.

2-1/4

1-13/16

2-5/8

120

POLYTAP™ Insulated Gutter Tap for Copper/Aluminum; Riser Tap with Cover for Copper/Aluminum

A-24

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

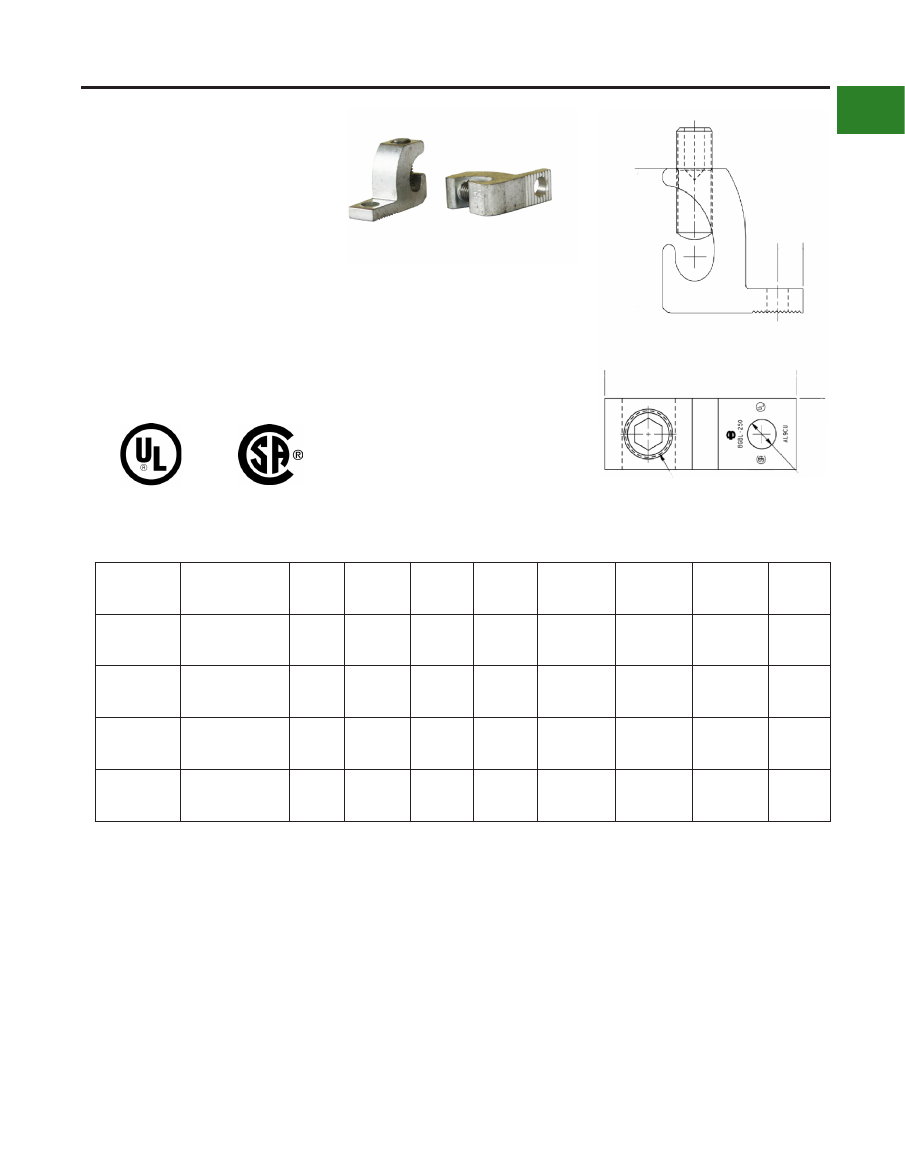

TYPE BGBL

LAY-IN QIKLUG™

UL LISTED 90° C, 600 V

The Lay-In QIKLUG™, Type BGBL is

manufactured from high strength 6061-T6

aluminum, and is ideally suited for grounding and

bonding applications accommodating both copper

and aluminum conductor sizes #14 AWG to 250

kcmil. The BGBL4SS with Stainless Steel screw is

UL 467 Listed for grounding and bonding.

Catalog

Number

Conductor

Range

Hex

Size

BGBL-4

14 - 4

0.38

[10]

0.78

[20]

1/4 - 28

0.22

[6]

1.07

[27]

0.19

[5]

0.15

[4]

Slot

BGBL4SS*

14 - 4

0.38

[10]

0.78

[20]

1/4 - 28

0.22

[6]

1.07

[27]

0.19

[5]

0.15

[4]

Slot

BGBL-1/0

14 - 1/0

0.60

[15]

1.17

[30]

3/8 - 24

0.27

[7]

1.50

[38]

0.30

[8]

0.22

[6]

Slot

BGBL-250

6 - 250

kcmil

0.80

[20]

1.79

[45]

9/16 -

0.33

[8]

2.20

[56]

0.40

[10]

0.30

[8]

5/16

Features & Benefits

• UL 486B listed, AL9CU rated

◊ For copper and aluminum conductor

combinations up to 90° C, 600 Volt

applications.

• UL Recognized for grounding and

bonding

◊ Ensures reliability.

• Electro-tin plated

◊ Provides low contact resistance.

• Lay-in feature

◊ Eases installation.

* Suitable for copper conductors only.

REF

K DIA.

QIKLUG™ Lay-In Style Terminals for Copper/Aluminum

A-25

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

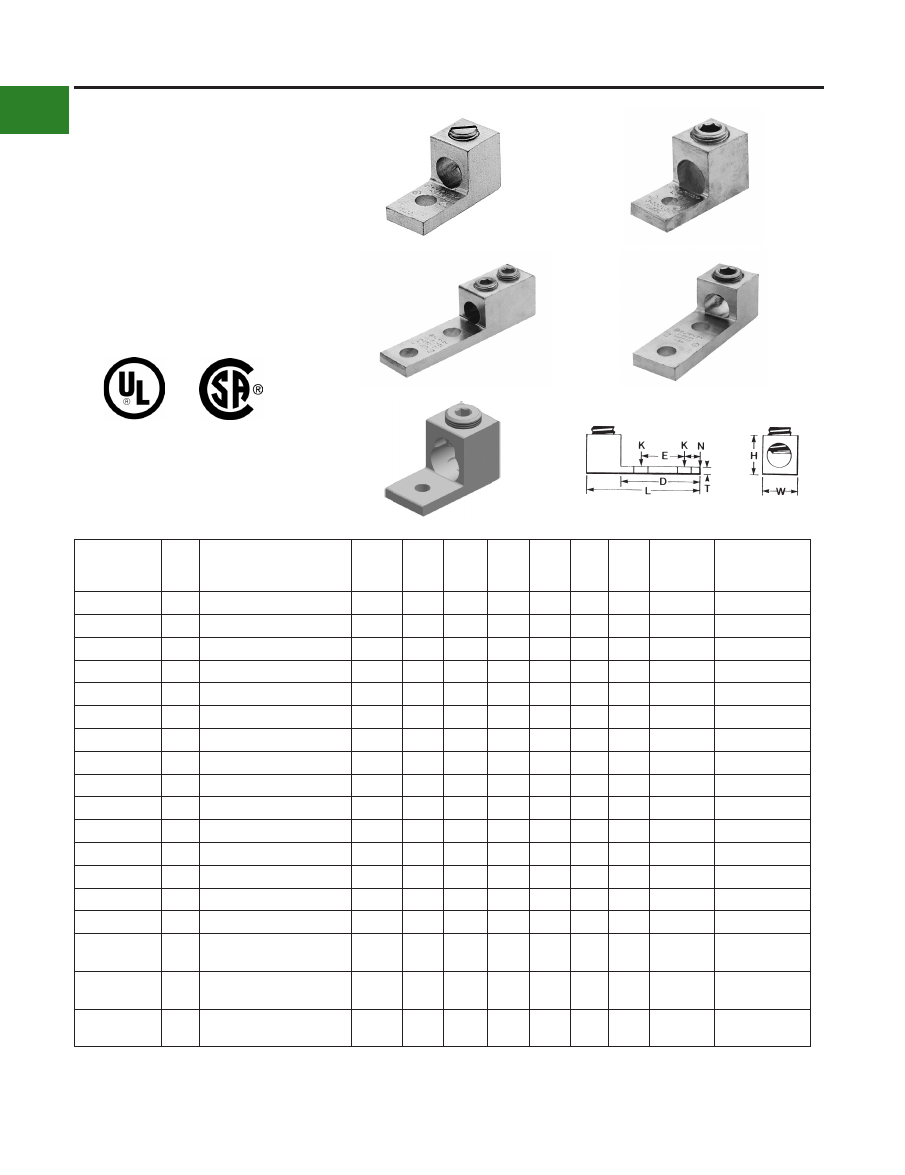

TYPES KA-U, KKA-U

UNIVERSAL TERMINAL

For Aluminum and Copper

Conductors

These dual-rated one-conductor lugs are

constructed from high strength aluminum alloy

and electro tin-plated to provide low contact

resistance.

AL9CU

Catalog

Number*

Fig.

No.

Wire Range

Aluminum or Copper

Stud

Hole

Size

Recommended

Tightening ▲

Torque (in-lb)

KA6U

14 AWG-6 AWG

1/4

0.63

1.06

0.25

0.50

—

0.09

0.51

KA2U

14-2

1/4

0.63

1.16

0.31

0.50

—

0.10

0.56

KA25U

14 AWG-1/0

1/4

0.81

1.50

0.44

0.63

—

0.19

0.92

KA26U

6-2/0

1/4

0.81

1.47

0.45

0.63

—

0.19

0.80

120

KA29U

6-250

5/16

0.94

2.00

0.47

1.00

—

0.25

1.14

275

KA30U

6 AWG-300 kcmil

5/16

0.94

2.00

0.45

1.00

—

0.25

1.14

275

KA31U

6 AWG-350 kcmil

3/8

1.03

2.25

0.52

1.13

—

0.25

1.27

275

KA34U

4 AWG-500 kcmil

3/8

1.50

2.81

0.88

1.51

—

0.31

1.58

500

KA36U

2 AWG-600 kcmil

3/8

1.72

3.19

0.78

1.50

—

0.44

1.58

500

KA40U

300 kcmil-800 kcmil

1/2

1.85

3.50

0.81

1.75

—

0.50

1.95

550

KA44U

500 kcmil-1000 kcmil

1/2

1.69

3.50

0.88

1.75

—

0.50

1.95

550

KKA31U-2N

6 AWG-350 kcmil

1/2

3.16

5.50

0.63

1.25

1.75

0.38

1.52

275

KA36U-2N

2 AWG-600 kcmil

1/2

3.22

4.69

0.63

1.50

1.75

0.44

1.57

500

KA40U-2N

300 kcmil-800 kcmil

1/2

3.03

4.75

0.63

1.75

0.50

1.95

500

KA44U-2N

500 kcmil-1000 kcmil

1/2

3.03

4.75

0.63

1.75

0.50

1.95

550

KA30226U

†

6 Str. - 300 kcmil or

(2) 4 Str. - 2/0 Str.

5/16

1.31

2.31

2.00

0.86

0.69

0.25

1.50

275

KA36229U

4 Str. - 600 kcmil or

(2) 250 kcmil - 1/0 Str.

3/8

1.50

2.81

1.00

1.38

–

0.31

1.81

375

KA39230U

#2 Str. - 700 kcmil or

(2) 1/0 Str. - 300 kcmil

3/8

1.50

2.81

1.00

1.38

–

0.31

1.81

375

Fig. 1

Fig. 3

Fig. 5

Fig. 2

Fig. 4

* “N” indicates NEMA standard stud holes.

▲ Listed torque values are for maximum conductor sizes accommodated.

†

Figure 5 keyhole style with 2 hole pad.

Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor sizes.

** Maximum dimension.

Universal Terminals for Copper/Aluminum

A-26

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

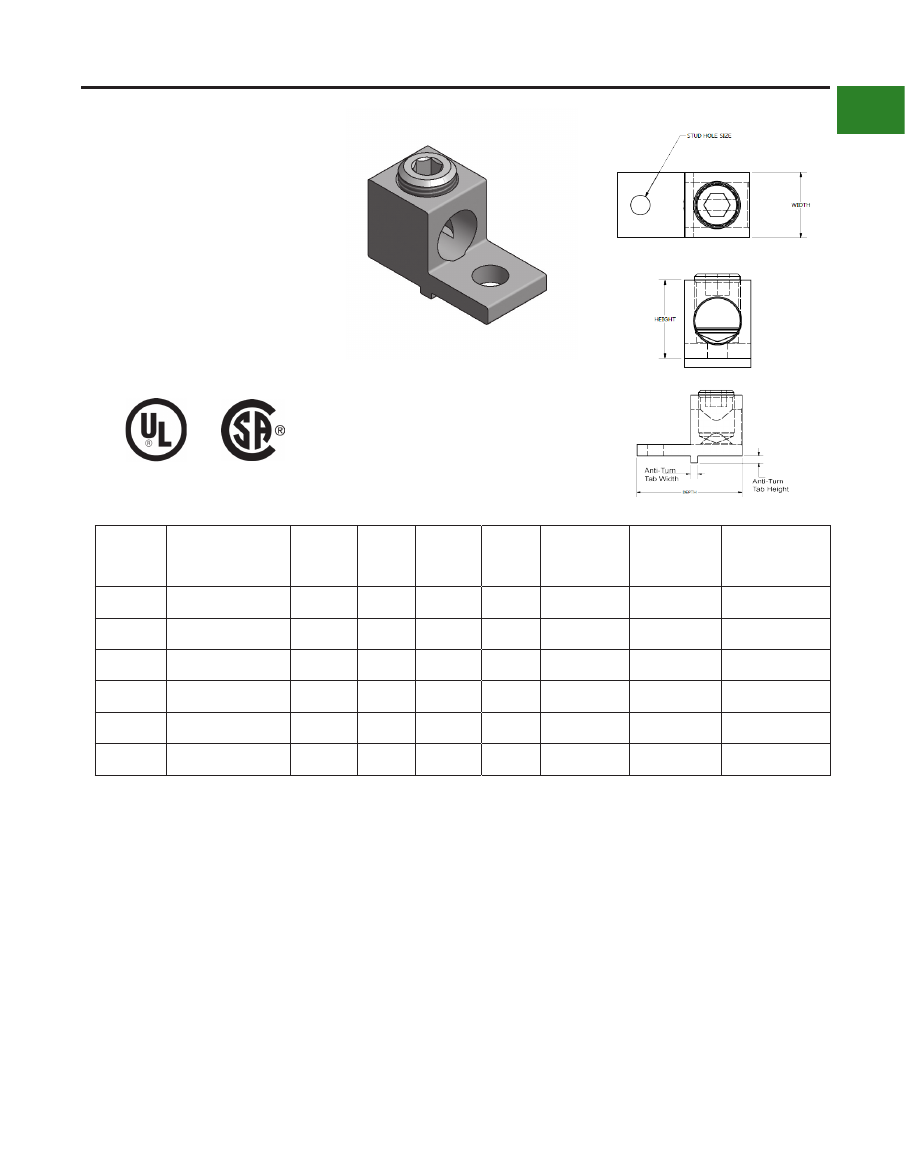

TYPES KA-UAR

UNIVERSAL ANTI-ROTATIONAL

TERMINALS

(One Conductor)

For Aluminum and Copper

Conductors

These dual-rated one-conductor lugs are

constructed from high strength aluminum alloy and

electro tin-plated to provide low contact resistance.

These lugs also contain a bottom anti-turn tab.

Catalog

Number

Wire Range

Aluminum or Copper

Stud

Hole

Size

Depth

Width

Height

Tab

Height

Tab

Thickness

Recommended

Tightening ▲

Torque (in-lb)

KA4UAR

14 - 3

1/4

1.16

0.50

0.56

.06

.12

KA25UAR

14 - 1/0

1/4

1.47

0.63

0.78

.06

.13

KA26UAR

14 - 2/0

1/4

1.47

0.63

0.78

.13

120

KA30UAR

6 - 300

1/4

1.56

0.94

1.13

.09

.19

275

KA31UAR

6 - 350

5/16

1.19

1.00

1.13

.13

.19

275

KA36UAR

4 - 600

3/8

2.75

1.38

1.57

.19

375

AL9CU

Listed torque values are for maximum conductor sizes

accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for

smaller conductor sizes.

Universal Terminals for Copper/Aluminum with Anti-Rotational Design

A-27

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

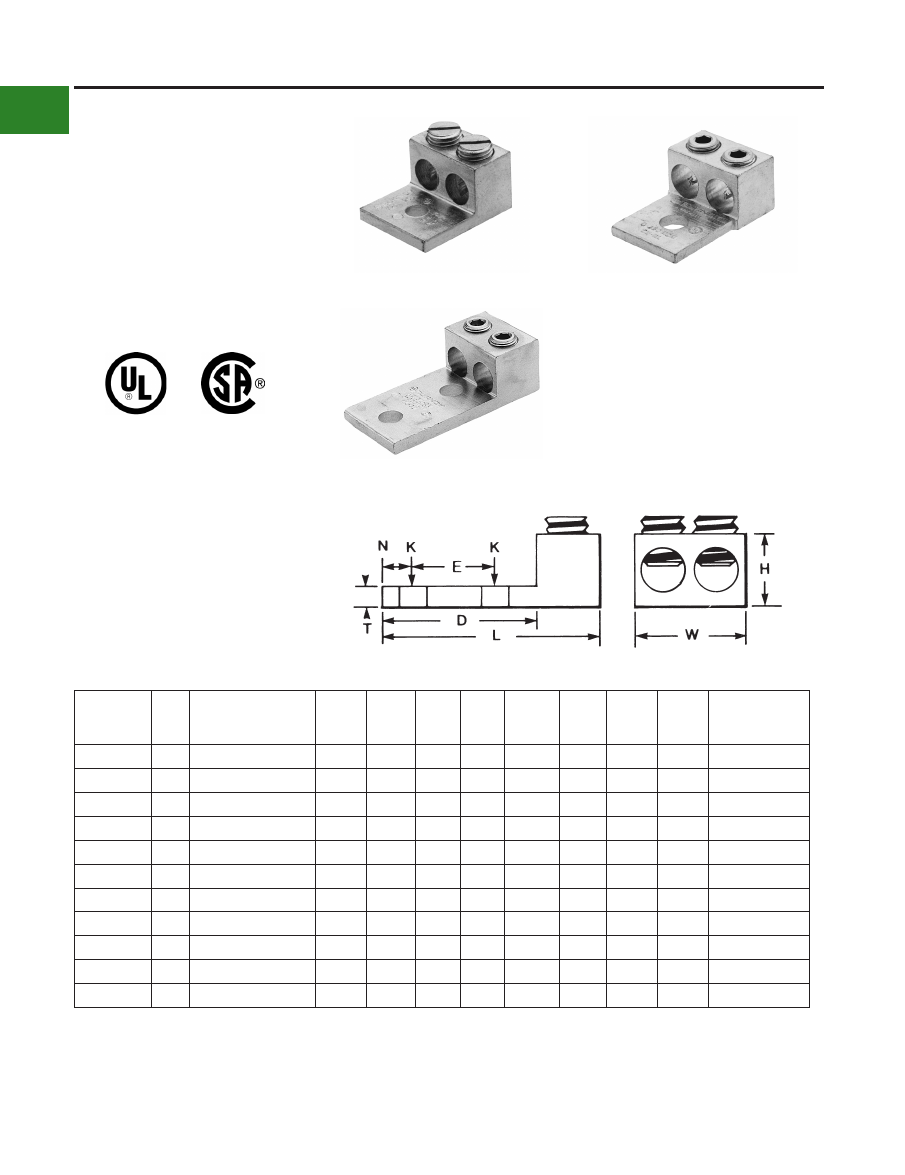

TYPE K2A-U

UNIVERSAL TERMINAL

(Two Conductor)

For Aluminum and Copper

Conductors

These dual-rated two-conductor lugs are

constructed from high strength aluminum alloy and

electro tin-plated to provide low contact resistance.

AL9CU

Catalog

Number*

Fig.

No.

TWO: Wire Range

(Aluminum or Copper)

Stud

Hole

Size

Recommended

Tightening ▲

Torque (in-lb)

K2A25U

14 AWG-1/0

1/4

0.81

1.47

0.44

1.13

—

0.19

0.79

K2A26U

14 AWG-2/0 AWG

1/4

0.81

1.47

0.44

1.25

—

0.19

0.80

120

K2A29U

6 AWG-250 kcmil

3/8

1.50

2.56

0.50

1.66

—

0.25

1.20

275

K2A31U

6 AWG-350 kcmil

1/2

1.69

2.88

0.88

1.94

—

0.25

1.26

275

K2A36U

2 AWG-600 kcmil

1/2

1.75

3.20

0.63

2.41

—

0.44

1.58

375

K2A40U

300 kcmil-800 kcmil

5/8

1.66

3.38

0.88

3.19

—

0.50

1.95

500

K2A44U

500 kcmil-1000 kcmil

5/8

1.66

3.50

0.88

3.52

—

0.50

1.95

500

K2A31U-2N

6 AWG-350 kcmil

1/2

3.00

4.50

0.63

2.31

1.75

0.31

1.39

275

K2A36U-2N

2 AWG-600 kcmil

1/2

3.22

4.69

0.63

2.41

1.75

0.44

1.39

375

K2A40U-2N

300 kcmil-800 kcmil

1/2

3.03

4.75

0.63

3.19

1.75

0.50

1.95

375

K2A44U-2N

500 kcmil-1000 kcmil

1/2

3.03

4.75

0.63

3.19

1.75

0.50

1.95

375

* “N” indicates NEMA standard stud holes.

▲ Listed torque values are for maximum conductor sizes

accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for

smaller conductor sizes.

** Maximum dimension.

Fig. 1

Fig. 3

Fig. 2

Universal Terminals for Copper/Aluminum; Two Conductor Design

A-28

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

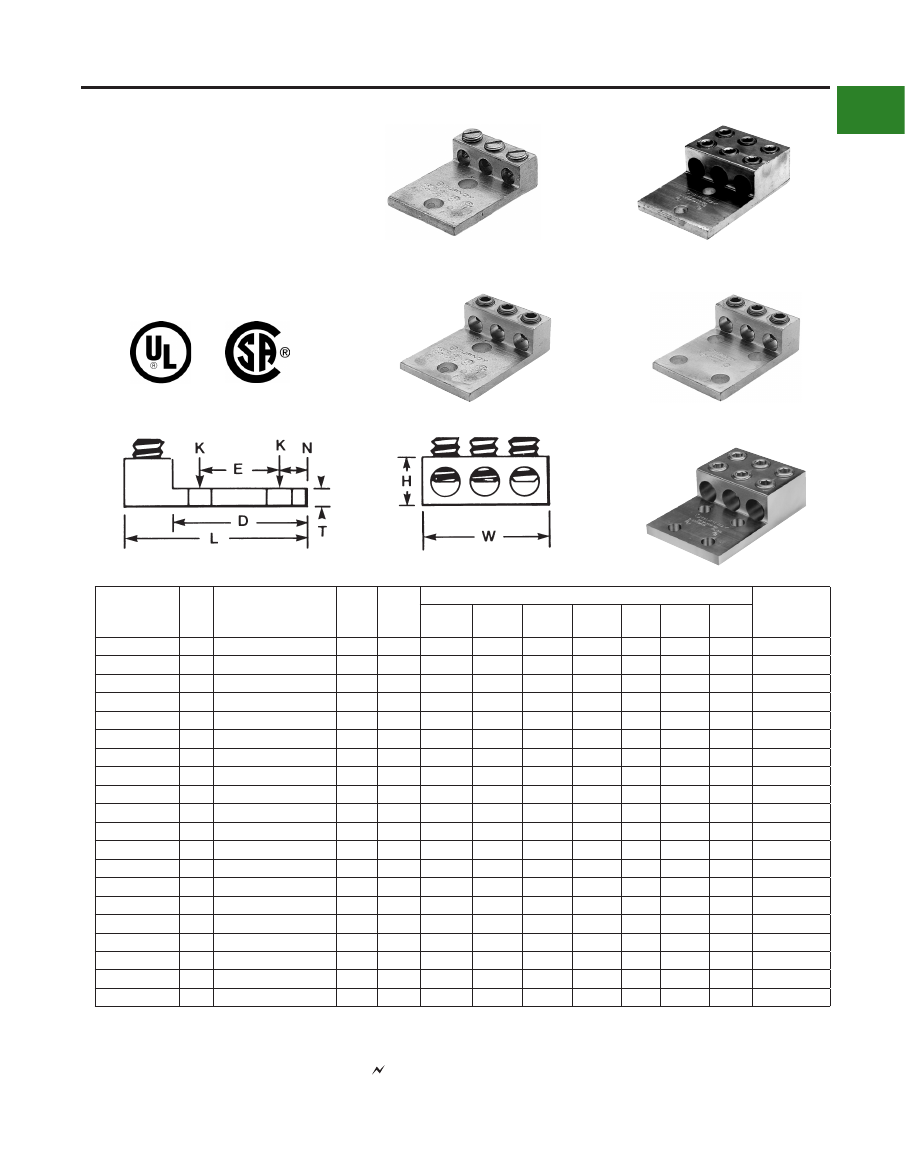

TYPES K3A-U, KK3A-U

UNIVERSAL TERMINAL

(Three Conductor)

For Aluminum and Copper Conductors

Dual-rated three-conductor lugs are constructed

from high strength aluminum alloy and electro tin-

plated to provide low contact resistance.

Catalog

Number**

Fig.

No.

THREE: Wire Range

(Aluminum or Copper)

Stud

Hole

Size

Dimensions

Rec.

Tightening ▲

Torque (in-lb)

K3A2U-2*

14 AWG-2 AWG

11/32

5/16

1.63

2.19

0.34

1.59

0.88

0.19

0.62

K3A25U-2*

14 AWG-1/0

7/16

3/8

2.09

2.91

0.34

1.94

1.00

0.25

0.88

K3A26U-2N

14 AWG-2/0 AWG

9/16

1/2

3.06

3.75

0.63

1.95

1.75

0.19

1.79

K3A27U-2N

6 AWG-3/0 AWG

9/16

1/2

3.00

3.88

0.63

2.81

1.75

0.31

1.12

275

K3A29U-2N

6 AWG-250 kcmil

9/16

1/2

3.16

4.00

0.63

2.81

1.75

0.31

1.19

275

K3A31U-2N

6 AWG-350 kcmil

9/16

1/2

3.16

4.31

0.63

3.52

1.75

0.31

1.38

275

K3A36U-2N

2 AWG-600 kcmil

9/16

1/2

3.22

4.69

0.63

3.63

1.75

0.44

1.56

375

KK3A36U-2N

2 AWG-600 kcmil

9/16

1/2

3.00

5.50

0.63

4.22

1.75

0.38

1.52

375

KK3A40U-2N

300 kcmil-800 kcmil

9/16

1/2

3.34

6.19

0.63

4.81

1.75

0.56

1.89

375

KK3A44U-2N

500 kcmil-1000 kcmil

9/16

1/2

3.34

6.19

0.63

4.75

1.75

0.56

1.90

500

K3A2U-4*

14 AWG-2 AWG

11/32

5/16

1.63

2.19

0.34

1.59

0.88

0.19

0.62

K3A25U-4*

14 AWG-1/0

7/16

3/8

2.09

2.91

0.34

1.94

1.00

0.25

0.88

K3A27U-4N

6 AWG-3/0 AWG

9/16

1/2

3.00

3.88

0.63

2.81

1.75

0.31

1.12

275

K3A29U-4N

6 AWG-250 kcmil

9/16

1/2

3.00

4.00

0.63

2.81

1.75

0.31

1.19

275

K3A31U-4N

6 AWG-350 kcmil

9/16

1/2

3.00

4.31

0.63

3.00

1.75

0.31

1.38

275

K3A36U-4N

2 AWG-600 kcmil

9/16

1/2

3.22

4.69

0.63

3.63

1.75

0.44

1.56

375

K3A40U-4N

300 kcmil-800 kcmil

9/16

1/2

3.03

4.75

0.63

4.81

1.75

0.50

1.94

375

KK3A36U-4N

2 AWG-600 kcmil

9/16

1/2

3.00

5.50

0.63

4.22

1.75

0.38

1.52

375

KK3A40U-4N

300 kcmil-800 kcmil

9/16

1/2

3.34

6.19

0.63

5.34

1.75

0.56

1.89

500

KK3A44U-4N

500 kcmil-1000 kcmil

9/16

1/2

3.34

6.19

0.63

4.75

1.75

0.56

1.90

500

* Slotted screw.
** ‘‘N” indicates NEMA standard stud holes.

▲ Listed torque values are for maximum conductor sizes

accommodated. Consult UL486 Tables 7-4, 7-5, 7-6 for

smaller conductor sizes.

AL9CU

All 4N items see note LIGHTNING PROTECTION INFO.

Fig. 1

Fig. 3

Fig. 2

Fig. 4

Fig. 5

Universal Terminals for Copper/Aluminum; Three Conductor Designs

A-29

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

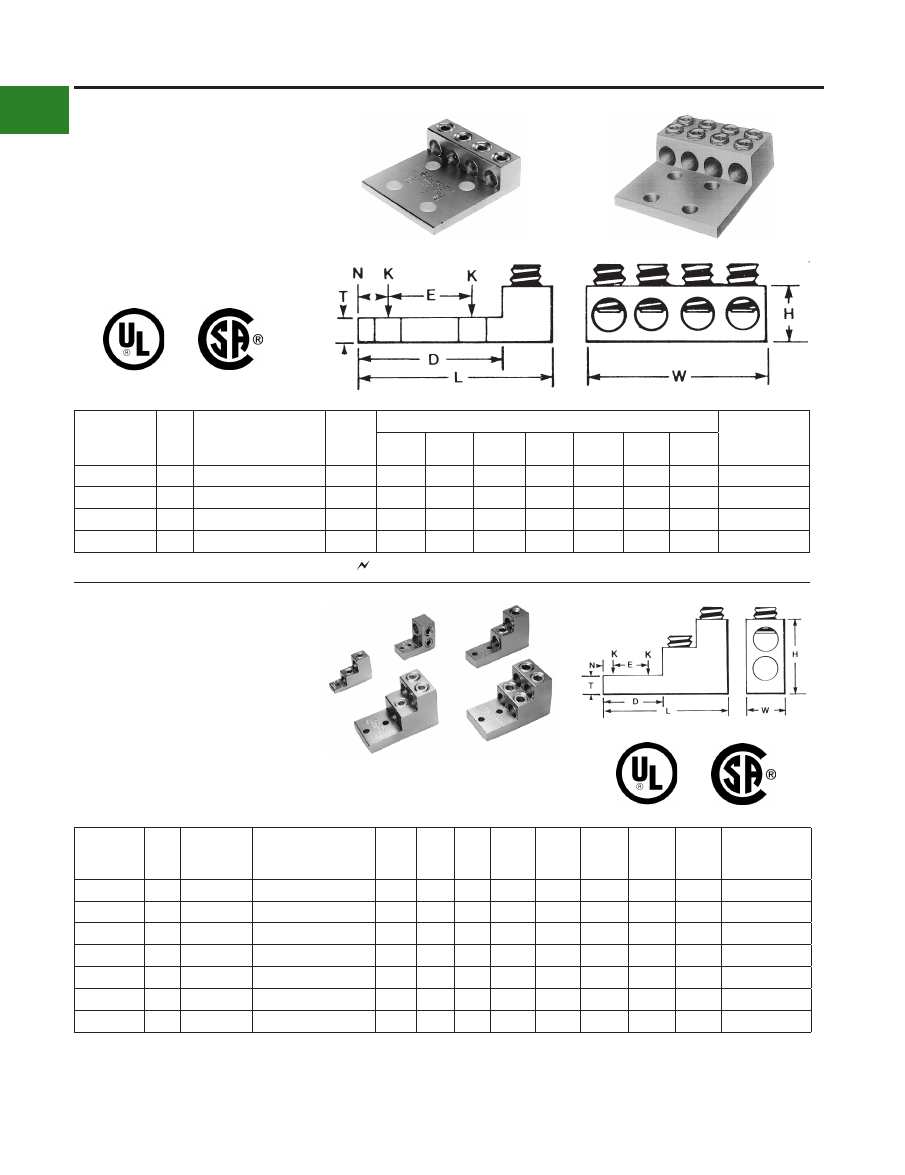

TYPES K4A-U, KK4A-U

UNIVERSAL TERMINAL

(Four Conductor)

For Aluminum and Copper Conductors

These dual-rated four conductor lugs are

constructed from high strength aluminum alloy and

electro tin-plated to provide low contact resistance.

Catalog

Number*

Fig.

No.

FOUR: Wire Range

(Aluminum or Copper)

Stud

Hole

Size

Dimensions

Recommended

Tightening

Torque (in-lb)

K4A29U-4N

6 AWG-250 kcmil

1/2

3.16

4.25

0.63

3.69

1.75

0.31

1.19

275

K4A31U-4N

6 AWG-350 kcmil

1/2

3.00

4.50

0.63

5.04

1.75

0.31

1.38

275

KK4A36U-4N

2 AWG-600 kcmil

1/2

3.34

5.63

0.63

5.00

1.75

0.44

1.51

375

KK4A40U-4N

300 kcmil-800 kcmil

1/2

3.41

6.19

0.63

6.00

1.75

0.56

1.88

375

AL9CU

TYPES K11A-U, K21A-U,

K22A-U

UNIVERSAL TERMINAL

For Aluminum and Copper Conductors

Dual-rated panelboard lugs are constructed from

high strength extruded aluminum alloy and electro

tin-plated to provide low contact resistance.

Catalog

Number

Fig.

No.

# of

Conductors

Wire Range

(Aluminum or Copper)

Stud

Hole

Size

Recommended

Tightening ▲

Torque (in-lb)

K11A30U

6 AWG-300 kcmil

5/16

0.94 3.00

0.47

1.00

—

0.50

2.03

275

K11A34U-2

4/0 AWG-500 kcmil

1/4

2.31 2.91

0.25

1.44

0.69

0.63

2.40

375

K11A36U-2

2 AWG-600 kcmil

3/8

2.31 4.91

0.38

1.50

1.38

0.75

3.02

375

K21A36U-2

2 AWG-600 kcmil

3/8

2.31 4.91

0.38

2.50

1.38

0.75

3.03

375

K22A36U-2

2 AWG-600 kcmil

3/8

2.31 4.91

0.38

2.50

1.38

0.75

3.03

375

K11A39U-2

1/0 -750 kcmil

3/8

2.31 4.91

0.38

1.69

1.38

0.75

3.02

375

K22A39U-2

1/0 -750 kcmil

3/8

2.31 4.91

0.38

3.06

1.38

0.75

3.02

375

* ‘‘N” indicates NEMA standard stud holes.

All 4N items see note LIGHTNING PROTECTION INFO.

AL9CU

▲ Listed torque values are for maximum conductor sizes accommodated. Consult UL486

Tables 7-4, 7-5, 7-6 for smaller conductor sizes.

Fig. 1

Fig. 2

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Universal Terminals for Copper/Aluminum - Four Conductor Designs; Panelboard Lugs

A-30

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

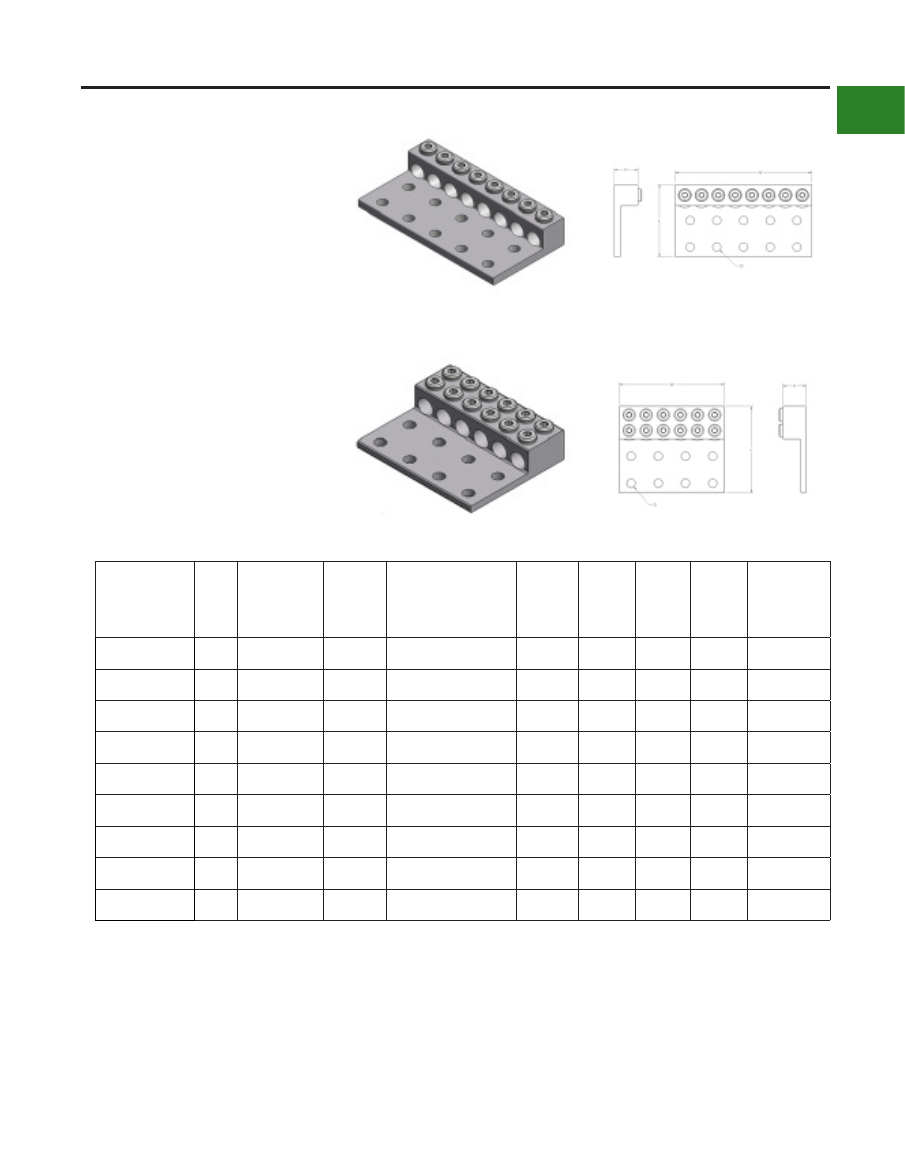

TYPES K6A-U, K8A-U,

KK6A-U, KK8A-U

UNIVERSAL TERMINALS

(Six and Eight Conductor)

For Aluminum and

Copper Conductors

These dual-rated six and eight conductor lugs are

constructed from high strength aluminum alloy and

electro tin-plated to provide low contact resistance.

Catalog

Number

Fig.

No.

No. of

Conductors

No. of

Mtg

Holes

Wire Range

Aluminum

or Copper

Stud

Hole

Size

Depth

Width

Height

Rec.

Tightening

Torque

in-lb ♦

K6A34U-8

2 AWG - 500 kcmil

9/16

4.63

6.75

1.56

375

K8A34U-10

2 AWG - 500 kcmil

9/16

4.63

8.75

1.56

375

KK6A31U-8

6 AWG - 350 kcmil

9/16

5.31

6.38

1.50

275

KK8A31U-10

6 AWG - 350 kcmil

9/16

5.31

8.13

1.50

275

KK6A34U-8

2 AWG - 500 kcmil

9/16

5.50

6.75

1.50

375

KK8A34U-10

2 AWG - 500 kcmil

9/16

5.50

8.75

1.50

375

KK8A39U-12

2 AWG - 750 kcmil

9/16

6.19

10.25

1.88

550

KK6A44U-12

350 kcmil - 1000 kcmil

9/16

6.19

10.00

1.88

550

KK8A44U-14

350 kcmil - 1000 kcmil

9/16

6.19

12.12

1.88

550

♦

Listed torque values are for maximum conductor sizes

accommodated. Consult UL486 Tables 7-4, 7-5, & 7-6

for smaller conductor sizes

Fig. 1

Fig. 2

Universal Terminals for Copper/Aluminum; Six and Eight Conductor Designs

A-31

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

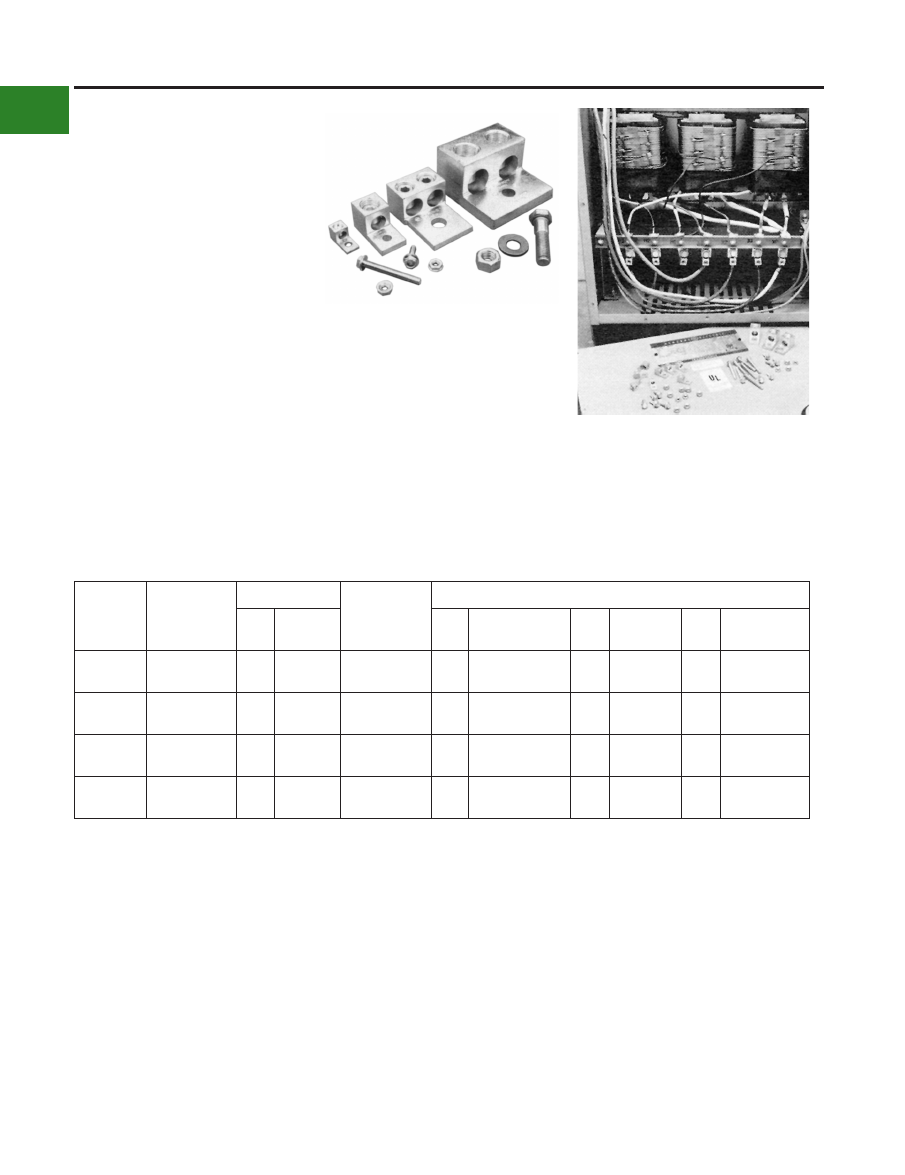

TYPE KAU-KIT

TRANSFORMER LUG KIT

These dual-rated lugs are constructed from

high strength aluminum alloy and electro tin-

plated to provide low contact resistance. Lugs and

mounting hardware packaged together in these

kits.

Features & Benefits

• UL Listed AL9CU dual rated set screw

terminals and CSA Certified

◊ Ensure the transformer feeders and

taps are terminated properly.

• Plated steel cap screws and hex nuts

with captive conical washers or individual

Belleville washers

◊ Terminal to bus connections are made

using proper hardware resulting in true

torque to pressure performance -

compensates for dissimilar metal

expansion and contraction.

Catalog

Number

Transformer

KVA Rating

Terminals

Wire Range

Aluminum

or Copper

Hardware

Qty

Catalog

Number

Qty

Bolt Size

Qty

Nut

Qty

Washer

KAU-KIT1

15 - 37.5 1Ø

15 - 45 3Ø

KA2U

KA29U

14 AWG-250

kcmil

1/4-20 X 3/4 HH

1/4 X 20 HN

Captive to Nut

KAU-KIT2

50 - 75 1Ø

75 - 112.5 3Ø

KA29U

6 AWG-250

kcmil

1/4-20 X 3/4 HH

1/4-20 X 2 HH

1/4 X 20 HN

Captive to Nut

KAU-KIT3

100 - 167 1Ø

150 - 300 3Ø

K2A31U

K2A40U

6 AWG-800

kcmil

1/2-13 X 3 HH

1/2-13 X 2-1/2 HH

1/2-13 HN

1/2 FW

1/2 Belleville

KAU-KIT4

400 - 500 3Ø

K2A40U

300 kcmil-800

kcmil

1/2-13 X 2 HH

1/2-13 X 2-1/2 HH

1/2-13 HN

1/2 FW

1/2 Belleville

HH = Hex Head

HN = Hex Nut

FW = Flat Washer

• Hardware packed in plastic bag

◊ No lost hardware prior to installation.

• Larger 800 kcmil lugs in KIT3 and KIT4

◊ Accommodates common 750 kcmil tap

conductors in larger transformers.

Transformer Lug Kits for Copper/Aluminum

A-32

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

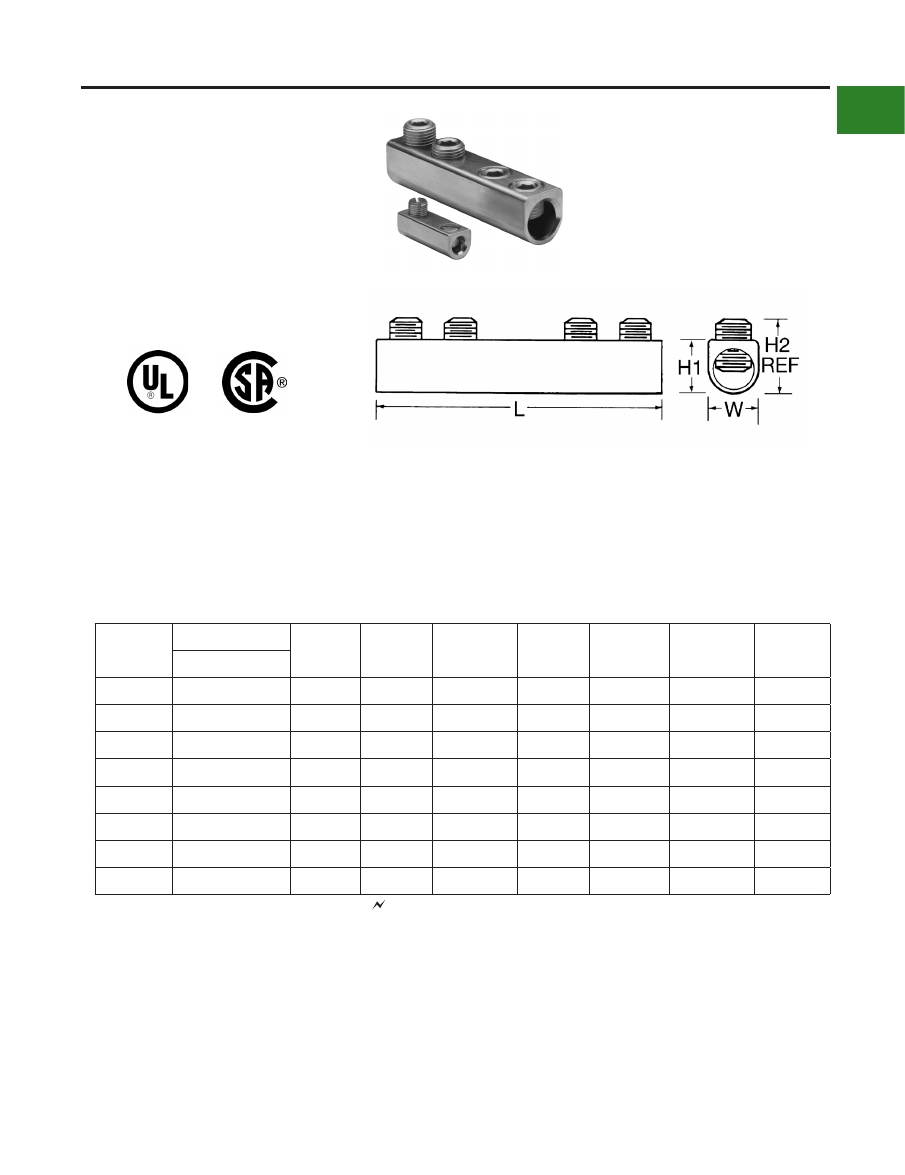

TYPE AMS

DUAL RATED SPLICER/REDUCER

For Copper and Aluminum Cable

All splicer/reducers are dual rated for use

with aluminum and copper conductors and

are constructed from high strength, tin plated

aluminum. PENETROX™ oxide inhibiting joint

compounds are recommended for all aluminum

applications.

Catalog

Number

Wire Range

H2 Max

Number of

Screws

Screw

Diameter

Hex

Size

Aluminum & Copper

AMS-2

14 AWG-2 AWG

1-19/32

9/16

0.79

3/8

Slot

AMS-0

14 AWG-1/0

1-29/32

3/4

0.86

7/16

Slot

AMS-4/0

6 AWG-4/0 AWG

2-5/16

1-3/32

1.28

9/16

5/16

AMS-250

6 AWG-250 kcmil

4-3/32

1-3/32

1.29

5/8

5/16

AMS-350

6 AWG-350 kcmil

4-11/32

1-3/32

1.3

11/16

5/16

AMS-500

3/0 AWG-500 kcmil

4-25/32

1-1/4

1-3/8

1.48

13/16

3/8

AMS-750

250 kcmil-750 kcmil

6-1/6

1-7/16

1-5/8

1.98

15/16

1/2

AMS-1000

500 kcmil-1000 kcmil

8-11/16

1-21/32

1-7/8

2.34

1-1/8

9/16

Features & Benefits

• All connectors are tin-plated

◊ Provide low contact resistance and

prevents galvanic corrosion

• Connectors feature rounded bottoms

◊ Facilitates taping

• Solid center barrier

◊ Prevents contact of dissimilar metals

• Large screw diameters

◊ Ensures greater surface contact with

wires for maximum pullout force

• Large cable ranges

◊ Each splice is also an effective

reducing connector

* Slotted Screws. H2 measured with maximum conductors,
reference only.

Complies with NFPA 78-86.

Splice/Reducer for Copper/Aluminum

A-33

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

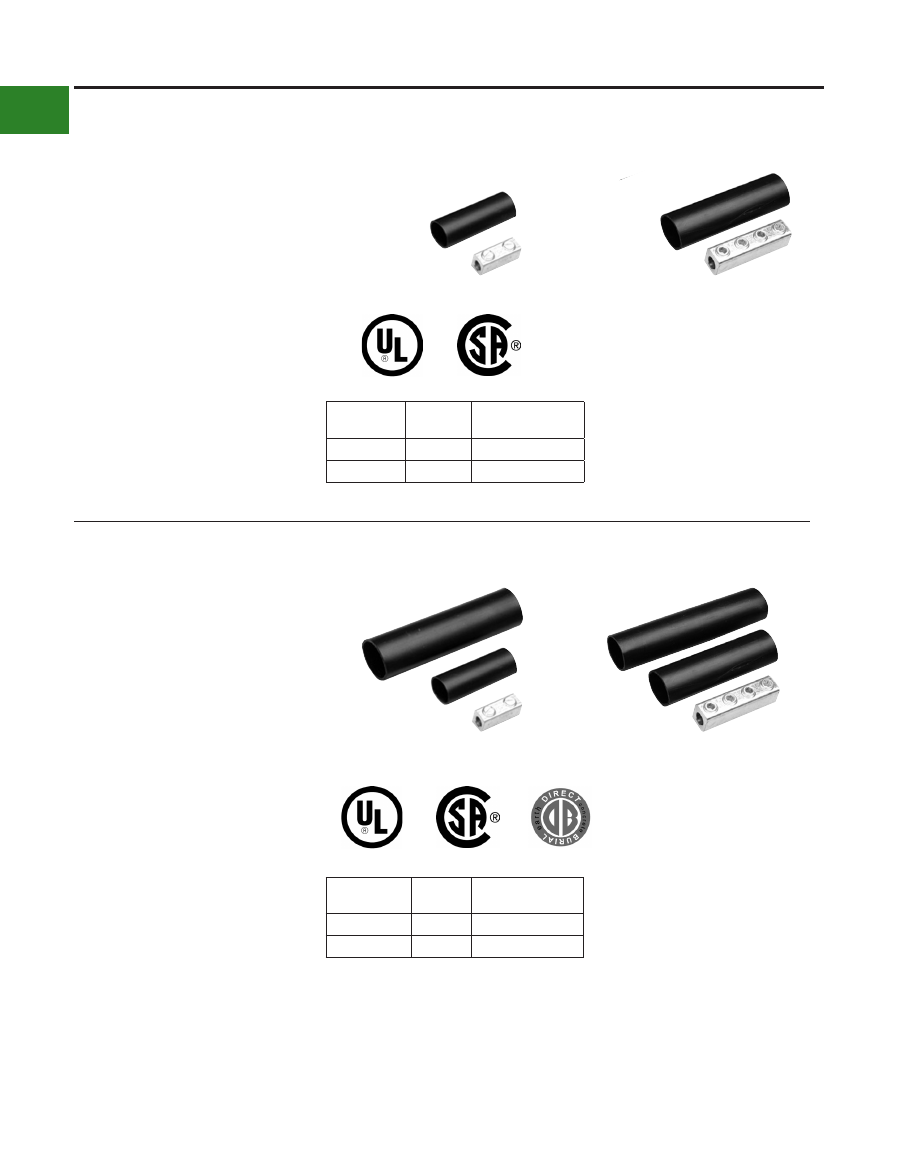

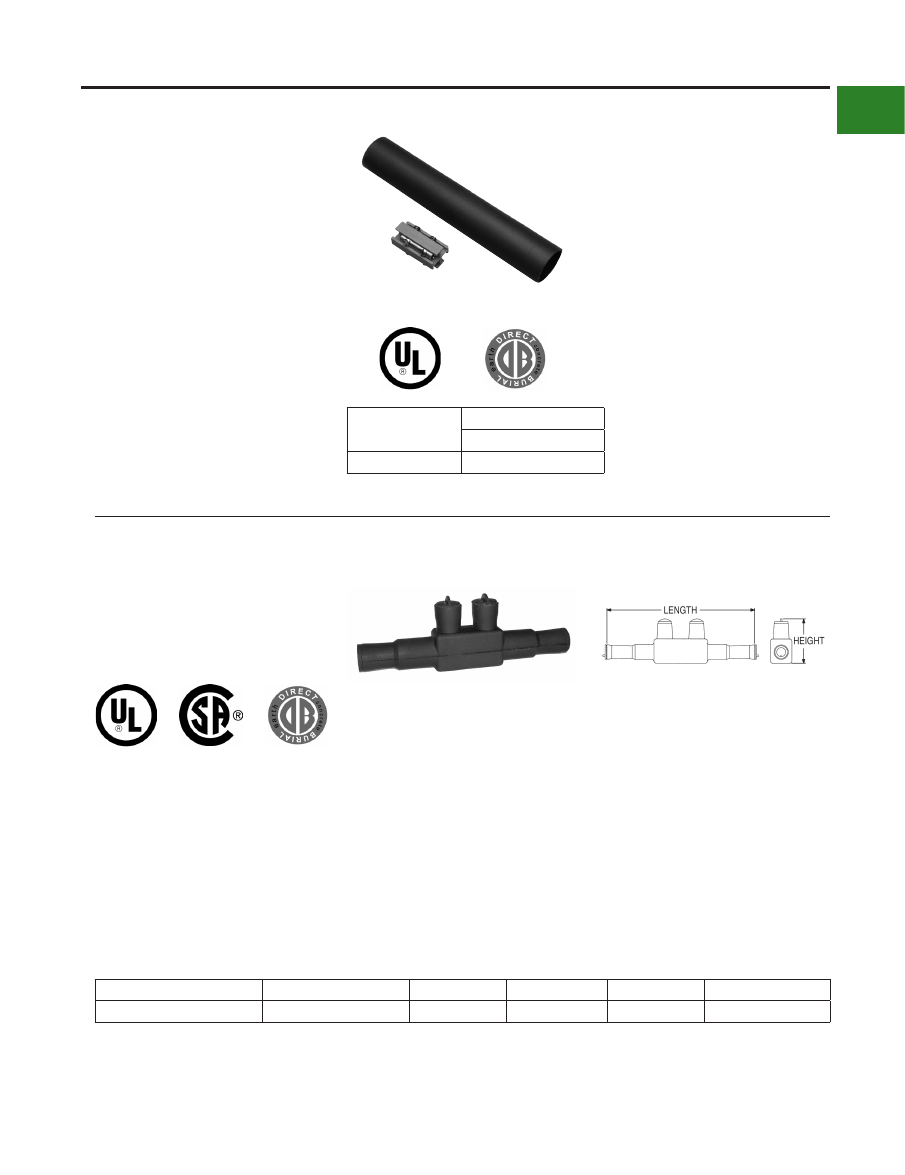

TYPE AGSKIT

ABOVE GRADE SPLICE KITS

For all Aluminum or Copper/Aluminum

Combinations

Type AGS Above Grade Splice Kit consists of a

standard AMS splice/reducer and a heavy wall

heat-shrink sleeve. The AMS Splice is dual rated

for use with aluminum and copper conductors

and are constructed from high strength, tin plated

aluminum that provides low contact resistance

and reduces the effects of galvanic corrosion.

Connector is installed with common installation

tools. The heavy wall heat shrink sleeve is lined

with adhesive material, providing a positive seal

against moisture egress. Heat shrink sleeve is

installed with standard propane torch, or electric

heat gun.

Catalog

Number

Figure

Number

Wire Range

AGSKIT2

8 AWG-2 AWG

AGSKIT250

1 AWG-250 kcmil

Fig. 1

Fig. 2

TYPE UGSKIT

WATERTIGHT/

UNDERGROUND SPLICE KITS

For all Aluminum or Copper/Aluminum

Combinations

Type UGS Watertight Underground Splice Kit

consists of a standard AMS splice/reducer and

two heavy wall heat-shrink sleeves. The AMS

Splice is dual rated for use with aluminum and

copper conductors and are constructed from

high strength, tin plated aluminum that provides

low contact resistance and reduces the effects

of galvanic corrosion. Connector installed with

common installation tools. Both heavy wall heat

shrink sleeves are lined with adhesive material,

providing a watertight splice that can withstand

abrasions that may occur during direct burial

applications. Heat shrink sleeve installed with

standard propane torch, or electric heat gun.

Catalog

Number

Figure

Number

Wire Range

UGSKIT2

8 AWG-2 AWG

UGSKIT250

1 AWG-250 kcmil

*UL486D Listed for Direct Burial

Splice Kits; Above Grade and Watertight/Underground for Copper/Aluminum

A-34

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

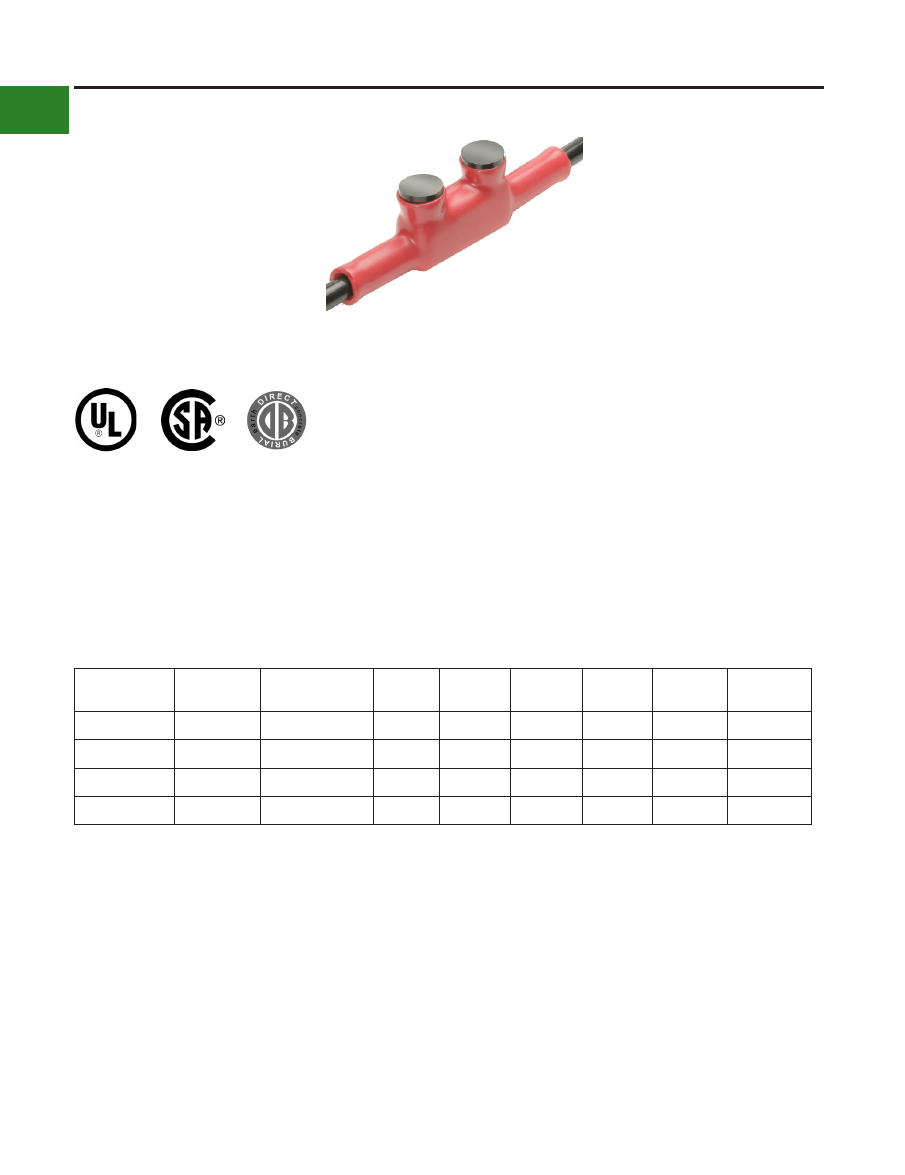

BURNDY UNITAP™

THE MOLE™

For Direct Burial

600V, 90° C

Designed specifically for direct burial applications,

the MOLE™ in-line splice/reducer is made with a

specialized plastisol material that forms a rugged

weathertight connection.

Catalog

Number

Number of

Ports

Wire Range (AWG/

kcmil)

Hex Key

Torque

(In.-lbs.)

Wire Strip

Length

BISR4-DB

#6 AWG-#4 AWG

4.30

0.68

1.39

1/8

7/8

BISR1-DB

#2 AWG-#1 AWG

6.30

0.88

1.75

5/32

130

1-3/32

BISR3/0-DB

1/0 -3/0 AWG

6.25

0.99

1.96

3/16

220

1-3/32

BISR250-DB

4/0 AWG-250 kcmil

6.70

1.18

2.17

5/16

360

1-5/16

Features & Benefits

• UL486D Listed for direct burial.

• AL9CU Dual-rated for copper and

aluminum applications. 600V 90°C.

• Plastisol covered AL6061-T6 aluminum

body saves time by eliminating the need

for heat shrink.

• Oxide inhibitor pre-installed preventing

moisture and contaminants from entering

contact area.

• Range-taking capability reduces the

number of connectors carried in inventory.

BISR-DB = BURNDY Inline Splice/Reducer Direct Burial.

UNITAP™ rated for code conductor only.

The MOLE™ Weathertight Splice/Reducer for Copper/Aluminum

A-36

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

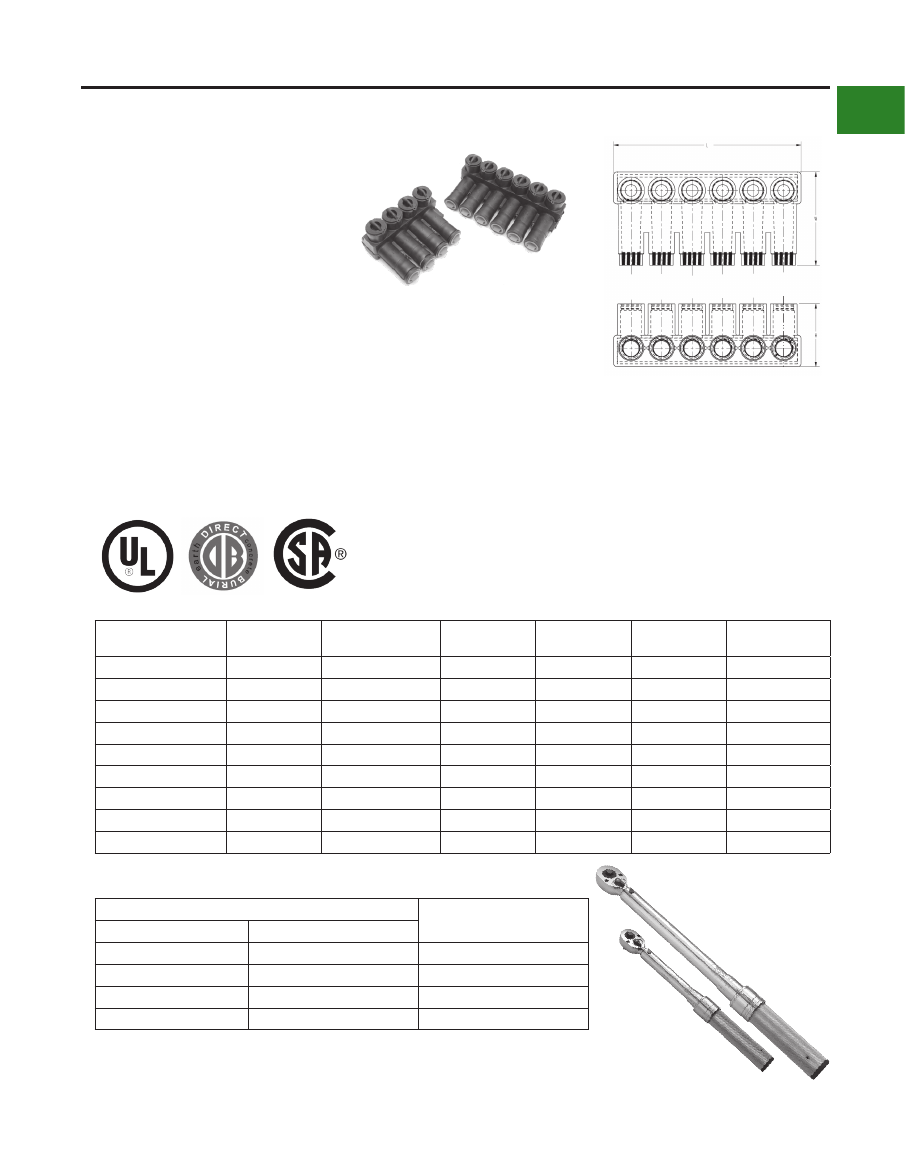

Direct Burial UNITAP™

Connectors

UNITAP™

Dual Rated Multiple Tap Connector

These rubber insulated, dual rated connectors are

for use in networks up to 600V. Suitable in light

fixture pole bases in commercial, industrial, or

residential markets. Distribution within strip malls,

for use in any multi-tenant facility. No taping or

heat shrink required.

Catalog Number

# of Ports

Wire Range

(AWG/kcmil)

Wire Strip Length

(in)

BIBS3502DB

12 AWG-350 kcmil

2.61

4.06

2.46

1.125

BIBS3503DB

12 AWG-350 kcmil

3.82

4.06

2.46

1.125

BIBS3504DB

12 AWG-350 kcmil

5.03

4.06

2.46

1.125

BIBS3505DB

12 AWG-350 kcmil

6.24

4.06

2.46

1.125

BIBS3506DB

12 AWG-350 kcmil

7.45

4.06

2.46

1.125

BIBS5003DB

10 AWG-500 kcmil

4.31

4.58

3.13

1.50

BIBS5004DB

10 AWG-500 kcmil

5.69

4.58

3.13

1.50

BIBS5005DB

10 AWG-500 kcmil

7.06

4.58

3.13

1.50

BIBS5006DB

10 AWG-500 kcmil

8.44

4.58

3.13

1.50

Features & Benefits

•

Dual rated for aluminum or copper

conductors

•

Each unit is individually marked for ease of

identification

•

Supplied with aluminum set-screws

•

Covering is the highest quality EPDM

rubber

•

Supplied with oxide inhibitor pre-installed

•

Submersible rated

•

Suitable for direct burial

•

Meets ANSI C119.1 and C119.4

requirements

•

Rated 600V and 90° C; UL Listed and CSA

Certified

•

For use in wet or damp locations

•

Silicone provided for conductor insertion

Recommended Torque Values for Direct Burial UNITAP™

Recommended BURNDY

Torque Wrench

Conductor Size

Recommended Torque Range

#12 - #6 AWG

125 - 150 in-lbs

BTW30150

#4 - 3/0 AWG

180 - 240 in-lbs

BTW150750

4/0 - 350 AWG

275 - 450 in-lbs

BTW150750

400 - 1000 AWG

475 - 550 in-lbs

BTW150750

Insulated Multiple Tap Submersible Connectors for Copper/Aluminum

A-37

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

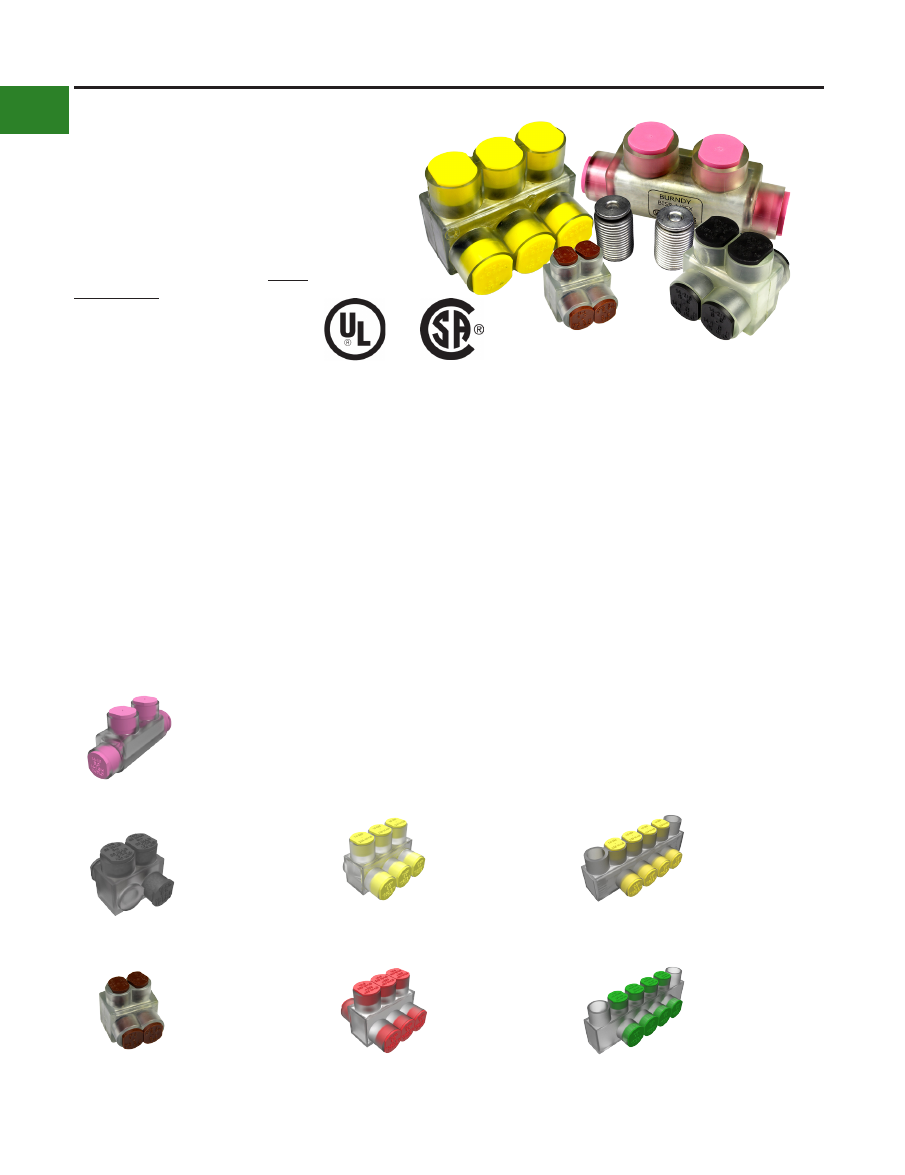

UNITAP™ Clear Insulated

Multi-Tap

UL Listed 486A-486B

UNITAP™ Clear Insulated Multi-Tap is UL

Listed to the UL Wire Connector Standard

UL486A-486B and CSA Certified for use with

flexible (fine stranded) conductor - with no

ferrules required! Featuring color coordinated

conductor port and screw port caps making it

easy to identify the maximum conductor size

accommodated by the connector.

A disc-pad screw has also been incorporated

to prevent damage to the fine strands as the

conductor is compressed during installation.

The connectors are shipped with the ‘pad’

attached to the screw by a thin stem; during

installation the pad is sheared from the stem

as it makes contact with the conductor and

remains stationary as the screw continues

to rotate until the recommended installation

torque is achieved.

The color coordinated conductor port

caps display the wire range and classes of

conductor accepted by the specific connector.

The screw port caps show the installation

torque information for quick and easy

reference during installation.

Features & Benefits

• 600 Volt Rated

• Fully Insulated Aluminum 6061-T6 connector body saves time and lowers

installation costs by eliminating the need for taping

• Listed to UL486A-B (File E9498)

• CSA Certified to C22.2, No. 65 (File 042860_c_00)

• Rated for use with flex conductor (No Ferrules Required!)

• AL9CU dual rated for use with copper and aluminum conductors

• Range taking designs will accommodate wire sizes from #14-750 kcmil Class B & C,

and #14-535 DLO Flex

• Configurations include Taps, In-Line Splice Reducers, Single-Sided Entry, and

Double-Sided Entry with the number of ports from 2 to 14

• Clear Plastisol Insulation allows visual confirmation that conductor is properly

inserted into port

• Operating temperature from -40°C to 135°C

• Conductor ports are pre-filled with oxide inhibitor

• Screw Port and Conductor Port caps provided to protect against contamination and

accidental contact of energized parts

• Caps are color coordinated to quickly identify maximum conductor size

accommodated

• Screw Port caps contain recommended installation torque values for quick and easy

reference

• Conductor Port caps contain the accommodated wire range and allowable

conductor classes

UNITAP™ Clear Insulated Multi-Tap UL Listed for Code and Flex Conductor

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

In-Line Splice Reducer

Tap - Opposite Side

Entry

Tap - Same Side Entry

Multiple Port Tap

Single Sided Entry

Multiple Port

Mounted Tap

Single Sided Entry

Multiple Port Tap

Double Sided Entry

Multiple Port

Mounted Tap

Double Sided Entry

A-38

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

UNITAP™ Clear Insulated Multi-Tap UL Listed for Code and Flex Conductor

UNITAP™

(Continued)

Wire Range

(AWG/kcmil)

Amp

Rating

# of

Ports

Configuration

Size (inches)

Hex

Key

Catalog Number

Cap

Color

Fig. #

Length Width Height

#14-#4 Class B & C

#14-#6 Class

G,H,I,K, DLO

95 A

Tap - Opposite Side Entry

1.08

1.50

1.25

1/8

BITO4FX

Brown

Tap - Same Side Entry

1.08

1.16

1.25

1/8

BIT4FX

Brown

Single Sided Entry

1.51

1.16

1.25

1/8

BIBS43FX

Brown

1.95

BIBS44FX

2.39

BIBS45FX

2.83

BIBS46FX

3.71

BIBS48FX

Double Sided Entry

1.08

1.50

1.25

1/8

BIBD42FX

Brown

1.51

BIBD43FX

1.95

BIBD44FX

2.39

BIBD45FX

2.83

BIBD46FX

3.71

BIBD48FX

#14-#2 Class B & C

#14-#2 Class

G,H,I,K, DLO

130 A

In-Line Splice Reducer

2.38

0.75

1.22

5/32

BISR2FX

Brown

#14-1/0 Class B & C

#14-#1 Class

G,H,I.K, DLO

170 A

In-Line Splice Reducer

2.91

0.75

1.22

5/32

BISR1/0FX

Pink

#14-2/0 Class B & C

#14-#1 Class

G,H,I,K, DLO

195 A

Tap - Opposite Side Entry

1.52

1.56

1.38

3/16

BITO2/0FX

Black

Tap - Same Side Entry

1.52

1.40

1.38

3/16

BIT2/0FX

Black

Single Sided Entry

2.19

1.31

1.38

3/16

BIBS2/03FX

Black

2.86

BIBS2/04FX

3.53

BIBS2/05FX

4.20

BIBS2/06FX

5.55

BIBS2/08FX

6.89

BIBS2/010FX

8.24

BIBS2/012FX

9.58

BIBS2/014FX

Double Sided Entry

1.52

1.56

1.38

3/16

BIBD2/02FX

Black

2.19

BIBD2/03FX

2.86

BIBD2/04FX

3.53

BIBD2/05FX

4.20

BIBD2/06FX

5.55

BIBD2/08FX

6.89

BIBD2/010FX

8.24

BIBD2/012FX

9.58

BIBD2/014FX

A-39

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

UNITAP™

(Continued)

UNITAP™ Clear Insulated Multi-Tap UL Listed for Code and Flex Conductor

Wire Range

(AWG/kcmil)

Amp

Rating

# of

Ports

Configuration

Size (inches)

Hex

Key

Catalog Number

Cap

Color

Fig. #

Length Width Height

#14-2/0 Class B & C

#14-#1 Class

G,H,I,K, DLO

195 A

Mountable Single

Sided Entry

4.20

1.25

1.50

3/16

BIBS2/04FXMT

Black

5.55

BIBS2/06FXMT

6.89

BIBS2/08FXMT

8.24

BIBS2/010FXMT

9.58

BIBS2/012FXMT

Mountable Double

Sided Entry

4.20

1.56

1.50

3/16

BIBD2/04FXMT

Black

6.89

BIBD2/08FXMT

8.24

BIBD2/010FXMT

9.58

BIBD2/012FXMT

#10-250 Class B & C

#10-3/0 Class

G,H,I,K, DLO

290 A

Tap - Opposite Side Entry

2.03

2.64

2.13

5/16

BITO250FX

Yellow

Tap - Same Side Entry

2.03

2.07

2.13

5/16

BIT250FX

Yellow

In-Line Splice Reducer

4.01

1.19

2.10

5/16

BISR250FX

Yellow

Single Sided Entry

2.97

2.07

2.13

5/16

BIBS2503FX

Yellow

3.91

BIBS2504FX

4.84

BIBS2505FX

5.78

BIBS2506FX

7.66

BIBS2508FX

9.53

BIBS25010FX

11.41

BIBS25012FX

13.29

BIBS25014FX

#10-250 Class B & C

#10-3/0 Class

G,H,I,K, DLO

290 A

Double Sided Entry

2.03

2.64

2.13

5/16

BIBD2502FX

Yellow

2.97

BIBD2503FX

3.91

BIBD2504FX

4.84

BIBD2505FX

5.78

BIBD2506FX

7.66

BIBD2508FX

9.53

BIBD25010FX

11.41

BIBD25012FX

13.29

BIBD25014FX

Mountable Single

Sided Entry

5.78

1.95

2.63

5/16

BIBS2504FXMT

Yellow

7.65

BIBS2506FXMT

9.53

BIBS2508FXMT

11.41

BIBS25010FXMT

13.29

BIBS25012FXMT

Mountable Double

Sided Entry

5.78

2.64

2.63

5/16

BIBD2504FXMT

Yellow

7.65

BIBS2506FXMT

9.53

BIBD2508FXMT

11.41

BIBD25010FXMT

13.29

BIBD25012FXMT

A-40

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

UNITAP™

(Continued)

UNITAP™ Clear Insulated Multi-Tap UL Listed for Code and Flex Conductor

Wire Range

(AWG/kcmil)

Amp

Rating

# of

Ports

Configuration

Size (inches)

Hex

Key

Catalog Number

Cap

Color

Fig. #

Length Width Height

#10-350 Class B & C

#10-250 Class

G,H,I,K, DLO

350 A

Tap - Opposite Side Entry

2.22

3.00

2.50

5/16

BITO350FX

Red

Tap - Same Side Entry

2.22

2.32

2.50

5/16

BIT350FX

Red

In-Line Splice Reducer

4.63

1.34

2.35

5/16

BISR350FX

Red

Single Sided Entry

3.13

2.32

2.50

5/16

BIBS3503FX

Red

4.04

BIBS3504FX

4.95

BIBS3505FX

5.86

BIBS3506FX

7.68

BIBS3508FX

9.50

BIBS35010FX

11.32

BIBS35012FX

13.14

BIBS35014FX

Double Sided Entry

3.13

3.00

2.50

5/16

BIBD3502FX

Red

4.04

BIBD3503FX

4.95

BIBD3504FX

5.86

BIBD3505FX

7.68

BIBD3506FX

9.50

BIBD3508FX

11.32

BIBD35010FX

13.14

BIBD35012FX

Mountable Single

Sided Entry

5.86

2.32

2.63

5/16

BIBS3504FXMT

Red

7.68

BIBS3506FXMT

9.50

BIBS3508FXMT

11.32

BIBS35010FXMT

13.14

BIBS35012FXMT

Mountable Double

Sided Entry

5.86

3.00

2.63

5/16

BIBD3504FXMT

Red

7.68

BIBD3506FXMT

9.50

BIBD3508FXMT

11.32

BIBD35010FXMT

13.14

BIBD35012FXMT

#6-500 Class B & C

#6-373 Class

G,H,I,K, DLO

430 A

In-Line Splice Reducer

5.00

1.62

2.62

3/8

BISR500FX

Brown

#4-600 Class B & C

#4-373 Class

G,H,I,K, DLO

475 A

Tap - Opposite Side Entry

2.72

3.00

2.75

3/8

BITO600FX

Green

Tap - Same Side Entry

2.72

2.38

2.75

3/8

BIT600FX

Green

Single Sided Entry

4.00

2.38

2.75

3/8

BIBS6003FX

Green

5.28

BIBS6004FX

6.56

BIBS6005FX

7.84

BIBS6006FX

Wire Range

(AWG/kcmil)

Amp

Rating

# of

Ports

Configuration

Size (inches)

Hex

Key

Catalog Number

Cap

Color

Fig. #

Length Width Height

#14-2/0 Class B & C

#14-#1 Class

G,H,I,K, DLO

195 A

Mountable Single

Sided Entry

4.20

1.25

1.50

3/16

BIBS2/04FXMT

Black

5.55

BIBS2/06FXMT

6.89

BIBS2/08FXMT

8.24

BIBS2/010FXMT

9.58

BIBS2/012FXMT

Mountable Double

Sided Entry

4.20

1.56

1.50

3/16

BIBD2/04FXMT

Black

6.89

BIBD2/08FXMT

8.24

BIBD2/010FXMT

9.58

BIBD2/012FXMT

#10-250 Class B & C

#10-3/0 Class

G,H,I,K, DLO

290 A

Tap - Opposite Side Entry

2.03

2.64

2.13

5/16

BITO250FX

Yellow

Tap - Same Side Entry

2.03

2.07

2.13

5/16

BIT250FX

Yellow

In-Line Splice Reducer

4.01

1.19

2.10

5/16

BISR250FX

Yellow

Single Sided Entry

2.97

2.07

2.13

5/16

BIBS2503FX

Yellow

3.91

BIBS2504FX

4.84

BIBS2505FX

5.78

BIBS2506FX

7.66

BIBS2508FX

9.53

BIBS25010FX

11.41

BIBS25012FX

13.29

BIBS25014FX

#10-250 Class B & C

#10-3/0 Class

G,H,I,K, DLO

290 A

Double Sided Entry

2.03

2.64

2.13

5/16

BIBD2502FX

Yellow

2.97

BIBD2503FX

3.91

BIBD2504FX

4.84

BIBD2505FX

5.78

BIBD2506FX

7.66

BIBD2508FX

9.53

BIBD25010FX

11.41

BIBD25012FX

13.29

BIBD25014FX

Mountable Single

Sided Entry

5.78

1.95

2.63

5/16

BIBS2504FXMT

Yellow

7.65

BIBS2506FXMT

9.53

BIBS2508FXMT

11.41

BIBS25010FXMT

13.29

BIBS25012FXMT

Mountable Double

Sided Entry

5.78

2.64

2.63

5/16

BIBD2504FXMT

Yellow

7.65

BIBS2506FXMT

9.53

BIBD2508FXMT

11.41

BIBD25010FXMT

13.29

BIBD25012FXMT

A-41

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

UNITAP™

(Continued)

UNITAP™ Clear Insulated Multi-Tap UL Listed for Code and Flex Conductor

Notes:

NOT UL Listed

Wire Range

(AWG/kcmil)

Amp

Rating

# of

Ports

Configuration

Size (inches)

Hex

Key

Catalog Number

Cap

Color

Fig. #

Length Width Height

#4-600 Class B & C

#4-373 Class

G,H,I,K, DLO

475 A

Single Sided Entry

10.41

2.38

2.75

3/8

BIBS6008FX

Green

12.97

BIBS60010FX

15.53

BIBS60012FX

18.09

BIBS60014FX

Double Sided Entry

2.72

3.00

2.75

3/8

BIBD6002FX

Green

4.00

BIBD6003FX

5.28

BIBD6004FX

6.56

BIBD6005FX

7.84

BIBD6006FX

10.41

BIBD6008FX

12.97

BIBD60010FX

15.53

BIBD60012FX

18.09

BIBD60014FX

Mountable Single

Sided Entry

5.53

2.25

2.88

3/8

BIBS6004FXMT

Green

7.40

BIBS6006FXMT

9.28

BIBS6008FXMT

13.03

BIBS60012FXMT

Mountable Double

Sided Entry

5.53

3.00

2.88

3/8

BIBD6004FXMT

Green

7.40

BIBD6006FXMT

9.28

BIBD6008FXMT

11.16

BIBD60010FXMT

13.03

BIBD60012FXMT

#2-750 Class B & C

#2-535 Class

G,H,I,K, DLO

535 A

Tap - Opposite Side Entry

2.87

3.38

3.00

3/8

BITO750FX

Black

Tap - Same Side Entry

2.87

2.70

3.00

3/8

BIT750FX

Black

Single Sided Entry

4.00

2.70

3.00

3/8

BIBS7503FX

Black

5.38

BIBS7504FX

8.13

BIBS7506FX

10.88

BIBS7508FX

13.63

BIBS75010FX

16.38

BIBS75012FX

19.13

BIBS75014FX

Double Sided Entry

2.87

3.38

3.00

3/8

BIBD7502FX

Black

4.25

BIBD7503FX

5.63

BIBD7504FX

8.37

BIBD7506FX

11.13

BIBD7508FX

13.87

BIBD75010FX

16.63

BIBD75012FX

19.37

BIBD75014FX

A-42

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

TYPES BIT, BITO, BISR

UNITAP™

Clear Insulated Multiple Tap

Connectors

Tap connections and in-line splice/reductions are

made quickly and easily with the UNITAP™ line

of connectors. UL486B Listed. Dual-rated AL9CU

for any stranded copper or stranded aluminum

applications. 600 Volt, 90° C.

Features & Benefits

• Clear Plastisol covered AL6061-T6

aluminum body

◊ Saves time, lowers installation

costs, eliminates taping.

• Clear Plastisol

◊ Allows visual confirmation that

conductor is properly inserted.

• Oxide inhibitor pre-installed

◊ Inhibits moisture and contaminants

from entering the contact area.

• Range-taking

◊ Reduces number of connectors

carried in inventory.

Catalog

Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

Figure

Number

BIT4

14 AWG-4 AWG

1.16

1.25

1/8

BITO4

1.50

BIT2/0

14 AWG-2/0 AWG

1.52

1.40

1.38

3/16

BITO2/0

1.56

BIT250

10 AWG-250 kcmil

2.03

2.07

2.13

BITO250

2.64

5/16

BIT350

10 AWG-350 kcmil

2.22

2.32

2.50

3/16

BITO350

3.00

5/16

BIT600

4 AWG-600 kcmil

2.72

2.38

2.75

3/16

BITO600

3.00

3/8

BIT750 *

2 AWG-750 kcmil

2.87

2.70

3.00

3/16

BITO750 *

3.38

3/8

Fig. 1

Fig. 2

2 Port, 1 or 2 Sided Entry

* BIT750 and BITO750 are not UL Listed.

UNITAP™ rated for code conductor only.

Catalog

Number

Wire Range

(AWG/kcmil)

Hex Key

BISR2

#14-2

2.38

0.75

1.22

5/32

BISR1/0

#14-1/0

2.91

0.91

1.38

3/16

BISR250

#10-250

4.01

1.19

2.10

5/16

BISR350

#10-350

4.63

1.34

2.35

5/16

BISR500

#6-500

5.00

1.62

2.62

3/8

In-Line Splicer/Reducer

UNITAP™ Clear Insulated Multiple Tap Connectors; In-Line Splice/Reducers

A-43

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

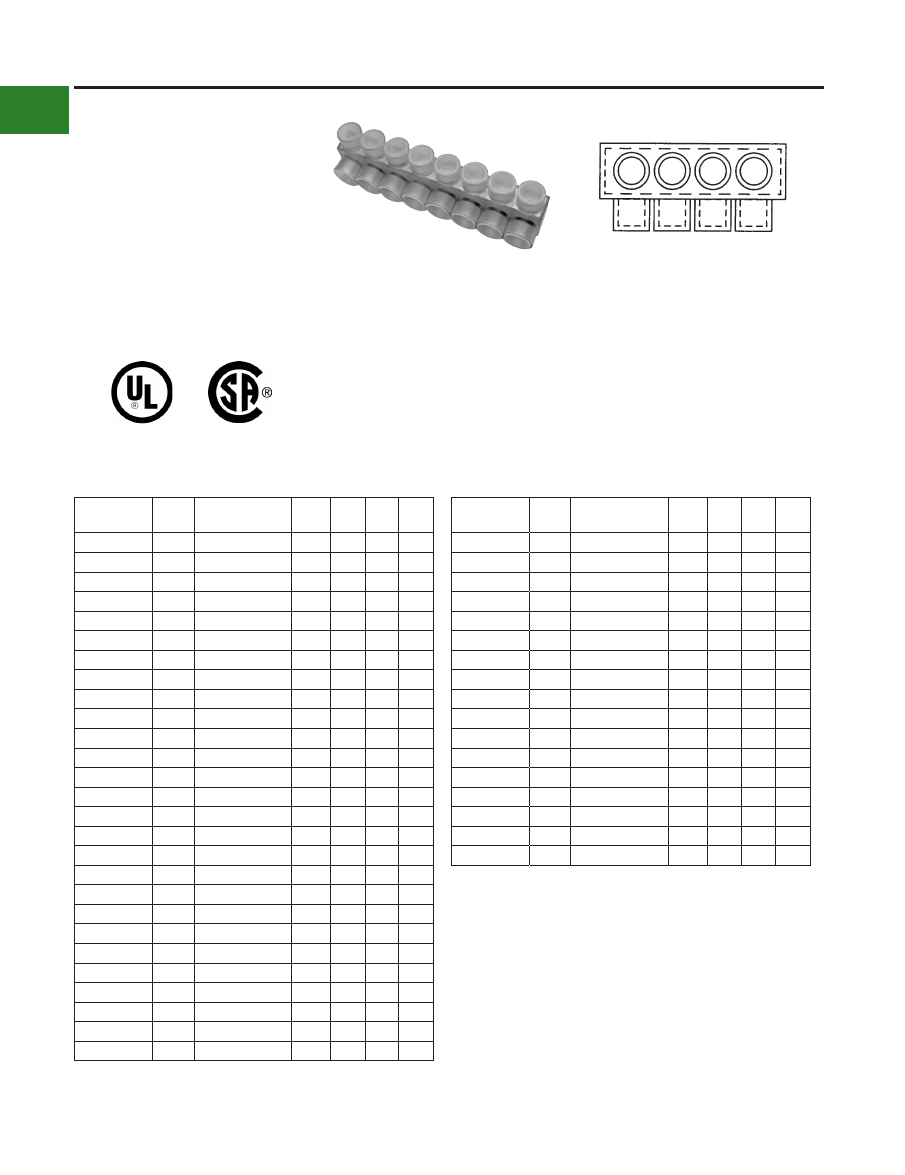

TYPE BIBS

UNITAP™

Clear Insulated Multiple Tap

Connectors

Tap connections are made quickly and easily with

the UNITAP™ line of connectors. UL486B Listed.

Dual-rated AL9CU for any stranded copper or

stranded aluminum applications. 600 Volt, 90° C.

Features & Benefits

• Clear Plastisol covered AL6061-T6

aluminum body

◊ Saves time, lowers installation

costs, eliminates taping

• Clear Plastisol

◊ Allows visual confirmation that

conductor is properly inserted

Catalog

Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBS4-3

14 AWG-4 AWG

1.51 1.25 1.25 1/8

BIBS4-4

14 AWG-4 AWG

1.95 1.25 1.25 1/8

BIBS4-5

14 AWG-4 AWG

2.39 1.25 1.25 1/8

BIBS4-6

14 AWG-4 AWG

2.83 1.25 1.25 1/8

BIBS4-8

14 AWG-4 AWG

3.71 1.25 1.25 1/8

BIBS2/0-3

14 AWG-2/0 Str

2.19 1.31 1.38 3/16

BIBS2/0-4

14 AWG-2/0 Str

2.86 1.31 1.38 3/16

BIBS2/0-5

14 AWG-2/0 Str

3.53 1.31 1.38 3/16

BIBS2/0-6

14 AWG-2/0 Str

4.20 1.31 1.38 3/16

BIBS2/0-8

14 AWG-2/0 Str

5.55 1.31 1.38 3/16

BIBS2/0-10

14 AWG-2/0 Str

6.89 1.31 1.38 3/16

BIBS2/0-12

14 AWG-2/0 Str

8.24 1.31 1.38 3/16

BIBS2/0-14

14 AWG-2/0 Str

9.58 1.31 1.38 3/16

BIBS250-3

10 AWG-250 kcmil 2.97 2.07 2.13 5/16

BIBS250-4

10 AWG-250 kcmil 3.91 2.07 2.13 5/16

BIBS250-5

10 AWG-250 kcmil 4.84 2.07 2.13 5/16

BIBS250-6

10 AWG-250 kcmil 5.78 2.07 2.13 5/16

BIBS250-8

10 AWG-250 kcmil 7.66 2.07 2.13 5/16

BIBS250-10

10 AWG-250 kcmil 9.53 2.07 2.13 5/16

BIBS250-12

10 AWG-250 kcmil 11.41 2.07 2.13 5/16

BIBS250-14

10 AWG-250 kcmil 13.29 2.07 2.13 5/16

BIBS350-3

10 AWG-350 kcmil 3.13 2.32 2.50 5/16

BIBS350-4

10 AWG-350 kcmil 4.04 2.32 2.50 5/16

BIBS350-5

10 AWG-350 kcmil 4.95 2.32 2.50 5/16

BIBS350-6

10 AWG-350 kcmil 5.86 2.32 2.50 5/16

BIBS350-8

10 AWG-350 kcmil 7.68 2.32 2.50 5/16

BIBS350-10

10 AWG-350 kcmil 9.50 2.32 2.50 5/16

Catalog

Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBS350-12

10 AWG-350 kcmil 11.32 2.32 2.50 5/16

BIBS350-14

10 AWG-350 kcmil 13.14 2.32 2.50 5/16

BIBS600-3

4 AWG-600 kcmil

4.00 2.38 2.75 3/8

BIBS600-4

4 AWG-600 kcmil

5.28 2.38 2.75 3/8

BIBS600-5

4 AWG-600 kcmil

6.56 2.38 2.75 3/8

BIBS600-6

4 AWG-600 kcmil

7.84 2.38 2.75 3/8

BIBS600-8

4 AWG-600 kcmil 10.41 2.38 2.75 3/8

BIBS600-10

4 AWG-600 kcmil 12.97 2.38 2.75 3/8

BIBS600-12

4 AWG-600 kcmil 15.53 2.38 2.75 3/8

BIBS600-14

4 AWG-600 kcmil 18.09 2.38 2.75 3/8

BIBS750-3*

2 AWG-750 kcmil

4.00 2.70 3.00 3/8

BIBS750-4*

2 AWG-750 kcmil

5.38 2.70 3.00 3/8

BIBS750-6*

2 AWG-750 kcmil

8.13 2.70 3.00 3/8

BIBS750-8*

2 AWG-750 kcmil 10.88 2.70 3.00 3/8

BIBS750-10*

2 AWG-750 kcmil 13.63 2.70 3.00 3/8

BIBS750-12*

2 AWG-750 kcmil 16.38 2.70 3.00 3/8

BIBS750-14*

2 AWG-750 kcmil 19.13 2.70 3.00 3/8

MULTI-PORT

Single-Sided Entry

NOTE:

Only 1 conductor per port allowed.

* Not UL Listed.

UNITAP™ rated for code conductor only.

• Oxide inhibitor pre-installed

◊ Inhibits moisture and contaminants

from entering the contact area

• Range-taking

◊ Reduces number of connectors

carried in inventory

UNITAP™ Clear Insulated Multiple Tap Connectors; Single-Sided Entry

A-44

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

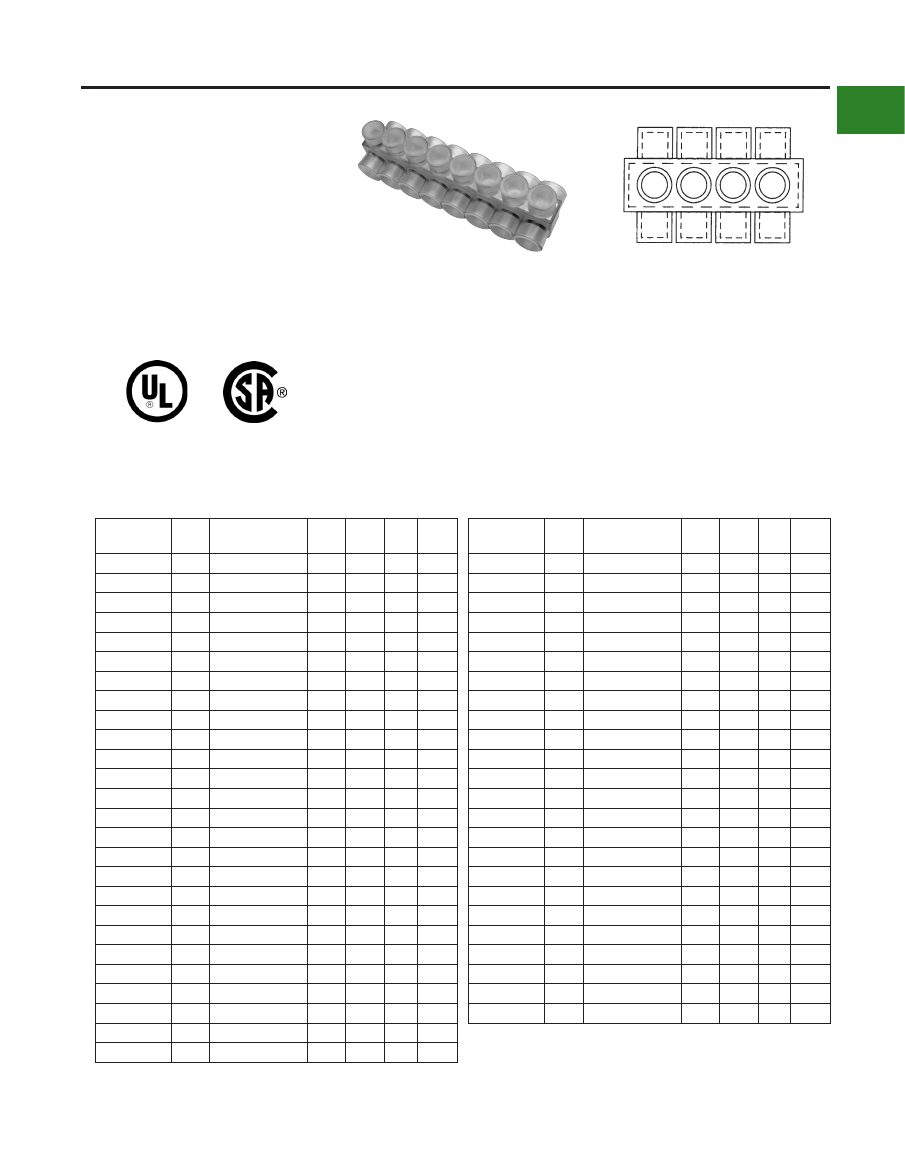

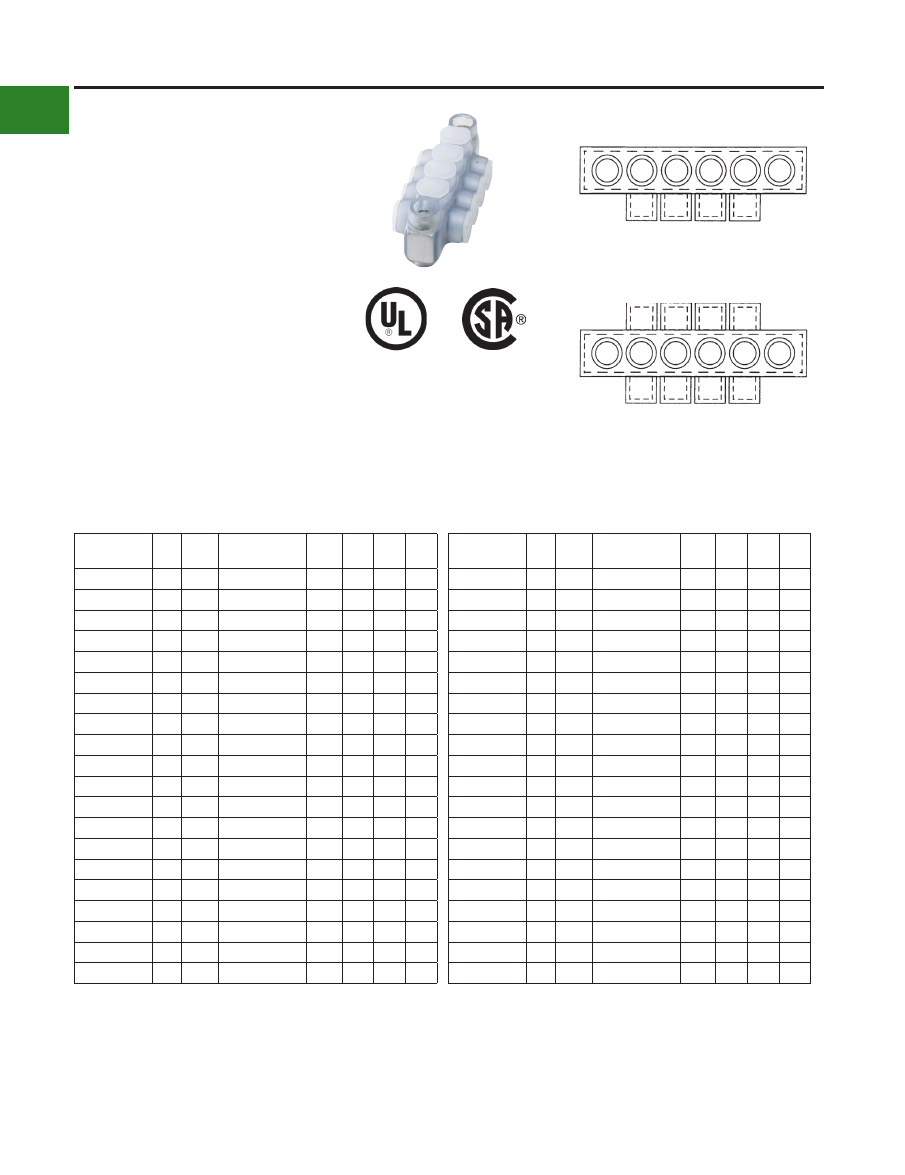

TYPE BIBD

UNITAP™

Clear Insulated Multiple Tap

Connectors

Tap connections are made quickly and easily with

the UNITAP™ line of connectors. UL486B Listed.

Dual-rated AL9CU for any stranded copper or

stranded aluminum applications. 600 Volt, 90° C.

Features & Benefits

• Clear Plastisol covered AL6061-T6

aluminum body

◊ Saves time, lowers installation costs,

eliminates taping

• Clear Plastisol

◊ Allows visual confirmation that

conductor is properly inserted

MULTI-PORT

Double-Sided Entry

Catalog

Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBD4-2

14 AWG-4 Str

1.50

1.08 1.25

1/8

BIBD4-3

14 AWG-4 Str

1.50

1.51 1.25

1/8

BIBD4-4

14 AWG-4 str

1.50

1.95 1.25

1/8

BIBD4-5

14 AWG-4 Str

1.50

2.39 1.25

1/8

BIBD4-6

14 AWG-4 Str

1.50

2.83 1.25

1/8

BIBD4-8

14 AWG-4 str

1.50

3.71 1.25

1/8

BIBD2/0-2

14 AWG-2/0 Str

1.56

1.52 1.38 3/16

BIBD2/0-3

14 AWG-2/0 Str

1.56

2.19 1.38 3/16

BIBD2/0-4

#14-2/0 Str

1.56

2.86 1.38 3/16

BIBD2/0-5

#14-2/0 Str

1.56

3.53 1.38 3/16

BIBD2/0-6

14 AWG-2/0 Str

1.56

4.20 1.38 3/16

BIBD2/0-8

14 AWG-2/0 Str

1.56

5.55 1.38 3/16

BIBD2/0-10

14 AWG-2/0 Str

1.56

6.89 1.38 3/16

BIBD2/0-12

14 AWG-2/0 Str

1.56

8.24 1.38 3/16

BIBD2/0-14

14 AWG-2/0 Str

1.56

9.58 1.38 3/16

BIBD250-2

10 AWG-250 kcmil 2.64

2.03 2.13

5/16

BIBD250-3

10 AWG-250 kcmil 2.64

2.97 2.13

5/16

BIBD250-4

10 AWG-250 kcmil 2.64

3.91 2.13

5/16

BIBD250-5

10 AWG-250 kcmil 2.64

4.84 2.13

5/16

BIBD250-6

10 AWG-250 kcmil 2.64

5.78 2.13

5/16

BIBD250-8

10 AWG-250 kcmil 2.64

7.66 2.13

5/16

BIBD250-10

10 AWG-250 kcmil 2.64

9.53 2.13

5/16

BIBD250-12

10 AWG-250 kcmil 2.64 11.41 2.13

5/16

BIBD250-14

10 AWG-250 kcmil 2.64 13.29 2.13

5/16

BIBD350-2

10 AWG-350 kcmil 3.00

2.22 2.50 5/16

BIBD350-3

10 AWG-350 kcmil 3.00

3.13 2.50 5/16

Catalog

Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBD350-4

10 AWG-350 kcmil 3.00

4.04 2.50 5/16

BIBD350-5

10 AWG-350 kcmil 3.00

4.95 2.50 5/16

BIBD350-6

10 AWG-350 kcmil 3.00

5.86 2.50 5/16

BIBD350-8

10 AWG-350 kcmil 3.00

7.68 2.50 5/16

BIBD350-10

10 AWG-350 kcmil 3.00

9.50 2.50 5/16

BIBD350-12

10 AWG-350 kcmil 3.00 11.32 2.50 5/16

BIBD350-14

10 AWG-350 kcmil 3.00 13.14 2.50 5/16

BIBD600-2

4 AWG-600 kcmil

3.00

2.56 2.75

3/8

BIBD600-3

4 AWG-600 kcmil

3.00

3.77 2.75

3/8

BIBD600-4

4 AWG-600 kcmil

3.00

4.97 2.75

3/8

BIBD600-5

4 AWG-600 kcmil

3.00

6.17 2.75

3/8

BIBD600-6

4 AWG-600 kcmil

3.00

7.37 2.75

3/8

BIBD600-8

4 AWG-600 kcmil

3.00

9.78 2.75

3/8

BIBD600-10

4 AWG-600 kcmil

3.00 12.97 2.75

3/8

BIBD600-12

4 AWG-600 kcmil

3.00 15.53 2.75

3/8

BIBD600-14

4 AWG-600 kcmil

3.00 18.09 2.75

3/8

BIBD750-2*

2 AWG-750 kcmil

3.38

2.87 3.00

3/8

BIBD750-3*

2 AWG-750 kcmil

3.38

4.25 3.00

3/8

BIBD750-4*

2 AWG-750 kcmil

3.38

5.63 3.00

3/8

BIBD750-6*

2 AWG-750 kcmil

3.38

8.37 3.00

3/8

BIBD750-8*

2 AWG-750 kcmil

3.38

11.13 3.00

3/8

BIBD750-10*

2 AWG-750 kcmil

3.38 13.87 3.00

3/8

BIBD750-12*

2 AWG-750 kcmil

3.38 16.63 3.00

3/8

BIBD750-14*

2 AWG-750 kcmil

3.38 19.37 3.00

3/8

NOTE:

Only 1 conductor per port allowed.

* Not UL Listed.

UNITAP™ rated for code conductor only.

• Oxide inhibitor pre-installed

◊ Inhibits moisture and contaminants

from entering the contact area

• Range-taking

◊ Reduces number of connectors

carried in inventory

UNITAP™ Clear Insulated Multiple Tap Connectors; Double-Sided Entry

A-45

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

TYPE BIBS-MT, BIBD-MT

UNITAP™

Clear Insulated Multiple Tap

Connectors Mounting Version

The BIBS-MT and BIBD-MT series UNITAP™

offer the same multi-port capabilities as the

standard UNITAP™ connectors except these -MT

types are provided with two isolated mounting

holes at both ends of the connector for direct

mounting to a trough, gutter or wireway. They will

accommodate up to standard 1/4" hardware.

Fig. 1

Fig. 2

Catalog

Number

Fig.

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBS2/04MT

#14 -2/0 Str

4.20 1.25 1.50 3/16

BIBS2/06MT

#14 -2/0 Str

5.54 1.25 1.50 3/16

BIBS2/08MT

14 AWG-2/0 Str

6.89 1.25 1.50 3/16

BIBS2/010MT

14 AWG-2/0 Str

8.23 1.25 1.50 3/16

BIBS2/012MT

14 AWG-2/0 Str

9.58 1.25 1.50 3/16

BIBS2504MT

10 AWG-250 kcmil 5.78 1.95 2.63 5/16

BIBS2506MT

10 AWG-250 kcmil 7.65 1.95 2.63 5/16

BIBS2508MT

10 AWG-250 kcmil 9.53 1.95 2.63 5/16

BIBS25010MT

10 AWG-250 kcmil 11.41 1.95 2.63 5/16

BIBS25012MT

10 AWG-250 kcmil 13.28 1.95 2.63 5/16

BIBS3504MT

10 AWG-350 kcmil 5.86 2.19 2.63 5/16

BIBS3506MT

10 AWG-350 kcmil 7.68 2.19 2.63 5/16

BIBS3508MT

10 AWG-350 kcmil 9.50 2.19 2.63 5/16

BIBS35010MT

10 AWG-350 kcmil 11.32 2.19 2.63 5/16

BIBS35012MT

10 AWG-350 kcmil 13.41 2.19 2.63 5/16

BIBS6004MT

4 AWG-600 kcmil

7.84 2.25 2.88 3/8

BIBS6006MT

4 AWG-600 kcmil 10.41 2.25 2.88 3/8

BIBS6008MT

4 AWG-600 kcmil 12.97 2.25 2.88 3/8

BIBS60010MT

4 AWG-600 kcmil 15.53 2.25 2.88 3/8

BIBS60012MT

4 AWG-600 kcmil 18.09 2.25 2.88 3/8

Catalog

Number

Fig.

# of

Ports

Wire Range

(AWG/kcmil)

Hex

Key

BIBD2/04MT

14 AWG-2/0 AWG 4.20 1.56 1.50 3/16

BIBD2/06MT

14 AWG-2/0 AWG 5.54 1.56 1.50 3/16

BIBD2/08MT

14 AWG-2/0 AWG 6.89 1.56 1.50 3/16

BIBD2/010MT

14 AWG-2/0 AWG 8.23 1.56 1.50 3/16

BIBD2/012MT

14 AWG-2/0 AWG 9.58 1.56 1.50 3/16

BIBD2504MT

10 AWG-250 kcmil 5.78 2.64 2.26 5/16

BIBD2506MT

10 AWG-250 kcmil 7.65 2.64 2.26 5/16

BIBD2508MT

10 AWG-250 kcmil 9.53 2.64 2.26 5/16

BIBD25010MT

10 AWG-250 kcmil 11.41 2.64 2.26 5/16

BIBD25012MT

10 AWG-250 kcmil 13.28 2.64 2.26 5/16

BIBD3504MT

10 AWG-350 kcmil 5.86 3.00 2.63 5/16

BIBD3506MT

10 AWG-350 kcmil 7.68 3.00 2.63 5/16

BIBD3508MT

10 AWG-350 kcmil 9.50 3.00 2.63 5/16

BIBD35010MT

10 AWG-350 kcmil 11.32 3.00 2.63 5/16

BIBD35012MT

10 AWG-350 kcmil 13.41 3.00 2.63 5/16

BIBD6004MT

4 AWG-600 kcmil

7.84 3.00 2.88 3/8

BIBD6006MT

4 AWG-600 kcmil 10.41 3.00 2.88 3/8

BIBD6008MT

4 AWG-600 kcmil 12.97 3.00 2.88 3/8

BIBD60010MT

4 AWG-600 kcmil 15.53 3.00 2.88 3/8

BIBD60012MT

4 AWG-600 kcmil 18.09 3.00 2.88 3/8

MULTI-PORT

Single-Sided Entry

MULTI-PORT

Double-Sided Entry

UNITAP™ rated for code conductor only.

UNITAP™ Clear Insulated Multiple Tap Connectors; Single- and Double-Sided Entry with Mounting Holes

A-46

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

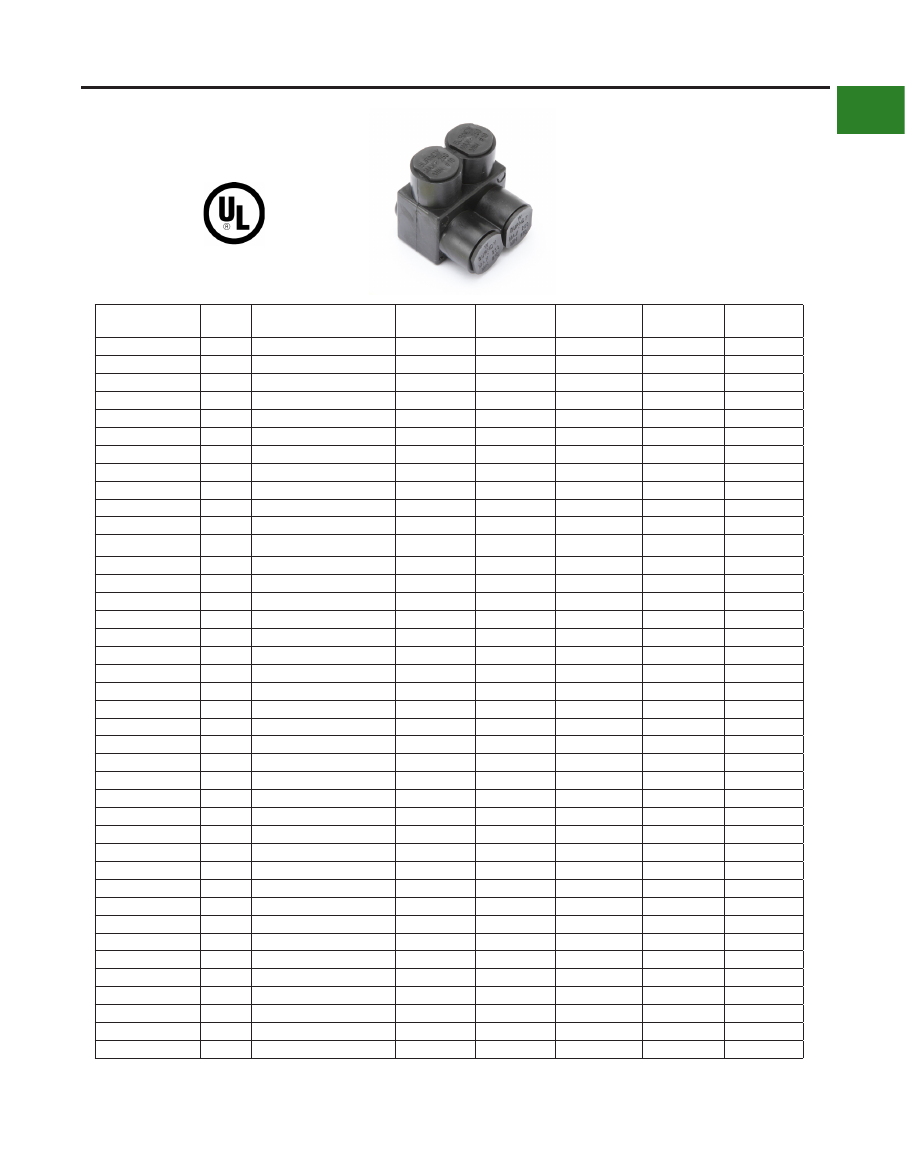

UV RATED

BLACK UNITAP™

UNITAP™

600V, 90°C

Features & Benefits

• UV Rated Plastisol covered AL6061-T6

aluminum body saves time by eliminating

the need for taping.

• Oxide inhibitor pre-installed inhibits

moisture and contaminants from entering

the contact area.

• Range-taking capability reduces the

number of connectors carried in inventory.

• UL486B Listed, AL9CU, 600V 90°C.

Catalog Number

# of

Ports

Wire Range

(AWG/kcmil)

Hex Key

Torque

1PL42

14 AWG-4 AWG

1.08

1.16

1.25

1/8

1PLO42

14 AWG-4 AWG

1.08

1.50

1.25

1/8

1PL2/02

14 AWG-2/0 AWG

1.52

1.40

1.38

3/16

120

1PLO2/02

14 AWG-2/0 AWG

1.52

1.56

1.38

3/16

120

1PL2502

10 AWG-250 kcmil

2.03

2.07

2.13

5/16

275

1PLO2502

10 AWG-250 kcmil

2.03

2.64

2.13

5/16

275

1PL3502

10 AWG-350 kcmil

2.22

2.32

2.50

5/16

275

1PLO3502

#10-350 kcmil

2.22

3.00

2.50

5/16

275

1PL6002

10 AWG-600 kcmil

2.72

2.38

2.75

3/8

375

1PLO6002

4 AWG-600 kcmil

2.72

3.00

2.75

3/8

375

1PBS2

14 AWG-2 AWG

2.38

0.75

1.22

5/32

1PBS1/0

14 AWG-1/0

2.91

0.91

1.38

3/16

120

1PBS250

10 AWG-250 kcmil

4.01

1.19

2.10

5/16

120

1PBS350

10 AWG-350 kcmil

4.63

1.34

2.35

1/3

275

1PBS500

6 AWG-500 kcmil

5.00

1.62

2.62

3/8

375

1PL43

14 AWG-4 AWG

1.51

1.25

1/8

1PL44

14 AWG-4 AWG

1.95

1.25

1/8

1PL2/03

14 AWG-2/0 AWG

2.19

1.31

1.38

3/16

120

1PL2503

10 AWG-250 kcmil

2.97

2.07

2.13

1/3

275

1PLD43

14 AWG-4 AWG

1.51

1.50

1.25

1/8

1PLD44

14 AWG-4 AWG

1.95

1.50

1.25

1/8

1PLD2/02

14 AWG-2/0 AWG

1.52

1.56

1.38

1/5

120

1PLD2/03

14 AWG-2/0 AWG

2.19

1.56

1.38

3/16

120

1PLD2/04

14 AWG-2/0 AWG

2.86

1.56

1.38

3/16

120

1PLD2/06

14 AWG-2/0 AWG

4.20

1.56

1.38

3/16

120

1PLD2502

10 AWG-250 kcmil

2.03

2.64

2.13

5/16

275

1PLD2503

10 AWG-250 kcmil

2.97

2.64

2.13

5/16

275

1PLD2504

10 AWG-250 kcmil

3.91

2.64

2.13

5/16

275

1PLD2506

10 AWG-250 kcmil

5.78

2.64

2.13

5/16

275

1PLD3502

10 AWG-350 kcmil

2.22

3.00

2.50

5/16

375

1PLD3503

10 AWG-350 kcmil

3.13

3.00

2.50

5/16

375

1PLD3504

10 AWG-350 kcmil

4.04

3.00

2.50

5/16

375

1PLD3506

10 AWG-350 kcmil

5.86

3.00

2.50

5/16

375

1PLD3508

10 AWG-350 kcmil

7.68

3.00

2.50

5/16

375

1PLD6002

4 AWG-600 kcmil

2.72

3.00

2.75

3/8

375

1PLD6003

4 AWG-600 kcmil

4.00

3.00

2.75

3/8

375

1PLD6004

4 AWG-600 kcmil

5.28

3.00

2.75

3/8

375

1PLD6005

4 AWG-600 kcmil

6.56

3.00

2.75

3/8

375

1PLD6006

4 AWG-600 kcmil

7.84

3.00

2.75

3/8

375

1PLD6008

4 AWG-600 kcmil

10.40

3.00

2.75

3/8

375

1PL = 2 Port Single Sided Entry

1PLO = 2 Port Offset Entry

1PLD = Multi-Port Double Sided Entry

UNITAP™ rated for code conductor only.

1PBS = In-line Splice/Reducer

1PL = Multi-Port Single Sided Entry

UNITAP™ UV Rated Black Insulated Multiple Tap Connectors

A-47

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

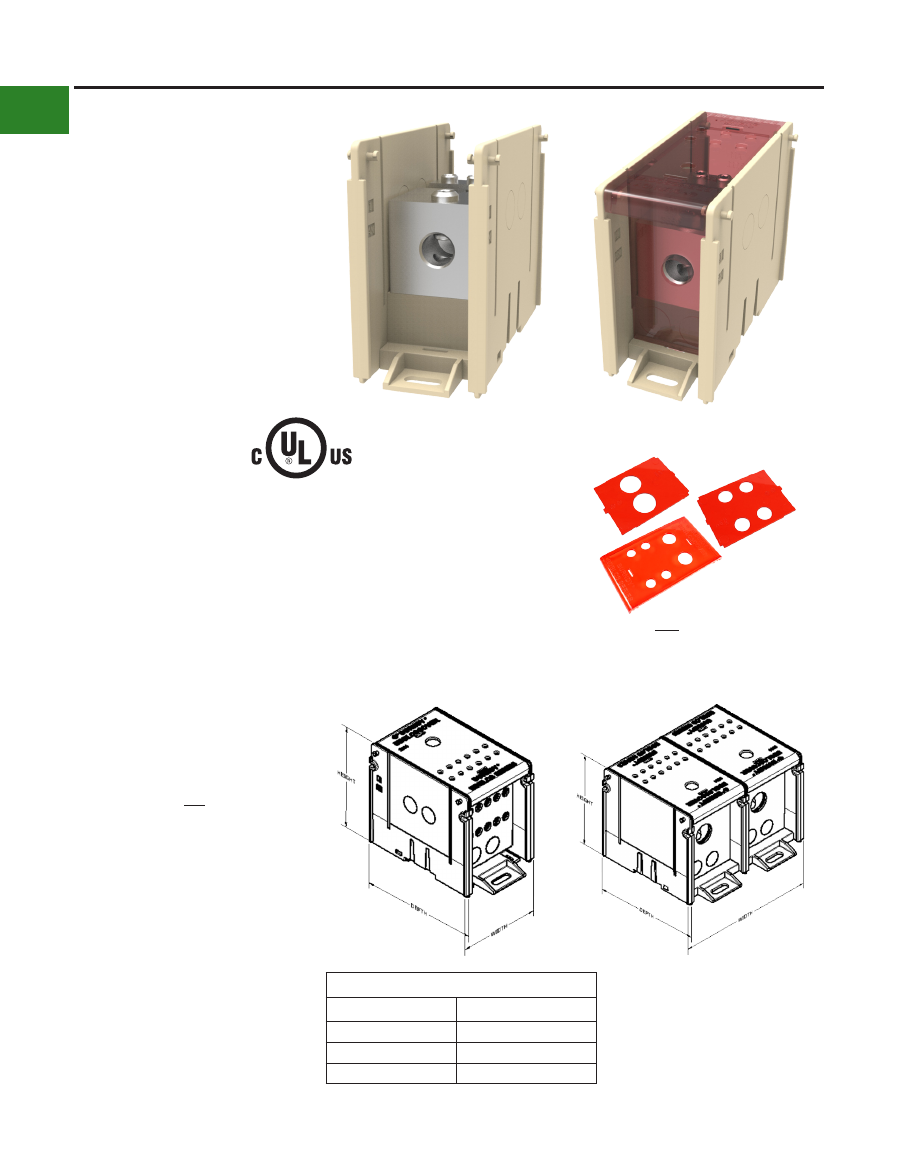

VERSIPOLE™

UL Listed 1953

Finger-Safe IEC 60527; IP-20

Rating

The VERSIPOLE™ Configurable Series

Power Distribution Blocks are used for

splicing and distributing power from primary

run(s) to secondary/branch circuits. They are

offered in standard one, two, or three pole

configurations. Each configuration is available

in an either an “Open” or “Finger-Safe” style.

The configurable series can also be designed

to accommodate an infinite number of made-

to-order combinations.

Features & Benefits

• 1000 Volt rated

• Listed to UL1953

• Rated for use with both code and flex conductor without requiring ferrules

• Available in three sizes for space optimization

• AL9CU dual rated for use with copper and aluminum conductors

• Range taking designs accommodate wire sizes up to 535 DLO and can support 1 or 2

run conductors and up to 12 taps for secondary circuits

• Allow for panel mounting; medium and large sizes also allow for DIN rail mounting

• Finger-Safe style are provided with translucent polycarbonate top covers and end plates

to permit easy visual inspection and provide IEC 60529 IP-20 Rating

• High Short-Circuit Current rating up to 100kA with proper fusing

• Bases and side barriers of glass-reinforced nylon 6/6 for extra durability and excellent

insulating properties; carry a UL94 flammability rating of V0

VERSIPOLE™; Configurable Power Distribution Blocks for Copper and Aluminum

Open Style

Finger-

Safe Style

comes with

covers &

end plates

Finger-Safe Kits include

only

covers & end plates

Figure 1

Figure 2

Figure 3

Ordering Information & Footnotes:

Finger-Safe Kits

include translucent top

cover and end plates only. Order 1 kit per

pole. The kits are used in conjunction with

Open style distribution blocks. (Distribution

blocks are not included.)

†

To achieve Finger-Safe style Adder order

Open style Adder and Finger-Safe Kit

Optional Hinged Covers

are available for

use with Open style blocks and are odered 1

cover per pole.

Optional Hinged Covers:

Catalog Number

Size

BDBSCSCOVER

Small

BDBMCSCOVER

Medium

BDBLCSCOVER

Large

A-48

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

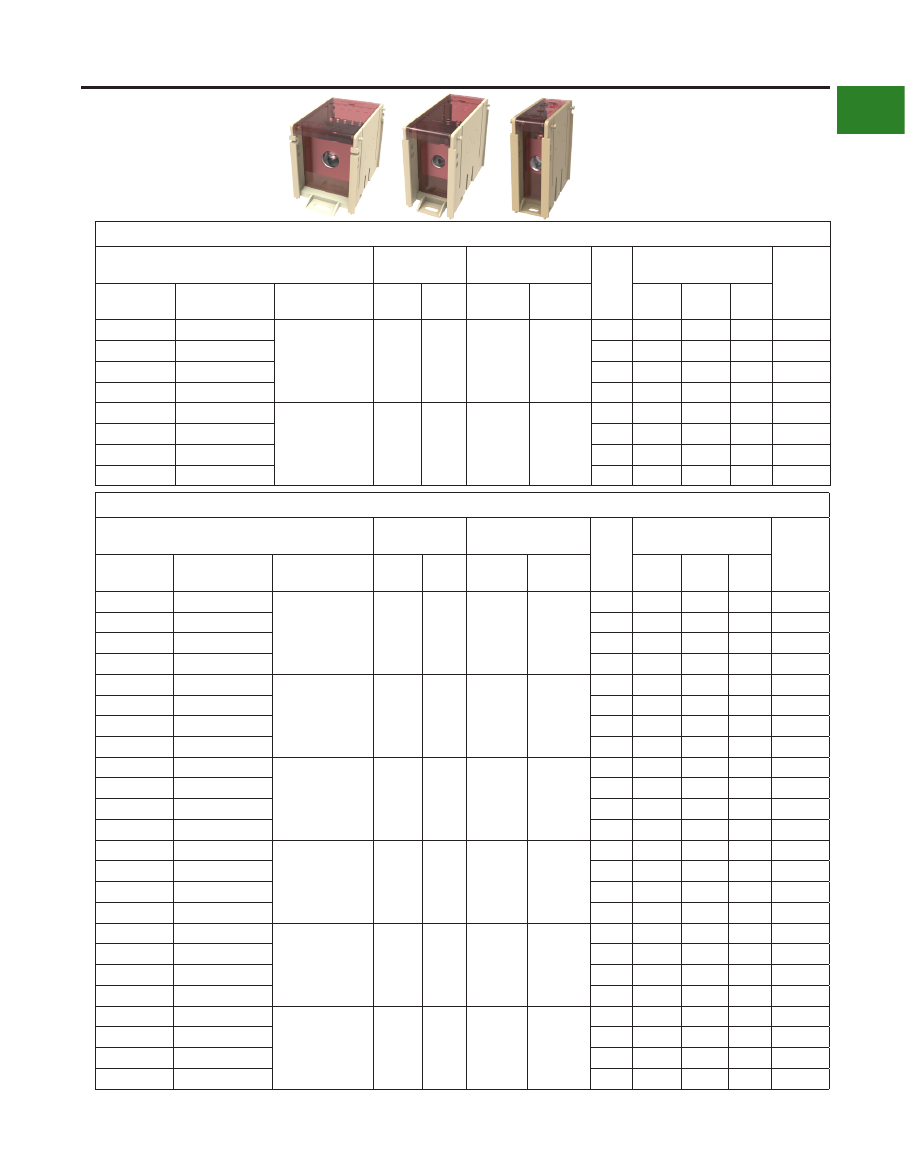

VERSIPOLE™; Configurable Power Distribution Blocks for Copper and Aluminum

VERSIPOLE™

(Continued)

Finger-Safe Style

with covers & end plates

Small Series:

Catalog Number

# of Conductors

Wire Range

(Class B, C, H, I, K, DLO)

# of

Poles

Dimensions

Amp

Rating

per Pole

Open Style

(Fig. 1)

Finger-Safe Style

(Fig. 2)

Finger-Safe Kit

(Fig. 3)

Run

Tap

Run

Tap

BDBSCS1C1

BDBSCS1C1FS

BDBSCS1C1FSKIT

#14 - 2/0

#14 - #4

1.34

2.76

5.56

175

BDBSCS1C2

BDBSCS1C2FS

2.41

2.76

5.56

175

BDBSCS1C3

BDBSCS1C3FS

3.48

2.76

5.56

175

BDBSCS1CA

†

Adder

1.16

2.76

5.56

175

BDBSCS1P1

BDBSCS1P1FS

BDBSCS1P1FSKIT

#14 - 2/0

1.34

2.76

5.56

175

BDBSCS1P2

BDBSCS1P2FS

2.41

2.76

5.56

175

BDBSCS1P3

BDBSCS1P3FS

3.48

2.76

5.56

175

BDBSCS1PA

†

Adder

1.16

2.76

5.56

175

Medium Series:

Catalog Number

# of Conductors

Wire Range

(Class B, C, H, I, K, DLO)

# of

Poles

Dimensions

Amp

Rating

per Pole

Open Style

(Fig. 1)

Finger-Safe Style

(Fig. 2)

Finger-Safe Kit

(Fig. 3)

Run

Tap

Run

Tap

BDBMCS1F1

BDBMCS1F1FS

BDBMCS1F1FSKIT

#14 - 2/0

#14 - #2

2.09

4.52

3.70

175

BDBMCS1F2

BDBMCS1F2FS

3.90

4.52

3.70

175

BDBMCS1F3

BDBMCS1F3FS

5.72

4.52

3.70

175

BDBMCS1FA

†

Adder

1.91

4.52

3.70

175

BDBMCS3U1

BDBMCS3U1FS

BDBMCS3U1FSKIT

#6 - 350

2.09

4.52

3.70

310

BDBMCS3U2

BDBMCS3U2FS

3.90

4.52

3.70

310

BDBMCS3U3

BDBMCS3U3FS

5.72

4.52

3.70

310

BDBMCS3UA

†

Adder

1.91

4.52

3.70

310

BDBMCS2F1

BDBMCS2F1FS

BDBMCS2F1FSKIT

#14 - 2/0

#14 - #2

2.09

4.52

3.70

350

BDBMCS2F2

BDBMCS2F2FS

3.90

4.52

3.70

350

BDBMCS2F3

BDBMCS2F3FS

5.72

4.52

3.70

350

BDBMCS2FA

†

Adder

1.91

4.52

3.70

350

BDBMCS2N1

BDBMCS2N1FS

BDBMCS2N1FSKIT

#14 - 2/0

2.09

4.52

3.70

350

BDBMCS2N2

BDBMCS2N2FS

3.90

4.52

3.70

350

BDBMCS2N3

BDBMCS2N3FS

5.72

4.52

3.70

350

BDBMCS2NA

†

Adder

1.91

4.52

3.70

350

BDBMCS5F1

BDBMCS5F1FS

BDBMCS5F1FSKIT

#4 - 500

#14 - #2

2.09

4.52

3.70

380

BDBMCS5F2

BDBMCS5F2FS

3.90

4.52

3.70

380

BDBMCS5F3

BDBMCS5F3FS

5.72

4.52

3.70

380

BDBMCS5FA

†

Adder

1.91

4.52

3.70

380

BDBMCS5M1

BDBMCS5M1FS

BDBMCS5M1FSKIT

#4 - 500

#14 - 2/0

2.09

4.52

3.70

380

BDBMCS5M2

BDBMCS5M2FS

3.90

4.52

3.70

380

BDBMCS5M3

BDBMCS5M3FS

5.72

4.52

3.70

380

BDBMCS5MA

†

Adder

1.91

4.52

3.70

380

A-49

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

VERSIPOLE™

(Continued)

VERSIPOLE™; Configurable Power Distribution Blocks for Copper and Aluminum

Large Series:

Catalog Number

# of Conductors

Wire Range

(Class B, C, H, I, K, DLO)

# of

Poles

Dimensions

Amp

Rating

per Pole

Open Style

(Fig. 1)

Finger-Safe Style

(Fig. 2)

Finger-Safe Kit

(Fig. 3)

Run

Tap

Run

Tap

BDBLCS3A1

BDBLCS3A1FS

BDBLCS3A1FSKIT

#6 - 350

#14 - #4

3.25

5.54

4.12

310

BDBLCS3A2

BDBLCS3A2FS

6.17

5.54

4.12

310

BDBLCS3A3

BDBLCS3A3FS

9.09

5.54

4.12

310

BDBLCS3AA

†

Adder

3.05

5.54

4.12

310

BDBLCS3K1

BDBLCS3K1FS

BDBLCS3K1FSKIT

#6 - 350

#14 - 2/0

3.25

5.54

4.12

310

BDBLCS3K2

BDBLCS3K2FS

6.17

5.54

4.12

310

BDBLCS3K3

BDBLCS3K3FS

9.09

5.54

4.12

310

BDBLCS3KA

†

Adder

3.05

5.54

4.12

310

BDBLCS5K1

BDBLCS5K1FS

BDBLCS5K1FSKIT

#4 - 500

#14 - 2/0

3.25

5.54

4.12

380

BDBLCS5K2

BDBLCS5K2FS

6.17

5.54

4.12

380

BDBLCS5K3

BDBLCS5K3FS

9.09

5.54

4.12

380

BDBLCS5KA

†

Adder

3.05

5.54

4.12

380

BDBLCS5W1

BDBLCS5W1FS

BDBLCS5W1FSKIT

#4 - 500

3.25

5.54

4.12

380

BDBLCS5W2

BDBLCS5W2FS

6.17

5.54

4.12

380

BDBLCS5W3

BDBLCS5W3FS

9.09

5.54

4.12

380

BDBLCS5WA

†

Adder

3.05

5.54

4.12

380

BDBLCS4K1

BDBLCS4K1FS

BDBLCS4K1FSKIT

#6 - 350

#14 - 2/0

3.25

5.54

4.12

620

BDBLCS4K2

BDBLCS4K2FS

6.17

5.54

4.12

620

BDBLCS4K3

BDBLCS4K3FS

9.09

5.54

4.12

620

BDBLCS4KA

†

Adder

3.05

5.54

4.12

620

BDBLCS4T1

BDBLCS4T1FS

BDBLCS4T1FSKIT

#6 - 350

3.25

5.54

4.12

620

BDBLCS4T2

BDBLCS4T2FS

6.17

5.54

4.12

620

BDBLCS4T3

BDBLCS4T3FS

9.09

5.54

4.12

620

BDBLCS4TA

†

Adder

3.05

5.54

4.12

620

BDBLCS6A1

BDBLCS6A1FS

BDBLCS6A1FSKIT

#4 - 500

#14 - #4

3.25

5.54

4.12

760

BDBLCS6A2

BDBLCS6A2FS

6.17

5.54

4.12

760

BDBLCS6A3

BDBLCS6A3FS

9.09

5.54

4.12

760

BDBLCS6AA

†

Adder

3.05

5.54

4.12

760

BDBLCS6K1

BDBLCS6K1FS

BDBLCS6K1FSKIT

#4 - 500

#14 - 2/0

3.25

5.54

4.12

760

BDBLCS6K2

BDBLCS6K2FS

6.17

5.54

4.12

760

BDBLCS6K3

BDBLCS6K3FS

9.09

5.54

4.12

760

BDBLCS6KA

†

Adder

3.05

5.54

4.12

760

BDBLCS6R1

BDBLCS6R1FS

BDBLCS6R1FSKIT

#4 - 500

#6 - 4/0

3.25

5.54

4.12

760

BDBLCS6R2

BDBLCS6R2FS

6.17

5.54

4.12

760

BDBLCS6R3

BDBLCS6R3FS

9.09

5.54

4.12

760

BDBLCS6RA

†

Adder

3.05

5.54

4.12

760

BDBLCS6V1

BDBLCS6V1FS

BDBLCS6V1FSKIT

#4 - 500

3.25

5.54

4.12

760

BDBLCS6V2

BDBLCS6V2FS

6.17

5.54

4.12

760

BDBLCS6V3

BDBLCS6V3FS

9.09

5.54

4.12

760

BDBLCS6VA

†

Adder

3.05

5.54

4.12

760

A-50

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

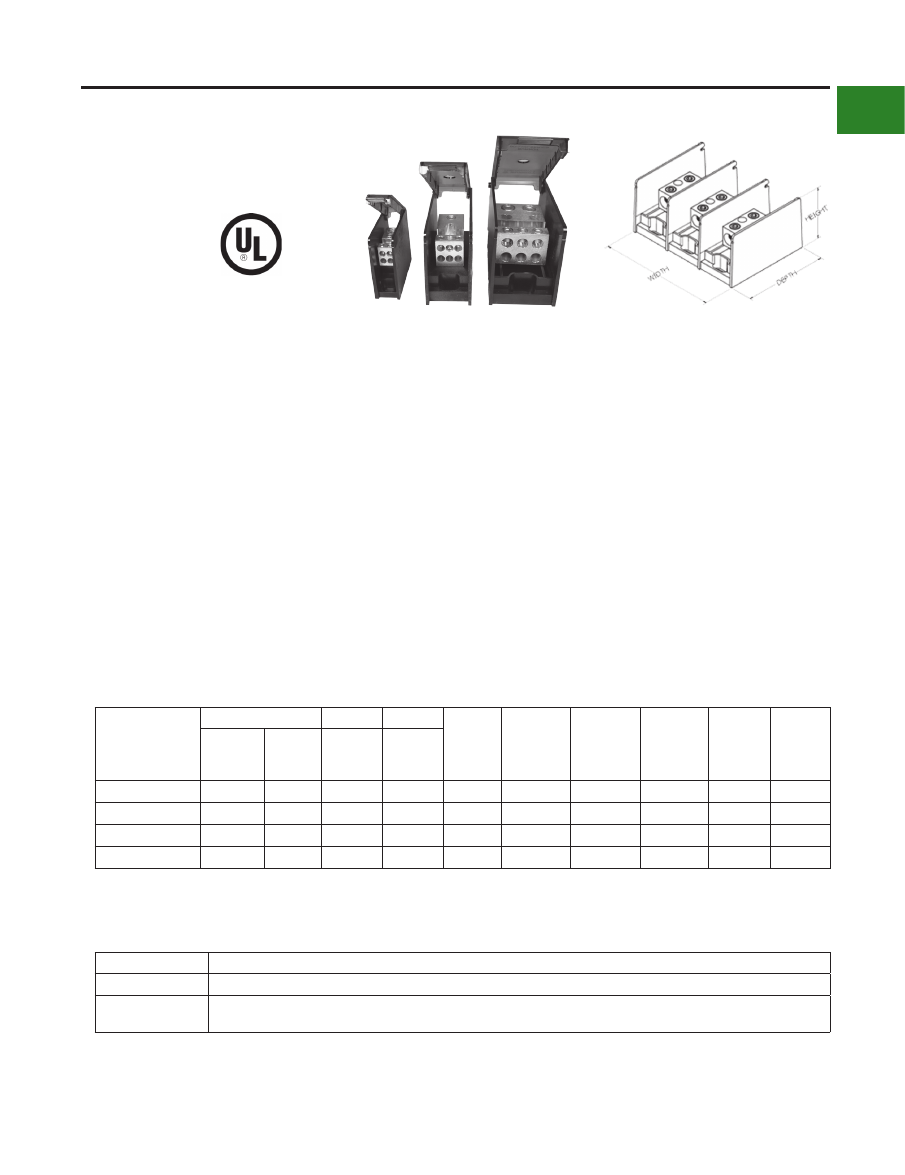

UL LISTED

POWER DISTRIBUTION

BLOCKS

VERSIPOLE™

These Power Distribution Blocks are Listed to the

Power Distribution Block Standard UL 1953. They

contain the same features and characteristics

as the non-Listed blocks however, these have

spacings that are suitable for installations in

most industrial control panel feeder and branch

circuits, HVAC systems, and Wireways (with

optional cover; sold separately). They are

available in one, two, or three pole configurations.

An “Adder” is also available with optional End

Barrier (sold separately), to allow user customized

configurations.

Catalog Number

Connector

Run

Tap

Width

Height

Depth

Ampere

Rating per

Pole

Number

of Poles

SCCR

Number

of Run(s)

Number

of Tap(s)

Wire

Range

AL9CU

Wire

Range

AL9CU

BDCSHC142/01

14-2/0

14-4

1.05

2.81

3.08

175

100kA

BDASHC142/01

14-2/0

14-4

0.93

2.81

3.08

175

Adder

100kA

BDCSHC112/01

14-2/0

1.05

2.81

3.08

175

100kA

BDASHC112/01

14-2/0

0.93

2.81

3.08

175

Adder

100kA

Features & Benefits

•

Single or dual run connections allow the

user to minimize the number of connections

required

•

Suitable for use with aluminum or copper

conductors providing maximum versatility

•

Available in 3 sizes for optimization of space

•

600V, ALCU Rated; meets or exceeds

industry standard requirements

•

Range taking designs to accommodate wire

sizes up to 600 kcmil

•

High Short-Circuit Rating up to 100kA with

proper fusing

•

Meets spacing requirements of Industrial

Control Panel Standard UL 508A (spacing

of 1” through air and 2” over surface)

•

Adders and End Barriers available sepa-

rately for all 3 sizes providing capability to

create as many poles as required

•

Hinged Covers available separately to cover

3 sizes providing user protection and easy

access to connector terminal block

Short-Circuit Current Rating with proper fusing

Small Series:

Small Series Hinged Cover and End Barrier:

Catalog Number

Description

BDASHCEB

End Barrier for Small Series Adder Distribution Blocks

BDBSHCCOVER

Hinged Cover for use with Small Series Distribution Blocks and Adders (use of End Barrier necessary with Adders to attach

cover). Order 1 cover per pole

VERSIPOLE™ UL Listed Power Distribution Blocks for Copper/Aluminum

A-51

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

UL LISTED

POWER DISTRIBUTION

BLOCKS

VERSIPOLE™

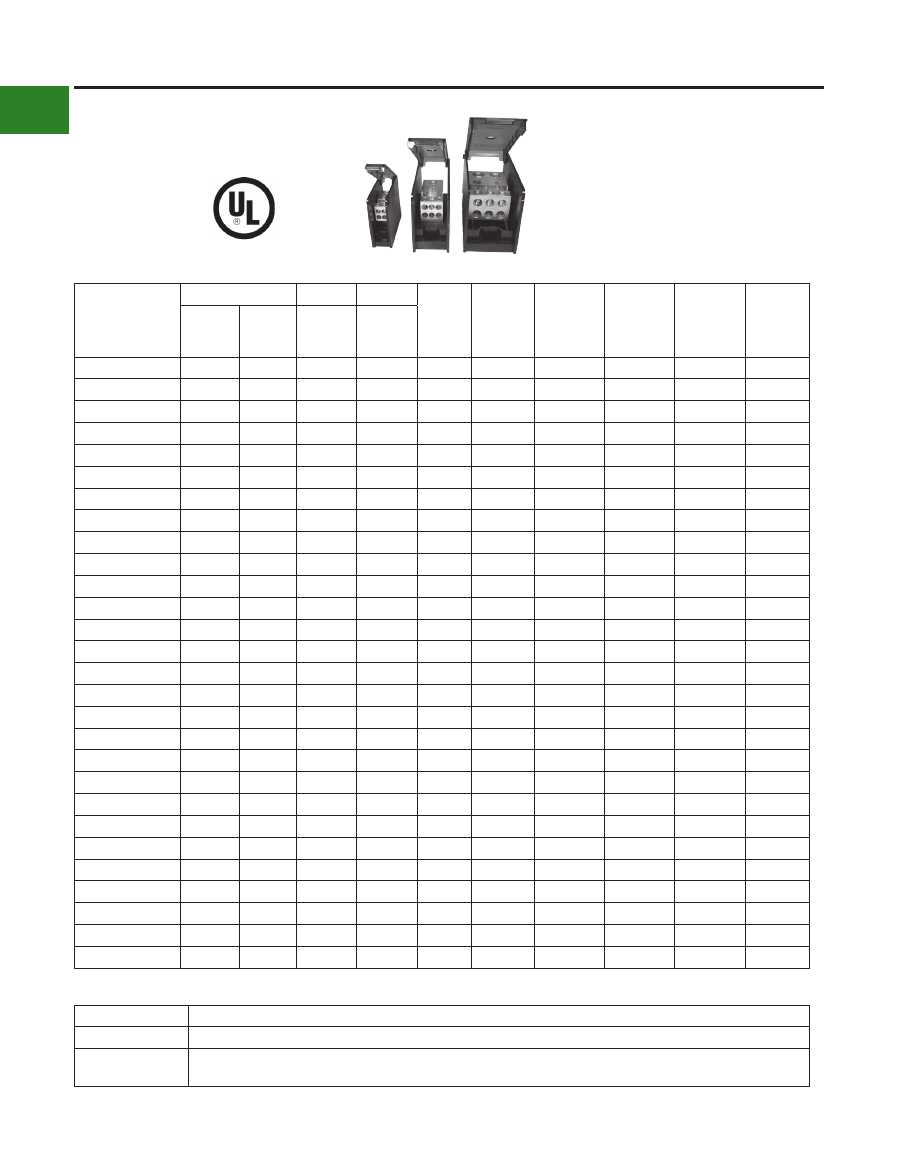

Medium Series:

Catalog Number

Connector

Run

Tap

Width

Height

Depth

Ampere

Rating per

Pole

Number of

Poles

SCCR

Number

of Run(s)

Number

of Tap(s)

Wire

Range

AL9CU

Wire

Range

AL9CU

BDBMHC162/01

14-2/0

14-2

1.85

3.25

175

100kA

BDBMHC162/02

14-2/0

14-2

3.57

3.25

175

100kA

BDBMHC162/03

14-2/0

14-2

5.28

3.25

175

100kA

BDAMHC162/0

14-2/0

14-2

1.72

3.25

175

Adder

100kA

BDBMHC112/01

14-2/0

1.85

3.25

175

100kA

BDBMHC112/02

14-2/0

3.57

3.25

175

100kA

BDBMHC112/03

14-2/0

5.28

3.25

175

100kA

BDAMHC112/0

14-2/0

1.72

3.25

175

Adder

100kA

BDBMHC113501

6-350

1.85

3.25

310

100kA

BDBMHC113502

6-350

3.57

3.25

310

100kA

BDBMHC113503

6-350

5.28

3.25

310

100kA

BDAMHC11350

6-350

1.72

3.25

310

Adder

100kA

BDBMHC262/01

14-2/0

14-2

1.85

3.25

350

100kA

BDBMHC262/02

14-2/0

14-2

3.57

3.25

350

100kA

BDBMHC262/03

14-2/0

14-2

5.28

3.25

350

100kA

BDAMHC262/0

14-2/0

14-2

1.72

3.25

350

Adder

100kA

BDBMHC222/01

14-2/0

1.85

3.25

350

100kA

BDBMHC222/02

14-2/0

3.57

3.25

350

100kA

BDBMHC222/03

14-2/0

5.28

3.25

350

100kA

BDAMHC222/0

14-2/0

1.72

3.25

350

Adder

100kA

BDBMHC145001

4-500

14-2/0

1.85

3.25

380

100kA

BDBMHC145002

4-500

14-2/0

3.57

3.25

380

100kA

BDBMHC145003

4-500

14-2/0

5.28

3.25

380

100kA

BDAMHC14500

4-500

14-2/0

1.72

3.25

380

Adder

100kA

BDBMHC1625001

4-500

14-2

1.85

3.25

380

100kA

BDBMHC1625002

4-500

14-2

3.57

3.25

380

100kA

BDBMHC1625003

4-500

14-2

5.28

3.25

380

100kA

BDAMHC162500

4-500

14-2

1.72

3.25

380

Adder

100kA

Medium Series Hinged Cover and End Barrier:

Catalog Number

Description

BDAMHCEB

End Barrier for Medium Series Adder Distribution Blocks

BDBMHCCOVER

Hinged Cover for use with Medium Series Distribution Blocks and Adders (use of End Barrier necessary with Adders to attach

cover). Order 1 cover per pole

VERSIPOLE™ UL Listed Power Distribution Blocks for Copper/Aluminum

A-52

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

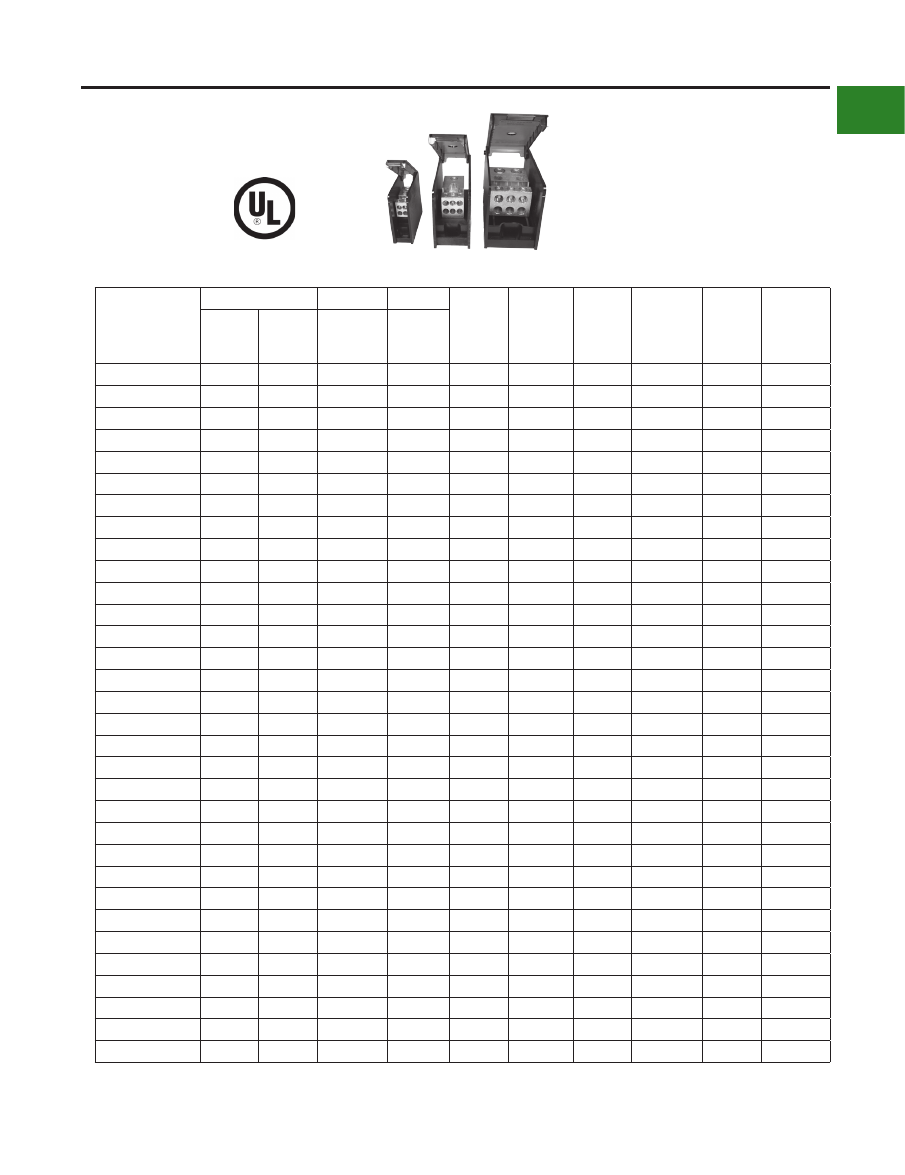

UL LISTED

POWER DISTRIBUTION

BLOCKS

VERSIPOLE™

Catalog Number

Connector

Run

Tap

Width

Height

Depth

Ampere

Rating per

Pole

Number

of Poles

SCCR

Number

of Run(s)

Number

of Tap(s)

Wire

Range

AL9CU

Wire

Range

AL9CU

BDBLHC1123501

6-350

14-4

2.73

3.55

5.7

310

100kA

BDBLHC1123502

6-350

14-4

5.31

3.55

5.7

310

100kA

BDBLHC1123503

6-350

14-4

7.89

3.55

5.7

310

100kA

BDALHC112350

6-350

14-4

2.58

3.55

5.7

310

Adder

100kA

BDBLHC163501

6-350

14-2/0

2.73

3.55

5.7

310

100kA

BDBLHC163502

6-350

14-2/0

5.31

3.55

5.7

310

100kA

BDBLHC163503

6-350

14-2/0

7.89

3.55

5.7

310

100kA

BDALHC16350

6-350

14-2/0

2.58

3.55

5.7

310

Adder

100kA

BDBLHC115001

4-500

2.73

3.55

5.7

380

100kA

BDBLHC115002

4-500

5.31

3.55

5.7

380

100kA

BDBLHC115003

4-500

7.89

3.55

5.7

380

100kA

BDALHC11500

4-500

2.58

3.55

5.7

380

Adder

100kA

BDBLHC165001

4-500

14-2/0

2.73

3.55

5.7

380

100kA

BDBLHC165002

4-500

14-2/0

5.31

3.55

5.7

380

100kA

BDBLHC165003

4-500

14-2/0

7.89

3.55

5.7

380

100kA

BDALHC16500

4-500

14-2/0

2.58

3.55

5.7

380

Adder

100kA

BDBLHC2125001

4-500

14-4

2.73

3.55

5.7

760

100kA

BDBLHC2125002

4-500

14-4

5.31

3.55

5.7

760

100kA

BDBLHC2125003

4-500

14-4

7.89

3.55

5.7

760

100kA

BDALHC212500

4-500

14-4

2.58

3.55

5.7

760

Adder

100kA

BDBLHC263501

6-350

14-2/0

2.73

3.55

5.7

620

100kA

BDBLHC263502

6-350

14-2/0

5.31

3.55

5.7

620

100kA

BDBLHC263503

6-350

14-2/0

7.89

3.55

5.7

620

100kA

BDALHC26350

6-350

14-2/0

2.58

3.55

5.7

620

Adder

100kA

BDBLHC223501

6-350

2.73

3.55

5.7

620

100kA

BDBLHC223502

6-350

5.31

3.55

5.7

620

100kA

BDBLHC223503

6-350

7.89

3.55

5.7

620

100kA

BDALHC22350

6-350

2.58

3.55

5.7

620

Adder

100kA

BDBLHC225001

4-500

2.73

3.55

5.7

760

100kA

BDBLHC225002

4-500

5.31

3.55

5.7

760

100kA

BDBLHC225003

4-500

7.89

3.55

5.7

760

100kA

BDALHC22500

4-500

2.58

3.55

5.7

760

Adder

100kA

Large Series:

VERSIPOLE™ UL Listed Power Distribution Blocks for Copper/Aluminum

A-53

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

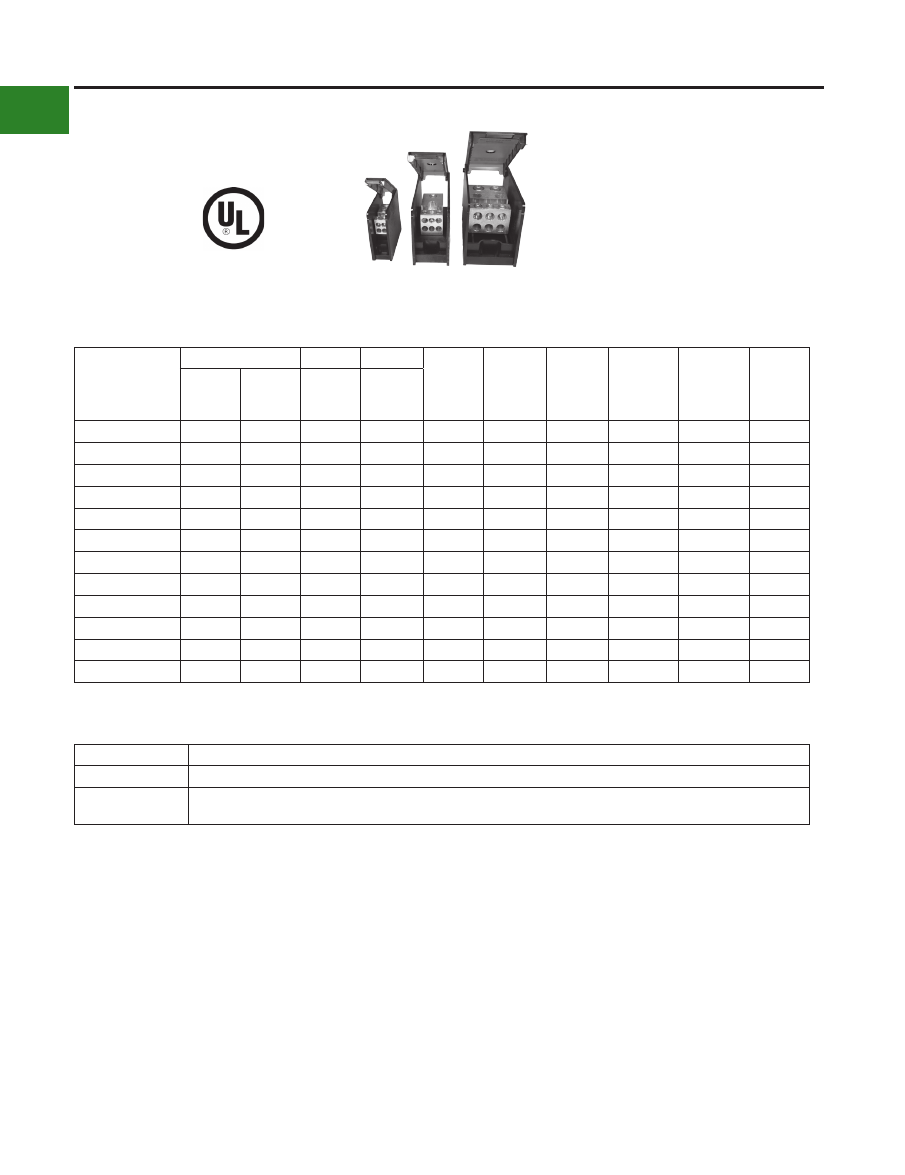

Large Series (continued):

Catalog Number

Connector

Run

Tap

Width

Height

Depth

Ampere

Rating per

Pole

Number of

Poles

SCCR

Number

of Run(s)

Number

of Tap(s)

Wire

Range

AL9CU

Wire

Range

AL9CU

BDBLHC265001

4-500

14-2/0

2.73

3.55

5.7

760

100kA

BDBLHC265002

4-500

14-2/0

5.31

3.55

5.7

760

100kA

BDBLHC265003

4-500

14-2/0

7.89

3.55

5.7

760

100kA

BDALHC26500

4-500

14-2/0

2.58

3.55

5.7

760

Adder

100kA

BDBLHC245001

4-500

6-4/0

2.73

3.55

5.7

760

100kA

BDBLHC245002

4-500

6-4/0

5.31

3.55

5.7

760

100kA

BDBLHC245003

4-500

6-4/0

7.89

3.55

5.7

760

100kA

BDALHC24500

4-500

6-4/0

2.58

3.55

5.7

760

Adder

100kA

BDBLHC226001

2-600

2.73

3.55

5.7

840

100kA

BDBLHC226002

2-600

5.31

3.55

5.7

840

100kA

BDBLHC226003

2-600

7.89

3.55

5.7

840

100kA

BDALHC22600

2-600

2.58

3.55

5.7

840

Adder

100kA

UL LISTED

POWER DISTRIBUTION

BLOCKS

VERSIPOLE™

Large Series Hinged Cover and End Barrier:

Catalog Number

Description

BDALHCEB

End Barrier for Large Series Adder Distribution Blocks

BDBLHCCOVER

Hinged Cover for use with Large Series Distribution Blocks and Adders (use of End Barrier necessary with Adders to attach cover).

Order 1 cover per pole

VERSIPOLE™ UL Listed Power Distribution Blocks for Copper/Aluminum

A-54

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

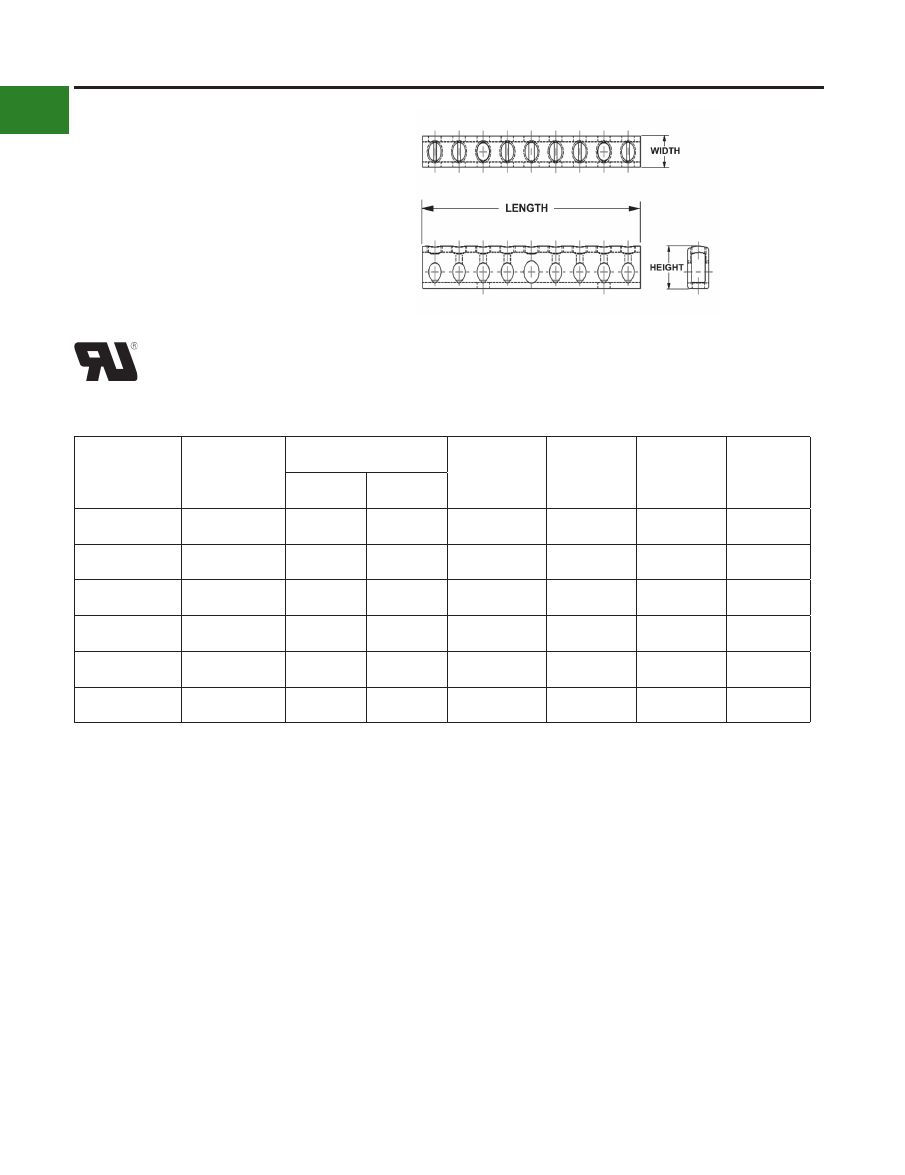

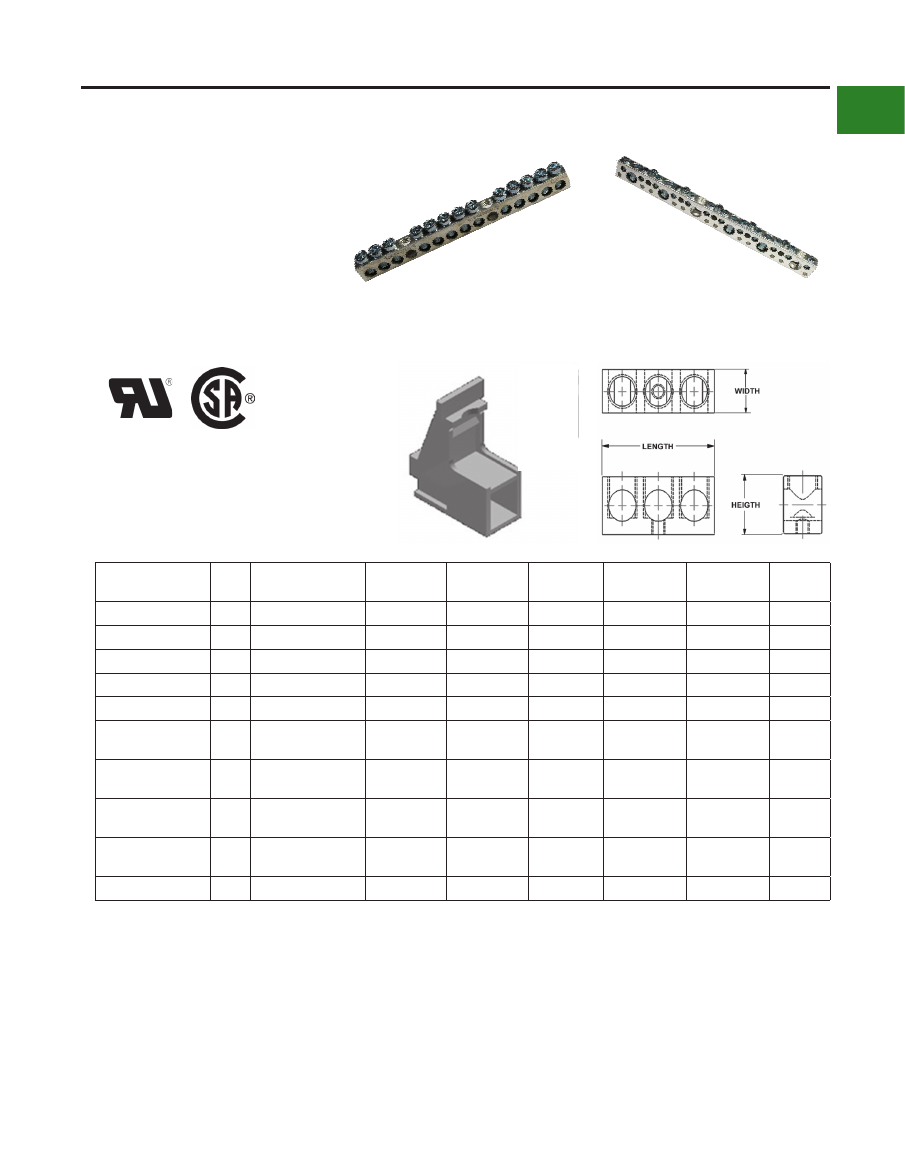

TYPE K-AG1

ALUMINUM NEUTRAL BAR

These aluminum neutral bars are dual rated

for copper and aluminum conductors, and

are manufactured from high strength 6061-T6

aluminum alloy and are electro tin plated to provide

low contact resistance and protection against

corrosion.

Catalog

Number

Fig.

Wire Range

Aluminum or Copper

Total Number

of Holes

Total Number

of Circuits

Mount Hole

Locations

Height

Width

Length

K2P4CAG1

14 - 4

0.44

0.31

1.09

K3P4CAG1

14 - 4

1, 5

0.44

0.31

1.67

K9P4CAG1

14 - 4

4, 8

0.44

0.31

3.53

K13P4CAG1

14 - 4

6, 12

0.44

0.31

4.77

K15P4CAG1

14 - 4

6, 14

0.44

0.31

6.01

K5P6C2P1/0CAG1 ♦

14 - 1/0

14 - 6

(5) 14 - 6

(2) 14 - 1/0

–

0.62

0.38

2.26

K12P6C3P1/0CAG1 ♦

14 - 1/0

14 - 6

(12) 14 - 6

(3) 14 - 1/0

–

0.62

0.38

4.34

K14P6C5P1/0CAG1 ♦

14 - 1/0

14 - 6

(14) 14 - 6

(5) 14 - 1/0

–

0.62

0.38

5.77

K16P6C5P1/0CAG1 ♦

14 - 1/0

14 - 6

(17) 14 - 6

(4) 14 - 1/0

–

0.62

0.38

6.97

KAG1MTGBRKT

–

♦

Use (2) KAG1MTGBRKT to mount these neutral bars into enclosure

Fig. 1

Fig. 2

Fig. 3

Aluminum Neutral Bars for Copper/Aluminum

A-55

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

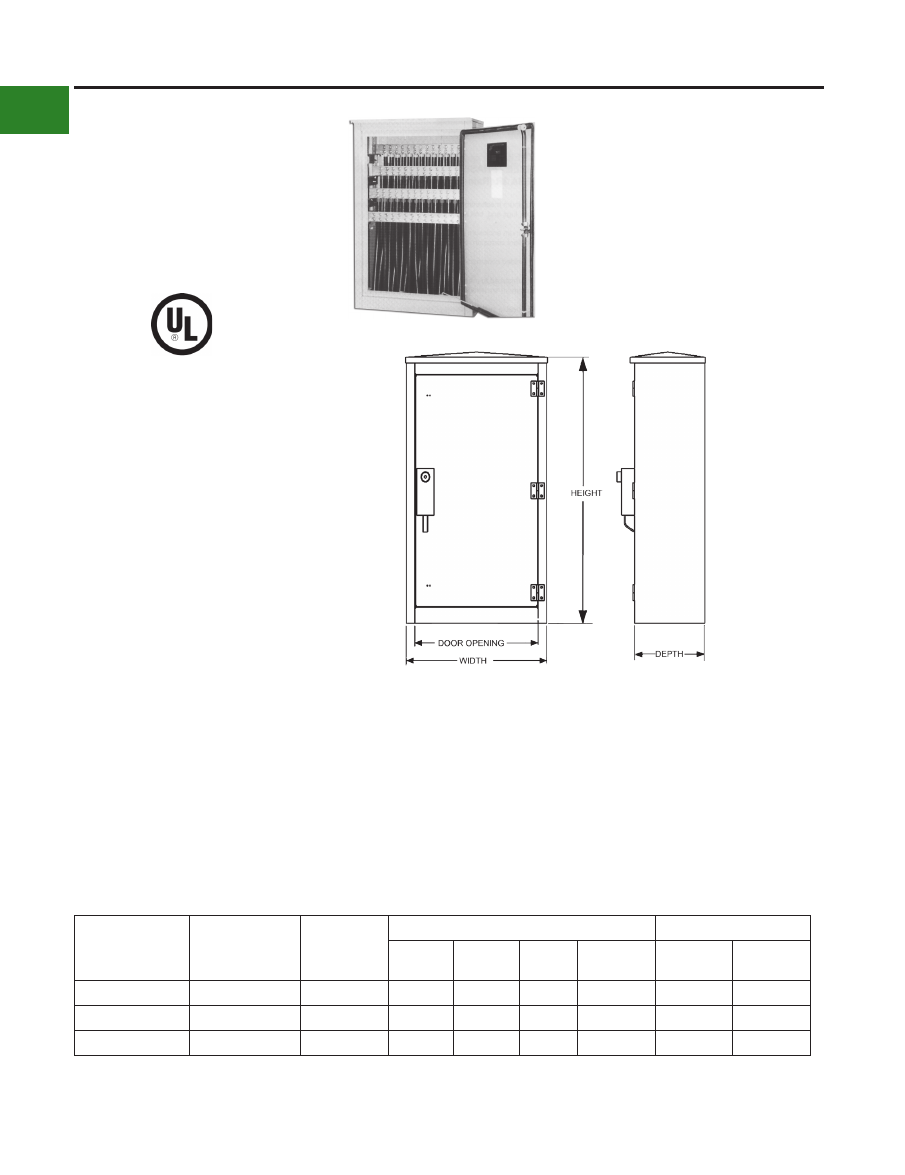

TYPE BWTE

WALL-MOUNTED TERMINATION

ENCLOSURES

These are three-phase, NEMA 3R (rain-proof),

600 Volt Rated wall mounted termination
enclosures.

Features and Benefits

• Aluminum mechanical bar connectors

eliminates need for compressions tools,

lugs, and bolt assemblies

• Aluminum enclosure is lightweight, low

maintenance and has excellent corrosion

resistance

• Ample working space, allowing for easier

termination with a removeable swinging

door

• All-welded construction: welds and

seams are ground smooth

• Manufactured to meet or exceed ANSI

C57-12.28 for wall-mounted equipment

enclosure integrity

• Three-point positive latch mechanism

(secured and operated by a half-turn,

captive and recessed penta-head bolt)

and shielded padlock shackle

• Finish meets or exceeds proposed EEI

paint specification

• Finish is gray, oven cured powder coat

• All mounting hardware is 18-8 stainless

steel

Catalog

Number

Conductor

Range (AWG)

Number of

Conductors

per phase

Dimensions

UL Listed Amp Rating

Door

Opening

Copper

Aluminum

BWTE21-500

10 - 500 kcmil

32.00

16.00

51.00

28.00

3800

3100

BWTE14-750

2 - 750 kcmil

32.00

16.00

51.00

28.00

3325

2695

BWTE14-1000

1/0 - 1000 kcmil

32.00

16.00

51.00

28.00

3815

3115

AL9CU

Wall-Mounted Termination Enclosures

A-58

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

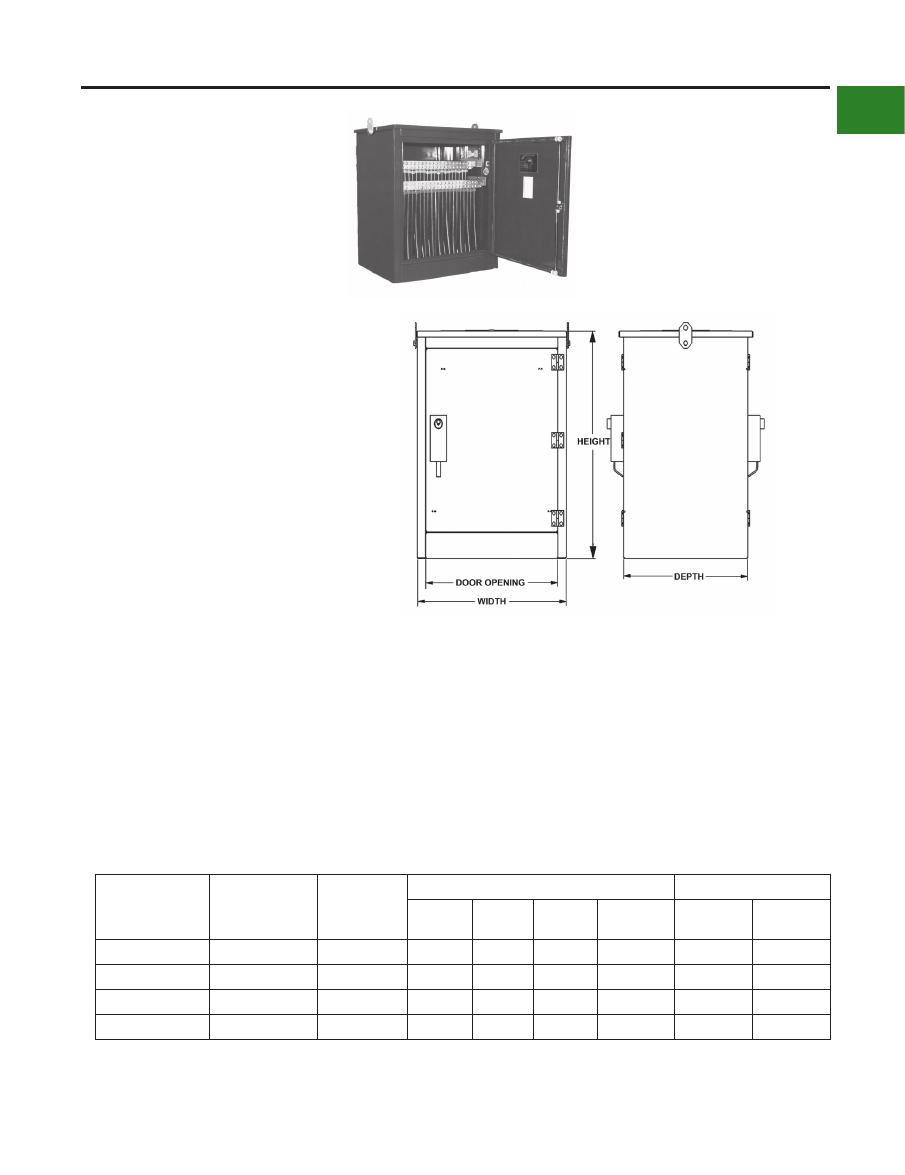

TYPE BPTE

PAD-MOUNTED TERMINATION

ENCLOSURES

These are three-phase, NEMA 3R (rain-proof),

600 Volt Rated pad mounted termination
enclosures.

Features and Benefits

• Aluminum mechanical bar connectors

eliminates need for compressions tools,

lugs and bolt assemblies

• Aluminum enclosure is lightweight, low

maintenance and has excellent corrosion

resistance

• Ample working space, allowing for easier

termination with a removeable swinging

door

• All-welded construction: welds and

seams are ground smooth

• Manufactured to meet or exceed ANSI

C57-12.28 for wall-mounted equipment

enclosure integrity

• Removable swinging doors - doors have

stainless steel lift off hinges with

stainless steel three point locking

handles and recessed stainless steel

penta-head bolts for security

• Finish is Munsell green, oven cured

powder coat

• All mounting hardware is 18-8 stainless

steel

Catalog

Number

Conductor

Range (AWG)

Number of

Conductors

per phase

Dimensions

UL Listed Amp Rating

Door

Opening

Copper

Aluminum

BPTE26-500

10 - 500 kcmil

36.00

30.00

44.00

30.00

4560

3720

BPTE22-750

2 - 750 kcmil

36.00

30.00

44.00

30.00

5225

4235

BPTE20-1000

350 - 1000 kcmil

36.00

30.00

44.00

30.00

4905

4005

BPTE14-750

2 - 750 kcmil

25.00

24.00

44.00

19.00

3800

3100

Pad-Mounted Termination Enclosures

A-59

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

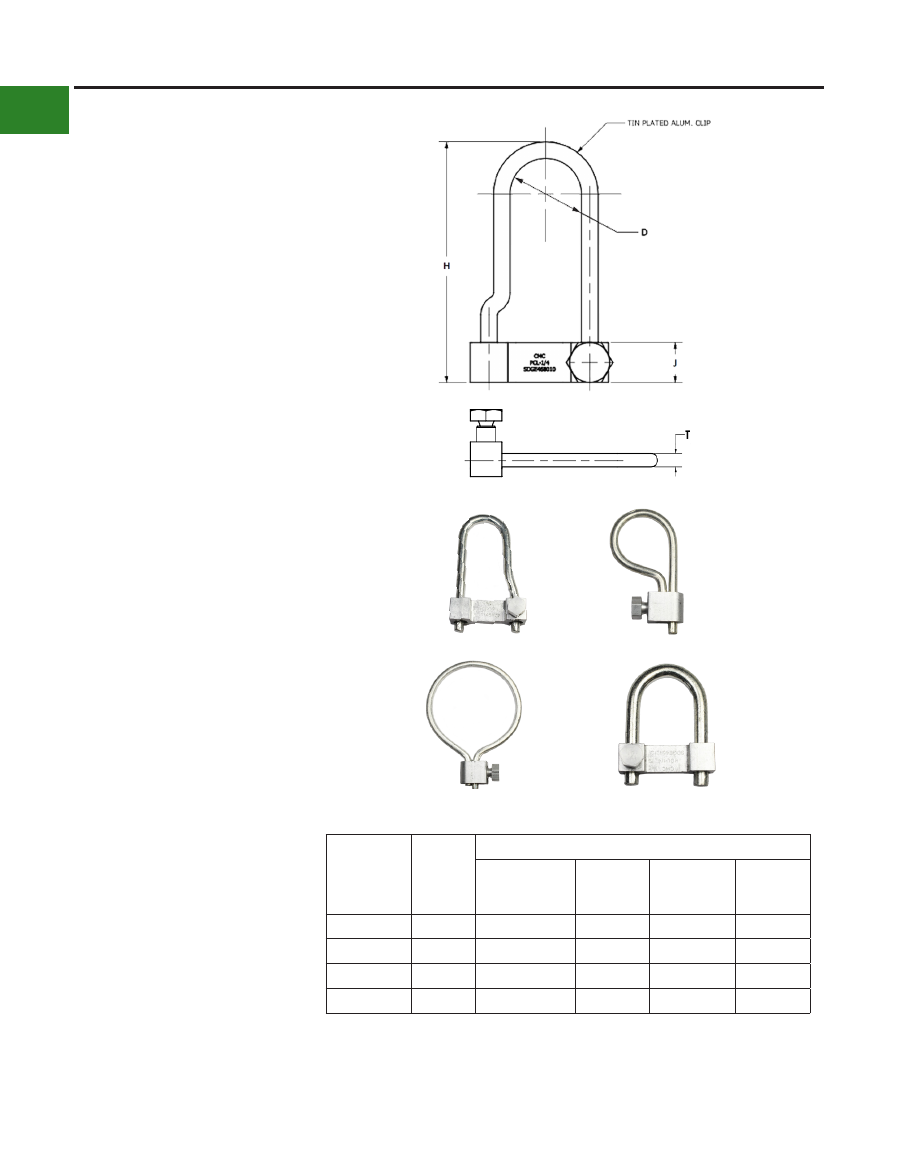

TYPE BPCL

Disposable Enclosure Locks

Disposable enclosure locks provide quick locking

and serve as an alternative to using padlocks.

Generally, disposable locks are used to ensure

tamper-proof safety and are less expensive. Used

where entry is not required on a regular basis, such

as electric meters, truck/trailer doors, electrical

cabinets, and shipping containers, these locks

provide the security of a shear head screw during

installation. Available in 4 different designs, they are
packaged 20 pieces to a bag.

Features and Benefits

•

Alternative to padlocks

•

Economical

•

Corrosion free

•

Adjustable to fit any hasp

•

Excellent for locking points that are

accessed infrequently

•

Provide a more substantial solution than a

wire seal

•

Shear head screw provides easy installation

and tamper proof security

Catalog

Number

Figure #

Dimensions in Inches

Height of

Enclosure Lock

Bolt Hex

Clip Inside

Diameter

Clip

Thickness

BPCL1

3.00

0.375

0.88

0.21

BPCL2

2.38

0.375

0.99

0.16

BPCL3

3.25

0.375

2.13

0.16

BPCL4

2.28

0.375

0.99

0.26

Fig. 2

Fig. 3

Fig. 1

Fig. 4

Disposable Enclosure Locks

A-60

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

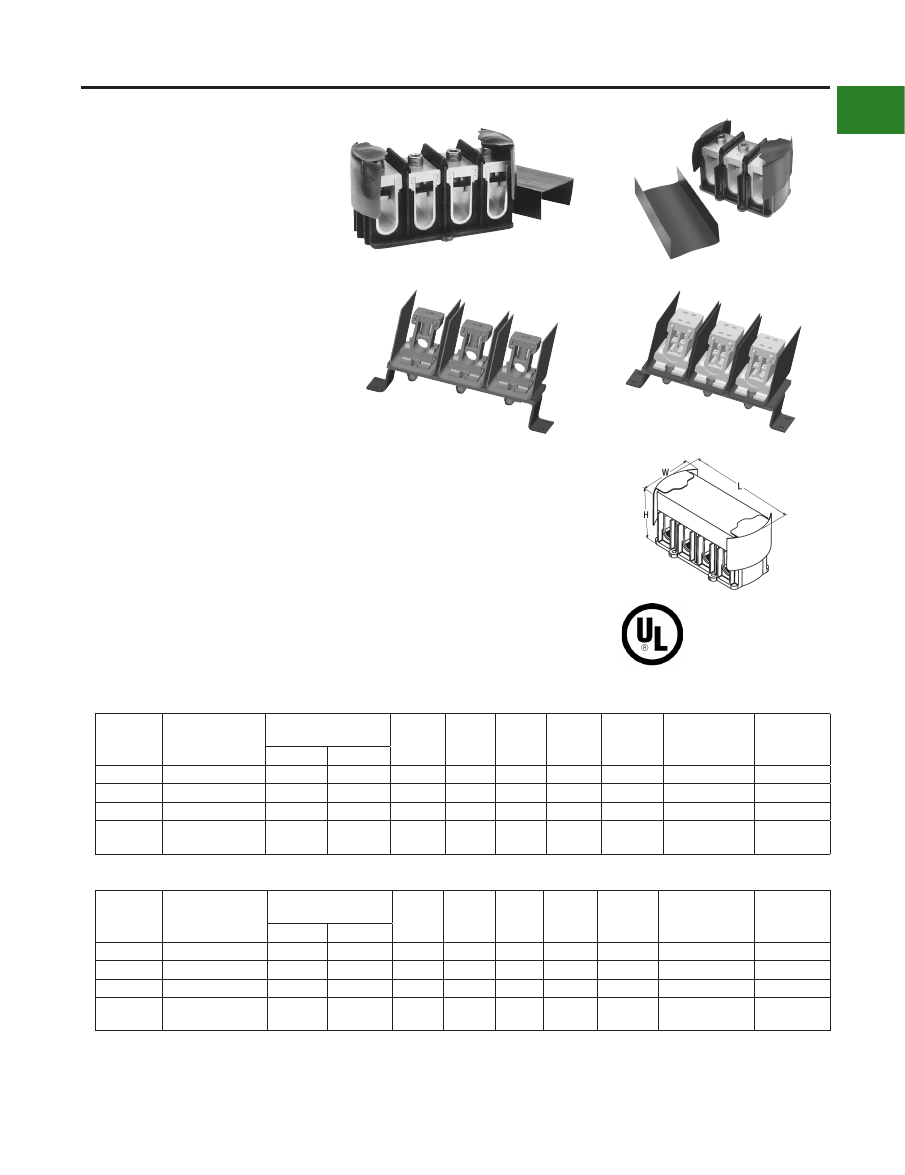

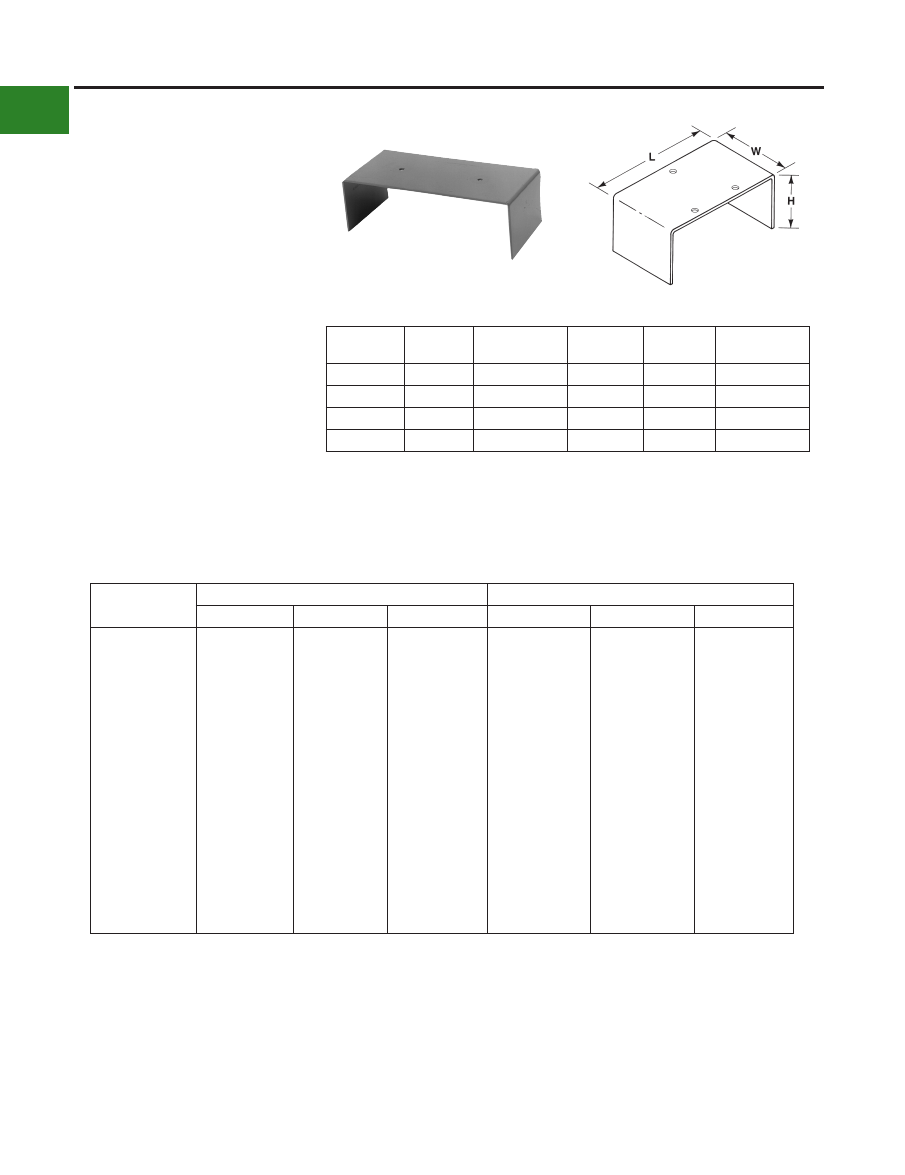

POWER DISTRIBUTION

BLOCKS

U-BLOK™

For Junction Box Applications

The U-BLOK™ system is a modern, state-of-

the-art approach to multi-load power distribution

applications. Among typical uses are multi-story

or multi-unit buildings, HVAC, refrigeration,

control panels, motor control, switch gear, elevator

systems and materials handling equipment.

U-BLOK™ is UL Listed for Copper or Aluminum

conductors and rated for 600-volt applications.

U-BLOK™ can be mounted on bases for use in

troughs or bolted directly to junction boxes. AL9CU

rated.

Catalog

Number

Max. Number of

Wires per Phase

Conductor

Copper or Aluminum*

Weight

Each

Allen

Wrench

Size

Recommended

Tightening

Torque

Strip Length

Run

Tap

FT3B4/0

3/0 - 4/0

6 - 4/0

3-7/8

5-7/8

4-1/8

1-1/4

1/4

200

1-1/2

FT3B500

400 - 500

6 - 500

3-7/8

5-7/8

4-1/8

2-1/8

3/8

375

2-5/16

250 - 350

6 - 350

3-5/8

9-3/4

4-7/8

1/4

200

1-3/4

1 Run / 8 Tap

3/0 - 500

6 - 1/0

4-3/4

9-3/4

5-1/2

5/32

110

2-5/16 (Run);

1-5/32 (Tap)

Features & Benefits

• Connector top slides OFF/ON for quick

cable lay-in

◊ Labor savings. Easy access for

installation, modifications or retrofit.

• Electro-tin plated connectors in each

pole

◊ Durability. High-conductivity and

resistance to corrosion.

• Compact size

◊ Requires less space than traditional

connection methods.

• Trough installations can be mounted on

raised platforms

◊ Passage of cables under block means

through-cables need not be terminated

• Insulating covers and mounting blocks

rated 94-VO

◊ Saves costly taping, time and material.

Conforms to or exceeds building codes.

• Connectors accommodate a wide range

of wire sizes

◊ Reduces parts inventory requirements.

• Feeder conductors can be cut or fed

through on a continuous run

◊ Ease of installation.

FT4B500

FT3B4/0

Catalog

Number

Max. Number of

Wires per Phase

Conductor

Copper or Aluminum*

Weight

Each

Allen

Wrench

Size

Recommended

Tightening

Torque

Strip

Length

Run

Tap

FT4B4/0

3/0 - 4/0

6 - 4/0

3-7/8

7-7/8

4-1/8

1/4

200

1-1/2

FT4B500

400 - 500

6 - 500

3-7/8

7-7/8

4-1/8

2-3/4

3/8

375

2-5/16

250 - 350

6 - 350

3-5/8

11-3/4

4-7/8

3-1/2

1/4

200

1-3/4

1 Run / 8 Tap

3/0 - 500

6 - 1/0

4-3/4

11-3/4

5-1/2

3-1/2

5/32

110

2-5/16 (Run);

1-5/32 (Tap)

3 WIRE POWER DISTRIBUTION BLOCKS

4 WIRE POWER DISTRIBUTION BLOCKS

PENETROX™ inhibitor is recommended for all aluminum

wire connections.

For two wire tap range is 8 through 1/0.

Aluminum and copper conductors cannot be assembled

under the same pressure plate or t-bar.

U-BLOK™ Power Distribution Blocks for Junction Box Applications

A-61

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

U-BLOK™ MOUNTING

PLATFORMS

For Trough Applications

Catalog

Number

Gutter

Size

Weight Each (lb)

TBPT6

4-1/4

5-7/8

1-1/2

3/4

TBPT8

4-1/4

7-7/8

3-1/2

1-1/4

TBPT10

4-1/4

9-7/8

1-1/2

TBPT12

4-1/4

11-7/8

1-3/4

Hole pattern shown is for reference only.

ALLOWABLE AMPACITIES OF INSULATED CONDUCTOR, 60° TO 90° C **

Size AWG

kcmil

Copper

Al or Copper Clad Al

60 deg. C

75 deg. C

90 deg. C

60 deg. C

75 deg. C

90 deg. C

1/0

2/0

3/0

4/0

250

300

350

400

500

600

700

750

110

125

145

165

195

215

240

260

280

320

355

385

400

100

115

130

150

175

200

230

255

285

310

335

380

420

460

475

110

130

150

170

195

225

260

290

320

350

380

430

475

520

535

100

115

130

150

170

190

210

225

260

285

310

320

100

120

135

155

180

205

230

250

270

310

340

375

385

100

115

135

150

175

205

230

255

280

305

350

385

420

435

** NOTE

: Values referenced from Article 310 of the National Electric Code, Table 310-16, 1996. The above

chart is to be used for REFERENCE ONLY. Please consult Table 310-16 of the National Electric Code (lat-

est revision) for information regarding insulation type, voltage range, and conductor housings/surroundings.

U-TAP™, U-BLOK™, and SPEC-BLOK™ connectors are rated for 90 deg. C by Underwriters’ Laboratories.

Use of 60 deg. C and 75 deg. C conductor(s) is valid, though only as determined by the National Electric

Code.

U-BLOK™ Mounting Platforms for Trough Applications

A-62

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

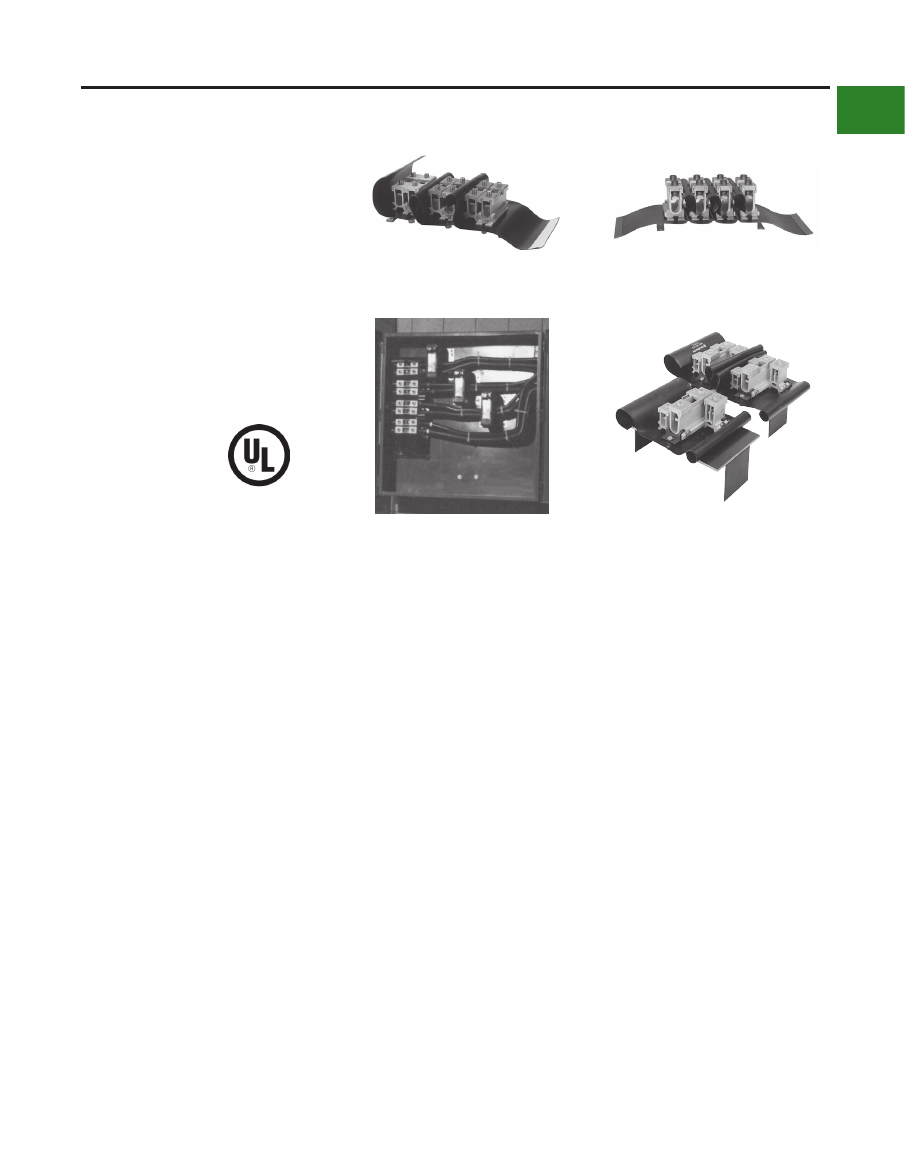

SPEC-BLOK™

Features & Benefits

• The SPEC-BLOK™ system includes

12 connector elements

◊ A wide variety of conductor sizes can

be accommodated

• Each element can be bolted together

in parallel

◊ Provides an efficient flow of current

from one element to another

• AL9CU rated for Copper or Aluminum

conductors

◊ Dual-rated system, with UL486B’s

highest temperature rating

• 2 Wire (series), 4 (parallel), and

Multi-Tap versions available

◊ Nearly any conductor combination can

be terminated

• Tin-plated Aluminum Alloy Construction

◊ High-strength, corrosion-resistant

connector elements

• All SPEC-BLOK™ connectors are

custom made for nearly any Power

Distribution system requirement

◊ Time savings — pre-assembled in our

factory for immediate installation!

SPEC-BLOK™ CONNECTORS

Catalog Designation

(Maximum

Conductor)

Number of

Conductors

Accommodated

AL or CU

Wire Range Under

Each Cap

Dimensions

Allen

Wrench

Size

Conductor

First

Conductors

MUST Be

Second

Conductor

(if required)

May Be

Height On

Max

Conductors

Width

Length Without Insulator

Conductor

1 to 4

(0, 1 or 2

per cap)

1 or 2

per cap

1/0 - 2/0

#12 - 2/0

2-9/16"

1-1/2"

2-1/8"

7/8"

5/32"

(2/0)

3/0 - 250

#6 - 250

3-1/8"

1-11/16"

4-1/4"

1-3/8"

1/4"

(250)

250 - 350

#6 - 350

3-5/16"

1-13/16"

4-5/8"

1-1/2"

(350)

400 - 500

#6 - 500

4-1/16"

5-5/8"

1-3/4"

3/8"

(500)

600 - 750

3/0 - 750

4-7/8"

2-1/4"

7-1/4"

2-5/8"

(750)

Catalog Designation

(Maximum Conductor)

Number of Conductors

Accommodated

Large

Groove

Small

Grooves**

Height On

Maximum

Conductors

Width

Length

Without

Insulator

Allen

Wrench

Size

P (1/0)

1 to 8 (0, 1 or 2 under each screw)

6 - 1/0

3-1/2"

1-3/4"

5/32"

U (1/0 & 500)

2 to 9 (0, 1 or 2 under each screw

plus one large conductor)

3/0 - 500

6 - 1/0

4-1/8"

** This range may be expanded to include #8 provided two conductors are being installed in that particular element.

SPEC-BLOK™ Power Distribution Connectors for Copper/Aluminum

A-64

BURNDY

Canada: 1-800-387-6487

www.burndy.com

US: 1-800-346-4175

Mechanical

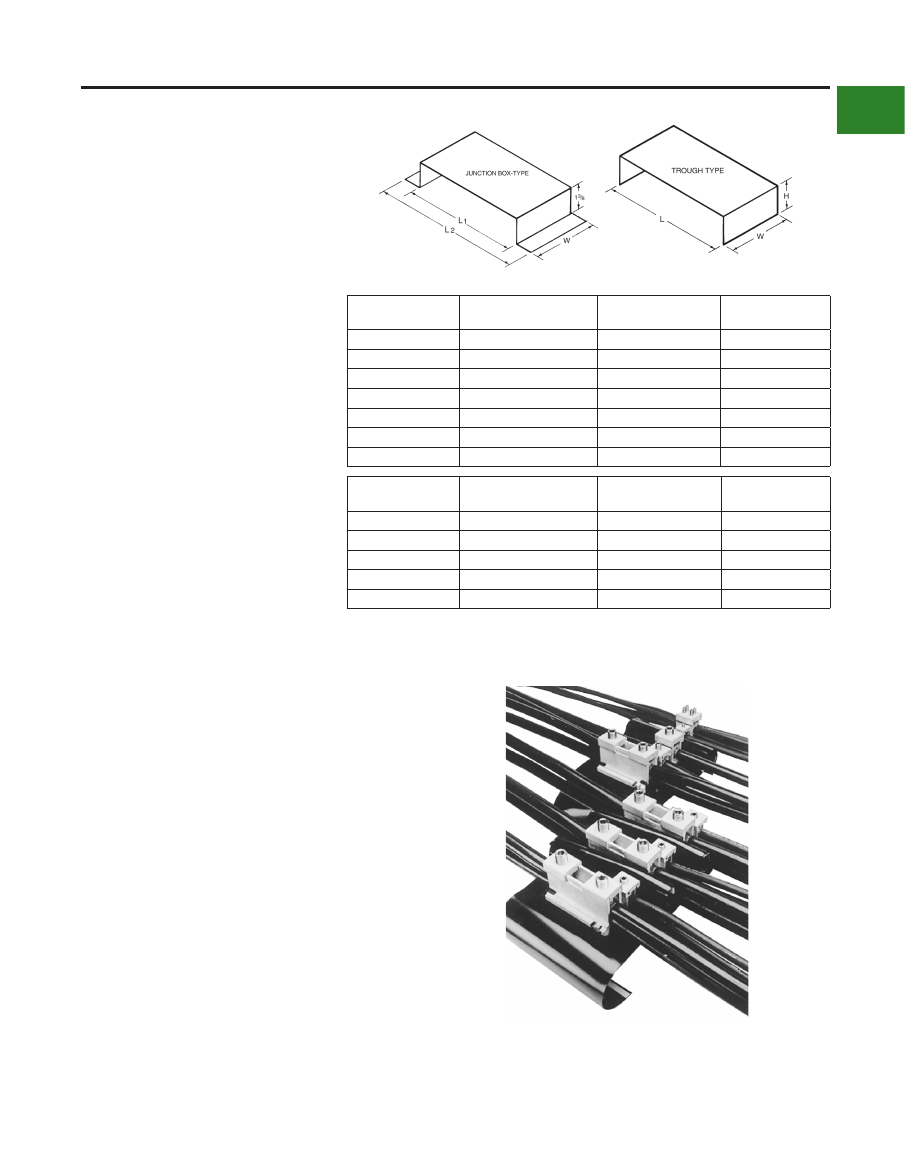

SPEC-BLOK™

MOUNTING PLATFORMS

SPEC-BLOK™ Mounting Platforms

are rigid steel construction with a

black finish.

They can be supplied for junction box mounting or

wireway construction allowing trough conductors

to pass underneath the assemblies.

SPEC-BLOK™ IS A SYSTEM THAT CAN SOLVE MOST POWER DISTRIBUTION APPLICATIONS!

SPEC-BLOK™ catalog numbers describe exactly how

the distribution block is assembled:

5DR-NDST-GQP-12 (assembly pictured)

Total number of poles in the

completed assembly

One ‘D’ unit and one ‘R’ unit, bolted in parallel,

forming each phase pole (3 phase poles)

Denotes the beginning of the neutral pole (where

required)

DST

One ‘D’ unit, one ‘S’ unit, and one ‘T’ unit, bolted

in parallel, forming the neutral pole

Denotes the beginning of the ground pole

description (where required)

One ‘Q’ unit and one ‘P’ unit,

bolted in parallel, forming the ground pole

Size (inches) of the wireway or trough that is need-

ed to enclose the assembly. If a junction box en-

closure is used, no number is used to denote the

size of the enclosure

Catalog

Number

(Nominal)

(Overall)

CPB6

7-3/4

2-1/2

CPB8

9-3/4

2-1/2

CPB10

11-3/4

2-1/2

CPB12

13-3/4

3-1/2

CPB14

15-3/4

3-1/2

CPB16-5/8

16-5/8

18-3/8

3-1/2

CPB21-1/4

21-1/4

3-1/2

Catalog

Number

(Nominal)

(Overall)

CPT6

5-7/8

2-1/4

2-1/2

CPT8

7-7/8

3-1/2

CPT10

9-7/8

3-1/2

CPT12

11-7/8

3-1/2

CPT16

15-7/8

3-1/2

(CPT-)

(CPB-)

SPEC-BLOK™ Mounting Platforms

A-65

BURNDY

US: 1-800-346-4175

www.burndy.com

Canada: 1-800-387-6487

Mechanical

How many poles in the system? (3-wire, 4-wire, single phase, etc.)?___________ poles

Are neutral conductors (when required) different sizes (AWG/kcmil) than the phase conductors?
___________ same size ___________ different size

Is a ground connection required?

□

Yes

□

What are the quantities, sizes (AWG/kcmil) and material (AI/Cu) of the incoming line conductors
and outgoing load conductors?

Are any conductors continuous?

□

Yes

□

If yes, which ones? ______________________________________________________________________________________
_______________________________________________________________________________________________________

What kind of enclosure is the connection assembly being mounted in and what are the inside space dimensions?
Wireway/trough size _______________________________________________________________________________________
Box, panel, cabinet, other size _______________________________________________________________________________

When is a quotation required? Date ______________ _____ When is the material required? Date __________________

Name of requestor ______________ ____________________ Job name/reference _____________ ___________________

Is there a preference for a particular BURNDY distributor?

□

Yes

□

If yes, please give the name, location and telephone number
Name ________________________________________________________________ Phone______________________________
Address ________________________________________________________________________________________________
________________________________________________________________________________________________

PER PHASE

NEUTRAL

GROUND

LINE

LOAD

LINE

LOAD

LINE

LOAD

QUANTITY

SIZE

CONDUCTOR TYPE

For SPEC-BLOK

™

Applications

Questionnaire

Questions?

Call BURNDY

Technical Services at 800-451-4956.

□

Yes

□

Yes

□

SPEC-BLOK™ Application Questionnaire

A-66
