The

one-stop MEMS and

Sensors supplier

ST’s leadership continues with a strong commitment to Sustainable
Technology, delivering motion MEMS products with decreasing
environmental impact, generation after generation, providing improved
life quality by bringing environmental and social benefits to end users.

SUSTAINABLE

TECHNOLOGY

•

A unique sensor portfolio, from discrete to fully-integrated solutions,
to meet all design needs

•

High-volume manufacturing capacity to provide cost-competitive
solutions, fast time-to-market and security of supply

•

High-performance sensor fusion to improve the accuracy of multi-
axis sensor systems in order to enable new emerging and
highly-demanding applications, such as indoor navigation and
location-based services such as IoT, indoor navigation and
location-based services

•

High-quality products, already tested in different application fields,
including mobile, portable, gaming, consumer, automotive and
health care segments

•

Multiple sites dedicated to MEMS, with full in-house dual sourcing,
guaranteeing 100% security of supply

For your MEMS needs, ST provides a complete solution

ST has shipped more than 10 billion micro-electromechanical sensors and has one of the industry’s most
extensive MEMS portfolio including accelerometers, gyroscopes, digital compasses, inertial modules, MEMS
microphones, and environmental sensors including pressure, temperature and humidity.

Complete solution

•

Large sensor portfolio

•

Integrated HW + SW solutions

•

100% security of supply

•

Scalability of solutions

•

Quality is a must for ST

•

ST is MEMS market leader

•

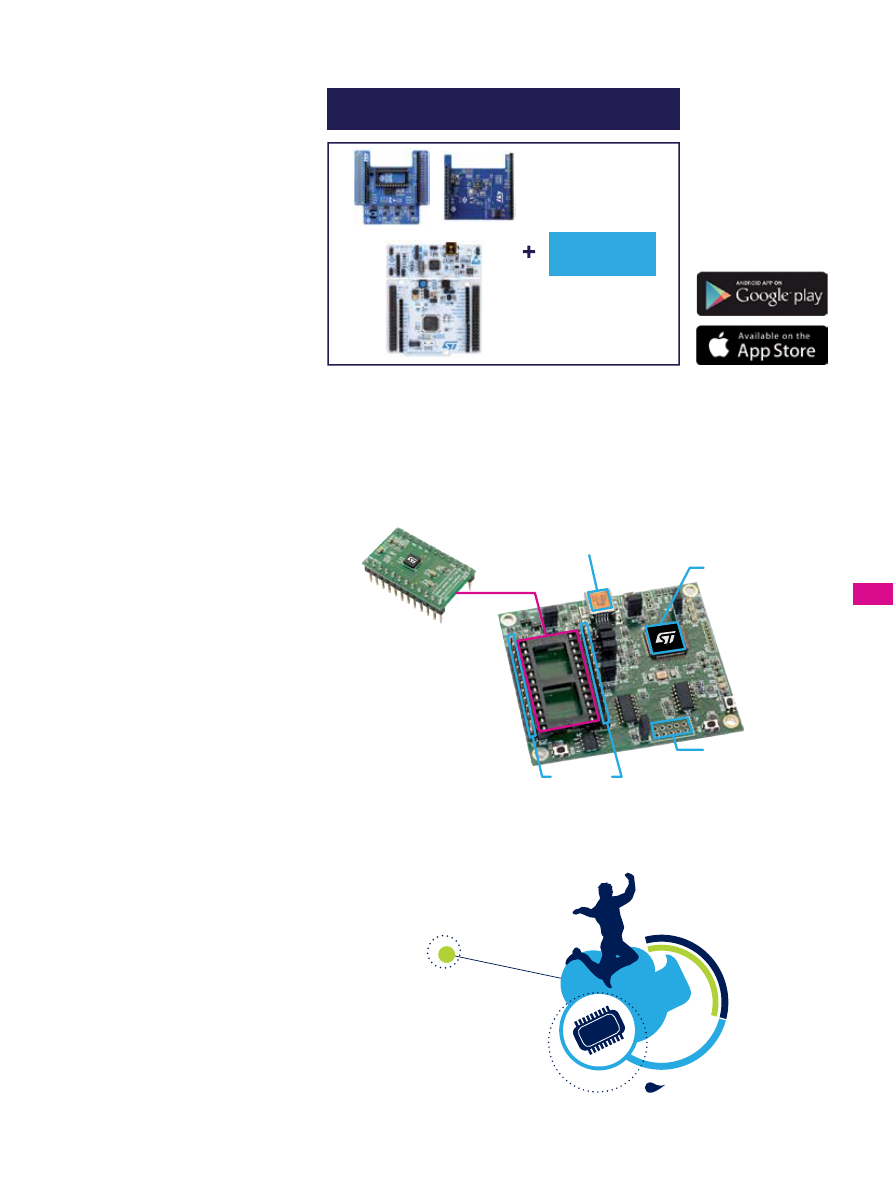

STM32 Open Development
Environment support

All portable devices become easy-to-use and fun

Sensors

in your hand

AXL:  accelerometer
GYRO: gyroscope
MAG:  magnetometer
PS:   pressure sensor
TS:   temperature sensor
RH:  humidity sensor
OIS:   optical image stabilization
IMU:   inertial module unit

Consumer applianCes

•

Smartphones and tablets (AXL, GYRO, MAG, PS, RH, IMU, Microphones)

•

Motion tracking for gesture-based user interfaces

•

Electronic compasses

•

Location-based services

•

Heading and navigation

•

Relative humidity sensing

•

Gaming devices (AXL, GYRO, MAG)

•

Accurate detection of orientation and angular rate

•

Remote control (AXL, GYRO, MAG, Microphones)

•

Gesture recognition and pointing (3D mouse)

•

Notebooks and ultrabooks (AXL, GYRO, MAG, TS)

•

Sensor hub

•

Hard-disk protection

•

Lid closure

•

Orientation

•

Cameras (DSC/DVD) (AXL, GYRO)

•

OIS and user interfaces

Fitness and wellness appliCations

•

Athlete performance monitoring

•

Movement recognition through shoes and wearable sensors (AXL, IMU)

•

Golf and tennis swing detection (AXL, GYRO, MAG)

•

Body tracking recognition (AXL, GYRO, MAG)

•

Watches, personal navigation devices (PND) and pedometers
(AXL, GYRO, MAG, PS, IMU)

•

Map orientation

•

Heading and navigation

•

Power-saving using auto-wake-up functionality

•

Taps (display activation)

•

Treadmills and barbells (AXL)

•

Tilting angle and shock detection during steps

•

Step detection

•

Pedometer

•

Step counter

Sensors for improving your fitness workout

Sensors

in your training

AXL:  accelerometer
GYRO: gyroscope
MAG:  magnetometer
PS:   pressure sensor
TS:   temperature sensor
RH:  humidity sensor
IMU:   inertial module unit

Home applianCes

•

Home alarm systems and car garages (AXL, MAG, Microphones)

•

Vibration and shock detection

•

Detection of door open/close position

•

White goods (AXL, GYRO, PS, RH, IMU, TS, IMU)

•

Control of basket rotation (washing machines)

•

Power consumption optimization

•

Vibration detection for noise reduction and maintenance

•

Detection of door open/close position

•

Fluid column pressure measurement

•

Smart home automation control (TS, RH)

•

Heating, ventilation and air conditioning (HVAC, PS)

•

Relative humidity level monitoring and weather stations

•

Incubators, refrigerator crispers and storage

•

Respiratory equipment/humidifiers

•

Electric, gas/water meters (AXL, MAG)

•

Tilting, vibration and shock detection

•

Anti-tamper mechanisms

•

Home environment monitoring (TS, RH, PS)

•

Ambient temperature and relative humidity monitoring

Devices offer enhanced user interfaces helping to decrease

energy consumption

Sensors

in your

home/Smart appliances

AXL:  accelerometer
GYRO: gyroscope
MAG:  magnetometer
PS:   pressure sensor

TS:   temperature sensor
RH:  humidity sensor
OIS:  optical image stabilization
IMU:  Inertial Module Unit

For safer cars and easier navigation

Sensors

in your car

automotive

•

Telematics

•

E-Calls (AXL)

•

Black boxes and crash detection (AXL)

•

Fleet tracking (AXL, GYRO, IMU)

•

Driver’s behavior tracking (AXL, GYRO, IMU)

•

Key fobs (AXL)

•

Security

•

Car alarms and anti-theft systems (AXL)

•

Tilt detection (AXL)

•

Navigation

•

3D navigation (AXL, GYRO, IMU)

•

Dead reckoning (AXL, GYRO, IMU)

•

Safety

•

SRS with rollover detection (AXL, GYRO, IMU)

•

Hill-start assist, head safety light leveling and braking assistance (AXL)

•

Vehicle dynamics, stability control (AXL, GYRO, IMU)

•

Electronic suspensions (AXL, GYRO, IMU)

•

Tire pressure monitoring systems (AXL)

•

Smart tires (AXL)

AXL:  accelerometer
GYRO: gyroscope
MAG:  magnetometer
TS:   temperature sensor
RH:  humidity sensor
IMU:  Inertial Module Unit

For industrial applications

Sensors

at work

industrial

•

Robotics and automation
(AXL, GYRO, IMU)

•

nertial navigation and wheel
encoder position accuracy

•

Self-balancing robots

•

Condition monitoring of
transportation and industrial
equipment (high-g AXL, RH, TS)

•

Vibration and rotational speed
monitoring

•

Asset and parcel tracking and
monitoring (High-g AXL, GYRO, TS)

•

Shock detection and logging

•

Building and structure monitoring
(AXL)

•

Vibration and tilt monitoring

•

Seismic exploration and
geophones (AXL)

•

Vibration monitoring

•

Drills (AXL, GYRO, IMU)

•

Safety and chuck rotation
monitoring

•

Tilt detection

AXL: accelerometer
GYRO: gyroscope
MAG: magnetometer

TS:   temperature sensor
RH:  humidity sensor
IMU:  Inertial Module Unit

For advanced medical applications

Sensors

in health care

mediCal

•

Implantable medical devices (AXL)

•

Pacemakers, defibrillators and neuro-stimulators

•

Concussion detection in sports (high g AXL)

•

Helmets, patches and mouth guards

•

Motion detection and body motion reconstruction (AXL, GYRO, MAG, PS, IMU)

•

Man-down and personal emergency response systems (PERS)

•

Rehabilitation and training

•

Improved straight line motion and tilt detection for safety

•

Instrument guidance in surgery (AXL, GYRO, IMU)

•

Healthcare mobility aids including wheelchairs and scooters (AXL, GYRO, PS, IMU)

AXL:  accelerometer
GYRO: gyroscope
MAG:  magnetometer
PS:   pressure sensor
TS:   temperature sensor
RH:  humidity sensor
OIS:  optical image stabilization
IMU:  Inertial Module Unit

Accelerometers

Smart motion features with ultra-low power consumption

ST’s state-of-the-art MEMS accelerometers include analog and digital sensors featuring up to ±400g
acceleration full scale and from 1.62 to 3.6 V supply voltage. Accelerometers have advanced power-
saving features that make them suitable for ultra-low-power applications. These features include low-
power mode, auto wake-up function and a FIFO buffer that can be used to store data, thus reducing the
host processor loading and system power consumption.
The small size and embedded features of ST’s accelerometers make them an ideal choice for handheld
portable applications and where long battery life is required.
The ST accelerometers can be applied in Industrial applications too and in the portfolio are present also
Automotive grade MEMS accelerometers qualified according to AEC-Q100.

-42%
-43%

SUSTAINABLE

TECHNOLOGY

BeneFits

•

High performance

•

Small footprint for ultra-compact
solutions

•

Low power consumption and
ultra-low-power operating modes
that allow advanced power saving
and smart sleep-to-wake-up
functions

•

Practical and easy-to-use
built-in features

•

Embedded state machines enable
custom motion recognition
reducing system complexity

•

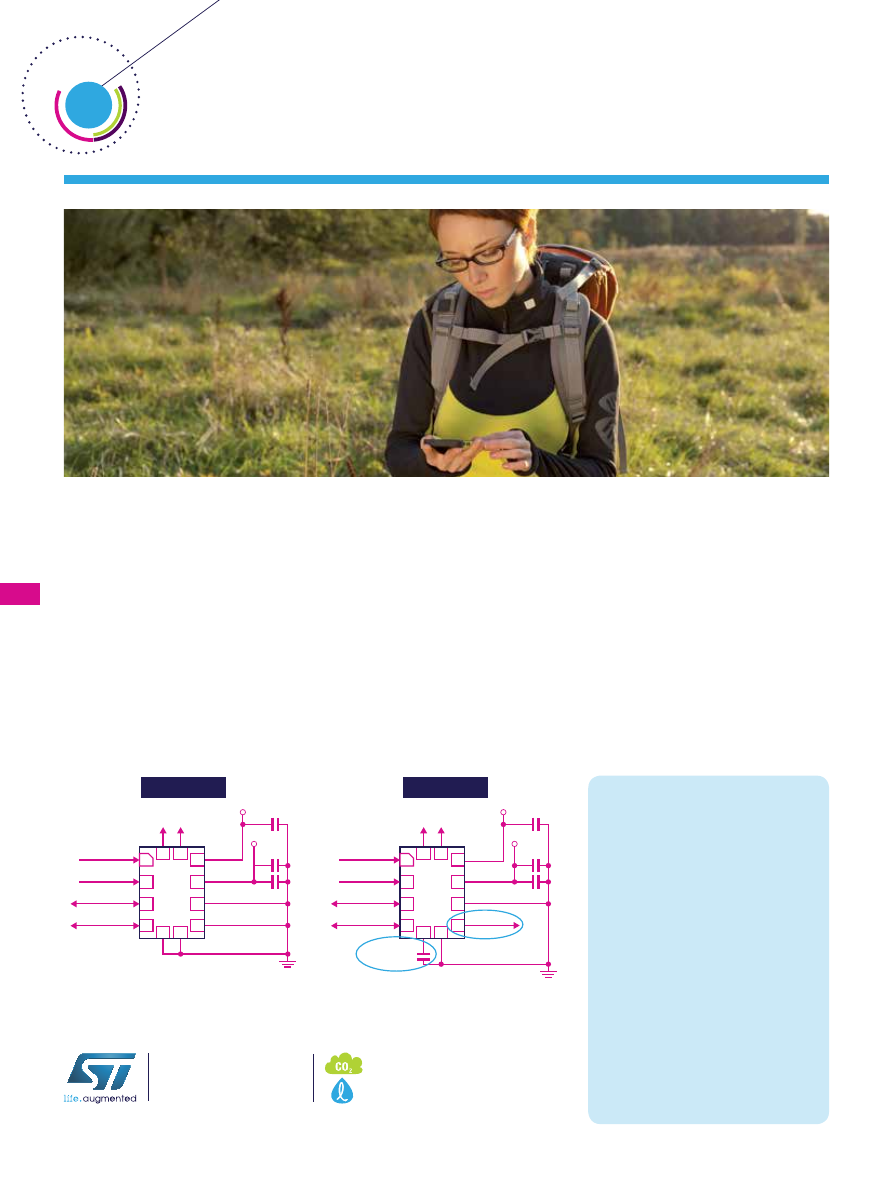

Pinout compatibility

•

FIFO

part number

package/size (mm)

typical full-scale (g)

typical noise density (µg/√ Hz)

Key features

lis2dH12

LGA12 (2 x 2 x 1)

±2; ±4; ±8; ±16

220

12-bit, embedded FIFO, board-compatible with compasses

lis2HH12

LGA12 (2 x 2 x 1)

±2; ±4; ±8

140

16-bit, higher temperature stability

lis2ds12

LGA12 (2 x 2 x 0.8)

±2; ±4; ±8; ±16

100

14-bit, embedded smart functionalities

lis2de12

LGA12 (2 x 2 x 1)

±2; ±4; ±8; ±16

220

8-bit

lis3dH

LGA16 (3 x 3 x 1)

±2; ±4; ±8; ±16

220

12-bit

lis331HH

LGA16 (3 x 3 x 1)

±6; ±12; ±24

650

12-bit, up to ±24g full scale

lis344alH

LGA16 (4 x 4 x 1.5)

±2; ±6

Low noise, analog output

ais328dQ

QFN24 (4 x 4 x 1.8)

±2; ±4; ±8

218

AEC-Q100 qualified, temperature range -40 to +105 °C

ais3624dQ

QFN24 (4 x 4 x 1.8)

±6; ±12; ±24

600

AEC-Q100 qualified, ideal for emergency calls,

temperature range -40 to +105 °C

ais1120sX/
ais2120sX

SO8

±120

AEC-Q100 qualified, Airbag central unit

temperature range -40 to +105 °C

ais1200ps

SO16

±200

AEC-Q100 qualified, Airbag satellite sensor

temperature range -40 to +125 °C

iis328dQ

QFN24 (4 x 4 x 1.8)

±2; ±4; ±8

218

10 years longevity, Golden manufacturing flow, robust and

highly selective testing, temperature range -40 to +105 °C

iis2dH

LGA12 (2 x 2 x 1)

±2; ±4; ±8; ±16

220

10 years longevity, Golden manufacturing flow,

robust and highly selective testing,

H3lisxxxdl

LGA16 (3 x 3 x 1)

±100; ±200; ±400

15000

Low power consumption (ideal for high shock detection)

mis2dH

LGA12 (2 x 2 x 1)

±2; ±4; ±8; ±16

220

Specifically designed for medical applications including Class

III FDA implantable devices

Note: a complete list of part numbers is available at www.st.com/accelerometers

aCCelerometers

Consumer & industrial

Long-life applications

Automotive Non-safety

Automotive Safety (Central and Peripheral Airbags)

Medical

LIS344ALH

LIS331HH

12-bit

H3LIS331DL

12-bit

H3LIS200DL

H3LIS100DL

8-bit

LIS3DE

LIS3DH

LIS3DSH

(smart AXL)

LIS2DE12

8-bit

LIS2DS12

14-bit

LIS2HH12

16-bit

LIS2DH12

LIS2DH

12-bit

IIS2DH

IIS328DQ

AIS328DQ

AIS3624DQ

AIS1200PS

AIS1120SX

AIS2120SX

MIS2DH

High-g

Low-g

Analog

10-years

commitment

AEC-Q100

qualified

3 x 3 x 1

2 x 2 x 1

>4 x 4 x 1.5

part number

package/size (mm)

typical full scale (dps)

typical noise density (dps/√Hz)

Key features

a3G4250d

LGA16 (4 x 4 x 1.1)

± 245

0.03

AEC-Q100 qualification,

low noise and high/stability over temperature

l2G2is

LGA (2.3 x 2.3 x 0.7)

±100/±200

0.06

OIS gyroscope

l3Gd20H

LGA16 (3 x 3 x 1.0)

± 245/±500/±2000

0.011

Embedded FIFO

i3G4250d

LGA16 (4 x 4 x 1.1)

± 245/±500/±2000

0.03

10 years longevity, Golden manufacturing flow,

robust and highly selective testing.

Note: a complete list of part numbers is available at www.st.com/gyroscopes

3-aXis diGital GYrosCopes

L2G2IS

±200/±100 (°/s)

A3G4250D

±245 (°/s)

L3GD20H

±2000/±245 (°/s)

I3G4250D

±2000/±245 (°/s)

Optical image

stabilization

Automotive

non-safety

Consumer and

industrial

3 x 3 x 1

2.3 x 2.3 x 0.7

4 x 4 x 1

Long-life

applications

-33%
-32%

SUSTAINABLE

TECHNOLOGY

BeneFits

•

Wide full-scale range
(from ±65 to ±2000 dps) for
optical image stabilization and
smart user interfaces

•

High performance combined with
low power consumption to
address demanding applications
and extend battery life

•

Embedded FIFO for smart data
storage and power saving

•

Fast start-up for high
responsiveness and system
efficiency

Digital

compasses

Accurate compass heading in any condition

ST’s digital compasses include combo solutions, with accelerometer and magnetic sensor integrated
in a single LGA package and standalone magnetometers, to give the possibility of designing a solution
locating the magnetic sensor in the suitable position of printed circuit board (PCB).
Accurately detecting the direction and magnitude of external magnetic fields and using accelerometer
measurements for tilt compensation, ST’s digital compasses ensure very accurate compass heading
even when the portable device is inclined.
ST’s LSM303AGR combines high performance, low power accelerometer and magnetometer with high
dynamic range (+/-49 gauss) with temperature offset compensation. LSM303AGR includes embedded
self-test and smart power functionalities to minimize current consumption. The LSM303AGR is board and
software compatible with the latest generation of accelerometers, thus offering maximum design flexibility.

BeneFits

•

Superior sensing precision
combined with low power
consumption

•

Wide magnetic range with high
sensitivity magnetic-scale range

•

Ultra low magnetic offset and low
noise

•

Compact package footprint, pinout
compatible with 2x2 accelerometer

•

Ultra low magnetic parameter
changes with thermal drift

•

New possibilities for advanced
navigation and location-based
services in ever portable consumer
devices

-44%
-42%

SUSTAINABLE

TECHNOLOGY

LIS2DH12

LSM303AGR

INT1

INT2

12 11

5 6

SCL/SPC

SDO/SAO

SDA/SDI/SDO

Vdd

Vdd_IO

GND

100 nF

RES

GND

10 µF

100 nF

INT1_XL

DRDY_MAG

CS_XL

12 11

5 6

SCL/SPC

Top

view

CS_MAG

SDA/SDI/SDO

Vdd

Vdd_IO

GND

INT_MAG

= 100 nF

10 µF

GND

= 100 nF

easY Board CompatiBilitY

•

Same component outline dimensions

•

Same pinout dimensions

•

Same pinout structure

•

Small changes to:

•

Pin 5, connect a capacitor

•

Pin 7, connect to EXT (interrupt signal for other use)

FoCus on lsm6dsm/lsm6dsl

iNEMO

inertial modules

Accelerometer + gyroscope SIP solution featuring multiple

degrees of freedom

iNEMO inertial modules integrate complementary types of sensors to offer more compact, robust
and easy-to-assemble solutions compared to discrete MEMS products. iNEMO solutions bring motion
sensing systems to the level required for the most demanding applications, such as enhanced gesture
recognition, gaming, drones, augmented reality, indoor navigation, pedestrian dead reckoning,
wearables, OIS/EIS and localization-based services.

-32%
-33%

SUSTAINABLE

TECHNOLOGY

2.5 x 3.0 x 0.83 mm

Ultra low power

For OIS application up to 1/6 less than the best alternative solution in the market

Industry-leading low-power performance for 3A+3G combo Down to 0.29mA in Always-on mode

Ultra small size

Tiny size to fit in the smallest, slimmest mobile, wearable and IoT devices

Ultra performing

Gyroscope rate noise down to 3.8 mdps/

√

Hz (typical)

Industry-best resolution for gyroscope and accelerometer

Ultra capable

2 times larger than the best alternative solution

4-Kbyte “smart” FIFO memory to batch more data before system wake-up

Ultra smart

Saving power and enabling faster system reaction times

Embedded efficient and reliable motion tracking, pedometer and context awareness

Ultra scalable

The best combination of a 6-axis sensor with a sensor hub, UI and OIS/EIS features

Ideal companion for the ultra-low-power STM32 family of microcontroller

2.5 x 3.0 x 0.83 mm

Features

•

Single-chip solution

•

6-axis

•

Smallest footprint

•

Synchronized output

•

Low power consumption

BeneFits

•

Cost-effective

•

Independent on tilt installation

•

Compact system design

•

Precise motion reconstruction
(by algorithm)

•

Battery saving (ignition off)

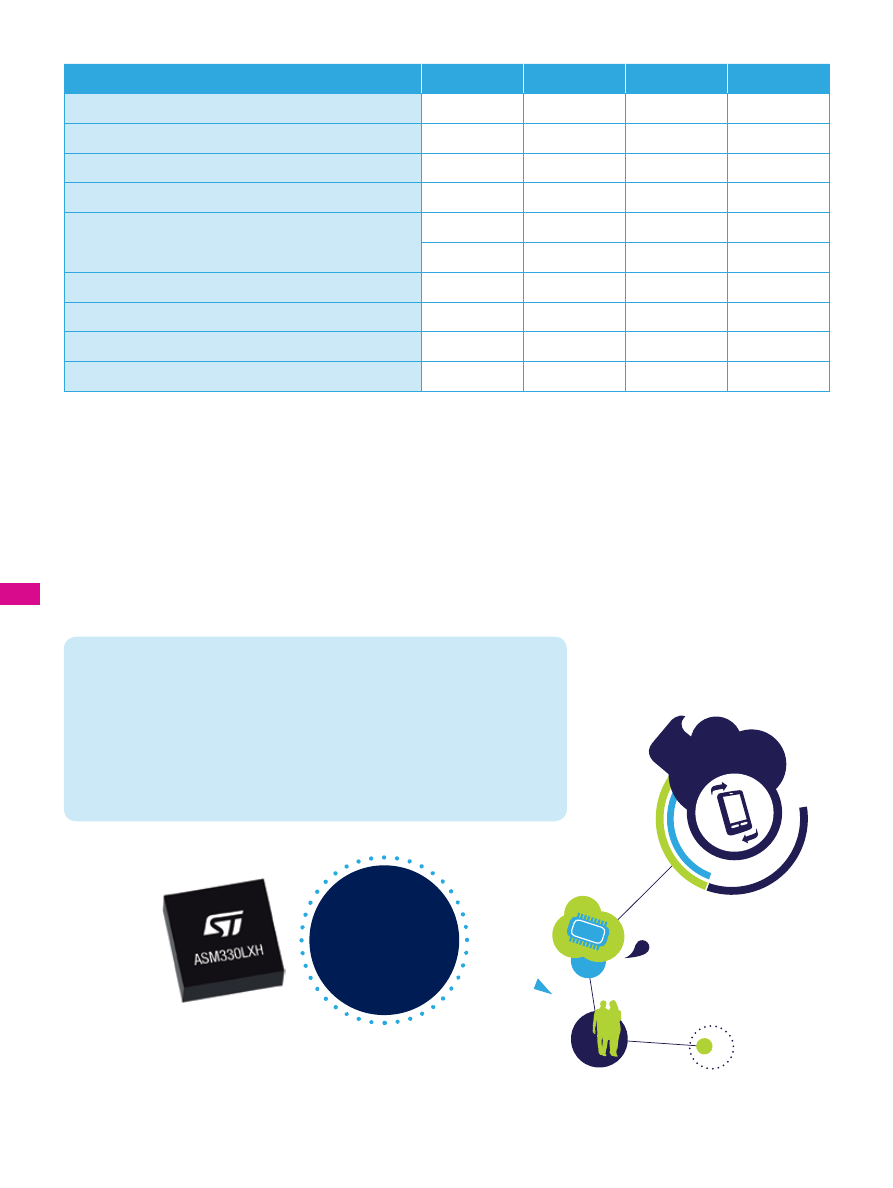

Automotive inertial module: 3D accelerometer and 3D gyroscope

The ASM330LXH inertial module unit (IMU) addresses non-safety automotive applications such as vehicle
tracking systems, rate-activated functions, inertial navigation assistance and telematics units.
The ASM330LXH is a system-in-package featuring both a 3D digital accelerometer and a 3D digital
gyroscope. It has a user-selectable full scale acceleration range of ±2/±4/±8/±16 g and an angular rate
range of ±125/±245/±500/±1000/±2000 dps. The ASM330LXH has two operating modes enabling the
accelerometer and gyroscope sensors to be either activated at the same ODR or the accelerometer can
be enabled while the gyroscope is powered down.

parameter

lsm6dsm

lsm6dsl

lsm6ds3H

lsm6ds3

Current consumption in High-performance mode (ma)

0.65

1.25

1.1

Current consumption in normal mode (ma)

0.45

0.9

noise density in High-performance mode @ 2g accelerometer (µg/√Hz)

typical gyro noise density in High-performance mode (mdps/√Hz)

3.8

4.5

odr (Hz)

Accel:1 to 6664

Accel:12.5 to 6664

Accel:12.5 to1666

Gyro:12.5 to 6664

Gyro:12.5 to 3332

Gyro:12.5 to 1666

FiFo depth

Up to 4 Kbytes

Up to 8 Kbytes

sensor data collection

Yes

ois/eis

Yes/Yes

No/Yes

Yes/Yes

No/Yes

sensor sync

Yes

aeC-Q100

Compliant

ppap level-3

availaBle

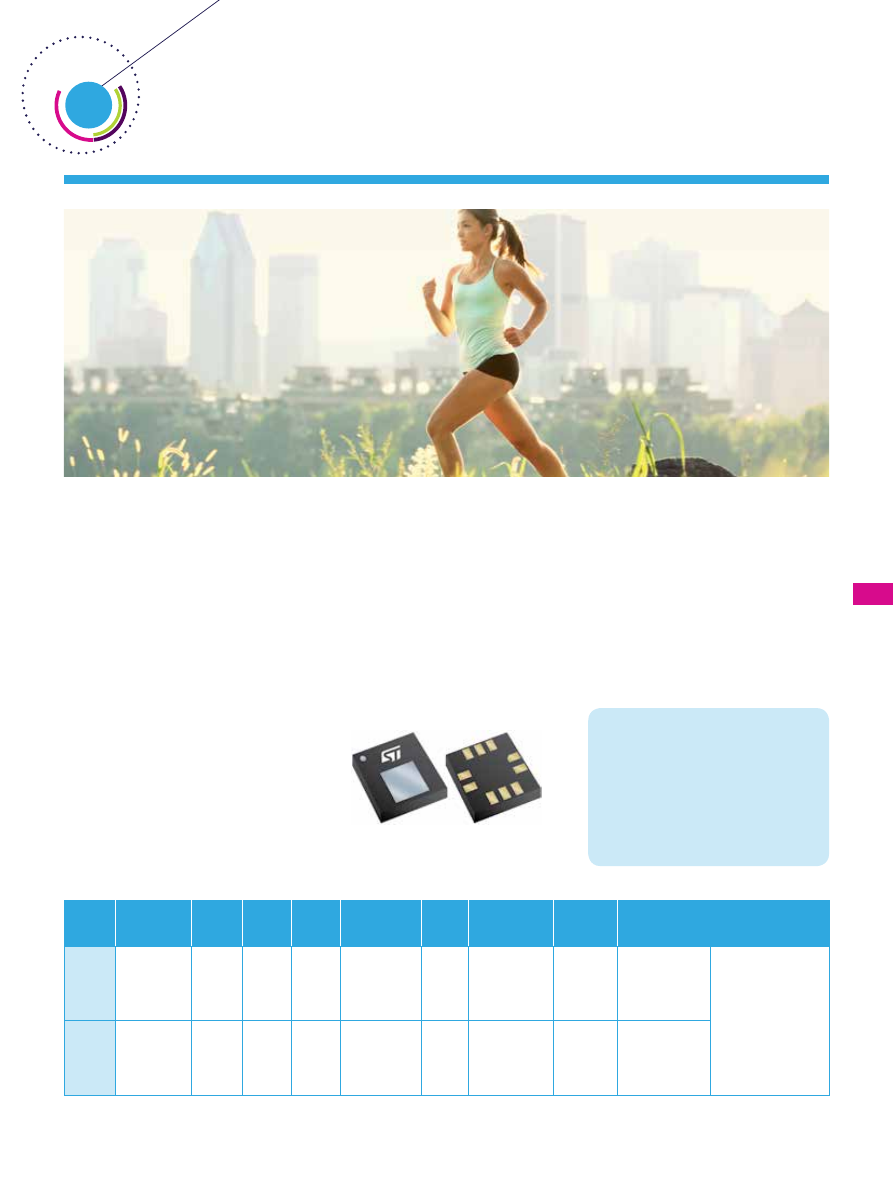

part

number

package (mm)

pressure

range

(hpa)

relative

accuracy

(hpa)

absolute

accuracy

(hpa)

noise

odr

(Hz)

Current

consumption

Highshock

survivability

(g)

advanced

digital features

reliability

lps25HB

HLGA-10L,

2.5 x 2.5 x 0.76

Full-molded

260 to

1260

±0.1

±0.2

3 Pa RMS

(without

embedded filter)

1 Pa RMS (with

embedded filter)

1, 10, 25

25 µA @ 1 Hz

4 µA @ 1 Hz

(low res)

10.000

FIFO for Pressure

Sensor data

Programmable

Interrupt/Data ready

• Improved moisture
resistance
• Improved shock/
vibration suppression
• Proven experience:
250 Mpcs in the market

lps22HB

HLGA-10L,

2 x 2 x 0.76
Full-molded

260 to

1260

±0.05

±0.1

1 Pa RMS

(without

embedded filter)

0.5 Pa RMS (with

embedded filter)

1, 10, 25,

50, 75

15 µA @ 1 Hz

(high resolution

mode)

4 µA @ 1 Hz

(low power mode)

22.000

FIFO for Pressure

and Temperature

Sensor data

Programmable

Interrupt/Data ready

Note: a complete list of part numbers is available at www.st.com/pressure

pressure sensor

ST’s absolute digital output barometer
integrates ST’s consolidated pressure sensor
with the new fully molded package to further
improve robustness, reliability and moisture
resistance while reducing package thickness.

Environmental

sensors

Collect humidity, atmospheric pressure and temperature accurate data

for environmental awareness

STMicroelectronics offers a full kit of environmental sensors, including pressure, humidity and temperature
sensors. These sensors rely on dedicated mechanical structures that guarantee the best performance
even in challenging environmental conditions.
They are adopted in many wearable devices to monitor health and for fitness programs, in smart home
or other industrial applications to monitor weather conditions and guarantee good equipment safety.

BeneFits

•

Ultra-small footprint

•

Low-power consumption

•

Fully-molded package ensure
stability and robustness in any
condition and water resistance

temperature sensors

ST’s temperature sensors temperature
sensors include both analog and digital
temperature sensor ICs. Both types
are suitable for use in a wide range of
applications, such as industrial, consumer,
medical and computer market segments.
The analog temperature sensors feature
low power consumption and good linearity,
and can operate over a temperature range
as wide as -55 to +130 °C. The digital
temperature sensors feature low power
consumption, up to 12-bit resolution and can
operate over a temperature range as wide as
-55 to +125 °C.

part number

General description

package

supply voltage min-max (v) Humidity (rH) min-max (% rH)

interfaces

Hts221

Capacitive digital sensor for

relative humidity and temperature

HLGA-6L 2 x 2 x 0.9 mm

1.7-3.6

0-100

SPI, I

part number

package

package size

General description

i/o interface

operating voltage min-max (v)

stCn75

MSOP(TSSOP8)

3 x 3 mm

Digital temperature sensor and thermal watchdog

SMBus/I

C compatible

2.7-5.5

stds75

MSOP(TSSOP8)

3 x 3 mm

Digital temperature sensor and thermal watchdog

SMBus/I

C compatible

2.7-5.5

stlm75

MSOP(TSSOP8),

SO-8

3 x 3 mm,

4.90 x 3.90 mm

Digital temperature sensor and thermal watchdog

SMBus/I

C compatible

2.7-5.5

stts75

MSOP(TSSOP8),

SO-8

3 x 3 mm,

4.90 x 3.90 mm

Digital temperature sensor and thermal watchdog

SMBus/I

C compatible

2.7-5.5

stts751

UDFN-6L

2 x 2 mm

2.25 V low-voltage local digital temperature sensor

SMBus/I

C compatible

2.25-3.6

stts2002

TDFN8

2 x 3 mm

2.3 V memory module temperature sensor with a

2 Kb SPD EEPROM

SMBus/I

C compatible

2.3-3.6

stts2004

TDFN8

2 x 3 mm

2.2 V memory module temperature sensor with a

4 Kb SPD EEPROM

SMBus/I

C compatible

2.2-3.6

part number

package

package size

General description

operating voltage min-max (v)

operating supply current typ (ma)

stlm20

UDFN-4L,

SOT323-5L

1 x 1.30 mm,

2 x 1.25 mm

Ultra-low current 2.4 V precision

analog temperature sensor

2.4-5.5

0.008

Note: a complete list of part numbers is available at www.st.com/tempsensors

diGital temperature sensors

analoG temperature sensor

HumiditY and temperature sensor

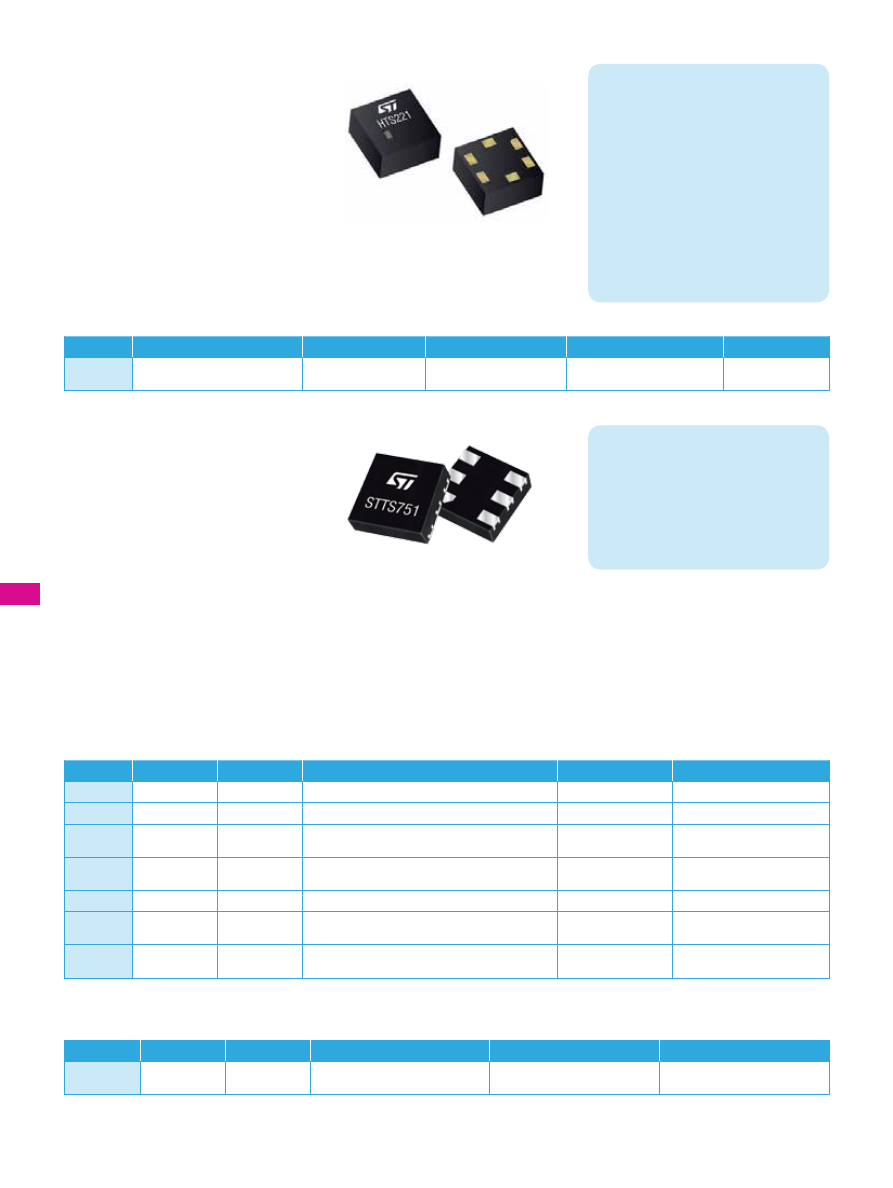

The HTS221 is an ultra-compact sensor that
measures relative humidity and temperature.
Housed in a tiny but robust HLGA package
(2 x 2 x 0.9 mm), the HTS221 is suitable
for wearable and portable devices and all
applications where comfort, health and safety
might be negatively impacted by humidity
and temperature variations.

BeneFits

•

Ultra-small footprint

•

Low-power consumption to
address wearable devices

•

Allows customized calibration for
best design flexibility

•

Humidity accuracy:
± 3.5% rH, 20 to +80% rH

•

Temperature accuracy:
± 0.5 °C,15 to +40 °C

BeneFits

•

Small footprint

•

High accuracy

•

Dual alarm

•

One-shot mode for energy saving

2 x 2 x 0.5 mm

MEMS

analog and

digital microphones

Crystal-clear audio quality with the size, cost and volume production of

MEMS sensors

Microphones based on MEMS technology offer an excellent audio quality. They are less susceptible to
mechanical vibrations, temperature variations and electromagnetic interference compared to traditional
electret microphones. The MEMS process makes these microphones the ideal stereo solution wherever two
perfectly matched microphones are required.

BeneFits oF
mems miCropHones

•

Enhanced performance

•

High stability of sensitivity after
reflow

•

Very stable unit-to-unit performance

•

Consolidated micromachining
technology

•

New applications enabled: stereo
capture, noise cancellation, beam
forming

•

High shock resistance

tarGeted appliCations

•

Mobile phones

•

Laptops

•

Phablets

•

Smartphones

•

Digital cameras and camcorders

•

Gaming

•

Portable media players

•

Hands-free devices

•

Tablets

•

Hearing aids

•

Headsets

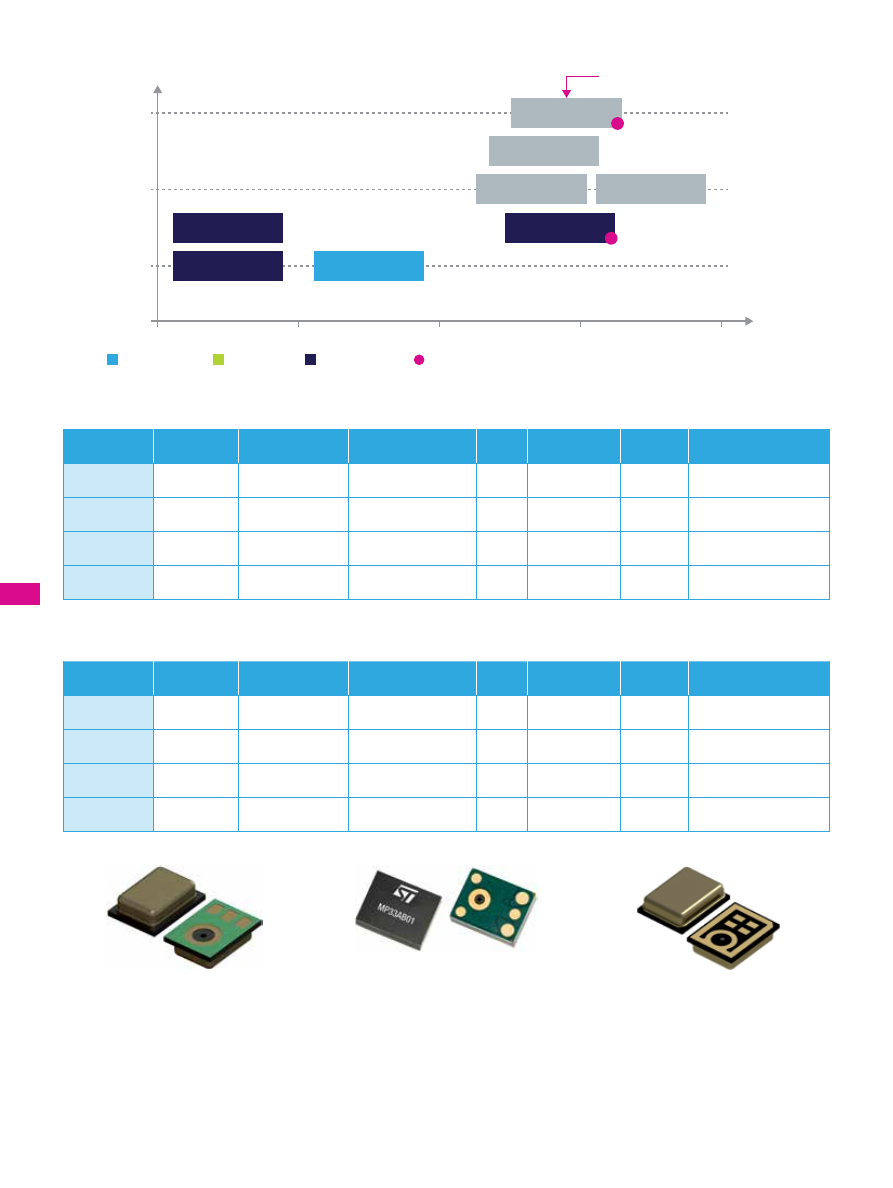

part number

top/bottom port

package size (mm)

supply voltage (v)

snr (dB) sensitivity (dBv) aop (dB spl) Current consumption (µa)

mp45dt02-m

Top

4.72 x 3.76 x 1.25

(Metal)

1.64 to 3.6

-26

120

650

mp34dt01-m

Top

3 x 4 x 1 (Plastic)

1.64 to 3.6

-26

120

650

mp34dt04

Top

3 x 4 x 1.06 (Metal)

1.64 to 3.6

-26

120

650

mp34dB02

Bottom

3 x 4 x 1 (Metal)

1.64 to 3.6

62.6

-26

120

650

part number

top/bottom port

package size (mm)

supply voltage (v)

snr (dB) sensitivity (dBv) aop (dB spl) Current consumption (µa)

mp23aB02B

Bottom

3.35 x 2.5 x 0.98

(Metal)

1.5 to 3.6

-38

125

220

mp33aB01

Bottom

3.76 x 2.95 x 1

(Plastic)

1.5 to 3.6

-38

125

250

mp33aB01H

Bottom

3.76 x 2.95 x 1

(Plastic)

1.5 to 3.6

-38

125

250

mp23aB01dm

Bottom

3.35 x 2.5 x 0.98

(Metal)

2.1 to 3.6

-38

130

250

diGital mems miCropHones

analoG mems miCropHones

62.6

SNR

125 dB

120 dB

130 dB

AoP

MP45DT02-M

MP34DB02

MP34DT01-M

MP33AB01

MP23AB02B

MP23AB01DM

Differential output

MP33AB01H

MP34DT04

Digital Bottom Port

Digital Top Port

Analog Bottom Port

New

Design

support

Open Development Environment

The STM32 Open Development Environment (STM32 ODE) is an open, flexible, easy and affordable
way to develop innovative devices and applications based on the STM32 32-bit microcontroller family
combined with other state-of-the-art ST components connected via expansion boards. It enables fast
prototyping with leading-edge components that can quickly be transformed into final designs.

The STM32 ODE is made up of four elements:

•

STM32 Nucleo development boards.

A comprehensive range of affordable development boards

for all STM32 microcontroller series, with unlimited unified expansion capability, and with integrated
debugger/programmer.

•

STM32 Nucleo expansion boards.

Boards with additional functionality to add sense, control,

connectivity, power, audio or other functions as needed. The expansion boards are plugged on top of
the STM32 Nucleo development boards. More complex functionalities can be achieved by stacking the
expansion boards.

•

STM32Cube software.

A set of free-of-charge tools and embedded software bricks to enable fast

and easy development on the STM32, including a Hardware Abstraction Layer, middleware and the
STM32CubeMX PC-based configurator and code generator.

•

STM32Cube expansion software.

Expansion software provided free of charge for use with STM32 Nucleo

expansion boards and compatible with the STM32Cube software framework.

The STM32 Open Development Environment is compatible with a number of IDEs including IAR EWARM,
Keil MDK, mbed and GCC-based environments.

STM32 Open

Development Environment

STM32 Nucleo

development boards

STM32 Nucleo

expansion boards

STM32Cube

software

STM32Cube

expansion software

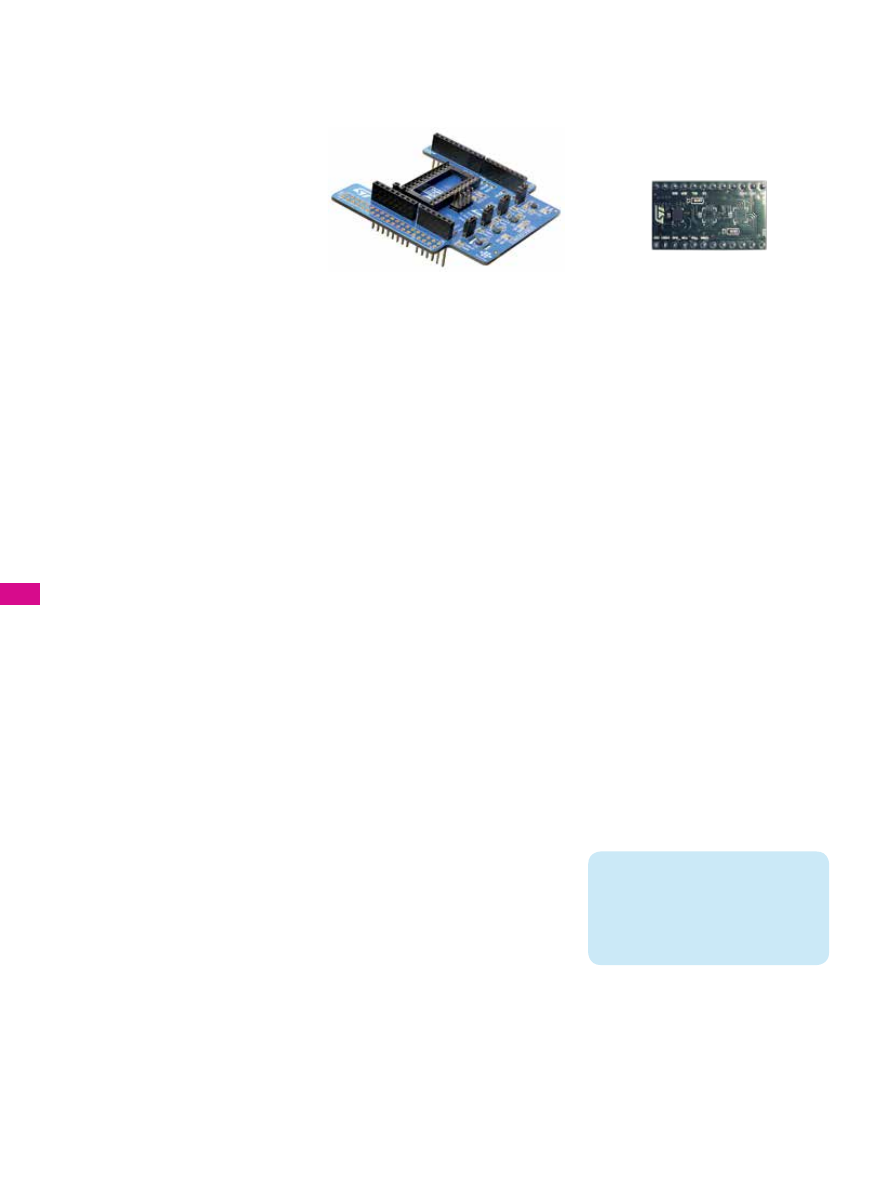

FoCus on tHe new nuCleo eXpansion Board For sensors

The X-NUCLEO-IKS01A1 is a MEMS inertial and environmental sensor evaluation board system. It is compatible with the Arduino UNO R3
connector layout, and is designed around STMicroelectronics’ LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis
magnetometer, the HTS221 humidity sensor
and the LPS25HB pressure sensor.
The board can also be used to evaluate the
new LSM6DS3, evolution of LSM6DS0, by
connecting the STEVAL-MKI160V1 DIL24
adapter.
The X-NUCLEO-IKS01A1 interfaces with the
STM32 microcontroller via the I

C pin, and it

is possible to change the default I

C port.

open soFtware eXpansion

The Open Software Expansion development suite (“OpenSoftwareX”) offers drivers, middleware and application software to jump start your
STM32 design with ST products like MEMS, Bluetooth low energy, sensors, etc. It enables fast prototyping using the STM32 Open Development
Environment with leading-edge components that can quickly be transformed into final designs.
The Open Software Expansion environment is made up of several free libraries, such as:

•

Open.MEMS:

•

Sensor fusion library for STM32 platform osxMotionFX

•

Sensor carrying position for STM32 platform osxMotionCP

•

Sensor activity recognition for STM32 platform osxMotionAR

•

Sensor gesture recognition for STM32 platform osxMotionGR

•

Open.RF: BlueNRG Bluetooth Low Energy library for the most commonly-used BT smart profiles

•

Open.Audio:

•

Real-time beam forming for STM32 platform

•

Real-time sound source localization for STM32 platform

•

Real-time echo cancellation for STM32 platform

•

Bluetooth Low Energy and microphones for STM32 platform

open.mems

Open.MEMS libraries combine data from several sensors achieving the high level of accuracy required by portable and wearable devices and
other emerging applications, such as IoT.
The osxMotionFX library is the evolution of iNEMO Engine Pro sensor fusion algorithm and API, ported to the STM32 Open Development
Environment. Like its predecessor, the osxMotionFX is filtering and predictive software that uses advanced algorithms to integrate and read
real-time outputs from multiple sensors, achieving accurate position information, independently of environmental conditions. The fusion of real-
time motion-sensor data is set to significantly improve user experience by increasing accuracy, resolution, stability and response time in advanced
motion-based applications in the consumer, computer, industrial and medical fields. The osxMotionFX sensor fusion library is designed for use in
combination with the STM32F4 Nucleo development boards (NUCLEO-F401RE, F411 and F476). When installed on your PC, Open.MEMS libraries
must be activated through a licensing wizard tool (included into the osxMotionFX software package).
Additional sensor fusion libraries are also available:

•

The osxMotionAR provides real-time information on user activity (stationary, walking, fast
walking, biking, or driving)

•

The osxMotionCP provides real-time information regarding the position

•

The osxMotionGR provides real-time information on phone-related gestures such as wake
up, glance and pick up

BeneFits

•

Licensing wizard tool makes it easier
to quickly get started evaluating your
sensor fusion design

X-NUCLEO-IKS01A1

STEVAL-MKI160V1

multi-sensor, BluetootH appliCation development platForm

The BLUEMICROSYSTEM1 framework uses
Bluetooth Low Energy, inertial (e.g. motion
MEMS) and environmental (e.g. humidity,
pressure, temperature) sensors. It enables
fusing together and transmitting real-time
sensor data to a smartphone (Android- or iOS-
based) via Bluetooth. BLUEMICROSYSTEM1
provides an implementation example for the
STM32F4 Nucleo platform equipped with the
MEMS and environmental sensor expansion
board (X-NUCLEO-IKS01A1) and the
Bluetooth low energy expansion board
(X-NUCLEO- IDB04A1).
BLUEMICROSYSTEM1 is suitable for all
applications and markets, including IoT and
wearables, that need to effectively sense,
process and transmit valuable information
with very low power consumption and high
performance.

Open.Framework:

BlueMicrosystem1 application development platform

STM32CubeF4

Test points

STM32

microcontroller

USB connector

JTAG/SWD

MEMS-sensor

adapter

desiGn support For non-saFetY automotive and industrial sensors

With an extensive expertise in sensor integration and the development of new applications, ST can assist customers in their design-in phase.
ST’s evaluation kits and firmware allows a real-time evaluation of sensor performance in customer applications.
ST offers a complete evaluation solution including:

•

A full set of DIL24 MEMS non-safety
automotive and industrial adapters
supporting fast prototyping

•

eMotion motherboard compatible with
all adapters and based on an
STM32 microcontroller

•

UNICO graphic user interface for direct
and real-time access to the sensor outputs
and configuration registers.

Board

description

order code

motherboard

ST MEMS motherboard is based on the high-performance STM32F103 32-bit ARM Cortex™-M3

MCU Interfaces: USB connector and JTAG/SWD for debuggingDFU-compatible for USB microprocessor firmware updates

Compatible with all ST MEMS adapters

STEVAL-MKI109V2

STEVAL-MKI109V3*

adapter board

AIS328DQ

STEVAL-MKI110V1

AIS3624DQ

STEVAL-MKI158V1

A3G4250D

STEVAL-MKI125V1

ASM330LXH

STEVAL-MKI171V1*

H3LIS100DL

STEVAL-MKI166V1

H3LIS200DL

STEVAL-MKI167V1

H3LIS331DL

STEVAL-MKI153V1

IIS2DH

STEVAL-MKI168V1

I3G4250D

STEVAL-MKI169V1

IIS328DQ

STEVAL-MKI170V1

LIS2DS12

STEVAL-MKI174V1

LIS344ALH

STEVAL-MKI015V1

LSM6DS3

STEVAL-MKI160V1

LSM303AGR

STEVAL-MKI172V1

LIS2DH12

STEVAL-MKI151V1

LIS2HH12

STEVAL-MKI164V1

LIS3DH

STEVAL-MKI105V1

LPS22HB

STEVAL-MET001V1

L3GD20H

STEVAL-MKI36V1

Note: * available in Q4 16

SUSTAINABLE

TECHNOLOGY

ST’s Sustainable Technology Program provides a single, consistent
framework for all the different programs that we implement to
reduce the impact of our products on the environment and
improve quality of life for the end user. The program includes
three main domains:

•

Compliance with legislation and with customers’ requirements

•

Eco-design to measure and take into account during the
design phase the environmental impact of our products

•

Responsible products which identify innovative products that provide clear environmental and
social benefits to society

ST’s motion MEMS products within sustainable technology

•

All motion MEMS products are ECOPACK

compliant

•

Improvements in our manufacturing technologies and product design have reduced our
products’ carbon footprint by up to 44% and water footprint up to 43%

(1)

•

Products identified as socially responsible:

•

H3LIS331DL is suited for concussion detection (3-STAR rating

(2)

)

•

AIS328DQ and A3G4250D are accelerometers and gyroscopes used for navigation and
telematics (2-STAR rating

(2)

)

•

LIS2DH12 and LSM303C are recommended for fitness monitoring applications (1-STAR rating

(2)

)

product family

Carbon footprint evolution [%] water footprint evolution [%]

accelerometers

-42

-43

Gyroscopes

-33

-32

digital compasses

-44

-42

inertial modules

-32

-33

(1) Screening LCA results for cradle-to-gate scope. Use phase is excluded. Values are reported as average for the whole product family in comparison to previous generation. For more

information about eco-design, visit http://www.st.com/eco-design

(2) For more information about Star responsible product ratings, visit http://www.st.com/responsible_products
