Switchcraft, Inc. was established in 1946 to
manufacture jacks, plugs, and switches. We
have since become the industry leader in
producing a wide variety of connectors, adapters,
jacks and plugs, patchbays, jackfields, and
switches. While our products cover a diverse
number of markets, this catalog focuses on our
line of audio and video products, typically found
in broadcast, recording, sound reinforcement,
and other pro audio applications.

Some of the new products you’ll find in this

catalog include our EZ Norm Series of audio
patchbays, where normal configurations can be
changed from the front of the patchbay, using a
standard screwdriver. Also found in this edition
are new combination audio/video patchbays
in both standard/long-frame and midsize/bantam
styles. In the connector section, we’re offering
a new line of connectors called our EH Series,
incorporating a wide range of connectors (Firewire,
USB, Category 6, BNC, RCA, and more) in a
standard XLR housing.

Please keep in mind that this is just a small

sampling of our complete product lines. For
more detailed information, we offer our “full
line” catalog, our Engineering Design Guide.

Our Engineering Design Guide includes over

5,000 part numbers covering all five major
product lines. If you don't see it here, chances
are you'll find it in the EDG. And again, keep in
mind that the EDG is also just a "snapshot" of
our capabilities. We manufacture over 30,000
part numbers, so if it's not in the EDG, please
contact us with your requirements. To keep up
on all the new products we have to offer, visit
our website at

www.switchcraft.com

and look

for the New Product Showcase.

About Switchcraft, Inc.

Patchcords/Molded Cables

44 – 45

Connector Series

46 – 62

Audio Adapter Series

63 – 64

Jack Series

65 – 82

Plug Series

83 – 93

Switch Series

94 – 96

Index

98 – 100

Patchbay Series

4 – 43

Detailed Table of Contents — Pages 2 – 3

* Please visit the product pages on our website for the most up-to-date product information

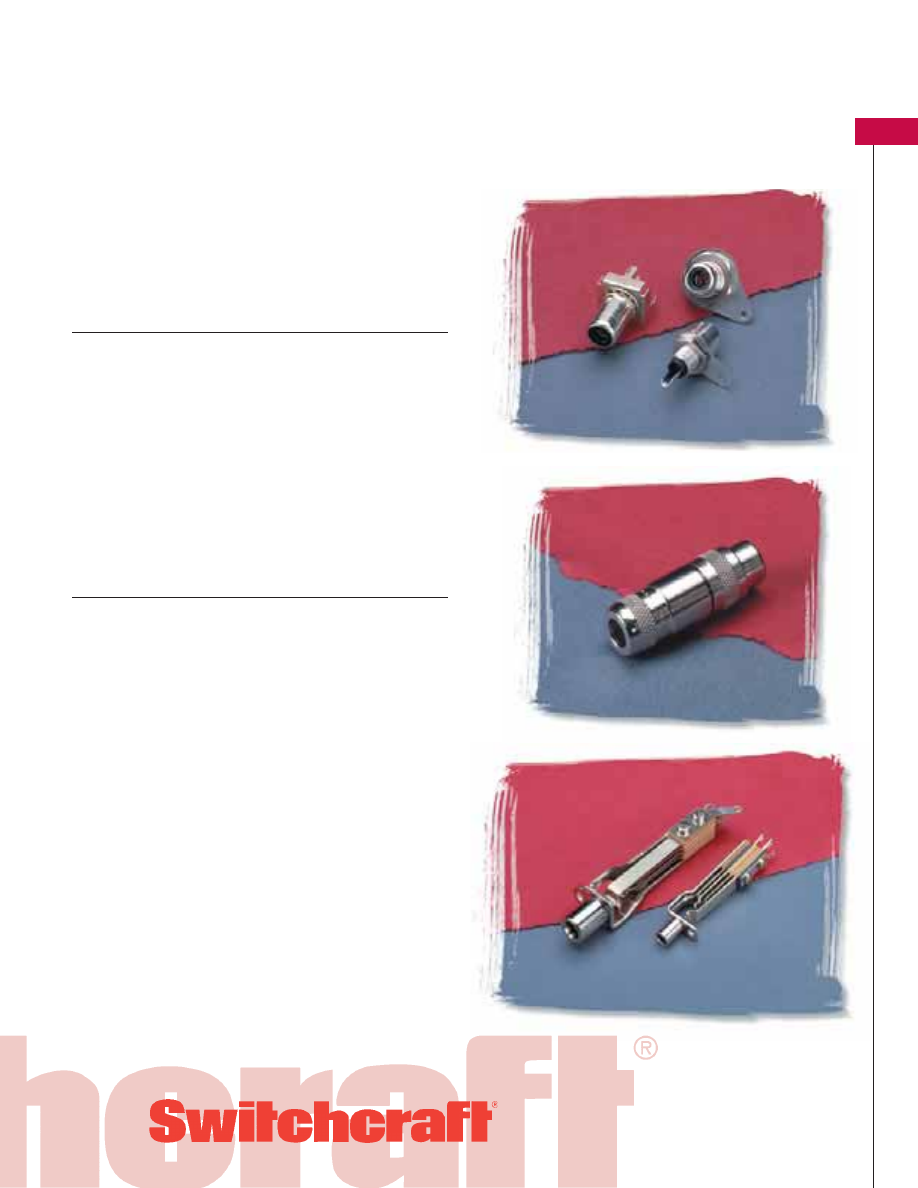

Connectors

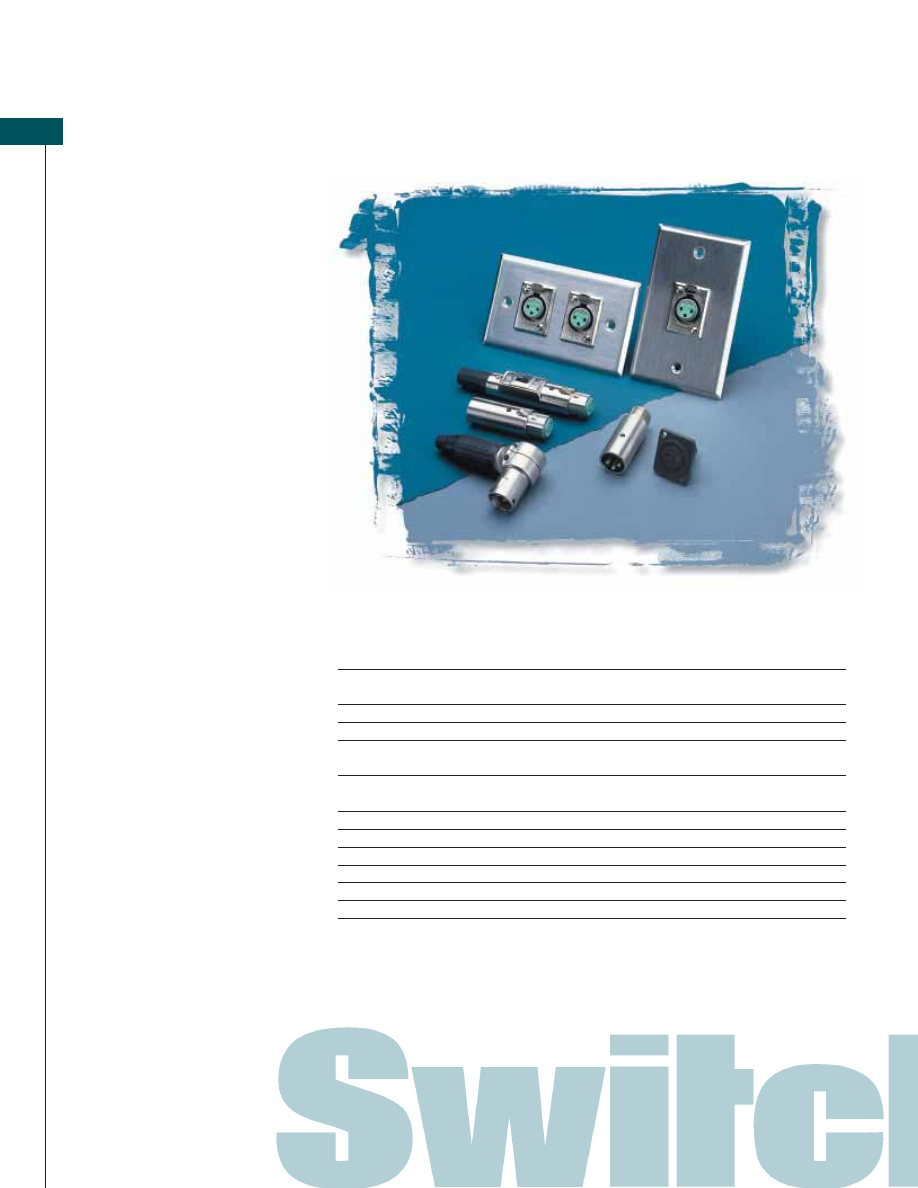

Q-G® Audio Connector Series ..............................46-48

A, AA, AAA Cord Style Series ................................46

B, C, D, E Panel Style Series....................................47

J, K, P, R, T Wallplate, Gooseneck,

Panel & Cord Style Series........................................48

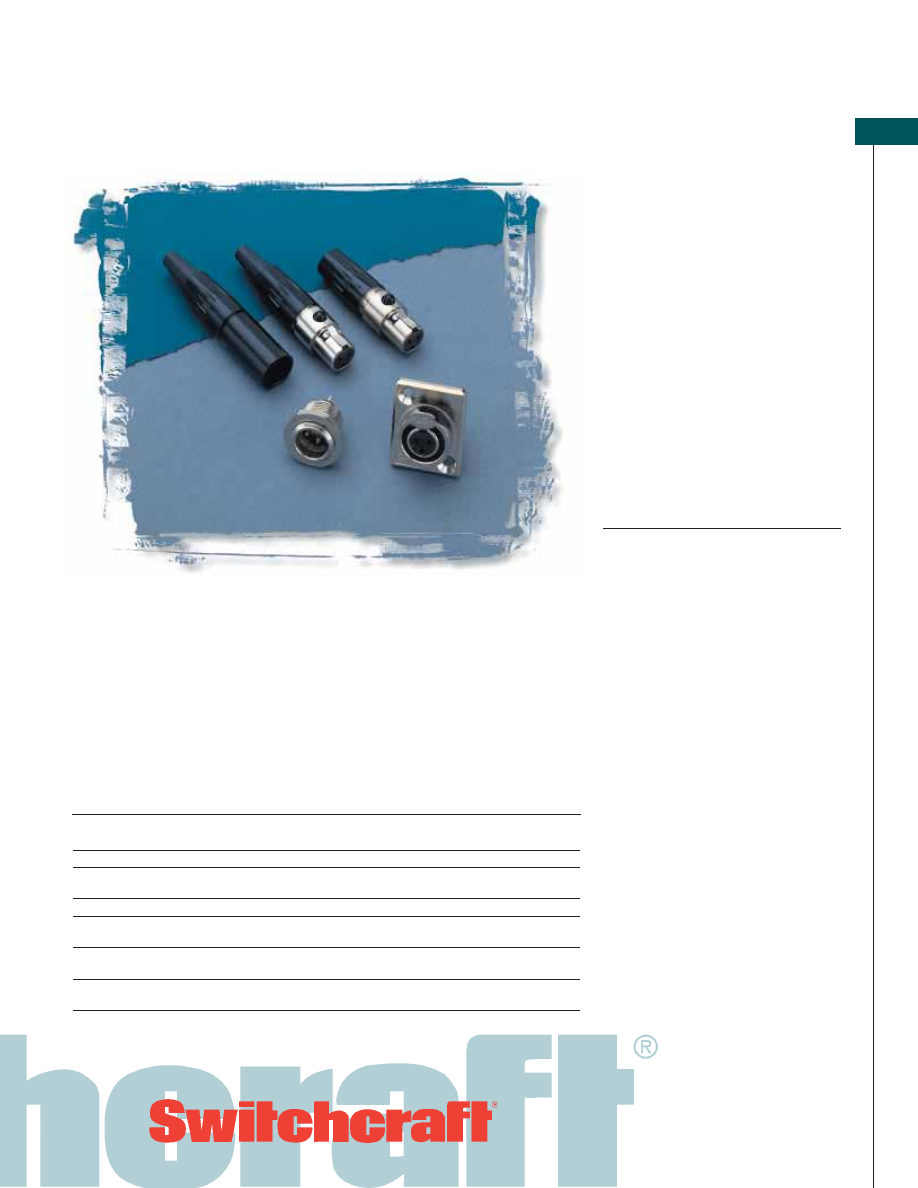

Tini-Q-G® Connector Series ......................................49

Tini-Q-G® Cord & Panel Style Series ....................49

HPC Connector Series ............................................50-51

HPC Panel Style Series ............................................50

HPC Cord, & Adapter Style Series..........................51

EH Series Receptacles ................................................52

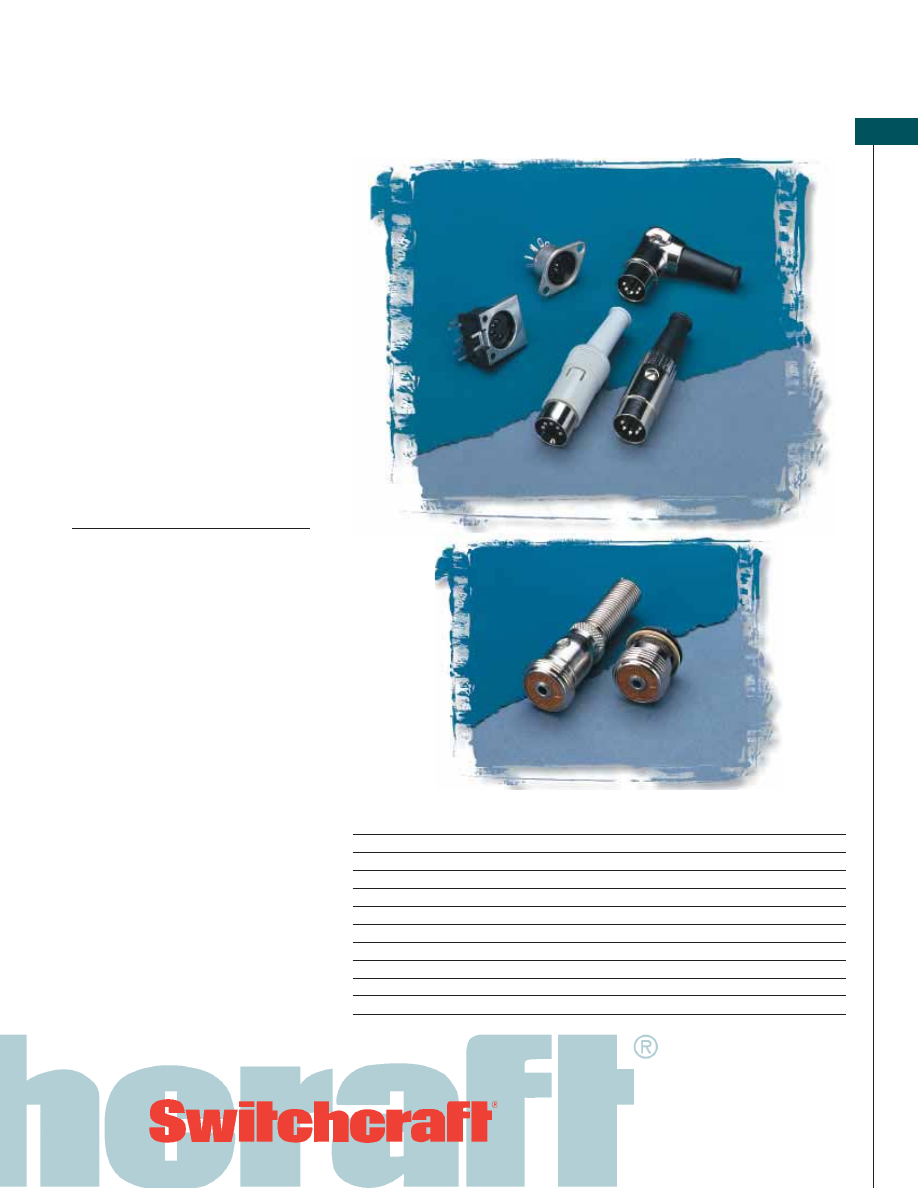

MIDI and 2500 Series ..................................................53

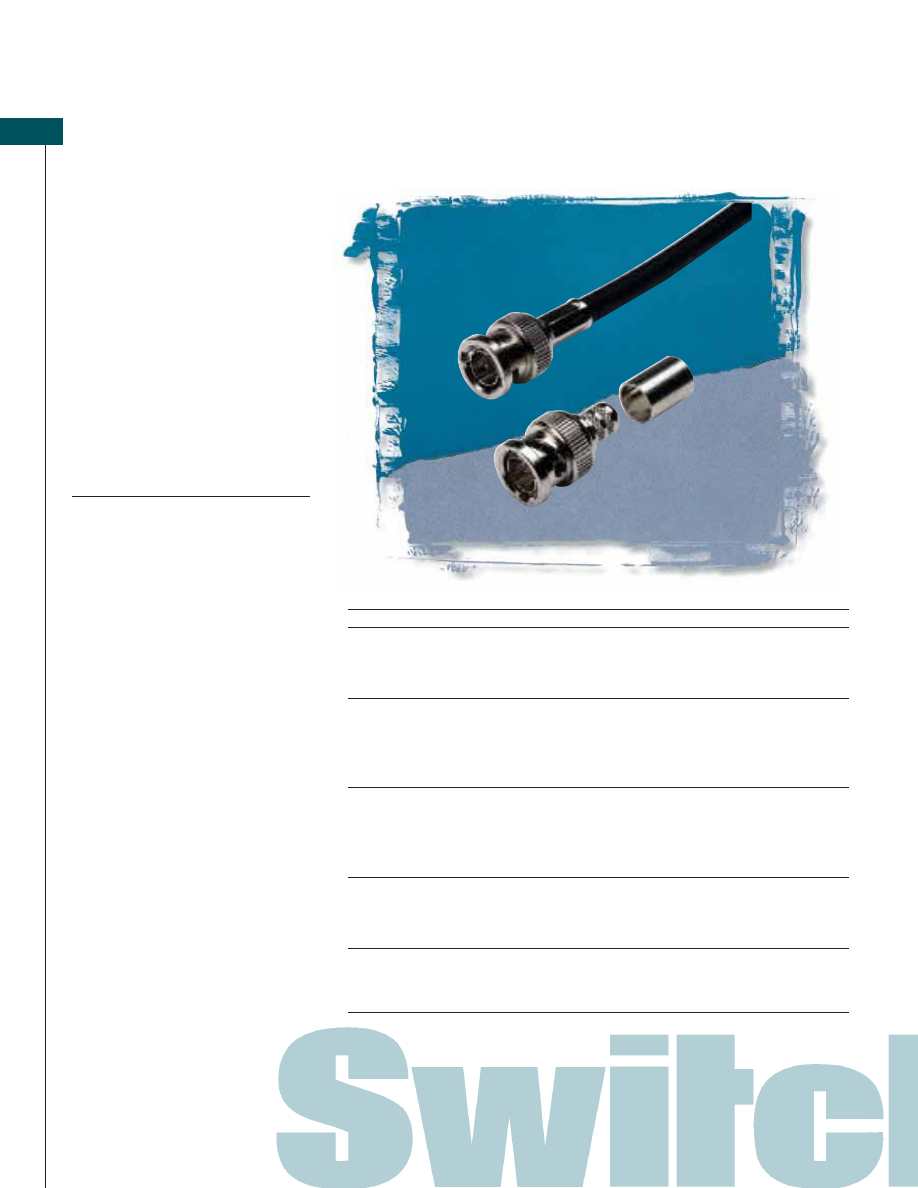

HP75BNC Series ..........................................................54

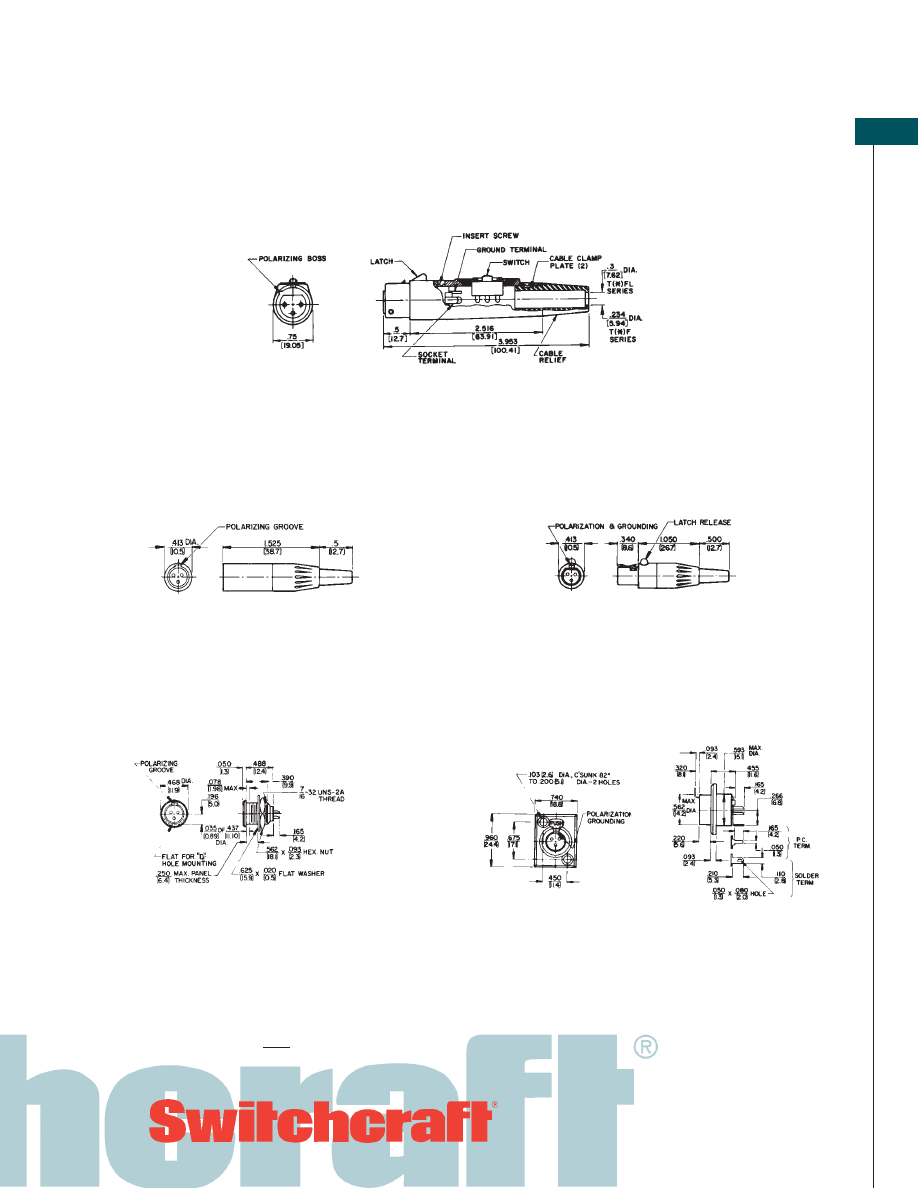

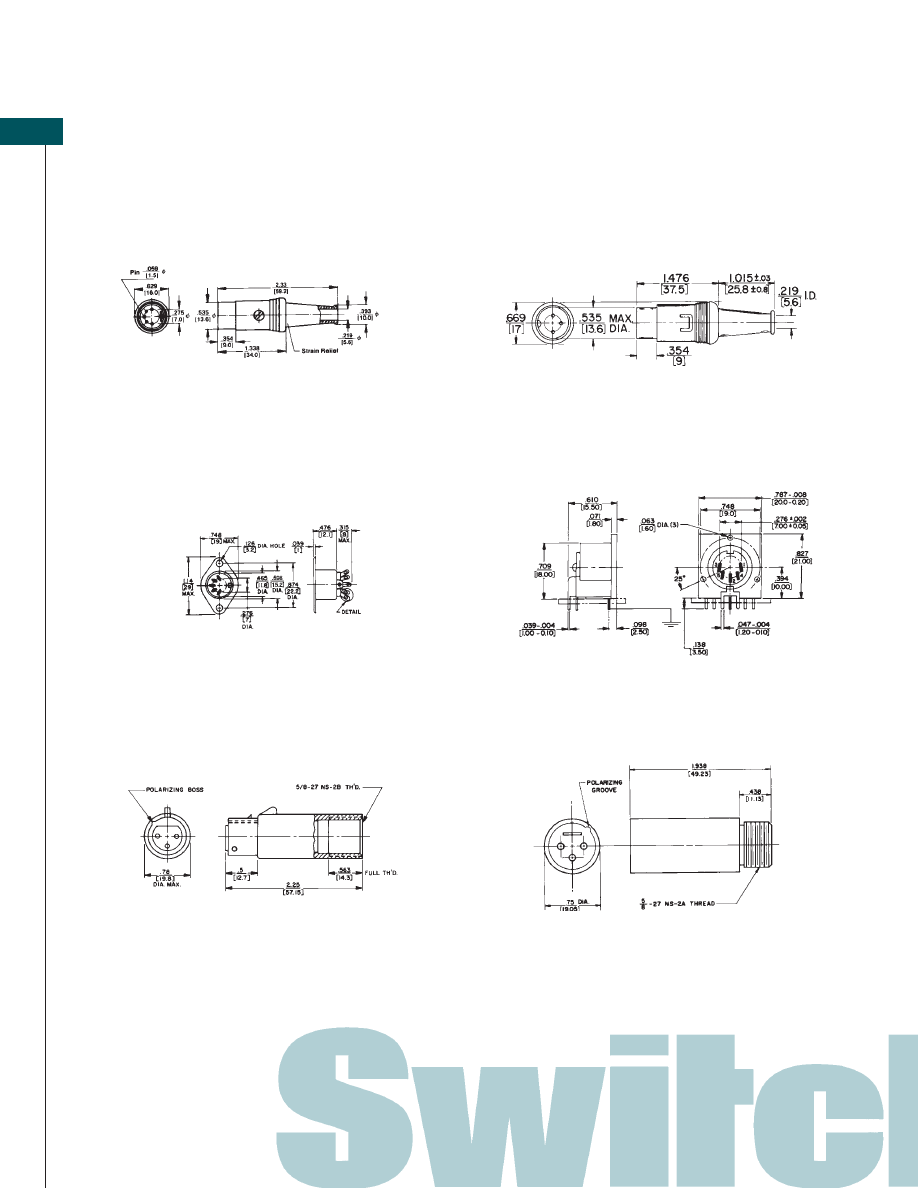

Connector Dimension Drawings ..........................55–62

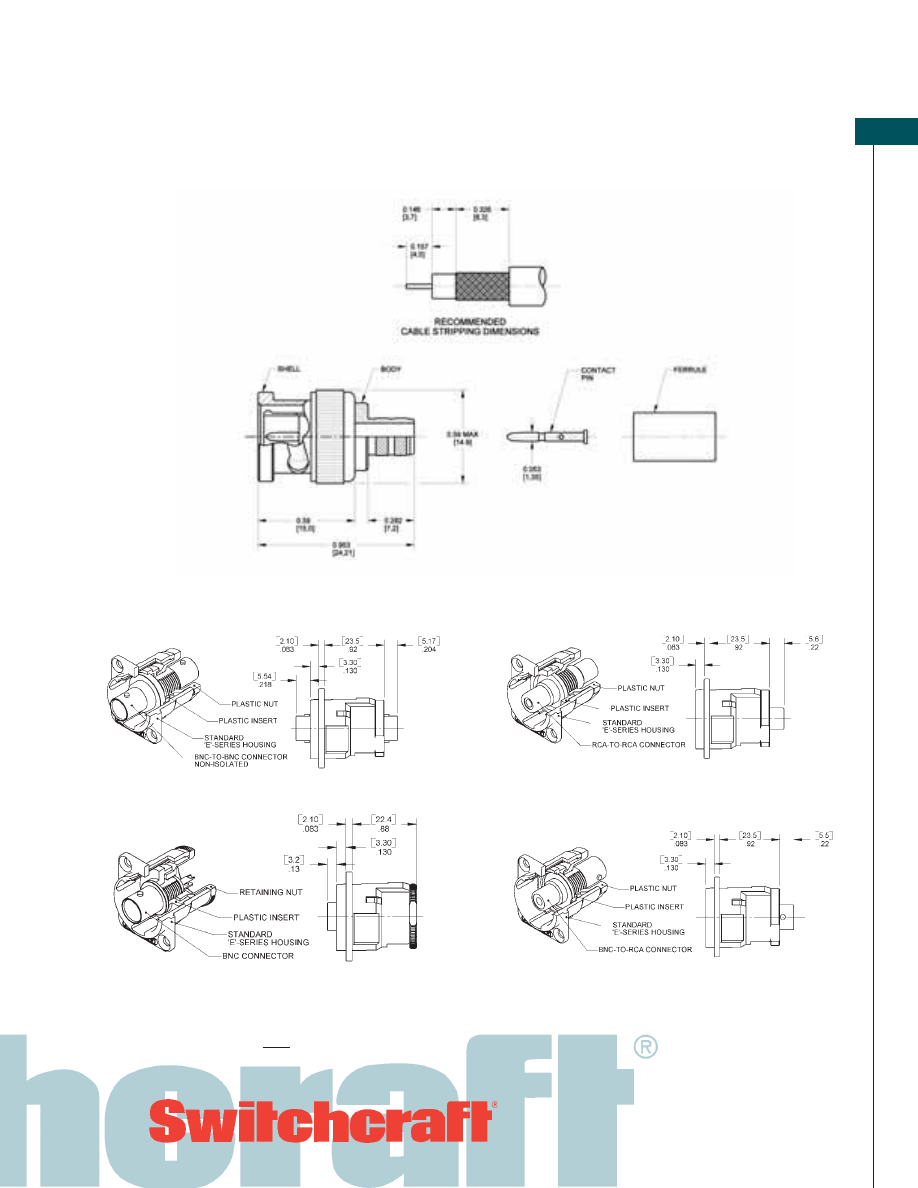

HP75BNC Series, EH Series ....................................55

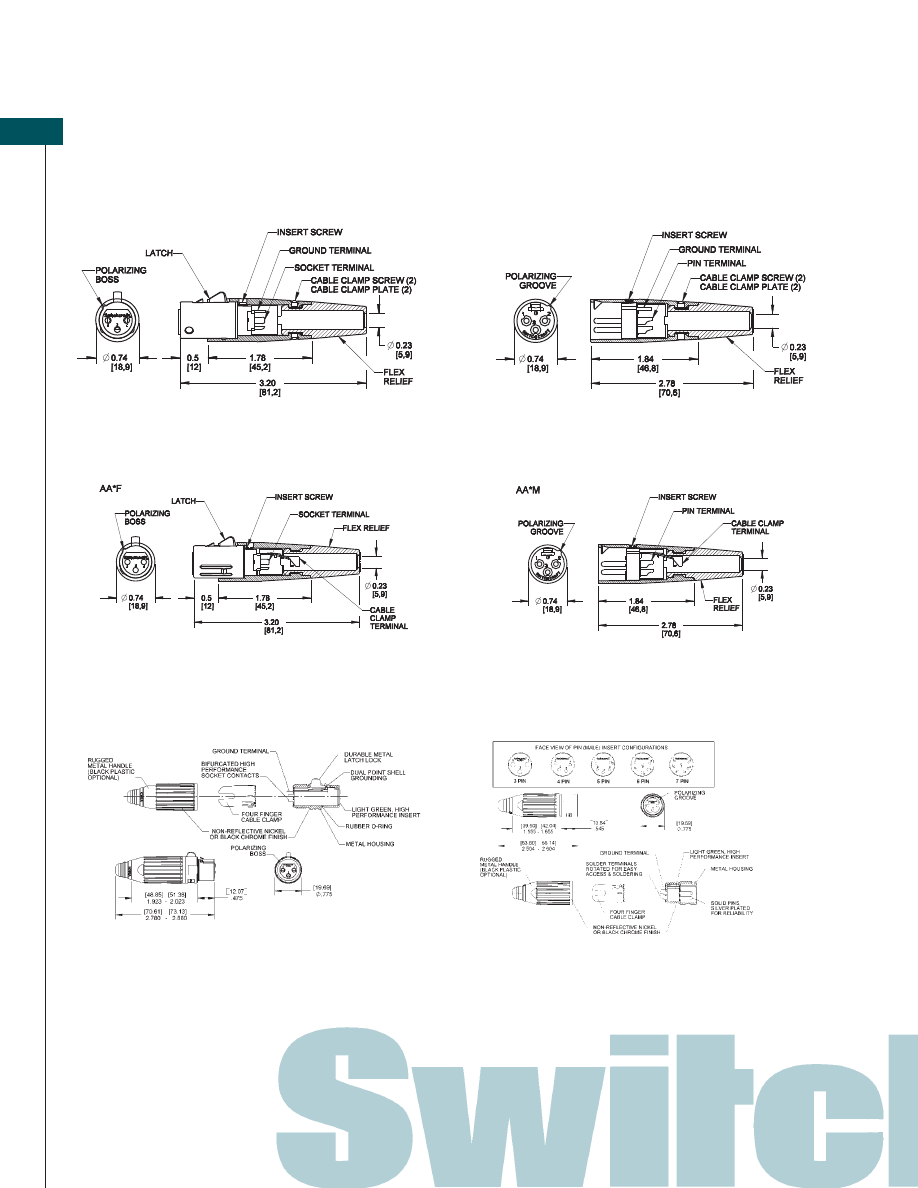

Q-G Audio - A, AA, AAA Series ..............................56

Q-G Audio - B, C, D, E Series ..................................57

Q-G Audio - J, K, P, R Series....................................58

Q-G Audio - T Series ................................................59

MIDI, Q-G Audio - P Series ......................................60

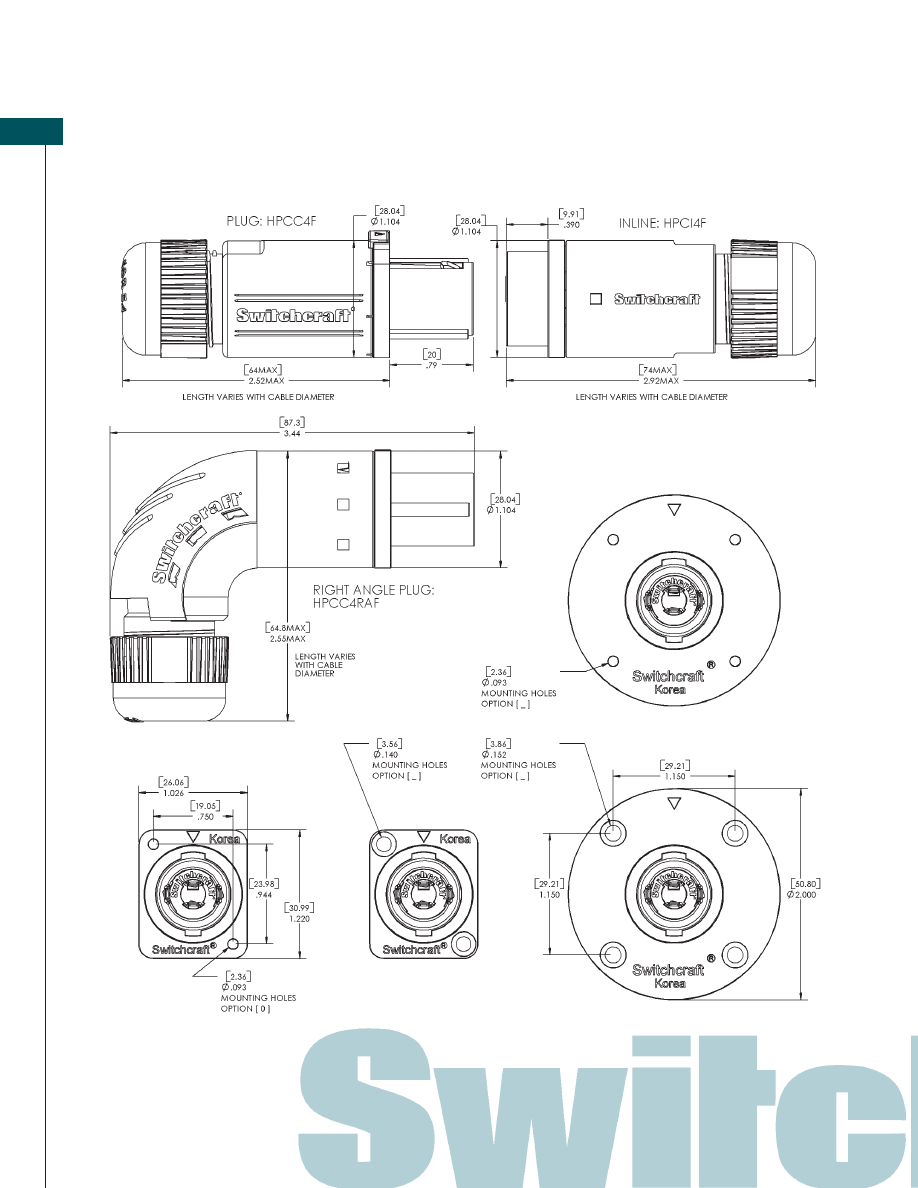

HPC Panel Style Series ......................................61–62

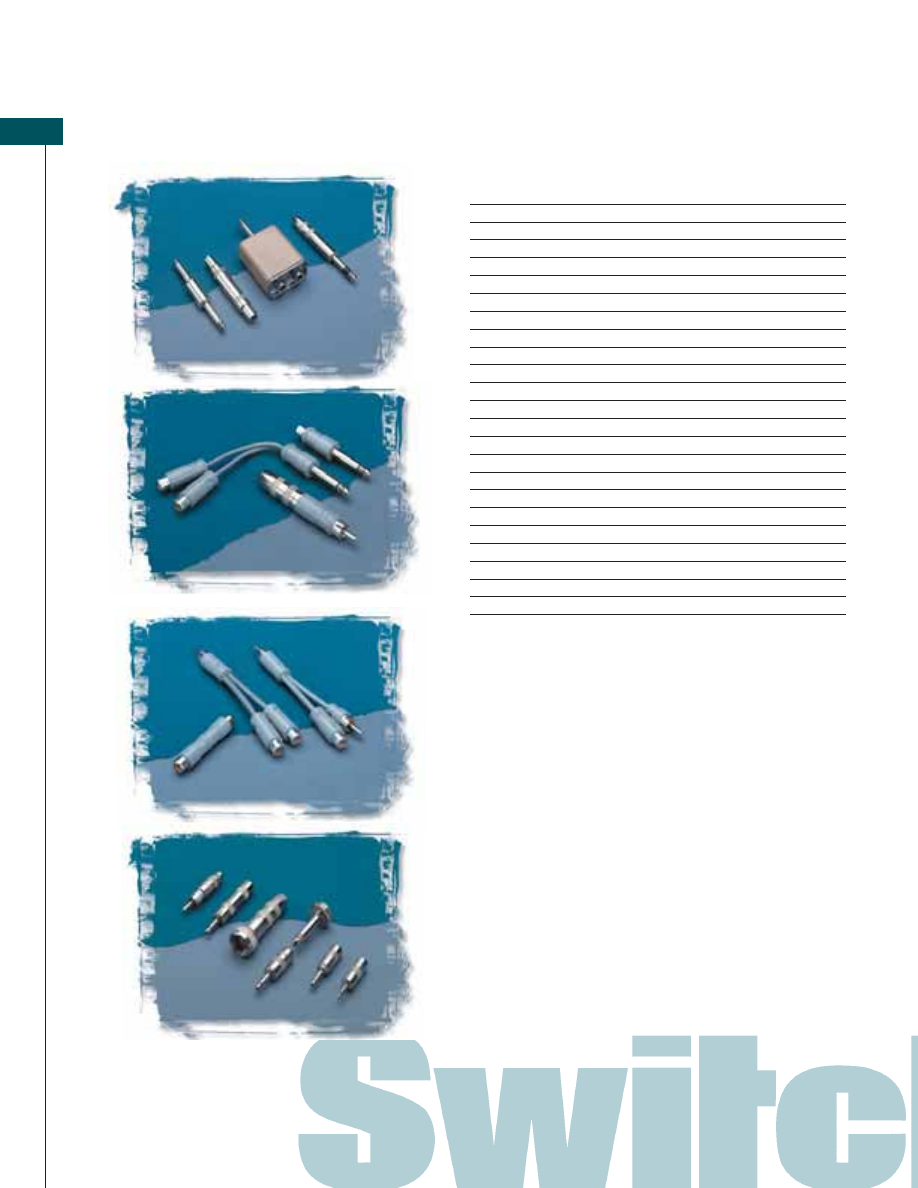

Audio Adapters

XLR to XLR, RCA, 1/4", TQ-G Adapter Series ..........63

1/4" to 1/4", RCA; RCA to RCA;

& Miscellaneous Adapter Series ................................64

Table of Contents

Patchbays

Professional Punchdown Terminal (PPT) ....................4

Audio Patchbay Series ............................................5–33

MTPH/TTPH Harness Series ..................................5-7

Front Access Series ................................................8–9

EZ Norm Patchbay Series ..................................10–11

RS 422 Data Patchbay Series ............................12–13

MTP48K Wired Series ........................................14–15

TTPW96K Wired Series ......................................16–17

MTPBP/TTPBP Backpanel Series ......................18–19

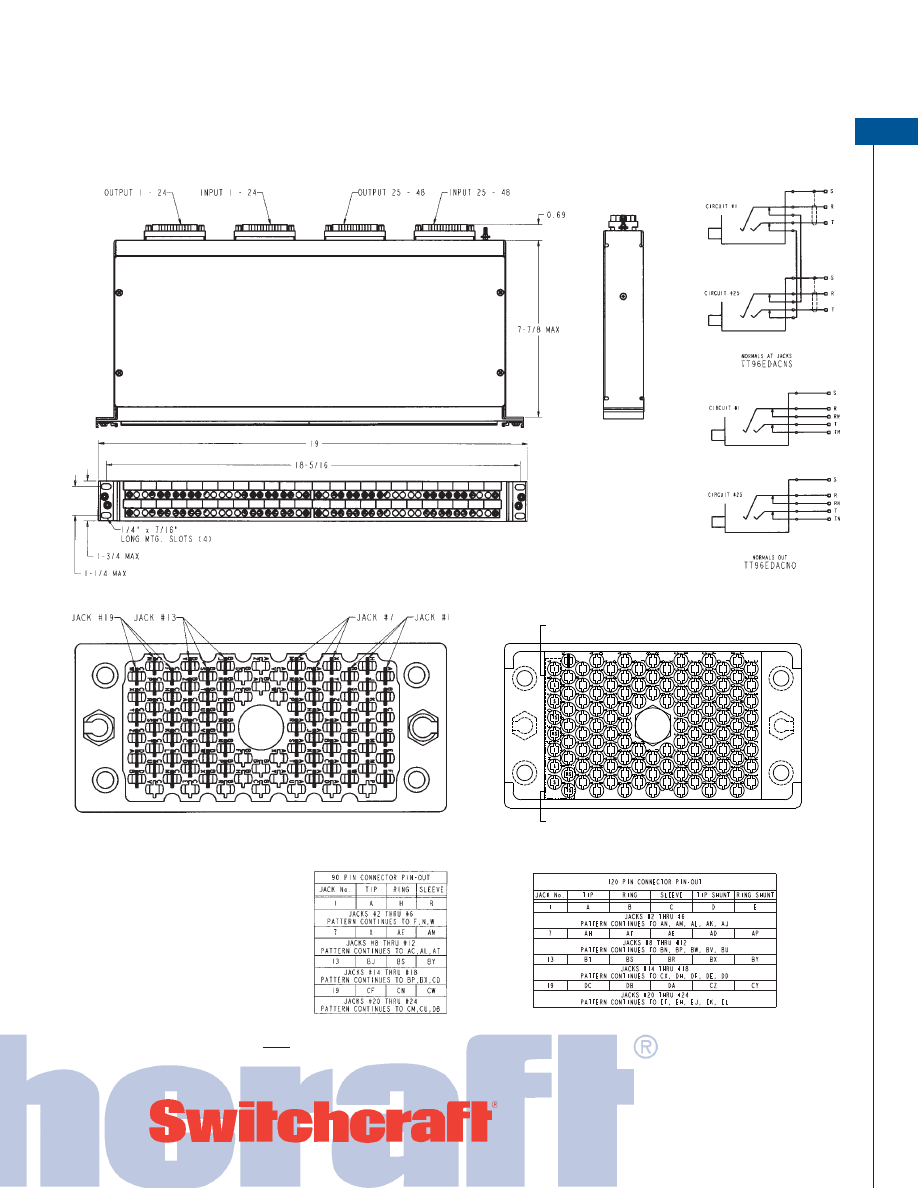

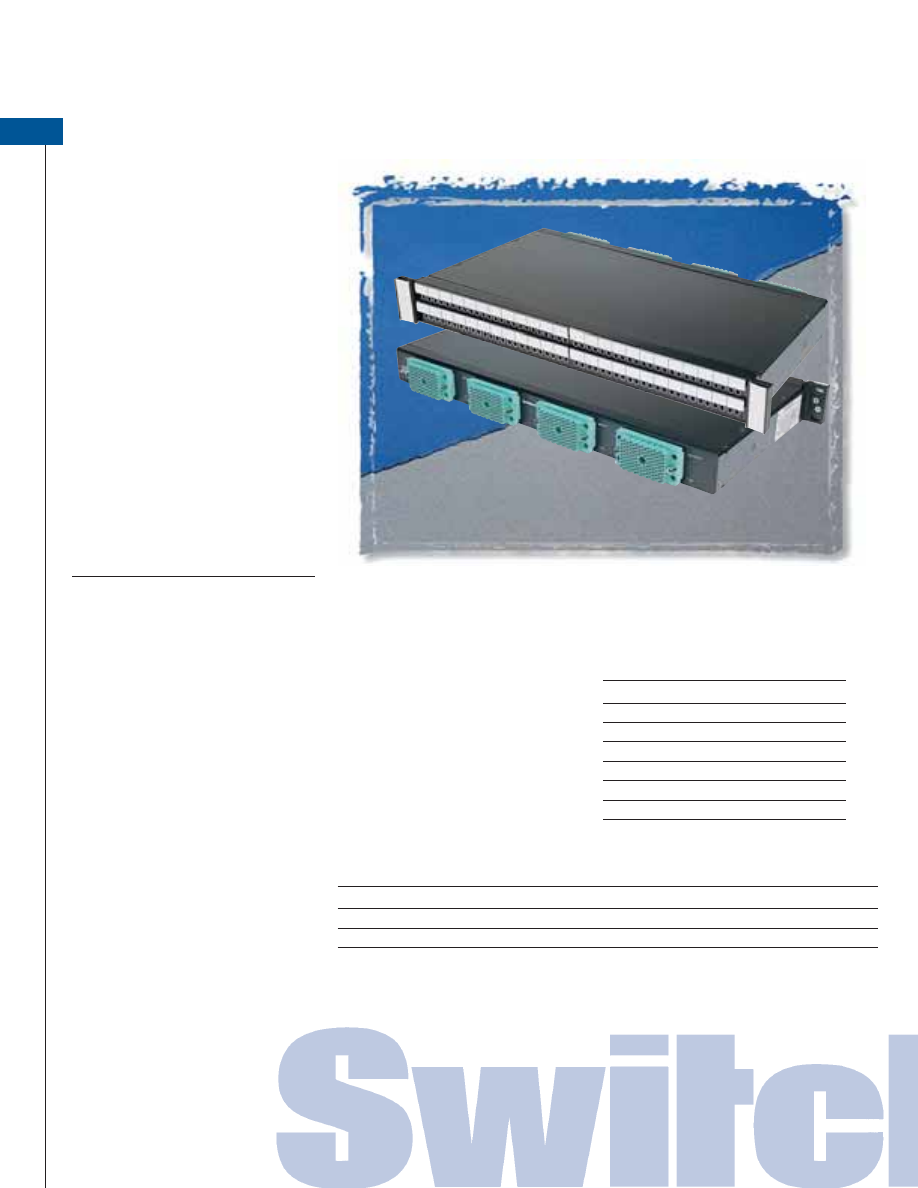

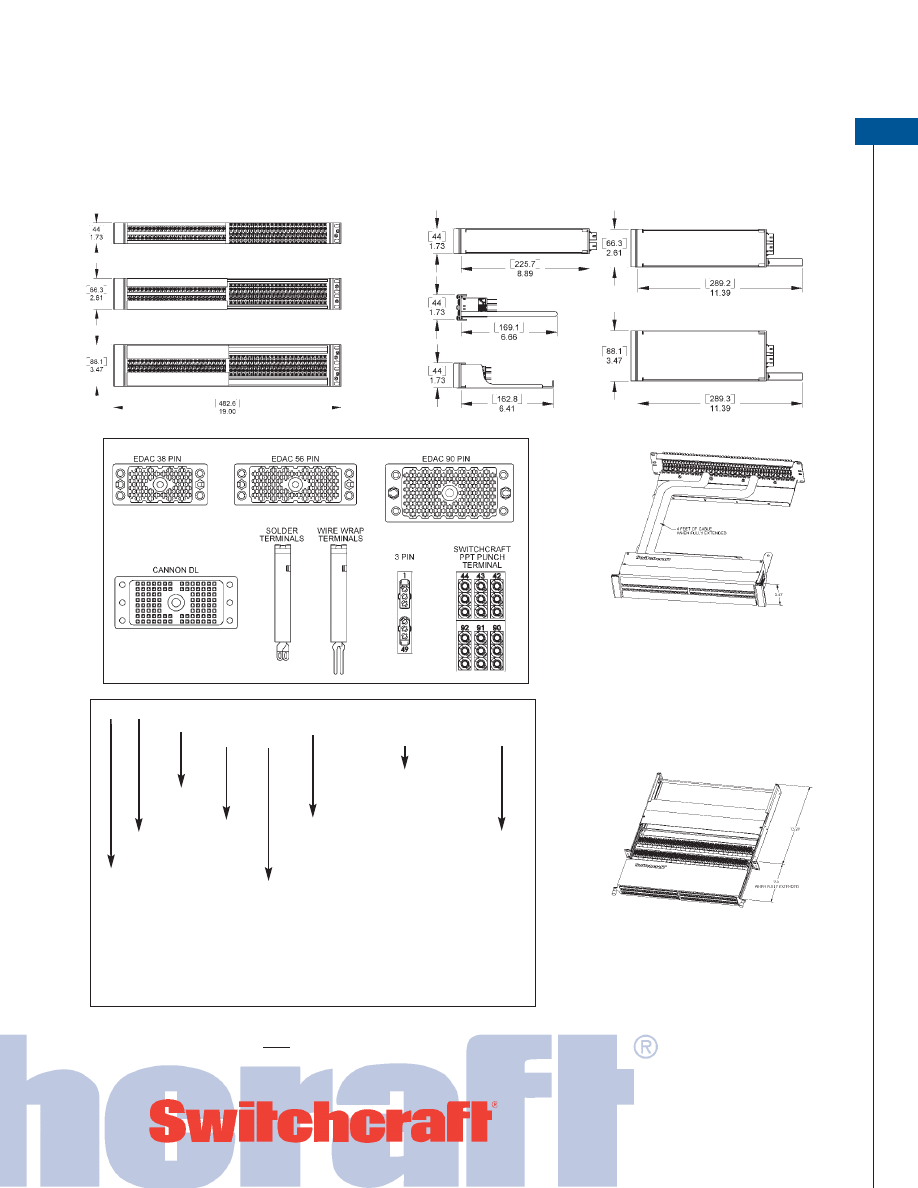

TT96 EDAC Series ..............................................20–21

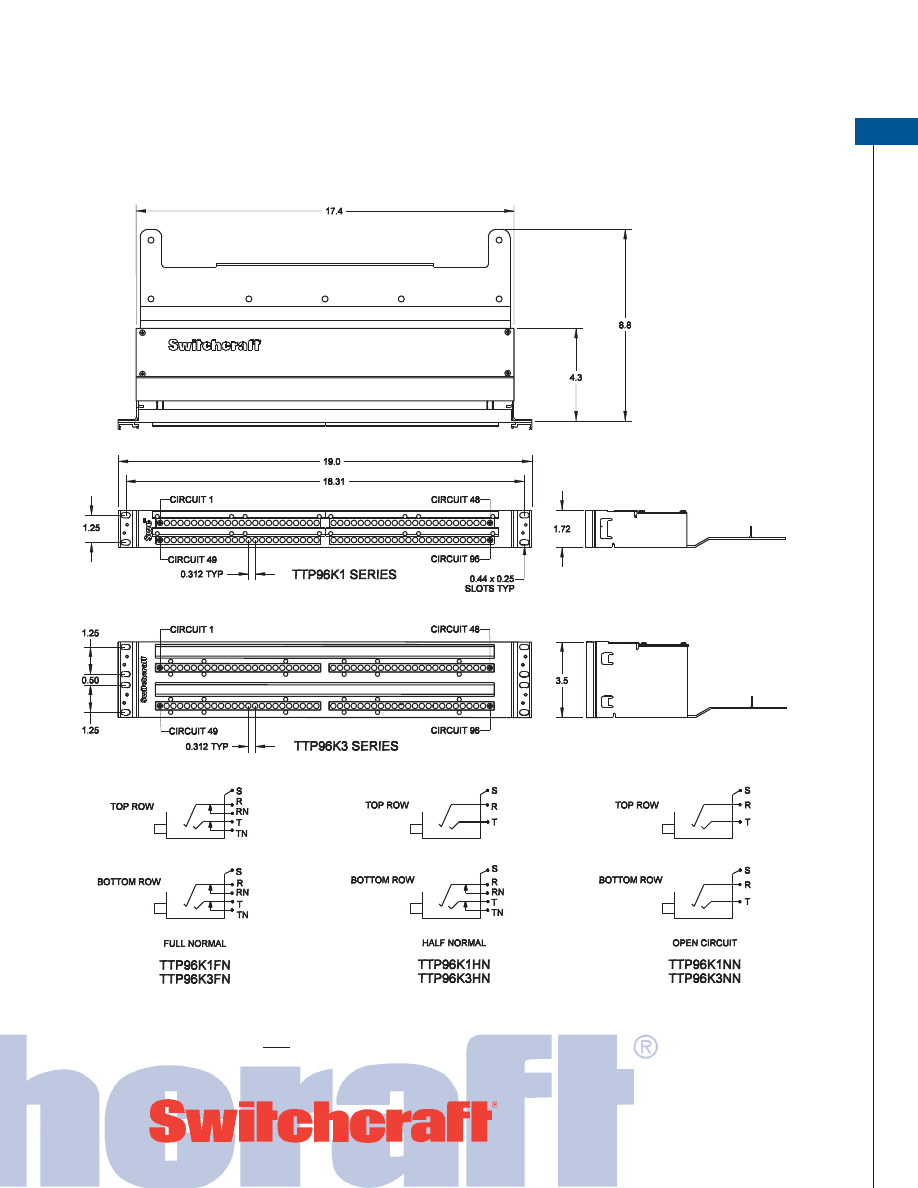

TTP96K Patchkit Series ......................................22–23

MT48K/MT52K Patchkit Series ..........................24–25

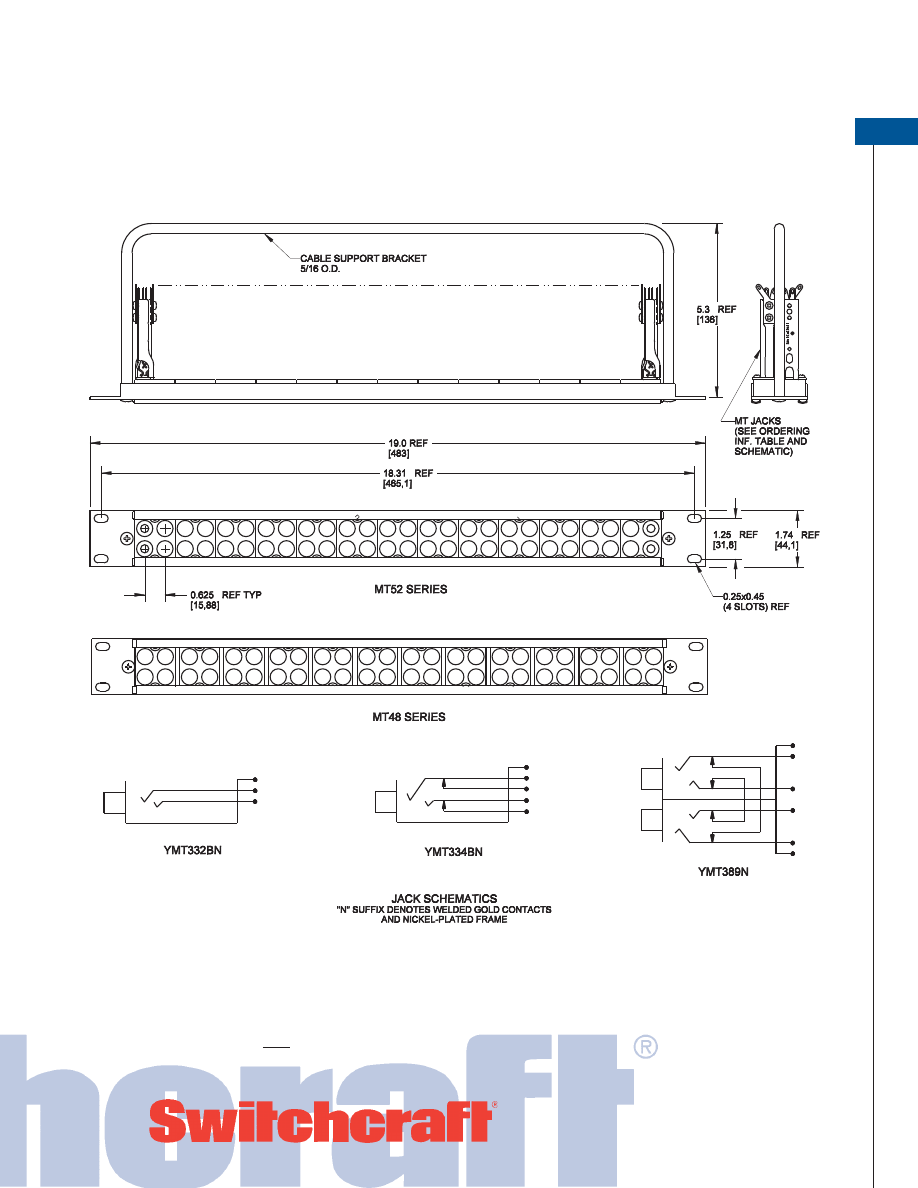

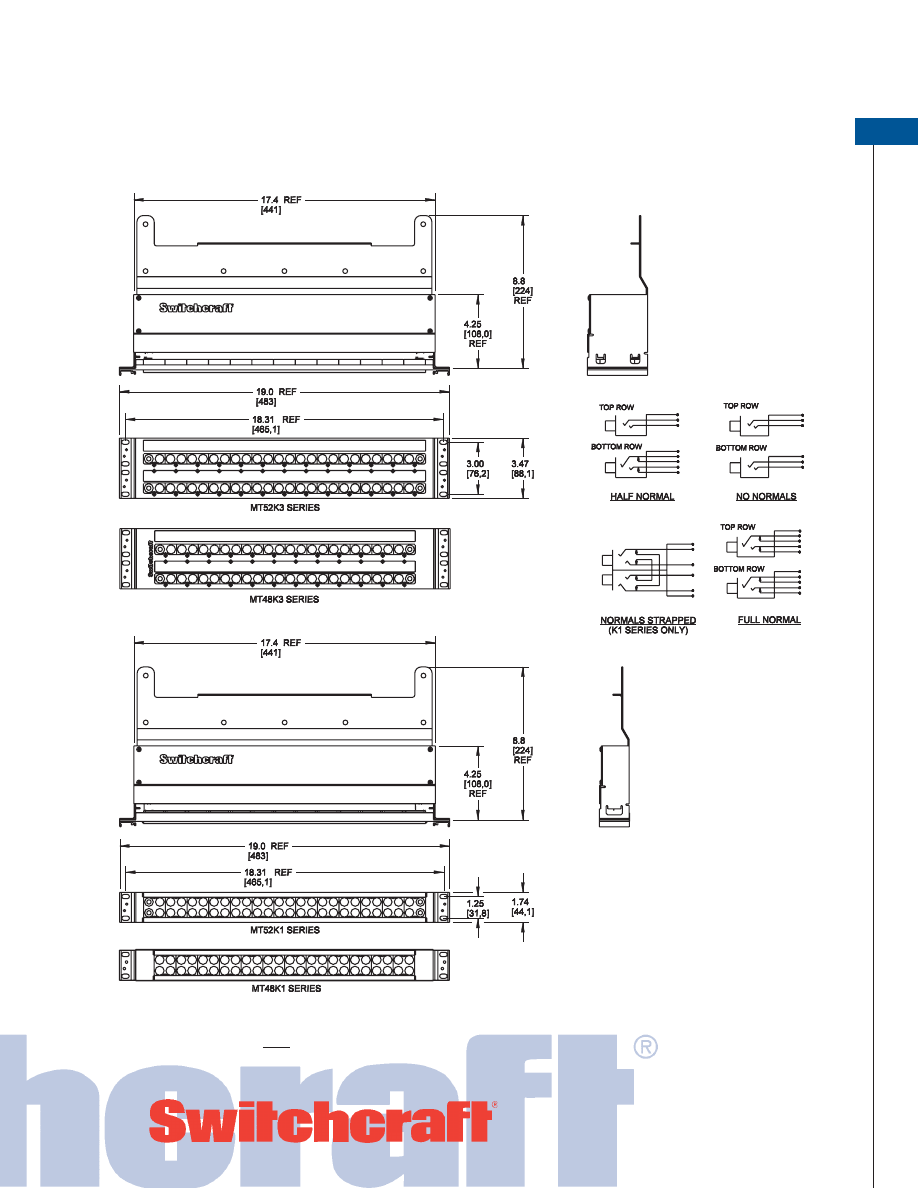

MT48/MT52 Patchbay Series ............................26–27

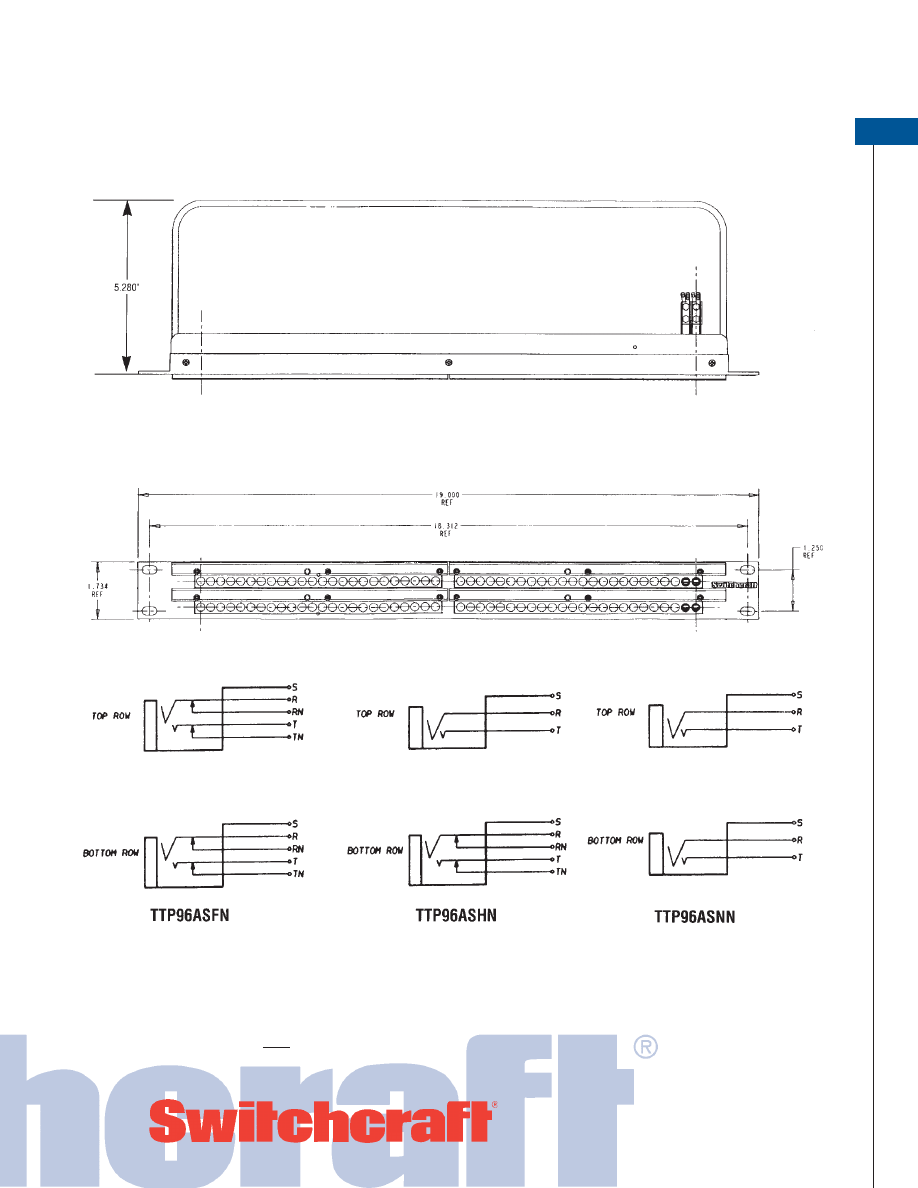

TTP96AS Patchbay Series..................................28–29

HPC Patchbay Series ..........................................30–31

Q-G

Patchbay Series ........................................32–33

Video/Audio Patchbay Series................................34–44

VPP Video Patchbay Series................................34–36

MVP Midsize Video Patchbay Series ................37–39

VAP Video/Audio Patchbay Series ....................40–41

MVEZN Audio/Midsize Patchbay Series....................42

MBPK Video/Audio Patchbay Series ......................43

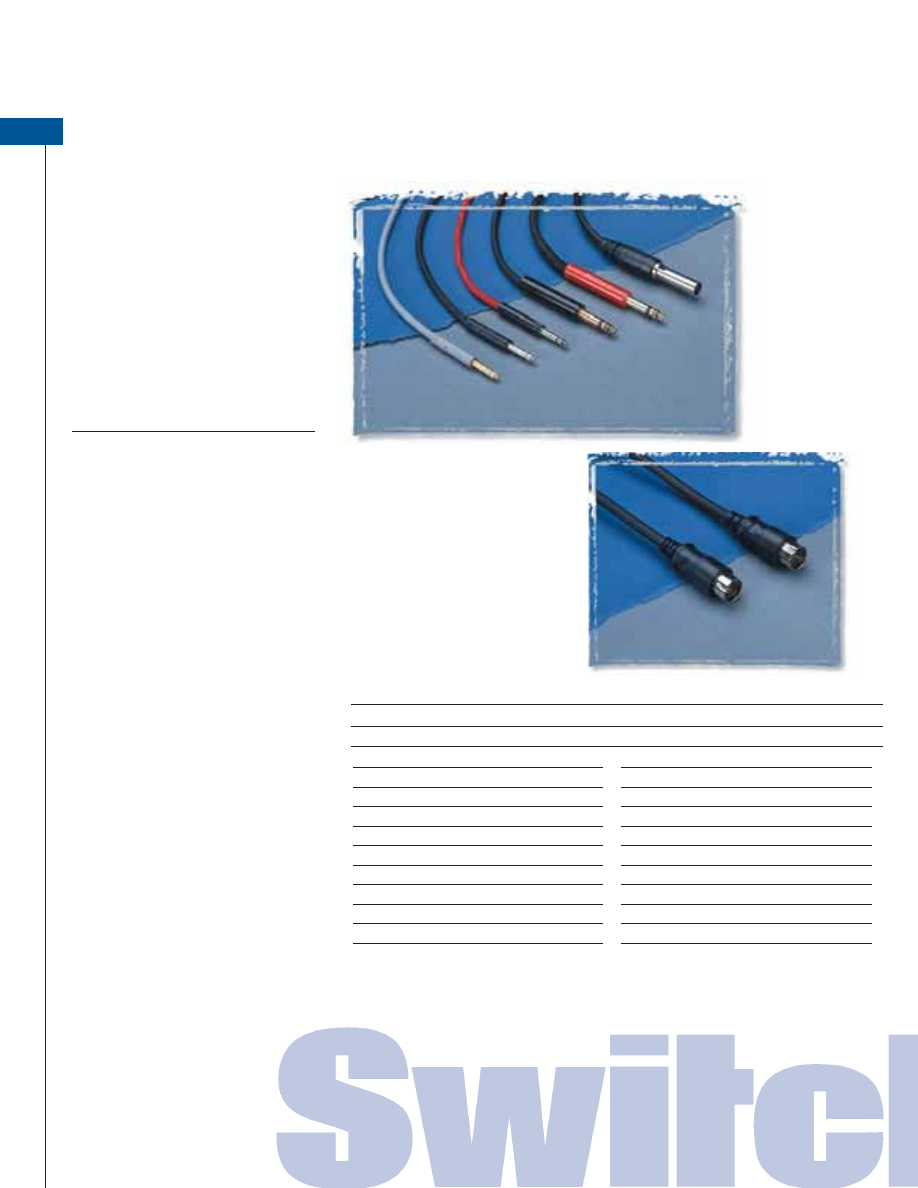

Audio and Video Patchcords ................................44–45

* Please visit the product pages on our website for the most up-to-date product information

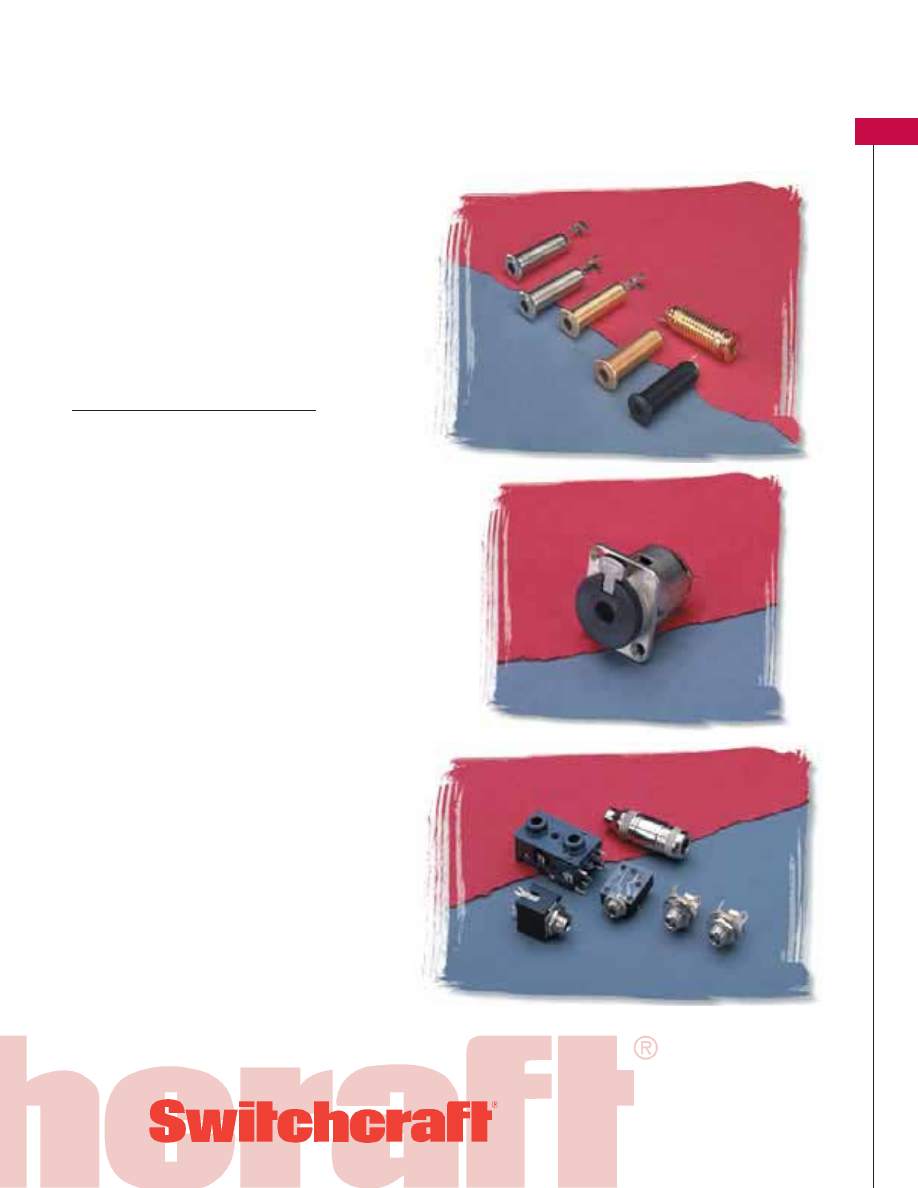

Jacks & Plugs

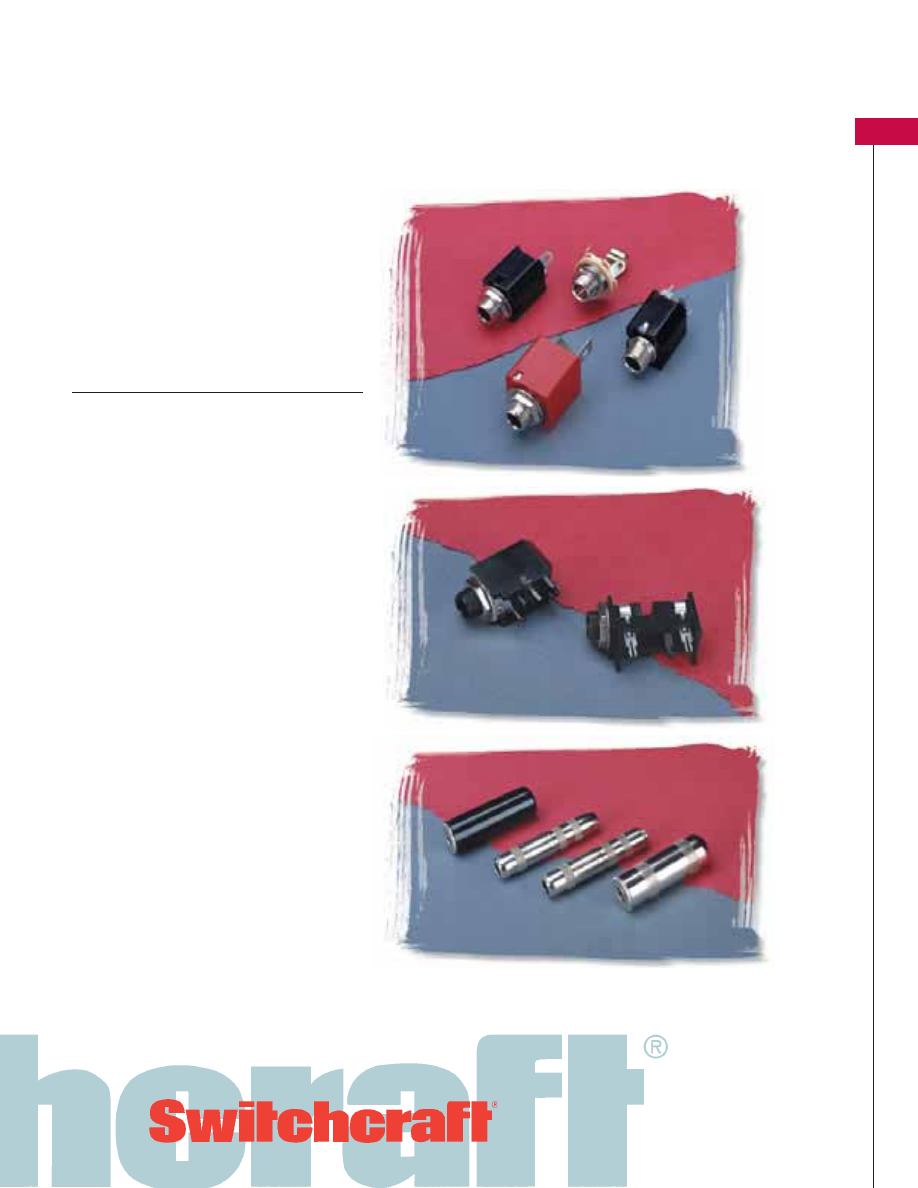

Jack Series

Littel Phone, Hi-D, Right Angle PC Mount 1/4", 1/4"

Extension Jack Series ..............................................65

Thick Panel/Guitar, Locking 1/4", Tini, Tini-

Extension, Micro, 3.5mm ........................................67

Phono, Phono Extension, TT or Bantam, MT 1/4”

Jack Series ................................................................69

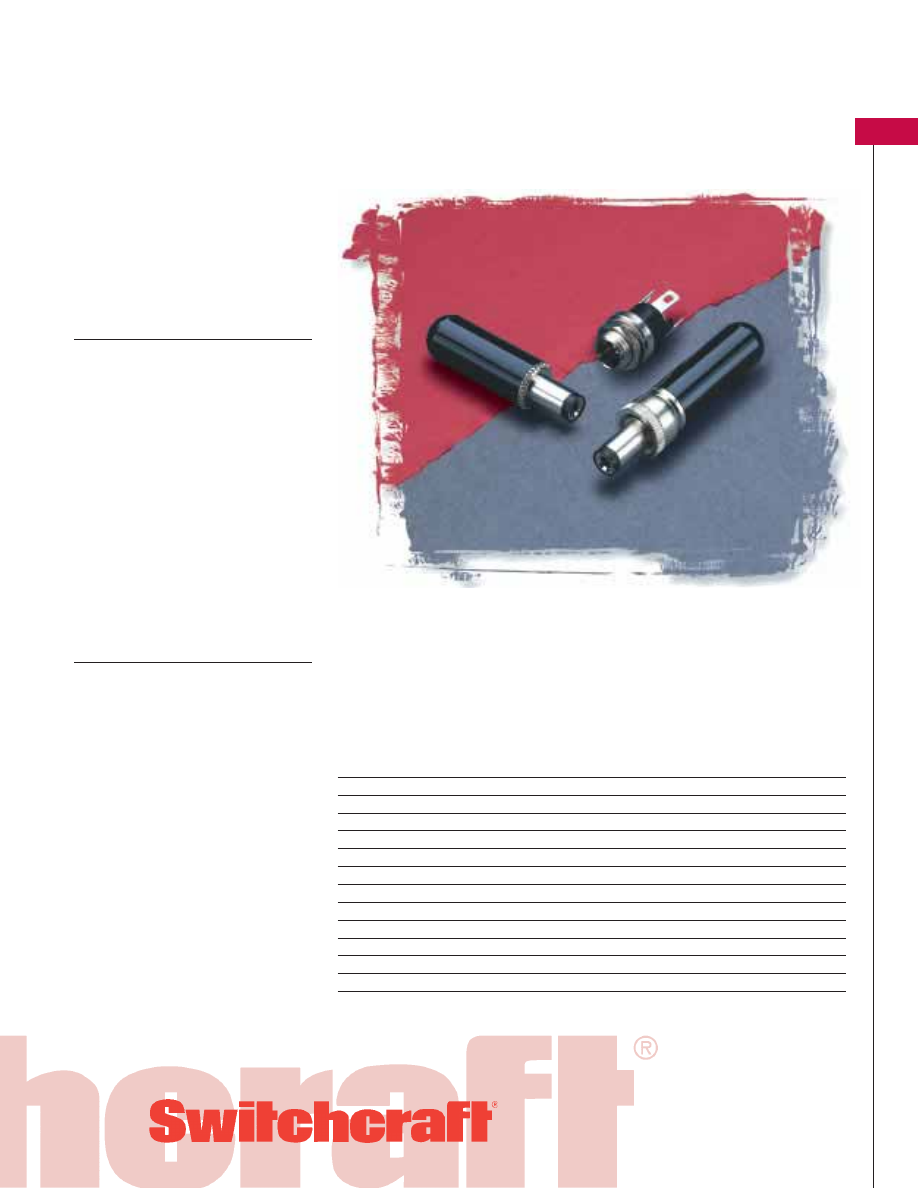

Power/Jacks Plugs Series – 700, S700,

800 Cord & Panel Style Series ................................71

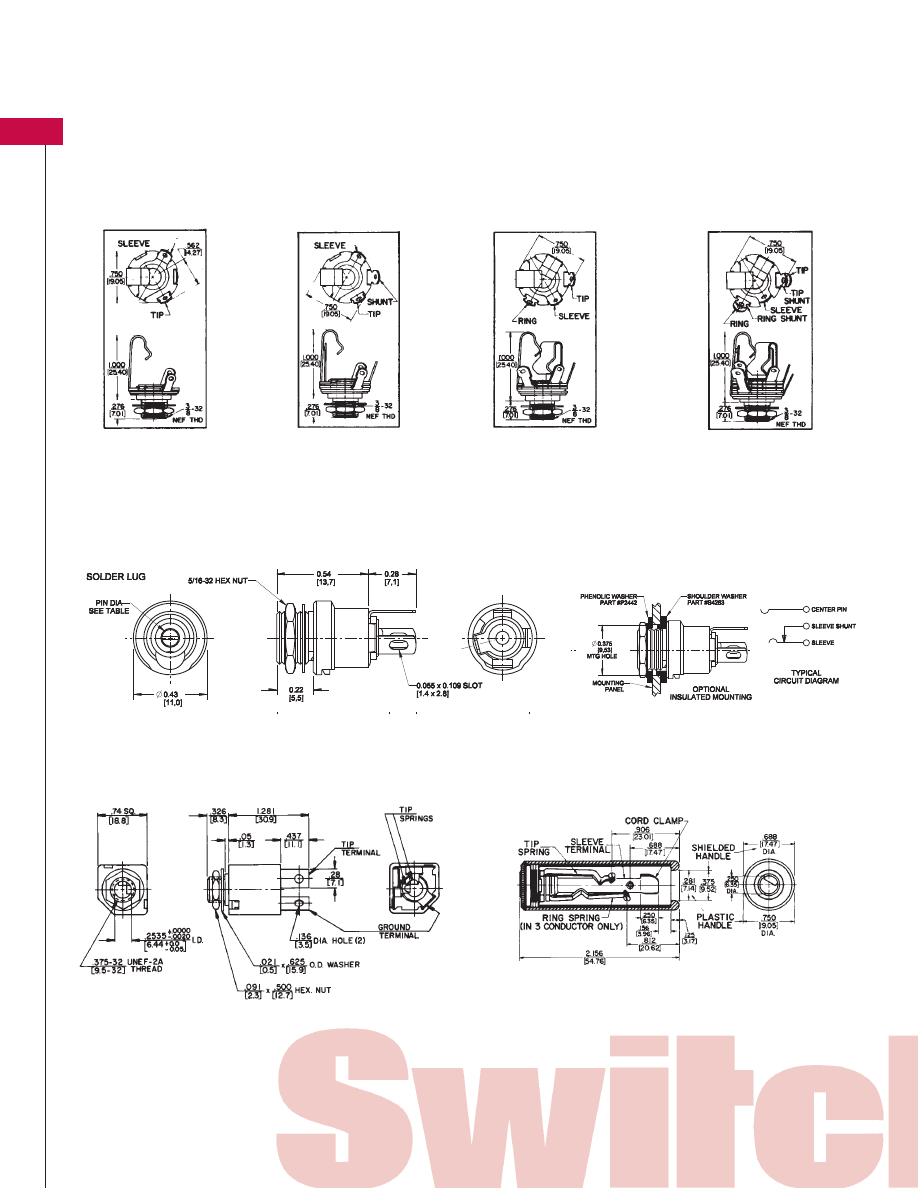

Jack Series Dimension Drawings ........................72–82

Littel Phone, Hi-D, 1/4” Extension, 700 Panel Jack

Series ........................................................................72

Littel Phone, Hi-D, 1/4” Extension Jack Series ......73

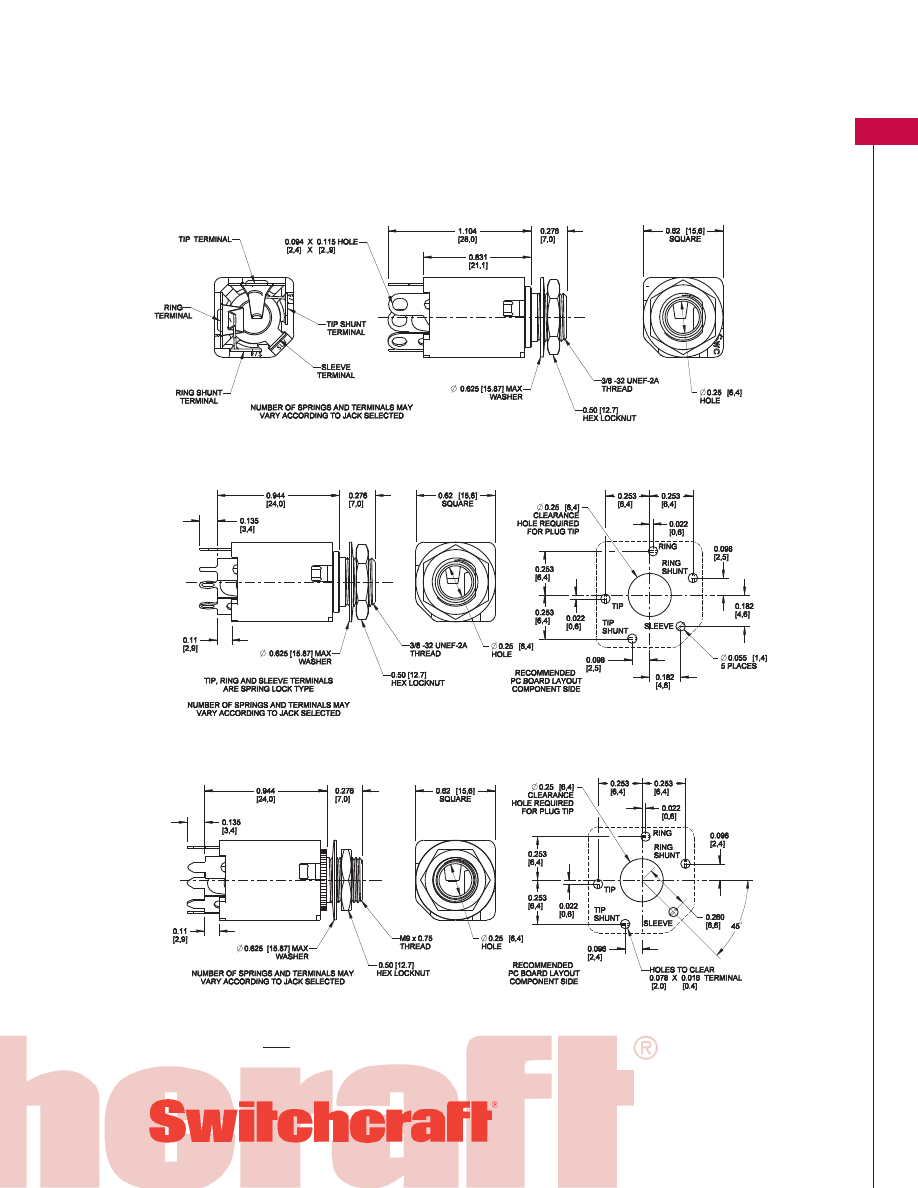

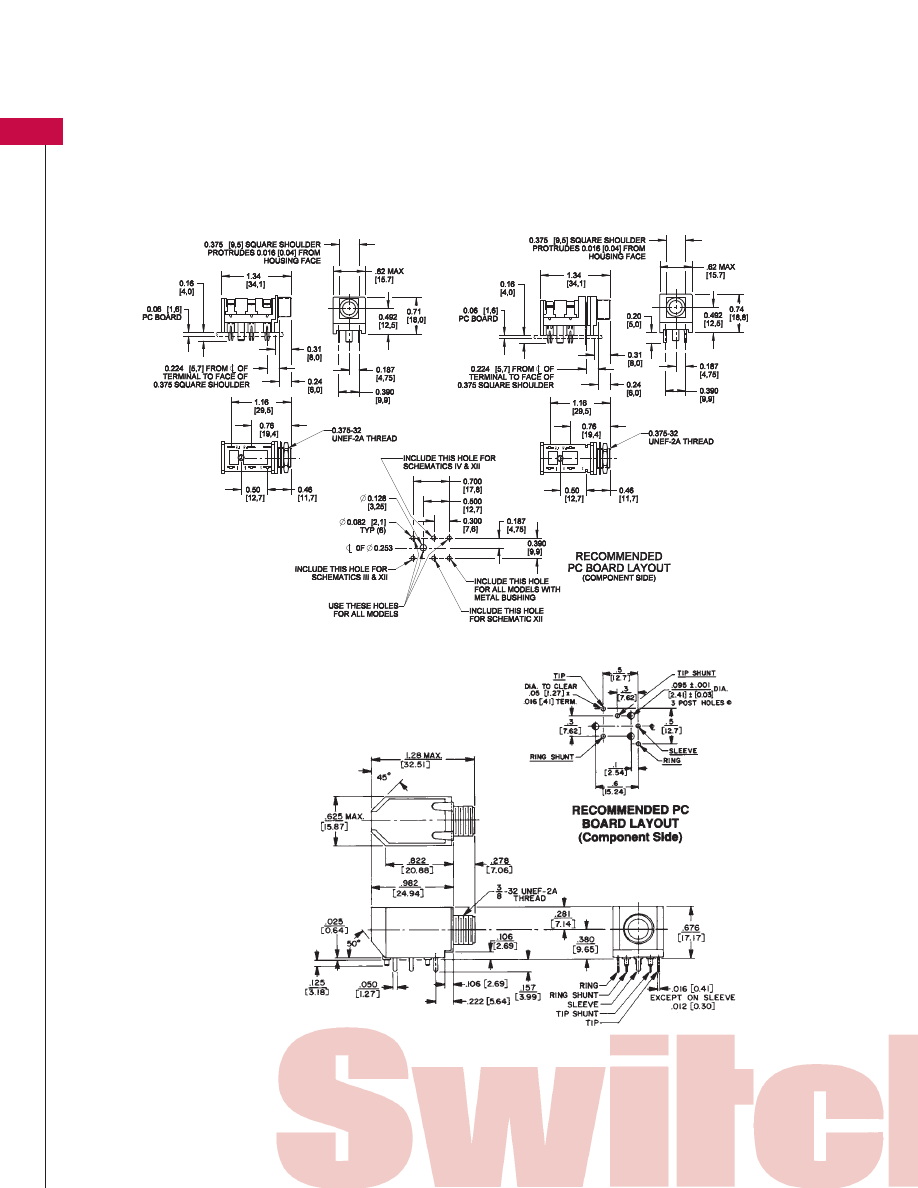

Right Angle PC Mount 1/4” Jack Series ................74

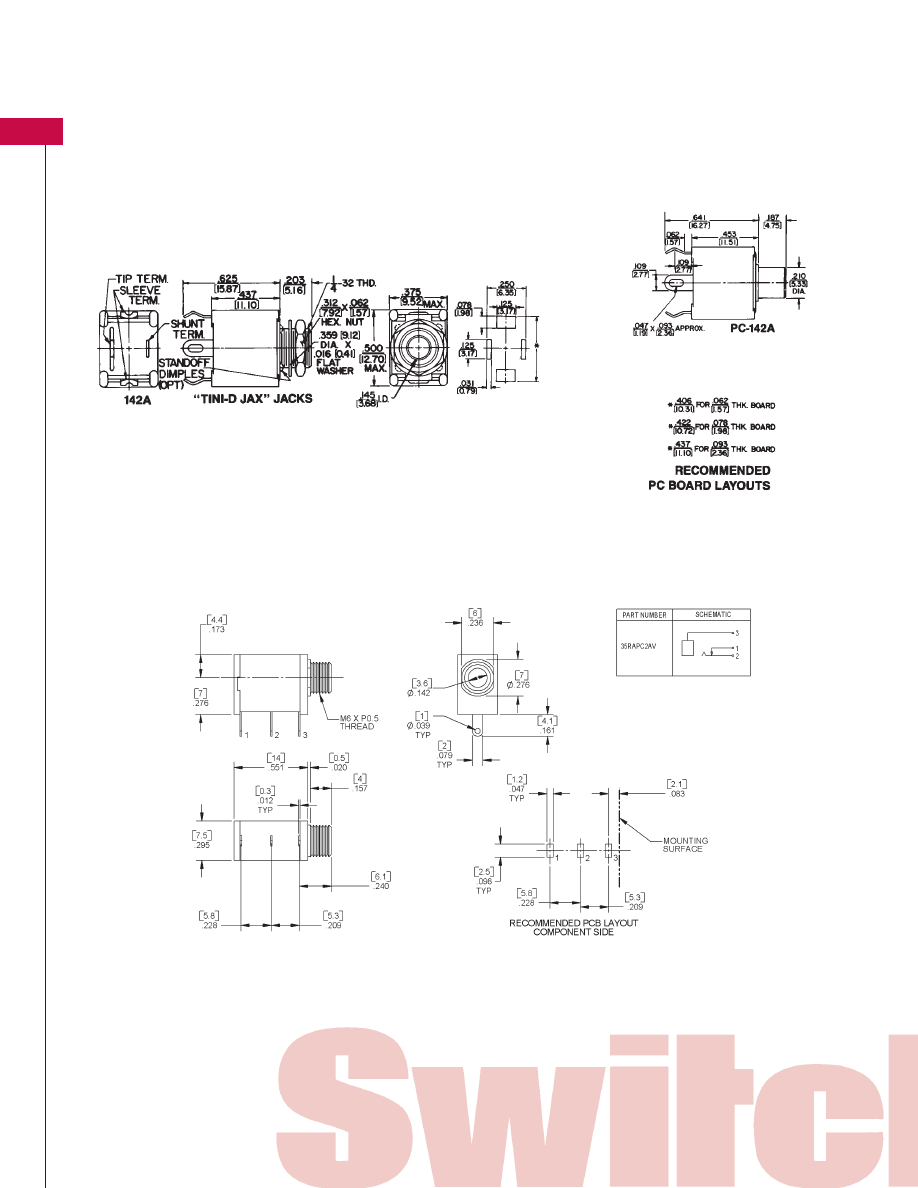

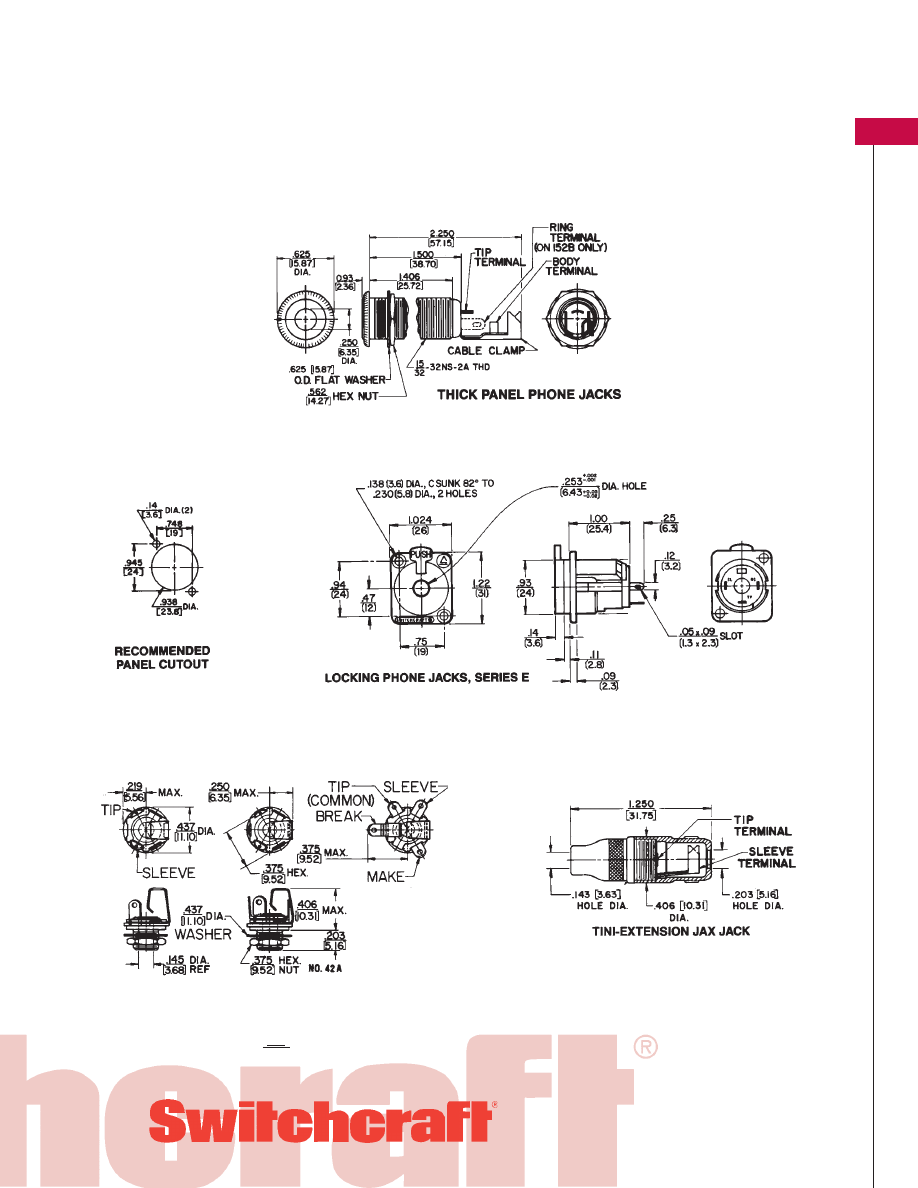

Thick Panel/Guitar, Locking 1/4”, Tini, Tini

Extension Jack Series ..............................................75

Micro, 3.5mm Jack Series ......................................76

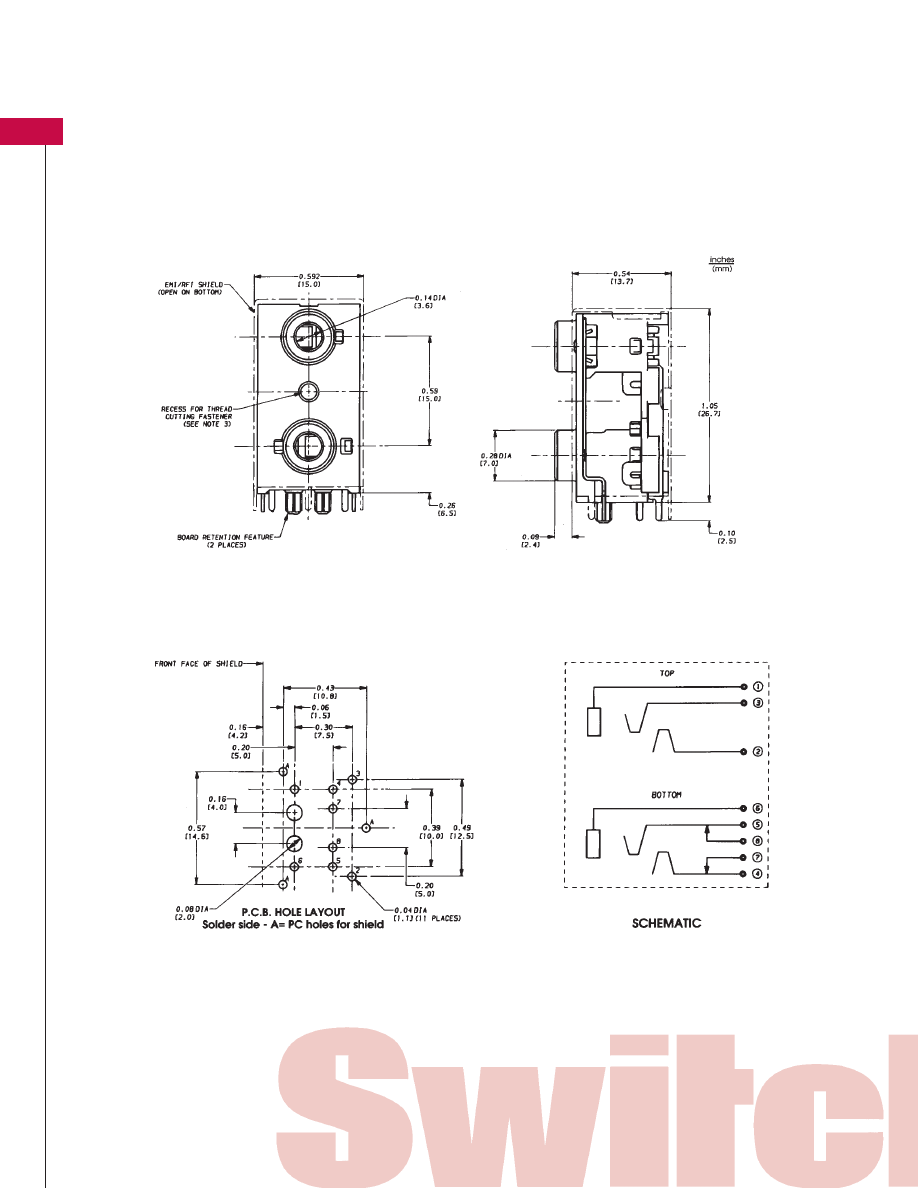

3.5mm Jack Series..............................................77–79

Phono and Phono Extension Jack Series ..............80

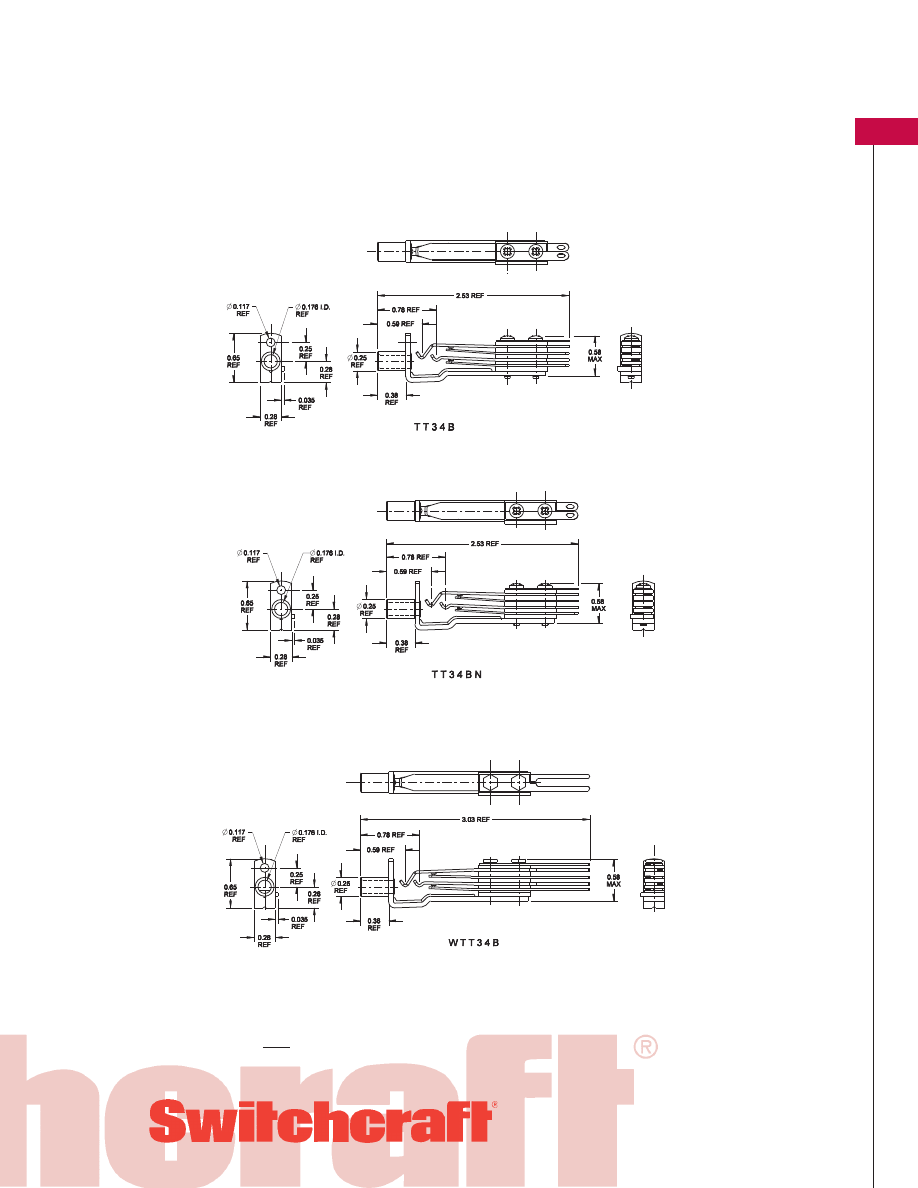

TT or Bantam Jack Series........................................81

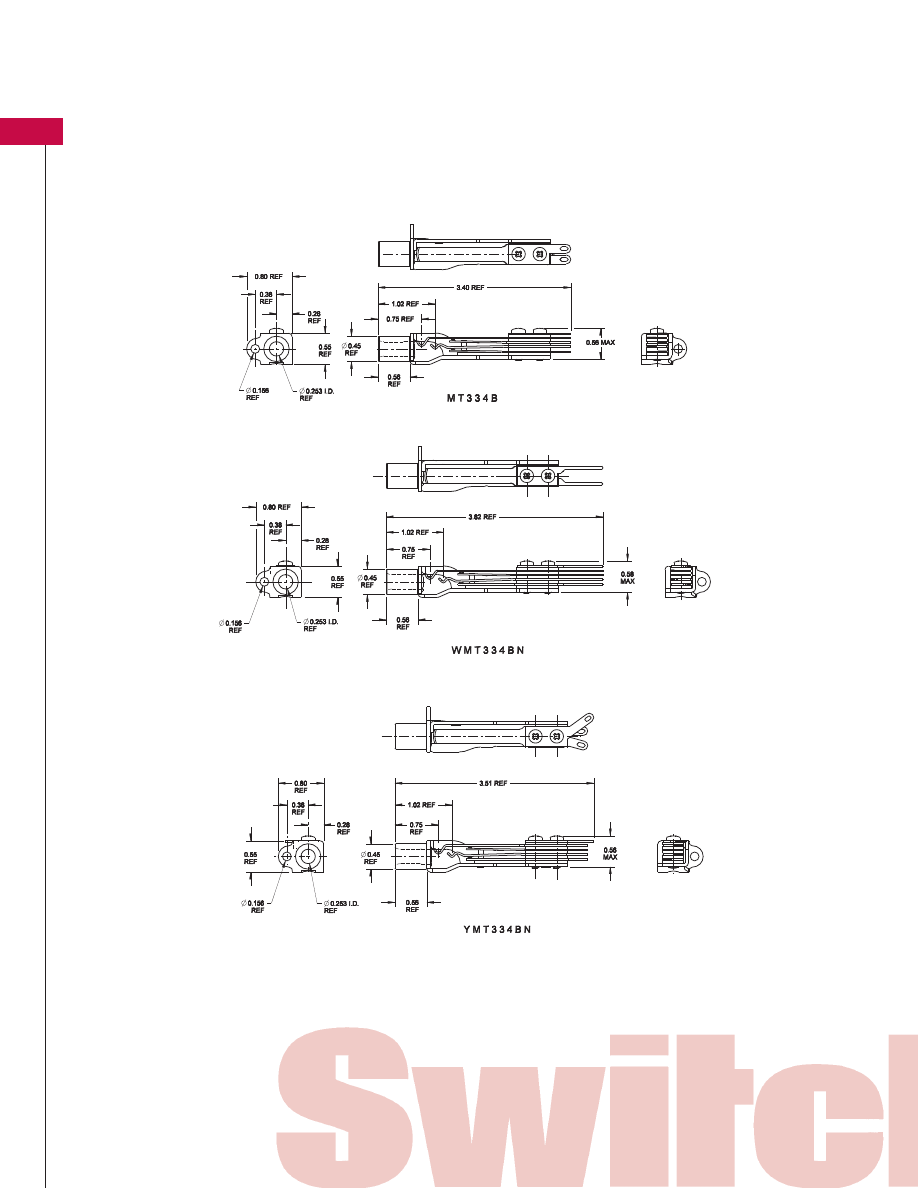

MT 1/4” Jack Series..................................................82

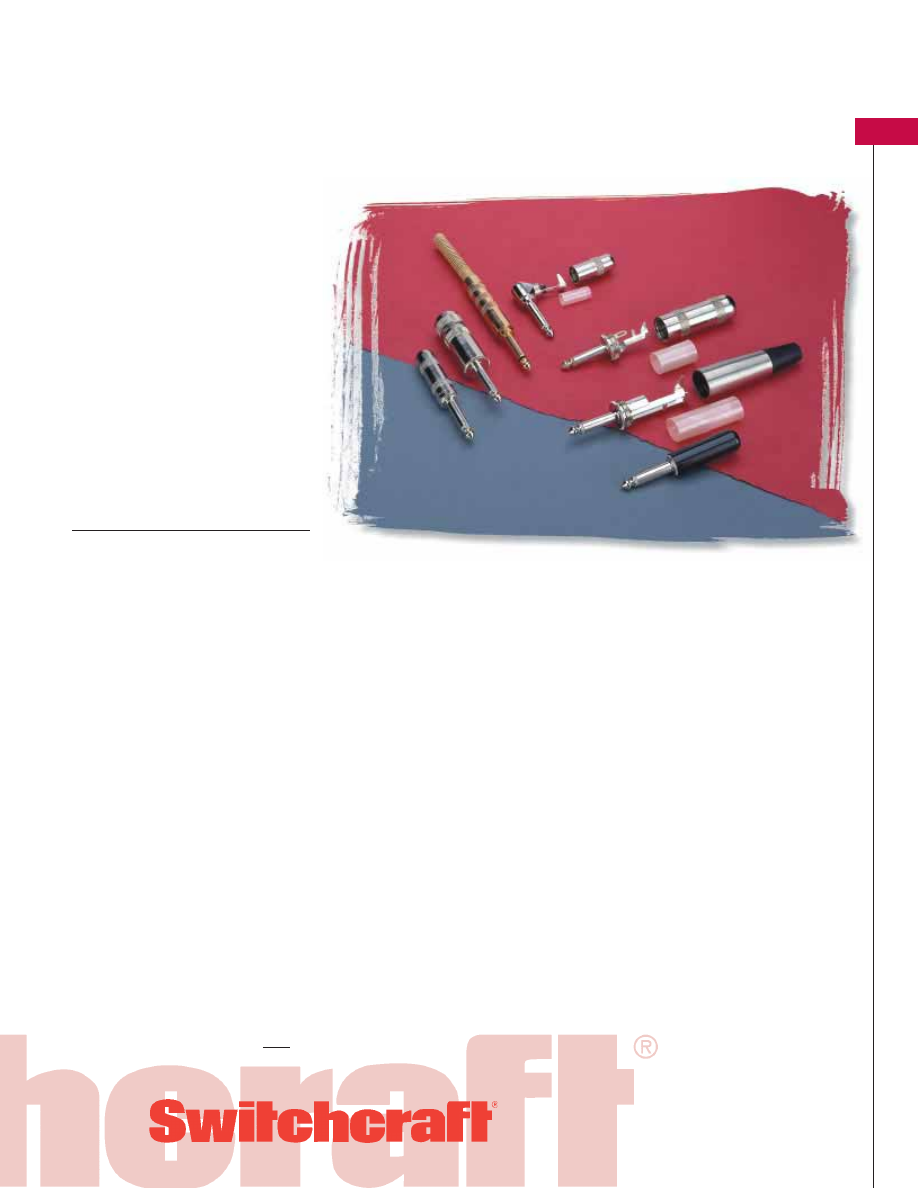

Plug Series

Littel 1/4”, Right Angle 1/4”, Silent, Super Heavy

Duty Plug Series ......................................................83

Tini, Micro, 3.5mm Stereo, Right Angle 3.5mm

Stereo, Phono, Right Angle Phono Plugs Series ..85

TT or Bantam, Mil-Style 1/4” Plugs Series ............87

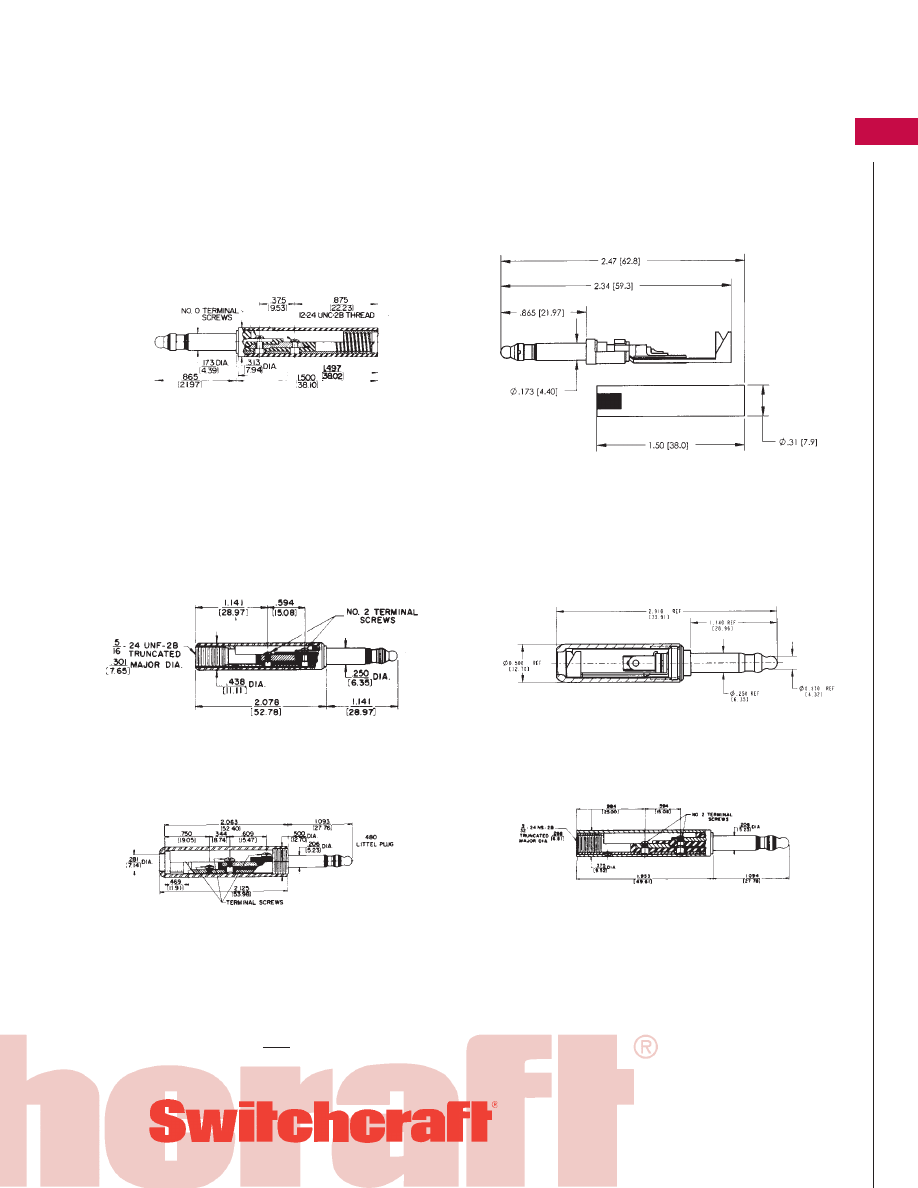

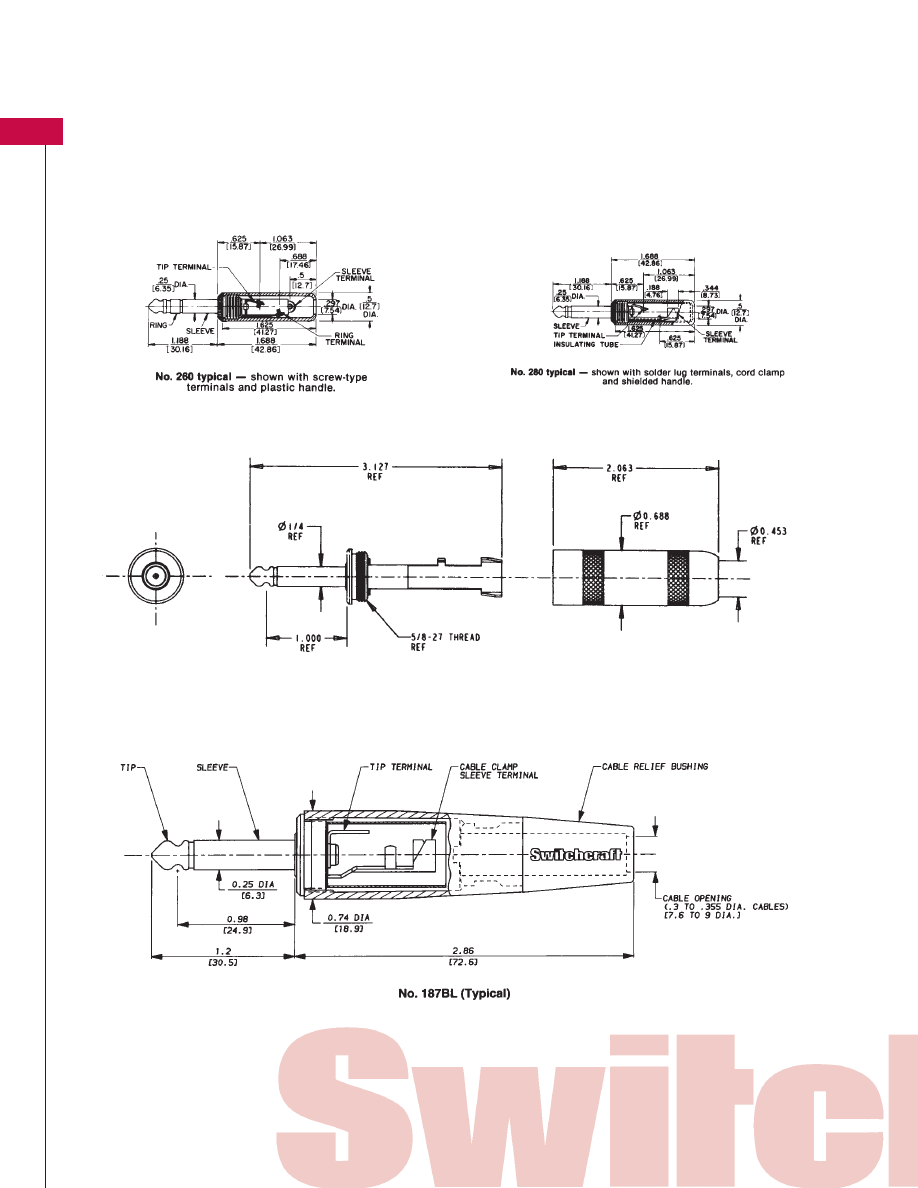

Plug Series Dimension Drawings ........................88–93

Littel Plug 1/4” Series ..............................................88

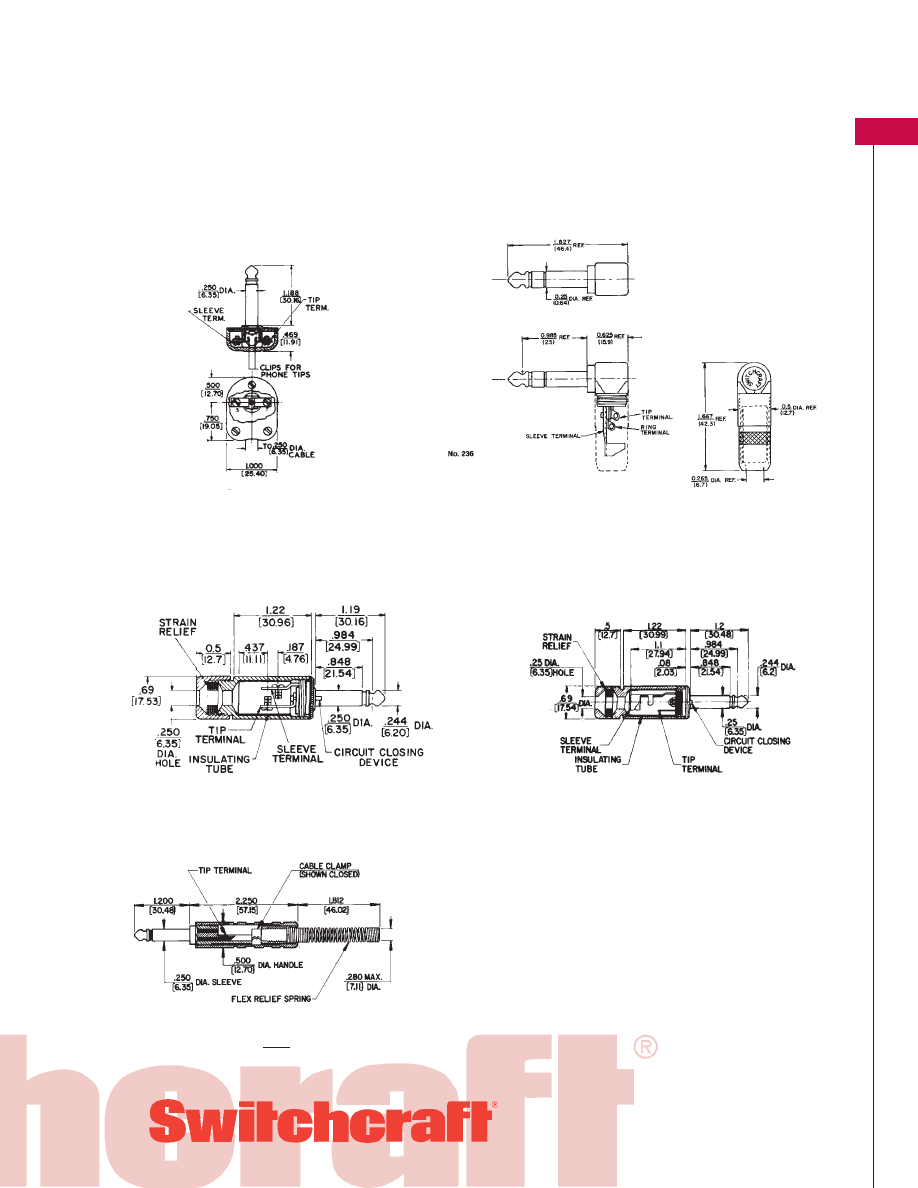

Littel Right Angle 1/4”, Silent, Super

Heavy Duty Plug Series ..........................................89

Tini, Micro Plug Series ............................................90

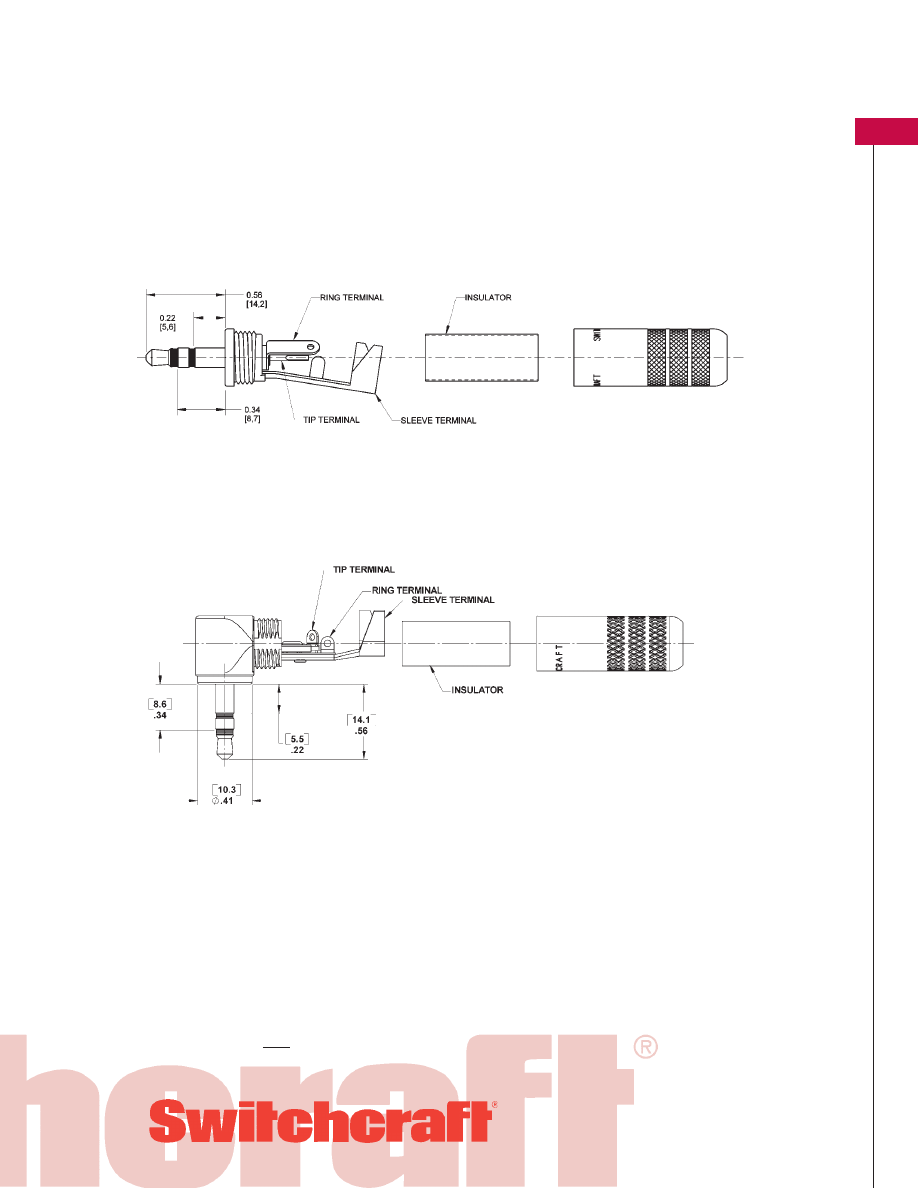

35HD 3.5mm Stereo Plug Series ............................91

Phono and Phone Right Angle Plug Series ..........92

TT or Bantam, Mil-Style 1/4” Plug Series ............93

Switches

Switch Series ..........................................................94–95

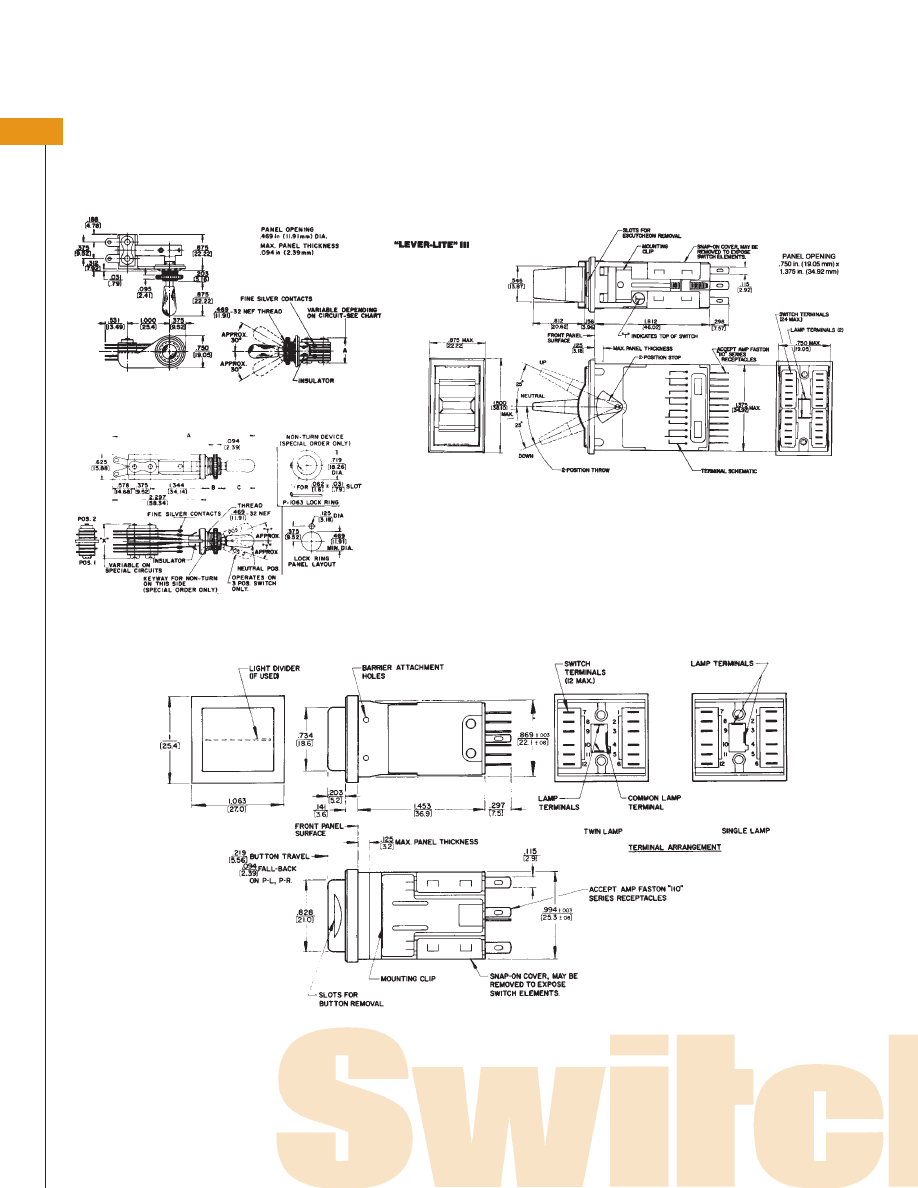

Switch Series Dimension Drawings ..........................96

Limited Lifetime Warranty

Switchcraft warrants all of its products to be of sound

design, good materials and workmanship at the time of
manufacture.

Switchcraft will repair or replace at its discretion any

product proven to be defective under normal use.

Switchcraft’s liability under the terms of this warranty

is limited to the repair or replacement of defective products
which have not been damaged through accident, abuse,
misuse or unauthorized repair. Switchcraft shall in no
case be liable for special or consequential damages of
any nature.

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Table of Contents

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Our Patchbays Have Just
Rounded A New Corner

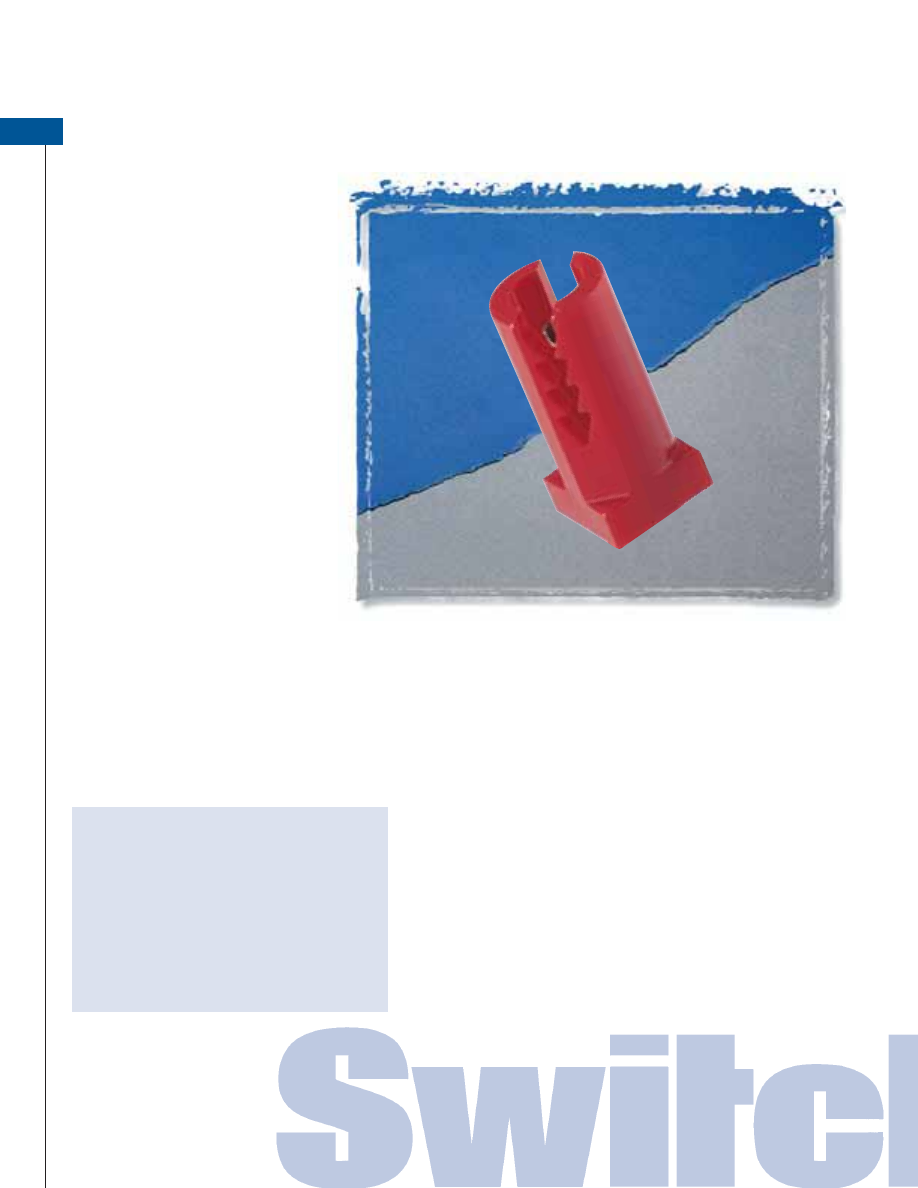

Actually, the corners we rounded
belong to our patchbays’ revolutionary,
new Professional Punchdown Terminal
(PPT), making it perfectly compatible
with the industry standard. We realized
that achieving a new industry standard
meant we couldn’t cut any corners to
get there.

The PPT design incorporates a

split-barrel design and a more rugged,
thicker housing to minimize the
impact of repeated punchdowns.
The split-barrel design eliminates
the problems associated with the
old “V-shaped” terminal designs.
The PPT design distributes pressure
evenly across both sides of the
terminated wire, causing improved
wire retention plus more reliable
connections. The serrated teeth in
the plastic housing firmly grip the
wires, which also greatly improves
wire retention. With the PPT, multiple
wires can be terminated to a single
contact, and a wide range of wire
gauges can be used.

Look for Switchcraft’s PPT in our MTP and TTP Series of audio patchbays, and in our new Backpanel Series.

All Switchcraft audio patchbays incorporate heavy gauge materials and our high quality nickel-plated, steel framed
jacks. Gold-plated, crossbar contacts come standard!

Materials

Housing: Thermoplastic (UL 94V-0)
Contacts: High strength copper alloy, tin plated
Wire size: Accommodates #22, 24, or 26 AWG, stranded or solid

Our Patchbays Now Feature the New

Professional Punchdown Terminal (PPT)

Accessories

Part Number

Description

K459

PPT replacement kit consists of
15 of each color* (IDC/IDC)

K460

PPT replacement kit consists of
15 of each color (IDC/wirewrap)

PT1LA

PPT impact punchdown tool

PT2B

Replacement bit for PT1LA tool

*Colors consist of red, black, white, yellow, blue, and

orange.

* Please visit the product pages on our website for the most up-to-date product information

MTPH48K3NO

PATCHBAYS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

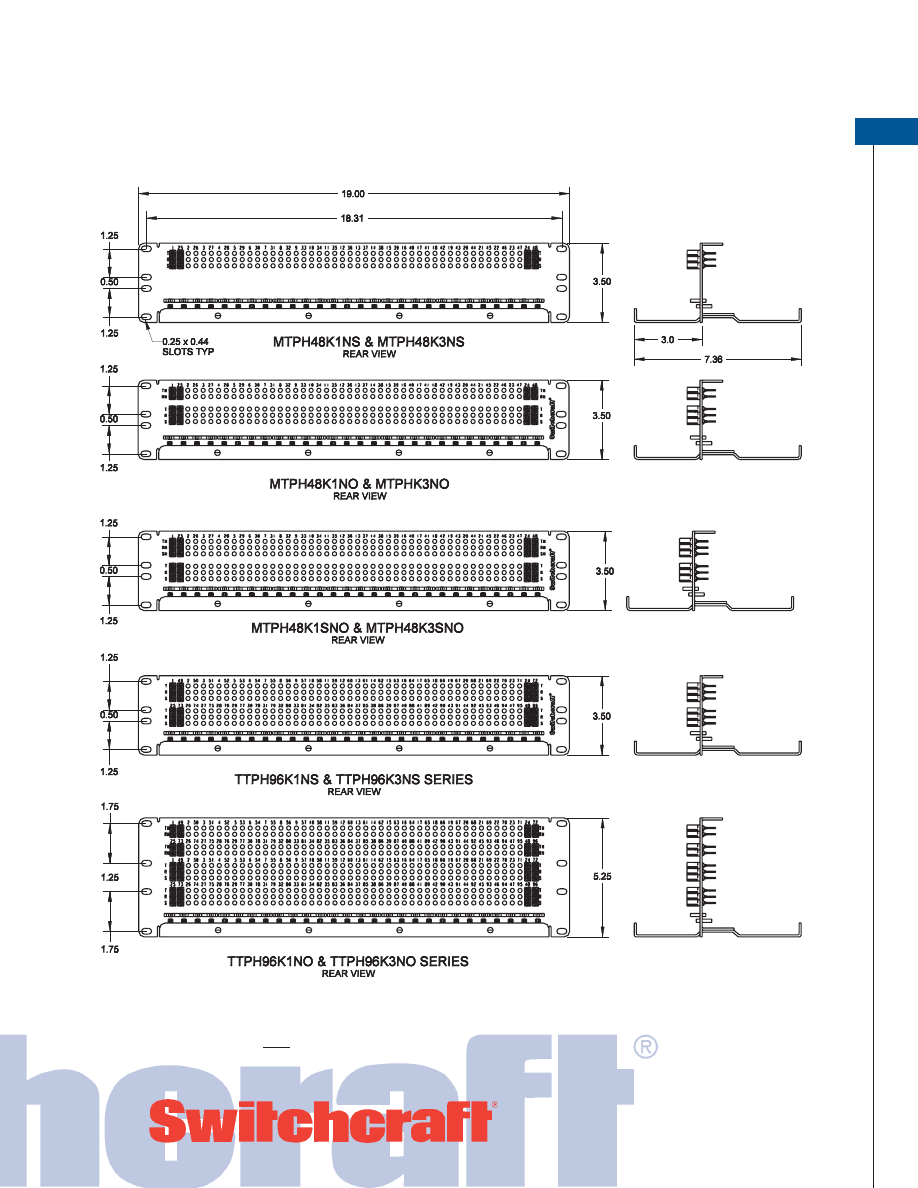

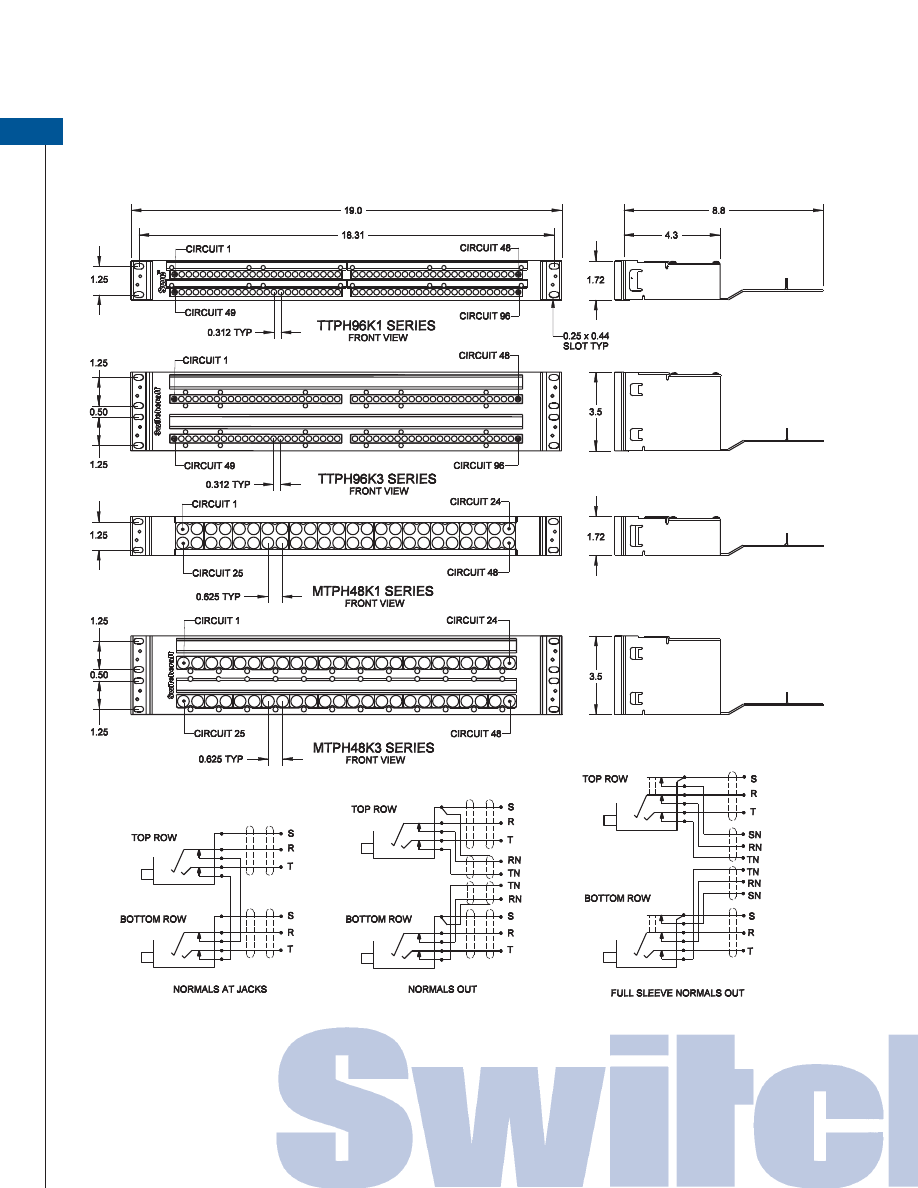

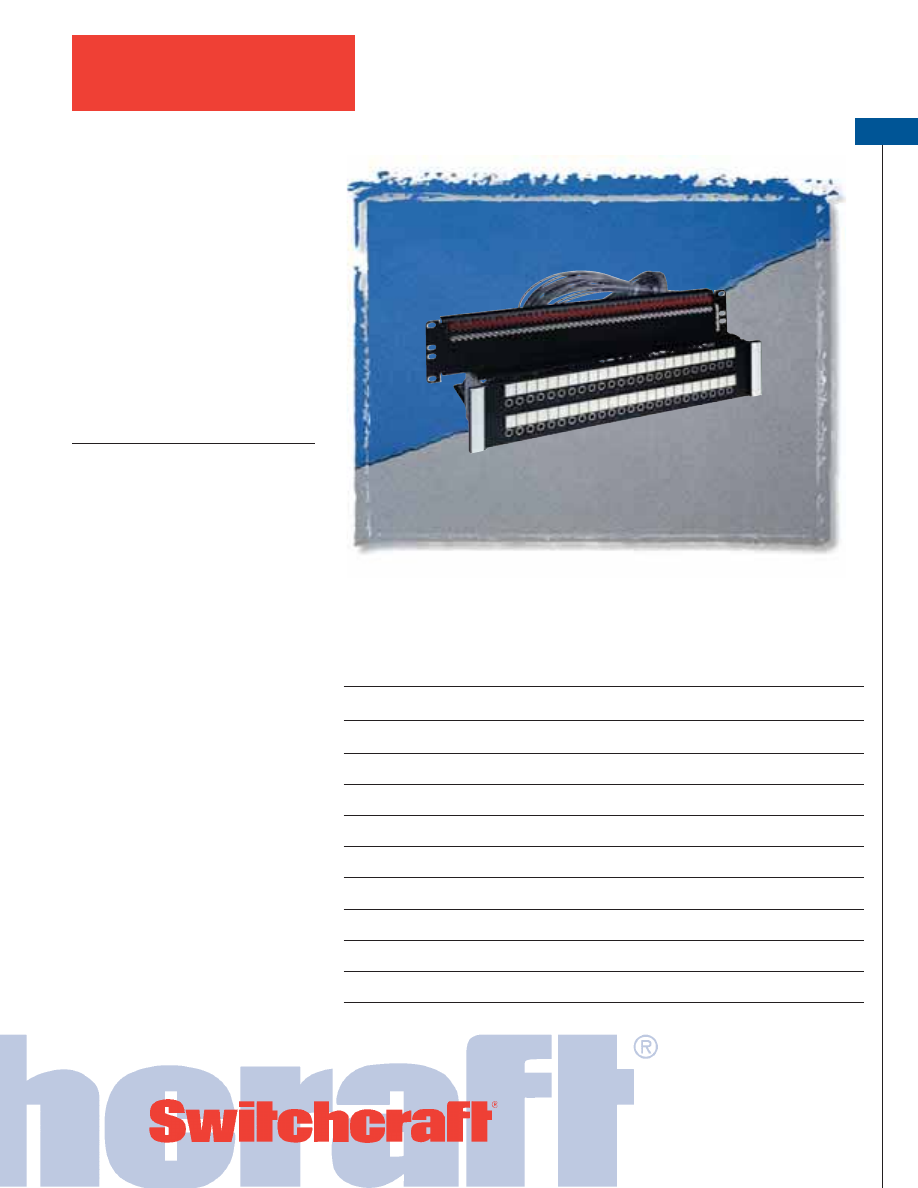

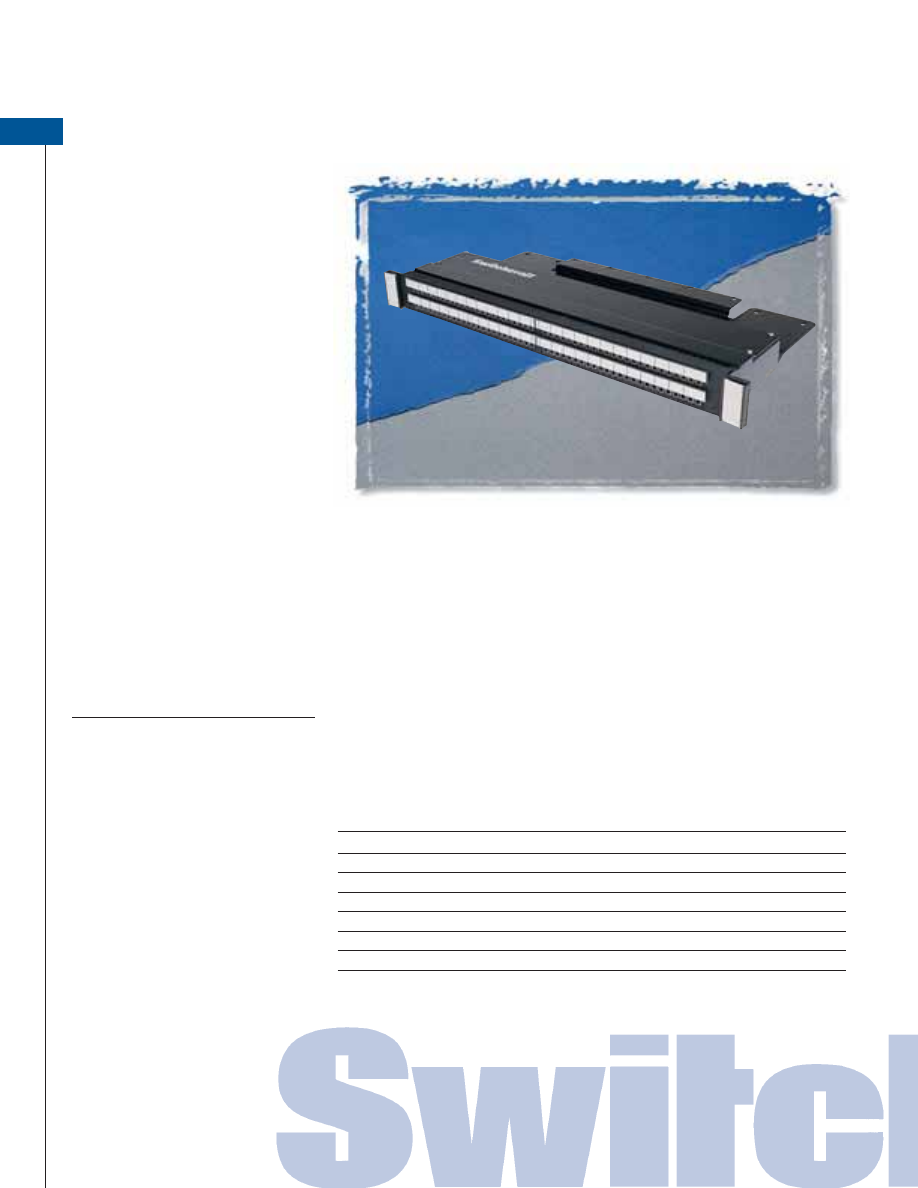

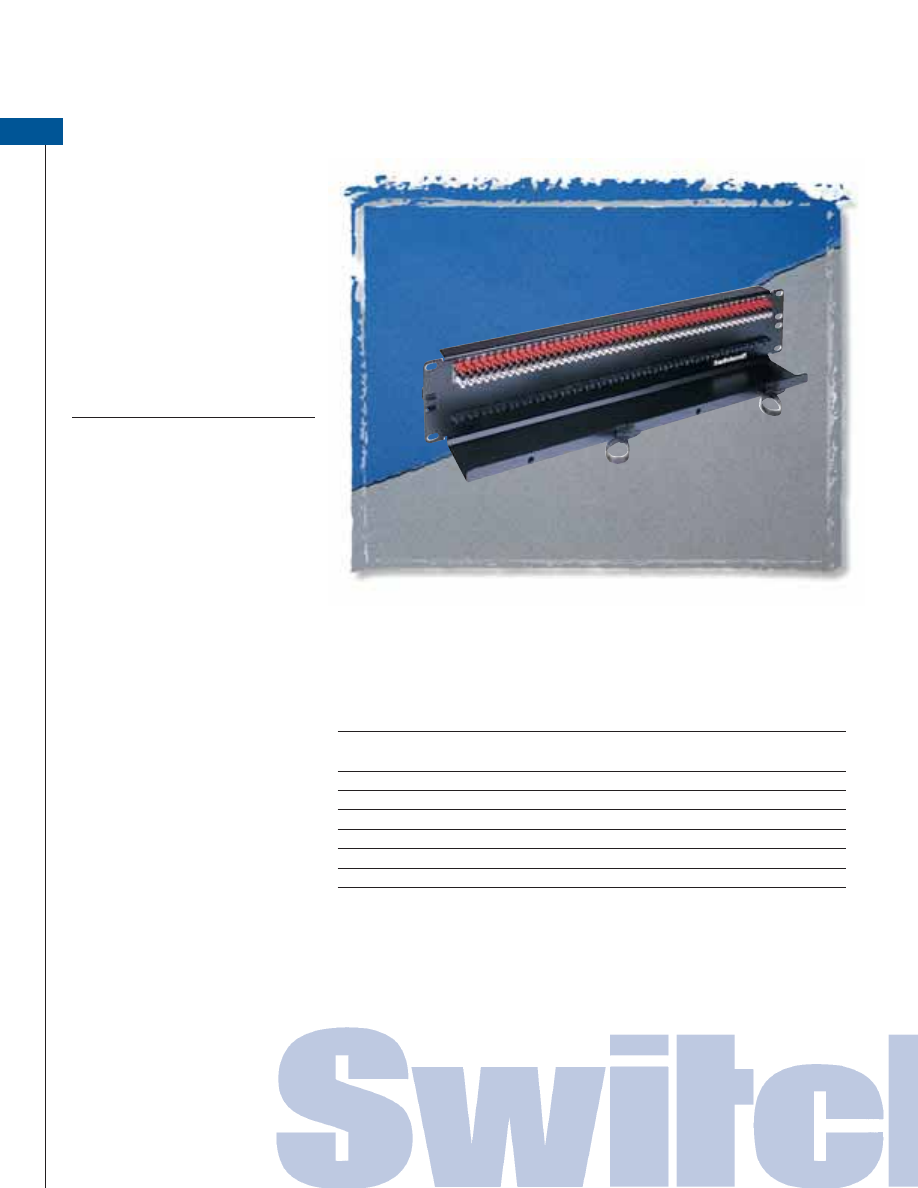

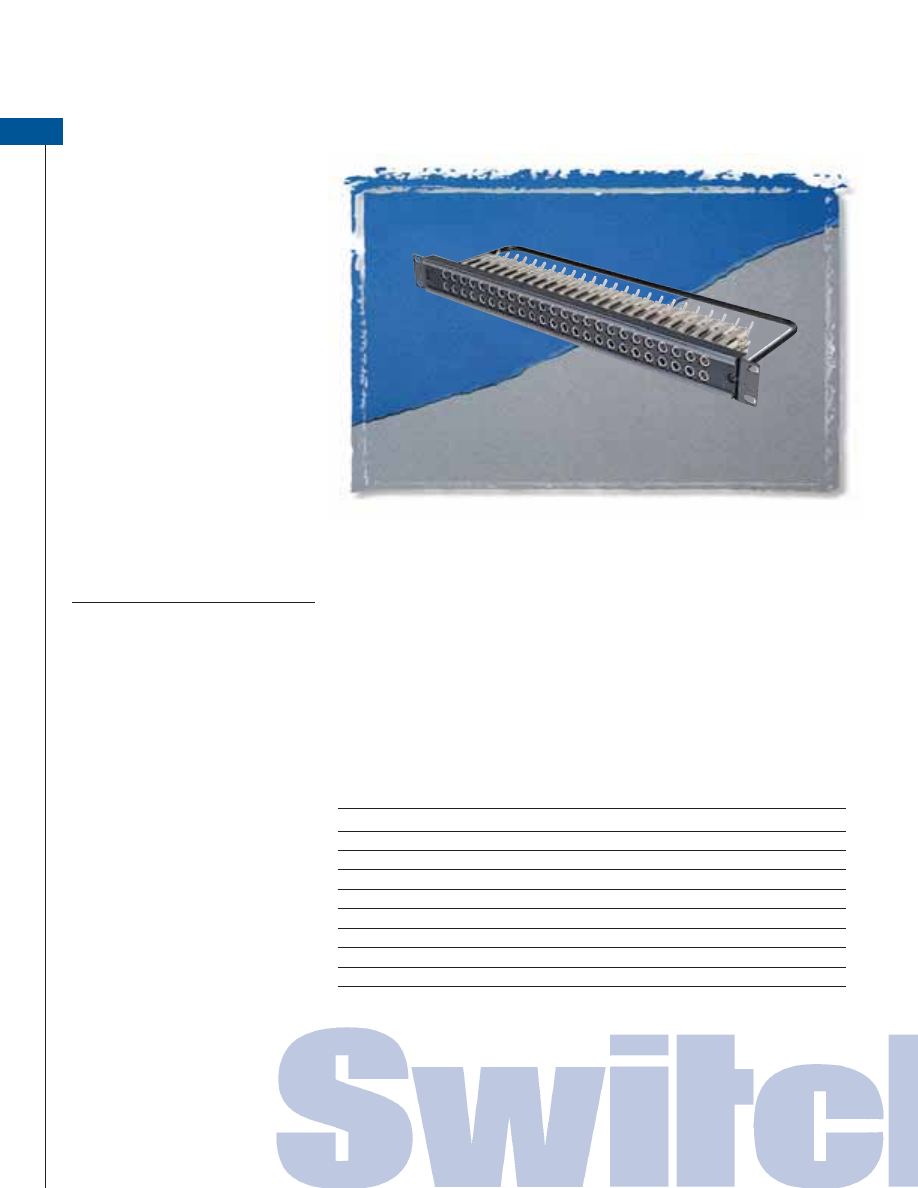

MTPH/TTPH Harness Series

Features and Benefits

• Units feature either 48 MT style

jacks or 96 TT style jacks on the
front panels, to a 4 foot harness,
out to a backpanel with PPT’s

• All versions utilize AES/EBU

wiring for complete digital
compatibility

• Attractive, corrosion resistant

nickel-plated, steel frame jacks

• Gold-plated switching contacts

reduce contact resistance,
improve reliability

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:

Nickel silver with welded
contacts

Assembly Screws: Zinc-plated

steel

Welded Contacts: Gold alloy

Panel

Front Channel:

Black anodized aluminum

Frame: C.R.S. black epoxy painted
Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Thermoplastic

polyester

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: 0˚C to +50˚C

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

Dielectric Withstanding Voltage:

500 VAC at 60 Hz

Working Voltage: 140 VDC maximum
Current Rating: 100 milliamps

The MTPH and TTPH Harness Series utilize standard front panel assemblies, a
4-foot cable harness, and our standard back panel assemblies. Primarily used
where the back panels must either be mounted into a rack, or brought back to the
front for easier access. Custom cable lengths can also be supplied. Contact the
factory for details.

DIGITAL

AES / EBU

Digital Ready!

Ordering Information

Type No.

Part Number

of Jack

Jacks

Description

MTPH48K1NS

1.75" High front panel, 4’ Harness,
3.5" High back panel, normals strapped

MTPH48K1NO

1.75" High front panel, 4’ Harness,
3.5" High back panel, normals brought out

MTPH48K3NS

3.5" High front panel, 4’ Harness,
3.5" High back panel, normals strapped

MTPH48K3NO

3.5" High front panel, 4’ Harness,
3.5" High back panel, normals brought out

MTPH48K3SNO

3.5" High front panel, 4’ Harness, 3.5" High
back panel, sleeve normals brought out

TTPH96K1NS

1.75" High front panel, 4’ Harness,
3.5" High back panel, normals strapped

TTPH96K1NO

1.75" High front panel, 4’ Harness,
5.25" High back panel, normals brought out

TTPH96K3NS

3.5" High front panel, 4’ Harness,
3.5" High back panel, normals strapped

TTPH96K3NO

3.5" High front panel, 4’ Harness,
5.25" High back panel, normals brought out

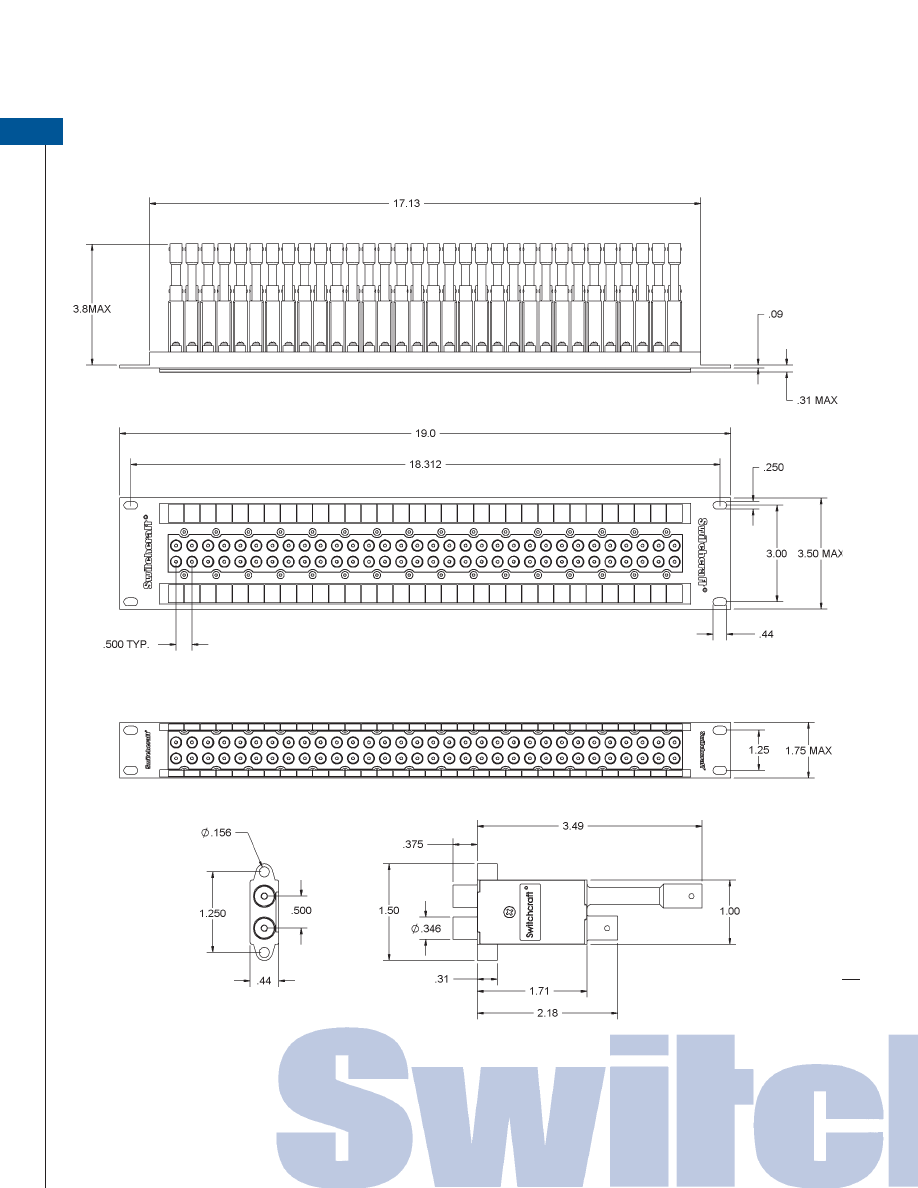

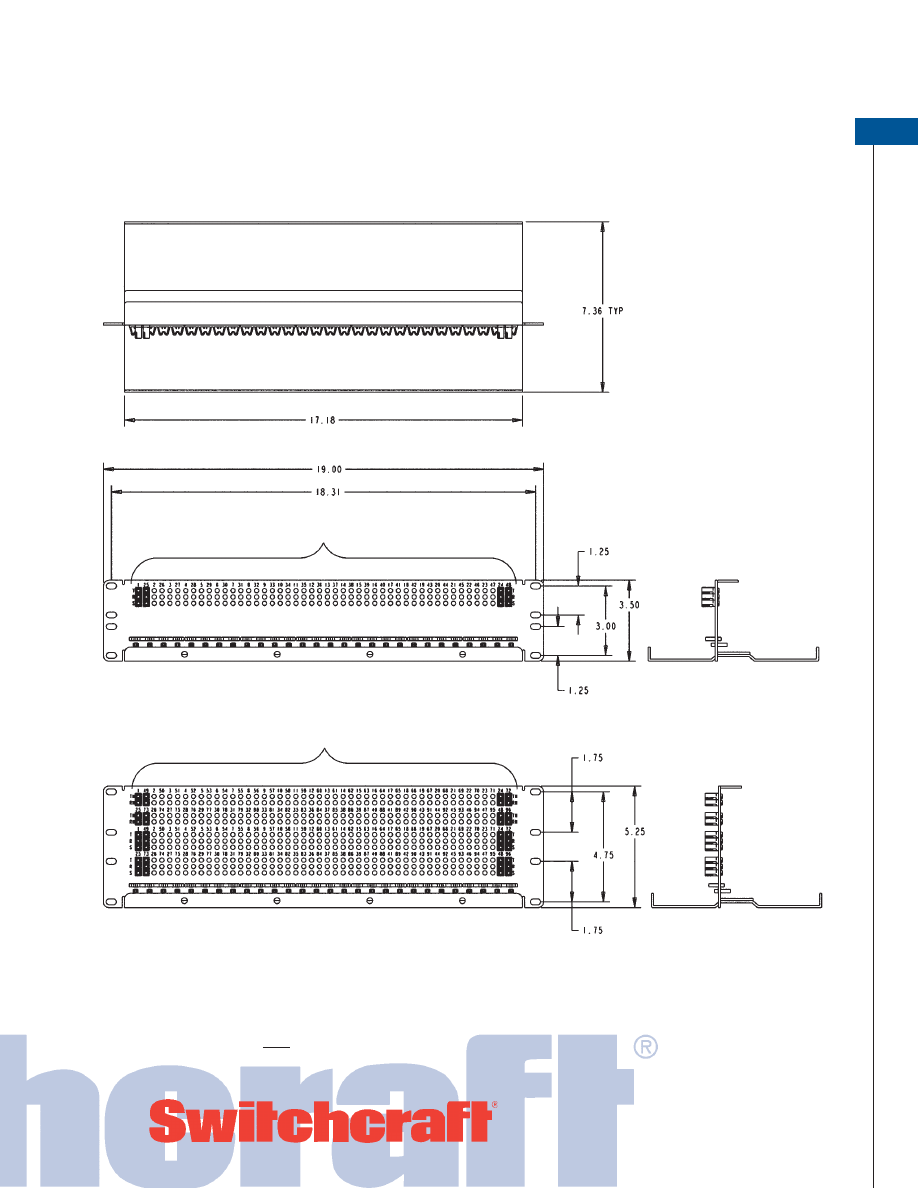

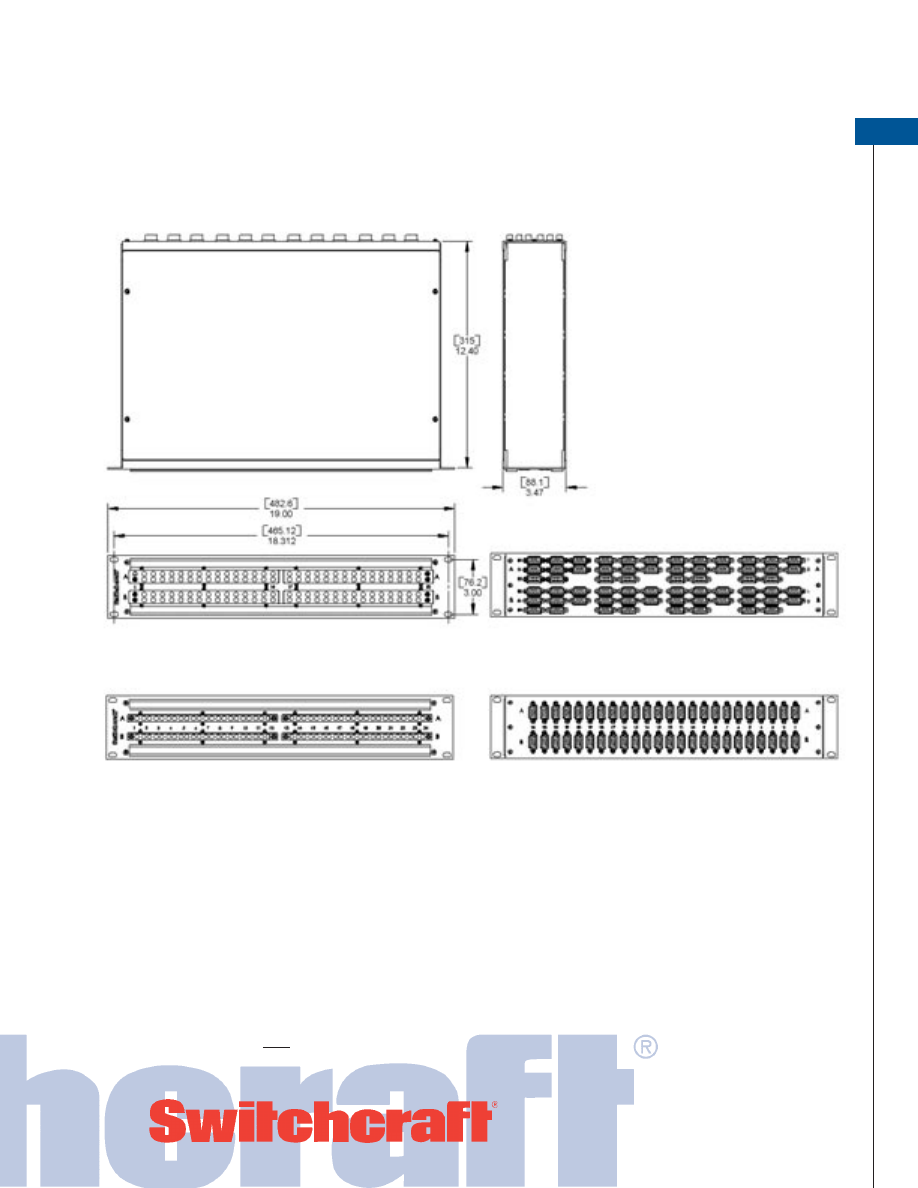

See Next Page for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Easy slide-out tray slides forward

for easy re-termination from the
front of the rack

• Available with either 48 MT style

or 96 TT style jacks in a 1RU
space

• Attractive, corrosion resistant

nickel-plated, steel frame jacks

• Gold-plated switching contacts

reduce contact resistance,
improves reliability

• Extra wide designation strips

for easy channel identification

• Rugged, attractive black

epoxy-finished steel chassis

• Configurations available include

normals strapped and normals
brought out

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:

Nickel silver with welded
contacts

Assembly Screws: Nickel-plated

steel

Welded Contacts: Gold alloy

Panel

Frame: C.R.S. black epoxy

painted

Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Thermoplastic 94V-0

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: -20˚C to +65˚C

Electrical

Jack Contact Resistance:

30 milliohms initial maximum;
50 milliohms after life

Jack Insulation Resistance:

10,000 megohms maximum

Dielectric Withstanding Voltage:

500V at 60 Hz AC

Working Voltage: 100 milliamps or

less; maximum 56.5 VDC

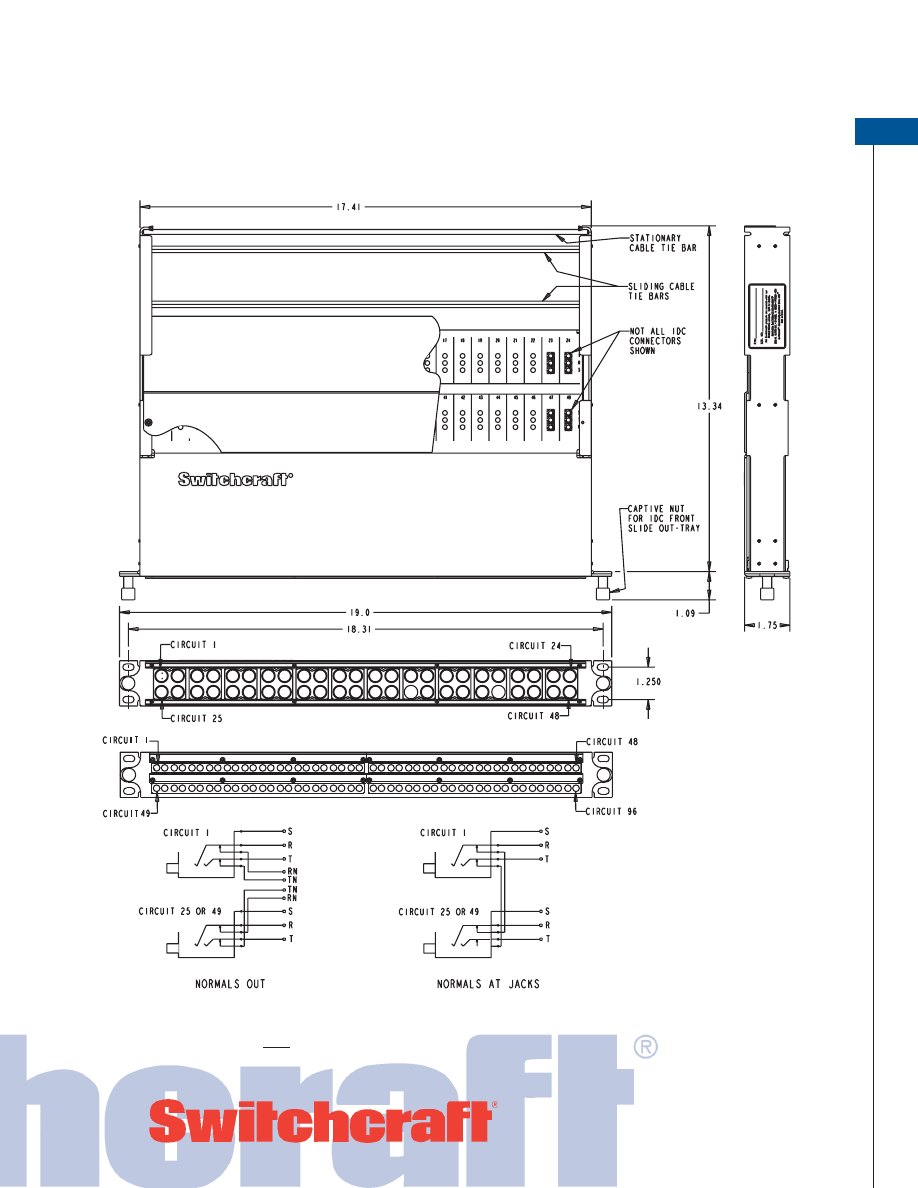

Front Access Series

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

TTPFA96K1NS

1.75" High, normals strapped

TTPFA96K1NO

1.75" High, normals brought out

MTPFA48K1NS

1.75" High, normals strapped

MTPFA48K1NO

1.75" High, normals brought out

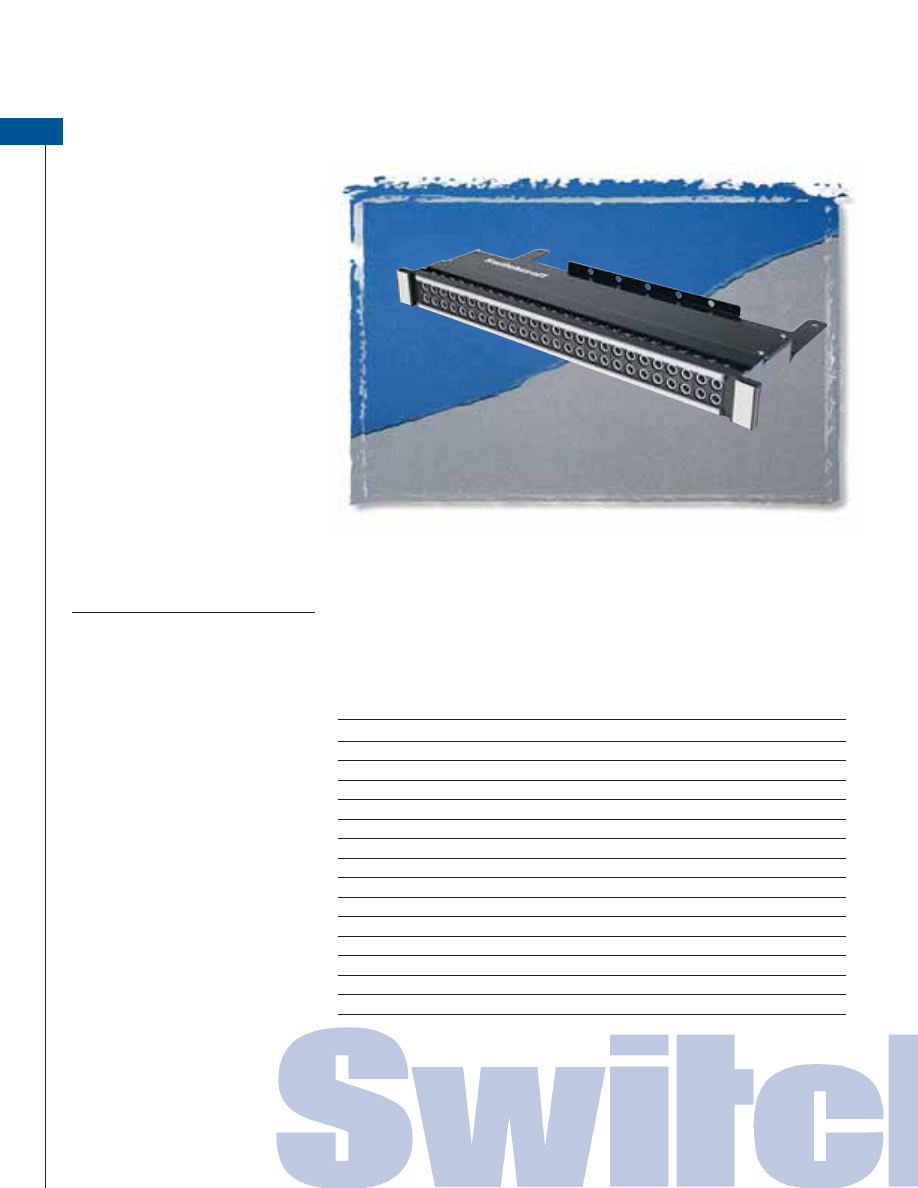

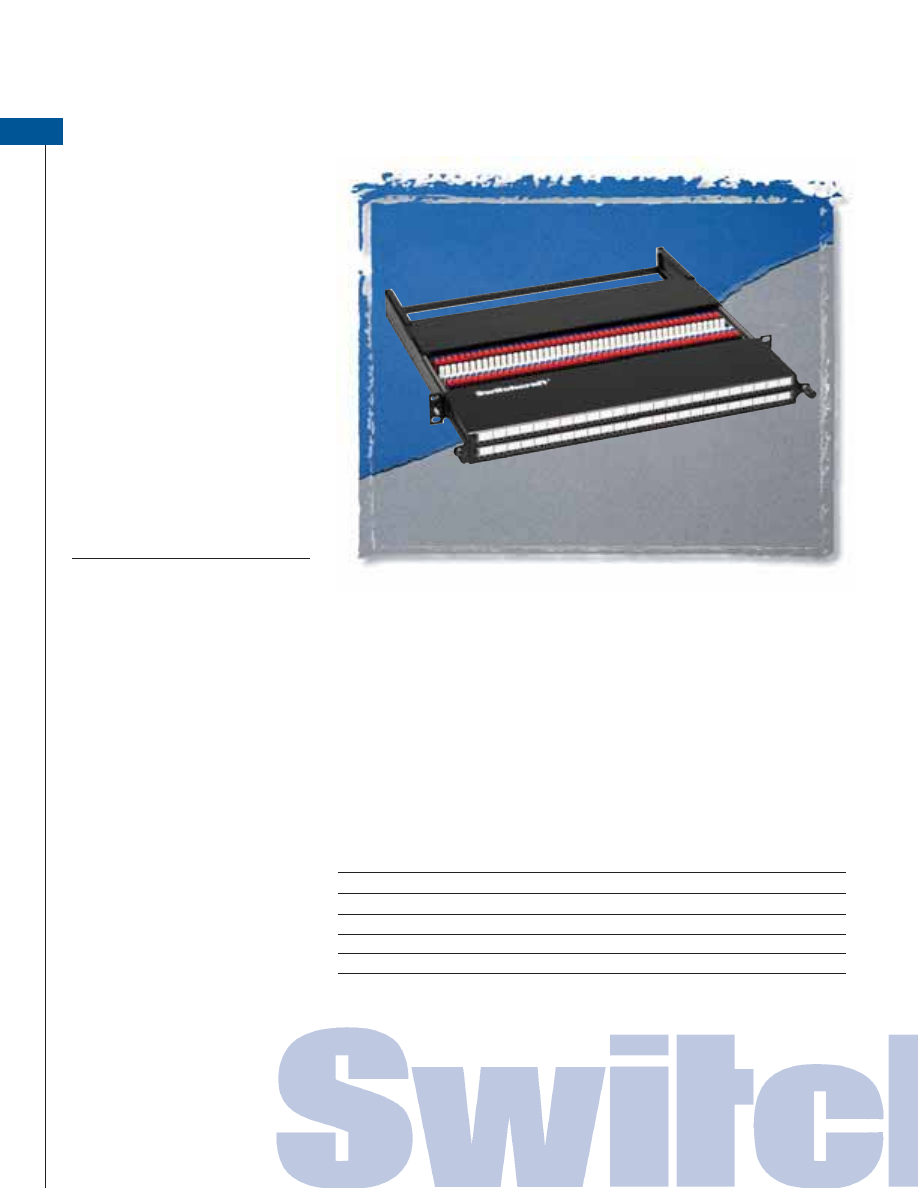

The Front Access Series offers the end user the ease of re-terminating patchpoints
from the front of the rack as opposed to the back. A slide out tray allows the user
to slide out the punchdown terminals and reconfigure the unit. An easy release
mechanism on either side of the unit allows it to be pushed back into place and
easy to grip locking nuts tighten the unit in place.

TTPFA96K1NS

* Please visit the product pages on our website for the most up-to-date product information

TTEZN****0

PATCHBAYS

EZ Norm Patchbay Series

Center Strip Removes For
Normalling Access

Easily Normal The Jacks By Rotating To “Full”,
“Non,” Or “Half” Positions

Specifications

Materials

Jacks

Housing & Cover: 94V-0 rated thermoplastic
Sleeve Collar: Nickel plated copper alloy
Tip, Ring, Shunt, & Sleeve Springs: Nickel Silver

with welded contacts

Welded Contacts: Gold
Cam Switching Springs: Silver plated copper alloy
Cam Switching Contacts: Silver plated copper alloy

Mechanical

Jack Mechanical Life: 30,000 cycles
Cam Contact Mechanical Life: 30,000 cycles
Insertion - Withdrawal Forces: 1 - 4 lbs.
Moisture resistance: MIL-STD 202 Method 106
Thermal shock: MIL-STD 202 Method 107
Salt spray: MIL-STD Method 101 (48 hrs.)
Vibration: MIL-STD 202 Method 213

Electrical

Jack Spring Contact Resistance: 30 milliohm

Maximum

Cam Switch Contact Resistance: 30 milliohm

Maximum

Insulation Resistance: 10,000 Megaohms
Dielectric Withstanding Voltage:

500 VAC (rms) at 60 Hz

Insertion Loss: -0.5dB up to 10 MHz

EZ Norm Patchbay Options

• 1RU can be terminated to EDAC or Cannon DL,

solder terminals, or wire-wrap terminals

• 1.5RU can be terminated to EDAC/Cannon DL,

solder terminals, wire-wrap terminals, plus 3 pin
connectors, or our own PPT Professional
Punchdown Terminal

• 2RU Same as above
• All units will be offered with or w/o docking connector
• Unwired units will be offered with either cable tie

bar or cable tray

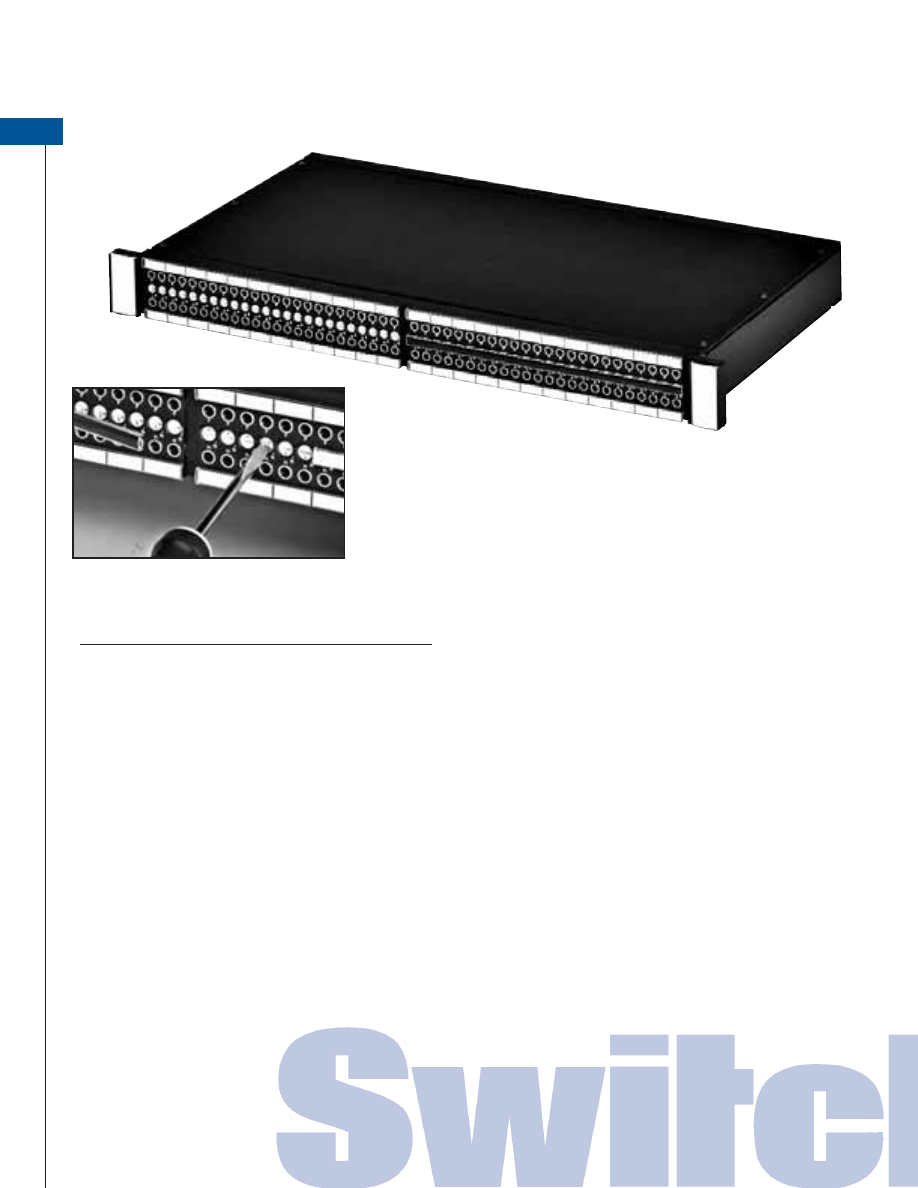

The EZ Norm offers a simplified method for setting up and changing
normals to a Bantam/TT patchbay. Simply remove the middle
designation strip, and rotate the center cam, using a standard
screwdriver. An audible “click” can be heard as you rotate from
full normals to no normals to half normals. An opaque marking
strip is included to conceal the normal position, if needed.

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

EZ Norm Patchbay Series

TT SIZE J

CKS

EZN

EZ-NORM CAM J

CKS

_ REGULAR

UNIT

HARNESS UNIT (UMBILICAL)

1 RA

CK UNIT HEIGHT

1.5 RA

CK UNIT HEIGHT

2 RA

CK UNIT HEIGHT

UNWIRED

P PRE

WIRED

_ NO

DOCKING

D DOCKING

CONNECT

E90

C/ELCO 90 PIN CONNECT

E56

C/ELCO 56 PIN CONNECT

E38

C/ELCO 38 PIN CONNECT

IDC IDC

PPT

TERMINALS

3PIN

3 PIN CONNECT

ORS

WIRE WRAP

PINS

SL SOLDER

LUGS

CANNON DL 96 PIN CONNECT

ORS

ONT A

CCESS

WITH PPT

NO REAR SUPPOR

T CABLE

TRA

B CABLE

BAR

}

UNWIRED ONL

Harness Assembly

Front Access

Racks

The EZ Norm comes in 3 different rack heights, 1RU, 1.5RU, and 2 RU.

The Front Access option offers a
slide-out tray, allowing the end
user to re-terminate the patch-
bay from the front of the rack.

The EZ Norm is also offered as a
harness assembly, with a standard
harness of 4 ft. Custom lengths are
available, call Switchcraft

for details.

EZN

E90 IDC

E56

3PIN

CDL

E38

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

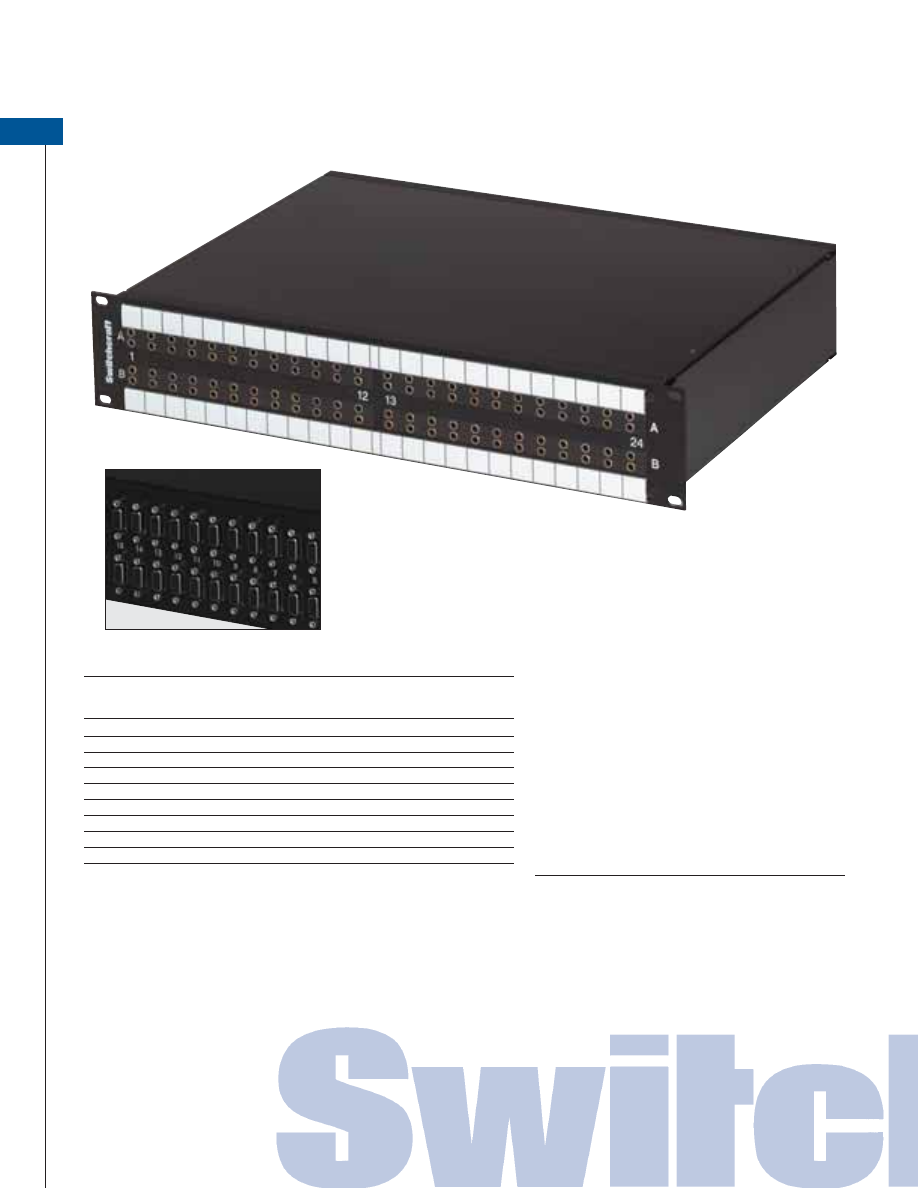

Features and Benefits

• Unit Features either 8,16, 24, or 32 TT style

jacks on the front Panels, to a 9 pin D-Sub.

• All versions utilize low capacitance internal

wiring for maximum performance of
transferring data

• All standard units are available 1 or 2 rack

units high (1.5 RU available by request)

• Rugged, attractive black epoxy finished

steel frame chassis

Specifications

Electrical

Internal Wiring:

24 AWG Solid TC, foils shield

Nom Capacitance: 11.5 pF/ft between conductors
21.3 pF/ft between one conductor and conductor
connected to the shield
Nom. Impedence: 110 Ohms

Ordering Information

Part

No. of

Front Panel

Back

Rack

Number*

Jacks

Layout

Plane

Height

RS422H4N081

2 x 8

Horizontal

9 Pin D-Sub

RS422V4N081

2 x 8

Vertical

9 Pin D-Sub

RS422H4N161

2 x 16

Horizontal

9 Pin D-Sub

RS422H4N162

2 x 16

Horizontal

9 Pin D-Sub

RS422V4N161

2 x 16

Vertical

9 Pin D-Sub

RS422V4N162

2 x 16

Vertical

9 Pin D-Sub

RS422H4N242

2 x 24

Horizontal

9 Pin D-Sub

RS422V4N242

2 x 24

Vertical

9 Pin D-Sub

RS422V4N322

2 x 32

Vertical

9 Pin D-Sub

*Add “N” for non-normalled version

RS 422 Data Patchbay Series

Our standard RS data jackfield series offer a multiple combination of
ports, rack heights, and back panel terminations which will easily fit
into any television broadcast or video production where custom data
patching is required. Custom ports and rack height combinations can
be supplied. Contact the factory for details.

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

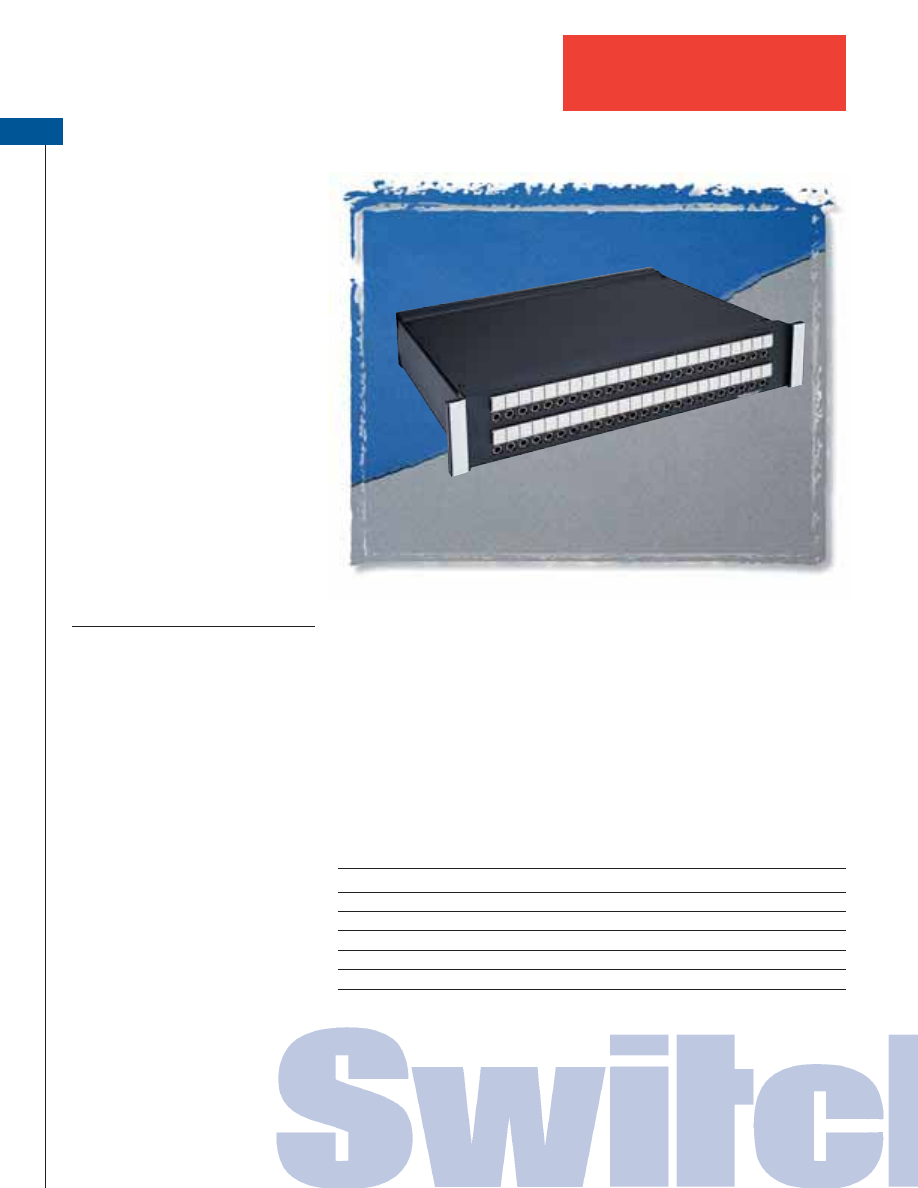

Features and Benefits

• Unit features 48 MT style jacks

in either 1RU (1.75" H) or 2RU
(3.5" H) spaces

• All versions utilize AES/EBU

wiring for complete digital
compatibility

• Attractive, corrosion resistant

nickel-plated, steel frame jacks

• Gold-plated switching contacts

reduce contact resistance,
improve reliability

• Rugged, attractive black epoxy-

finished steel chassis

• Extra wide designation strips for

easy channel identification

• 1RU version configurations include

normals strapped and normals
brought out

• 2RU version configurations include

normals strapped, normals
brought out, and sleeve normals
brought out

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:

Nickel silver with welded
contacts

Assembly Screws: Zinc-plated

steel

Welded Contacts: Gold alloy

Panel

Front Channel:

Black anodized aluminum

Frame: C.R.S. black epoxy painted
Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Thermoplastic

polyester

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: O˚C to +50˚C

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

Dielectric Withstanding Voltage:

500 VAC at 60 Hz

Working Voltage: 140 VDC

maximum

Current Rating: 100 milliamps

DIGITAL

AES / EBU

Digital Ready!

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

MTP48K1NS

1.75" High, normals strapped

MTP48K3NS

3.5" High, normals strapped

MTP48K1NO

1.75" High, normals brought out

MTP48K3NO

3.5" High, normals brought out

MTP48K3SNO

3.5" High, sleeve normals out

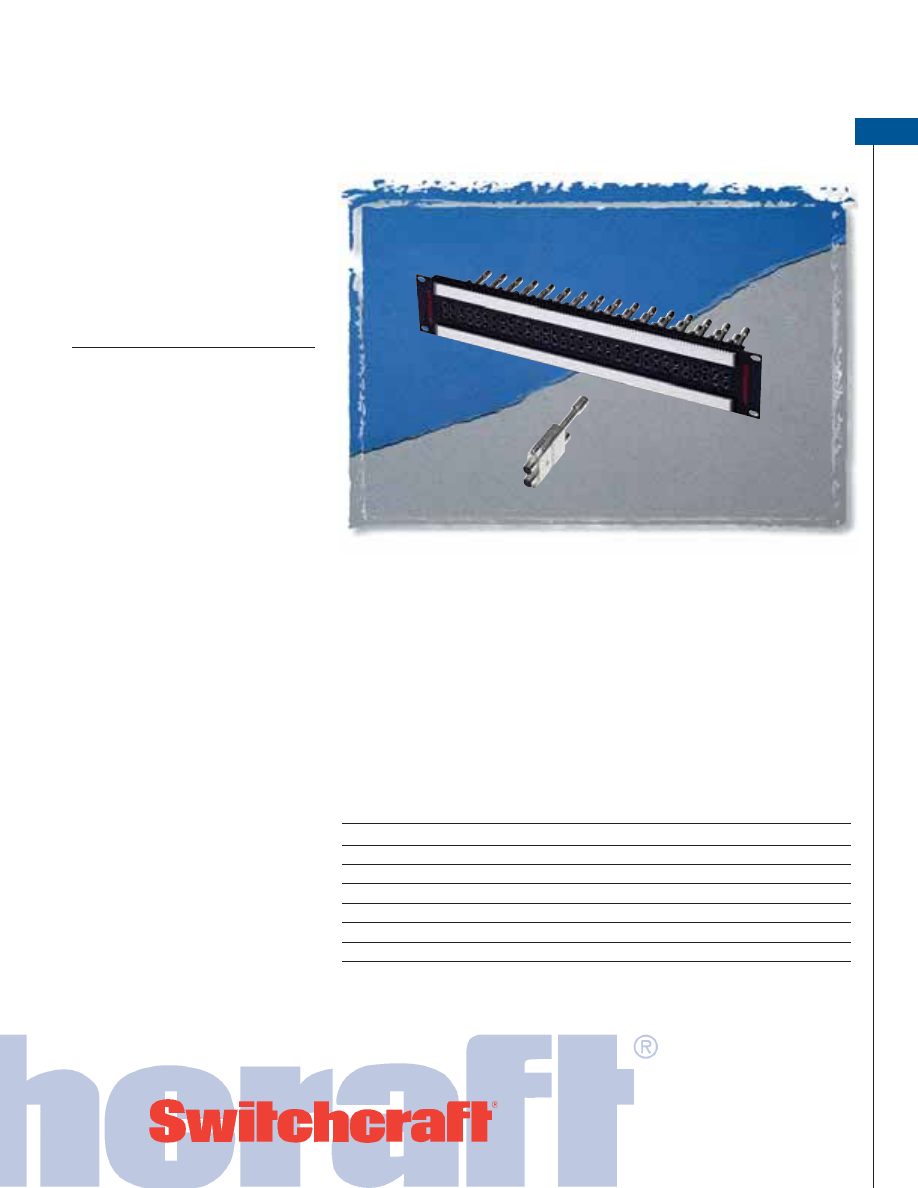

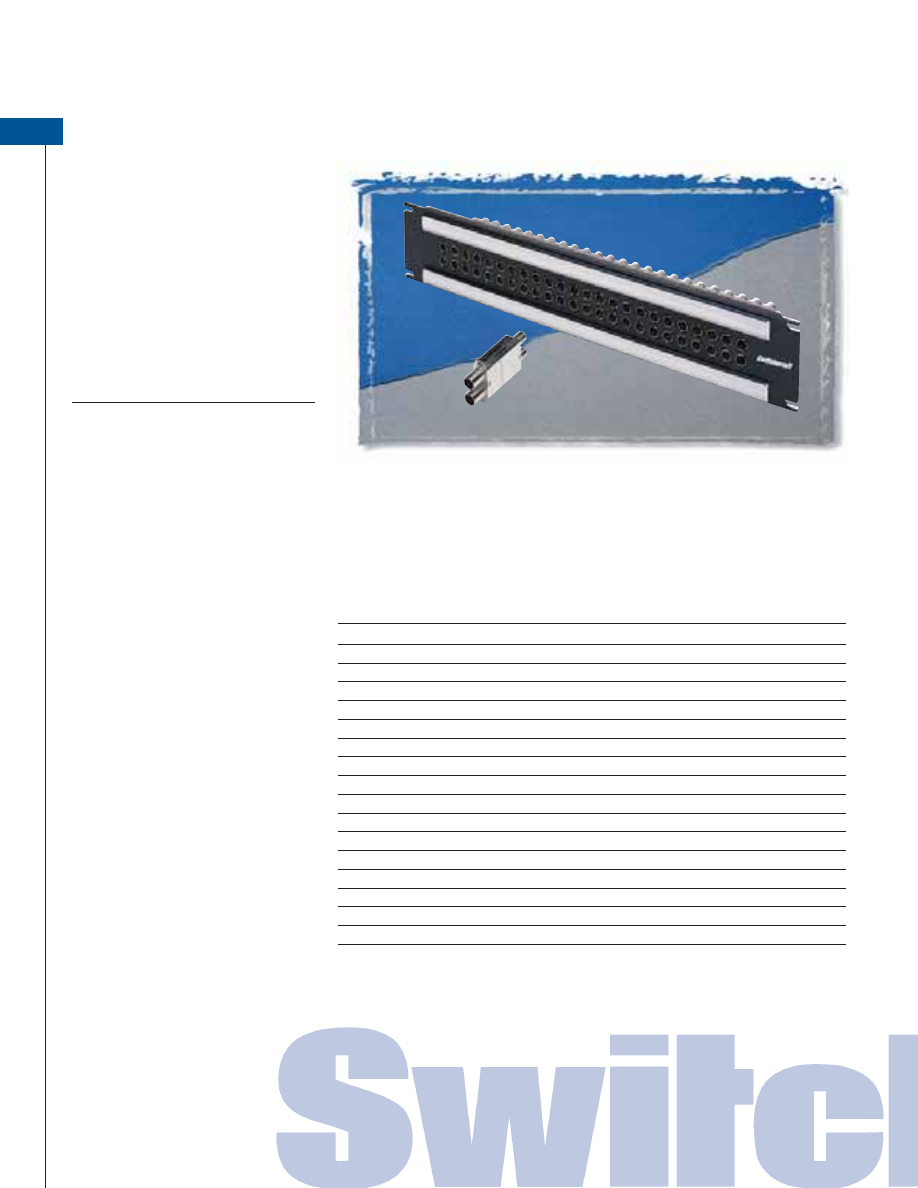

The MTP Series was developed with the AES/EBU digital standard in mind.
All versions are made with 110 Ohm cabling inside as a standard. Available in
a wide variety of configurations.

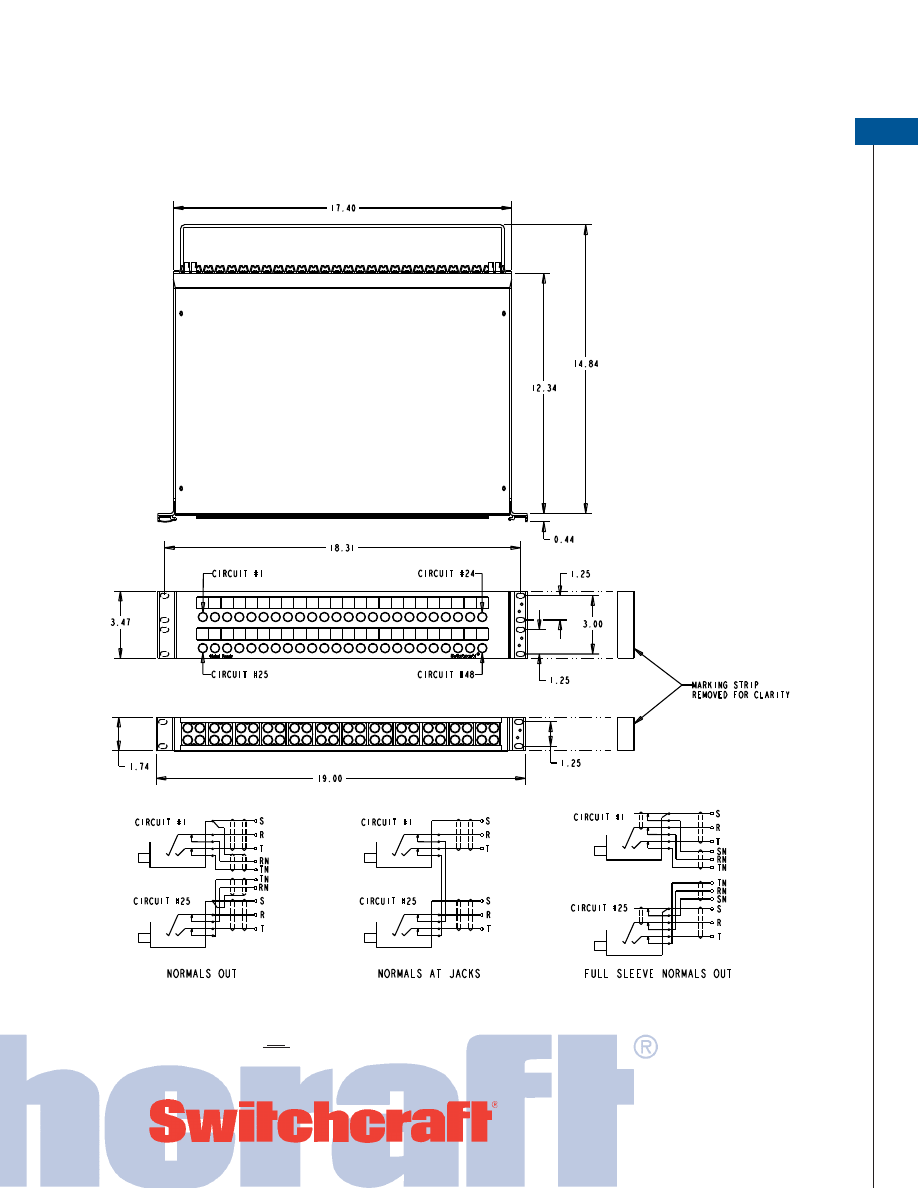

MTP48K3NO

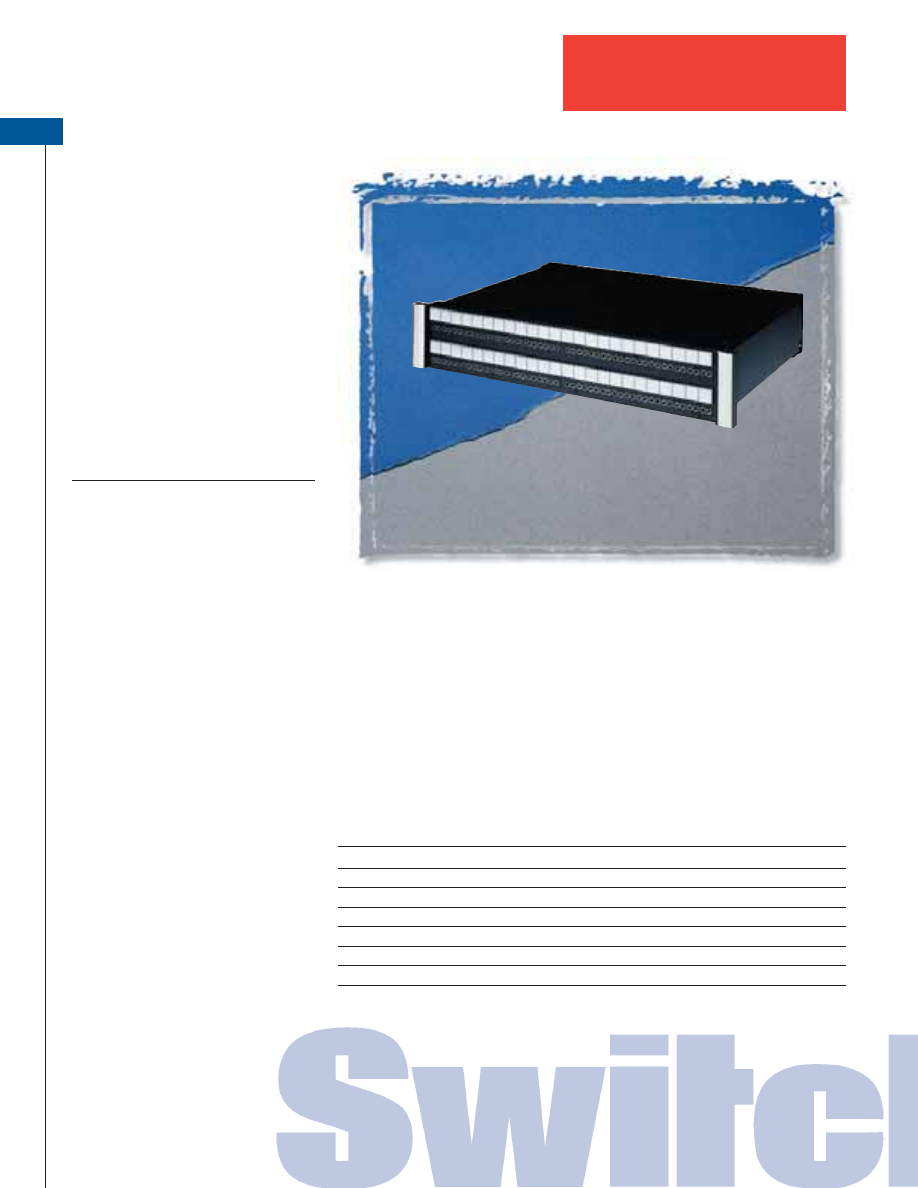

MTP48K Wired Series

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

TTPW96K3NS

TTPW96K Wired Series

Features and Benefits

• Unit features 96 TT style jacks in

2RU (3.5"H) space

• Utilizes AES/EBU wiring for

complete digital compatibility

• Attractive, corrosion resistant

nickel-plated, steel frame jacks

• Gold-plated switching contacts

reduce contact resistance, improve
reliability

• Rugged, attractive black epoxy-

finished steel chassis

• Extra wide designation strips for

easy channel identification

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel

silver with welded contacts

Assembly Screws: Zinc-plated

steel

Welded Contacts: Gold alloy

Panel

Front Channel:

Black anodized aluminum

Frame: C.R.S. black epoxy painted
Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Thermoplastic

polyester

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: 0˚C to +50˚C

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

Dielectric Withstanding Voltage:

500 VAC at 60 Hz

Working Voltage: 140 VDC

maximum

Current Rating: 100 milliamps

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

TTPW96K1NN

1.75" High, non-normals

TTPW96K1HN

1.75" High, half normals

TTPW96K1NS

1.75" High, normals strapped

TTPW96K3NN

3.5" High, non-normals

TTPW96K3HN

3.5" High, half normals

TTPW96K3NS

3.5" High, normals strapped

The TTPW96K Series was developed with the AES/EBU digital standard in mind.
As a standard, the TTPW96K utilizes 110 Ohm cabling inside.

DIGITAL

AES / EBU

Digital Ready!

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Allows for custom patchbay

configurations or central
patching points

• PPTs have IDCs on both sides

for easy installation

• Rugged, attractive black

epoxy-finished steel chassis

• Cable trays allow for mounting

and securing terminated cable

Specifications

Panel thickness: .093"
Mounting hole diameter: .187"
Mounting hole spacing (48

IDCs/row): .340" (Horizontal)
x .275" (Vertical)

Mounting hole spacing (52

IDCs/row): .320" (Horizontal)
x .275" (Vertical)

Wire size: #22, 24, 26 AWG

Stranded or Solid
(IDC termination)

Materials

Housing: Thermoplastic (UL 94V-0)
Contacts: High strength copper

alloy

Backpanels: Black Epoxy coated

C.R.S.

Cable Tray: Black Epoxy coated

C.R.S.

MTPBP/TTPBP Backpanel Series

Ordering Information

Sets of

Part Number

PPT Terminals

Height

Description

MTP48K3BPNS

3.5"

T, R, S

MTP48K3PBNO

3.5"

T, R, S, TN, RN

MTP52K3BPNO

3.5"

T, R, S, TN, RN

MTP24K7

24 x 2

7.0"

+, -, S

TTP96K3BPNS

3.5"

T, R, S

TTP96K5BPNS

96 x 2

5.25"

T, R, S, TN, RN

The Backpanel Series offers the end user the flexibility of configuring their own
patchbay, or to use as a central patchpoint location. The backpanels utilize the
PPT punchdown and come with a rugged cable tray.

MTP48K3BPNS

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Attractive, corrosion-resistant,

nickel-plated jacks

• Steel frame jacks for superior

jack life

• Extra wide labeling strips provide

maximum space and two vertical
strips, one at each side

• Rugged, attractive black anodized

aluminum face will not break

• Two configurations available:

- Normals brought out
- Normaled at jacks

• Gold switching contacts for

long-term reliability

• Jacks paired for easy identification

of left and right channels

• Connectorized by EDAC

connectors for ease of termination
by customer

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel

silver with welded contacts

Assembly Screws: Zinc-plated

steel

Welded Contacts: Gold alloy

Panel

Front Channel: Black anodized

aluminum

Frame & Cover: C.R.S. black

epoxy painted

Designation Strips: Black polycar-

bonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Polyester

EDAC Connector

Housing: Thermoplastic, UL94V-0
Contacts: Gold plated phosphor

bronze

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: -20˚C to +65˚C

TT96 EDAC Series

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

TT96EDACNO

Normals Brought Out (120 pin EDAC)

TT96EDACNS

Normals Strapped (90 pin EDAC)

The TT96EDAC Series offers the convenience of EDAC

connectors on the back of

the panel for easy installation. Available in normals strapped and normals
brought out, both wired to the SAC code of wiring. We also offer custom wiring
configurations. Contact the factory for details.

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance:

10,000 megohms

Dielectric Withstanding Voltage:

500VAC at 60 Hz

Working Voltage: 140VDC
Current Rating: 100 milliamps

EDAC Mating Plugs

Part Number

Description

516-090-000-301

90 Pin male w/ screw

516-090-000-302

90 Pin male w/ nut

516-120-000-101

120 Pin male w/ screw

516-120-000-102

120 Pin male w/ nut

516-290-500

Terminal solder-style

516-290-590

Terminal crimp-style

TT96EDACNS

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Kit features 96 TT jacks in one

rack space (1.75" high) or two
rack spaces (3.5" high)

• Jack blocks can be removed from

the front for easy soldering

• Dust tray limits dirt, dust and

contamination of jack terminals

• Wire management straps are

adjustable and reusable

• Attractive, corrosion resistant

nickel-plated jacks

• Steel frame jack for superior

jack life

• Extra wide labeling strips provide

maximum space

• Rugged, attractive black anodized

aluminum face will not break
or rust

• Three jack configurations available

for the exact switching arrangement
you need: full normal, half normal,
and non-normal (open circuit)

• Fanned solder terminals for easier

solder connections

• Gold switching contacts for long-

term reliability in normal-through
connections

Specifications

Materials

Jacks

Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:

Nickel silver with welded
contacts

Assembly Screws: Nickel-plated

steel

Welded Contacts: Gold alloy

Panel

Front Channel: Black anodized

aluminum

Frame: C.R.S. black epoxy painted
Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Jack Inserts: Thermoplastic

polyester

TTP96K Patchkit Series

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

TTP96K1FN

1.75" High, full normals

TTP96K1HN

1.75" High, half normal

TTP96K1NN

1.75" High, no normals

TTP96K3FN

3.5" High, full normals

TTP96K3HN

3.5" High, half normals

TTP96K3NN

3.5" High, no normals

The TTP96K Patchkit Series offers the end user a rugged cable tray to support
rear cabling. Heavy duty construction takes weight off the back of the jacks for
increased reliability. Available in 1.75" or 3.5" height versions.

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: 0˚C to +50˚C

TTP96K1FN

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance:

10,000 megohms maximum

Dielectric Withstanding Voltage:

500VAC at 60 Hz

Working Voltage: 140VDC maximum
Current Rating: 100 milliamps

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Kit features 48 1/4" longframe

jacks in one rack space (1" high)
or in two rack spaces (3" high) or
52 1/4" longframe jacks in one
rack space (1" high)

• Allows user to add cable and

termination panel

• Removable jack panel from the

front allows easy soldering of
wire connections

• Jacks have gold switching

contacts

• Fanned solder terminals for easier

soldering

• Offset ground lugs allow easy

bussing of ground with one wire

• Jacks have a nickel-plated frame

and assembly screws

• Wire management straps are

reusable and adjustable

Specifications

Materials

Jacks

Frame: Stamped nickel-plated

steel

Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs:

Nickel silver with welded
contacts

Assembly Screws: Nickel-plated

steel

Welded Contacts: Gold alloy

Panel

Front Panel: Thermoplastic
Frame: C.R.S. black epoxy paint
Designation Strips: Black

polycarbonate 94V-0

Designation Strip Covers: Clear

polycarbonate

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: 0˚C to +50˚C

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

MT48K/MT52K Patchkit Series

Ordering Information

Part Number

Type of Jack

No. of Jacks

Height

Description

MT48K1NS

48 1.75"

Normals

strapped

MT48K1FN

48 1.75"

Full

normals

MT48K1HN

1.75"

Half normals

MT48K1NN

1.75"

No normals

MT52K1NS

52 1.75"

Normals

strapped

MT52K1FN

1.75"

Full normals

MT52K1HN

1.75"

Half normals

MT52K1NN

1.75"

No normals

MT48K3FN

3.5"

Full normals

MT48K3HN

3.5"

Half normals

MT48K3NN

3.5"

No normals

MT52K3FN

3.5"

Full normals

MT52K3HN

3.5"

Half normals

MT52K3NN

3.5"

No normals

The MT48/52K Patchkit Series offers the end user a rugged cable tray to support
rear cabling. Heavy duty construction takes weight off the back of the jacks for
increased reliability. Available in 1.75" or 3.5" height versions.

MT52K1FN

Dielectric Withstanding Voltage:

500VAC at 60 Hz

Working Voltage: 140VDC

maximum

Current Rating: 100 milliamps

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Units feature either 48 or 52

MT Jax

• Steel frame jacks for superior

jack life

• Attractive, corrosion resistant

nickel-plated jacks

• Gold switching contacts for

long-term reliability in normal-
through connections

• Offset ground terminal for ease

in making common ground buss
connections

• Fanned solder terminals for

easier solder connections

• Cable tie bar takes the weight

of cables off the jacks

• Four jack configurations

available for the exact switching
arrangement: full normal, half
normal, non-normal, and
normals strapped

Specifications

Materials

Jacks

Frame: Steel, nickel-plated
Bushing: Brass, nickel-plated
Springs: Nickel silver, solder lugs
Ground Terminal: Nickel silver,

solder lugs

Switching Contacts: Welded,

gold alloy

Insulation: Phenolic spacers, rigid

PVC tubing through stack

Screws: Steel, nickel-plated

Panel

Jack Panel: Thermoplastic
Cable Support Bracket: 5/16"

diameter black epoxy painted
steel rod

Screws (designation strip): Steel,

black zinc-plated

Screws (mounting jack): Steel,

nickel plated

Kwik-change

Designation Strip:

Extruded aluminum, black anodized

Marking Strip:

White plastic, matte finish

Marking Strip Cover:

Clear, extruded plastic

MT48/MT52 Patchbay Series

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: 0˚C to +50˚C

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

Dielectric Withstanding Voltage:

500VAC at 60 Hz

Working Voltage: 140VDC

maximum

Current Rating: 100 milliamps

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

MT48FN

Full normals

MT48HN

Half normals

MT48NN

No normals

MT48NS

Normals strapped

MT52FN

Full normals

MT52HN

Half normals

MT52NN

No normals

MT52NS

Normals strapped

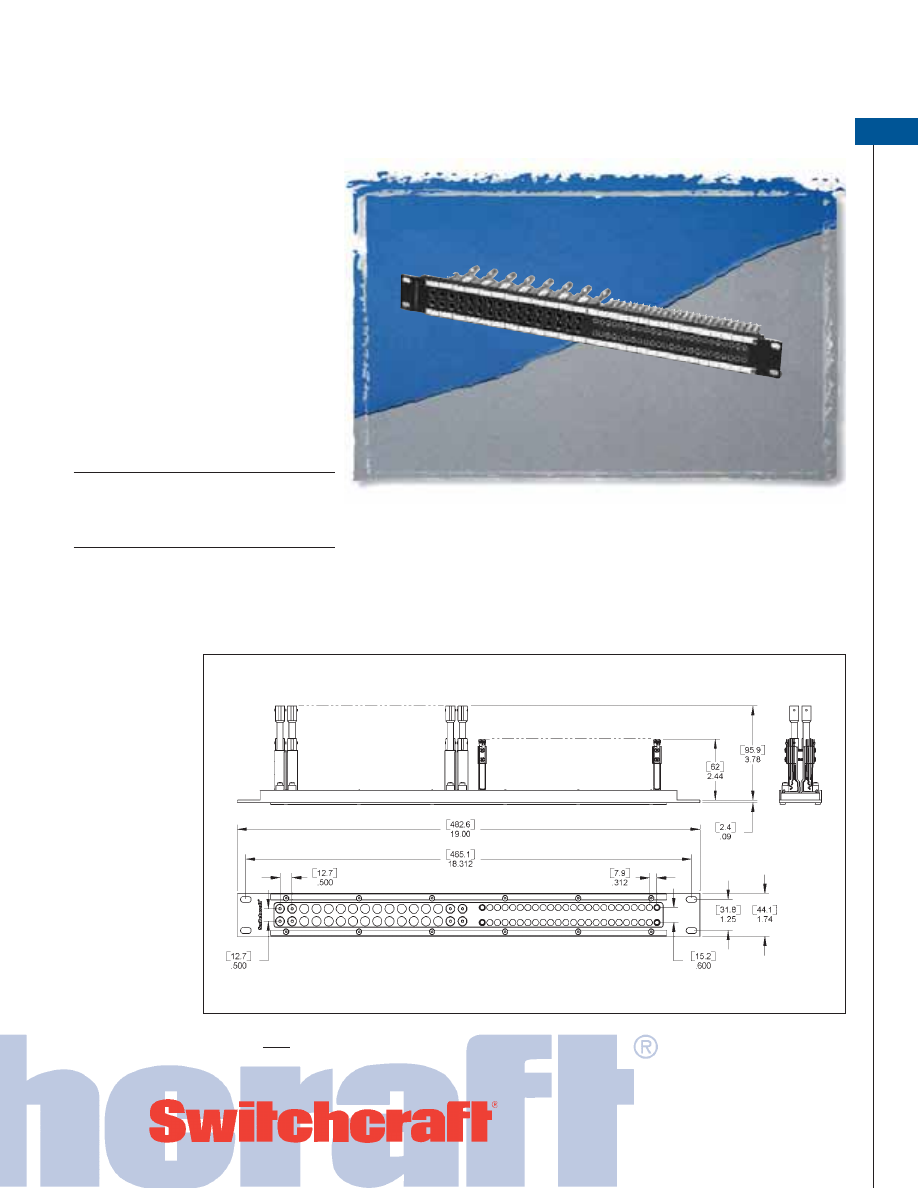

The MT48/52 Series patchbays offer a rugged cable tie bar to support rear
cabling. Also available is the normals strapped configuration which has the shunts
or normals tied together, top to bottom jacks.

MT48FN

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Unit features 96 TT jacks
• Attractive, corrosion resistant

nickel-plated jacks

• Steel frame jack for superior

jack life

• Extra wide labeling strips provide

maximum space

• Rugged cable tie bar takes the

weight of cables off the jacks

• Rugged, attractive black anodized

aluminum face will not break

• Three jack configurations available

for the exact switching arrangement
you need: full normal, half normal,
and open circuit panel

• Fanned solder terminals for easier

solder connections

• Offset ground terminal for ease in

making common ground buss
connections

• Gold switching contacts for

long-term reliability in normal-
through connections

Specifications

Materials

Jacks

Frame: Steel, nickel-plated
Bushing: Nickel-plated copper alloy
Springs: Copper alloy solder lugs
Ground Terminal: Steel, tin

electrodeposited

Switching Contacts: Welded, gold

alloy inlay over palladium base

Insulation: Rigid plastic spacers,

rigid PVC tubing through stack

Screws: Steel, plated

Panel

Frame: Black anodized aluminum
Inserts: Polyester, glass filled,

94V-0

Cable Support Bar: Cold rolled

steel, nickel-plated

Designation Strips: Thermoplastic,

94V-0

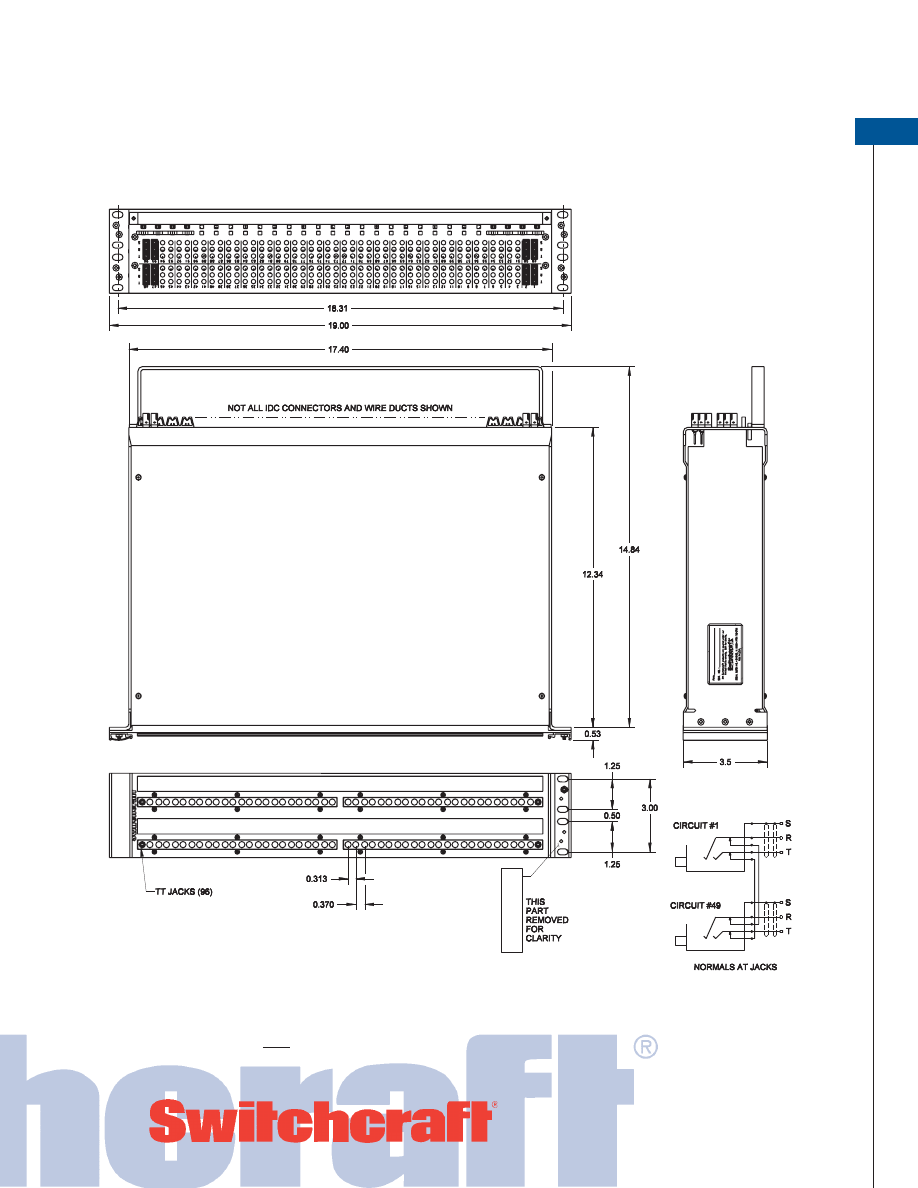

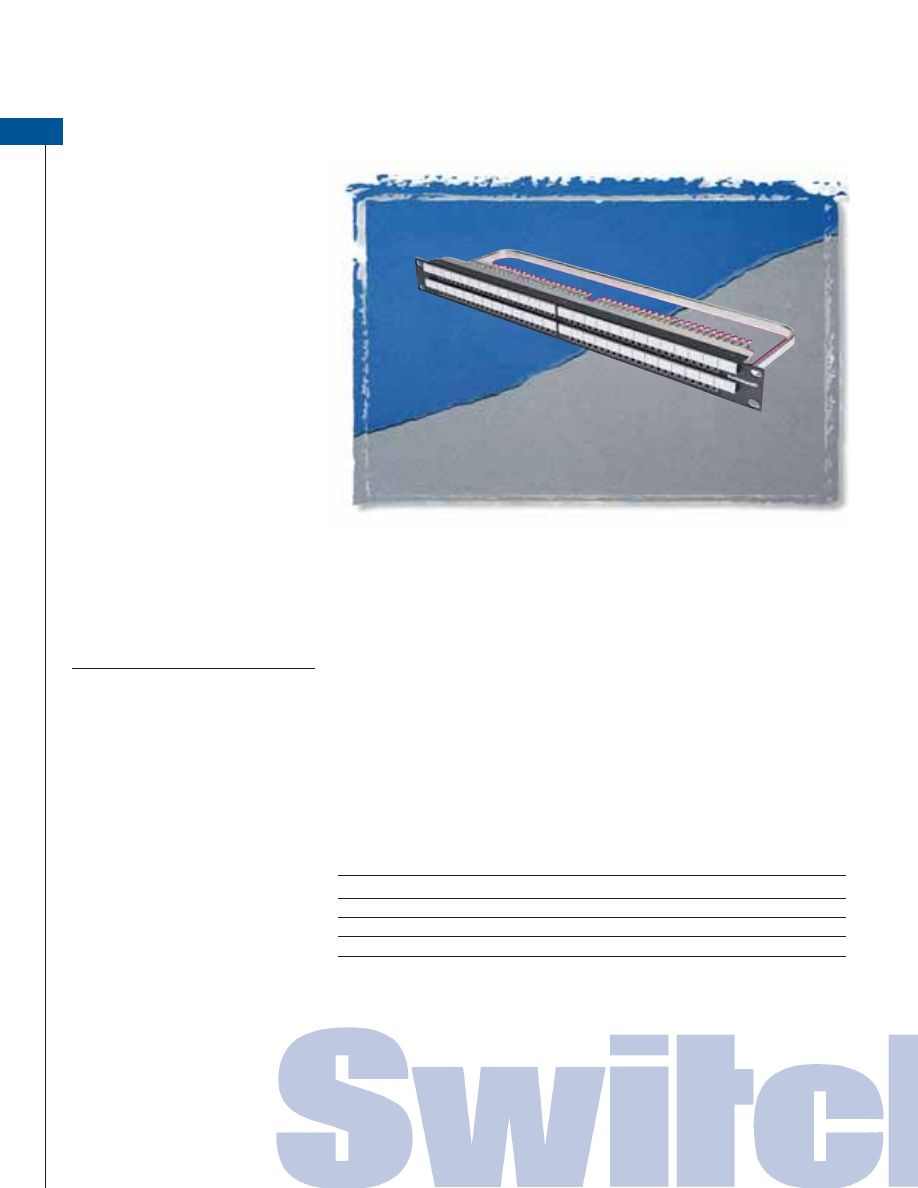

TTP96AS Patchbay Series

Designation Strip Covers: Clear

thermoplastic, SE-1

Marking Strip: Rigid vinylite
Jack Mounting Screws: Steel, plated
Screws: Steel, black plated

Mechanical

Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: 0˚C to +50˚C

Ordering Information

Part Number

Type of Jack

No. of Jacks

Description

TTP96ASFN

Full normals

TTP96ASHN

Half normals

TTP96ASNN

No normals

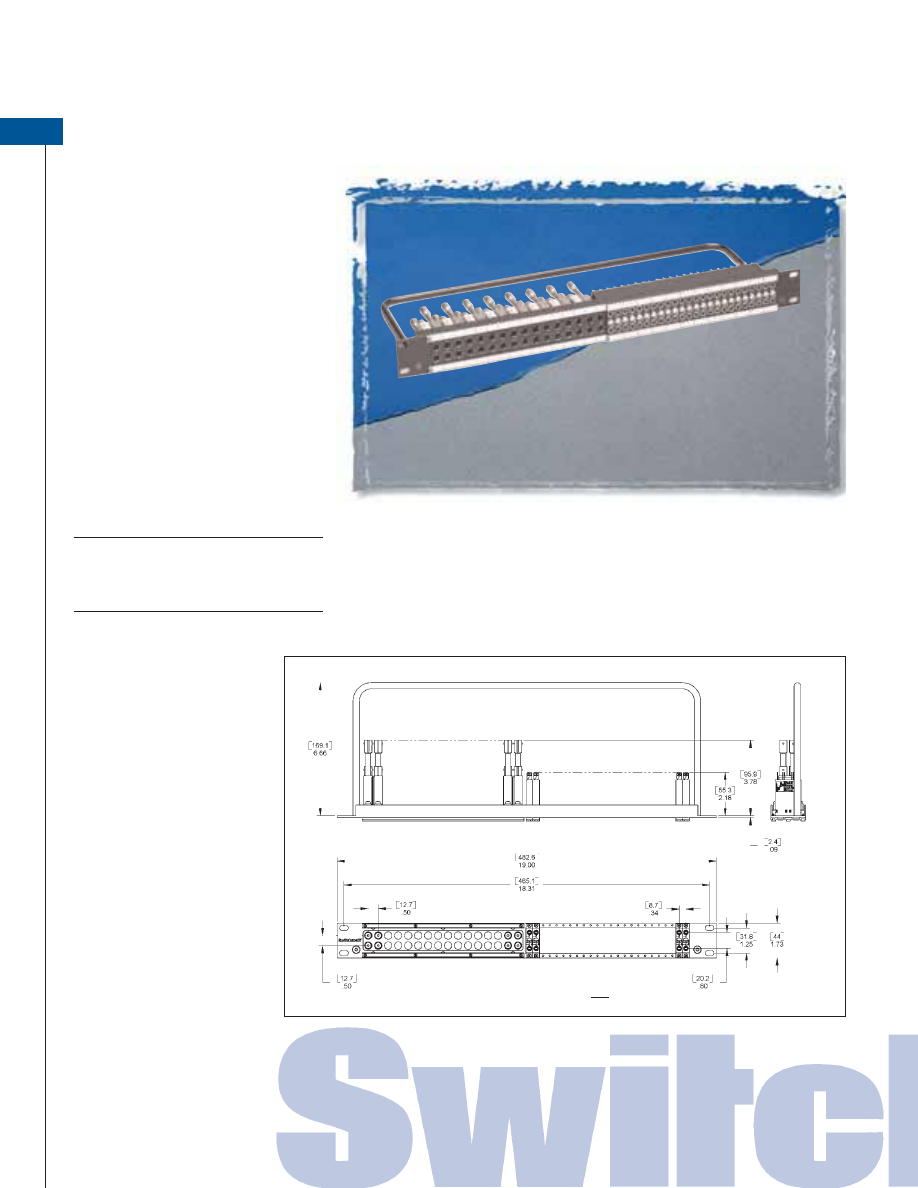

The TTP96AS Series of patchbays offer a rugged cable tie bar to support
rear cabling.

TTP96ASFN

Electrical

Contact Resistance: 30 milliohms

maximum initial

Insulation Resistance: 10,000

megohms maximum

Dielectric Withstanding Voltage:

500VAC at 60 Hz

Working Voltage:

140VDC maximum

Current Rating: 100 milliamps

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

Features and Benefits

• Available in 1RU or 2RU versions
• Available with or without connectors

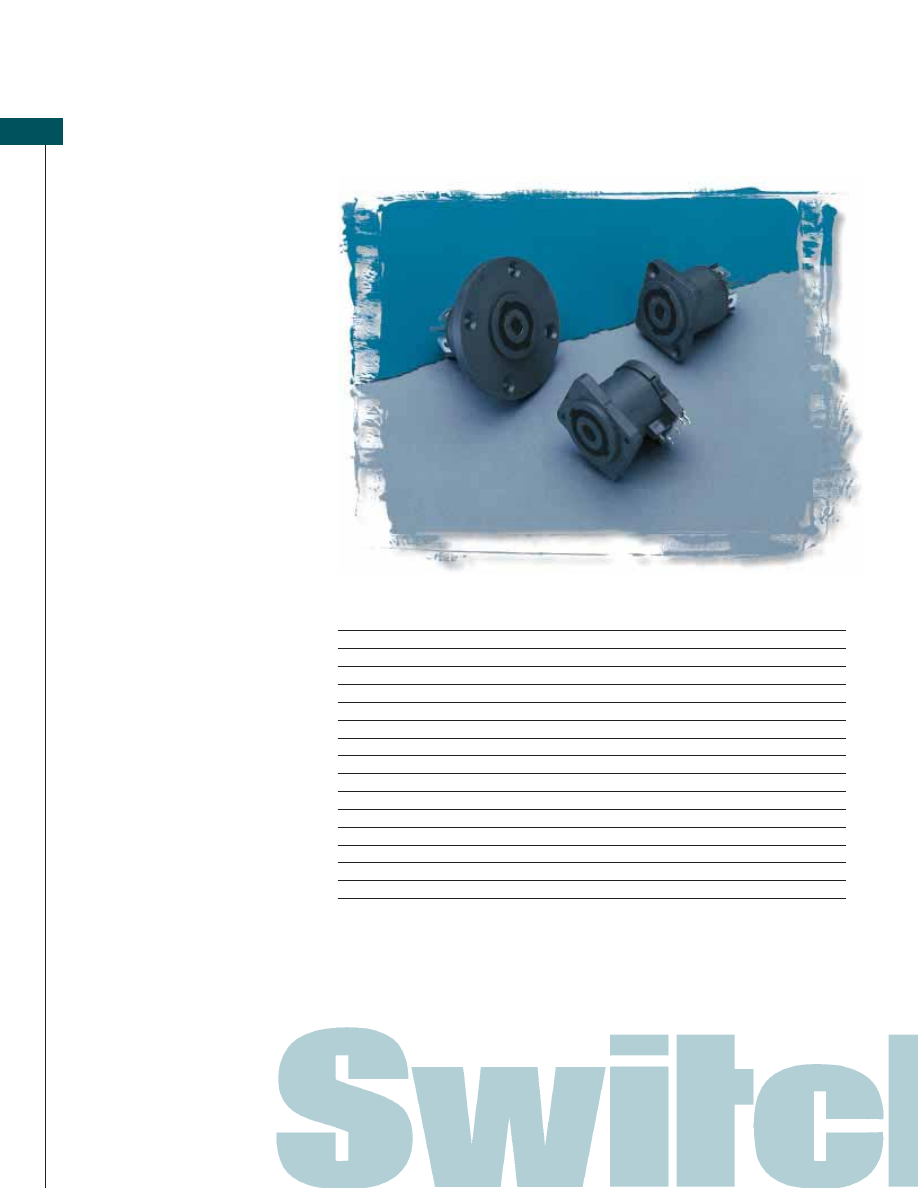

• HPC Series connectors are

compatible with Neutrik Speakon

connectors

• Cable tie bar takes weight of the

cables off the terminations

• Rugged aluminum channel
• Silk-screen designation area makes

it easy to re-label channels

Panel Materials

Housing: Thermoplastic UL

94V-0 rated

Contacts: Silver-plated over

copper alloy

Frame: Aluminum, black anodized
Cable Tie Bar: Steel, black epoxy

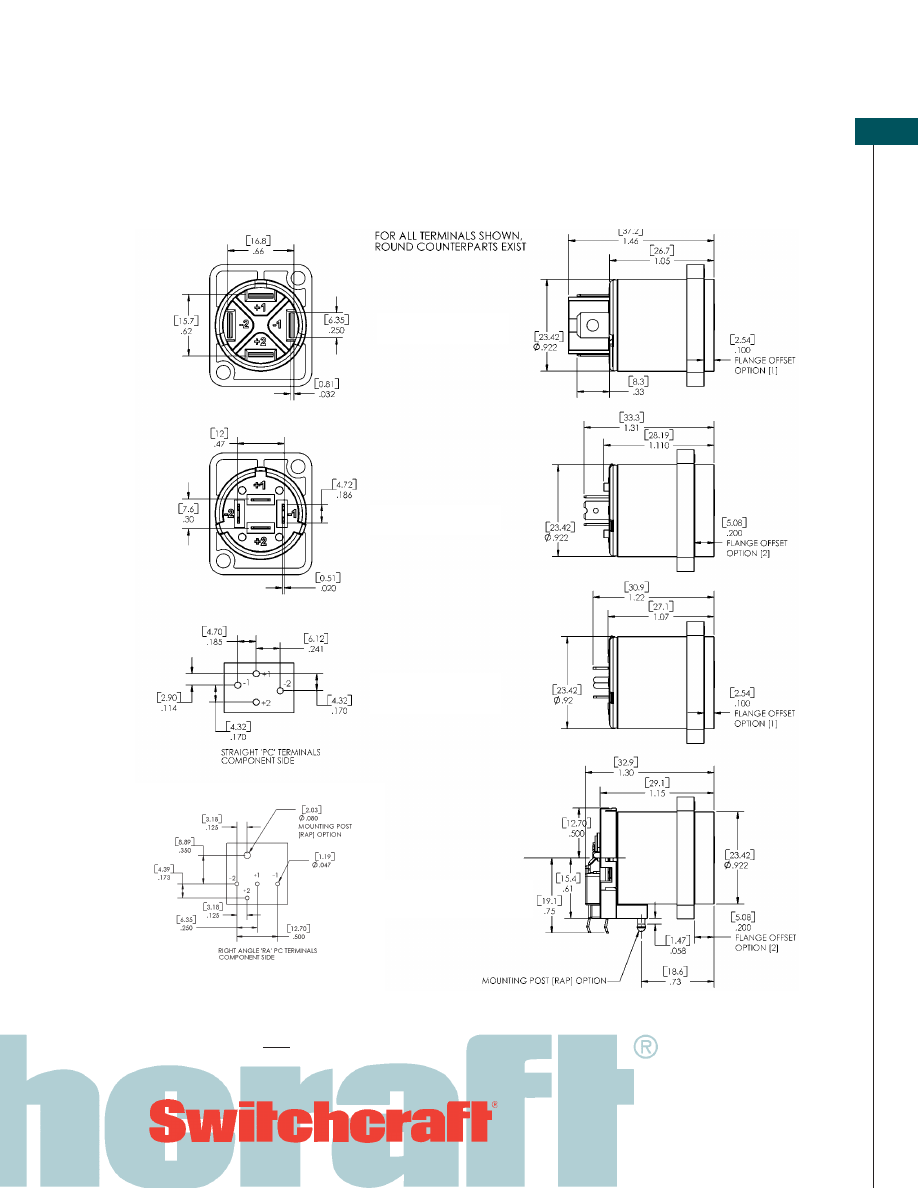

HP Connector Specifications

Mechanical

Shock: Per Mil-Std 202,

Method 213B, Cond. K

Vibration: Mil-Std 202,

Method 201A

Life: 1,000 rotational cycles
Cable Range (cord mount): 10AWG,

0.560" cable OD maximum

Electrical

Voltage Rating: 1,500 AC RMS,

per Mil-Std 202, Method 301

Current Rating (Faston® terminals):

50A RMS w/10AWG wire,
normal ambient, per UL 1977

Current Rating (PC terminals):

30A per UL 1977

Contact Resistance: 1m

, 1.5m

after 1,000 insertion/withdrawals

Insulation Resistance: .2T

Environmental

Salt Spray: Mil-Std 202, Method

101D, Cond.B

Thermal Shock: Mil-Std 202,

Method 107G

Temperature Limits: -55˚C to +85˚C
Moisture Resistance: Mil-Std 202,

Method 106E

Life @ Ambient Temperature:

Mil-Std 202, Method 108A

Touchproof: IEC 65 and 1010-1
IP Rating: IEC 529, IP 25

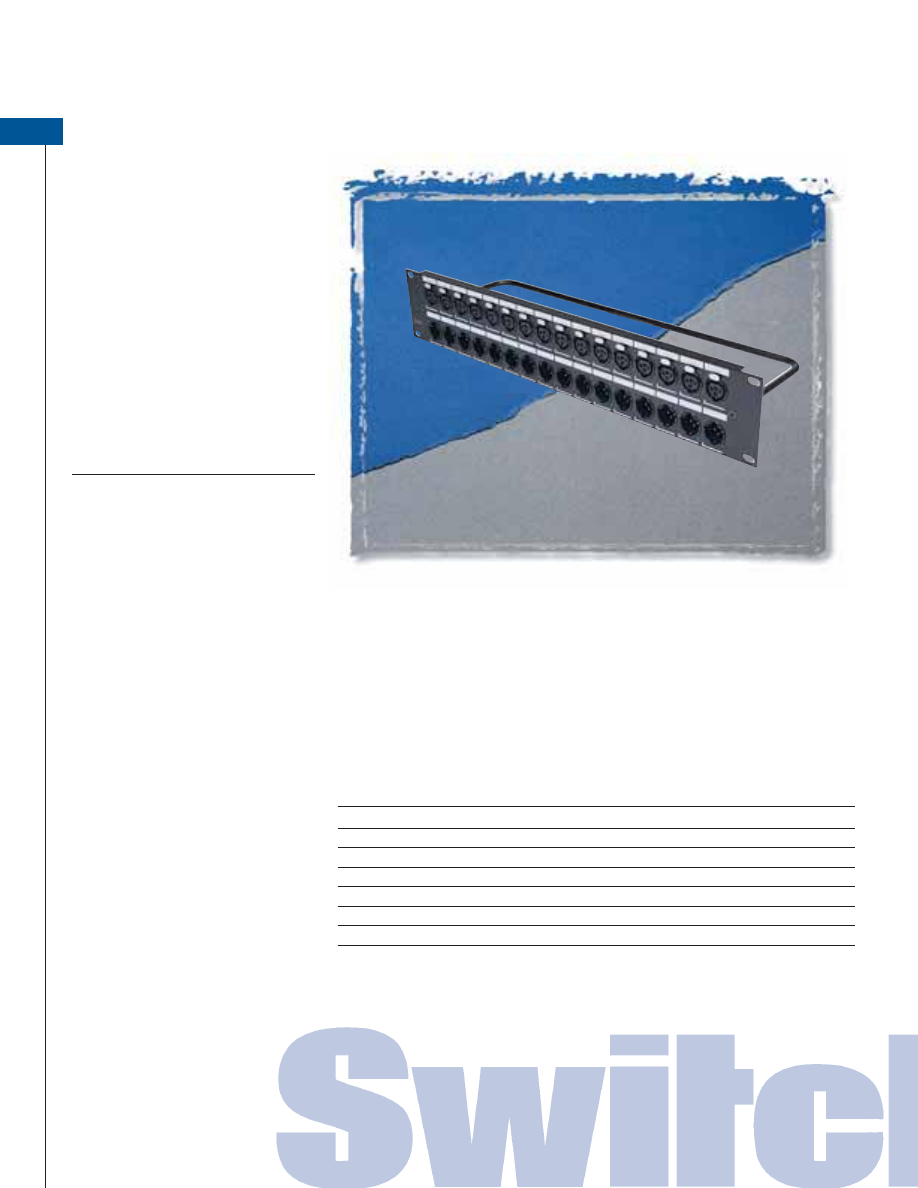

HPC Patchbay Series

HPCPK324F

Ordering Information

Part Number

Height

Description

HPCPK112F

1.75"

12 connectors, 0.250" Fastons

HPCPK112F1

1.75"

12 connectors, 0.187" Fastons

HPCPK1B

1.75"

Blank panel

HPCPK324F

3.50"

24 connectors, 0.250" Fastons

HPCPK324F1

3.50"

24 connectors, 0.187" Fastons

HPCPK3B

3.50"

Blank panel

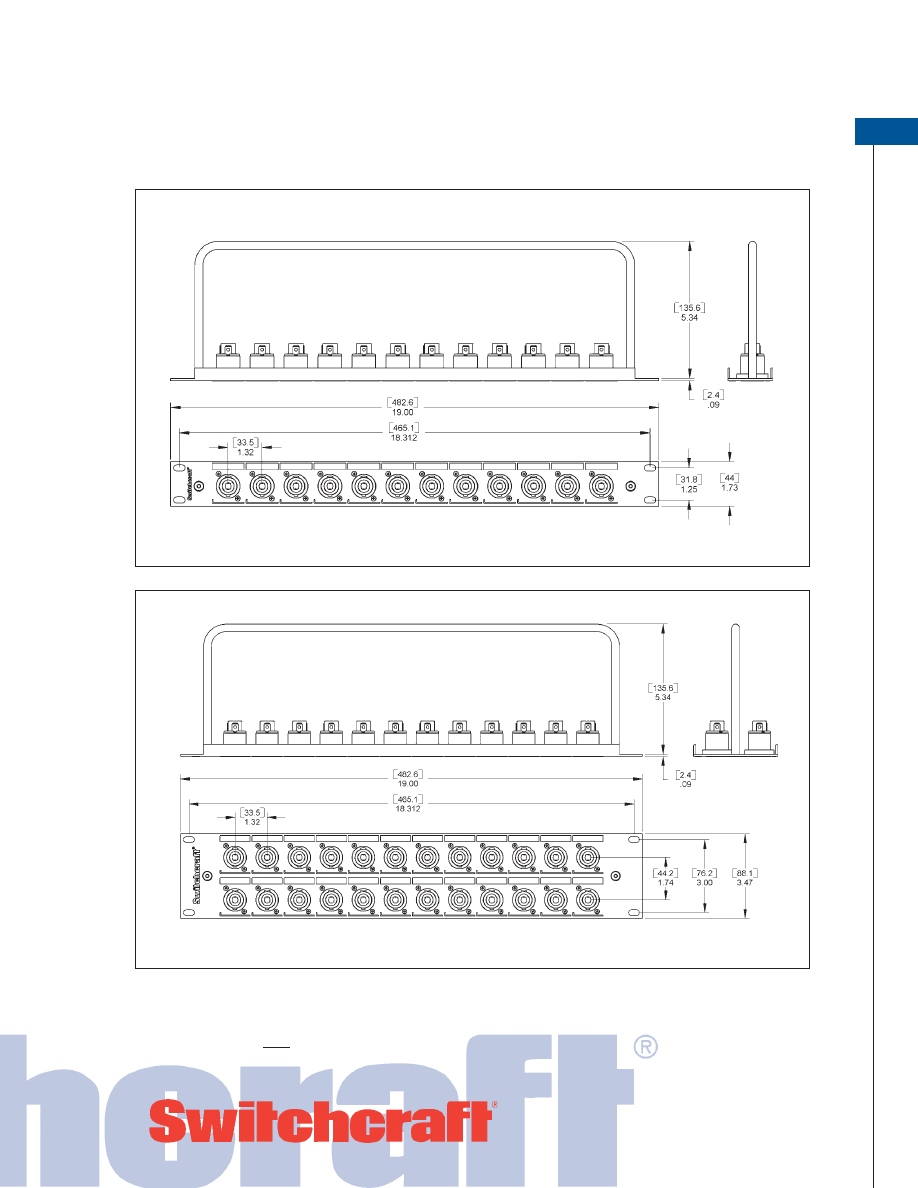

The HPC Patchbay features a 19" rack unit loaded with HPC Series connectors.
Available with either 0.250" Faston

terminals or 0.187" Faston

terminals. One

rack unit height versions come with 12 HPC connectors, two rack unit height
versions come with 24 HPC connectors. All versions have a rugged cable tie bar,
which takes the weight of the cabling away from the connections.

Materials

Housings: Thermoplastic

UL 94V-0 rated

Seal Rings: Thermoplastic rubber
Contacts: Silver-plated over

copper alloy

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

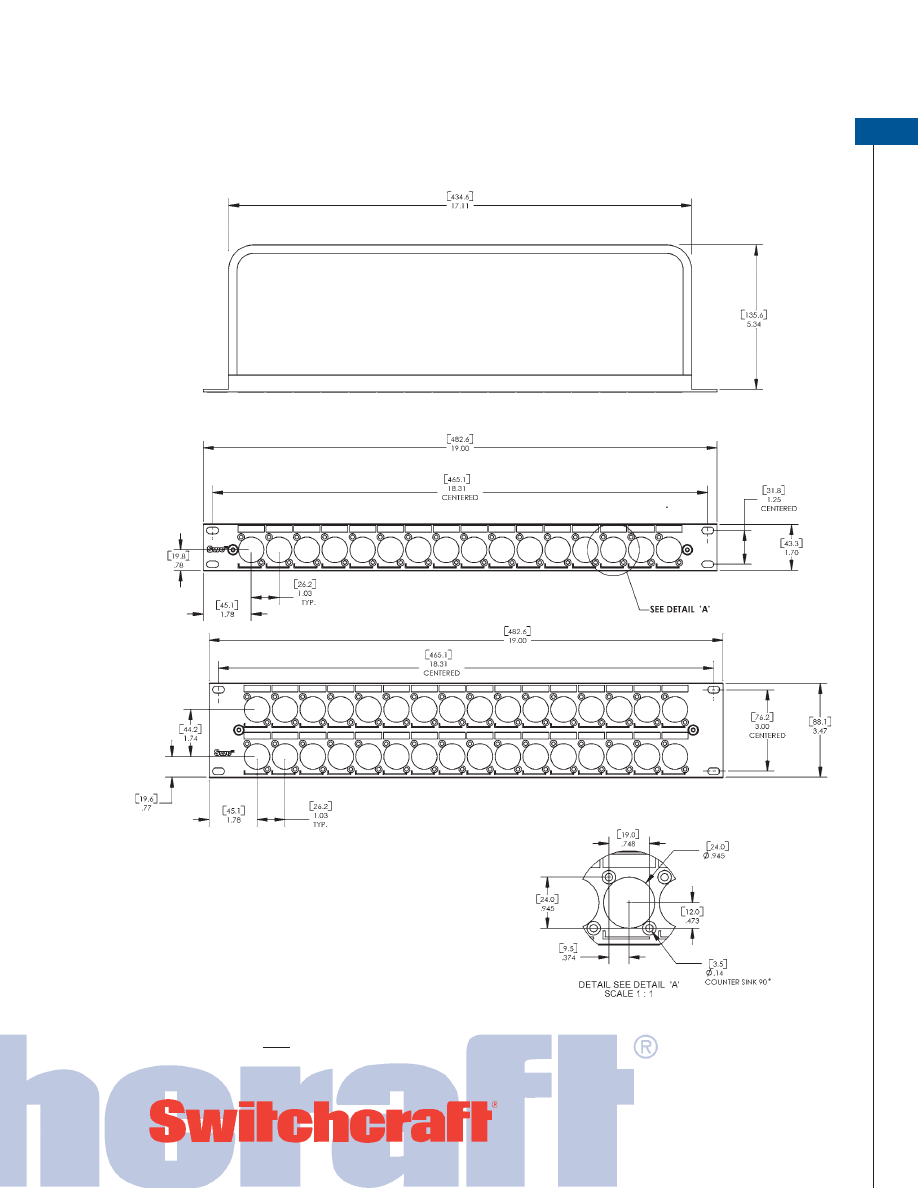

Q-G

Patchbay Series

Features and Benefits

• Available in 1RU or 2RU versions
• Available with or without the

connectors

• E Series connectors are silver-plated,

3 pins/contacts with black finish

• Cable tie bar takes the weight

of the cables off the solder
terminations

• Rugged aluminum channel

increases durability

• Silk-screen designation area

makes it easy to re-label channels

Specifications

Materials

Connectors

Housing: Die-cast, black velvet finish
Inserts: Glass-filled thermoplastic
Pin/Contacts: Copper alloy,

silver-plated

Latch Release: Steel, nickel-plated
Insert Locking Cam: Die-cast zinc

Frame

Aluminum, black anodized

Cable Tie Bar

Steel, black epoxy

Ordering Information

Part Number

Height

Description

QGPK116FB

1.75"

16 female

QGPK116MB

1.75"

16 male

QGPK18M8FB

1.75"

8 male, 8 female

QGPK332MFB

3.5"

16 female( top), 16 male (bottom)

QGPK1B

1.75"

Blank panel

QGPK3B

3.5"

Blank panel

QGPK332MFB

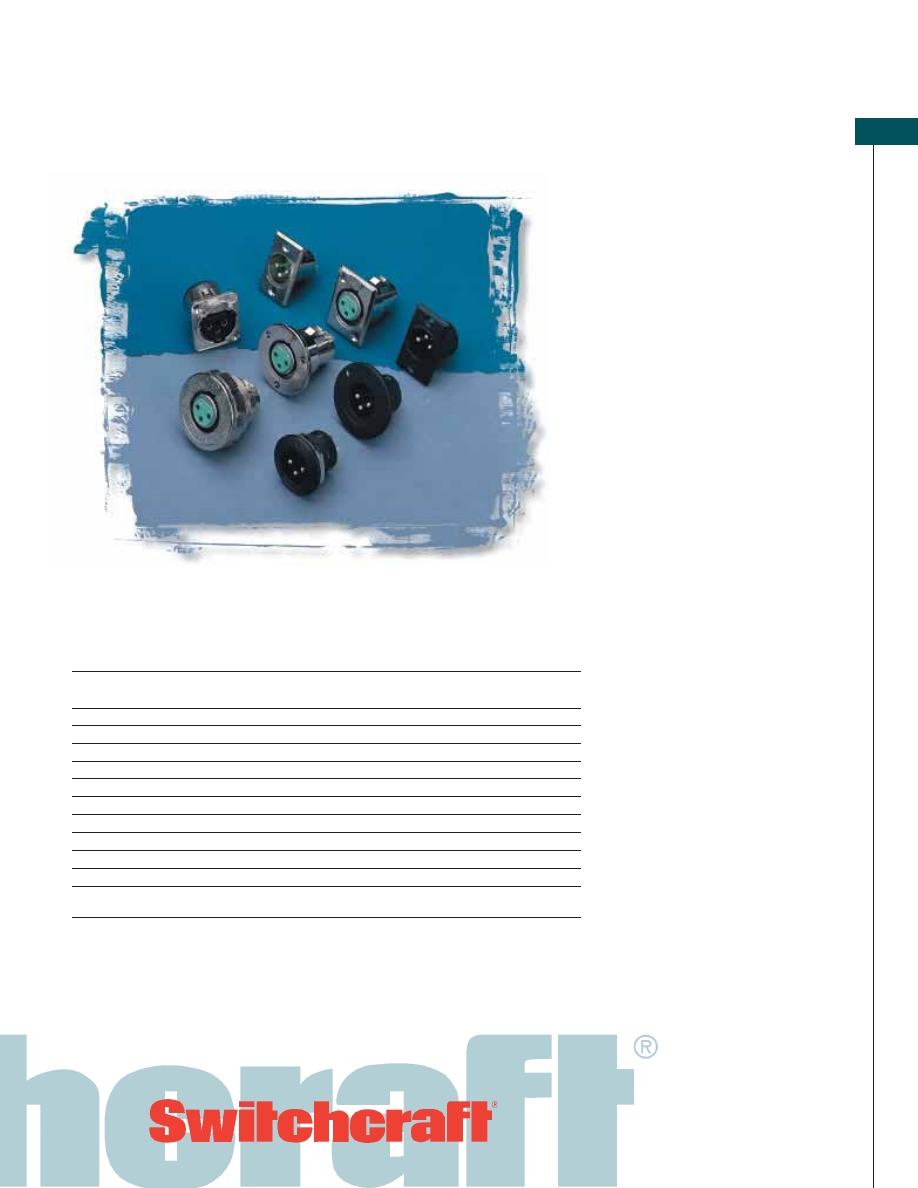

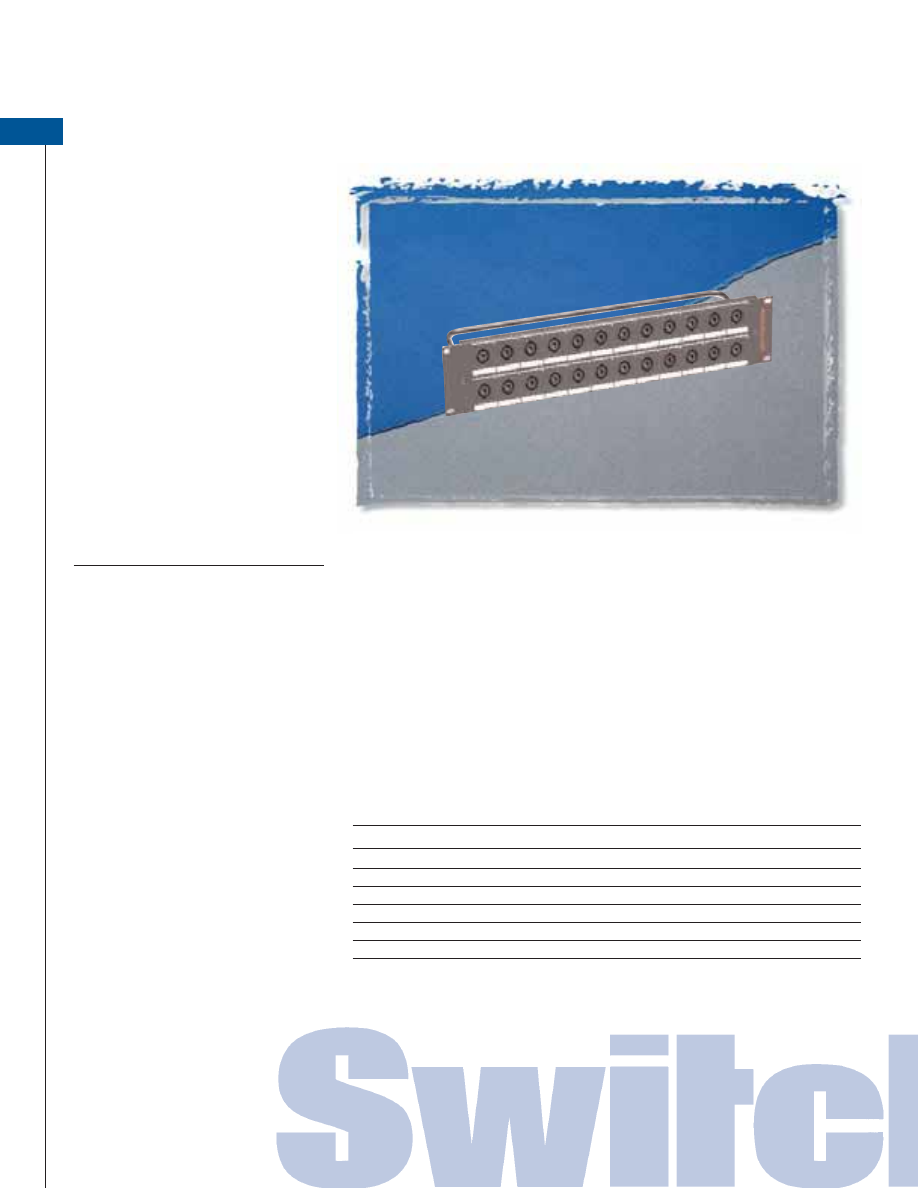

The QG

Patchbay features a 19" rack unit loaded with E Series QG

connectors.

These XLR’s have the same panel cut-out, male or female, silver-plated pins or
contacts, and a black finish. All connectors have solder cup terminals for easy
soldering and the inserts are removable from the back, allowing for easy changes.
The one rack unit height version comes with 16 male, or 16 female, or 8 male
and 8 female connectors. The two rack unit version comes with 16 male and 16
female connectors. We also offer the unit without connectors, but with the panel
cut-outs already punched out.

All versions have a rugged cable tie bar, which takes the weight of the

cabling away from the solder connections.

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

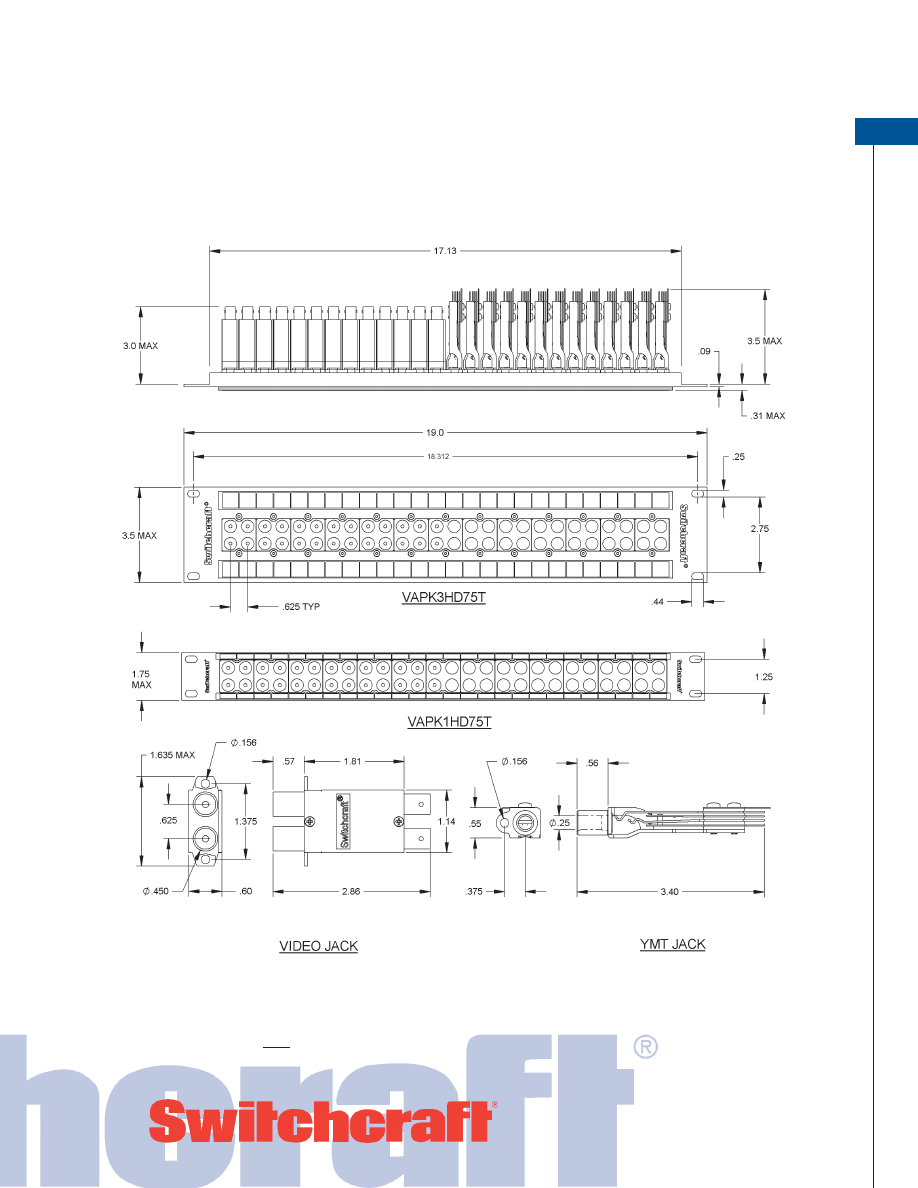

VPP Video Patchbay Series

Features and Benefits

• HD Series rated from DC to

3.0 GHz

• SD Series has a bandwidth from

DC to 1.75GHz

• Black thermoplastic modules

insulate jacks from chassis

• Jacks feature rugged heavy duty

housings

Video Jack Specifications

Electrical

Rated Bandwidth: 3.0 GHz (HD),

1.75 GHz (SD)

Characteristic Impedance:

75 ohms

Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Contact Resistance: Less than 20

milliohms

Termination Resistance:

75 W, ±1%

Center Conductor: Accepts .090

pin diameter

Mechanical

Mechanical Shock: Per MIL-STD-

202, Method 213, Test condition I

Vibration: Per MIL-STD-202,

Method 201

Life Cycle: 30,000

Materials

Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy,

gold plated

Switching Springs: Copper alloy,

gold plated

Grounding Contacts:

HD Series - Copper alloy, gold

plated

SD Series - Copper alloy, nickel

plated

Insulators: Thermoplastic,

UL 94V-0 rated

Environmental

Operating Temperature:

– 40°C to 65°C

Storage Temperature:

– 55°C to 85°C

Thermal Shock:

Per MIL-STD-202, Method 107

Moisture and Humidity:

Per MIL-STD-202, Method 106

Ordering Information

Part Number

Type of Jack

No. of Jacks

Height

Description

VPP24K1HD*75T

1.75"

Terminated

VPP24K1HD*NT

1.75"

Non-term

VPP24K1SD*75T

1.75"

Terminated

VPP24K1SD*NT

1.75"

Non-term

VPP26K1HD*75T

1.75"

Terminated

VPP26K1HD*NT

1.75"

Non-term

VPP26K1SD*75T

1.75"

Terminated

VPP26K1SD*NT

1.75"

Non-term

VPP24K3HD*75T

3.5"

Terminated

VPP24K3HD*NT

3.5"

Non-term

VPP24K3SD*75T

3.5"

Terminated

VPP24K3SD*NT

3.5"

Non-term

VPP26K3HD*75T

3.5"

Terminated

VPP26K3HD*NT

3.5"

Non-term

VPP26K3SD*75T

3.5"

Terminated

VPP26K3SD*NT

3.5"

Non-term

* Add “N” for non-normalled version

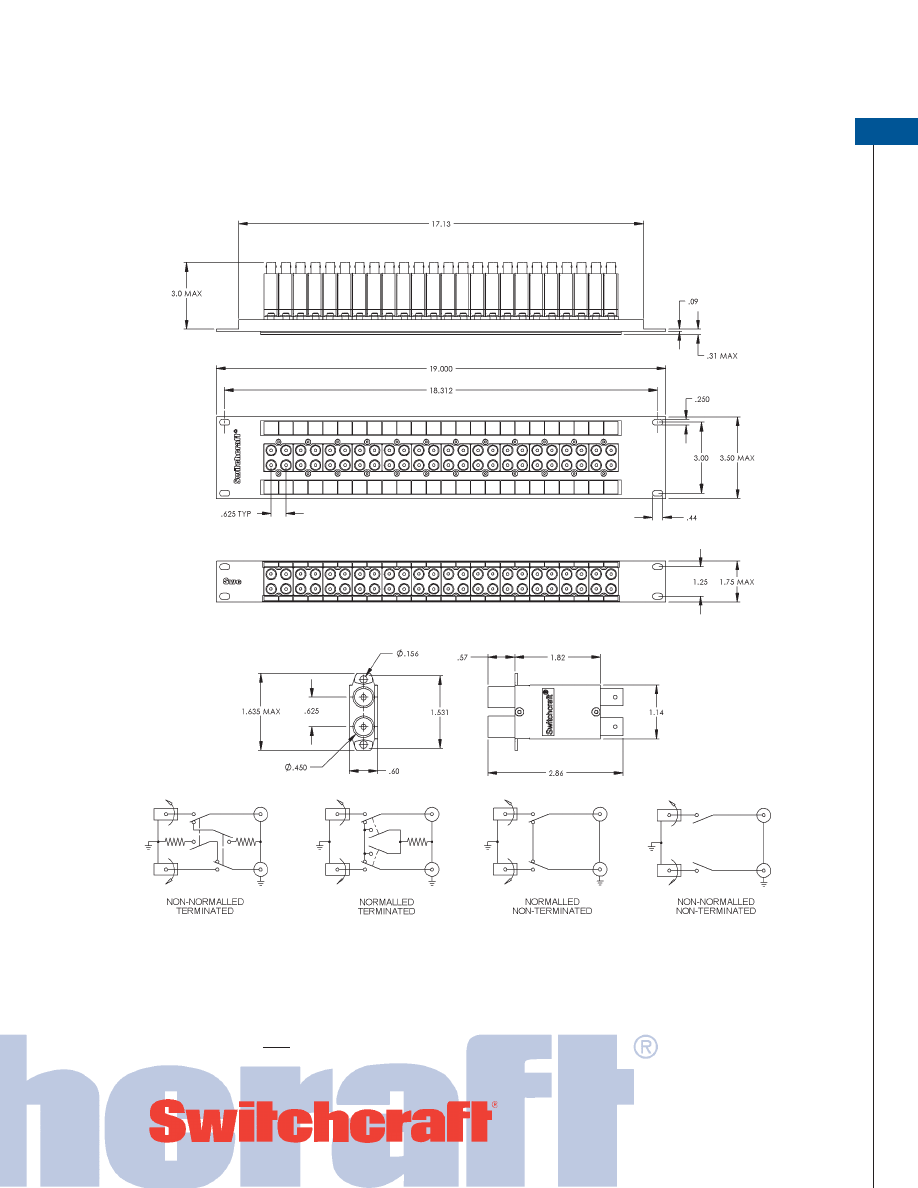

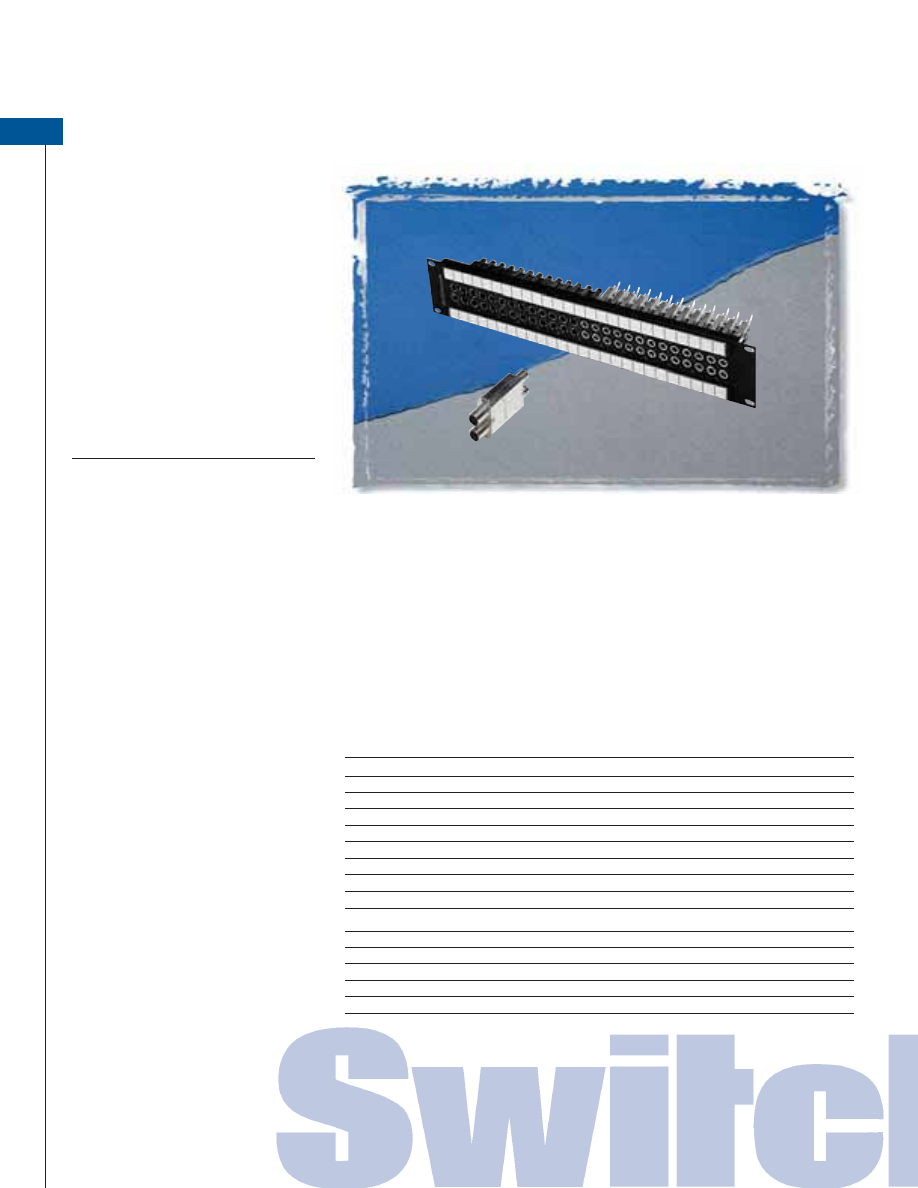

The VPP Series video patchbays offer a wide variety of options for video patching.
The HD Series meets SMPTE 292M specifications for high definition video signaling,
covering a bandwidth range from DC to 3.0GHz. The SD Series is perfect for serial
digital, with a bandwidth from DC to 1.75GHz. Both come in either terminated or
non-terminated, 24 or 26 jacks, 1.75" or 3.5" heights.

See Page 36 for Individual Jacks Ordering Information

VPP24K3HD75T

VJHD*75TX

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

VPP Video Patchbay Series

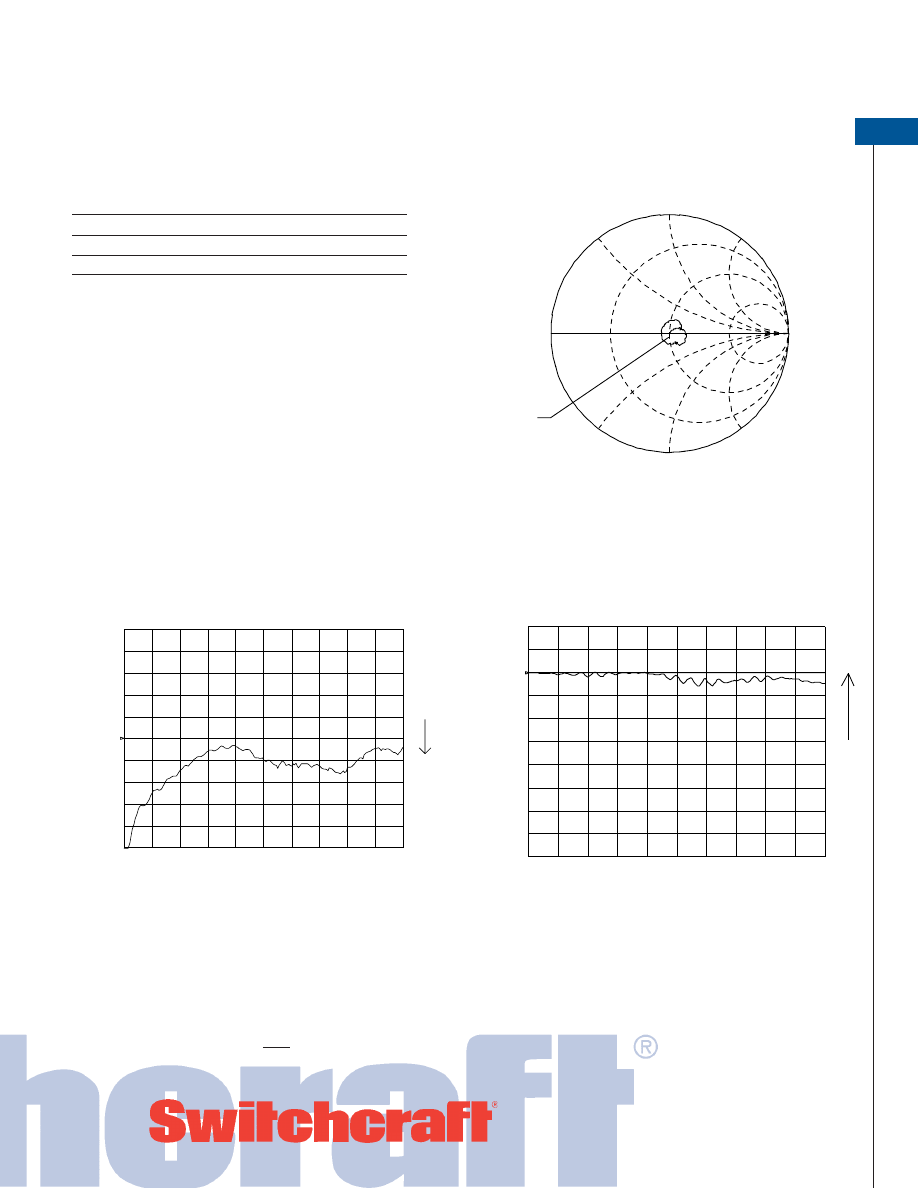

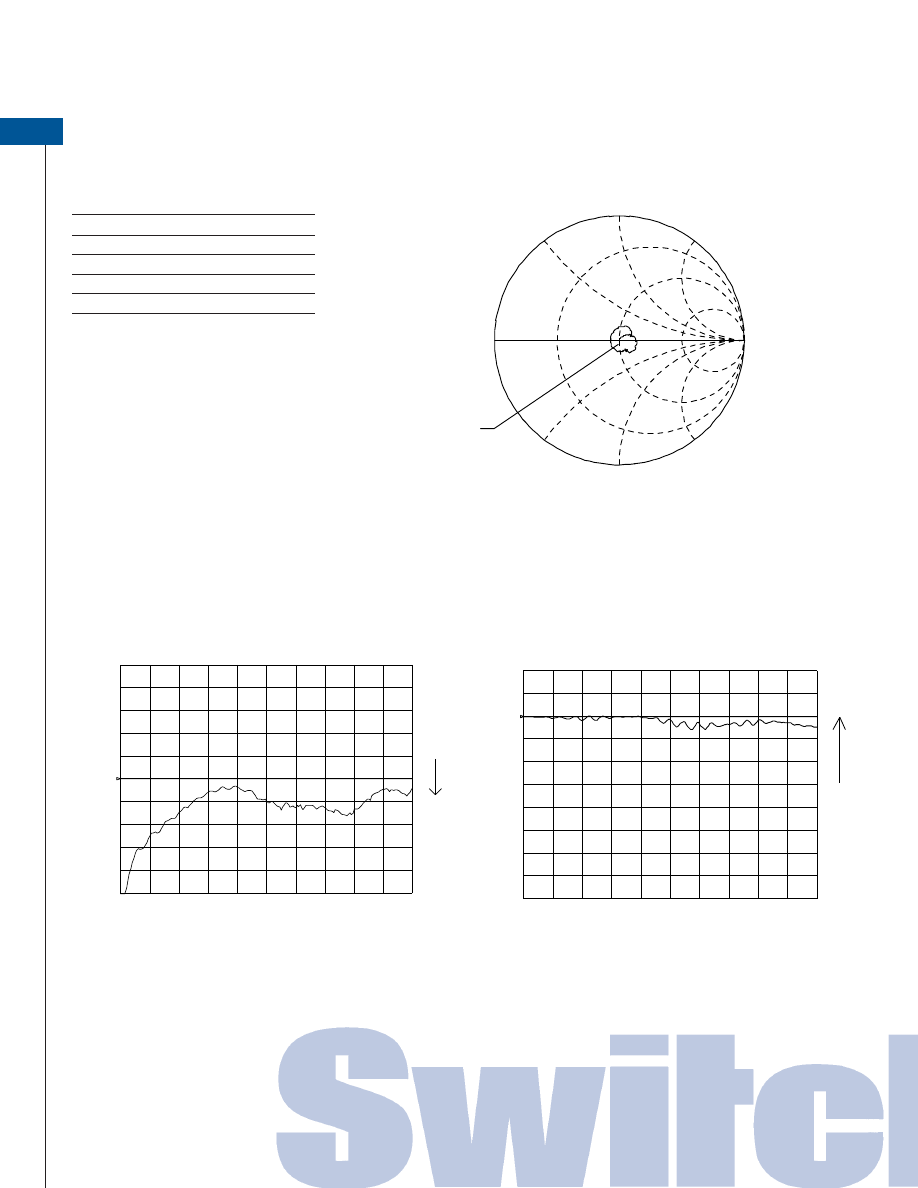

SMITH CHART (TYPICAL)

START 30 kHz

STOP 3.0 GHZ

75 Ohms

Ordering - Individual Jacks

Part Number Type

Description

VJHD*75TX

Terminated

VJHD*NTX

Non-terminated

VJSD*75TX

Terminated

VJSD*NTX

Non-terminated

* Add “N” for non-normalled version

INSERTION LOSS (TYPICAL)

-1

-2

-3

-4

-5

G
O
O
D

600

1200

1800

2400

3000

FREQUENCY (MHz)

I
N
S
E
R
T
I
O
N

L
O
S
S

(dB)

RETURN LOSS (TYPICAL)

G
O
O
D

-5

-10

-15

-20

-25

-30

-35

R
E
T
U
R
N

L
O
S
S

(dB)

600

1200

1800

2400

3000

FREQUENCY (MHz)

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Features and Benefits

• Midsize video jacks rated from

DC to 3 GHz

• 32 midsize jacks mounted either

1RU, 1.5RU or 2RU panel

• Available in terminated or

non-terminated configurations

Specifications

Materials

Frame: Aluminum, black anodized
Designation Strips: Vinylite, white
Designation Strip Covers: Lexan,

transparent

Jack Inserts: Thermoplastic,

UL 94V-0 rated

Midsize Video Jack

Specifications

Electrical

Rated Bandwidth: 3.0 GHz
Characteristic Impedance:

75 ohms

Return Loss: See Typical Return

Loss Chart

Insertion Loss: See Typical

Insertion Loss Chart

Contact Resistance:

Less than 20 milliohms

Termination Resistance:

75 W, ±1%

Center Conductor: Accepts .048

pin diameter

Mechanical

Mechanical Shock: Per MIL-STD-

202, Method 213, Test condition I

Vibration: Per MIL-STD-202,

Method 201

Life Cycle: 30,000

Materials

Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy,

gold plated

Ordering Information

Part Number

Type of Jack

Height

Description

MVP32K1*75T

Midsize

1.75"

Terminated

MVP32K1*NT

Midsize

1.75"

Non-terminated

MVP32K2*75T

Midsize

2.62"

Terminated

MVP32K2*NT

Midsize

2.62"

Non-terminated

MVP32K3*75T

Midsize

3.5"

Terminated

MVP32K3*NT

Midsize

3.5"

Non-terminated

* Add “N” for non-normalled version

MVP Midsize Video Patchbay Series

MVJ*75T

MVP32K3*75T

Switching Springs: Copper alloy,

gold plated

Grounding Contacts: Copper

alloy, gold plated

BNC Insulators: Teflon
Actuators: Thermoplastic,

UL94V-0 rated

Environmental

Operating Temperature:

– 40°C to 65°C

Storage Temperature:

– 55°C to 85°C

Thermal Shock:

Per MIL-STD-202, Method 107

Moisture and Humidity:

Per MIL-STD-202, Method 106

See Page 39 for Individual Midsize Jacks Ordering Information

The MVP Series video patchbays offer outstanding performance and high density.
Patchbays consist of 32 jacks in either 1RU or 2RU heights, jacks come either
terminated or non-terminated. These jacks are rated from DC to 3 GHz, and are
rated at 30,000 lifecycles. The 1.5RU and 2RU come with cable tie bars.

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

MVP Midsize Video Patchbay Series

INSERTION LOSS (TYPICAL)

-1

-2

-3

-4

-5

G
O
O
D

600

1200

1800

2400

3000

FREQUENCY (MHz)

I
N
S
E
R
T
I
O
N

L
O
S
S

(dB)

RETURN LOSS (TYPICAL)

G
O
O
D

-5

-10

-15

-20

-25

-30

-35

R
E
T
U
R
N

L
O
S
S

(dB)

600

1200

1800

2400

3000

FREQUENCY (MHz)

SMITH CHART (TYPICAL)

START 30 kHz

STOP 3.0 GHZ

75 Ohms

Ordering - Individual Midsize Jacks

Part Number

Type

Description

MVJ*75T

Terminated

MVJ*NT

Non-terminated

* Add “N” for non-normalled version

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

VAP Video/Audio Patchbay Series

Features and Benefits

• Combines 13 video jacks and

26 long-frame audio jacks into
one patchbay

• Available with either HD Series

or SD Series video jacks

• All audio jacks are nickel-plated

with steel frames and gold-plated
switching contacts

• Audio modules consist of 4

YMT334BN jacks, video modules
consist of 2 dual video jacks

Video Jack Specifications

Electrical

Rated Bandwidth: 2.4 GHz (HD),

1.75 GHz (SD)

Characteristic Impedance: 75 ohms
Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Contact Resistance: Less than 20

milliohms

Termination Resistance: 75 W, ±1%
Center Conductor: Accepts .090

pin diameter

Mechanical

Mechanical Shock: Per MIL-STD-

202, Method 213, Test condition I

Vibration: Per MIL-STD-202,

Method 201

Life Cycle: 30,000

Materials

Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy,

gold plated

Switching Springs: Copper alloy,

gold plated

Grounding Contacts:

HD Series - Copper alloy,

gold plated

SD Series - Copper alloy,

nickel plated

Insulators: Thermoplastic,

UL 94V-0 rated

Environmental

Operating Temperature: – 40°C to

65°C

Storage Temperature: – 55°C to

85°C

Thermal Shock: Per MIL-STD-202,

Method 107

Moisture and Humidity: Per

MIL-STD-202, Method 106

Ordering Information

Part Number

Type of Jack

Height

Description

VAPK1HD*75T

1.75"

Terminated

VAPK1HD*NT

1.75"

Non-terminated

VAPK1SD*75T

1.75"

Terminated

VAPK1SD*NT

1.75"

Non-terminated

VAPK3HD*75T

3.5"

Terminated

VAPK3HD*NT

3.5"

Non-terminated

VAPK3SD*75T

3.5"

Terminated

VAPK3SD*NT

3.5"

Non-terminated

Modules

VMAFN

MT Style

4- YMT334BN jacks

VMVHD*75T

2- HD terminated jacks

VMVHD*NT

2- HD non-terminated jacks

VMVSD*75T

2- SD terminated jacks

VMVSD*NT

2-SD non-terminated jacks

* Add “N” for non-normalled version

The VAP Series combines audio and video in one convenient patchbay. Standard
versions consist of 13 video jacks and 26 long-frame audio jacks into one unit.
Options include HD Series video jacks which are rated from DC to 2.4GHz or SD
Series rated from DC to 1.5GHz. Both come in either terminated or non-terminated
jacks. The MT Style audio jacks all have nickel-plated steel frames and gold-plated
switching contacts. Flared terminals make soldering easier. All audio jacks are
T,R,S, TN, and RN. Individual modules are useful for custom configurations.

VJHD*75TX

VAPK3HD*75T

See Page 36 For Video Jack
Ordering Information and
Page 69 For Audio Jack
Ordering Information

* Please visit the product pages on our website for the most up-to-date product information

PATCHBAYS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

Features and Benefits

• Combines 16 midsize video jacks

and 48 TT bantam audio jacks.

• Video jacks are rated from DC to

3.0 GHZ.

• All audio jacks are nickel-plated with

steel frames and gold-plated cross-
bar switching contacts.

• Rugged, attractive anodized aluminum

frame for increased reliability.

• Large designation strips for easy

patch point identification.

• Audio jacks rated at 30,000 cycles.

Video Jack Specifications

See page 39 for details

Audio Jack Specifications

See page 69 for details

Materials

Frame:

Aluminum, black anodized

MBPK175T

The MBPK Series combines our popular MVJ midsize video jacks with our
standard nickel-plated, steel frame audio jacks. This patchbay combines 16
midsize video jacks with 48 TT bantam audio jacks. Perfect for applications
where a full video and audio patchbay are unnecessary. The video jacks are rated
up to 3.0GHz, and the audio jacks meet 30,000 cycles. The audio jacks have T,
R, S, TN, and RN terminals, and feature gold-plated contacts and flared solder
terminals.

MBPK Video/Audio Patchbay Series

* Please visit the product pages on our website for the most up-to-date product information

Audio and Video Patchcords

PATCHCORDS/MOLDED CABLES

Features and Benefits - Audio

• 110 ohm impedance-matched

digital patchcords meet AES/EBU
interface standards for digital
patching

• Available with a variety of plug

terminations, plug finishes, cord
lengths and cable colors, the
patchcords offer design flexibility

• Premium quality cable insures high

reliability and greater flexibility

Specifications

Standard plug terminations are

single 3-conductor 1/4" and TT®

Nickel-plated plugs (standard),

brass and gold-plated (optional)

Cable jacket material is PVC.

Black is standard with other
colors available

Features and Benefits - Video

• Designed and built to highest

quality standards for efficient
video signal transmission

• Cable type is RG59 (75W)
• Rugged nickel-plated handles

with knurled area for positive
finger grip

• Available in standard size or

midsize styles

Specifications

Materials

Housing: Nickel-plated,

copper alloy

Contact Pin: Gold-plated,

copper alloy

Boot: Thermoplastic, in black

and colors

A wide variety of audio patchcords
and molded cable assemblies are
available. Some of the more popular
versions are the 18Q and 20Q Series
for professional 1/4" patching, the
TT* and TTD Series for TT or bantam
AES/EBU digital patching. The VP
and VMP Series offer exceptional
performance for video signal patching.

MD6

MD3

VP1BK

20Q

18Q

TT740

TT120

TT1BK

Ordering Information

Video Patchcords

Part Number

Type

Part Number

Type

VP3**

Standard

VP4**

Standard

VP5**

Standard

VP6**

Standard

VP7**

Standard

VP8**

Standard

VP9**

Standard

VP10**

Standard

VSPP

Standard

VMP1**

Midsize

VMP2**

Midsize

VMP3**

Midsize

VMP4**

Midsize

VMP5**

Midsize

VMP6**

Midsize

VMP7**

Midsize

VMP8**

Midsize

VMP9**

Midsize

VMP10**

Midsize

VMPP

Midsize

When ordering, add the following for cable color: BK-Black, BL-Blue, R-Red, O-Orange,
Y-Yellow, GN-Green, P-Purple, GY-Gray

* Please visit the product pages on our website for the most up-to-date product information

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Ordering Information

Part Number

Type

Plug Finger

Description

Audio Patchcords

18QD18

1/4" Mil-Type

Brass

2 foot, black nylon jacket

18QF18

1/4" Mil-Type

Brass

3 foot, black nylon jacket

18QH18

1/4" Mil-Type

Brass

4 foot, black nylon jacket

20QD20N*

1/4" Mil-Type

Nickel

2 foot, nylon jacket

20QF20N*

1/4" Mil-Type

Nickel

3 foot, nylon jacket

20QH20N*

1/4" Mil-Type

Nickel

4 foot, nylon jacket

When ordering, add the following for cable color: 0-Black, 2-Red,
5-Green, 6-Blue

TT122

TT or Bantam

Brass

1 foot, molded gray jacket

TT124

TT or Bantam

Brass

2 foot, molded gray jacket

TT126

TT or Bantam

Brass

3 foot, molded gray jacket

TT127

TT or Bantam

Brass

4 foot, molded gray jacket

TT128

TT or Bantam

Brass

5 foot, molded gray jacket

AES/EBU 110 Ohm Digital Single Plug Patchcords

TT1*

TT or Bantam

Nickel

1 foot, molded

TT2*

TT or Bantam

Nickel

2 foot, molded

TT3*

TT or Bantam

Nickel

3 foot, molded

TT4*

TT or Bantam

Nickel

4 foot, molded

TT5*

TT or Bantam

Nickel

5 foot, molded

TT6*

TT or Bantam

Nickel

6 foot, molded

TT7*

TT or Bantam

Nickel

7 foot, molded

TT8*

TT or Bantam

Nickel

8 foot, molded

TT9*

TT or Bantam

Nickel

9 foot, molded

TT10*

TT or Bantam

Nickel

10 foot, molded

AES/EBU 110 Ohm Digital, or RS422 Dual Plug Patchcords

TTD1*

TT or Bantam

Nickel

1 foot, molded

TTD2*

TT or Bantam

Nickel

2 foot, molded

TTD3*

TT or Bantam

Nickel

3 foot, molded

TTD4*

TT or Bantam

Nickel

4 foot, molded

TTD5*

TT or Bantam

Nickel

5 foot, molded

TTD6*

TT or Bantam

Nickel

6 foot, molded

TTD7*

TT or Bantam

Nickel

7 foot, molded

TTD8*

TT or Bantam

Nickel

8 foot, molded

TTD9*

TT or Bantam

Nickel

8 foot, molded

TTD10*

TT or Bantam

Nickel

10 foot, molded

When ordering, add the following for cable color: BK-Black, BL-Blue, R-Red,
O-Orange, Y-Yellow, GN-Green, P-Purple, GY-Gray

Audio and Video Patchcords

PATCHCORDS/MOLDED CABLES

Ordering Information

Part No.

Description

Molded MIDI Cables

MD3

3 foot, 5 pin DIN, molded black

MD6

6 foot, 5 pin DIN, molded black

MD10

10 foot, 5 pin DIN, molded black

MD15

15 foot, 5 pin DIN, molded black

Uses 4 cond., 24 awg, PVC outer jacket,
braided shielded cable

1/4" Cables

05AD05

2 foot, mono, male to male

05AK05

6 foot, mono, male to male

05AN05

10 foot, mono, male to male

05AU05

25 foot, mono, male to male

05AN15

10 foot, mono, male to RA male

05AN80

10 foot, mono, male to female

05AU80

25 foot, mono, male to female

10BF10

3 foot, stereo, male to male

10BK10

6 foot, stereo, male to male

10BN10

10 foot, stereo, male to male

15AK15

6 foot, mono, RA male to RA male

RCA

25AF25

3 foot, male to male

25AK25

6 foot, male to male

25AN25

10 foot, male to male

25AK82

6 foot, male to female

30AK30

6 foot, RA male to RA male

30AN30

10 foot, RA male to RA male

30AR30

15 foot, RA male to RA male

1/4" to RCA

05AK25

6 foot, 1/4" male to RCA male

05AN25

10 foot, 1/4" male to RCA male

Uses either single or 2 cond, 22awg,
PVC outer jacket, braided shielded cable

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

Ordering Information

Pins/

Part Number

Style

Finish Contacts

Notes

A*F, A*M

Cord

Nickel

Silver

Standard Cable Clamp

A*FB, A*MB

Cord

Black

Silver

Standard Cable Clamp

A*FBAU, A*MBAU

Cord

Black

Gold

Standard Cable Clamp

A*FL, A*ML

Cord

Nickel

Silver

Standard cable clamp,
large flex relief

AA*F, AA*M

Cord

Nickel

Silver

One piece cable clamp

AA*FB, AA*MB

Cord

Black

Silver

One piece cable clamp

AA*FBAU, AA*MBAU

Cord

Black

Gold

One piece cable clamp

AA*FL, AA*ML

Cord

Nickel

Silver

One piece cable clamp,
large flex relief

AAA*FZ, AAA*MZ

Cord

Nickel

Silver

Twist-on metal handle

AAA*FBZ, AAA*MBZ

Cord

Black

Silver

Twist-on metal handle

AAA*FBAUZ,
AAA*MBAUZ

Cord

Black

Gold

Twist-on metal handle

AAA*FPZ, AAA*MPZ

Cord

Nickel

Silver

Twist-on plastic handle

AAA*FPBZ, AAA*MPBZ

Cord

Black

Silver

Twist-on plastic handle

AAA*FPBAUZ,
AAA*MPBAUZ

Cord

Black

Gold

Twist-on plastic handle

* Available 3 - 7 pins or contacts

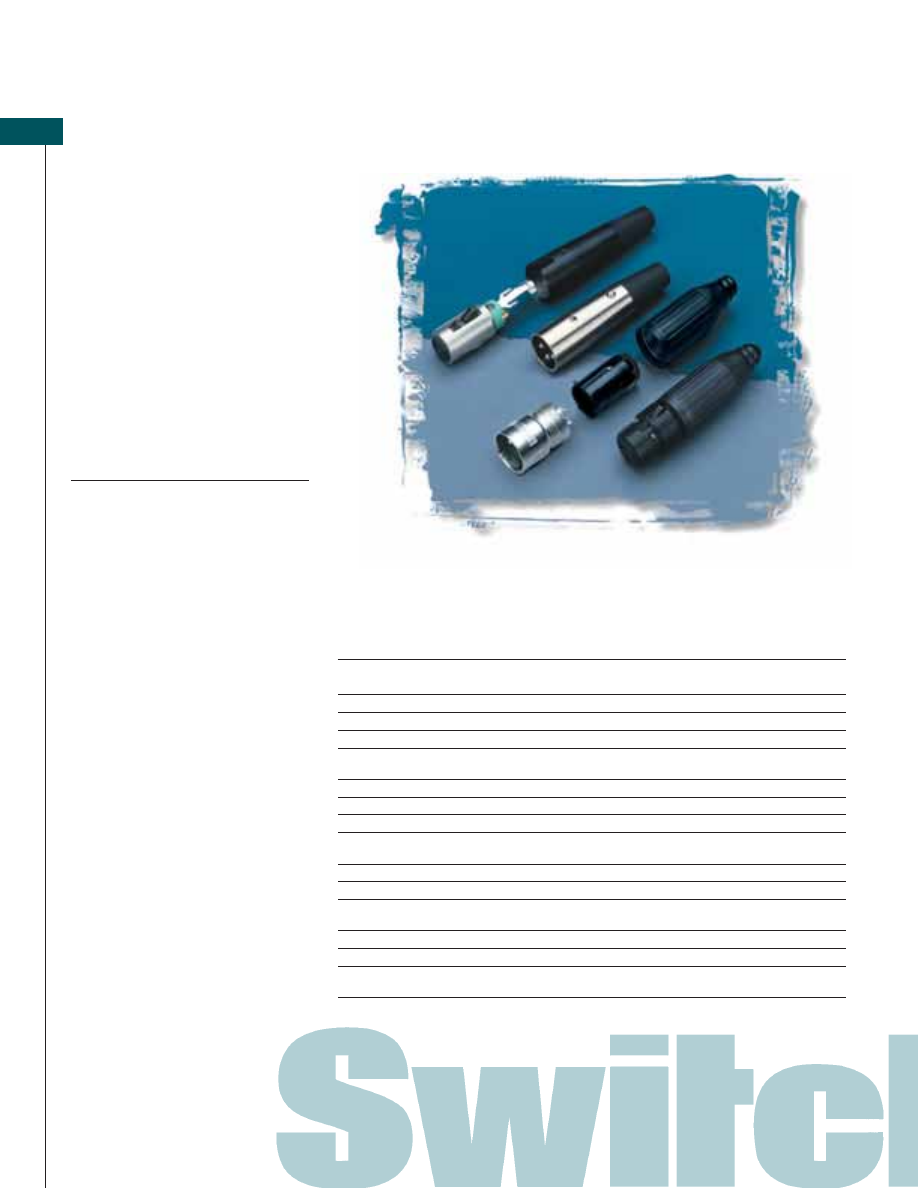

Q-G

Audio Connector Series

A, AA, AAA Cord Style Series

Switchcraft offers a wide range of
cord style XLR connectors.

The A Series features a dual

pressure plate strain relief mechanism
to securely fasten the connector to
the cable. The A Series is also available
with FAS-DISCONNECT detent.

The AA Series features a 1-piece

strain relief mechanism that clamps
onto the outer jacket of the cable.

The AAA Series features a twist-on

handle with a built-in strain relief
mechanism and a pre-loaded insert.
The new R Series offers the same
strain relief system as the AAA Series.

Specifications

Electrical

Contact Resistance: 50 milliohm

maximum, per pole

Current Rating @ 125VAC:

3 pole - 15A, 4 pole -10A,
5 & 6 pole - 7.5A, 7 pole - 5A

Insulation Resistance: 1,000 MW,

minimum

Dielectric Withstanding Voltage:

1,000 V (rms)

Capacitance:

)

3pF between pins

and

)

6 pF between pins and

shell, maximum

Mechanical

Insertion/Withdrawal Forces:

10 lbs. maximum, 8 lbs. nominal/
7 lbs. maximum, 5 lbs. nominal

Materials

Shell: Die-Cast zinc with nickel

finish or black chrome

Handle: Die cast with nickel finish

or black chrome. Also black
thermoplastic handle available

O Ring: TPR (Thermoplastic rubber).
Insert Insulation: Molded

thermoplastic

Socket Contacts: Silver plated

copper alloy tarnish resistant;
bifurcated on 3 and 4 contact
types. Gold is available.

Pin Contacts: Silver plated

copper alloy.

Resists tarnishing, and provides
excellent electrical conductivity.
Gold is available.

Latch lock: High strength die cast zinc
Multi-finger cable clamp and rubber

gasket: TPR (Thermoplastic
plastic & rubber)

Flex Relief: TPR (Thermoplastic rubber)

See Page 56 for
Mechanical Drawings

A*M

AAA*MPZ

AA*FB

AAA*FPBAUZ

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Q-G

Audio Connector Series

B, C, D, E Panel Style Series

Ordering Information

Pins/

Part Number

Style

Finish

Contacts

Notes

B*F, B*M

Panel

Nickel

Silver

Threaded Collar

B*FB, B*MB

Panel

Black

Silver

Threaded Collar

C*F, C*M

Panel

Nickel

Silver

Uses #5-40 mounting screws

C*FB, C*MB

Panel

Black

Silver

Uses #5-40 mounting screws

D*F, D*M

Panel

Nickel

Silver

Uses #5-40 mounting screws

D*FB, D*MB

Panel

Black

Silver

Rectangle housing

D*FBAU, D*MBAU

Panel

Black

Gold

Rectangle housing

D*FS, D*MS

Panel

Nickel

Silver

Rectangle housing, smooth finish

E3FSC, E3MSC

Panel

Nickel

Silver

Male/Female same panel cut-out

E3FSCB, E3MSCB

Panel

Black

Silver

Male/Female same panel cut-out

E3FSCBAU,
E3MSCBAU

Panel

Black

Gold

Male/Female same panel cut-out

* Available 3 - 7 pins or contacts

Switchcraft also offers a wide range
of panel mount connectors.

The B Series features a round

housing with a threaded collar for
mounting. The female version requires
a spanner wrench to tighten the
connector to the chassis. Both
male and female are available with
black finish.

The C Series is another round

housing panel mount, which has
0.140" mounting holes requiring
#5-40 screws to mount.

The D Series, our most popular

version, is a rectangle housing
panel mount. The standard Rawall
finish resists scratching, while the
optional satin finish offers a smooth
finish for mounting on a brushed
finished chassis.

The E Series offers a panel

mount with quick release inserts. A
small screwdriver is used to remove
the inserts, allowing for easy gender
changes. The male and female E
Series fit into the same panel cut-outs.

The E Series is also available

with PC terminals. Contact the
factory for details.

See Page 57 for Mechanical Drawings

D*MS

D*F

D*MBAU

C*MB

B*MB

B*F

C*F

E3FSC

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

Q-G

Audio Connector Series

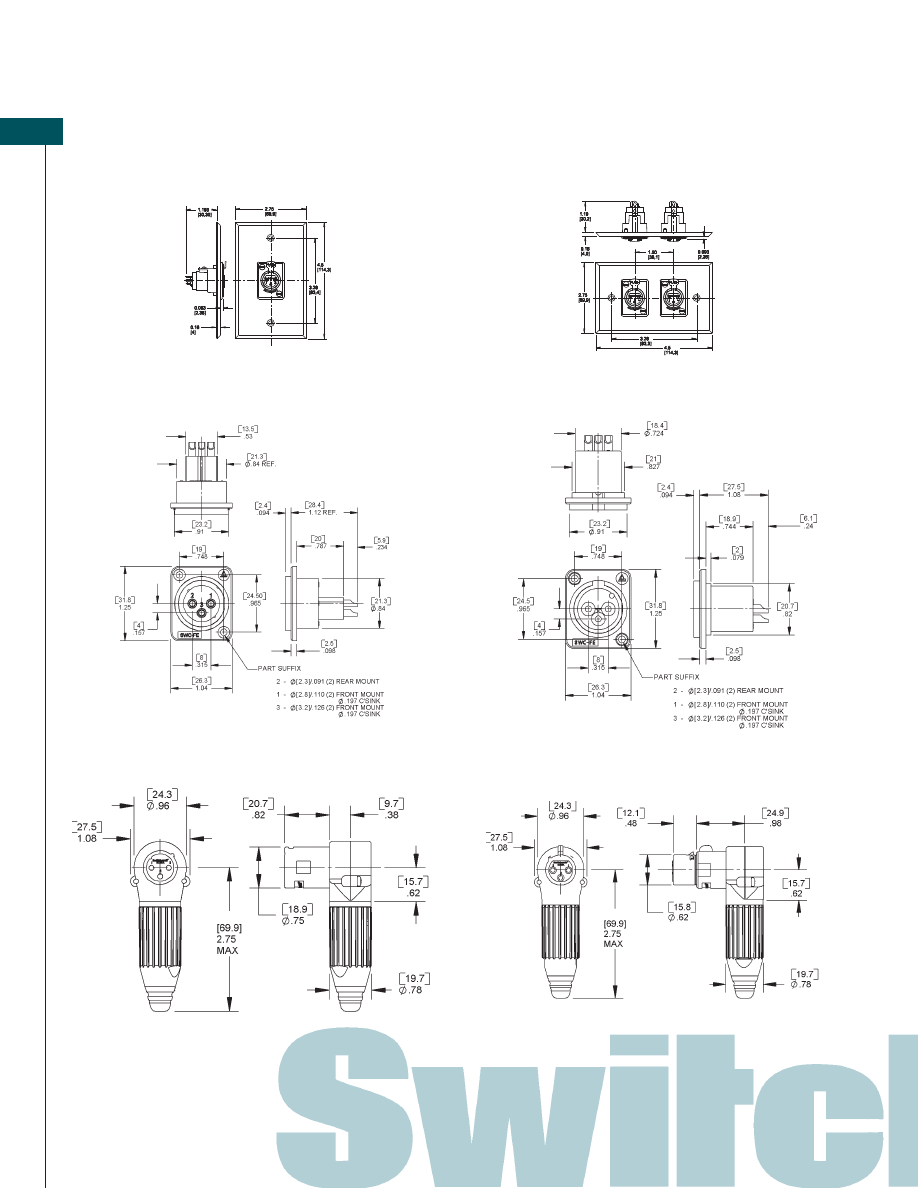

J, K, P, R, T Wallplate, Gooseneck, Panel & Cord Style Series

Ordering Information

Pins/

Part Number

Style

Finish

Contacts

Notes

J3FS

Wallplate

Nickel

Silver

Single D3F

K3FS

Wallplate

Nickel

Silver

Dual D3F’s

P*F, P*M

Gooseneck

Nickel

Silver

Female ext. threads,

male int.threads

P*FB, P*MB

Gooseneck

Black

Silver

Female ext. threads,

male int.threads

PD3FSC1, PD3MSC1

Panel

Black

Silver

Plastic Housing

PD3FSC1AU, PD3MSC1AU Panel

Black

Gold

Plastic Housing

R*FZ, R*MZ

Cord

Nickel

Silver

Right Angle

R*FBZ, R*MBZ

Cord

Black

Silver

Right Angle

R*FBAUZ, R*MBAUZ

Cord

Black

Gold

Right Angle

T3F

Cord

Nickel

Silver

On-off switch

* Available 3 - 7 pins or contacts

The J and K Series are wallplates
using the D Series receptacles
pre-mounted. Available in single or
dual connector versions.

The PD Series is a plastic panel

mount series, using 94V-0 rated
material. Both male and female
mount into the same panel cut-out
and are available in solder cup,
straight PC, and right angle PC
terminals.

Switchcraft also offers gooseneck

connectors and cord plugs with
on-off switches. The P Series are
gooseneck connectors available in
male or female, with optional black
finishes. The male has external
5/8-27 threads, the female has internal
5/8-27 threads.

The new R Series incorporates

the same strain relief system as the
AAA Series. The insert can be offset
at 45˚ to accommodate a wide variety
of applications.

The T Series is similar to the

A Series female cord plug, but
offers a DPDT (2-C) locking on-off
switch. The slide switch is rated at
500mA, 125V.

See Pages 58 and 59 for Mechanical Drawings

K3FS

J3FS

PD3FSC1

P*M

R*M

P*F

T3F

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Tini-Q-G

Connector Series

Tini-Q-G

Cord & Panel Style Series

Ordering Information

Pins/

Part Number

Style Finish Contacts

Notes

TA*F, TA*M

Cord

Nickel

Silver

Available in 3 - 6 pins or contacts

TA*FL, TA*ML

Cord

Nickel

Silver

Accommodates large cable,
available in 3 - 8 pins or contacts

TA*FB, TA*MB

Cord

Black

Silver

Available in 3 - 6 pins or contacts

TB*M

Panel

Nickel

Silver

Male, round flange, threaded,
available in 3 - 8 pins or contacts

TB*MB

Panel

Black

Silver

Male, round flange, threaded,
available in 3 - 8 pins or contacts

TY*F

Panel

Nickel

Silver

Female, rectangle flange,
available in 3 - 5 pins or contacts

The Tini-QG Series is a miniature
version of the standard QG Series.
These “mini-XLR’s” come in a wide
variety of configurations. The standard
TA Series cord plugs are available in
3-6 pins or contacts. The L versions,
with their larger strain reliefs, are
available in 3-8 pins or contacts.The
TB and TY Series are panel mount
connectors. The TB Series is a male
connector, featuring a round panel
cut-out and 3-8 pins. The TY Series
is a female connector, featuring a
rectangular housing and 3-5 contacts.
The TA and TB Series are available with
a black finish. Gold-plated contacts
are available on all series. Contact
the factory for details.

Specifications

Electrical

Contact Resistance: .010 ohms

maximum after life (and after
salt spray)

Current Rating (Carry Only): 5A,

125 VAC (4A, 125 VAC on 5
circuit) based on 30˚C maximum

Insulation Resistance: 510,000

megohms minimum @ 500
VDC (initial); 10,000 megohms
minimum (after humidity test)

Dielectric Strength: 1,000V (rms)

Mechanical

Life: 5,000 operations minimum
Solderability Standard: Meets EIA

RS-186-9E

Mechanical Shock: Meets

Mil-Std-202, method 213B

Vibration: Meets Mil-Std-202,

method 201A

Wire Size: #22 wire gauge solid;

#24 wire gauge stranded

Environmental

Thermal Range: -55˚C to +85˚C
Humidity: Meets Mil-Std-202,

method 106D

Thermal Shock: Meets

Mil-Std-202, method 107D

Salt Spray: Meets Mil-Std-202,

method 101

Materials

Housing: Plugs and Male Receptacles

— Copper alloy, nickel-plated;
Female Receptacles — Die-cast
zinc, nickel-plated

Black Tini-Q-G® Housing: Copper

alloy, black chrome-plated

Pin and Socket Contacts: Copper

alloy, silver-plated

Flex Relief: Molded black

thermoplastic elastomer

Latch Button: Molded black

thermoplastic

TA*MB

TA*F

TA*FL

TB*M

TY*F

Release Lever and Mounting

Washer: Steel, nickel-plated

Standoff/Ground Terminal and

Cable Clamp: Steel, electrotinned

Inserts and Insulating Spacer:

Molded, high strength thermoplastic

Latch (Female): Copper alloy,

nickel-plated

Mounting Nut: Copper alloy,

nickel-plated

See Page 59 for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

HPC Connector Series

HPC Panel Style Series

The HPC Series is a complete line
of high power loudspeaker connectors
that are completely compatible
with the Neutrik

Speakon

4 pole

connector series. Included in the
series are round and rectangular
panel mounts, straight cord plugs,
right angle cord plugs, and in-line
cord plug, plus a barrel adapter.

The HPC panel mounts come

with two different flange depths,
either 0.100" or 0.200" depths. The
0.200" depth allows for easy rear
mounting of the connector and
maintains proper mating with the
cord plug. Also, the panel mounts
have two different Faston

terminal

sizes, 0.187" and 0.250" wide. Both
are rated at 50A, per UL 1977. The
PC mount versions have either
straight, right angle, or right angle
with a mounting post. They are
rated at 30A per UL 1977. The right
angle PC mount version with the post
allows for snap-in placement onto
the PC board during wave soldering.

The HPC cord plugs are offered

in straight, right angle, and an in-line
version. All have 0.250" Faston

terminals, rated at 50A per UL
1977, which makes it easy to swap
out plugs. The unique feature of the
cord plugs is their “push to lock”
design. They do not require a 1/4
turn to engage the contacts – simply
push the connector in like an XLR.
This feature eliminates the need to
remember to turn the connector to
make contact with the contacts. To
disengage, simply push the latch lever
forward and pull the connector out.
The straight cord plug uses a twist
on handle, while the in-line and
right angle cord plugs use a snap-in
handle. The in-line connector mates
with both straight and right angle
cord plugs.

For those who find it more

convenient, we also offer a barrel
adapter which mates with either
straight or right angle cord plugs.

Ordering Information

Part Number

Style

Notes

HPCP41F

Panel

Rectangle, 0.100" flange depth, 0.250" faston terms

HPCP42F

Panel

Rectangle, 0.200" flange depth, 0.250" faston terms

HPCP41F1

Panel

Rectangle, 0.100" flange depth, 0.187" faston terms

HPCP42F1

Panel

Rectangle, 0.200" flange depth, 0.187" faston terms

HPCP410PC

Panel

Rectangle, 0.100" flange depth, straight PC terms

HPCP420PC

Panel

Rectangle, 0.200" flange depth, straight PC terms

HPCP410RA

Panel

Rectangle, 0.100" flange depth, right angle PC terms

HPCP420RA

Panel

Rectangle, 0.200" flange depth, right angle PC terms

HPCPR41F

Panel

Round, 0.100" flange depth, 0.250" faston terms

HPCPR42F

Panel

Round, 0.200" flange depth, 0.250" faston terms

HPCPR41F1

Panel

Round, 0.100" flange depth, 0.187" faston terms

HPCPR42F1

Panel

Round, 0.200" flange depth, 0.187" faston terms

HPCPR410PC

Panel

Round, 0.100" flange depth, straight PC terms

HPCPR420PC

Panel

Round, 0.200" flange depth, straight PC terms

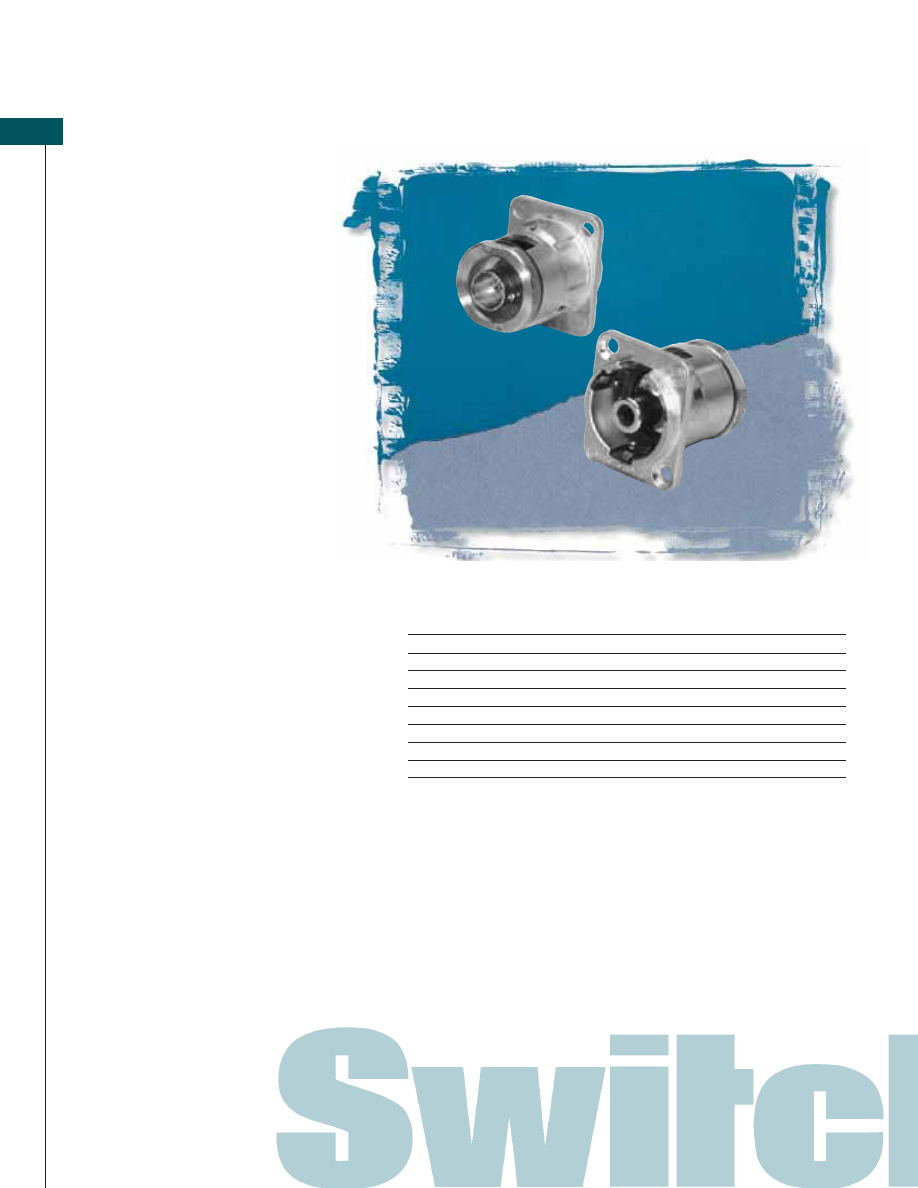

HPCPR41F

HPCP41F

HPCP410RA

Speakon

is a registered trademark

of Neutrik Inc.

See Pages 61 and 62 for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

HPC Connector Series

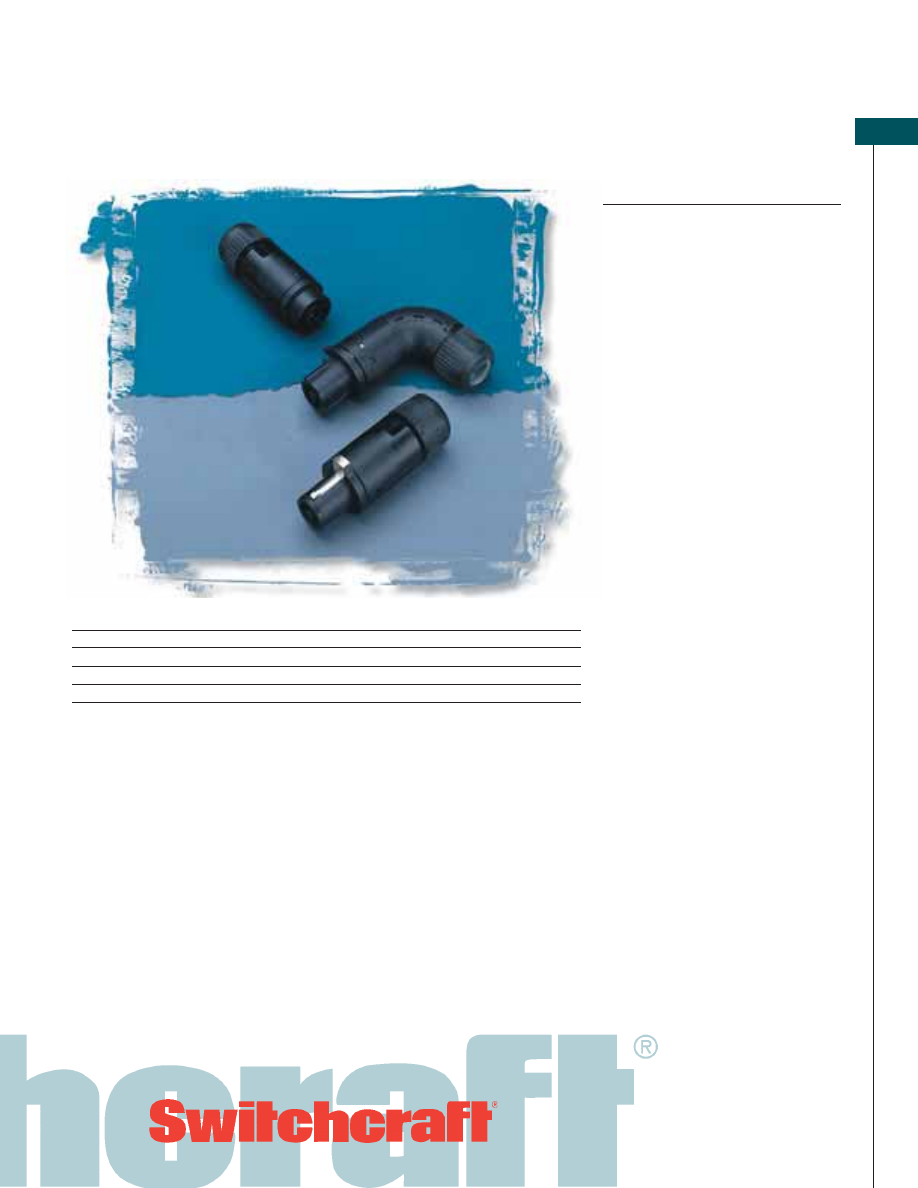

HPC Cord, & Adapter Style Series

Ordering Information

Part Number

Style

Notes

HPCC4F

Cord

Straight with 0.250" faston terms

HPCI4F

Cord

Inline with 0.250" faston terms

HPCC4RAF

Cord

Right angle with 0.250" faston terms

See Page 62 for Mechanical Drawings

HPCC4F

HPC14F

HPCC4RAF

Specifications

Mechanical

(Panel and Cord Mounts)

Shock: Per Mil-Std 202,

Method 213B, Cond. K

Vibration: Mil-Std 202,

Method 201A

Life: 1,000 rotational cycles
Cable Range (cord mount):

10AWG, 0.560" cable OD
maximum

Electrical

(Panel and Cord Mounts)

Voltage Rating: 1,500 AC RMS,

per Mil-Std 202, Method 301

Current Rating (Faston

termi-

nals): 50A RMS w/10AWG
wire, normal ambient, per
UL 1977

Current Rating (PC terminals):

30A per UL 1977

Contact Resistance: 1m

, 1.5m

after 1,000 insertion/withdrawals

Insulation Resistance: > 2T

Environmental

(Panel and Cord Mounts)

Salt Spray: Mil-Std 202, Method

101D, Cond. B

Thermal Shock: Mil-Std 202,

Method 107G

Temperature Limits:

-55˚C to +85˚ C

Moisture Resistance: Mil-Std.

202, Method 106E

Life @ Ambient Temperature:

Mil-Std 202, Method 108A

Touchproof: IEC 65 and 1010-1

IP Rating: IEC 529, IP 25

Materials

(Panel and Cord Mounts)

Housings:

Thermoplastic UL 94V-0 rated

Seal Rings: Thermoplastic rubber
Contacts: Silver-plated over

copper alloy

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Ordering Information

Part Number

Style

Notes

05BL5M

Cord

Male, straight, metal handle

05GM5M

Cord

Male, straight, plastic handle

05DL5M

Cord

Male, right angle, metal handle

57GB5F

Panel

Female

57PC5F

Panel

Female, right angle, PC mount

57PC5FS

Panel

Female, right angle, PC mount, shielded

2501F

Cord

Female, single contact, locking collar

2501M

Cord

Male, single contact, ext. threads

2501MP

Panel

Male, single contact, ext. threads

The 5-pin DIN connector has been
adopted by the audio industry as
the standard MIDI (Musical Instrument
Digital Interface) connector. Switchcraft
offers a wide variety of DIN and
mini-DIN connectors, however, only
the 5-pin DIN versions are shown in
this catalog. The more popular versions
used in the audio industry include
straight metal, straight plastic, and
right angle cord plugs, as well as
metal chassis and plastic right angle
PC mount versions.

The 2500 Series microphone

connectors are still used in many
retro-style microphones. Cable
mount versions can accommodate
cable OD’s up to 0.281".

Specifications

Materials

Shell: Die-cast zinc alloy, nickel

plated

Receptacle Mounting Flange:

Steel

Receptacle Body: Plastic
Insert Material: Plastic
Socket Contacts: Tin-plated
Pin Contacts: Tin-plated
Switching Contacts: Silver-plated
Cable Relief Bushing: Soft plastic

See Page 60 for
Mechanical Drawings

57GB5F

05DL5M

05BL5M

05GM5M

57PC5FS

2501M

2501MP

MIDI and 2500 Series

* Please visit the product pages on our website for the most up-to-date product information

CONNECTORS

HP75BNC Series

True 75 Ohm BNC Series

The HP75BNC Series is a true 75
Ohm impedance BNC connector
series. All connectors meet stringent
guidelines for top performance. The
HP75BNC Series is available in a
wide variety of cable types. All use
standard crimping tools.

Features and Benefits

• True 75 Ohm impedance
• Rugged nickel-plated, machined

housings

• Gold-plated center pins enhance

performance

Specifications

Electrical

Contact Resistance: 75 Ohms
Voltage Rating: 500 Volts RMS
Return Loss: Less than -25 db

at 3 GHz

Insulation Resistance:

5000 Megohms minimum

Mechanical

Lifecycles: 500 minimum
Center Contact Retention:

6 lbs. minimum

Coupling Mechanism:

100 lbs. minimum

Force to Engage:

2.5 lbs. maximum

Environmental

Thermal Range: -65˚C to 165˚C
Moisture Resistance: Mil Std 202
Corrosion: Mil Std 202
Flammability: UL 94-V0
Vibration: Mil Std 202
Solvent Resistance: Mil Std 202

Finish

Body/Bayonet: Nickel-plated,

copper alloy

Center Conductor: 50 mi

gold-plated copper alloy

See Next Page for
Mechanical Drawings

HP75BNC1

Ordering Information

Part Number

Crimp Info

Cable Type

HP75BNC1

Pin .041 Hex

Belden 8241, 8279, 82241

Ferrule .255

Gepco VJ59U

Comm/Scope 5563

HP75BNC2

Pin .041 Hex

Belden 8281, 8281B, 9141, 88281, 9231, 8141,

Ferrule .324 Hex

9118, 9248

Gepco VP618PE, VP618PVC, VP6000

Comm/Scope 7501, 7506

HP75BNC7

Pin .041 Hex

Belden 1694A, 1695A, 87120, 89120, 9066, 9114, 9659

Ferrule .278 Hex

Gepco VSD2001, VSD2001TS

Comm/Scope 5729 ,5765, 2227K, 2227V, 2229V,

2275V, 2276V, 2279V

HP75BNC9

Pin .041 Hex

Belden 1505A, 1506A, 8212, 8241F, 9167, 9259,

Ferrule .255 Hex

Gepco VPM2000, VPM2000TS, VPM2000TK

Comm/Scope 2000, 5553, 5565, 5572

HP75BNC12

Pin .041 Hex

Belden 1855A, 1865A

Ferrule .178 Hex

Gepco VDM230, VDM250, RGB230/250 Series

Comm/Scope 7537, 7538

* Please visit the product pages on our website for the most up-to-date product information

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

A wide variety of audio adapters are available from
Switchcraft. Ranges include XLR to XLR, XLR to RCA,
XLR to 1/4", along with a multitude of specialty adapters.
Our DMX adapters allow users to adapt from 5 pin DMX
controls to the more prevalent 3 pin XLR.

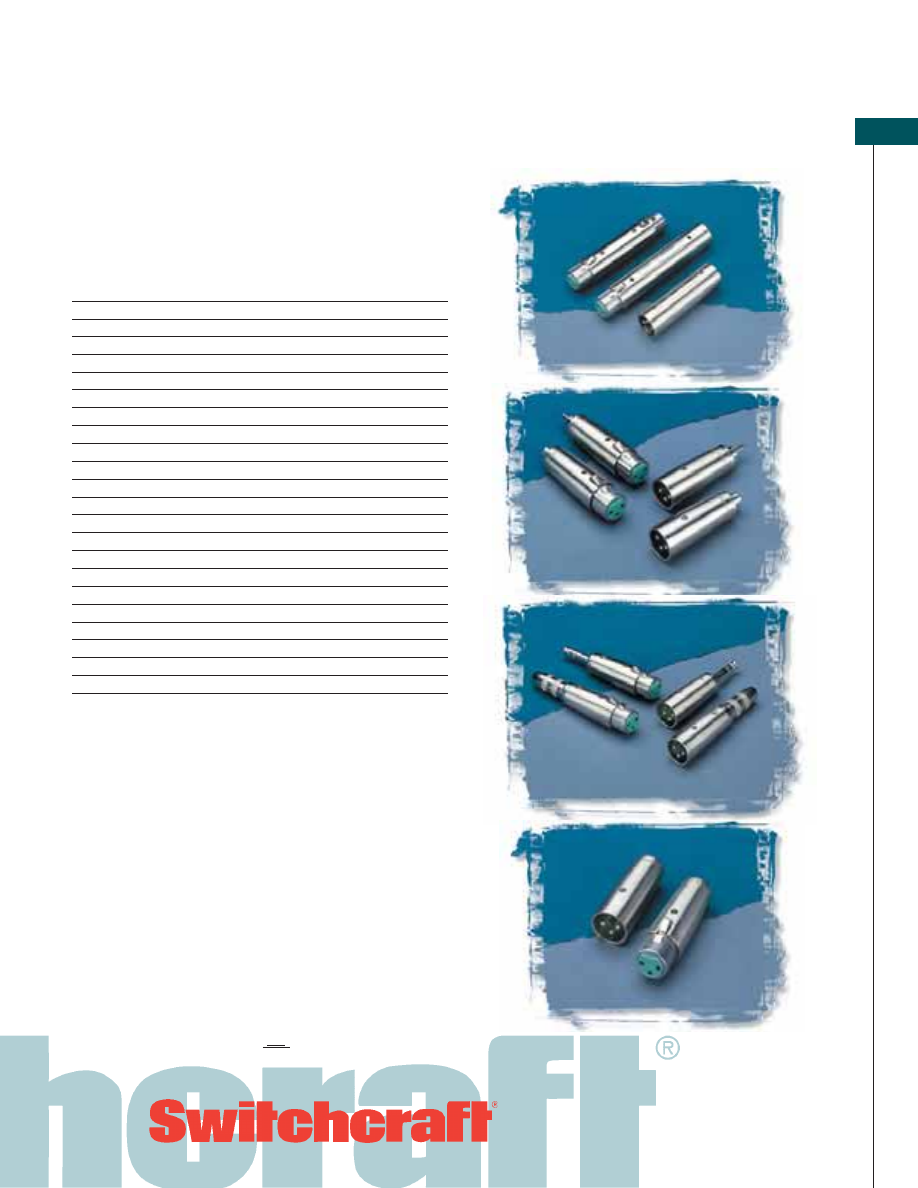

XLR to XLR, RCA, 1/4 "

, TQ-G Adapter Series

AUDIO ADAPTERS

Ordering Information

Part Number

Description

XLR to XLR

389

3 Pin female to 3 pin female

390

3 Pin male to 3 pin male

S3FM

3 Pin male to 3 pin female

S3F5M

3 Pin female to 5 pin male

S5F3M

5 Pin female to 3 pin male

XLR to RCA

321

3 Pin female XLR to male RCA

322

3 Pin female XLR to female RCA

323

3 Pin male XLR to male RCA

324

3 Pin male XLR to female RCA

XLR to 1/4"

383A

3 Pin female XLR to female 1/4", 3 cond.

384A

3 Pin male XLR to female 1/4", 3 cond.

386A

3 Pin female XLR to male 1/4", 3 cond.

387A

3 Pin male XLR to male 1/4", 3 cond.

XLR to TQ-G

TA01

3 Pin XLR female to 3 pin TQG female

TA02

4 Pin XLR female to 4 pin TQG female

TA04

3 Pin XLR male to 3 pin TQG female

TA05

4 Pin XLR male to 4 pin TQG female

389

S3FM

390

321

323

324

322

386A

383A

387A

384A

TA04

TA01

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

* Please visit the product pages on our website for the most up-to-date product information

AUDIO ADAPTERS

1/4" to 1/4", RCA; RCA to RCA; & Miscellaneous Adapter Series

Ordering Information

Part Number

Description

1/4" to 1/4"

361A

Mono female to female

362A

Stereo female to female

363

Mono male to male

340

2 Mono jacks parallel to mono plug

352A

Stereo jack to mono plug

1/4" to RCA

330P

2 RCA jacks to mono plug, 4" cable

336A

Female 1/4" to male RCA

345A

Female RCA to male 1/4"

RCA to RCA

330F1

2 Female RCA parallel to 1 male RCA

330F2

1 Male and 1 female parallel to 1 male

349A

Female to female

Miscellaneous

332A

Old MC1M type to 1/4" female

365

Tini-Jax (.141") to RCA male

370A

Female RCA to Tini-Plug (.141")

374

1/4" female to Tini-Plug (.141")

376

Tini-Jax (.141") to Micro-Plug (.097")

377

Micro-Jax (.097") to Tini-Plug (.141")

Female 2500 Series to 1/4" plug

363

361A

340

352A

336A

345A

330P

330F2

330F1

349A

365

374

332A

377

370A

376

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

w w w . s w i t c h c r a f t . c o m

Jack Series

Littel Phone, Hi-D, Right Angle PC Mount 1/4", 1/4" Extension Jack Series

JACKS & PLUGS

Switchcraft offers an extensive variety of
1/4" commercial jacks. Littel phone jacks
offer open frame designs, Hi-D jacks offer
an enclosed, 94V-0 rated thermoplastic
housing, our RA jacks are designed for right
angle PC board layouts, and our Extension
jacks allow the end user to extend cable
lengths. All offer a wide range of options to
fit a multitude of needs. For mating plugs,
look to page 83 for all of the various options.

Specifications

Mechanical

Life: 10,000 insertion/withdrawal cycles,

minimum

Electrical

Contact Resistance: .030 ohms

maximum (initial), .050 ohms
maximum (after humidity, durability
exposure) Per Mil-Std-202E

Insulation Resistance: 10,000 MW

minimum (initial), 1,000 MW minimum
(after humidity)

Dielectric Withstanding Voltage: 500V,

60 Hz (rms) AC

Contact Rating: 1A, 25 VDC

Environmental

Thermal Range: -55˚C to +85˚C

(non-operating); -20˚C to +65˚C
(operating)

Thermal Shock: Per Mil-Std-202,

method 107

Humidity: Per Mil-Std-202, method 106
Salt Spray: Per Mil-Std 202, method 101

Materials

Mounting Bushing: Copper alloy,

nickel-plated
(RN & RA Series: Thermoplastic)

Insulation: Rigid plastic
Springs: Special copper alloy.

Integral contacts are standard in the iso-
lated switching circuits

Sleeve Terminal: Copper alloy
Hardware: Supplied with one Number

P10001 copper alloy nickel-plated hex
nut, and one Number S1022
steel nickel-plated washer

111

114BPCS

Z15J

RA49B11

RN112APC

120

133

128

See next page for ordering information

w w w . s w i t c h c r a f t . c o m

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

Ordering Information

Typical

Part No.

Conductors

Description

Mating Plug

Notes

Littel Phone Jacks

single open

280

12A

single closed

280

12B

double open

297

14B

double closed

297

Hi-D Jacks

111

single open

280

112B

double open

297

113BPC1M

tip closed, ring open

297 or

PC terms, accepts Littel

(common to sleeve)

482NC

and Mil-type plugs

114B

double closed

297

114BPC

double closed

297

PC terms

114BPCS

double closed

297

Springlock PC terms

114BPC1M

double closed

297 or

PC terms, accepts Littel and

482NC

Mil-type plugs, metric thread

Z15J

single open

187B

15A rated

Right Angle PC Mount 1/4" Jacks

RA49B11

single open

280

RN112APC

single closed

280

RA49C14B

double closed

297

1/4" Extension Jacks

single open

280

Screw terms, black handle

single open

280

Solder terms, black handle

120

single open

280

Screw terms, shielded handle

121

single open

280

Solder terms, shielded handle

131

double open

297

Solder terms, shielded handle

133

double open

298

Solder terms, shielded handle,
locking

830

double open

297

Screw terms, black handle

128

single open

280

Solder terms, shielded handle

1238

double open

297

Solder terms, shielded handle

Jack Series

See Pages 72–74 for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

The TP or Thick Panel jacks are typical-
ly used in applications such as loud-
speaker enclosures and solid-body
guitars. Only premium materials are
used in the manufacture of these jacks.
Locking 1/4" jacks allow the end user
to lock the mating plug, providing
positive detent to the connection.
Also offered is a wide range of 1/8"
jacks and true 3.5mm jacks.

Specifications - Thick Panel Series
& Locking Jacks

Electrical

Insulation Resistance: 2 x 106 MW

at 500 VDC per Mil-Std-202,
method 302 (initial)

Dielectric Withstanding Voltage:

1,000 VAC (ms)

Life: 10,000 cycles minimum

Environmental

Thermal Range: -55˚C to +85˚C

(non operating); -20˚C to +65˚C
(operating)

Thermal Shock: Per Mil-Std-202,

method 107

Humidity: Per Mil-Std-202, method

106

Salt Spray: Per Mil-Std-202, method

101

Materials

Shell - Locking Jacks: Die-cast

zinc, with satin nickel-plating;
Black chrome over nickel-plating
on special order

Insert and Latch: Thermoplastic,

UL94V-0

Latch Release: Nickel-plated

die-cast zinc

Contact Springs: Tin-plated

copper alloy

Mounting Bushing - Thick Panel

Jacks: Nickel-plated copper alloy
with knurled flange

Insulating Spacer: Rigid plastic

(continued on next page)

152B

153

151

152

154

155

E111L

125

35RAPC7J

142A

35RAPC2BH3

42A

35PM2A

Jack Series

Thick Panel/Guitar, Locking 1/4", Tini, Tini-Extension, Micro, 3.5mm

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

Jack Series

(continued from previous page)

Insulator/Spring Mount:

Thermo-plastic

Springs: Copper alloy
Terminals: Tip: Copper alloy; Ring:

(Number 152B only) Copper
alloy; Sleeve: Steel, tin-plated

Hardware - Thick Panel Jacks:

Supplied with one, Number
P10531 nickel-plated copper
alloy hex nut; and one, Number
P1476 nickel-plated copper
alloy flat washer

Specifications - 35RAPC Series

Electrical

Contact Resistance: 20 milliohms

maximum

Insulation Resistance: 100

milliohms minimum at 250 VDC

Dielectric Withstanding Voltage:

250 VAC

Life: 5,000 cycles, minimum
Insertion Force: 0.88 pounds -

3.5 pounds

Withdrawal Force: 0.88 pounds -

2.64 pounds

Materials

Coil Spring: Steel Wire
Bushing: Nickel-plated copper alloy
Terminal: Silver-plated copper alloy
Tip Spring: Silver-plated copper alloy
Shunt Terminal: Plated copper alloy
Cover: Thermoplastic, transparent

UL 94V-2

Body: Thermoplastic, UL 94V-1

black color

Specifications - 35PM Series
& Tini Jack Series

Electrical

Contact Resistance: .075 ohms

maximum

Insulation Resistance: 5,000 MW

minimum

Dielectric Withstanding Voltage:

250 VAC maximum

Life: 5,000 insertion/withdrawal

cycles, minimum

Contact Rating: .25A, 48 VDC

Materials

Mounting Bushing: Nickel-plated

copper alloy

Insulating Spacers: Rigid plastic
Springs: Copper alloy
Sleeve Terminal: Tin-plated

copper alloy

Hardware: Supplied with one,

Number P11501 nickel-plated
brass locknut; and one, Number
S17901 nickel-plated steel
flat washer

Ordering Information

Typical

Part No.

Conductors Description Mating Plug Notes

Thick Panel/Guitar Jacks (1/4")

151

single open

280

Nickel finish

152

double open

297

Brass finish

152B

double open

297

Nickel finish

153

single open

280

Gold-plated springs,
electro-polish brass finish,
9/16-12 UNC wood thread

154

double open

297

Gold-plated, no cable clamp

155

double open

297

Black satin chrome finish,
no cable clamp

Locking 1/4" Jacks

E111L

single open

280

E112BL

double open

297

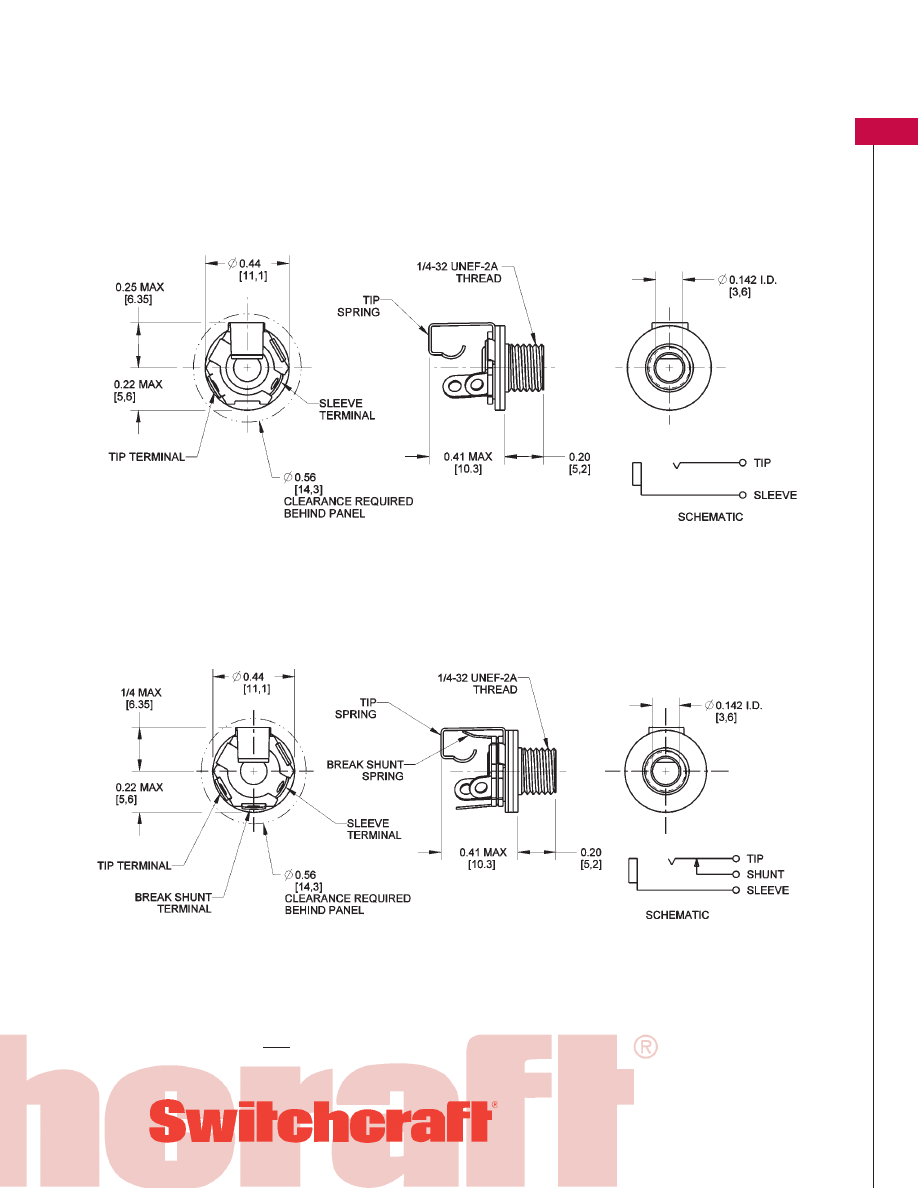

Tini-Jacks (.141")

single open

750

42A

single closed

750

142A

single closed

750

PC142A

single closed

750

PC terms

Tini-Extension Jacks (.141")

125

single open

750

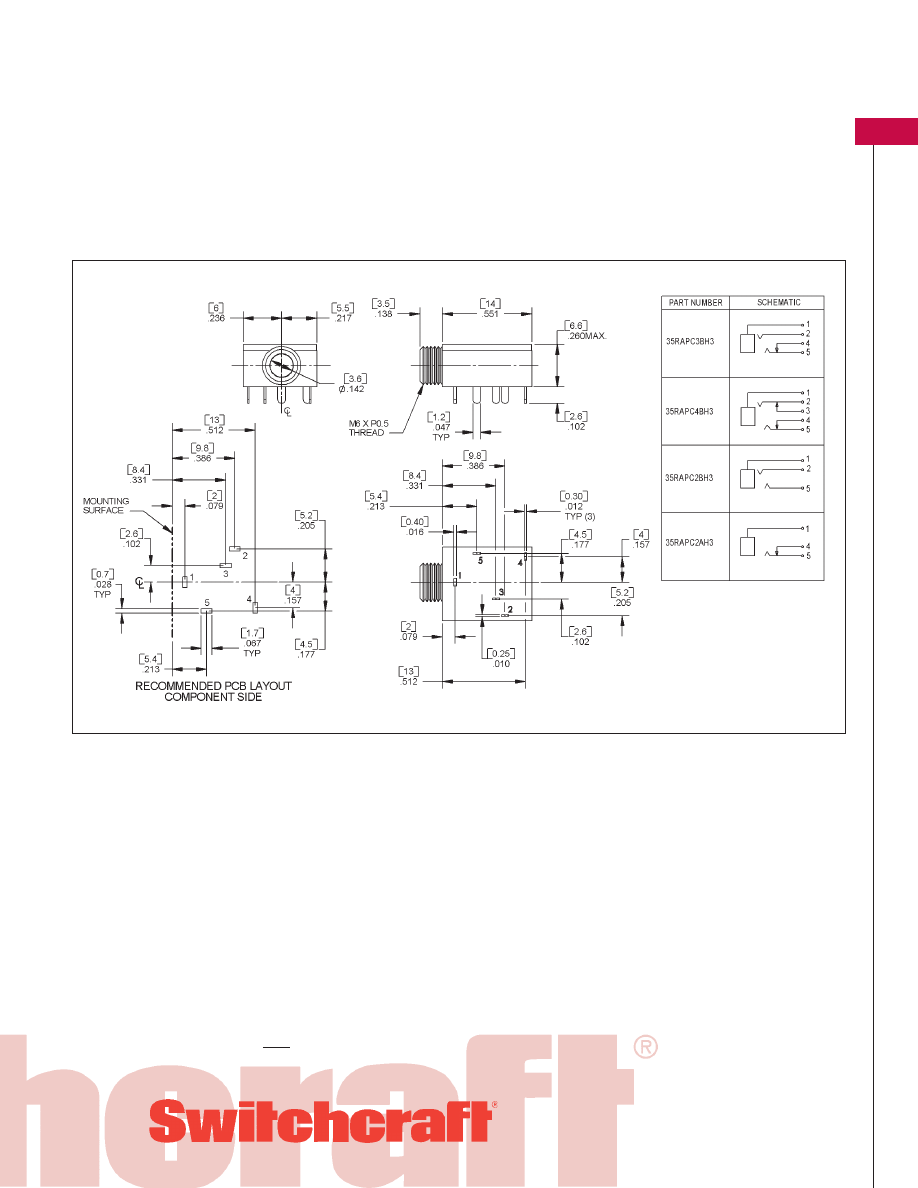

3.5mm Jacks

35RAPC2AV

single closed

Threaded bushing, PC terms

35RAPC2BH3

double open

35HDNN

Threaded bushing, PC terms

35RAPC3BH3

tip closed, ring open

35HDNN

Threaded bushing, PC terms

35RAPC4BH3

double closed

35HDNN

Threaded bushing, PC terms

35RAPC7J

top jack dual open

35HDNN

Dual vertical jack
bottom jack dual closed

35RAPC7JS

top jack dual open

35HDNN

Dual vertical jack, shielded
bottom jack dual closed

35PM1

single open

750

35PM2A

single closed

750

See Pages 75-79 for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Jack Series

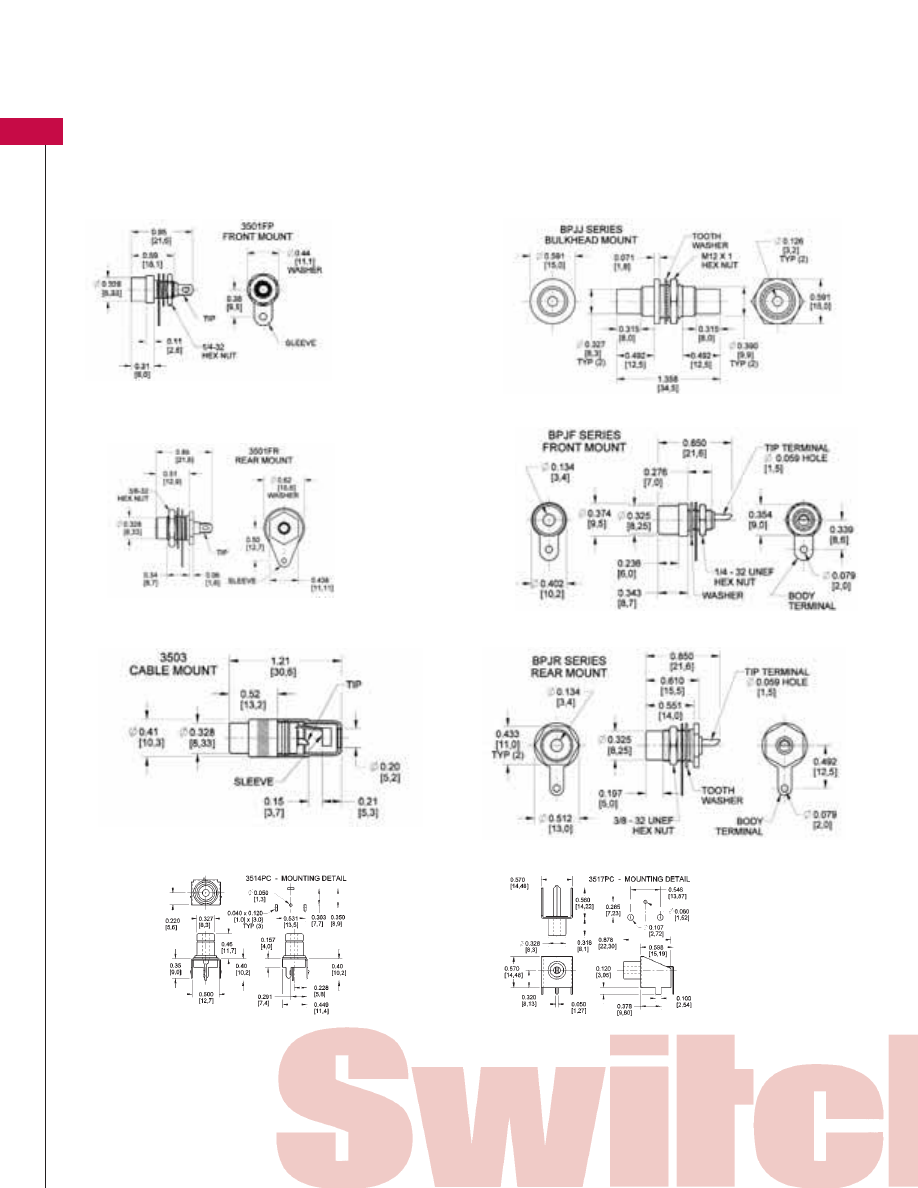

Phono, Phono Extension, TT or Bantam, MT 1/4" Jack Series

Phono jacks, more commonly called RCA jacks offer low
cost, two conductor connections. TT or bantam jacks are
the same type used in our audio patchbays. Typically
used in high end studio applications. MT or 1/4" jacks are
just a bigger version of the TT jacks. Same high quality,
just in a larger package.

Specifications - Phono Jacks

Materials

Frame and Shell: Steel, plated
Center Terminal: Plated copper alloy (3517PC); Plated

copper alloy (3514PC)

Insulator: Thermoplastic (3514PC) Ceramic and glass

filled thermoplastic (3517PC)

For 3515PC Only:

Contact and Saddle: Spring type copper alloy, copper

alloy pre-tinned

Shell: Steel or copper alloy, plated
Insulator Bushing: Ceramic
Insulator Spacer: Glass-filled thermoplastic

Specifications - TT and MT Jacks

Mechanical

Life: Commercial – 30,000 insertion/withdrawal

cycles, minimum; Military – 30,000 insertion/
withdrawal cycles, minimum

Mechanical Shock: Military – Per Mil-Std-202,

method 213, Test Condition H (75g)

Vibration: Military – Per Mil-Std-202, method 213,

(10-55 Hz)

Electrical

Contact Resistance: Commercial – .030 ohms maximum

(initial), .050 ohms maximum (after humidity, durability,
exposure); Military – .010 ohms maximum (initial),
.020 ohms maximum (after life), .10 ohms maximum
(after salt spray)

Insulation Resistance: Commercial – 10,000 M

minimum (initial), 1,000 M

minimum (after humidity);

Military – 10,000 M

minimum (initial), 1,000 M

minimum (after humidity, durability exposure)

Dielectric Withstanding Voltage: 500V, 60 Hz (rms) AC

(continued on next page)

3514PC

3501FR

3501FP

3503

YMT334BN

TT34BNY

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

Jack Series

Ordering Information

Typical

Part No.

Conductors

Description

Mating Plug

Notes

Phono Jacks

3501FP

single open

3502A

Front mounting

3501FR

single open

3502A

Rear mounting

3514PC

single open

3502A

Right angle, PC mount

3517PC

single open

3502A

Right angle, PC mount

BPJR**

single open

3502A

Rear mounting, colored insulators

BPJR**AU

single open

3502A

Same as above, with gold-plating

BPJF**

single open

3502A

Front mounting, colored insulators

BPJF**AU

single open

3502A

Same as above, with gold-plating

BPJJ**

single open

3502A

Feed through mount

BPJJ**AU

single open

3502A

Same as above, with gold-plating

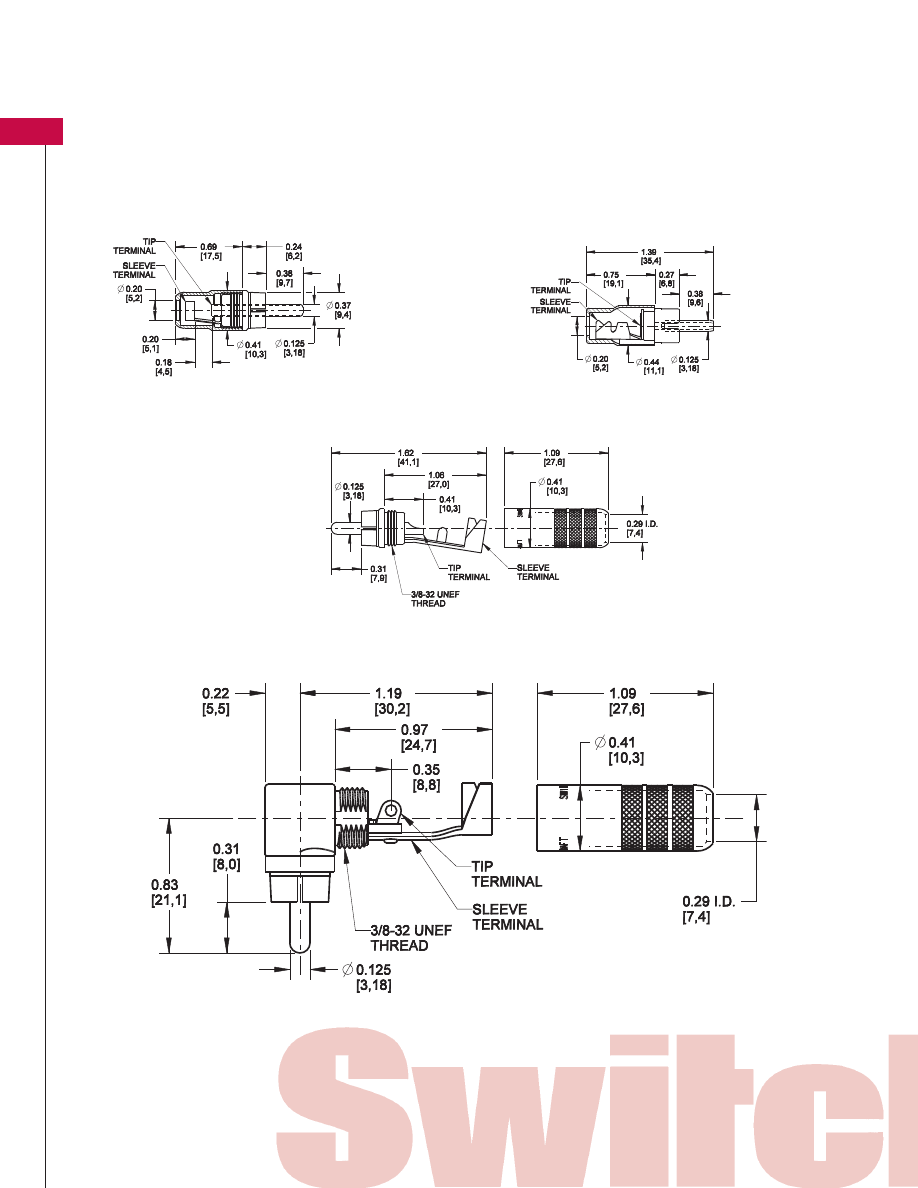

Phone Extension Jacks

3503

single open

3502A

TT or Bantam Jacks

TT34B

double closed

TT253NC

TT34BNY

double closed

TT253NC

Nickel-plated frame, fanned terminals

WTT34B

double closed

TT253NC

Wire-wrap terminals

MT 1/4" Jacks

MT334B

double closed

482NC

WMT334B

double closed

482NC

Wire-wrap terminals

YMT334BN

double closed

482NC

Nickel-plated frame, fanned terminals

** To designate color of insulator, use: 01– Black, 02 – Red, 03 – White, 04 – Yellow, 05 - Blue, 06 - Green

See Pages 80-82 for Mechanical Drawings

(continued from previous page)

Environmental

Thermal Range: Commercial –-

55˚C to +85˚C (non-operating), -
20˚C to +65˚C (operating);
Military –
-55˚C to +85˚C (non operating), -
40˚C to +65˚C
(operating)

Thermal Shocks: Commercial –

Per Mil-Std-202, method 107;
Military – Per Mil-Std-202,
method 107

Humidity: Commercial –

Per Mil-Std-202, method 106;
Military — 0% to 95% operating
and non-operating

Salt Spray: Commercial –

Per Mil-Std-202, method 101;
Military – Per Mil-Std-202,
method 101 (48 hours)

Moisture Resistance: Military –

Per Mil-Std-202, method 106
(240 hours)

Materials

Frame: Steel, nickel plated
Springs: Copper alloy
Contacts: Welded, crossbar, gold

plated

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

Ordering Information

Part Number

Style

Notes

712A

Panel

0.100" center pin

722A

Panel

0.080" center pin

732A

Panel

0.050" center pin

760

Cord

0.100" center hole, black handle

765

Cord

0.100“ center hole, red handle

S760

Cord

0.080" center hole, black handle

S765

Cord

0.080" center hole, red handle

860

Cord

0.050" center hole, black handle

865

Cord

0.050" center hole, red handle

760K

Cord

0.100" center hole, black handle, locking

S760K

Cord

0.080" center hole, black handle, locking

Power/Jacks Plugs Series

700, S700, 800 Cord & Panel Style Series

Low power AC to DC power jacks
and plugs are used throughout the
audio industry, to power a wide
variety of products. Switchcraft offers
both cord plug and panel mount
versions, including locking and
non-locking versions.

Specifications - Plugs

Electrical:

Current (Carry): 5 amps

Materials

Plug Sleeve and Pin: Nickel-plated

copper alloy

Lock Ring: Nickel-plated copper

alloy

Lock Ring Thread Size: 5/16" -

32 UNEF 2B

Finger Insulator: Molded plastic
Insulating Washers: Rigid plastic
Sleeve Terminal: Copper alloy,

electro-tinned

Handle: Molded plastic
Handle Thread Size: 5/16" -

24 UNF 2B

Specifications - Jacks

Mechanical

Life: 10,000 insertion/withdrawal

cycles minimum

Insertion/Withdrawal Forces:

3 pound insertion (maximum),
4 ounce minimum withdrawal

Electrical

Contact Resistance: .01 ohms

maximum (initial), .02 ohms
maximum (after humidity,
durability exposure), .1 ohms
maximum (after salt spray)

Insulation Resistance: 10,000

MW minimum (initial), 1,000 MW

minimum (after humidity,

durability exposure)

Dielectric Withstanding Voltage:

500 VAC maximum

Contact Rating: 5A, 12 VDC

resistive

Materials

Housing: Molded plastic
Mounting Bushing and Hex Nut:

Plated copper alloy

Pin, Spring and Terminals: Plated

copper alloy

Insulators: Rigid plastic
Hardware: Supplied with one

Number P2439 nickel-plated
brass hex nut, and one Number
P2441 nickel-plated steel flat
washer

760K

712A

760

See Next Page for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

DIMENSIONS ARE FOR REFERENCE ONLY

Inch

(mm)

Plug Series

Littel 1/4", Right Angle 1/4", Silent, Super Heavy Duty Plug Series

Switchcraft Littel Plugs all feature
one-piece tip rods for added strength
and durability. All are offered in a
wide variety of configurations,
including straight, right angle, shielded,
screw or solder terminals. The
Heavy Duty Speaker plugs have
larger cable clamps and are rated at
15A. The Silent plugs have a unique
circuit-closing device which stops
hums, pops, and squeals when the
plug is removed or inserted from
the jack. Miti plugs feature heavy
duty brass construction, rugged
cable clamps, and spring flex reliefs.
All plugs meet EIA standards for tip
configuration, which ensures you
they mate properly with the jack.

Specifications

Electrical

Contact Resistance (typical De-

pends on Mating Jack):
< 0.020 ohms

Dielectric Withstand Voltage: 500

VAC (minimum)

Insulation Resistance @ 500 VDC:

2,000 megohms (minimum)

Insulation Resistance (after

Mil-Std-202 Salt Spray): 1,000
megohms (minimum)

Working Voltage: 250 VAC, 140

VDC

Insert/Withdrawal Force:

Depends on Mating Jack

Soldering Requirement:

ANSI/J-Std-001

Temperature Range: -40˚C to

+85˚C

U.L. Component Recognition File

No: E118169

Life: Depends on Mating Jack

Materials

Tip: Nickel-plated copper alloy
Sleeve: Nickel-plated copper alloy
Handle: Nickel-plated copper alloy
Tip Terminal: Copper alloy,

electrotin-plated

Cable Clamp: Copper alloy,

electro-tinplated

226

187

250

184

280

181

174S

See Next Page for Ordering Information

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

Ordering Information

Typical

Part No.

Conductors

Terminals Mating Jack

Handle

Notes

1/4"" Littel Plug Series

240

Screw

Black

245

Screw

Red

250

Solder

Black

260

Screw

Black

270

Screw

Black

280

Solder

Shielded

281

Solder

Shielded

Unassembled

580

Solder

Shielded

Diecast handle

285

Solder

Shielded

Unassembled

285L

Solder

Shielded

Larger cable clamp

267

Solder

12B

Black

290

Screw

12B

Shielded

297

Solder

12B

Shielded

299

Solder

12B

Shielded

Diecast handle

Heavy Duty Speaker Plugs

184

Solder

11 or Z15J

Shielded

Accepts Cable OD up to .375"

188

Solder

11 or Z15J

Shielded

Accepts Cable OD up to .450"

187

Solder

11 or Z15J

Shielded

Accepts Cable OD up to .330"

187B

Solder

11 or Z15J

Shielded

Black Handle, accepts Cable

OD up

to .330"

Right Angle 1/4" Plugs

226

Solder

Shielded

228

Solder

Shielded

Flat handle

236

Solder

12B

Shielded

238

Solder

12B

Flat handle

Silent Plug

172

Screw

Shielded

181

Solder

Shielded

Miti Plugs

174S

Solder

11 or Z15J

Shielded

Brass finish, spring flex relief

Plug Series

See Pages 88-89 for Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

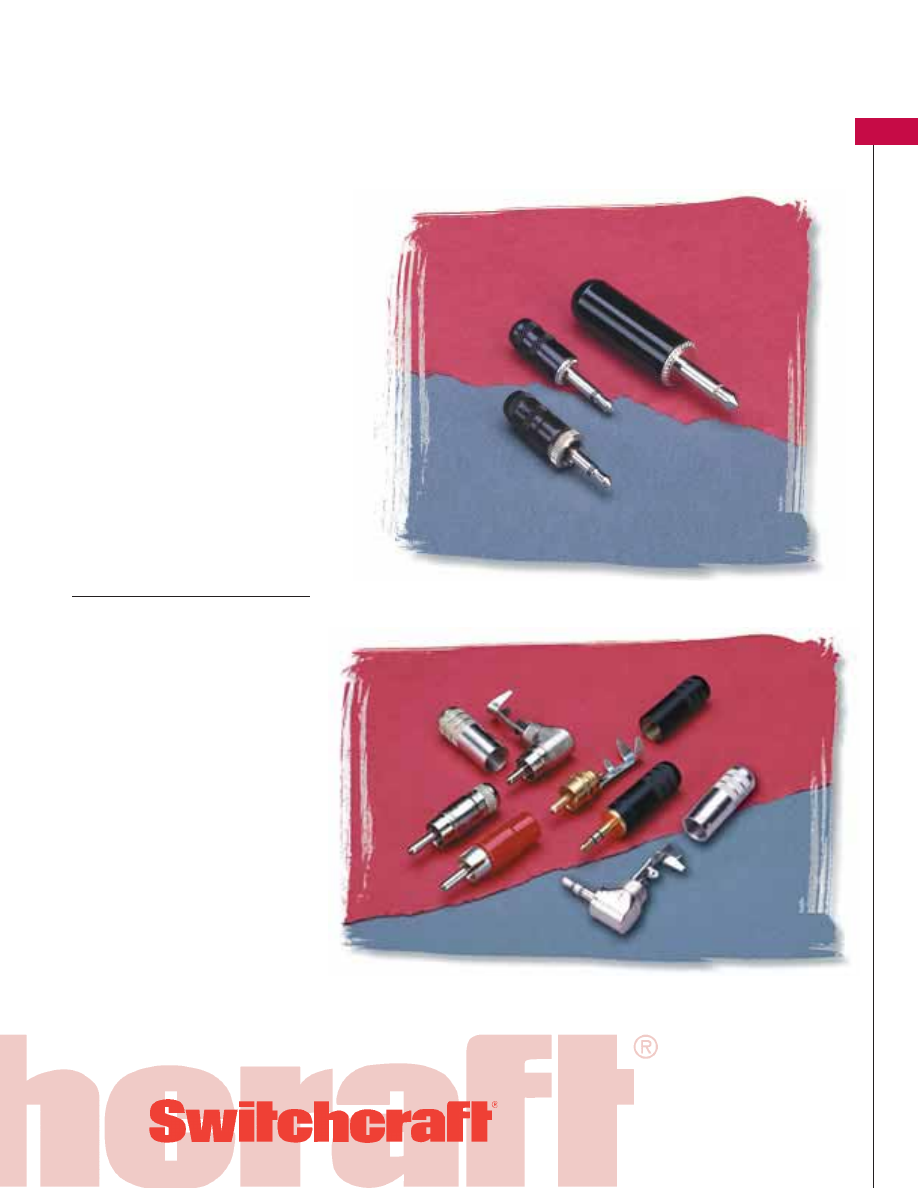

Plug Series

Tini, Micro, 3.5mm Stereo, Right Angle 3.5mm Stereo, Phono,

Right Angle Phono Plugs Series

Switchcraft offers a wide variety
of Tini, Micro, 3.5mm, and RCA or
Phono plugs. Tini plugs are 2
conductor plugs with plug finger
diameters of .141" or 3.57mm.
Micro plugs are 2 conductor plugs
with plug finger diameters of .097"
or 2.47mm. Our 35HD Series are
true 3.5mm plugs, available in both
straight and right angle versions;
and available only in 3 conductor.
The RCA or Phono plugs come with
either hollow pins or solid pins. The
3502 offers hollow pins and stan-
dard size handle, the 3502L offers
the same pin, but with a larger han-
dle, accommodating cables up to
.290". The 3502A and 3502RA
Series offer solid pins and the larger
cable clamps and handles. The 3558
Series offers a low cost alternative,
with hollow pins and plastic handles.

Specifications

Mechanical

Life rating: 5,000 insertion/

withdrawals

Insertion/Withdrawal Force: 1 lb

(depending on mating jack)

Electrical

Insulation Resistance:

> 100 megohms

Dielectric Withstanding Voltage:

250 VAC

Environmental

Thermal Range: -55˚C to +85˚C

(non operating); -20˚C to 65˚C
(operating)

Thermal Shock: Mil-Std 202,

method 107

Humidity: Mil-Std 202,

method 106

Salt Spray: Mil-Std 202,

method 101

(continued on next page)

750

850

851

3502ABAU

3502

3502RA

35HDBAU

35HDNN

35581

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

Ordering Information

Typical

Part No.

Conductors

Terminals

Mating Jack

Handle

Notes

Tini-Plug (.141")

740

Screw

Black

750

Solder

Black

755

Solder

Red

780

Solder

Shielded

Micro-Plugs (.097")

850

Solder

TR2A

Black

855

Solder

TR2A

Red

851

Solder

TR2A

Black

Locking version

880

Solder

TR2A

Shielded

881

Solder

TR2A

Shielded

Locking version

3.5mm Stereo Plugs

35HDNN

Solder

Shielded

35HDBAU

Solder

Black Shielded

Gold-plated finger

35HDNAU

Solder

Shielded

Gold-plated finger

3.5mm Right Angle Stereo Plugs

35HDRANN

Solder

Shielded

35HDRABAU

Solder

Black Shielded

Gold-plated finger

35HDRAAU

Solder

Shielded

Gold-plated finger

Phono Plugs

3502

Solder

3501FP

Shielded

Hollow Pin

3502A

Solder

3501FP

Shielded

Large cable clamp, solid pin

3502AAU

Solder

3501FP

Shielded

Gold-plated finger

3502ABAU

Solder

3501FP

Black shielded

Gold-plated finger

3502L

Solder

3501FP

Shielded

Hollow pin, large cable clamp

35581

Solder

3501FP

Red

Plastic handle

35582

Solder

3501FP

Black

Plastic handle

35585

Solder

3501FP

White

Plastic handle

Right Angle Phono Plugs

3502RA

Solder

3501FP

Shielded

3502RABAU

Solder

3501FP

Black Shielded

Gold-plated finger

3502RAAU

Solder

3501FP

Shielded

Gold-plated finger

Plug Series

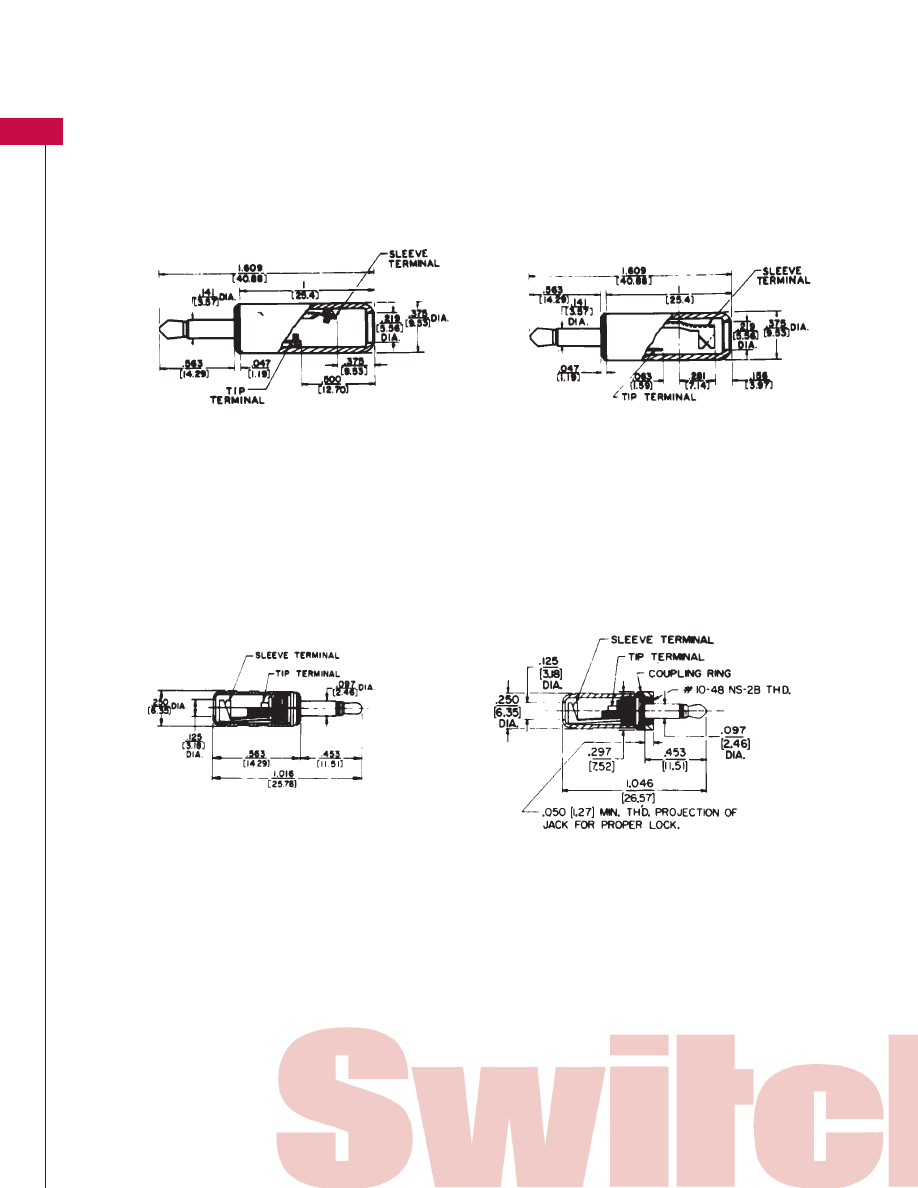

See Pages 90-92 for Mechanical Drawings

Materials

Tip, Rod and Body (also integral

coupling collar on lock micro-plug):
Nickel-plated copper alloy

Insulation: Molded thermoplastic
Sleeve Termination and Cable

Clamp: Tinned copper alloy

Handle: Nickel-plated copper

alloy, or anodized aluminum,
or thermoplastic. See factory
for details.

* Please visit the product pages on our website for the most up-to-date product information

JACKS & PLUGS

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

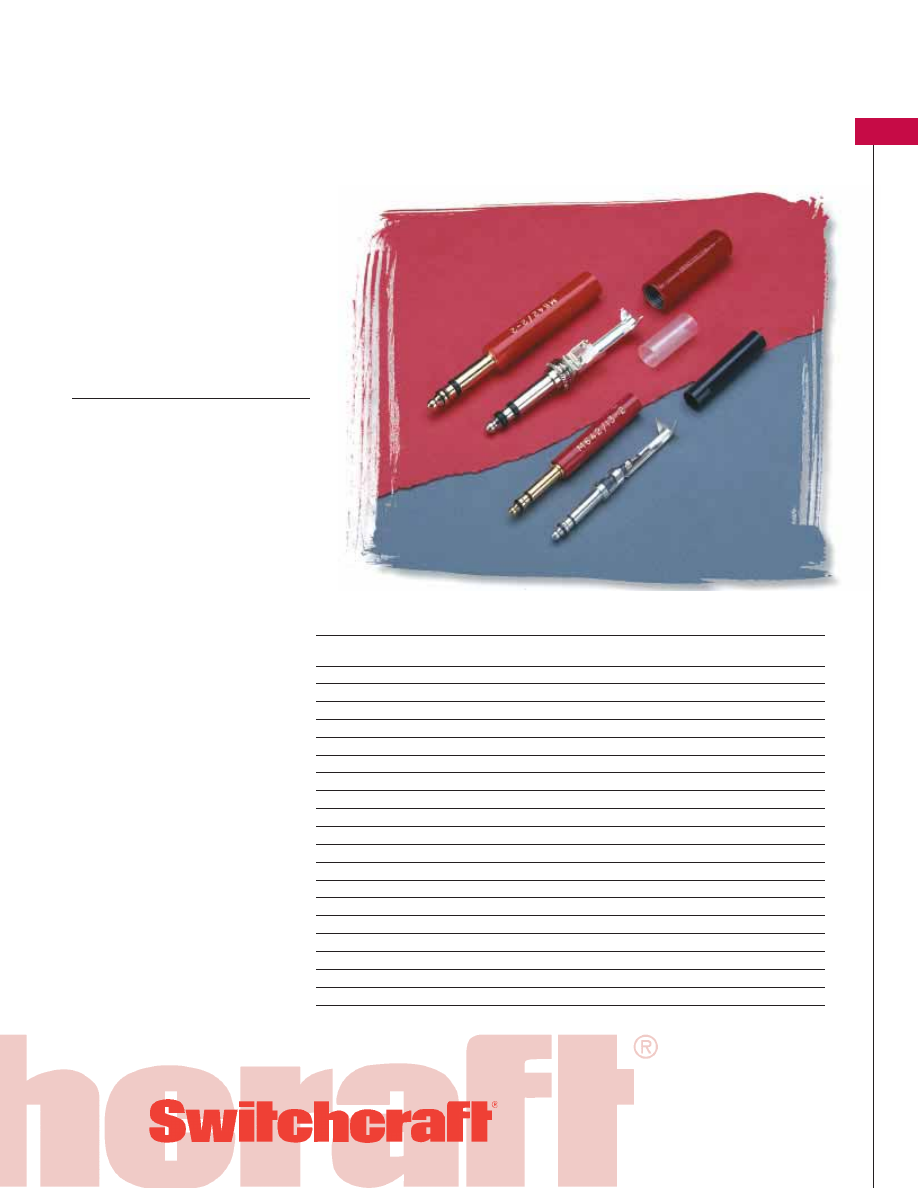

Plug Series

TT or Bantam, Mil-Style 1/4" Plugs Series

Switchcraft leads the industry when
developing innovative TT and MT
Style plugs. Our “N” version plugs
offer nickel-plated plug fingers to
reduce tarnishing and corrosion.
Our “NC” version plugs not only
offer nickel-plated plug fingers, but
also large, easy to use solder cups
and terminals, plus easy to use
cable clamps that really secure your
cable to the plugs.

Specifications

Materials

Tip Rod, Body and Screws:

Copper alloy, natural finish

Terminals (NC Version): Tinned

copper alloy

Insulation: Thermoplastic, per

Mil-P-22985, Type II, Class 1

Handles: Thermoplastic, Type 6,

per Mil-M-20693, Type II

Shielded (NC Version): Machined

from copper alloy, nickel-plated

482

482NC

TT253NC

TT254

Ordering Information

Part No.

Conductors

Terminals

Handle

Notes

TT or Bantam Plugs

TT253

Screw

Black

TT253N

Screw

Black

Nickel-plated finger

TT253NC

Solder

Black

Nickel-plated finger

TT254

Screw

Red

TT254N

Screw

Red

Nickel-plated finger

TT254NC

Solder

Red

Nickel-plated finger

Mil-Style 1/4 Plugs

480

Screw

Black

0.206" OD

482

Screw

Red

482N

Screw

Red

Nickel-plated finger

482NC

Solder

Red Shielded

Nickel-plated finger

482NCP

Solder

Red

Nickel-plated finger

483

Screw

Black

483N

Screw

Black

Nickel-plated finger

483NC

Screw

Black Shielded

Nickel-plated finger

483NCP

Solder

Black

Nickel-plated finger

484

Screw

Red

0.206" OD

485NC

Solder

Shielded

Nickel-plated finger

See Page 93 for
Mechanical Drawings

* Please visit the product pages on our website for the most up-to-date product information

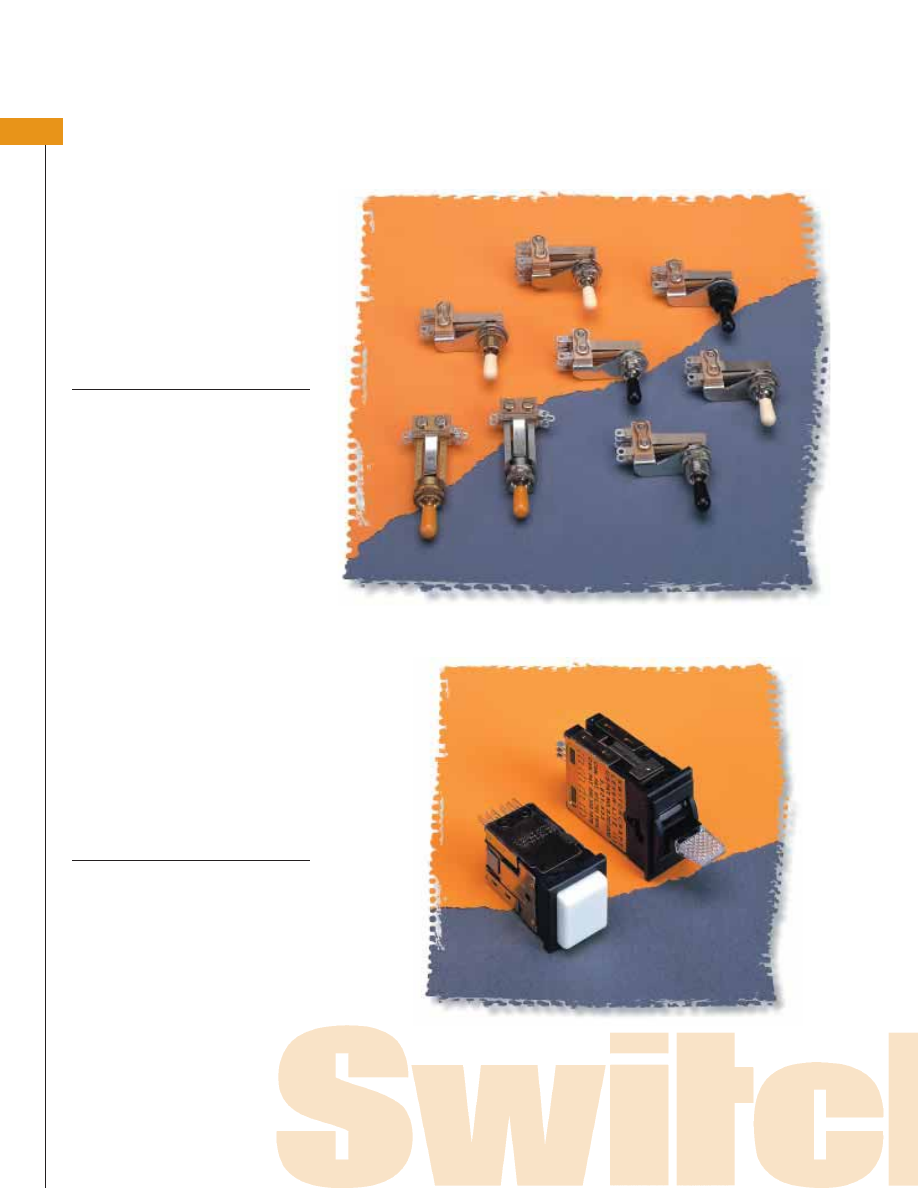

Switch Series

Guitar and Knobs, and Broadcast Switch Series

SWITCHES

The 12000 Series switches are
premium grade switches used
primarily in guitars as pick-up
switches. The largest names in the
industry rely on our switches for
quality and durability. Our 84000
Series and PL Series switches are
used in broadcast studios, theater
lighting, anywhere large illuminated
switches are needed.

Specifications - 12000 Series

Electrical

Contact Ratings: Fine silver contacts

rated at 3A, 300W maximum
AC non-inductive load standard.
Other contacts available

Leakage Resistance: 1,000 MW

or greater

Dielectric Strength: 250 VDC

Materials

Frame: Copper alloy, plated

(3,000, 13,000); Steel, plated
(12,000)

Bushing and Shaft: Copper alloy,

plated

Springs: Copper alloy
Knob: Black molded thermoplastic
Mounting Hardware: Knurled copper

alloy locknut T10711, supplied.
P10531 hex locknut, special
order

Insulation: Rigid plastic spacers

with plastic tubing through
stack. Rigid plastic and/or
thermoplastic lifters. Thermoplas-
tic cam on actuator end

Specifications - 8400 Series

Electrical

Temperature Range: -22˚F to

158˚F (-30˚C to +70˚C)

Dielectric Strength: 1 kV DC
Leakage Resistance: 1,000 MW

or greater

Materials

Mounting/Retaining Clips and

Covers: Steel, plated

Contact Ratings: Gold crossbar

rated at 1A, 200W Maximum
AC non-inductive loads

(continued on next page)

12011

12010

12017

12013

12014

12012

12015

12016

Note: Knobs must be ordered separately.

84206L

PL106205

* Please visit the product pages on our website for the most up-to-date product information

SWITCHES

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

w w w . s w i t c h c r a f t . c o m

Ordering Information

Part Number

Circuitry

Description

Guitar Switches

12010

SPST(NC)/SPST(NC)

Straight, nickel finish, riveted silver contacts

12011

SPST(NC)/SPST(NC)

Straight, bright brass finish, riveted silver contacts

12012

SPDT(non-shorting)/SPST(NC)

Right angle, nickel finish, welded silver contacts

12013

SPST(NC)/SPST(NC)

Right angle, nickel finish, welded silver contacts

12014

SPST(NC)/SPST(NC)

Right angle, black finish, welded silver contacts

12015

DPDT(NC)/DPDT(NC)

Right angle, nickel finish, welded silver contacts

12016

SPST(NC)/SPST(NC)

Right angle, bright brass finish, riveted silver contacts

12017

SPST(NC/SPST(NC)

Right angle, nickel finish, welded gold contacts

Knobs

T12742

Black

T12745

White

T127410

Ivory

P2912

Amber

Broadcast Switches

84206L

DPDT

2 Position, locking

84306L

SPDT(non-shorting) both sides

3 Position, locking

84312L

DPDT both sides

3 Position, locking

84324L

DPDT both sides

3 Position, locking

K131

Filter kit, 3 of ea. (amb, blu, grn, red, wht, and yel)

PL106205

DPDT

Momentary, single lamp

PL206205

DPDT

Momentary, twin lamp

PL106705

DPDT

Push-lock/Push-release, single lamp

PL206705

DPDT

Push-lock/Push-release, twin lamp

Switch Series

See Next Page for Mechanical Drawings

(continued from previous page)

Springs: Copper alloy, plated
Lamp Terminals: Copper alloy, plated
Lamp Socket: Zinc, plated
Terminals: Copper alloy, plated,

straight solder lugs

Housing, Escutcheon, Knob,

Actuator and Switching Stacks
Insulation: Molded plastic

Specifications - PL Series

PUSH-LITE Switches Series and

PL Indicators

Contacts

Welded crossbar Gold Alloy,

rated at 2 amps., 200 watts
max., AC non-inductive load.

Electrical

6,000 Minimum Life (Gold

Alloy Contacts) per UL 1054.

Materials

Push-Lite Switch Assemblies:

Housing, Lifters, Switch Modules,

Barriers and Pushbuttons:
Molded Plastics

Contacts Springs: Phosphor

Bronze, Silver Plated

Lamp Terminals: Brass, Silver plated
Lamp Socket, Light Divider and

Yoke Assembly: Nickel Silver

Mounting Bracket and Retaining

Clips: Steel with iridescent
iridite over Cadmium Plating

Series PL Pushbuttons:

Housing, Color Filter Inserts and

Display Screens: High impact
thermoplastic

PL Indicators:

Housing: Molded glass filled

Plastics

Mounting Bracket: Steel, irides-

cent over cadmium Plating.

Lamp Retainer and Terminals:

Nickel Silver.

Display Screen (Pushbutton):

Molded Plastics.

* Please visit the product pages on our website for the most up-to-date product information

INDEX

05AD05 .........................45
05AK05..........................45
05AK25..........................45
05AN05 .........................45
05AN15 .........................45
05AN25 .........................45
05AN80 .........................45
05AU05 .........................45
05AU80 .........................45
05BL5M ........................53
05DL5M ........................53
05GM5M.......................53
10BF10..........................45
10BK10..........................45
10BN10 .........................45
11...................................66
111 ................................66
112B ..............................66
113BPC1M....................66
114B ..............................66
114BPC .........................66
114BPC1M....................66
114BPCS.......................66
120 ................................66
12010 ............................95
12011 ............................95
12012 ............................95
12013 ............................95
12014 ............................95
12015 ............................95
12016 ............................95
12017 ............................95
121 ................................66
1238 ..............................66
125 ................................68
128 ................................66
12A ................................66
12B ................................66
131 ................................66
133 ................................66
142A ..............................68
14B ................................66
151 ................................68
152 ................................68
152B ..............................68
153 ................................68
154 ................................68
155 ................................68
15AK15..........................45

172 ................................84
174S ..............................84
181 ................................84
184 ................................84
187 ................................84
187B ..............................84
188 ................................84
18QD18.........................45
18QF18 .........................45
18QH18.........................45
20QD20N ......................45
20QF20N.......................45
20QH20N ......................45
226 ................................84
228 ................................84
236 ................................84
238 ................................84
240 ................................84
245 ................................84
250 ................................84
2501F ............................53
2501M...........................53
2501MP.........................53
25AF25..........................45
25AK25..........................45
25AK82..........................45
25AN25 .........................45
260 ................................84
267 ................................84
270 ................................84
280 ................................84
281 ................................84
285 ................................84
285L ..............................84
290 ................................84
297 ................................84
299 ................................84
30AK30..........................45
30AN30 .........................45
30AR30 .........................45
321 ................................63
322 ................................63
323 ................................63
324 ................................63
330F1 ............................64
330F2 ............................64
330P ..............................64
332A ..............................64
336A ..............................64

340 ................................64
345A ..............................64
349A ..............................64
3501FP ..........................70
3501FR..........................70
3502 ..............................86
3502A............................86
3502AAU.......................86
3502ABAU ....................86
3502L ............................86
3502RA .........................86
3502RAAU ....................86
3502RABAU..................86
3503 ..............................70
3514PC..........................70
3517PC..........................70
352A ..............................64
35581 ............................86
35582 ............................86
35585 ............................86
35HDBAU .....................86
35HDNAU .....................86
35HDNN........................86
35HDRAAU...................86
35HDRABAU ................86
35HDRANN...................86
35PM1...........................68
35PM2A ........................68
35RAPC2AV ..................68
35RAPC2BH3 ...............68
35RAPC3BH3 ...............68
35RAPC4BH3 ...............68
35RAPC7J.....................68
35RAPC7JS...................68
361A ..............................64
362A ..............................64
363 ................................64
365 ................................64
370A ..............................64
374 ................................64
376 ................................64
377 ................................64
383A ..............................63
384A ..............................63
386A ..............................63
387A ..............................63
389 ................................63
390 ................................63
41...................................68

42A ................................68
44...................................64
480 ................................87
482 ................................87
482N..............................87
482NC ...........................87
482NCP .........................87
483 ................................87
483N..............................87
483NC ...........................87
483NCP .........................87
484 ................................87
485NC ...........................87
516-090-000-301...........20
516-090-000-302...........20
516-120-000-101...........20
516-120-000-102...........20
516-290-500 ..................20
516-290-590 ..................20
57GB5F .........................53
57PC5F..........................53
57PC5FS .......................53
580 ................................84
712A ..............................71
722A ..............................71
732A ..............................71
740 ................................86
750 ................................86
755 ................................86
760 ................................71
760K ..............................71
765 ................................71
780 ................................86
80...................................66
830 ................................66
84206L ..........................95
84306L ..........................95
84312L ..........................95
84324L ..........................95
850 ................................86
851 ................................86
855 ................................86
860 ................................71
865 ................................71
88...................................66
880 ................................86
881 ................................86
A*F ................................46
A*FB..............................46

* Please visit the product pages on our website for the most up-to-date product information

INDEX

w w w . s w i t c h c r a f t . c o m

5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129

A*FBAU ........................46
A*FL ..............................46
A*M...............................46
A*MB ............................46
A*MBAU.......................46
A*ML ............................46
AA*F..............................46
AA*FB ...........................46
AA*FBAU......................46
AA*FL ...........................46
AA*M ............................46
AA*MB..........................46
AA*MBAU ....................46
AA*ML ..........................46
AAA*FBAUZ .................46
AAA*FBZ ......................46
AAA*FPBAUZ ...............46
AAA*FPBZ ....................46
AAA*FPZ.......................46
AAA*FZ .........................46
AAA*MBAUZ................46
AAA*MBZ .....................46
AAA*MPBAUZ .............46
AAA*MPBZ...................46
AAA*MPZ .....................46
AAA*MZ .......................46
B*F ................................47
B*FB..............................47
B*M...............................47
B*MB ............................47
BPJF**..........................70
BPJF**AU.....................70
BPJJ** ..........................70
BPJJ**AU.....................70
BPJR** .........................70
BPJR**AU ....................70
C*F ................................47
C*FB..............................47
C*M...............................47
C*MB ............................47
D*F................................47
D*FB .............................47
D*FBAU ........................47
D*FS..............................47
D*M ..............................47
D*MB............................47
D*MBAU.......................47
D*MS ............................47
E111L ............................68

E112BL..........................68
E3FSC ...........................47
E3FSCB .........................47
E3FSCBAU....................47
E3MSC ..........................47
E3MSCB .......................47
E3MSCBAU ..................47
EH13942 .......................52
EHBNC2........................52
EHBNCSC .....................52
EHCAT62.......................52
EHRCA2 ........................52
EHRCABNC ..................52
EHUSB2 ........................52
HP75BNC1....................54
HP75BNC12..................54
HP75BNC2....................54
HP75BNC7....................54
HP75BNC9....................54
HPCC4F.........................51
HPCC4RAF....................51
HPCI4F ..........................51
HPCP410PC..................50
HPCP410RA..................50
HPCP41F.......................50
HPCP41F1.....................50
HPCP420PC..................50
HPCP420RA..................50
HPCP42F.......................50
HPCP42F1.....................50
HPCPK112F ..................30
HPCPK112F1 ................30
HPCPK1B ......................30
HPCPK324F ..................30
HPCPK324F1 ................30
HPCPK3B ......................30
HPCPR410PC ...............50
HPCPR41F ....................50
HPCPR41F1 ..................50
HPCPR420PC ...............50
HPCPR42F ....................50
HPCPR42F1 ..................50
J3FS ..............................48
K131 ..............................95
K3FS ..............................48
K459 ................................4
K460 ................................4
MBPK175T....................43
MD10 ............................45

MD15 ............................45
MD3 ..............................45
MD6 ..............................45
MT334B ........................70
MT48FN ........................26
MT48HN .......................26
MT48K1FN....................24
MT48K1HN ...................24
MT48K1NN ...................24
MT48K1NS....................24
MT48K3FN....................24
MT48K3HN ...................24
MT48K3NN ...................24
MT48NN .......................26
MT48NS........................26
MT52FN ........................26
MT52HN .......................26
MT52K1FN....................24
MT52K1HN ...................24
MT52K1NN ...................24
MT52K1NS....................24
MT52K3FN....................24
MT52K3HN ...................24
MT52K3NN ...................24
MT52NN .......................26
MT52NS........................26
MTP24K7 ......................18
MTP48K1NO.................14
MTP48K1NS .................14
MTP48K3BPNS ............18
MTP48K3NO.................14
MTP48K3NS .................14
MTP48K3PBNO............18
MTP48K3SNO ..............14
MTP52K3BPNO............18
MTPFA48K1NO ..............8
MTPFA48K1NS ...............8
MTPH48K1NO ................5
MTPH48K1NS.................5
MTPH48K3NO ................5
MTPH48K3NS.................5
MTPH48K3SNO..............5
MVEZNPK175T.............42
MVJ*75T.......................39
MVJ*NT ........................39
MVP32K1*75T..............37
MVP32K1*NT ...............37
MVP32K2*75T..............37
MVP32K2*NT ...............37

MVP32K3*75T..............37
MVP32K3*NT ...............37
P*F ................................48
P*FB..............................48
P*M...............................48
P*MB ............................48
P2912 ............................95
PC142A .........................68
PD3FSC1.......................48
PD3FSC1AU .................48
PD3MSC1 .....................48
PD3MSC1AU ................48
PL106205......................95
PL106705......................95
PL206205......................95
PL206705......................95
PT1LA..............................4
PT2B................................4
QGPK116FB..................32
QGPK116MB ................32
QGPK18M8FB ..............32
QGPK1B........................32
QGPK332MFB ..............32
QGPK3B........................32
R*FBAUZ ......................48
R*FBZ ...........................48
R*FZ ..............................48
R*MBAUZ.....................48
R*MBZ ..........................48
R*MZ ............................48
RA49B11.......................66
RA49C14B ....................66
RN112APC ....................66
RS422H48N081............12
RS422H4N161 ..............12
RS422H4N162 ..............12
RS422H4N242 ..............12
RS422V4N081 ..............12
RS422V4N161 ..............12
RS422V4N162 ..............12
RS422V4N242 ..............12
RS422V4N322 ..............12
S3F5M...........................63
S3FM.............................63
S5F3M...........................63
S760 ..............................71
S760K............................71
S765 ..............................71
T127410 ........................95

* Please visit the product pages on our website for the most up-to-date product information

INDEX

100

T12742 ..........................95
T12745 ..........................95
T3F ................................48
TA*F ..............................49
TA*FB............................49
TA*FL ............................49
TA*M.............................49
TA*MB ..........................49
TA*ML...........................49
TA01 ..............................63
TA02 ..............................63
TA04 ..............................63
TA05 ..............................63
TB*M ............................49
TB*MB ..........................49
TT1 ................................45
TT10 ..............................45
TT122 ............................45
TT124 ............................45
TT126 ............................45
TT127 ............................45
TT128 ............................45
TT2 ................................45
TT253 ............................87
TT253N..........................87
TT253NC .......................87
TT254 ............................87
TT254N..........................87
TT254NC .......................87
TT3 ................................45
TT34B............................70
TT34BN .........................81
TT34BNY.......................70
TT4 ................................45
TT5 ................................45
TT6 ................................45
TT7 ................................45
TT8 ................................45
TT9 ................................45
TT96EDACNO...............20
TT96EDACNS ...............20
TTD1..............................45
TTD10............................45
TTD2..............................45
TTD3..............................45
TTD4..............................45
TTD5..............................45
TTD6..............................45
TTD7..............................45

TTD8..............................45
TTD9..............................45
TTEZN****0 .................10
TTP96ASFN...................28
TTP96ASHN..................28
TTP96ASNN..................28
TTP96K1FN ...................22
TTP96K1HN ..................22
TTP96K1NN ..................22
TTP96K3BPNS ..............18
TTP96K3FN ...................22
TTP96K3HN ..................22
TTP96K3NN ..................22
TTP96K5BPNS ..............18
TTPFA96K1NO................8
TTPFA96K1NS ................8
TTPH96K1NO .................5
TTPH96K1NS ..................5
TTPH96K3NO .................5
TTPH96K3NS ..................5
TTPW96K1HN...............16
TTPW96K1NN...............16
TTPW96K1NS ...............16
TTPW96K3HN...............16
TTPW96K3NN...............16
TTPW96K3NS ...............16
TY*F ..............................49
VAPK1HD*75T..............40
VAPK1HD*NT ...............40
VAPK1SD*75T ..............40
VAPK1SD*NT................40
VAPK3HD*75T..............40
VAPK3HD*NT ...............40
VAPK3SD*75T ..............40
VAPK3SD*NT................40
VJHD*75TX...................36
VJHD*NTX ....................36
VJSD*75TX ...................36
VJSD*NTX ....................36
VMAFN..........................40
VMPP ............................44
VMVHD*75T.................40
VMVHD*NT ..................40
VMVSD*75T .................40
VMVSD*NT...................40
VPP24K1HD*75T..........34
VPP24K1HD*NT ...........34
VPP24K1SD*75T ..........34
VPP24K1SD*NT ...........34

VPP24K3HD*75T..........34
VPP24K3HD*NT ...........34
VPP24K3SD*75T ..........34
VPP24K3SD*NT ...........34
VPP26K1HD*75T..........34
VPP26K1HD*NT ...........34
VPP26K1SD*75T ..........34
VPP26K1SD*NT ...........34
VPP26K3HD*75T..........34
VPP26K3HD*NT ...........34
VPP26K3SD*75T ..........34
VPP26K3SD*NT ...........34
VSPP..............................44
WMT334B.....................70
WTT34B ........................70
YMT334BN ...................70
Z15J...............................66

* Please visit the product pages on our website for the most up-to-date product information
