Diotec Products for TV-Applications

Version 2005-07-04

Diotec

Products

for TV-Applications

„Clamper/Damper“ Diodes

Horizontal Deflection

East-West Correction etc

Standard Rectifier

(Ultra-)Fast Rectifier

High Voltage Rectifier

Input Rectification

Bridge Rectifier

Output Rectification

(Ultra-)Fast Rectifier

Schottky Rectifier

Signal Processing

Small Signal Diodes

Schottky Diodes

Zener Diodes

Transistors

http://www.diotec.com/

Diotec Products for TV-Applications

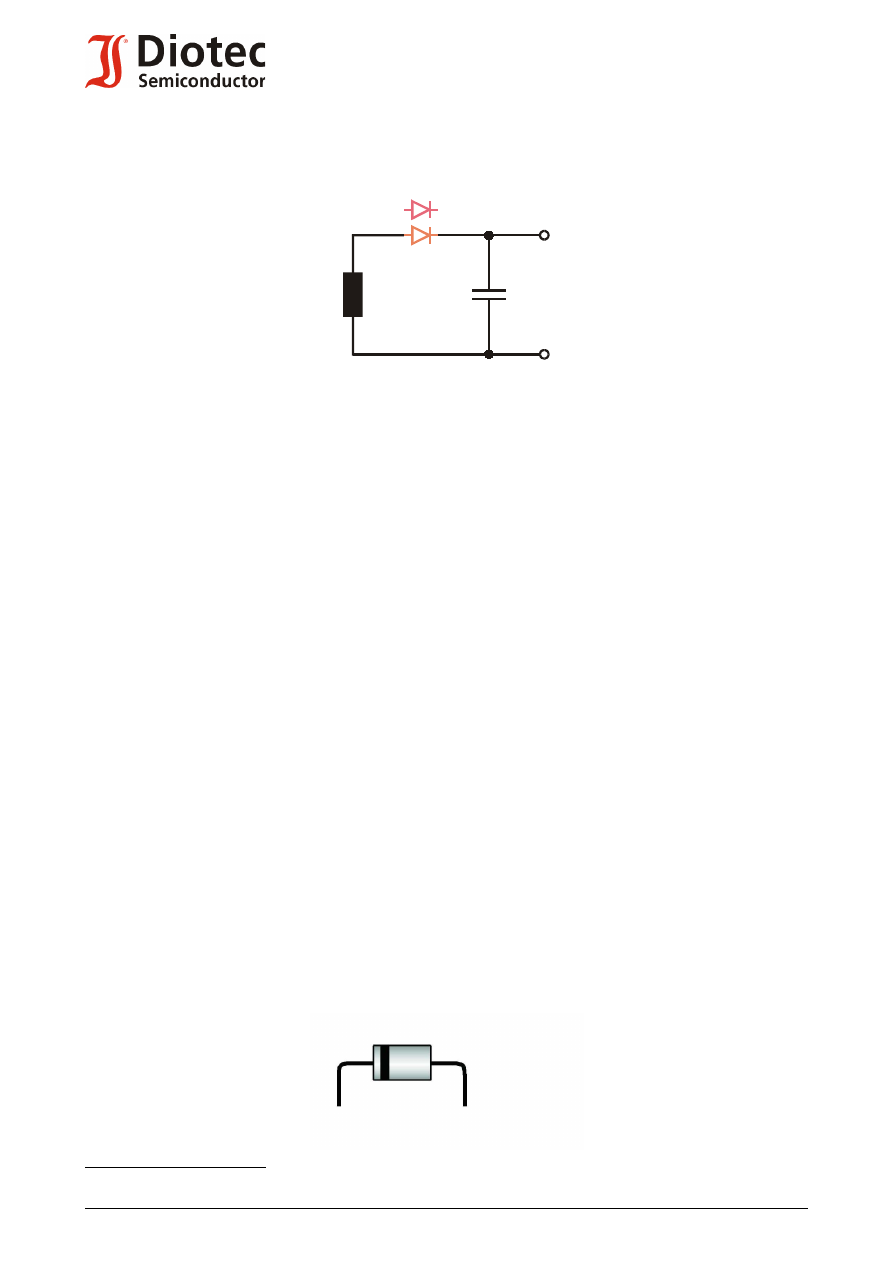

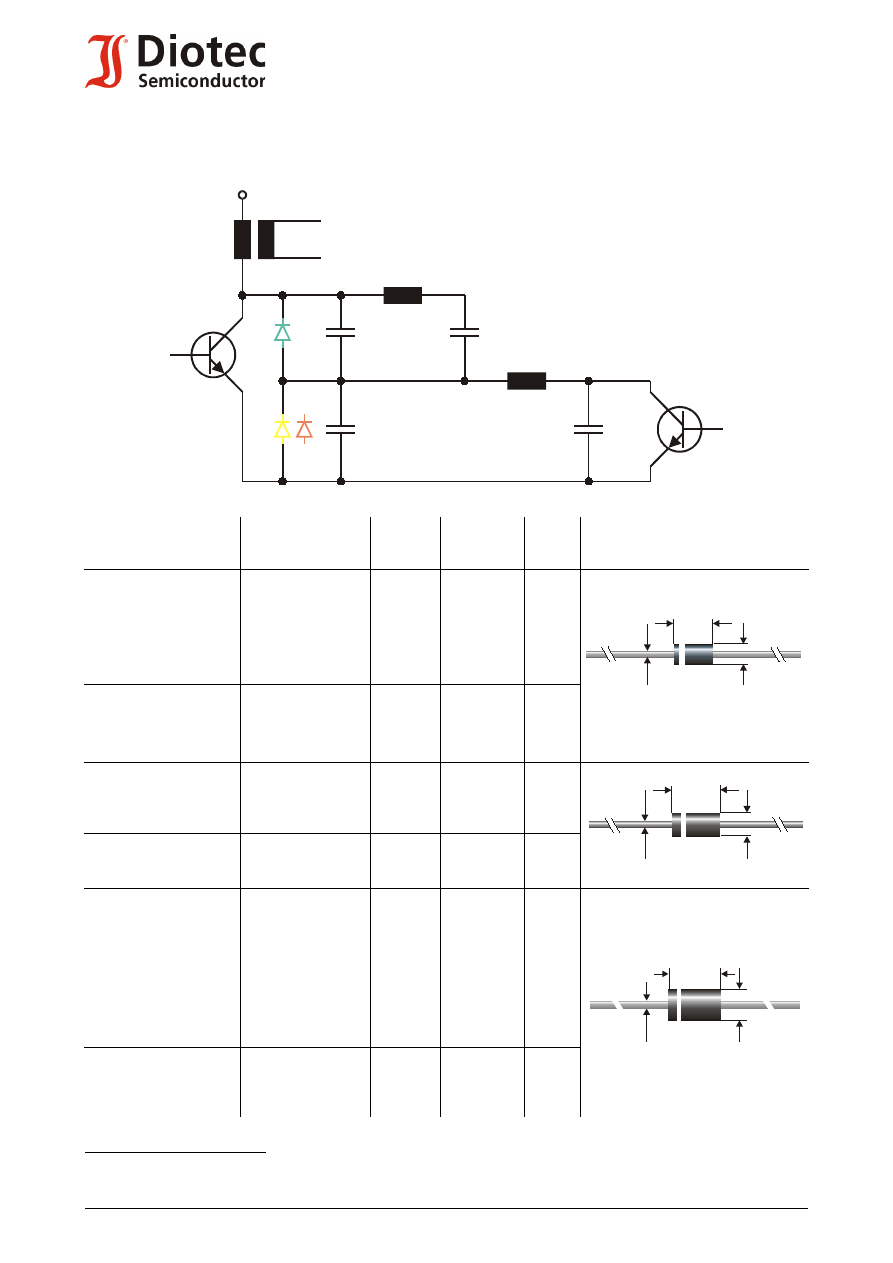

„Clamper/Damper“ Diodes for Horizontal Deflection,
East-West Correction and similar applications

Industry

Part #

Diotec

Part #

)

FAV

[A]

RRM

[V]

[ns]

Package – Gehäuse

RH2D, ERB06-13

1N4007-1300

BY133

CGP/DGP15, RH2F

RH10F, ERB06-15

EM513

EM516/518

1.0

1300

1600

1.8/2 kV

typ.

1500

BYW32/36

1N4935/37

BYV95B

BYV95BP

BYV36 C/E

BYV36 CP/EP

1.0

200/600

<200

400

<300

600/1000

<50

DO-41/DO-204AL

1N5062

1N5062P

2.0

800

CGP20, DGP20,

BY228

BY228G

3.0

1600

typ.

1500

BYV97G

BYV97GP

1.0

1400

<500

BYV27-200

BYV27-200P

2.0

400

<35

DO-15/DO-204AC

BYM56E

BYM56EP

ERC/ERD07-13

BY255

CGP/DGP30, RH3F,

RH3G, RS3FS,

ERC/ERD07-15

BY448

BY1600

BY1800, BY2000

3.0

1000
1300

1600

1.8/2 kV

typ.

1500

BYW95 B/

BYW95 BP/CP

BYV28-200

BYV98-200

BYV28-200P

3.0

400/600

<250

200

<30

~DO-201

Datasheets see http://www.diotec.com/ - „Products“ or contact Diotec

Nearest Equivalent

http://www.diotec.com/

5.1

2.6

0.8

6.3

0.8

7.5

4.5

1.2

Diotec Products for TV-Applications

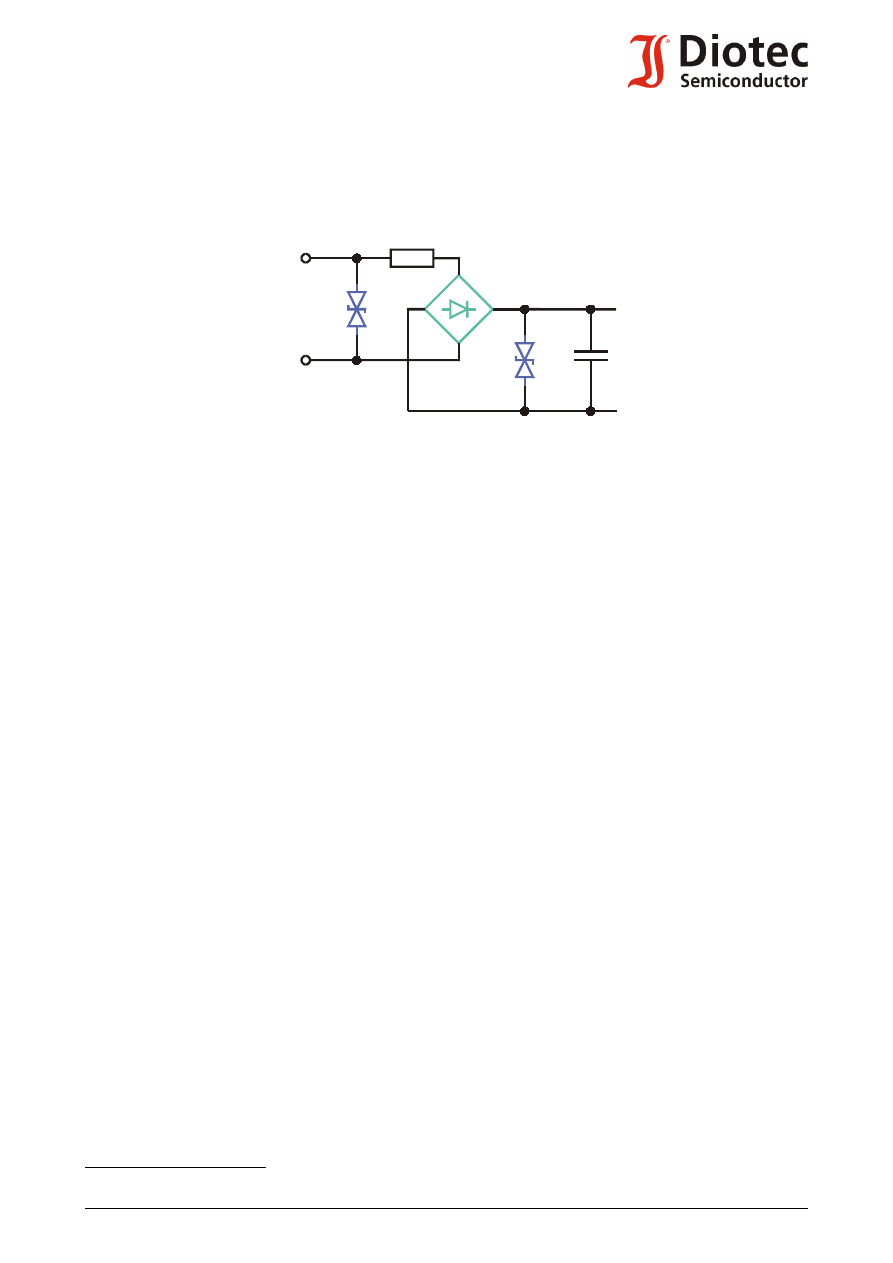

Input Rectification

TVS Diodes

AC side: protect the whole unit against voltage spikes from the mains, caused by lightning,
electrostatic discharge (ESD), fast switching transients, etc.
DC side: protect the rectifier bridge against voltage spikes caused by fast switching transients of
the following inverter stage
Dimensioning: the maximum occuring peak input voltage resp. the DC voltage must not exceed
the stand-off voltage of the device; it may be necessary to switch devices in series to achieve
higher voltage rating.

Types

Leaded: BZW04-…, P4KE…, BZW06-…, P6KE…, 1.5KE… , 5KP…; (400 bis 5000 W)
SMD: TGL34-… , TGL41…, P4SMAJ…, P6SMBJ…, 1.5SMCJ… ; (150 bis 1500 W)

Bridge Rectifier

Available as complete device but can also be formed by four single devices. Recommended values
for protective resistor Rt and load capacitor CL are given within the datasheet. Rt includes also
series resistance of transformer and leads, at small powers an additional device is therefore often
not necessary.

Types

Medium Power (1.5 to 25 A)
Single Inline:
B..C1500, B..C2300-1500; B..C3200-2200 to B..C7000-4000; GBS 4; GBU 4...12; GBI 10...25
Square, Wire Leads:
KBPC600, KBPC800, PB1000, PB1000S

High Power (10 to 50 A)
Square, Fast-on Connectors:
KBPC1000FP, KBPC1500FP to KBPC5000FP
Square, Wire Leads:
KBPC1000WP, KBPC1500WP to KBPC5000WP, KBPC2500I to KBPC3500I

Datasheets see http://www.diotec.com - "Products“

http://www.diotec.com/

230 V~

Diotec Products for TV-Applications

Output Rectification

Ultrasfast Rectifier,

Schottky Diodes

Leaded:

UF4001…7, UF5400…8, UF600…; (1 to 6 A)

SB120…1100, SB220…2100, SB320…3100, SB520…5100; SB820...8100 (1 to 8 A)

SMD:

EGL34…, EGL1…, SUF4001…7, US1…, US2…, US3…; (0.5 to 3 A)

SMS120…1100, SMS220…2100, SMS320...3100, SK12…110, SK32…310SMA, SK52…510, SK82…
810; (1 to 8 A)

Signal Processing

Small Signal Diodes,

Schottky Diodes,

Zener-Diodes

Leaded:

1N4148...1N4151; BAV18...BAV21;

SD101, SD103;

ZPD..

SMD:

LL4148...LL4151, BAW56, BAV70, BAV99, BAV100...BAV103;

LL101, LL103, BAS40, BAS70;

ZMM.., BZX84C..

Bipolar Transistors

Leaded:

BC327ff, BC546ff, MPSA05/06; MPSA55/66; MPSA42/43, MPSA92/93

SMD:

BC807ff; MMBTA05/06, MMBTA55/56; MMBTA42/43, MMBTA92/93

Customer specific solutions

Axial leaded diodes can be delivered with lead wires bent in various ways, please contact Diotec
or your local Diotec distributor.

Datasheets see http://www.diotec.com - "Products“

http://www.diotec.com/
