PRODUCT CATALOG

Military, Space and

Testing Equipment

trompeterproductcatalog-html.html

Aim-Cambridge has a universal line of products that offer cost effective, high quality solutions for
connectivity. Our connectors are available in BNC, Type N, F Type, RCA, UHF, Mini-UHF, TNC, D-Sub
and Modular Plugs for Data/Telecom applications. In addition, we stock a wide variety of cables for
A/V, SATV, CATV, computer and LAN applications, as well as a complete line of termination tools
and structured cabling products. AIM-Cambridge promises that its product will provide you with
unmatched consistency, quality, reliability and ease of use.

Johnson designs and manufactures an industry leading line of RF coaxial connectors and adapters,
which are available in both 50 and 75 ohm versions. Johnson connectors are designed to provide the
highest quality data transmission for audio, video and data applications. The Johnson line of products
can address frequency ranges from DC to 46GHz and all sizes from Ultra-miniature interfaces (UMC),
Micro-miniature, (MCX, MMCX, SMP), Subminiature (SMA, SMB, SMK, kwiQMAte™), Medium
connectors (Type N connectors) through to large connectors (DIN7/16). The breadth of products
available within the Johnson range includes board and cable mount connectors as well as semi-rigid,
conformable, and flexible RF coaxial cables.

Midwest Microwave manufacturers passive coaxial microwave components that are known for their
precision performance and high quality that meets the precise requirements of the RF/Microwave
industry. Our broad product portfolio includes: Attenuators, Precision Adapters, Terminations, DC
Blocks, Power Dividers, Couplers, Equalizers, Phase Shifters, Connectors, Custom Cable Assemblies
and Test Cables that are designed and manufactured for both military and commercial applications.

Midwest also offers a wide variety of Qualified Product List (QPL) approved products in the M3933,
M39030 and M39012 series, as well as many DESC/DSCC approved models.

Semflex designs and manufactures low loss, flexible, microwave coaxial cable and custom cable
assemblies for the military/aerospace, commercial OEM and test instrumentation markets. Semflex
offers cables ranging from DC to 50 GHz, available with ultra low insertion loss, power ratings up to
21 KW, and available with all popular connectors.

Stratos  optical  connectivity  products  is  globally  recognized  as  highly  reliable,  cost-effective,  and
provides optical connectivity solutions that are virtually immune to dust, mud, oil, water, and other
contaminants.
Our  expanded  beam  connectivity  products  are  ideal  for  harsh  environment  applications  in  the
broadcast,  industrial,  petrochemical  and  military/aerospace  markets  where  high  reliability,  low
maintenance and quick serviceability are critical requirements. Our optical active products are used
mainly in military, aerospace and industrial markets where high speed/high reliable performance is
mission critical. The actives product line includes optical transceivers, optical media converters and
custom devices tailored to your application.

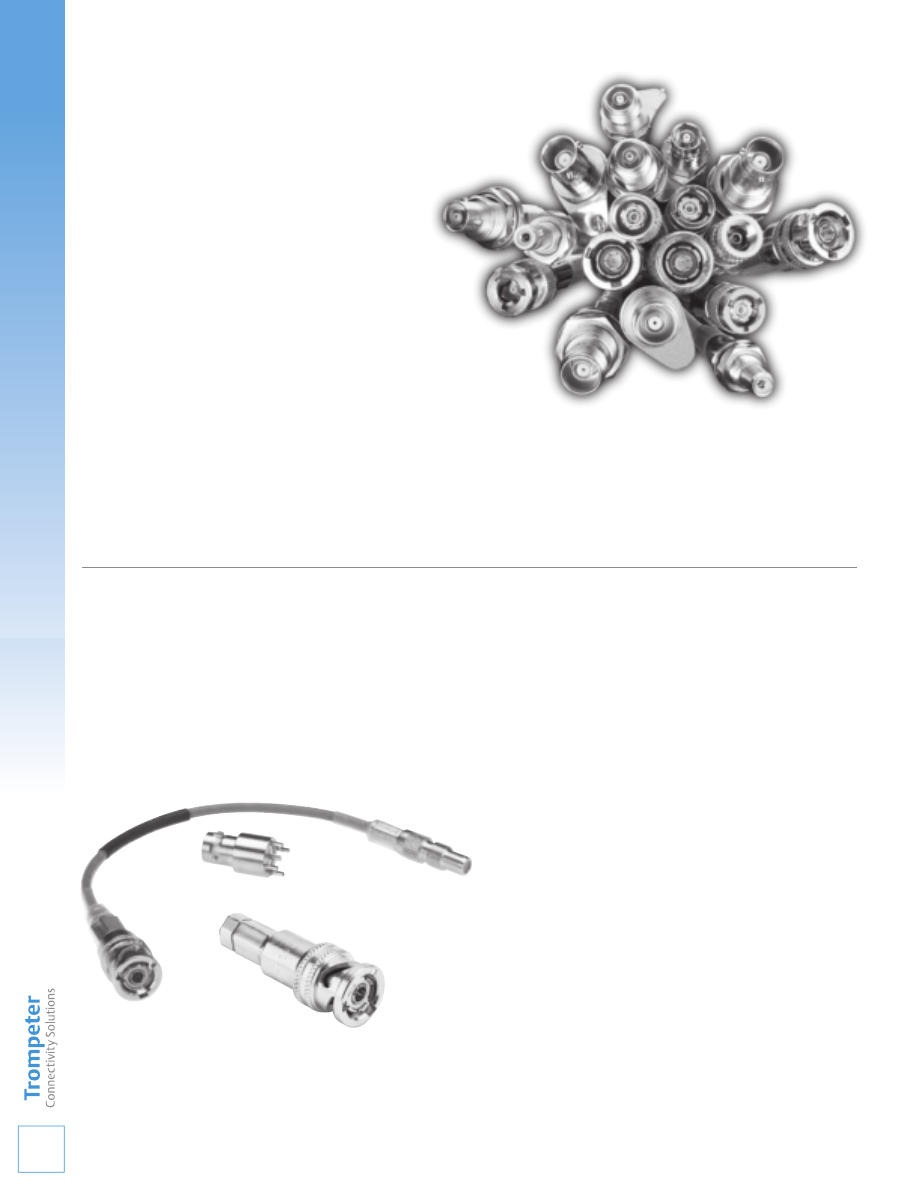

Trompeter is recognized as a global leader in delivering best in class RF connectivity products. The
Trompeter line of patch jacks, RF connectors, cable assemblies, HDTV digital technology and DS3
connectivity solutions is unrivalled. Our mission is to provide products that continually deliver the
highest quality signal integrity for the most demanding applications in Telecom, Central Office,
Broadcast, Military Aerospace, and Instrumentation markets worldwide. Our extensive line of cost-
effective products are rigorously designed and tested to provide the critically engineered solutions
necessary to enhance the end-user’s overall experience.

Vitelec provides a comprehensive range of RF coaxial interconnect products and cable assemblies.
The company has a long established reputation for offering quality and innovation with a wide range
of both standard and custom designed products for the electronic and communication industries.

Emerson Network Power Connectivity Solutions

has a wide range of cable assemblies and connectors suited for RF,

Microwave and Fiber Optic signal transmission. Connectivity Solutions is a vertically integrated supplier of custom, fixed
length and semi-rigid cable assemblies from DC to 50 GHz. Our product lines deliver custom-engineered products and
solutions to satisfy the most demanding and complex requirements.

trompeterproductcatalog-html.html

TWINAX/TRIAX CONNECTORS

Mil-Std-1553B Data Bus General Specifications Guide

2-3

70/370 SERIES

MIL-C-49142 QPL’d Connectors

TRB/TRT Miniature Plugs & Jacks

TRB/TRT Miniature Bulkhead Jacks

Miniature Circuit Board Jacks

TRB Series Pad, Paralleling Jacks, & T Adapter

Twinax/Triax Terminations & RFI Caps

Miniature Twinax/Triax Patching

11-12

Miniature Twinax/Triax Normal-Thru Patch Jacks

Subminiature Twinax/Triax Patching

Standard & Subminiature Twinax/Triax Looping Plugs

Hermetically Sealed Connectors

Mating Twinax Size 8 Contacts

150/3150 SERIES

TRS/TTM Subminiature Jacks and Plugs

TRS/TTM Subminiature Bulkhead Jacks

19-20

Subminiature Bulkhead Jacks, Adapters, & Push-on

450 SERIES

Concentric Twinax Connectors

21-23

80/380 SERIES

TRC/TRN Standard Twinax/Triax Threaded

30/330 SERIES

TWBNC/TWTNC, Two-pin Polarized Connectors

COAX CONNECTORS

20/220 SERIES

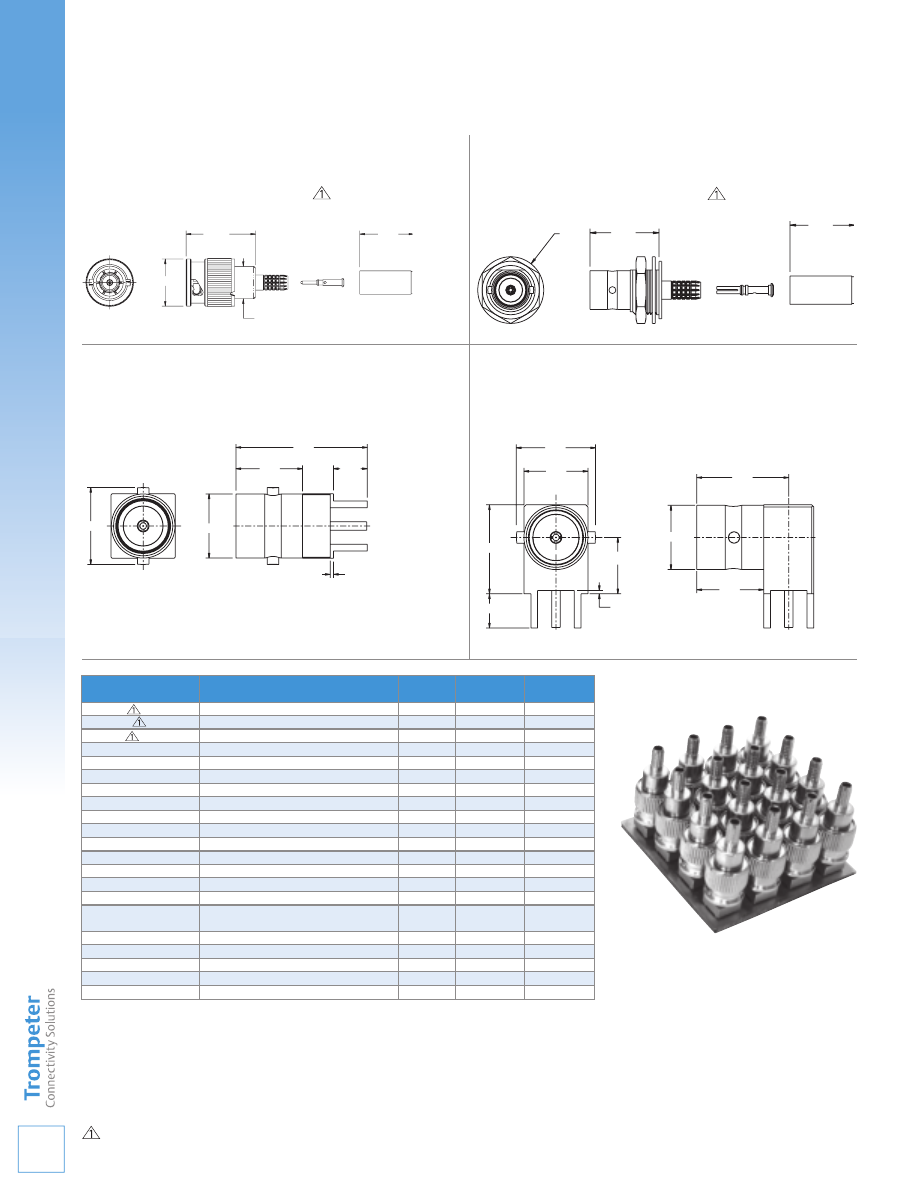

Miniature Coax BNC Plugs & Jacks

Miniature Coax BNC Bulkhead Jacks

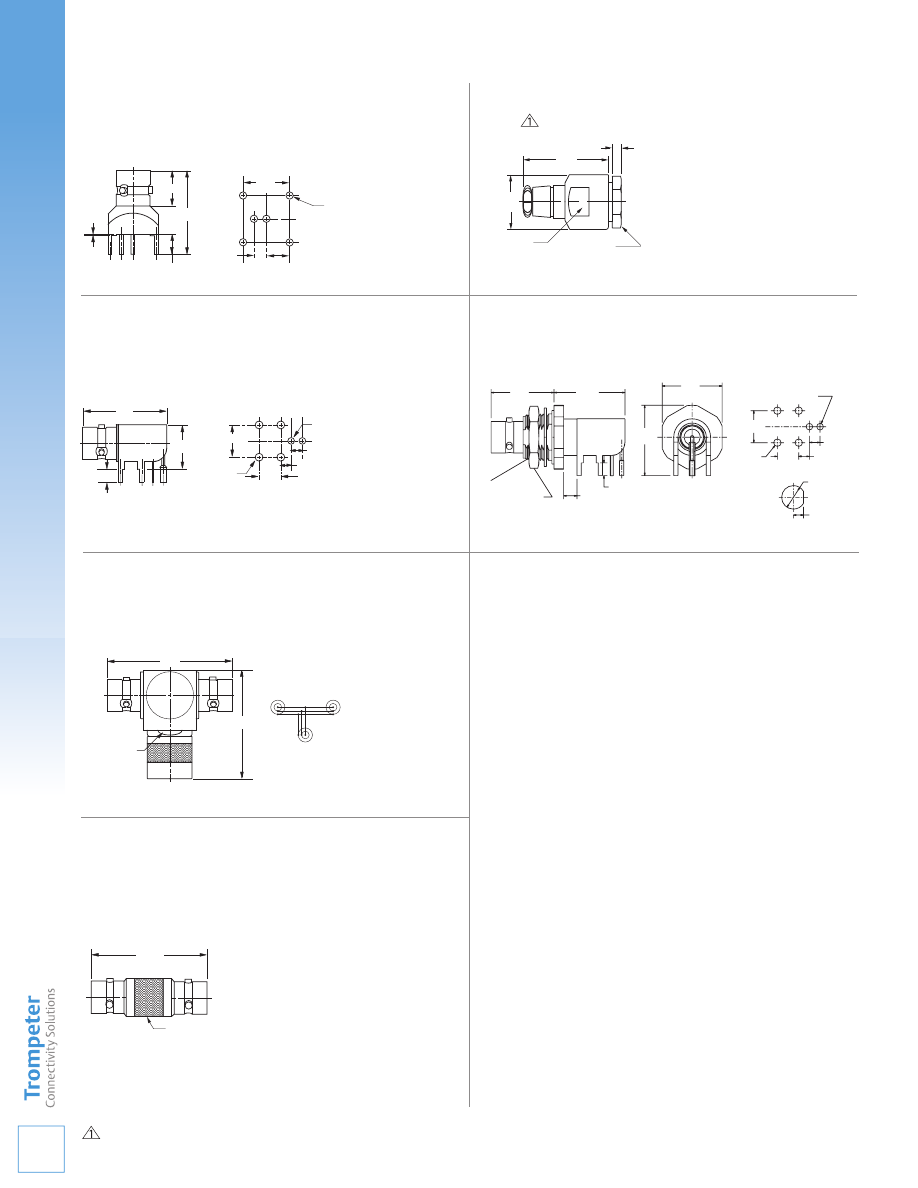

Coax Circuit Board Jacks

29-31

250 SERIES

Mini-BNC Coax Plugs & Jacks

40/240 SERIES

TNC Miniature Coax Threaded

TNC Bulkhead Jacks, Miniature Coax Threaded

120 SERIES

BNC/TNC Miniature Push-on Jacks & Plugs

1.0/2.3 DIN CONNECTORS

1.6/5.6 DIN CONNECTORS

Miniature Coax DIN Connectors

Coaxial Ground Filter Bulkhead Jacks

TYPE N CONNECTORS

90 Series Coax Type N Connectors

130 Series Coax F Type Connectors

39-40

Low VSWR Coax Connectors

TPS/TCM Subminiature Coax Threaded Jacks & Plugs

PATCHING PRODUCTS

High Frequency Video Patching

43-44

Coax Patch Jacks & Accessories

45-46

Mini-WECo Coax Patch Plugs

Mini-WECo Coax Patch Jacks

Standard Coax Patching & Looping

50Ω Miniature Coax Patching

Panel Specifications

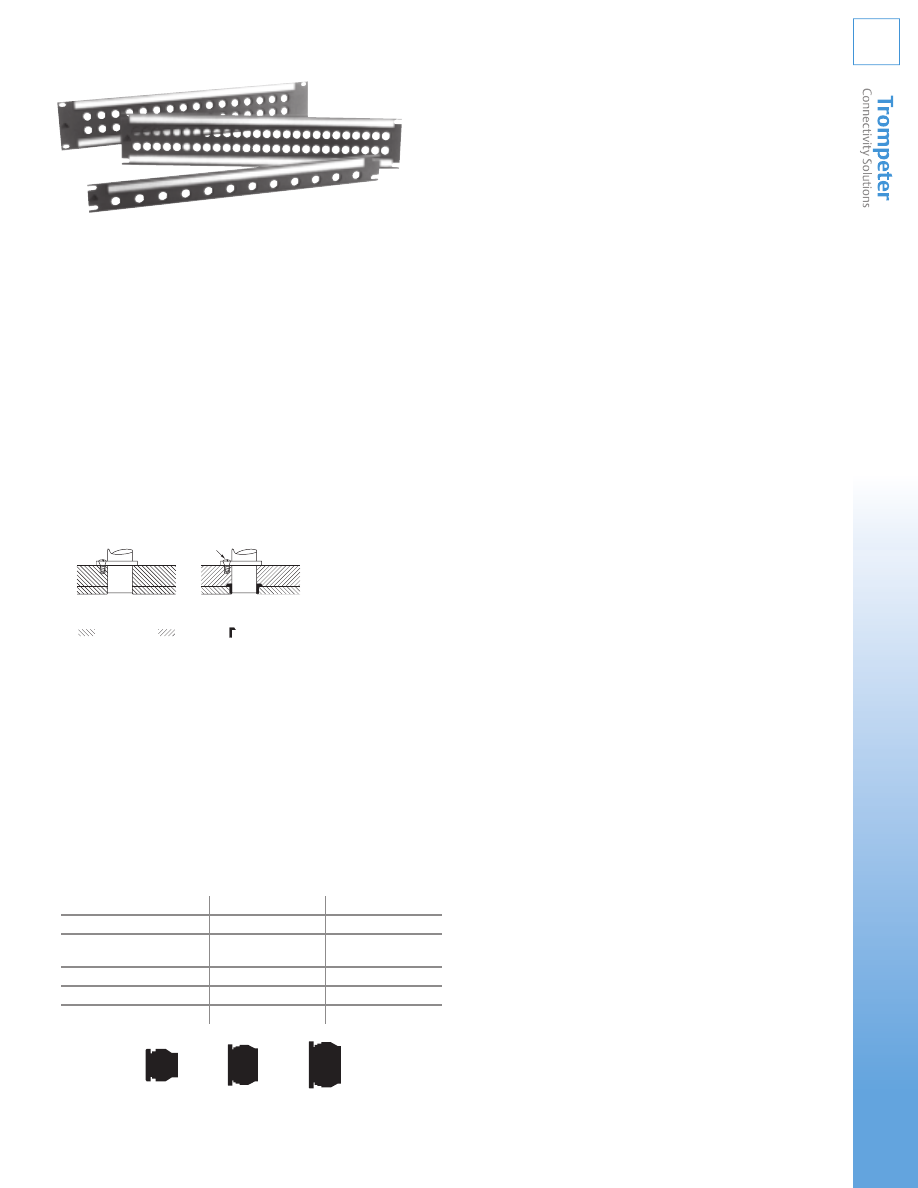

Distribution Panels

Standard/Miniature Panels

53-54

“D” Mounting Hole Specifications

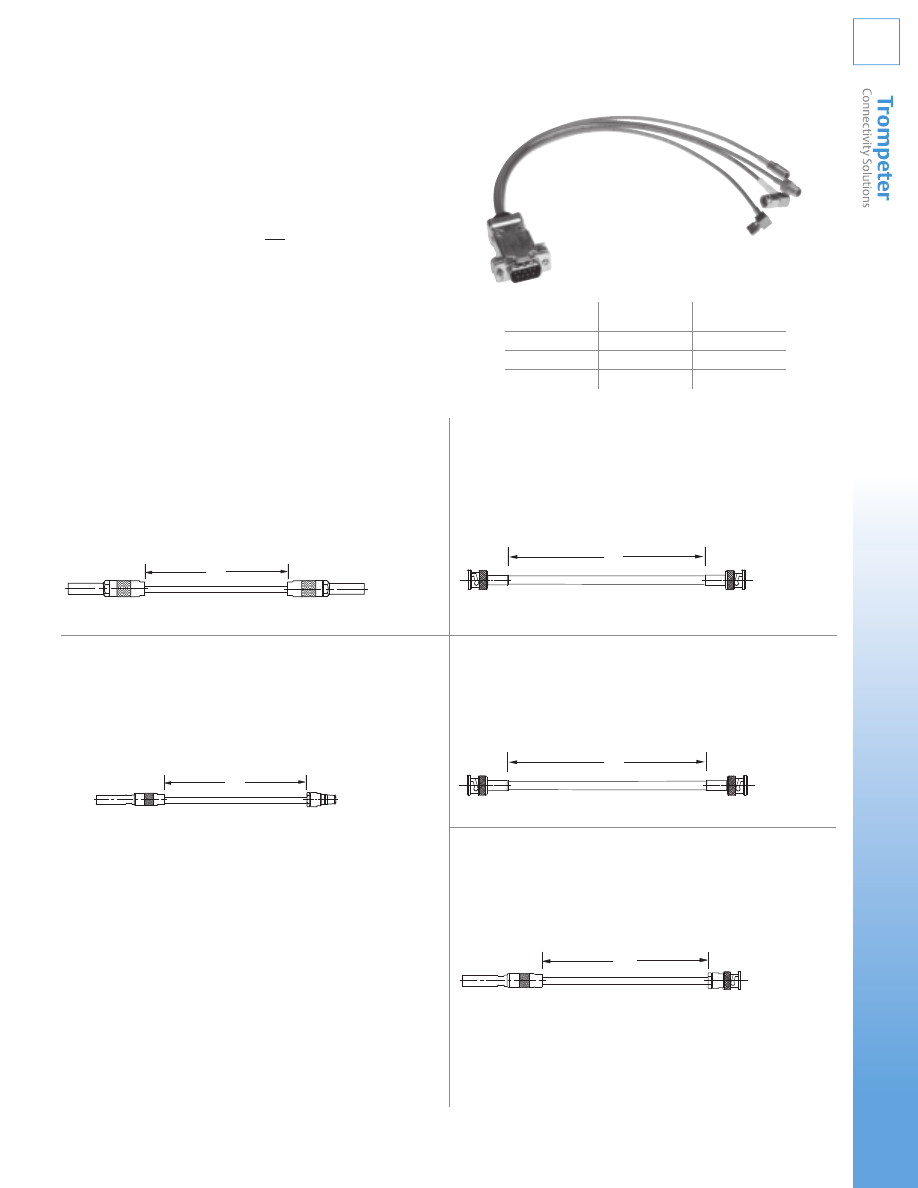

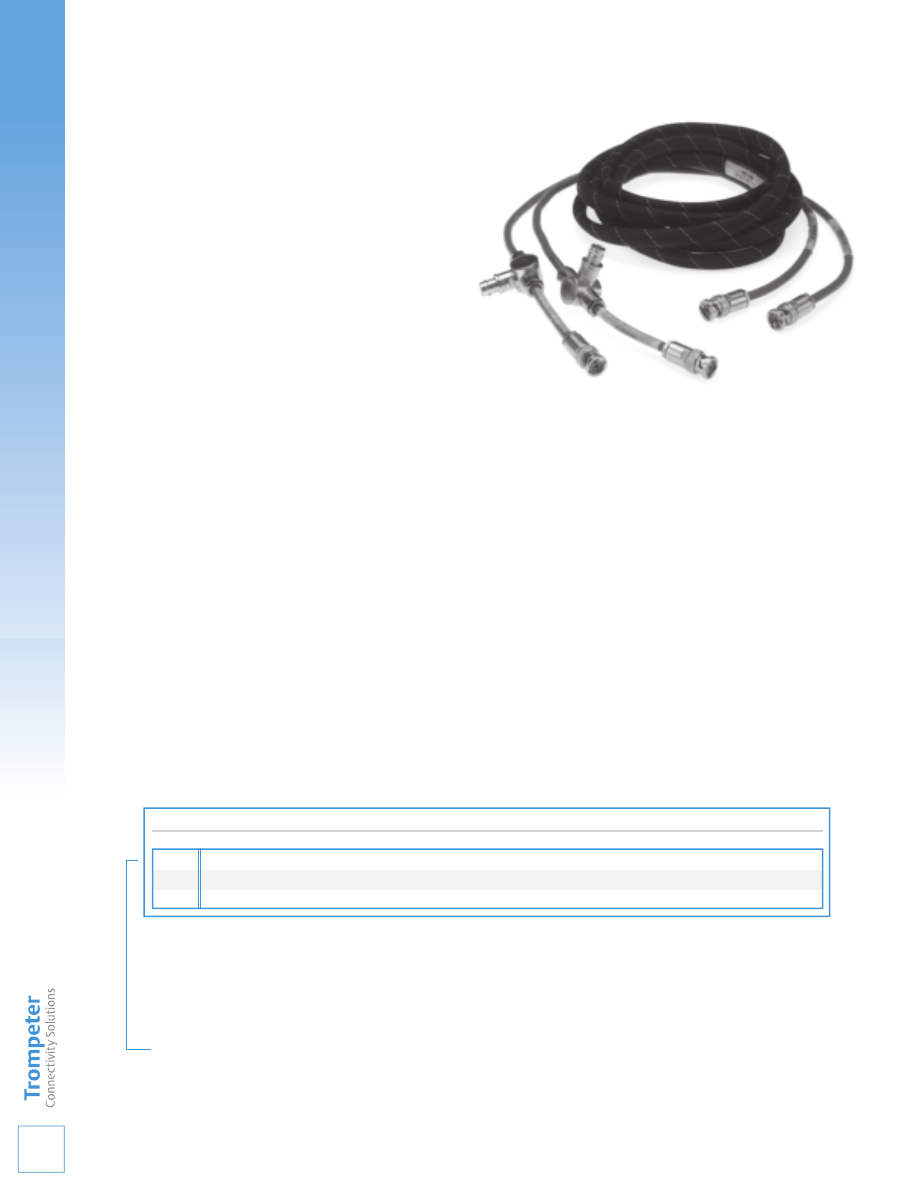

CUSTOM CABLE ASSEMBLIES

55-56

TERMINATIONS & RFI CAPS

Coax Terminations & RFI Caps

Chain Options

Stainless Steel Rope for “D” Ring Option

ADAPTERS (CUSTOM AND STANDARD)

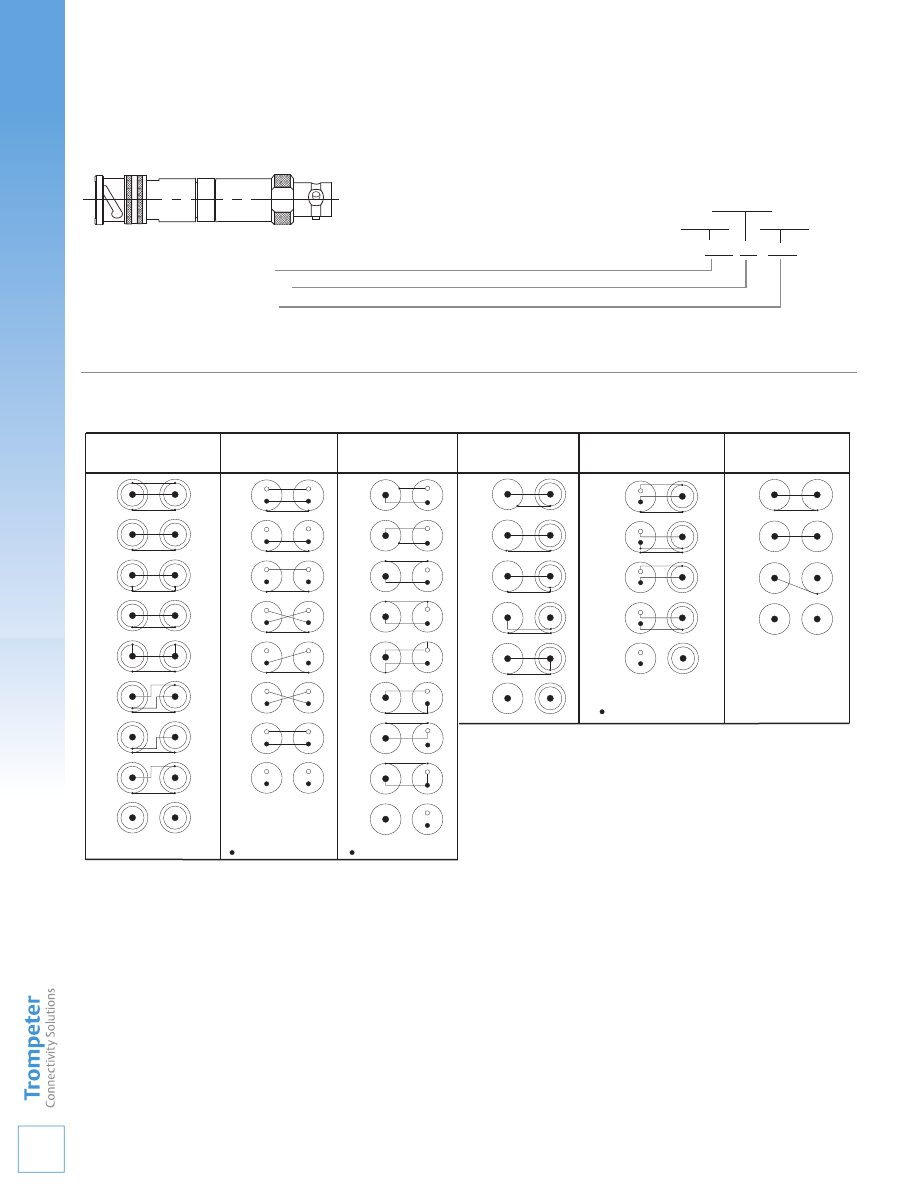

Adapter Circuitry Schematics

Coax to Coax Adapter Table

Coax/Twinax/Triax Adapter Table

60-61

TOOLS & ACCESSORIES

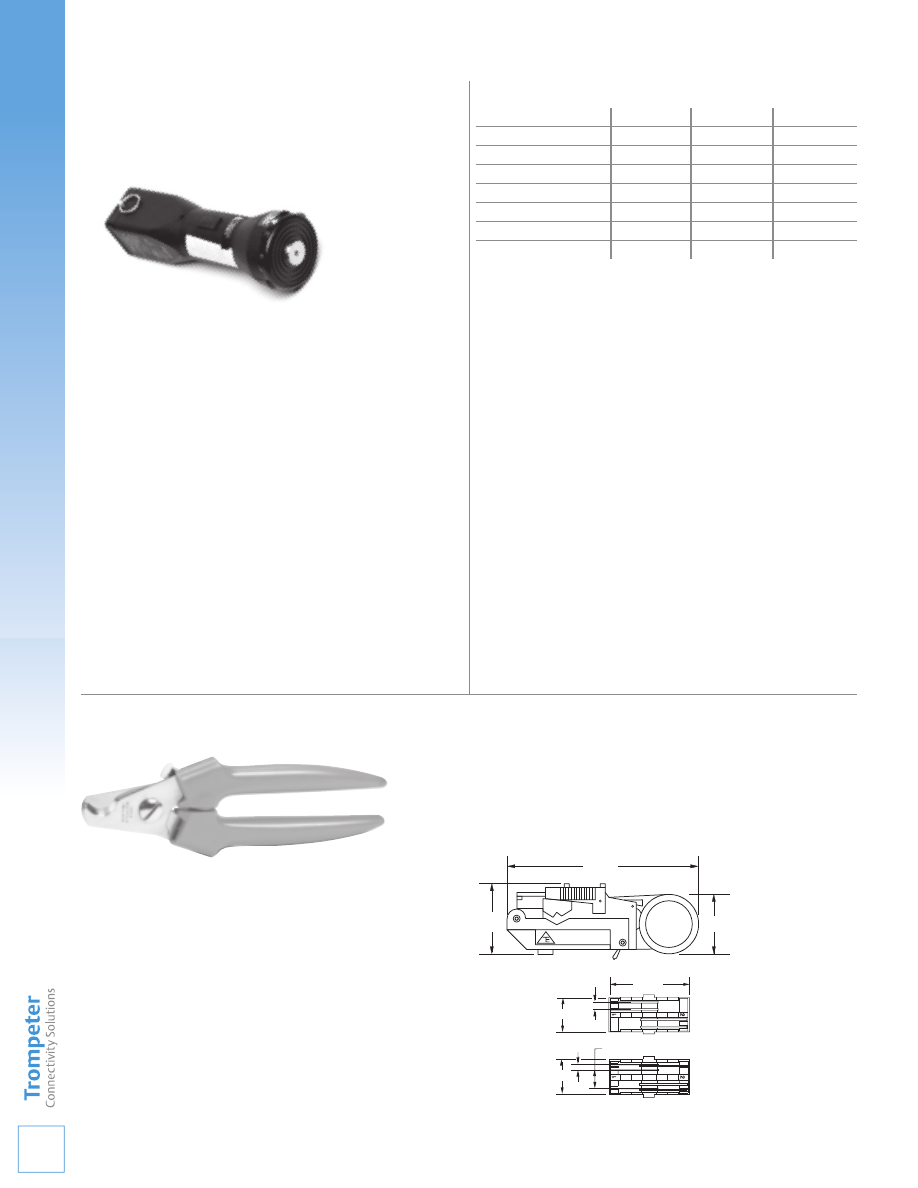

Cable Strippers

Crimp Tools

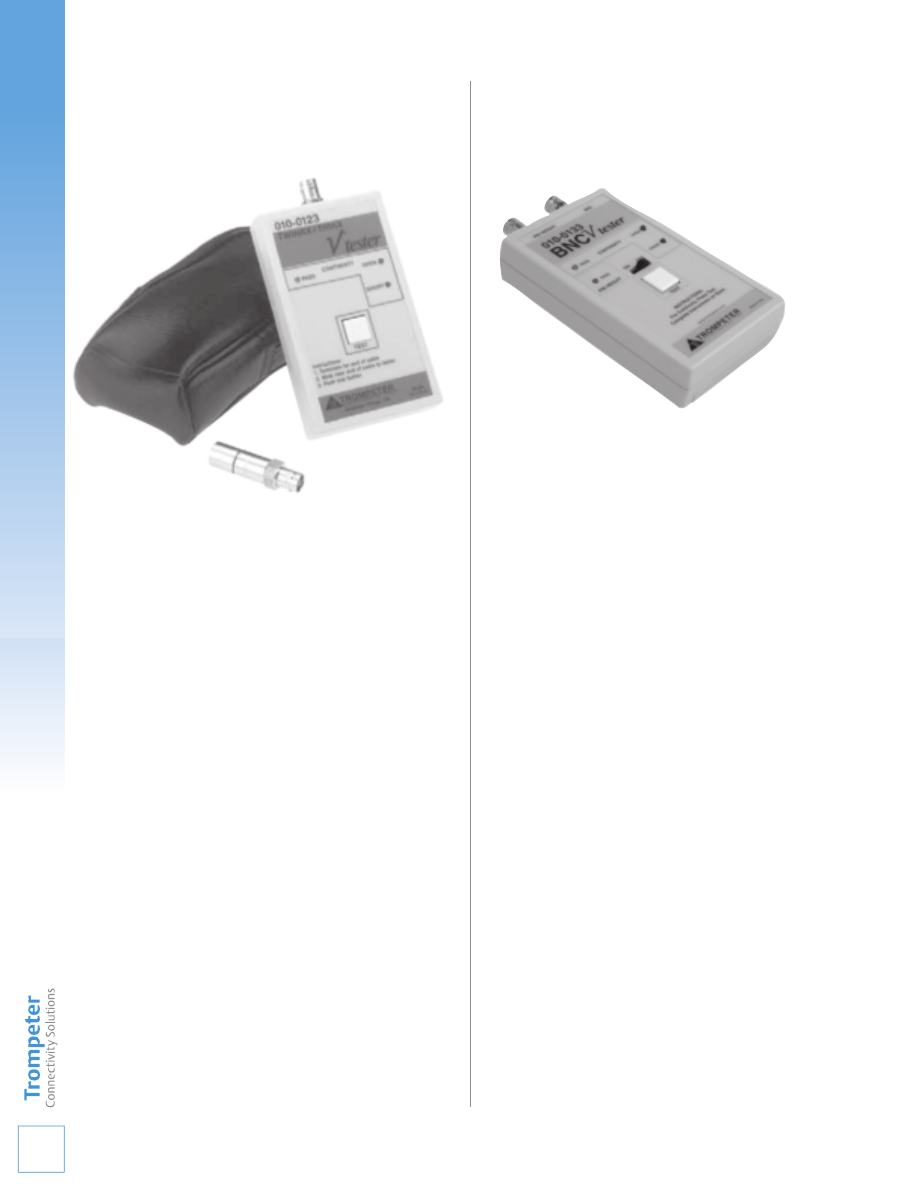

Cable Assembly Testers

Tool Kit/Bulk Packaging

APPENDIX

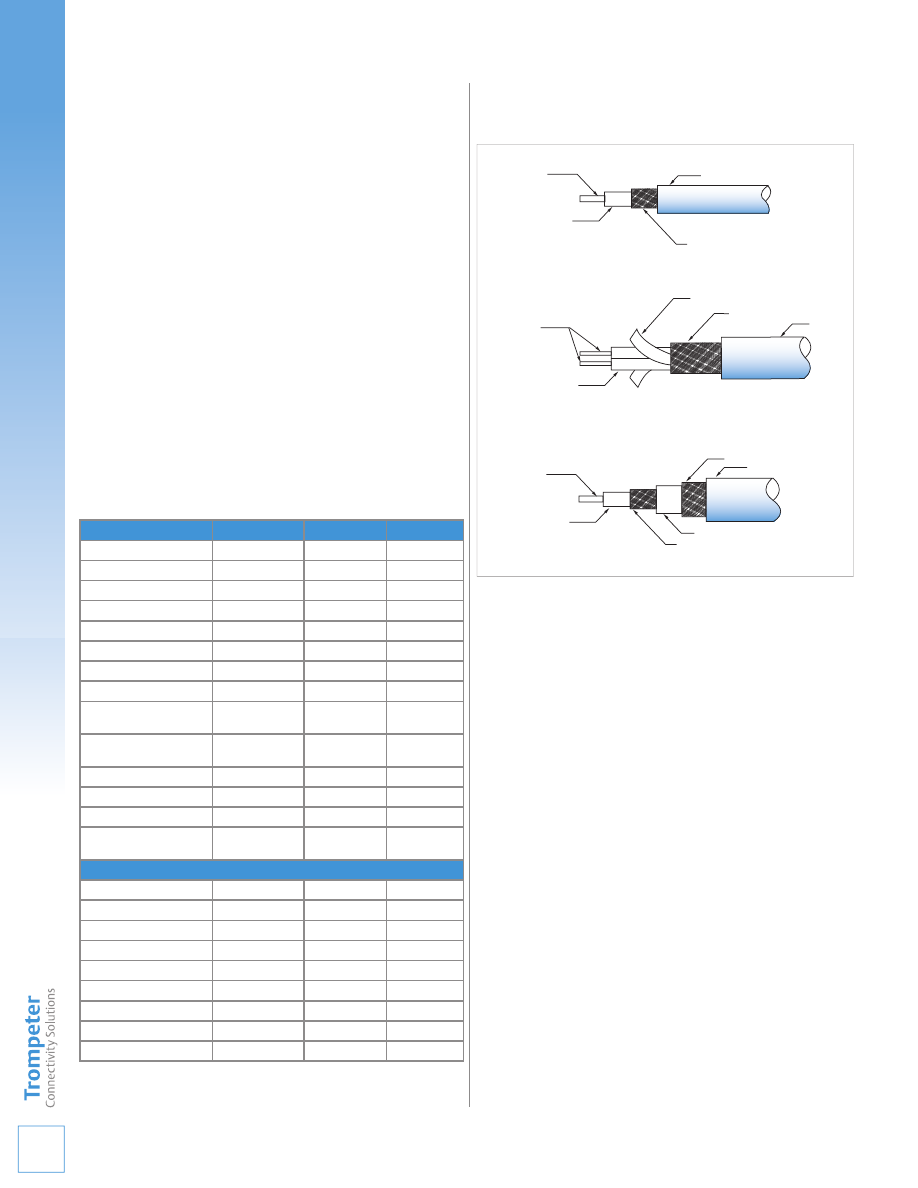

Trompeter Cable Specifications

66-68

Twinax/Triax: Plenum/Halogen Free Cable Specs

Connector Compatibility Table

69-70

General Material/ Finish Specifications

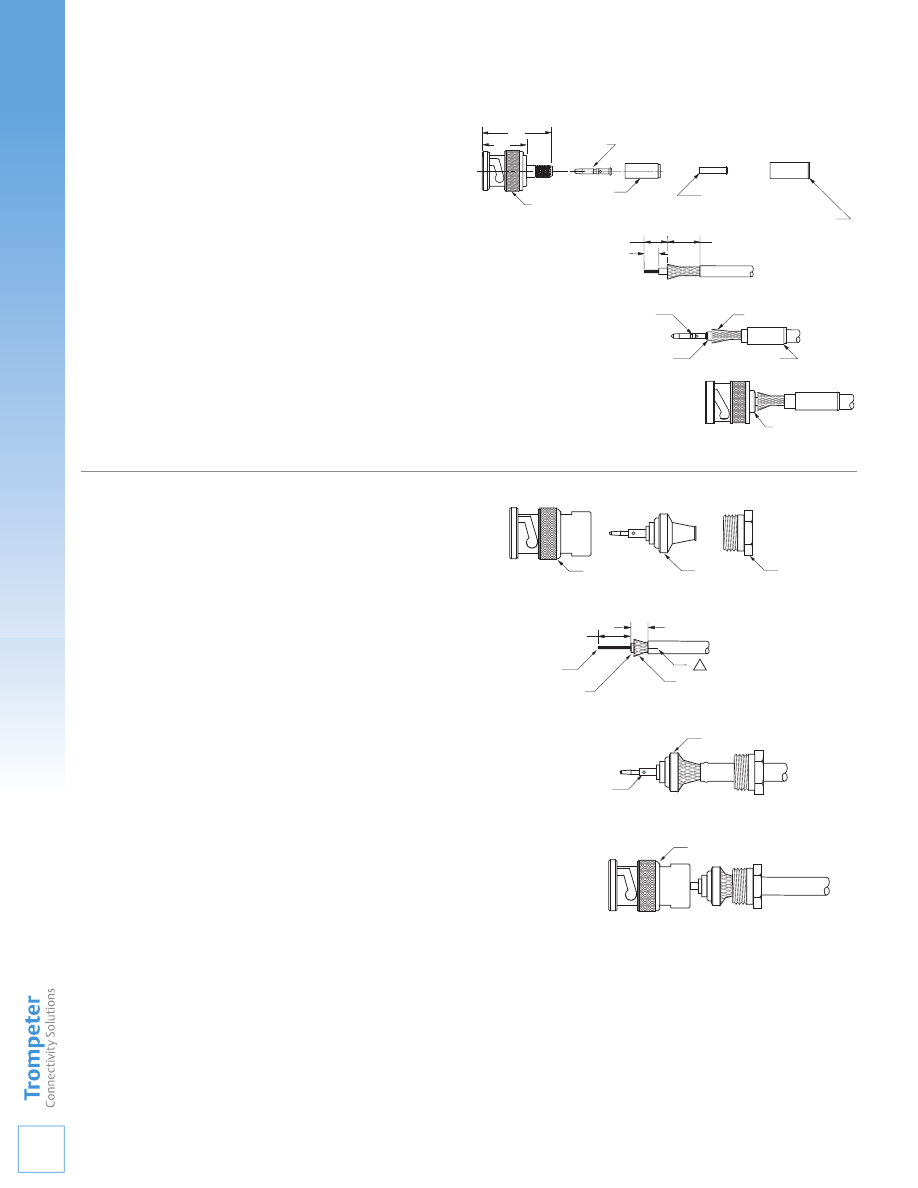

BNC Coax Tool/Wrench Crimp Assembly Illustrations

Cable Group Table Notes

Cable Group Tables

74-91

INDEX

Part Number Index

93-95

Terms & Conditions

96-97

Contents

trompeterproductcatalog-html.html

X C

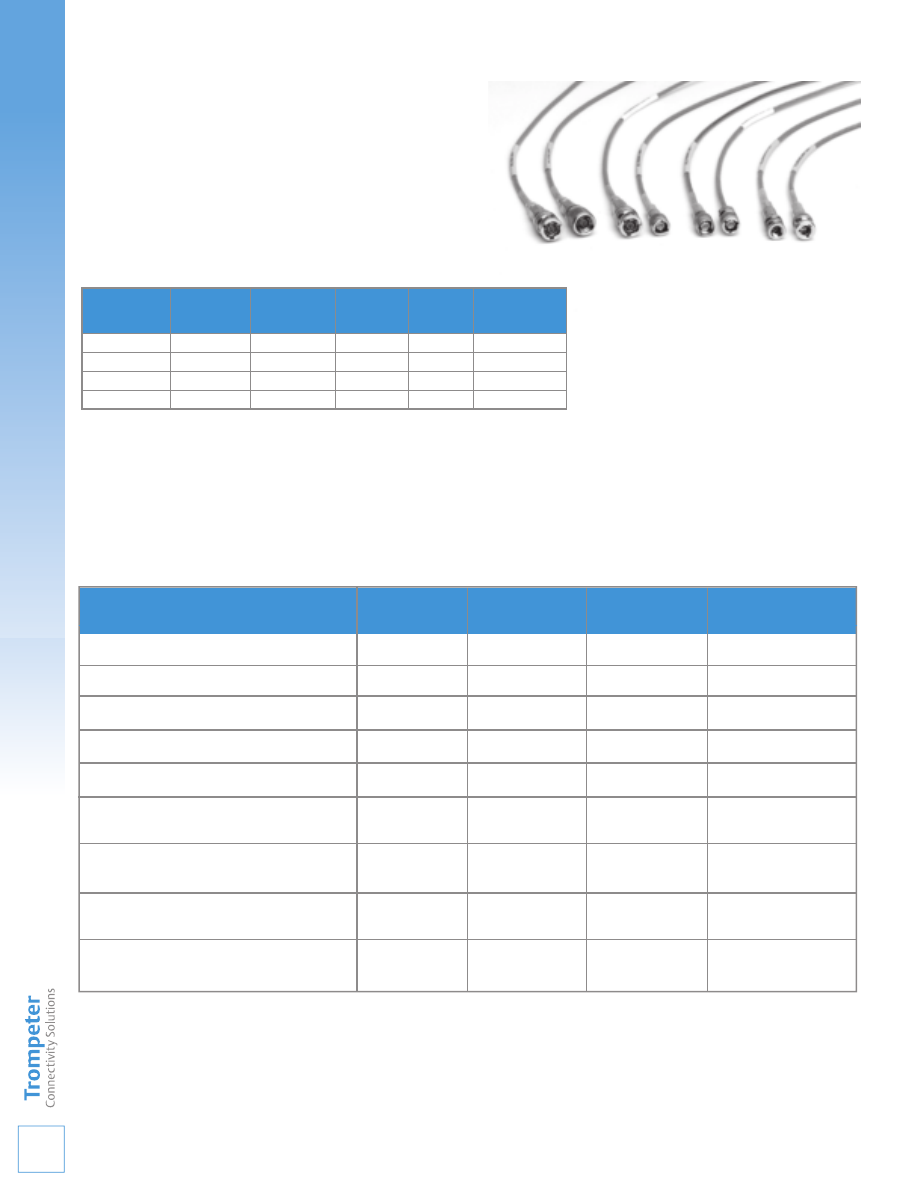

Trompeter offers a broad line of connectors manufactured to
meet or exceed the Mil-Specs governing twinax connectors. In
fact, Mil-PRF-49142 was created from the Trompeter concentric
twinax/triax connector design.

The following information reflects the specification requirements
for each family of connectors in both twinax and triax applications.
Use this chart to determine the proper connector type to be used
in your application, based on the environment and electrical
requirements of your design. Trompeter’s technical support team
is available to answer any specification questions you may have.

* Specifications are minimum unless otherwise stated. Trompeter connectors are designed to exceed all minimum specifications.

70 Series

80 Series

150 Series

450 Series

Characteristic Requirements

TRB/TRT

TRC/TRN

TRS/TTM

TCS

Nominal Impedance

Non-constant

Frequency Range

0-500 MHz

0-2 MHz

Voltage Rating (max.) @ sea level

400 VRMS

500 VRMS

400 VRMS

900 VRMS

Voltage Rating (max.) @ 70,000 ft.

100 VRMS

125 VRMS

100 VRMS

N/A

Insulation Resistance

5000 MΩ

Dielectric Withstanding Voltage

1200 VRMS

1500 VRMS

1200 VRMS

900 VAC

(between center cond. & inter. cond.)

Dielectric Withstanding Voltage

500 VRMS

900 VAC

(between inter. cond. & outer cond.)

RF High Potential Withstanding Voltage

800 VRMS

1000 VRMS

500 VRMS

900 VAC @ 60 Hz

(between center cond. & inter. cond.)

RF High Potential Withstanding Voltage

200 VRMS

350 VRMS

125 VRMS

N/A

(between inter. & outer cond.)

@ 5-7.5 MHz

Specifications continued on page 3...

MIL-Spec Triax
Series

Trompeter
Connector
Series

Bayonet Typi-
cal Lug Count

Available
Threaded

Gender

Equivalent Coax
Series

TRB

Yes

Normal

BNC

TRC

Yes

Reverse

TRS

150

Yes

Normal

M-BNC

1553

450

Yes

Either

n/a

The following is the latest list from the
MIL-STD-1553B supply:

Trompeter Number:

PL75-47
PL375C-201
PL75C-201
PL155AC-201
PL3155AC-201
PL155AC-201
PL155AC-201
PL3455ACS-201
PL455ACP-201

MIL-STD-1553B Data Bus General Specifications Guide

Twinax/Triax Connectors /

Specifications

trompeterproductcatalog-html.html

X C
O

* Specifications are minimum unless otherwise stated. Trompeter connectors are designed to exceed all minimum specifications.

MIL-STD-1553B Data Bus General Specifications Guide (cont’d)

Twinax/Triax Connectors /

Specifications

Twinax/Triax Connectors /

Specifications

70 Series

80 Series

150 Series

450 Series

Characteristic Requirements

TRB/TRT

TRC/TRN

TRS/TTM

TCS

Corona Level (min.)

200 VRMS

375 VRMS

125 VRMS

250 VAC

@ 70,000 ft.

@ 50,000 ft.

Rise Time Degradation (max.)

400 rs

N/A

800 ps

Permeability of Nonmagnetic Material

<2.0 mu except hermetic versions

Hermetic Seal

<1 x 10-8 cc/sec

N/A

<1 x 10-6 cc/sec

N/A

(Where Applicable)

Connector Durability

500 cycles minimum @ 12 cycles per minute max.

Temperature Range

-65° to +165°C

-65° to +200°C

-65° to 125°C

Force to Engage and Disengage
Longitudinal (max.)

4 pounds

5 pounds

4 pounds

3 pounds

Torque (max.)

2.5 inch-pounds

4 inch-pounds

2.5 inch-pounds

Center Contact Retention
Axial Force (min.)
Plug

6 pounds

4 pounds

6 pounds

Jack

6 pounds

2 pounds

6 pounds

Coupling Proof Torque
(Threaded types only)

15 inch-pounds

10 inch-pounds

N/A

Coupling Mechanism Retention Force

100 pounds

70 pounds

100 pounds

(min.)

Cable Retention Force (min.)

40 pounds

65 pounds

40 pounds

.200-.325 inch

.242-.419 inch

.120-.215 inch

.120-.180 inch

cable OD

Salt Spray (corrosion)

48 hrs minimum exposure (Standard nickel plating)

500 hrs minimum available (Call customer service for plating types). Standard for 450 Series.

Moisture Resistance (10 cycles)

Total 240 hour minimum exposure

Thermal Shock (5 cycles)

Total 5 hours 50 minutes min -65°C to +85°C

-65°C to +125°C

(No physical damage/Pass DWV)

Specified Shock (sawtooth waveform,

No discontinuity allowed. Velocity-change of shock pulse 10% of ideal value

within peak - 50g’s, duration -11ms)

Vibration, High-frequency (36 cycles)

Total 12 hour minimum. No physical damage or loosening of parts.

(15g peak, 10-2000 Hz-10Hz in 20 minutes)

No discontinuity allowed.

trompeterproductcatalog-html.html

X C

Signals require protection from extraneous noise through non-
signal carrying shielding. These interfacing connectors must
provide contact surfaces isolated from each other, as well as from
the outer shield. Trompeter twinaxial/triaxial connectors are
designed with two (2) concentric contacts that are isolated from
each other and the shielding connection.

Features

• All metallic parts are machined/formed to extremely close

tolerances

• All bodies are made of top quality brass with bright nickel-

plated non-tarnish finish

• Fully enclosed, heat-treated, beryllium-copper outer

conductor spring (not half hard slotted brass)

• Heat-treated, beryllium-copper center socket contact with 50

millionths inch gold plating

These concentric twinax/triax connectors are ideal for applications
where weight is not a primary concern. They are commonly used
in digital data bus, video pair, MIL-STD-1553B (airborne/ground,
primary/redundant), base-band circuit and any application for
“noise-free guarded” circuits.

Features

• Same size as BNC/TNC connectors. Large body versions are

available to accommodate larger cables

• Field serviceable, wrench crimp versions for cables with up to

.475” outer diameters

• Tool crimp versions for quick termination of cables with up to

.250” outer diameters

• 3-lug, 4-lug, and threaded versions provide different levels of

mechanical stability and keying

• Does not require mechanical alignment for mating.
• QPL to MIL-C-49142 (see list on page 5)
• Meets MIL-C-49142, 48-hour salt spray requirement
• Special plating available to satisfy MIL-STD-1344, 500-hour
• salt spray requirement
• Push-on versions for test cable applications
• Fewer pieces to assemble
• Hermetically sealed versions are available (page 16)

70 Series

Miniature 2, 3, 4–lug, and Push-on (TRB)

370 Series

Miniature Threaded (TRT)

(70 Series shown below)

Built to Last
Premium Quality
Superior Mechanical Performance
Rugged Physical Properties
Extreme Reliability

Twinax/Triax Connectors

trompeterproductcatalog-html.html

X C
O

Mil-number

Trompeter Number

M49142/03-0001

PL75-7

M49142/03-0002

PL75-7

M49142/03-0005

305-0042-1

M49142/03-0007

PL75-9

M49142/03-0008

PL75-47

M49142/03-0009

PL75-60

M49142/03-0011

305-0811-1

M49142/03-0016

PL75MC213

M49142/03-0017

PL75MC-201

M49142/03-0101

PL75Y-7

M49142/03-0102

PL75Y-7

M49142/03-0105

305-0042Y-1

M49142/03-0107

PL75Y-9

M49142/03-0108

PL75Y-47

M49142/03-0109

PL75Y-60

M49142/03-0111

305-0811Y-1

M49142/03-0116

PL75MCY-213

M49142/03-0117

PL75MCY-201

M49142/03-0201

PL75S-7

M49142/03-0202

PL75S-7

M49142/03-0205

305-0042S-1

M49142/03-0207

PL75S-9

M49142/03-0208

PL75S-47

M49142/03-0209

PL75S-60

M49142/03-0211

305-0811S-1

M49142/03-0216

PL75MCS-213

M49142/03-0217

PL75MCS-201

M49142/04-0004

BJ76

M49142/04-0104

BJ76Y

M49142/04-0204

BJ76S

M49142/05-0001

BJ79-7

M49142/05-0002

BJ79-7

M49142/05-0006

305-0042-7

M49142/05-0007

BJ79-9

M49142/05-0008

BJ79-47

M49142/05-0009

BJ79-60

M49142/05-0011

305-0811-3

M49142/05-0016

BJ79MC-213

M49142/05-0017

BJ79MC-201

M49142/05-0101

BJ79Y-7

M49142/05-0102

BJ79Y-7

M49142/05-0106

305-0042Y-7

M49142/05-0107

BJ79Y-9

M49142/05-0108

BJ79Y-47

M49142/05-0109

BJ79Y-60

M49142/05-0111

305-0811Y-3

M49142/05-0116

BJ79MCY-213

M49142/05-0117

BJ79MCY-201

M49142/05-0201

BJ79S-7

M49142/05-0202

BJ79S-7

M49142/05-0206

305-0042S-7

M49142/05-0207

BJ79S-9

M49142/05-0208

BJ79S-47

M49142/05-0209

BJ79S-60

M49142/05-0211

305-0811S-3

M49142/05-0216

BJ79MCS-213

M49142/05-0217

BJ79MCS-201

Mil-number

Trompeter Number

M49142/06-0001

CJ70-7

M49142/06-0002

CJ70-7

M49142/06-0006

305-0042-4

M49142/06-0007

CJ70-47

M49142/06-0008

CJ70-9

M49142/06-0009

CJ70-60

M49142/06-0011

305-0811-2

M49142/06-0016

CJ70MC-213

M49142/06-0017

CJ70MC-201

M49142/06-0101

CJ70Y-7

M49142/06-0102

CJ70Y-7

M49142/06-0106

305-0042Y-4

M49142/06-0107

CJ70Y-47

M49142/06-0108

CJ70Y-9

M49142/06-0109

CJ70Y-60

M49142/06-0111

305-0811Y-2

M49142/06-0116

CJ70MCY-213

M49142/06-0117

CJ70MCY-201

M49142/06-0201

CJ70S-7

M49142/06-0202

CJ70S-7

M49142/06-0206

305-0042S-4

M49142/06-0207

CJ70S-47

M49142/06-0208

CJ70S-9

M49142/06-0209

CJ70S-60

M49142/06-0211

305-0811S-2

M49142/06-0216

CJ70MCS-213

M49142/06-0217

CJ70MCS-201

M49142/08-0001

PL375-7

M49142/08-0002

PL375-7

M49142/08-0005

305-0042-9

M49142/08-0006

PL375-47

M49142/08-0008

PL375-60

M49142/08-0010

305-0811-5

M49142/08-0011

305-0486-1

M49142/08-0016

PL375MC-213

M49142/08-0017

PL375MC-201

M49142/09-0001

BJ379-7

M49142/09-0002

BJ379-7

M49142/09-0006

BJ379-47

M49142/09-0007

305-0042-11

M49142/09-0009

BJ379-60

M49142/09-0011

305-0811-7

M49142/09-0012

305-0486-3

M49142/09-0016

BJ379MC-213

M49142/09-0017

BJ379MC-201

M49142/10-0001

BJ376

M49142/11-0001

CJ370-7

M49142/11-0002

CJ370-7

M49142/11-0006

CJ370-47

M49142/11-0007

305-0042-12

M49142/11-0009

CJ370-60

M49142/11-0011

305-0811-6

M49142/11-0012

305-0486-2

M49142/11-0016

CJ370MC-213

M49142/11-0017

CJ370MC-201

MIL-C-49142 Qualified Products List

Trompeter has always been a leader in twinax connector design
and development. This time we’ve designed a new connector
style to meet the requirements of MIL-C-49142, Category G.

What is Category G? It is the section of the MIL-Spec that requires
tool crimping of the TRB (70) series connectors. We are also
qualified to category A which is for wrench crimp TRB connectors.

Twinax/Triax Connectors

Twinax/Triax Connectors /

70/370 Series Connectors

Qualified Parts List (QPL) to MIL-C-49142

Below is a list of qualified Trompeter products from the Defence
Electronic Supply Center (DESC). QPL parts must be ordered by
the MIL-Number. Many of Trompeter’s 70 Series concentric twinax
connectors are QPL to MIL-C-49142. QPL versions are silver plated
and can be ordered using the

Government Designation part

numbers listed.

Corresponding standard nickel plated connectors

can be ordered using the standard part numbers.

trompeterproductcatalog-html.html

X C

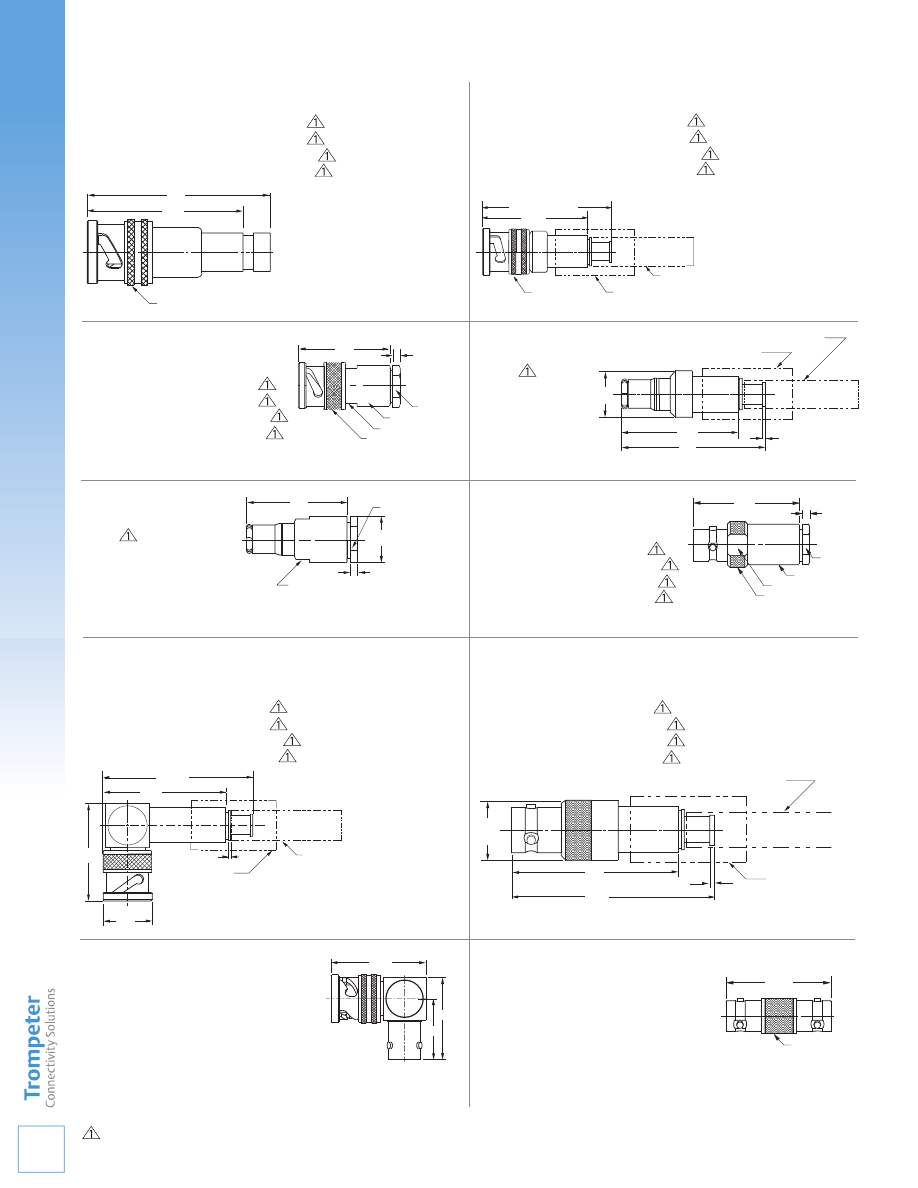

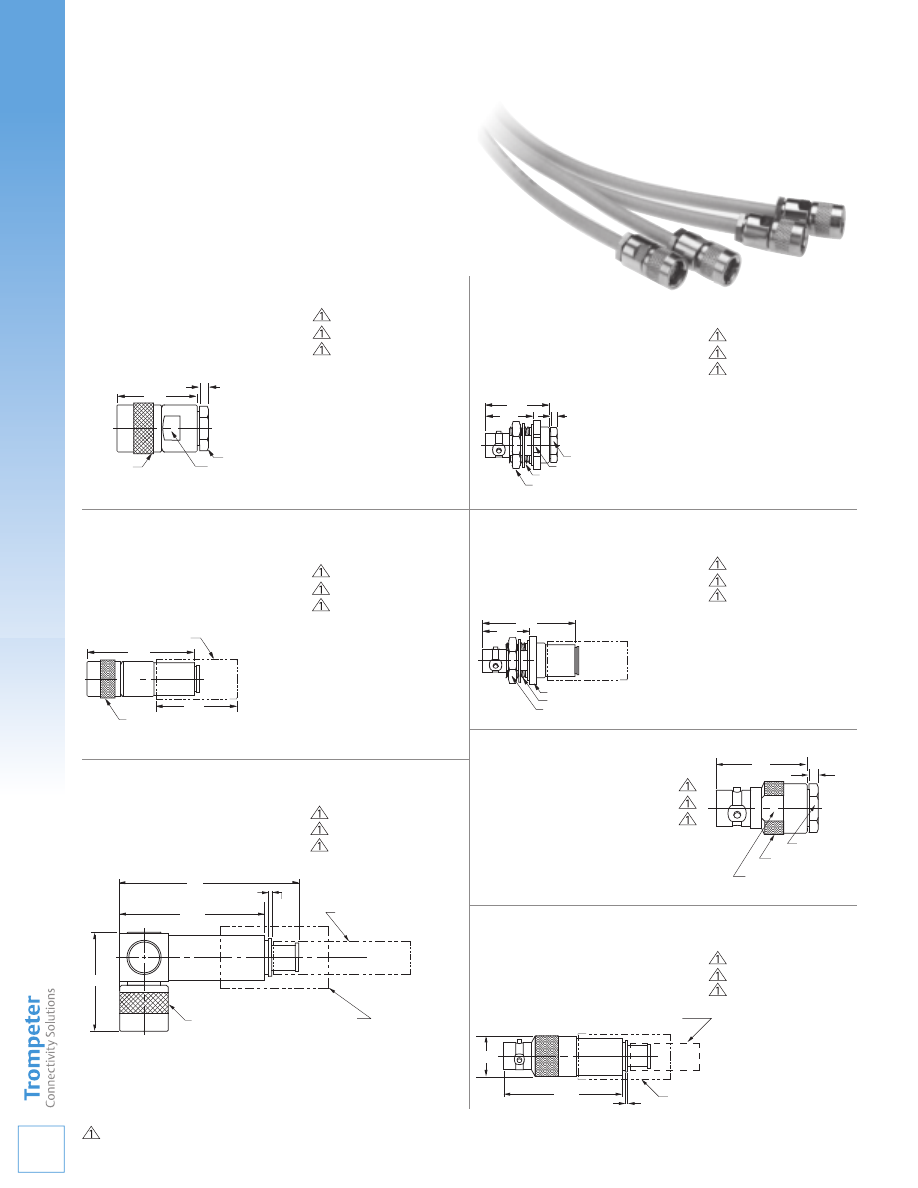

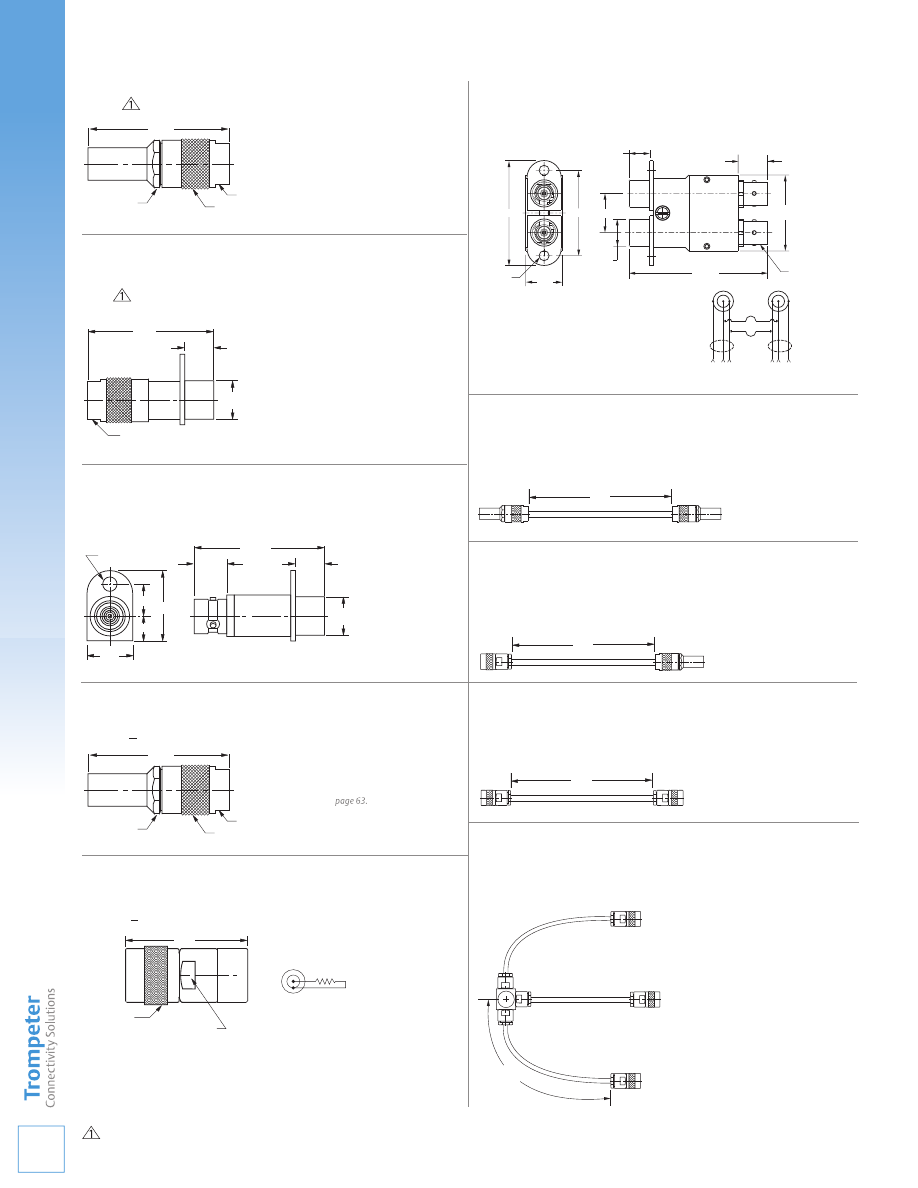

PL74-9 Shown

CJ70-9 Shown

PL75MC-202 Shown

PL73C-202 Shown

PL73-9 Shown

For polarizations, call customer service.

PL74C-202 Shown

1.70

1.297

.593

DIA MAX

1.110

.438 WRENCH FLATS

.096

.500

DIA

.438 WRENCH FLATS

1.11

1.405

1.76 MAX

.030

SHRINKABLE

STRAIN RELIEF

(CLEAR, 175ºC)

.593

DIA

MAX

SHRINKABLE

SEALING

SLEEVE

(LONG)

1.110

.961

.711

.500

DIA

SHRINKABLE STRAIN RELIEF (CLEAR, 175

1.267

1.67

.030

SHRINKABLE SEALING SLEEVE (LONG)

.438HEX

.500 WRENCH FLATS

.500 BODY DIA

1.314

.096

.593 DIA MAX OVER KNURL

.546

DIA

MAX

1.416

.030

SHRINKABLE

STRAIN RELIEF

(CLEAR, 175º C)

SHRINKABLE SEALING SLEEVE (LONG)

1.800

.445 DIA

1.290

SEALING

SLEEVE

.593 DIA MAX

1.70 OR 1.44 MAX

1.297

SHRINKABLE

STRAIN RELIEF

ADRMF70 Shown

AD78 Shown

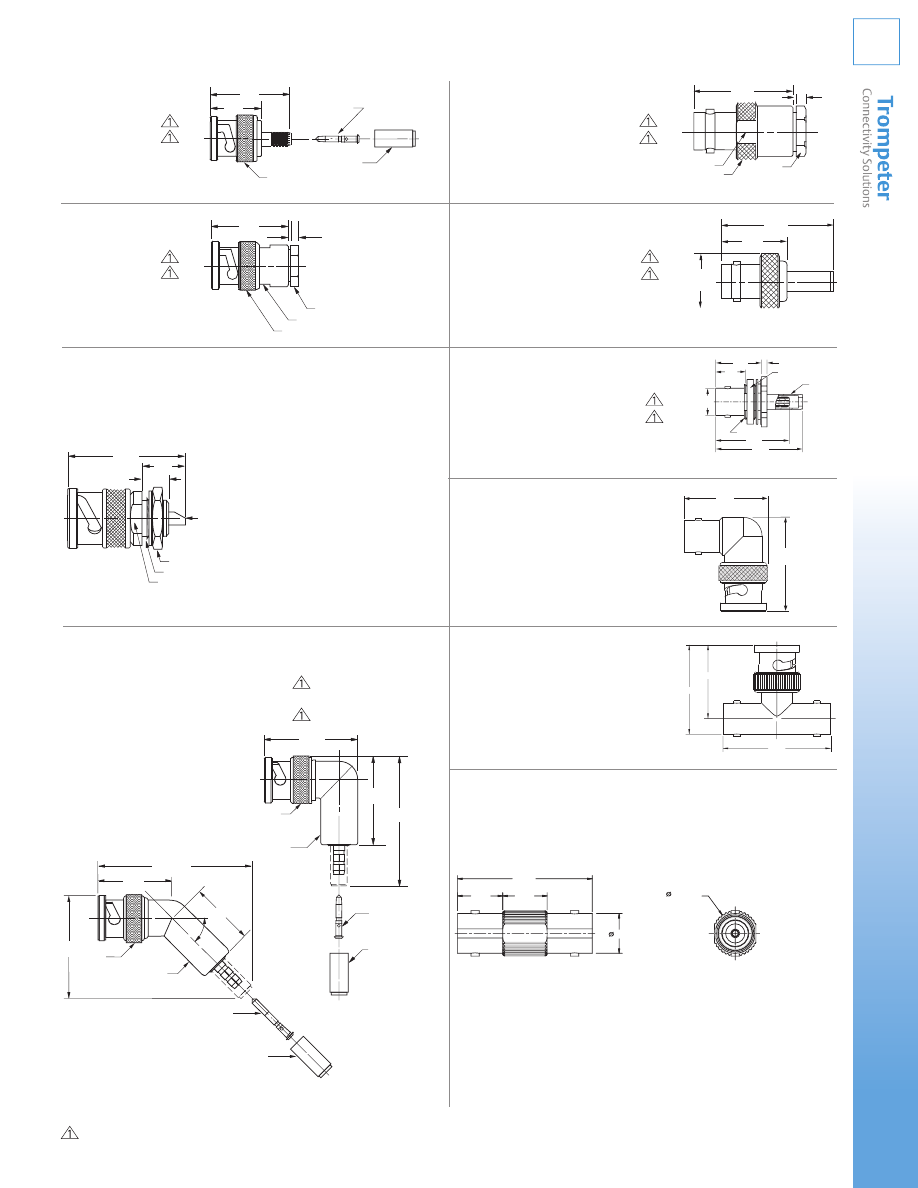

Cable Plug

Wrench Crimp, Push-on

PL73-

Order Large Body version for cables with
jacket dia. greater than .323".

CJ70C-202 Shown

PLR74C-201 Shown

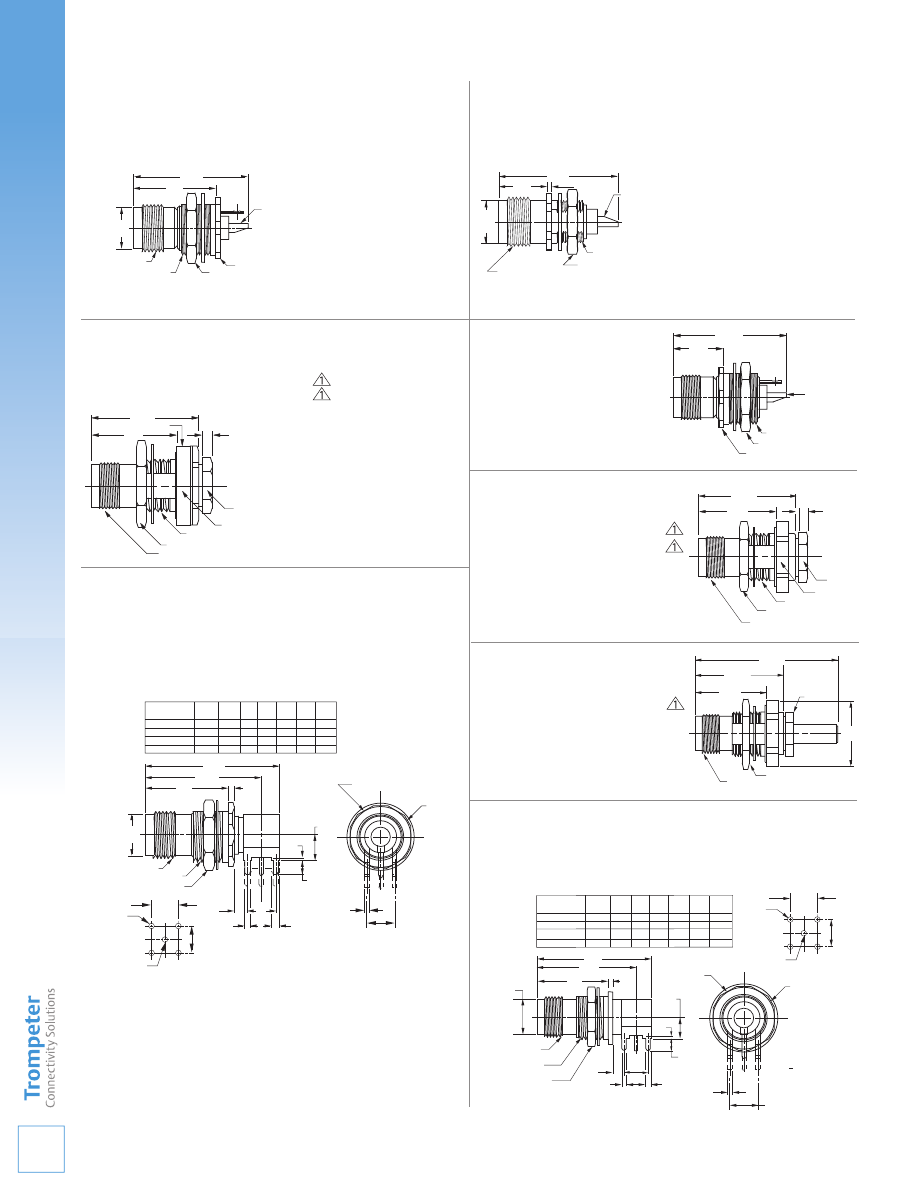

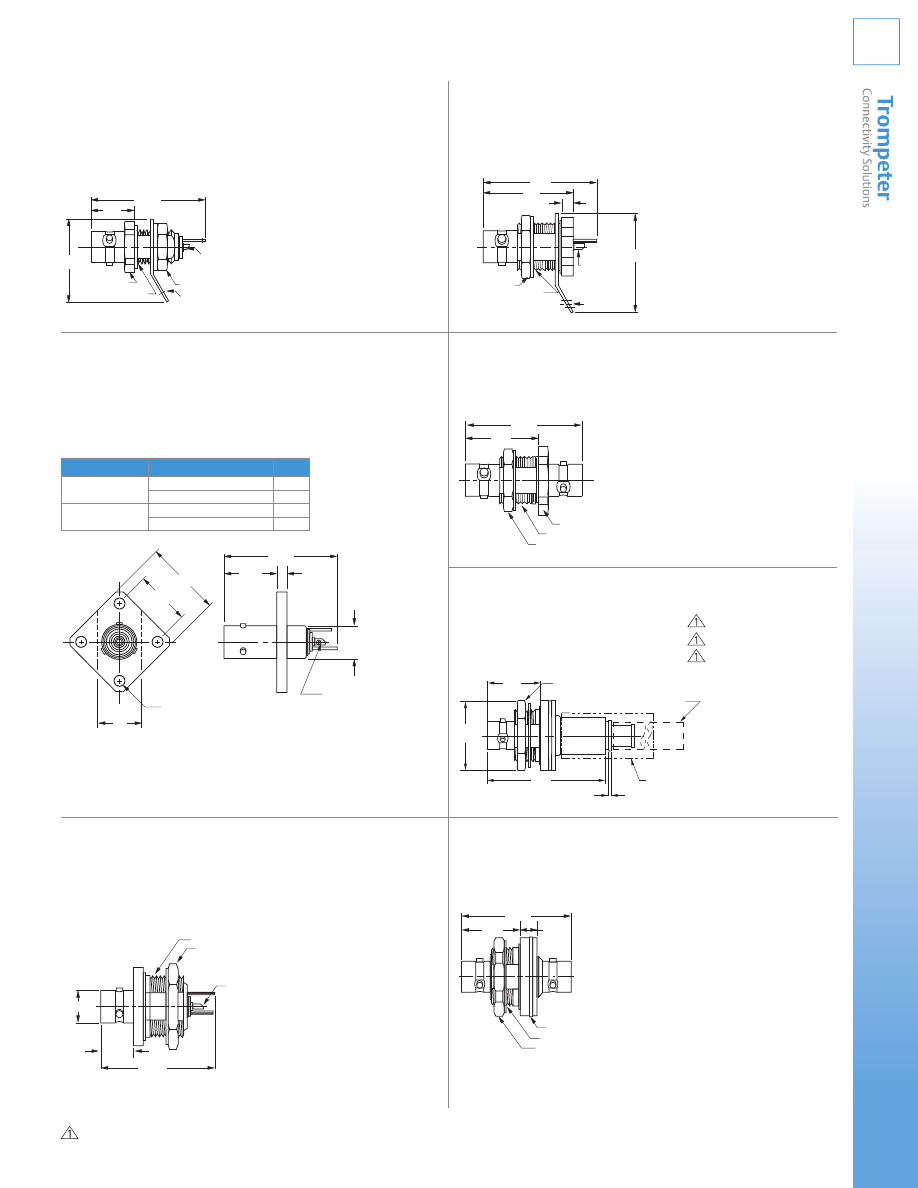

Twinax/Triax Connectors /

Miniature Plugs & Jacks

70/370 Series, TRB/TRT

Cable Plug

Military Crimp Tool

3–Lug.................................... PL75MC-
2–Lug.................................... PL74MC-
4–Lug.................................... PL75MCFL-
Threaded............................... PL375MC-

Cable Plug

Tool Crimp

2–Lug.................................... PL74C-
3–Lug.................................... PL75C-
4–Lug.................................... PL75CFL-
Threaded............................... PL375C-

* Length depends on Cable Group

Cable Plug

Wrench Crimp

2–Lug............................ PL74-
3–Lug............................ PL75-
4–Lug............................ PL75FL-
Threaded....................... PL375-

.500 BODY DIA

.096

.438 HEX

1.135

.438 WRENCH FLATS

.593 MAX DIA OVER KNURL

Cable Plug

Tool Crimp, Push-on

PL73C-

Cable Jack

Wrench Crimp

3–Lug........................... CJ70-
2–Lug........................... CJ70TL-
4–Lug........................... CJ70FL-
Threaded...................... CJ370-

Right Angle Cable Plug

Tool Crimp

2–Lug........................... PLR74C-
3–Lug........................... PLR75C-
4–Lug........................... PLR75CFL-
Threaded...................... PLR375C-

For cable groups
201-223 only. Contact
customer service for
other cables.

Cable Jack

Tool Crimp

3–Lug........................... CJ70C-
2–Lug........................... CJ70CTL-
4–Lug........................... CJ70CFL-
Threaded...................... CJ370C-

Right Angle TRB Adapter

TRB Male to Female

3–Lug......................... ADRMF70
2–Lug......................... ADRMF70TL
Threaded.................... ADRMF370
4–Lug......................... ADRMF70FL

TRB Coupling Adapter

Barrel Connector

3–Lug........................... AD78
2–Lug........................... AD78TL
4–Lug........................... AD78FL
Threaded...................... AD378

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

.500 HEX NUT

.4375-28UNEF-2A TYP

SOLDER POT ACCEPTS

.036 DIA CONDUCTOR

.562

DIA

.380

DIA

.487

1.122

.062

.600 DIA

.892

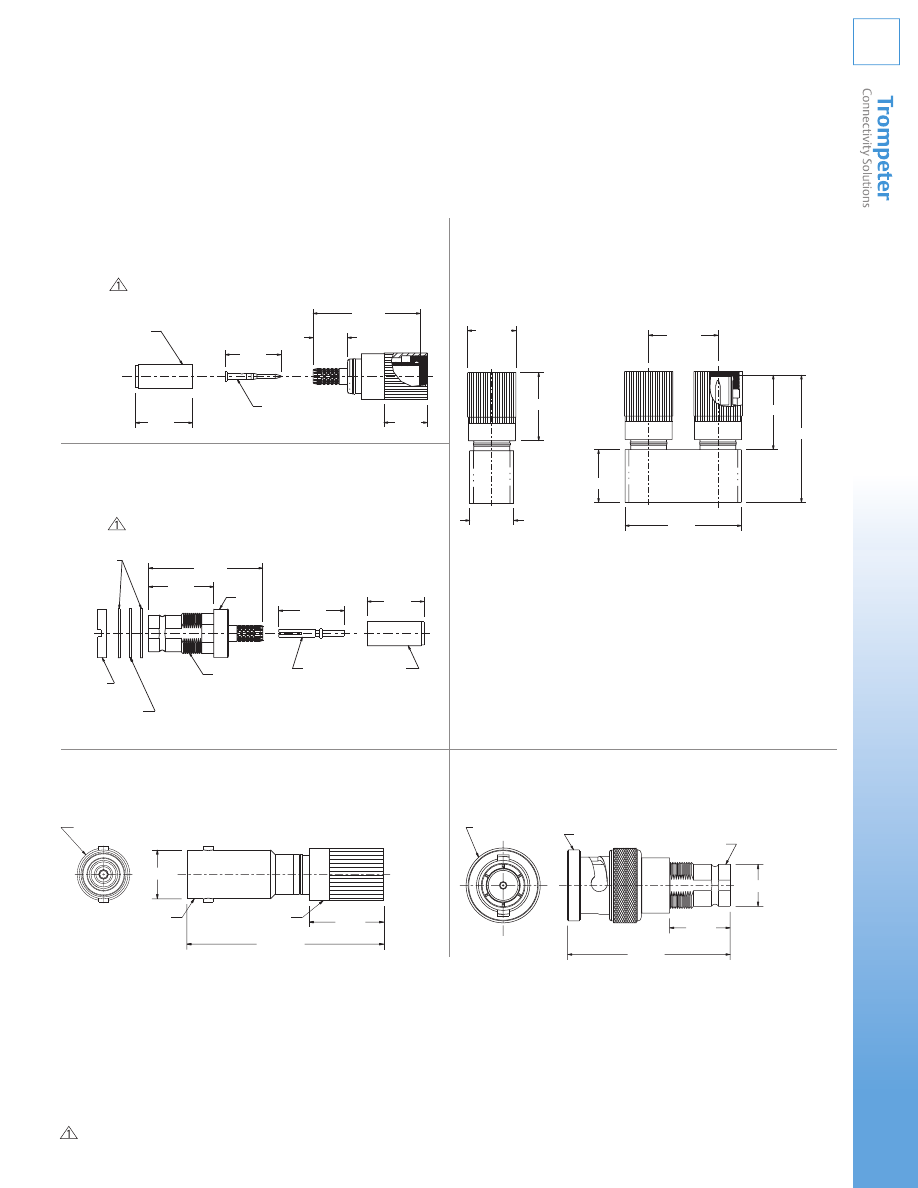

BJ73 Shown

Mounting Hole:

D2.140

BJ72 Shown

Mounting Hole:

D2.140

BJ378 Shown
(Hermetically sealed version available, pg.16)

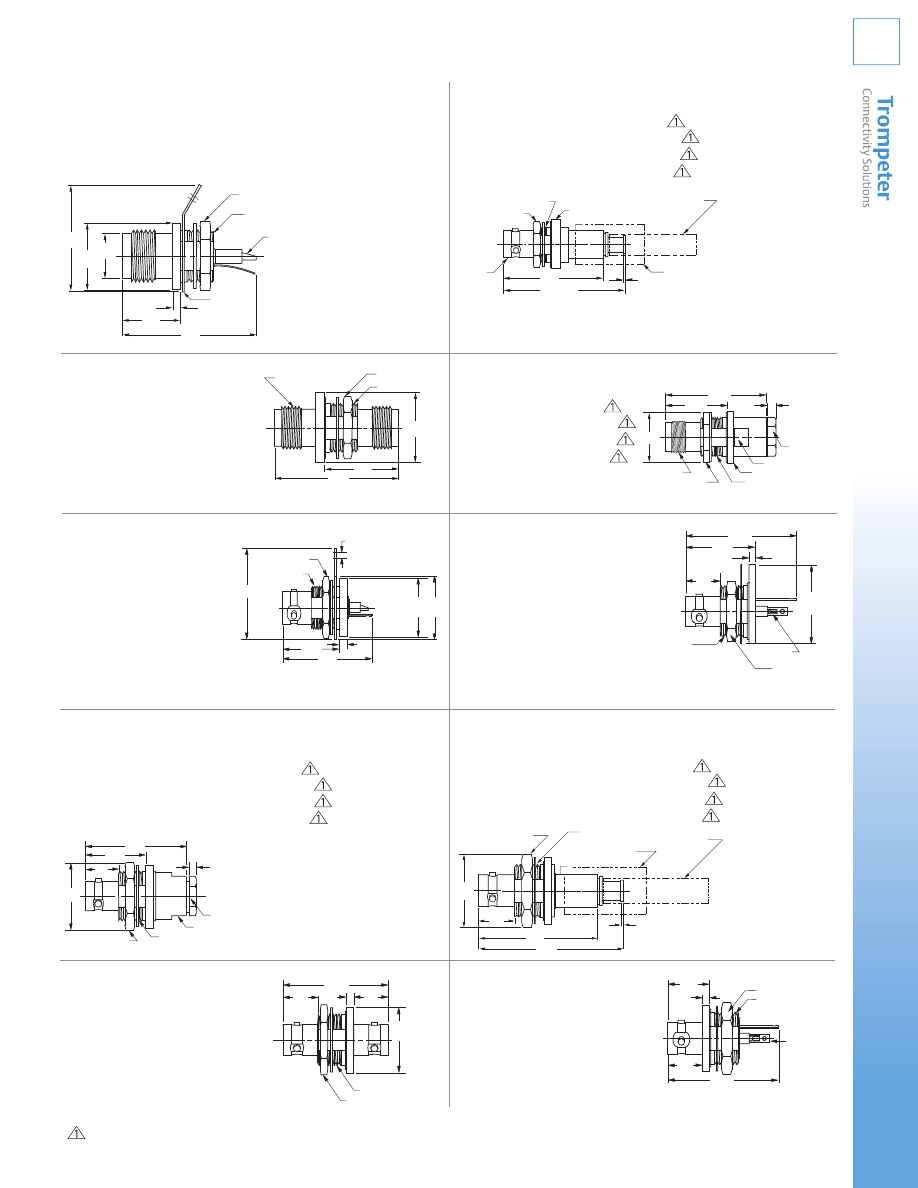

Mounting Hole:

D3.187

BJ74-9 Shown

Mounting Hole:

D2.140

BJ377 Shown
(Hermetically sealed version available,
pg.16)

Mounting Hole:

D4.125

BJ79C Shown
For polarizations, contact
customer service.

Mounting Hole:

D3.109

.730

DIA

.4375-28UNEF-2A TYP

.562 HEX NUT

.500-28UNEF-2A

.775

1.290

.750

DIA

.062 DIA

.500-28UNEF-2A

.625 HEX NUT

ACCEPTS .036 DIA

CONDUCTOR

1.065

.687

DIA

.840

1.312

.110

.500 WRENCH FLATS

.625-24 UNEF-2A

.750 HEX NUT

1.314

.775

.866

.414

MIN

.096

.437 HEX

.414

MIN

.625-24UNEF-2A

.750 HEX NUT

1.290

.414

MIN

.090

.800

DIA

.030

COLOR

BAND

1.146

.625 HEX NUT

.500-28UNEF-2A

.687 DIA

SHRINKABLE SEALING SLEEVE(LONG)

SHRINKABLE

STRAIN RELIEF

(CLEAR, 175

1.80 MAX

1.314

.687 DIA

.437

HEX

.500-28UNEF-2A

.437 WRENCH FLATS

.625 HEX NUT

.722

.096

.800

.4375-28UNEF-2A

.090

.750 HEX NUT

.625-24UNEF-2A

ACCEPTS

.041 DIA CONDUCTOR

.800

DIA

1.365

.865

.414

MIN

.515

ACCEPTS

.036 DIA

CONDUCTOR

.625-24UNEF-2A

.750 HEX NUT

1.365

.090

.414

MIN

BJ379-7 Shown

Mounting Hole:

D3.160

BJ76 Shown

Mounting Holes:

D3.240 w/o solder lug/D3.208 w/ solder lug

BJ75 Shown

Mounting Hole:

D2.140

.750 HEX NUT

.625-24UNEF-2A

.414

MIN

1.416

1.800

.030

.800

DIA

SHRINKABLE

STRAIN RELIEF

(CLEAR, 175

SHRINKABLE SEALING SLEEVE (LONG)

BJ74C-202 Shown

Mounting Hole:

D2.140

Twinax/Triax Connectors /

Miniature Plugs & Jacks

70/370 Series, TRB/TRT

Twinax/Triax Connectors /

Miniature Bulkhead Jacks

70/370 Series, TRB/TRT

Bulkhead Jack

Front Mount, Solder Pot

3–Lug.................................... BJ770
2–Lug.................................... BJ77TL
4–Lug.................................... BJ77FL
Threaded............................... BJ377

Bulkhead Jack

Tool Crimp

3–Lug.................................... BJ79C-
2–Lug.................................... BJ79CTL-
4–Lug.................................... BJ79CFL-
Threaded............................... BJ379C-

Feed-Thru Bulkhead Jack

3–Lug................................ BJ78
2–Lug................................ BJ78TL
4–Lug................................ BJ78FL
Threaded........................... BJ378

Bulkhead Cable Jack

Wrench Crimp

3–Lug..................... BJ79-
2–Lug..................... BJ79TL-
4–Lug..................... BJ79FL-
Threaded................ BJ379-

Bulkhead Solder Pot

Rear Mount, Solder Pot

3–Lug........................ BJ76
2–Lug........................ BJ76TL
4–Lug........................ BJ76FL
Threaded................... BJ376

Insulated Bulkhead Jack

Rear Mount, Solder Pot

3–Lug........................ BJ75
2–Lug........................ BJ75TL
4–Lug........................ BJ75FL
Threaded................... BJ375

Insulated Bulkhead Cable Jack

Wrench Crimp

3–Lug.............................................. BJ74-
2–Lug.............................................. BJ74TL-
4–Lug.............................................. BJ74FL-
Threaded......................................... BJ374-

Insulated Bulkhead Cable Jack

Tool Crimp

3–Lug........................................... BJ74C-
2–Lug........................................... BJ74CTL-
4–Lug........................................... BJ74CFL-
Threaded...................................... BJ374C-

Insulated Feed-Thru Jack

Wrench Crimp

3–Lug............................... BJ73
2–Lug............................... BJ73TL
4–Lug............................... BJ73FL
Threaded.......................... BJ373

“D” mounting holes see page 54. For polarizations, contact customer service.

Insulated Bulkhead Jack

Front Mount

3–Lug............................... BJ72
2–Lug............................... BJ72TL
4–Lug............................... BJ72FL
Threaded.......................... BJ372

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C

Add “A” for tall versions example: CBBJR74A

“D” mounting holes see page 54.

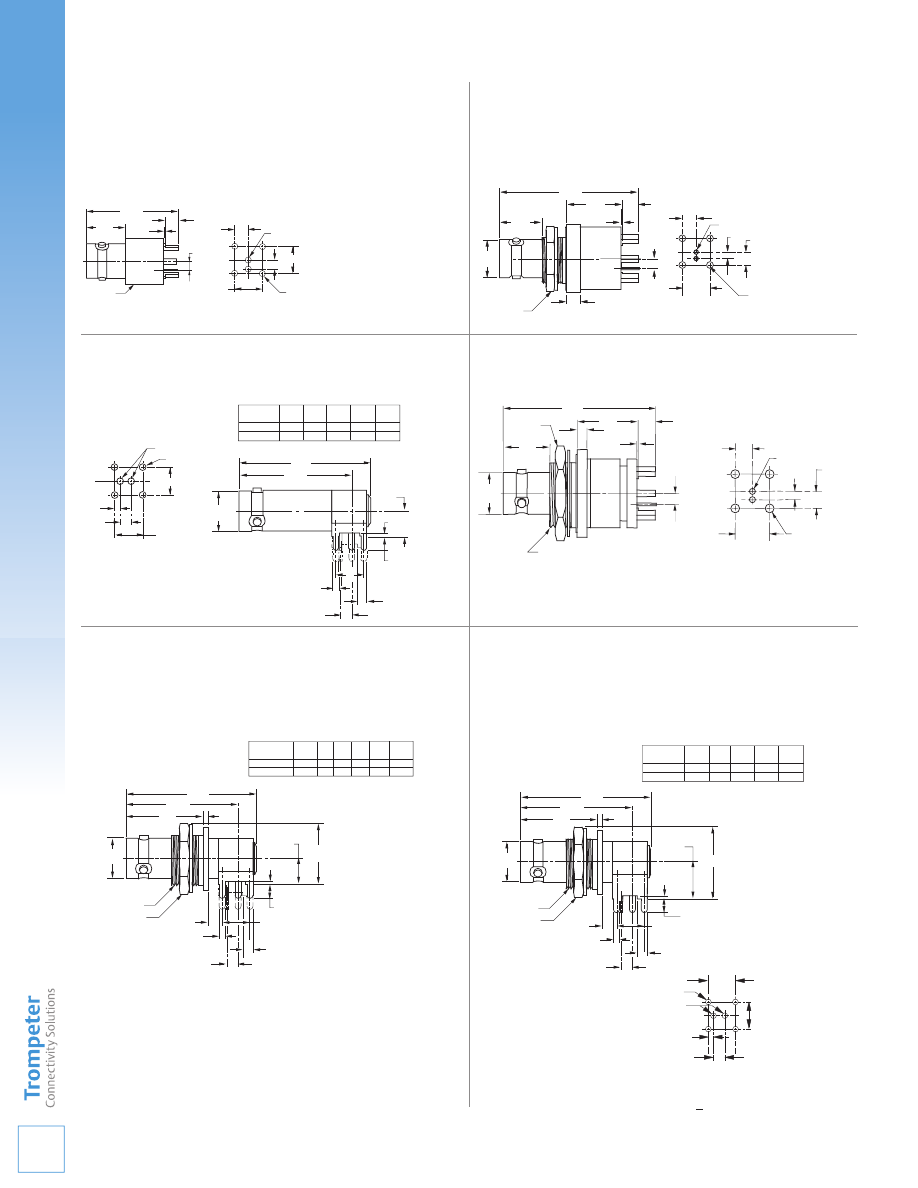

1.000

.425

.013

.156

.100

.500 DIA

.150

TYP

.0625 DIA

2 PLACES

.300

.0700 DIA

4 PLACES

.100

.300

1.216

1.042

.718

.050

.380

DIA

.500-28UNEF-2A

.562 HEX NUT

.124

.100

.030 TYP

.13 TYP

.258 TYP

D TYP

C TYP

.258

TYP

E DIA TYP

.258

.050

.100

.0625 DIA

MODEL LTR A B C D E

NO.

CODE DIM DIM DIM DIM DIM

CBBJR79

.24 .565 .050 .090 .0625

CBBJR79A A .34 .665 .058 .090 .070

FOR MODEL
# 305-0789
DIA = .0410

.400

TYP

.0935 DIA

4 PLACES

.200

.100

.200

.0625 DIA, 2 PLACES

1.388

.557

.425

.156

TYP

.013

.100

.128

.562 HEX NUT

.380

DIA

.109 MAXIMUM PANEL THICKNESS

1.324

1.153

.785

.090

.380

DIA

.625-24UNEF-2A

.750 HEX NUT

.124

.100

.030 TYP

.13 TYP

.258 TYP

.090 TYP

C TYP

.258

TYP

D DIA TYP

.258

.050

.100

.0625 DIA

MODEL LTR A B C D

NO.

CODE

DIM DIM DIM DIM

CBBJR74 - .345 .778 .050 .0625

CBBJR74A A .445 .878 .058 .070
MAX PANEL THICKNESS .140

.750

HEX

NUT

1.388

.200

.0625 DIA, 2 PLACES

.200

.100

.400

TYP

.0935 DIA

4 PLACES

.380

DIA

.625-24UNEF-2A

.090

.557

.156

.013

.100

.425

1.216

1.042

.380

TYP

.030 TYP

.13 TYP

B TYP

.100

C TYP

.258

TYP

.0625 DIA

D DIA TYP

.050

.100

.258

MODEL LTR A B C D

NO.

CODE

DIM DIM DIM DIM

CBJR70

- .24 .050 .090 .0625

CBJR70A A .34 .058 .090 .070

CBBJR79 Shown

Mounting Hole:

D3.125

CBBJR74 Shown

Mounting Hole:

D2.140

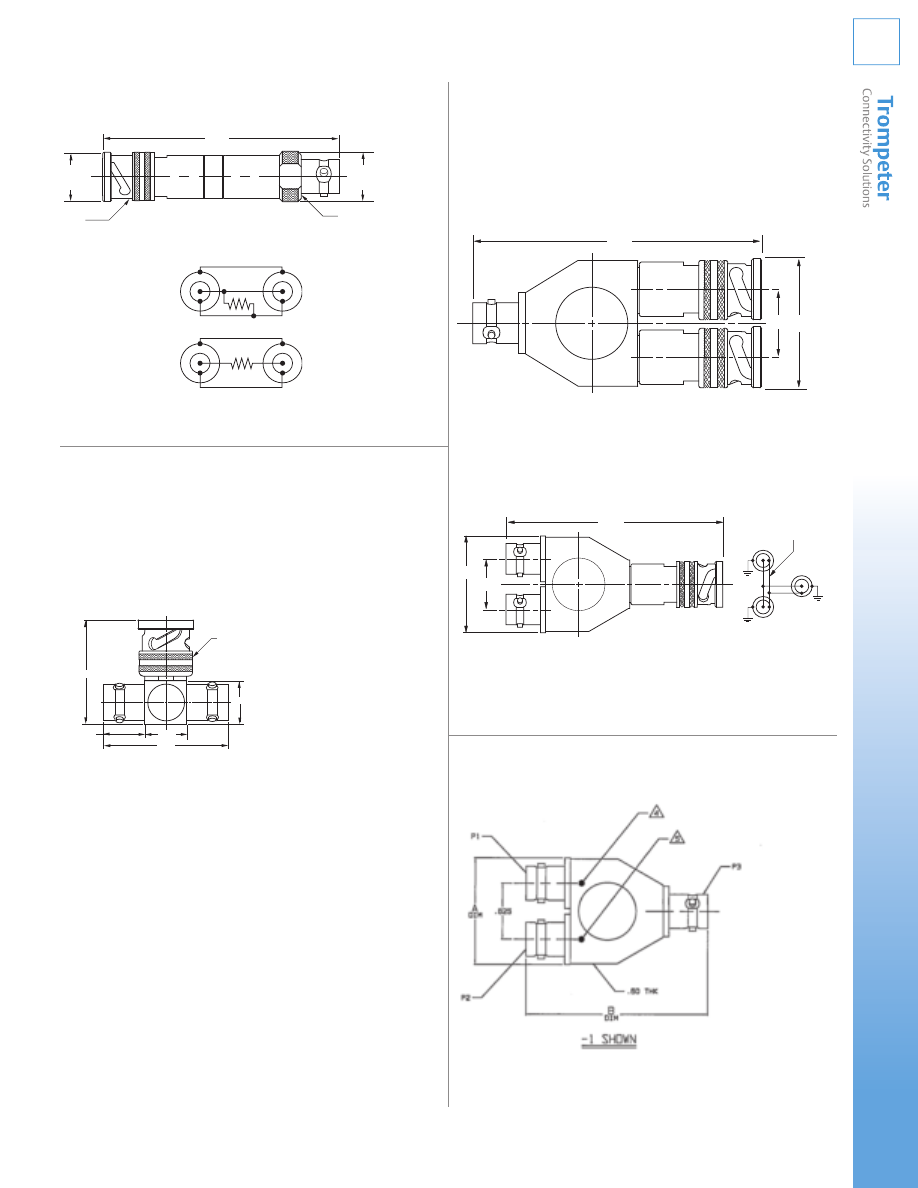

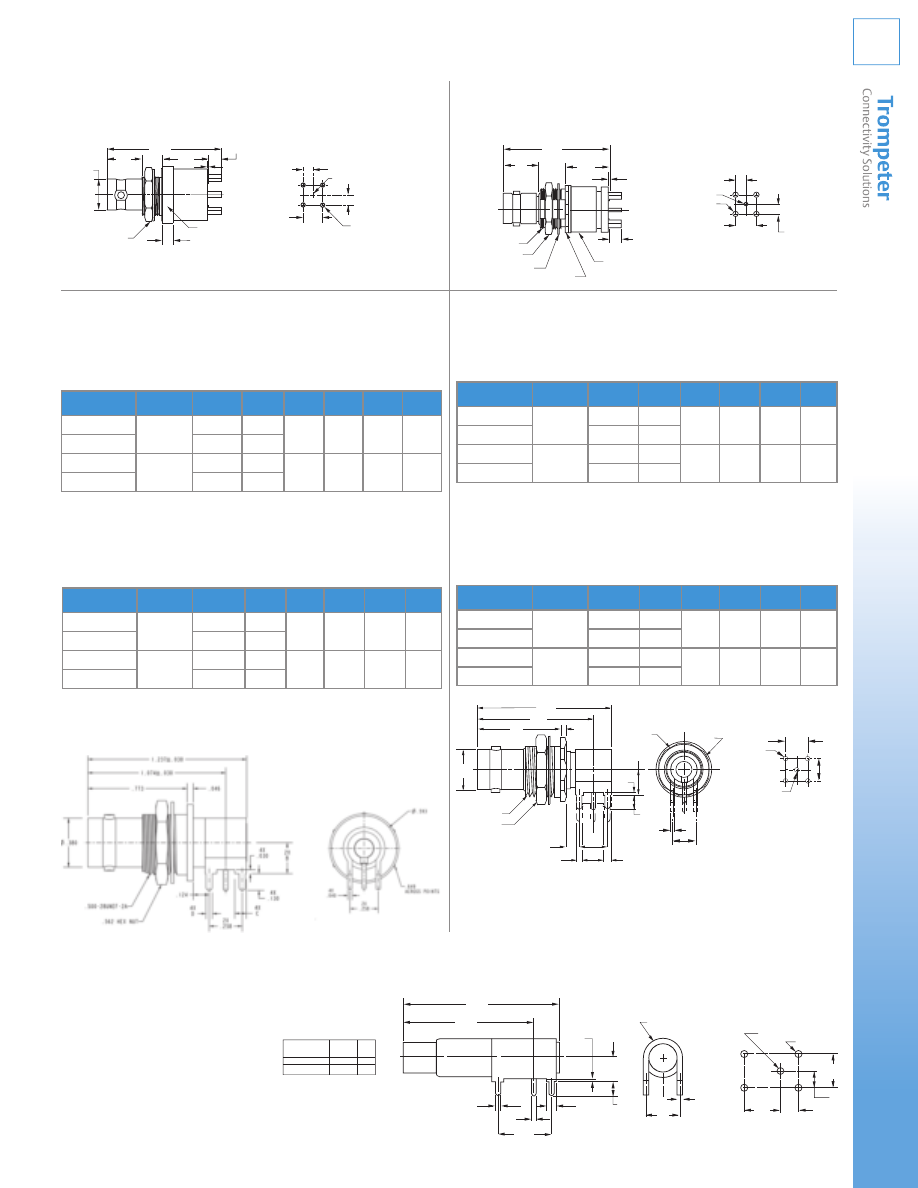

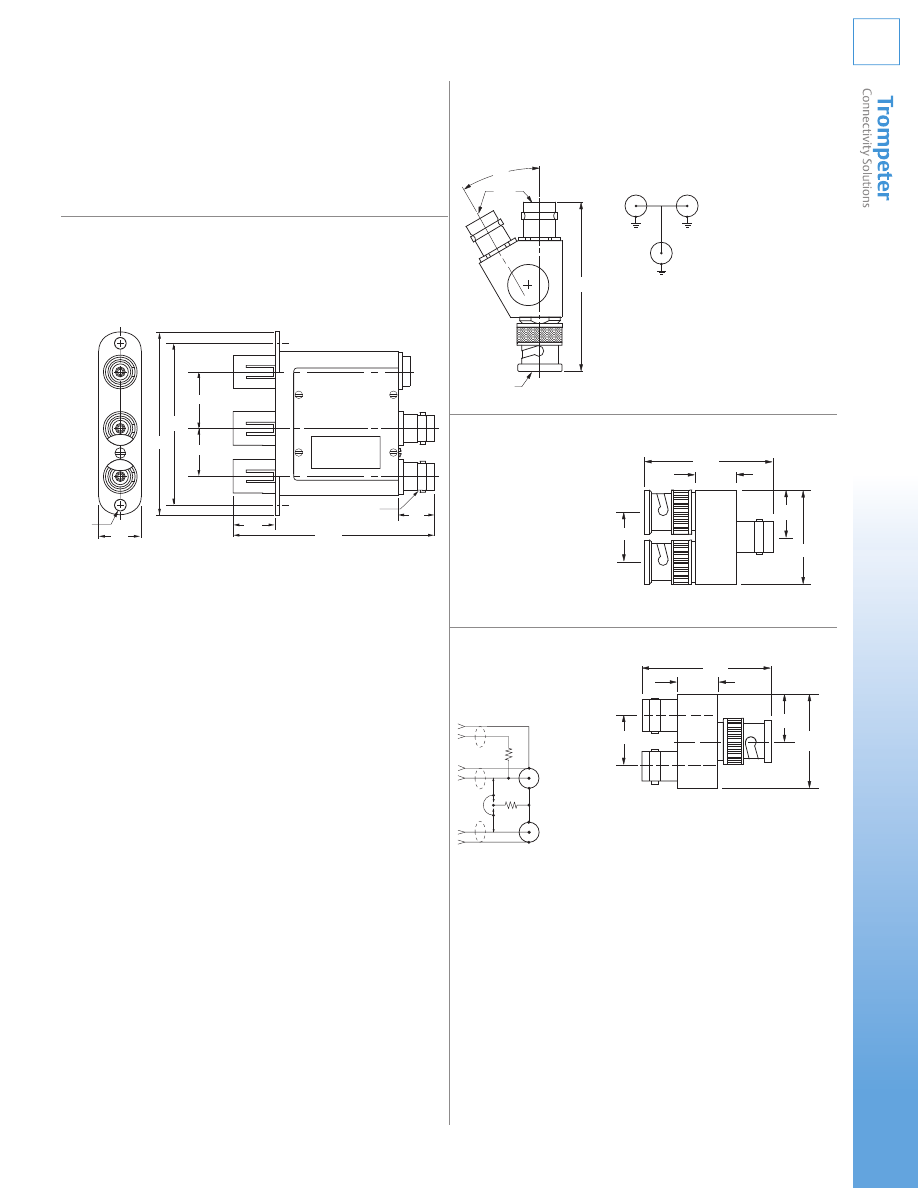

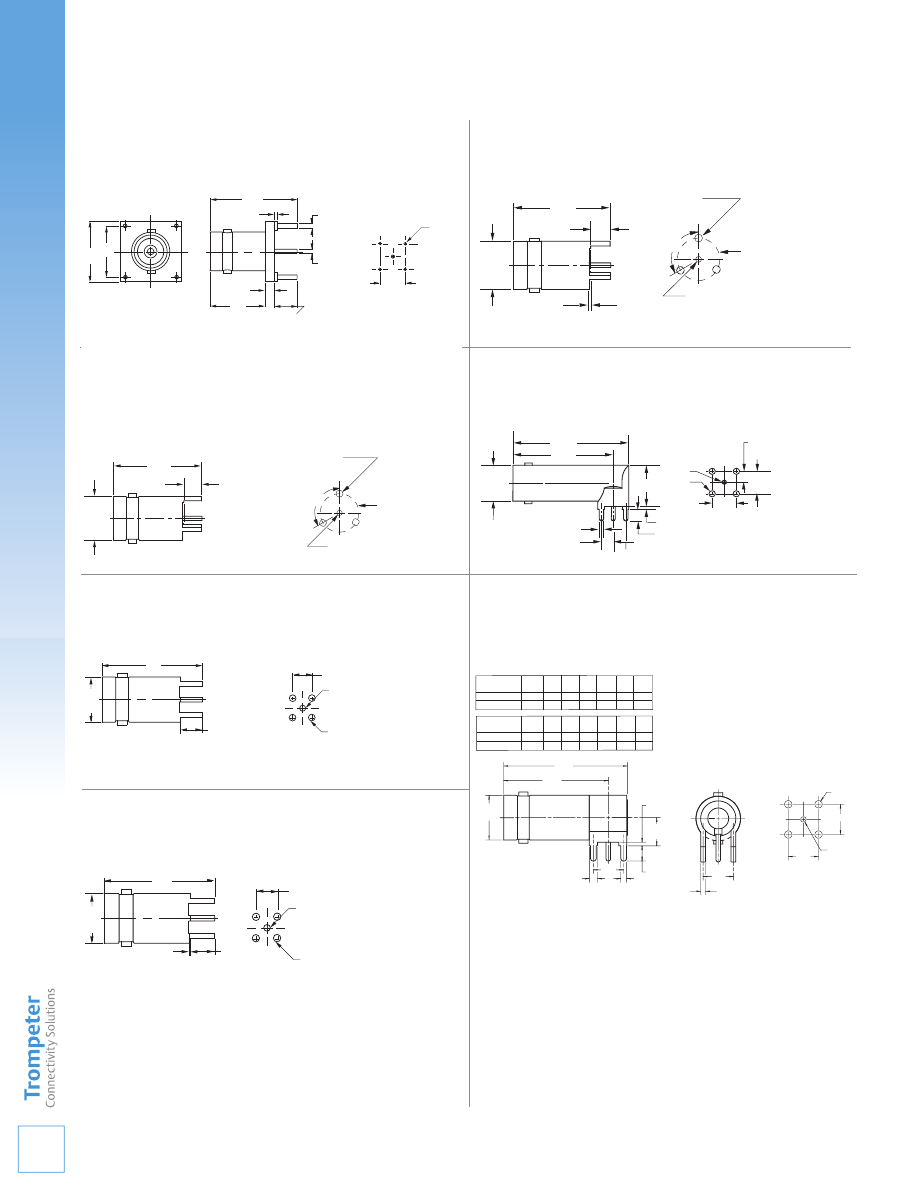

Twinax/Triax Connectors /

Miniature Circuit Board Jacks

70/370 Series

Twinax/Triax TRB Concentric

Circuit Board Jack

3–Lug.............................................. CBJ70
2–Lug.............................................. CBJ70TL
4–Lug.............................................. CBJ70FL
(TRT) Threaded................................ CBJ370

CBJ70 Shown

Twinax/Triax TRB Non-Insulated Bulkhead Jack

Concentric Female 3-Lug Bulkhead Mount

3–Lug.......................................... CBBJ79
2–Lug.......................................... CBBJ79TL
4–Lug.......................................... CBBJ79FL
Threaded..................................... CBBJ379

CBBJ79 Shown

Mounting Hole:

D3.109

Twinax/Triax TRB Right Angle Concentric

Circuit Board Jack

3–Lug.............................................. CBJR70, CBJR70A

Twinax/Triax TRB Insulated Bulkhead Jack

Concentric Female 3-Lug, Bulkhead Mount

3–Lug.............................................. CBBJ74

Mounting Hole:

D2.109

Right Angle Circuit Board Bulkhead Jack

Standard Version

3–Lug.............................................. CBBJR79
2–Lug.............................................. CBBJR79TL
4–Lug.............................................. CBBJR79FL
Threaded......................................... CBBJR379

Right Angle Insulated Circuit Board Bulkhead Jack

Insulated Version

3–Lug.............................................. CBBJR74
2–Lug.............................................. CBBJR74TL
4–Lug.............................................. CBBJR74FL
Threaded......................................... CBBJR374

trompeterproductcatalog-html.html

X C
O

.625 1.166

2.673

* Other options available including Random Paralleling.
Contact customer service for more information.

For Adapters, see pages 58-61. For Terminations, see page 57.

TN2 Shown

.593

DIA

MAX

PL75

2.683

CJ70

.593

DIA

MAX

.425 TYP

.436

1.286

.593 DIA

OVER KNURL

1.075

.440

.625

1.166

2.673

INTERMEDIATE

BN73 Shown

Twinax/Triax Connectors /

Miniature Circuit Board Jacks

70/370 Series

Twinax/Triax Connectors /

TRB Series Pad

Paralleling/T Adapter

TRB Series Pad

TRB 3-Lug Plug and Jack

TRB “T” Adapter

3–Lug.............................................. BN73
2–Lug.............................................. BN73TL
4–Lug.............................................. BN73FL

TRT “T” Adapter

Threaded......................................... BN373

Fixed Paralleling Jack

Two Plugs, One Jack

3–Lug.............................................. TN2
2–Lug.............................................. TN2TL
4–Lug.............................................. TN2FL
Threaded......................................... TN2T

Fixed Paralleling Jacks

Fixed Paralleling Jack

Two Jacks, One Plug

3–Lug.............................................. TN2A
2–Lug.............................................. TN2TLA
4–Lug.............................................. TN2FLA
Threaded......................................... TN2TA

TN2A Shown

TNG2-R

TNG3-R

Part Number Circuitry Schematic

R-Resistance (½W 1%)
Substitute resistive value for each "R

" unless all values are identical.

Triax Parallel Network

305-0138

trompeterproductcatalog-html.html

X C

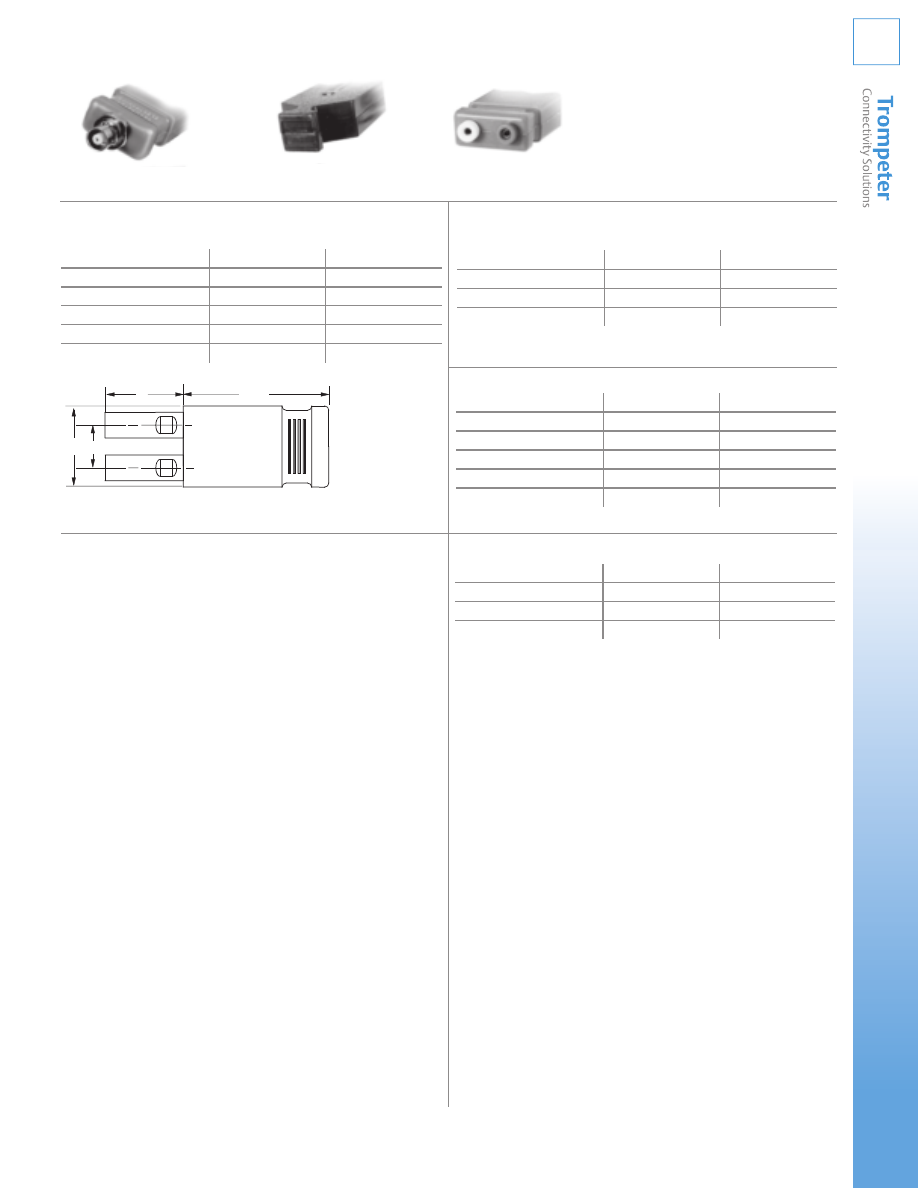

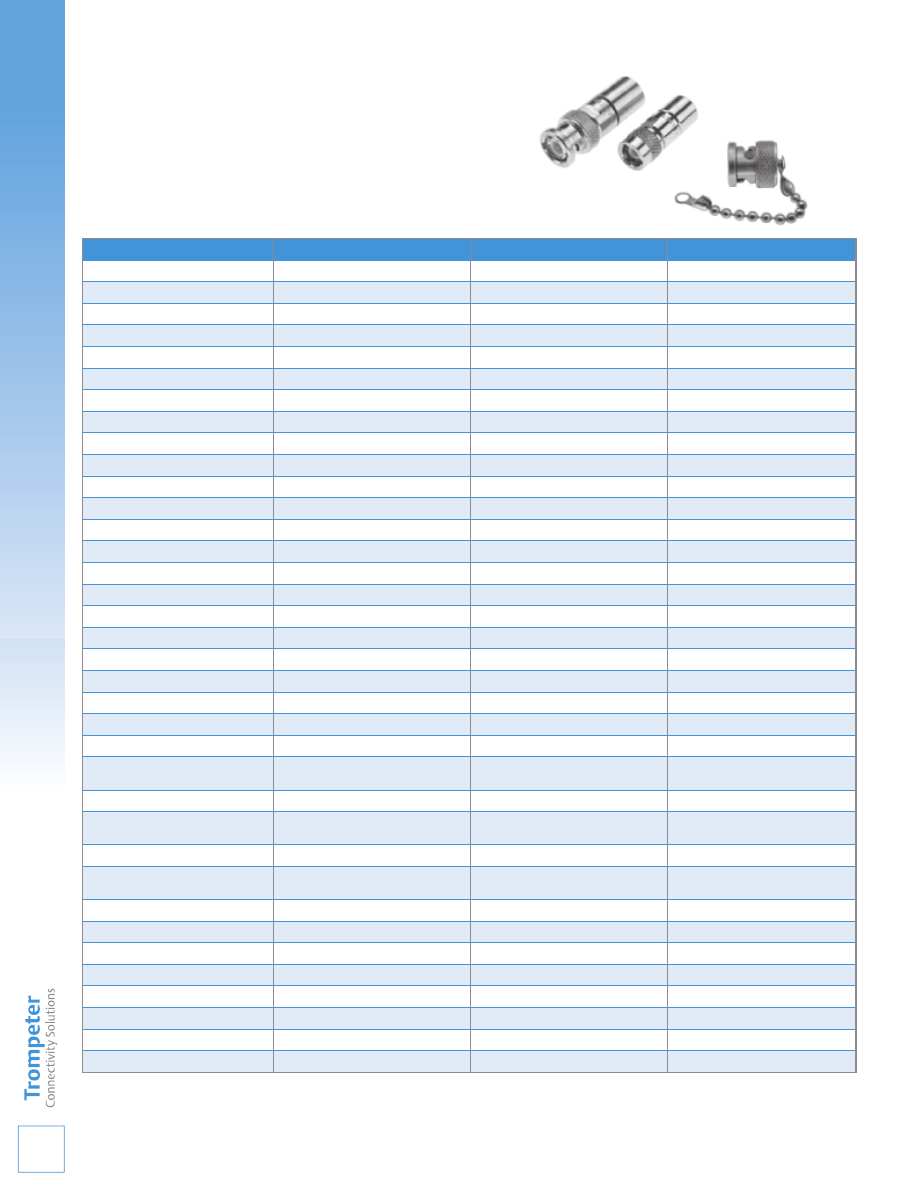

Twinax/Triax Terminators and RFI (Dust
Caps)

Trompeter provides Terminations and RFI caps versions of many
of our twinax/triax connectors. Resistors are normally 1/8 watt for
subminiature connectors and 1/2 watt for miniature and standard
size connectors, with 1% tolerances for all.

For Chain Options and Ordering Instructions, see page 57.

Notes:

(3) = Chain options, see page 63.
“R” = Resistance

Parts to be capped

Description

Terminator

RFI (Dust Cap)

BJ30/CJ30 Series

TWBNC Jack

TNGT1-(3)-R

RFI25-(3)

BJ70/CJ70 Series

TRB, Jack

TNG1-(3)-R

RFI75-(3)

BJ70FL/CJ70FL

TRB, Jack

TNGFL1-(3)-R

RFI75FL-(3)

BJ70TL/CJ70TL

TRB, Jack

TNGTL1-(3)-R

RFI75TL-(3)

BJ80/CJ80

TRC, Jack

TNGL1-(3)-R

RFI85-(3)

BJ150/CJ150

TRS, Jack

TNGM1-(3)-R

RFI155-(3)

BJ150FL/CJ150FL

TRS, Jack

TNGMFL1-(3)-R

RFI155FL-(3)

BJ375/CJ370

TRT, Jack

TNT1-(3)-R

RFI375-(3)

BJ375/CJ370

TRT, Jack

TNTS1-(3)-R (Safety Holes)

RFI375-(3)

BJ380/CJ380

TRN, Jack

TNTL1-(3)-R

RFI385-(3)

BJ803/CJ803

TRC, 3-lug Jack

TNG3L1-(3)

RFI853-(3)

BJ3150/CJ3150

TTM, Jack

TNTM1-(3)-R

RFI3155-(3)

J72

Twinax Patch Jack

TPT-(3)-R

RFI70-(3)

J72L

Twinax Patch Jack

TPTL-(3)-R

RFI70-(3)

J152

Twinax Submin. Patch Jack

TPTWM-(3)-R

RFI150-(3)

PL30

TWBNC, Plug

TNGBJT1-(3)-R

RFI21-(3)

PL74

TRB, Plug

TNGBJTL1-(3)-R

RFI77TL-(3)

PL75

TRB, Plug

TNGBJ1-(3)-R

RFI77-(3)

PL75FL

TRB, Plug

TNGBJFL1-(3)-R

RFI77FL-(3)

PL80

TRC, Plug

TNGLF1-(3)-R

RFI80-(3)

PL803

TRC, Plug

TNGLF3L1-(3)-R

RFI80(3)

PL380

TRN

TNTLF1-(3)-R

RFI80(3)

PL150

Submin. Patch Plug

TJTWM-(3)-R

PL155

TRS, Plug

TNGBJM1-(3)-R (Bulkhead
Mount)

RFI157-(3)

PL155

TRS, Plug

TNGMF1-(3)-R

RFI157-(3)

PL155FL

TRS, Plug

TNGBJMFL1-(3) (Bulkhead
Mount)

RFI157FL-(3)

PL155FL

TRS, Plug

TNGMFFL1-(3)-R

RFI157FL-(3)

PL3155

TTM, Plug

TNTBJM1-(3)-R (Bulkhead
Mount)

RFI3157-(3)

PL3155

TTM, Plug

TNTMF1-(3)-R

RFI3157-(3)

PL350

TCM, Plug

RFI357-(3)

PL375

TRT, Plug

TNTBJ1-(3)-R (Bulkhead Mount) RFI377-(3)

PL375

TRT, Plug

TNTF1-(3)-R

RFI377-(3)

PL380

TRN, Plug

TNTLF1-(3)-R

RFI380-(3)

PL803

TRC, 3-lug, Plug

TNGLF3L1-(3)-R

RFI803-(3)

For 450/3450 Series:

Concentric Twinax

See pages 22-23

Twinax/Triax Connectors /

RFI Caps & Terminations

Twinax/Triax Connectors /

Miniature Patching & Cable Assemblies

trompeterproductcatalog-html.html

X C
O

Panels are on pages 51-54.

.445

DIA

.380

DIA

1.268

.570

.812

.562

.375

.281

.156 DIA MTG HOLE

.4375-28UNEF-2A

.447
DIA

.570

.610

1.735

.812

.562

.375

.281

.156 DIA

MTG HOLE

.500 HEX

.437 WRENCH

FLATS

2.594

.570

.445

DIA

.187

.4375-28UNEF-2A

.445

DIA

.570

.610

1.735

.812

.562

.375

.281

.156 DIA

MTG HOLE

.575

1.337

.374 DIA

.437 WRENCH FLATS

.543 DIA MAX

.437

WRENCH FLATS

.505

DIA

1.880

.437 WRENCH FLATS

"L"

LENGTH

"L"

LENGTH

"L"

LENGTH

"L"

Length

in inches

For patch jack, no chain
For other chain options see page 58.

PL71-7 Shown

R = Resistance, 50, 75, 78 and 124 ohm standard
L = Length in Inches, 6, 12, 24, 36, 48, 60 standard
Z = Impedance in Ohms, 50, 75, 78 and 124 ohm standard

Twinax/Triax Connectors /

RFI Caps & Terminations

Twinax/Triax Connectors /

Miniature Patching & Cable Assemblies

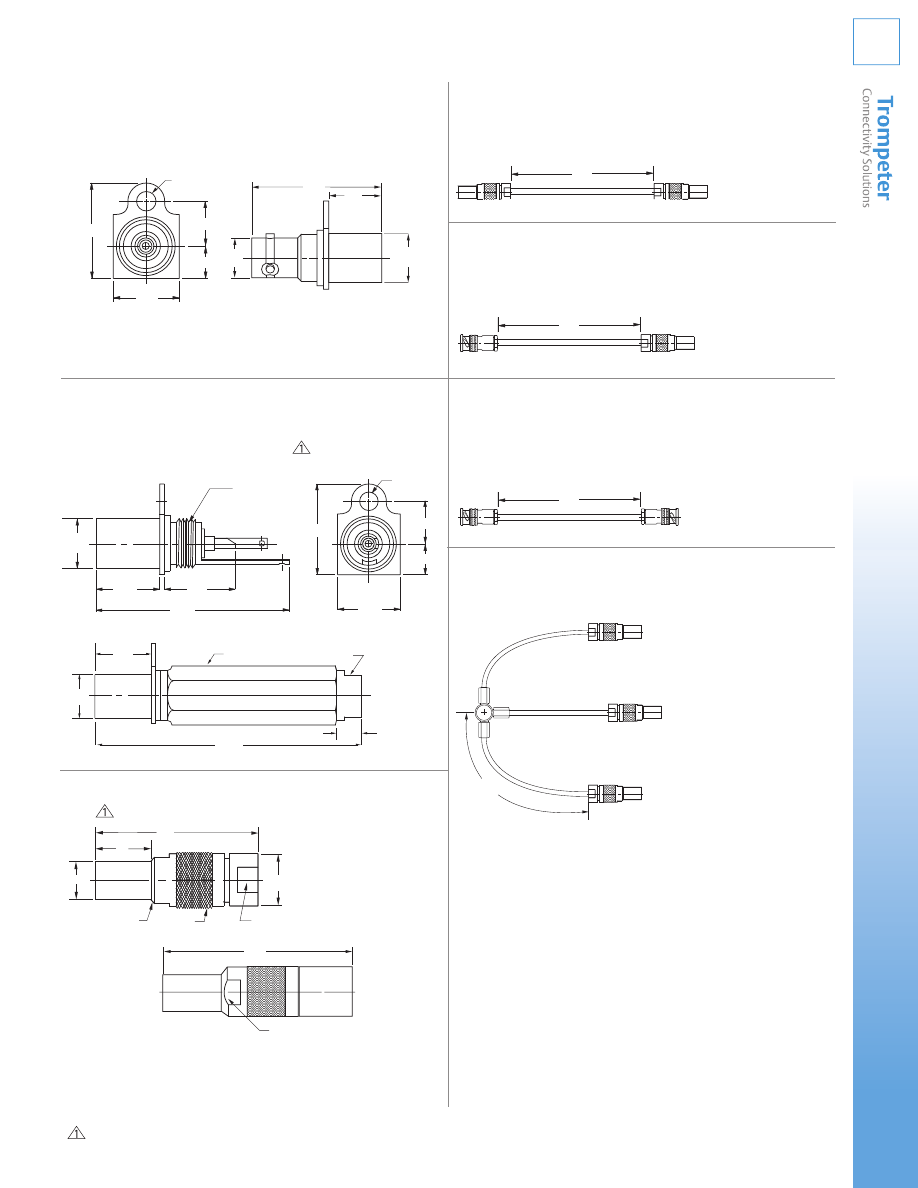

Patch Jack

TRB 3-Lug

J72

Patch Jack

Shielded

Without Hood............................... J72D
With Hood..................................... J72S-

Patch Plug

PL71-

Termination

TPT-1-R

RFI Cap

RFI 70-1

Patch Cord

Patch Plug to Patch Plug

Twinax............................................ PTW-L-Z
Triax................................................ PTR-L-Z

Cable Assembly

TRB 3-Lug Plug to Patch Plug

Twinax......................................... PTWX-L-Z
Triax............................................ PTRX-L-Z

Cable Assembly

TRB 3-Lug Plugs

Twinax......................................... PTWY-L-Z
Triax............................................ PTRY-L-Z

Bend relief available, call customer service.

Parallel Patch Cord

Twinax......................................... PTWS-L-Z
Triax............................................ PTRS-L-Z

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C

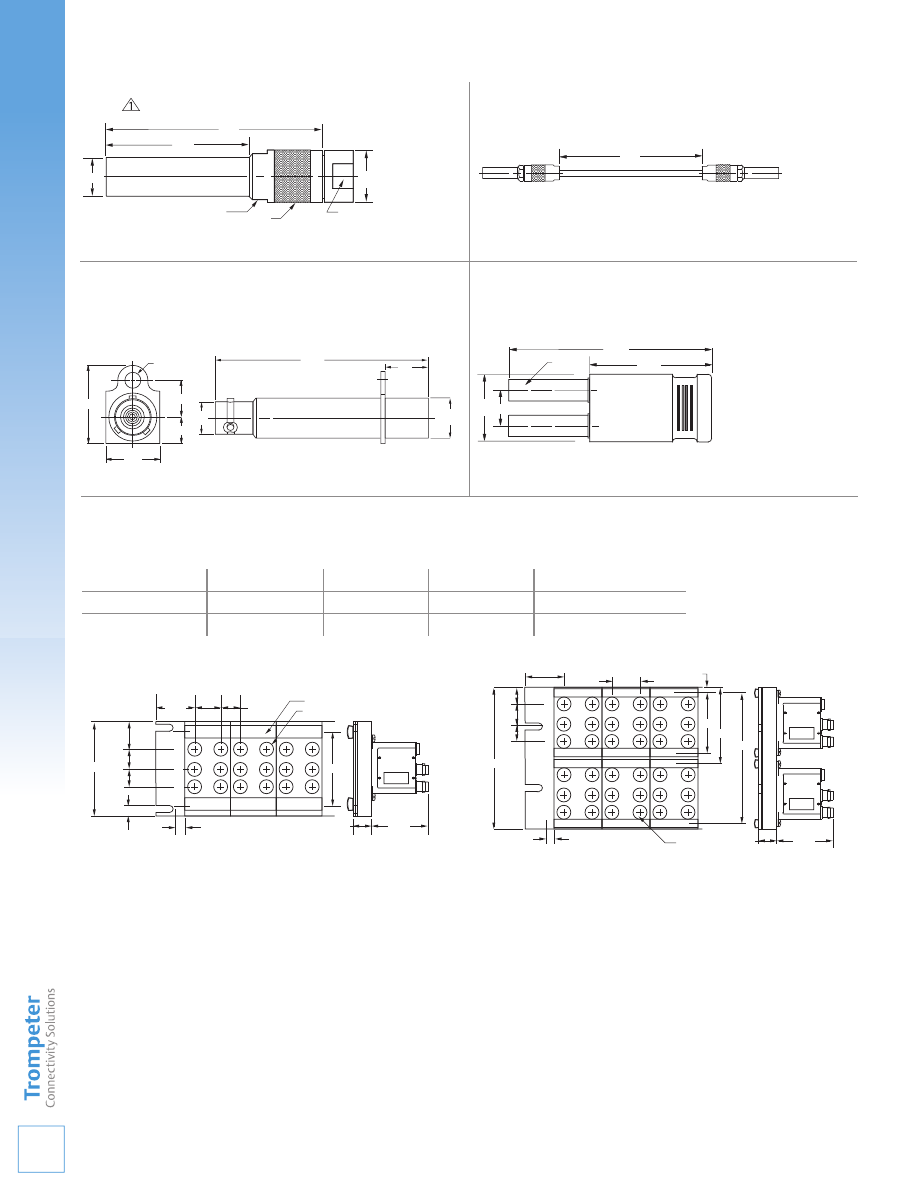

Front-loading Modular Panels

For use with J74MST-R Patch Jacks (pg. 13)

R-Resistance (½W, 1%), Z-Denotes Cable Impedance.
Standard and Sub-miniature Panels, see pages 53-54.

LPTWL-78 Shown

1.689

2.514

.374

.437 WRENCH FLATS

.437 FLATS

.500

DIA

.513 DIA MAX

"L"

LENGTH

.445

DIA

.380

DIA

2.660

.570

.812

.560

.375

.281

.156 DIA MTG HOLE

STD. 2 DSI (.580 WIDE)

.450 DIA THRU

1.000

TYP

.688

TYP

1.404

S
L

3.483

1.046

.750

.625

.330 MAX

2.077

.660

2.650

.420

JSISM-60

2.250

.625

TROMPETER

ELECTRONICS

1.20

3.969

.374

DIA TYP

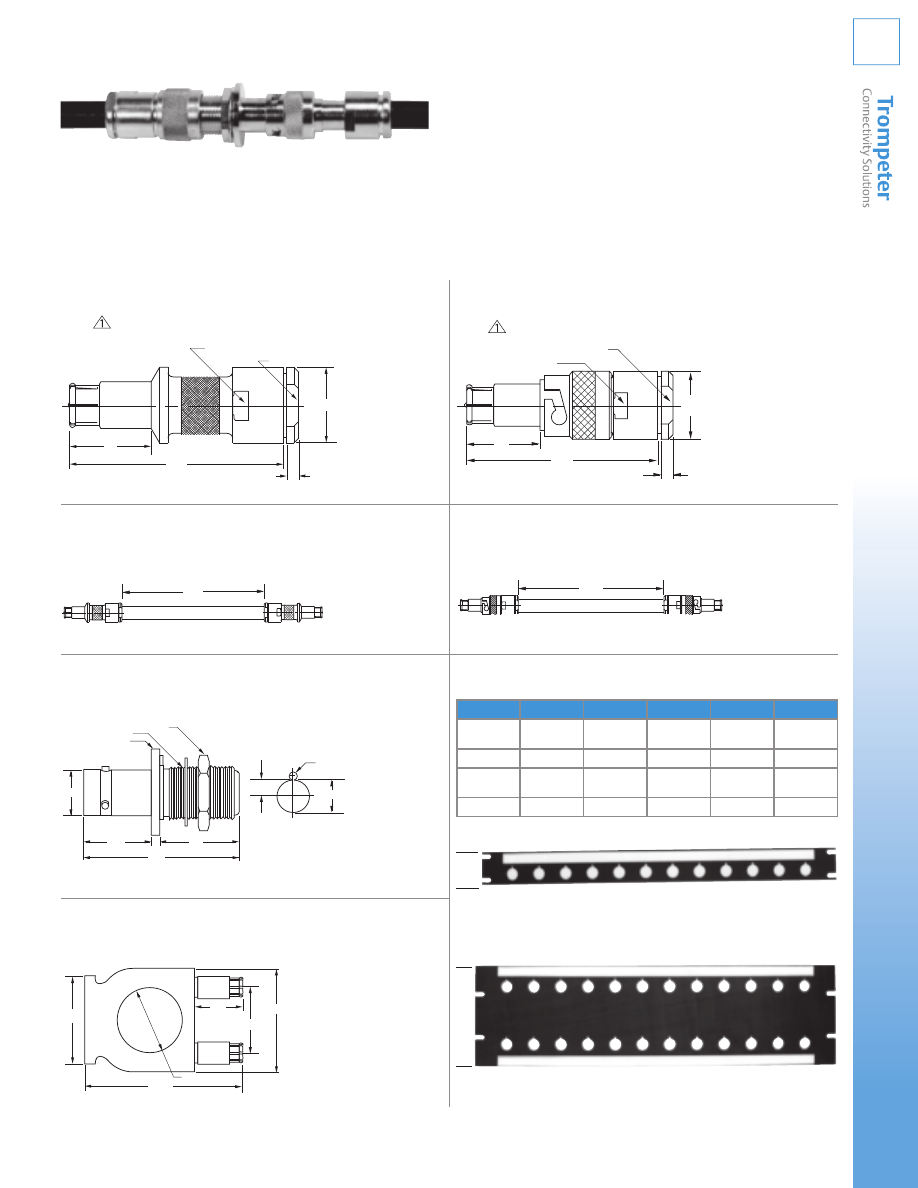

Twinax/Triax Connectors /

Miniature Patching

Twinax Patch Plug

PL71L-

Twinax Patch Jack

TRB 3-Lug

J72L

Twinax Patch Cord

Twinax......................................... PTWYL-L-Z
Triax............................................ PTRYL-L-Z

Looping Plug

Twinax.......................................... LPTWL-Z
Triax.............................................. LPTRL--Z

Panel Dimensions

Modules/Panels

Jacks/Module

Jacks/Panel

Part Number

19”x3.483”

155-0830-1 (JSISM-60)

19”x2.34”

JSISM-120

STD. 2 DSI (.580 WIDE)

.450 DIA THRU

1.000

TYP

.688

TYP

1.404

3.483

1.046

.750

.625

.330 MAX

2.077

.660

2.650

.420

.330 MAX TYP

5.234

1.404

1.000

2.218

2.608

.204

4.826

.660

2.077

.450 DIA THRU

120 HOLES

.750

.625

JSISM-60

JSISM-120

trompeterproductcatalog-html.html

X C
O

R-Resistance (½W, 1%). For standard panels see page 51.

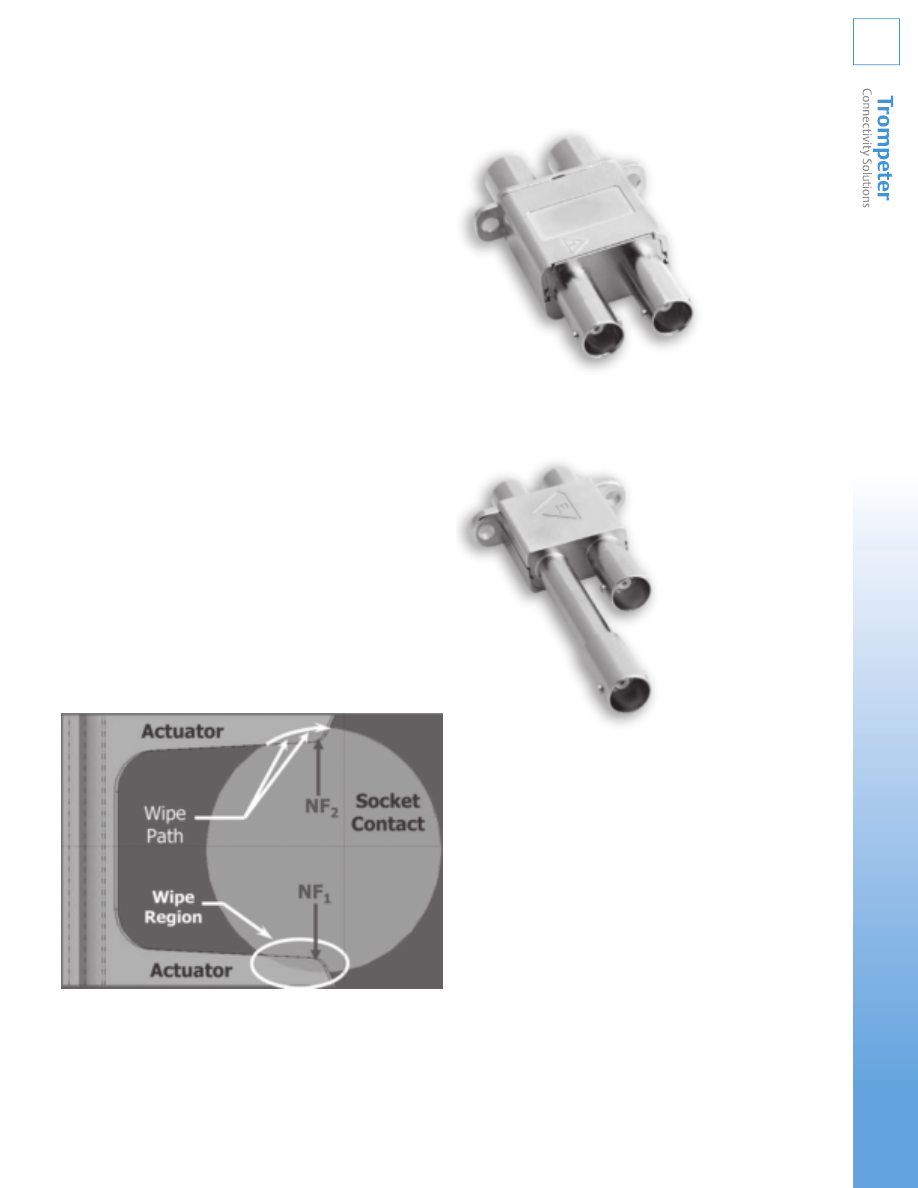

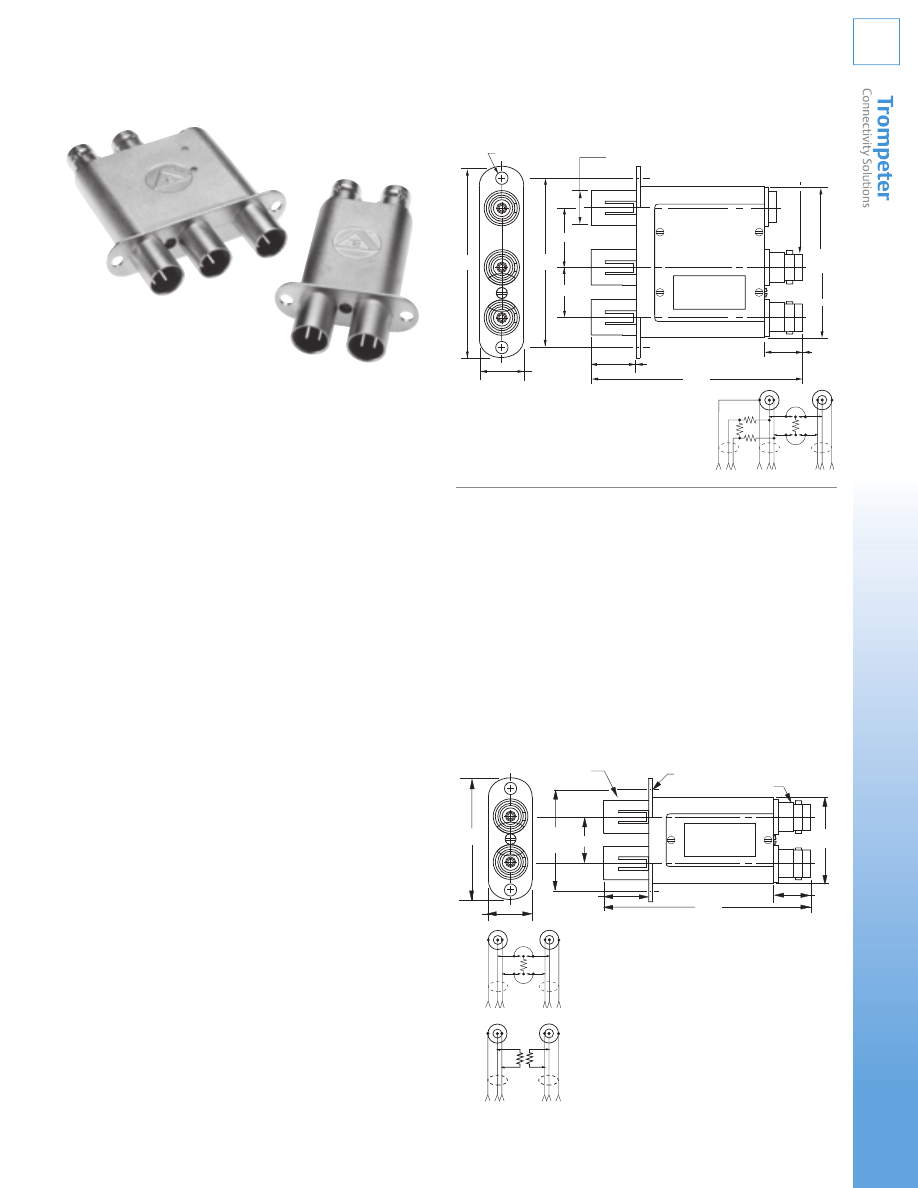

J74 Series

Trompeter’s superior J74 Series of twinax/triax patch jacks
provide a normal-thru signal path without the use of looping
plugs or patch cords. Same body size as our J24 Series coax dual
patch jacks.

It offers a self-wiping, self-normalizing switch with gold plated
beryllium copper contacts, which provides positive electrical
contact with 30,000 minimum mating cycles.

All metallic parts are machined, formed, or die-casted to
extremely close tolerances which provide better intermateability
improving EMI/RFI suppression and reduced signal loss. The TRB/
TRT patch jack bodies are made of top-quality brass with a bright
nickel-plated, non-tarnish finish, which resists tarnishing and
the associated reduction of conductivity. Dielectrics are made
of machined PTFE for superior dielectric properties and heat
resistance. When you want performance and long-life, these
patch jacks are what you need.

BNC RECEPTACLES

.445 DIA TYP

2.660

.570

.625

1.375

1.148

1.659

.487

.156 DIA TYP MTG HOLE

.562

J74T-R
Self-Terminating

Provides a resistive load to the unused side of the jack.

Insertion of a patch plug into the source side automatically

terminates the load side. Plugging into the load side

automatically terminates the source side.

J74-2T-R

Normally-Terminated

Provides a resistive load.

BNC

RECEPTACLES

.625

2.125

.750

.156 DIA MTG HOLE

.445 DIA TYP

1.897

.487

.570

2.409

2.660

.562

J74MST-R SCHEMATIC

Monitor-Terminated

Plugging into the source side provides a resistive load to

the monitored side. Separate 20 dB isolator jack and

TRB input jacks for monitoring of the normal-thru signal.

TRB

Twinax/Triax Connectors /

Miniature Patching

Twinax/Triax Connectors /

Miniature Normal-Thru Patch Jacks

Monitor-Terminated Patch Jack

Use with Front Loading Modular Panels, see page 12.

J74MST-R

Normal-Thru Patch Jack

Self-terminating

J74T-R

Provides a resistive load to the unused side of the jack. Insertion
of a patch plug into the source side automatically terminates the
load side. Plugging into the load side automatically terminates the
source side.

Dual Patch Jack

Normally-terminated

J74-2T-R

Provides a resistive load.

trompeterproductcatalog-html.html

X C

For other chain options see

For JSIX subminiature insulated panels see page 53. Other Terminations and RFI Caps, see page 57.

J152 Shown

.375 WRENCH FLATS

1.300

.375 HEX

.468 DIA MAX

.264

.347

DIA

1.250

.375 WRENCH FLATS

.308

.264

.347

DIA

1.209

.295

.218

.638

.436

.128 MTG HOLE

.3/8 WRENCH FLATS

1.275

3/8 HEX

.443 DIA MAX

-2 SHOWN

.375 WRENCH FLATS

1.131

.460 DIA MAX

1.340

1.090

0.129 TYP

.468

.264

.500

.347

TYP

.377

.970

TRS RECEPTACLE

1.769

SCHEMATIC

"L"

LENGTH

"L"

LENGTH

"L"

LENGTH

4.50"

Twinax/Triax Connectors /

Subminiature Patching

Twinax/Triax Connectors /

Standard & Subminiature Looping Plugs

Subminiature Patch Plug

PL150-

Subminiature Patch Jack

Cable Entry Mount on JSIX panels (For panels see pages 51-54)

J150-

Subminiature Patch Jack

TRS 3-lug

J152

RFI Cap

For subminiature patch jack, no chain.

RFI 150-1

Termination

For TRS* 3-lug jack, no chain.

TNGM1-1-R

For other chain options see page 63.
*4-lug/threaded versions available

Subminiature Normal Through Twinax/Triax Patch
Jack

Smallest twinax/triax patch jack

J158

Patch Cord

Subminiature patch plug to subminiature patch plug

Triax 50Ω, 75Ω................................................................ PTRM-L-Z
Twinax 75Ω, 124Ω......................................................... PTWM-L-Z

Cable Assembly

Subminiature patch plug to TRS 3-lug plug, 4-lug/threaded versions available

Triax 50Ω, 75Ω.............................................................. PTRMX-L-Z
Twinax 75Ω, 124Ω....................................................... PTWMX-L-Z

Cable Assembly

TRS* 3-lug plug to TRS* 3-lug plug, 4-lug/threaded versions available

Triax 50Ω, 75Ω.............................................................. PTRMY-L-Z
Twinax 75Ω, 124Ω....................................................... PTWMY-L-Z

Cable Assembly

Metal junction, random paralleling
TRS* 3-lug plugs, 4-lug/threaded versions available

Twinax 78Ω, 124Ω, Triax 50Ω, 75Ω............................ TNM3-Z

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

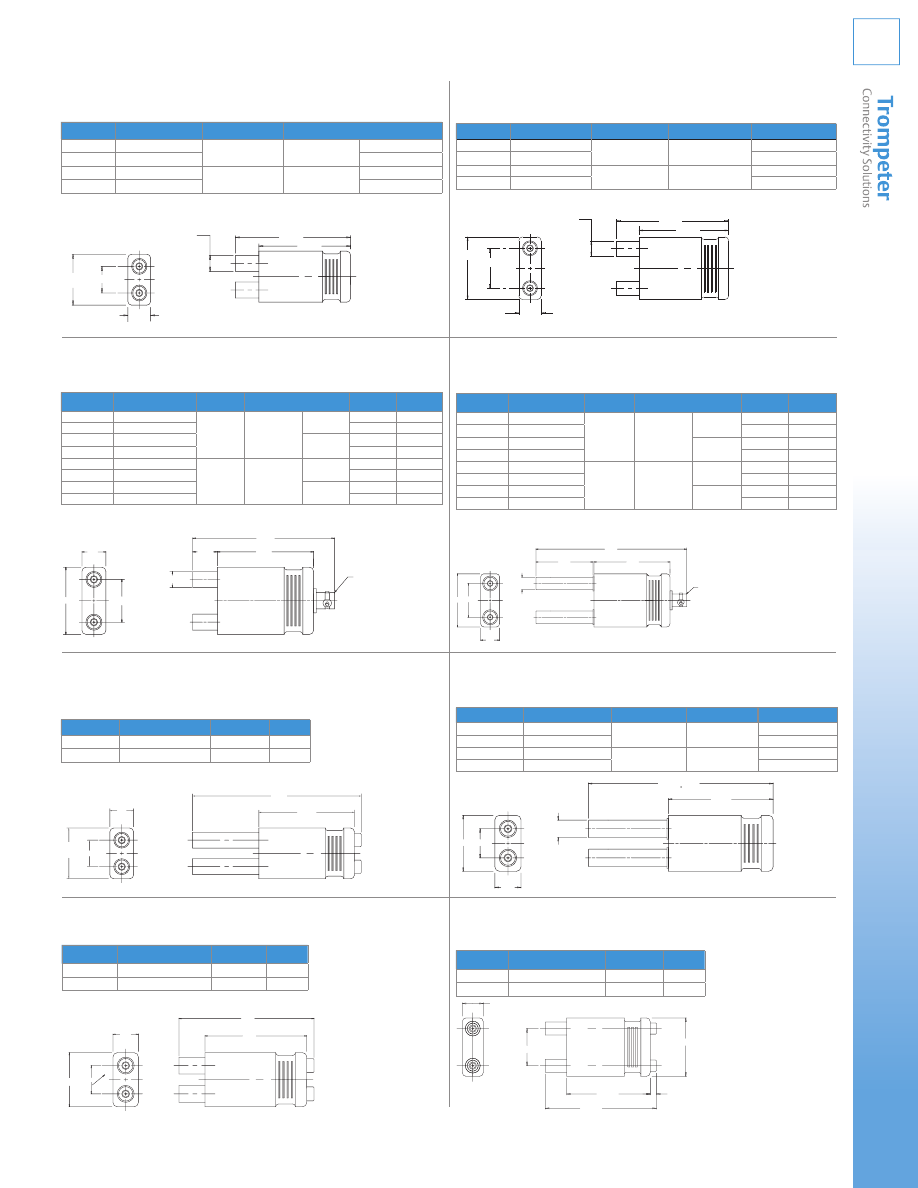

Dash #

Model No

Color

Cable Type Impd Ω

-1

LPTW-78

Blue

Twinax

-2

LPTW-124

124

-3

LPTR-50

Yellow

Triax

-4

LPTR-75

Dash #

Model No

Color

Type Impd Ω

DIM A

DIM B

-1

LPTWA-78

Blue

Twinax

.625

1.20

-2

LPLTWA-78

1.000

1.57

-3

LPTWA-124

124

.625

1.20

-4

LPLTWA-124

1.000

1.57

-5

LPTRA-50

Yellow

Triax

.625

1.20

-6

LPLTRA-50

1.000

1.57

-7

LPTRA-75

.625

1.20

-8

LPLTRA-75

1.000

1.57

Standard Looping Plug

LPTW & LPTR Series

Standard Looping Plug with TRB Test

LPTWA, LPLTWA, LPTRA, & LPLTRA Series

Dash #

Model No

Impd Ω

Color

-1

LPTW2TP-78

Blue

-2

LPTW2TP-124

124

Blue

Standard Looping Plug with Two Tip Test Points

LPTW2TP Series

Dash #

Model No

Color

Cable Type

Impd Ω

-1

LPLTW-78

Blue

Twinax

-3

LPLTW-124

124

-4

LPLTR-50

Yellow

Triax

-5

LPLTR-75

Standard Looping Plug

LPLTW & LPLTR Series

Dash #

Model No

Impd Ω

Color

-1

LPLTW2TP-78

Blue

-2

LPLTW2TP-124

124

Blue

Standard Looping Plug

LPLTW2TP Series

Dash #

Model No

Color

Type

Impd Ω

-1

LPTWL-78

Blue

Twinax

-2

LPTWL-124

124

-3

LPTRL-50

Yellow

Triax

-4

LPTRL-75

Dash #

Model No

Impd Ω

Color

-1

LPTW2TPL-78

Blue

-2

LPTW2TPL-124

124

Blue

Standard Looping Plug with Two Tip Test Points

LPTW2TPL Series

Standard Looping Plug

LPTWL & LPTRL Series

Dash #

Model No

Color

Type Impd Ω

DIM A

DIM B

-1

LPTWAL-78

Blue

Twinax

.625

1.20

-2

LPLTWAL-78

1.000

1.57

-3

LPTWAL-124

124

.625

1.20

-4

LPLTWAL-124

1.000

1.57

-5

LPTRAL-50

Yellow

Triax

.625

1.20

-6

LPLTRAL-50

1.000

1.57

-7

LPTRAL-75

.625

1.20

-8

LPLTRAL-75

1.000

1.57

Standard Looping Plug

LPTWAL, LPLTWAL, LPTRAL, & LPLTRAL Series

2.250

±.010

3.969

1.200

±.010

.590

.540

.625

OMPE

TER

ELEC

ONICS

.590

.540

.625

1.200

.010

OMPE

TER

ELEC

ONICS

2.825

2.250

.010

.374

+.005

DIA TYP

2.250

3.969 +.030

.56

.625

1.20

.374

DIA

TYP

ELEC

ONICS

OMPE

TER

2.250

.010

2.994

.010

1.200

.010

.590

.540

.625

OMPE

TER

ELEC

ONICS

1.000

1.570

.560

.169

2.250

2.994

TR
OMPE

TER

ELEC

ONICS

.374 +.005

DIA THRU

-+.030

3.312

+ .030

.575

.030

2.250

.590

.540

BJ770

RECEPTACLE

OMPE

TER

ELEC

ONICS

1.570

OMPE

TER

ELEC

ONICS

1.000

.560

2.825

2.250

.374

+.005

DIA TYP

TRB

RECEPTACLE

2.250

1.689

+.030

4.456

+.030

.374

DIA

TYP

.56

OMPE

TER

ELEC

ONICS

Twinax/Triax Connectors /

Subminiature Patching

Twinax/Triax Connectors /

Standard & Subminiature Looping Plugs

trompeterproductcatalog-html.html

X C

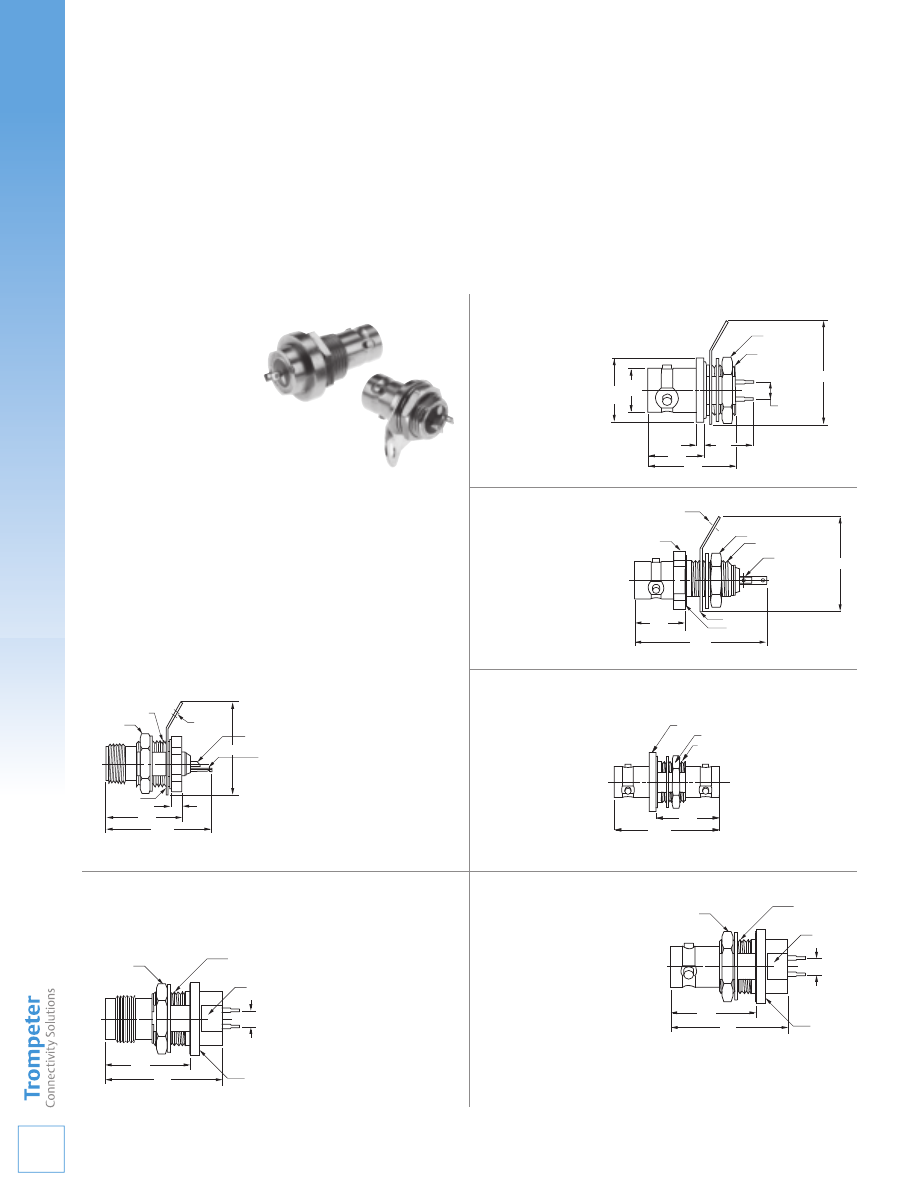

Features

• Standard TRB/MIL-C-49142
• Glass to Metal Seals
• Sustains Extreme Temperature Ranges
• Stainless Steel or Nickel Plated Brass Body
• Gold Plated Contacts

Benefits

• Mechanical and Environmentally Reliable Method
• Wide Range of Application Usage
• More Cost Effective than Stainless Steel
• Reliable Connections

.437 HEX

.402

1.050

.093 DIA

.375 HEX NUT

.3125-32UNEF-2A

SOLDER POT

ACCEPTS

.034 MAX

DIA

CONDUCTOR

GASKET

.469 DIA

.727 REF

Hermetically Sealed
Miniature Twinax/Triax

Feed-thru Bulkhead Mount

BJ78HS, BJ378HS

(Threaded Version Not Shown)

Mounting Hole:

D3.187

Insulated Version

BJ73HS

(Not Shown)

Mounting Hole:

D2.187

Mounting Hole:

D3.160

“D” mounting holes see page 54.

Mounting Hole:

D4.200

Mounting Hole:

D3.160

Note: Only a select few of our hermetically sealed connectors are shown here.
Contact customer service for more information.

.140 DIA

.892

.600 DIA

1.050

.750

.100

A HEX NUT

.4375-28UNEF-2A

SOLDER POT
ACCEPTS .034
DIA CONDUCTOR

WIRE HOLE
ACCEPTS .027
DIAMETER
CONDUCTOR

.625 HEX NUT

.500-28UNEF-2A

.437 WRENCH

FLATS

.15

.840

1.09

.690 DIA

.56 HEX NUT

.500-28UNEF-2A

.437 WRENCH

FLATS

.15

.800

1.09

.690 DIA

.775

1.290

.500-28UNEF-2A

.562 HEX NUT

.730 DIA

.562

DIA

.380

DIA

.062

.487

.765

.428

.500 HEX NUT

.4375-28UNEF-2A

.15

.892

BJ78HS Shown

Mounting Hole:

D4.125

Hermetically Sealed
Bulkhead Jack

3-lug.......... BJ157HS
4-lug....... BJ157FLHS

Twinax/Triax Connectors /

Hermetically Sealed Connectors

Concentric Twinax/Triax

Hermetic seals prevent leakage through the bulkhead from inside
of the connector. Trompeter’s miniature size hermetically sealed
connectors include the feed-through BJ78HS, the front mounted
BJ77HS, the rear mounted BJ79HS and BJ379HS. In the subminiature
size we offer the front mounted BJ157HS and BJ157FLHS (four lug
version). The BJ3150HS and BJ3150SHS offer a threaded rear mount
version with a safety wire option. These connectors have leakage
rates of 1x10-8 atm cc/second. The 150 Series have leakage rates of
1x10-6 atm cc/second.

These connectors meet MIL-C-49142 specifications. Standard non-
hermetic connector types such as the BJ78 could leak between
the contacts and dielectrics. Hermetically sealed connectors are
designed for bulkhead mounting in vacuum chambers or where
toxic and other gases are present. Hermetic connectors are highly
beneficial in reactors, gas/petro plants, oil drilling sites, liquid test
and measurement, commercial, military, industrial and space
applications. They are reliable under the most severe atmospheric
conditions.

Hermetically Sealed Bulkhead Jack

Subminiature Twinax/Triax

Rear Mount (A=.500)............................. BJ3150HS
Solder Pot Bulkhead (A=.562)................ BJ3150SHS

Hermetically Sealed Bulkhead Jack

Miniature Twinax/Triax TRT/Threaded

BJ376HS

Hermetically Sealed
Bulkhead Jack

Front Mount

BJ77HS

Mounting Hole:

D6.187

Hermetically Sealed
Miniature Twinax/Triax
Rear Mount Bulkhead Jack

Rear Mount, Bulkhead Mount

BJ79HS

trompeterproductcatalog-html.html

X C
O

150 Series

Miniature 2, 3, 4-lug, & Push-on (TRS)

3150 Series

Miniature Threaded (TTM)

150/3150 Series are concentric twinax/triax connectors for high
density and weight reduction applications. They are commonly
used in digital data bus, video pair, MIL-STD-1553B (primary/
redundant), baseband circuit and in any application for “noise-free
guarded” circuits. TRS/TTM push-on connectors are designed for
blind mate rack and panel applications. The male plug mates with
any TRS/TTM jack and are ideally suited for test cable applications.

Features

• Same size as TPS/TCM connectors
• Solderable Wrench Crimp versions for cables with up to .215"

outer diameter

• Tool Crimp versions for quick termination of cables with up to

.250" outer diameter

• 3-lug, 4-lug, and threaded versions provide different levels of

mechanical stability and keying

• Does not require mechanical alignment for mating
• Meets MIL-C-49142, 48-hour salt spray requirement
• Special plating available to satisfy MIL-STD-1344 500-hour

salt spray requirement

• Push-on versions for test cable applications
• Fewer pieces to assemble
• Hermetically sealed versions available (see page 16)

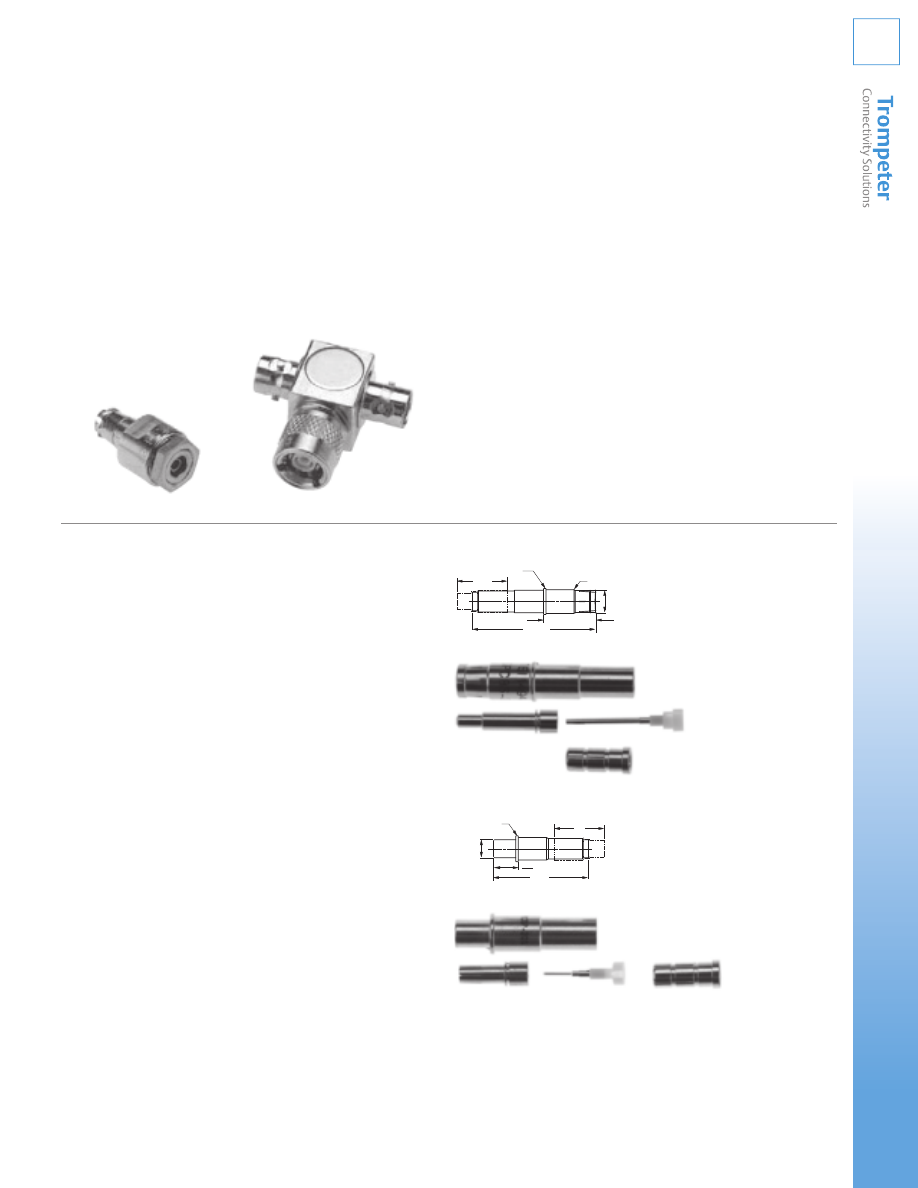

Mating Twinax Size 8 Contacts

for Digital Data Bus Multi-pin Connectors

Socket....................................... SPC8S-201
Pin............................................. SPC8P-201

1.530

.631/.627

.288

.284

DIA

.276/.273 DIA

.90

.315/.313 DIA

SPC8S-201

1.173

.305/296

.218

DIA

.315/.313 DIA

.90

SPC8P-201

This pair of

scoop-proof

concentric contacts fits the Size 8 cavity

of MIL-C-38999 series 1, 3, & 4 and MIL-STD-1760 “External Stores”
type connectors.

Features

• Fits

MIL-C-17/176-00002

and other twinax/triax cables

• Heat treated

beryllium copper

spring members

• Gold plated, Full Crimp

contacts

Twinax/Triax Connectors /

Hermetically Sealed Connectors

Twinax/Triax Connectors /

150 Series Intro

Size 8 Mating Contacts

SPC8S-201 Shown

SPC8P-201 Shown

trompeterproductcatalog-html.html

X C

Mounting Hole:

D4.125

Sub-miniature Jacks & Plugs

Sub-miniature concentric twinax/triax connectors increase
packing density up to 246%. They are designed for high density
applications where digital, video pair or baseband noise-free
guarded circuits are required. The 3-lug, 4-lug, and threaded
versions improve mechanical stability and provide “error-free”
redundant data bus capabilities. The wrench crimp version
accommodates cables with other jacket diameters up to .215" and
the tool crimp versions up to .250".

PL155-29 Shown

PL155AC-207 Shown

PLR3155AC-201 Shown

BJ159-29 Shown

CJ150AC-207 Shown

CJ150-29 Shown

“D” mounting holes see page 54.

Mounting Hole:

D4.125

.375 HEX NUT

.375 WRENCH FLATS

.080

.748

.460 DIA MAX

.484 DIA MAX OVER KNURL

1.00

1.322

STRAIN RELIEF

.933

.484 DIA MAX

OVER KNURL

1.317

1.77

MAX

.030

CLEAR, 175

SHRINKABLE

STRAIN RELIEF

SHRINKABLE

SEALING SLEEVE

(LONG)

.080

.790

.590

.4375-28UNEF-2A

.375 HEX NUT

.500 HEX NUT

.562 HEX

.600 DIA

STRAIN

RELIEF

.4375-28UNEF-2A

.500 HEX

1.164

.590

.375 HEX NUT

.375 WRENCH FLATS

.484 DIA MAX

.080

.790

1.289

.34

.030

SHRINKABLE

STRAIN RELIEF

SHRINKABLE SEALING SLEEVE (LONG)

BJ159AC Shown

Twinax/Triax Connectors /

Subminiature Jacks & Plugs

150/3150 Series TRS/TTM

Cable Plug

Wrench Crimp

3-Lug.......................................... PL155-
4-Lug....................................... PL155FL-
Threaded.................................. PL3155-

Cable Plug

Tool Crimp

3-Lug..................................... PL155AC-
4-Lug................................. PL155ACFL-
Threaded............................. PL3155AC-

Right Angle Cable Plug

Tool Crimp

3-Lug................................... PLR155AC-
4-Lug............................... PLR155ACFL-
Threaded........................... PL33155AC-

Bulkhead Jack

Rear Mount, Wrench Crimp

3-Lug.......................................... BJ159-
4-Lug....................................... BJ159FL-
Threaded.................................. BJ3159-

Bulkhead Jack

Rear Mount, Tool Crimp

3-Lug...................................... BJ159AC-
4-Lug................................... BJ159ACFL-
Threaded.............................. BJ3159AC-

Cable Jack

Wrench Crimp

3-Lug.................................. CJ150-
4-Lug............................... CJ150FL-
Threaded.......................... CJ3150-

Cable Jack

Tool Crimp

3-Lug...................................... CJ150AC-
4-Lug................................... CJ150ACFL-
Threaded.............................. CJ3150AC-

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

Mounting Hole:

D4.125

.295 DIA

.308

1.055

.5625-28UN-2A

.687 HEX NUT

SOLDER POT ACCEPTS
.034 MAX DIA CONDUCTOR

BJ158 Shown

Mounting Hole:

D5.190/D4.190 (Threaded)

BJ153 Shown

Mounting Hole:

D9.116

BJ157 Shown
(Hermetically sealed version
available, pg.16)

Mounting Hole:

D6.187

BJ157F Shown
(S) = Comes with Stainless Steel Phillips #3-56 Pan Head Screws

Maximum Panel Thickness .187

BJ154AC Shown

Mounting Hole:

D9.116

“D” mounting holes see page 54.

BJ152 Shown

Mounting Hole:

D9.208

BJ150 Shown

Mounting Hole:

D4.250

.437 HEX

.375 HEX NUT

ACCEPTS

.034 MAX DIA

CONDUCTOR

.3125-32UNEF-2A

.750

.402

.093 DIA HOLE

1.050

.500

TYP

.485

1.050

.090

.300

DIA

MAX

TYP

SOLDER POT

ACCEPTS .026 DIA

CONDUCTOR

MTG HOLES SEE BELOW

.101

.500 HEX NUT

.4375-28UNEF-2A

SOLDER POT

ACCEPTS

.034 DIA

CONDUCTOR

.140 DIA THRU

1.049

.818

.892

.500 HEX

1.070

.375-32UNEF-2A

.437 HEX NUT

.620

.580

.688 HEX NUT

.030

SHRINKABLE

STRAIN RELIEF

SHRINKABLE

SEALING SLEEVE (LONG)

.750

DIA

1.289

.155

.688 HEX

.5625-28UNEF-2A

.760

.580

1.070

Twinax/Triax Connectors /

Subminiature Jacks & Plugs

150/3150 Series TRS/TTM

Twinax/Triax Connectors /

Subminiature Bulkhead Jacks

150/3150 Series, TRS/TTM

Front Mount Bulkhead Jack

Rear Mount, Solder Pot

3-Lug................................................. BJ157
4-Lug.............................................. BJ157FL
Threaded......................................... BJ3157

Feed-Through Jack

3-Lug................................................. BJ158
4-Lug.............................................. BJ158FL
Threaded......................................... BJ3158

Bulkhead Jack

Rear Mount, Solder Pot

3-Lug................................................. BJ150
4-Lug.............................................. BJ150FL
Threaded......................................... BJ3150

Bulkhead Jacks

Flange Mount, Solder Pot

3-Lug......................................... BJ157F
4-Lug...................................... BJ157FFL
Threaded................................. BJ3157F

Insulated Bulkhead Jack

Front Mount, Solder Pot

3-Lug................................................. BJ152
4-Lug.............................................. BJ152FL
Threaded......................................... BJ3152

Hole Configuration

# of Holes/Type-Dimension

A Dim= .425

2/Clear - .103” Diameter

-2C(S)

2/Threaded - .099-56UNF-UB

-2T(S)

B Dim= .687

4/Clear - .103” Diameter

-4C(S)

4/Threaded - .099-56UNF-UB

-4T(S)

Insulated Bulkhead Jack

Rear Mount, Tool Crimp

3-Lug...................................... BJ154AC-
4-Lug.................................. BJ154ACFL-
Threaded.............................. BJ3154AC-

Insulated Feed-Through Jack

3-Lug................................................. BJ153
4-Lug.............................................. BJ153FL
Threaded......................................... BJ3153

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C

AD158 Shown

PL153-29 Shown

“D” mounting holes see page 54.

BN153 Shown

CBJ157 Shown

Max Board Thickness .125

CBJR157 Shown

.722

.170

.308

.013

.400

TYP

.049/.045

DIA 6 HOLES

.200 TYP

.100"

.300

.070

DIA 4

PLACES

.200

.100

.062 DIA TYP

.778

.413

.125

1.156

1.034

.375 WRENCH

FLATS

1.070

.400 DIA MAX

OVER KNURL

.686

.375 WRENCH

FLATS

.080

.375 HEX NUT

.437

DIA

.590

.665

.030

.4375-28UNEF-2A

.500 HEX NUT

.120

.125

.562

HEX

.660

.030

Ø.443

.439

.190

.187

.300

.003

Ø.070

.001

4 PLACES

.200

.003

.100

.003

.100

.003

Ø.062

.001 TYP

Max Panel Thickness: .125 D-Hole: D4

Twinax/Triax Connectors /

Subminiature

150/3150 Series

Circuit Board Jack

3-Lug............................................... CBJ157
4-Lug........................................... CBJ157FL
Threaded....................................... CBJ3157

Right Angle Circuit Board Jack

3-Lug............................................. CBJR157
4-Lug......................................... CBJR157FL
Threaded..................................... CBJR3157

“T” Adapter

3-Lug............................................... BN153
4-Lug............................................ BN153FL
Threaded........................................ BN3153

TRS/TTM Coupling Adapter

Barrel Connector

3-Lug............................................... AD158
4-Lug............................................ AD158FL
Threaded....................................... AD3158

Push-on Cable Plug

Wrench Crimp

PL153-

Twinax/Triax TRS Subminiature

Right Angle Bulkhead Rear Mount 3-Lug

CBBJR159

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

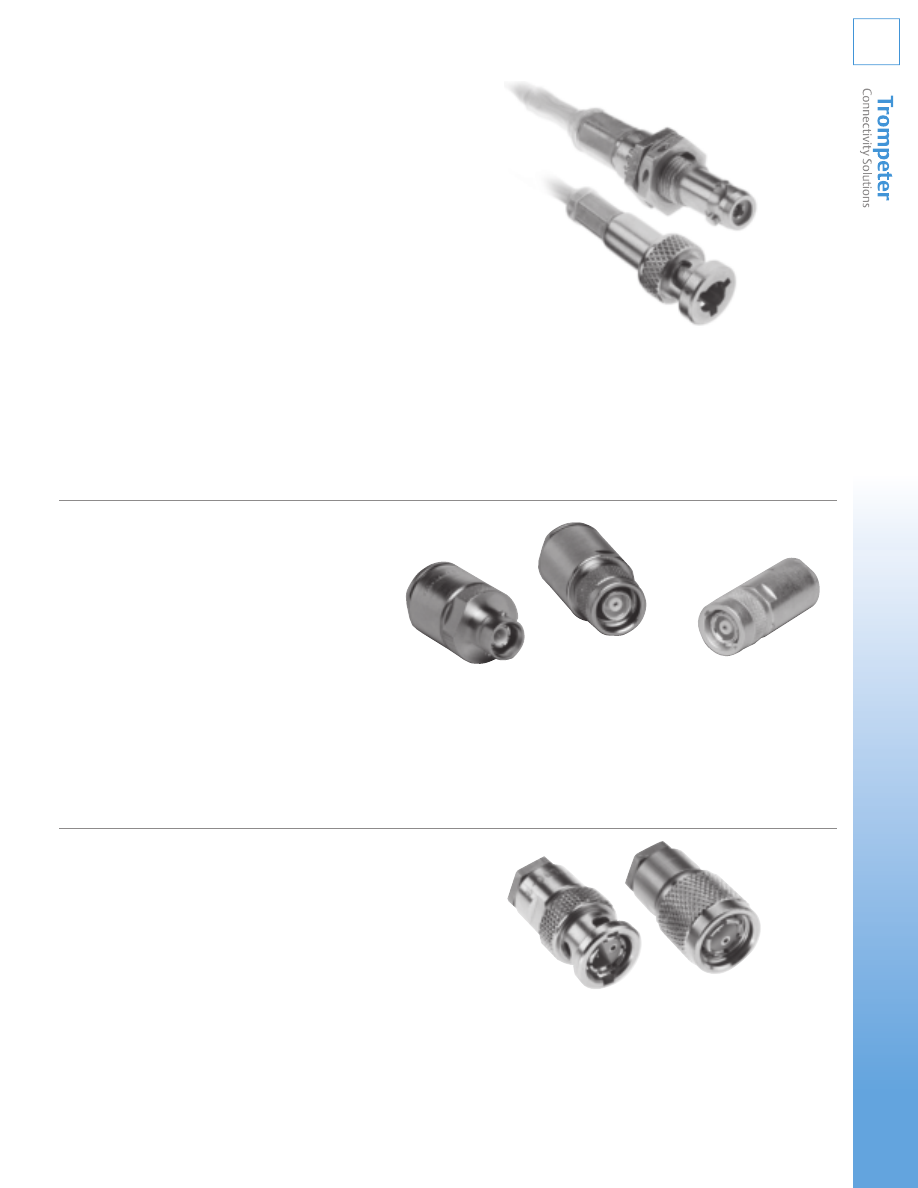

450 Series

Subminiature Twinax 3-lug & 4-lug

3450 Series

Subminiature Twinax Threaded

Concentric connectors designed for MIL-STD-1553B
airborne digital databus weight reduction applications.

Features

• 3-lug, 4-lug & threaded versions
• Field installation full crimp design. No soldering required
• Fully inspectable assembly process (no blind or questionable

solder connections)

• Total of ten polarized & keyed combinations
• Three different keyings for 3-lug versions
• Two interchangeable pin & socket arrangements
• Fewer pieces to assemble
• Meets MIL-C-49142, 48-hour salt spray requirement
• Standard plating to satisfy MIL-STD-1344, 500-hour

salt-spray requirement

80 Series

Standard 2-lug & 3-lug (TRC)

380 Series

Standard Threaded (TRN)

Used in digital data bus, video pair, MIL-STD-1553B
(primary/redundant data bus), MIL-STD-1397 (shipboard data
bus), baseband circuit and any application for noise-free guarded
circuits.

Used in digital data bus, video pair, MIL-STD 1553B (airborne/
ground primary/redundant), baseband circuit and any
application for “noise-free guarded” circuits. They are not
recommended for new designs. MIL-STD-1553B permits
designer discretion for use of concentric designs in lieu of the
two-pin connector.

30 Series

Miniature 2-Pin Polarized, 2-lug (TWBNC)

Features

• Same size as BNC/TNC connectors
• Fully enclosed beryllium copper spring fingers
• Stepped Dielectric

Features

• Standard “C” sized concentric connectors
• Used with larger twinax/triax cables with outer diameters

of .250"-615"

• Does not require mechanical alignment for mating

• Weatherproof designs utilize sealing gaskets and heat

shrink tubing

• Fits MIL-C-17/176-00002 & other twinax/triax cables
• Compatible with Raychem designs utilizing military crimp

style connectors

Twinax/Triax Connectors /

Subminiature

150/3150 Series

Twinax/Triax Connectors /

Series Instructions

trompeterproductcatalog-html.html

X C

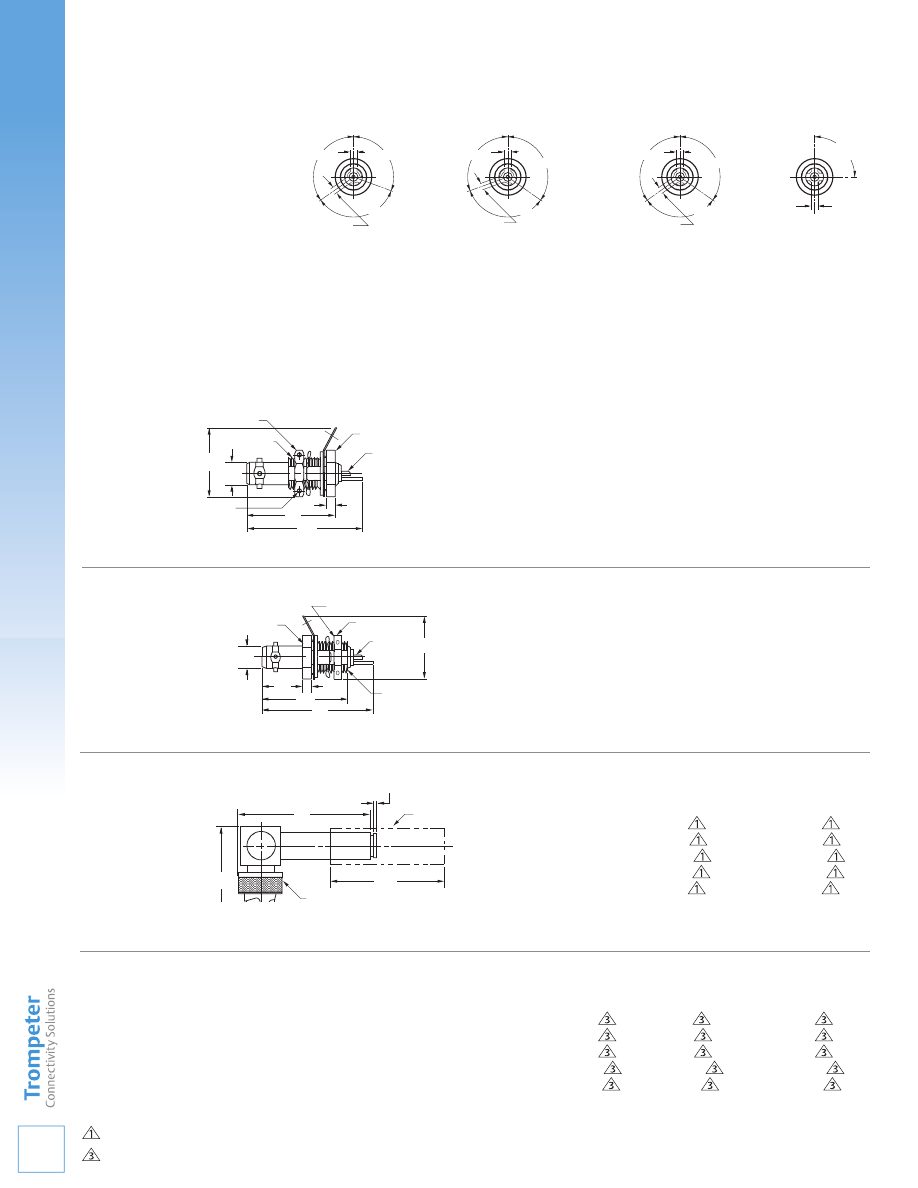

Coupling

Key

Intermediate

Socket

Type

Code

Contact Pin

3-lug

BJ450PP

BJ450PS

3-lug

BJ450RP

BJ450RS

3-lug

BJ450WP

BJ450WS

4-lug

BJ450FLP

BJ450FLS

Threaded

BJ3450P

BJ3450S

Mounting
Holes:

DD8.130
DD8.125 (Threaded)

Mounting
Holes:

DD8.130
DD8.125 (Threaded)

Mounting
Holes:

DD8.250
DD8.125 (Threaded)

Coupling

RFI

Intermediate

Socket

Type

Caps

Contact Pin

3-lug

RFI457-

TBJ451P- -R

TBJ451S- -R

3-lug

RFI457-

TBJ451P- -R

TBJ451S- -R

3-lug

RFI457-

TBJ451P- -R

TBJ451S- -R

4-lug

RFI457FL-

TBJ451FLP- -R

TBJ451FLS- -R

Threaded

RFI3457-

TBJ3451P- -R

TBJ3451S- -R

.080"

TYP

.067"

.062"

TYP

.067"

.062"

TYP

.067"

.062"

TYP

.067"

.062"

TYP

125

110

125

.080"

125

110

125

110

SOLDER POT ACCEPTS

.026 DIA CONDUCTOR

.438 HEX NUT

.3125-32UNEF-2A

.750

MAX .240

DIA

.075

.795

.047 DIA SAFETY

WIRE HOLES

2 PLACES

1.03

.240

DIA

.437 HEX NUT

.456

.075

.795

1.03

.3125-32UNEF-2A

SOLDER POT

ACCEPTS

.026 MAX

DIA COND.

.750

MAX

BJ457FLP-1 SHOWN

.438 HEX NUT

.047 DIA SAFETY

WIRE HOLES 2 PLACES

PLR455ACPP-201

(1.25)

SEALING

SLEEVE

.500 DIA

OVER KNURL

.030

1.46

1.10

MAX

The 450 Series was designed for airborne digital data bus
applications utilizing the MIL-STD-1553B data bus. The 450 Series
will fit most twinax cables. Connectors are available in five

different coupling configurations which include 3-lug versions
with three (3) separate keyings, a 4-lug, and a threaded version
with safety wire holes.

Diagrams shown above are for plugs.

Refer to page 23 for photo of intermediate contacts.

Concentric Twinax 450 Series

3-lug & 4-lug Keyings

Coupling

Key

Intermediate

Socket

Type

Code

Contact Pin

3-lug

BJ457PP

BJ457PS

3-lug

BJ457RP

BJ457RS

3-lug

BJ457WP

BJ457WS

4-lug

BJ457FLP

BJ457FLS

Threaded

BJ3457P

BJ3457S

Chain options see page 57.

“D” mounting holes see page 54.

Twinax/Triax Connectors /

Concentric Twinax

450 Series

Bulkhead Jack

Rear mount,
Solder pot

Right Angle Cable Plug

All Crimp

Bulkhead Jack

Front mount,
Solder pot

Coupling

Key

Intermediate

Socket

Type

Code

Contact Pin

3-lug

PLR455ACPP-

PLR455ACPS-

3-lug

PLR455ACRP-

PLR455ACRS-

3-lug

PLR455ACWP-

PLR455ACWS-

4-lug

PLR455ACFLP-

PLR455ACFLS-

Threaded

PLR3455ACP-

PLR3455ACS-

RFI Jack Caps & Bulkhead Jack Terminations

For use with 450 Series Plugs
Rear Mount

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

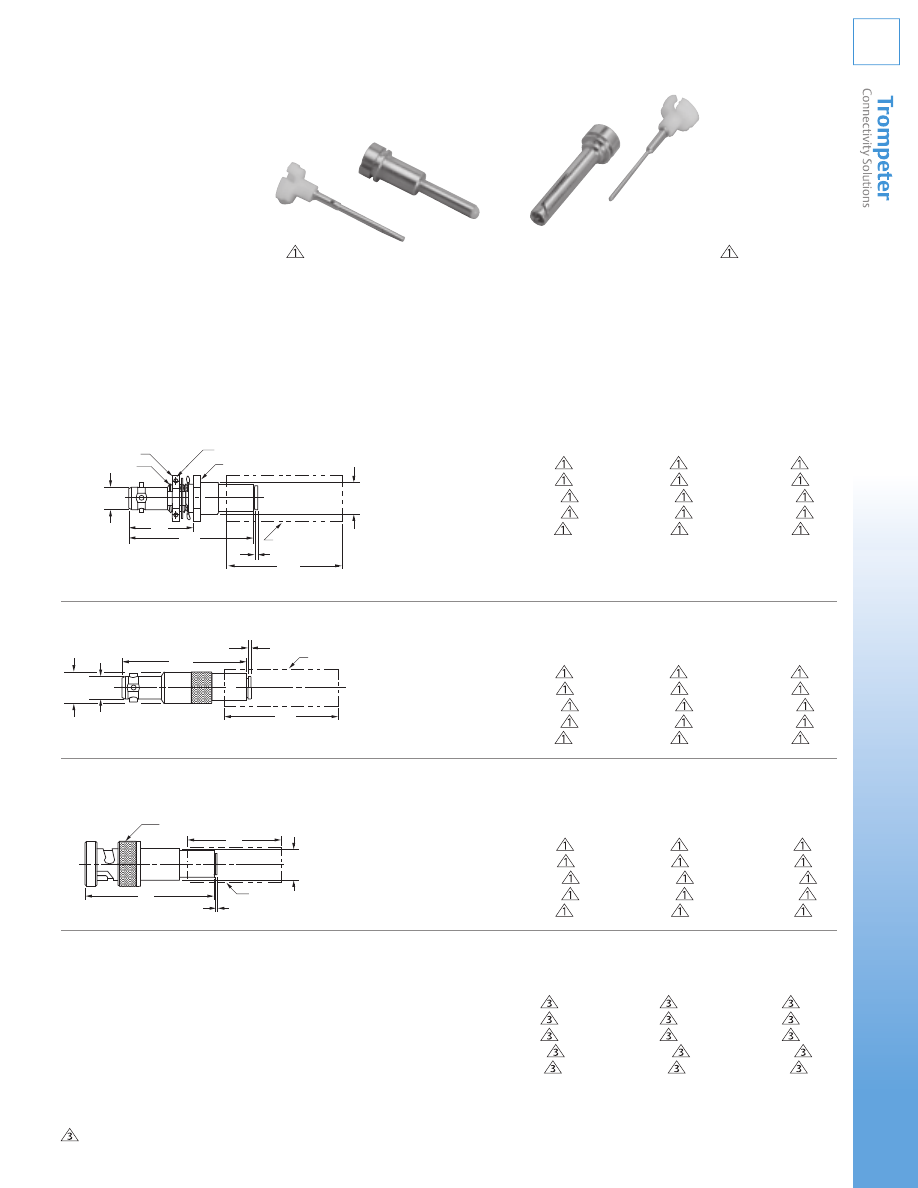

Mounting Holes:

DD8.156, DD8.125 (Threaded)

The 450 Series includes cable jacks and plugs with interchangeable
contact assemblies. The contact and body assemblies may be
ordered separately (see the facing page). Cable connectors accept
cables with a maximum outer diameter of .180" and conductors to
.025".

Contact customer service for exact specifications. For Trompeter
connectors which meet outgassing requirements, contact our
technical support staff for more information. Compatible with
Raychem DK-621 Series.

Refer to page 22 for Keyings.

Chain options see page 57.

“D” mounting holes see page 54.

Pin/Socket . . . . PS450AC-

Assembly

Coupling

Key

Body

Intermediate

Socket

Type

Code

Assembly Only

Contact Pin

3-lug

BJ459ACP-

BJ459ACPP-

BJ459ACPS-

3-lug

BJ459ACR-

BJ459ACRP-

BJ459ACRS-

3-lug

BJ459ACW-

BJ459ACWP-

BJ459ACWS-

4-lug

BJ459ACFL-

BJ459ACFLP-

BJ459ACFLS-

Threaded

BJ3459AC-

BJ3459ACP-

BJ3459ACS-

Cable Plug

All Crimp

RFI Plug Caps & Terminations

Plugs for use with 450 Series Jacks

Intermediate

Coupling

RFI

Contact Pin to

Sockets to mate

Type

Caps

mate with Sockets

with Pins

3-lug

RFI455-

TNG451P- -R

TNG451S- -R

3-lug

RFI455-

TNG451P- -R

TNG451S- -R

3-lug

RFI455-

TNG451P- -R

TNG451S- -R

4-lug

RFI455FL-

TNG451FLP- -R

TNG451FLS- -R

Threaded

RFI3455-

TNG3451P- -R

TNG3451S- -R

450 Series

Intermediate Contact Assemblies

.4375 HEX NUT

.3125-32UNEF-2A

.047 SAFETY

WIRE HOLES-2 PLACES

.2400

DIA

.707

(1.25)

.030

1.365

.43 HEX

SEALING SLEEVE

(LONG)

.334

BJ459ACFL-202

CJ450ACFLP-202

.334

DIA

.2400

DIA

1.365

(1.25)

SEALING SLEEVE

.030

1.43

.030

SEALING

SLEEVE

1.25

.500 DIA OVER KNURL

.334

PL455ACR-221

Socket/Pin . . . . SP450AC-

Assembly

Coupling

Key

Body

Intermediate

Socket

Type

Code

Assembly Only

Contact Pin

3-lug

PL455ACP-

PL455ACPP-

PL455ACPS-

3-lug

PL455ACR-

PL455ACRP-

PL455ACRS-

3-lug

PL455ACW-

PL455ACWP-

PL455ACWS-

4-lug

PL455ACFL-

PL455ACFLP-

PL455ACFLS-

Threaded

PL3455AC-

PL3455ACP-

PL3455ACS-

Assembly

Coupling

Key

Body

Intermediate

Socket

Type

Code

Assembly Only

Contact Pin

3-lug

CJ450ACP-

CJ450ACPP-

CJ450ACPS-

3-lug

CJ450ACR-

CJ450ACRP-

CJ450ACRS-

3-lug

CJ450ACW-

CJ450ACWP-

CJ450ACWS-

4-lug

CJ450ACFL-

CJ450ACFLP-

CJ450ACFLS-

Threaded

CJ3450AC-

CJ3450ACP-

CJ3450ACS-

Twinax/Triax Connectors /

Concentric Twinax

450 Series

Twinax/Triax Connectors /

Concentric Twinax

450 Series

Bulkhead Cable Jack

Rear mount, All Crimp

Cable Jack

All Crimp

trompeterproductcatalog-html.html

X C

Bulkhead Cable Jacks

Wrench Crimp, Flange Mount

2-lug........................................... BJ89F-
3-lug......................................... BJ893F-
Threaded.................................. BJ389F-

Wrench Crimp, D Hole Mount

2-lug............................................ BJ89-
3-lug.......................................... BJ893-
Threaded................................... BJ389-

Cable Plug

2-lug............................................. PL80-
3-lug........................................... PL803-
Threaded.....................................PL380-

Cable Jack

Wrench Crimp

2-lug............................................. CJ80-
3-lug........................................... CJ803-
Threaded.................................... CJ380-

Bulkhead Jack

Solder Pot

2-lug................ BJ80
3-lug.............. BJ803
Threaded........ BJ380

Feed-thru Jack

2-lug................ BJ88
3-lug.............. BJ883
Threaded....... BJ388

Larger bodies available to
accommodate cable sizes,
contact customer service.

BJ88 Shown

Mounting Hole:

D1.343

CJ80 Shown

PL80 Shown

BJ80 Shown

Mounting Hole:

D1.156

BN83-1 Shown

Bottom Drawing: BJ89 Shown

.130

.625 WRENCH FLAT

.750

DIA

1.773

.781 DIA MAX

.687 WRENCH FLAT

1.790

1.590

.500

.535

DIA

.130

WRENCH FLATS

.535

DIA

1.312

.500

.095

.750-32UNEF-2A

ACCEPTS

.065 DIA

CONDUCTOR

1.000 HEX

.065 DIA

1.650 TYP

.750-32UNEF-2A

1.000 HEX NUT

.90

1.060

DIA

.685

DIA

.535

DIA

.625

WRENCH

FLATS

.750

.761

.094

.130

1.590

1.790

MAX

PANEL THK

.250

.844

TYP

CABLE ENTRY

.120 DIA

4 MTG HOLES

1.125

TYP

.750 SQ.

.406

.140 DIA

MTG HOLE

.200 DIA

.535

DIA

TYP

JACK

1.750

.375

JACK

1.619

.773 DIA

MAX

PLUG

.730 DIA

.130

1.000

HEX TYP

.625 WRENCH FLATS

.500

.919

1.590

“D” mounting holes see page 54.

Top Drawing: BJ89F Shown

TRC “T” Adapter

2-lug............ BN83-1
3-lug.......... BN833-1
Threaded... BN383-1

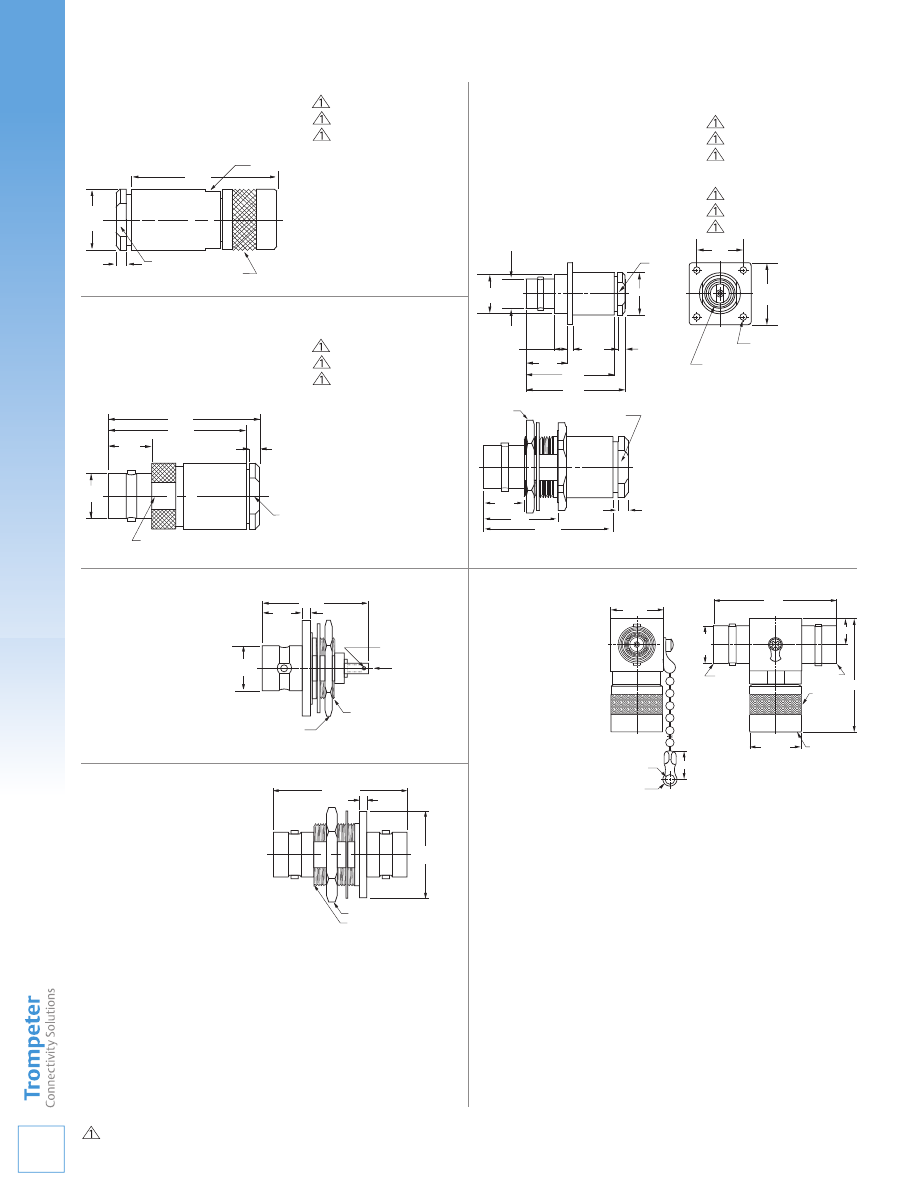

Twinax/Triax Connectors /

Standard Threaded

80/380 Series, TRC/TRN

Mounting Holes:

DD6.250 /

D11.250 - Cable Groups: -14A,
-16, -61, -62

For other chain options see page 63.

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

X C
O

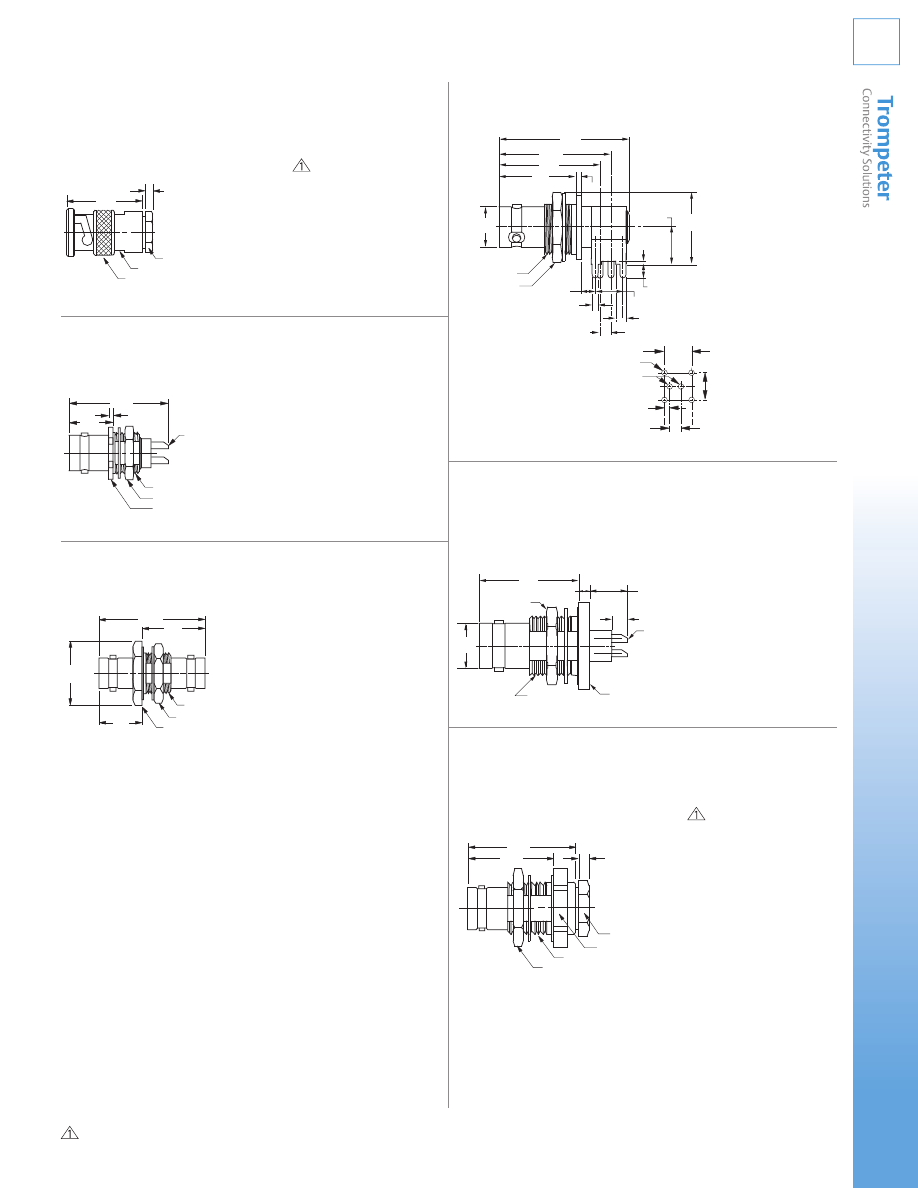

Bulkhead Jack

Rear Mount, Solder Pot
Two-pin Polarized

2-lug.................................................... BJ31

Feed-Through Jack

Two-pin Polarized

2-lug.................................................... BJ38

Bulkhead Jack

Front Mount, Solder Pot, Two-pin Polarized

2-lug................................................... BJ30

“D” mounting holes are on page 54. Note: Only 30 Series have two-pin polarizations.

Cable Plug

Wrench Crimp, Two-pin Polarized

2-lug............................................ PL30-

BJ30 Shown

Mounting Hole:

D5.130

.437 HEX NUT

.437 WRENCH FLATS

.593 DIA MAX

.931

.096

.046

.468 HEX NUT

.375-32UNEF-2A

1.070

.468

.437 HEX NUT

.040 DIA

CONDUCTORS

.794

.500-28UNEF-2A

.525

1.308

.783

.625 HEX

.687HEX

.730 DIA

.837

.562 HEX NUT

.093

.500-28UNEF-2A

.380

DIA

BJ31 SHOWN

.310

.131

SOLDER POT

ACCEPTS .040 DIA

CONDUCTORS

.500-28UNEF-2A

1.000

.806

.096

.625 HEX NUT

.437 HEX NUT

.687 HEX NUT

PL30 Shown

BJ38 Shown

Mounting Hole:

D3.160

BJ39 Shown

Mounting Hole:

D3.218

Bulkhead Cable Jack

Rear Mount, Wrench Crimp
Two-pin Polarized

2-lug............................................. BJ39-

Mil-C-3655 Interface

Note: These connectors are still available, although we recommend using concentric (70 series) twinax for all new applications.

Twinax/Triax Connectors /

Standard Threaded

80/380 Series, TRC/TRN

Twinax/Triax Connectors /

Two-Pin Polarized

30 Series, TWBNC/TWTNC

Circuit Board Bulkhead Jack

Right Angle-Two-pin Polarized Twinax (TWBNC)

CBBJR39A

1.216

1.046

.718

.050

.380

DIA

.500-28UNEF-2A

.562 HEX NUT

.124

.100

.030 TYP

.34

.13 TYP

.258 TYP

.090 TYP

.058 TYP

.258

TYP

.070 DIA TYP

.258

.050

.100

.0625 DIA

.665

.946

BJ31 Shown

Mounting Hole:

D3.280

Mounting Hole:

D3.125

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA

NNE

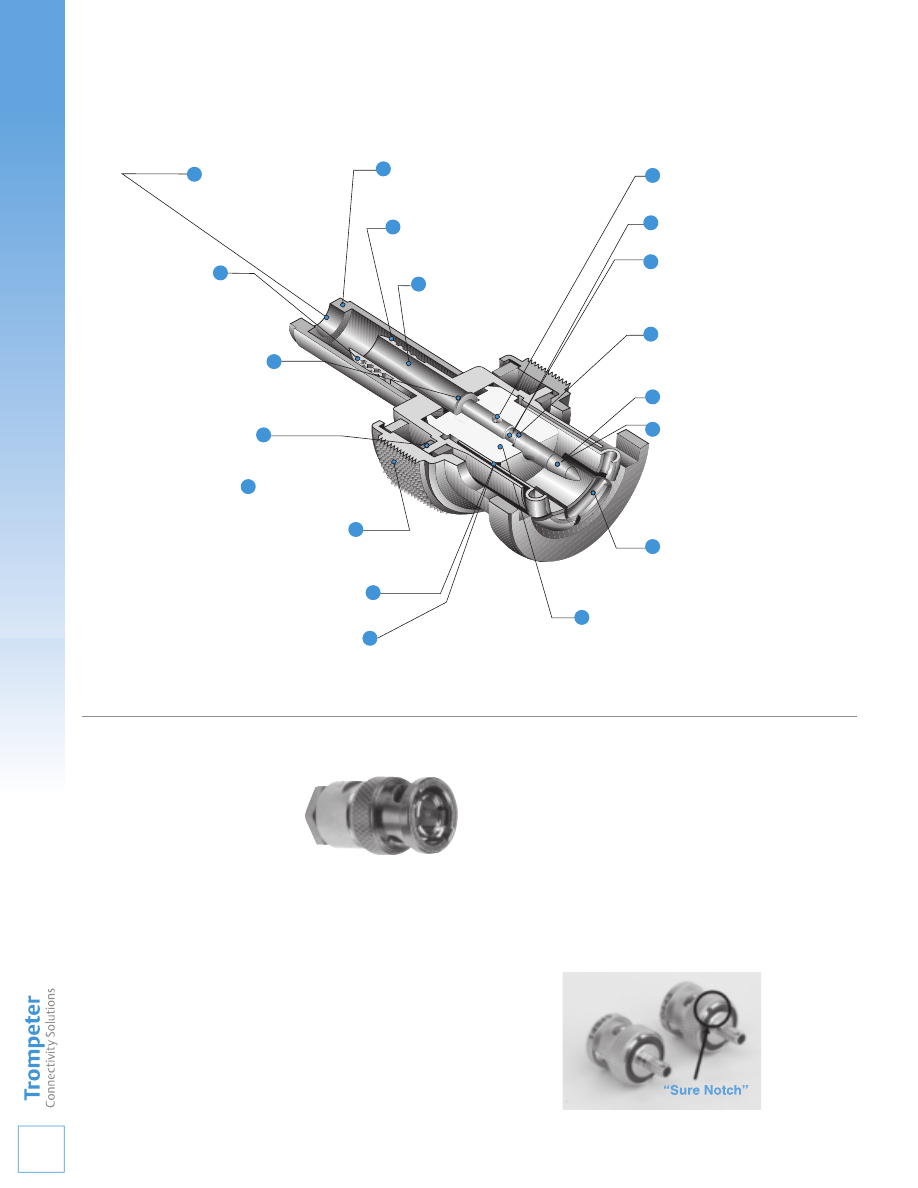

Wrench Crimp Features

• 3-piece construction
• Captive center contact pin in cone

assembly

• Spring-loaded coupling ring using

a beryllium-copper crescent
washer

• Freely rotating captured insert inside the clamp-nut assembly
• Stepped captured insert inside the clamp-nut assembly
• 360° metal-to-metal, sandwich braid capture of the outer-

braid-to-cone assembly. (No insulation between the clamping
surfaces)

• Machined barb on the end of the cone assembly

BNC Coax Wrench Crimp Connector

Trompeter’s BNC Coax Tool Crimp Connector

19 reasons why our BNC connectors outperform the competition every time!

SureNotch™ BNC

The

UPL220 Series

and the

UPL250 Series

feature

SureNotch™,

Trompeter

’s innovative solution for incomplete connector mating.

SureNotch™

provides immediate and reliable visual confirmation

of secure mating. The

UPL250 Series Mini-BNC Series

allow high-

er interconnect density, enabling 40% more interconnects in the
same area, with all the positive characteristics of the full size BNC.

• Telco BNC
• SureNotch™ BNC provides visual indicator that every BNC is

locked onto the mating jack

• Black spring water highlights the notch
• Standard feature on all Trompeter Telco 75 Ohm BNC’s

Hermetically Sealed Coax Connectors available, contact customer service.

Tapered ferrule

facilitates connector

insertion under the braid. Foil, if any,
is positioned inside the ferrule.

360° ferrule

improves

connector-to-cable
tensile strength

Tested and
approved to

NEBS

Level 3 Type 2.

Exterior ferrule surface

delivers superior cable
retention without braid
breakage.

Generous capture
cone design

ensures

easy insertion of
center conductor.

Nickel, non-tarnish
finish

adds to the

endurance and
reliability of this
rugged connector.

Spring-loaded coupling ring

uses a beryllium-copper
crescent washer to assure
positive electrical mating.

Fully enclosed metal outer conductor

is an

integral part of a rugged construction,
important for handling the stress of cable
weight over time.

Spring fingers are plated with nickel

for superior

wear properties over repeated matings.

This coupling ring also

avoids compression set

issues over time.

Stepped crimp sleeve

grips the outer

jacket, increasing connector-to-
cable pull strength reliability.

Unique plating flow hole

ensures uniform interior
plating.

Unique locking center contact
design

for high contact retention.

50-millionths gold plating

improves durability over
thousands of mating cycles.

Beryllium Copper spring fingers

for high mating cycle life and
repeatability.

Machined solid PTFE insulator

for

superior RF electrical performance.

Also provides superior electrical
conductivity

for exceptional

signal quality (true 75-ohm).

Captive center contact

provides

positive tactile installer feedback
for error-free assembly.

Also prevents pin movement

when cable is flexed.

Coax Connectors /

BNC Coax Connector Introduction

trompeterproductcatalog-html.html

COA
X

“D” mounting holes are on page 54.

Mounting Hole:

C2.085

.437 WRENCH FLATS

.931

.096

.606 DIA MAX

.437 HEX NUT

.500 FLATS

.997

.096

.600 DIA MAX

.437 HEX

1.208

.708

.593 DIA

MAX

.380

DIA

.642

.420

.078

.687 HEX NUT

CRIMP

SLEEVE

.4375-28UNEF-2A

1.020

1.220

.987

1.100

1.080

.890

1.300

.375-32UNEF-2A

.437 WRENCH FLAT

1.089

.250

.400

.500 HEX

ACCEPTS
.064 DIA
CONDUCTOR

.632

.593 DIA MAX

1.132

CRIMP SLEEVE

CONTACT PIN

1.100

.593

MAX

.444 DIA

1.100

1.600

CRIMP SLEEVE

CONTACT PIN

.593

MAX

.444 DIA

1.325

MAX

.848

.808

1.900 MAX

CONTACT PIN

CRIMP SLEEVE

1.284

.424

.430

.380

.433 MAX

Coax Connectors /

BNC Coax Connector Introduction

Coax Connectors /

Miniature Coax 20/220 Series

BNC Plugs & Jacks

Cable Plug

Tool Crimp

50Ω........ PL220-
75Ω...... UPL220-

Cable Plug

Wrench Crimp

50Ω........... PL20-
75Ω......... UPL20-

Bulkhead Plug

Front Mount, Solder Pot

50Ω.................................................... PL21
75Ω.................................................. UPL21

Cable Plug

90° Right Angle, Full Crimp

75Ω....................................... UPLR220-

45° Angle, Full Crimp

75Ω...................................... UPLFF220-

Cable Jack

Wrench Crimp

50Ω................................. CJ20-
75Ω............................... UCJ20-

Cable Jack

Tool Crimp

50Ω................................ CJ220-
75Ω.............,................ UCJ220-

Bulkhead Cable Jack

Rear Tool Crimp

50Ω................................. BJ220-
75Ω............................... UBJ220-

Mounting Hole:

D3.100

BNC Adapter

Male to Female Right Angle

75Ω BNC..................... UADRMF220

BNC “T” Adapter

50Ω.................................... BN23
75Ω.................................. UBN23

BNC Coupling Adapter

Barrel connector

50Ω.................................. AD228
75Ω................................ UAD228

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA

.625-24UNEF-2A

.750 HEX NUT

.830 DIA MAX

.437 HEX

1.000

.790

.096

.500-28UNEF-2A

.562 HEX NUT

ACCEPTS

.060 DIA

CONDUCTOR

1.060

.471

.437HEX

.500-28UNEF-2A

1.000

.806

.096

.625 HEX

.687 HEX

.562 HEX

.562 HEX NUT

.500-28UNEF-2A

.380

DIA

.757

1.060

SOLDER POT ACCEPTS
.060 DIA CONDUCTOR

.380 DIA

TYP

.700

1.284

.562 HEX

.500-28UNEF-2A

.584

.375-32UNEF-2A

.468 HEX

.425

.046

1.058

.500 HEX

ACCEPTS
.060 DIA
CONDUCTOR

.380 DIA

TYP

.562 HEX

.562 HEX NUT

.500-28UNEF-2A

1.280

.046

.505

.060

.584

1.284

.015

.500-28UNEF-2A

Ø.380

TYP

.562 HEX NUT

.510
.505

.448
.443

RECOMMENDED

PANEL

CUTOUT

.562 HEX NUT

2X Ø.380

1.304

.096

.750

2X Ø.180 .050

2X Ø.108
THRU

.884

1.19

.710 .99

Ø.562

.562 HEX

.500-28UNEF-2A

.060

1.284

.42

2X Ø.380

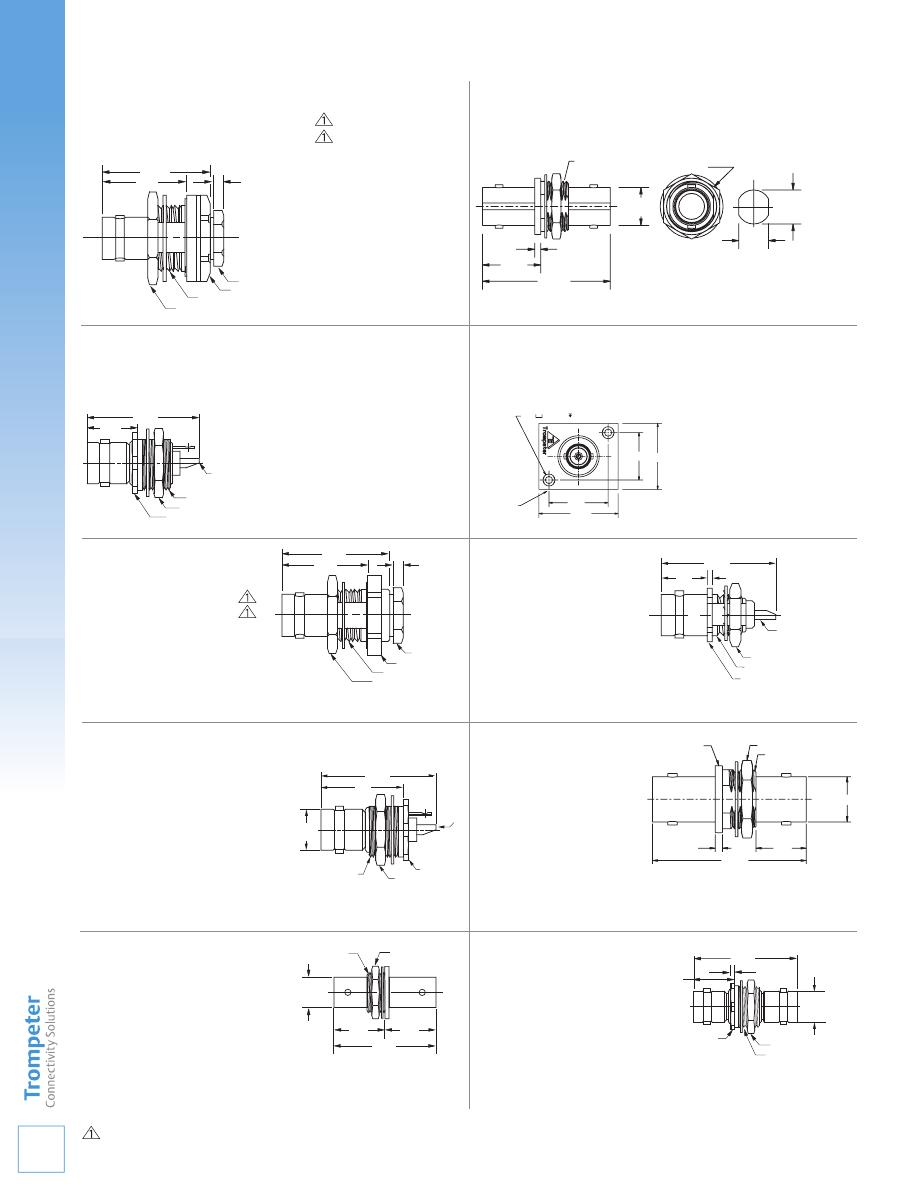

Coax Connectors /

Miniature Coax 20/220 Series

BNC Bulkhead Jacks

Insulated Bulkhead Cable Jack

Wrench Crimp, Rear Mount

50Ω............................................... BJ26-
75Ω............................................. UBJ26-

Mounting Hole:

D2.187

GF-Ground filter version page
35

Non-insulated Bulkhead Jack

Feed-through

50Ω................................................... BJ224
75Ω................................................. UBJ224

Mounting Hole:

DD3.156

Insulated Bulkhead Jack

Front Mount, Solder Pot

50Ω................................................... BJ227
75Ω................................................. UBJ227

Mounting Hole: D3.147

Insulated Bulkhead Jack

Recessed Insulated Adapter (RIA) Feed-through

75Ω.......................................... UBJ224-RIA

Bulkhead Cable Jack

Rear Mount, Wrench Crimp

50Ω.......................... BJ29-
75Ω........................ UBJ29-

Mounting Holes:

D3.218 (D2.218-Cable Groups 6, 6E,51,52)

Bulkhead Jack

Non-insulated

50Ω.......................... BJ23
75Ω........................ UBJ23

Mounting Hole:

D3.147

Insulated Bulkhead Cable Jack

Rear Mount, Solder Pot

50Ω.......................... BJ21
75Ω........................ UBJ21

Mounting Hole:

D3.147

Bulkhead Jack

Feed-through Non-insulated

50Ω.......................... BJ24
75Ω........................ UBJ24

Mounting Hole:

DD3.100, (Hermetically sealed

version available, call customer service).

Bulkhead Jack

Front Mount, Solder Pot

50Ω.......................... BJ20
75Ω........................ UBJ20

w/Solder Lug

50Ω....................... BJ20SL
75Ω..................... UBJ20SL

Mounting Hole:

D5.125

Insulated Bulkhead Jack

Feed-through

50Ω.......................... BJ228
75Ω........................ UBJ228

Mounting Hole:

DD3.156

Insulated Bulkhead Jack

Feed-through

50Ω.......................... BJ28
75Ω........................ UBJ28

Mounting Hole:

D3.156 (Hermetically sealed version

available, call customer service).
GF-Ground Filter version available page 370c .

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA
X

NNE

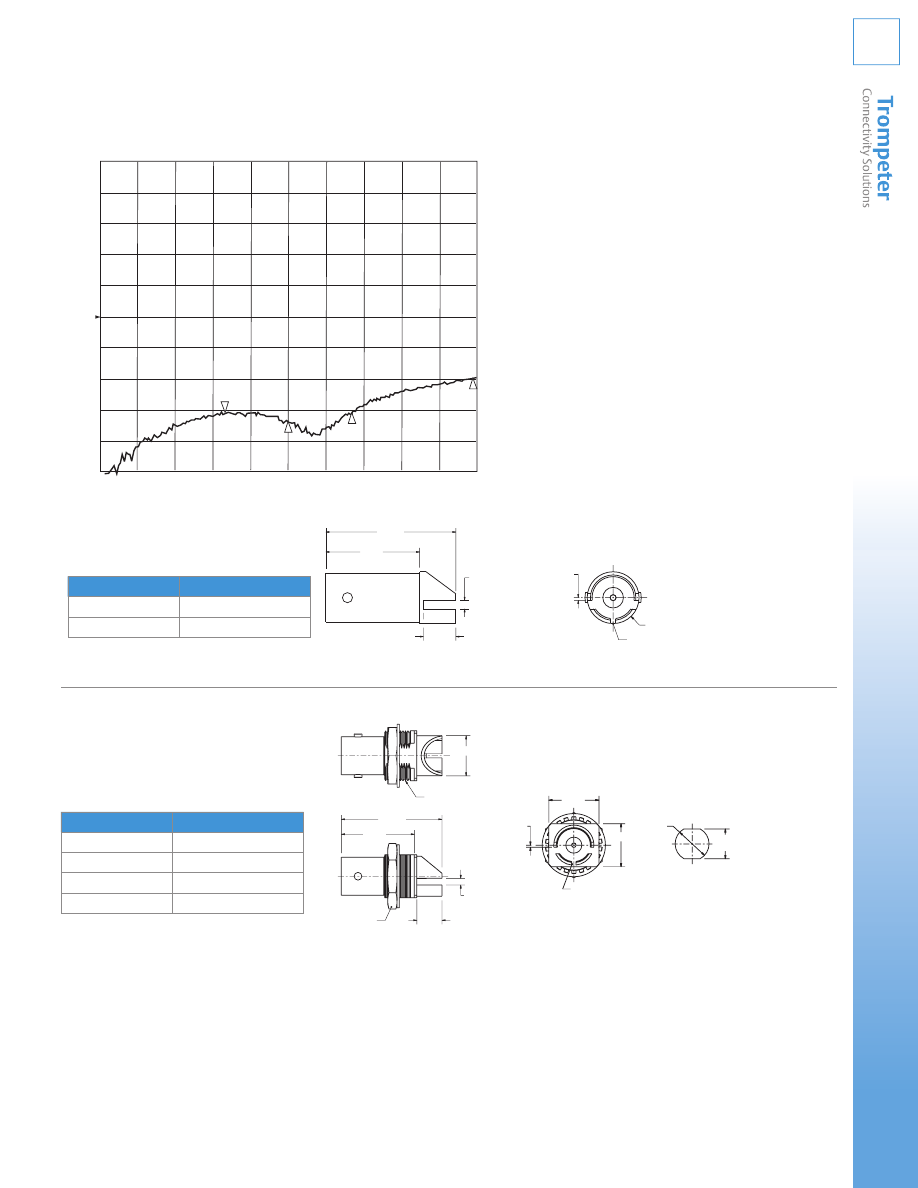

Edge Mount Circuit Board Jacks

Trompeter manufacturers a wide selection of circuit board jacks.

1.003

.723

.250

BOARD
THICKNESS

(.021)

Ø.400

RINSE
NOTCH

Circuit Board Edge Mount

Coax “BNC” Style Receptacle 75Ω

Circuit Board Bulkhead Edge Mount

Coax “BNC” Style Receptacle 75Ω

Max Panel Thickness: .179

Ø.412

.500-28UNEF-2A

1.003

.713

.562 HEX NUT

.250

BOARD

THICKNESS

(.021)

.500

RINSE NOTCH

.430

Ø.510

Ø.505

.447

.443

10 dB/ Ref 0 dB

MARKERS:

1: -30.906 dB
@ 1.000 GHz

2: -33.549 dB
@ 1.5 GHz

3: -31.237 dB
@ 2 GHz

4: -19.657 dB
@ 2.960 GHz

START 14.925373 MHz

STOP 2.999973 MHz

-10

-20

-30

-40

-50

Frequency in MHz

Decibels (dB)

Coax Connectors /

Miniature Coax 20/220 Series

BNC Bulkhead Jacks

Coax Connectors /

Coax 20/220 Series

Circuit Board Jacks

Part Number

Board Thickness

UCBJE20-1

.060-.064

UCBJE20-2

.028-.033

Part Number

Board Thickness

UCBBJE20-1

.060-.064

UCBBJE20-2

.028-.033

UCBBJE20-3

.084

UCBBJ320-4

.120

trompeterproductcatalog-html.html

COA

Trompeter manufacturers a wide selection of circuit board jacks, Shown below are the most commonly requested designs. For custom
designs, contact customer service.

.380

DIA

TYP

.722

.156 TYP

.188 TYP

.047 DIA

.062 DIA

4 HOLES

.380

DIA

TYP

.722

.156 TYP

Ø.062 DIA

3 HOLES

Ø.047 DIA

Ø.340

DIA BC

120

TYP

.591

TYP

.500

TYP

(.850)

.013

TYP

.043 DIA

4 PLACES

.090

.560

.200

TYP

.045 DIA

.055

.047 DIA

5 HOLES

.502

.498

TYP

1.054

.030

.890

.030

.380

DIA

.030 TYP

TYP

C TYP

D TYP

.13 TYP

.258

TYP

.258

TYP

.040 TYP

E TYP

.258

MODEL

LTR OHM A

D E

NO.

CODE DIM DIM DIM DIM DIM

CBJR20A

A 50 .046 .34 .090 .058 .070

UCBJR20A

A 75 .029 .34 .090 .058 .070

MODEL

LTR OHM A B

D E

NO.

CODE DIM DIM DIM DIM DIM

CBJR20

50 .046 .24 .090 .050 .0625

UCBJR20

75 .029 .24 .090 .050 .0625

.380

DIA

TYP

.815

.013 TYP

.156

.188 TYP

.047 DIA

.062 DIA

4 HOLES

.380

DIA

TYP

.815

.156 TYP

Ø.062 DIA

3 HOLES

Ø.047 DIA

Ø.340

DIA BC

120

TYP

.013

1.090

.380

DIA

.040 TYP

.430

.131

.030

.029

.885

.062

.258

.129

Coax Connectors /

Coax 20/220 Series

Circuit Board Jacks

Circuit Board Jack

Straight, 4-leg

75Ω............................................... UCBJ20F

Circuit Board Jack

Straight, 3-leg

50Ω................................................... CBJ20

Circuit Board Jack

Straight, 4-leg

50Ω................................................... CBJ22

Circuit Board Jack

Straight, 4-leg

75Ω............................................... UCBJ224

Circuit Board Jack

Straight, 3-leg

75Ω............................................... UCBJ223

Right Angle Coax BNC

Circuit Board Jack

50Ω.............................................. CBJR220
75Ω............................................ UCBJR220

Circuit Board Jack

Right Angle, Tall Version

50Ω.............................................. CBJR20A
75Ω............................................ UCBJR20A

1.054

.030

.890

.030

.380

DIA

.030 TYP

TYP

C TYP

D TYP

.13 TYP

.258

TYP

.258

TYP

.040 TYP

E TYP

.258

MODEL

LTR OHM A

D E

NO.

CODE DIM DIM DIM DIM DIM

CBJR20A

A 50 .046 .34 .090 .058 .070

UCBJR20A

A 75 .029 .34 .090 .058 .070

MODEL

LTR OHM A B

D E

NO.

CODE DIM DIM DIM DIM DIM

CBJR20

50 .046 .24 .090 .050 .0625

UCBJR20

75 .029 .24 .090 .050 .0625

trompeterproductcatalog-html.html

COA
X

NNE

Coax Connectors /

Coax 20/220 Series

Circuit Board Jacks

.047

.0935 DIA

4 PLACES

.354

TYP

.177

.414

MIN

1.332

.557

.013

TYP

.500-28UNEF-2A

.564 HEX NUT

.630 DIA MAX

WASHER

.562 HEX

.562 DIA

.158 TYP

.687 DIA

.562 HEX NUT

.380 DIA

.425

1.388

.557

.128

.013

.156

TYP

.200

.0390 DIA

.200

.400

TYP

.0935 DIA

4 PLACES

Coax Connectors /

Coax 20/220 Series

Circuit Board Jacks

Non-insulated Circuit Board Bulkhead Jack

Straight, 4-leg

75Ω............................................... UCBBJ29

Mounting Hole:

D3.109

Insulated Circuit Board Bulkhead Jack

Straight

50Ω................................................. CBBJ26

Mounting Hole:

D3.156

Mounting Holes

: D3.156 (Insulated)

Maximum Panel Thickness: .179

D-Hole: D3

MODEL #

LTR CODE

IMPD Ω

A DIA

B DIM

C DIM

D DIM

E DIA

CBBJR29

-----

.046

.24

.090

.050

.0625

UCBBJR29

.029

CBBJR29A

.046

.24

.090

.058

.070

UCBBJR29A

.029

MODEL #

LTR CODE

IMPD Ω

A DIA

B DIM

C DIM

D DIM

E DIA

6-0001-1

-----

.046

.24

.090

.050

.0625

6-0001-2

.029

6-0001-3

.046

.24

.090

.058

.070

6-0001-4

.029

Right Angle Circuit Board Bulkhead Jack

Non-insulated

50Ω.............................................. CBBJR29
75Ω............................................ UCBBJR29

RoHS Compliant

Non-insulated

50Ω............................................. 6-0001-1
75Ω............................................. 6-0001-4

Mounting Holes

: D3.156 (Insulated)

1.237

1.074

.773

.046

.380

DIA

.030

TYP

B TYP

.500-28UNEF-2A

.562 HEX NUT

.13 TYP

.124

D TYP

C TYP

.258

TYP

.593 DIA

.040

TYP

.258

TYP

.649

ACROSS

POINTS

.258

E DIA TYP

.258

A DIA

MODEL #

LTR CODE

IMPD Ω

A DIA

B DIM

C DIM

D DIM

E DIA

CBBJR26- RC

-----

.046

.24

.090

.050

.0625

UCBBJR26- RC

.029

CBBJR26A-RC

.046

.34

.090

.058

.070

UCBBJR26A-RC

.029

MODEL #

LTR CODE

IMPD Ω

A DIA

B DIM

C DIM

D DIM

E DIA

CBBJR26

-----

.046

.24

.090

.050

.0625

UCBBJR26

.029

CBBJR26A

.046

.34

.090

.058

.070

UCBBJR26A

.029

Right Angle Circuit Board Bulkhead Jack

Insulated

50Ω.............................................. CBBJR26
75Ω............................................ UCBBJR26

RoHS Compliant

Insulated

50Ω......................................... CBBJR26-RC
75Ω....................................... UCBBJR26-RC

1.76

1.46

.600

TYP

.058

TYP

.050

DIA

.120 TYP

.156

TYP

.030

TYP

.397

TYP

.200

.400

.0625 DIA

.070 DIA TYP

.1985

.397

TYP

.040 TYP

.44 DIA

MODEL

LTR

NO.

CODE DIM

CBJR12

.24

CBJR12A

.34

Coax Connectors /

Mini-WECo Coax

Circuit Board Jacks

Circuit Board Mounting
Mini-WECo Patch Jack

75Ω Right Angle......... CBJR12

B=.24

trompeterproductcatalog-html.html

COA

NNE

Ø.507

.530

.500

Ø.437

.643

±.010

Ø.300

.500

.355

Ø.295

.608

.308

.157

.015

.365

.409

.157

.015

.259

.295

.424

.308

The mini-BNC 250 RF connector series from Trompeter was designed specifically for DS3 telco coaxial central office applications to
allow higher interconnect density while preserving the positive characteristics of the Trompeter full size BNC. In fact, the 250 series
provides for higher density of interconnects in a given area.

Part Number

Description

Plating

Bulkhead
Mount

PCB OA
Thickness

UPL250-

Straight plug M-BNC series

n/a

UPLR250-

Right angle plug M-BNC series

n/a

UBJ250-

Bulkhead cable jack

yes

UCBJ250-G

Straight PCB-mounted jack

UCBJ250-N

Straight PCB-mounted jack

UCBBJ250-G

Straight PCB-mounted jack

yes

UCBBJ250-N

Straight PCB-mounted jack

yes

UCBJR250-G

Right angle PCB-mounted jack

UCBJR250-N

Right angle PCB-mounted jack

UCBBJR250-G

Right angle PCB-mounted jack

yes

UCBBJR250-N

Right angle PCB-mounted jack

yes

UCBJE250-1

PCB-edge mounted SMT jack

0.032

UCBJE250-2

PCB-edge mounted SMT jack

0.064

UCBBJE250-1

PCB-edge mounted SMT jack

yes

0.032

UCBBJE250-2

PCB-edge mounted SMT jack

yes

0.064

UAD258

M-BNC jack to M-BNC jack adapter, Barrel
adapter

yes

UTNAF250

Terminators

UTNAM250

Terminators

UADF20M250

BNC to MBNC adapters M to F

UADF20F250

BNC to MBNC adapters M to F

UADF250M20

BNC to MBNC adapters M to F

Coax Connectors /

Miniature Coax 250 Series

Mini-BNC Plugs & Jacks

Miniature BNC (M-BNC) Coaxial Plug

Straight

75Ω......................................... UPL250-

Miniature BNC (M-BNC) Coaxial Bulkhead Jack

Straight

75Ω.......................................... UBJ250-

Miniature BNC (M-BNC) Coaxial Circuit Board Jack

Straight

75Ω........................................... UCBJ250-N
75Ω........................................... UCBJ250-G

Miniature BNC (M-BNC) Circuit Board Jack

Right Angle

75Ω......................................... UCBJR250-N
75Ω......................................... UCBJR250-G

4”x4”

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

NOTE: All UPL250 plugs come
with our SureNotch™ feature.

trompeterproductcatalog-html.html

COA
X

.096

.437 OR .500

WRENCH FLATS

AND NUT

.960/1.001

.650 DIA MAX

.640

1.140

.562 HEX

.562 HEX NUT

.500-28UNEF-2A

1.282

.046

.505

.997

.4375-28UNEF-2A

.096

.437 HEX

.645 DIA MAX

.593

DIA

MAX

.4375-28UNEF-2A

.708

1.208

CRIMP SLEEVE

CJ240-001 SHOWN

1.280

.381

.4375.28UNEF-2A TYP

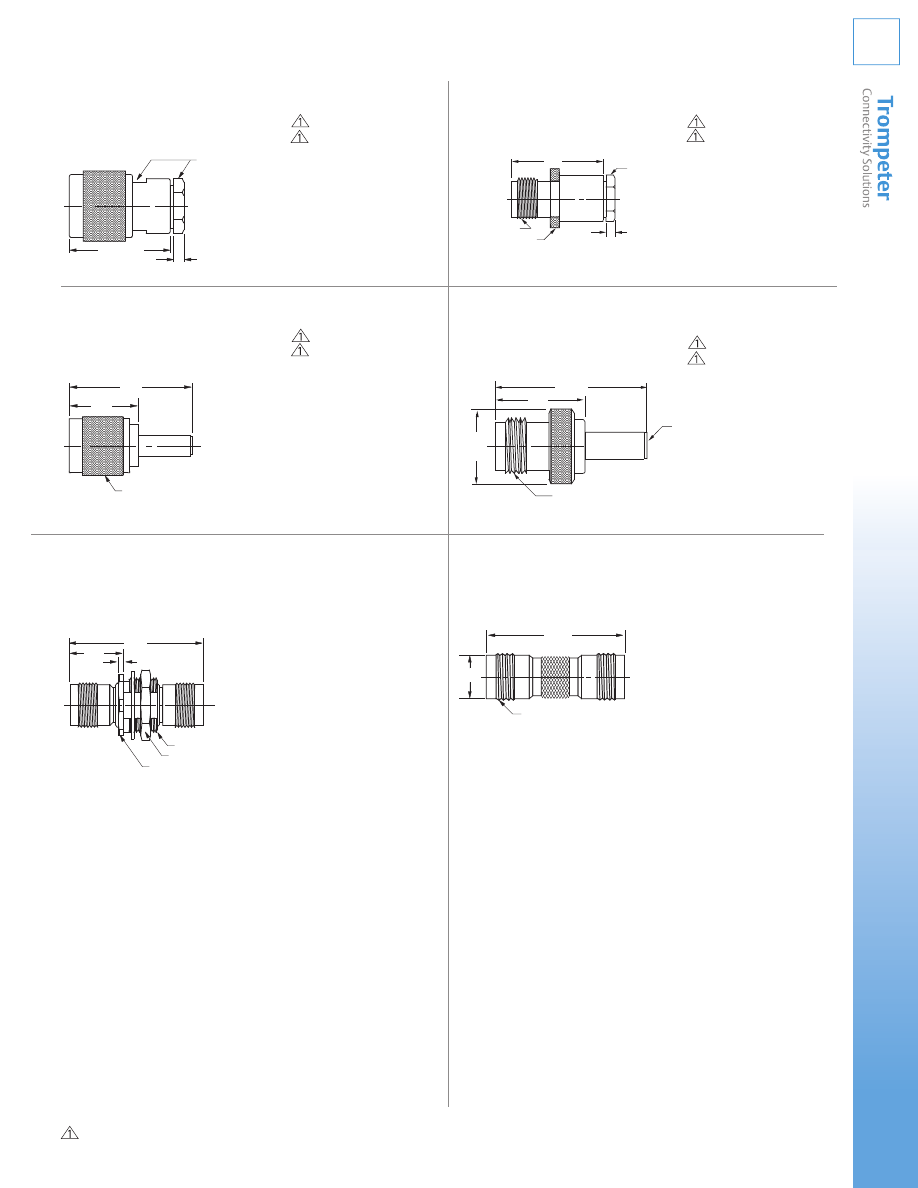

Coax Connectors /

Miniature Coax Threaded 40/240 Series

TNC

Cable Plug

Wrench Crimp

50Ω.............................................. PL40-
75Ω........................................... UPL40-

Cable Jack

Wrench Crimp

50Ω.............................................. CJ40-
75Ω........................................... UCJ40-

Cable Plug

Tool Crimp

50Ω........................................... PL240-
75Ω......................................... UPL240-

Cable Jack

Tool Crimp

50Ω............................................ CJ240-
75Ω.......................................... UCJ240-

Insulated Bulkhead Jack

Feed-Through

50Ω.................................................... BJ48
75Ω.................................................. UBJ48

Mounting Hole:

D3.156

GF-Ground filter version page 41

TNC Coupling Adapter

Barrel Connector

50Ω................................................... AD48
75Ω................................................. UAD48

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA

Mounting Hole:

D3.218

D2.218 (Cable Groups 6,6E,51,52)

Add “A” for tall versions

Mounting Hole:

D3.230

.380

DIA

.4375-28UNEF-2A

.500-28UNEF-2A

.562 HEX NUT

.757

1.060

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.625-24UNEF-2A

1.000

.790

.096

.750 HEX NUT

.437 HEX

.687 HEX

.4375-28UNEF-2A

.830

1.237

1.074

.773

.046

.380

DIA

.4375-28UNEF-2A

.500-28UNEF-2A

.562 HEX NUT

.124

.030

TYP

.13 TYP

TYP

.258

TYP

.593 DIA

.040

TYP

.258

TYP

.649

ACROSS

POINTS

.258

TYP

E DIA TYP

.258

MODEL

LTR OHM A B C D E

NO.

CODE DIM DIM DIM DIM DIM

CBBJR46

50 .046 .24 .090 .050 .0625

UCBBJR46

75 .029 .24 .090 .050 .0625

CBBJR46A

50 .046 .34 .090 .058 .070

UCBBJR46A A

75 .029 .34 .090 .058 .070

A DIA

1.058

.382

.378

DIA

.425

.046

.4375-28UNEF-2A

.375-32UNEF-2A

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.500 HEX NUT

.471

1.060

.500-28UNEF-2A

.562 HEX NUT

SOLDER POT
ACCEPTS
.060 DIA
CONDUCTOR

.500-28UNEF-2A

1.000

.806

.096

.625 HEX

.437 HEX

.687 HEX

.4375-28UNEF-2A

1.625

1.000

.806

.625 HEX NUT

.4375-28UNEF-2A

.437 HEX

.750

DIA

.593 DIA

.040

TYP

.258

TYP

.649

ACROSS

POINTS

1.237

1.074

.773

.046

.380

DIA

.4375-28UNEF-2A

.500-28UNEF-2A

.562 HEX NUT

CBBJR49 SHOWN

.124

.258

TYP

.13 TYP

.030

TYP

MODEL

LTR OHM A B C D E

NO.

CODE DIM DIM DIM DIM DIM

CBBJR49

50 .046 .24 .090 .050 .0625

UCBBJR49

75 .029 .24 .090 .050 .0625

CBBJR49A

50 .046 .34 .090 .058 .070

UCBBJR49A A

75 .029 .34 .090 .058 .070

.258

TYP

E DIA

TYP

.258

A DIA

Mounting Hole:

D3.218 / D2.218

(Cable Groups 6, 6E,51,52)

Mounting Hole:

D3.147

Coax Connectors /

Miniature Coax Threaded 40/240 Series

TNC Bulkhead Jacks

Insulated Bulkhead Jack

Rear Mount, Solder Pot

50Ω..................................................... BJ41
75Ω................................................... UBJ41

Mounting Hole:

D3.147

Insulated Bulkhead Jack

Rear Mount, Wrench Crimp

50Ω............................................... BJ46-
75Ω............................................ UBJ46-

Mounting Hole:

D2.187

GF-Ground filter version page 40.

Insulated Circuit Board Jack

Right Angle

50Ω............................................... CBBJR46
75Ω............................................ UCBBJR46
50Ω............................................ CBBJR46A
75Ω.......................................... UCBBJR46A

“A” refers to tall versions

Mounting Hole:

D3.156

Bulkhead Jack

Solder Pot

50Ω..................................................... BJ40
75Ω................................................... UBJ40

Mounting Hole:

D5.125

Insulated Bulkhead Jack

Front Mount, Solder Pot

50Ω................................. BJ47
75Ω................................. UBJ47

Bulkhead Cable Jack

Wrench Crimp

50Ω................................... BJ49-
75Ω................................. UBJ49-

Bulkhead Cable Jack

Tool Crimp

50Ω................................. BJ249-

Circuit Board Jack Bulkhead Mount

Right Angle

50Ω............................................... CBBJR49
75Ω............................................ UCBBJR49

“D” mounting holes are on page 54.

trompeterproductcatalog-html.html

COA
X

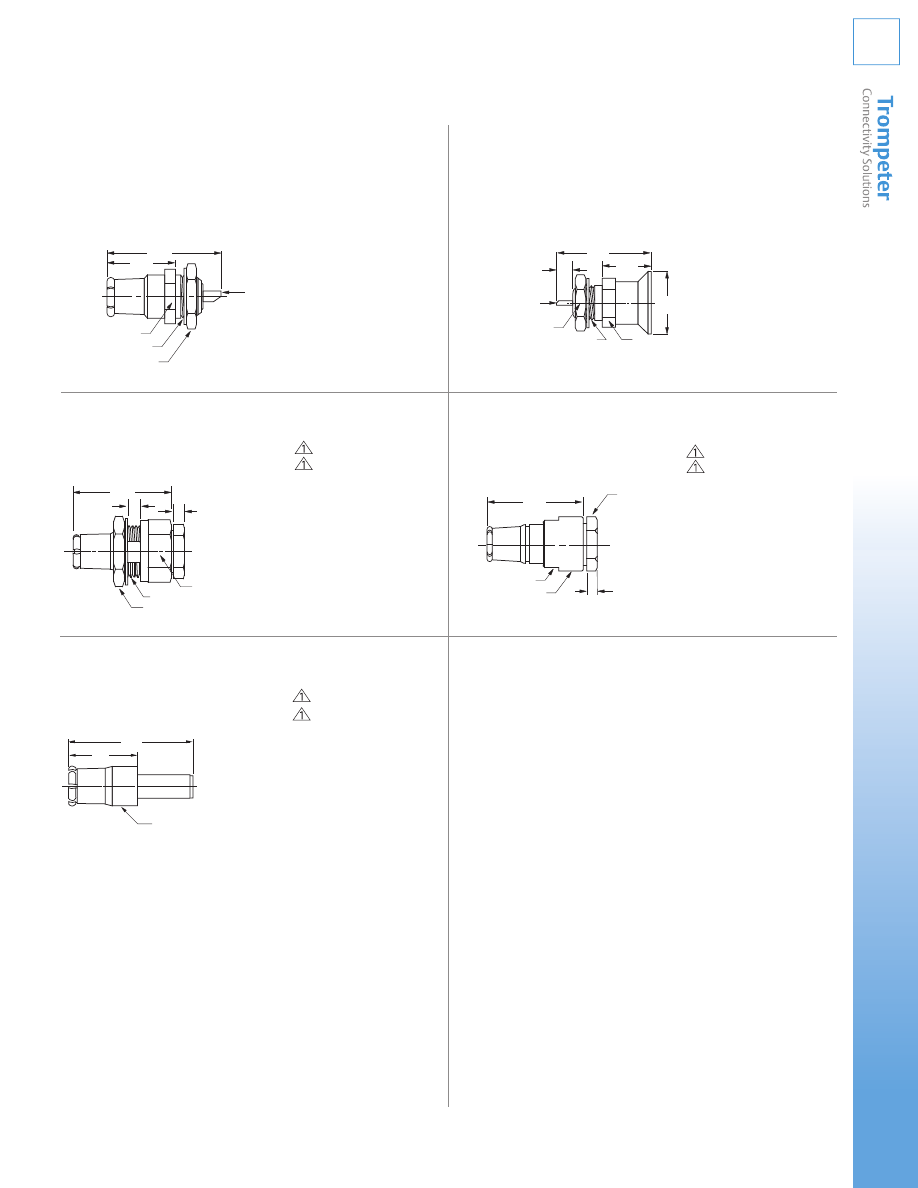

These BNC/TNC push-on jacks and plugs are designed for (U)PL123 blind mate rack and panel applications. The male
plugs mate (U)PL122 with any BNC/TNC jack and are ideally suited for test/cable applications.

Mounting Hole:

C2.093

Mounting Hole:

DD5.187

Mounting Hole:

C1.120

.500 HEX

.628

1.060

.437 WRENCH FLATS

3/8 WRENCH FLATS

SOLDER CUP

ACCEPTS

.068 DIA

CONDUCTOR

.562 HEX NUT

.500 HEX

.906

.468-32 SPECIAL

.115

.096

1.107

.607

.349 DIA

.437 WRENCH FLATS

.096

.906

.437 HEX

BODY .500 DIA

.550

DIA

.875

.150

.450

.3125-32UNEF-2A

.375

WRENCHFLATS

.437 HEX

SOLDER POT ACCEPTS
.055 DIA CONDUCTOR;
(.025 DIA FOR UBJ120)

Coax Connectors /

Push-on Coax 120 Series

Panel Plug

Front Mount, Solder Pot

50Ω................................................... PL121
75Ω................................................. UPL121

W/Solder Lug

50Ω............................................... PL121SL
75Ω............................................. UPL121SL

Bulkhead Jack

Front Mount, Solder Lug

50Ω................................................... BJ120
75Ω................................................. UBJ120

W/Solder Lug

50Ω............................................... BJ120SL
75Ω............................................. UBJ120SL

Panel Plug

Rear Mount, Cable Entry

50Ω............................................ PL122-
75Ω.......................................... UPL122-

Cable Plug

Tool Crimp

50Ω............................................ PL223-
75Ω.......................................... UPL223-

Cable Plug

Wrench Crimp

50Ω............................................ PL123-
75Ω.......................................... UPL123-

“D” mounting holes are on page 54.

trompeterproductcatalog-html.html

COA

Trompeter’s DIN connector series, is manufactured to the DIN
47297  (75  Ω)  interface  specification.  This  range  of  Trompeter’s
DIN  1.0/2.3  connector  are  45%  smaller  than  the  DIN  1.6/5.6
and  is  ideal  for  higher  density  patching  requirements.  With
this  space  savings,  significantly  more  ports  can  be  placed
in  the  same  1RU  panels.  The  Trompeter  1.0/2.3  series
includes cable plugs, cable jack and Type N to DIN adapters.

Trompeter’s 1.0/2.3 series works with all of the most popular
cables used in the video distribution and telecom central office
environments and can rapidly be adapted to suit any coaxial cable
developments.

This line of 1.0/2.3 connectors delivers the same superior quality
performance of the industry leading Trompeter 220 Series BNC
range. Employing the same tooling and termination as the 220
series BNCs ensures a minimal deployment cost and disruption for
our customers.

Dimensions are in mm

M 5.5 X 0.5

7.4

3.0

3.7

0.80

7.3

0.81

4 X

5.08

12.7

11.4

12.7

5.40

M5.5X0.5

17.5

0.5

0.9

4 X

7.3

2.3

0.9

5.1

7.3

12.7

5.4

13.25

Coax Connectors /

1023 Series

1.0/2.3 DIN Connectors – 75 Ω

Straight PC Bulkhead Mount Jack

UCBBJ1023

Straight Crimp Plug

UPL1023-

Dimensions are in mm

DIN 1.0/2.3 Right Angle PCB Bulkhead Mount Jack

UCBBJR1023

Dimensions are in mm

Right Angle Crimp Plug

UPLR1023-

Dimensions are in mm

Adapter 75 Ohm Type N Plug to DIN 1.0/2.3 Jack

UADF1023M95

DIN 1.0/2.3 Bulkhead Jack

UBJ1023-

Dimensions are in mm

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA
X

NNE

Coax Connectors /

110 Series

1.6/5.6 DIN Connectors

RF Coaxial 75 Ohm DIN

Threaded Full Crimp Cable Plug

UPL110-

RF Coaxial 75 ohm DIN

Jack Threaded Connector
MEETS REQ OF IEC 169-13

UBJ110-

Adapter 75 ohm BNC Jack to 75 ohm DIN Plug

UADF20M110

Adapter 75 ohm BNC Plug to 75 ohm DIN Jack

UADM20F110

Dual Coaxial DIN Connector “U-Link” 75 Ohm
With Two Plugs

Based on 169-13 Specification

105-1496

Trompeter’s  110  series  connectors  are  30%  smaller  than  the
standard  BNC  currently  used  for  the  Coax  Central  Office
termination.  With  this  space  savings,  72  interconnects  can  be
placed in the same 1 rack unit panels as 52 BNCs. The 110 series
of connectors is available in the following: cable plug, cable jack,

a U-Link for connecting two jacks, a right angle circuit board jack,
and BNC to DIN adapters.

Trompeter’s 110 series works with all the cables currently in use in
the central office environment and like all Trompeter connectors,
can be made to accommodate any coax cable changes.

C R IMP

S LE E VE

.500

.488

P IN

C ONTAC T

.939

±.015

.300

.380

Ø.410

.580

.375

.590

±.010

.450

.990

.634

1.084

INS ULATOR

WAS HE R S

LOC K NUT

S UP P OR T

R ING

.573

1.003

±.010

B ODY

AS S Y

M9 X 0.50

S OC K E T

C ONTAC T

.579

.500

C R IMP

S LE E VE

Ø.410

Ø.380

B NC J AC K

DIN P LUG

(1.530)

.580

Ø.593 MAX

B NC P LUG

DIN J AC K

Ø.322

1.263

.471

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA

Mounting Hole:

DD4.203

BJ98-2 Shown

Mounting Hole:

DD4.50

Options available for panels up
to 2.25" thick. Call customer
service.

Mounting Hole: DD4.310

Mounting Hole:

D5.310

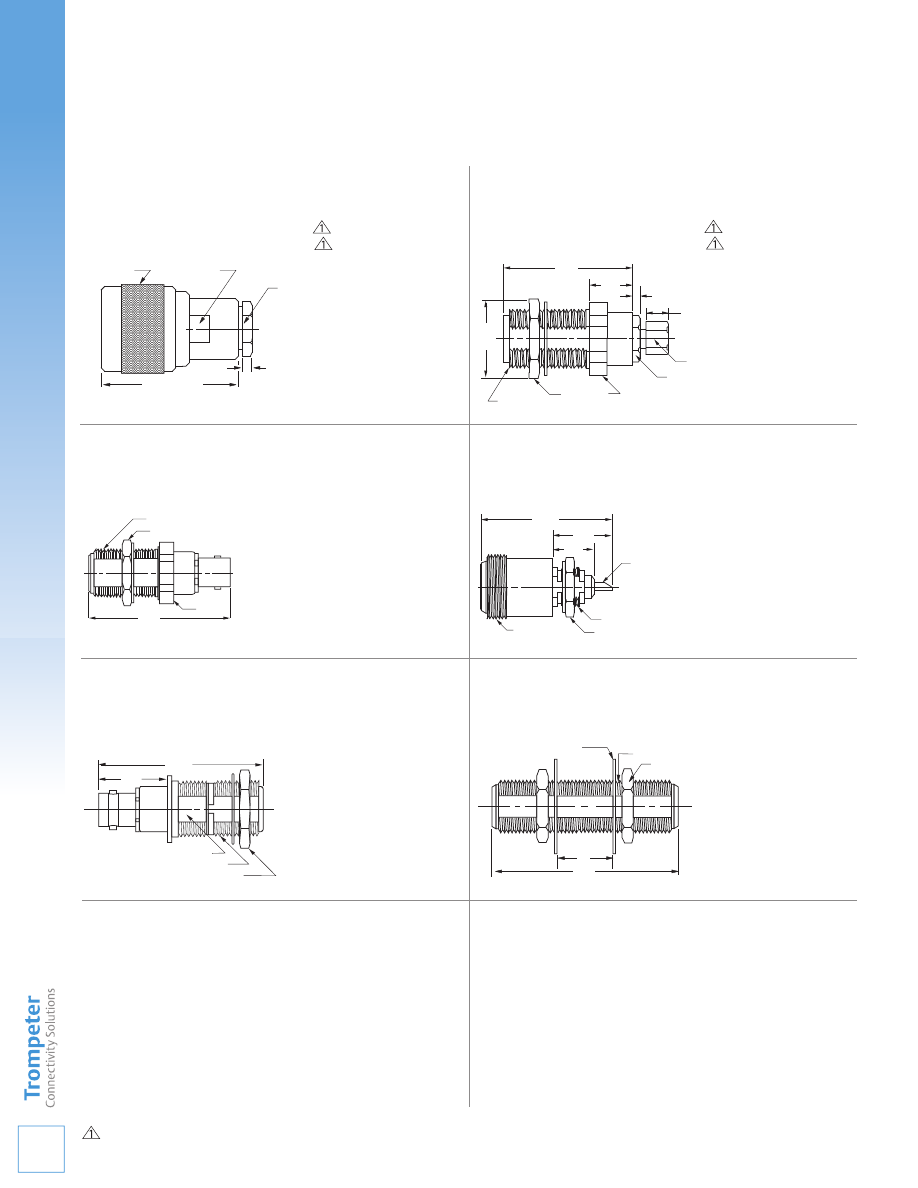

Trompeter’s 90 Series incorporates many of the features of our BNC lines including 3-piece wrench crimp configuration, gold plated
captive center contacts, beryllium copper female contacts, and PTFE dielectrics. The 90 Series will also accommodate non-flammable
plenum coax cables.

1.274 OR 1.336

.500 OR .688

WRENCH FLATS

.438 OR .625 FLATS

.828 DIA MAX

.096 OR .130

1.863

3/4 HEX

3/4 HEX NUT

.625-24UNEF-2A

1.860

.833

.625-24UNEF-2A

.750 HEX NUT

.562 WRENCH FLATS

1.392

.462

.094

.250

.625-24 UNEF-2A

.750 HEX NUT

.437 HEX NUT

.312 FLATS

.800

DIA

1.287

.587

.406

.625-24UNEF-2A

.375-32UNEF-2A

SOLDER POT ACCEPTS

.064 DIA WIRE

.500 HEX NUT

.750 HEX NUT TYP

.875 MAX

.50

1.75

.625-24UNEF-2A

Mounting Holes:

DD4.310

(Standard body)
DD1.310 (Cable Groups
-6A/6B/6E, -48, -50)

Coax Connectors /

Coax Type N Connectors

90 Series

Cable Plug

Wrench Crimp

50Ω.............................................. PL95-
75Ω............................................ UPL95-

Large body versions
are available, contact
customer service.
Size depends on cable
group.

Adapter

BNC Female to N Female

50Ω................................................... AD95
75Ω................................................. UAD95

Insulated Adapter

BNC Female to N Mail

50Ω.................................................. ADI95
75Ω................................................ UADI95

Bulkhead Cable Jack

Wrench Crimp

50Ω.............................................. BJ95-
75Ω............................................ UBJ95-

Bulkhead Jack

Solder Pot

50Ω....................................................... J95
75Ω..................................................... UJ95

Feed-thru Jack

50Ω.................................................. BJ98-2
75Ω............................................... UBJ98-2

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

COA

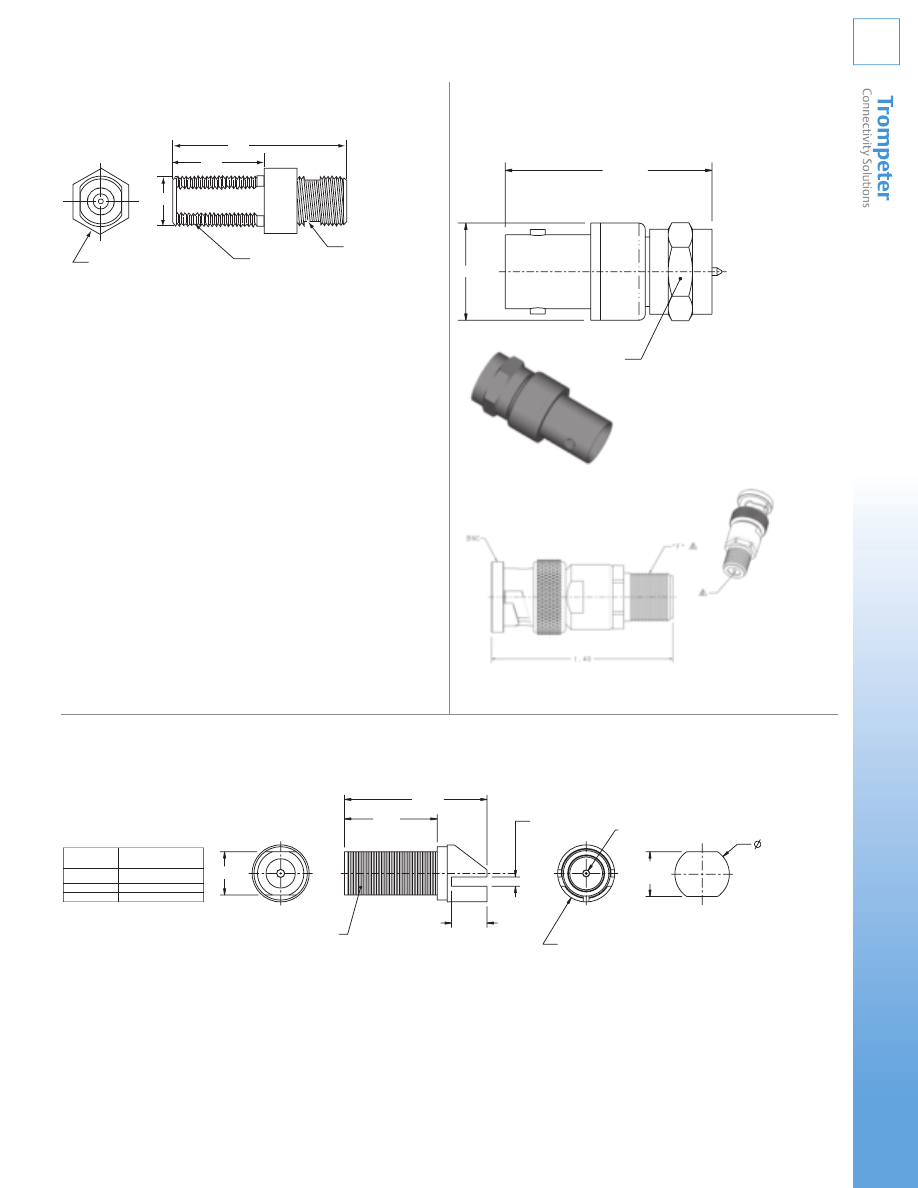

X

Ø.50

1.06

.03

.437 HEX

.375-32-2A TYP

.371

.662

1.290

.312 WRENCH FLATS

AD133
BNC MALE TO F TYPE FEMALE ADAPTER

F Type Jack

AD1300
75 OHM Coaxial Female BNC
to Male F Type Adapter

BNC Plug

AD1300
BNC to F Type Adapter

Coax Connectors /

Coax F Type Connectors

130 Series

Type F Adapter

AD131

Between Series Coaxial Female

BNC to Male F Type Adapter

75Ω............................................... AD1300

“D” mounting holes are on page 54.

.304

.375-32UNEF-2A

.650

1.000

.250

BOARD
THICKNESS

Ø.400

Ø.045

.316
.312

.384
.380

RECOMMENDED

CUT-OUT

PART NO

BOARD THICKNESS

CBJE130-1

.060 - .064

CBJE130-2

.028 - .033

CBJE130-3

.090 - .094

Circuit Board Edge Mount

F Type Style Female Jack

CBJE130-1, -2, or -3

Note: This circuit board jack meets SCTE IPS-SP-401 and has a Return Loss of <-221B at 2 GHz.

trompeterproductcatalog-html.html

COA

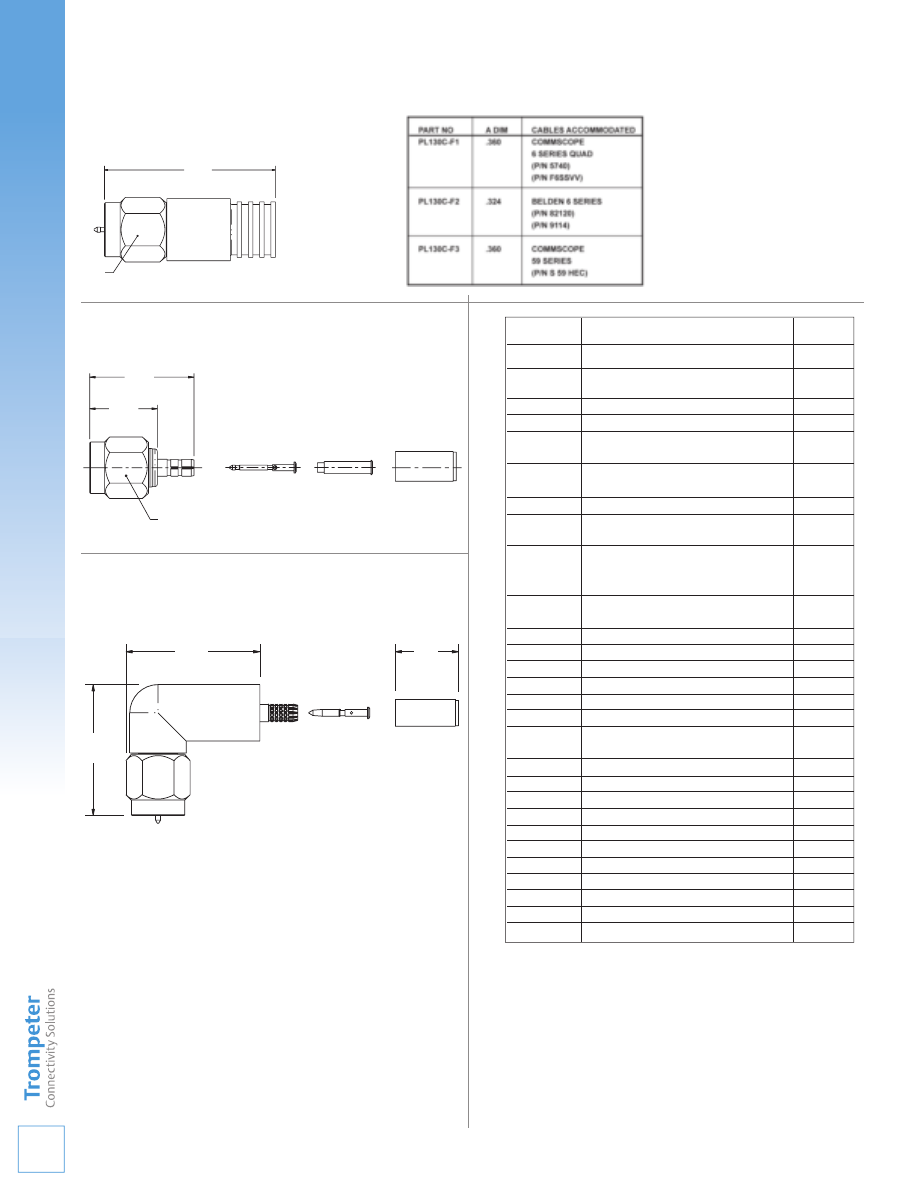

.856

±.018

.556

±.015

7/16 (.4375)
HEX NUT

1.030

.030

1.054

.030

.500

DASH NO

CABLES ACCOMMODATED

A HEX

-001

RG-178, -196

.178

-002

HEWLETT PACKARD

.197

8120 - 1107

-003

RG-174, 316

.178

-004

RG-179, 187

.178

-005

NORTHERN ELECTRIC

.197

DBL - SHLD RG-187

-006

GC875GPI, GRUMMAN

.197

DBL - SHLD RG-188

-007

275-3991, MICRODOT

.178

-008

RG-195, -180

.178

421-111, ESSEX

-009

8218, BELDEN

.178

YR23023 BELDEN

21-597, ESSEX

-011

RG-58, RG-141,

.213

RG-303, TCC-50-2

-013

RG-59

.255

-013A TCC-75-2

.255

-013B RG-62

.255

-014

8212, BELDEN

.255

-015

730A, LUCENT

.290

-015A RG-71

.290

-016

724, LUCENT

.324

8281, BELDEN

-017

RG-6

.344

-018

9268, BELDEN

.255

-019

8279, BELDEN

.255

-020

9248, BELDEN

.290

-021

88240, BELDEN

.213

-022

88241, 88269, BELDEN

.255

-023

89108, BELDEN

.255

-024

89120, BELDEN

.290

-025

734A, LUCENT

.255

-026

735A, LUCENT

.178

-027

KS19224L2, LUCENT

.178

Coax Connectors /

Coax F Type Connectors

130 Series

75 Ohm F Type Tool Crimp Plug

PL130SC-(see dash number from chart on right)

75 Ohm Right Angle F Type Style Full Crimp Cable Plug

PLR130SC-(see dash number from chart on right)

75 Ohm Male Type F Type Coaxial Cable Plug

PL130C-(see dash number from chart on right)

7/16

HEX

1.604

.030

-F1 SHOWN

Trompeter’s 130 Series Coax F Type Connectors meet SCTE-IPS-SP-4-1 and have a Return Loss of <-22 dB at 2 GHz.

trompeterproductcatalog-html.html

COA
X

NNE

Mounting Hole:

CC1.312

Panels for J94

Trompeter’s  50Ω  low  VSWR  (1.11:1)  patching  system  has  been
developed for use at frequencies up to 3 GHz and at power levels
up to 500 watts. J94 jack accepts a Type N male plug in back and
the  PL93  or  PL94  in  the  front  of  the  panels  shown,  or  a  custom
panel  of  your  own  design.  Patch  plugs  incorporate  a  push-fit
design that snap into position in the jack and are available with,
or  without  a  bayonet  locking  feature.  Normal  jack  spacing  is  3"
center-to-center.  For  a  minimum  bend  radius  when  patching
adjacent jacks, use Trompeter standard patch cords made with
RG8 cable with a minimum length of 14". Otherwise the minimum
length is 18". Panels loaded at no additional cost.

“L” replace with length in inches. “D” mounting holes, page 54. For standard panels see page 53.

.81

2.12

.130

.687 WRENCH FLAT

.625 WRENCH FLAT

.750 DIA

"L"

LENGTH

.535

.100

.92

1.82

.625-24UNEF-2A

3/4 HEX

1.000 DIA

.140/.036

DIA HOLE

.640/.630

.380/.370

4.402

3.000

4.000

3.250

2.000 HOLE

.852

.81

2.12

.687 WRENCH FLAT

.625 WRENCH FLAT

.130

.760

DIA

"L"

LENGTH

Type N Plug Patch Jack Patch Plug

Coax Connectors /

Low VSWR Connectors

Patch Plug

50Ω, without Locking Sleeve

PL93-

Patch Plug

50Ω, with Locking Sleeve

PL94-

Patch Cords

50Ω, Patch Plug without Locking Sleeve

PCH-L-50

Patch Cords

50Ω, Patch Plug with Locking Sleeve

PCHY-L-50

Patch Jack to Type N Jack

50Ω Threaded .62524UNEF-2A

J94

Looping Plug

50Ω - Green Handle

LPH-50

# of Holes

Notching

Panel Type

Height

Part#

Open

Common
Ground

A =

1.75"

JSH-12

Closed

Insulated

A =

1.75"

JSHI-12

Open

Common
Ground

B =

5.25"

JSH-24

Closed

Insulated

B =

5.25"

JSHI-24

trompeterproductcatalog-html.html

COA

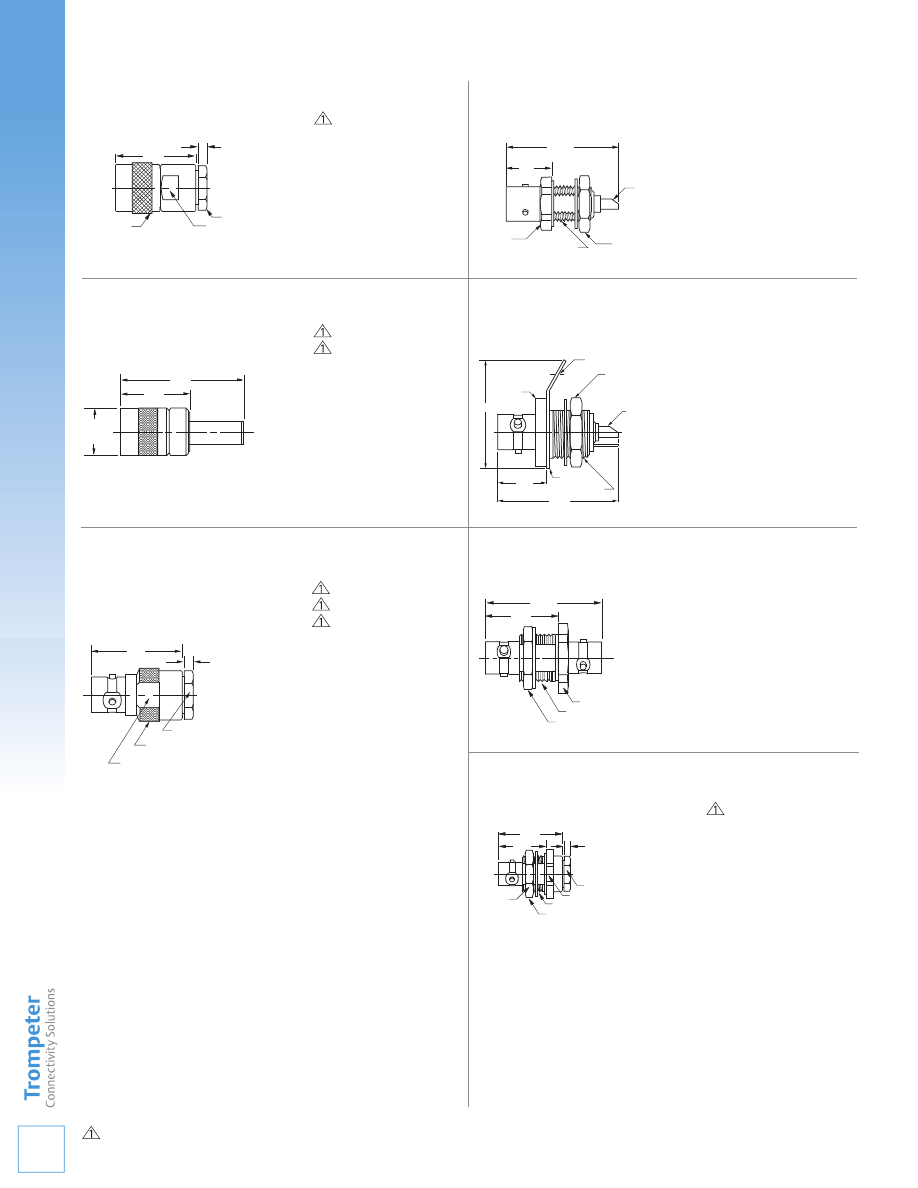

BJ58 Shown

Mounting Hole:

D5.190 /

D4.190 (Threaded)

BJ59-1 Shown

Mounting Hole:

D4.187

PL50C-001 Shown

BJ57 Shown

Mounting Hole

: D4.187

PL50-1 Shown

CJ50-1 Shown

.375 HEX NUT

.375 WRENCH FLATS

.080

.748

.460 DIA MAX

.375 HEX NUT

.375 WRENCH FLATS

.468 DIA MAX

.080

.790

.402

1.000

.3125-32UNEF-2A

7/16 HEX

3/8 HEX NUT

SOLDER POT ACCEPTS

.039 DIA CONDUCTOR

.140 DIA

.560 DIA

.600 DIA

.892

.500 HEX NUT

.4375-28UNEF-2A

.407

1.000

SOLDER POT

ACCEPTS .039 DIA

CONDUCTOR

.500 HEX

1.070

.375-32UNEF-2A

7/16 HEX NUT

.620

.080

.790

.590

.4375-28UNEF-2A

.375 HEX NUT

.500 HEX NUT

.562 HEX

.600 DIA

1.143

.643

.485

DIA

MAX

Coax Connectors /

50Ω Subminiature Coax 50 Series

TPS/TCM Jacks & Plugs

Cable Plug

Wrench Crimp

50Ω 3-Lug..................................... PL50-

Bulkhead Jack

Front Mount, Solder Pot

50Ω 3-Lug............................................ BJ50

Mounting Hole:

D6.218

Cable Plug

Wrench Crimp

50Ω 3-Lug................................... PL50C-
75Ω 3-Lug................................... PL50C-

Bulkhead Jack

Front Mount, Solder Pot

50Ω 3-Lug........................................... BJ57

Cable Plug

Wrench Crimp

50Ω 3-Lug..................................... CJ50-
50Ω 4-Lug.................................. CJ50FL-
50Ω Threaded............................. CJ350-

Feed-thru Jack

50Ω 3-Lug........................................... BJ58

Bulkhead Jack

Wrench Crimp

50Ω 3-Lug..................................... BJ59-

“D” mounting holes are on page 54.

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

PR
O

Trompeter’s HDVDP and HDVDPM Patch Jacks are designed
and engineered to exceed SMPTE 292M specifications for high
definition video transmission and connectivity.

The normal-thru contact interface design of HDVDP/HDVDPM
consists of a self-aligning normal-thru U-slot, two redundant
points of contact, an independent applied normal force at each
contact point, and a mechanical wipe region at each contact
interface location. These design attributes provide reliable and
repeatable patching/un-patching, resulting in low-level contact
resistance stability.

HDVDP/HDVDPM Key Features

• Light weight design:
• HDVDPT (full size): 48.05 grams
• HDVDPMT (mini): 32.1 grams
• High-reliability normal-thru contact design
• Self-wiping normal thru contact design
• Streamlined design for repeatable manufacturability

HDVDPT

Full-size WECo Format

Terminated

HDVDP

Full-size WECo Format

Non-terminated

HDVDPMT

Mini WECo Format

Terminated

HDVDPM

Mini WECo Format

Non-terminated

Full Size Patch-Jack

75Ω Terminated & Non-Terminated

Mini Patch-Jack

75Ω Terminated & Non-Terminated

Top View of Normal-Thru Contact Interface (2x)

Patching Products /

High Frequency

Video Patching

trompeterproductcatalog-html.html

ROD

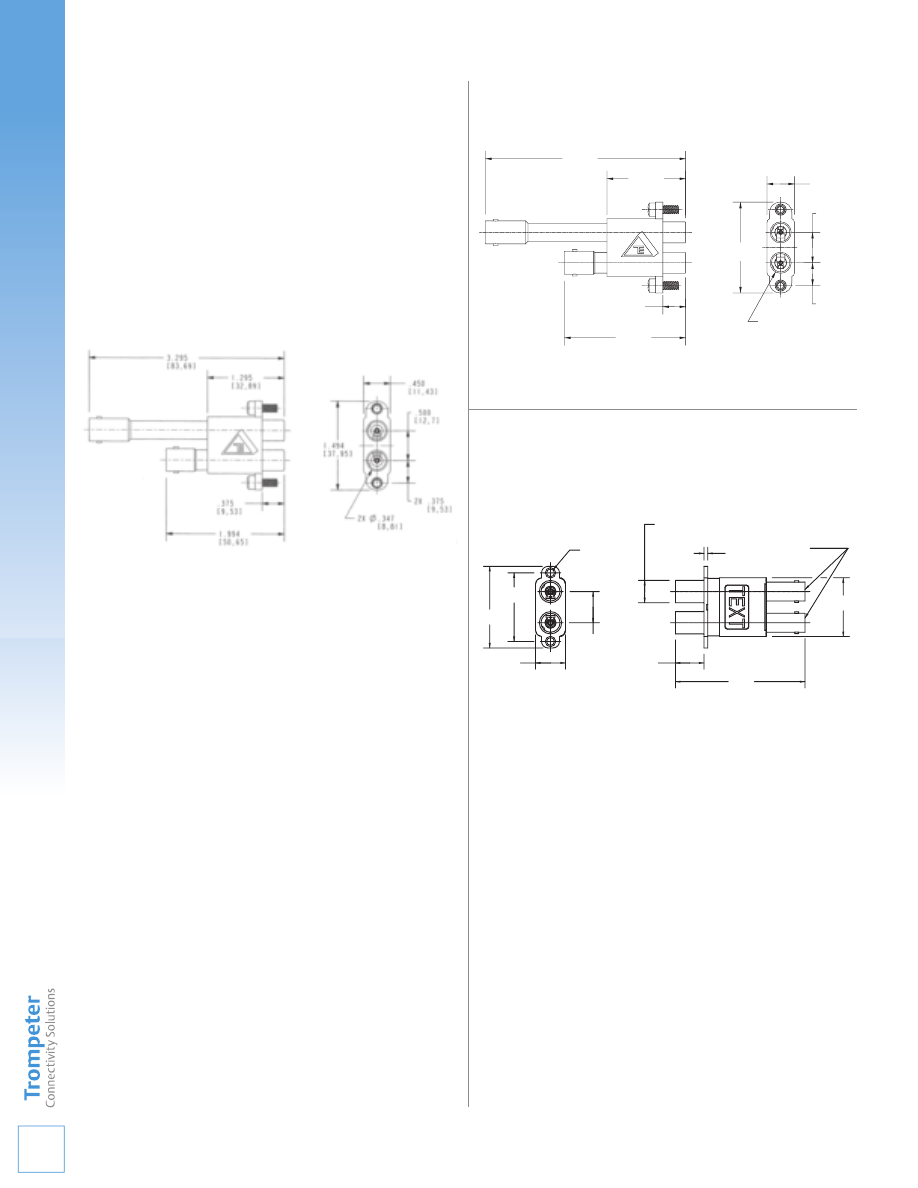

1.994

50,65

[

]

3.295

83,69

[

]

.375

9,53

[

]

1.494

37,95

[

]

2X .375

9,53

[

]

.500

12,7

[

]

1.295

32,89

[

]

.450

11,43

[

]

2X Ø.347

8,81

[

]

2.59

65,9

[

]

2X .570

14,48

[

]

1.177

29,9

[

]

1.375

34,93

[

]

.625

15,88

[

]

.600

15,24

[

]

2X .075

1,91

[

]

1.635

41,53

[

]

2X Ø.156

3,96

[

]

2X Ø.447

11,35

[

]

BNC

RECEPTACLES

Patching Products /

High Frequency

Video Patching

The HDVDPMN is superior quality, high bandwidth, dual video
patch  jack.  This  low  profile,  high  performance  component  is
designed for HDTV digital applications where space allocation
is  critical,  such  as  in  video  truck  application.  It  is  ideal  for
situations where self-normalling is not practical, usually due to
environmental  considerations  such  as  high  ambient  airborne
particles or high vibration.

When  used  in  conjunction  with  the  LPMWHF  looping  plug,  a
“normal-thru” circuit is achieved, which will pass the full 1.485
Gbps of uncompressed data (2.25GHz of frequency)  needed for
HDTV, with return loss performance which exceeds SMPTE292M
requirements.  This  high  performance  is  maintained  when
patching from one location to another, using the PCMWB-L patch
cord (call customer service).

HDTV Ready High Frequency 75
Ohm Dual Coaxial Mini-WECo Patch
Jack with BNC Receptacles

HDVDPMN

HDTV Ready High Frequency 75
Ohm Dual Coaxial WECo Patch Jack
with BNC Receptacles

HDVDPN

Note: uses the LPW-75 to normalize the circuit

trompeterproductcatalog-html.html

PR
O

Standard Panels see pages 51.

-Resistance (½W, 1%)

BNC RECEPTACLES

.625

2.125

.750

.156

DIA TYP

2.409

.570

2.660

.487

.562

SCHEMATIC

Patching Products /

Coax

Patch Jacks & Accessories

Patch Jacks J15, J24, J314, and HDVDP can be mounted vertically
or horizontally on 5/8" centers. Mounting tabs are normally “back-
to-back” (as shown below).

Features

• J24 is a high frequency jack w/signals monitoring cabilities

High Frequency Normal-Thru with Monitor

Dual Coax Patch Jack

J24WMSTHF-75

To be used with grey aluminum insulated panel..JSIS-72 (see page 57).

BNC

PLUG

2.09

ADAPTER

CIRCUIT

SCHEMATIC

BNC

JACKS

.625

.500

1.600

.592

1.185

.500

1.600

.592

1.185

.625

Adapter

Fixed Paralleling
50Ω BNC - Two Jacks, One Plug

PN2C

Adapter

Fixed Paralleling
50Ω BNC - One Jack, Two Plugs

PN2

Adapter

Fixed Paralleling
50Ω BNC - Two Jacks, One Plug

PN2A

trompeterproductcatalog-html.html

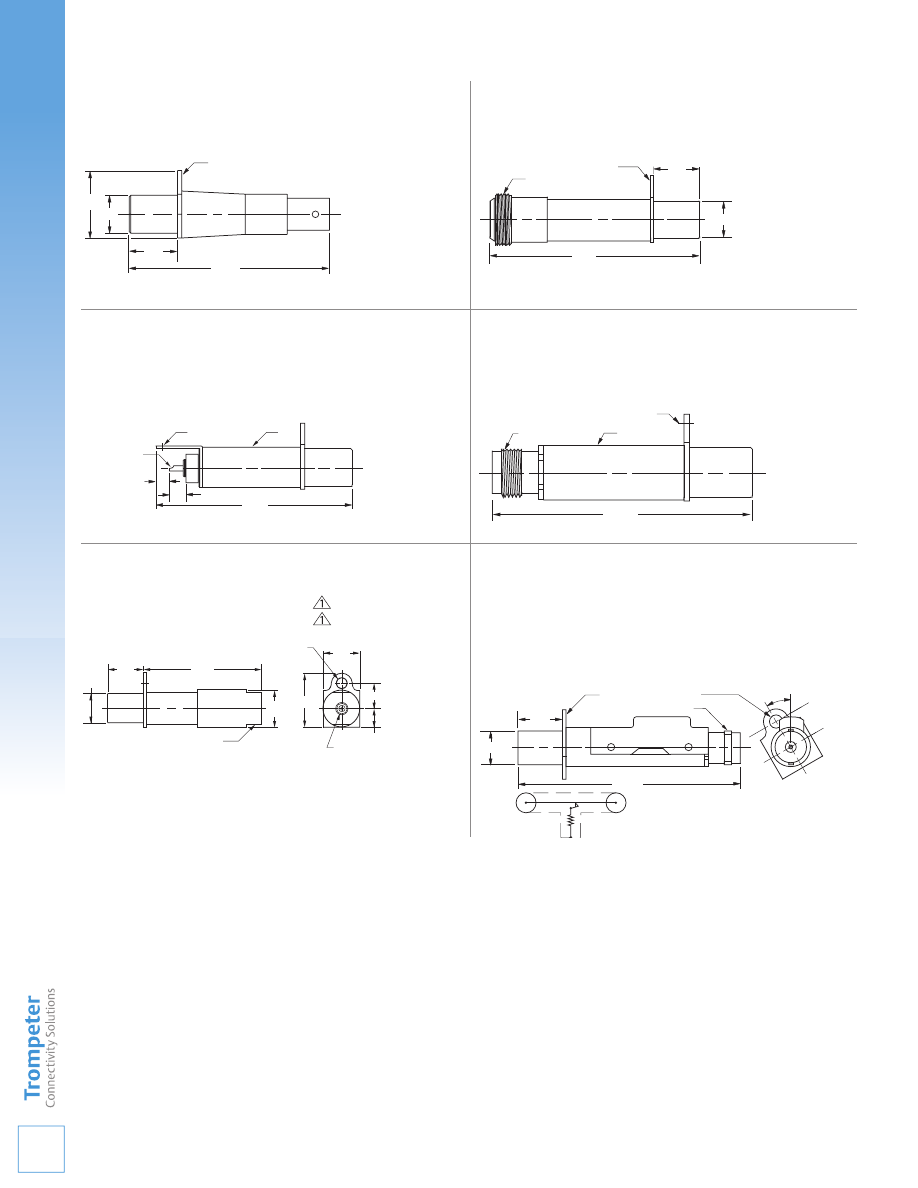

2.866

BNC RECEPTACLE

-30

TYP

.156 DIA MOUNTING HOLE

.447 DIA

.570

J3W Shown

.447

.570

2.366

.797

.156 DIA MTG HOLE

2.420

.500

DIA

.200

.164

.081 DIA HOLE IN
SOLDER LUG

SOLDER POT

ACCEPTS

.063 DIA

WIRE

.570

.447

DIA

.500 WRENCH FLATS

.562

DIA

.156 MTG HOLE

.812

.560

.375

.281

CABLE

ENTRY

1.892

N TYPE RECEPTACLE

2.590

.570

.447 DIA

.156 DIA MTG HOLE

TNC RECEPTACLE

2.366

.500 DIA

.156 DIA MTG HOLE

Patching Products /

Coax

Patch Jacks

Patch Jack

BNC Rear Interface

50Ω RCA Center Pin – .070”..................... J3
75Ω WE Center Pin – .090”................... J3W

Patch Jack

Solder Pot

50Ω RCA Center Pin – .070”.................. J3D
75Ω WE Center Pin – .090”................ J3WD

(WECo 468 type)

Patch Jack

Cable Entry

50Ω RCA Center Pin – .070”............. J3E-
75Ω WE Center Pin – .090”........... J3WE-

(WECo 447 type) Microswitch not available
J3E-1 Shown

Patch Jack

Type N

50Ω RCA Center Pin – .070”..................... J9
75Ω WE Center Pin – .090”................ UJ9W

Minimum vertical/
horizontal centers .875"

Patch Jack

TNC

50Ω RCA Center Pin – .070”..................... J5
75Ω WE Center Pin – .090”................... J5W

Patch Jack

Self-terminating

BNC 50Ω RCA Center Pin – .070”........ J13-R
75Ω WE Center Pin – .090”.............. J13W-R

WECo 477B Type

TNC 50Ω.......................................... J13H-R
TNC 75Ω...................................... J13WH-R

Standard Panels see pages 51.

-Resistance (½W, 1%)

trompeterproductcatalog-html.html

PR
O

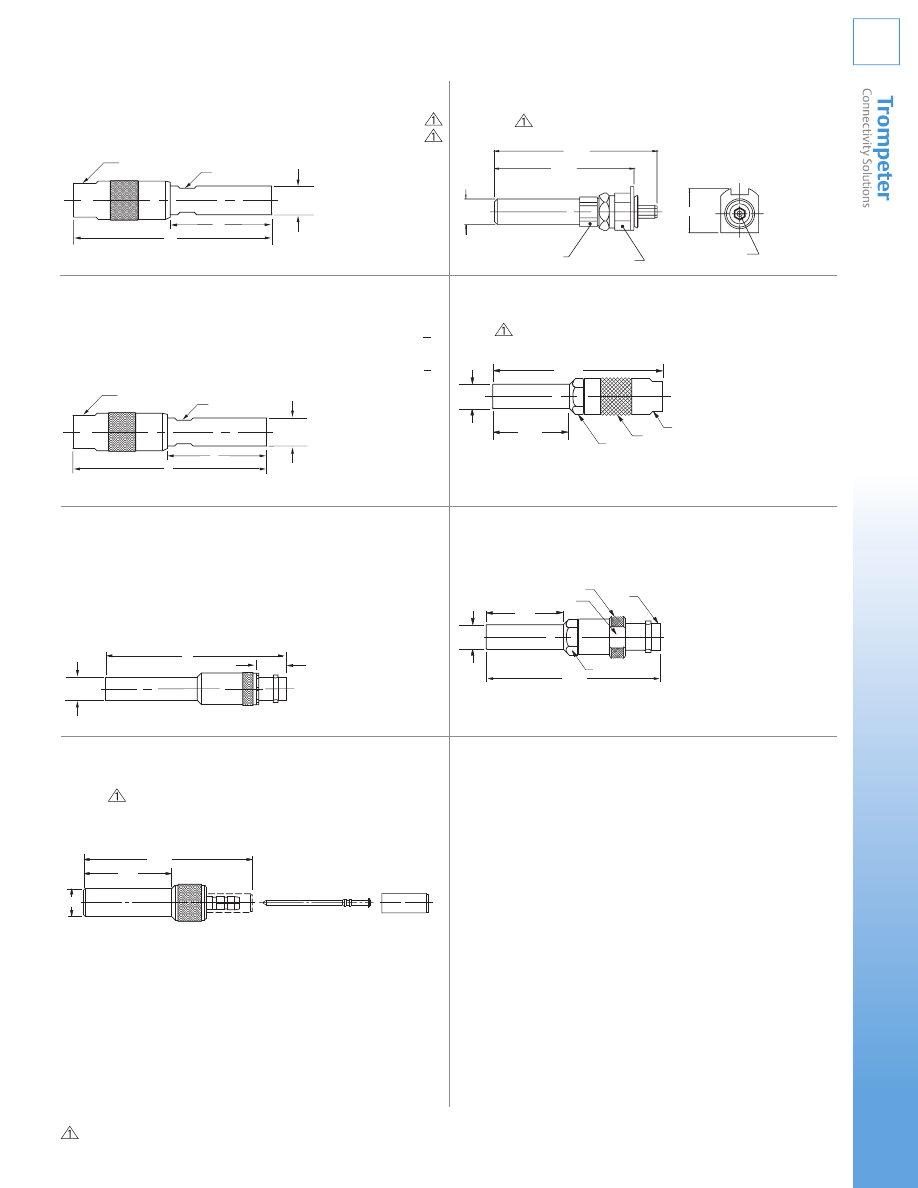

.437 WRENCH FLATS

.312 WRENCH FLATS

.375 DIA

.437 WRENCH FLATS

.312 WRENCH FLATS

.375 DIA

1.818

.946

.298

.460 OR .590 DIA MAX

.375 HEX

.375 WRENCH FLATS

.299

.297

DIA

2.099

.946

2.142

.375 HEX

.500 WRENCH FLATS

.298

BNC

.570 DIA KNURL

.375 DIA

.471

= Resistance

.299
.297
DIA

1.610

1.876

.312 HEX

.375 HEX

.508

CABLE ENTRY

DASH

CABLE

ACCOMMODATED

HEX

-009

8218, BELDEN

.178

21-597, ESSEX

YR23023, BELDEN

-013A

TCC-75-2, TROMPETER

.255

8241F, BELDEN

-014

8212, BELDEN

.255

-025

734A TYPE

.255

-026

735A TYPE

.178

-027

KS19224L2 LUCENT

.178

PL1MWLT-(DASH NO)

Patching Products /

Standard & Mini-WECo Coax

Patch Plugs

Patch Plug

Shield Crimp

50Ω RCA Center Pin – .070” A=2.73” B=1.50”................... PL1C-
75Ω WE Center Pin – .090” A=2.45” B=1.22”................. PL1WC-

(WECo 358 type)

Termination Plug

No Chain

50Ω RCA Center Pin – .070” A=2.81” B=1.58”...................... TP-1-R

No Chain

75Ω WE Center Pin – .090” A=2.45” B=1.25”.................... TPW-1-R

For other chain options, see
page 63.

(WECo 340C type)

Adapters

Patch Plug to BNC/TNC

50Ω RCA Plug Center Pin .070” 50Ω BNC A= 2.774”................ AD1
50Ω RCA Plug Center Pin .070” 50Ω TNC A= 2.774”.............. ADH1
75Ω WE Center Pin .090” 75Ω BNC A= 2.83”........................ AD1W
75Ω WE Center Pin .090” 75Ω BNC A= 1.93”................... AD1WHD
75Ω WE Center Pin .090” 75Ω TNC A= 2.83”...................... ADH1W

(WECo 358 type)

Patch Plug

Standard BNC Strip Dimension Crimp Contact, Crimp Shield

PL11SC-

(WECo 440 Type)

Patch Plug

Standard Crimp Plug with Locking Tab

PL11SCLT-

(WECo 440 type)

Patch Plug

Solder Contact, Crimp Shield

PL11C-

(WECo 440 type)

Adapter

75Ω Miniature Patch Plug to 75Ω BNC

ADMW12

(Mini-WECo type)

Refer to Cable Group Tables, pages 74-91.

trompeterproductcatalog-html.html

ROD

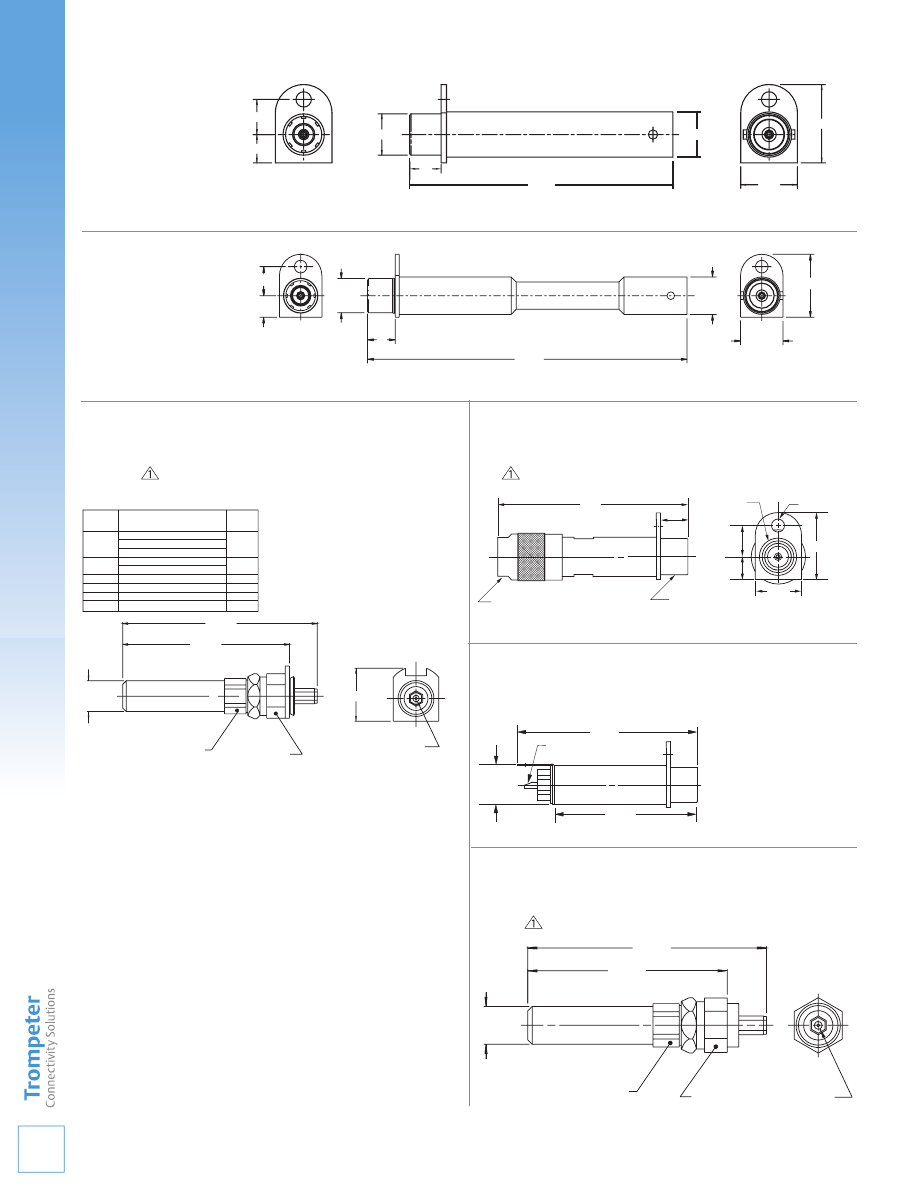

SOLDER POT ACCEPTS
.040 DIA CONDUCTOR

.400 MAX

1.761

1.403

.264

.218

.128 MTG HOLE

.295

.638

.436

.347 DIA

1.828

.375 WRENCH FLATS

Ø.347

.299
.297
DIA

1.610

1.876

.312 HEX

.375 HEX

.508

CABLE ENTRY

DASH

CABLE

ACCOMMODATED

HEX

-009

8218, BELDEN

.178

21-597, ESSEX

YR23023, BELDEN

-013A

TCC-75-2, TROMPETER

.255

8241F, BELDEN

-014

8212, BELDEN

.255

-025

734A TYPE

.255

-026

735A TYPE

.178

-027

KS19224L2 LUCENT

.178

PL1MWLT-(DASH NO)

Ø.299
Ø.297

1.876

.030

1.568

.030

.312 HEX

.375 HEX

CABLE ENTRY

3.280

Ø.347

.436

Ø.380

.218

.238

Ø.347

2.210

Ø.380

.476

Patching Products /

75Ω Mini-WECo Coax

Patch Jacks

Miniature Patch Jack

BNC Rear Interface

J11MW

Mini-WECo Type

Miniature Patch Jack

BNC Rear Interface

J11MWL

Mini-WECo Type

Patch Plug

Mini-WECo Crimp Plug with Locking Tab

PL1MWLT-

Miniature Patch Jack

Cable Entry, Field Serviceable Mini-WECo Type Centers

J12-

Minimum .64"

Miniature Patch Jack

Solder Pot, Mini-WECo Type

J11D

Patch Plug

Mini-WECo BNC Strip Dimension
Crimp Contact, Crimp Shield

PL1MW-

trompeterproductcatalog-html.html

PR
O

Z = denotes impedance of connecting cable in ohms.

Audio Patch Cords also available, please call customer service.

Handles are color coded:
Green = 50Ω Violet = 75Ω

Standard Coax Looping Plugs

Plain Handle Shown

BNC Monitor

Pinch

Test Point

2.250

TROMPETER

ELECTRONICS

Patching Products /

Standard Coax

Patching & Looping Plugs

Handle: B=1.51" C=.625" D=1.20"

Center Pin

50Ω RCA

Plain

.070"

LP-Z

Pinch

.070"

LPP-Z

Test Point Single

.070"

LPTP-Z

Test Point Dual

.070"

LP2TP-Z

BNC Monitor

.070"

LPA-Z

Handle: B=1.51" C=1.00" D=1.57"

Center Pin

50Ω RCA

Plain

.070"

LPL-Z

Test Point Single

.070"

LPLTP-Z

BNC Monitor

.070"

LPLA-Z

Handle: B=1.25" C=.625" D=1.20"

Center Pin

75Ω WE

Plain

.090"

LPW-Z

Pinch

.090”

LPPW-Z

Test Point Single

.090”

LPWTP-Z

Test Point Dual

.090”

LPW2TP-Z

BNC Monitor

.090”

LPWA-Z

Handle: B=1.25" C=1.00" D=1.57"

Center Pin

75Ω WE

Plain

.090"

LPLW-Z

Test Point Single

.090”

LPLWTP-Z

BNC Monitor

.090”

LPLWA-Z

trompeterproductcatalog-html.html

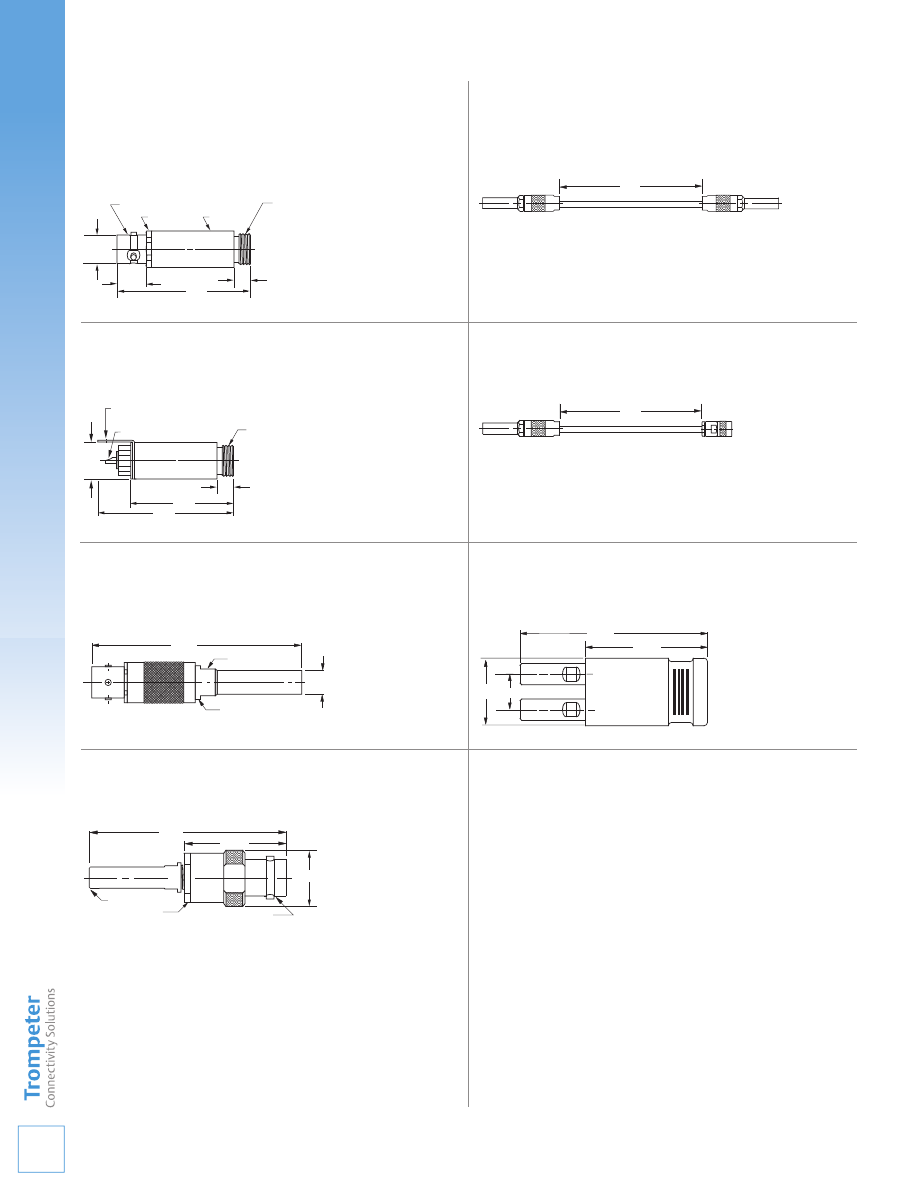

Miniature Looping Plug

Handle Color: Green = 50Ω............. LPM-50
Handle Color: Violet = 75Ω............. LPM-75

1.362

.300

.375 DIA

TPS RECEPTACLE

3125-32-UNEF-2A
PER DOD-HDBK-H28

.165

.295

DIA

.343 HEX

1.366

.3125-32-UNEF-2A

.165

.375

DIA

SOLDER POT ACCEPTS
.042 DIA CONDUCTOR

1.049

.078 DIA HOLE

1.940

1/4 WRENCH FLATS

11/32 HEX

.227

DIA

2.116

1.096

BNC

PL3 PATCH PLUG

.437 HEX

.562

"L"

LENGTH

"L"

LENGTH

.500

TROMPETER

ELECTRONICS

.950

2.800

2.000

Z = denotes impedance of connecting cable in ohms. L= denotes length in inches. Call customer service for other miniature coax products.

Coax Connectors /

50Ω Miniature Coax

Patching

Miniature Patch Jack

TPS Jack 50Ω

3-Lug...................................................... J8
4-Lug.................................................... J8FL

TCM Jack 50Ω

Threaded (not shown)......................... J308

Miniature Patch Jack

Solder Pot 50Ω

J8D

Adapter

50Ω Miniature Patch Plug to 50Ω TPS Jack

ADM1

Adapter

50Ω Miniature Patch Plug to 50Ω BNC Jack

ADM2

Patch Cord

Miniature Patch Plugs

50Ω............................................. PCM-L-50
75Ω............................................. PCM-L-75

Patch Cord

50Ω Miniature Patch Plug to TPS Plug

PCMX-L-50

trompeterproductcatalog-html.html

PR
O

Ordering Loaded Panels

Panels can be ordered pre-loaded with any compatible jacks

without

additional labor charge by using the following part

number format (provided the mechanical restrictions are
recognized).

Example:

JSI-48A/HDVDP:

Standard 48-hole, Insulated Panel (JSI-48A), loaded

with twenty four (24) Standard 75Ω Patch Jacks (HDVDPT)

Panel Part Number

JS: Aluminum (Gray).................................................................... JS
JSI: Insulated (Gray).................................................................... (I)
JSIB: Insulated (Black)............................................................... (IB)
JSIX: Miniature Triax Insulated (Black)....................................... (IX)
JSMW: Miniature Coax Insulated (Black)................................ (MW)

Jack Part Number............................................................. JACK

Panel Specifications

Notching

Metal panels (EIA-310-C): Open
Phenolic (EIA-310-C): Closed

Standard 19” Panels

In popular sizes and configurations

Available in insulated black phenolic, and insulated or non-
insulated aluminum. Aluminum panels are painted standard gray
and come with either a phenolic back bar (insulated type), or
an iridited aluminum back bar (non-insulated type). Aluminum
panels can be painted to suit, or color matched (special order).
Phenolic panels are available in black only.

Panels available in heights of 1.75” (1 RU) or 3.5” (2 RU).

Custom Panels & Marking

Custom panels can be configured to meet your specifications,
including special wiring, colors, engraving, or silk-screening
(custom marking). Patch jack locations can also be marked on the
rear of the panel for easy location of jacks. Please contact your
local representative.

Front Loading Modular Panels are on page 12.

Hole Plugs

For Jacks and Panels

Trompeter Patch Products

Trompeter offers a wide selection of patching products for Military
Databus, Telemetry, Telecom, Broadcast, CATV, and Testing. We
offer these products for Twinax, Triax, and Coax cabling and in sizes
to meet your space restrictions and environmental requirements.

Aluminum

Phenolic

.1875 x .375

Nylon Bushing

Non-insulated

Insulated

HP437

HP304

HP375

Patching Products /

Standard Panel Specifications

Hole Plugs For:

Hole Diameter

Part Number

Miniature Patch Panel (J8)

.250”

HP250

Miniature Patch Jack (HDVDPM,
J11)

.304”

HP304

Standard Patch Jack (HDVDP)

.375”

HP375

Standard Patch Panel (JS, JSI)

.437”

HP437

Standard Patch Panel

.500”

HP500

Materials

JS Series, Common Ground Panels

Panel: 6061-T6 Grade Aluminum
Backbar: 6061-T6 Grade Aluminum

JSI Series, Insulated Panels

Panel: 6061-T6 Grade Aluminum
Backbar: XXX Non-hydroscopic Phenolic
Jack Insulation: Nylon Sleeves

JSIB Series, Insulated Panels

Panel: Black Arboron

JSMW Series, Insulated Panel

Panel: Black Arboron

Finishes

Standard Finish

FED-STD-595-26307, Light Gray

Customer Supplied

FED-STD-595# or Paint Chip

Chemical Film Finish

MIL-C-5541, Class 1a (Gold Tone)
MIL-C-5541, Class 3 (Clear)

Indentification

Designation Strip: Passivated Steel
Standard Patch Panels: DS1 .580” x 16.6”
Standard Patch Panels: DS2 .870” x 16.6”
High Density Patch Panels: DS4 .240” x 16.6”
Card: Opaque Vinyl
Window: Clear Vinyl

trompeterproductcatalog-html.html

ROD

Example:

*JS - 52 D3SF7 / (U)BJ28

Panel Type - Table A, Col 2

Mounting Hole - Table B, Col. 1

Jack Type - Table B, Col. 3/4 (“U” designates 75Ω)

*JS

- Non-Insulated Panel (Open notch)

*JSI

- Insulated panel (Closed notch)

The 19" panels listed in Table A below accommodate the bulkhead
jacks designated by a "•" in Panel Columns A- M of Table B to the
right. For panel specifications: See page 51-54.

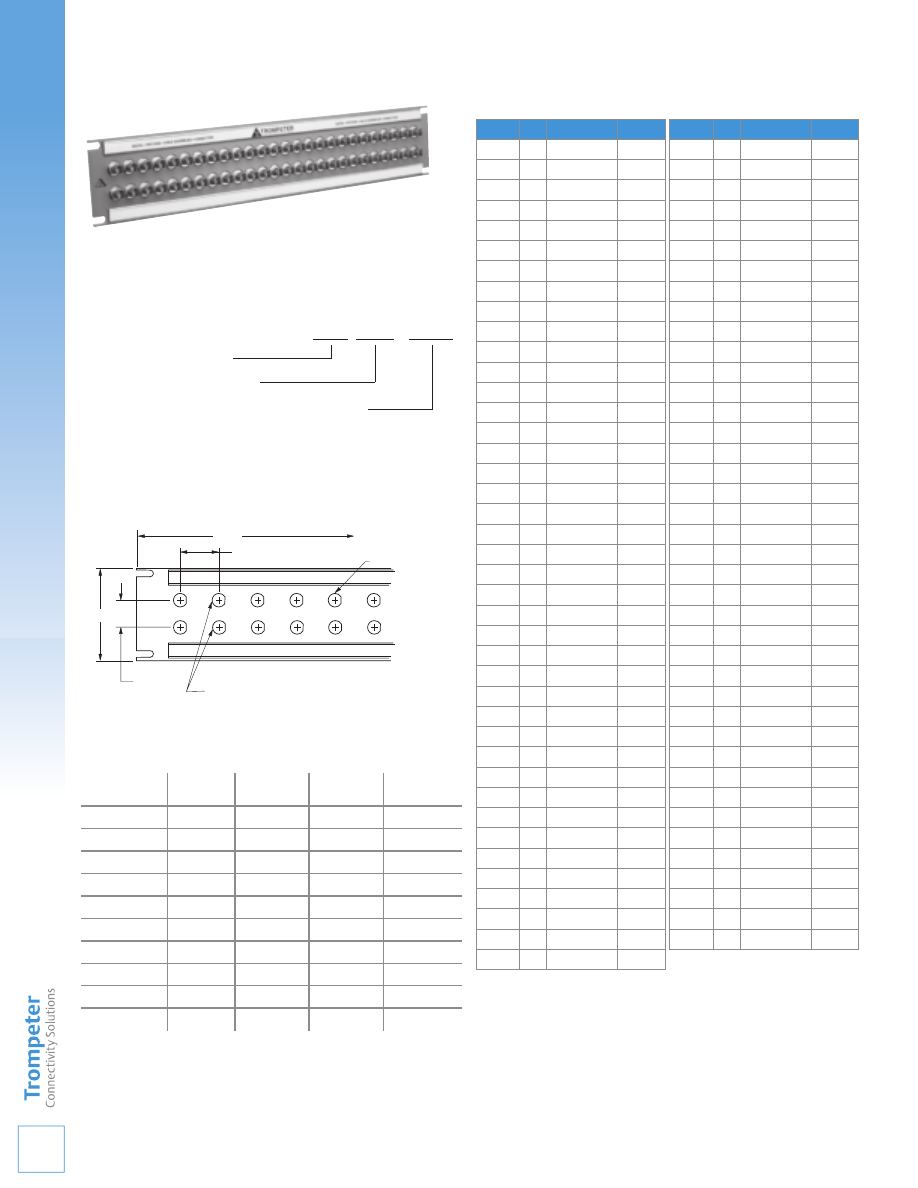

Ordering Loaded Distribution Panels

Distribution Panels

VERTICAL

HOLE

SPACING

HEIGHT

D MOUNTING HOLES

19.00

GENERIC DISTRIBUTION PANEL

NUMBER OF HOLES

HORIZONTAL HOLE SPACING

Table B: Jack/Panel Compatibility

Patching Products /

Cable Distribution Panels

Mtg Hole

75Ω

Jacks: 2/3/4 Lug

Threaded

DD4

AD 95

DD4

ADI 95

D 5SF 5

BJ 20

D 3SF 6

BJ 21

D 2SF 3

BJ 26

D 8SF 12

BJ 26GF

D 3SF 7

BJ 27

D 3SF 7

BJ 28/BJ 24

D 8SF 11

BJ 28GF

D 2SF 3

BJ 29-6 Large body

D 3

UBJ 29

D 5SF 5

BJ 30

BJ330

D 3

BJ 31

BJ331

D 3

BJ 32

BJ332

D 3SF 8

BJ 38

BJ388

D 3

BJ 39

BJ339

D 5SF 5

BJ 40

D 3SF 6

BJ 41

D 2SF 3

BJ 46

D 8SF 12

BJ 46GF

D 3SF 7

BJ 47

D 3SF 7

BJ 48

D 8SF 11

BJ 48GF

D 2SF 3

BJ 49-6 Large body

D 3

UBJ 49

D 6

BJ 50/FL

BJ350

D 4SF 2

BJ 57/FL

BJ357

D 5SF 9

BJ 58/FL

D 4SF 4

BJ 59/FL

BJ359

D 2SF 8

BJ 72/TL/FL

BJ372

D 2SF 8

BJ 73/TL/FL

BJ373

D 2SF24

BJ 74/TL/FL

BJ374

D 2SF24

BJ 74C/TL/FL

BJ374C

D 2SF24

BJ 75/TL/FL

BJ375

D 4SF25

BJ 77/TL/FL

BJ377

D 3SF13

BJ 78/TL/FL

BJ378

D 3SF15

BJ 79/TL/FL

BJ379

D 3SF15

BJ 79C/TL/FL

BJ379C

D 1SF 1

BJ 80, BJ803

BJ380

D 1

BJ 83, BJ833

BJ383

D 1

BJ 88, BJ883

BJ388

Mtg Hole

75Ω

Jacks: 2/3/4 Lug

Threaded

D11

BJ 89

BJ389

DD6

BJ 89, BJ893

BJ389

DD1

BJ 95 Large Body

DD4

BJ 95

DD4

BJ 96

DD4

BJ 98

D 2SF 3

BJ 101

D 2SF 3

BJ 102

DD2SF14

BJ 130

DD2SF30

BJ 138

DD2SF30

BJ 139

D 4

BJ 150/FL

BJ3150

D 9

BJ 152/FL

BJ3152

D 9SF 12

BJ 153/FL

BJ3153

D 9SF 12

BJ 154/FL

BJ3154

D 9SF 12

BJ 154AC/FL

BJ3154AC

D 6

BJ 157/FL

BJ3157

D 5SF 9

BJ 158/FL

D 4SF 4

BJ 159/FL

BJ3159

D 4SF 4

BJ 159AC/FL

BJ3159AC

D 2SF 3

BJ 226

D 8SF 12

BJ 226GF

D 3

BJ 229

D 2SF 3

BJ 246

D 8SF 12

BJ 246GF

D 3

BJ 249

D 4SF 9

BJ358

DD8

BJ 450

BJ3450

DD8

BJ 457

BJ3457

DD8SF31

BJ 459

BJ3459

D11

BJ 893 Large body

D 3SF 7

BJ2848

Rear mount

D 4SF 9

BJ3158

D 3SF 7

BJ4828

Rear mount

D 9SF12

CBJ155/FL / BJ155

BJ3155

D 5SF10

J 95

D 4SF25

J 152FLFT

D 4SF25

J152FT

J3152FT

DD5SF6

PL 122

DD8SF31

TBJ 451/FL

Panel Type

# of Holes

Panel Height

Hole Spacing
- Horiz.

Hole Spacing
- Vert.

JS(I)-12

1.75"

1.430"

JS(I)-16

1.75"

1.000"

JS(I)-20

1.75"

0.830"

JS(I)-24S

1.75"

0.723"

JS(I)-24W

3.50"

1.430"

1.000"

JS(I)-32

3.50"

1.000"

JS(I)-40

3.50"

0.875"

JS(I)-40W

3.50"

0.830"

1.000"

JS(I)-52

3.50"

0.675"

1.000"

JS(I)-24

5.20"

1.450"

2.250"

Table A: Panels

Note:

Panels are 19" Insulated or Non-Insulated Standard Gray Aluminum. See chart on the right for

loaded panel ordering.

“D” hole specifications are on page 54.

trompeterproductcatalog-html.html

PR
O

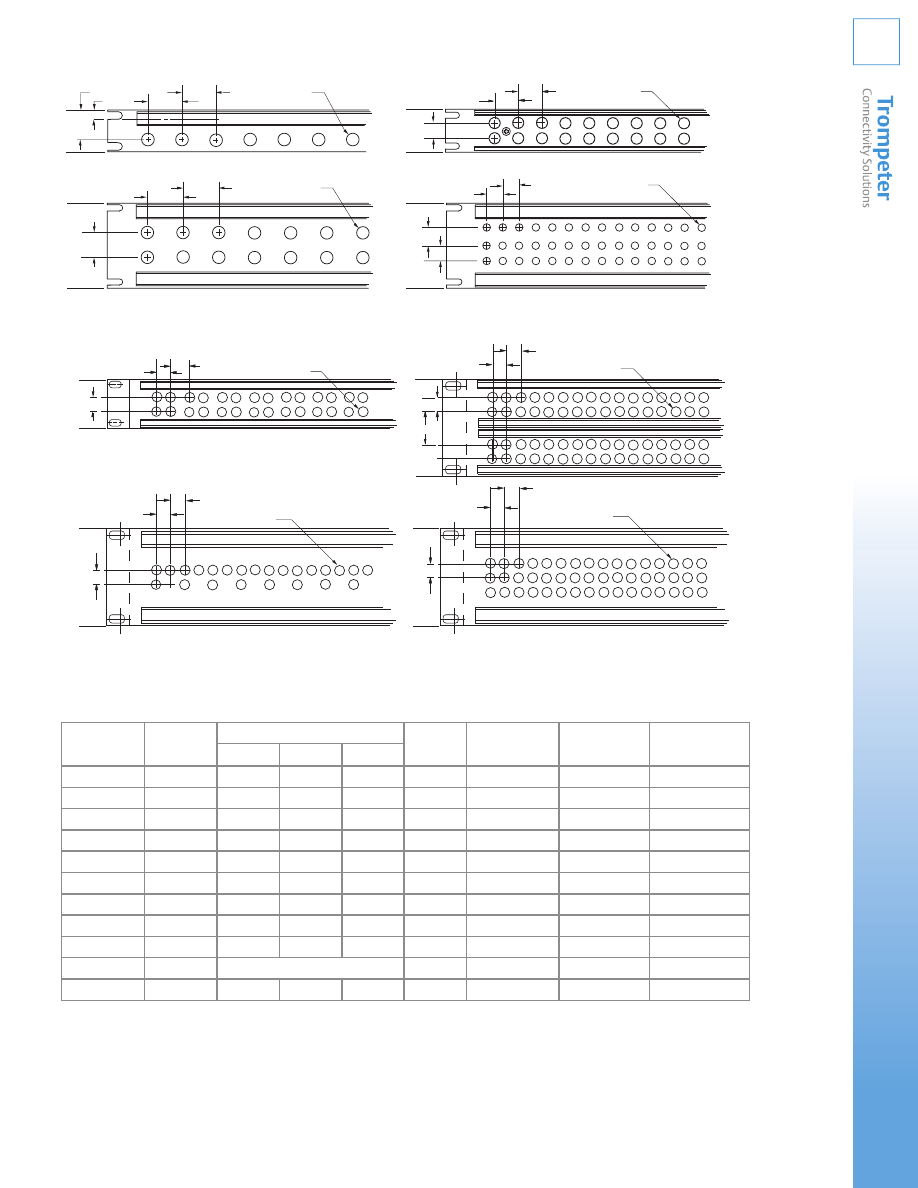

Miniature 75Ω Coax Patch Panels ...

for high density, low VSWR, 75Ω coaxial applications (microwave, sub-carrier telephone systems,

etc.). Trompeter’s J12 jack/ PL11C plug combination has a VSWR of 1:04:1 in the 60-80 MHz range.

Miniature 50Ω Coax Patch Panels...

for high density 50Ω patching. 19" panels tapped .312-32-2A to accept J8 and J8D jacks. .50" center-to-center vertical and horizontal
hole spacing (unless otherwise noted), insulated and non-insulated panels have stiffener bars.

Note:

For Front Loading Modular Panels, see page 12.

“D” mounting hole specifications, see page 54.

Many other panel configurations are available, contact customer service.

Miniature

19" Miniature Patch panels for: 50Ω J8 Series, J8D, and 75Ω Mini-WECo Jacks

.375

1.218

.450 DIA THRU

.750

.450 DIA THRU

FIG A

FIG B

FIG C

FIG D

.358 DIA THRU

128 HOLES

1.25

FIG E

FIG H

.358 DIA THRU

36 HOLES

FIG I

.358 DIA THRU

96 HOLES

FIG J

Patching Products /

Standard 19” Panels

# of Patch

Locations

Panel

Height

Hole Spacing

Fig

Non-Insulated

Part Number

Insulated Part

Number

Jack Type

1.75"

N/A

.500

JS-32

JSI-32

J8 Series

1.75"

.500

.625

JSIX-56S

Mini-WECo

1.75"

.500

.625

JSIX-56SF

Mini-WECo

1.75"

.500

JSIX-64S

Mini-WECo

1.75"

.500

JSIX-64SF

Mini-WECo

1.75"

N/A

.500

JS-64

JSI-64S

J8 Series

3.50"

.500

JS-64L

JSI-64L

J8 Series

3.50"

.500

JSIX-64L

Mini-WECo

3.50"

.500

JS-96A

JSI-96A

J8 Series

3.50"

Not Shown

JS-96B

JSI-96B

J8 Series

128

3.50"

.500

JSIX-128

Mini-WECo

trompeterproductcatalog-html.html

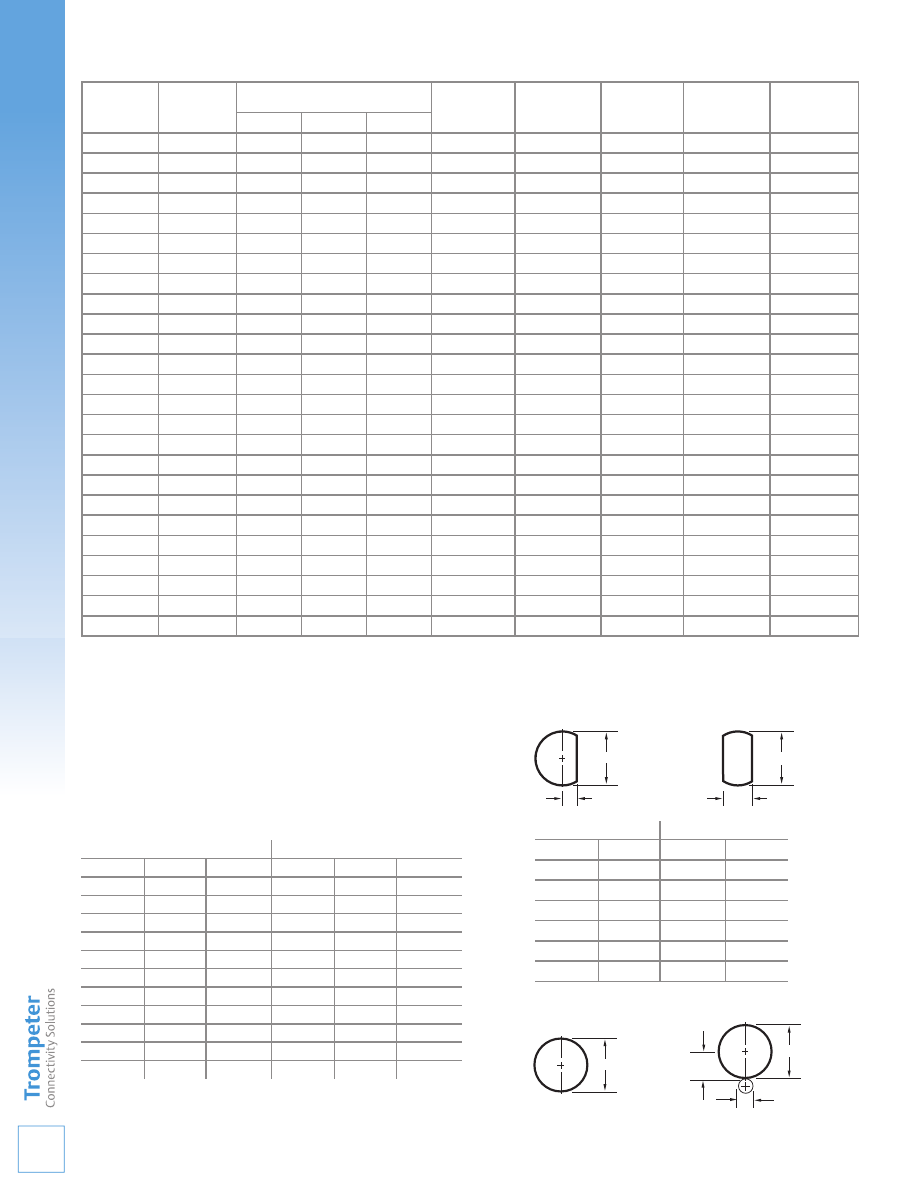

Many other panel hole configurations available, contact customer service.

Will not accept dual jacks (e.g. J14, J214, J314, J74, HDVDP)

Will not accept jacks requiring hole spacing (A) larger than .625”

Will accept 3 barrel jack only

“D” Hole Specifications

Throughout the catalog you will find “D” holes called out for
bulkhead jacks. The “D” hole is the cutout pattern designated
for the proper fit of bulkhead jacks into distribution panels.

“D” Hole Type Maximum panel thickness

Example:

D3.148

“D” Holes Double “D” Holes

See page 59 for panel figure diagrams.

Circular Holes

Note: JSIB (Fig. B and C) panels have .459 dia typ.

Patching Products /

Standard 19” Panels

D Hole Specifications

# of Holes

Panel Height

Hole Spacing

Foot Note

Fig

Non-insulated

Part #

Insulated Part #

Insulated Pheno-

lic Part #

1.75"

1.43"

JS-12

JSI-12

1.75”

1.00”

JS-16

JSI-16

1.75"

.830"

JS-20

JSI-20

1.75"

.625"

.750"

JS-24S

JSI-24S

1.75"

.625"

JS-26

JSI-26

1.75"

.625"

JS-28

JSI-28

1.75"

.625"

1.00"

JS-32S

JSI-32S

JSIB-32S

1.75"

.625"

.830"

JS-40S

JSI-40S

JSIB-40S

1.75"

.625"

.750"

JS-48S

JSI-48S

JSIB-48S

1.75"

.625"

JS-52S

JSI-52S

JSIB-52S

3.50"

.625

1.43"

JS-24L

JSI-24L

3.50"

1.00"

1.43"

JS-24W

JSI-24W

3.50"

.625"

1.21"

JS-28A

JSI-28A

3.50"

1.00"

1.21"

JS-28W

JSI-28W

3.50"

.625"

1.00"

JS-32A

JSI-32A

JSIB-32A

3.50

.625"

.750"

JS-36

JSI-36

3.50"

.625"

.830"

JS-36A

JSI-36A

3.50"

.625"

.830"

JS-40

JSI-40

JSIB-40

3.50"

1.00"

.830"

JS-40W

JSI-40W

JSIB-40W

3.50"

.625"

.750"

JS-48

JSI-48

JSIB-48

3.50"

.625"

JS-48A

JSI-48A

JSIB-48A

3.50"

1.00"

.625"

JS-52W

JSI-52W

JSIB-52W

3.50"

.625"

JS-52

JSI-52

JSIB-52

3.50"

.625"

JS-56

JSI-56

JSIB-56

3.50"

.625"

.680"

JSS-72

JSIS-72

“D” Hole Type

Double “D” Hole

.755”

.343”

DD1

.630”

.532”

.630”

.281”

DD2

.380”

.312”

.505”

.218”

DD3

.505”

.443”

.439"

.187"

DD4

.630"

.562"

.380"

.156"

DD5

.475"

.436"

.317"

.128"

DD6

.755"

.690"

.281"

.125"

DD7

1.140”

1.060”

.605"

.280"

DD8

.330"

.274"

.567"

.257"

D10

.192"

.079"

D11

1.005”

.470”

Circular Hole

Double Circular Hole

.317"-321"

CC1

.380"-.385"

.630"

.442"-.447"

.370"

.474"-.480"

.136"-.140"

.505"-.510"

.755"-.760"

trompeterproductcatalog-html.html

PR
O

# of Holes

Panel Height

Hole Spacing

Foot Note

Fig

Non-insulated

Part #

Insulated Part #

Insulated Pheno-

lic Part #

1.75"

1.43"

JS-12

JSI-12

1.75”

1.00”

JS-16

JSI-16

1.75"

.830"

JS-20

JSI-20

1.75"

.625"

.750"

JS-24S

JSI-24S

1.75"

.625"

JS-26

JSI-26

1.75"

.625"

JS-28

JSI-28

1.75"

.625"

1.00"

JS-32S

JSI-32S

JSIB-32S

1.75"

.625"

.830"

JS-40S

JSI-40S

JSIB-40S

1.75"

.625"

.750"

JS-48S

JSI-48S

JSIB-48S

1.75"

.625"

JS-52S

JSI-52S

JSIB-52S

3.50"

.625

1.43"

JS-24L

JSI-24L

3.50"

1.00"

1.43"

JS-24W

JSI-24W

3.50"

.625"

1.21"

JS-28A

JSI-28A

3.50"

1.00"

1.21"

JS-28W

JSI-28W

3.50"

.625"

1.00"

JS-32A

JSI-32A

JSIB-32A

3.50

.625"

.750"

JS-36

JSI-36

3.50"

.625"

.830"

JS-36A

JSI-36A

3.50"

.625"

.830"

JS-40

JSI-40

JSIB-40

3.50"

1.00"

.830"

JS-40W

JSI-40W

JSIB-40W

3.50"

.625"

.750"

JS-48

JSI-48

JSIB-48

3.50"

.625"

JS-48A

JSI-48A

JSIB-48A

3.50"

1.00"

.625"

JS-52W

JSI-52W

JSIB-52W

3.50"

.625"

JS-52

JSI-52

JSIB-52

3.50"

.625"

JS-56

JSI-56

JSIB-56

3.50"

.625"

.680"

JSS-72

JSIS-72

Custom Cable Assembly Lines

Trompeter’s coax patch cords and cable assemblies are of the
highest quality and can be ordered in any length. Trompeter
normally stocks popular lengths of 6”, 12”, 18”, 24”, 36”, 48”, 60”,
and 72”. Standard coax patch cords and cable assemblies are made
with the following cables: Patch Cords and Cable Assemblies are
available in 50Ω RCA Standard or 75Ω Western Electric (WECo)
Standard. The two standards are not intermateable. Trompeter
stocks many other connector types for quick turnaround of
custom cable assemblies including:

D-Subs & Backshells:

Male & Female 9, 15, 25, 37 pin and more

SMA/SMB/SMCs:

Straight and Right Angles for RG-58, RG-142, RG-174,
RG-188, RG-316, and RG-400

"L"

LENGTH

"L"

LENGTH

"L"

LENGTH

"L"

LENGTH

"L"

LENGTH

Z = denotes impedance of connecting cable in ohms. L= denotes length in inches.

Patching Products /

Custom Cable Assemblies

Impedance

Cable Type

Trompeter Cabl
Part #

50Ω

RG-58

TCC-50-2

75Ω

RG-59

TCC-75-2

93Ω

RG-62

N/A

Patch Cords (see p/n below) Patch Plug to Patch Plug

50Ω RCA Plug Center Pin .070”......... PC-L-Z
75Ω WE Center Pin .090”.............. PCW-L-Z
75Ω Mini-WECo......................... PCMW-L-Z

Cable Assembly Patch Plug to Push-on Plug

50Ω RCA Plug Center Pin .070” to 50Ω Push-on............... PCPX-L-Z
50Ω RCA Plug Center Pin .070” to 75Ω Push-on............. UPCPX-L-Z
75Ω WE Center Pin .090” to 50Ω Push-on..................... PCPWX-L-Z
75Ω WE Center Pin .090” to 75Ω Push-on.................. UPCPWX-L-Z

Cable Assembly BNC Plug to BNC Plug

Tool Crimp BNC

50Ω.............................................. PCYC-L-Z
75Ω............................................ UPCYC-L-Z

Cable Assembly BNC Plug to BNC Plug

Wrench Crimp

50Ω BNC......................................... PCY-L-Z
75Ω BNC...................................... UPCY-L-Z

Cable Assembly Patch Plug to BNC Plug

50Ω RCA Plug Center Pin .070” to 50Ω BNC....................... PCX-L-Z
50Ω RCA Plug Center Pin .070” to 75Ω BNC..................... UPCX-L-Z
75Ω We Center Pin .090” to 50Ω BNC............................. PCWX-L-Z
75Ω We Center Pin .090” to 75Ω BNC........................... UPCWX-L-Z

trompeterproductcatalog-html.html

2 3 4 5

Qty

Conn 1

Cable

Conn 2

Length

Special Requirements

UPL220

735A

PL11C

60”

Bend relief on Conn 1

/ / /

Quantity ...........................................................................Select quantity

Conn1 ............................................. Select connector type from catalog

Cable ...................................................... Select cable from pages 74–91

Conn2 .............................................. Select connector type from catalog

Length .......................................................................................In inches

Write out any special marking, testing, bend relief, packaging, or other requirements.

Example Shown:

60 inch coax cable assembly using AT&T 735A, BNC plug, and Mini-WECo patch plug with bend relief on BNC plug.

Custom Cable Assemblies

Trompeter has been producing high quality cable assemblies, and
currently provides over 500,000 different configurations using a
broad range of RF connectors and cable types. We stock a variety
of components for camera, RGB, S-Video, Audio, and many other
applications.

Capabilities

Trompeter can provide coax, twinax, and triax cable assemblies
using any cable attached connector. This includes panel mount,
data bus, multi-pin , D-Subs, SMA connectors, and patching
products. Special marking (ID sleeves/tags, hot stamping,
colored cable jacket, etc.) is available. Trompeter offers 24-48
hour turnaround on many standard products with full capabilities
for sustained volume delivery. Deliveries can be adjusted to meet
your specific needs.

Quality Assurance... ISO 9001 Registered

Trompeter’s assemblies are 100% electrically tested for continuity,
shorts, and Hi-Pot.

(VSWR, IR, Insertion / Return Loss test capabilities, SPC data
available on request).

Request For Quote...

Please refer to the following guideline when requesting a quote:

Photo: Twinax/Triax connectors on ruggedized dual twinax/triax test cable (fire retardant cables).

Patching Products /

Custom Cable Assemblies

trompeterproductcatalog-html.html

NG
P

ROD
U

Coax Terminations and RFI (Dust Caps)

Trompeter provides termination and RFI cap for all our connectors.
Resistors are normally ¼ watt for subminiature connectors and ½ watt
for miniature and standard size connectors (1% tolerances for all).

Ordering Instructions

For Terminations Example:

PL75 Termination for TRB jacks with 78Ω

resistance and no chain.

Order part number:

TNG1-6-78-D3

Part number from list

Chain options

R-Resistance

D Ring option (see below)

For RFI Caps Example:

Patch plug cap for a J74 twinax/triax jack with

no chain.

Order part number:

RFI70-6-D3

Part number from list

Chain options

D Ring option (see below)

Stainless Steel Rope with Mounting Rings

We now provide stainless steel rope with “D” rings. To order
mounting ring for jacks with the “D” mounting hole numbers
listed on the right, add the “D” ring number to the part number.

For Example: RFI20-12-D2

Notes: (3) See Chain options. “U: Designates 75 ohm version available. “R” Resistance. If you cannot find the RFI cap or termination, contact customer service.

Coax Terminations & RFI Caps

D Ring Options

Patching Products /

Coax RFI Caps & Terminations

Chain Options

Length

Chain Type

Chain Numbers

N/A

No Chain

-1

3.0"

Brass Chain

-4

6.0"

Brass Chain

-6

10.0"

Brass Chain

-10

Stainless-steel rope

3.0"

Jacketed Stainless-steel rope

-13

6.0"

Jacketed Stainless-steel rope

-14

Inside Diameter

D-

Ring#

Inside Diameter

D-

Ring#

.755"

-D1

.281"

-D7

.630”-.635”

-D2

.610”

-D8

.505”-.510”

-D3

.567”

-D9

.439”-.443”

-D4

.380”-.384”

-D5

Parts to be capped

Description

Terminator

RFI (Dust Caps)

BJ20/CJ20 Series

BNC, Jack

(U)TNASP1-(3)-R

(Push on)

RFI25-(3)

BJ20/CJ20 Series

BNC, Jack

(U)TNAS1-(3)-R

(Short)

RFI25-(3)

BJ20/CJ20 Series

BNC, Jack

(U)TNA1-(3)-R

RFI25-(3)

BJ20/CJ20

BNC, Jack

(U)TNAP1-(3)-R

RFI25-(3)

BJ40/CJ40 Series

TNC, Jack

(U)TNH1-(3)-R

RFI45-(3)

BJ50/CJ50 Series

TPS, Jack

TNB1-(3)-R

(Push on)

RFI55-(3)

BJ50FL Series

TPS, Jack

TNBP1-(3)-R

(Push on)

RFI55FL-(3)

BJ50/BJ350

TPS/TCM, Jack

TNBP1-(3)-R (Push on)

RFI355-(3)

BJ95

N, Jack

(U)TNN1-(3)-R

RFI95-(3)

BJ130

F, Jack

TNF1-(3)-R

RFI130-(3)

RCA, Patch Jack

TP-(3)-R

RFI20-(3)

J3W

WECo Patch Jack

TPW-(3)-R

RFI20-(3)

Mini-WECo Coax Patch Jack

TPM-(3)-R

RFI50-(3)

J11

Mini-WECo Patch Jack

TPMW-(3)-R

RFI150-(3)

J94 (90 Series)

Patch Jack

TNP1-(3)-R

RFI94-(3)

J94 (90 Series)

Patch Jack

TPP-(3)-50

(Push-on)

RFI94-(3)

PL20 Series

BNC, Plug

(U)TNAF1-(3)-R

RFI21-(3)

PL50

TPS, Plug

RFI57-(3)

PL220 Series

BNC, Plug

(U)TNAF1-(3)-R

RFI21-(3)

PL40 Series

TNC, Plug

(U)TNHF1-(3)-R

RFI41-(3)

PL95

N, Plug

(U)TNNBJ1-(3)-R

(Bulkhead Mount)

RFI97-(3)

RFIS97-(3)

Safety wire

trompeterproductcatalog-html.html

ROD

Adapter Circuitry Schematics

Ordering Example:

ADBJ20 - E1 - PL75

Conn #1

BJ20

Bnc Jack

Schematic

Circuit Code

Conn # 2

PL75

TRB Plug

Custom Adapters Ordering Format

Adapters indexed with a designated number are

standard adapters,

refer to page 46 for identifications. Adapters index with a “•” are

custom adapters

and may be ordered using the example below. For adapters not referenced contact customer service.

Conn #1

Schematic

Conn #2

2-Pin Twinax to

2-Pin Twinax

Coax 2-Pin Twinax

Concentric Twinax/Triax to

Concentric Twinax/Triax

Coax to Concentric

Twinax/Triax

2-Pin Twinax

to Concentric Twinax/Triax

Coax to Coax

BLUE CENTER COND

Patching Products /

Adapters

Circuitry Schematics

trompeterproductcatalog-html.html

PR
O

“D” mounting holes are on page 54.

Adapter Table Notes:

Adapters indexed with a number are

Standard Adapters

Adapters indexed with “•” are

Custom Adapters

For adapters not listed, call customer service.

Coax to Coax Adapters

I -

Insulated

B -

Bulkhead Mount

U -

75 Ohm Available

F -

Female

M -

Male

BJ59

CJ50

CJ50FL

PL50

PL50FL

PL53

BJ20

BJ26

BJ29

CJ20

PL20

PL21

BJ120

PL121

PL122

PL123

BJ40

BJ46

BJ49

CJ40

PL40

PL41

BJ130

BJ139

PL130

PL93

PL94

BJ95

BJ96

J95

PL95

PL195

J12

PL1

PL1W

PL1WC

J3W

PL2W

PL3

BJ350

CJ350

F F F M M M F F F F M M F M M M F F F F M M F F M M M F F F M M F F M M M M F M

M F F

B B B B B B B B B B B
I I I

TPS

BNC

PUSH-ON

TNC

LVSWR

Mini-WECo

WECo

TCM

TPS

TCM

BNC

TNC

PUSH-ON

LVSWR

RCA

WECo

Mini-

WECo

50 Ohm Min.

•

50 Ohm

Min.

BJ50

F 17

•

BJ59

F B 17 17 • • • • • •

•

BJ59FL F B 42 • • • • • •

•

CJ50

F 17

• • •

•

• 51 48

CJ50FL F

• •

•

PL50 M • • • • • • • •

• • •

PL50FL M

• • • • • •

• •

BJ350 F

•

BJ359 F B

• • • • • •

• 24 24

CJ350 F

• •

•

• 24

PL350 M

• • • • • •

• •

PL350S M

• •

•

U BJ20

F • • • • • • 1 14 • 1 • 7 • 13 27 • 13 •

8 • • 5 6 • 56 56 4 50 45 49 •

U BJ26

F B I

14 14 14 14 • • • 27 27 27 • •

•

U BJ29

F B

• 14 30 30 • • • • • •

•

U CJ20

1 14 30 1 • 7 • 13 27 13

• 8 5 6 • 56 52 4 50 45 49

U PL20 M •

• • • • • • • • • • • • • • 10

• • • • •

U BJ49

F B

• • • • • 16 • •

•

U BJ40

F • • • • • • 13 27 • 13 • 11 • 2 16 • 2 •

• • • • • 62 46 47 63

U BJ46

F B I

27 27 27 • • • 16 16 16 16 • •

•

U CJ40

13 27 13 • 11 2 16 2

•

• 62 46 47 63

U PL40 M •

• • • • • • • • • • • • • • •

• • • •

U PL122 M B

7 7 • • • 11 11 • •

U PL123 M •

• • • • • • • • • • • • • • • •

• • • •

BJ130 F

• • • 10 • • • • • • 9 43

• • • • 61

BJ139 F B • • • • • •

43 43

PL93 M

• •

•

PL94 M

• •

•

U BJ95

F B

• 5 5 • • • • •

20 20 •

U BJ96

F B I

6 6 • • • • •

• •

U J95

F • • • • • • • • • • 4 • • • • •

• • • 20 • •

U PL95 M

• • • • • • • • • • • • • • • •

F • 56 56 62 62

PL1

M 4 4 46 46

PL11

50 50

J3W

57 57 63 63

65 •

J3WC F

57 57

63 63 61 65

J3WE F

57 57

63 63 61 65

J9W

J12

F B 51

52 •

• • •

PL2W M

•

PL1W M

45 45 47 47

• • •

J8D

F 66 58 58

PL3C M 48

49 49

RCA

Patching Products /

Adapter Table

Coax to Coax

trompeterproductcatalog-html.html

Coax/Twinax/Triax Adapters

BJ50

PL50

BJ350

TCM

BJ20

BJ26

BJ29

CJ20

PL20

PL21

PL122

PL123

BJ40

BJ49

CJ40

PL40

PL41

BJ46

BJ95

BJ96

J95

PL95

BJ157

BJ157FL

BJ159

BJ159FL

CJ150

CJ150FL

PL155

BJ3157

BJ3159

CJ3150

PL3155

BJ74

BJ74FL

BJ74TL

CJ80

CJ380

PL80

PL380

BJ154

F B I • • • • • •

• • • •

BJ154FL

F B I • • • • • •

• • • •

BJ157

F 32 22 32

BJ157FL

F 59 23 59

BJ159

F B • • • • • •

• • • • 22 22 22

BJ159FL

F B • • • • • •

• • • •

23 23

CJ150

F • • • • • •

• • • • 32 22 32

CJ150FL

F • • • • • •

• • • • 59

PL150

M • • • •

• • • •

PL153

M • • • • • •

• • • •

PL155

M • • • • • •

• • • •

PL155FL

M • • • • • •

• • • •

BJ3154

F B I • • • • • •

• • • •

68 68 68

BJ3159

F B • • • • • •

• • • •

31 31 31

CJ3150

F • • • • • •

• • • •

33 31 33

PL3155

M • • • • • •

• • • •

•

BJ74

F B I • • • • • • • • •

• 18

BJ74TL

F B I • • • • • • • • •

•

BJ74FL

F B I • • • • • • • • •

• 40

BJ77

F • • • • • •

• • • • • • •

• • • • • • • • 18 • • •

BJ77TL

F • • • • •

• • • • • • •

• • • • • • • • • • 39 •

BJ77FL

F • • • • •

• • • • • • •

• • • • • • • • • 40 • •

BJ79

F B • • • • • • • • • • • • • •

BJ79TL

F B • • • • • • • • • •

• 18

BJ79FL

F B • • • • • • • • • •

•

BJ79TLRG F B • •

•

CJ70

F •

•

18 • • • •

CJ70TL

F •

•

39 • • • •

CJ70FL

F •

•

40 • • • •

PL71

M • • • • • •

PL73

M • • • • • • • • • • • • •

PL74

M • • • • • • • • • • • • • • •

• • • • • • • •

PL75

M • • • • • • • • • • • • • • • • • • • • • • • • •

PL75FL

M • • • • • • • • • • • • • • •

• • • • • • • •

PL375

M • • • • • • • • • • • • • • • •

• • • • • • • •

BJ374

F B I • • • • • • • • •

•

BJ377

F • • • • • • • • • • • • • •

• • • • • • • • • • •

BJ379

F B • • • • • • • • •

• • • •

BJ379RG F B •
CJ370

F •

•

• • •

BJ30

F • •

• •

BJ39

F B

• • •

CJ30

• • •

PL30

M • • • • • • •

• • • •

• • •

BJ330

F • •

• •

BJ339

F B

• • •

PL330

M • • • • • •

• • • •

• • •

BJ89

F B • •

•

• • • •

BJ89F

F B • •

•

• • • •

BJ893

F B •

•

• • • •

BJ893F

F B •

•

• • • •

CJ80

F • • •

• • • • •

• •

CJ380

F •

•

• • • • •

CJ803

F •

•

• • • • •

PL80

M •

•

• • • • •

• • • •

PL380

M •

•

• • • • •

• • • •

PL803

M •

•

• • • • •

BJ389

F B • •

•

• • • • •

BJ389F

F B •

•

• • • •

J72D

F B •

J150

F B 53 54 55 55

PL150

M • • • •

• • • • • •

I  -  Insulated
B  -  Bulkhead Mount
U  -  75 Ohm Available
F  -  Female
M  -  Male

B B B B B B B B B B B B B

I I I I I I

TPS

BNC

TNC

TRS

TTM

TRB

TRC/TRN

TRS

TTM

TRB

TRT

TWBNC

TWTNC

TRC/

TRN

PATCH

• •

PUSH

Patching Products /

Adapter Table

Coax/Twinax/Triax

trompeterproductcatalog-html.html

NG
P

ROD
U

ID#

Part Number

(U)AD28

(U)AD48

AD78

(Note 2)

AD1

(U)AD95

(U)ADI95

ADI22

AD130

AD131

AD133

(U)AD142

AD378

(U)AD2848

(U)BJ28

BJ38

(Note 3)

(U)BJ48

BJ58

BJ73

(Note 2)

BJ88

(U)BJ98

BJ158

(Note 4)

BJ158FL

(Note 5)

BJ358

BJ373

BJ378

(Note 1)

AD78FL

AD78TL

BJ24

BJ3158

(Note 6)

AD158

AD3158

BJ78

BJ78TL

BJ78FL

BJ338

BJ388

(Note 7)

BJ73TL

BJ73FL

Standard Adapters Identification numbers:

ID#

Part Number

BJ883

BJ58FL

BJ138

AD192

AD1W

ADH1

ADH1W

ADM1

(Note 8)

ADM2

(Note 8)

ADMW12

(Note 9)

J11

(Note 9)

J11B

(Note 9)

J152

(Note 11)

J152FL

(Note 12)

J3152

(Note 13)

J3W

(Note 10)

AD158FL

J3F

J3WF

J5W

(U)J9

(U)J9W

J72

BJ3153

Standard Adapter notes:

Note:

Bulkhead Mounted BNC Side

(U)BJ4828

Bulkhead Mounted TNC Side

(U)BJ2848

Polarization Table (Callcustomer service)

Insulated Version

BJ33

Insulated Version

BJ153

Insulated Version

BJ153FL

Insulated Version

BJ383

50 Ohm Version Only

75 Ohm Version Only

J308

50 Ohm TCM Jack Threaded

Panel Mount

J8D

J311

75 Ohm TCM Jack to

J8D

Threaded Panel Mount

J152

Threaded Panel Mount

J152FLFT

Threaded Panel Mount

J3152FT

Adapters indexed with a designated number are
standard adapters, use the table below to determine
the part number. Adapters indexed with a “•” are
custom adapters, see page 59.

(U)

= 75 ohm version available

(Note) =

See below

Coax/Twinax/Triax Adapters Continued...

BJ77

BJ77FL

BJ77TL

BJ79

CJ70

CJ70FL

CJ70TL

PL74

PL75

PL75FL

BJ374

BJ377

BJ379

CJ370

PL375

BJ30

BJ39

CJ30

PL30

BJ330

BJ339

CJ330

PL330

I  -  Insulated
B  -  Bulkhead Mount
U  -  75 Ohm Available
F  -  Female
M  -  Male

BJ154

F B I • • •

•

BJ154FL F B I • • •

•

BJ157

•

• • • • •

•

BJ157FL

•

• • • • •

•

BJ159

F B • • •

•

BJ159FL

F B • • •

•

CJ150

F • • • •

• •

CJ150FL F • • •

•

PL150

M • • •

• •

PL153

M • • •

•

PL155

M • • •

• •

PL155FL M • • •

•

BJ3154

F B I • • •

•

BJ3159

F B • • •

•

CJ3150

F • • •

•

PL3155

M • • •

•

BJ74

F B I 18 • • 18 18

• • • •

• • • • • • •

BJ74TL

B B I • • 39 39 • • • •

• • • • • • •

BJ74FL

F B I • 40 • • 40

• • • •

• • • • • • •

BJ77

F 3

34 3 • • • • • • • • •

BJ77TL

F 29 • • • 29 • • • • • • • •

BJ77FL

F 28 • • 28 • • • • • • • •

BJ79

F B 34 • • 34 34

• • • •

• • • • • • •

BJ79TL

F B • • 35 35 • • • •

• • • • • • •

BJ79FL

F B • 36 • 36

• • • •

• • • • • • •

BJ79TLRG F B

CJ70

F 3 • • 34 3

•

• • • • • •

CJ70TL

F • • 29 29 •

• • • • • •

CJ70FL

F • 28 • 28

•

• • • • • •

PL71

M • • •

•

PL73

• • • • • •

PL74

M • • • •

• • • • • •

• • • • • • •

PL75

M • • • •

• • • • • •

• • • • • • •

PL75FL

M • • • •

• • • • • •

• • • • • • •

PL375

M • • • •

• • • • •

• • • • • • •

BJ374

F B I • • •

• • • 25 25 25 25 • • • • • •

•
BJ377

• • • • • • • 25 12 26 12 •

BJ379

F B • • •

• • • 25 26 26 26 • • • • • • •

BJ379RG F B

CJ370

F • • •

25 12 26 12 • • • • • •

BJ30

15 • • • • •

BJ39

F B

• • • • • • • • • • • 15 15 15 • • •

CJ30

• • • • • • • • • • • • 15 • • •

PL30

• • • • • • • • • • • • • • •

BJ330

• • • • 37 • •

BJ339

F B

• • • • • • • • • • • • 37 37 37

PL330

• • • • • • • • • • • • •

BJ89

F B •

• • • • • • • • •

BJ89F

F B •

• • • • • • • • •

BJ893

F B

• • • • • • • •

BJ893F

F B

• • • • • • • •

CJ80

F • • • • • • • • • • • •

CJ380

• • • • • • • •

CJ803

• • • • • • • •

PL80

• • • • • • • •

PL380

• • • • • • • •

PL803

• • • • • • • •

BJ389

F B

• • • • • • • •

BJ389F

F B

• • • • • • • •

J72D

F B 67

•

J150

F B

PL150

B B B

TRB

TRT

TWBNC

TWTNC

TRS

TTM

TRB

TRT

TWBNC

TWTNC

TRC/

TRN

PATCH

Patching Products /

Adapter Table

Coax/Twinax/Triax & Indentifications

trompeterproductcatalog-html.html

LS & A

Powered Cable Stripper

This powerful, low-cost, portable hand-held (less than 2.25 lbs)
cable stripper delivers, production quality performance, and
gives you up to 250 strips per charge (7.2 V Ni-cad battery without
memory effect). The replaceable, 3-level cutter head, is preset to
strip your coax cable for Trompeter’s 220 Series, Tool Crimp BNC
connectors. The cutter head has adjustable depth cutter blades
for precision tuning. Precision ground, tool steel blades (hardens
to Rockwell 64) give you up to 15,000 strips! Rapid Charger/
Reconditioner recharges your Ni-Cad in only 1.5 hours! Fast
charge: 1.5 hrs/Recondition in 3.1 hrs.

Powered Cable Stripper Kits

(1-year Warranty)

Includes: 1 Driver, 1 Ni-Cad Battery Pack, 1 Cutter Head, 1 Rapid
Charger/Reconditioner Station, and 1 Carrying Case.

Cable Type Stripper/Cutter head

For RG-59

BCS/C24T3D

For 8281

BCS/C24T3U

Important Note:

The 3-level cutter heads included in the kits are set

to the same stripping dimensions as our STC-F (see below) stripping
cassette for Trompeter “Tool Crimp” BNC cable connectors.

Use 2-level cutter heads for Trompeter “Wrench Crimp” BNC
cable connectors.

Additional Accessories

Extra Cutter heads

See guide above

DC Driver Battery: Requires cutter head from above

BCS

AC Driver and AC Base Unit: Requires cutter head from above

ACS

Rapid Charger/Reconditioner

BRCC

Ni-Cad Battery Pack

ABP-NSA

AC Power Converter

ACC-NSA

Manual Cable Stripping Tools

Cable Cutting Tool

Designed to cut Coax cable without compressing dielectric or
damaging center conductor.

Cutting Tool

700-0024

Manual Cable Stripping Tool

Tool (only) - Requires blade cassette listed

ST1

Cassette (For Tool Crimp BNC Connectors)

STC-F

Cassette (For Wrench Crimp BNC Connectors)

STC-W

Cutter Head Guide

TROMPETER ELECTRONICS INC.

1.3

3.525

1.175

STC-F

LT GREEN

STC-W

GRAY

.156

.625

.108

.625

.330

1.405

Cable Strippers

Tools & Accessories

Cable Outside Diameter

2-Blade Cut

3-Blade Cut

D-Ring#

.070-.110

C24T2A

C24T3A

-D7

.160-.215

C24T2B

C24T3B

-D8

.190-.230

C24T2C

C24T3C

-D9

.235-.270

C24T2D

C24T3D

-DD8

.300-.430

C24T2E

C24T3E

.110-.160

C24T2I

C24T3I

.271-.305

C24T2U

C24T3U

trompeterproductcatalog-html.html

TO
O

RIES

Additional Accessories

Extra Cutter heads

See guide above

DC Driver Battery: Requires cutter head from above

BCS

AC Driver and AC Base Unit: Requires cutter head from above

ACS

Rapid Charger/Reconditioner

BRCC

Ni-Cad Battery Pack

ABP-NSA

AC Power Converter

ACC-NSA

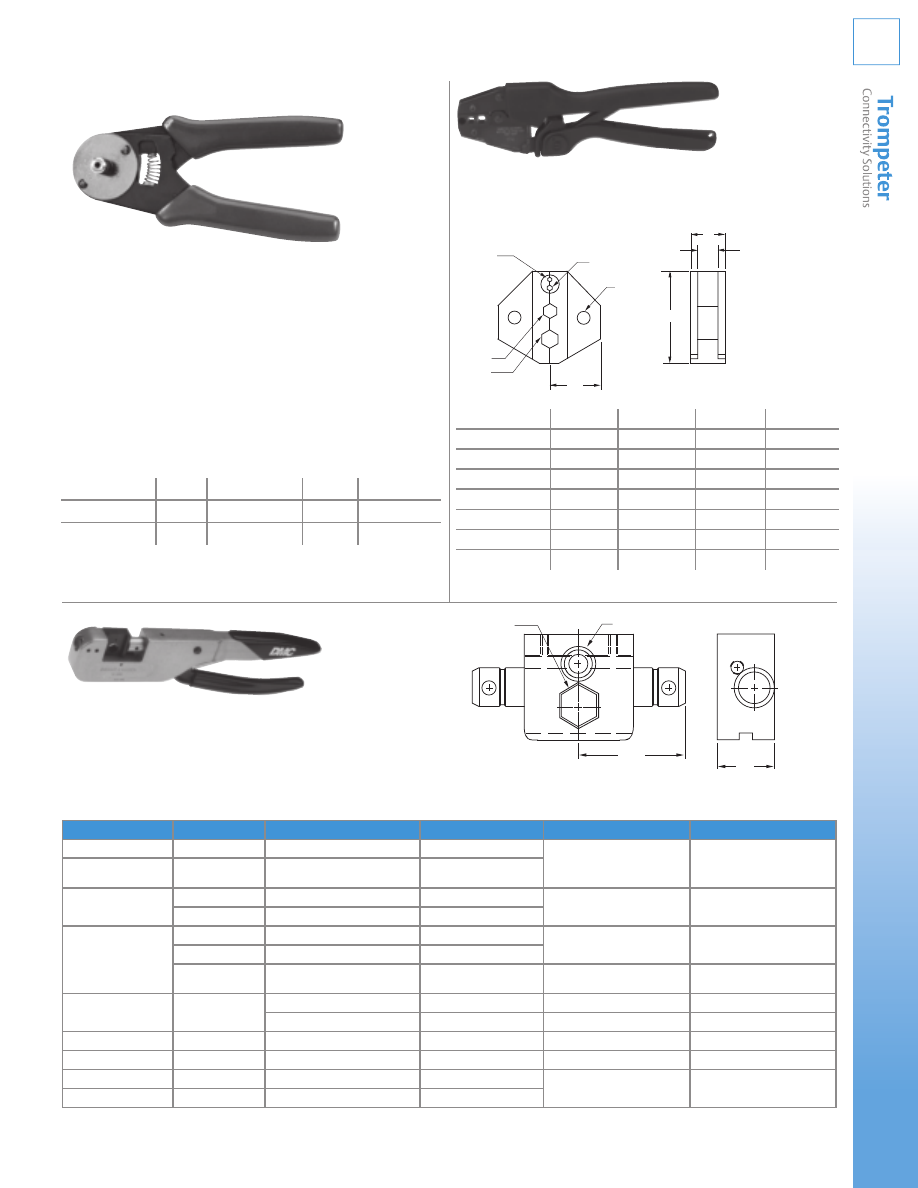

8-Point Crimp Tool

75Ω Center Contact Pin (Handle Color)

BNC/Pl11 Patch Plugs (Red/Blue)................................... 010-0097
BNC Jack and plug (Blue)............................................... 010-0088

12-Point Crimp Tool

75Ω Center Contact Pin (Handle color)
BNC/TNC/Pl11 Patch Plug

(Green/yellow).............................................................. 010-0098

* Note: Dies imprint either cavity (A/B) or hex size onto crimp sleeve. Custom dies are available for special imprints.

For Standard and Miniature Twinax/Triax patching: 70 Series: TRB/TRT,
150 Series: TRS/TTM, 450 Series: 2-lug/3-lug/threaded connectors.

Crimp Tool

Die not included, for crimp dies see below

For crimp dies not listed, call customer service.

A Closure

B Closure

C Crimp

D Crimp

.175 DIA

2PL

.697

Max

1.260

.50

.236

CD3-1

.344 HEX CRIMP

.263 SHEILD CRIMP

CD5-8

(1.000)

CD5-8 SHOWN

.527

Crimp Tools

For crimp dies not listed or for special embossing, call customer service.

Tools & Accessories

Outer Sleeve A

Embosses

CD3-1

.213

.178

CD3-19

.178

178

.255

255

Frame CT 5

Outer Sleeve

Embosses

CD3-1

.213

.178

CD3-2

.324

.255

CD3-3

.344

.290

CD3-5

.197

CD3-19

CD3-21

.290

290

.255

255

CD3-22

.404

404

.068

Twinax/Triax Crimp Tool

For Bushing/Shield

Crimp Tool Only....................................................... M22520/5-01
Crimp Tool with Die..................................... M22520/5-01/CD5-#

Connector Series

Cable Type

Cable Group #

Bushing/Shield Crimp Die

Center Contact Crimp Tool Part #

Center Contact Positioner Part #

70C

Twinax

201-225

CD5-8

M22520/1-01

010-0044 Pin (TP837)
010-0045 Socket (TP838)

PLR70C
PLR155AC

Triax

301-309

CD5-10

Small Body 150AC

Twinax

201-206, 208, 209, 217-223

CD5-9

M22520/2-01

010-0041

Triax

301-304, 309

CD5-11

Large Body 150AC

Twinax

207, 210, 211-216, 224-225

CD5-8

M22520/2-01

010-0043

Triax

305-306, 308

CD5-13

Triax

307

CD5-10

M22520/1-01

010-0044 Pin (TP837)
010-0045 Socket (TP838)

PL75MC

Twinax

201-225

CD5-14

M22520/2-01

010-0096

226

CD5-15

M22520/2-01

010-0096

450AC

Twinax

201-206, 208, 209, 212, 217-223

CD5-9

M22520/2-01

010-0041

PLR450

Twinax

201-206, 208, 209, 212, 217-223

CD5-120

M22520/2-01

010-0041

SPC8P

Twinax

201-205, 217, 218, 221, 222

CD5-4

M22520/2-01

Daniels K709

SPC8S

Triax

301-303

CD5-7

trompeterproductcatalog-html.html

LS & A

Twinax/Triax Cable Assembly Tester

The Twinax/Triax Cable Assembly Tester is designed to test for
opens, shorts, and cross wired connectors. The tester comes
complete with terminators and testing instructions. This tool is
designed to provide quick verification of TRB cable assemblies in
the palm of your hands. The compact hand held unit measures
2 3/4" x 4 1/2" and provides versatility for testing connectors in
the field. The unit comes in a soft zipper case which includes a
9v battery and terminators for standard TRB plugs. It can also be
used for other connector families with an adapter, or short jumper
cable when used with the proper termination.

• 3 Conductors which test for opens, shorts, and cross connects
• Concentric TRB Interface, which tests both Twinax and Triax
• Pass/Open/Short LED indicators
• Easy to follow testing instructions
• Complete with terminators, carrying case, and a 9V battery

Designed to test for the proper assembly of BNC plugs with coax
cables. Tests for center contact pin height and continuity (short
or open). The new BNC tester is the same size as the twinax/triax
tester but exclusively tests only BNC plugs. Mini-WECo continuity
test adapter now available (sold separately).

• Compact design
• Pass/Open/Short LED indicators
• One test required for testing remote cable runs
• Easy to follow instructions
• Complete with terminators, case, and 9V battery
• On/Off switch

Cable Assembly Testers

Tools & Accessories

BNC Coax Tester

Twinax/Triax Cable Assembly Connector Test Set

010-0123-1

Coax Cable Assembly Connector Test Set

75Ω BNC Plug................................................................. 010-0133
75Ω MBNC Plug.............................................................. 010-0208

Mini-WECo Adapter (Continuity Only)

Sold Separately

105-1885

trompeterproductcatalog-html.html

LS & A

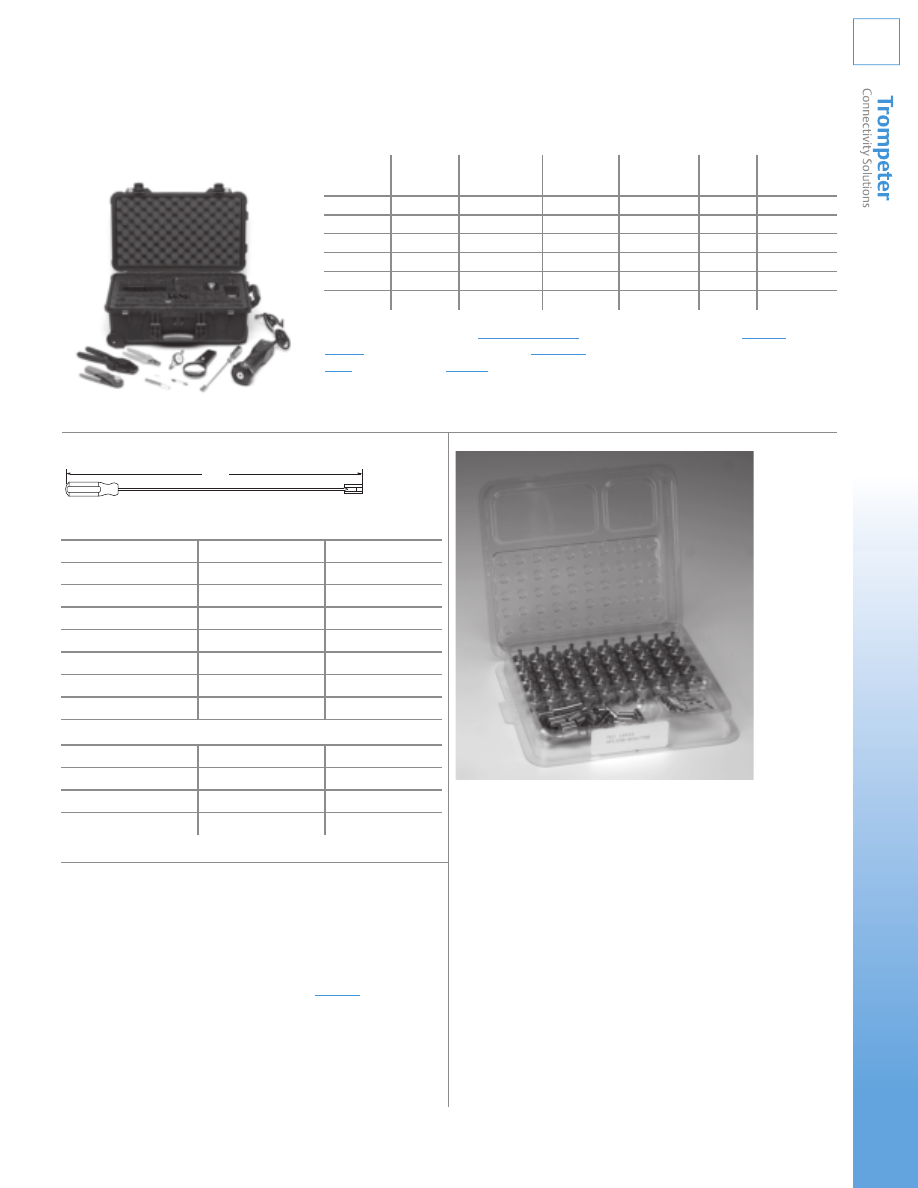

BNC Bulk Packaging

Bulk packaging for UPL220 Series BNC plugs ... Trompeter offers
Tool Crimp BNC's bulk packed in convenient vacuum-formed
plastic trays. Bulk packaging is perfect for OEM and high-volume,
on-site installations.

Includes:

(50) Body Assemblies

(51) Crimp Sleeves

(52) Center Contact Pins

Assembly Instructions

Example:

UPL220-026/T50

BNC part number, Vacuum Tray part number

For cable groups see pages 78-120. (Not available for cable groups -017)

BNC Coax Assembly Training Video

Trompeter has produced a video which outlines the major
features of our BNC design, describes the tools for reliable
installation, and gives step-by-step assembly instructions.

The BNC Assembly Video CD is available at

no cost

to Trompeter

Customers.

For additional information or for a free demonstration, contact
your local Sales Representative log on to our web site at

www.EmersonConnectivity.com

and locate the rep nearest

you.

LENGTH

Tool Kit & Bulk Packaging

Tool Kits

Tools & Accessories

Tool Kit Part
Number

Pin Height
Indicator

Crimp Tool
8-Point Indentor

Crimp Tool
12-Point
Indentor

BNC/Mini-WECo
Electrical Gauge

Crimp Die

Center Contact
Gauge

TK4NL-1

UPLCG-1

010-0097

Not Included

CD3-19

Not Included

TK4NL-1A

UPLCG-1

010-0097

Not Included

CD3-19

Not Included

TK4NL-2

UPLCG-1

Not Included

010-0098

Not Included

CD3-19

Not Included

TK4NL-3

UPLCG-1

010-0097

010-0098

Not Included

CD3-19

Not Included

TK4NL-4

Not Included

010-0097

Not Included

010-0108

CD3-19

Not Included

TK4NL-5

Not Included

010-0080

010-0108

CD3-19

010-0101

All Tool Kits Include:

Case,

BCS Cable Stripper

with BCS Cutter heads (one

C24T3D

and one

C24T3I

), Cable Cutter (part number

700-0024

), and Ergonomic Crimp Tool w/long handle

CT4L

with Crimp Die

CD3-19

embosses the die cavity size on the crimp sleeve either .178

or .255. Contact customer service for custom tool kits.

BNC/TRB Cable Plug

Type

Length

RT1XL

straight

22.00"

RT1L

straight

12.00"

RTR-1L

right angle

12.00"

RTR-1XL

right angle

22.00"

RT1S

straight

6.00"

RT1SS

straight

3.75"

RTC-1L (insulated)

straight

12.00"

TPS, TCM, TRS, TTM, MBNC

Type

Length

RT4L

straight

12.00"

RT4S

straight

6.00"

RTC-4L (insulated)

straight

12.00"

trompeterproductcatalog-html.html

PPE

TWCP

= Twinax Plenum Cable

TWCH

= Twinax Blue Flame Retardant Halogen Free Polyolefin

Cable

TRCH

= Triax Yellow Flame Retardant Halogen Free Polyolefin

Cable

Trompeter  cables  are  manufactured  to  the  listed  specifications
and offer optimum flexibility, shielding, and performance.  Cables
with stranded center conductors have greater flexibility and are
recommended for short runs at low frequency where constant
cable  movement  might  fatigue  a  single  copper-weld  center
conductor.   Trompeter’s

M17/176-00002

and

TWAC-78-1F2

are

200°C, Hi-Temp Cables for MIL-STD-1553B data bus applications.
Dielectric  and  fillers  made  of  PTFE  (Teflon™)  and  outer  jackets
are  PFA  (Perfluoroalkoxy).    All  dimensions  are  in  inches.    All
values without tolerances are  nominal  unless otherwise stated.

TWCH-78-2

has jacket constructed of flame retardant halogen free

polyolefin with temperature range of -30°C to +80°C.

For high temperature cables, see chart on the next page.

Coax Cable Specs

Exploded Detail of Coax, Twinax, & Triax
Cable

JACKET

CENTER

CONDUCTOR

DIELECTRIC

BRAID

CENTER

CONDUCTOR

DIELECTRIC

INNER BRAID

DIELECTRIC

OUTER BRAID

JACKET

INNER

CONDUCTORS

DIELECTRIC

OUTER SHIELD

FILLER

JACKET

Coax

Twinax

Triax

Trompeter Cable Specifications

Appendix

Cable Designation

TCC-50-2

TCC-75-2

RG62 A/U

Impedance (Ohms)

50±2

75±3

93±5

Nominal outer dia.

0.195

0.242

PVC outer

Green

Violet

Black

Braid outer dia.

0.150 Max

0.191 Max

Braid AWG#/Mat'l

36/Tinned Cu

34/Bare Cu

Dielectric outer dia.

0.116

0.146

Dielectric mat'l

Solid PE

Foamed PE

Conductor outer dia.

0.0355

0.031

0.0253

Conductor strands/Mat'l

19/.0071 Tinned
Cu

7/.010 Tinned
Cu

Solid/CCS

Operating temperature
range

-40°C to 90°C

-40°C to 85°C

-40°C to 80°C

Minimum bend radius

1.00

Max. Opr. VAC (RMS)

1.4 KV

800 V

750 V

Capacitance pf/ft (Max)

30.8

17.3

14.5

Cond. Loop Res.
(Ohms/M ft.)

17.6

Atten. dB/100 ft:

1 MHz

0.380

0.335

0.250

10 MHz

1.400

1.070

0.900

50 MHz

3.40

2.40

1.90

100 MHz

4.90

3.40

2.80

200 MHz

7.30

4.85

3.70

400 MHz

9.00

5.20

1 GHz

28.80

12.00

8.50

3 GHz

30.00

Shielded Coverage

93%

94.3% Min

trompeterproductcatalog-html.html

PPE
N

Twinax/Triax Cable Specs

Trompeter Cable Specifications

Appendix

Twinax

Triax

Cable
Designation

TWC-78-1

TWC-78-2

M17/176-
00002

TWAC-78-
1F2

TWC-124-
1A

TWC-124-2

TRC-50-1

TRC-50-2

TRC-75-1

TRC-75-2

Impedance
(Ohms)

78±3

77±7

124±4

50±2

75±5

Nominal outer
dia.

0.150

0.242

0.129

0.095

0.150

0.245

0.156

0.245

0.189

0.245

Outer braid
dia.

0.108

0.195 Max

0.102

0.070

0.105

0.195 Max

0.121

0.210 Max

0.150

0.205

Core outer dia. 0.085

0.154

0.084

0.052

0.085

0.162

Dielectric
outer dia.

0.043

0.076

0.042

0.026

0.043

0.080

0.047

0.116

0.073

0.116

Inner braid
outer dia.

0.069 Max

0.146 Max

0.093

0.146 Max

Inner jacket
outer dia.

0.101

0.175

0.130

0.175

Conductor
outer dia.

.022

0.0370

0.0230 Min.

0.0149

0.0120

0.0220

0.0150

0.0370

0.0120

.0185

Operating
temperature
Range

-40°C to
80°C

-55°C to
200°C

-40°C to
80°C

-40°C to
75°C

-40°C to
80°C

Minimum
bend radius
(in.)

1.50 Max

1.25

1.50

1.25

1.50

1.25

0.75

1.25

1.00

1.25

Max. Opr. VDC

0.6 KV Max

2.0 KV

0.6 KV

2.0 KV

6.0 KV

2.0 KV

6.0 KV Max

Max. Opr. VAC
(RMS)

0.3 KV Max

1.0 KV

750 KV Max

250

0.3 KV

1.0 KV

2.0 KV

1.0 KV

2.0 KV Max

Capacitance
pf/ft. (Max)

20.30 Max
(2)

21.20 (3)

24.00

23.00

12.40

12.30 (3)

29.50

32.00 (1)

20.00

20.50 (1)

Cond. loop
res.(Ohms/M
ft.)

179 Max

19.00 Max

48.00

146.00

570.60

56.80 Max

Atten. dB/100 ft.:

1 MHz

2.000

0.700

1.400

2.000

3.250

0.540

2.800

0.500

0.900

0.480

3 MHz

3.000

1.100

2.100

4.400

0.920

3.100

0.800

1.300

0.880

4 MHz

3.500

1.400

2.400

4.800

1.060

3.300

0.900

1.500

1.010

5 MHz

4.000

1.550

2.800

5.200

1.180

3.400

1.100

1.700

1.100

7 MHz

4.500

1.800

3.500

5.600

1.400

3.700

1.300

1.900

1.300

10 MHz

5.300

2.200

4.50 Max

6.500

5.900

1.650

4.100

1.500

2.400

1.500

20 MHz

7.50

3.10

8.30

2.30

5.50

2.30

3.60

2.30

30 MHz

9.20

3.90

10.20

2.80

7.00

2.90

4.50

2.90

40 MHz

10.60

4.50

11.80

3.20

7.50

3.40

5.40

3.30

50 MHz

11.90

5.10

13.20

3.60

9.10

3.90

6.10

3.60

100 MHz

16.80

7.50

18.70

5.10

14.00

5.80

9.70

5.20

200 MHz

23.70

10.50

26.40

7.20

22.00

8.80

16.50

7.60

500 MHz

37.50

16.00

41.70

11.40

40.00

15.30

28.50

10.80

700 MHz

44.30

18.60

49.40

13.50

50.00

18.00

36.00

14.70

1 GHz

53.00

22.50

59.00

16.20

63.00

23.00

45.00

17.60

Shielded
coverage

93%

93.3%

90% Min.

93%

93% Min.

93%

93% Min.

93%

Twist per ft.

8.00

4.00

11-14

16.00

8.00

4.00

High Temperature:

trompeterproductcatalog-html.html

PPE

Notes:
(1) = Center Conductor to Inner Braid

(2) = Conductor to Shield

(3) = Conductor to Conductor

Twinax/Triax: Plenum/Halogen Free Cable Specs

Twinax

Triax

Cable Designation

TWCP-78-1

TWCP-78-2

TWCH-78-2

TWCP-124-2

TWCP-124-3

TWCP-124-5

TRCH-50-2

Description

Plenum

Halogen Free

Plenum

Halogen Free

Impedance (Ohms)

78±3

124±4

124±5

50±2

Nominal outer dia.

0.150

0.242

0.245

0.205

0.325

0.245

Outer braid dia.

0.102

0.165

0.195

0.183

0.295

0.210

Core outer dia.

0.154

0.163

Dielectric outer dia.

0.041

0.072

.076

0.080

0.062

0.134

0.116

Inner braid outer dia.

0.043

0.146

Inner jacket outer dia.

0.175

Conductor outer dia.

0.021

0.037

0.024

0.048

0.037

Operating temperature
range

+125°C

-30°C to +80°C

+125°C

-10°C to +75°C

-10°C to +125°C

-30°C to +80°C

Minimum bend radius
(in/ft.)

1.50

2.50

1.25

2.5

2.0

3.25

1.25

Max. Opr. VDC

2KV

2500

6 KV

Max. Opr. VAC (RMS)

1KV

1800

2 KV

Capacitance pf/ft. (Max)

19.6 (3)

18.6(3)

21.2(3)

11.5

12.0(3)

11.0(3)

Cond. loop res.
(Ohms/M ft.)

19.0

47.0

28.4

6.5(3)

10.5

Atten. dB/100 ft.:

1 MHz

2.00

.60

0.70

.50

0.60

.30

0.50

3 MHz

3.00

1.00

1.10

.85

0.90

.47

0.80

4 MHz

3.50

1.20

1.40

1.10

.64

0.90

5 MHz

4.00

1.40

1.55

1.10

1.20

.69

1.10

7 MHz

4.50

1.60

1.80

1.30

1.40

.79

1.30

10 MHz

5.30

2.00

2.20

1.60

.94

1.50

20 MHz

7.50

2.80

3.10

2.30

2.20

1.20

2.30

30 MHz

9.20

3.50

3.90

2.80

1.50

2.90

40 MHz

10.60

4.10

4.50

3.20

1.70

3.40

50 MHz

11.90

4.60

5.10

3.70

3.60

2.00

3.90

100 MHz

16.80

6.90

7.50

5.30

5.20

3.00

5.80

200 MHz

23.70

9.90

10.50

7.20

4.50

8.80

500 MHz

37.50

15.40

16.00

11.40

7.00

15.30

700 MHz

44.30

18.30

18.60

13.50

8.40

18.00

1 GHz

53.00

21.80

22.50

16.20

11.00

23.00

Shielded coverage

97%

95%

93%

Twist per ft.

8.0

4.0

6.0

Appendix

trompeterproductcatalog-html.html

PPE
N

Twinax/Triax Wrench/Tool Crimp Connectors

Select your connector and read across to find available cable group numbers.

Connector Compatibility Tables

Connector

7 7A 8 9 10 11 12 13 13A 14 14A 15 16 17 23 24 24A 25 25A 26 27 28 29 30 32 33 35 38 39 40 42 43 45 46 47 49 54 55 56 57 58 59 60 61 62 64

BJ39
BJ74(FL/TL)

BJ79(FL/TL)
BJ89/BJ89F
BJ154(FL)
BJ159(FL)
BJ374
BJ379
BJ389(F)

BJ893(F)

BJ3154
BJ3159
CJ70(FL/TL)

CJ80

CJ150(FL)

CJ370

CJ380

CJ803
CJ3150
J72S
J72SM
J150
PL30
PL71
PL71L

PL73

PL74

PL75(FL)
PL80
PL101
PL153
PL155
PL155FL

PL375

PL380

PL803
PL3155

Twinax/Triax Wrench Crimp Connectors

Wrench Crimp Cable Groups

Appendix

trompeterproductcatalog-html.html

PPE

Twinax/Triax Wrench/Tool Crimp Connectors

Select your connector and read across to find available cable group numbers.

Connector Compatibility Tables

Twinax/Triax Wrench Crimp Connectors

Wrench Crimp Cable Groups

Connector

201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 301 302 303 305 306 307 308 309

BJ154AC
BJ154ACFL
BJ159AC
BJ159ACFL
CJ150AC(FL)
BJ3154AC
BJ3159AC
CJ3150AC
CJ70C(TL)(FL)
CJ370C
BJ74C(TL)(FL)
BJ374C
BJ79C(TL)(FL)
BJ379C
PL73C
PL74C
PL75C
PL75CFL

PL153AC
PL155AC
PL155ACFL
PL375C
PLR375C
PL3155AC
PLR74C
PLR75CFL
PLR75C
PLR155AC(FL)
PLR3155AC(FL)
SPC8P
SPC8S
BJ459AC/GROUP
CJ450AC/GROUP
PL455AC/GROUP
PLR455AC/GROUP

Appendix

trompeterproductcatalog-html.html

PPE
N

Trompeter Finish Specification -1
(TFS-1) Notes:

(2) Bright Gold plate on all connector center contacts, pins, sockets, shall be .000050 min - .000070 max thk, Class 1
(3) Thickness is in accordance with MIL-G-45204B, Para 6.3 "Strikes and Underplating"
(4) Copper Alloy articles on which a nickel undercoat is not used shall not be used for continuous service at temperatures above 149°C

(300°F) QQ-S-365, Para. 3.3.5.

(5) For use on Brass and Beryllium Copper body (shell) and accessory components when 500 hour salt spray test is specified. (For test

conditions, refer to MIL-C-38999, Para. 3.16 and 4.7.12.2, [Method 1001.1 of MIL-STD-1344])

(6) Plating thickness variations, critical and noncritical areas must be plated to within specified lower limits, except where

surfaces cannot be contacted by A .75 inch dia ball, noncritical areas total plating thickness may exceed the specified upper limits
by .000150 maximum.

TFS-1: Finish Specifications

TFS-1A

.0001- .0003 max thk Bright Nickel per QQ-N-290, Class1, Form SB (over)
.000080-.000150 thk Bright Copper per MIL-C-14550 (over) .0005 max
Electroless Nickel per AMS-2404C, Class 1 (On Aluminum Only)

TFS-1B

.000020 - .000030 thk Bright Gold2 per MIL-G-45204, Type II, Grade C,
Class3 (over)
.000050-.000180 thk Bright Nickel3 per QQ-N-290, Class1 (over)
.000080-.000150 thk Bright Copper3 per MIL-C-14550

TFS-1D

.0001min - .000120 max thk Electroless Nickel per AMS 2404C (over)
.000080 min - .000150 max thk Bright Copper per MIL-C-14550

TFS-1E

.0002 min -.0003 max thk Bright Electro Tin per MIL-T-10727, Type 1 and
solder test per Para. 4.6.3.1

TFS-1M

.000200 min - .000300 max thk Silver per QQ-S-365, Type II (Semi-bright)
Grade A (Chromate post treatment)
(over) .000080 min - .000150 max thk Bright Copper
per MIL-C-14550

TFS-1T

.000050 -.000100 Bright Tin per MIL-T-10727, Type I (Electro Deposited)
(over) .000150-.00020 Sulfamate Nickel per MIL-P-27418
(over) .00010-.00150 Copper per MIL-C-14550, Class 4

TFS-1U

.00020-.00030 thk Sulfamate Nickel per MIL-P-27418
(over) .000080-.000150 max thk Copper
per MIL-C-14550

TFS-1V

.000200-.000300 max thk Silver per QQ-S-365, Type I (Matte), Grade A (over)
.000050-.000180 max thk Sulfamate Nickel per MIL-P-27418, (over)
.000080 min-.000150 max thk Bright Copper
per MIL-C-14550

TFS = Trompeter Finish Specifications

Trompeter General Material/

Finish Specifications

Appendix

Materials

Alloy or Type

FED/MIL Spec.

Usage

ABS

Moldings Type 2

MIL-STD-1803
L-P-1883B

Looping plug handles, lock pins

Acetal

Dupont Delrin

L-P-392

Insulators, cases, bushings

Aluminum

2024-T351

QQ-A255/6

Backbars, cases

6061-T6

QQ-A200/8

Stiffener bars

6061-T6

QQ-A250/11

Patch panels

6061-T6511

QQ-A200/8

Backbars, cases

Beryllium Copper

17200 (Bar)

ASTM-B-194

Contact & crescent springs

17300 (Flat)

ASTM-B-196 &197

Contact sockets, fingersprings, washers

Brass

C26000

ASTM-B-36

Ground lugs, washers

C36000

ASTM-B-16

Connector bodies, coupling sleeves, clamp
nuts, hex mtg. nuts, ctr. contact pins, cases

Dupont Acetal Resin #500TL

Homopolymer General Purpose w/
1.5% Teflon Micropower

Moldings

Fluorinated Ethylene
Propylene

(FEP)

ASTM-D-2116

Insulators

Hyflon

MFA Grade 640

Alternate material dielectric

Loctite

495 (Zinc Iridite per ASTM-B633)

QQ-2-325 Type 2 Class 2 Finish

Nylon

6/6 or 6/12

L-P-410A

Insulating bushings

Perfluoroalkoxy

(PFA)

ASTM-D-3307

Cable jackets

Phenolic

XXX

L-P-513 PBE

Patch panels, backbars

Phosphor Bronze

Alloy 544

ASTM-B-139

Contact springs, lockwashers

Polytetrafluoroethylene

(PTFE)

ASTM-D-1710

Dielectrics, insulators

Polyvinylidene Flouride

MIL-I-23053/8

Sealing Sleeves

Rubber

Silicone

ZZ-R-765

Gaskets, O-rings, sealing members

Solder

Sn60, 62, 63, or 96

QQ-S-571

Steel

C1010-1018

QQ-S-636

MPN cases

Music Wire

ASTM-A228 SAE J178

Tension springs

Steel CRS

Type 17-4PH

AMS-5643 Tubing

Corrosion Resistant Steel

303

QQ-S-763

Connector bodies, coupling sleeves, hex
mtg. nuts

302

QQ-S-766

Designation strips

301

ASTM-484, A582

Thermo-plastic Polyester

Glass Filled

MIL-M-24519

Heat resistant molded insulators

Vinyl

Clear Rigid-Self ext.

ASTM-D-635

Designation strip window

Opaque Rigid-Self ext.

ASTM-D-635

Designation strip marking strip

Zinc

Alloy #3

ASTM-B-240/B-86

Selected non-functional parts

Connectors

Patching

Frequency Range

BNC

TNC

70 Series

150 Series

450 Series

WE Standard

WE Miniature

RCA Standard

0-4 GHz

0-11 GHz

0-500 MHz

0-2 MHz

0-1 GHz

0-200 MHz

VSWR

1.30 Max.

Not Rated

1.04 @ 75 MHz

1.06 Max.

1.05 @ 50 MHz

1.12 @ 100 MHz

1.09 @ 100 MHz

1.18 @ 500 MHz

1.33 @ 500 MHz

Voltage Rating

500 VRMS@ Sea Level

500 VRMS @ Sea Level

400 VRMS @ Sea Level

250 VRMS @ Sea Level

150 VRMS @ Sea Level

500 VRMS @ Sea Level

250 VRMS @ Sea Level

500 VRMS @ Sea Level

125 VRMS @ 70,000 ft.

100 VRMS @
70,000 ft.

62.5 VRMS @
70,000 ft.

Not Rated

Temperature Range

-65°C to 165°C

-65°C to 200°C

-65°C to 165°C

-65°C to165°C

trompeterproductcatalog-html.html

PPE

BNC Coax Tool Crimp Assembly Illustration

Step 1

1. Place crimp sleeve onto cable with the step located away from
the cut end as shown.

2. Strip cable as shown and flare braid.

3. On connectors with cable group number -001 thru -007, and
-027 only, slide filler sleeve fully under braid, then bushing under
cable dielectric.

4. Crimp contact pin in position shown.

Step 2

1. Push cable assembly into the body until the contact pin snaps
into place.

2. Slide crimp sleeve forward over braid, up against the body

assembly and crimp in place.

BNC Coax Wrench Crimp Assembly Illustration

Step 1

1. Place clamp nut onto cable.

2. Strip cable as shown and flare braid to allow free entry of cone
(Lateral slits 180° apart may be required for very inflexible jacket
materials).

3. Lightly tin center conductor (optional).

Step 2

1. Push edge of cone between cable dielectric and braid (or
between foil and braid, if foil is present, and cone I.D. will accept
it). Continue to push cable into cone until cable dielectric bottoms
against cone dielectric. Center conductor should be visible in pin
inspection hole.

2. Solder center conductor into pin.

Step 3

1. Bring clamp nut up onto tapered portion of cable.

2. Assemble body and engage with clamp nut.

3. Wrench tighten to 25-30 inch-pounds torque.

Notes: For Illustration purposes only. Not intended to replace actual installation instructions.

CRIMP

SLEEVE

FILLER SLEEVE & BUSHING

BODY ASSY

CABLE STRIPPING

.156

.344

.250

FILLER SLEEVE

(SEE STEP 1, LINE 3)

CRIMP SLEEVE

PIN CONTACT

FLARE

(USED ONLY ON CONNECTORS

-001 THRU -007 & -027)

.632

.593 DIA MAX

1.132

CRIMP SLEEVE

CONTACT PIN

PIN/CONE

ASSY

PIN/CONE ASSY

SOLDER

CLAMP NUT

BODY ASSY

CENTER

CONDUCTOR

CABLE STRIPPING

.158

.312

CABLE DIELECTRIC

FLARE

BNC Tool/Wrench Crimp Assembly Illustrations

Appendix

trompeterproductcatalog-html.html

PPE
N

Trompeter  provides  cable  connectors  with  configurations
designed  to  provide  tough,  durable  terminations  on  specific
cables.    Cable  connector  part  numbers  reference  a  specific
cable  group  number  for  a  specific  cable  type,  model,  and/or
manufacturer. This

ensures

that the connector fits your cable and

provides the toughest termination available in the industry.

If you know the part number and manufacturer of your cable, you
can locate the cable's assigned cable group number using the
cable group table in the following pages.

If you have a Trompeter connector, you can determine the cable
group number by the last hyphenated suffix, (usually 1 to 3 digits).

Example: UPL220-026 = cable group number -026

If you cannot satisfy your connector requirements with the
standard cable group number, or have a special requirement,
contact your local Trompeter representative listed on the back
inside cover of this catalog, or you can visit our website at www.
EmersonConnectivity.com to find the sales rep nearest you.
Contact customer service for more information.

Note: Cables of the same type and specification may vary from
manufacturer to manufacturer. Always verify the cable group
number for your connector type and manufacturer.

The symbol - after the part numbers listed in this catalog
indicates that you should refer to the cable group table in the
proceeding pages.

Wrench style = Wrench Crimp

Crimp style = Tool Crimp

If your cable group is not listed, contact customer service for assistance.

Cable Group Table Notes

Note: All dimensions in the proceeding Cable Group Table are in thousandths of
an inch.

Appendix

For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

ALCATEL

0960 WL

COAX

-004

0.093

0.011

ALCATEL

ASNE 0690 WL

COAX

-004

0.093

0.011

ALCATEL

CDE 003

TWINAX

-204

0.140

0.024

ALPHA

8620

COAX

-41

-020

0.270

0.041

ALPHA

9059

COAX

-2

-013

0.242

0.026

ALPHA

9102

COAX

-023

0.212

0.032

ALPHA

9108

TWINAX

-55

0.210

0.038

ALPHA

9109

TWINAX

-213

0.252

0.037

100

ALPHA

9158

COAX

-21

0.165

0.035

ALPHA

9174

COAX

-5

-003

0.100

0.021

ALPHA

9316

COAX

-5

-003

0.098

0.021

ALPHA

9807

COAX

-51

-016

0.304

0.032

ALPHA

9817

TWINAX

-8

0.327

0.038

100

ALPHA

9830

COAX

-2

-013

0.242

0.025

ALPHA

9840

COAX

-2

-013

0.240

0.025

ALPHA

9847

COAX

-053

0.405

0.064

ALPHA

9850

TRIAX

-13

TOO LARGE

0.314

0.032

ALPHA

9858

COAX

-1

-011

0.193

0.036

ALPHA

2834/2

TWINAX

-45

0.137

0.032

600V

ALPHA

9058C

COAX

-1

-011

0.194

0.038

ALPHA

9179B

COAX

-5

-004

0.101

0.012

ALPHA

9180B

COAX

-4

0.140

0.038

ALPHA

9187A

COAX

-36

-004

0.105

0.010

ALPHA

9196A

COAX

-44

-1

0.070

0.011

ALPHA

9804C

COAX

-41

-020

0.275

0.040

ALPHA

9814C

TWINAX

-213

0.244

0.038

ALPHA

9818C

TWINAX

-8

0.330

0.037

100

ALPHA

9825C

COAX

-6A

0.400

0.064

ALPHA

9861C

COAX

-1

-011

0.192

0.038

ALPHA

9871F

COAX

-011

0.182

0.037

ALPHA WIRE

2821/2

TWINAX

-27

0.138

0.024

600V

AMPHENOL

82-5588

TWINAX

-8

0.330

00.39

AMPHENOL CNDA

21-1060

COAX

-6

-016

AT&T (LUCENT)

733

COAX

-027

AT&T (LUCENT)

1735A

COAX

-026

0.128

0.016

AT&T (LUCENT)

2735A

COAX

-22

-026

0.140

0.015

AT&T (LUCENT)

734D

COAX

-63

-025

0.236

0.031

AT&T (LUCENT)

735A

COAX

-026

0.125

0.016

AT&T (LUCENT)

NSI 4609 805 13019

COAX

-37

0.166

0.016

AT&T (LUCENT)

724

COAX

-6

-016

0.304

0.033

AT&T (LUCENT)

728

COAX

-6

-016

0.304

0.033

AT&T (LUCENT)

731

COAX

-2

-015

0.248

0.023

AT&T (LUCENT)

730A

COAX

-2B

-015

0.255

0.025

AT&T (LUCENT)

734A

COAX

-63

-025

0.236

0.031

AT&T (LUCENT)

KS-19224L2

COAX

-31

0.116

0.011

AT&T (W.E.CO)

16PEVL

TWINAX

-12

0.460

0.051

AT&T (W.E.CO)

754E

TWINAX

-10

0.420

0.040

AT&T (W.E.CO)

760A

TWINAX

-11

TOO LARGE

0.308

0.025

AT&T (W.E.CO)

761A

TWINAX

-30

0.215

0.021

BELDEN

8208

TWINAX

-25

0.257

0.047

300V

BELDEN

8212

COAX

-2

-014

0.242

0.032

BELDEN

8213

COAX

-6A

-053

0.405

0.064

BELDEN

8215

COAX

-6E

-017

0.332

0.028

BELDEN

8216

COAX

-5

-003

0.103

0.020

Cable Group Table

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

BELDEN

8218

COAX

-22

-009

0.150

0.017

BELDEN

8219

COAX

-1

-011

0.195

0.037

BELDEN

8221

COAX

-2

-013

0.242

0.025

BELDEN

8227

TWINAX

-8

0.330

0.039

BELDEN

8232

TRIAX

-13A

TOO LARGE

0.312

0.032

BELDEN

8233

TRIAX

-14

0.475

0.064

BELDEN

8237

COAX

-6A

0.405

0.085

BELDEN

8238

COAX

-6A

0.405

0.048

BELDEN

8240

COAX

-1

-021

0.195

0.032

51.5

BELDEN

8241

COAX

-2

-013

0.242

0.025

BELDEN

8259

COAX

-1

-011

0.195

0.040

BELDEN

8261

COAX

-6A

0.405

0.049

BELDEN

8262

COAX

-1

-011

0.192

0.038

BELDEN

8263

COAX

-2

-013

0.242

0.023

BELDEN

8267

COAX

-6A

0.405

0.086

BELDEN

8268

COAX

-6B

TOO LARGE

0.425

0.089

BELDEN

8279

COAX

-2A

-022

0.220

0.025

BELDEN

8281

COAX

-6

-016

0.307

0.030

BELDEN

8422

TWINAX

-9

0.231

0.025

1000V

BELDEN

8441

TWP

0.210

0.025

300V

BELDEN

8450

TWINAX

-27

0.121

0.025

200V

BELDEN

8451

TWINAX

-23

-210

0.140

0.031

300V

BELDEN

9011

COAX

-6A

-053

0.405

0.064

BELDEN

9054

COAX

-2

-014

0.242

0.032

BELDEN

9060

COAX

-41

0.284

0.040

BELDEN

9064

COAX

-6A

0.400

0.064

BELDEN

9066

COAX

-41

-020

0.275

0.041

BELDEN

9068

COAX

-22

-009

0.146

0.016

BELDEN

9100

COAX

-2

-014

0.237

0.032

BELDEN

9104

COAX

-2A

0.243

0.032

BELDEN

9108

COAX

-014

0.237

0.032

BELDEN

9110

COAX

-2

-014

0.242

0.032

BELDEN

9112

COAX

-2

0.242

0.032

BELDEN

9114

COAX

-41

-020

0.270

0.040

BELDEN

9116

COAX

-41

-020

0.278

0.038

BELDEN

9141

COAX

-6

-016

0.304

0.033

BELDEN

9146

COAX

BELDEN

9165

COAX

-2

-013A

0.242

0.030

BELDEN

9167

COAX

-2

-014

0.243

0.032

BELDEN

9168

COAX

-41

-020

0.275

0.040

BELDEN

9169

COAX

-2B

-015

0.249

0.025

BELDEN

9170

COAX

-4

0.140

0.022

BELDEN

9171

COAX

-2

-013A

0.242

0.030

BELDEN

9201

COAX

-1

-021

0.193

0.033

BELDEN

9203

COAX

-1

-021

0.195

0.035

BELDEN

9204

COAX

-013

0.241

0.025

BELDEN

9207

TWINAX

-8

0.330

0.039

100

BELDEN

9209

COAX

-63

-019

0.226

0.022

BELDEN

9212

COAX

-6A

0.405

0.048

BELDEN

9221

COAX

-5

-004

0.102

0.012

BELDEN

9222

TRIAX

-7

-306

0.239

0.040

BELDEN

9223

COAX

-1

0.195

0.030

BELDEN

9228

COAX

-2

-013

0.242

0.025

BELDEN

9231

COAX

-6

-016

0.304

0.032

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

BELDEN

9239

COAX

-5

-003

0.104

0.019

BELDEN

9240

COAX

-2

-014

0.241

0.032

BELDEN

9243

COAX

-2

-014

0.242

0.032

BELDEN

9244

COAX

-2

-013

0.242

0.025

BELDEN

9248

COAX

-41

-020

0.270

0.036

BELDEN

9250

TWINAX

-10

0.420

0.046

BELDEN

9251

COAX

-6A

0.405

0.085

BELDEN

9252

COAX

-010

0.160

0.030

BELDEN

9254

COAX

-22

-009

0.142

0.019

BELDEN

9259

COAX

-2A

-023

0.234

0.030

BELDEN

9265

COAX

-2

-014

0.242

0.031

BELDEN

9266

COAX

-2

-013A

0.245

0.031

BELDEN

9268

COAX

-018

0.260

0.025

BELDEN

9272

TWINAX

-9

-213

0.242

0.037

BELDEN

9273

COAX

-3

-012

0.216

0.035

BELDEN

9274

COAX

-2

-014

0.242

0.032

BELDEN

9275

COAX

-2

-14

0.242

0.032

BELDEN

9284

COAX

-41

-020

0.275

0.040

BELDEN

9291

COAX

-2

-013

0.242

0.025

BELDEN

9292

COAX

-6A

-053

0.405

0.064

BELDEN

9310

COAX

-011

0.194

0.035

BELDEN

9311

COAX

-1

-011

0.193

0.037

BELDEN

9386

COAX

-41

-020

0.275

0.040

BELDEN

9448

COAX

-2

-013

0.242

0.025

BELDEN

9463

TWINAX

-9

-213

0.240

0.037

BELDEN

9555

COAX

-2

-013

0.242

0.023

BELDEN

9587

COAX

-41

-020

0.275

0.040

BELDEN

9589

COAX

-2

0.242

0.032

BELDEN

9659

COAX

-2

-013A

0.242

0.030

BELDEN

9764

COAX

-6A

0.405

0.064

BELDEN

9815

TWINAX

-8

0.330

0.037

100

BELDEN

9841

TWINAX

-9

-215

0.256

0.025

120

BELDEN

9850

COAX

-6B

0.425

0.048

BELDEN

9857

COAX

-6A

0.405

0.025

125

BELDEN

9859

TWINAX

-213

0.243

0.038

BELDEN

9860

TWINAX

-46

0.440

0.051

124

BELDEN

9861

COAX

-6E

0.332

0.057

BELDEN

9880

COAX

-48

0.405

0.086

BELDEN

9907

COAX

-1

-011

0.185

0.037

BELDEN

46899

COAX

-1

0.199

0.024

BELDEN

81553

TWINAX

-47

-201

0.129

0.024

BELDEN

82120

COAX

-34

-024

0.244

0.040

BELDEN

82121

COAX

-52

-024

0.240

0.040

BELDEN

82907

COAX

-21

0.163

0.036

BELDEN

83241

COAX

-011

0.187

0.037

BELDEN

83242

COAX

-1

-012

0.193

0.039

BELDEN

83264

COAX

-5

-004

0.100

0.012

BELDEN

83265

COAX

-5A

-001

0.071

0.010

BELDEN

83266

COAX

-22

-008

0.141

0.012

BELDEN

83267

COAX

-36

-004

0.110

0.012

BELDEN

83269

COAX

-5

-003

0.100

0.018

BELDEN

83284

COAX

-5

-003

0.100

0.021

BELDEN

83303

COAX

-44

0.075

0.019

600V

BELDEN

83310

TWINAX

-29

-207

0.120

0.031

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

Cable Group Tables

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

BELDEN

83317

TWINAX

-223

0.112

0.019

600V

BELDEN

83318

TWINAX

-29

-204

0.132

0.025

600V

BELDEN

83319

TWINAX

-221

0.139

0.032

BELDEN

84142

COAX

-1

-021

0.195

0.037

BELDEN

84303

COAX

-21

-011

0.170

0.037

BELDEN

86262

COAX

-2A

-022

0.220

0.025

BELDEN

87108

COAX

-2A

-023

BELDEN

87120

COAX

-52

-024

0.256

0.040

BELDEN

88281

COAX

-41

0.270

0.031

BELDEN

89108

COAX

-2A

-023

0.218

0.032

BELDEN

89120

COAX

-52

0.235

0.041

BELDEN

89162

COAX

-2A

-019

BELDEN

89182

TWINAX

-54

0.307

0.031

150

BELDEN

89248

COAX

-52

0.222

0.040

BELDEN

89269

COAX

-2A

-022

0.222

0.025

BELDEN

89272

TWINAX

-55

0.220

0.039

BELDEN

89292

COAX

-052

0.348

0.064

BELDEN

89555

COAX

-53

-019

0.230

0.023

BELDEN

89880

COAX

-50

0.375

0.086

BELDEN

89907

COAX

-21 (20/90)

0.160

0.037

BELDEN

513945

COAX

-052

0.405

0.064

BELDEN

533945

COAX

-41

-020

0.266

0.041

BELDEN

549945

COAX

-023

0.232

0.032

BELDEN

551945

COAX

-023

0.232

0.030

BELDEN

568937

COAX

-36

-027

0.123

0.016

BELDEN

573945

COAX

-22

-009

0.146

0.018

BELDEN

613948

COAX

-025

0.348

0.064

BELDEN

1151A

COAX

-2

-013A

0.247

0.032

BELDEN

1152A

COAX

-41

0.280

0.040

BELDEN

1162A

TWINAX

-8

0.330

0.037

100

BELDEN

1163A

COAX

-6

-016

100

BELDEN

1164B

COAX

-22

-009

0.145

0.019

BELDEN

1167A

COAX

-22

-009

0.152

0.020

BELDEN

1167B

COAX

-22

-009

0.146

0.019

BELDEN

1168A

COAX

-141

0.141

0.037

BELDEN

1223A

COAX

-41

-020

0.275

0.040

BELDEN

1263A

COAX

-009

0.160

0.021

BELDEN

1406B

COAX

-22

-009

0.146

0.019

BELDEN

1407B

COAX

-22

-009

0.146

0.019

BELDEN

1417B

COAX

-009

0.150

0.018

BELDEN

1418B

COAX

-22

-009

0.150

0.015

BELDEN

1426A

COAX

-2

-014

0.242

0.032

BELDEN

1505A

COAX

-2

-025

0.234

0.032

BELDEN

1505F

COAX

-2

0.242

0.034

BELDEN

1520A

COAX

-5

-004

0.102

0.012

BELDEN

1521A

COAX

-004

0.560

0.012

BELDEN

1522A

COAX

-36

-004

0.107

0.012

BELDEN

1523A

COAX

-6A

-053

0.400

0.064

BELDEN

1525A

COAX

-6A

TOO LARGE

0.404

0.064

BELDEN

1530A

COAX

-41

-020

0.270

0.040

BELDEN

1547A

COAX

-41

-020

0.275

0.040

BELDEN

1617A

COAX

-6B

TOO LARGE

0.407

0.064

BELDEN

1671A

COAX

-86

-003

0.087

0.020

BELDEN

1671J

COAX

-31

0.127

0.020

trompeterproductcatalog-html.html

PPE

Cable Group Table

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

BELDEN

1672A

COAX

-86

-004

0.087

0.011

BELDEN

1672J

COAX

-31

-027

0.127

0.011

BELDEN

1694A

COAX

-41

-020

0.282

0.040

BELDEN

1696A

TWINAX

-215

0.240

0.031

110

BELDEN

1800A

TWINAX

-212

0.184

0.024

110

BELDEN

1800B

TWINAX

-212

0.180

0.024

110

BELDEN

1800F

TWINAX

-30

0.216

0.024

110

BELDEN

1807A

COAX

-5

-004

0.110

0.012

BELDEN

1808A

COAX

-5

-004

0.110

0.012

BELDEN

1809A

COAX

-63

-025

0.234

0.032

BELDEN

1829A

COAX

-41

-020

0.270

0.040

BELDEN

1865A

COAX

-22

-09

0.152

0.020

BELDEN

1880A

TWINAX

-212

0.184

0.024

BELDEN

3092A

COAX

-51

0.298

0.040

BELDEN

4-27046-3265

TWINAX

0.200

0.023

BELDEN

5339b5

COAX

-020

0.266

0.040

BELDEN

5339Q5

COAX

-016

0.298

0.040

BELDEN

5399B5

COAX

-020

0.270

0.040

BELDEN

5539Y5

COAX

-022

0.232

0.025

BELDEN

6139B8

COAX

-052

0.348

0.064

BELDEN

6339Q8

COAX

-024

0.248

0.040

BELDEN

6439Q8

COAX

-023

0.230

0.032

BELDEN

734D()

COAX

-025

BELDEN

734D()T

COAX

-025

BELDEN

734D1

COAX

-025

0.235

0.032

BELDEN

735A()

COAX

-026

BELDEN

735A()T

COAX

-026

BELDEN

735A1

COAX

-026

0.129

0.016

BELDEN

7700A

COAX

-5

-004

0.107

0.012

BELDEN

7710A

COAX

-41

-020

0.275

0.040

BELDEN

7713A

COAX

-41

-020

0.275

0.040

BELDEN

7731A

COAX

-6A

-053

0.405

0.064

BELDEN

7788A

COAX

-4

-009

0.159

0.023

BELDEN

7794A

COAX

-023

0.235

0.032

BELDEN

7805A

COAX

-5

-003

0.105

0.018

BELDEN

7806A

COAX

-1

-011

0.195

0.037

BELDEN

7807A

COAX

-1

0.195

0.044

BELDEN

8232A

TRIAX

-13A

TOO LARGE

0.315

0.032

BELDEN

8233A

TRIAX

-14

0.475

0.048

BELDEN

8241A

COAX

-2

-013

0.242

0.025

BELDEN

8241B

COAX

-2

-013

0.242

0.023

BELDEN

8241F

COAX

-2

-013A

0.242

0.030

BELDEN

8281B

COAX

-6

-016

0.307

0.030

BELDEN

8281F

COAX

-51

-016

0.300

0.033

BELDEN

9062A

COAX

-2

-013

0.242

0.025

BELDEN

9269_

COAX

-2

-013

0.242

0.025

BELDEN

97300 2802

TWINAX

-050

0.94

0.012

BELDEN

9913F

COAX

-050

0.408

0.108

BELDEN

M9100

COAX

-2

-014

0.240

0.032

BELDEN

M9815

TWINAX

-8

BELDEN

PD7163

COAX

-004

0.100

0.010

BELDEN

SS895

COAX

-36

-027

0.123

0.016

BELDEN

YM23969

COAX

-34

0.244

0.033

BELDEN

YQ10474

TWINAX

-25

0.268

0.032

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

BELDEN

YQ28763

TWINAX

-55

0.200

BELDEN

YQ40343

COAX

-5

-004

0.95

0.012

BELDEN

YQ41416

TRIAX

-10

TOO LARGE

0.410

0.063

BELDEN

YQ44343

COAX

-009

0.142

0.019

BELDEN

YR-14910

TWINAX

-29

-202

0.150

0.024

BELDEN

YR-15161

TWINAX

-29

BELDEN

YR16411

TWINAX

-9

0.247

0.023

BELDEN

YR-19218

TWINAX

-29

-203

0.150

0.012

124

BELDEN

YR23023

COAX

-009

0.160

0.020

BELDEN

YR23930

COAX

-2

-014

0.242

0.032

BELDEN

YR27110

COAX

-22

-009

0.162

0.021

BELDEN

YR27543

TWINAX

-27

0.117

0.012

BELDEN

YR28296

TWINAX

-203

0.162

0.012

BELDEN

YR28314

COAX

-009

0.162

0.019

BELDEN

YR28365

COAX

-2

-013

0.245

0.025

100

BELDEN

YR39667

COAX

-22

-009

0.152

0.020

BELDEN

YR40974

COAX

-36

-007

0.113

0.012

BELDEN

YR41007

COAX

-63

-025

0.235

0.032

BELDEN

YR41039

COAX

-22

-009

0.155

0.020

BELDEN

YR41679

COAX

-014

0.242

0.032

BELDEN

YR45056

COAX

-026

0.131

0.017

BELDEN

YR45301

COAX

-026

0.131

0.017

BELDEN

YR46359

COAX

-023

0.235

0.034

BELDEN

YR46400

COAX

-2A

-014

0.242

0.033

BELDEN

YR46844

COAX

-009

0.155

0.020

BRAND REX

T-14670

TWINAX

-215

0.237

0.030

BRAND REX

T18-11222-24-2/G-0

TWINAX

-27

-223

0.112

0.023

BRAND-REX

A-779

COAX

-5

-004

0.090

0.010

BRAND-REX

B-749

COAX

-44

105-1940 (220)

0.080

0.012

BRAND-REX

M17/183-00001

COAX

-1

-011

0.195

0.035

BRAND-REX

T- 378

COAX

-6

-016

0.312

0.031

BRAND-REX

T-10971

TWINAX

-24

-221

0.161

0.024

BRAND-REX

T-14018

TRIAX

-25A

0.250

0.030

BRAND-REX

T-2948

TRIAX

-26

0.165

0.012

BRAND-REX

T-385

COAX

-44

0.80

0.012

CANFORD

PSF 1/3

COAX

-2B

-015

0.250

0.024

COMMSCOPE

5905

COAX

-6A

-051

0.405

0.048

COMMSCOPE

222

COAX

-4

-009

0.155

0.024

COMMSCOPE

232

COAX

-4

-009

0.155

0.024

COMMSCOPE

242

COAX

-6A

0.415

0.064

COMMSCOPE

322

COAX

-009

0.160

0.020

COMMSCOPE

332

COAX

-4

-009

0.155

0.024

COMMSCOPE

356

COAX

-6A

0.415

0.064

COMMSCOPE

357

COAX

-024

0.260

0.040

COMMSCOPE

358

COAX

-41

-020

0.280

0.040

COMMSCOPE

401

COAX

-22

-009

0.155

0.020

COMMSCOPE

2035

COAX

-026

0.127

0.016

COMMSCOPE

3104

COAX

-1

-011

0.188

0.037

COMMSCOPE

3130

COAX

-1

-021

0.201

0.032

COMMSCOPE

3135

COAX

-1

-021

0.199

0.035

COMMSCOPE

3136

COAX

-1

-011

0.199

0.037

COMMSCOPE

3139

COAX

-1

-021

0.202

0.031

COMMSCOPE

3140

COAX

-1

-021

0.195

0.033

COMMSCOPE

3141

COAX

-41

-020

0.272

0.040

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

COMMSCOPE

3222

COAX

TOO LARGE

0.412

0.106

COMMSCOPE

3226

COAX

TOO LARGE

0.412

0.106

COMMSCOPE

3246

COAX

-6B

0.418

0.086

COMMSCOPE

3247

COAX

-6B

0.418

0.086

COMMSCOPE

3249

COAX

-6B

0.413

0.086

COMMSCOPE

3250

COAX

-48

TOO LARGE

0.413

0.086

COMMSCOPE

5060

COAX

-6

0.308

0.040

COMMSCOPE

5061

COAX

-41

0.264

0.040

COMMSCOPE

5065

COAX

-009

0.160

0.020

COMMSCOPE

5535

COAX

-026

0.128

0.017

COMMSCOPE

5550

COAX

-2

-013

0.242

0.025

COMMSCOPE

5551

COAX

-2

-015

0.250

0.025

COMMSCOPE

5553

COAX

-2

-014

0.250

0.032

COMMSCOPE

5554

COAX

-2

-014

0.250

0.032

COMMSCOPE

5555

COAX

-2

-015

0.250

0.025

COMMSCOPE

5559

COAX

-2

-013

0.242

0.025

COMMSCOPE

5560

COAX

-2

-015

0.250

0.025

COMMSCOPE

5563

COAX

-2

-013

0.250

0.023

COMMSCOPE

5565

COAX

-2

-014

0.242

0.032

COMMSCOPE

5567

COAX

-2

-014

0.250

0.032

COMMSCOPE

5569

COAX

-2

-014

0.250

0.032

COMMSCOPE

5571

COAX

-2

-014

0.248

0.032

COMMSCOPE

5572

COAX

-2

-014

0.248

0.032

COMMSCOPE

5573

COAX

-2

-014

0.246

0.032

COMMSCOPE

5574

COAX

-2

-014

0.248

0.032

COMMSCOPE

5575

COAX

-2

-014

0.246

0.032

COMMSCOPE

5585

COAX

-2

-014

0.242

0.032

COMMSCOPE

5586

COAX

-2

-014

0.247

0.032

COMMSCOPE

5589

COAX

-2A

-022

0.235

0.025

COMMSCOPE

5700

COAX

-41

-020

0.280

0.040

COMMSCOPE

5701

COAX

-41

-020

0.280

0.040

COMMSCOPE

5702

COAX

-41

-020

0.280

0.040

COMMSCOPE

5714

COAX

-41

-020

0.280

0.040

COMMSCOPE

5715

COAX

-41

-020

0.280

0.040

COMMSCOPE

5720

COAX

-41

-020

0.280

0.040

COMMSCOPE

5721

COAX

-41

-020

0.272

0.040

COMMSCOPE

5723

COAX

-41

-020

0.272

0.040

COMMSCOPE

5725

COAX

-41

-020

0.276

0.040

COMMSCOPE

5727

COAX

-41

-020

0.280

0.040

COMMSCOPE

5728

COAX

-41

-020

0.280

0.040

COMMSCOPE

5729

COAX

-41

-020

0.280

0.040

COMMSCOPE

5730

COAX

-41

-020

0.280

0.040

COMMSCOPE

5731

COAX

-41

-020

0.272

0.040

COMMSCOPE

5737

COAX

-41

-020

0.280

0.040

COMMSCOPE

5738

COAX

-41

-020

0.272

0.040

COMMSCOPE

5740

COAX

-6

0.308

0.040

COMMSCOPE

5742

COAX

-6

0.308

0.040

COMMSCOPE

5750

COAX

-6

0.308

0.040

COMMSCOPE

5765

COAX

-41

-020

0.280

0.040

COMMSCOPE

5781

COAX

-6

0.306

0.040

COMMSCOPE

5782

COAX

-6

0.308

0.040

COMMSCOPE

5786

COAX

-41

-020

0.280

0.040

COMMSCOPE

5787

COAX

-41

-020

0.272

0.040

COMMSCOPE

5788

COAX

-41

-020

0.280

0.40

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

COMMSCOPE

5789

COAX

-41

-020

0.272

0.040

COMMSCOPE

5790

COAX

-41

-020

0.272

0.040

COMMSCOPE

5901

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5902

COAX

-6A

0.415

0.064

COMMSCOPE

5903

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5904

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5906

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5908

COAX

-6A

-051

0.405

0.048

COMMSCOPE

5909

COAX

-6A

-051

0.405

0.048

COMMSCOPE

5910

COAX

-6A

-052

0.395

0.064

COMMSCOPE

5912

COAX

-6A

-052

0.395

0.064

COMMSCOPE

5913

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5914

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5914

COAX

-6A

0.415

0.064

COMMSCOPE

5915

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5916

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5917

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5918

COAX

-6A

0.412

0.064

COMMSCOPE

5920

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5920

COAX

-6A

0.415

0.064

COMMSCOPE

5940

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5950

COAX

-6A

-053

0.415

0.064

COMMSCOPE

5950

COAX

-6A

-053

0.405

0.064

COMMSCOPE

5951

COAX

-6A

0.405

0.064

COMMSCOPE

5952

COAX

-6A

0.415

0.064

COMMSCOPE

5953

COAX

-6A

0.415

0.064

COMMSCOPE

6200

COAX

-2

-015

0.242

0.025

COMMSCOPE

6201

COAX

-2

-013

0.242

0.025

COMMSCOPE

6205

COAX

-018

0.260

0.025

COMMSCOPE

6605

COAX

-018

0.267

0.025

COMMSCOPE

6608

COAX

-2

-015A

0.249

0.025

COMMSCOPE

6609

COAX

-2

-015A

0.249

0.025

COMMSCOPE

6611

COAX

-2

-015A

0.242

0.025

COMMSCOPE

6612

COAX

-2

-015A

0.242

0.025

COMMSCOPE

6615

COAX

-2

-015A

0.249

0.025

COMMSCOPE

7500

COAX

-6

-016

0.304

0.032

COMMSCOPE

7501

COAX

-6

-016

0.304

0.032

COMMSCOPE

7503

COAX

-6

-016

0.304

0.032

COMMSCOPE

7505

COAX

-6

-016

0.305

0.032

COMMSCOPE

7506

COAX

-6

-016

0.304

0.033

COMMSCOPE

7510

COAX

-6

-016

0.304

0.031

COMMSCOPE

7530

COAX

-054

0.318

0.051

COMMSCOPE

7536

COAX

-4

-009

0.150

0.023

COMMSCOPE

7537

COAX

-4

-009

0.154

0.023

COMMSCOPE

7538

COAX

-37

-009

0.159

0.022

COMMSCOPE

7551

COAX

-41

-020

0.272

0.040

COMMSCOPE

7573

COAX

-2A

-022

0.220

0.027

COMMSCOPE

7713

COAX

-6A

0.413

0.086

COMMSCOPE

7714

COAX

-6B

TOO LARGE

0.425

0.089

COMMSCOPE

7714

COAX

-6B

0.432

0.088

COMMSCOPE

7715

COAX

-6B

0.432

0.088

COMMSCOPE

7723

COAX

-3

-012

0.212

0.036

COMMSCOPE

7725

COAX

-023

0.220

0.036

COMMSCOPE

7726

COAX

-3

-012

0.220

0.036

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

COMMSCOPE

7810

TRIAX

TOO LARGE

0.325

0.032

COMMSCOPE

9012

TWINAX

-9

0.241

0.037

COMMSCOPE

57603

COAX

-41

-020

0.272

0.040

COMMSCOPE

57604

COAX

-41

-020

0.272

0.040

COMMSCOPE

57605

COAX

-41

-020

0.272

0.040

COMMSCOPE

72001

COAX

-22

-009

0.155

0.020

COMMSCOPE

72012

COAX

-22

-009

0.155

0.020

COMMSCOPE

72312

COAX

-026

0.127

0.016

COMMSCOPE

73501

COAX

-026

0.130

0.016

COMMSCOPE

73502

COAX

-026

0.130

0.016

COMMSCOPE

73503

COAX

-026

0.130

0.016

COMMSCOPE

73506

COAX

-026

0.127

0.016

COMMSCOPE

73508

COAX

-026

0.127

0.016

COMMSCOPE

73509

COAX

-026

0.127

0.016

COMMSCOPE

73512

COAX

-026

0.126

0.015

COMMSCOPE

75603

COAX

-009

0.150

0.022

COMMSCOPE

75604

COAX

-009

0.150

0.022

COMMSCOPE

556510

COAX

-2

-014

0.242

0.032

COMMSCOPE

576503

COAX

-41

-020

0.272

0.040

COMMSCOPE

576504

COAX

-41

-020

0.272

0.040

COMMSCOPE

576505

COAX

-41

-020

0.272

0.040

COMMSCOPE

753603

COAX

-4

-009

0.150

0.022

COMMSCOPE

753604

COAX

-4

-009

0.150

0.022

COMMSCOPE

753605

COAX

-4

-009

0.150

0.022

COMMSCOPE

0132K

COAX

-024

0.242

0.040

COMMSCOPE

0132V

COAX

-024

0.242

0.040

COMMSCOPE

0219K

COAX

-1

-012

0.200

0.036

COMMSCOPE

0247K

COAX

-41

-020

0.268

0.040

COMMSCOPE

0247V

COAX

-41

-020

0.268

0.040

COMMSCOPE

0359K

COAX

-024

0.241

0.041

COMMSCOPE

0359K

COAX

-024

0.241

0.041

COMMSCOPE

2022K

COAX

-2

-023

0.239

0.032

COMMSCOPE

2022V

COAX

-2

-23

0.239

0.032

COMMSCOPE

2068K

COAX

-63

-025

0.219

0.032

COMMSCOPE

2100K

COAX

-21

0.169

0.032

COMMSCOPE

2100V

COAX

-21

0.169

0.032

COMMSCOPE

2125K

COAX

-1

-012

0.200

0.036

COMMSCOPE

2227K

COAX

-41

-020

0.264

0.040

COMMSCOPE

2227V

COAX

-41

0.264

0.040

COMMSCOPE

2229V

COAX

-41

-020

0.268

0.040

COMMSCOPE

2274V

COAX

-024

0.241

0.040

COMMSCOPE

2275K

COAX

-024

0.241

0.040

COMMSCOPE

2275V

COAX

-024

0.241

0.040

COMMSCOPE

2276V

COAX

-024

0.241

0.040

COMMSCOPE

2278K

COAX

-024

0.242

0.040

COMMSCOPE

2291K

TWINAX

-25

0.260

0.039

100

COMMSCOPE

2525K

COAX

-016

0.290

0.031

COMMSCOPE

2527K

COAX

-41

0.279

0.032

COMMSCOPE

425-0256

COAX

-025

0.240

0.033

COMMSCOPE

5060F

COAX

-6

0.308

0.040

COMMSCOPE

5060R

COAX

-6

0.308

0.040

COMMSCOPE

5550M

COAX

-2

-013A

0.242

0.030

COMMSCOPE

5568M

COAX

-025

0.240

0.033

COMMSCOPE

5726R

COAX

-41

-020

0.276

0.041

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

COMMSCOPE

5740F

COAX

-6

0.308

0.038

COMMSCOPE

5740H1

COAX

-6

0.308

0.040

COMMSCOPE

5740R

COAX

-6

0.308

0.040

COMMSCOPE

5913R

COAX

-6A

0.415

0.064

COMMSCOPE

5916R

COAX

-6A

TOO LARGE

0.415

0.064

COMMSCOPE

720T1

COAX

-22

-009

0.155

0.020

COMMSCOPE

720T2

COAX

-22

-009

0.155

0.020

COMMSCOPE

734C()

COAX

-63

-025

0.236

0.032

COMMSCOPE

734C1H

COAX

-63

-025

0.236

0.032

COMMSCOPE

734C1P

COAX

-63

0.219

0.032

COMMSCOPE

734S( )

COAX

-63

-025

0.236

0.032

COMMSCOPE

734S1H

COAX

-63

-025

0.236

0.032

COMMSCOPE

734ST

COAX

-63

-025

0.236

0.032

COMMSCOPE

734STH

COAX

-63

-025

0.236

0.032

COMMSCOPE

735(#)

COAX

-026

0.130

0.016

COMMSCOPE

735()H

COAX

-026

0.129

0.016

COMMSCOPE

735()P

COAX

-026

0.127

0.016

COMMSCOPE

73501B

COAX

-026

0.137

0.016

COMMSCOPE

73501H

COAX

-026

0.127

0.016

COMMSCOPE

73502H

COAX

-026

0.127

0.016

COMMSCOPE

735T()H

COAX

-026

0.129

0.016

COMMSCOPE

735T2

COAX

-026

0.126

0.016

COMMSCOPE

F1160BV

COAX

-6A

0.395

0.064

COMMSCOPE

F1160BVV

COAX

-6A

0.395

0.064

COMMSCOPE

F11SSEF

COAX

-6A

0.405

0.064

COMMSCOPE

F11SSVV

COAX

-6A

TOO LARGE

0.395

0.064

COMMSCOPE

F5967BVM

COAX

-2

-014

0.240

0.032

COMMSCOPE

F5967BVV

COAX

-2

-014

0.240

0.032

COMMSCOPE

F660BVV

COAX

-41

-020

0.272

0.040

COMMSCOPE

F6SSEF

COAX

-6

0.300

0.040

COMMSCOPE

F6SSVM-APDI-22-APD

COAX

-020

0.281

0.040

COMMSCOPE

OP73801DB

COAX

-6

0.290

0.040

COMMSCOPE

VDM230

COAX

-009

0.171

0.023

COMMSCOPE

WBC-300(R)

COAX

-6

0.070

COMMSCOPE

5726

COAX

-41

-020

0.272

0.040

COMPOSITE VIDEO

VA-2/2

COAX

-009

COMPREHENSIVE VIDEO

CVC-59STXF

COAX

-2

-023

0.236

0.031

CONSOLIDATED

4459

COAX

-5

-003

0.105

0.019

CONSOLIDATED

4462

TRIAX

0.485

0.091

DRAKA

0.6/3.7

COAX

-022

0.237

0.024

DRAKA


COAX

-019

0.232

0.031

DRAKA-HELEX

32448A

COAX

-030

DRAKE


COAX

-020

0.268

0.039

ESSEX

1000

COAX

-6A

0.405

0.085

ESSEX

21-004

COAX

-6A

0.405

0.085

ESSEX

21-025

COAX

-2

0.242

0.025

ESSEX

21-204

TRIAX

-42

0.285

0.036

ESSEX

21-529

TRIAX

-14

0.460

0.049

ESSEX

21-537

COAX

-1

-011

0.195

0.036

ESSEX

21-541

COAX

-2

-013

0.242

0.025

ESSEX

21-583

TRIAX

-15

TOO LARGE

0.490

0.085

ESSEX

21-597

COAX

-22

-009

0.150

0.017

ESSEX

21-780

COAX

-6B

0.420

0.087

ESSEX

21-795

COAX

-2

0.242

0.023

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

ESSEX

421-098

COAX

-22

-008

0.145

0.012

ESSEX

421-111

COAX

-22

-008

0.155

0.012

ESSEX

421-176

COAX

-1

0.195

0.039

ESSEX

621-100

COAX

-6A

0.405

0.064

ESSEX

621-106

TRIAX

-7

0.242

0.025

ESSEX

621-243

COAX

-41

0.270

0.040

ESSEX

621-284

COAX

-41

0.270

0.040

ESSEX

621-715

COAX

-1

0.195

0.025

FILOTEX

63247

TWINAX

-212

0.179

0.025

FILOTEX

96770

TWINAX

-47

0.142

0.024

FILOTEX

374693

COAX

-22

-009

0.149

0.020

FILOTEX

ET39110ED2

TRIAX

-15

TOO LARGE

0.490

0.064

FILOTEX

L910/39

COAX

-22

-009

0.155

0.020

FILOTEX

L910-42

COAX

-22

-009

0.155

0.020

FILOTEX

SP714

TRIAX

-23

0.138

0.012

GEPCO

7174

COAX

-5

-003

0.101

0.019

GEPCO

7537

COAX

-4

-009

0.160

0.023

GEPCO

7538

COAX

-37

-009

0.159

0.023

GEPCO

LVT61811

TRIAX

-15

TOO LARGE

0.516

0.068

GEPCO

RGB6000

COAX

-6

-016

0.304

0.032

GEPCO

RGB809

COAX

-22

-009

0.150

0.021

GEPCO

RGBS809

COAX

-22

-009

0.150

0.021

GEPCO

RGBSC809

COAX

-22

-009

0.150

0.021

GEPCO

V61859M

COAX

-2

0.242

0.030

GEPCO

V618J59

COAX

-2

-013

0.242

0.023

GEPCO

V618M59

COAX

-2

-013

0.242

0.023

GEPCO

VDFM809

COAX

-22

-009

0.150

0.021

GEPCO

VE61859

COAX

-2

-013A

0.242

0.030

GEPCO

VE61859M

COAX

-2

-013A

0.242

0.030

GEPCO

VFM809

COAX

-22

-009

0.150

0.022

GEPCO

VP6000

COAX

-6

-016

0.304

0.032

GEPCO

VP618PE/AP

COAX

-6

-016

0.304

0.032

GEPCO

VP618PE01

COAX

-6

-016

0.304

0.031

GEPCO

VP618PVC

COAX

-6

-016

0.304

0.032

GEPCO

VP618TK

COAX

-41

0.276

0.032

GEPCO

VPM1000

COAX

-2

-013

0.242

0.023

GEPCO

VPM2000

COAX

-2

-014

0.242

0.032

GEPCO

VPM618

COAX

-2A

-022

0.220

0.027

GEPCO

VS102000

COAX

-2

-014

0.243

0.032

GEPCO

VSD2001

COAX

-41

-020

0.273

0.040

GEPCO

VSM618

COAX

-22

-009

0.150

0.017

GEPCO

VT61811

TRIAX

-14

TOO LARGE

0.474

0.065

GORE

03352/CX

TRIAX

-303

0.150

0.012

GORE

C06C032

COAX

-5A

-001

0.075

0.019

GORE

CXA-8220

TRIAX

-60

-305

0.187

0.025

GORE

CXN-1352B

COAX

-44

0.078

0.016

GORE

CXN-1362

COAX

-36

0.101

0.031

GORE

CXN-1388

COAX

-5

-003

0.110

0.020

GORE

CXN-1456

COAX

-44

0.74

0.019

GORE

CXN-1722

COAX

-86

0.086

0.012

GORE

CXN-1939

COAX

-44

0.78

0.010

GORE

CXN-2223

TWINAX

-24

0.141

0.025

GORE

CXN-2268

TWINAX

-204

0.135

0.025

GORE

CXN-2363

TWINAX

-221

0.166

0.025

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

GORE

CXN-2702

TWINAX

-221

0.166

0.025

100

GORE

CXN-3101

COAX

-5

-004

0.93

0.012

GORE

CXN-3162

TWINAX

-223

0.112

0.021

100

GORE

CXN-3194

TWINAX

-204

0.138

0.024

GORE

CXN3268

TRIAX

-27 (150)

0.100

0.012

GORE

DXSN-1747

COAX

-44

-001

0.080

0.011

GORE

DXSN-1888

TWINAX

-203

0.148

0.015

150

GORE

DXSN1892

COAX

-36

0.103

0.018

GORE

GBL-075-024

TWINAX

-29

-204

0.132

0.025

GORE

GCX-075-26-REV A

COAX

-36

0.099

0.019

GORE

GSC 03-2236-00

COAX

-004

0.092

0.012

GORE

GSC-01-81457-00

TWINAX

-27

-209

0.118

0.016

120

GORE

GSC-05-80583-00

TWINAX

-202

0.145

0.021

GORE

GSC-12-1381-01

TWINAX

-45

0.160

0.024

GRUMMAN

GC875ACH1

TWINAX

-224

0.190

0.024

GRUMMAN

GC875GBI

TRIAX

-57

-302

0.164

0.033

GRUMMAN

GC875GC1

TRIAX

-56

-301

0.164

0.012

GRUMMAN

GC875GP1

COAX

-31

-006

0.128

0.020

GRUMMAN

GC875LNI

TWINAX

0.167

0.020

GRUMMAN

GC875PD1

COAX

-5A

0.063

0.012

GRUMMAN

GC875RM1

TWINAX

-45

-204

0.144

0.025

GRUMMAN

GC875RR1

QUADRAX

-33

-220

0.179

0.025

GRUMMAN

GC875TM24H

TRIAX

-58

-221

0.160

0.025

GRUMMAN

GC875TMH

TWINAX

-45

-204

0.146

0.025

H.P.

TXA114-P

TRIAX

0.217

0.021

HEWLETT PACKARD

8120-0049

COAX

-4

-008

0.155

0.010

HEWLETT PACKARD

8120-0552-1

COAX

-5B

0.110

0.015

HEWLETT PACKARD

8120-0789

COAX

-5B

0.110

0.015

HEWLETT PACKARD

8120-1105

COAX

-5B

-002

0.110

0.015

HEWLETT PACKARD

8120-1289

COAX

-2B

-015

0.255

0.025

HEWLETT PACKARD

8120-4461

COAX

-5

-003

0.093

0.018

HEWLETT PACKARD

8120-9026

COAX

-5B

0.110

0.015

HEWLETT PACKARD

A-8120-9077-1

COAX

-5

0.110

0.015

HITACHI

HCM-39441/1

COAX

-027

0.128

0.016

HITACHI

HCM-9441/12

COAX

-026

0.133

0.016

HITEMP

117P80660

COAX

-50

0.375

0.086

HITEMP

RD1152

COAX

-026

0.132

0.016

HITEMP

RD1152-2

COAX

-22

0.143

0.016

JUDD

740

COAX

-004

0.080

0.010

JUDD

735S01

COAX

-026

0.134

0.018

JUDD

C1401053

COAX

-63

-025

0.232

0.031

JUDD

C1401064

COAX

-026

0.132

0.016

JUDD

C1401741

COAX

-004

0.099

0.010

JUDD WIRE INC

SS502401

COAX

-5

-003

KEITHLEY

SC-22

TRIAX

-23

0.145

0.024

KEITHLEY

SC-9

COAX

-1

-021

0.195

0.035

LUCENT

407529262

COAX

-5

-004

0.106

0.010

LUCENT

848068607

COAX

-37

0.166

0.016

LUCENT

106 309 206 (2734A)

COAX

-025

0.225

0.031

LUCENT

1928 001A 1C/36

COAX

-026

0.133

0.015

LUCENT

735C

COAX

-026

0.139

0.016

LUCENT

KS23918 L2

COAX

-004

0.089

0.013

LUCENT

WP91681 L2

COAX

-004

0.089

0.013

M/A-COM

2250-E82832

COAX

-53

-022

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

MADISON

022H22BZID

TWINAX

-9

0.250

0.038

100

MADISON

12CFE00002

COAX

-009

0.158

0.020

MADISON

12EEK00001

COAX

-026

0.132

0.016

MADISON CABLE CORP

6096

COAX

-21

0.158

0.037

MICRODOT

202-3927-0000

TWINAX

-27

-208

0.110

0.011

117

MICRODOT

202-3934-0000

TWINAX

-24

-211

0.145

0.013

160

MICRODOT

202-3942-0000

TWINAX

-27

-209

0.207

0.025

110

MICRODOT

202-4547

TWINAX

-24

-211

0.098

0.020

160

MICRODOT

250-3833-0000

TRIAX

-303

0.270

0.030

MICRODOT

250-3834-0000

COAX

-5A

-001

0.400

0.095

MICRODOT

250-3902-0000

COAX

-5A

-001

0.141

0.036

MICRODOT

250-3908-0000

COAX

-5A

-001

0.128

0.012

MICRODOT

250-3909-0000

COAX

-44

0.087

0.021

MICRODOT

250-3920-0000

COAX

-5A

-001

0.087

0.021

MICRODOT

250-3967-0000

COAX

-5

-003

0.087

0.021

MICRODOT

250-4021-0000

COAX

-31

0.245

0.035

MICRODOT

250-4044-0000

TRIAX

-43

0.245

0.033

MICRODOT

250-4045-0000

TRIAX

-43

-302

0.500

0.089

MICRODOT

250-4070-0000

TRIAX

-56

-302

0.500

0.081

MICRODOT

250-4172-0000

COAX

0.500

0.089

MICRODOT

250-4180-0000

COAX

-5

-003

0.500

0.081

MICRODOT

250-4804-0000

TRIAX

-32

-203

0.105

0.012

MICRODOT

250-4816-0009

TRIAX

-27

0.145

0.013

MICRODOT

275-3930-000

TRIAX

0.102

0.021

MICRODOT

275-3933-0000

COAX

-4

-009

0.120

0.021

MICRODOT

275-3991

COAX

-36

0.200

0.038

MICRODOT

293-3902

COAX

-026

0.160

0.031

MICRODOT

293-3922-0000

TRIAX

-60

-305

0.200

0.039

MICRODOT

293-3930-0000

TRIAX

-43

0.336

0.057

100

MICRODOT

293-3968-0000

COAX

-22

-008

0.412

0.090

MICRODOT

295-3801-0000

COAX

-22

-008

0.432

0.090

MICRODOT

295-3802-0000

COAX

-22

0.432

0.090

MICRODOT

295-3950-0000

TRIAX

-43

0.216

0.036

MICRODOT

295-3952-0000

TRIAX

-43

0.075

0.013

MICRODOT

295-3992-000

COAX

-36

-007

0.288

0.060

MICRODOT

295-3993-0000

TRIAX

-64

-303

0.102

0.021

MILESTEK

30-01010

COAX

-2

-013

0.195

0.013

MIL-SPEC

2C2219EXJ

TWINAX

-47

-206

0.336

0.029

MIL-SPEC

M17/015-RG022

TWINAX

-10

0.475

0.048

MIL-SPEC

M17/094-RG179

COAX

-5

-004

0.105

0.013

MIL-SPEC

M17/095-RG180

COAX

-22

-008

0.145

0.013

MIL-SPEC

M17/113-RG316

COAX

-5

-003

0.098

0.020

MIL-SPEC

M17/130-RG402

COAX

-141

0.141

0.036

MIL-SPEC

M17/133-00002

COAX

-86

0.087

0.021

MIL-SPEC

M17/133-RG405

COAX

-86

0.087

0.021

MIL-SPEC

M17/134-00001

TRIAX

-7

-306

0.245

0.035

MIL-SPEC

M17/134-00002

TRIAX

-7

-306

0.245

0.033

MIL-SPEC

M17/135-00001

TRIAX

-14A

TOO LARGE

0.500

0.089

MIL-SPEC

M17/135-00003

TRIAX

-14A

0.500

0.081

MIL-SPEC

M17/135-00004

TRIAX

-14A

TOO LARGE

0.500

0.089

MIL-SPEC

M17/135-00005

TRIAX

-14A

TOO LARGE

0.500

0.081

MIL-SPEC

M17/135-00006

TRIAX

-14A

TOO LARGE

0.500

0.081

MIL-SPEC

M17/136-00001

COAX

-5

-004

0.105

0.012

MIL-SPEC

M17/137-00001

COAX

-22

-008

0.145

0.013

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

MIL-SPEC

M17/138-00001

COAX

-5

-003

0.102

0.021

MIL-SPEC

M17/152-00001

COAX

-5

-006

0.120

0.021

MIL-SPEC

M17/155-00001

COAX

-1

-011

0.200

0.038

MIL-SPEC

M17/157-00001

COAX

-4

-010

0.160

0.031

MIL-SPEC

M17/158-00001

COAX

-1

-012

0.200

0.039

MIL-SPEC

M17/162-00001

COAX

-6E

0.336

0.057

MIL-SPEC

M17/163-00001

COAX

-6A

0.412

0.090

MIL-SPEC

M17/164-00001

COAX

-6B

0.432

0.090

MIL-SPEC

M17/164-00002

COAX

-6B

0.432

0.090

MIL-SPEC

M17/167-00001

COAX

-3

-012

0.216

0.036

MIL-SPEC

M17/169-00001

COAX

-5A

-001

0.075

0.013

MIL-SPEC

M17/170-00001

COAX

-21

-011

0.175

0.038

MIL-SPEC

M17/171-00001

COAX

-41

0.288

0.060

MIL-SPEC

M17/172-00001

COAX

-5

-003

0.102

0.021

MIL-SPEC

M17/173-00001

COAX

-5

-003

0.100

0.019

MIL-SPEC

M17/174-00001

COAX

-6A

0.400

0.090

MIL-SPEC

M17/175-00001

COAX

-1

-012

0.200

0.039

MIL-SPEC

M17/176-00002

TWINAX

-47

-201

0.134

0.024

MIL-SPEC

M17/177-00001

TRIAX

-60

-305

0.189

0.013

MIL-SPEC

M17/179-00001

TRIAX

-305

0.195

0.013

MIL-SPEC

M17/180-00001

COAX

-6E

-017

0.336

0.029

MIL-SPEC

M17/181-00001

COAX

-6A

0.412

0.050

75.E

MIL-SPEC

M17/184-00001

COAX

-2

-013

0.246

0.024

MIL-SPEC

M17/186-00001

TWINAX

-9 ***

-213

0.245

0.040

MIL-SPEC

M17/187-00001

COAX

-4

0.160

0.031

MIL-SPEC

M17/189-00001

COAX

-6A

0.412

0.090

MIL-SPEC

M17/190-00001

COAX

-6B

TOO LARGE

0.432

0.089

MIL-SPEC

M17/196-00001

COAX

-5

0.115

0.019

MIL-SPEC

M17/200-00001

COAX

-3

-012

0.216

0.036

MIL-SPEC

M17/29-RG59

COAX

-2

-013

0.245

0.023

MIL-SPEC

M17/2-RG6

COAX

-6E

-017

0.336

0.029

MIL-SPEC

M17/30-RG062

COAX

-2B

-013

0.250

0.025

MIL-SPEC

M17/31-RG63

COAX

-6A

0.415

0.026

125

MIL-SPEC

M17/45-RG108

TWINAX

-9

-213

0.235

0.038

MIL-SPEC

M17/47-RG114

COAX

-6A

0.415

0.08

185

MIL-SPEC

M17/60-RG142

COAX

-1

-012

0.200

0.040

MIL-SPEC

M17/62-RG144

COAX

-6B

TOO LARGE

0.412

0.0525

MIL-SPEC

M17/6-RG11

COAX

-6A

-053

0.412

0.050

MIL-SPEC

M17/77-RG216

COAX

-6B

0.432

0.050

MIL-SPEC

M17/84-RG223

COAX

-3

-012

0.216

0.035

MIL-SPEC

M17/86-00001

COAX

-6B

0.440

0.094

MIL-SPEC

M17/90-RG71

COAX

-2B

-015A

0.250

0.025

MIL-SPEC

M17/97-RG210

COAX

-2B

-013B

0.250

0.026

MIL-SPEC

M27500-22TE2T14

TWINAX

-45

-210

0.137

0.032

MIL-SPEC

M27500-22TN2N06

TWINAX

-29

-201

0.134

0.029

MIL-SPEC

M27500-24S82T23

TWINAX

-208

0.101

0.021

MONTROSE

9835-735

COAX

-026

0.135

0.015

MONTROSE

CDT 735A

COAX

-026

0.129

0.016

MONTROSE

IFX4385

COAX

-004

0.100

0.013

MONTROSE/CDT

CBL 1225

TWINAX

-225

0.200

0.022

124

MONTROSE/CDT

CBL 1233

COAX

-2A

-025

0.225

0.033

MONTROSE/CDT

CBL 1235

COAX

-2A

-025

0.235

0.031

MONTROSE/CDT

CBL 1288-()

COAX

-026

0.129

0.016

MONTROSE/CDT

CBL 2108

COAX

-2A

-025

0.235

0.031

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

MONTROSE/CDT

CBL 2109

COAX

-2A

-025

0.241

0.034

MONTROSE/CDT

CBL 2721

TRIAX

-7

-306

0.250

0.037

MONTROSE/CDT

CBL 2726

COAX

-026

0.133

0.016

MONTROSE/CDT

CBL 7820

COAX

-21

0.165

0.035

MONTROSE/CDT

CBL 9835-735

COAX

-026

0.136

0.014

MONTROSE/CDT

CBL 9956

TWINAX

-56

0.170

0.037

MONTROSE/CDT

CBL3340

COAX

-004

0.077

0.011

NATIONAL WIRE & CABLE

S10-9723

TWINAX

-55

-214

0.226

0.021

NAVAIR

67A37A130

COAX

-4

0.140

0.031

NAVSEA

6322369

TRIAX

-60

0.188

0.029

NORTHERN TELECOM

NT-734

COAX

-025

NORTHERN TELECOM

NT-735

COAX

-026

0.130

0.016

PIC WIRE

L8620TX

TRIAX

-60

0.178

0.035

PIC WIRE & CABLE

L2201TX

TRIAX

-25A

-306

0.250

0.038

PIC WIRE & CABLE

S33141

COAX

-41

0.272

0.067

RAYCHEM

EPD49311Q

COAX

-1

-021

0.197

0.035

RAYCHEM

10584

TRIAX

-24A

0.148

0.012

RAYCHEM

10586

TRIAX

-24A

0.148

0.012

RAYCHEM

10595

TWINAX

-204

0.133

0.025

RAYCHEM

10599

TWINAX

-24

-210

0.145

0.031

RAYCHEM

10600

TWINAX

-213

0.216

0.032

RAYCHEM

10602

TWINAX

-45

-204

0.144

0.025

RAYCHEM

10606

TWINAX

-223

0.117

0.021

RAYCHEM

10612

TWINAX

-204

0.128

0.025

RAYCHEM

10613

TWINAX

-222

0.154

0.025

RAYCHEM

10614

TWINAX

-24

-221

0.161

0.025

RAYCHEM

0024A0024

TWINAX

-24

-217

0.152

0.025

100

RAYCHEM

0528A0424

TWINAX

-47

0.116

0.015

105

RAYCHEM

10598-30-9X

TRIAX

-303

0.148

0.012

RAYCHEM

10612-24-9

TWINAX

-204

0.132

0.027

RAYCHEM

1301-TZD 101 06 UX

TWINAX

-55

-204

0.217

0.024

RAYCHEM

2524A0424

TWINAX

-212

0.172

0.025

125

RAYCHEM

2524E0311-9

TWINAX

-224

0.201

0.025

125

RAYCHEM

2524F0524

TWINAX

-218

0.148

0.025

125

RAYCHEM

2524K0524

TWINAX

-55

-224

0.194

0.025

125

RAYCHEM

2526D1114

TWINAX

-219

0.144

0.019

125

RAYCHEM

2526E1114

TWINAX

-24

-219

0.147

0.019

125

RAYCHEM

2530A0314

TWINAX

-27

-208

0.105

0.012

125

RAYCHEM

2530A1317

COAX

-63

0.203

0.013

125

RAYCHEM

44M9996-20-2/6-0

TWINAX

-24

0.157

0.039

RAYCHEM

5012A3311

COAX

-50

0.350

0.088

RAYCHEM

5012W5812

TRIAX

-61

0.437

0.089

RAYCHEM

5020A1311

COAX

-4

0.155

0.040

RAYCHEM

5020A1811

COAX

-21

0.165

0.039

RAYCHEM

5021D1331

COAX

-021

0.188

0.035

RAYCHEM

5021H5331

TRIAX

-25A

0.258

0.035

RAYCHEM

5022D5112

TRIAX

-43

0.175

0.032

RAYCHEM

5022D5311

TRIAX

-43

0.175

0.032

RAYCHEM

5022E5111

TRIAX

-57

-302

0.164

0.033

RAYCHEM

5024A1311

COAX

-36

0.104

0.025

RAYCHEM

5024A1661

TWINAX

-27

0.108

0.025

RAYCHEM

5024A3111

COAX

-5

-003

0.113

0.019

RAYCHEM

5026A1111

COAX

-44

0.080

0.019

RAYCHEM

5026A1614

COAX

-44

0.080

0.019

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

RAYCHEM

5026A1664

TWINAX

-49

0.085

0.019

RAYCHEM

5026D5314

TRIAX

-23

0.132

0.019

RAYCHEM

5028A2211-9

COAX

-44

0.013

RAYCHEM

5028A3318

COAX

-5B

-004

0.090

0.014

RAYCHEM

5030A1114

COAX

-5A

-001

0.061

0.012

RAYCHEM

5030A1214

COAX

-5A

0.061

0.012

RAYCHEM

5030A1314

COAX

-5A

0.063

0.012

RAYCHEM

5030A1318

COAX

-5A

0.063

0.012

RAYCHEM

5030A1411

COAX

-5A

0.066

0.012

RAYCHEM

5030A1511

COAX

-5A

0.066

0.012

RAYCHEM

55A1121-24

TWINAX

-27

-223

0.107

0.025

RAYCHEM

55A1122-26

TWINAX

-223

0.102

0.021

RAYCHEM

7028A5518

TRIAX

-26

0.143

0.015

RAYCHEM

7520A1311

COAX

-52

-024

0.241

0.040

RAYCHEM

7522A1311

COAX

-023

RAYCHEM

7522D5311

TRIAX

-25A

0.269

0.031

RAYCHEM

7523D1331

COAX

-2

-013

0.246

0.023

RAYCHEM

7524A1311

COAX

-21

0.160

0.025

RAYCHEM

7524A1312

COAX

-22

0.152

0.025

RAYCHEM

7524A1811

COAX

-37

0.152

0.025

RAYCHEM

7524D5811

TRIAX

-306

0.243

0.025

RAYCHEM

7526A5311

TRIAX

-60

0.215

0.019

RAYCHEM

7526D5318

TWINAX

-59

0.167

0.020

RAYCHEM

7526J1660

TWINAX

-47

0.115

0.019

RAYCHEM

7528A1114

COAX

-36

-004

0.100

0.015

RAYCHEM

7528A1317

COAX

-5

-004

0.102

0.015

RAYCHEM

7528A5314

TRIAX

-64

-303

0.148

0.015

RAYCHEM

7528F5614

TRIAX

-303

0.141

0.015

RAYCHEM

7528G1312-7

COAX

-36

0.110

0.015

RAYCHEM

7720C8662

TWINAX

-213

0.020

RAYCHEM

7722C2664

TWINAX

-24

-210

0.143

0.032

RAYCHEM

7722C3661

TWINAX

-24

0.178

0.032

RAYCHEM

7722C3861

TWINAX

-215

0.232

0.031

RAYCHEM

7724C1664-9

TWINAX

-204

0.127

0.023

RAYCHEM

7724C3864

TWINAX

-212

0.200

0.024

RAYCHEM

7724C8664

TWINAX

-221

0.155

0.025

RAYCHEM

7724G3664

TWINAX

-45

-222

0.154

0.025

RAYCHEM

7724N0664

TWINAX

-45

-204

0.144

0.025

RAYCHEM

7726D066A

TWINAX

-27

-223

0.112

0.020

RAYCHEM

7824E0422

TWINAX

-29

-204

0.135

0.025

RAYCHEM

7826D0130

TWINAX

-29

-206

0.120

0.025

RAYCHEM

9324D0130

TWINAX

212

0.167

0.025

RAYCHEM

9528A1317

COAX

-026

0.137

0.015

RAYCHEM

9528A1417

COAX

-026

0.137

0.015

RAYCHEM

9528A1517

COAX

-026

0.137

0.015

RAYCHEM

9528D5114

TRIAX

-60

-305

0.177

0.015

RAYCHEM

9530A5117

TRIAX

-24A

0.149

0.012

RAYCHEM

9530D5117

TRIAX

-56

-301

0.164

0.013

RAYCHEM

9530D5317

TRIAX

-59

0.170

0.012

RAYCHEM

9530H1118

COAX

-36

0.108

0.013

RAYCHEM

9532A5114

TRIAX

-23

0.140

0.008

RAYCHEM

9532A5314

TRIAX

-23

0.130

0.008

RAYCHEM

EPC29116C

TRIAX

-32

-309

0.152

0.017

RAYCHEM

EPD 60441

TRIAX

-25A

TOO LARGE

0.256

0.035

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

RAYCHEM

EPD22030E

TWINAX

-224

0.209

0.026

RAYCHEM

EPD22030F

TWINAX

-215

0.251

0.025

RAYCHEM

EPD22188B

TWINAX

-218

0.150

0.025

RAYCHEM

EPD26467Q

TRIAX

-23

-303

0.136

0.012

RAYCHEM

EPD27364A

TWINAX

-11

TOO LARGE

0.311

0.038

RAYCHEM

EPD29102A

COAX

-2

-013

0.243

0.023

RAYCHEM

EPD30653Q

TWINAX

-217

0.150

0.025

RAYCHEM

EPD33017Q

COAX

-5

-003

0.106

0.020

RAYCHEM

EPD33698Q

TRIAX

-32

0.142

0.015

RAYCHEM

EPD33727Q

TRIAX

-33

0.185

0.012

RAYCHEM

EPD38474Q

TRIAX

-13

TOO LARGE

0.330

0.022

RAYCHEM

EPD44692

TWINAX

-29

-217

0.146

0.025

RAYCHEM

EPD46270Q

TRIAX

-9

-306

0.260

0.037

RAYCHEM

EPD49317Q

COAX

-63

0.228

0.025

RAYCHEM

EPD49334Q

TRIAX

-8

TOO LARGE

0.322

0.023

RAYCHEM

EPD49336Q

TRIAX

-13A

TOO LARGE

0.322

0.023

RAYCHEM

EPD49338Q

TWINAX

-9

RAYCHEM

EPD60947Q

TRIAX

-7

0.260

0.042

RAYCHEM

EPD6314

TWINAX

-29

-201

0.136

0.025

RAYCHEM

EPD647100-01

COAX

-6B

TOO LARGE

0.433

0.088

RAYCHEM

EPD7246Q

COAX

-6A

TOO LARGE

0.406

0.048

RAYCHEM

EPD76761

TWINAX

-212

0.177

0.024

RAYCHEM

EPD8274-1

TRIAX

-13

TOO LARGE

0.314

RAYCHEM

M27500-22ML2TO8

TWINAX

-45

-204

0.134

0.028

RAYCHEM

M27500-22RC2S06

TWINAX

-217

0.145

0.025

RAYCHEM

M27500-26RC2S06

TWINAX

-47

-223

0.110

0.019

RAYCHEM

M27500-26RC2S09

TWINAX

-27

0.110

0.018

RAYCHEM

URM54

TRIAX

-13

0.327

0.023

SEIMENS

2YCYCY 0.63/3.7-75

TRIAX

-13A

TOO LARGE

0.307

0.025

SUHNER

G 04233 D-10

COAX

-2B

0.256

0.023

SUHNER

G01330HT

TRIAX

-56

0.177

0.016

SUHNER

G02262

COAX

-5

-003

0.110

0.019

SUHNER

G02332

TRIAX

-26

0.167

0.035

SUHNER

G02333

TRIAX

-59

0.169

0.010

SUHNER

G03233D

COAX

-3

0.212

0.017

SUHNER

GX03272D-06

COAX

-3

-012

0.213

0.035

SUHNER

S02223

COAX

-004

0.100

0.04

SUHNER

S04233

COAX

-2B

-014

0.243

0.034

SUMIRE

4C-HEB-NL

COAX

-25

0.236

0.035

SUMITOMO

2.5C

COAX

-22

-008

0.154

0.015

SUMITOMO

COAX

-008

0.147

0.012

SUPERIOR

FVP224

TWINAX

-9

-214

0.242

0.021

SUPERIOR ESSEX

SERIES 11

COAX

-6A

-052

0.400

0.060

TENSOLITE

8712812

TWINAX

-47

-201

TENSOLITE

10047-9219-01

TRIAX

-32

-302

0.166

0.031

TENSOLITE

1936-TX-10C2SW

TWINAX

-47

-201

0.129

0.024

TENSOLITE

24453/42810 Q-2

QUADRAX

-58

-217

0.145

0.025

TENSOLITE

24499/898X2

TWINAX

-24

-204

0.125

0.025

TENSOLITE

26433/9P175T-2

TWINAX

-27

-205

0.090

0.019

TENSOLITE

26840/9D099LV-2

TWINAX

-223

0.110

0.019

TENSOLITE

28883/31169Q-1

TRAIX

-23

0.135

0.015

TENSOLITE

28883/T290TX-1

TRIAX

-23

0.135

0.015

TENSOLITE

30852/9B2581V-1
28GA

COAX

-5A

-001

0.079

0.010

TENSOLITE

30880/4119X-1

COAX

-44

0.073

0.011

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

PPE
N

Cable Group Table

CABLE MANUFACTURER

CABLE NUMBER

CABLE TYPE

WRENCH STYLE

CRIMP STYLE

JACKET SIZE

CONDUCTOR

IMPEDANCE

TENSOLITE

30895/25L-1

TRIAX

TENSOLITE

5M2397-002

TRIAX

-23

-303

0.136

0.014

TENSOLITE

S280W502

TWINAX

-24

-218

0.154

0.023

TENSOLITE

ST5M1284-001

TWINAX

-212

0.180

0.024

TENSOLITE

STME637-2

TWINAX

-206

TEXAS INSTRUMENTS

417889-2

TRIAX

-307

0.185

0.012

TEXAS INSTRUMENTS

802857-1

TWINAX

-24

0.162

0.031

THERMATICS

11079

TWINAX

-29

-204

0.130

0.025

THERMATICS

11421

TWINAX

-223

0.104

0.019

THERMATICS

11421

TWINAX

-223

THERMATICS

425-1680-030VW-1

COAX

-013

THERMATICS

5M2022-003

TWINAX

-204

0.130

0.024

THERMATICS

8712812 (A/F DWG)

TWINAX

-47

-201

0.125

0.023

THERMATICS

NEC725-2(G)

COAX

THERMAX

68-1938TF(2)SXE

TWINAX

-223

0.104

0.019

THERMAX

77-1936TF(2)TFPA

TWINAX

-47

-201

0.125

0.024

THERMAX

983-495

COAX

-4

0.144

0.024

THERMAX

985-495

COAX

-4

0.144

0.024

THERMAX

M27500-22TG2T14

TWINAX

-29

0.132

0.031

THERMAX

RG58/BLACK

COAX

-1

-011

THERMAX

RGS-316

COAX

-5

-003

0.102

0.020

THERMAX

RGS-316

COAX

-5

-003

0.102

0.020

TIMES

2382

COAX

-6A

0.400

0.064

TIMES

2391

COAX

-41

-020

0.273

0.041

TIMES

2560

COAX

-41

0.271

0.040

TIMES

8712812

TWINAX

-47

-201

TIMES

100A

COAX

-5

-003

0.105

0.018

TIMES

2260V

COAX

-6

0.296

0.040

TIMES

2360V

COAX

-41

-020

0.273

0.040

TIMES

25B3M

COAX

-2

-014

0.242

0.031

TIMES

65555-RD316

COAX

-5

-003

0.113

0.021

TIMES

AA-2317

TRIAX

-24A

0.169

0.025

TIMES

AA-2325

TRIAX

-308

0.215

0.020

TIMES

AA-2511

COAX

-2A

0.220

0.020

TROMPETER

TWCH-78-1

TWINAX

-29

-202

0.155

0.022

TROMPETER

TWCH-78-2

TWINAX

-9

-213

0.247

0.037

TROMPETER

TWCN-124-1A

TWINAX

-29

-203

TROMPETER

TWCP-124-2

TWINAX

-9

-214

0.250

0.024

124

TROMPETER

TWCP-124-3

TWINAX

-55

-224

0.215

0.024

124

TROMPETER

TWCP-124-5

TWINAX

-226 (70MC)

0.335

0.048

124

TROMPETER

TWCP-78-1

TWINAX

-47

0.155

0.019

TROMPETER

TWCP-78-2

TWINAX

-9

-213

0.247

0.037

Note: * = Special contact customer service
For a complete listing please refer to the online catalog.

trompeterproductcatalog-html.html

Notes

trompeterproductcatalog-html.html

Part Number

Page

Index

AD1(W).................................................   47
(U)AD48................................................   33
(U)AD95................................................   38
AD131................................................... 39
AD1300................................................. 39
ADAPTERS.............................................   58
ADAPTER TABLE................................ 58-61
AD1WHD............................................... 47
ADH1(W)............................................... 47
ADM1.................................................... 50
ADM2.................................................... 50
(U)AD228..............................................   27
(U)AD48................................................. 33
AD78 (TL/FL)............................................ 6
(U)AD95................................................   38
AD158(FL).............................................. 20
(U)ADI95................................................ 38
AD378...................................................... 6
AD3158.................................................. 20
ADMW12............................................... 47
ADRMF70(TL/FL).....................................   6
ADRMF370..............................................   6
(U)ADRMF220........................................ 27
APPENDIX......................................... 66-91
BCS/C24T3D..........................................  62
BCS/C24T3W.......................................... 62
(U)BJ20.................................................. 28
(U)BJ20SL............................................... 28
(U)BJ21.................................................. 28
(U)BJ23.................................................. 28
(U)BJ24.................................................. 28
(U)BJ26.................................................. 28
(U)BJ27.................................................. 28
(U)BJ28.................................................. 28
(U)BJ29.................................................. 28
BJ30....................................................... 25
BJ31....................................................... 25
BJ38 ...................................................... 25
BJ39....................................................... 25
(U)BJ40.................................................. 34
(U)BJ41.................................................. 34
(U)BJ46.................................................. 34
(U)BJ47.................................................. 34
(U)BJ48.................................................. 33
(U)BJ49................................................... 34
BJ50........................................................ 42
BJ57........................................................ 42
BJ58....................................................... 42
BJ59........................................................ 42
BJ72(TL/FL) .............................................. 7
BJ73HS................................................... 16
BJ73(TL/FL)............................................... 7
BJ74(TL/FL)...............................................  7
BJ74C.......................................................  7
BJ74C(TL/FL).............................................  7
BJ75(TL/FL)...............................................  7
BJ76(TL/FL)...............................................  7
BJ77(TL/FL) .............................................. 7
BJ77HS...................................................  16
BJ78(TL/FL)...............................................  7
BJ78HS...................................................  16
BJ79(TL/FL)............................................... 7

BJ79C(TL/FL)............................................. 7
BJ79HS................................................... 16
BJ80....................................................... 24
BJ88....................................................... 24
BJ89....................................................... 24
BJ89F...................................................... 24
(U)BJ95................................................... 38
(U)BJ98-2............................................... 38
(U)BJ120................................................ 35
(U)BJ120SL............................................. 35
BJ150(FL)................................................. 19
BJ152(FL)................................................. 19
BJ153(FL)................................................. 19
BJ154AC(FL)............................................ 19
BJ157(FL)................................................. 19
BJ157F(FL)............................................... 19
BJ157FLHS............................................... 16
BJ157HS.................................................. 16
BJ158(FL)................................................ 19
BJ159..................................................... 18
BJ159AC................................................. 18
BJ159ACFL.............................................. 18
BJ159FL.................................................. 18
(U)BJ220................................................. 27
(U)BJ224................................................. 28
(U)BJ224-RIA.......................................... 28
(U) BJ227................................................ 28
(U)BJ228................................................. 28
BJ249..................................................... 34
BJ3459AC (P/S)....................................... 23
BJ372........................................................ 7
BJ373........................................................ 7
BJ73HS.................................................... 16
BJ374........................................................ 7
BJ374C..................................................... 7
BJ375....................................................... 7
BJ376....................................................... 7
BJ376HS................................................. 16
BJ377........................................................ 7
BJ378....................................................... 7
BJ378HS................................................. 16
BJ379....................................................... 7
BJ379C..................................................... 7
BJ380...................................................... 24
BJ388...................................................... 24
BJ389(F)................................................. 24
BJ450P(P/S)............................................ 22
BJ450R(P/S)............................................ 22
BJ450W(P/S)........................................... 22
BJ450FL(P/S)........................................... 22
BJ457P(P/S)............................................ 22
BJ457R(P/S)............................................ 22
BJ457W(P/S)........................................... 22
BJ457FL(P/S)........................................... 22
BJ459ACFL(P/S)...................................... 23
BJ459ACP (P/S)....................................... 23
BJ459ACR (P/S)....................................... 23
BJ459ACW (P/S)...................................... 23
BJ770(GL)................................................. 7
BJ803..................................................... 24
BJ833..................................................... 24
BJ88....................................................... 24

BJ883...................................................... 24
BJ893...................................................... 24
BJ893F..................................................... 24
BJ3150.................................................... 19
BJ3150HS................................................ 16
BJ3150SHS.............................................. 16
BJ3152.................................................... 19
BJ3153.................................................... 19
BJ3154AC............................................... 19
BJ3157................................................... 19
BJ3157F.................................................. 19
BJ3158.................................................... 19
BJ3159................................................... 18
BJ3159AC............................................... 18
BJ3450.................................................... 22
BJ3457.................................................... 22
BJ3459AC(P/S)........................................ 23
(U)BN23................................................. 27
BN73(TL/FL)............................................. 9
BN83...................................................... 24
BN153(FL).............................................. 20
BN373.....................................................   9
BN383.................................................... 24
BN833...................................................   24
BN3153.................................................   20
BNC Coax Connector.............................. 26
BNC Coax Tester..................................... 64
BNC TOOL/WRENCH CRIMP ASSEMBLY
ILLUSTRATIONS...................................... 72
CABLE ASSEMBLY TESTER....................... 64
CABLE CUTTING TOOL............................ 62
CABLE DISTRIBUTION PANELS................. 52
CABLE GROUP TABLE.......................... 74-91
CABLE STRIPPERS................................... 62
CBBJ26................................................... 31
(U)CBBJ29.............................................. 31
CBBJ74.....................................................  8
CBBJ79..................................................... 8
CBBJ79 (TL/FL).......................................... 8
CBBJ379................................................... 8
(U)CBBJR26(RC)...................................... 31
(U)CBBJR29(RC)...................................... 31
CBBJR39A............................................... 25
(U)CBBJR46(A)........................................ 34
(U)CBBJR49............................................ 34
CBBJR74...................................................  8
CBBJR74 (TL/FL).......................................   8
CBBJR79................................................... 8
CBBJR79 (TL/FL)........................................ 8
CBBJR159................................................ 20
CBBJR374................................................. 8
CBBJR379................................................. 8
(U)CBJR20A............................................ 30
(U)CBJR220............................................ 30
CBJ157(FL)............................................. 20
CBJ20..................................................... 30
CBJ22..................................................... 30
CBJ70(TL/FL).............................................  8
CBJ70A.....................................................  8
CBJ370..................................................... 8
CBJ3157................................................. 20
CBJE130-1, -2, -3.................................... 39

Part Number

Page Part Number

Page

trompeterproductcatalog-html.html

Index

CBJR12.................................................... 31
CBJR157 (FL)........................................... 20
CBJR3157............................................... 20
CBJR70(A).................................................  8
(U)CJ20................................................... 27
(U)CJ40.................................................. 33
(U)CJ50.................................................. 42
CJ50FL.................................................... 42
CJ70(TL/FL).............................................. 6
CJ70C(TL/FL)...........................................   6
CJ80....................................................... 24
CJ150.....................................................  18
CJ150AC................................................   18
CJ150ACFL............................................. 18
CJ150FL................................................... 18
(U)CJ220................................................. 27
(U)CJ240................................................. 33
CJ350...................................................... 42
CJ370........................................................ 6
CJ370C.....................................................  6
CJ380...................................................... 24
CJ450ACP(P/S).......................................  23
CJ450ACR(P/S).......................................  23
CJ450ACW(P/S)...................................... 23
CJ450ACFL(P/S)...................................... 23
CJ803.....................................................  24
CJ3150.................................................... 18
CJ3150AC............................................... 18
CJ3450AC(P/S).......................................  23
COAX 20/220 SERIES......................... 30-31
COAX PATCH JACKS................................  45
COAX RFI CAPS & TERMINATIONS........... 57
CONCENTRIC TWINAX 450 SERIES..... 22-23
CONNECTOR COMPATABILITY TABLES... 69-70
CRIMP TOOLS......................................... 63
CT5........................................................  63
CUSTOM CABLE ASSEMBLIES.................. 56
D HOLES................................................. 54
DIN CONNECTORS............................  36-37
DISTRIBUTION PANELS........................... 52
F CONNECTORS................................. 39-40
HDVDP/HDVDPM SERIES........................ 43
HDVDPT.................................................  43
HDVDP...................................................  43
HDVDPMT..............................................  43
HDVDPM................................................ 43
HDVDPMN.............................................  44
HDVDPN................................................  43
HERMETICALLY SEALED CONNECTORS... 16
HIGH FREQUENCY VIDEO PATCHING......  44
HP250.................................................... 51
HP304.................................................... 51
HP375.................................................... 51
HP500.................................................... 51
IMPEDANCE MATCHING ADAPTER.......... 59
J3D(WD)................................................. 46
J3E(WE)..................................................  46
J3(W)...................................................... 46
J5(W)...................................................... 46
J8(FL)...................................................... 50
J8D.........................................................  50
J9............................................................ 46

Part Number

Page Part Number

Page

J11MW...................................................  48
J11MWL.................................................  48
J11D.......................................................  48
J12.......................................................... 48
J13-R......................................................  46
J13H-R...................................................  46
J13W-R................................................... 46
J13WH-R................................................ 46
J24WMSTHF-75.....................................  45
J72.......................................................... 11
J72D.......................................................  11
J72L........................................................ 12
J72S........................................................ 11
J74-2T-R.................................................. 13
J74MST-R................................................ 13
J74T-R..................................................... 13
J94.......................................................... 41
(U)J95..................................................... 38
J150........................................................  14
J152(FL).................................................. 14
J158........................................................ 14
J308........................................................ 50
J74 SERIES............................................... 13
JSISM-120............................................... 12
LOW VSWR CONNECTORS...................... 41
LPH-50...................................................  41
LPLTR-50................................................. 15
LPLTR-75................................................. 15
LPLTRA-50.............................................. 15
LPLTRA-75.............................................. 15
LPLTRAL-50............................................. 15
LPLTRAL-75............................................. 15
LPLTW-124............................................. 15
LPLTW2TP-124....................................... 15
LPLTW2TP-78......................................... 15
LPLTW-78............................................... 15
LPLTWA-124........................................... 15
LPLTWA-78............................................. 15
LPLTWAL-124.......................................... 15
LPLTWAL-78............................................ 15
LPM-50................................................... 50
LPM-75................................................... 50
LPTR-50.................................................. 15
LPTR-75.................................................. 15
LPTRA-50................................................ 15
LPTRA-75................................................ 15
LPTRAL-50..............................................  15
LPTRAL-75..............................................  15
LPTRL.......................................................  2
LPTRL-50................................................  15
LPTRL-75................................................  15
LPTW-124..............................................  15
LPTW2TP-78..........................................  15
LPTW2TP-124........................................  15
LPTW2TPL-78......................................... 15
LPTW2TPL-124....................................... 15
LPTW-78................................................  15
LPTWA-124............................................  15
LPTWA-78..............................................  15
LPTWAL-124........................................... 15
LPTWAL-78............................................. 15
LPTWL-124............................................. 15

LPTWL-78............................................... 15
M22520/5-01......................................... 63
M22520/5-01/CD5#............................... 63
MIL-C-49142 QPL...................................... 5
MINIATURE COAX 20/220 SERIES....... 27-31
MINIATURE COAX 250 SERIES................. 32
MINI WECO COAX CIRCUIT BOARDS JACKS.. 31
MINI-WECO COAX PATCH JACKS............. 48
MINI-WECO COAX PATCH PLUGS............  47
MINIATURE COAX THREADED
40-240 SERIES................................... 33-34
MINIATURE PATCHING & CABLE
ASSEMBLIES....................................... 11,12
MINIATURE NORMAL-THRU
PATCH JACKS..........................................  13
N CONNECTORS..................................... 38
PATCH PLUGS......................................... 49
PATCHING PRODUCTS....................... 45-60
PCHY-L-50..............................................  41
PCH-L-50................................................ 41
PC-L-Z..................................................... 55
PCM-L-50................................................ 50
PCM-L-75................................................ 50
PCMW-L-Z..............................................  55
PCMX-L-50.............................................  50
(U)PCPX-L-Z...........................................  55
(U)PCPWX-L-Z........................................  55
PCW-L-Z.................................................  55
(U)PCWX-L-Z..........................................  55
(U)PCX-L-Z.............................................  55
(U)PCYC-L-Z............................................ 55
(U)PCY-L-Z.............................................. 55
PHENOLIC PANELS............................  51-53
PL1C....................................................... 47
PL1MW................................................... 48
PL1MWLT................................................ 48
PL1WC...................................................  47
PL11C....................................................  47
PL11SC..................................................  47
PL11SCLT...............................................  47
(U)PL20..................................................  27
(U)PL21..................................................  27
PL30....................................................... 25
(U)PL40.................................................. 33
PL50....................................................... 42
PL50C..................................................... 42
PL71....................................................... 11
PL71L.....................................................  12
PL73......................................................... 6
PL73C......................................................  6
PL74........................................................  6
PL74C......................................................  6
PL74MC(FL).............................................  6
PL75(FL)...................................................  6
PL75C......................................................  6
PL75CFL...................................................  6
PL75MC...................................................  6
PL80....................................................... 24
PL93....................................................... 41
PL94....................................................... 41
(U)PL95..................................................  38
(U)PL121................................................ 35

trompeterproductcatalog-html.html

Index

(U)PL121SL............................................  35
(U)PL122................................................ 35
(U)PL123................................................ 35
PL130C................................................... 39
PL130SC................................................. 39
PL150................................................. 10,14
PL153..................................................... 20
PL153AC................................................  20
PL155..................................................... 18
PL155AC................................................ 18
PL155ACFL.............................................  18
PL155FL.................................................. 18
(U)PL220................................................ 27
(U)PL223................................................ 35
(U)PL240................................................ 33
(U)PL250................................................ 32
PL375....................................................... 6
PL375C..................................................... 6
PL375MC.................................................  6
PL380..................................................... 24
PL803..................................................... 24
PL3155................................................... 18
PL3155AC..............................................  18
PL3455AC..............................................  23
PL455ACP(P/S)....................................... 23
PL455ACR(P/S)....................................... 23
PL455ACW(P/S).....................................  23
PL4455ACF(P/S).....................................  23
PLR74C....................................................  6
PLR75C....................................................  6
PLR75CFL.................................................  6
PLR130SC............................................... 40
PLR155AC............................................... 18
PLR155ACFL ........................................... 18
(U)PLR220.............................................. 27
PLR375C................................................... 6
PLR455ACP(P/S)..................................... 22
PLR455ACR(P/S)..................................... 22
PLR455ACW(P/S).................................... 22
PLR455ACFL(P/S).................................... 22
PLR3155AC............................................. 18
PLR3455AC(P/S)..................................... 22
PN2........................................................  45
PN2A...................................................... 45
PN2C...................................................... 45
PTR-L-W.................................................. 11
PTRM-L-Z................................................ 14
PTRMX-L-Z.............................................. 14
PTRMY-L-Z.............................................. 14
PTRS-L-Z................................................. 11
PTRX-L-Z................................................. 11
PTRYL-L-Z................................................ 12
PTRY-L-Z................................................. 11
PTW-L-Z.................................................  11
PTWM-L-Z..............................................  14
PTWMX-L-Z............................................  14
PTWMY-L-Z............................................  14
PTWS-L-Z...............................................  11
PTWX-L-Z...............................................  11
PTWYL-L-Z.............................................. 12
PTWY-L-Z...............................................  11
PUSH-ON COAX 120 SERIES...................  35

Part Number

Page Part Number

Page

RFI CAPS & TERMINATIONS................ 10, 57
RFI 150-1................................................ 14
RFI 70-1.................................................. 11
RFI455(FL).............................................. 23
RFI3455.................................................. 23
RFI457(FL).............................................. 22
RFI3457.................................................. 22
RFI457(FL).............................................. 22
RT1L....................................................... 65
RT1XL..................................................... 65
RT1S....................................................... 65
RT1SS..................................................... 65
RT4L....................................................... 65
RT4S....................................................... 65
RTC-4L....................................................  65
RTR-1L.................................................... 65
RTR-1XL.................................................. 65
SERIES INSTRUCTIONS 450/3450 SERIES..... 21
SPC8P-201.............................................. 17
SPC8S-201.............................................. 17
ST1......................................................... 62
STANDARD 19” PANELS..................... 53-54
STANDARD COAX PATCH JACKS.............  50
STANDARD COAX PATCHING &
LOOPING PLUGS..................................... 49
STANDARD & MINI-WECO COAX
PATCH PLUGS.........................................  46
STANDARD PANEL SPECIFICATIONS........  51
STANDARD THREADED..........................  24
STANDARD TWINAX/TRIAX
LOOPING PLUGS..................................... 15
STC-F....................................................... 62
STC-W..................................................... 62
SUBMINIATURE 150/3150 SERIES...........  20
SUBMINIATURE BULKHEAD JACKS..........  19
SUBMINIATURE JACKS & PLUGS..............  18
SUBMINIATURE TWINAX/TRIAX
LOOPING PLUGS..................................... 15
SUBMINIATURE PATCHING...................... 14
TBJ451P.................................................. 22
TBJ451FLP..............................................  22
TBJ451P.................................................. 22
TBJ451S.................................................. 22
TBJ451FLS..............................................  22
TBJ3451(P/S).......................................... 22
TN2..........................................................  9
TN2 (TL/FL)..............................................  9
TN2 (TL/FL) A...........................................  9
TN2A.......................................................  9
TN2T........................................................  9
TNG2-R....................................................  8
TNG3-R....................................................  9
TNG451FL(P/S)....................................... 23
TNG451P(S)...........................................  23
TNG3451(P/S)........................................ 23
TNGM1-1-R...........................................  14
TNM3-Z.................................................  14
TOOLS & ACCESSORIES.....................  62-64
TOOL KIT & BULK PACKAGING................. 65
TPW-1-R................................................. 47
TPT-1-R.............................................. 11,47
TROMPETER CABLE SPECS................. 66-67

TWINAX/TRIAX CABLE ASSEMBLY
TESTER.................................................... 64
TWINAX/TRIAX CONNECTORS
70/370 SERIES.......................................  5-8
TWINAX/TRIAX CONNECTORS
150/3150 SERIES............................... 17-20
TWINAX/TRIAX CONNECTORS 450/3450
SERIES............................................... 21-23
TWINAX/TRIAX CONNECTORS 80/380
SERIES..............................................  21, 24
TWINAX/TRIAX CONNECTORS 30
SERIES..............................................  21, 25
TWINAX/TRIAX CONNECTORS/
MINIATURE PATCHING............................ 12
TWINAX/TRIAX CONNECTORS
SPECIFICATIONS....................................  2,3
TWINAX/TRIAX:PLENUM/HALOGEN
FREE CABLE SPECS.................................. 68
TWO-PIN POLARIZED 30 SERIES,
TWBNC/TWTNC..................................... 25
UADF20M110........................................  37
UADF1023M95....................................... 36
UADM20F110........................................  37
UBJ110...................................................  37
UBJ1023................................................. 36
UCBJ20F................................................  30
UCBJ29..................................................  31
UCBJ223................................................  30
UCBJ250(N/G)........................................  32
UCBJE20-1.............................................. 29
UCBJE20-2.............................................. 29
UCBBJE20-1............................................ 29
UCBBJE20-2............................................ 29
UCBBJE20-3............................................ 29
UCBBJE20-4............................................ 29
UCBBJ1023............................................. 36
UCBJR250(N/G)...................................... 32
UJ9W...................................................... 46
UPL110................................................... 37
UPL250................................................... 32
UPL1023................................................. 36
UPLR1023............................................... 36
75 OHM MINI-WECO COAX
PATCH JACKS..........................................  48
010-0097...............................................  63
010-0088...............................................  63
010-0123...............................................  64
010-0133...............................................  64
010-0208...............................................  64
105-1496...............................................  37
155-0830-1............................................ 12
305-0138.................................................  9
700-0024...............................................  62

trompeterproductcatalog-html.html

S &

DIT

ION

trompeterproductcatalog-html.html

RM
S & C

trompeterproductcatalog-html.html

Emerson Network Power
Connectivity Solutions

US Headquarters

3000 Lakeside Drive, Ste. 308N
Bannockburn, IL 60015, USA

North America

299 Johnson Avenue, Ste. 100
Waseca, MN 56093, USA
Toll Free: 800.247.8256
Tel: 507.833.8822
Fax: 507.833.6287

ECSorders@Emerson.com

Europe, Middle East, Africa

Emerson Network Power Connectivity Solutions, Ltd.
7-13 Russell Way
Widford Industrial Estate
Chelmsford, Essex CM1 3AA
Tel: +44 1245.359.515
Fax: +44 1245.358.938

EMEAConnectivitySales@Emerson.com

Asia Pacific

Emerson Network Power Connectivity Solutions
(Shanghai) Co., Ltd.
Building 1, No. 800 ShenFu Road
XinZhliang Industry Park
Shanghai, China 201108
Tel: +86 21.5442.7668
Fax: +86 21.5442.7628

APConnectivitySales@Emerson.com

About Emerson Network Power
Connectivity Solutions

www.EmersonConnectivity.com

About Emerson

www.Emerson.com

www.EmersonNetworkPower.com/Connectivity
www.EmersonConnectivity.com

Emerson Network Power

The global leader in enabling business-critical continuity.

AC Power Systems
Connectivity
DC Power Systems

Embedded Power
Inbound Power
Integrated Cabinet

Outside Plant
Precision Cooling
Site Monitoring and Services

er T24 – Em

n N
et

rk P
ow

er C
o

nn
ec

vit
y So

PRODUCT CATALOG

Military, Space and

Testing Equipment
