Series GF
V I T R O H M
Revision 201402
VITROHM PORTUGUESA, Lda. – Est. Nacional 249-4, Trajouce – 2765-653 S. Domingos de Rana – PORTUGAL
Tel:+ 351 214 457 700 - Fax: +351 214 457 755 – Germany Sales Tel:+ 49 4121 870 103 - e-mail:
vitrohm.support@yageo.com
– www.vitrohm.com

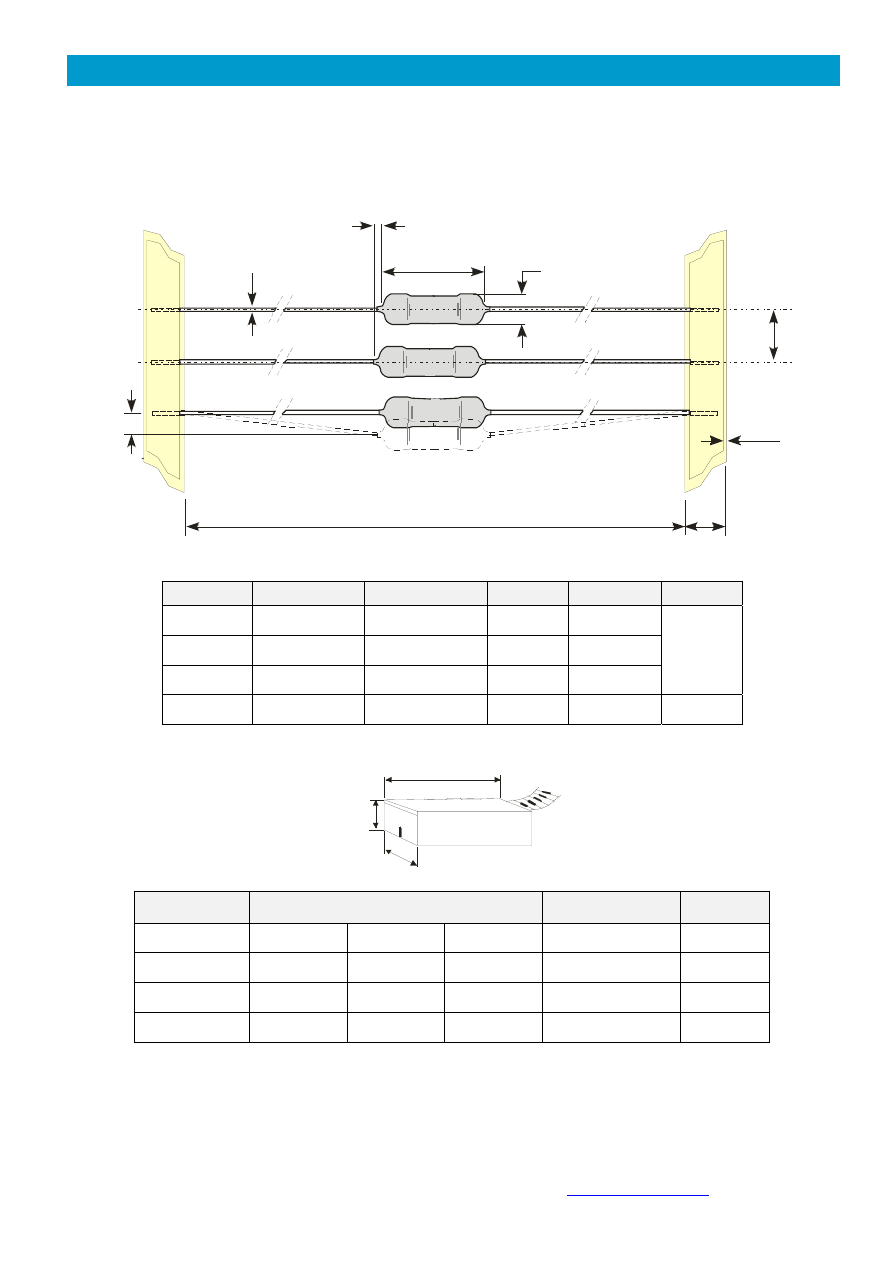

High Voltage / High Ohmic Resistors
Metalglaze Film Technology
( Replace old Serie GH )
Specifications
Type
GF0207
GF0410
GF0512
GF0616
Style
0207 0410 0512 0616
Nominal Power rating P
70
W 0,25 0,5 1,0 3,0
Resistance range
68K … 68M
Higher values on request
Tolerance
5% (J) ; 1% (F)
E-series
E24 ; E24+E96
Temperature coefficient
ppm
K
-1
± 200
Max. Working voltage
V
DC
1600
3500
5000
7000
Max. Overload voltage
V
DC
3000 7000
10000
14000
Insulation voltage (1min.)
V
DC
300
500 600 600
Derating linear
°C
70 … 155 (0W)
Climatic category
55 / 155 / 56d
Temperature range
°C -55…155
Terminal Strength ( 10 s )
N
25
Max. cont. surface temperature
ºC
155
S.T.O.L.
[
Δ
R/R] %
±2 +0,05
Damp heat, steady state
(40°C, 95% r.h., 56d)
[
Δ
R/R] %
±5 +0,05
Temperature change
[
Δ
R/R] %
±1 +0,05
Endurance (P
70
, 1000h)
[
Δ
R/R] %
±5 +0,05
Resistance to soldering heat
(350ºC, 3s, 2 ~2,5 mm)
[
Δ
R/R] %
±1 +0,05
Marking
DIN-IEC-Colour code, 4 bands or 5 bands
