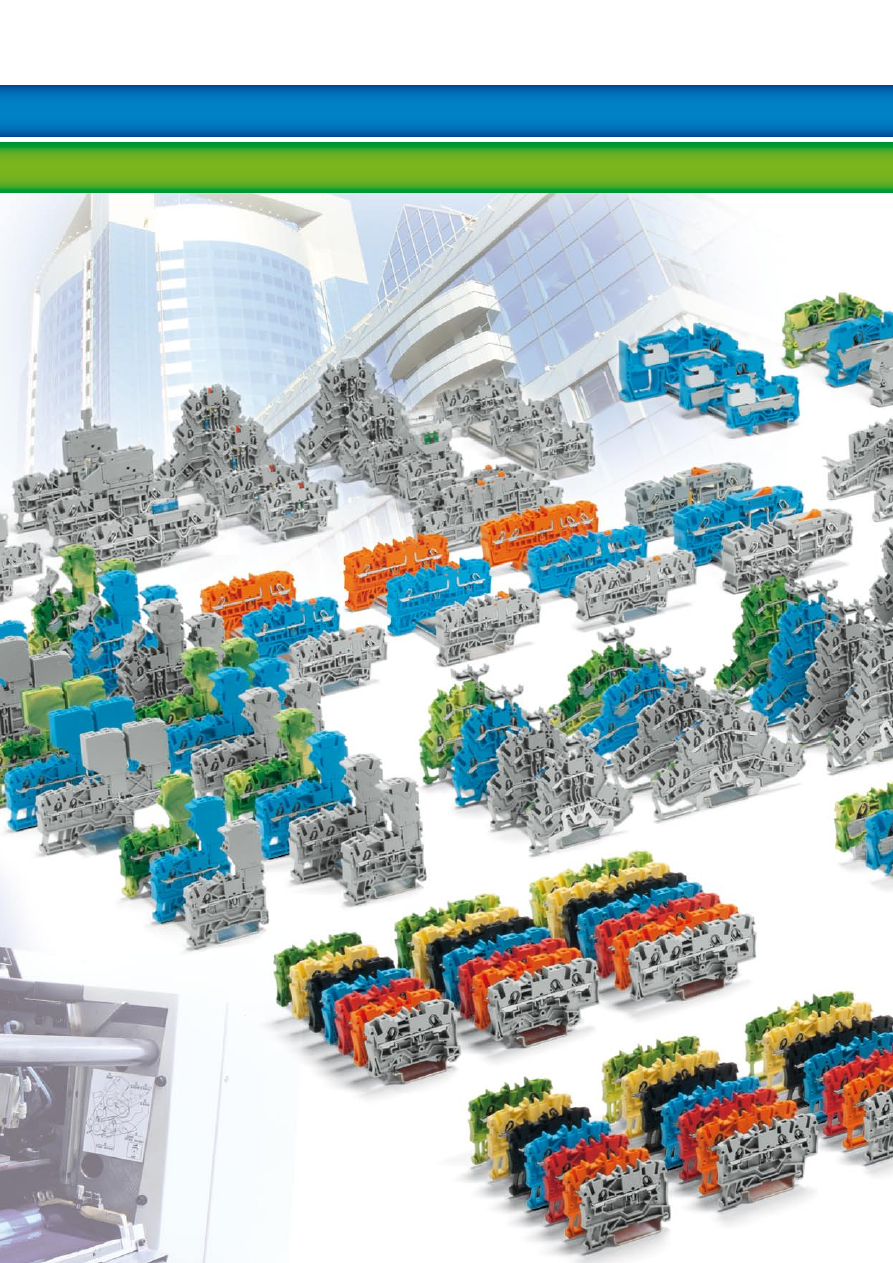

The Rail-Mounted Terminal Block System
2
The Industry‘s Largest Portfolio for Industrial,
Building and Transportation Applications
Industry‘s widest range of conductor sizes:
0.14–95 mm
2
(AWG 4/0–24)
Comprehensive range of through and function
terminal blocks
Connect all conductor types
3
TOPJOB
®
S – Vibration-Proof, Fast, Maintenance-Free
WAGO – The Spring Press ure Connection Technology

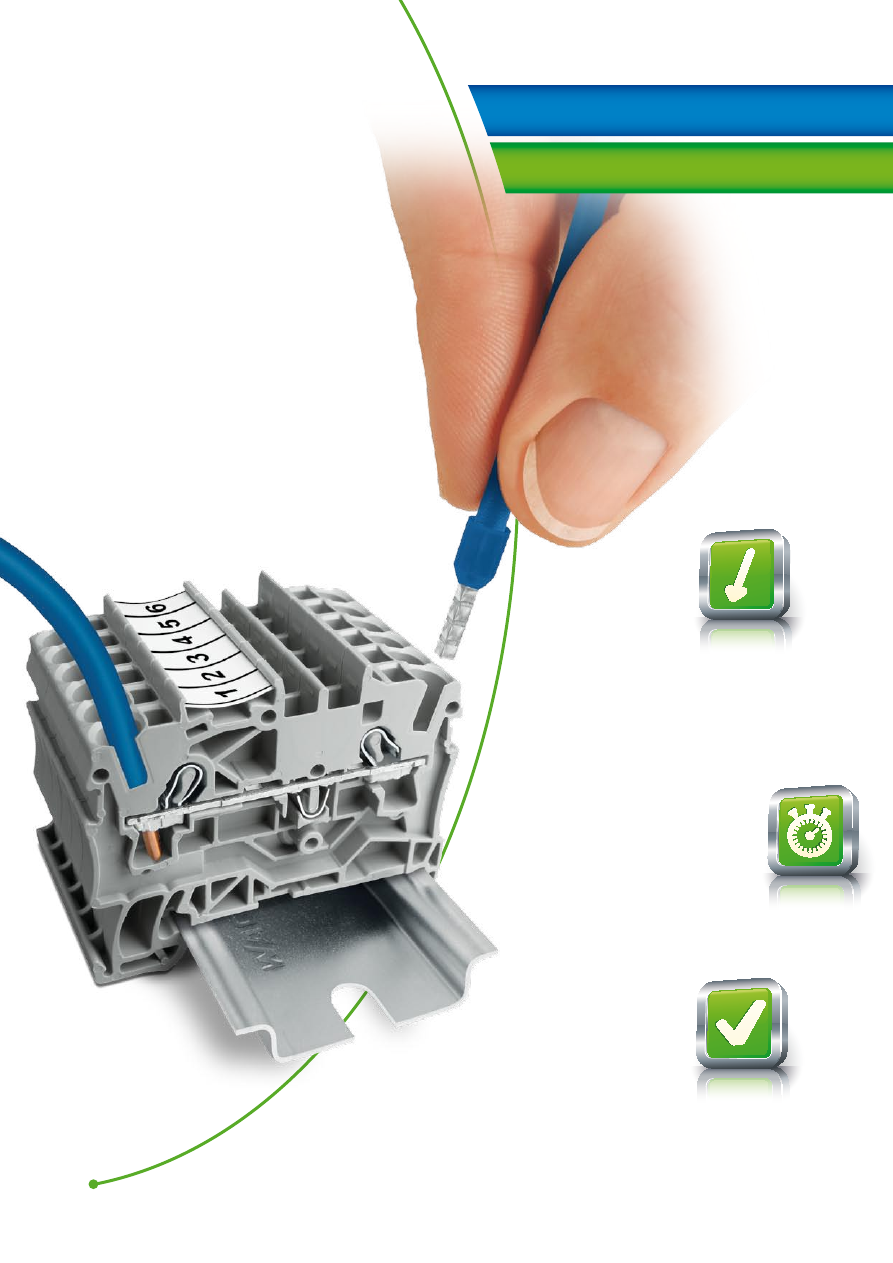

Simply
pushed in!
Simple, push-in termination of
solid and ferruled conductors –
no operating tool needed
Save time!
Simply push in – done
Always
reliable!
TOPJOB
®
S terminal blocks can be loaded with the
nominal current of the maximum conductor size –
Example: Using a 2.5 mm² (AWG 14) terminal block
with 24 A nominal current, a 4 mm² (AWG 12)
conductor without ferrule can be loaded with 32 A!
4
TOPJOB
®
S – Vibration-Proof, Fast, Maintenance-Free
Expect absolute reliability.
For decades, WAGO has
provided components featuring
proven, vibration-proof Spring
Pressure Termination Techno-
logy for demanding railway,
transportation and marine appli-
cations. Our TOPJOB
®
S spring
clamp also provides the highest
levels of long-term stability.
WAGO – The Spring Press ure Connection Technology
What does this mean for you?
Top reliability without frequent
maintenance.
TOPJOB
®
S makes wiring as
simple as child‘s play:
The innovative CAGE CLAMP
®
S
connection provides you easy
termination of all conductor types!
You are free to choose any type
of conductors: solid, stranded,
fine-stranded or ferruled!

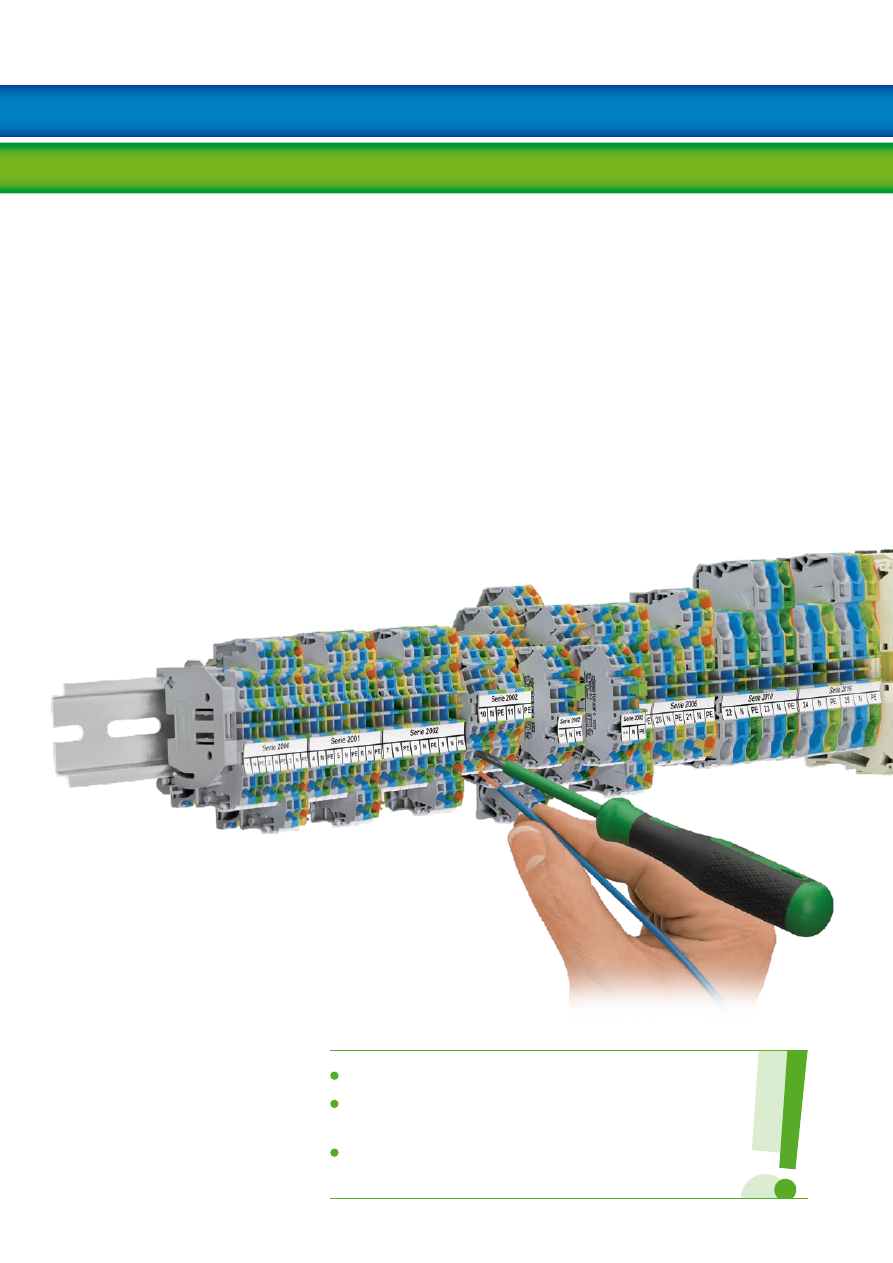

CAGE CLAMP
®
S for all conductor types
Simple, push-in termination of solid and
ferruled conductors
The operating tool is captivated, holding the clamp-
ing unit open, while the conductor is inserted.
Both hands free
for fast wiring!
5
6
The Smallest –
Just 3.5 mm
(0.138 in.) Wide
Minimized blocks maximize cabinet space.
In Between –
At 2.5 mm
2
(AWG 14) Conductor Size Just
4.2 mm (0.165 in.) Terminal Block Width!
Up to 1.5 mm²
(AWG 16) at 18 A!

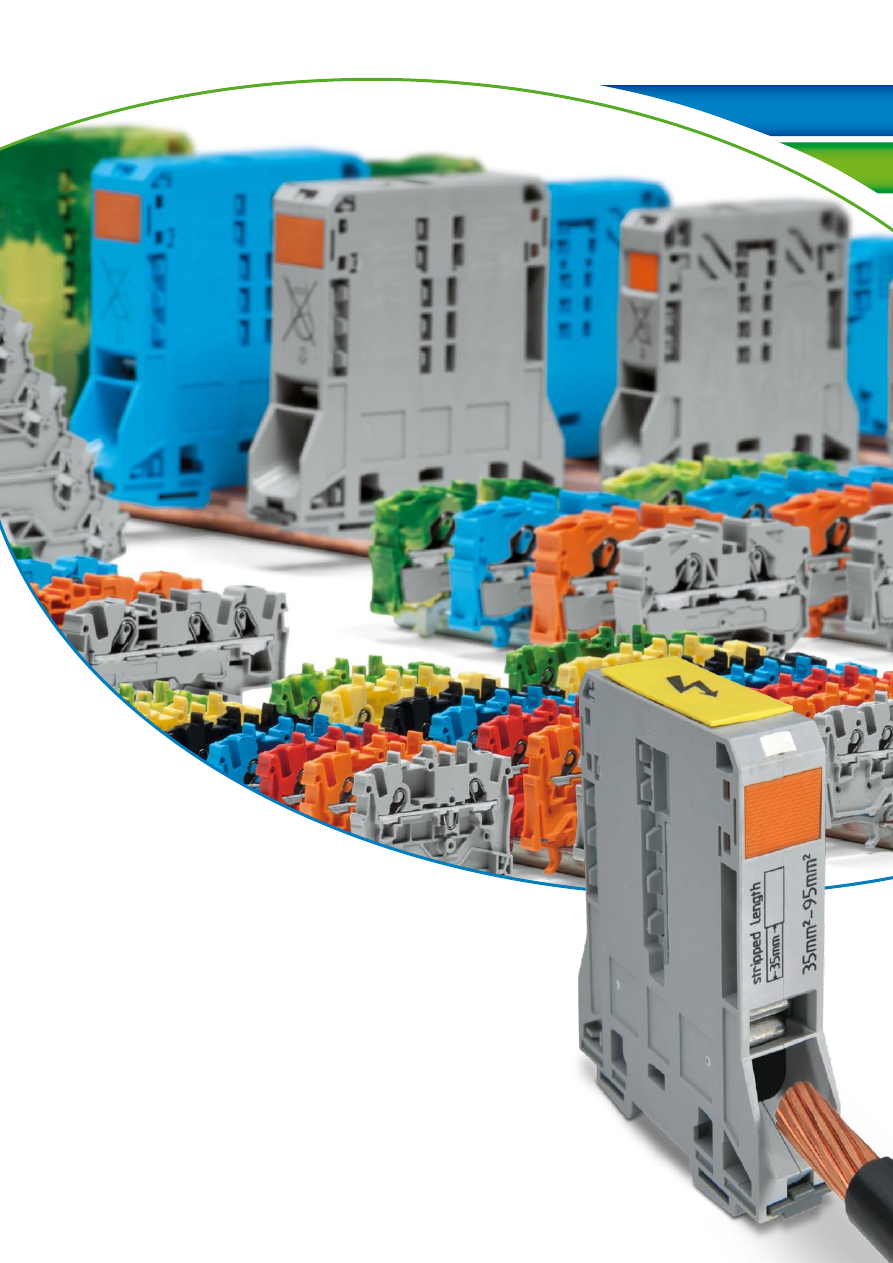

The Biggest –
Up to 95 mm
2
(AWG 4/0)
Terminate conductors with just one turn:
35 mm
•
2
(AWG 8–2) 1000 V/125 A
600 V/115 A UR CSA
50 mm
•
2
((AWG 8–2/0) 1000 V/150 A
600 V/150 A UR CSA
95 mm
•
2
(AWG 4–4/0) 1000 V/232 A
600 V UR CSA
200 A UR
•
210 A CSA
The Smallest, the Biggest and
Always the Right Terminal Blocks
Industry‘s widest range of spring-clamp
terminal blocks
For conductor sizes 0.14–95 mm
2
(AWG 4/0–24)
Full 2.5 mm² (AWG 14) conductor termination
in just 4.2 mm terminal block width
7

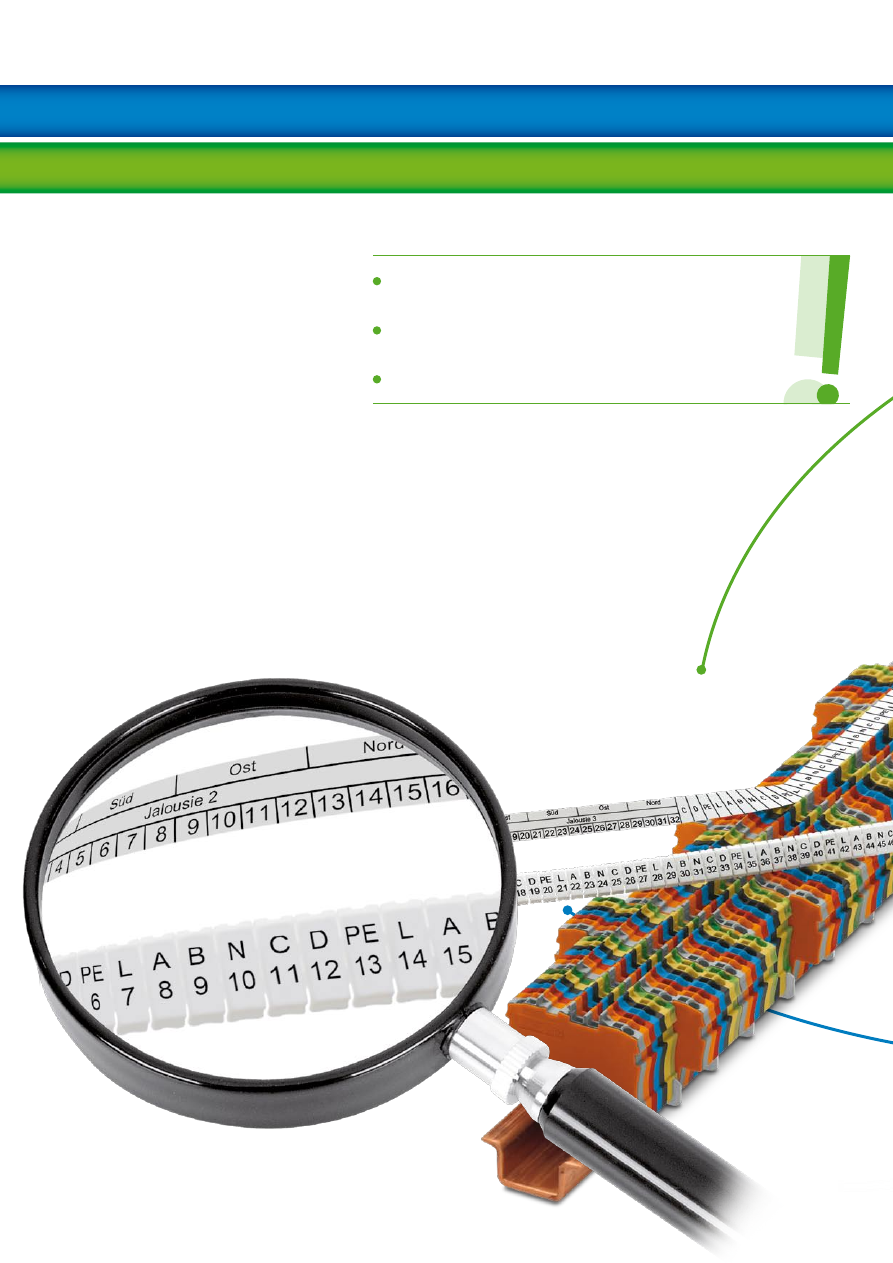

Typically WAGO –
The Fastest and Most Efficient Marking System
Inline marker slots provide
•
fast marking via WMB-Inline
markers or marking strips
Three-line marking strips for
•
clear marking
Versatile, separable WMB-
•
Inline markers can be used
on all marking levels

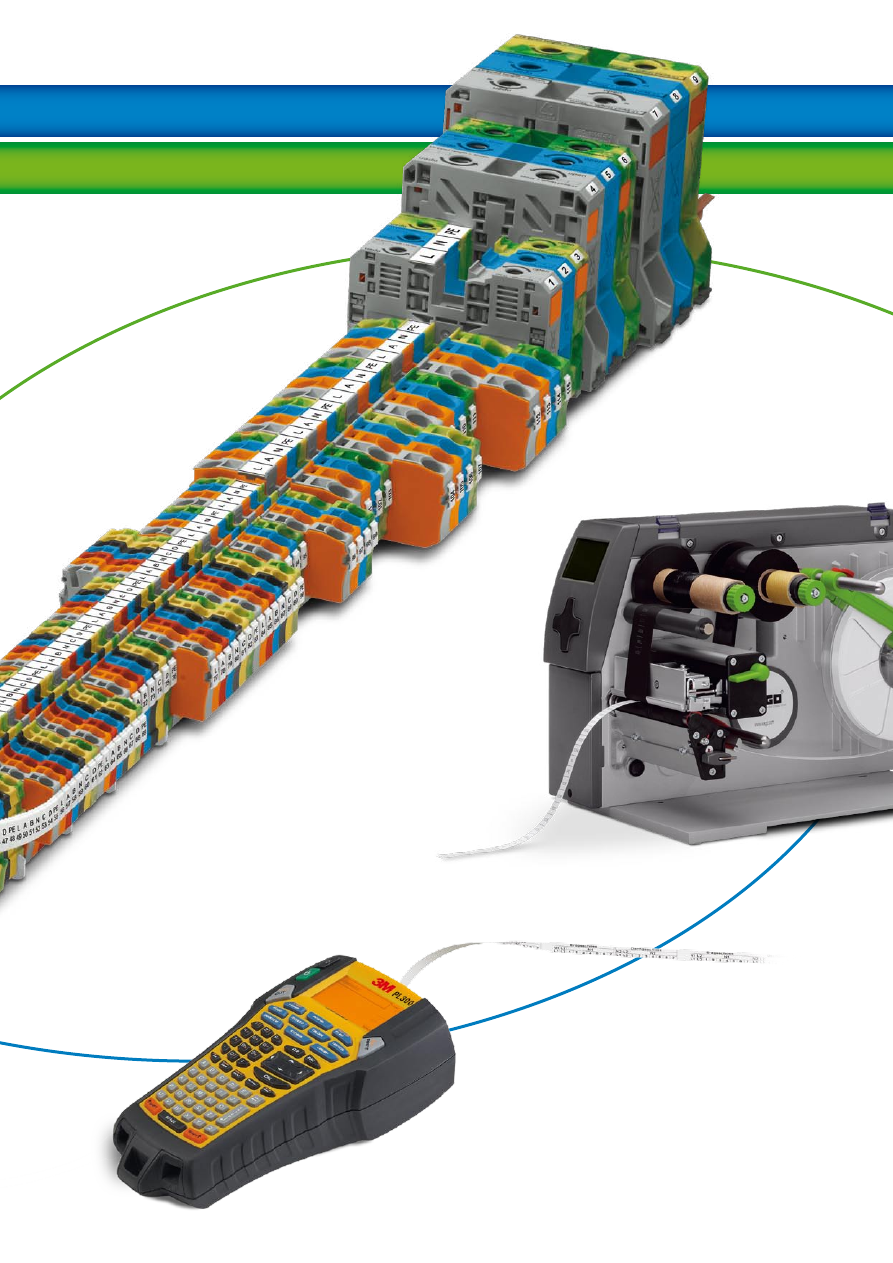

Print strips via DYMO 3M
•
PL300 portable printer –
for professional, on-site
marking with or without
software

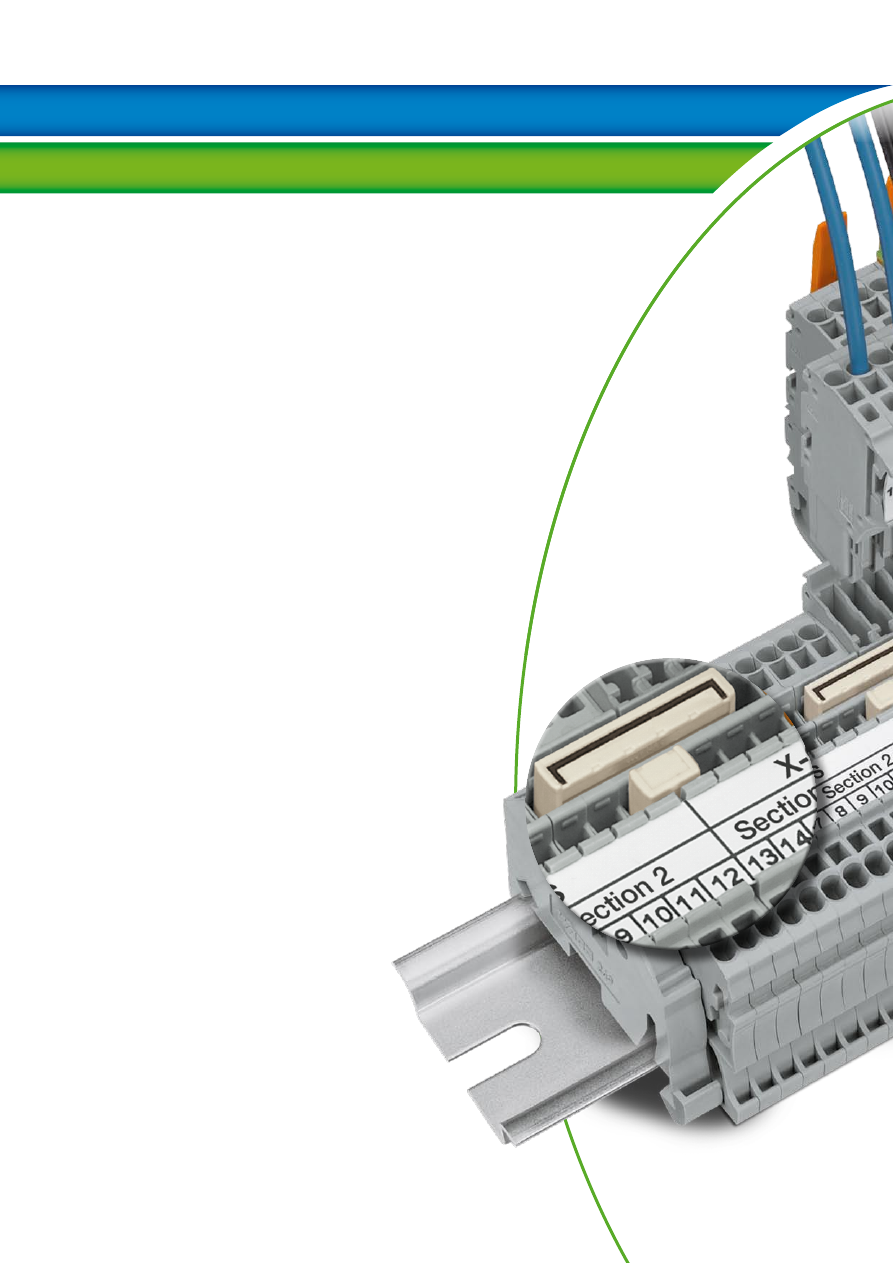

Continuous marker strip fits across
terminal blocks of different sizes
Significant time savings and easier
identification via multi-line marking
Reduces marking costs
8
9
TOPJOB
®
S Jumper System
Ready to Solve Any Commoning Tasks

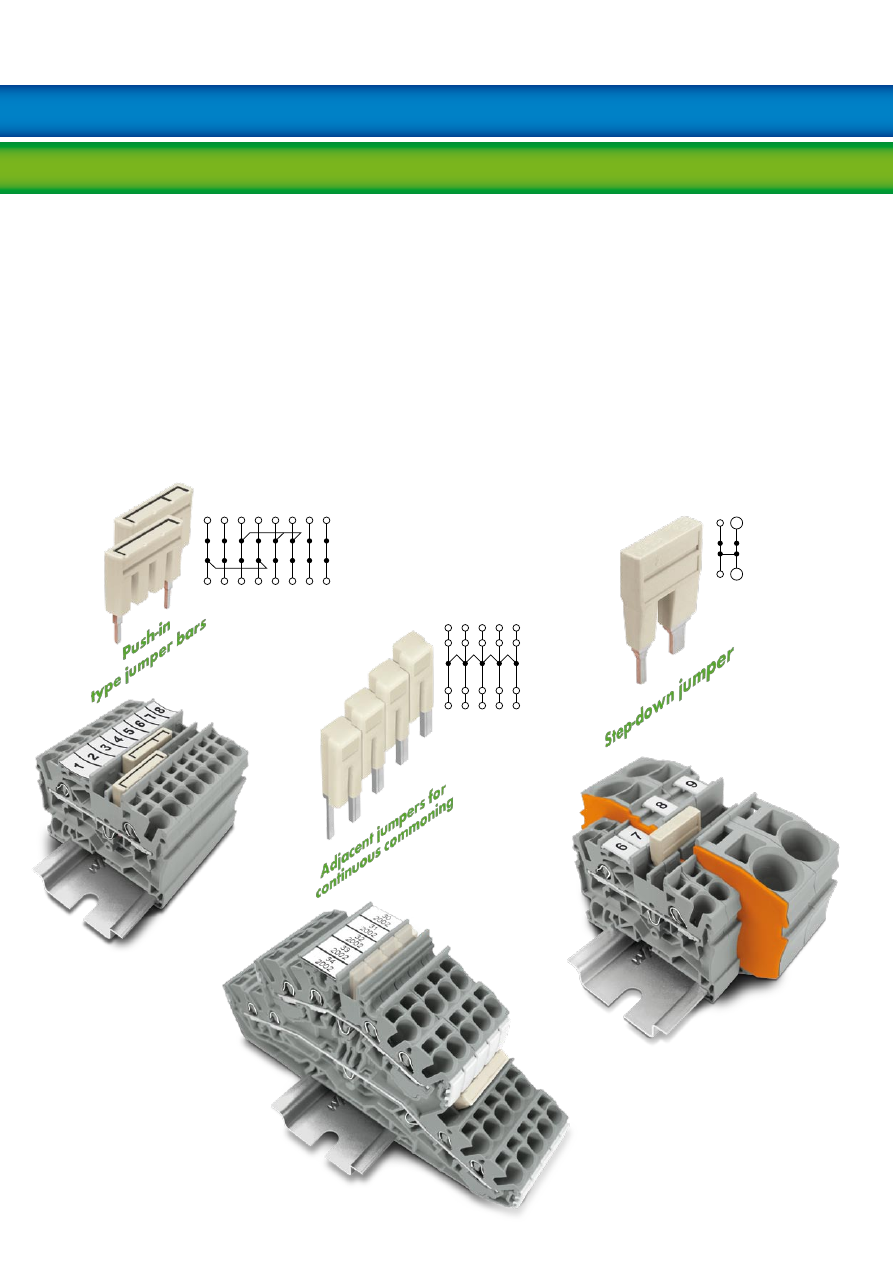

WAGO‘s range of jumpers
provide the greatest possibili-
ties and convenience:
Multi-pole,
push-in type jumper
bars
can be customized to suit
your specific needs. Tailor jumpers
by simply breaking out individual
contact lugs!
Need endless potential multipli-
cation in a single jumper slot?
With our
adjacent jumpers for
continuous commoning
, this is
possible – no problems or limits!
Our
step-down jumpers
easily
combine conductors of varying
sizes.

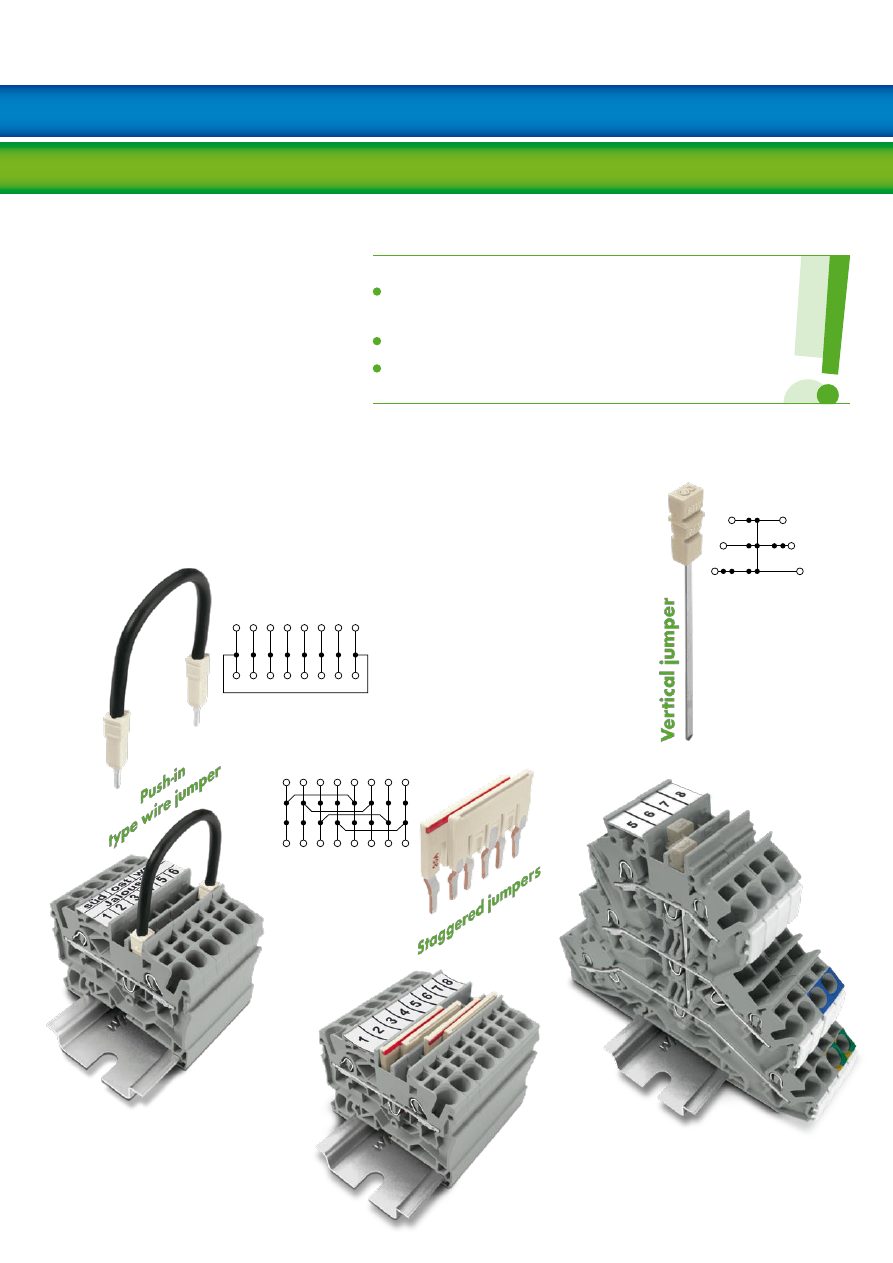

Using
push-in type wire jumpers
,
jumper contacts can be connected
with different spacing and heights
to your specific requirements.
10
Staggered jumpers
allow you
to accommodate different
potentials in a single jumper
slot along side each other.
Multi-pole, push-in type jumper
bars can be customized to suit
your specific needs.
The perfect solution for multilevel
terminal blocks:
Vertical jumpers
easily connect two or three levels.
Comprehensive jumper system
for virtually any application
Custom jumpers can be created
Simple, easy-to-use design
11
Pre-assembled units are:
Easy to test before assembly
•
Terminal blocks available in two widths:
•
3.5 mm, for conductors up to 1.5 mm²
(AWG 16)
5.2 mm, for conductors up to 4 mm²
(AWG 12)
Protection against accidental contact
•
in unmated condition
Coding provides protection against
•
mismating
Allow quick replacement of function
•
assemblies, if necessary
Clearly marked for fast and reliable
•
connections
Same profile makes X-COM
®
S
and TOPJOB
®
S compatible for:
Commoning
•
Marking
•
X-COM
®
S and TOPJOB
®
S
Create Synergies

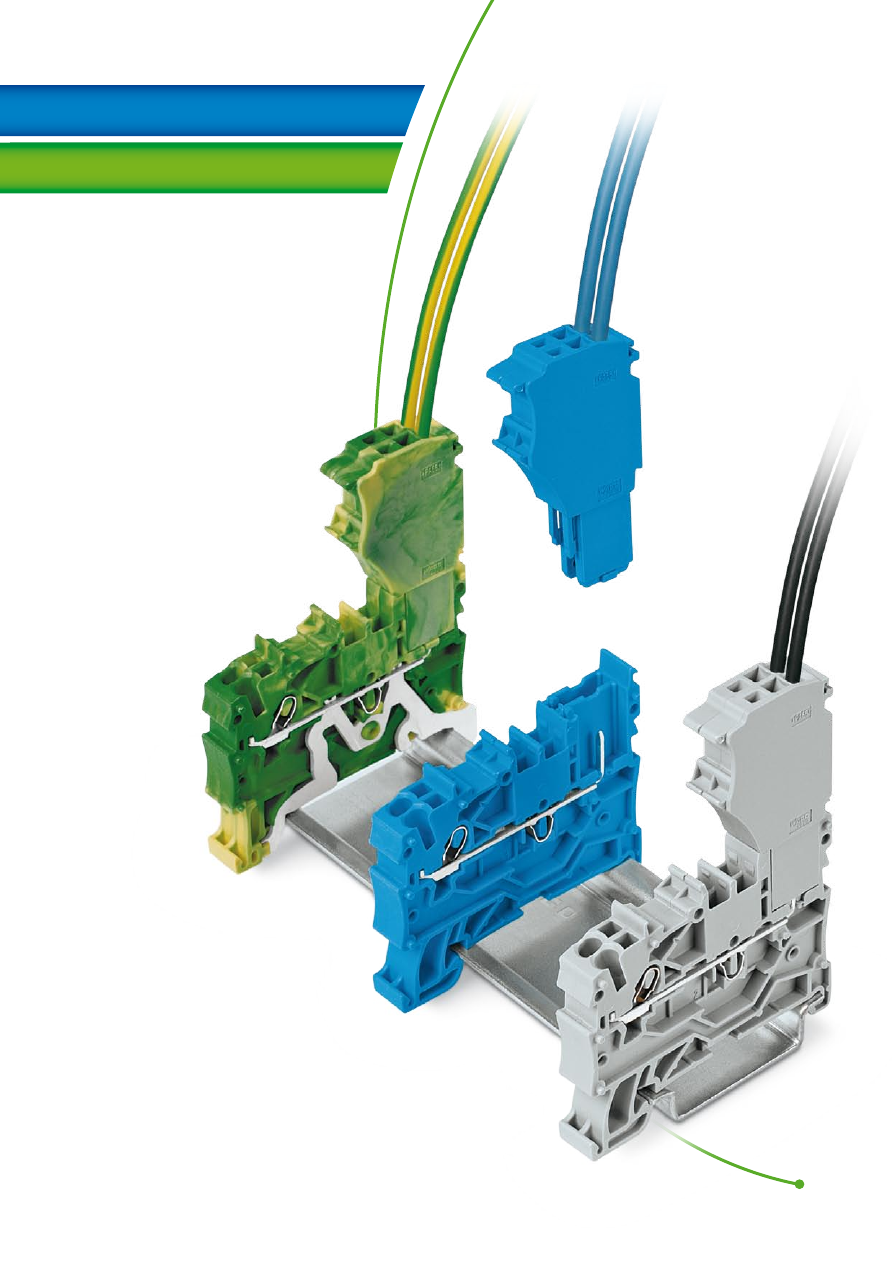

Pluggable rail-mount terminal
blocks for modular and pre-
assembled connector systems
12
Coding provides additional safety
Cost-effective, pre-assembled and tested units
Protected against accidental contact on both sides
13

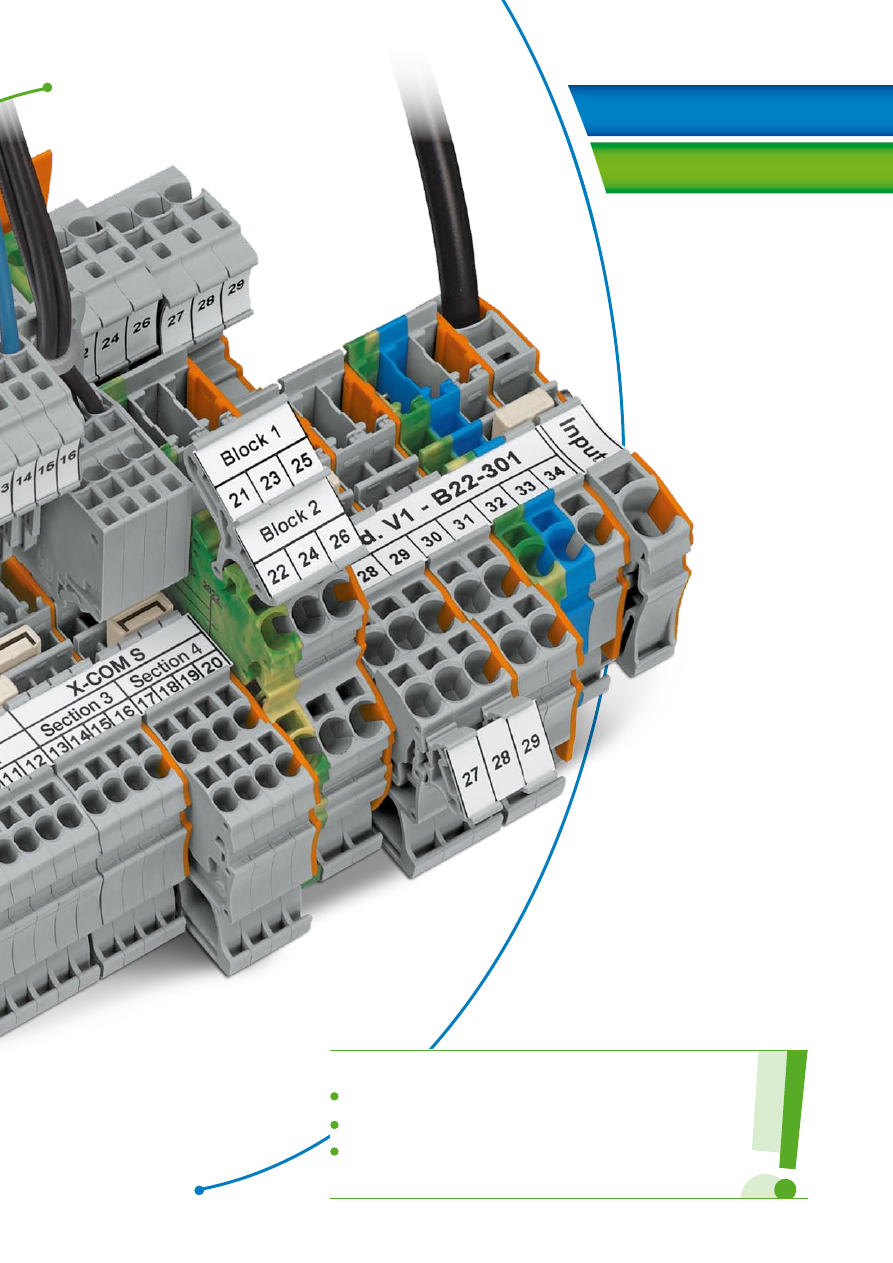

TOPJOB
®
S is Pluggable: with X-COM
®
S and
X-COM
®
S MINI Rail-Mounted Terminal Blocks
Save twice as much space with:
X-COM
•
®
S MINI Terminal Blocks
(3.5 mm wide) and
Double-Deck Terminal Blocks
•

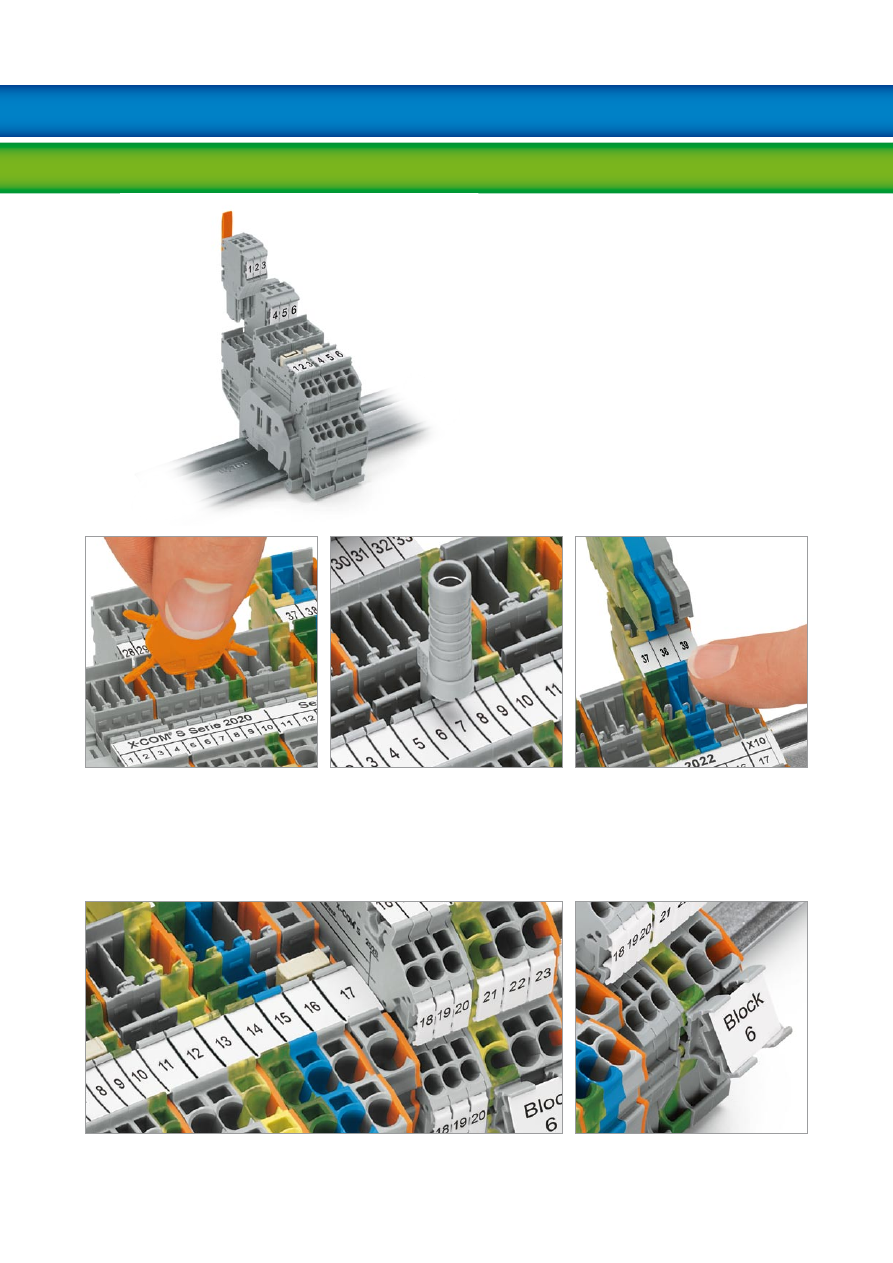

Easy coding:
Insert coding pin into the corre-
sponding slot and twist it off.
TOPJOB
®
S jumpers common X-COM
®
S terminal blocks.
An end plate provides connection to TOPJOB
®
S terminal blocks.
Snap-on type adapter is an
additional marking option.
Carrier terminal blocks and
female plugs are protected
against accidental contact.
Test plug adapter for 4 mm
test plugs – also suitable for
X-COM
®
S MINI terminal blocks.
14
14
TOPJOB
®
S is Pluggable: with X-COM
®
S and
X-COM
®
S MINI Rail-Mounted Terminal Blocks
15
15
Comprehensive Range of Fu nction Terminal Blocks –
For Specialty Applications

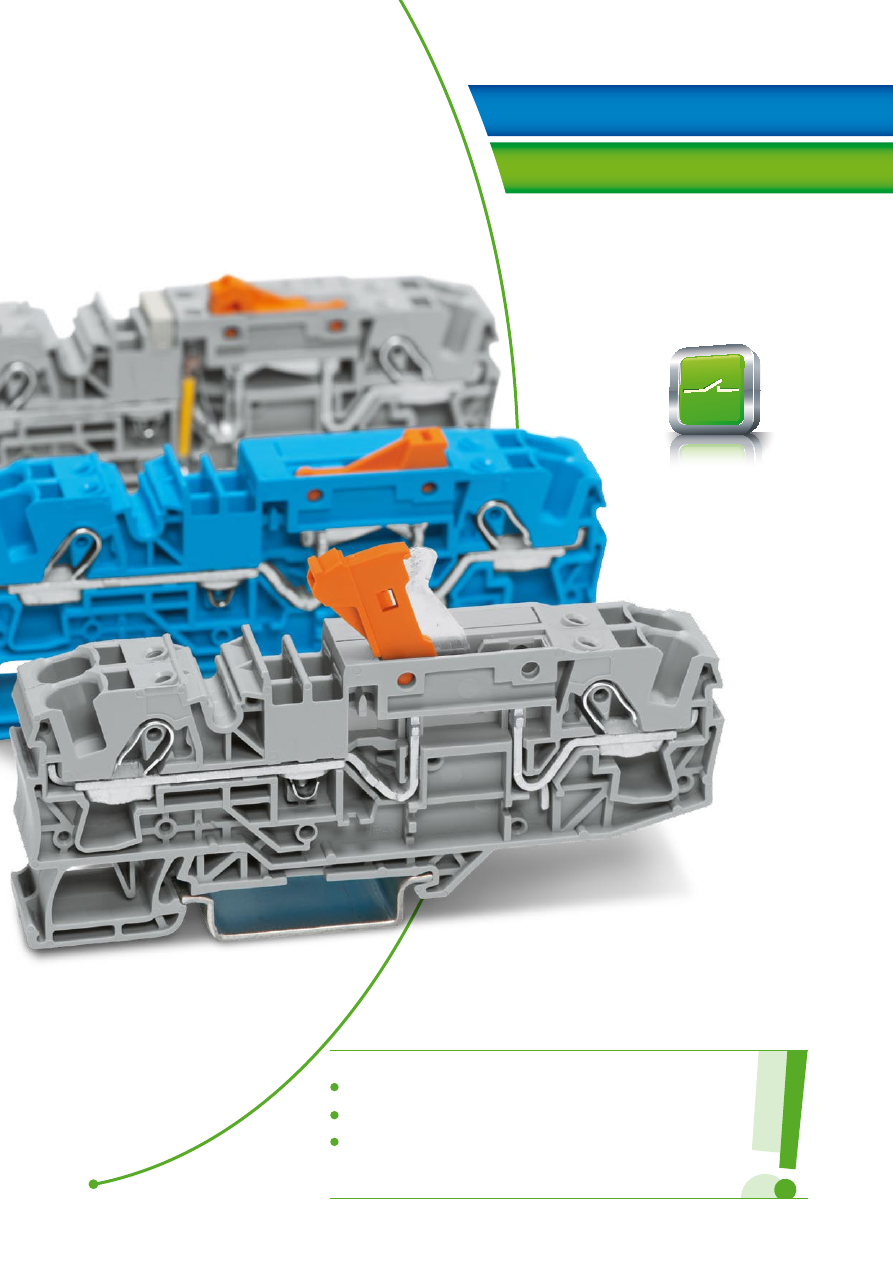

Disconnect Terminal
Blocks
Easy self-assembly of component plugs
Wide variety of function terminal blocks
Disconnect terminal block up to 1,000 V
(e.g., photovoltaic applications)
16
Comprehensive Range of Fu nction Terminal Blocks –
For Specialty Applications

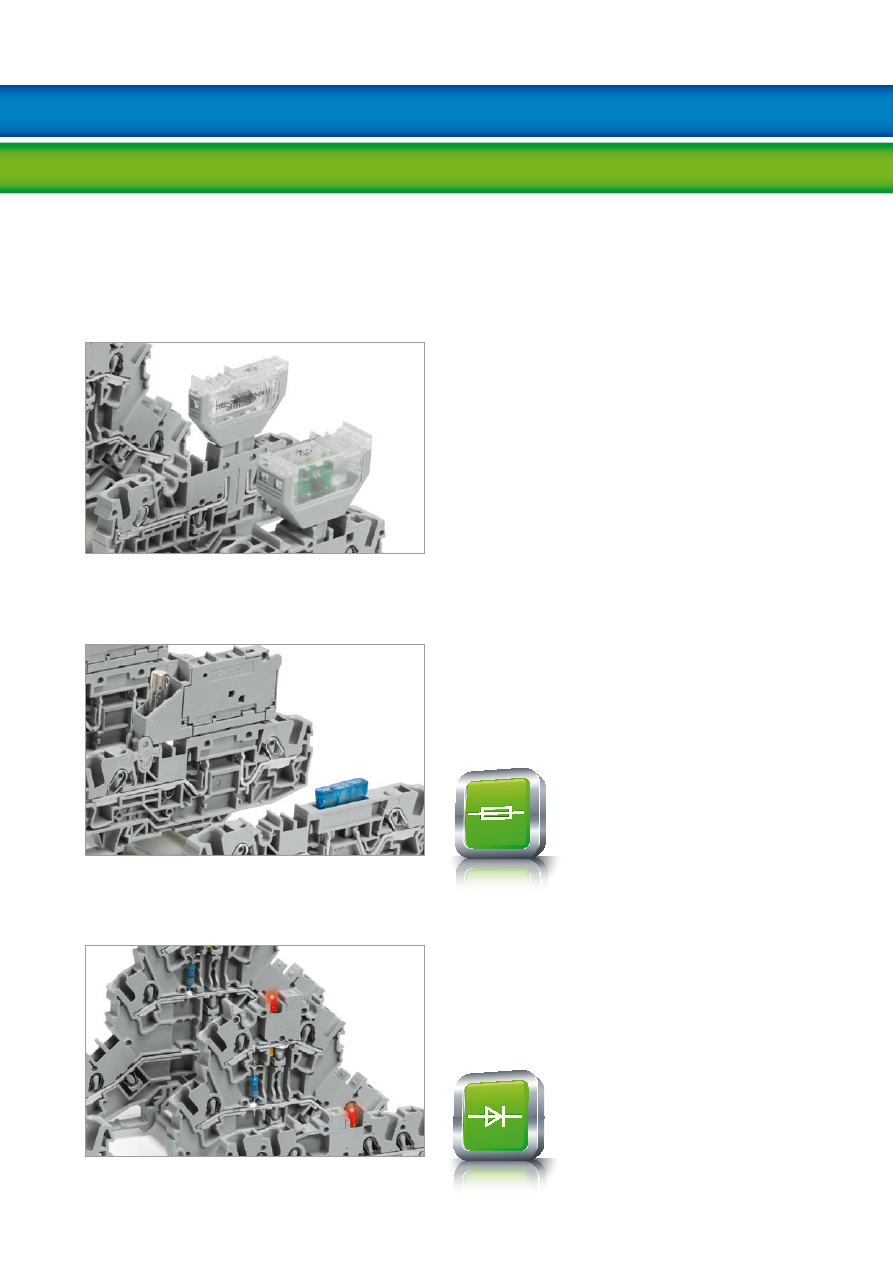

Component Plugs for Self-Assembly
Fuse Terminal Blocks
LED and Diode Terminal Blocks
17

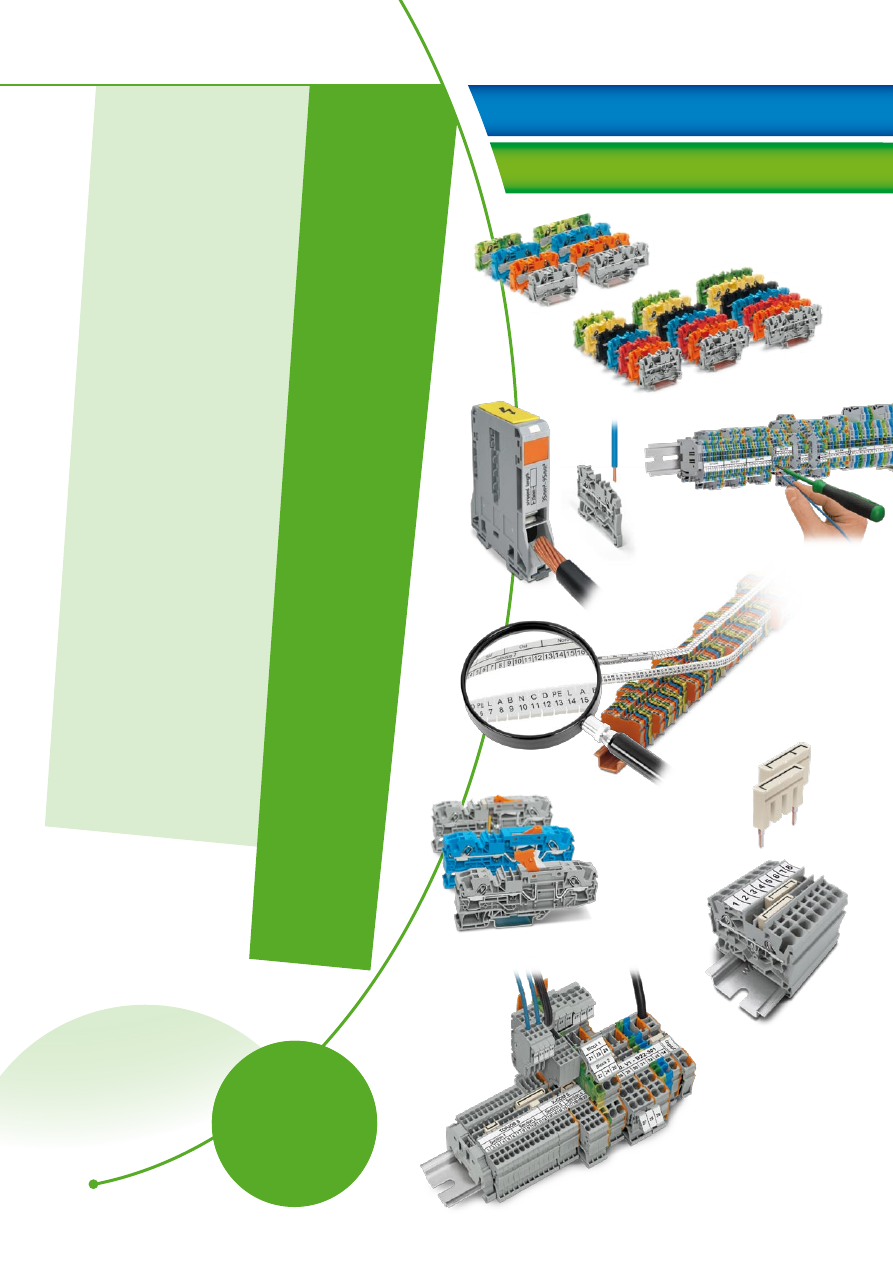

Benefits at a Glance
18
Benefits at a Glance
The Industry‘s Largest Portfolio for Industrial, Building and Transportation Applications
Industry‘s widest range of conductor sizes: 0.14–95 mm
2
(AWG 4/0–24)
Comprehensive range of through and function terminal blocks
Connect all conductor types
TOPJOB
®
S – Vibration-Proof, Fast, Maintenance-Free
WAGO – The Spring Pressure Connection Technology
CAGE CLAMP
®
S for all conductor types
Simple, push-in termination of solid and ferruled conductors
The operating tool is captivated, holding the clamping unit open,
while the conductor is inserted.
The Smallest, the Biggest and Always the Right Terminal Blocks
Industry‘s widest range of spring-clamp terminal blocks
For conductor sizes 0.14–95 mm
2
(AWG 4/0–24)
Full 2.5 mm² (AWG 14) conductor termination in just 4.2 mm
terminal block width
Typically WAGO – The Fastest and Most Efficient Marking System
Continuous marker strip fits across terminal blocks of different sizes
Significant time savings and easier identification via multi-line marking
Reduces marking costs
TOPJOB
®
S Jumper System
Ready to Solve Any Commoning Tasks
Comprehensive jumper system for virtually any application
Custom jumpers can be created
Simple, easy-to-use design
X-COM
®
S and TOPJOB
®
S Create Synergies
Coding provides additional safety
Cost-effective, pre-assembled and tested units
Protected against accidental contact on both sides
Comprehensive Range of Function Terminal Blocks –
For Specialty Applications
Easy self-assembly of component plugs
Wide variety of function terminal blocks
Disconnect terminal block up to 1,000 V (e.g., photovoltaic applications)
19
