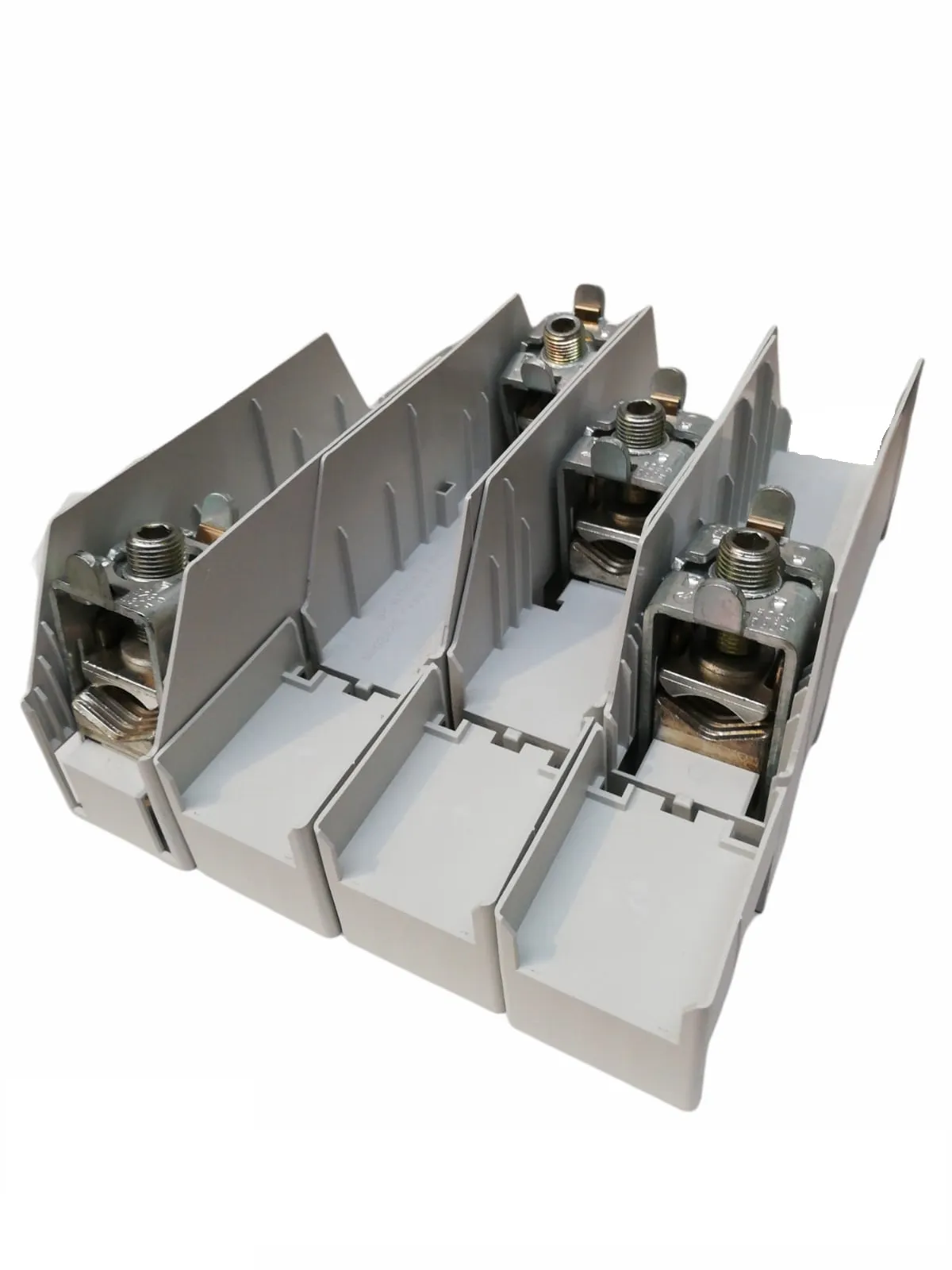

01147 Woehner Connector connection set, 4-pole, without cover 95 – 300 mm2, AWG 3/0 – 600 MCM for busbars 20, 25, 30 x 5, 10 and section busbars
Electrical data IEC
Rated current (IEC): 500 A
rated voltage (IEC) AC: 690 V
The insulation performance of the article depends on the installation conditions.
Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Whner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current capacity (IEC) max.: 560 A
rated peak withstand current Ipk max.: 50.3 kA
Details UL
Standards
UL 508
