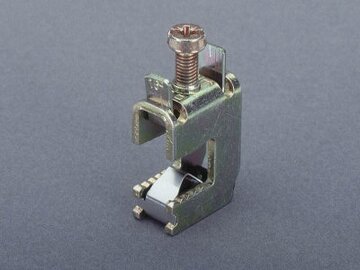

01289 Wohner Conductor Terminal for 10mm Flat Busbar 1.5-16mm2, AWG 16- 6 for Flat Busbars 10mm 180A Max.RoHS
Terminals for round American Wire Gauge (AWG) conductor are used to either supply power to or draw power from the bus bar system
Size: 12 X 23 X 25-mm
Cover caps are sold separately
flexible cables – directly or with wire end ferrule
solid and stranded round cables
H12 x W23 x D25
Electrical data IEC
Rated current (IEC): 65 A
rated voltage (IEC) AC: 690 V
The insulation performance of the article depends on the installation conditions.
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0 W.
(The power dissipation at full load would be 0 W.)
Supplementary data IEC
The following values have been verified with tests under certain conditions.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
current capacity (IEC) max.: 180 A
rated peak withstand current Ipk max.: 30.6 kA
Details UL
Standards
UL 508
suitable for field-installed conductors
Electrical data UL
rated current (UL): 65 A
rated voltage (UL) AC: 600 V
for wires UL: Cu 75C
The suitability for feeder circuits (meeting the required feeder spacings) depends on the installation conditions.
Manufacturer:Electronic Components
Datasheet:woehner_tech_01284_en.pdf
