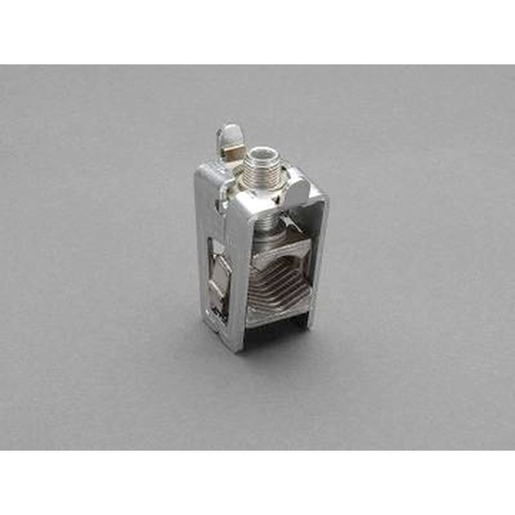

01318 Woehner Brace Clamp conductor terminal 500 A
Terminal with captive clamping screws, conductor can be overlapped, indication of nominal cross-section and tightening torque noted on the terminal. Contact between conductor and bus bar via contact block.
Expansion clamp double T profile 01 318 busbar thickness 5 … 10mm, busbar width 20 … 30mm, suitable for flat busbar, width of the clamp 38mm, max. Conductor cross section 185mm2, max. Rated operational current Ie 500A, suitable for round conductor connection,
Busbar Clamp
Busbar clamp
featureFeature details
Busbar thickness10 … 10 mm
Busbar width20 mm
Suitable forFlat rail
Width of the clamp38 mm
Max. Conductor cross section185 mm2
Max. Rated operational current Ie500 A.
Part No.: 01318 Clip Brace terminal 95 – 185 mm2 Terminal for aluminium and copper cables connected without drilling to busbars from 20 x 5 to 30 x 10, double-T- and trible-T-section System 60mm-System classic 100mm-System 185mm-System power Product Advantages Terminal with captive terminal screws, conductor can be overreached, nominal cross-section and tightening torque marked on terminal, contact between cable and busbar provided through cable bedding. Product Group Subgroup 7 20 Standards IEC / EN 60439-1 IEC / EN 60999-2 Approvals Germanischer Lloyd, GOST, CSA, UL Type No.: 518 Customs Tariff: 8536 90 10 UL File Number: E123577, Category: NMTR2, www.ul.com CSA File Number: 110285, Class Number: 3211-37, http://directories.csa-international.org The product must not be CCC certified Electrical Data Surge withstand strength 80 kA current carrying capacity of contact 500 A Mechanical Data Width x Height x Depth (mm): 38 x 51 x 70 Weight (kg/100): 31,2 terminal space 30 x 25 mm
