Description

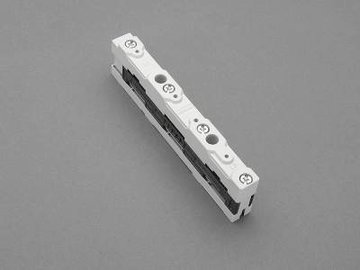

Wohner 01495 Busbar Systems Universal Busbar Support 3 Pole 60mm System
Product Details:
3 Pole with Internal Screw Holes
60mm System is Compact and a great space saver
Rated Voltage (IEC): 690vAC
H20 x W191 x D50
For Busbars 12, 15, 20, 25, 30 x 5, 10
Technical data
Details IEC
Standards
IEC 61439-1:2011
GB/T 7251.1
Electrical data IEC
rated voltage (IEC) AC:690 V
rated frequency (IEC):50 / 60 Hz
rated isolation voltage Ui AC:1000 V
rated surge voltage Uimp :8 kV
The insulation performance of the article depends on the installation conditions.
rated short-time withstand current Icw (1.0 s) max.:34.8 kA
power dissipation of the article:
The power dissipation at a typical load of 80 % of the rated current results to 0 W.
(The power dissipation for operation with rated current would be 0 W.)
Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Whner for this conditions before designing your panel.
max. permitted voltage (IEC) DC:1500 V
rated peak withstand current Ipk max.:73 kA
short-circuit capacity IEC / EN :
Ipk max. = 73kA (busbar 30×10, 2 busbar supports in 250mm distance)
go to calculation for 3-pole system (IEC)
Mechanical data
W x H x D:20 x 191 x 50
weight:12.7 kg/100
poles:3-pole
for busbars:12, 15, 20, 25, 30 x 5, 10
Material properties
Main body:temperature stability 125C,
self-extinguishing in acc. to UL 94,
creepage resistance CTI 600,
halogen-free
Screws:screw +/- (PZ2), galvanized, chromized
Reference
Torque for the screws of the busbar support Md = 4Nm
Manufacturer:Electronic Components
Datasheet:woehner_tech_01495_en.pdf
