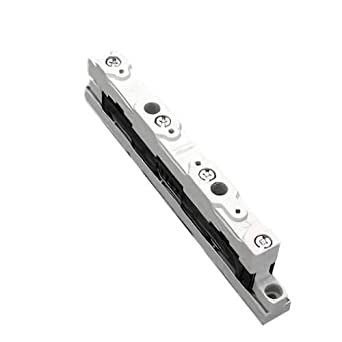

01500 Wohner universal busbar support 3-pole with additional external screw holes for busbars 12, 15, 20, 25, 30 x 5, 10 RoHS, The Industry-leading electrical power distribution system track busbar. Wohner’s Industrial-grade power distribution reduces downtime & future maintenance.
Advantages of the product
With additional external screw holes
can also be used as centre support
Details IEC
Standards
IEC 61439-1:2011
GB/T 7251.1
Electrical data IEC
rated voltage (IEC) AC: 690 V
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV
The insulation performance of the article depends on the installation conditions.
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0 W.
(The power dissipation at full load would be 0 W.)
Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Whner for this conditions before designing your panel.
max. permitted voltage (IEC) DC: 1500 V
rated peak withstand current Ipk max.: 73 kA
Mechanical data
W x H x D: 20 x 215 x 50
weight: 13.7 kg/100
poles: 3-pole
for busbars: 12, 15, 20, 25, 30 x 5, 10
Material properties
Main body: temperature stability 125C,
self-extinguishing in acc. to UL 94,
creepage resistance CTI 600,
halogen-free
Screws: screw +/- (PZ2), galvanized, chromized
Manufacturer:Electronic Components
Datasheet:woehner-01500000.pdf
