Description

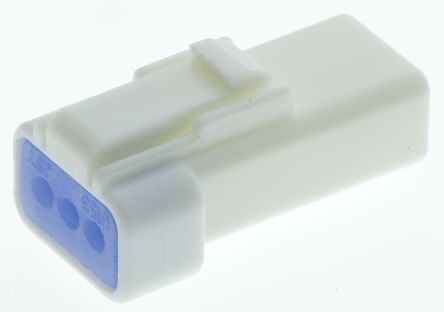

03R-JWPF-VSLE-S JST Connector Housing Male Connector Housing, 2mm Pitch, 3 Way, 1 Row, BG 3 POS 2WAY, 2MM, Product Range:JWPF Series, Gender:Receptacle, No. of Positions:3 Positions, Pitch Spacing:2mm, For Use With:JWPF Series Receptacle Contacts, Connector Mounting:Cable Mount, No. of Rows:1 RoHS
JST JWPF Series Connector Housings
The JWPF Series from JST are a range of connector housings with a 2.00mm pitch. They have been designed to be compact in size, making them ideal for use in small applications. They have a solid rubber seal at the wire side that provides IP67 waterproof protection. They are used in a wide range of applications: for light cluster units and door mirror controls within the automotive industry, appliances such as refrigeration and washing machines, lighting and low current power systems within the rail industry and across all industry for factory automation and lighting purposes.
Tab contact to be mounted in tab housing and receptacle contact to be mounted in receptacle housing.
Waterproof Wire-to-Wire Connector (JST) JWPF Series
Product Attributes
Categories Connectors, Interconnects
Rectangular Connectors – Housings
Manufacturer JST Sales America Inc.
Series JWPF
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.079″ (2.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features JIS C 0920 Grade Level 7
Note Contacts Not Included
Manufacturer:JST
Datasheet:JST/eJWPF.pdf
