Description

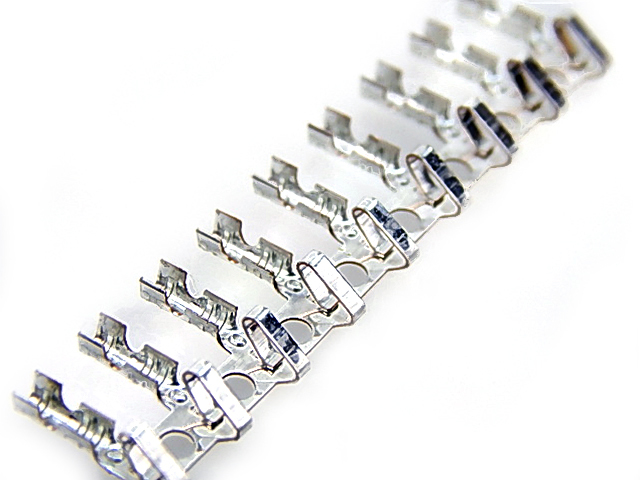

08-52-0101 Molex Pin and Socket Contact Socket, Crimp Tin Plated Contacts 22-30AWG, Reel, Phosphor Bronze Tin (Sn)
Specifications
Manufacturer: Molex
Product Category: Headers & Wire Housings
RoHS
Product: Contacts
Termination Style: Crimp
Contact Gender: Socket (Female)
Contact Plating: Tin
Series: 6459
Tradename: KK
Packaging: Reel
Application: Signal
Contact Type: Female
Current Rating: 4 A
Voltage Rating: 250 V
Brand: Molex
Contact Material: Tin
Product Type: Headers & Wire Housings
Factory Pack Quantity: 10000
Subcategory: Headers & Wire Housings
Wire Gauge: 30 AWG
Part # Aliases: 0008520101 6459-(P909) 8520101
Unit Weight: 0.002469 oz
Gender Female
Material – Metal Phosphor Bronze
Material – Plating Mating Tin
Material – Plating Termination Tin
Net Weight 0.070/g
Packaging Type Reel
Plating min – Mating 2.540um
Plating min – Termination 2.540um
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.57mm max.
Wire Size AWG 22, 24, 26, 28, 30
Manufacturer Part Number: 08-52-0101
Molex
