Description

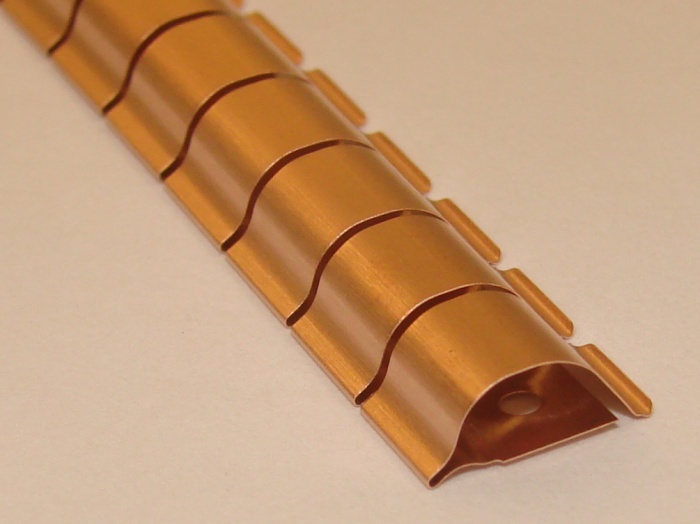

Fold Over Sub Series: 099-720-NT The All-Purpose Gasket series of parts combine a high dynamic range, very low compression force and long service life after repeated compressions. They are ideal for enclosure cabinet door applications. Part number 099-720-NT is supplied without adhesive and is available in a variety of surface finishes to accomodate mounting and mating surface finishes.
Part Number:099-720-NT-20
Number of Fingers:64
Min. Mounting:0.53
Min. Mounting:13.5
Min. Gap Size:0.06
Min. Gap Size:1.5
Max. Gap Size:0.11
Max. Gap Size:2.8
Pitch:0.250
Pitch:6.35
Slot:0.022
Slot:0.56
Finger:0.228
Finger:5.79
Width:0.38
Width:9.7
Offset:0.14
Offset:3.6
Length:16.0
Length:406.4
Thickness:0.0030
Thickness:0.076
Manufacturer: Electronic Components
MFG Part #: 099-720-NT-20
