Description

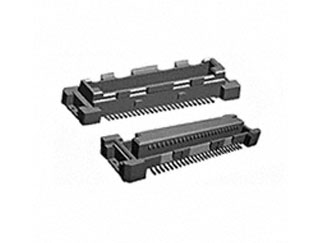

1-5353190-0 TE Connectivity / AMP Board to Board & Mezzanine Connectors Free Height Series 140 Position 0.6 mm Pitch Board-to-Board Receptacle Connector 04H REC 2X070P
The 1-5353190-0 is a 0.6 mm Free Height (FH) connectors are designed for use in the parallel stacking of printed circuit boards. These 0.6 [.024] fine pitch connectors provide the capability of varying the spacing between parallel boards, depending upon the components to be packaged or equipment designs.
Features:
Product Type = Connector
PCB Mounting Orientation = Vertical
Industry Application = ATM Machines, MFP/LBP
Centerline (mm [in]) = 0.60 [0.024]
Number of Positions = 140
Board-to-Board Stack Height (mm [in]) = 4.00 [0.157], 6.00 [0.236], 7.00 [0.276],8.00 [0.315], 12.00 [0.472]
Family Name = Free Height
Contact Layout = In-Line
Contact Base Material = Copper Alloy
Contact Plating, Mating Area, Material = Gold (8)
Connector Style = Receptacle
Applies To = Printed Circuit Board
Packaging Method = Tape & Reel
Applications:
They are best suited for applications where miniaturization is essential, such as
notebook PCs
sub-notebook PCs
pen pads
cellular
phones and communication
equipment
Manufacturer Part Number: 1-5353190-0
TE Connectivity
