Description

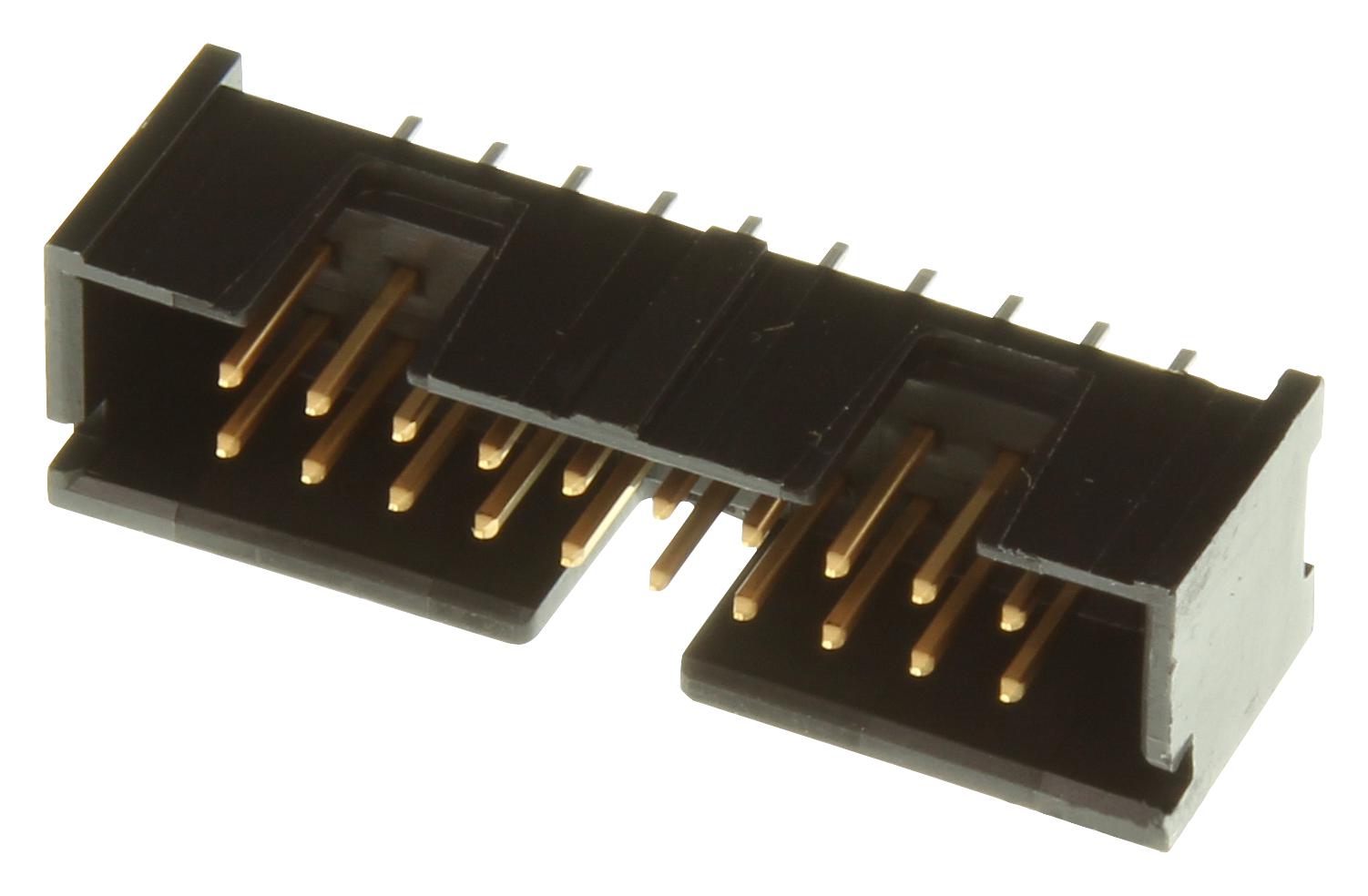

103309-5 TE Connectivity / AMP Header Conn Shrouded Header (4 Sides) HDR 20 POS 2.54mm Solder ST Thru-Hole Tube
Specifications
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
RoHS: N
Product: Headers
Type: Pin Strip
Number of Positions: 20 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Mounting Style: PCB Mount
Termination Style: Through Hole
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Termination Post Length: 3.05 mm
Series: AMP-LATCH
Tradename: AMP-LATCH
Packaging: Tube
Current Rating: 1 A
Housing Material: Thermoplastic
Brand: TE Connectivity / AMP
Contact Material: Copper Alloy
Flammability Rating: UL 94 V-0
Row Spacing: 2.54 mm
Compliance: UL, CSA
Insulation Resistance: 5000 MOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: – 65 C
Product Type: Headers & Wire Housings
Factory Pack Quantity: 75
Subcategory: Headers & Wire Housings
Part # Aliases: 103309-5
Manufacturer Part Number: 103309-5
