Description

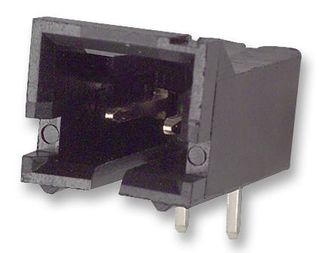

103635-7 TE Connectivity Wire-to-Board Headers & Receptacles Right Angle 8 position 0.100″ (2.54mm) Through Hole
Specifications
Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
Product: Headers
Type: Shrouded
Number of Positions: 8 Position
Pitch: 2.54 mm
Number of Rows: 1 Row
Termination Style: Through Hole
Mounting Angle: Right Angle
Contact Gender: Pin (Male)
Contact Plating: Gold
Series: AMPMODU MTE
Tradename: AMPMODU
Packaging: Tube
Current Rating: 3 A
Housing Material: Thermoplastic
Brand: TE Connectivity / AMP
Contact Material: Brass
Flammability Rating: UL 94 V-0
Row Spacing: 2.54 mm
Compliance: UL, CSA
Insulation Resistance: 5000 MOhms
Latching Type: Latched
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: – 65 C
Product Type: Headers & Wire Housings
Factory Pack Quantity: 23
Subcategory: Headers & Wire Housings
Part # Aliases: 103635-7
Manufacturer Part Number: 103635-7
TE Connectivity
