Description

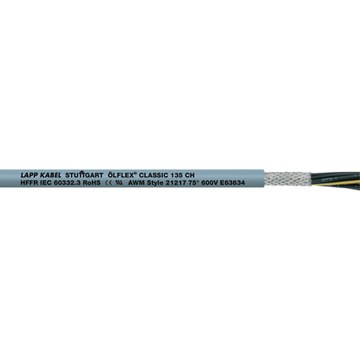

1123204 LAPP Wire OLFLEX^Number of cores and mm per conductor:4 X 0,5 Outer diameter (mm):6,6 Copper index (kg/km):49
Screened Halogen free control cable with improved fire characteristics
4 Core
Core Diameter: 0.5mm
Cable Outer Diameter: 6.6mm
Without protective conductor
Screened, Flexible Halogen Free Control Cable
With improved Fire Characteristics
For use in In EMC-sensitive environments
Flame-retardant according to IEC 60332-1-2
No flame-propagation
Halogen-free according to IEC 60754-1
Low smoke density according to IEC 61034-2
Tinned-copper braiding
Halogen-free plastic foil wrapping
Outer sheath: Special halogen-free compound
Outer Sheath Colour: Grey (similar to RAL 7001)
Reel Length: 50M
Manufacturer Part Number: 1123204
