Description

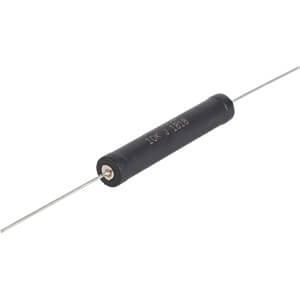

12CS-33K-J ATE Electronics 7SR Series Fixed Wirewound Resistor 15W, 33kOhm, 5% Axial
Product specifications
Resistor Type Wire Resistor
Resistance 33 kOhm
Tolerance (±) 5 %
Power Rating 15 W
Voltage Rating – DC 1.1 kV
Operating Temperature Min. -55 °C
Operating Temperature Max. 350 °C
Body Diameter 9.5 mm
Body Length 51 mm
Temperature Coefficient ±100 ppm/°C
Termination Type Axial
Mounting Type Thread Mount
General
Type Wire resistance
Design 12CS
Mounting form Axial
Tolerance 5%
Temperatur max. 350
Electrical values
Resistor 33 kOhm
Nominal load 15 W
Temperature coefficient 100
Measures
Length 51 mm
Ø 9.5 mm
Manufacturer specifications
Manufacturer ATE ELECTRONICS
Factory number 12CS-33K-J
Package weight 0.008 kg
RoHS conform
EAN / GTIN 9900002331557
ATE 12CS-33K-J
ATE ELECTRONICS wirewound resistor, series: 12CS
• Manufactured in acc. with MIL-R-26E RW56V
• welded connections
• suitable as a replacement for enameled and cemented resistors as well as resistors in ceramic case
Manufacturer:ATE Electronics
Datasheet:Others/ATE-SR-Series.pdf
