Description
Dinkle group was established on July 22, 1983 with its headquarters in Taipei, Taiwan and operates its businesses in over 40 countries. Since 1995, Dinkle started production, Electrical R&D center and CNAS certified laboratory in Kusnshan, China.
Our products are used in many industrial sectors such as Factory Automation, Process Automation, Power Automation, Railway transportation, New Energy and Equipment Manufacturing. Dinkle terminal blocks can be easily found in these industrial sectors. All Dinkle factories have received ISO 9001, ISO 14001 certificates.Dinkle’s products have various safety approvals including UL, CUL, CSA, VDE and GB, the material used for manufacturing compliant with RoHS and REACH environment standards set by EU.
With more than 30 years of production expertise, Dinkle group has excellent knowledge to make your business successful. With the support of comprehensive industry knowledge and technical skills, Dinkle aims to offer its customers the optimal product solution for its value. No matter what type of requirement it may be, Dinkle will have the ideal answer for you.
Features:
Popular 5.08mm spacing.
Vertical or right angle wire entry.
Lever on same plane as wire entry.
Fast and efficient wiring process.
1 position modular blocks.
2 pins per pole for stability.
Lever can be worked by fingers.
No exposed metal parts
Electrical
Current: 10A @250V
Wire range: 14 to 22 AWG
Pin dimension: 0.5mm x 1.0mm
Withstanding Voltage: IR: >500M ohms (500V DC)
Operating temp: -40C to+105C
Stripping length: 7.5mm
PCB holes: min 1.1mm
PCB thickness: max 2.4mm
Materials
Housing: Polyamide 6,6 Green
Spring Clamp: SUS301
Terminal: Brass, Tin plated
Lever: Polyamide, 6,6 Orange

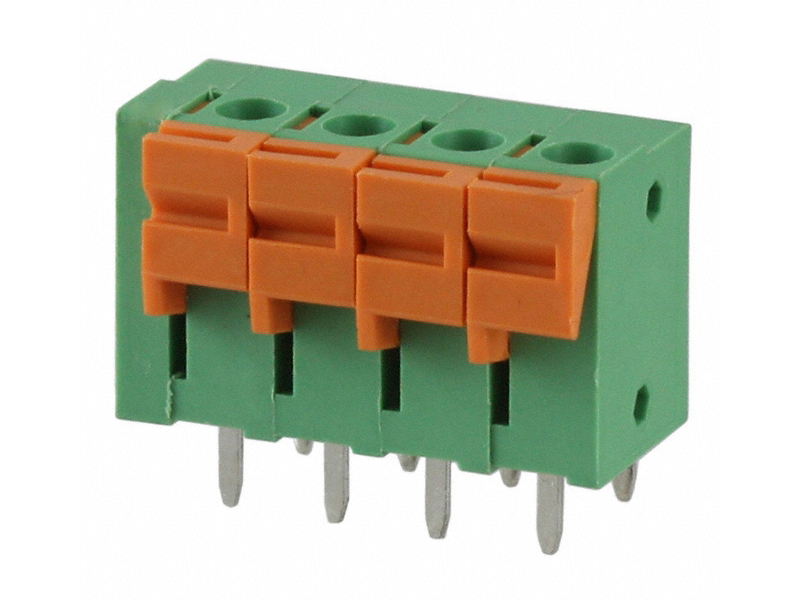

Manufacturer Part Number: 142V-07P
