Description

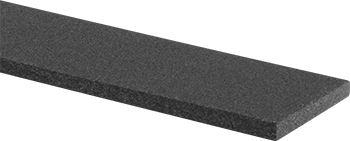

1566N107 Ultra-Weather-Resistant EPDM Foam Sheets and Strips
Construction Solid
Cross Section Shape Rectangle
Material EPDM Foam
Cell Type Closed
Flexibility Flexible
Texture Smooth
Thickness 1/16″
Thickness Tolerance -0.020″ to 0.020″
Width 2″
Width Tolerance -1/16″ to 1/16″
Length 10 ft.
Length Tolerance -1″ to 1″
Backing Type Adhesive
For Use Outdoors Yes
Temperature Range -90 to 275F
Material Surface Without Skin
Color Black
Density 18 lbs./cu. ft.
Adhesive
Type Acrylic
Temperature Range -30 to 220 F
Tensile Strength Rating Good
Tensile Strength 70 psi
Hardness Rating Soft
Pressure to Compress 25% 9 psi
Oil-Resistance Rating Not Rated
Specifications Met ASTM D1056 2A2
RoHS RoHS 3 (2015/863/EU) compliant
Manufacturer Part Number: 1566N107
