Description

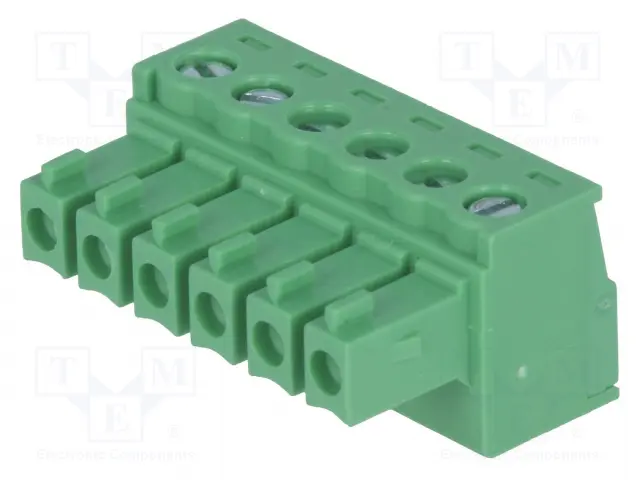

15EDGK-3.81-06P-14-00A(H) Degson Connector Pluggable Terminal Block; 3.81mm; 6 Ways Straight Plug; Female RoHS
Specification
Manufacturer : DEGSON ELECTRONICS
Type of connector : pluggable terminal block
Contacts pitch : 3.81mm
Number of ways : 6
Spatial orientation : straight
Connector : plug
Kind of connector : female
Mechanical mounting : for cable
Electrical mounting : cage clamp, screw terminal
Colour : green
Rated voltage : 250V
Current rating : 7A
Type of pin configuration : 1×6
Body material : PA66
Locking system : friction lock
Flammability rating : UL94V-0
Conform to the norm : CE, UL, VDE
Operating temperature : -40…105C
Contact material : phosphor bronze
Number of terminals : 6
Wire size : 28AWG…16AWG
Wire cross section : 0.5…1.5mm2
Gross weight: 4.725 g
Manufacturer part number: 15EDGK-3.81-06P-14-00A(H)
Manufacturer: Degson
MFG Part #: 15EDGK-3.81-06P-14
